Resilient cooperative control for optimal current sharing and voltage regulation of microgrid-based distribution network under FDI attacks

In this study, the security secondary control problems are considered for optimal current sharing and voltage restoration of a microgrid distribution network under false data injection (FDI) attacks. To solve these problems, a resilient secondary control method is provided. Specifically, a resilient secondary controller is designed by introducing an adaptive parameter based on the adaptive technique. Then, a theoretical analysis method is provided to show that the designed resilient secondary controller can ensure optimal current sharing and voltage regulation under FDI attacks.

Introduction

In recent years, microgrids (MGs) have received a lot of attention (Wang et al., 2021a; Yao et al., 2022; Wang et al., 2021c; Wang et al., 2020). Specifically, a direct current (DC) MG has been widely investigated owing to it is favorable to the alternating current (AC) MG such as higher reliability and efficiency (Dragicevic et al., 2016; Deng et al., 2022a; Liu et al., 2021). By fully utilizing the inherent DC nature of the distributed generators (DGs) and DC loads, the DC MG avoids multiple conversions between DC/AC and AC/DC to improve the efficiency. According to the current report, the DC MG has been proved to have a 10%–22% improvement in efficiency in comparison to the AC MG. For the DC MG, the control issues mainly include voltage restoration and current sharing. A hierarchical control framework including primary, secondary, and tertiary control is widely adopted to solve such control issues (Ding et al., 2020; Rui et al., 2020; Deng et al., 2021a; Wang et al., 2021b; Lin et al., 2021). The primary control rapidly responds for system disturbance based on the local controller. The secondary control is to eliminate the voltage deviation caused by primary control through certain information exchange. The tertiary control aims to achieve economic dispatch and optimal power flow (Liang et al., 2016). In this study, the secondary control in the islanded DC MG is the main focus.

Recently, distributed secondary control for voltage restoration and current sharing of the DC MG gains more attention due to its flexibility, scalability, and reliability. Compared with centralized control, distributed 26 controls need no central controller and only peer-to-peer information exchange is required (Guo et al., 2020). In recent works, many distributed controllers have been proposed. For example, a distributed finite-time controller is proposed in Guo et al. (2018a) to achieve average voltage regulation and accurate current sharing. Deng et al. (2020) introduced an event-trigger controller to significantly reduce the communication burden. In addition, a fast model predictive control is proposed (Lian et al., 2021a) to regulate the voltage and desired current flows in a DC MG, in which the proposed controller is based on a distributed alternating direction method of the multipliers method.

Although many distributed control methods have been proposed, it should be noted that all the aforementioned distributed secondary control results assume that the communication between networks is reliable. However, network communication between DGs is often sensitive to cyber attacks. Typically, the classical attack modes can be divided into false data injection (FDI) attacks (Yang and Dong, 2019; Yang et al., 2022) and denial-of-service (DoS) attacks (Deng et al., 2021; Ma et al., 2021; Yang et al., 2021; Deng et al., 2022b). FDI attacks are usually launched by attacker injecting some false data, while DoS attacks usually occur by jamming network communication. Recently, some results on FDI attacks for MGs have received considerable attention. The main focuses contain attack detection (Hetel et al., 2017; Sahoo et al., 2020; Habibi et al., 2021a), impact mitigation (Zhang et al., 2021; Habibi et al., 2021b), and resilient controller design (Jiang et al., 2021; Karimi et al., 2021; Cecilia et al., 2022). The detection problem is usually formalized as identifying a change in sets of inferred candidate invariants, which can be solved by the classic analytical method (Hetel et al., 2017; Sahoo et al., 2020) or AI-based algorithm (Habibi et al., 2021a). The attack impact mitigation is another critical concern, which can be achieved by replacing the attacked signal with a reconstructed signal (Zhang et al., 2021) or artificial neural network–based method (Habibi et al., 2021b). In addition, resilient controller design is another effective method to against FDI attacks. The existing methods include observer-based methodology (Cecilia et al., 2022), high-order differentiator–based distributed controller (Jiang et al., 2021), and adaptive controller (Karimi et al., 2021).

Note that in Habibi et al. (2021b), Jiang et al. (2021), Karimi et al. (2021), and Cecilia et al. (2022), current sharing ratios are only set as the inverse of droop gains. However, the optimal current sharing ratios may change online with the change in power generation costs and the updated user demands. Thus, how to develop an optimal current sharing method with the function of resilient the influence of FDI attacks is an interesting and open work. In proposing this method, the following challenges are encountered: 1) the existing secondary control methods for current sharing and voltage regulation are available under the condition that the secondary control information is reliable. However, under the influence of FDI attacks, the accurate information of the secondary control cannot be achieved and thus leading to the voltage deviating from the normal value and the current sharing can be also influenced. Therefore, the first challenge is how to develop a resilient control method to correct the voltage deviation and current sharing derivation caused by FDI attacks. 2) It is difficult to build a linearization model of MG and the closed-loop model of the MG becomes more complex under the influence of FDI attacks. Therefore, another challenge caused by the considered problem is how to propose a stability analysis method for the nonlinear MG under FDI attacks.

To solve this issue, a resilient cooperative control method is proposed to achieve the optimal current sharing and voltage regulation problem for MG based distribution network in the presence of FDI attacks. In this study, the main contributions can be summarized as follows.

1 Based on the designed resilient secondary control method, the DC MG both achieve optimal current sharing and restore the bus voltage simultaneously even under the influence of FDI attacks. In addition, with the help of the designed adaptive parameter, the effects of FDI attacks on MG can be eliminated, which makes the method resilient to FDI attacks. Therefore, both the resilient and the system performance can be improved.

2 Based on the Lyapunov theory, a stability analysis method is established for the overall closed-loop MG system to show that the designed resilient secondary controller can resist the influence of FDI attacks theoretically. In addition, a guideline for the controller design is introduced to facilitate implementation for the designer.

Problem formulation

In this section, the main contents will be elaborated as follows: 1) modeling of the DC MG; 2) introducing the FDI attacks; and 3) presenting the control objectives.

DC MG system

As shown in Figure 1, current and voltage control loops and droop control are the primary control of each DG in the physical layer. As known, the dynamic responses of voltage and current control are much faster than that of the droop control. Therefore, the droop control can decisively indicate the dynamics of the primary control. Based on this analysis, the model of the DG with primary control is given by

$V_m=-d_m{I}_m+V^{\ast },(1)$

where V_m represents the voltage reference of the mth DG, V^∗ is the nominal DC voltage, d_m indicates the droop gain, and I_m represents the current output. Since the voltage and current control loops have clever designs, the voltage output of the converter $V_m^o$ can track V_m rapidly. According to the aforementioned statement, V_m can be written as follows:

$V_m=V_m^o.(2)$

FIGURE 1

FIGURE 1. DC MG model under FDI attacks.

According to the relationship between DC bus voltage V_b and $V_m^o$ can be expressed mathematically as follows:

$V_b=-R_m{I}_m+V_m^o,(3)$

where R_m denotes the resistance of the line between common bus and DG. Based on Wang et al. (2021a) (3), the relationship between current I_m and the DC bus voltage V_b immediately is known:

$V_b=-\left(d_m+R_m{I}_m+V^{\ast }\right).(4)$

If the values of the line resistance R_m m = 1,2,...,N are much less than d_m, that is, R_m ≪ d_m, the following equation holds

$\frac{I_m}{I_n}=\frac{{\mathit{R}}_{\mathit{n}}+d_n}{{\mathit{R}}_{\mathit{m}}+d_m}\mathrm{\approx }\frac{d_n}{d_m},\forall i=1,\dots ,N.(5)$

If the effects of line resistance R_m in (]) is ignored, then the current sharing ratio and the droop gain d_m are inversely proportional. Nevertheless, using droop control to solve the current sharing problem also exists.

Some drawbacks, including: 1) line resistance R_m m = 1,2,...,N affect the current sharing accuracy inevitably; 2) larger droop gains d_m m = 1,2,...,N may improve the current sharing accuracy, while a larger deviation of DC bus voltage V_b may be generated; 3) with the change in operational condition of DC MG, the optimal current sharing ratio obtained from the tertiary layer will be different, and thus it does not always hold the expected relationship Figure 1.

False data injection attacks in cyber layer

In some situation, the attackers may launch FDI attacks on the control input, which will make the voltage deviates from the normal value and the current sharing can be also influenced. Under FDI attacks, the input u_m may be regulated to $u_m^a$, that is,

$u_m^a\left(t\right)=u_m+f_m,(6)$

where f_m is an unknown and time-varying attack signal injected by attackers. In this study, the FDI attacks may occur in any control input u_m, and the constrain of FDI attacks is that the attack signal f_m is bounded, that is, the following assumption is satisfied.

Assumption 1. It is assumed that $f={[f_1,f_2,\dots ,f_N]}^T$ is bounded, that is, $\left|f_m\right|\le \overline{f_m}$ with $\overline{f_m}$ being an unknown constant for m = 1,...,N.

Control objectives

From (Eq. 4), it is obvious that, since I_m ̸ = 0 when the system tends to stable, there exists error between bus voltage V_b(t) and the nominal value V^∗. Then, a secondary controller u_m will add into the mth DG, which can be summarized as follows,

$V_b=u_m-\left(d_m+R_m\right)I_m+V^{\ast }\cdot (7)$

According to the relationship among I_m, I_j, d_j, and d_m in (Eq. 5), it is known that the droop gains d_m for m = 1,2,...,N should be selected large enough to ignore the influence of line resistance R_m. Unfortunately, larger droop gains d_m will lead to larger deviation of bus voltage of (Eq. 4). In addition, optimal current sharing ratios obtained from the tertiary layer will change with the change in the external environment of the MG, which may lead to the failure of the inversely proportional. Thus, the objectives of this study can be summarized as follows;

1 Voltage restoration:

$\underset{t\to \infty }{\lim }{v}_b\left(t\right)=V^{\ast };(8)$

2 Current sharing:

$\underset{t\to \infty }{\lim }\left(\frac{I_n^{\ast }}{{\eta }_m\left(t\right)}-\frac{I_m^{\ast }}{{\eta }_n\left(t\right)}\right)=0,\forall n\ne m,(9)$

where the piecewise constant function ${\eta }_m\left(t\right)$ represents the optimal current sharing ratio obtained from the tertiary layer and $I_m^{\ast }$ represents the current value at the steady state.

Secondary current sharing and voltage regulation control

In this section, a resilient secondary current sharing and voltage restoration controller will be designed and then provide a stability analysis method based on the Lyapunov stability theory.

Resilient controller design

To achieve control objectives (Ding et al., 2020; Rui et al., 2020), the resilient controller is designed as follows:

$u_m={\displaystyle \int (\mathrm{sign}\left({\mathit{y}}_m\right)=\widehat{{\mathit{f}}_{\mathit{m}}}+{\mathit{u}}_m)\mathit{dt}}(10)$

where sign (y_m) denotes the sign function of y_m, which satisfies

$\mathrm{sign}\left({\mathit{y}}_{\mathit{m}}\right)=\{\begin{array}{c}1,\\ 0,\\ -1,\end{array}\begin{array}{c}{y}_m\mathrm{>}0,\\ y_m\mathrm{=}0,\\ y_m\mathrm{<}0.\end{array}(11)$

The symbol y_m is denoted by $y_m={\displaystyle {\sum }_{k=1}^N\overline{e_k}{\mathit{H}}_{\mathit{km}}}$ with H_km being the element in row k and column i of the matrix H (the definition of matrix H and variable e¯_k will be given later). The term f^ˆ_m(t) is an adaptive parameter and is updated by

$\widehat{f_m}={\gamma }_m\left|y_m\right|,(12)$

where the parameter γ_m is chosen as an arbitrary positive constant. To show the controller more intuitively, the secondary current sharing and voltage restoration controller will be presented in Figure 2.

FIGURE 2

FIGURE 2. Framework of the resilient secondary controller.

Remark 1. Different from the existing results on secondary control (Guo et al., 2018b; Lian et al., 2021b), a resilient secondary control method is proposed in this study. By introducing an adaptive parameter f^ˆ_m in the resilient controller u_m, the advantage of the designed controller is that the FDI attacks can be resisted, that is, the designed controller can ensure that optimal current sharing and voltage regulation can be achieved even under the influence of FDI attacks. The specific effect will be shown in the simulation section.

Stability analysis

Before giving the main result, the model of the DC MG will be firstly derived. Define e^V (t) = V^∗ − V_b(t). According to Liu et al. (2021), it has

$e^V\left(t\right)1_N=-u\left(t\right)+\left(d+R\right)I\left(t\right),(13)$

where u(t) = col{u_m(t)} and I(t) = col{I_m(t)} with col{u_m(t)} representing a column vector composed of elements u₁,u₂,...,u_N. In addition, d = diag{d_m} and R = diag{R_m} with diag{d_m} representing a diagonal matrix with diagonal elements d₁,d₂,...,d_N.

As discussed in Guo et al. (2020), it assumes that the resistance R_L integrates the loads and the resistances between lines. Then, it has

$\frac{V_b\left(t\right)}{R_L}=1_N^{T}I\left(t\right)(14)$

Substituting Guo et al. (2020) into Liang et al. (2016), one gets

$I\left(t\right)=A^{-1}u\left(t\right)+A^{-1}{V}^{\ast }{1}_N,(15)$

where the matrix $A=R_L{1}_N{1}_N^T+d+R$ is invertible, as discussed in Guo et al. (2018a). Based on Liang et al. (2016) and Guo et al. (2018a), it has

$e^V\left(t\right)1_N=-R_L{1}_N{1}_N^T{\mathit{H}}^{\mathit{-1}}u\left(t\right)+\left(d+R\right)H^{-1}{V}^{\ast }{1}_N.$

Define e¯ = αce^V (t)1_N − βLηI(t) with α = diag{α_m}, c = diag{c_m}, β = diag{β_m}, and η = diag{η_m}. Then, it has

$\dot{\overline{e}}\left(\text{t}\right)=\mathit{H}\left(\dot{\mathit{u}}+\mathit{f}\right)\text{,}(16)$

where $\mathit{H=-}\left(\alpha \mathit{c}{\mathit{R}}_{\mathit{L}}1N{1}_N^T{A}^{-1}+\beta L\eta A^{-1}\right)$ is a Hurwitz matrix (Guo et al., 2020).

Theorem 1. Consider the DC MG under FDI attacks satisfying Assumption 1. If the resilient secondary controller u_m in Deng et al. (2021a) with adaptive parameter f^ˆ_m updated by Lin et al. (2021) is used and arbitrary positive constants γ_m for m = 1,2,...,N are chosen and then the resilient optimal current sharing and voltage regulation problems can be solved, that is, the control objectives Ding et al. (2020) and Rui et al. (2020) can be achieved simultaneously.Proof: Define $V=\frac{1}{2}{\Vert \overline{e}\Vert }^2$. The derivative of V along (Deng et al., 2020) yields

$\dot{V}={\overline{e}}^{T}H\dot{u}+{\overline{e}}^{T}Hf,(17)$

where

$\begin{array}{l}{\overline{e}}^{T}H\dot{u}=\left[\overline{e}1\overline{e}1\cdots \overline{e}N\right]\left[\begin{array}{cccc}{H}_{11}& H_{12}& \cdots & H_{1N}\\ H_{21}& H_{22}& \cdots & H_{2N}\\ ⋮& ⋮& \cdots & ⋮\\ H_{N1}& H_{N2}& \cdots & H_{NN}\end{array}\right]\dot{u},\\ \left[{\displaystyle {\sum }_{k=1}^N{\overline{e}}_k{H}_{k1}}{\displaystyle {\sum }_{k=1}^N{\overline{e}}_k{H}_{k2}}\cdots {\displaystyle {\sum }_{k=1}^N{\overline{e}}_k{H}_{kN}}\right]\dot{u},\\ ={\displaystyle \sum _{m=1}^N{\displaystyle \sum _{k=1}^n\overline{e_k}{H}_{km}{\dot{u}}_m.}}\end{array}(18)$

By using the similar method, it has

$\begin{array}{l}{\overline{e}}^{T}Hf=\left[\overline{e_1}\overline{e_1}\cdots \overline{e_N}\right]\left[\begin{array}{cccc}{H}_{11}& H_{12}& \cdots & H_{1N}\\ H_{21}& H_{22}& \cdots & H_{2N}\\ ⋮& ⋮& \cdots & ⋮\\ H_{N1}& H_{N2}& \cdots & H_{NN}\end{array}\right]f,\\ =\left[{\displaystyle {\sum }_{k=1}^N{\overline{e}}_k{H}_{k1}}{\displaystyle {\sum }_{k=1}^N{\overline{e}}_k{H}_{k2}}\cdots {\displaystyle {\sum }_{k=1}^N{\overline{e}}_k{H}_{kN}}\right]f,\\ ={\displaystyle \sum _{m=1}^N{\displaystyle \sum _{k=1}^N{\overline{e}}_k{H}_{km}{f}_m}.}\end{array}(19)$

Substituting Yang et al. (2022) and Yang and Dong (2019) into Lian et al. (2021a), it has

$\dot{V}\left(t\right)={\displaystyle \sum _{m=1}^N\left({\displaystyle \sum _{k=1}^N{\overline{e}}_k{H}_{km}{\dot{\mathit{u}}}_m}+{\displaystyle \sum _{k=1}^N{\overline{e}}_k{H}_{km}{f}_m}\right).}(20)$

Define $y_m={\displaystyle {\sum }_{k=1}^N\overline{e_k}{H}_{km}}$. Then, Deng et al. (2022b) can be rewritten as follows:

$\dot{\mathit{V}}\left(t\right)={\displaystyle \sum _{m=1}^N\left(y_m{\dot{\mathit{u}}}_m+y_m{f}_m\right)}.(21)$

According to Assumption 1, it has

$\dot{\mathit{V}}\left(\text{t}\right)\le {\displaystyle \sum _{\text{m}=1}^{\text{N}}{\mathit{y}}_{\mathit{m}}{\dot{\mathit{u}}}_{\mathit{m}}}+{\displaystyle \sum _{\text{m}=1}^{\text{N}}\left|{\mathit{y}}_{\mathit{m}}\right|{\overline{f}}_m}.(22)$

Substituting (Eq. 14) into (Eq. 13), one gets

$\dot{V}\left(t\right)\le -{\displaystyle \sum _{m=1}^N\left|y_m\right|\left({\widehat{f}}_m-{\widehat{f}}_m\right).}(23)$

To achieve the main result, the following Lyapunov function is introduced:

$W\left(t\right)=V\left(t\right)+\frac{1}{2{\gamma }_m}{\displaystyle \sum _{m=1}^N{\left({\widehat{f}}_m-{\widehat{f}}_m\right)}^2.}(24)$

The derivative of W(t) is

$\dot{W}\left(t\right)=\dot{V}\left(t\right)+\frac{1}{{\gamma }_m}{\displaystyle \sum _{m=1}^N\left({\widehat{f}}_m-{\widehat{f}}_m\right){\widehat{f}}_m.}(25)$

Substituting Ma et al. (2021) into Sahoo et al. (2020), one gets

$\dot{W}\left(t\right)\le -{\displaystyle \sum _{m=1}^N\left|y_m\right|\left({\widehat{f}}_m-{\widehat{f}}_m\right)+\frac{1}{{\gamma }_m}{\displaystyle \sum _{m=1}^N\left({\widehat{f}}_m-{\widehat{f}}_m\right)}}{\widehat{f}}_m.(26)$

Substituting Lin et al. (2021) into Habibi et al. (2021a), one gets

$\dot{W}\left(t\right)\le -{\displaystyle \sum _{m=1}^N\left|y_m\right|\left({\widehat{f}}_m-{\overline{f}}_m\right)}+{\displaystyle \sum _{m=1}^N\left({\widehat{f}}_m-{\overline{f}}_m\right)}\left|y_m\right|(27)$

By applying the LaSalle–Yoshizawa theorem, it is easy to show that

$\underset{t\to \infty }{\lim }\overline{e}\left(t\right)=0.(28)$

According to Deng et al. (2020) and Habibi et al. (2021b), it yields

$\underset{t\to \infty }{\lim }\left(\alpha \mathbf{c}{e}^v\left(t\right)1_N-\beta \mathit{L}\eta I\left(t\right)\right)=0.$

Thus, it has

$\underset{t\to \infty }{\lim }\alpha \mathbf{c}{e}^v\left(t\right)1_N=\underset{t\to \infty }{\lim }\beta \mathit{L}\eta I\left(t\right).(29)$

By multiplying $1_{N\times 1}^T$ on each side of Cecilia et al. (2022), one has

$\underset{t\to \infty }{\lim }{e}^v\left(t\right){\displaystyle \sum _{i=1}^N{\alpha }_m{c}_m}=\underset{t\to \infty }{\lim }{1}_N^T\times 1\beta \mathit{L}\eta I\left(t\right).(30)$

If β_m (m = 1,2,...,N) such that b_m = b_n,∀m,n = 1,...,N, then

$\underset{t\to \infty }{\lim }{1}_{N\times 1}^T\beta \mathit{L}\eta I\left(t\right)=0.(31)$

According to ${\displaystyle {\sum }_{i=1}^N{\alpha }_m{c}_m\mathrm{>}0}$, then it is obtained that

$\underset{t\to \infty }{\lim }\left(V^{\ast }-V_b\left(t\right)\right)=0,(32)$

$\underset{t\to \infty }{\lim }\beta \mathit{L}\eta I\left(t\right)=0.(33)$

Thus, it has shown that bus voltage regulation and optimal current sharing can be achieved by using the designed resilient secondary controller (Deng et al., 2021a) with adaptive updated law (Lin et al., 2021) even under the influence of FDI attacks.

Remark 2. In Theorem 1, a new stability analysis method is provided to show that the resilient secondary controller (Deng et al., 2021a) can resist FDI attacks theoretically. In particular, the term $\frac{1}{2\gamma m}{\displaystyle {\sum }_{m=1}^N{\left(\widehat{f_m}-\widehat{f_m}\right)}^2}$ is introduced in the Lyapunov function W(t). Then, the control objectives of voltage regulation and optimal current sharing can be achieved.

Simulation results

To verify the advantage of our designed resilient secondary controller, it is first shown that the developed method is effective to achieve the optimal current sharing and voltage regulation. Then, it is further to prove the effectiveness of our method by comparing with the existing secondary method in Lian et al. (2021b). In the simulation, the detailed DG parameters are given in Table 1 and the Laplacian matrix L is chosen as follows:

$L=\left[\begin{array}{ccc}2& -1& -1\\ -1& 1& 0\\ -1& 0& 1\end{array}\right].$

TABLE 1

TABLE 1. Parameters on controllers and the MG system.

Resilient optimal current sharing and voltage regulation

In this subsection, the verification of our resilient secondary controller (Deng et al., 2021a) against FDI attacks is shown. In this case, there is no attacker to destroy the system, that is, f_m ≡ 0 for m = 1,2,...,N.

1) Consider 0–10 s, the experimental results are shown in Figure 3 by using the resilient secondary controller (Deng et al., 2021a). From Figure 3, it is shown that the proposed controller ensures that the bus voltage 156 can be regulated to V^∗ after introducing the secondary controller (Deng et al., 2021a). In addition, the ratios of I_m for m = 1,2,3 are maintained as I₁:I₂:I₃ ≈ 1:2:4 after introducing the secondary controller (Deng et al., 2021a).

2) Consider 10–15 s, an extra load R_L = 5 Ω is added to the MG. According to the solution at the tertiary layer, the optimal sharing ratio is changed to I₁:I₂:I₃ = 1:1:1 when the load is changed. Thus, the parameter η_i (i = 1, 2, 3) of the resilient secondary controller is adjusted to η₁:η₂:η₃ = 1:1:1. Then, the bus voltage will be regulated to V^∗ by using the automatic adjustment function of the resilient secondary controller (Deng et al., 2021a). In addition, the current sharing ratio will also alter to I₁:I₂:I₃ ≈ 1:1:1 through our controller.

FIGURE 3

FIGURE 3. Trajectories of the voltage and the current with load added in.

Comparison studies

In this case, the designed resilient secondary method and the secondary control method in Lian et al. (2021b) are both applied to solve the optimal current and voltage regulation for DC MG under FDI attacks. Specifically, the secondary controllers are added into the DC MC at t = 2 s. The FDI attack f₁ = sin (0.1t) is added into the 1 st DG at t = 6 s and the FDI attacks f₂ = 2sin (0.1t) and f₃ = 3sin (0.1t) for DGs 2 and 3 are added at t = 10 s. Under our resilient secondary controller and the secondary controller in Lian et al. (2021b), the simulation results are shown in Figures 4,5.

1) Consider 0–6 s, it can be seen that both methods can ensure that the bus voltage be regulated to V^∗ and the ratios of I_m for m = 1,2,3 are maintained as I₁:I₂:I₃ ≈ 1:2:4 after introducing the secondary controller at t = 2 s.

2) Consider 6–10 s, the FDI attack is added into the 1 st DG at this interval. Our method can ensure that the bus voltage regulates to V^∗ by using the resilient secondary controller (Deng et al., 2021a). In addition, the current 176 sharing ratio will also retain to I₁:I₂:I₃ ≈ 1:2 4 through our controller. However, the bus voltage will deviate to V^∗ by using the resilient secondary controller (Deng et al., 2021a), and the current sharing ratio will fluctuate with the addition of attacks under the secondary controller (Lian et al., 2021b).

3) Consider 10–15 s, the FDI attacks are added into all DG attacks at this interval. Our method can still ensure that voltage regulates to V^∗ and the current sharing ratio will also hold. However, the method in Deng et al. (2021a) does not guarantee these two objectives. Thus, it has shown that the developed method is effective to resist FDI attacks.

FIGURE 4

FIGURE 4. Trajectories of the voltage and the current under our method.

FIGURE 5

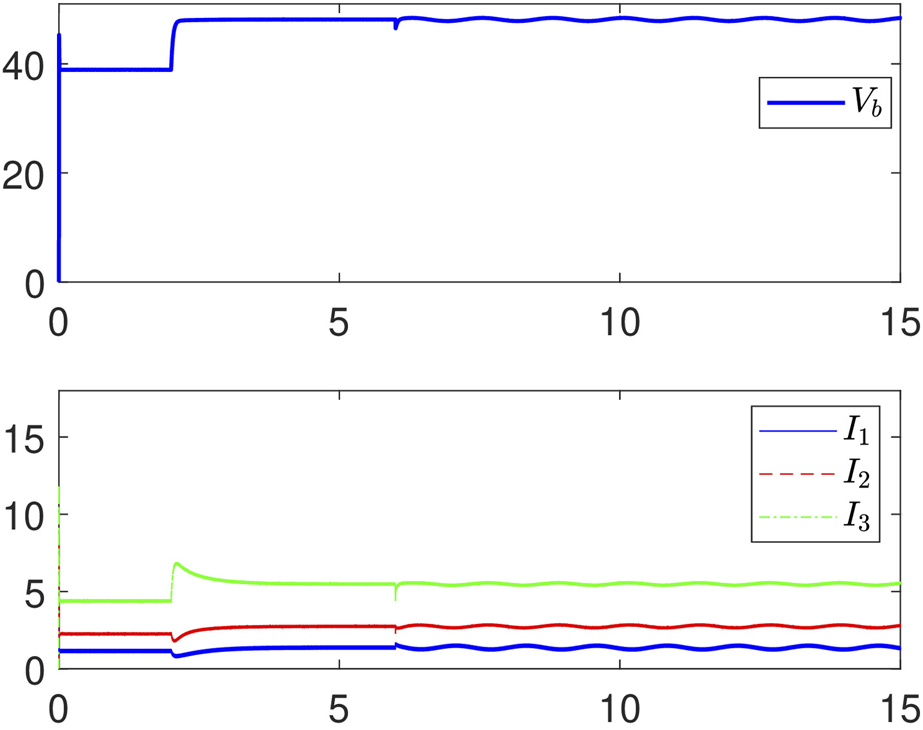

FIGURE 5. Trajectories of the voltage and the current under the method in Lian et al. (2021b).

Conclusion

In this article, it has solved the security secondary control problems for optimal current sharing and voltage restoration of an islanded DC MG under FDI attacks. To solve these problems, a resilient secondary control method has been provided. First, a resilient secondary controller has been designed by introducing an adaptive parameter based on the adaptive technique. Then, a theoretical analysis method has been provided to show that the designed resilient secondary controller can ensure optimal current sharing and voltage regulation under FDI attacks. Finally, a simulation example is given by using the MATLAB testing platform to verify the developed resilient secondary control method. Now, this result cannot be extended to the directed network case due to that the Laplacian matrix is no longer a symmetric matrix under directed network case. Therefore, it is my further work to extend this result to the directed network case.
