Lumei Chen
Fazhi Zhang- State Key Laboratory of Chemical Resource Engineering Beijing University of Chemical Technology, Beijing, China
We report the facile preparation of β-Ni(OH)2 particles by etching a NiAl-layered double hydroxides (NiAl-LDHs) precursor with KOH solution. The amphoteric Al3+ ions in LDHs crystal were selectively dissolved out by KOH solution and LDHs crystals were proposed to be in situ topologically transformed to form β-Ni(OH)2. Alkaline concentration has a great influence on the structure, morphology, specific surface area, and porous structure of the resulting samples. Compared to LDHs precursor and β-Ni(OH)2 prepared by a precipitation reaction, the sample etched in 10 M KOH solution has enhanced specific capacitance (829 F/g at 1 A/g), high rate capability (capacitance retention 57.3% with current density 8 A/g), and good charge/discharge stability. We suggested that the high accessible specific surface area and appropriate porous structure, which is conducive to full contact between active material and electrolyte, can improve the utilization rate of the active material to increase the rate capacity of the 10 M KOH-etched sample.
Introduction
In the 21st century, environmental pollution and energy problems have become the focus of attention. Coal, oil, and other energy sources that cause pollution irrefutably need to have their usage reduced. It is, therefore, urgent to look for clean, non-polluting, sustainable energy technologies, and in recent years electrochemical energy storage systems, especially the popular lithium-ion batteries, have been used as fast and efficient energy storage/release devices (Zhang et al., 2021).
In the battery, the number of transported ions is large, which is conducive to the improvement of performance. Some researchers have studied the storage mechanism of potassium ion batteries and other potassium-based storage systems that may be applied (Zhang et al., 2020; Zhou et al., 2020). Moreover, it has been found that the supercapacitor has some excellent characteristics: the charging and discharging rate is fast, it possesses a high energy density, has good cycle stability, and it is suitable for energy storage devices—it has great potential (Simon and Gogotsi, 2008; Zhang et al., 2017; Šekularac et al., 2017).
There are two types of supercapacitors. Electric double-layer capacitors, that store energy by absorbing charge on the electrode surface, have the advantages of good power density and stability but have the disadvantage of low specific capacitance. The second type is pseudocapacitors that store energy through the redox reaction of active electrode materials, the advantages are high capacitance and energy density, but the disadvantages are very poor stability (Yu et al., 2015). Among the pseudocapacitive materials of transition metal hydroxides, Ni(OH)2 has a clear redox transition, and its theoretical ratio is higher than its capacitance, while the material cost is low. Therefore, Ni(OH)2 is recognized by researchers as an excellent material for supercapacitors (Wang et al., 2010; Yu et al., 2015). There are two kinds of Ni(OH)2, α-Ni(OH)2 and β-Ni(OH)2, their crystal forms being different. The former is composed of stacked nickel hydroxide lamellar plates, inserted anions, and water molecules, while the latter is similar to hexagonal magnesite structure, without anionic and water molecular intercalation. In a strong alkaline environment, β-Ni(OH)2 has good reversibility and structural stability (Oliva et al., 1982; Bernard et al., 1996; Neiva et al., 2016). Therefore, it is believed that it may show excellent electrochemical performance, but the results of the tests show that β-Ni(OH)2 based electrodes have poor rate performance and stability, which is not conducive to its practical application (Wang et al., 2010). For improving the rate of performance and stability of β-Ni(OH)2, many researchers have tried to improve the specific surface area, which is beneficial for the electrolyte solution to contact the electrode material more effectively. Zhou et al. prepared β-Ni(OH)2 by adjusting anions in nickel salt. The results show that the materials prepared with NiSO4 are the best, its specific surface area reached 94.8 m2/g, and 1,025.3 F/g at 1 A/g (Zhou et al., 2014). Another example introduced the synthesis of nanorod by a surfactant-free water precipitation method with surface area 91 m2/g, showing 1,150 F/g at 1 mV/s, after 5,000 cycles, the capacitance retention is more than 99% (Lakshmi et al., 2014). Moreover, controlling the assembly of crystal sheets to generate various assemblies is also a great method. Several assembly forms are possible: snow spheres (Tian et al., 2013), coin-like nanoplates (Li et al., 2011), flower-like nanostructures (Tang et al., 2014), pompon-like microspheres with hollow interiors (Wang et al., 2013), microspheres with cracks (Yan et al., 2013), and microspheres composed of nanowires (Luo et al., 2011). According to various literature, several fabrication strategies, such as gas-liquid co-deposition method (Tian et al., 2013), coordination homogeneous precipitation method (Li et al., 2011), hydrothermal synthesis (Wang et al., 2013; Yan et al., 2013; Tang et al., 2014; Boychuk et al., 2019), electrodeposition method (Tizfahm et al., 2014), chemical precipitation (Xiao-yan and Jian-Cheng, 2007), solvothermal (Kalam et al., 2013), and sonochemical (Vidotti et al., 2006), have been used to prepare the β-Ni(OH)2 assembly materials with high pseudocapacitive characteristics. In addition, the introduction of divalent and trivalent cations, such as Co2+ (Wang et al., 2019a), Zn2+ (Li et al., 2013), Co2+ and Zn2+ (Park et al., 2006), Al3+ (Huang et al., 2013), and La3+ (Shao et al., 2009; Chakrabarty and Chakraborty, 2019) into the β-Ni(OH)2 lattice is a good strategy for enhancing discharge capacity and utilization of active substances, which may be related to stable layered structure and the increase of anion transfer rate. How to fabricate facilely a new β-Ni(OH)2-based electrode material with high accessible surface area to obtain excellent performance, however, is still worth exploring.
LDHs are a kind of anionic hydrotalcite-like functional material (Yu et al., 2017; Wang et al., 2019b). LDHs structure is similar to the β-Ni(OH)2, and the main laminar plates are formed by the edges of MO6 octahedrons. Because of the crystal structure characteristics of LDHs materials, the structure and composition can be designed by adjusting the main laminates and guest molecules, so as to greatly improve the functional combination performance, and they can be applied to many fields of the national economy (Li et al., 2014; Kang et al., 2017; Mishra et al., 2018). Also, Ni-containing LDHs materials have been reported as energy storage materials (Yin and Tang, 2016; Gao et al., 2020). However, LDHs materials have a strong superposition tendency, resulting in poor conductivity and slow ion transfer speed, which seriously limits their application in supercapacitors (Zhao et al., 2017).
Herein, NiAl-LDHs were adopted as a precursor for fabrication of β-Ni(OH)2 particles with enhanced specific surface area through KOH alkaline etching. The amphoteric Al3+ ions in the LDHs crystal were selectively dissolved out by the KOH solution. The alkaline concentration greatly affects the structure, morphology, and specific surface area of the resulting samples. On the basis of sample characterization results, we suggested an in situ topological transformation mechanism of β-Ni(OH)2 from NiAl-LDHs precursor by alkaline etching. Finally, the electrochemical performance was tested, exhibiting excellent pseudocapacitor performance. We proposed that the high accessible surface area and appropriate porous structure, which can make the electrode material contact with the electrolyte solution more fully, can improve the utilization rate of the active material to increase its rate capacity. The preparation method we presented is simple and easy and has a prominent capacitive performance. It has certain application prospects.
Experimental
Materials Preparation
Preparation of NiAl-LDHs Precursor
NiAl-LDHs precursor sample was synthesized by hydrothermal method. Firstly, 0.818 g Ni(NO3)2·6H2O, 0.352 g Al(NO3)3·9H2O, and 0.496 g urea were mixed in a beaker, then add 50 ml deionized water, and the total metal ion content was 1.875 mmol. Afterward, it was crystallized at 120°C for 24 h. Finally, the samples were cooled to room temperature, centrifuged and washed to pH 7.0, and vacuum-dried overnight at 50°C.
The β-Ni(OH)2 comparison sample was synthesized by precipitation reaction. A measure of 3.837 g Ni(NO3)2˙6H2O and 2.191 g NaOH, were dissolved in 20 and 50 ml deionized water, respectively. Then, the Ni(NO3)2˙6H2O solution was dropped into the NaOH solution by single drop method under agitation conditions, and the pH was kept at 10.0. Afterward, it was crystallized at 120°C for 6 h. Finally, the reaction was centrifuged and washed to pH 7.0 and dried at 70°C overnight.
Preparation of Alkaline-Etched Samples
NiAl-LDHs were immersed in 5, 10, and 15 M KOH solution for stirring 3 h continuously at 60°C. After that, they were centrifuged and washed to pH 7.0. The washed samples were dried.
Sample Characterization
The X-ray diffraction (XRD) pattern was recorded on a Shimadzu XRD-6000 diffractometer using Cu Kα radiation (λ = 1.5406 Å), 10° min−1 at 3–80°. A scanning electron microscope (SEM) was carried out on a Zeiss Supra 55. Fourier transform infrared spectroscopy (FT-IR) was tested on Bruker Vector-22 and the range is 400–4,000 cm−1. Elemental analysis was tested on Shimadzu IPCPS-7500. High-resolution transmission electron microscopy (HRTEM) was conducted on a JEOL JEM-2100F instrument, point resolution is 0.19 nm. X-ray photoelectron spectroscopy (XPS) was measured by using an ESCALAB250 X-ray photoelectron spectrometer equipped with monochromatized Mg Kα X-ray radiation (1,253.6 eV photons). BET and BJH methods were used to measure specific surface area and analyze pore volume and size, using a Quantachrome Autosorb-1C-VP Analyzer.
Electrochemical Measurement
Electrochemical tests were carried out on an electrochemical workstation (CHI 618E, Shanghai ChenHua Corporation, China), in a 2 M KOH solution. Active material: acetylene black: polyvinylidene fluoride at 8:1:1, then dissolved with an appropriate amount of ethanol and dropped onto 1 cm × 1 cm nickel foam. Dried at 60°C for 30 min and pressed by roller press with proper pressure. The sample loaded onto each working electrode was about 2 mg. The cyclic voltammetry (CVs) curves were recorded within 0.0–0.6 V at 5 mV/s. Galvanostatic charge-discharge (GCD) measurements were tested at 0.0–0.45 V from 1 to 8 A/g. Electrochemical impedance spectroscopy (EIS) measurements were performed under an AC voltage of 5 mV and the frequency was 0.01–100 kHz. Specific capacitance was calculated by using the equation below, where I represents the discharge current; t represents time; ΔV represents the voltage drop upon discharging; m represents the mass of the sample.
Results and Discussion
NiAl-LDHs precursor was synthesized by a hydrothermal method. The XRD pattern demonstrates that the precursor sample has the characteristic feature of layered material (Figure 1). The (003) peak appears at 11.53°, which is consistent with JCPDS No.15-0087, indicating that carbonate anions are intercalated in the LDHs gallery (Li et al., 2019). SEM image of LDHs precursor shows the irregular morphology of nanosheets with a length of about 200–400 nm and thickness about 20 nm (Figure 2A). Subsequently, the LDHs precursor sample was immersed in different concentrations of KOH solution for dealumination. The characteristic XRD peaks of LDHs in the 5 M KOH alkaline-etched sample are slightly enhanced (Figure 1), demonstrating that after etching, the crystallinity of the crystal is improved, which may be due to the change of coordination environment of metal elements in the lamella. Partial dealumination by 5 M KOH alkaline may form α-Ni(OH)2/NiAl-LDHs compound. The α-Ni(OH)2 phase has the same crystal structure and characteristic XRD peaks as LDHs (Gong et al., 2013). The α-Ni(OH)2 can also be proved by the fact that there are two pairs of redox peaks in the CV curve and two pairs of platforms in the GCD curve in the subsequent electrochemical performance test (Figure 7A). SEM image of the 5 M alkaline-etched sample shows that the morphology of the nanosheet becomes more regular, with a length of about 150–200 nm and thickness about 40 nm (Figure 2B). After 10 M alkaline treatment, the characteristic XRD reflections of LDHs vanish and several new peaks appear, indicating that the collapse and crystal transformation of LDHs laminates occur simultaneously (Figure 1). The newly main diffraction peaks at 19.9°, 33.4°, 38.8°, 52.45°, 59.8°, and 63.4° 2θ could be indexed to the (001), (100), (101), (102), (110), and (111) facets of β-Ni(OH)2, these peak positions are consistent with the standard cards (JCPDS No.14–0117) (Wang et al., 2012). Further investigation by SEM image shows that the crystal sheets of the 10 M alkaline-etched sample become thinner and larger compared to those of LDHs precursor, the length is about 400–500 nm and thickness about 10 nm (Figures 2C,D). It is known that the positive charge of the LDHs laminates and the negative ions between layers keep the charge in balance; while there is no intercalation of anions and water molecules in β-Ni(OH)2. The decrease in thickness of the sheets because of the dehydration and deionization between the LDHs layers after the strong alkaline treatment, which can be identified by the following FT-IR result (Figure 3). XRD pattern of the 15 M alkaline-etched sample is similar to that of the 10 M alkaline-etched one (Figure 1). However, the nanosheets are broken and the particle thickness is increased in the 15 M alkaline solution (Figure 2E), which may be due to the structural cracking and continuous accumulation of nanosheets. The length and thickness of β-Ni(OH)2 contrast sample is about 100 and 40 nm respectively (Figure 2F).

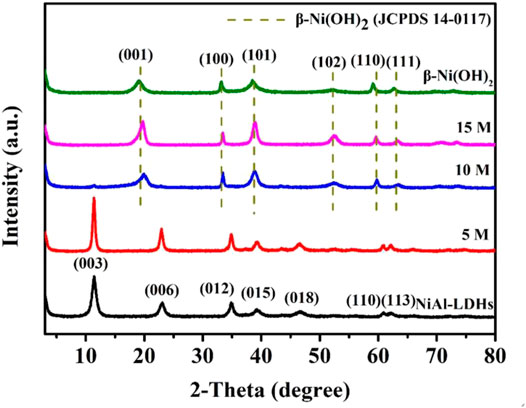

FIGURE 1. XRD patterns of NiAl-LDHs precursor, the alkaline-etched samples in 5, 10, and 15 M KOH solution, and β-Ni(OH)2 sample synthesized by precipitation reaction.
FIGURE 2. SEM images of NiAl-LDHs precursor (A), the alkaline-etched samples in 5 (B), 10 (C,D), and 15 (E) M KOH solution, and β-Ni(OH)2 sample prepared by precipitation reaction (F).

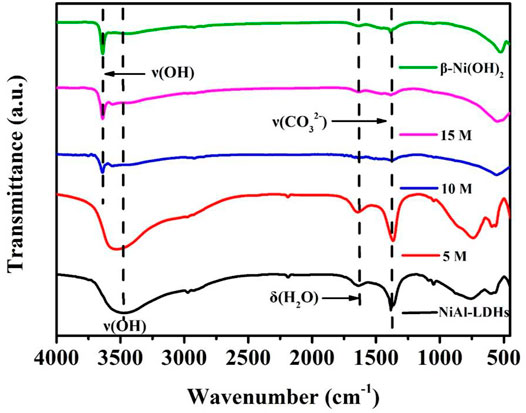

FIGURE 3. FT-IR spectra of NiAl-LDHs precursor, the alkaline-etched samples in 5, 10, and 15 M KOH solution, and β-Ni(OH)2 sample prepared by precipitation reaction.
The identities of interlayer anions and water molecules of NiAl-LDHs precursor, as well as the alkaline-etched samples in 5, 10, and 15 M KOH solution and β-Ni(OH)2 sample, were characterized by FT-IR spectra in the range of 400–4,000 cm−1 (Figure 3). For NiAl-LDHs precursor, the intense IR band at 3,475 cm−1 is characteristic for the ν(OH) stretching vibration of the LDHs laminate OH group and interlayer water molecules. The other peaks observed at 1,640 and 1,360 cm−1 are assigned to δ(H2O) and ν(CO32-) bending vibration, respectively (Hunter et al., 2016). The 5 M alkaline-etched sample shows a similar spectrum to that of NiAl-LDHs precursor. For the 10 and 15 M alkaline-etched samples, the 1,640 and 1,360 cm−1 peaks vanish, demonstrating the complete dehydration and deionization between the LDHs layers. Moreover, the peak at 3,640 cm−1 represents the stretching vibration of ν(OH), the peak positions of the two samples are consistent with that of the synthesized β-Ni(OH)2 sample, confirming the formation of β-Ni(OH)2 after 10 and 15 M alkaline treatment (Aghazadeh et al., 2011).
ICP techniques were used to confirm the change of composition during alkali etching. ICP analysis shows that the Ni:Al molar ratio of LDHs precursor is about 3:1, which is similar to that in the starting synthetic solution. After alkali treatment in 5, 10, and 15 M KOH solution, the Al contents are gradually reduced from 24.1% in LDHs precursor to 22.8% in 5 M alkaline-etched sample, 10.3% in 10 M alkaline-etched sample, and finally to 8.5% in 15 M alkaline-etched sample, which demonstrates that the Al3+ in LDHs crystal is successfully removed.
The HRTEM technique can analyze the structure and phase distribution of the resulting samples (Figure 4). For NiAl-LDHs precursor, the lattice spacings of 0.261 nm match well with the (101) crystal facet of LDHs (Figure 4A). After 5 M alkaline treatment, the crystal phase becomes ordered and the crystal region expands, indicating that the lattice rearrangement occurs. The measurements of 0.261 and 0.151 nm match well with the (101) and (110) crystal facets of LDHs, respectively (Figure 4B). For the 10 M alkaline-etched sample, the lattice fringes of adjacent stripes are measured to be 0.260 and 0.175 nm which can be allotted to the (101) and (102) crystal facets of β-Ni(OH)2, respectively (Li et al., 2010) (Figures 4C,D). Moreover, the lattice spacing of 0.260 nm in the 15 M KOH-etched sample (Figure 4E) and the synthesized β-Ni(OH)2 (Figure 4F) also correspond to the (101) crystal plane.
FIGURE 4. HRTEM images of NiAl-LDHs precursor (A), the alkaline-etched samples in 5 (B), 10 (C,D), and 15 (E) M KOH solution, and β-Ni(OH)2 sample prepared by precipitation reaction (F).
The surface composition and metal chemical state of the samples were studied by XPS technique (Figure 5). The characterization range of Ni 2p XPS peak is 850.0–887.0 eV. For the LDHs precursor sample, the Ni 2p spectrum shows five deconvoluted peaks at 855.7, 856.1, 862.0, 873.7, and 879.9 eV. Among these, the peaks at 855.7 and 856.1 eV represent Ni2+ 2p3/2 and the peak at 873.7 eV represents Ni2+ 2p1/2. Signals locate at 862.0 and 879.9 eV are the satellite peaks of Ni2+ 2p3/2 and Ni2+ 2p1/2, respectively (Wu et al., 2018; Ye et al., 2018; Wang et al., 2021a). The 5 M alkaline-etched sample has five binding energies similar to those of the LDHs precursor. After alkaline treatment in 10 M KOH solution, the peaks of Ni2+ 2p3/2 and Ni2+ 2p1/2 move to 855.5 and 873.3 eV, which are characteristic of β-Ni(OH)2 (Huang et al., 2017). XPS spectrum of the 15 M alkaline-etched sample is similar to that of the 10 M alkaline-etched one, and the peaks at 855.5 and 873.3 eV also correspond to the β-Ni(OH)2 sample.

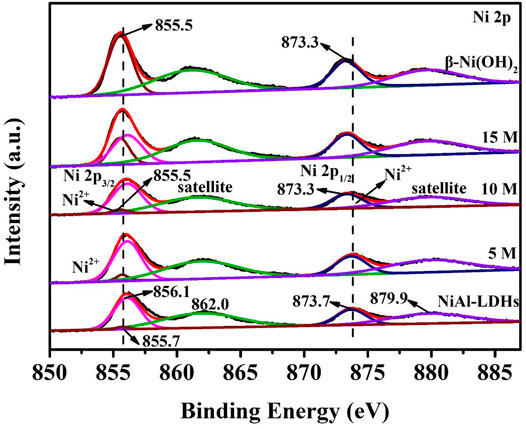

FIGURE 5. Ni 2p XPS spectra of NiAl-LDHs precursor, the alkaline-etched samples in 5, 10, and 15 M KOH solution, and β-Ni(OH)2 sample prepared by precipitation reaction.
N2-adsorption/desorption measurement was carried out for investigating the surface area and porosity property of the five resulting samples (Figure 6). In all the cases, when P/P0 is high, the isotherms exhibit hysteresis due to capillary condensation (Zhai et al., 2019). BET specific surface areas of NiAl-LDHs precursor, the alkaline-etched samples in 5, 10, and 15 M KOH solution, and β-Ni(OH)2 sample prepared by precipitation reaction are measured to be 64, 56, 79, 60, and 37 m2/g, respectively, with their pore diameter mostly distributes at 11.6, 24.8, 2.4, 22.6 and 23.6 nm, respectively. It is reported that the performance of supercapacitor is better when the aperture is 2–5 nm (Shao et al., 2012). These properties are the result of the interstitial space among the nanosheets (Mao et al., 2020). As the crystallinity of the sample etched in 5 M KOH solution increased slightly, the nanosheets became more regular, resulting in a smaller specific surface area than the precursor samples. For the 10 M alkaline-etched sample, the particle morphology may change through an Ostwald ripening process (Hall et al., 2015). The relatively small stacked particles on the surface of large LDHs particles tend to dissolve in the solution, and then the dissolved substances are sequentially deposited on the edge of the larger LDHs layer (Chen et al., 2018), leading to thinner and larger nanosheets (Figures 2C,D). At a higher 15 M alkaline solution, the nanosheets begin to break and stack, and the specific surface area decreases.

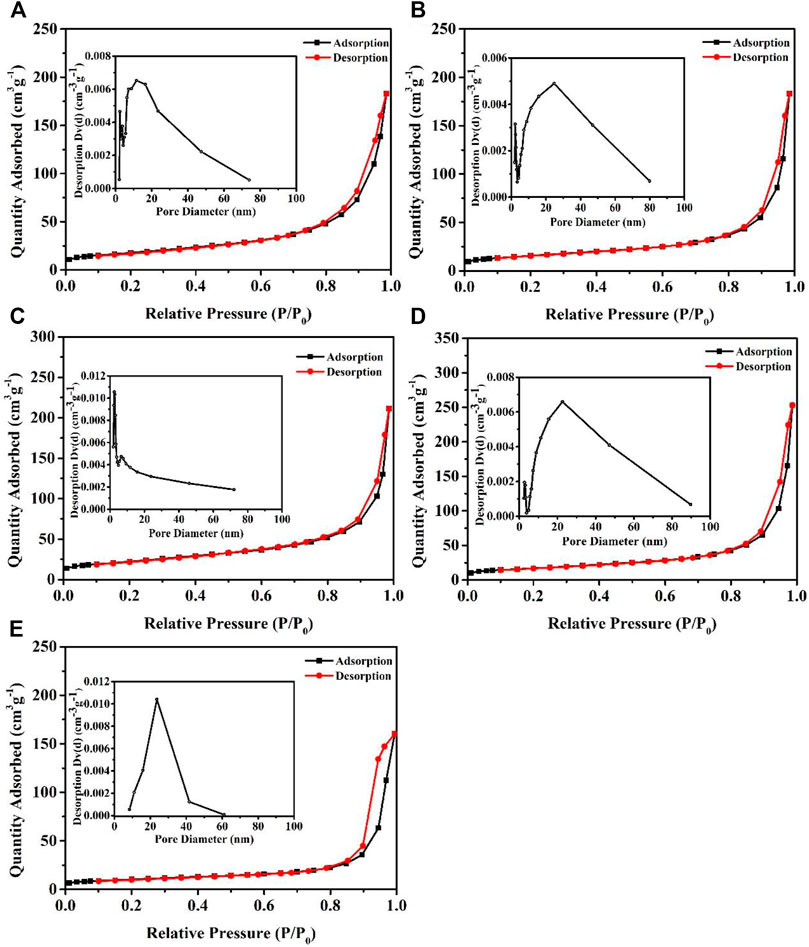

FIGURE 6. N2-adsorption isotherms and pore size distribution (inset) of NiAl-LDHs precursor (A), the alkaline-etched samples in 5 (B), 10 (C), and 15 (D) M KOH solution, and β-Ni (OH)2 sample prepared by precipitation reaction (E).
Based on the above characterization results, we propose a possible transformation mechanism of β-Ni(OH)2 from NiAl-LDHs precursor by alkaline etching. Previous studies have shown that a series of high-performance layered mixed metal oxides can be prepared by using the topological transformation of LDHs precursors under high-temperature calcination (Liu et al., 2018; Xu and Wei, 2018). β-Ni(OH)2 has a hexagonal structure similar to magnesite. Therefore, we believe that the transformation of NiAl-LDHs to β-Ni(OH)2 under alkaline etching is a topological transformation process. In the early stage of alkaline etching, a small number of unstable aluminum atoms are selectively removed, resulting in the formation of lattice vacancies. Due to the leaching of partial aluminum atoms from LDHs laminate, the surface energy increases with the decrease of the coordination number of surface atoms. The remaining metal atoms migrate and rearrange the lattice to form a relatively stable lamellar structure, producing α-Ni(OH)2/NiAl-LDHs compound (Chen et al., 2021). In addition, the removal of Al leads to the decrease of positive charge in the main layer, which causes the diffusion of charge-balancing anions (CO32-) from the LDHs gallery. α-Ni(OH)2 is extremely unstable in a concentrated alkaline environment (Jian et al., 2016). When the alkali concentration reaches 10 M, the interlamellar water molecules and CO32- are almost completely removed (Figure 3), and XRD result shows that it is converted to the more stable β-Ni(OH)2, at this point, the topological transformation process is completed.
Electrochemistry properties of the resulting samples, including CVs, GCD, EIS, and cycle stability were evaluated. Figure 7A shows CVs of different electrode materials at 5 mV/s. CVs curves of NiAl-LDHs precursor, the alkaline-etched samples in 10, 15 M KOH solution, and β-Ni(OH)2 prepared by precipitation reaction consist of a pair of Ni2+/Ni3+ redox peaks that convert each other (equation 1).
Interestingly, however, another pair of redox peaks appeared in the 5 M alkaline-etched sample. In addition to the above redox reaction Ni(OH)2 ↔ NiOOH, the second oxidation/reduction potential peaks are located at 0.45 and 0.3 V, which is attributed to the reversible redox α-Ni(OH)2 ↔ γ-NiOOH (Huang et al., 2013). Moreover, Figure 7A shows that the average area of the CV curve of the 10 M alkaline-etched sample is much larger than that of other samples. Figure 7B displays the GCD of different samples within 0–0.45 V. The curve is nonlinear, which proves its pseudocapacitance property (Jiang et al., 2011). The corresponding measured specific capacitance is 552, 319, 829, 452, and 463 F/g at 1 A/g for the NiAl-LDHs precursor, the alkaline-etched samples in 5, 10, 15 M KOH solution, and β-Ni(OH)2, respectively, which further confirms that the 10 M alkaline-etched sample has the highest specific capacitance. The high specific surface area (79 m2/g) and an appropriate porous structure (2.4 nm) of 10 M alkaline-etched sample, which can make the contact between the solution and the substance more sufficient, at the same time, the ion migration is more rapid, and obtain good specific capacitance performance.

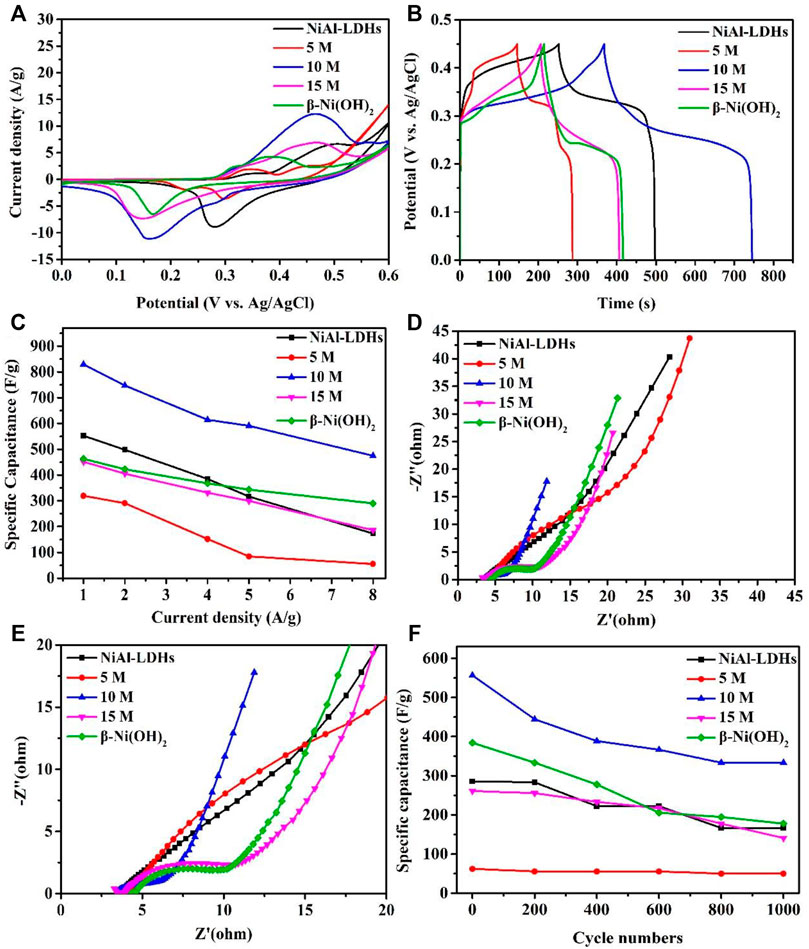

FIGURE 7. Supercapacitive performance of NiAl-LDHs precursor, the alkaline-etched samples in 5, 10, and 15 M KOH solution, and β-Ni(OH)2 sample prepared by precipitation reaction. (A) CVs curves at 5 mV/s; (B) GCD curves at 1 A/g within 0–0.45 V; (C) Specific capacitance at different current density; (D) Nyquist plots of EIS, showing the imaginary part versus the real part of impedance; (E) a larger version of Nyquist plots of (d); (F) cycle performance measured at 5 A/g for 1,000 cycles.
The specific capacitances of the five samples at different current densities are shown in Figure 7C. At 8 A/g, the retention rate is 57.3% (from 829 to 475 F/g) for the 10 M alkaline-etched sample, whereas the NiAl-LDHs precursor 31.3%, the 5 M sample 17.2%, the 15 M sample 41.2%, and the β-Ni(OH)2 sample prepared by precipitation reaction 62.6%. A large specific surface area and suitable mesoporous structure make the electrolyte easy to transport, which is conducive to the improvement of specific capacitance and rate performance (Shen et al., 2018); dealumination by alkaline etching is also conducive to the improvement of rate performance (Wang et al., 2021b). The 10 M alkaline-etched sample is mainly due to the combination of high specific surface area, suitable pore size, and dealumination to improve performance.
We also performed EIS measurements to investigate their performance. Figures 7D,E shows the EIS for the five samples (Figure 7E is a larger version of the Nyquist plots of Figure 7D). The semicircle diameter of EIS refers to the electron transfer resistance of Ni2+/Ni3+ during the redox process (Ret) (Di Fabio et al., 2001; Zang et al., 2008). We can see that 10 M alkaline-etched sample < β-Ni(OH)2 sample <15 M alkaline-etched sample <5 M alkaline-etched sample < NiAl-LDHs precursor, which clearly demonstrates that the 10 M alkaline-etched sample has the lowest resistance, so electrons transfer faster. It is found that the reversible absorption and release of OH− in solution and the transfer of electrons on the collector occur during the redox process of Ni-based hydroxide as the electrode material of supercapacitor (Kötz and Carlen, 2000; Liu et al., 2011). The lower resistance of the 10 M alkaline-etched sample, may be due to the higher specific surface area which facilitates the effective exposure of active sites, and may also be related to the modification of the Ni coordination environment by Al etching (Liu et al., 2017). However, the specific surface areas of 5 and 15 M alkaline-etched samples decrease due to different degrees of stacking, resulting in a larger pore size distribution than the most suitable pore size of a supercapacitor, and a larger resistance, which is not conducive to the performance of a supercapacitor. Moreover, the 5 M alkaline-etched sample did not form β-Ni(OH)2, so the electrochemistry performance of this sample is worse than that of the 15 M alkaline-etched sample. On the other hand, Figure 7F shows the stability of 1,000 cycles of each sample at 5 A/g. The 10 M alkaline-etched sample can retain about 60% (from 557 to 333 F/g), and also shows the largest specific capacitance after 1,000 cycles.
Conclusions
We report a facile method for the fabrication of β-Ni(OH)2 particles by KOH alkaline etching NiAl-LDHs precursor with improved supercapacitor performance. The amphoteric Al3+ ions in LDHs crystal were selectively dissolved out by the KOH solution and the alkaline concentration affect greatly the structure, morphology, specific surface area, and porous structure of the resulting samples. On the basis of sample characterization results, we propose an in situ topological transformation mechanism of β-Ni(OH)2 from NiAl-LDHs precursor by alkaline etching. Compared to NiAl-LDHs precursor and β-Ni(OH)2 sample, the obtained β-Ni(OH)2 sample etching in 10 M KOH alkaline has enhanced specific capacitance, high rate capability, and good charge/discharge stability. We propose that high accessible specific surface area and appropriate porous structure are conducive to the full contact between active materials and electrolytes, improve the utilization of active materials, shorten the migration path of ions, improve the rated capacity of alkaline-etched samples, and have good electrochemical performance. Our findings show an example for the effective fabrication of β-Ni(OH)2-based electrode material.
