Significance of Molten Hydroxides With or Without Molten Carbonates in High-Temperature Electrochemical Devices

Due to their low melting point and high conductivity molten hydroxides are interesting electrolytes, or additive to other molten electrolytes for high-temperature electrochemical devices. There is nowadays a revival of such reactive media, first of all for their significant role in the electrode mechanisms in molten carbonate fuel cells (MCFCs) and the reverse co-electrolysis of water and carbon dioxide process, but also in different applications, among which direct carbon fuel cells (DCFCs), hybrid carbonate/oxide fuel cells. This overview shows the properties and interest of molten hydroxides and their use in relevant energy devices, pointing out their direct use as electrolytic media or as key species in complex kinetic processes. A thorough understanding of their behavior should allow improving and optimizing significantly fuel cells, electrolyzers, and probably also CO₂ capture and valorization.

Introduction

Molten salts are of great interest in electrochemistry, particularly in the field of fuel cells and electrolyzers. Indeed, the reaction kinetics are favored by the high-temperature operation. Molten carbonate fuel cells (MCFC) are now a mature technology with about 40 to 50,000 h of operation, electric efficiencies of about 50% and powers up to 60 MW. Due to the properties of molten carbonates and the high CO₂ solubility in this medium (Meléndez-Ceballos et al., 2020), MCFCs can also be used for carbon capture and storage (CCS) applications, such as CO₂ concentration and separation (Intergovernmental Panel on Climate Change, 2005; Wade et al., 2007; Cassir et al., 2012; McPhail et al., 2015; Fuel Cell Energy, 2017, 2019). This device can also be operated reversibly, as a molten carbonate electrolysis cell or MCEC (Hu et al., 2014; Perez-Trujillo et al., 2018; Meskine et al., 2020).

Within molten salts, molten hydroxides are specifically intriguing, as they feature notable advantages compared to other salts and namely molten carbonates: possibility of working at lower temperatures, higher conductivity, and higher activity of carbon (Zecevic et al., 2004).

As with molten carbonates, the concept of oxoacidity applies for molten hydroxides. Indeed, they are also subject to a similar auto-dissociation equilibrium, where H₂O is the conjugated oxoacid:

$$2{\text{OH}}^{-}\leftrightarrow {\text{O}}^{2-}+{\text{H}}_2\text{O}(1)$$

Such equilibria have already been studied from a fundamental point of view, notably by Goret (1966) and Eluard (1970) who focused their interest on establishing the basic equilibria in molten alkali hydroxides, as well as potential-oxoacidity diagrams and analyzed the behavior of some metals in this medium.

This review will focus on the role of molten hydroxides in several fuel cell systems and specifically the MCFC, stressing out the promising applications related to such media, as pure phases or additives.

Overview on Molten Hydroxides

Molten hydroxides are a specific type of molten salt that generally melts at a lower temperature than most others (chlorides, carbonates, and fluorides) (Janz et al., 1968). As an example, single molten alkali hydroxides melt at around 350°C and the melting temperature can be lowered even further by forming eutectic mixtures (Janz et al., 1968). They have been used to obtain sodium or potassium by electrolysis of molten NaOH or KOH by Davy in 1807, which has paved the way for some industrial processes such as the Castner process (production of sodium metal by electrolysis of molten hydroxides). Besides, alkali fusion methods, dissolving and extracting valuables compounds from ceramics or glasses, and synthesis of various oxides also feature molten hydroxides (Lee and Holland, 1991; Mori, 2003; Minakawa et al., 2008; Gunnarson, 2009; Wang et al., 2009, 2012; Xu et al., 2011; Lusiola et al., 2012). As will be detailed in this paper, molten hydroxides have also been considered as high-temperature electrolytes for energy and specifically fuel cell applications. Due to their interesting applications, these salts have been studied from a fundamental and experimental approach, whether for their chemical, catalytic (Williams et al., 1956; Janz et al., 1968; Dauby et al., 1979; Claes and Gilbert, 1985; Saïb et al., 1998; Lapshin et al., 2004; Moneuse et al., 2009; Sang et al., 2015) or electrochemical (Goret, 1966; Eluard, 1970; Zecchin et al., 1974; Saïb et al., 1998; Claes et al., 1999; Miles, 2003; Sher et al., 2020) properties. First, it should be noted that molten hydroxides, although with low melting points, present a high conductivity (Janz et al., 1968). NaOH at 427°C has twice the conductivity of NaNO₃ at the same temperature, and has around the same conductivity as Na₂CO₃ at a much higher temperature of 907°C (Janz et al., 1968). Table 1 below features some general data on common molten alkali hydroxides.

TABLE 1

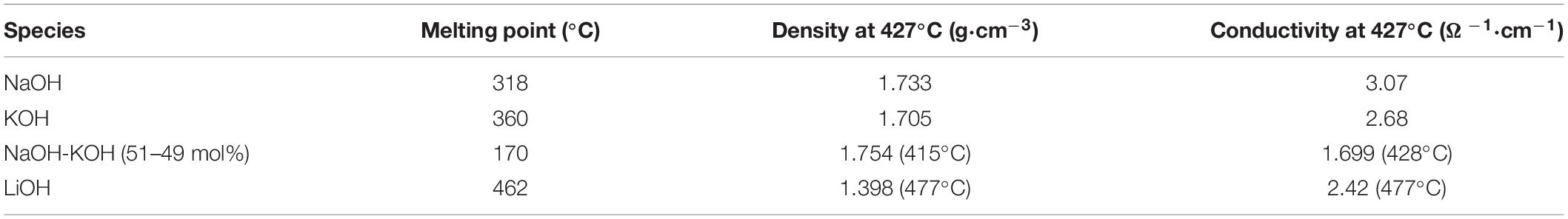

Table 1. Data on some molten alkali hydroxides (Janz et al., 1968; Dauby et al., 1979; Claes and Gilbert, 1985).

Redox reactivity in these molten salts go through the oxide anion (instead of the proton for aqueous systems). In order to analyze reactions, the oxoacidity concept introduced by Lux and Flood is used: an acid (oxoacid) is a species that is an oxide acceptor and a base (oxobase) an oxide donor. Thus similarly to aqueous solutions potential-oxoacidity diagrams can be considered and the oxoacidity domain is imposed by the auto-dissociation reaction (1), related to the apparent constant K_i = a(O^2–)⋅P(H₂O), with a(O^2–) the activity of oxide ions and P(H₂O) the partial pressure of water fixing the oxoacidity level. Thus, pK_i represents the accessible oxoacidity domain.

Electrochemically, the limiting reactions in reduction are the water reduction in acidic conditions or the alkali metal (M) deposition in basic conditions; whereas for oxidation the reactions are hydroxide oxidation to superoxide in acidic conditions and oxide oxidation to peroxide in basic conditions (Eluard, 1970). It is important to note the presence and relative stability of these oxygenated species.

In oxoacidic conditions:

$$4{\text{OH}}^{-}\to {\text{O}}_2^{-}+2{\text{H}}_2\text{O}+3{\text{e}}^{-}(2)$$

$$2{\text{H}}_2\text{O}+2{\text{e}}^{-}\to {\text{H}}_2+2\mathrm{O}{\mathrm{H}}^{-}(3)$$

In oxobasic conditions:

$$2{\text{O}}^{2-}\to {\text{O}}_2^{2-}+2{\mathrm{e}}^{-}(4)$$

$${\text{M}}^{+}+{\text{e}}^{-}\to \text{M}(5)$$

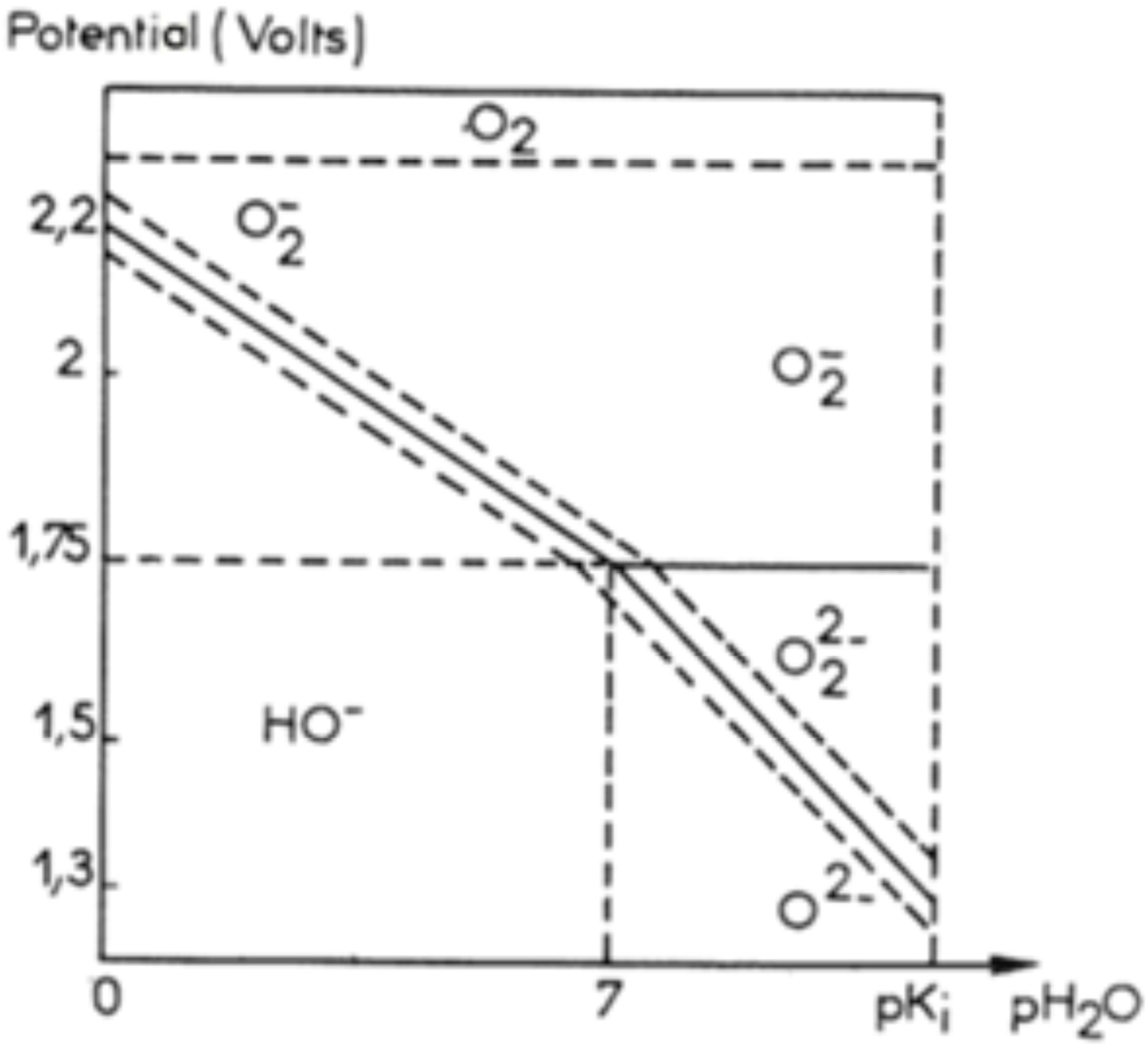

Figure 1 shows a potential-oxoacidity diagram from the literature corresponding to varied oxygenated species in molten hydroxides (Goret, 1966). The existence of reduced oxygen species such as peroxide or superoxide ions at different oxoacidity levels evidence that the oxidative power of molten hydroxides can be modulated according to experimental conditions. The stability of metals, such as Pt, Ni, Au, Hg, Cu, or Mn, has also been investigated through this type of diagram (Goret, 1966; Eluard, 1970). This gives a general idea of the corrosion effects of molten hydroxides on metals. In most conditions, such metals are attacked through oxidation and oxoacidobasic reactions, either ionized and solubilized or as solid oxide, depending on their nature and solubility and on the potential imposed. In some cases, such as Ni, the oxide layer (NiO or NiO₂) can lead to passivation as it is adherent and protects the underlying metal well, which explains why this element is considered among the best choices for use in molten hydroxides (Eluard, 1970). Other parameters such as nature of the salt and temperature are also of importance, e.g., in the case of sodium hydroxide, Na-Au and Na-Ag alloys can be obtained, and Ag could be considered for use at high-temperatures in oxidizing conditions because of the lack of stability of its oxides (Williams et al., 1956; Goret, 1966).

FIGURE 1

Figure 1. Potential-oxoacidity diagram of oxygenated species in eutectic NaOH-KOH at 227°C (Goret, 1966). Full line for O₂^– and O₂^2– concentrations equal to 10^–2 M, upper dashed line for 10^–1M and lower dashed line for 10^–3M.

Application of Hydroxides in Energy Devices

Molten Hydroxide Systems

Firstly, molten hydroxides have been considered in a few studies for water splitting, either fundamentally by investigation of suitable electrodes (Sher et al., 2020), or directly by analyzing hydrogen production process (Licht et al., 2016). The main challenge faced is that for higher temperatures, the reaction kinetics are better and the splitting potential lower, but the hydrogen generation efficiency is also lower, as the hydroxides dehydrate, and then superoxide reduction competes with hydrogen formation. Thus the best water splitting electrolytes should be either lithium or barium hydroxide, as they retain hydration better. Indeed, a coulomb efficiency of 88% for hydrogen generation was reported in molten LiOH at 500°C (Licht et al., 2016). The use of molten NaOH-KOH in ammonia fuel cell applications has also been investigated; a current density of 16 mW⋅cm^–2 at 220°C was obtained (Yang et al., 2014). However, molten hydroxides have mostly been used as an electrolyte in direct carbon fuel cells (DCFCs).

Direct Carbon Fuel Cell

Direct carbon fuel cell devices convert chemical energy into electrical energy by using solid carbon as a fuel, with a theoretical electrical yield close to 100%, contrarily to classical hydrogen fuel cells (80–90%) (Zecevic et al., 2004; Guo et al., 2013; Kacprzak, 2019; Kacprzak and Włodarczyk, 2020; Xing et al., 2021). They have very high efficiency, and can produce pure CO₂, provided the carbon reactant is pure too. Indeed, the production of CO is not favored at the working temperatures (Kacprzak and Włodarczyk, 2020). The overall equation is:

$$\text{C}+{\text{O}}_2\leftrightarrow {\text{CO}}_2(6)$$

There are three major types of DCFCs depending on the electrolyte used: molten carbonates, solid oxide ceramics, or molten hydroxides. For the last case, usually a mixture of NaOH, KOH, and LiOH are used. The electrolyte is enclosed in a metallic container which is usually cast iron, and which serves as a cathode. The anode is carbon, which can be contained in a Ni mesh. A bubbler is added to produce small oxygen gas bubbles to improve oxygen transport to the cathode surfaces that can be seen in Figure 2.

FIGURE 2

Figure 2. General direct carbon fuel cell (DCFC) scheme.

In molten hydroxide-based DCFCs, the electrochemical equations are:

$$\text{C}+4\mathrm{O}{\text{H}}^{-}\to 2{\text{H}}_2\text{O}+{\text{CO}}_2+4{\mathrm{e}}^{-}\mathrm{at}\mathrm{the}\mathrm{anode}(7)$$

$${\text{O}}_2+2{\text{H}}_2\text{O}+4{\text{e}}^{-}\to 4\mathrm{O}{\mathrm{H}}^{-}\mathrm{at}\mathrm{the}\mathrm{cathode}(8)$$

Direct carbon fuel cells with molten hydroxide electrolyte have been reported in the literature (Zecevic et al., 2004; Guo et al., 2013; Kacprzak, 2019; Kacprzak and Włodarczyk, 2020; Xing et al., 2021). A current density of 100 mA⋅cm^–2 between 400 and 500°C has been first reported in NaOH or KOH by Jacques in 1896. Guo et al. (2013) obtained up to 92 mA⋅cm^–2 with NaOH at 550°C and up to 170 mA⋅cm^–2 with NaOH-KOH eutectic. Zecevic et al. (2004) managed to obtain a maximum current density above 250 mA⋅cm^–2 and a maximum power of 180 mW⋅cm^–2; however they worked at a higher temperature of 630°C. The influence of parameters such as temperature, electrolyte, fuel type, and materials were also investigated in the literature (Kacprzak et al., 2013, 2014, 2016, 2017). It has been shown that the best corrosion resistance out of a number of tested materials in molten NaOH, at temperatures from 673 to 923 K, was displayed by Ni and its alloys such as Monel or Inconel, along with 301 stainless steel (Williams et al., 1956). However, the drawback of these DCFCs is that molten hydroxides can react, either chemically or electrochemically, as shown by Goret and Trémillon (1966, 1967):

$${\text{CO}}_2+2\mathrm{O}{\text{H}}^{-}\to {\text{CO}}_3^{2-}+{\text{H}}_2\text{O}(9)$$

$$\text{C}+6\mathrm{O}{\text{H}}^{-}\to {\text{CO}}_3^{2-}+3{\text{H}}_2\text{O}+4{\mathrm{e}}^{-}(10)$$

These issues can be resolved by providing water to the DCFC, which will prevent the dissociation of hydroxides and, thus, the reactions given above. Besides, water has a few other advantages, such as increasing ionic conductivity, reducing corrosion by decreasing the concentration of oxygen species (oxides, peroxides, and superoxides) in the melt (Zecevic et al., 2004; Kacprzak, 2019). However, it has been found that this water effect requires temperatures of 650°C or more (Zecevic et al., 2004). Besides, a low carbon dioxide pressure is preferable to further inhibit the reactivity (Hemmes and Cassir, 2011). Finally, there still are some remaining problems that should be addressed such as the best carbon structure for optimal reactivity, the possible effects of fuel impurities, corrosion issues due to molten hydroxides, and scale-up of the technology (Kacprzak and Włodarczyk, 2020).

Hybrid Fuel Cell

Hybrid fuel cells are a type of fuel cell combining molten carbonate and solid oxide technologies, through a composite electrolyte usually composed by a zirconia or ceria-based phase and a molten carbonate phase. Xiong et al. (2015) have shown in the case of a BaZr_0⋅8Y_0⋅2O_3–δ /Li-Na composite electrolyte that the conductivity in the carbonate phase is enhanced under H₂ or H₂O compared to air and that it increased with H₂O pressure. Thus the appearance of a new proton conducting species in the carbonate phase was suggested, the species could be OH^– and HCO₃^–. Benamira et al. (2012) have found similar results for GDC (Gadolinia Doped Ceria)/Li-K and GDC/Li-Na composites, with very high conductivities being obtained under anode gas conditions (so under H₂ and CO₂), as evidenced in Figure 3.

FIGURE 3

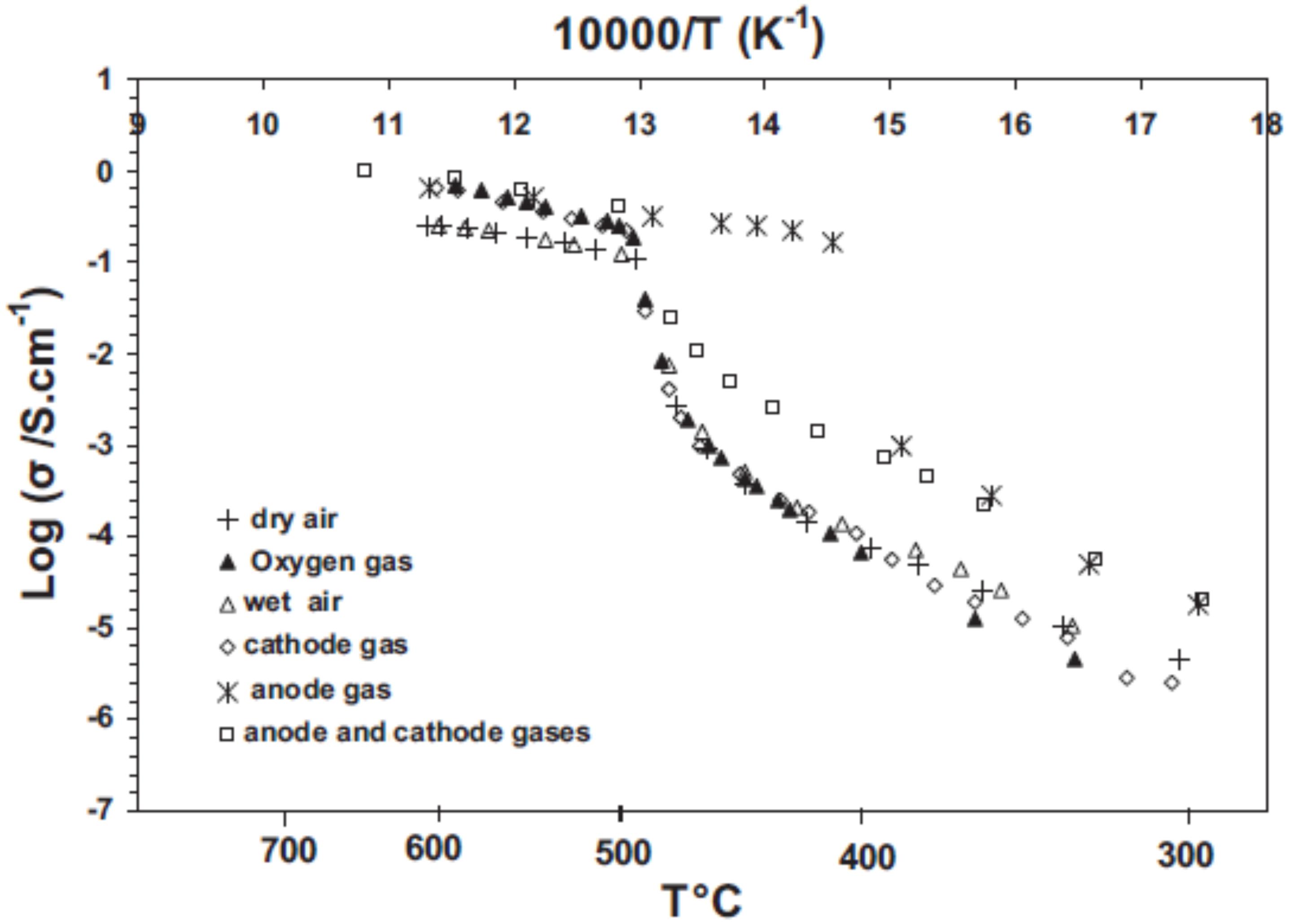

Figure 3. Arrhenius plots of the conductivity of a GDC/30% Li-K sample under different atmospheres (Benamira et al., 2012).

It can be seen that the transition occurs at around 415°C for this electrolyte under anode gas conditions even though the Li-K carbonate eutectic melts at around 485°C, so this could evidence the formation of hydroxides that melt at lower temperature. Both the melting point and the higher conductivity are arguments for hydroxide formation. The trends are more pronounced for Li-K than Li-Na, but present in both cases nonetheless.

This behavior has once again been highlighted by Grishin (2019) in his Ph.D. work for an SDC (Samaria Doped Ceria)/Li-Na-K electrolyte. The hydroxide formation was evidenced not just by conductivity, but also by TGA/DSC and XRD analyses, under hydrogen and even more under wet hydrogen. Samples analyzed with 2 TGA/DSC cycles reveal the formation of hydroxides through the lower overall fusion temperature obtained for the second cycle, and through lower temperature endothermic peaks in the second cycle at around 315°C, which were attributed to NaOH fusion. A new hydrated phase was also observed by XRD analyses of samples that were cycled under dry and wet hydrogen: NaK₂[H(CO₃)₂]⋅2H₂O, which could support hydroxide presence as they can create other phases with carbonates.

Hydroxide Interference in MCFC

Hydroxides are also present in standard MCFCs. Indeed, as water is an inlet gas, there is, similarly to carbonate/carbon dioxide, the previously introduced oxoacid/oxobase equilibrium (1). Then hydroxides can also react in an oxoacidobasic reaction with CO₂, through reaction (9). This shows that a sufficient water pressure allows for hydroxides to exist and be stable in MCFC conditions. Although the presence of molten hydroxides is likely in molten carbonates due to the presence of water, it is only until recently that their significant role has been demonstrated in the literature. Indeed, new studies show that these ions also contribute to overall MCFC performance in some conditions (Audasso et al., 2020; Rosen et al., 2020). For CO₂-lean wet atmospheres, very high current densities, and/or high CO₂ usage, the MCFC can also operate using hydroxide as charge carrier, along with carbonates. Rosen et al. (2020) have noticed that compared to their simulations, the effective CO₂ utilization rate in carbon capture conditions was lower. In Figure 4, they plotted real MCFC utilization rate vs. simulated, and observed that their real CO₂ utilization was lowest for low anode inlet CO₂ (2%) when comparing different atmospheres. The difference was also larger for high current densities at a given CO₂ percentage, and for high water content. However, it was negligible for a higher inlet CO₂ of 17%. By observing OCP variation, they found at low inlet CO₂ that the dependence on CO₂ is not the same, indicating a different phenomenon is occurring as the OCP deviates from expected Nernst potential. Mass balance experiments on water proved that for dilute CO₂ conditions, water amount collected is somehow lower at the cathode and higher at the anode. All these results indicate that water is responsible for another charge carrier in these dilute CO₂ concentrations. This charge carrier is the hydroxide anion, which has been shown to be the main hydrated ion in the considered conditions, namely a temperature of 650°C (Frangini et al., 2014), as will be detailed in the following part about water reduction and hydrogen oxidation reactions in molten carbonates. In addition, Evans et al. (2015) also observed hydroxide transport in molten carbonates in wet conditions.

FIGURE 4

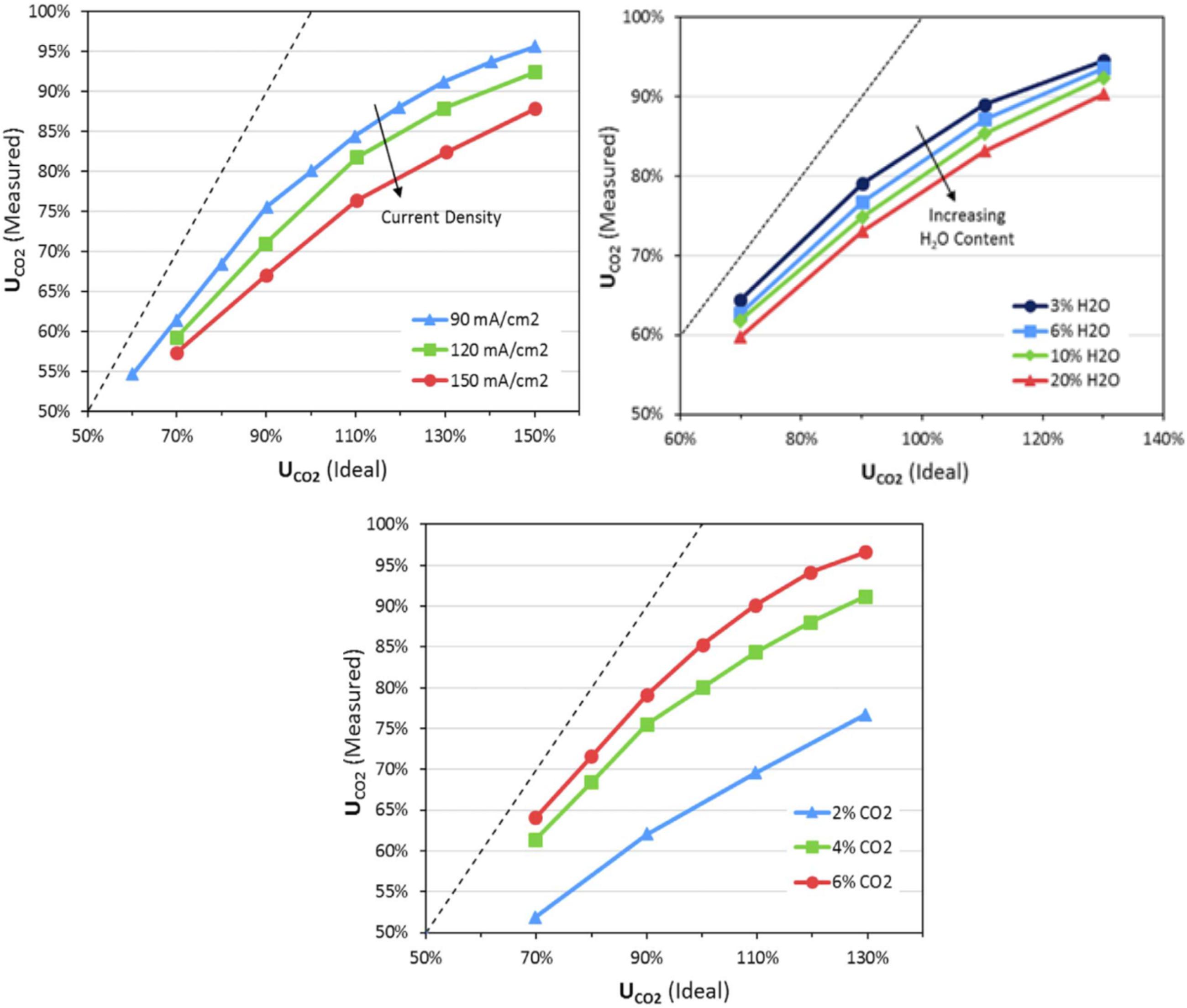

Figure 4. Plots of measured CO₂ utilization rate versus expected, for various current densities, water contents, and CO₂ contents (Rosen et al., 2020).

Figure 5 recapitulates the reactions taking place at both anode and cathode side for both possible charge carriers.

FIGURE 5

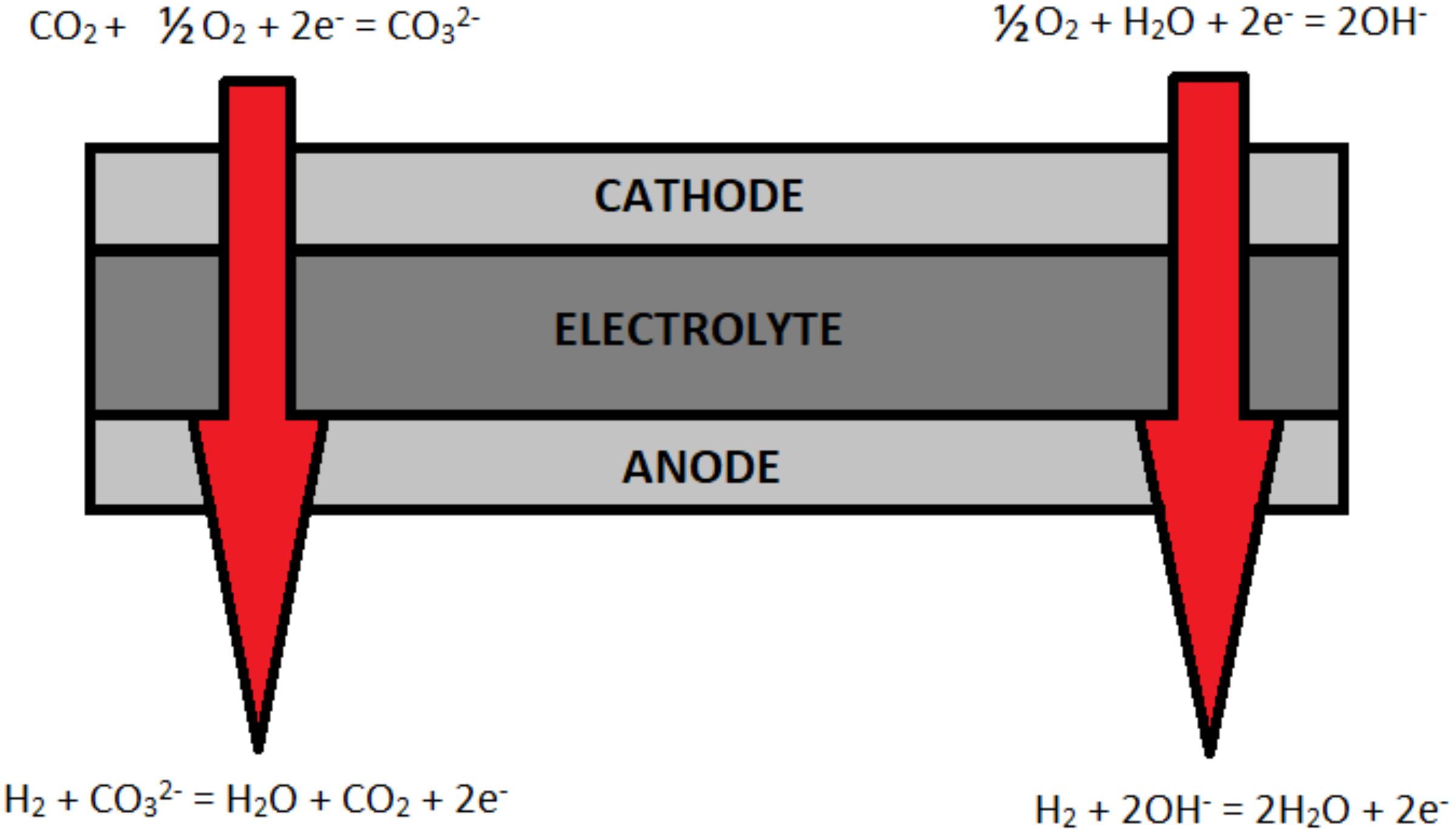

Figure 5. Molten carbonate fuel cell (MCFC) operation with both charge carriers, redrawn from (Rosen et al., 2020).

Audasso et al. (2020) then proposed a dual-anion model to more accurately describe MCFC performance. In such case, the net current is distributed in two different circuits, for the carbonate and hydroxide paths, as shown in Figure 6.

FIGURE 6

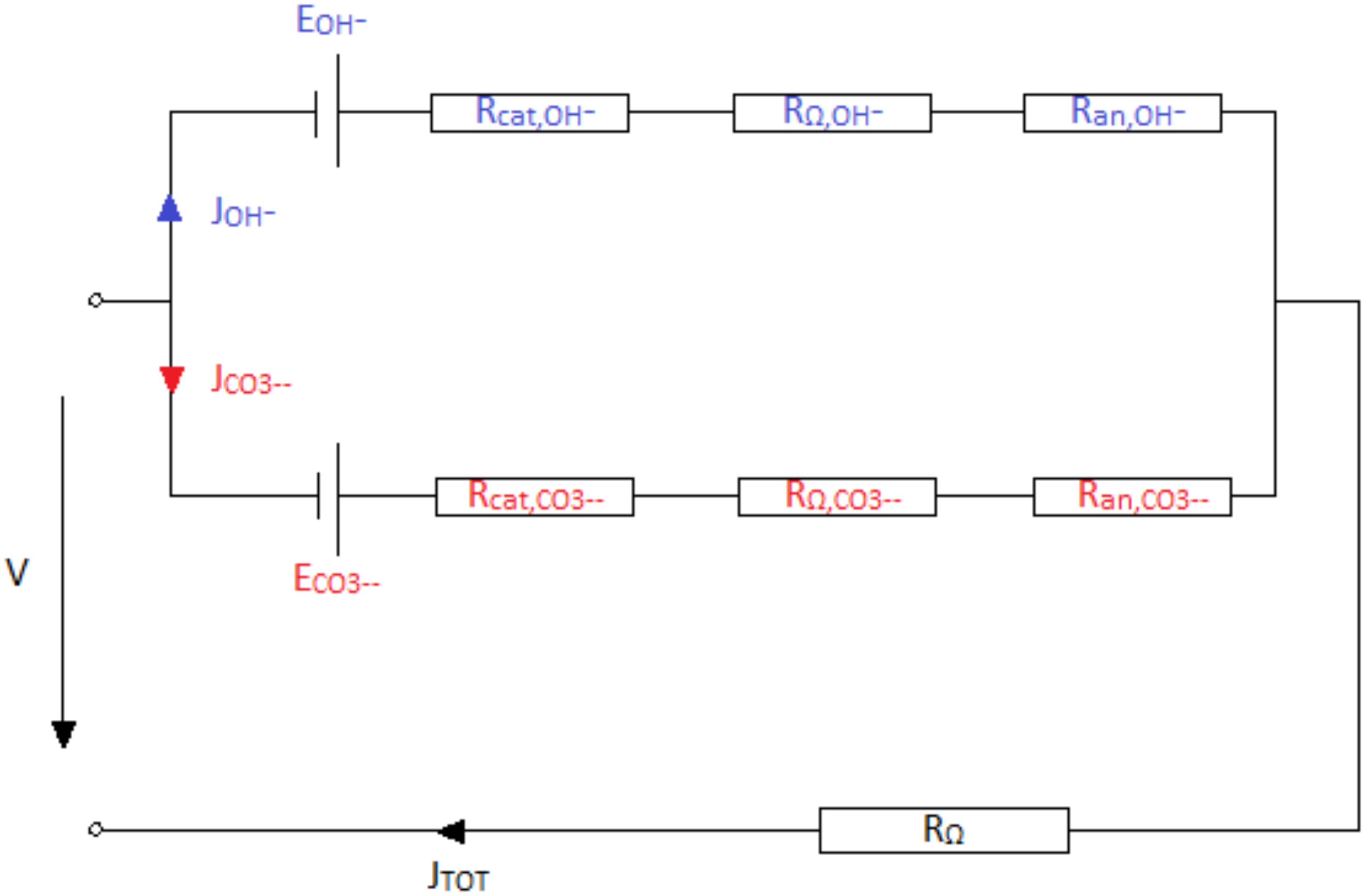

Figure 6. Equivalent circuit describing MCFC operation, redrawn from Audasso et al. (2020).

Role in H₂ Oxidation and H₂O Reduction Mechanism

Some widely accepted H₂ oxidation mechanisms in molten carbonates include intermediate hydroxide species. Three main mechanisms have been suggested by Ang and Sammels, Jewulski and Suski, and White and Twardoch. The first one, using hydroxides, and suggested by Ang and Sammells (1980), is:

$${\text{H}}_2+\mathrm{\hspace{0.25em}2}\mathrm{M}\leftrightarrow \mathrm{\hspace{0.25em}2}\mathrm{M}-\text{H}(11)$$

$$\text{M}-\text{H}+\mathrm{C}{\text{O}}_3^{2-}\leftrightarrow {\mathrm{OH}}^{-}+\mathrm{C}{\text{O}}_2+\mathrm{M}+{\text{e}}^{-}(12)$$

$$\text{M}-\text{H}+{\mathrm{OH}}^{-}\leftrightarrow {\text{H}}_2\text{O}+\text{M}+{\text{e}}^{-}(13)$$

Another hydroxide mechanism suggested by Jewulski and Suski (1984) is:

$${\text{H}}_2+\mathrm{\hspace{0.25em}2}\mathrm{M}\leftrightarrow \mathrm{\hspace{0.25em}2}\mathrm{M}-\text{H}(14)$$

$$2\{\text{M}-\text{H}+\mathrm{C}{\text{O}}_3^{2-}\leftrightarrow {\mathrm{OH}}^{-}+\mathrm{C}{\text{O}}_2+\mathrm{M}+{\text{e}}^{-}\}(15)$$

$$\mathrm{\hspace{0.25em}2}{\mathrm{OH}}^{-}+{\text{CO}}_2\leftrightarrow {\text{H}}_2\text{O}+{\mathrm{CO}}_3^{2-}(16)$$

Finally, White and Twardoch (1984, 1987) suggested bicarbonates instead of carbonates as an intermediate species, in the following mechanism:

$${\text{H}}_2+\mathrm{\hspace{0.25em}2}\mathrm{M}\leftrightarrow \mathrm{\hspace{0.25em}2}\mathrm{M}-\text{H}(17)$$

$$2\{\text{M}-\text{H}+\mathrm{C}{\text{O}}_3^{2-}\leftrightarrow \mathrm{HC}\text{O}_3{}^{-}+\mathrm{M}+{\text{e}}^{-}\}(18)$$

$$2\mathrm{HC}\text{O}_3{}^{-}\leftrightarrow {\text{H}}_2\text{O}+\mathrm{C}{\text{O}}_3^{2-}+\mathrm{C}{\text{O}}_2(19)$$

Applying the principle of microscopic reversibility, the water reduction mechanism in molten carbonates would be the exact opposite of the hydrogen oxidation one (Frangini et al., 2014).

Nishina et al. (1990) studied the H₂ oxidation in the Li-K eutectic at 650°C, at various metal electrodes, using cyclic voltammetry, electrochemical impedance spectroscopy and chronocoulometry. They compared their findings to the three pathways proposed in the literature, only to conclude that the H₂ oxidation mechanism in their case was better described by mechanism 2, suggested by Jewulski and Suski.

Later, Frangini et al. (2014) studied the water reduction mechanism for temperatures ranging from 500°C to 600°C, in the Li-Na-K ternary eutectic over gold. They found by cyclic voltammetry that for temperatures below 550°C, the reaction was bicarbonate-assisted, whereas for temperatures above 550°C the mechanism involved hydroxides. This was consistent with predicted equilibrium concentrations involving both intermediate species in Li-Na-K, as bicarbonate concentration indeed becomes negligible above 550°C (Frangini et al., 2014).

Role in Cathode Mechanism

In the MCFC, the cathodic oxygen reduction reaction is:

$$\frac{1}{2}{\text{O}}_2+{\text{CO}}_2+2{\text{e}}^{-}\to {\text{CO}}_3^{2-}(20)$$

The mechanism of this reaction has been extensively investigated in the literature (Appleby and Nicholson, 1974, 1977, 1980; Lu and Selman, 1990, 1992; Moutiers et al., 1991, 1992; Nishina et al., 1994, 1996; Cassir et al., 1997), with 3 main paths being proposed, the Superoxide Path (SOP), the Peroxide Path (POP), and possibly the Peroximonocarbonate Path (POCP).

SOP:

$$3{\mathrm{O}}_2+2\mathrm{C}{\text{O}}_3^{2-}\leftrightarrow \mathrm{\hspace{0.25em}4}{\text{O}}_2^{-}+2{\mathrm{CO}}_2(21)$$

$${\text{O}}_2^{-}+{\mathrm{e}}^{-}\to {\mathrm{O}}_2^{2-}(22)$$

$${\text{O}}_2^{2-}+\mathrm{\hspace{0.25em}2}{\mathrm{e}}^{-}\to 2{\text{O}}^{2-}(23)$$

$${\text{O}}^{2-}+{\text{CO}}_2\leftrightarrow \mathrm{C}{\text{O}}_3^{2-}(24)$$

POP:

$${\text{O}}_2+2\mathrm{C}{\text{O}}_3^{2-}\leftrightarrow \mathrm{\hspace{0.25em}2}{\text{O}}_2^{2-}+2{\mathrm{CO}}_2(25)$$

$${\text{O}}_2^{2-}+\mathrm{\hspace{0.25em}2}{\mathrm{e}}^{-}\to 2{\text{O}}^{2-}(26)$$

$${\text{O}}^{2-}+{\text{CO}}_2\leftrightarrow \mathrm{C}{\text{O}}_3^{2-}(27)$$

POCP (hypothetical):

$${\text{O}}_2+2\mathrm{C}{\text{O}}_3^{2-}\leftrightarrow 2\mathrm{C}{\text{O}}_4^{2-}(28)$$

$${\mathrm{CO}}_4^{2-}+\mathrm{\hspace{0.25em}2}{\mathrm{e}}^{-}\to {\text{O}}^{2-}+{\text{CO}}_3^{2-}(29)$$

$${\text{O}}^{2-}+{\text{CO}}_2\leftrightarrow \mathrm{C}{\text{O}}_3^{2-}(30)$$

As molecular oxygen is not stable in these molten salts, these mechanisms involve reduced oxygenated species such as superoxides or peroxides. In most cases, CO₂ diffusion dominates the reaction process (Arato et al., 2016).

Some research groups observed, either experimentally (Nishina et al., 1996; Audasso et al., 2017) or by modeling (Arato et al., 2016), a water effect on the cathode reaction: presence of water vapor decreased the apparent diffusion resistance of CO₂ and increased apparent mass transfer. This behavior was to be expected, as it has previously been explained that water reacts as an oxide ion acceptor, linked to its conjugated oxobase OH^– by reaction 1, and can be later reobtained through reaction 9 reversed. There is then coexistence of reactions 1 and 21 to neutralize the oxide ion.

In a real MCFC, the presence of H₂O at the cathode side is beneficial for fuel cell performance, through higher voltage, and lower overall impedance (Audasso et al., 2017). This is especially true for low inlet CO₂.

Co-electrolysis

Recently, some research groups have proposed the direct co-electrolysis of CO₂ and H₂O through reduction of carbonates and hydroxides. In this case, alkali metal hydroxides such as LiOH, NaOH, and KOH have been used as additives in molten carbonates as a monovalent hydrogen source in CO₂ capture and conversion to generate syngas, methane or other hydrocarbons (Wu et al., 2016; Liu et al., 2017; Li et al., 2018; Ji et al., 2019). Addition of certain amount of alkali hydroxides may also decrease the melting point of the resulting molten salt mixture with respect to pristine carbonate eutectic, which is an important parameter as lower operating temperatures can be used. In a mixed alkali carbonate/hydroxide melt, the electrochemical reactions for co-electrolysis are proposed as follows:

$$4{\mathrm{OH}}^{-}+\mathrm{C}{\text{O}}_3^{2-}+8{\text{e}}^{-}\to {\text{CH}}_4+\mathrm{\hspace{0.25em}7}{\mathrm{O}}^{2-}\mathrm{for}\mathrm{methane}\mathrm{production}(31)$$

$$2{\mathrm{OH}}^{-}+\mathrm{C}{\text{O}}_3^{2-}+4{\text{e}}^{-}\to \text{CO}+{\text{H}}_2+\mathrm{\hspace{0.25em}4}{\mathrm{O}}^{2-}\mathrm{for}\mathrm{CO}\mathrm{production}(32)$$

The electrolyte could be renewed by the reaction of oxide ions with CO₂ and water:

$${\text{O}}^{2-}+{\text{H}}_2\text{O}\to 2{\mathrm{OH}}^{-}(33)$$

$${\text{O}}^{2-}+{\text{CO}}_2\to {\text{CO}}_3^{2-}(34)$$

The oxide ion can also be oxidized:

$$2{\mathrm{O}}^{2-}\to {\text{O}}_2+4{\mathrm{e}}^{-}(35)$$

Thus the full reactions are, including regeneration, the simple electrolysis equations of CO₂ and H₂O to CH₄ or syngas:

$${\text{CO}}_2+2{\text{H}}_2\text{O}\to {\text{CH}}_4+2{\mathrm{O}}_2(36)$$

$${\text{CO}}_2+{\text{H}}_2\text{O}\to \text{CO}+{\text{H}}_2+{\text{O}}_2(37)$$

Such reactions have been reported in a two-electrode setup, using Ni anode and Fe cathode. A scheme is given in Figure 7.

FIGURE 7

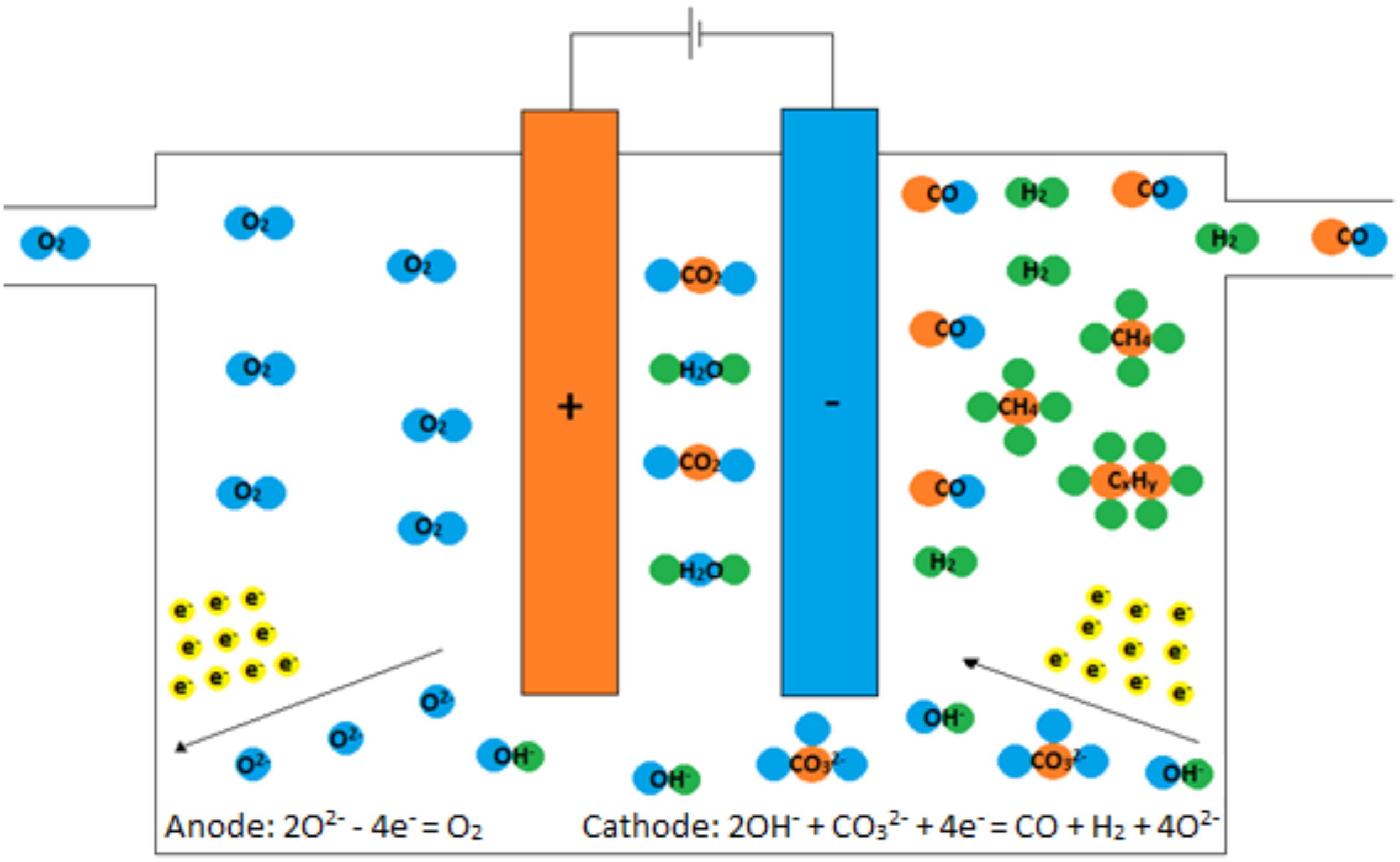

Figure 7. Scheme of the electrolysis system, redrawn from Liu et al. (2017).

The effect of different parameters such as temperature, nature of the electrolyte (including alkali hydroxide) and electrolysis potential have been investigated focussing on the efficiency and nature of the gaseous product. It is worth mentioning that without added water, solid carbon is the preferred thermodynamic product of carbon dioxide splitting, having a lower electrolysis potential at temperatures below 800°C, and carbon monoxide being favoured at higher temperatures. Experimentally, carbon deposition was observed at the cathode even at temperatures above 800°C (Wu et al., 2016). However, with the addition of hydroxides in molten carbonates, carbon deposition was only observed in lean mixtures of hydroxides (with a molar ratio of hydroxides to carbonates in the eutectic electrolyte < 0.05). Among Li, Na, and K hydroxides, lithium hydroxide seems to be a better choice of additive. Indeed, both KOH and NaOH present a lower cation to metal reduction potential, which is a serious issue as they can be parasitic side reactions (Liu et al., 2017). Li deposition is relatively low compared to the other alkali metals. LiOH also remains hydrated more easily than NaOH or KOH, as it has been reported to sustain LiOH-9H₂O above 350°C (Wu et al., 2016). It also has a greater charge density because it has the same univalent charge as the others but dispersed over a smaller volume, so the choice of LiOH might improve the conductivity. Finally, usual anode material, nickel, is also more stable in electrolytes containing high content of Li⁺ compared to Na⁺ or K⁺. In terms of temperature, the studies have been focused in the 500°C–600°C range. A general trend is that CO production is optimal at 550°C and that higher temperatures tended to favor H₂ or methane more. Regarding the potential, explored between 1.6 and 2.6 V, CO generation is favored at 1.8 V, as higher potentials resulted in more hydrogen. Finally, in terms of electrolyte, the ones containing a high fraction of Li₂CO₃ favoured CO generation. Regarding syngas production, Li_0.85Na_0.61K_0.54–0.1LiOH was the best tested mixture, with an efficiency close to 93%. However, it produced a relatively low fraction of CO (25%). CO was generated in higher proportions in electrolytes where the carbonates are just a binary mixture, but with efficiencies lower than 60%. At temperatures of 550°C and higher, by applying current densities between 2.5 and 30 mA cm^–2, methane is generated. For this gas specifically, the best hydroxide ratio is 0.15 and the best electrolyte featuring a ternary carbonates mixture. Higher hydroxide content mean more hydrogen and less methane, but a ratio of at least 0.15 enables efficiencies higher than 90%. A gas outlet of 63.34% CH₄ and 35.81% H₂ was obtained in Li_0.85Na_0.61K_0.54–0.15Ca(OH)₂ at 575°C under 15 mA⋅cm^–2 with 92.88% Faraday efficiency. Overall, the main results are summarized in Table 2.

TABLE 2

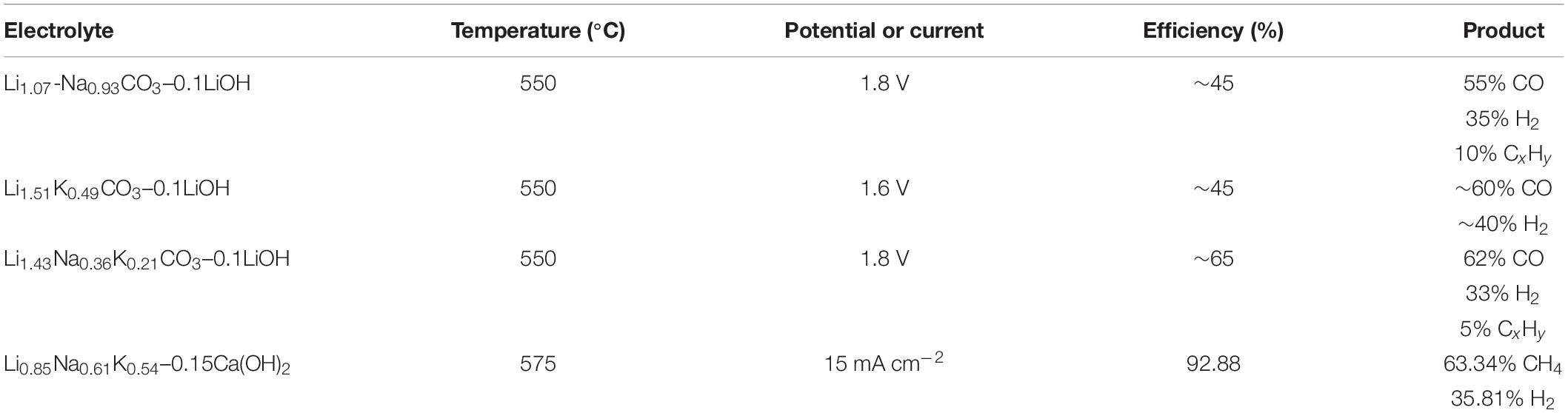

Table 2. Some syngas and methane generation results (Wu et al., 2016; Liu et al., 2017; Li et al., 2018; Ji et al., 2019).

Conclusion

Hydroxides are a key component in high-temperature fuel cell systems, and specifically MCFC/MCECs, due to their contributions as intermediates for water reduction in electrolysis mode, as charge carrier species and as direct hydrogen source in electrolysis. These ions have to be accounted for in order to gain full understanding of most high-temperature fuel cell systems operating under hydrogen or water. Besides, their properties, especially their low melting point and high conductivity, are also a great asset in order to enhance performances of fuel cells and carry out efficient co-electrolysis of CO₂ and H₂O. It is amazing how such interesting molten salts with outstanding properties have been investigated in the past in dispersed applications, then forgotten, are experiencing renewed interest not only for their direct applications as electrolytes (DCFCs, catalysis, reactive media, electrosynthesis, etc.), but also for their significant participation in electrode processes where the electrolyte is mainly composed of molten carbonates or hybrid molten carbonates/solid oxides. This opens an important area of research, knowing that the corrosion effect of molten hydroxides should be well understood and controlled.

Author Contributions

MC wrote part of the review. EGü contributed in the whole manuscript elaboration. EGr wrote specific parts on the MCFC technology. AR contributed mainly in the part on the hybrid fuel cells. VL contributed in the electrolysis part. All authors contributed to the article and approved the submitted version.

Funding

This work was supported by the French program ANR MCEC 17-CE05-0025-01.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
