The Synthesis of V2O3 Nanorings by Hydrothermal Process as an Efficient Electrocatalyst Toward N2 Fixation to NH3

Ning Wang
Ning Wang1*Qing-Song SongQing-Song Song1Wen-Jing LiuWen-Jing Liu1Jian Zhang
Jian Zhang2*
  • 1Key Laboratory of Flexible Electronics (KLOFE) and Institute of Advanced Materials (IAM), Jiangsu National Synergistic Innovation Center for Advanced Materials (SICAM), Nanjing Tech University (Nanjing Tech), Nanjing, China
  • 2Key Laboratory of Material Chemistry for Energy Conversion and Storage, Ministry of Education, School of Chemistry and Chemical Engineering, Huazhong University of Science and Technology, Wuhan, China

A new ringlike V2O3 architecture was successfully synthesized by a template-free hydrothermal method, and the sulfur ions-assisted central-etching mechanism of the ringlike structure was proposed. Herein, as a proof-of-concept experiment, taking V2O3 nanorings as non-noble-metal-free nitrogen reduction reaction (NRR) catalysts, they show desired electrocatalytic performance toward NRR under ambient conditions (maximum yield: 47.2 µg h−1 mgcat.−1 at −0.6 V vs. reversible hydrogen electrode, maximum Faraday efficiency: 12.5% at −0.5 V vs. reversible hydrogen electrode), which is significantly higher than those of noble metal-based catalysts.

Introduction

The precise nanofabrication is of great significance in both fundamental research and practical applications. The past few decades have witnessed a remarkable progress in the synthesis of zero-, one-, and two-dimensional nanomaterials (Chiu et al., 2011; Cao et al., 2020; Wang et al., 2020), which have aroused widespread interest due to the fascinating size/figure-dependent properties. During a variety of nanostructures, ringlike architectures exhibit novel properties with ring cavities and present promising application prospects in catalysis, sensors, energy storage, and advanced optical/electric nanodevices (Chen et al., 2017). Various strategies have been developed to fabricate ring architectures, including electron beam lithography (EBL), gas bubbles-assisted method (Wang et al., 2018), microwave-induced nucleation-aggregation-dissolution method (Hu et al., 2007), ultrasonic irradiation method (Miao et al., 2006), self-assembly method (Zhai et al., 2010), or epitaxial self-coiling method. Yet, most synthetic strategies are expensive or complicated. Thus, it is still a demanding problem to develop scalable liquid phase synthesis techniques for fabricating cyclic annular architecture in various forms with functionality.

The conversion of atmospheric nitrogen (N2) into ammonia (NH3) is an important process for both mankind and biologic system of the planet (Li et al., 2017; Ma et al., 2017). It is predicted that almost half of the world’s people would suffer from hunger, if there are no amino-group inorganic fertilizers (Bao et al., 2017; Xue et al., 2019). However, it is significant challenge to convert N2 to NH3, because of the extremely high bond strength of 941 kJ × mol−1 and the absence of a dipole moment (Bao et al., 2017; Cao et al., 2018). Thus, it is of indispensable significance to develop N2 fixation technologies that can satisfy the current needs of the fertilizer industry (Montoya et al., 2015; Cao et al., 2018). The traditional Haber-Bosch process needs severe reaction conditions (200–250 bar, 400–500°C) to produce NH3 using N2 and hydrogen (H2) as feed gases (Qiu et al., 2018; Wu et al., 2018; Zhang L. et al., 2018), while it supplies a comparably inferior equilibrium conversion yield of ca. 15% and inevitable CO2 emissions (1.5 tons CO2 for one ton NH3 produced) (Bao et al., 2017; Cao et al., 2018; Chirik, 2009; Ham et al., 2014). Although biological N2 fixation can be able to boost the formation of ammonia in the moist air at temperate reaction conditions, the impressive energy efficiency could scarcely meet the demand of global need (Broda et al., 2014; Seh et al., 2017). Encouragingly, electrochemical N2 fixation proceeds (N2 + 6H+ + 6e → 2NH3) under milder conditions and can be powered by electricity from sustainable sources, which provides a new environmentally friendly process for sustainable synthesis of NH3 under normal temperature and pressure (Shipman et al., 2017; Yang et al., 2020).

Usually, NRR catalysts based on metal-based catalysts, specifically noble metal-based ones, like Au (Shi et al., 2018), Pd (Wang et al., 2018), and Ru (Zhang Y. et al., 2018), show satisfactory activity, yet extensive use is hindered by the less abundance and huge expenses. Thus, a lot of attention has been focused on the design and development of non-noble-metal substitutes, including metal oxides (Liu et al., 2018), transition metal disulfide (Zhang L. et al., 2018), carbides (Cheng et al., 2018; Qiu et al., 2018), and nitrides (Yang et al., 2018; Zhang X. P. et al., 2018). However, non-noble-metal electrocatalysts always suffer from low Faradaic efficiency (FE). Vanadium oxides, a kind of inorganic functional material, have been widely studied for energy storage and conversion, including supercapacitors, aqueous lithium ion batteries, and thermoelectric generators (Wu et al., 2013; Zeng et al., 2016; Liu et al., 2017; Shao et al., 2019), due to their abundance in natural resources and low production cost. To date, their electrochemical uses as NRR catalysts is still scarcely explored up to now.

Herein, we report the versatile synthesis of V2O3 nanorings via a scalable hydrothermal method. The formation mechanism has been studied in detail. As a proof-of-concept experiment, we show that the ringlike V2O3 nanostructure serves as a superb catalyst for N2 fixation at room temperature with excellent selectivity to synthesized NH3 product. As-prepared nanostructure, in 0.1 M Na2SO4, enables electrocatalytic NRR with a desired FE of 12.5% at −0.5 V versus reversible hydrogen electrode (RHE).

Materials and Methods

Chemicals

Salicylic acid (C7H6O3), sodium nitroferricyanide dihydrate (C5FeN6Na2O·2H2O), p-dimethylaminobenzaldehyde (C9H11NO), ammonium chloride (NH4Cl), sodium hydroxide (NaOH), sodium sulfate (Na2SO4), sodium citrate dehydrate (C6H5Na3O7.2H2O), and thioacetamide (CH3CSNH2) were purchased from Sigma-Aldrich (Steinheim, Germany). 15-Ammonium sulfate [(15NH4)2SO4] was purchased from Aladdin Chemical Reagent Co., Ltd (Shanghai, China). Hydrochloric acid (HCl) and sodium orthovanadate (Na3VO4) were purchased from Sinopharm Chemical Reagent Co., Ltd (Shanghai, China). Sodium hypochlorite solution (NaClO) and ethanol (C2H5OH) were purchased from TCI Development Co., Ltd (Shanghai, China). All reagents were used as received without further purification.

Synthesis of V2O3 Nanorings

Sodium orthovanadate (0.125 g) and thioacetamide (0.1125 g) were dissolved in 100 ml distilled water in a 150 ml Teflon-lined stainless-steel autoclave, which was sealed and heated to 200°C (160°C, 180°C) at 5°C min−1 and hold at constant temperature for stated time (0–24 h) and then cooled naturally to room temperature with furnace. Finally, the product is collected by centrifugation and washed with deionized water in turn before further characterizations.

Characterizations

The morphological, structural, and compositional characterizations of the products were investigated by scanning electron microscopy (SEM, Hitachi S-4800, Japan), high-resolution transmission electron microscope (HRTEM, JEOL 2100F, Japan) coupled with energy dispersive X-ray (EDX) spectroscopy, UV-Vis spectrophotometer (Shimadzu 2600, Japan), X-ray diffraction (XRD, SmartLab Rigaku, Japan), and X-ray photoelectron spectroscopy (XPS, Thermo ESCALAB 250Xi, USA). The XRD characterization was carried out on a diffractometer equipped with Cu Kα radiation (λ = 1.54 Å). For the XPS measurements, the binding energies were corrected for specimen charging effects using the C 1 s level at 284.6 eV as the reference. A JEOL JNM-ECZ400S/L1 spectrometer was used to record proton nuclear magnetic resonance (400 MHz), and dimethyl sulfoxide (DMSO) was used as a solvent.

Electrochemical Measurements

Before NRR test, Nafion 211 membrane was treated by first heating it in H2O2 (5 wt%) aqueous solution for 1 h, then in deionized water for 1 h, followed by 1 h in 0.5 M H2SO4, and ultimately for 1 h in ultrapure water (Ketpang et al., 2015). Above steps were all carried out at 80°C. A VMP3 electrochemical workstation (Bio-Logic, Claix, France) was used to carry out electrochemical measurements in a two-compartment cell separated by Nafion 211 membrane. A standard three-electrode system used a saturated Ag/AgCl as the reference electrode and a Pt electrode as counter electrode, respectively. The working electrode was prepared by successively drop-casting samples and Nafion solutions (0.01 wt%) onto the carbon paper (CP). The loading amount of all the catalysts was 0.02 mg on the working electrode. For N2 fixation test, the electrolyte was purged with ultrapure N2 for 0.5 h before every experiment. Chronoamperometric tests were carried out in N2 saturated 0.1 M Na2SO4. According to the following equation, all of the potentials were transformed to the RHE scale,

ERHE=EAg/AgCl+0.1989+0.059·pH(1)

Results and Discussion

Scanning electron microscopy (SEM) analysis reveals the ringlike structure is uniform with outer diameter in the range of 350–500 nm, as shown in Figure 1A. Figure 1C exhibits a typical transmission electron microscopy (TEM) picture of a representative sample at lower magnification. It confirms that such nanoring has a rough surface. After heat treatment, the surface of nanorings become smooth (Figure 2). The X-ray diffraction (XRD) patterns are showed in Figure 1B for the V2O3 nanoring powder before and after heat treatment. The XRD data of the original V2O3 nanorings show the shift in the peak position due to the lattice distortion of ringlike structure, as well as the broadening of the peaks, indicating the existence of microstrain (JCPDS card No. 34-0187) (Chattot et al., 2018). Note that microstrain has broadened the peaks and never changed the peak position, because the atoms deviated from the desired positions when structure defects exist, like stacking faults and grain boundaries (Li et al., 2004). The high-resolution TEM (HRTEM) (Figure 1D) picture of one single nanoring demonstrates a contracted interplanar distance of 0.211 nm corresponding to the (113) Plane, which well conforms to the XRD data. X-ray photoelectron spectroscopy (XPS) (Supplementary Figure S1) further demonstrates the formation of V2O3. For the V 2p spectrum, two distinct peaks at binding energies of ∼516.0 eV for V 2p3/2 and ∼524.0 eV for V 2p1/2 are observed. It is characteristic of vanadium in the +3 oxidation state, indicating the preparation of V2O3 (Jiang et al., 2015). After heat treatment in flow Ar atmosphere, the peak position becomes consistent with that of the V2O3 crystal due to the release of stress (JCPDS card No. 34-0187, Figures 1B, 2C). The corresponding STEM and EDX mapping pictures indicate the uniformly distributed V and O elements for V2O3 nanorings before and after heat treatment (Figure 1E; Supplementary Figure S2).

FIGURE 1
www.frontiersin.org

FIGURE 1. (A) SEM image of the original V2O3 nanorings. (B) XRD pattern of the original V2O3 nanorings and the corresponding one after heat treatment in Ar atmosphere. (C) TEM and (D) HRTEM images of the original V2O3 nanorings. (E) STEM image of the original V2O3 nanoring and EDX elemental mapping of V and O.

FIGURE 2
www.frontiersin.org

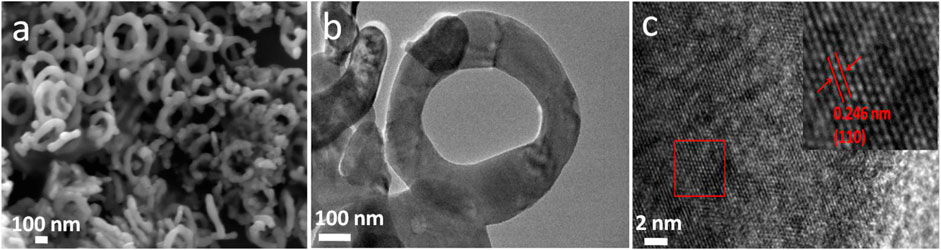

FIGURE 2. (A,B) The SEM and TEM images of the nanorings after heat treatment in flow Ar atmosphere. (C) The corresponding HRTEM images of the nanoring showing an interplanar distance of 0.246 nm relative to the (110) Plane, which is consistent with the V2O3 crystal (JCPDS card No. 34-0187).

In this work, V2O3 nanoring is obtained by one-dot hydrothermal method without template assistance. Concerning the formation mechanism, the included S2− derived from the decomposition of thioacetamide (TAA) must have played the key roles during the “etching” of the nanodisk, because surfactants/templates/emulsions are not contained inside during the reaction. At this point, we put forward a central-etching process for the formation of V2O3 nanorings, as schematically depicted in Figure 3. The shape evolution of as-prepared V2O3 nanoring was studied by varying the hydrothermal reaction time (Figure 4; Supplementary Figure S3). At the beginning of the synthesis process (<2 h), nanolens with thicker center and diameter of 300–500 nm were observed. With the extended reaction time, the inner part of the nanolens became thinner to form holes under etching (<4 h). After the reaction had proceeded for over 4 h, nanorings with outer diameter of 300–500 nm form and keep stable even at longer time. XRD patterns (Figure 5) at different reaction time revealed the lattice distortion and microstrain exist throughout the process.

FIGURE 3
www.frontiersin.org

FIGURE 3. Schematic illustration of V2O3 nanoring formation.

FIGURE 4
www.frontiersin.org

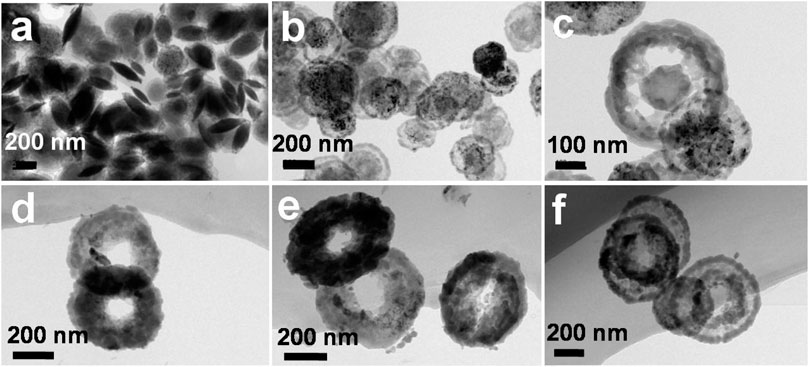

FIGURE 4. The formation process of the V2O3 nanorings, (A) <2 h, (B) 2 h, (C) 3 h, (D) 4 h, (E) 6 h, (F) 8 h.

FIGURE 5
www.frontiersin.org

FIGURE 5. The XRD patterns of the nanorings at varying reaction time (0–12 h).

TAA can be hydrolyzed into sulfide ions in alkaline environment (Eq. 2). Then the included sulfide ions will be more inclined to “etch” the raised center of V2O3 nanodisk, thus resulting in more defects in the center of the nanodisk. Interestingly, the “etching effect” only happened in the inner part of the disks throughout the formation of ringlike structure. And the etching process is uniform from one disk to another, even to an individual disk (Figure 1A; Supplementary Figure S3).

CH3CSNH2+3OHCH3COO+NH3+S2+H2O(2)

To understand the control mechanism of the V2O3 nanorings, a series of experiments were designed to make clear the influence of the content of reagents on the growth of the V2O3 nanorings. In several experimental variables, TAA during the reaction plays a major role in the size control of V2O3 nanorings (Supplementary Figure S4). According to Eq. 2, the amount of TAA added dominates the amount of free sulfide ions which are responsible for the dissolution of nanodisks. When the amounts of TAA increased from 0.1125 to 0.50 g in 100 ml deionized water, the outer diameter of the nanoring decreased from ca. 500 nm to ca. 200 nm. Furthermore, when the amount of TAA increased to 1.250 g, the inner diameter shrank and almost disappeared. Experimental results show that the morphology is sensitive to temperature in solution (Supplementary Figure S5). When the temperature is below 200°C, flower-like architecture forms instead of nanoring.

Interestingly, the morphology of etching-induced nanorings shows distinct variation with the concentration of solution (Supplementary Figures S6 and S7). When the solution was diluted, the nanodisks were less etched, leaving several holes in the middle. On the contrary, the concentrated solution generated layer-by-layer stacked nanodisks with the center etched. Layer-by-layer stacked architecture has been reported previously based on different mechanisms. For instance, anionic surfactant (PVP) serves as a bridging agent to hold neighboring disulfide nanosheets together due to electrostatic interactions (Sun et al., 2017). The formation of ultrathin CuS nanosheets can be explained by the micellar-templating mechanism (Du et al., 2012). In our work, no surfactant or micellar was used in the precursors. The formation mechanism of stacked architecture requires further investigation.

As a proof-of-concept demonstration, as-prepared nanorings serve as a catalyst for ambient N2 fixation. The NRR ability was evaluated in an H-typed electrolytic cell (Supplementary Figure S8). V2O3 nanorings were uniformly dispersed on a carbon paper electrode (V2O3/CPE, loading: 0.02 mg/cm2), with Ag/AgCl as reference electrode and Pt electrode as counter electrode, respectively. In advance of each NRR test, N2 is transported toward the working electrode surface in the electrolyte for 30 min. Chronoamperometric tests were then conducted at constant N2 flow rate for 2 h. All NRR catalytic performance tests were conducted in 0.1 M Na2SO4 electrolytes and the magnitude of current density varied with the applied potentials. In order to verify the reduced NH3 is generated via the electrocatalytic process, the linear sweep voltammetric (LSV) curve using V2O3/CPE as the working electrode is performed in N2-saturated (black line) and Ar-saturated (purple line) electrolytes, respectively (Supplementary Figure S10). The produced NH3 concentration was quantified using the calibration curves set up by the indophenol blue method (Zhu et al., 2013), and possible byproduct hydrazine (N2H4) was detected using a spectrophotometric method researched by Watt and Chrisp (Ensafi et al., 1999).

Figure 6A demonstrates the chronoamperometry results at varied potentials of the V2O3 nanorings under N2 atmosphere. During the electrolytic tests, negligible decay in current density except the potential at −0.9 V was observed for the V2O3/CPE catalyst, revealing the good durability of as-prepared catalyst within a certain potential range. Figure 6B demonstrates the UV-Vis absorption spectra of electrolytes in a wide voltage range from −0.5 to −0.9 V colored with the indophenol indicator. The highest absorbance intensity of the electrolyte appeared at the voltage of −0.6 V. The relationship between NH3 yields, Faradaic efficiencies (FEs), and applied potential is plotted in Figure 6C. A peak value of produced NH3 is 47.2 µg h−1 mgcat.−1 at the potential of −0.6 V versus RHE. Owing to the competitive hydrogen evolution reaction (HER) activity over V2O3/CPE, the NH3 yield decreases distinctly after the peak voltage of −0.6 V, and the competition reaction between NRR and HER was previously elaborated in numerous researches. The best value of FE (12.5%) was acquired at the optimal potential of −0.50 V versus RHE. Comparing with most reported N2 fixation electrocatalysts under ambient conditions, the performance is preferable (Supplementary Table S1). A 15N isotopic labeling experiment using 15N2-enriched gas as the raw gas was also conducted to verify the exact N source of the synthesized NH3, as shown in Supplementary Figure S12. In the 1H nuclear magnetic resonance (1H NMR) spectra, a doublet coupling for 15NH4+ appears in the reaction product. The results powerfully support that the exact N source in NH3 originates from the gaseous N2 provided. Moreover, hydrazine was not detected in our research within the detection limit of the spectrophotometric means, indicating the good selectivity of the catalyst (Supplementary Figures S11 and S13). Additionally, stability is another critical criterion to be evaluated for catalysts. Figure 6D shows the NH3 yield rate and FEs of V2O3/CPE at −0.6 V versus RHE scarcely change during eight successive NRR tests, confirming its excellent durability (UV-Vis absorption spectra and chronoamperometry curves are shown in Supplementary Figure S14).

FIGURE 6
www.frontiersin.org

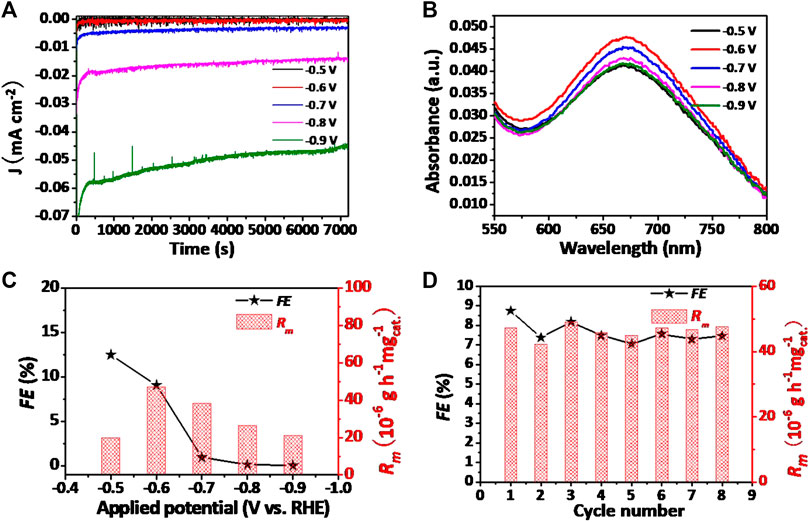

FIGURE 6. (A) Chronoamperometry curves of V2O3/CPE at varied potentials. (B) UV-Vis absorption spectra of the solution mixed with indophenol indicator after electrochemical N2 fixation at a series of potentials for 2 h. (C) Average NH3 yields and FEs of V2O3/CPE at different potentials. (D) Cycling test of V2O3/CPE during N2 fixation at −0.6 V.

Conclusion

In summary, V2O3 nanorings with controlled size and morphology have been successfully synthesized by one-dot hydrothermal method. The as-formed architecture brings new blood into the family of vanadium oxide nanostructures, which is confirmed to be a splendid catalyzer for electrochemical N2 conversion to NH3 at ambient temperature. At −0.5 V versus RHE, this catalyst achieves a higher FE of 12.5% in neutral media, exhibiting strong long-term durability of electrochemical N2 fixation. Our research not only offers us a desirable non-noble-metal electrocatalyst for electrochemical N2 fixation, but also develops a stirring new direction to explore the use of V-based catalysts for NH3 synthesis.
