ORIGINAL RESEARCH article

Front. Energy Res., 04 September 2018
Sec. Bioenergy and Biofuels
This article is part of the Research Topic Microbial Electrochemical Technologies for Renewable Energy Production from Waste Streams View all 6 articles

Substrate Crossover Effect and Performance Regeneration of the Biofouled Rotating Air-Cathode in Microbial Fuel Cell

  • 1Department of Chemistry and Chemical Engineering, Institute of Advanced Materials, Jiangxi Normal University, Nanchang, China
  • 2Institute of Environmental and Sustainable Chemistry, Technische Universität Braunschweig, Braunschweig, Germany
  • 3Department of Earth and Environmental Sciences, Indian Institute of Science Education and Research, Mohali, India

In case of conventional two-dimensional air-cathodes in microbial fuel cells, biofouling usually covers the catalytic-layer side after a long-term operation and results in performance decrease mainly by obstructing the transfer of OH ions. This study on a biofouled three-dimensional rotating air-cathode (bio-RAC), demonstrates that besides the OH effect, substrate crossover acts as a key hindrance to the air-cathode performance. MFC operation and cyclic voltammogram results revealed that about 35% performance decrease of the bio-RAC performance was caused by the obstruction of oxygen and OH transfer. It decreased further by 26.8 and 52.7% in the presence of 3 and 10 mM acetate, respectively, thereby clearly suggesting the impact of substrate crossover on the oxygen reduction reaction at the bio-RAC. In particular, high substrate concentrations exceeded the effect caused by obstruction of oxygen and OH transfer on the oxygen reduction catalysis. A simple approach of applying a high-speed rotation of about 500 rpm to the biofouled air cathode was proved to be able to recover 85% of the initial performance of the bio-RAC.

Introduction

Microbial fuel cells (MFCs) belong to emerging microbial electrochemical technologies that utilize the electroactive bacteria to oxidize organic carbon and generate electric power from wastewaters. As one of the key components, the cathode plays a crucial role in determining the performance of MFCs. Although MFCs can adapt to various cathodic reactions by using different electron acceptors (Hamid Rismani-Yazdia et al., 2008; Harnisch and Schroder, 2010), oxygen reduction reaction (ORR) is the most important cathodic reaction for power generation due to its high standard reduction potential (+0.82 V vs. SHE) and the abundant availability of oxygen from the air. Efficient electrocatalysts are generally required at the cathode to overcome the effect of sluggish ORR kinetics. Biocatalysts, including bacteria (He and Angenent, 2006; Clauwaert et al., 2007) and enzymes (Schaetzle et al., 2009; Higgins et al., 2011) have been reported to catalyze ORR in MFCs, but so far the attainable current density (e.g., by microbial ORR cathodes) and the long term stability (e g., of enzymatic ORR cathodes) do not meet the requirements of a MFC application. Chemical ORR catalysts are therefore the material of choice to achieve higher power output and long-term stability. Though a diverse range of materials has been developed for the ORR catalysts (Hamid Rismani-Yazdia et al., 2008; Erable et al., 2012; Liu et al., 2014b), carbon-based materials, such as activated carbon (Zhang et al., 2009, 2014; Dong et al., 2012; Wang et al., 2014), heteroatom-doped carbon (Feng et al., 2011a,b; Chen et al., 2012), especially carbon catalysts derived from sustainable precursors like cellulose (Liu et al., 2014a, 2015b; Yue et al., 2015) and straw (Liu et al., 2015a) are considered as the most feasible ORR catalysts in MFCs. This is primarily due to their good electrocatalytic activity, low-cost and sustainable characteristics.

The most feasible and widely used MFC cathode configuration for wastewater treatment application is the air-cathode, because its use overcomes the limitations associated with the low oxygen solubility in water (Liu and Logan, 2004; Pasupuleti et al., 2015), and thus makes it possible to achieve higher current densities. The popularly used carbon-based ORR catalysts usually possess good biocompatibility but are prone to the colonization by microorganisms and a gradual biofilm formation, which eventually lead to a drastic decrease in its performance. Thick biofilms are usually observed on the air-cathodes after a long-period operation of MFCs (Liu et al., 2005; Yang et al., 2009; Santoro et al., 2012; Yuan et al., 2013). The biofouling usually covers the catalytic-layer side of the conventional two-dimensional air-cathodes (2D-AC), while the oxygen required for the ORR is diffused from the diffusion-layer side to the catalytic sites. Therefore, the performance decrease of the biofouled 2D-AC is mainly because of the obstruction of the OH transfer and eventual OH accumulation within the air-cathode (Yuan et al., 2013). Additionally, because the 2D-AC are operated at static conditions, the accumulated OH ions combine with Mg2+ and Ca2+ ions present in the wastewater and result in the salt deposition within and at the air-cathode, which blocks the diffusion of oxygen to the catalytic sites thereby decreasing its performance further (Oliot et al., 2016).

Recently, we reported a three-dimensional rotating air-cathode based on nitrogen and phosphorus co-doped carbon modified graphite brush (GB/NPC-AC) for MFCs and demonstrated that the GB/NPC-AC operated at a slow rotation condition (e.g., 20 rpm) could generate three times more cathodic current density and double the power output compared to that operated at static conditions (Chen et al., 2018). Similar to the popularly used 2D-AC, the GB/NPC-AC is carbon-based and shows good biocompatibility and thus also gets easily biofouled. The influence of substrate crossover on the ORR performance of abiotic air cathodes has been reported earlier (Harnisch et al., 2009). However, to the best of our knowledge, no such studies have been conducted on the biofouled air-cathodes. In this study, the effect of substrate crossover on the ORR electrocatalytic performance of the rotating biofouled GB/NPC-AC was investigated systematically, and the contributions of the substrate crossover and obstruction of the OH and oxygen transfer to the performance decrease of this 3D air-cathode were distinguished. The possibility to recover the ORR performance of the bio-GB/NPC-AC was also investigated by applying rotation at a high speed. For better understanding and consistency, the GB/NPC-AC before and after biofouling and regeneration was denoted as abiotic-GB/NPC-AC, bio-GB/NPC-AC and re-GB/NPC-AC, respectively.

Experimental

Preparation of the Rotating Air-Cathodes

Graphite brushes (GBs) with the size of 26 mm in diameter and 42 mm in length were self-made using graphite fibers (TORAY) fixed by twisting on two titanium wires. N, P co-doped carbon was coated onto the GB to form the GB/NPC-AC following the method reported in ref (Chen et al., 2018). Typically, the GBs were firstly treated by a 50% (w/w) concentrated sulfuric acid to improve their hydrophilicity; then a layer of polyaniline (PANi) was grown onto the GB by a chemical oxidative polymerization process according to the protocol published elsewhere to obtain composite GB/PANi electrode (He et al., 2012). After a de-doping and re-doping process using 0.5 M ammonia and 0.1 M phytic acid solution, respectively, the obtained GB/PANi/PA composite was placed in a high-temperature oven and pyrolyzed at 900 °C to form the GB/NPC-AC.

Development of the Biofouled Rotating Air-Cathode

In order to deliberately study biofouling effects of the GB/NPC-AC which unaffected by the anode process, a custom-made, cubic two-chamber MFC was used, as shown in Figures 1A,B. The GB/NPC-AC served as the cathode of the MFC and was operated at a rotation speed of 20 rpm (Chen et al., 2018). GB treated at 450°C in the air was used as the anode. An anion exchange membrane (fumasep®) was used to separate these electrodes. The distance between the two electrodes was 5 cm. Modified M9 medium (50 mM phosphate buffered solution (PBS, pH = 7.0) containing 20 mM acetate and 12.5 ml L−1 vitamin and 12.5 ml L−1 trace metal solutions) inoculated with 10 mL real wastewater (Wastewater treatment plant of Steinhof, Braunschweig, Germany) was used as the anolyte. Same medium containing 20 mM acetate was used as catholyte during the biofouling formation of the GB/NPC-AC. The volume of the anolyte and catholyte were 150 and 100 mL, respectively. The two-chambered MFC was operated with acetate only added to the anode chamber initially.

FIGURE 1
www.frontiersin.org

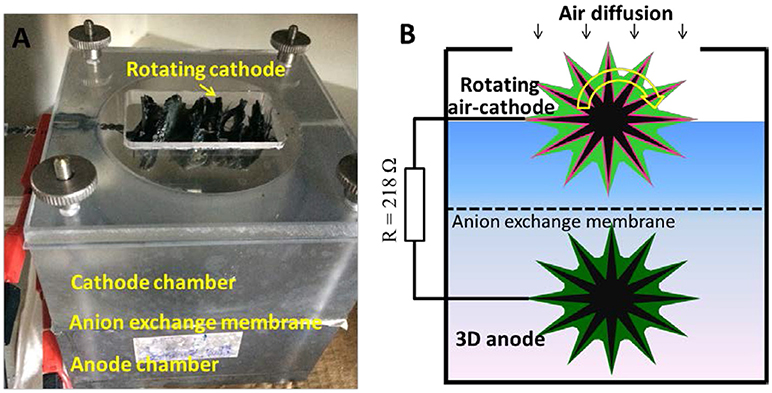

Figure 1. (A) Digital picture and (B) schematic diagram of the MFC set-up used for the development of bio-GB/NPC-AC and subsequent substrate crossover tests.

A resistor of 218 Ω was loaded between the anode and cathode electrodes. The cell voltage was recorded every 5 min by using a multimeter (Keithley 2700). The anode and cathode potentials were also recorded with reference to the Ag/AgCl (sat. KCl, +0.198 V vs. standard hydrogen electrode) electrode and recorded every 5 min by a multimeter. Both anolyte and catholyte solutions were refreshed every 48 h. After operating MFCs for about 2 weeks at room temperature (23 ± 1°C), the GB/NPC-AC with stable biofouling was obtained.

A single-chambered (separator-free) reactor was also operated as a control. This MFC generated extremely low voltage for about 80 h (data not shown). Because the anode and cathode shared the same electrolyte, the enhanced oxygen crossover to the anode (due to the rotating air-cathode) most likely hampered the activity of anaerobic exoelectrogenic bacteria thereby affecting the start-up of this particular MFC.

Substrate Crossover Effect Tests in MFC

After formation of the bio-GB/NPC-AC, tests to study the effect of substrate crossover on the performance of the MFC and the change in the potential of bio-GB/NPC-AC were conducted. The catholyte was replaced with 100 mL 50 mM PBS without acetate, and the anolyte was the same modified M9 medium. The same resistor of 218 Ω was loaded between the bioanode and the bio-GB/NPC-AC. After the initial stable performance, different acetate concentrations, viz., 0.4, 0.8, 1.2, 2.0, and 3.2 mM (from the stock solution of 40 mM) were then injected successively into the cathode chamber. These acetate concentrations were chosen to cover a representative range of possible substrate crossover concentrations in different types of MFCs (e. g., with and without separators) and according to the literature (Harnisch et al., 2009; Pandit et al., 2012). The cell voltage, anode and cathode potentials under the non-substrate and substrate conditions were recorded.

Electrochemical Tests of Abiotic-GB/NPC-AC and Bio-GB/NPC-AC

For electrochemical tests, the bio-GB/NPC from the MFC was transferred to a three-electrode system. The bio-GB/NPC served as a working electrode, and an Ag/AgCl and a bare GB were used as the reference and counter electrodes, respectively. Cyclic voltammograms (CVs) of the abiotic-GB/NPC-AC and bio-GB/NPC-AC were recorded under the air and N2 atmospheres (potential window of −0.4 to 0.5 V; scan rate of 0.5 mV s−1) at a rotation speed of 20 rpm. These tests were conducted in the absence and presence of 3 and 10 mM acetate concentrations. Chronoamperometry tests were conducted by applying a constant potential of −0.3 V under the similar experimental conditions mentioned above. Acetate concentrations of 0.4, 0.8, 1.2, and 4.0 mM were added to the cathode chamber, and the current density responses were recorded. These experiments were also conducted in another replicate reactor.

Regeneration of the Bio-GB/NPC-AC

The regeneration possibility of the bio-GB/NPC-AC was also tested considering the practical applications of such electrodes. The bio-GB/NPC-AC was vertically connected with a mechanical motor and immersed in 50 mM PBS catholyte. The removal of biofouling was tested by bio-GB/NPC-AC at a speed of 500 rpm for 10 min.

Results and Discussion

As shown in Figures 2A,B (from 0 to 281 h), the dual-chamber MFC equipped with the rotating GB/NPC-AC and with acetate only added to the anode chamber, was able to produce a maximum voltage of approximately 0.461 V across an external resistance of 218 Ω, which corresponded to a current of 2.11 mA.

FIGURE 2
www.frontiersin.org

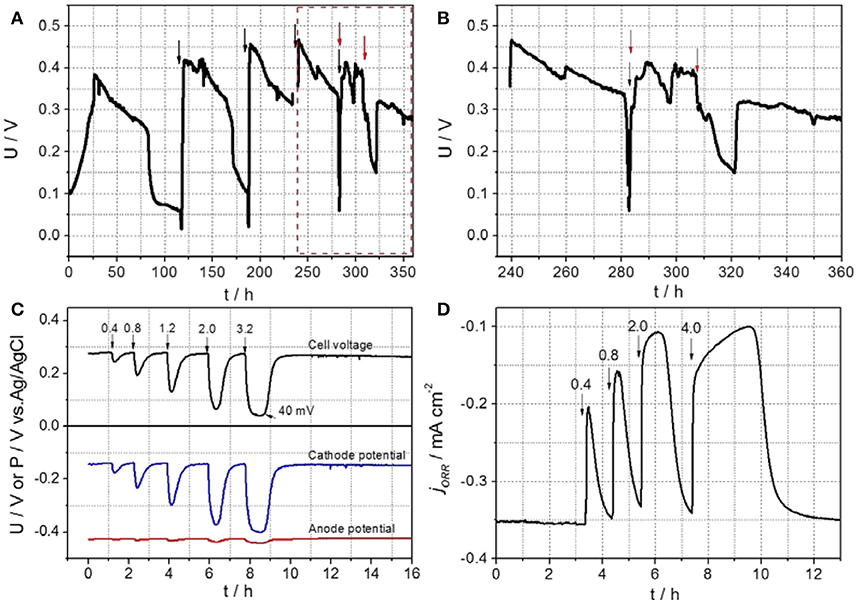

Figure 2. (A,B) Cell voltage curves of the air-cathode MFC during the start-up and biofouling development process; plane (B) is magnified from the dashed plane in (A). The black and red arrows represent the refreshment of anolyte and catholyte solutions, respectively. Substrate crossover effect results of the rotating bio-GB/NPC-AC; (C) profiles of cell voltage along with cathode and anode potentials of the MFC in response to 0.4–3.2 mM acetate additions, and (D) Chronoamperogram recorded in air at a constant potential of −0.3 V vs. Ag/AgCl (sat. KCl). Arrows and numbers indicate injection of acetate solutions with different mM concentrations.

The main cathodic reaction occurred in the GB/NPC-AC is ORR:

O2+2H2O+4e-4OH-

The high voltage generation can be attributed to a high-performance of the rotating GB/NPC-AC, due to the efficient dissolved oxygen diffusion and OH transport ensured by the rotating condition (Chen et al., 2018). Similar to the popularly used 2D-AC, the carbon-based GB/NPC-AC showed good biocompatibility, and thus was easily colonized by biofilm when exposed to the substrate. Figures 2A,B shows that after refreshment of the catholyte with 50 mM PBS containing 20 mM acetate at the 281st h, the maximum voltage of the MFC could reach only about 0.422 V. It then rapidly decreased to 0.317 V and finally recovered to 0.416 V. The voltage further dropped to 0.150 V when the catholyte was refreshed for the second time after about 24 h, and then recovered to only 0.321V. It was found that thick biofilms (biofouling) were formed onto the GB/NPC-AC, which most likely led to the voltage decrease of MFCs.

The substrate crossover effect on the voltage of the MFC was studied with the bio-GB/NPC-AC. As shown in Figure 2C, the MFC generated a stable cell voltage of around 0.280 V (black curve) across a constant resistance of 218 Ω before injection of acetate solution. The potentials of the bio-GB/NPC-AC and anode were −0.138 V (blue curve) and −0.426 V (red curve), respectively. After initial injection of acetate to a concentration level of 0.4 mM at the cathode chamber, the cell voltage dropped rapidly from 0.280 to 0.244 V, and then gradually recovered to its initial value. With an increase in the acetate concentrations, the cell voltage decreased further. The cell voltage declined to only approximately 0.040 V when 3.2 mM acetate was present in the cathode solution. The anode potential showed only a very slight change (Figure 2C, red curve), clearly demonstrating that the decrease of the cell voltage is mainly caused by the decrease in the cathode potential (Figure 2C, blue curve). The complete recovery in the MFC performance after each transient phase of voltage decrease is due to rapid utilization of acetate by the microorganisms through aerobic respiration. The chronoamperogram in Figure 2D confirms the substrate crossover effect of the bio-GB/NPC-AC. After injection of acetate with different concentrations, the ORR current greatly decreased immediately, and then recovered to its initial value of −0.35 mA cm−2. The acetate crossover effect in another duplicate MFC measured by CA is shown in Figure 3. It clearly shows the effect of different acetate concentrations (in the range of 0.04 to 2 mM) on the performance decrease of biofouled air-cathode.

FIGURE 3
www.frontiersin.org

Figure 3. Chronoamperogram showing the acetate crossover effect on the air-cathode performance in another duplicate MFC recorded in air at a constant potential of −0.3 V vs. Ag/AgCl (sat. KCl). Arrows and numbers indicate injection of acetate solutions with different mM concentrations.

CV tests on both rotating abiotic-GB/NPC-AC and bio-GB/NPC-AC were conducted under N2 atmosphere, air atmosphere, and in the absence and presence of acetate. Figure 4A shows that the CVs of the abiotic-GB/NPC-AC recorded in the presence and absence of acetate are almost identical/overlapped and could generate a cathodic ORR current of up to −16.74 mA at the potential of −0.5 V. It indicates that the abiotic-GB/NPC shows no electrochemical response in the presence of acetate and thus no acetate crossover effect. However, a considerable decrease of ORR current was observed at the bio-GB/NPC-AC. In the absence of acetate, the ORR current of bio-GB/NPC suffers from a great decrease of 34.9% to −10.90 mA (Figure 4B, black curve). This ORR current decrease can be attributed to the mass transfer blockage by biofouling. The obstruction of oxygen diffusion and OH transport by the biofouling at the air-cathode has been reported previously.(Yuan et al., 2013) Refreshing the media with 50 mM PBS containing 3 mM acetate, the ORR current further decreased to −6.41 mA (Figure 4B, red curve), which corresponds to about 26.8% decrease. With further increase of the acetate concentration to 10 mM, a further 25.9% decrease on the ORR current was observed (−2.07 mA; Figure 4B, pink curve), which is not far off from the blank value (−1.12 mA, blue curve in Figure 4A) recorded under N2 atmosphere. The main reason for the ORR current decrease caused by the acetate crossover is the aerobic respiration activity of the biofilm that leads to depletion and eventual blockage of the diffused oxygen to the catalytic sites of the air-cathode. The CVs not only confirmed the substrate crossover effect on the performance of the bio-GB/NPC-AC but also distinguished the contributions to the performance decrease from different parameters. These results demonstrate that the substrate crossover aggravates the air-cathode performance decrease issue considerably. In particular, at higher concentration (above 5 mM), the contribution of substrate crossover to the performance decrease of the bio-GB/NPC-AC could be higher than that contributed by the obstruction of OH transfer. For instance, around 52.7% (26.8 + 25.9%) of ORR current decrease of the bio-GB/NPC-AC was caused by 10 mM acetate crossover, even higher than that (34.9%) caused by the obstruction of oxygen and OH transfer.

FIGURE 4
www.frontiersin.org

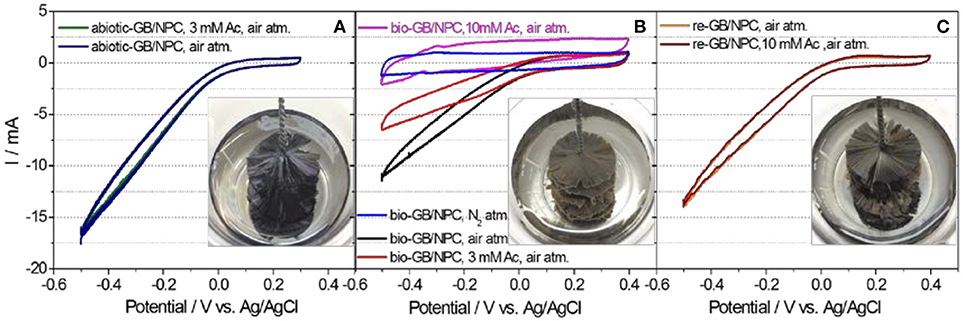

Figure 4. Cyclic voltammograms of rotating (A) abiotic-GB/NPC-AC, (B) bio-GB/NPC-AC, and (C) re-GB/NPC-AC at conditions of air and N2 atmospheres, and in the absence and presence of different acetate concentrations. The scan rate is 0.5 mV s −1. Note: Ac and atm. represent acetate and atmosphere, respectively. Insets of (A–C) are digital photographs of abiotic-GB/NPC-AC, bio-GB/NPC-AC and re-GB/NPC-AC, respectively.

The substrate crossover to the cathode is dependent on the type of separator in the MFCs. If an ion exchange membrane is used in the two-chambered air-cathode MFCs, the substrate crossover to the cathode could be in a low level due to the hindrance by the membrane (Pandit et al., 2012; Leong et al., 2013). In such reactor designs, even if some substrate migrates to the cathode chamber, its quick utilization by the biofouled air-cathode would most likely lead to a transient decrease in its performance. However, in the case of porous separator or separator-free MFC designs (Tang et al., 2010; Leong et al., 2013), in which the substrate crossover is more pronounced and occur continuously, the performance of air-cathode would be decreased considerably.

The ORR performance was regenerated by simply applying a high-speed rotation to bio-GB/NPC-AC. As shown in the insets of Figures 4A–C, after rotating the bio-GB/NPC-AC at 500 rpm for about 10 min, considerable biofouling was removed from the GB/NPC-AC. The CV recorded at a rotation speed of 20 rpm (Figure 4C, orange curve) revealed that the re-GB/NPC-AC produced an ORR current of −13.75 mA, a recovery of up to 85% of its initial performance. Moreover, there was no immediate acetate crossover effect on the performance of the GB/NPC after regeneration (Figure 4C, brown curve). This indicates that the recovery was most likely due to the detachment of biomass in this case. If the rotating conditions are applied continuously, then the performance increase would also be due to enhanced oxygen diffusion and OH- transport as reported elsewhere (Chen et al., 2018). The removal of biofouling through a high-speed rotation was studied only one time with a particular biofouled air-cathode to demonstrate a proof-of concept. It was tested on different biofouled air-cathodes for confirming its reproducibility. However, for its applicability, the long-term effect of this approach needs to be investigated in the future studies.

Conclusions

The biofouling at the rotating air-cathode not only played the role of obstructing the transfer of OH like that in the conventional 2D air-cathode but also blocked the diffusion of oxygen to the catalyst sites mainly due to oxygen depletion through aerobic respiration of the biofilm at the rotating 3D air-cathode. The contribution of substrate crossover at a high concentration (e.g., over 5 mM) to the performance decrease of the rotating bio-GB/NPC-AC could be higher than that contributed by the obstruction of oxygen and OH transfer. Importantly, the bio-GB/NPC-AC could be regenerated by simply removing the biofouling through a high-speed rotation for a short period and recovering up to 85% of its initial performance. In case of the static air cathode designs, mechanical removal of biofouling or back-flushing of the air-cathodes would be needed. These are time and resource consuming measures. In this context, the facile regeneration characteristic of the rotating air-cathode, as demonstrated in this study, enables it to be considered for practical wastewater treatment application of MFCs.

Author Contributions

SC designed and carried out the experiments, and wrote the manuscript. SP provided constructive suggestions and contributed to the manuscript writing. US supported, supervised the work and contributed to the manuscript writing.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (grant 51678281), the Science and Technology Project of Jiangxi Province (grants 20162BCB23024, 20161BCB24005), and the project of Education Department of Jiangxi Province (grants, GJJ150296). SP acknowledges the Alexander von Humboldt Foundation for the financial support.
