Electrochemical synthesis of ammonia in solid electrolyte cells

\r\n      Ioannis Garagounis,Ioannis Garagounis1,2Vasileios Kyriakou,Vasileios Kyriakou1,2Aglaia SkodraAglaia Skodra2Eirini Vasileiou,Eirini Vasileiou1,2Michael Stoukides,*Michael Stoukides1,2*
  • 1Department of Chemical Engineering, Aristotle University of Thessaloniki, Thessaloniki, Greece
  • 2Chemical Processes and Energy Resources Institute, Center for Research and Technology Hellas, Thessaloniki, Greece

Developed in the early 1900s, the “Haber–Bosch” synthesis is the dominant NH3 synthesis process. Parallel to catalyst optimization, current research efforts are also focused on the investigation of new methods for ammonia synthesis, including the electrochemical synthesis with the use of solid electrolyte cells. Since the first report on Solid State Ammonia Synthesis (SSAS), more than 30 solid electrolyte materials were tested and at least 15 catalysts were used as working electrodes. Thus far, the highest rate of ammonia formation reported is 1.13 × 10-8 mol s-1 cm-2, obtained at 80°C with a Nafion solid electrolyte and a mixed oxide, SmFe0.7Cu0.1Ni0.2O3, cathode. At high temperatures (>500°C), the maximum rate was 9.5 × 10−9 mol s-1 cm-2 using Ce0.8Y0.2O2-δ–[Ca3(PO4)2–K3PO4] as electrolyte and Ag–Pd as cathode. In this paper, the advantages and the disadvantages of SSAS vs. the conventional process and the requirements that must be met in order to promote the electrochemical process into an industrial level are discussed.

Introduction

In September 2013, 100 years were completed since the first industrial reactor for ammonia synthesis was put in operation. Designed by Carl Bosch and still standing in a garden in front of the BASF Ammonia Synthesis Institute, this high-pressure reactor could produce 5 tons of ammonia per day (Liu, 2013). With the fertilizer industry being by far its primary user, currently, the worldwide production of ammonia is over 100 million tons per year (Amar et al., 2011a).

The development of an industrial process for ammonia synthesis from its elements:

N2+3H22NH3

is considered as the bellwether reaction of heterogeneous catalysis (Boudart, 1994) and has played a central role in the development of the chemical industry during the twentieth century (Topsoe et al., 1994). The Haber–Bosch process, which involves reaction of gaseous nitrogen and hydrogen on an Fe-based catalyst at high-pressures (150–300 bar) was developed in the early 1900s after an extensive search for materials with an industrially acceptable catalytic activity (Satterfield, 1980; Topsoe et al., 1994). The nitrogen molecule, N2, is one of the most stable molecules in nature; the triple bond between the two N atoms has a binding energy of 962 kJ/mol. Moreover, in addition to the difficulty in dissociating N2, the reaction conversion is limited by thermodynamics. The gas volume decreases with reaction. Therefore, very high-pressures must be used in order to push the equilibrium to the right according to the Le Chatelier principle. In the early stages of the development of the process, very high-pressures (500–1000 bar) were used (Satterfield, 1980). The equilibrium conversion decreases with temperature because the reaction is exothermic (−46 kJ/mol at 298 K). Hence, if only thermodynamics is taken into account, it would be preferable to operate at room temperature at which the predicted conversion would be higher than 90% at atmospheric pressure. The reaction kinetics, however, are unacceptably slow at room temperature. Thus, the trade-off solution was to operate at temperatures near 450°C and at pressures between 150 and 300 bars in order to obtain an equilibrium conversion of the order of 10–15% (Amar et al., 2011a). It is beyond the purpose of this communication to review the research that has been conducted thus far concerning the kinetics and the mechanism of ammonia synthesis. Numerous papers can be found in literature. Fortunately, earlier and recent works have been reviewed in the last three decades (Topsoe et al., 1994; Liu, 2013).

Nature converts molecular N2 into NH3 without the use of high temperatures and pressures (Rod et al., 2000; Schrock, 2006; Skúlason et al., 2012). This natural process utilizes metalloenzymes and has been developed and optimized over a period of a few billion years (Schrock, 2006). The enzymes, called nitrogenases, contain iron and molybdenum and catalyze the reaction of ammonia synthesis from atmospheric nitrogen, protons, and electrons (Schrock, 2006; Skúlason et al., 2012). The high efficiency of this enzyme-catalyzed synthesis has attracted the interest of researchers in imitating nature. In the last two decades, remarkable progress has been achieved in both, understanding the mechanism of the biological process and developing an “artificial” abiological process using transition metal complexes (Yandulov and Schrock, 2003; Studt and Tuczec, 2005; Skúlason et al., 2012).

Since its discovery, the Haber–Bosch process has been substantially improved and optimized. The continuous search for more active catalysts resulted in operation at lower temperatures and consequently, at lower pressures. Parallel to catalyst optimization, research efforts also focus on the investigation of new methods for ammonia synthesis, including the electrochemical synthesis in aqueous or solid electrolyte cells (Garagounis et al., 2011). Several studies in which ammonia was electrochemically produced in aqueous media have been reported (Kordali et al., 2000; Kaőleli and Raőpke, 2006). One problem, however, with aqueous electrolytes is that the operating temperature must be low. At low temperature, the kinetic reaction rates are inevitably slow. The discovery and development of solid state proton (H+) conductors (Iwahara et al., 1981) offered the opportunity to produce ammonia at elevated temperatures. The first work on Solid State Ammonia Synthesis (SSAS) was reported by Marnellos and Stoukides (1998). Since then, groups worldwide have studied this subject and a number of problems that should be solved in order to enable scale-up have been identified. A comprehensive review of the SSAS studies reported until the end of 2010 was published by Amar et al. (2011a). The cell component requirements were discussed with emphasis on the solid electrolyte materials. Recently, Giddey et al. (2013) carefully reviewed the progress on the electrochemical production of ammonia with emphasis on materials of construction, major technical challenges, and status of technology.

The present review focuses primarily on SSAS. The properties and requirements to be met by the working electrode (WE), which also serves as the ammonia synthesis catalyst, are discussed in more detail. The electrochemical results are compared to those obtained by the catalytic process. Finally, the hurdles to be overcome in order to bring SSAS into industrial practice are discussed.

Ammonia Synthesis in Proton (H+) Conducting Cells

Figure 1 shows schematically the principle of SSAS from gaseous N2 and H2 in a proton-conducting solid electrolyte cell. The cell consists of a solid state H+ conductor. Two porous metal films are placed on the two sides of the solid electrolyte and serve as electrodes. Gaseous η2 passes over the anode where it is converted to protons (H+) according to the reaction:

3H26H++6e.
FIGURE 1
www.frontiersin.org

Figure 1. Schematic diagram of a solid state H+ conducting cell used for NH3. Synthesis from its elements.

In the form of protons, hydrogen is transported through the electrolyte to the cathode, where the half-cell reaction

N2+6H++6e2NH3

takes place. Thus, reaction (1) is again the overall reaction with the cathodic electrode serving as catalyst for ammonia synthesis.

The use of proton-conducting solid electrolyte cells to bypass the thermodynamic constraints of reversible hydro- or dehydrogenation reactions was proposed in the mid 1990s (Marnellos et al., 1996, 1997; Panagos et al., 1996). Panagos et al. (1996) developed a model that showed that, if an H+ cell is used, the product yield of a hydrogenation reaction can exceed that of the corresponding catalytic reactor by several orders of magnitude. Marnellos et al. used that model to examine the performance of various types of electrochemical reactor design and discussed the parameters that affect the reaction conversion (Marnellos et al., 1996, 1997, 1998, 2000).

Experimental verification of SSAS was first demonstrated by Marnellos and Stoukides (1998). The solid electrolyte cell used was of the form: H2/Pd/SCY/Pd/N2. The H+ conductor (SCY) was a strontia–ceria–ytterbia perovskite of the form SrCe0.95Yb0.05O3. Two porous polycrystalline Pd films were used as electrodes. At 570°C and atmospheric pressure, 78% of the supplied protons were converted into ammonia.

In the past 15 years, a large number of researchers have studied this system. Table 1 contains the SSAS works published until September 2013. The first column on the left-hand side shows the formula (and its abbreviated name in parentheses) of the solid electrolyte that was used. Similarly, the second column shows the WE used. The third column contains the reference of each work. In all the studies listed in Table 1, reactions (2) and (3) occurred at the anode and cathode, respectively. Hence, ammonia was formed at the cathode (WE).

TABLE 1
www.frontiersin.org

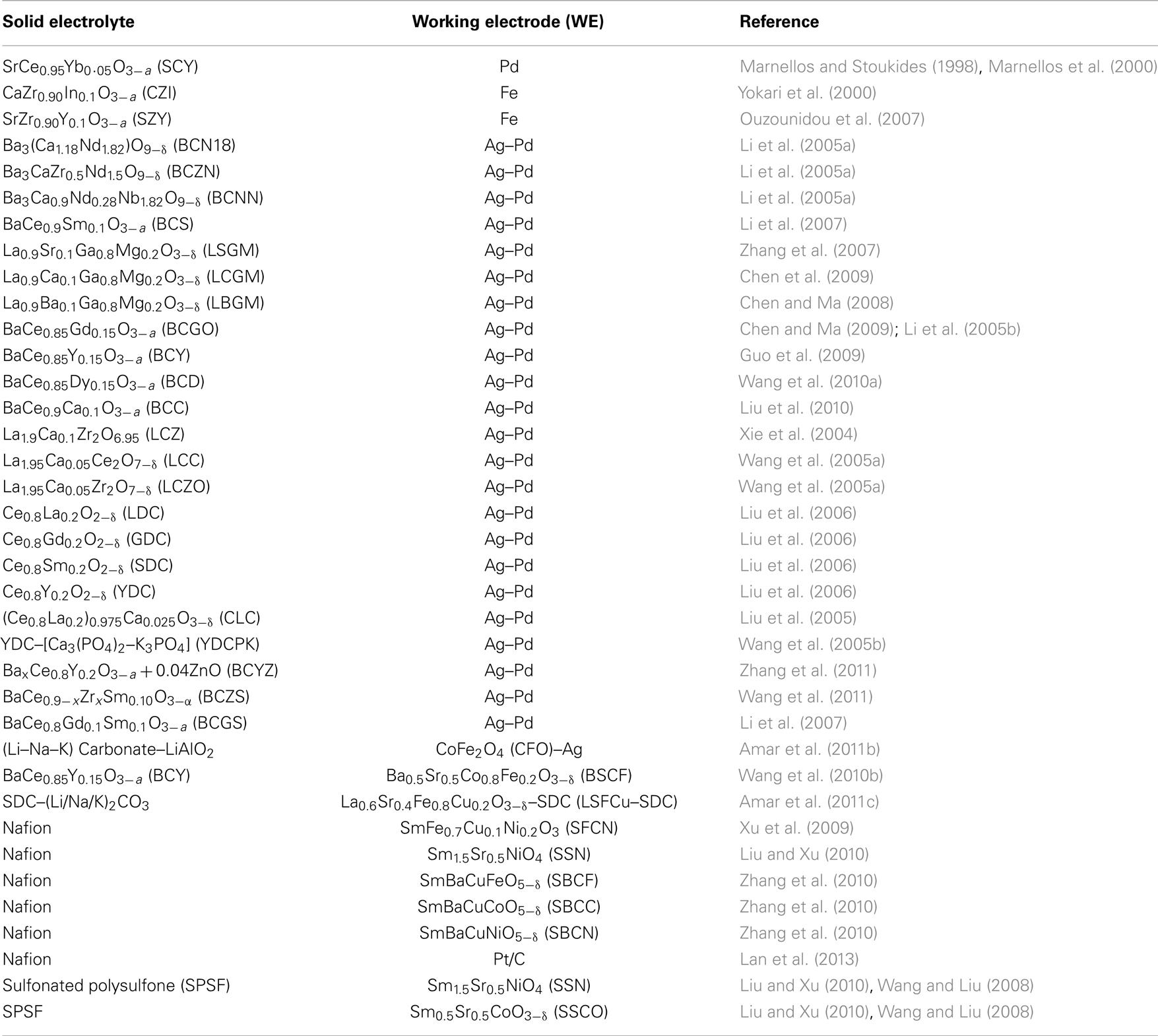

Table 1. The proton-conducting electrolytes and electrodes used by various investigators in solid state ammonia synthesis cells.

Progress with H+ Conducting Cells

In the industrial production of ammonia, a significant fraction of the cost lies in the preparation and purification of the feed gas (Satterfield, 1980; Amar et al., 2011a). The catalyst is easily poisoned by oxygen and sulfur compounds. Hydrogen is usually produced from steam reforming of natural gas, which contains such compounds. Therefore, alternative hydrogen sources, which could eliminate natural gas, would reduce the overall cost of ammonia and the carbon footprint (Amar et al., 2011a; Giddey et al., 2013).

Using Nafion as a proton conductor and an Ru/C cathode, Kordali et al. (2000) produced NH3 from H2O and N2 at 90°C. The same approach was successfully tested at elevated temperatures using a perovskite type of proton conductor; the reactants were steam and gaseous nitrogen (Skodra and Stoukides, 2009). Wang et al. (2007) synthesized ammonia using natural gases (CH4 or C2H6) rather than H2 as a hydrogen source. Recently, Lan et al. reported NH3 synthesis from air and H2O at room temperature (Lan and Tao, 2013; Lan et al., 2013).

Ammonia is a pure hydrogen source for fuel cell applications. To this end, solid state H+ conducting cells were used to study the decomposition of NH3 on Ru (Skodra et al., 2006), Fe (Pitselis et al., 1997), and Ag (Zisekas et al., 2008) electrodes. Moreover, the idea to use NH3 as a fuel was tested in both H+ and O2− solid electrolyte cells with promising results (McFarlan et al., 2004; Pelletier et al., 2005).

The above progress with solid state proton conductors is summarized in Table 2. The solid electrolyte and the WE used in each study are shown in the first and second columns, respectively. The third column shows the reactants and products and the last column contains the reference(s) of each work.

TABLE 2
www.frontiersin.org

Table 2. The reactants and products formed in electrochemical ammonia synthesis and ammonia utilization cells using alternative hydrogen sources.

Electrochemical Synthesis of Ammonia in Other (Not H+) Electrolyte Cells

As already mentioned, plants can convert molecular N2 into NH3 with a process that involves metalloenzymes, protons, and electrons. Hence, this natural process should also be considered as an “electrochemical” synthesis. Similarly, laboratory studies of NH3 synthesis using transition metal complexes (Yandulov and Schrock, 2003; Studt and Tuczec, 2005; Skúlason et al., 2012) or organic solvent based electrolytes (Tsuneto et al., 1994) should be considered as electrochemical processes as well. All these works, however, are not discussed here. The present review is limited to “classical” electrochemical processes, in which an electrochemical cell is used and NH3 is formed either from H2 and N2 or from H2O and N2.

The use of η2O, instead of η2, inspired an alternative approach to NH3 synthesis, which is based on the use of oxygen ion (O2−) conductors. In this case, the solid electrolyte cell is schematically shown in Figure 2. Steam and nitrogen are introduced together at the cathode, where the reactions that take place can be summarized as:

3H2O+6e3O2+3H2,

and

3H2+N22NH3.
FIGURE 2
www.frontiersin.org

Figure 2. Schematic diagram of NH3 synthesis in an O2− cell.

At the anode, O2− is converted to O2:

3O232O2+6e

and thus, the overall reaction is:

3H2O+N22NH3+32O2.

The feasibility of a process in which NH3 is electrochemically produced from H2O (steam) and N2 in O2− conducting solid electrolyte cells has been successfully demonstrated (Skodra and Stoukides, 2009). The rate of NH3 formation was negligibly small at 500°C, but at higher temperatures, an increase by up to two orders of magnitude was observed.

Although the reaction rates observed were lower than those obtained in H+ cells, the use of O2− conductors offers an additional advantage: pure O2, already separated from the reacting mixture, is the by-product.

In the last decade, a number of researchers studied the electrochemical synthesis of NH3 in molten salt systems (Vayenas et al., 2001; Murakami et al., 2003, 2005; Denvir et al., 2004; Murphy et al., 2008; Serizawa et al., 2012). In such a molten salt system, the reactions on the two electrodes can be written as:

Cathode:12N2+3eN3,
Anode:N3+32H2NH3+3e,

so that Eq. 1 is the overall reaction. Recently, NH3 synthesis was studied by Serizawa et al. (2012) in a molten LiCl–KClCsCl system at temperatures between 360 and 390°C. It was found that a portion of NH3 was chemically dissolved in the melt in the form of imide (NH2-) and amide (NH2-) anions resulting in a decrease of the NH3 yield. Despite side reactions, conversions of Li3N into NH3 as high as 70% were obtained.

Electrochemical Promotion during SSAS

Solid electrolytes can be used for the electrochemical promotion of the rates of heterogeneous catalytic reactions. This can be achieved if the catalyst to be promoted is the WE of the solid electrolyte cell. For the reaction of ammonia synthesis, the phenomenon of electrochemical promotion can be studied in the H+ cell of Figure 1. If the circuit is open (zero current) and a gaseous mixture of N2 and H2 is introduced over the cathode, the cell will operate as a catalytic reactor. Thus, ammonia will be formed under open circuit, at a rate denoted as ro (and expressed in moles of hydrogen reacting per second). When the circuit is closed and a current I is imposed, the cell will additionally function as an electrochemical proton “pump.” The reaction rate will increase from ro to r. The effect of electrochemical “pumping” can be quantified by the use of two dimensionless parameters (Vayenas et al., 2001; Vayenas and Koutsodontis, 2008):

Λ=ΔrI3F

and

ρ=rro,

with Λ being the Faradaic efficiency, ρ the rate enhancement ratio, and Δr the difference between closed and open circuit rate: Δr=rro.

If Λ = 1, the effect is Faradaic, i.e., the increase in reaction rate equals the rate of H+ transport through the electrolyte. If Λ > 1, the effect is non-Faradaic. In the past 30 years, the phenomenon of Non-Faradaic Electrochemical Modification of Catalytic Activity (NEMCA), also called Electrochemical Promotion of Catalysis (EPOC), has been observed in many catalytic reaction systems (Vayenas et al., 2001; Vayenas and Koutsodontis, 2008; Vayenas, 2011) including oxidations, reductions, hydrogenations, decompositions, and isomerizations. Values of Λ and ρ as high as 3 × 105 and 1400, respectively, have been reported (Vayenas and Koutsodontis, 2008; Vayenas, 2011). Most of the experimental and theoretical NEMCA studies conclude that this phenomenon is due to the introduction of charged species from the solid electrolyte to the catalyst/gas interface, followed by the formation of a neutral double layer. This double layer alters the work function of the catalyst surface resulting in a reversible alteration of the catalytic reaction rate (Vayenas et al., 2001; Vayenas and Koutsodontis, 2008; Vayenas, 2011). NEMCA is a powerful tool in heterogeneous catalysis because (a) the surface modification can be monitored electrochemically and in a reversible manner and (b) the increase in the reaction rate can exceed the rate of ion supply by several orders of magnitude (Garagounis et al., 2011; Vayenas, 2011).

The phenomenon of Electrochemical Promotion has been investigated in only a few SSAS works. Marnellos et al. studied the reaction on a Pd electrode and observed very low Λ and ρ values, i.e., Λ < 2.0 and ρ < 1.5 (Marnellos and Stoukides, 1998; Marnellos et al., 2000). Yokari et al. (2000) used an industrial Fe catalyst and measured ρ values as high as 13 when protons were “pumped” toward the catalyst surface. On the contrary, upon “pumping” H+ away from the catalyst, it was possible to obtain a complete loss of the catalytic activity. Pitselis et al. studied the reverse reaction (ammonia decomposition) on an Fe catalyst. A significant decrease in the reaction rate was observed upon pumping H+ to the catalyst surface. Values of Λ and ρ up to 150 and 3.5, respectively, were observed (Pitselis et al., 1997). Skodra and Stoukides, who studied the decomposition of NH3 using Ru as WE, observed Λ’s as high as 4.0 when pumping H+ away from the catalyst surface (Skodra et al., 2006). Zisekas et al. studied the reaction on Ag electrodes. Although the Λ’s remained near unity in all experiments, ρ values as high as 57 were achieved (Zisekas et al., 2008).

A general observation is that, as opposed to catalytic oxidations, hydrogenation reactions, such as ammonia synthesis, exhibit weak NEMCA characteristics (Vayenas et al., 2001; Vayenas and Koutsodontis, 2008; Vayenas, 2011; Garagounis et al., 2013). Recently, Garagounis et al. (2013) presented a thermodynamic analysis of NEMCA for reactions with limited equilibrium conversion. The reaction of ammonia synthesis was used as a model system. The model predictions, which were in agreement with the existing experimental results, indicated that for ammonia synthesis at temperatures between 500 and 600°C, Λ could not exceed the value of 10. The physical explanation of the model predictions is that, as opposed to reactions with highly negative free energy change, the effect of H+ pumping on equilibrium limited reactions is both, electrochemical and catalytic. The pumped protons not only modify the catalytic properties of the WE, but also serve as the carriers of the electrical power required for ammonia synthesis (Garagounis et al., 2013) thus reducing their promotional effect.

Comparing Catalytic and Electrocatalytic Synthesis

The catalytic reaction of ammonia synthesis from its elements has been studied extensively in the past 100 years. Today, the mechanism of the catalytic synthesis is well understood (Skúlason et al., 2012) and consequently, a considerable improvement and optimization of the Haber–Bosch process has been achieved. On the other hand, the electrocatalytic synthesis has been investigated in the last 15 years and quite a few questions need to be answered.

A comparison of the two processes could start by listing the factors that affect the rate of ammonia formation in each case. In addition to the reactant feed composition, the inlet flow rate and the catalyst used, the catalytic rate depends on the pressure and the temperature of operation. Under the conditions employed in the industrial practice, the reaction conversion is thermodynamically limited. An increase in temperature increases the reaction rate but, at the same time, decreases the equilibrium conversion. An increase in pressure increases the equilibrium conversion. The catalyst accelerates both, the rate of formation and the rate of decomposition and thus, the composition of the exit stream is close to that predicted by thermodynamics.

In the electrocatalytic synthesis, the effect of temperature is similar to that in the conventional catalytic process. The effect of pressure, however, is quite different. When the reaction is carried out in the cell-reactor depicted in Figure 1, the half-cell reaction that takes place on the WE (catalyst) is reaction (3). In other words, reaction (1), in which four volumes of reactants produce two volumes of product, is replaced by reaction (3), in which one volume of reactant produces two volumes of product. Hence, the effect of pressure is essentially reversed (Marnellos et al., 1996; Panagos et al., 1996).

In addition to the above, several additional factors affect the electrocatalytic reaction rate. The effects of these additional factors have been presented in the review by Amar et al. (2011a) and are briefly summarized here.

Effect of Cell Potential

There is a minimum voltage difference, below which it is not possible to produce NH3 electrochemically. This threshold value can be calculated from thermodynamics. If ΔGRo is the Gibbs free energy change for reaction (1), the corresponding standard emf of the cell reaction, Eo, will be given from the equation (Bard and Faulkner, 1980):

ΔGRo=nFEo

where F is Faraday’s constant and n is the number of electrons passed per mole of N2 reacted. According to Eqs 2 and 3, n = 6. Using Eq. 12, the values of Eo at 25 and 500°C are found to be 0.057 and −0.123 V, respectively. If the hydrogen source is H2O rather than H2 (reaction 7), the standard corresponding emf values are −1.13 and −1.21 V at 25 and 500°C, respectively. The effect of imposed potential on the rate of formation of NH3 was studied in only a few of the works listed in Table 1 (Amar et al., 2011a). According to Li et al. (2005b), who studied the reaction at 480°C, the reaction rate increased upon increasing the potential from 0 to 0.6 V while at higher voltages, upon increasing the potential, the rate gradually leveled off (Li et al., 2005b; Amar et al., 2011a).

Effect of Current

The effect of applied current is similar to that of the potential. The reaction rate increases with the imposed current up to a certain value above which, the rate is essentially current independent (Guo et al., 2009; Amar et al., 2011a). This is because at higher currents the coverage of H+ on the catalyst surface, or the three phase boundary, is much higher and thus protons combine with each other rather than with Nads, forming H2 rather than NH3. Another reason could be that the competition between H and N species on the catalyst surface. In fact, the effects of current and voltage are coupled because, in a cell operating at certain temperature and reactant composition, it is not possible to change the current without affecting the cell potential and vice versa.

Effect of Electrolyte

As opposed to the catalytic process, in the electrocatalytic synthesis, one of the reactants is supplied electrochemically. Thus, the electrolyte properties, and in particular the protonic conductivity, are crucial because they determine the maximum rate of proton supply. The conductivity of a solid electrolyte increases exponentially with temperature and is inversely proportional to the thickness of the electrolyte (Gellings and Bouwmeester, 1997). By reducing the electrolyte thickness, the same proton flux is attainable at a lower temperature. Reducing the thickness, on the other hand, may reduce mechanical stability.

Effect of Working Electrode (Catalyst)

The WE must meet the requirements of both catalytic activity and electric conductivity. As electrode material, it should exhibit acceptably high electronic conductivity. The conductivity of the industrial NH3 synthesis catalysts is very poor and this is a problem to be solved before application in an SSAS system.

Table 1 shows that SSAS has been studied in a large number of solid electrolyte cells. More than 30 H+ conducting materials have been tested including perovskite oxides, pyrochlores, and fluorites (Amar et al., 2011a; Giddey et al., 2013). Strictly speaking, polymer electrolytes cannot be considered as solid state materials (Amar et al., 2011a). Polymer electrolytes such as Nafion and SPSF, however, have been included in Table 1 for comparison purposes. Table 1 also shows that at least 15 different materials were used as WEs. The first catalyst tested was palladium (Marnellos and Stoukides, 1998) because it was assumed that the cathode should also act as an effective hydrogen “trap,” i.e., the electrochemically supplied hydrogen would not desorb to form gaseous H2 but react on the surface to form NH3 (Marnellos et al., 1996; Panagos et al., 1996). Following Pd, several catalysts have been tested in the last 15 years, including Ru, Fe, Pt, Ag–Pd, as well as conductive oxides and composite materials such as SSN, BSCF, SSCO, etc. The Ag–Pd cathode was used in almost half of the SSAS studies, although most of the low temperature work used an Sm based mixed oxide (Table 1).

Table 3 contains information on both, rate of NH3 production and electrolyte conductivity for studies presented in Tables 1 and 2. The first and second columns show the reference and operating temperature of each work. The third and fourth columns contain the type of WE and electrolyte used in each study. The fifth column shows the electrical conductivity of the electrolyte (in S/cm), calculated at the operating temperature. The sixth column shows the catalytic activity of the WE. The reaction rate, rNH3, is expressed in moles of NH3 produced per second and per square centimeter of electrode area. The last column shows the percentage Faradaic Efficiency, FE (%), which is defined as the percentage of protons that is converted to ammonia. To calculate FE (%), one has to divide rNH3 by the maximum rate of NH3 formation, rmax, for a given proton flux. The latter can be calculated from the equation:

rmax=231tH+2FA=1tH+3FA,

where A is the surface area of the WE (in cm2), I is the current and tH+ is the proton (H+) transport number, i.e., the fraction of the total charge that is carried by protons. Using Eq. 13, the FE (%) will be:

FE%=3FArNH31tH+100.
TABLE 3
www.frontiersin.org

Table 3. Reaction rates and Faradaic efficiencies.

Values for tH+ were reported in only a few of the SSAS studies of Table 1. Where not reported, it was assumed that tH+ = 1.

There are certain points that are worth mentioning. The first point refers to the catalytic activity of Pd, Ag–Pd, and Pt. The industrial ammonia synthesis catalysts are Fe and Ru based materials. Some bimetallic systems have also been studied, with a combination of Fe and Co exhibiting the best results (Liu, 2013). Table 3, however, shows that at temperatures between 450 and 600°C, the Pd–Ag electrode exhibits high electrocatalytic activity as well as substantially high Faradaic Efficiency (50–80%). One possible explanation could be that the mechanism of the electrocatalytic synthesis is different from that of the catalytic. In the Haber–Bosch synthesis, it is well established that nitrogen and hydrogen do not react until the strong triple bond of the N2 molecule has been broken (dissociative mechanism). In the low temperature metalloenzyme synthesis, however, nitrogen molecules are hydrogenated without prior rupture of the N–N bond (associated mechanism) (Rod et al., 2000; Skúlason et al., 2012).

The experimental information obtained so far on SSAS is not sufficient to favor either the associative or the dissociative mechanism. Skulason et al. however, published recently a theoretical evaluation of metal electro-catalysts for electrochemical ammonia synthesis. The most active surfaces were Fe, Ru, Mo, and Rh, although the formation of gaseous H2 reduced the Faradaic Efficiency. The catalytic activity of platinum and palladium were among the lowest for this reaction. It was also found that early transition metals such as Sc, Y, Ti, and Zr bind N-adatoms stronger than H-adatoms and therefore, upon imposing a negative voltage, these metals can effectively catalyze ammonia synthesis (Skúlason et al., 2012). The catalytic activity of early transition metals may explain the high reaction rates and Faradaic Efficiencies reported for Pd and Ag–Pd. Most of the solid electrolytes used in the works listed in Table 1 (e.g., SZY, LSGM, SCY, BCY) contain transition metals such as Y, Zr, Ce, Yb, etc. Moreover, under reaction conditions (closed circuit, 450–600°C), several changes may occur in the structure of these materials. For example, in the SrCe0.95Yb0.05O3− a (SCY) electrolyte used by Marnellos and Stoukides (1998), EDS analysis showed that Sr and Yb had migrated from the bulk of the electrolyte to the Pd–SCY interphase. Thus, the observed activity of Pd and Ag–Pd could be attributed to the presence of early transition metals at the electrode–electrolyte interphase.

The second point refers to the dependence of rNH3 and FE on temperature. The highest rates of NH3 formation were obtained at low temperatures (25–90°C), while, with the exception of the study by Xu et al. (2009), at temperatures between 500 and 650°C, the FE values are at least one order of magnitude higher than those attained with Nafion and SPSF, at low temperatures (25–90°C). The conductivity values (fifth column of Table 3) can give an explanation for this. The conductivity of Nafion and SPSF is much higher than that of the ceramic high temperature conductors. On the other hand, the catalytic reaction rate increases with temperature. Thus, at low temperatures, only a small fraction of the electrochemically supplied protons react to produce ammonia. At high temperatures, the catalytic activity increases and thus, FE increases as well. The rates of H+ transport through the ceramic electrolytes, however, remain much lower than those in Nafion and SPSF.

Economic Considerations and Future Outlook

Ammonia is one of the top-ranking chemicals in terms of volume, primarily due to its use in the fertilizer industry. Its global annual production is well in excess of 100 million tons with a tendency to increase further (Amar et al., 2011a). It is also, a significant component of the world energy budget, as its production accounts for more than 1% of man-made power consumption. Furthermore, as the combustion of ammonia as opposed to carbon-containing fuels, releases only H2O and N2 to the environment, it has been proposed as a practical alternative to fossil fuels for internal combustion engines and even fuel cells, either directly or after decomposition (Schüth et al., 2012). Also, since ammonia is an excellent carbon-free hydrogen storage medium, SSAS can be combined with plants, which produce energy from renewable sources (solar or wind energy).

The interest in all methods of ammonia synthesis, including SSAS, is thus expected to continue to increase. There are certain advantages of SSAS vs. the conventional Haber–Bosch process. A large percentage of the cost in the industrial production of ammonia lies in the preparation and purification of the reactant gases. Water vapor and carbon monoxide can cause a reversible poisoning if their concentrations are small, while trace amounts of oxygen and most sulfur compounds cause irreversible poisoning of the catalyst (Satterfield, 1980; Boudart, 1994; Topsoe et al., 1994). Therefore, extensive and costly pre-purification of the nitrogen (O2 removal) and hydrogen (H2O and CO removal) is necessary to minimize poisoning. In SSAS, with hydrogen source being either H2O or H2, only one of the reactants, N2, needs purification.

On the other hand, several technical and material requirements must be met in SSAS (Kokkofitis et al., 2007; Amar et al., 2011a; Garagounis et al., 2011). Firstly, the catalyst will also serve as the WE and therefore must exhibit, not only high catalytic activity toward ammonia synthesis, but also adequately high electronic conductivity. Precious metals based on Pd and Ru have been found to satisfy these demands. If these metals are to be used, then the quantity of catalyst required per unit cell should be kept to a minimum (Giddey et al., 2013). Secondly, in addition to mechanical strength and chemical stability, the electrolyte material should exhibit high protonic conductivity at the temperature of operation. As seen in Table 3, there are no materials with high protonic conductivity at temperatures between 100 and 500°C. This is unfortunate because at low temperatures, although the protonic conductivity of certain materials is substantially high, low catalytic reaction rates are obtained, while at high temperatures the Faradaic Efficiency can be acceptably high, but the reaction rate is limited by the proton conductivity of the electrolyte.

In the past 15 years, many researchers worldwide have contributed to the improvement of the SSAS process. New proton conductors have been prepared and tested and catalytically effective WEs have been employed. Notably, Lan et al. (2013) recently synthesized ammonia from air and water at ambient temperature using Pt electrodes. Robinson et al. (2012, 2013) fabricated high temperature (650–850°C), thin, tubular ceramic proton conductors through which they passed as many as 5.5 × 10−6 mol H2/s cm2, while Xu et al. (2009) reported the highest ammonia production rate so far, i.e., 1.13 × 10−8 mol cm−2 s−1, when employing a Nafion membrane and an SmFe0.7Cu0.3− xNixO3 cathode. Along the lines of electrolytes with high conductivity at intermediate-temperatures (150–300°C) the recent work of Martsinkevich and Ponomareva (2012), who fabricated electrolyte materials exhibiting maximum proton conductivity at 200–220°C, offers an alternative that is worth investigation.

If current densities similar to those achieved in fuel or electrolysis cells (0.25–0.5 A cm−2) were achievable simultaneously with an FE (%) of approximately 50%, then commercially viable production rates (in the range 4.3–8.7 × 10−7 mol cm−2 s−1) could be attained (Giddey et al., 2013). The lack of information concerning long term stability of most materials and electrochemical cells in ammonia containing environments is partly due to the relatively early stage of development of this technology (Giddey et al., 2013). Such information, along with the actual cost of fabrication, would be necessary for a comprehensive economic assessment (life-cycle analysis) of an SSAS plant.
