ORIGINAL RESEARCH article

Front. Endocrinol., 07 September 2023
Sec. Systems Endocrinology
This article is part of the Research Topic Benefits and Risks of Drug Combination Therapy for Chronic Metabolic Diseases View all 8 articles

A network pharmacology and molecular docking approach to reveal the mechanism of Chaihu Anxin Capsule in depression

Lin Yang&#x;Lin Yang1†Yan Zhao&#x;Yan Zhao1†Ruochen QuRuochen Qu1Yan Fu,Yan Fu2,3Chunhua Zhou*Chunhua Zhou1*Jing Yu*Jing Yu1*
  • 1Department of Pharmacy, First Hospital of Hebei Medical University, Shijiazhuang, China
  • 2Core Facilities and Centers, Hebei Medical University, Shijiazhuang, China
  • 3School of Pharmaceutical Sciences, Hebei Medical University, Shijiazhuang, China

Introduction: As one of the most frequently diagnosed mental disorders, depression is expected to become the most common disease worldwide by 2030. Previous studies have shown that Chaihu Anxin Capsule has powerful antidepressant effects. However, its mechanisms are not fully understood. The aim of our research is to reveal the mechanisms of Chaihu Anxin Capsule in treating depression.

Methods: Information about the ingredients of the herb was gathered using the TCMSP. Genes associated with antidepressants were gathered from the GeneCards database. An “herbal-ingredient-target” network was constructed and analyzed using Cytoscape software. The PPI network of the antidepressant targets of Chaihu Anxin Capsule was constructed using the STRING database. KEGG pathway and GO enrichment were used to analyze the antidepressant targets. Molecular docking technology was used to confirm the capacity of the primary active ingredients of Chaihu Anxin Capsule to bind to central targets using AutoDock Vina and PyMOL software.

Results: Network analysis showed that five targets might be therapeutic targets of Chaihu Anxin Capsule in depression, namely, JUN, IL6, AKT1, TP53, and STAT3. The gene enrichment analysis implied that Chaihu Anxin Capsule benefits patients with depression by modulating pathways related to lipids and atherosclerosis and the AGE-RAGE signaling pathway in diabetic complications. Molecular docking analyses revealed that JUN, IL6, AKT1, TP53, and STAT3 had good affinities for quercetin, beta-sitosterol and kaempferol.

Conclusion: According to the bioinformatics data, the antidepressant effects of Chaihu Anxin Capsule may be primarily linked to cholesterol and atherosclerosis as well as the AGE-RAGE signaling pathway in diabetic complications. These results emphasize that the expected therapeutic targets may be possible indicators for antidepressant activity.

1 Introduction

Depression, as a severe affective mental disorder, is accompanied by a loss of enjoyment and impairment of cognition, behavior, and autonomic nerve function, which seriously affect the social function of patients (1). The frequency of depression has significantly increased because of significant changes in physical, psychological, and social interactions; in the United States, severe depression affects 21% of women and 11%–13% of men over the course of their lifespan (2). Depression is expected to become the most common disease worldwide by 2030 (3). Therefore, research on the pathogenesis, prevention, and treatment of depression has become a current hotspot.

Traditional Chinese medicine (TCM) has a clinical application history of thousands of years, playing a role through multiple links, targets, and steps. TCM is widely accepted because it comes from nature and has mild effects and few side effects. Therefore, studying the efficiency and mechanism of TCM in preventing and curing depression has attracted increasing attention from experts worldwide (4). For example, Jieyu Pills, Jiawei Xiaoyao capsule, Shugan Jieyu capsule, and others have proven high clinical effectiveness when used to prevent and treat depression (57).

Chaihu Anxin Capsule, the Hebei Medical University first hospital in-hospital preparation, is composed of Bupleuri radix, Paeoniae Radix Alba, Puerariae Radix and other medicinal materials and is used to treat depression syndrome with good clinical effects. Wang G et al. identified the antidepressant effect of Puerariae Radix with the help of network pharmacology (8). It has also been established that Radix Bupleuri and Radix Paeoniae Alba have an impact on depression (9). Previous studies have demonstrated that Chaihu Anxin capsules can significantly improve depression-like behavior in rats induced by reserpine and reduce corticosterone levels and hippocampal neuron damage (10). However, because of the complex composition of the Chaihu Anxin capsule, its primary material basis and molecular mechanism for depression therapy remain unknown.

The current study sought to systematically investigate the anticipated therapeutic targets and biological signaling pathways of Chaihu Anxin Capsule against depression based on network pharmacology and molecular docking and to further provide bioinformatics data for follow-up clinical and basic research on the treatment of Chaihu Anxin Capsule.

2 Materials and methods

2.1 Screening of active ingredients and target genes

Oral bioavailability (OB) is the rate at which a medicine taken orally and absorbed in the gastrointestinal system enters the bloodstream through the liver. Drug-likeness (DL) is the degree to which herbal components resemble recognized drugs structurally. With the help of the TraditionalChineseMedicineSystemsPharmacology Database and Analysis Platform (TCMSP, https://old.tcmsp-e.com/tcmsp.php/) (11), the chemical constituents in Paeoniae Radix Alba, Radix Bupleuri, Arum Ternatum Thunb, Jujubae Fructus, Poria Cocos, licorice, Radix Puerariae, Cinnamomi Ramulus, Zingiber Officinale Roscoe, Prunellae Spica and Corydalis Rhizoma in Chaihu Anxin Capsule with the standard of OB ≥30% and DL ≥0.18 were retrieved as the active ingredients in this study (12). Moreover, text mining was used to incorporate compounds that did not fulfil the screening requirements but were described as metabolic regulators (13, 14).

2.2 Construction of an active ingredient-target network of the Chaihu Anxin capsule

The target proteins of the Chaihu Anxin capsule were identified using the UniProt database (https://www.uniprot.org/), and the targets underwent a unified conversion to abbreviated gene names (15). The Chaihu Anxin capsule’s active components and the relevant targets were imported into Cytoscape 3.9.1 to organize into a network (16).

2.3 Screening of disease targets

Targets connected to depression were found using the GeneCards (https://www.genecards.org/), OMIM (https://omim.org/), DrugBank (https://www.drugbank.ca/) and Therapeutic Target Database (https://db.idrblab.net/ttd/) databases in this study (1720).

2.4 Screening of depression-related genes acted upon by the active ingredients of Chaihu Anxin Capsule

A Venn diagram was made to visualize the overlap between the genes of the active ingredients in Chaihu Anxin capsule and depression-related genes.

2.5 Construction of the herbal-active ingredient-antidepressant target network

To construct the “herbal-active ingredient-antidepressant target network” of Chaihu Anxin capsule, the intersecting genes and their active ingredients were imported into Cytoscape 3.9.1. The topological properties were analyzed with the “network analyzer” function.

2.6 Construction of a protein−protein interaction network and screening of its core targets

To obtain the relationships of PPls, the obtained intersecting genes were uploaded onto the STRING 11.5 platform (https://string-db.org/) (21). Apart from changing the minimal interaction threshold to “medium confidence” 0.7 with medium confidence and the species (protein species) to “Homo sapiens” (human), all other parameters were left at their default values. The top 30 intersection targets of Chaihu Anxin capsule against depression were identified.

2.7 GO and KEGG enrichment analyses

To explore the functions of the intersecting genes screened from the Chaihu Anxin capsule, we analyzed the intersecting genes as well as their roles in signaling pathways. The Kyoto Encyclopedia of Genes and Genomes (KEGG) and a functional enrichment and labelling tool based on Gene Ontology (GO) were both used to accomplish this. The Metascape database (https://metascape.org/gp/index.html#/main/step1) (22) was used as the source of the data.

2.8 Molecular docking

For the following molecular docking study, the most important gene among the core genes was chosen. The UniProt library was scanned for the receptor protein that the chosen gene codes for. A copy of the protein’s structure was made from the Research Collaboratory for Structural Bioinformatics Protein Data Bank (RCSB PDB) library (https://www.rcsb.org/) (23). The PubChem library (https://pubchem.ncbi.nlm.nih.gov) was used to obtain the structures of the ligand molecules (24). The receptor protein was dehydrated using PyMOL 2.5.0 software, and protein hydrogenations and charges were calculated using AutoDock 1.5.6 (25, 26). Active pocket sites where small molecule ligands attach were specified as parameters of the receptor protein docking site. The receptor protein was then docked with the small-molecule ligands of the Chaihu Anxin capsule’s active components using AutoDock Vina.

3 Results

3.1 Active ingredients and potential targets

The TCMSP was used to obtain information about the 260 active components in Chaihu Anxin capsule and their targets. OB≥30% and DL≥0.18 served as the criteria. There are 14 ingredients from Paeoniae Radix Alba, 19 ingredients from Radix Bupleuri and 6 ingredients from Radix Puerariae. These results are shown in Table 1 (all ingredients are listed in Supplementary Table 1).

TABLE 1
www.frontiersin.org

Table 1 Active ingredients of Paeoniae Radix Alba, Radix Bupleuri and Radix Puerariae.

3.2 Active ingredient-target network

The obtained ingredients in Chaihu Anxin Capsule and their potential targets were imported into Cytoscape software to construct the “active ingredient-target” network. There were 497 nodes and 4317 edges in the network. These results are shown in Figure 1. The blue rectangle nodes represent the targets; the pink elliptical nodes represent ingredients of Chaihu Anxin capsule.

FIGURE 1
www.frontiersin.org

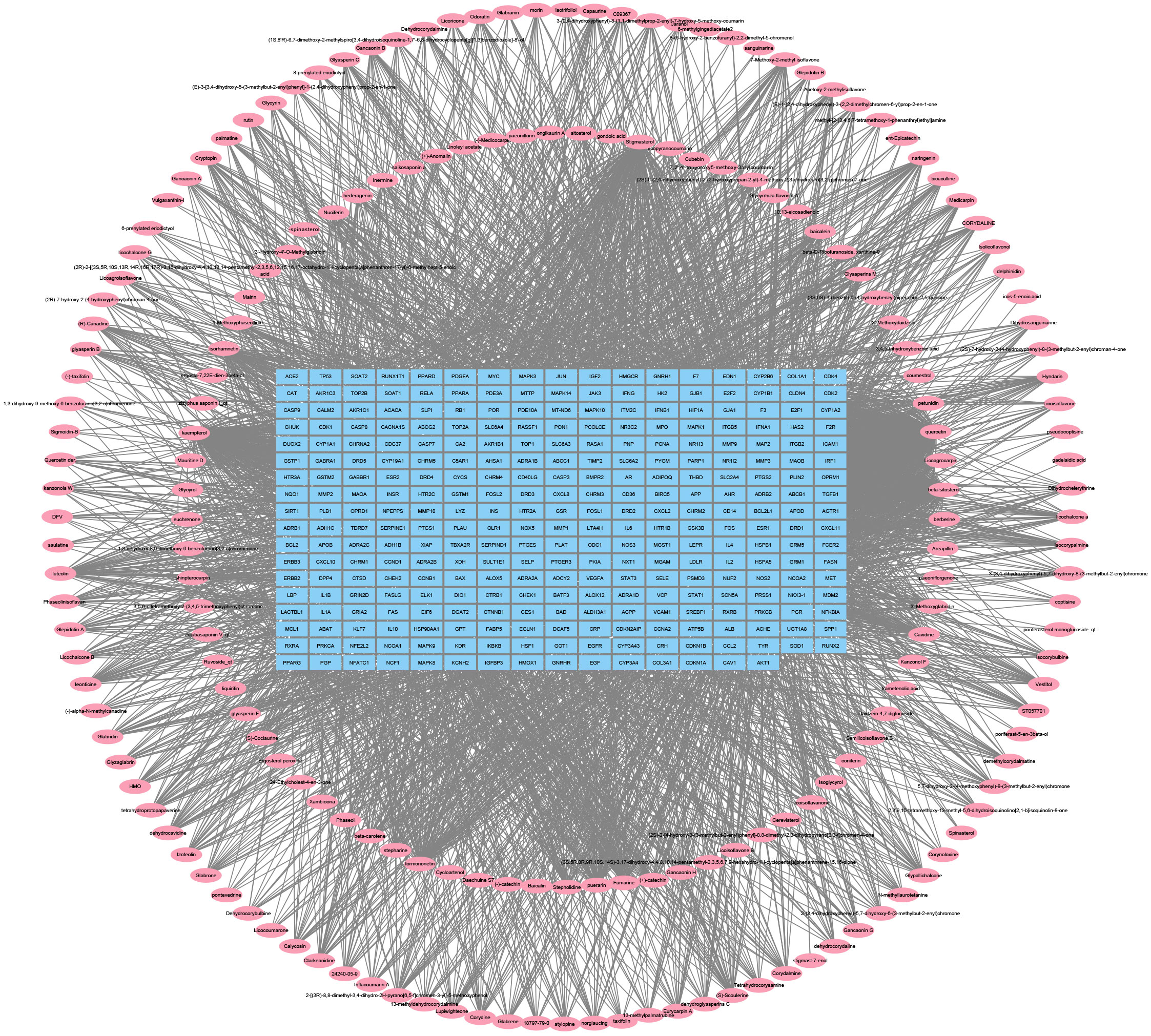

Figure 1 “Active ingredient-target” network construction. The blue rectangle nodes represent the targets; the pink elliptical nodes represent ingredients of Chaihu Anxin capsule.

3.3 Core action genes in the Chaihu Anxin capsule

Using the term “antidepressant,” genes associated with depression were found from the GeneCards, Online Mendelian Inheritance in Man (OMIM), DrugBank and Therapeutic Target Database databases. Based on the junction results from the TCMSP and disease gene databases, gene intersections were created, and 153 intersection targets were acquired. These results are shown in Figure 2 and Supplementary Table 2.

FIGURE 2
www.frontiersin.org

Figure 2 Venn diagram of the targets of Chaihu Anxin capsule and depression.

3.4 Herbal-active ingredients-antidepressant targets network

The intersection targets and their active ingredients in Chaihu Anxin Capsule were imported into Cytoscape 3.9.1 to structure the “herbal-active ingredients-antidepressant targets” network. There were 351 nodes and 2803 edges in the network. These results are shown in Figure 3. The blue rectangle nodes represent the targets; the elliptical nodes represent herbals of Chaihu Anxin capsule; the diamond nodes represent ingredients of Chaihu Anxin capsule. The active ingredients quercetin, beta-sitosterol, and kaempferol are the three ingredients with the highest “degree” values. These results are shown in Table 2.

FIGURE 3
www.frontiersin.org

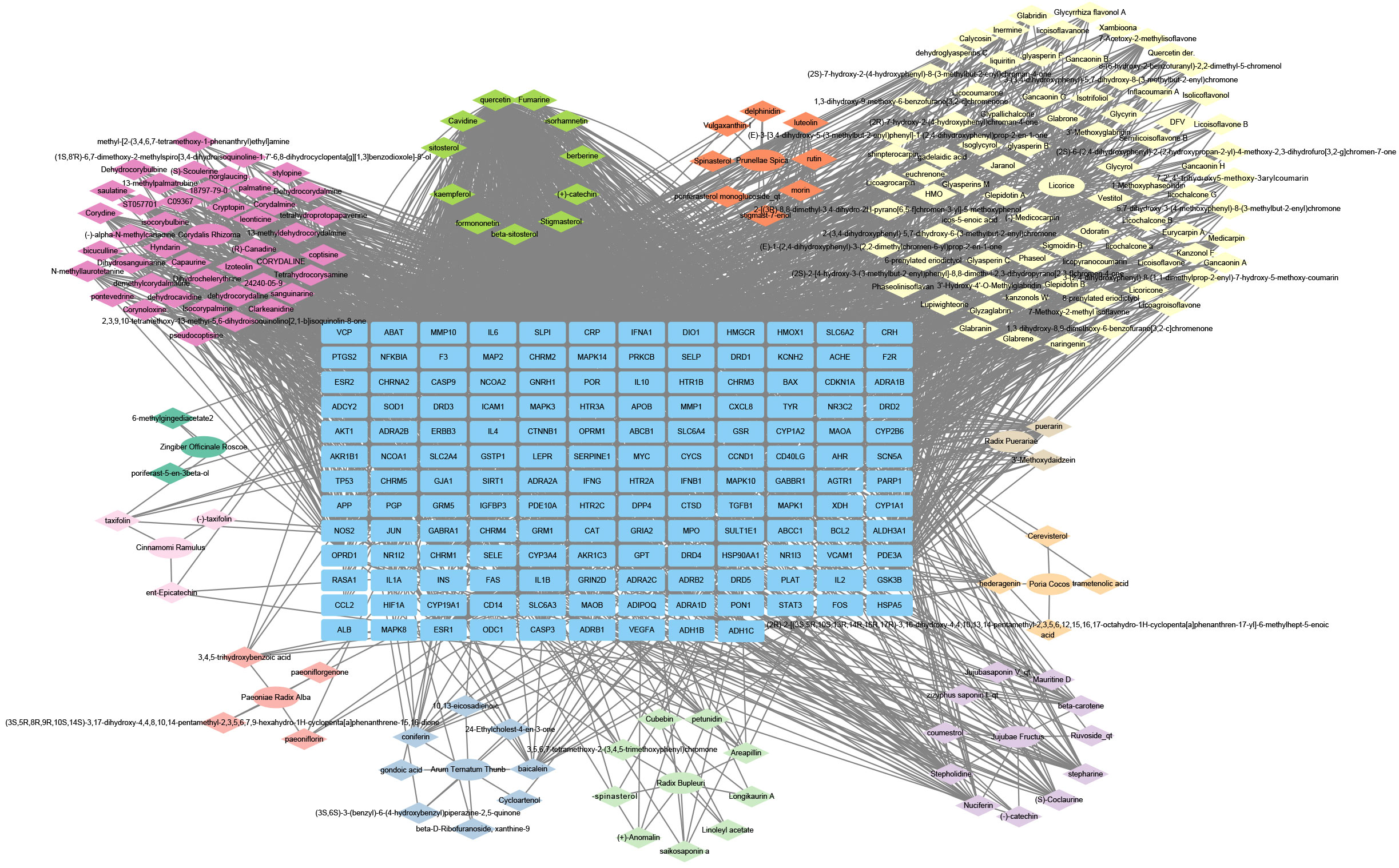

Figure 3 “Herbal-active ingredients-antidepressant target” network construction. The blue rectangle nodes represent the targets; the elliptical nodes represent herbals of Chaihu Anxin capsule; the diamond nodes represent ingredients of Chaihu Anxin capsule.

TABLE 2
www.frontiersin.org

Table 2 The three active ingredients with the highest degree value of Chaihu Anxin capsule.

3.5 Construction and screening of a PPI between Chaihu Anxin capsule and depression

The STRING database was used to investigate the 153 intersected genes and construct a PPI network. These results are shown in Figure 4. Targets with scores in the top 30 were chosen as core targets such as Interleukin-6 (IL6), Interleukin-1 beta (IL1B), RAC-alpha serine/threonine-protein kinase (AKT1), Cellular tumor antigen p53 (TP53), and Signal transducer and activator of transcription 3 (STAT3). These results are shown in Figure 5 and Table 3.

FIGURE 4
www.frontiersin.org

Figure 4 PPI network of the gene targets.

FIGURE 5
www.frontiersin.org

Figure 5 Thirty core targets determined in the PPI network.

TABLE 3
www.frontiersin.org

Table 3 Thirty core targets.

3.6 KEGG pathway and GO enrichment analyses

The 20 most enriched signaling pathways of Chaihu Anxin capsule were enriched and screened using KEGG pathways (P<0.05), including lipid and atherosclerosis and the AGE-RAGE signaling pathway in diabetic complications. These results are shown in Figure 6, 7. The size of the bubble represents the number of targets enriched in the indicated pathway, and the color of the bubble represents the p value of enrichment. Nodes in red represent Chaihu Anxin Capsule-depression-related targets.

FIGURE 6
www.frontiersin.org

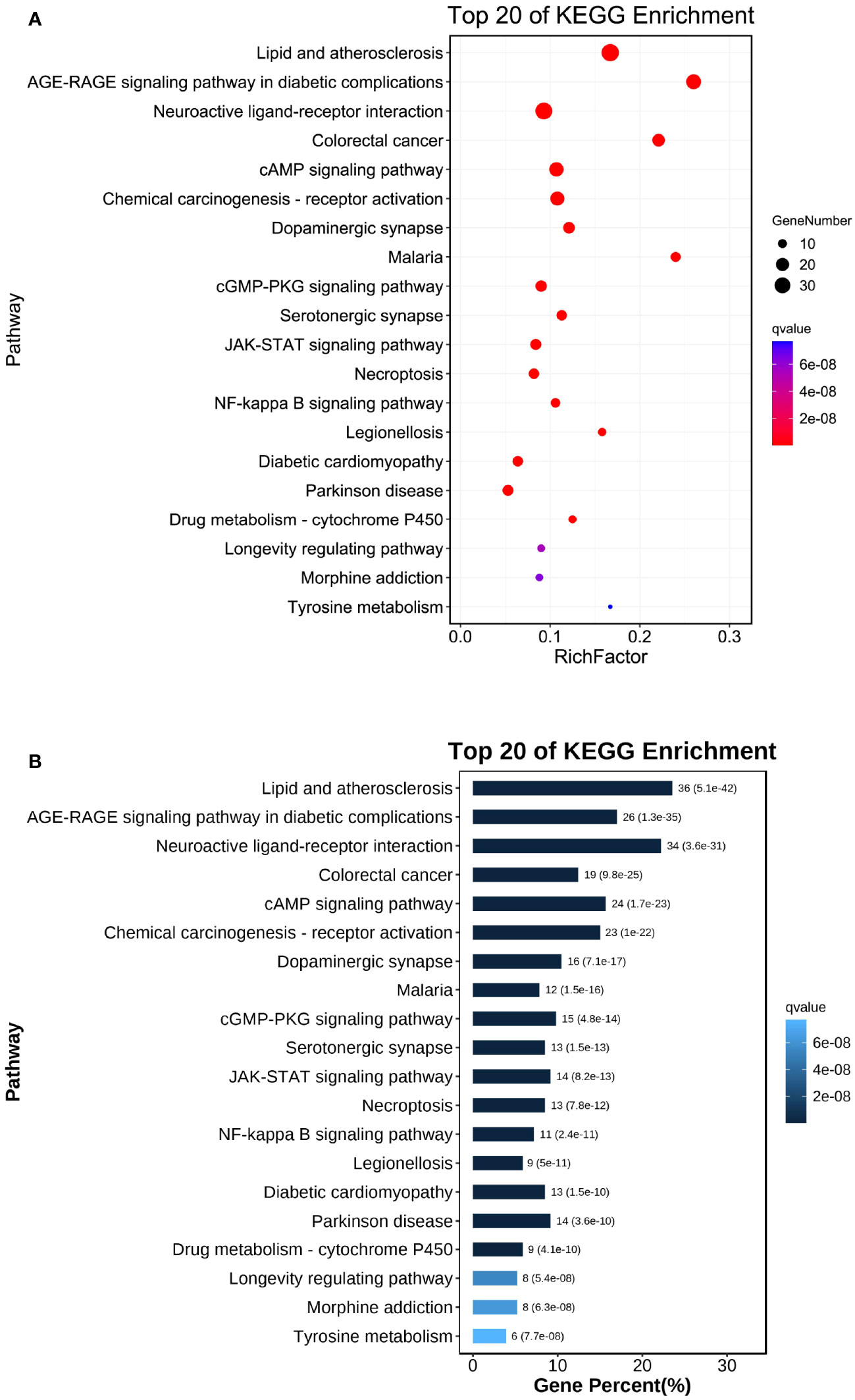

Figure 6 (A) Dot plot of KEGG enrichment analysis. (B) Bar plot of KEGG enrichment analysis. The size of the bubble represents the number of targets enriched in the indicated pathway, and the color of the bubble represents the p value of enrichment.

FIGURE 7
www.frontiersin.org

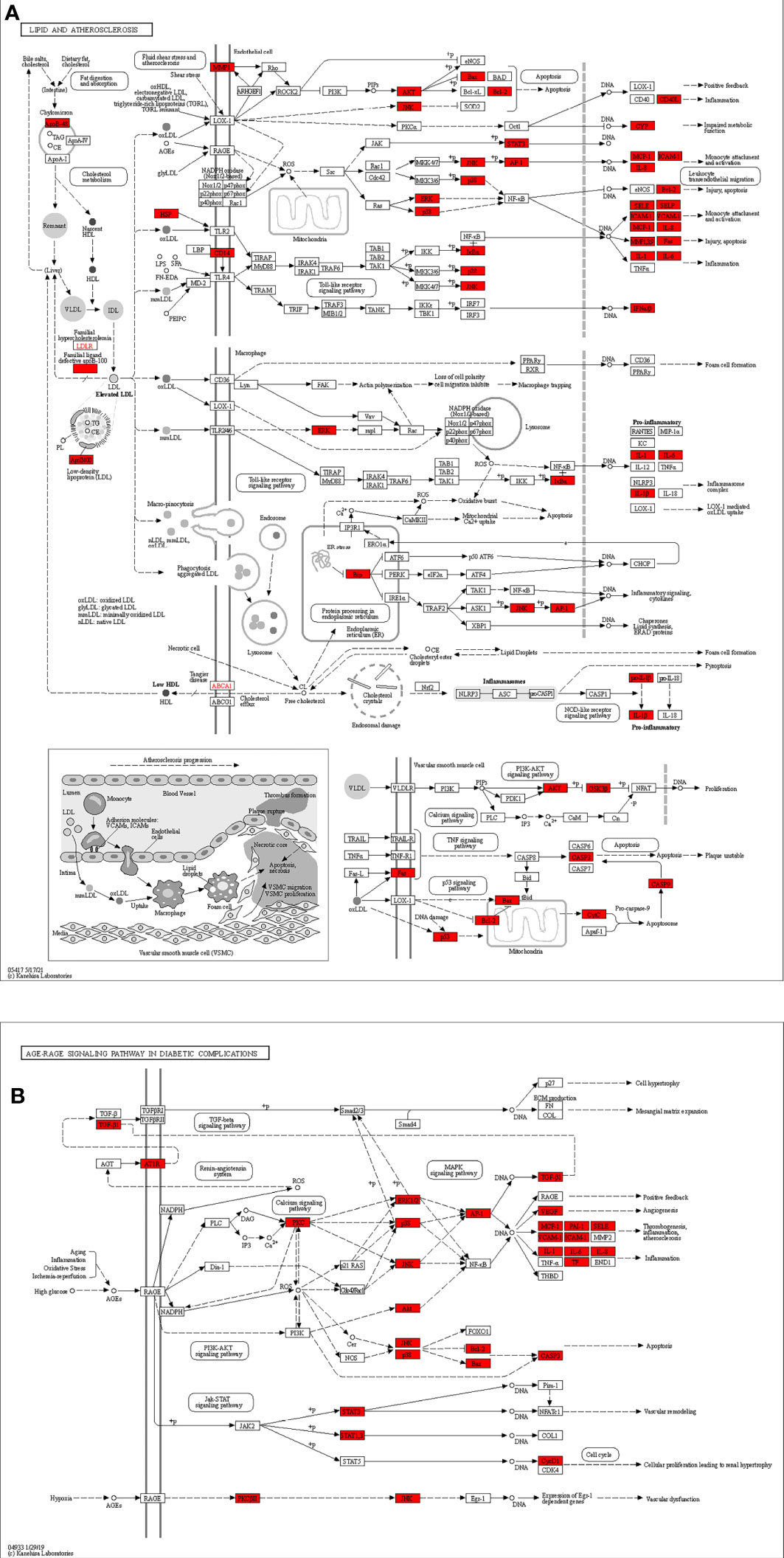

Figure 7 (A) Lipid and atherosclerosis and (B) AGE-RAGE signaling pathway in diabetic complications map of Chaihu Anxin Capsule for their potential treatment of depression. Nodes in red represent Chaihu Anxin Capsule-depression-related targets.

The 20 pathways with the highest GO enrichment of Chaihu Anxin capsule in biological processes, cellular components and molecular functions were identified by GO-based functional enrichment and annotation. These results are shown in Figures 8A–C. These targets pertain to cellular reactions to nitrogen compounds, xenobiotic stimuli, molecule of bacterial origin, neurotransmitter receptor activity, and postsynaptic membrane, among other things.

FIGURE 8
www.frontiersin.org

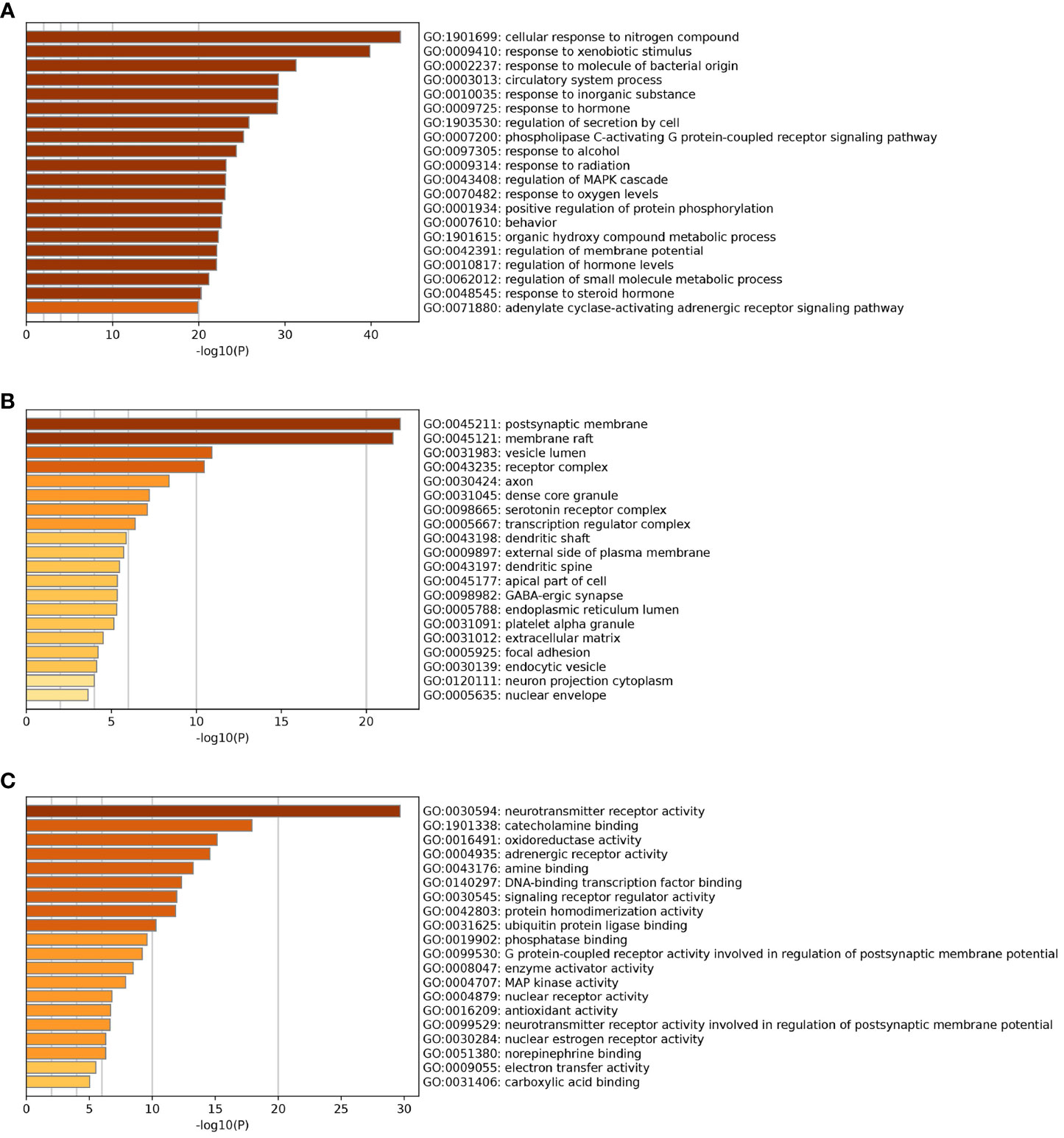

Figure 8 GO enrichment analysis. (A) Biological Processes. (B) Cellular Components. (C) Molecular Functions.

3.7 Molecular docking

IL6 (PDB ID 1ALU), IL1B (PDB ID 6Y8M), AKT1 (PDB ID 1UNP), TP53 (PDB ID 1QKT), and STAT3 (PDB ID 6QHD) were selected for molecular docking analysis. For molecular docking, the top three active substances (quercetin, beta-sitosterol, and kaempferol) in the network were chosen. Molecular docking results indicated that the binding energies of the three active ingredients with IL6, IL1B, AKT1, TP53, and STAT3 were less than -5.0 kcal·mol-1, showing good binding force. These results are shown in Figure 9. Through hydrogen bonding, quercetin binds to the amino acid residues of IL6 such as PRO-141 and LYS-120; binds to the amino acid residues of IL1B such as GLY-136, THR-137, LEU-134, and LYS-77; binds to the amino acid residues of AKT1 such as LYS-8, TRP-99 and HIS-13; binds to the amino acid residues of TP53 such as TYR-537; binds to the amino acid residues of STAT3 such as GLU-435 and ARG-417. The results of molecular docking of quercetin with five significant genes are presented in Figures 10A–E (all results of molecular docking are presented in Supplementary Figure 1).

FIGURE 9
www.frontiersin.org

Figure 9 Molecular docking scores. (kcal·mol-1).

FIGURE 10
www.frontiersin.org

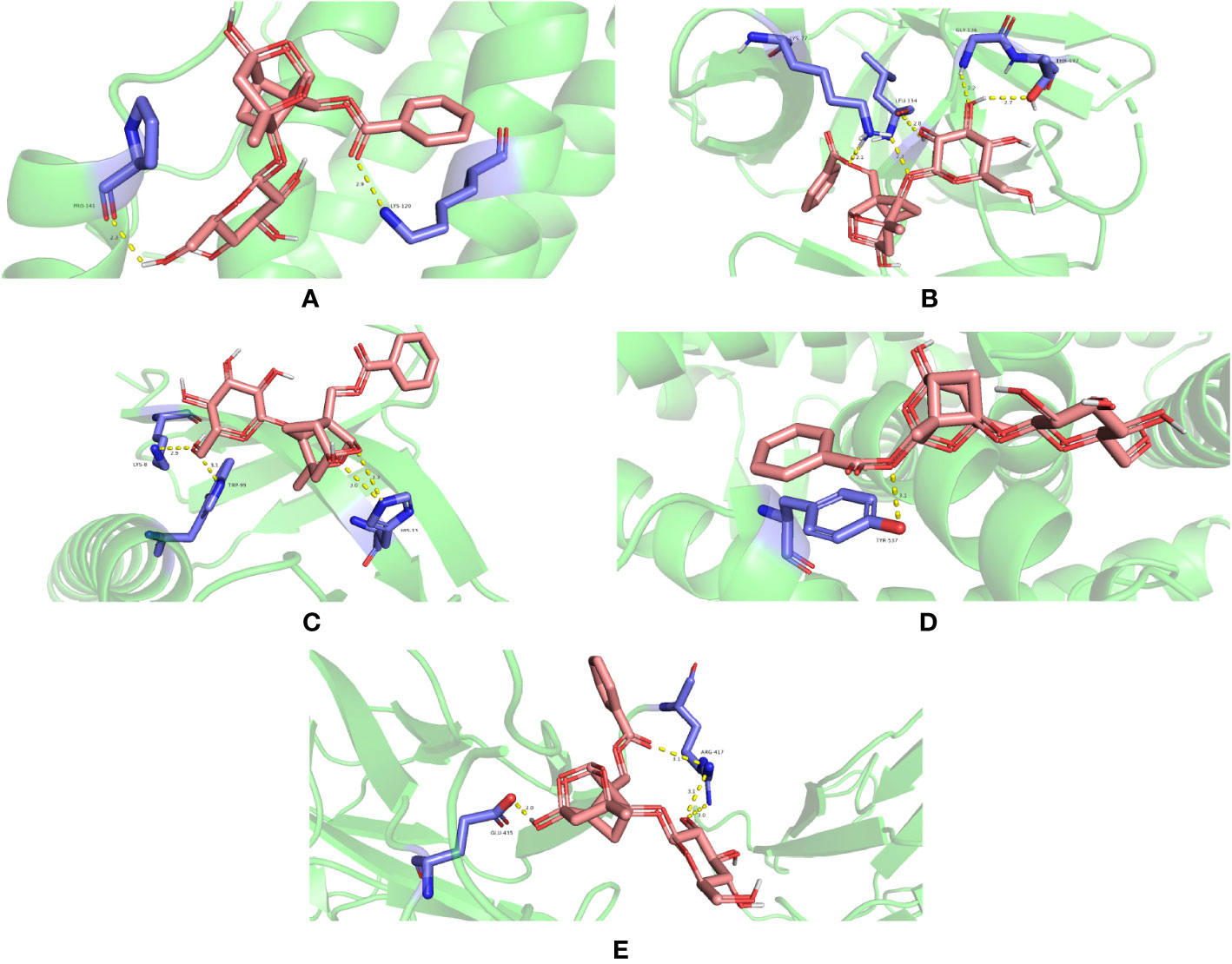

Figure 10 Molecular docking between puerarin and proteins (A) 1ALU, (B) 6Y8M, (C) 1UNP, (D) 1QKT, and (E) 6QHD (encoded by IL6, IL1B, AKT1, TP53, and STAT3, respectively).

4 Discussion

TCM has a full theoretical framework and a clinical application history of thousands of years with rich resources. TCM includes natural medicines with obvious curative effects, high efficiency, safety, and low toxicity and side effects for antidepressant treatment (4), which play a role through multiple links, targets, and steps. The Chaihu Anxin capsule is an in-hospital preparation from the First Hospital of Hebei Medical University and is composed of Bupleuri radix, Paeoniae Radix Alba, Puerariae radix and other medicinal materials. This medicine is used to treat depression syndrome, the symptoms of which include dizziness, asthenia, restlessness, dreaminess, and decline of living and working abilities. The “Pharmacopoeia of the People’s Republic of China” has recorded that Bupleuri radix tastes bitter, pungent, and microcold, belonging to the liver, gallbladder, and lung meridians. It relieves exterior and antipyretic effects, lifting Yang Qi and soothing liver-qi stagnation (27). Bupleuri radix was first recorded in Sheng Nong’s herbal classic: “Bupleuri radix, mainly to the heart and abdomen, removes the Qi in the intestines and stomach, accumulates food, cold, and heat pathogens, and eliminates the old to bring forth the new. Take it for a long time, lighten your body, brighten your eyes, and improve your essence.” Modern pharmacological studies have shown that Bupleuri radix has sedative, antipyretic, analgesic, anti-inflammatory, immune-enhancing, antidepressant, and antitumor effects (28). Paeoniae Radix Alba was first recorded in Sheng Nong’s herbal classic. The medicine tastes bitter, sour, and slightly cold and belongs to the meridians of the liver and spleen. It nourishes blood, regulates meridians, retains Yin, stops sweat, softens the liver, relieves pain, and represses the liver (29). Modern research has shown that Paeoniae Radix Alba has analgesic, anti-inflammatory, liver-protective, antioxidant, and other effects (3033). It has been claimed that the drug combination of Radix Bupleuri and Radix Paeoniae Alba can greatly lessen melancholy brought on by Chronic Unpredictable Mild Stress (CUMS). The hypothalamic–pituitary–adrenal (HPA) axis is regulated, neurotoxicity is inhibited, and the production of brain-derived neurotrophic factors is controlled (9). The desiccated root of Pueraria lobata is known as Puerariae radix. In an ancient book titled “Treatise on febrile and miscellaneous diseases,” it was noted that Pueraria lobata had significant benefits for easing muscles, bringing down temperature, and reviving and alleviating diarrhea.” According to the “Compendium of Materia Medica,” Pueraria lobata has cooling, calming, and pleasant tastes as well as purifying and heat-clearing properties. Pueraria lobata can be used to treat fever, thirst, severe dysentery, diarrhea, diabetes, and hypertension, according to the 2020 version of the “Pharmacopoeia of the People’s Republic of China”. Puerariae Radix and its compounds have been shown by studies in contemporary science and medicine to have antioxidant, antihypertension, anticancer, antidiabetes/nephropathy, and neuroprotective properties (3438). These studies were aimed at determining the mechanism of a single ingredient. The curative effect of TCM depends on the joint action of various effective components, which play a role through multiple links, targets, and steps.

Network pharmacology can reveal the numerous components, targets, and pathways that make up TCM’s mechanism. The curative effect of TCM depends on the joint action of various effective ingredients. As a result, network pharmacology is frequently used to investigate how TCM works to cure melancholy. For instance, Wang G et al. used network pharmacology to identify 52 biological processes and 35 signaling pathways associated with the antidepressant effect of Puerariae Radix. They also obtained eight major active components, 64 potential antidepressant gene targets, and 15 core antidepressant gene targets of Puerariae Radix (8).

In this work, the TCMSP database yielded the identification of 260 active substances. A total of 153 targets that were designated “key targets” for PPI network building and GO-KEGG analysis were obtained by using a Venn tool to connect the Chaihu Anxin Capsule targets and depression targets. These 153 important targets were uploaded to the STRING database and used to build the PPI network. IL6, IL1B, AKT1, TP53, and STAT3 were deemed important targets implicated in the effects of Chaihu Anxin capsule on depression and had high degree values in the PPI network. The AGE-RAGE signaling pathway in diabetic complications and lipids and atherosclerosis were the most enriched pathways, according to GO and KEGG enrichment studies of the 153 important targets. After molecular docking, quercetin, beta-sitosterol and kaempferol were discovered to interact directly with IL6, IL1B, AKT1, TP53, and STAT3.

The quercetin, beta-sitosterol, and kaempferol components were found through network analysis to be the most promising ingredients. As reported, quercetin could reduce lipopolysaccharide-induced depressive-like behaviors and impairments in learning and memory in rats. The process underlying this effect may involve controlling the expression of Copine 6 and triggering receptors expressed on myeloid cells (TREM) 1/2, which are linked to brain derived neurotrophic factor (BDNF), in the prefrontal cortex (PFC) and hippocampus (39). Yin Y et al. found that beta-sitosterol and its derivatives have effects that are similar to those of antidepressants on male mature rodents, and these effects are mediated by the 5-hydroxytryptamine (5-HT), Dopamine (DA), and Gamma-aminobutyric acid (GABA)-ergic systems (40). A review suggested that kaempferol modulates several inflammation signaling pathways, including nuclear factor kappa B (NF-kB), p38 mitogen-activated protein kinases (p38MAPK), serine/threonine kinase (AKT), and the -catenin cascade, to exert its multipotential neuroprotective effects (41).

The PPI network identified the IL6, IL1B, AKT1, TP53, and STAT3 genes as significant targets. IL-6 is a peripheral or central cytokine that plays a significant role in stress responses and depressive disorders, particularly physical illnesses that coexist with depression, according to evidence from animal and human studies (42). In the central nervous system, IL-1β is released by several cells that mediate inflammation, plays a role in central nervous system development, and participates in neural growth and synaptic organization. IL-1β overexpression has been associated with exacerbated neuroinflammatory reactions as well as impaired neurotransmission and cellular metabolism. All of these processes may contribute to pathological events associated with depression (43). Studies in animal models have shown that IL-1β injection produces depressive-like symptoms, such as anhedonia, weight loss, fatigue, and impaired social interaction (44). AKT1, a downstream enzyme that has been linked to the pathogenesis of neurotransmitter-related diseases such as melancholy, has been shown to exist (45). TP53 pathways have been shown to be the most distinct pathways linked to major depressive disorder caused by inflammation (46). Interactions between neurons and microglia are essential for sustaining the nervous system, and the balance of the nervous system is crucial for understanding the pathophysiology of depression. The effects of microglial-derived synaptic alterations on eliciting antidepressant-like behavior were investigated using microglia-specific STAT3 knockout mice. The findings of the FST, TST, sucrose preference, and open field tests revealed that microglia-specific STAT3 deletion animals had antidepressant-like behavior (46).

The 153 possible targets were subjected to GO enrichment analysis and KEGG enrichment analysis. The findings of the GO analysis suggested that cellular response to nitrogen compound, xenobiotic stimulus, molecule of bacterial origin, neurotransmitter receptor activity, and postsynaptic membrane may play a role in the treatment of depression. These targets were mostly connected to lipids and atherosclerosis as well as the AGE-RAGE signaling pathway in diabetic complications, according to KEGG pathway analysis. The most significant cardiovascular risk factors for a poor prognosis in myocardial infarction patients now include chronic depression. In a review, the importance of the central and autonomic control of cardiac functions, or the neuro-cardiac axis, is thoroughly explained, highlighting the functions of acute and chronic stress, circadian rhythms, emotions and the social environment in initiating acute cardiac events and deteriorating heart function and metabolism in chronic cardiovascular diseases (47). The AGE-RAGE pathway has a role in a number of pathological situations, such as cancer, diabetes, cardiovascular disease, and neurodegenerative disorders. Proinflammatory cytokines (including interleukin-1, interleukin-6, and tumor necrosis factor-α), growth factors such as vascular endothelial growth factor (VEGF), and NF-kB activation are all mediated through the AGE-RAGE signaling pathway, which promotes the onset and severity of depression (48, 49). Inflammation is a critical disease modifier that promotes susceptibility to depression. As a key disease modulator that increases vulnerability to depression, inflammation is a major health issue. As a result of early life trauma, a more pronounced stress response, microbiome changes, hereditary disorders, or a combination of these and other variables, controlling inflammation can have a therapeutic impact overall. As shown in the KEGG pathway diagram, the targets included in the lipid and atherosclerosis pathways mainly included AKT, STAT3, IL-1β, IL-6, and TP53. Wang R (50) and other researchers found that genes related to atherosclerosis and endothelial glycolysis include AKT1, IL-6, VEGFA, TP53, STAT3, SRC and MAPK1. These genes play a key role in atherosclerosis by regulating multiple signaling pathways related to cell signal transduction, energy metabolism, immune function and blood clot formation. In the KEGG pathway map, the AGE-RAGE signaling pathway in diabetes complications includes AKT, IL-6, STAT3 and other targets, which all play an important regulatory role in the AGE-RAGE pathway.

Molecular docking results confirmed that quercetin, beta-sitosterol and kaempferol had good affinities for depression-related molecules, such as IL6, IL1B, AKT1, TP53, and STAT3. A review noted that quercetin could decrease the mRNA expression levels of IL1B (51). Selvaraj Jayaraman et al. showed that beta-sitosterol could restore the elevated serum levels of proinflammatory cytokines such as IL-6 (52). Feng Zhang et al. found that β-sitosterol significantly decreased the expression of STAT3 (53). Kaempferol was proven to decrease the protein expression of AKT and IL-6 and increase TP53 levels (54).

However, this study has some drawbacks. More research is required to determine how Chaihu Anxin Capsule treats depression by activating the AGE-RAGE signaling pathway in diabetes complications as well as the lipid and atherosclerosis pathways. The mechanism of the Chaihu Anxin capsule identified in this study also requires more analysis and verification through experimental investigation. The effects and molecular mechanism of Chaihu Anxin Capsule in the treatment of depression will be further investigated using molecular biology techniques.

5 Conclusions

In conclusion, a total of 260 active ingredients were identified from the TCMSP database. The Chaihu Anxin capsule targets and depression targets were intersected by using a Venn tool to obtain 153 targets, identified as “key targets” for PPI network construction and GO\KEGG analysis. Targets with high degree values in the PPI network included IL6, IL1B, AKT1, TP53, and STAT3. These genes were considered significant targets involved in the effects of Chaihu Anxin capsule on depression. KEGG enrichment analyses of the 153 key targets revealed that lipid and atherosclerosis and the AGE-RAGE signaling pathway in diabetic complications were the most enriched pathways. After molecular docking, quercetin, beta-sitosterol and kaempferol were found to interact directly with IL6, IL1B, AKT1, TP53, and STAT3. Our study elaborated the multicomponent synergy mechanisms of the Chaihu Anxin capsule in the treatment of depression for the first time, which also provided a pharmacological basis for treating depression.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.

Author contributions

LY: Data curation, Methodology, Software, Visualization, Writing – original draft. YZ: Data curation, Formal Analysis, Investigation, Software, Supervision, Validation, Writing – original draft. RQ: Conceptualization, Investigation, Methodology, Writing – original draft. YF: Conceptualization, Methodology, Validation, Writing – review & editing. CZ: Funding acquisition, Resources, Supervision, Writing – review & editing. JY: Funding acquisition, Project administration, Resources, Validation, Writing – review & editing.

Funding

This study was supported by the Hebei Provincial Department of Finance Geriatric Disease Prevention and Control Project (Project No. LNB202001) and the Scientific Research Plan Project of the Hebei Administration of Traditional Chinese Medicine (Project No. Z2022014).

Acknowledgments

The authors are highly grateful to the Department of Pharmacy, First Hospital of Hebei Medical University, and the grants for supporting this research work.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fendo.2023.1256045/full#supplementary-material
