Martin Brunel Whyte
Prashanth R. J. Vas
Anne M. Umpleby- 1Faculty of Health Sciences, University of Surrey, Guildford, United Kingdom
- 2King’s College Hospital NHS Foundation Trust, London, United Kingdom
The finding that high-dose dexamethasone improves survival in those requiring critical care due to COVID-19 will mean much greater usage of glucocorticoids in the subsequent waves of coronavirus infection. Furthermore, the consistent finding of adverse outcomes from COVID-19 in individuals with obesity, hypertension and diabetes has focussed attention on the metabolic dysfunction that may arise with critical illness. The SARS coronavirus itself may promote relative insulin deficiency, ketogenesis and hyperglycaemia in susceptible individuals. In conjunction with prolonged critical care, these components will promote a catabolic state. Insulin infusion is the mainstay of therapy for treatment of hyperglycaemia in acute illness but what is the effect of insulin on the admixture of glucocorticoids and COVID-19? This article reviews the evidence for the effect of insulin on clinical outcomes and intermediary metabolism in critical illness.
Trials of Glucocorticoids in COVID-19
The RECOVERY Trial
At the time of writing, no pharmacological intervention for COVID-19 has been as successful as steroids for treating the acute illness. The Randomized Evaluation of COVID-19 Therapy (RECOVERY) trial showed that dexamethasone 6mg daily for 10 days reduced the mortality of mechanically ventilated patients by 29% (1). This was despite 8% of the usual care group receiving Dexamethasone in RECOVERY, which would bias results towards the null, raising the possibility of even greater benefit. However, mortality was measured at 28 days and longer-term data will be informative as the adverse impacts of steroid administration (in other acute conditions) may be seen up to 90 days (2).
i) Dose: It is not entirely clear how the dose of 6 mg was decided upon. Immediately prior to the pandemic, the Dexamethasone treatment for the acute respiratory distress syndrome: a multicentre, randomised controlled trial’ (DEXA-ARDS) reported on outcomes in ARDS of dexamethasone at a starting dose of 20mg daily (3). This dose is consistent with prior studies of ARDS (which used methylprednisolone regimens dosed at 1-2 mg/kg/day initially) (4).
A common pattern evolving from five retrospective trials early in the course of the pandemic was for greater benefit with low dose steroids compared to the high dose steroids (5). It is likely that the 6mg dose was a trade-off between the beneficial effects of resolving pulmonary and systemic inflammation and supporting blood pressure; and the adverse effects of inhibiting immune response, reduce pathogen clearance, and provoking viral replication (6).
ii) Pharmacokinetics: In RECOVERY, the trial drug could be given orally or intravenously and surprisingly, the route of administration was not recorded in the study documentation. It is conceivable that for patients receiving mechanical ventilation, the route of administration was more likely to be intravenous, whereas it was probably given orally outside of this subgroup. The bioavailability of oral dexamethasone is between 70% and 78%, and therefore dexamethasone in tablet form may not have an equivalent therapeutic effect (7).
Meta-Analysis of Glucocorticoids in COVID-19
Following release of RECOVERY outcomes, several ongoing hydrocortisone trials were stopped as it was considered ethically imperative to use dexamethasone. This reduced the numbers of participants and hard end points were not achieved.
A meta-analysis was undertaken by WHO Rapid Evidence Appraisal for COVID-19 Therapies (REACT) Working Group (8). This incorporated data from seven trials (RECOVERY, REMAP-CAP, CoDEX, CAPE COVID, and three additional trials) totalling 1703 patients (678 had been randomized to corticosteroids and 1025 to usual care or placebo), hospitalized with COVID-19 critical illness.
The 28-day mortality was lower in patients randomised to corticosteroids: 222 deaths among 678 patients randomized to corticosteroids compared with 425 deaths among 1025 patients randomised to usual care or placebo (odds ratio [OR], 0.66 [95% CI, 0.53-0.82]; P < 0.001). The RECOVERY trial provided 59% of the patients (8). In the analysis that excluded patients recruited to the RECOVERY trial, the OR was 0.77 (95% CI, 0.56-1.07) for all-cause mortality comparing corticosteroids with usual care or placebo. The point-estimate for reduced mortality was similar between dexamethasone and hydrocortisone: OR for mortality reduction was 0.64 (95% CI 0.50 to 0.82) with dexamethasone and 0.69 (0.43 to 1.12; P=0.13) with hydrocortisone). Of note, the only trial that assessed methylprednisolone (Steroids-SARI) was underpowered and OR for effect was 0.91 with wide confidence interval (0.29 to 2.87). Outcomes were also similar with lower- vs higher-dose corticosteroid regimens (demarcation between low and high-dose was pre-specified at 15 mg/d of dexamethasone, 400 mg/d of hydrocortisone, and 1 mg/kg/d of methylprednisolone).
Since publication of the WHO meta-analysis, a more recent randomised, placebo-controlled, double-blind study of 0.5 mg/kg of methylprednisolone conducted in Brazil in 393 patients found no difference in 28-day mortality and patients on steroids required more insulin therapy (9). However, the Brazilian cohort were on average about ten years younger than in RECOVERY, had less heart disease (7% vs 28%), and there was a greater proportion on mechanical ventilation at enrolment – suggesting more severe disease (33.8% on mechanical ventilation vs 15.5% without). This runs counter to the idea that greater benefit is seen in more severely unwell patients - the majority of the studies in the WHO meta-analysis were conducted in patients with serious or critically unwell patients, particularly those who required high flow nasal oxygen or ventilation (8). In the RECOVERY trial itself, there was no benefit among those who were receiving no respiratory support at randomization (17.8% dexamethasone vs. 14.0% control; rate ratio, 1.19; 95% CI, 0.91-1.55).
Implications of COVID-19, and the RECOVERY Trial Protocol, on Diabetes
Diabetes was present in 24% of dexamethasone group vs 22% of usual care of the RECOVERY trial. The study investigators did not adjust for multiplicity in the study, between treatment arms or for any of the pre-specified endpoints, meaning there is a potential inflation of the type I error rate. This would be more of an issue for some of the secondary endpoints. Even so, it is surprising that data for patients with diabetes was not reported. Two serious adverse events (SAEs) for hyperglycaemia, requiring a longer admission for stabilisation, were recorded in the dexamethasone group (10). Six milligrams of dexamethasone OD is, in effect, five‐ to six-fold greater than the therapeutic glucocorticoid replacement dose and therefore metabolic perturbation is to be anticipated but the extent of this is uncertain.
Prior to the COVID-19 pandemic, few papers examined the acute effects of steroids on glucose homeostasis, when newly administered to general medical inpatients. In these studies (11–14), up to 50–70% of hospitalized patients (without known diabetes) prescribed moderate-to-high glucocorticoid doses, developed hyperglycaemia.
New hyperglycaemia (capillary glucose ≥11 mmol/L after initiation of glucocorticoid therapy) was found in 14% of general medical admissions treated with the equivalent of 30mg prednisolone (~4.5mg of dexamethasone daily), over a short period of time (median 2.5 days; interquartile range [IQR] 1-4 days) (11). At higher doses of prednisolone (~40mg daily) over four weeks - and including a subgroup receiving pulsed methylprednisolone 500-1000mg per day - two-thirds of patients developed steroid-induced diabetes (14). In these studies of individuals without diabetes, SID was more likely with older age, higher HbA1c level, lower estimated glomerular filtration rate (eGFR) and greater illness severity (11–14).
In a meta-analysis of two randomised controlled trials, single-dose 8mg dexamethasone, administered pre-operatively, led to a mean 0.39mmol/L higher blood glucose than control, after 24 hours (95% CI: 0.04 - 0.74 mmol/L, P=0.03) (15–17). Extended data, past 24 hours, is unavailable. Given the long half-life of dexamethasone (36-54 hours), a prolonged effect might be anticipated. Continuous day-curves of glucose sampling after dexamethasone are not reported but after a single pre-operative dose 10mg dexamethasone in people without diabetes, peak glucose was 2.5 mmol/L higher at 4 hours compared to control (18), and significant increment, within 2 hours may be seen after intravenous dosing (19).
COVID-Specific Effects on Glucose Handling
There may be a bidirectional relationship between diabetes and COVID-19 whereby COVID-19 can worsen, or precipitate diabetes and the presence of diabetes may worsen the severity of the COVID-19 illness (20). A positive feedback loop is thus engendered.
COVID-19 Causing Hyperglycaemia and Diabetic Ketoacidosis
Acute hyperglycaemia has been seen in individuals infected with SARS-CoV-2 but without known diabetes (21–26). In these patients, the degree of admission hyperglycemia predicts mortality and disease severity. The risk of COVID-19-related hospitalisation and mortality has also been shown to be greater in individuals with long-term hyperglycaemia (represented by higher HbA1c) (27–29).
Hyperglycaemia in COVID-19 may represent an effect on insulin resistance but it has also been questioned whether insulin production might also be affected. A decade ago, it was hypothesized that SARS coronavirus may directly damage islet cells (30). More recently, in vitro studies suggest that SARS-CoV-2 infection of pancreatic endocrine cells results in robust chemokine induction and upregulation of markers of cell death (31). Observational data of clinical outcomes provides support for a direct pancreatic insult: diabetic ketoacidosis (DKA) has been associated with COVID-19 disease (32–34). Reports from China, early in the pandemic, suggested ketosis was a relatively frequent occurrence: of 658 patients, 42 (6.4%) presented with positive urine or serum ketones, and, of these, three (7%) patients met the American Diabetes Association (ADA) criteria for DKA (33). Those with ketosis were about twice as likely to have diabetes at baseline, and the 3 individuals who developed DKA had underlying diabetes (one with type 1 diabetes, two with type 2 diabetes). A marked increase in DKA was also observed in children and adolescents in Germany and Australia during the COVID-19 pandemic (35, 36). However, other groups have found no increased incidence of new-onset type 1 diabetes during this COVID-19 pandemic, compared to historical rates (37). Furthermore, antibody positivity to SARS-CoV-2 has not been associated with greater risk of type 1 diabetes in children (38).
SARS-CoV-2 enters human cells via co-expression of its cell entry factors, angiotensin-converting enzyme 2 (ACE2) and its obligate co-factor, transmembrane serine protease 2 (TMPRSS2). However, analysis of six transcriptional datasets of primary human islet cells found that ACE2 and TMPRSS2 were not co-expressed in single β cells (39), suggesting that direct viral entry is not the means of pancreatic damage with COVID-19.
There have been small case series of individuals with COVID-19 with mildly raised lipase and/or amylase but not meeting the criteria for pancreatitis (40). Therefore there is no convincing evidence for more diffuse pancreatic injury as a mechanism for insulinopaenia.
Black individuals have been particularly affected by COVID and are over-represented in series with ketosis (41). It is possible that the clinical picture of ketosis in COVID relates, in part, to unmasking ketosis-prone type 2 diabetes (KPDM) – which has been linked with Black ethnicity (42). Alternatively, increase in the prevalence of severe DKA in COVID-19 positive patients might relate to delayed hospital admission and/or accessing medical advice.
In summary, ketosis is associated with length of hospital admission and overall mortality (33). The data appear to show that Covid-19 causes DKA more often than other respiratory tract viral infections.
Diabetes Predisposing to Infection With COVID-19
Elevated glucose levels can directly induce SARS-CoV-2 viral replication in human monocytes. Glycolysis appears to sustain SARS-CoV-2 replication via the production of mitochondrial reactive oxygen species and activation of hypoxia-inducible factor 1α (HIF1α) (43). HIF1α, in turn, upregulates glycolytic genes and IL-1β expression. Therefore, acute hyperglycaemia might directly support viral proliferation. Furthermore, people with diabetes have a number of pathophysiological changes that may underlie a more severe clinical response to COVID-19, these include: greater proinflammatory cytokine release, compromised host immune responses, endothelial dysfunction, and a greater propensity for development of coagulation-related complications (44, 45). Taken together, diabetes leads to greater viral replication and more severe COVID-19 disease, leading to greater hyperglycaemia.
Effect of Critical Illness on Glucose, Fat and Protein Metabolism
Endogenous Hypercortisolaemia
Under non-stressed conditions, the adrenal cortex produces approximately 20 mg of cortisol during the day. This then increases within 4-6 hours of acute stress, from a baseline of approximately 400 nmol/l, to a peak of more than 1500 nmol/L (depending on the severity of illness) (46). Estimates for equivalency of hydrocortisone dosing have ranged from 60 to 200 mg cortisol per day (47, 48).
Cortisol production is at least partially ACTH-dependent. There is a stimulatory effect on the hypothalamus by inflammatory mediators such as TNFα and IL-1 for the release of CRH (49). Cytokines can also have an effect downstream on the pituitary; for instance, IL-6 appears to directly stimulate the release of ACTH (49). However, the concept of vastly increased corticosteroid production in critical illness has been challenged. Using stable isotope tracers, the rate of appearance of cortisol, was only 1.8-fold higher in critically ill patients than in healthy matched controls in the presence of low morning plasma ACTH values (47). Therefore impaired cortisol clearance likely also contributes to hypercortisolaemia. Hypoperfusion of cortisol-metabolizing organs could, theoretically, reduce cortisol breakdown but there is evidence for reduced hepatic expression and activity of cortisol-metabolizing enzymes 5α- and 5β-reductase and renal 11β-hydroxysteroid dehydrogenase-2 (Figure 1) (47). Cortisol-binding globulin (CBG) decreases in the context of physiological stress (50). The concentration of CBG being negatively associated with mortality in septic shock (51). The net effect of an elevation in total cortisol and a reduction in cortisol-binding globulin will be to increase free cortisol levels (50). Greater cortisol concentration is associated with increased mortality in COVID-19 (52).

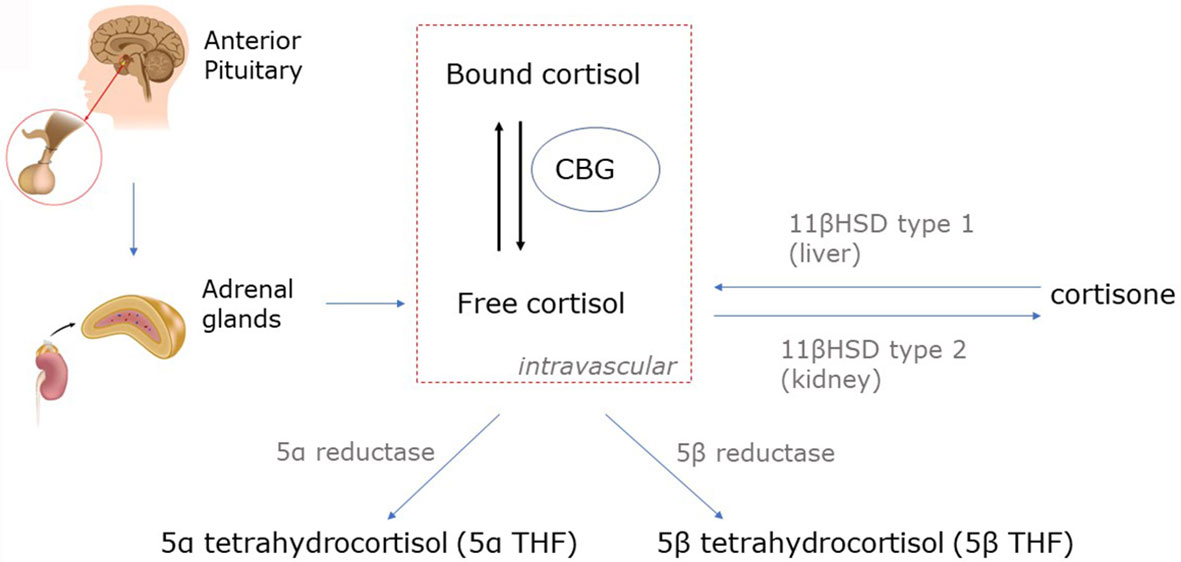

Figure 1 Cortisol metabolism. Cortisol is converted in peripheral tissues to cortisone by 11β-hydroxysteroid dehydrogenase (11β-HSD). Cortisone has marginally reduced glucocorticoid activity compared to cortisol (80-90%), and thus, cortisone can be considered an active metabolite of cortisol. Unbound cortisol is biologically active, but the majority of circulating cortisol is bound to corticosteroid-binding globulin (CBG) and albumin. Cortisol is metabolized by 5α- and 5β reductases to form 5α- and 5β-tetrahydrocortisol (5α- and 5β-THF).
Secretion of cortisol can be driven by factors outside the HPA axis in critical illness (53). This is supported by reduced adrenocorticotropic hormone (ACTH) and the increased irregularity and asynchrony of the ACTH and cortisol time series during critical illness (54). A biphasic response to critical illness has been proposed whereby an initial ACTH-dependent process gives way to later non-ACTH pathway (55). Within the adrenal gland, macrophages, and lymphocytes, physiologically widely infiltrating the adrenal cortex, and adrenocortical, and chromaffin cells produce cytokines, as IL-1, IL-6, TNFα, leukaemia inhibitory factor (LIF), and IL-18 which have a key role in the immune-adreno-cortical communication (56).
Insulin Resistance
Hypercortisolaemia will increase the rate of hepatic gluconeogenesis and inhibit glucose uptake and utilisation by peripheral tissues (57, 58). Unlike in health, where glucocorticoids promote hepatic glycogen storage, acute illness is characterised by markedly reduced glycogen synthesis (59).
The action of glucocorticoids will be compounded by elevated circulating catecholamines, which can antagonise the actions of insulin by several mechanisms: they can stimulate glucagon by a β-adrenergic effect, increase hepatic glucose production by direct stimulation of glycogenolysis and gluconeogenesis and decrease glucose uptake (60). A β2 receptor mediated increase in lipolysis could also exacerbate insulin resistance through ectopic fat distribution, release of adipokines or promoting macrophage infiltration of adipose tissue (61). Critical illness is associated with markedly elevated levels of glucagon which increases hepatic amino acid catabolism, contributing to the illness-induced hypoaminoacidaemia (62). In COVID-19, the profound viral induced inflammation, in particular IL-6 mediated, will further increase insulin resistance (63). The severity of pneumonitis correlates with the insulin requirement, but there does not appear to be a specific effect of COVID-19 on insulin resistance (64).
Catabolism Induced by Insulin Resistance
The surge in proinflammatory mediators and counter-regulatory hormones, favours the shift to catabolism marked by insulin resistance - with insulin sensitivity reduced by 70% (Figure 2) (65). Indeed, in the presence of critical-illness, hepatic glucose production increases at least twofold compared to healthy controls, to rates approaching 15 – 25 μmol/kg/min (66, 67). Hyperglycaemia is also the result of diminished insulin-mediated glucose uptake by skeletal muscle (59, 68). Critically ill patients have significantly lower, and more variable insulin sensitivity, on day 1 than later in their intensive care unit (ICU) stay (69, 70), although insulin resistance may persist for months (71). The acute effect is likely due to the acute counter-regulatory response to critical illness as described above. Catabolism, insulin resistance and stress hyperglycaemia are evolutionarily responses designed to allow the host to survive during periods of severe stress. Glucose can be utilized by tissues that are central to the recovery process. These include the central and peripheral nervous system, bone marrow, leucocytes and erythrocytes and the reticuloendothelial system. Glucose uptake to these tissues is non-insulin dependent - hence greater glucose concentration facilitates uptake (72). This evolutionary paradigm - of either survival or rapid deterioration - has been superseded by the ability to ‘suspend’ critical illness for days or weeks with modern critical care. In the modern era, prolonged or severe hyperglycaemia is associated with increased risk of critical illness polyneuropathy and prolonged mechanical ventilation. Loss of lean body mass is associated with poor ICU survival, or delayed recovery in survivors (73).

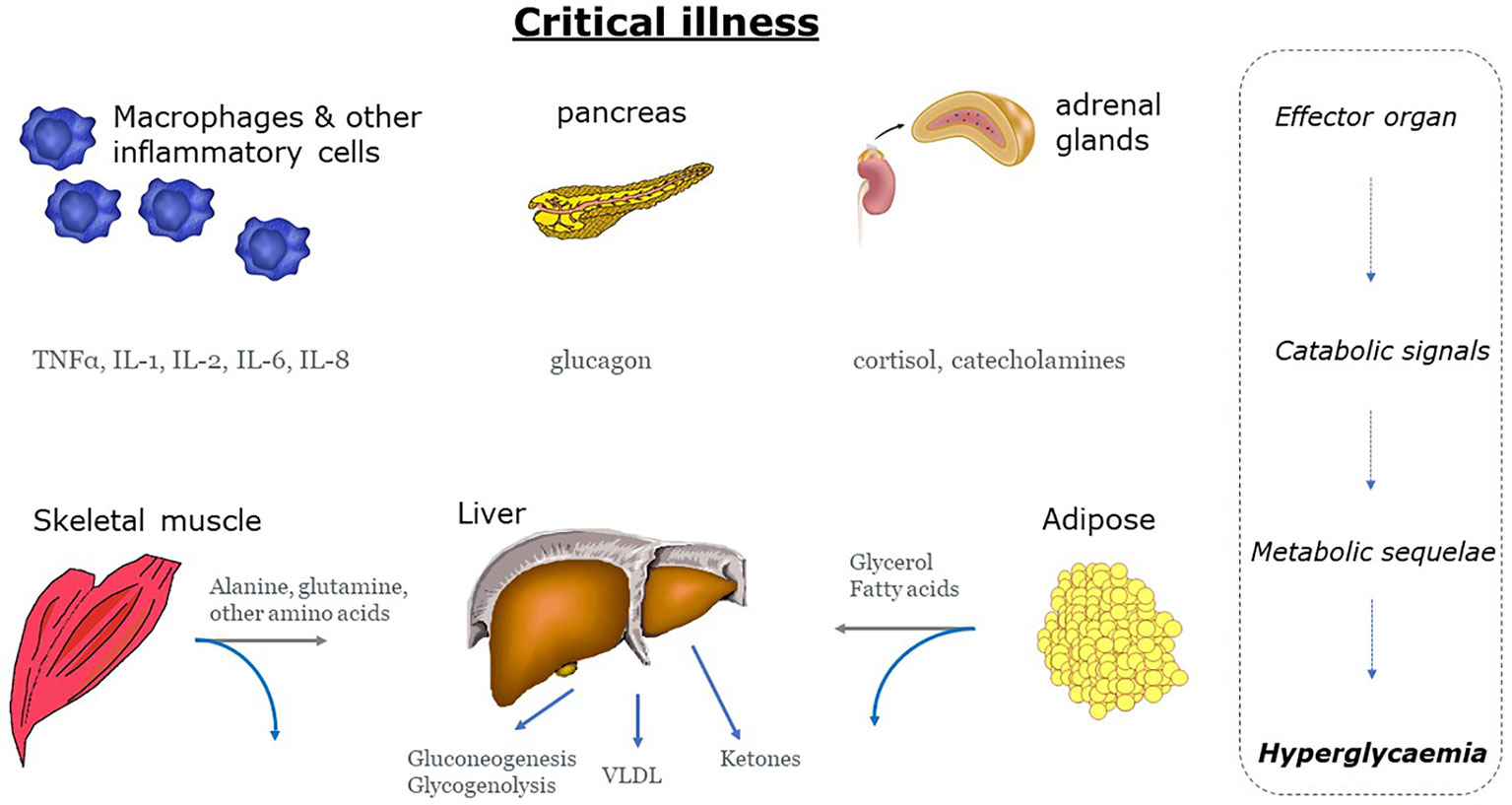

Figure 2 Mechanisms of hyperglycaemia during states of stress and inflammation. Stress hyperglycemia is the end result of a neurohumeral and inflammatory process characterized by excessive gluconeogenesis and glycogenolysis and impaired insulin-mediated glucose uptake. Grey arrows: gluconeogenic precursors IL, interleukin; TNF-α, tumour necrosis factor-α; VLDL, very low-density lipoprotein.
Metabolomic and lipidomic approaches have shown that circulating triglyceride and fatty acid concentrations correlate with disease severity in COVID-19 (74). This mirrors data from septic patients in the first days of hospital admission (75). Microdialysis catheters have been used in femoral adipose tissue in patients with systemic inflammatory response syndrome/severe sepsis or shock. On day 1 of ICU admission 56% of patients had increased interstitial levels of glycerol and FFA, the two products of lipolysis, with glycerol concentrations being higher in those receiving glucocorticoids (76). Increased very-low density lipoprotein (VLDL) production by the liver also contributes to the elevation of plasma triglyceride concentration in sepsis (77). By contrast, the absorption of lipid from the small intestine is diminished in critical illness (78).
Protein Catabolism
Negative nitrogen balance has been linked to detrimental clinical outcomes. The survival of critically-ill patients, their duration of ICU admission, and the duration to recovery of normal physiological function, are all inversely correlated with loss of lean body mass during hospitalisation (79). As the largest protein pool, it is unsurprising that the major site of protein loss is from skeletal muscle. Muscle biopsy studies in the critically-ill have shown rapid decreases in myosin heavy-chain mRNA and protein expression by the fifth day of ICU admission (80), with average of 2% loss per day over the first 10 days (80–82). The duration of corticosteroid treatment, independent of duration of intensive care unit stay or other risk factors, is a dominant risk factor for a low myosin/actin ratio (81). Long-term outcomes from ICU-acquired weakness are significant and include lower one-year survival, and reduced walk and exercise ability five-years later (83).
The predominant defect appears to be an accelerated rate of proteolysis that cannot be compensated for by a moderate rise in the rate of protein synthesis (84, 85). There are multiple stimuli for the increase in muscle catabolism, including hormonal and cytokine but regression analysis found that plasma cortisol concentration was the most significant predictor of protein breakdown (where it explained nearly 40% of the variance) (84). These data are consistent with earlier studies in normal subjects, whereby artificial elevation of plasma cortisol - to levels observed after trauma - resulted in a 15% increase in whole body protein breakdown (86). The possibility of hyperglycaemia, itself, acting as a spur for proteolysis has been explored in normal subjects with the use of combined insulin and somatostatin administration (87). Using stable isotopic tracer methodology, hyperglycaemia (~ 10.5mmol/L) was associated with a three-fold increase in proteolysis, without alteration of whole-body protein synthesis or protein oxidation compared to normoglycaemia (~5.2mmol/L). A retrospective review of burned patients suggested a correlation between the extent of proteolysis and prevailing glycaemia, with maximal proteolysis occurring in patients with plasma glucose above 12.8 mmol/L and least catabolism in those with plasma glucose below 8.6 mmol/L (88). However, both hyperglycaemia and protein degradation may have merely represented the disease severity and by extension, the degree of insulin resistance. Sepsis can significantly increase protein catabolism and exacerbate muscle protein loss in already hypercatabolic patients (89), suggesting a significant role for cytokines as catabolic factors. Cytokines and stress hormones increase protein turnover via a common mechanism involving the activation of muscle-specific ubiquitin-ligases (82).
Proteolysis and Secondary Infection
A catabolic state may compromise the immune response by mechanisms such as poor wound healing, altered mucosal barrier, tissue oedema due to low albumin and reduced muscle strength (and vital capacity) leading to pneumonia. Loss of respiratory muscular power will prolong ventilation and adversely affect the patient’s ability to clear the airways with sufficient cough and thus increase the risk of pneumonia (79). Skeletal muscle contributes in a bidirectional role in systemic inflammatory signalling and the modulation of the inflammatory response including by release of heat shock proteins (HSP) (90). Skeletal muscle provides a key nutrient to the immune system in the form of glutamine (91), which is a constitutively essential amino acid during catabolic situations. Glutamine acts as an energy substrate for leucocytes and is necessary for tissue repair and intracellular pathways associated with pathogen recognition (92). Deficiency of a skeletal muscle amino acid reservoir would render a patient more susceptible to death from multiple organ failure following a ‘second-hit’ episode of sepsis as there would be inadequate substrate supply for immune function.
The proportion of patients with COVID-19 plus secondary bacterial infections ranges from 5% to 30% (93) and the incidence rate of bacterial blood-stream infections among patients with COVID-19 admitted to the ICU appears to be higher than in historical cohorts (93, 94). Rates of bacterial secondary infection in severe COVID-19 will be skewed by prescription of antibiotics - to cover for bacterial superinfection (as with during influenza pandemics) – as advocated by several guidelines (95).
The Metabolic Effects of a Short-Course of Glucocorticoids
Administration of even relatively low doses of prednisolone (6-7.5 mg daily) over one to two weeks acutely increases basal hepatic glucose production and reduces insulin mediated suppression of hepatic glucose production and stimulation of peripheral glucose disposal (57, 58). Glucocorticoids will inhibit the conversion of pyruvic acid to acetyl-coenzyme A, leading to an accumulation of pyruvic acid and resulting in glucose re-synthesis (96). Induction of gluconeogenic enzymes, such as glucose-6-phosphatase, fructose-1,6-bisphosphatase and phosphoenolpyruvate carboxykinase, add to this effect (97). In the liver, glucocorticoids increase glycogen storage, which can be observed from three to twenty-four hours after the administration of glucocorticoids (96), whereas in skeletal muscle they play a permissive role for catecholamine-induced glycogenolysis and/or inhibit insulin-stimulated glycogen synthesis (98). A negative effect on first- and second-phase insulin release is also seen with glucocorticoids, possibly mediated via a reduced insulinotropic effect of glucagon-like peptide-1 (GLP-1) (99, 100).
Acutely, over 5-7 days, glucocorticoids in therapeutic doses can induce protein catabolism, in healthy subjects, by increasing the rate of protein degradation by the ubiquitin-proteasome system and autophagy lysosome system (101) and by increasing whole-body protein oxidation (102). Protein synthesis is also suppressed at the level of translational initiation, preventing the production of new myofibrillar protein (101). A dose-response gradient with worsening whole body protein metabolism at increased steroid doses, has been measured with isotopic techniques (103).
Anticipated Outcomes of Insulin Use in Hospitalised Patients Receiving Dexamethasone
Clinical Outcomes
The historic paradigm that hyperglycaemia in critically-ill patients was an adaptive response that provided glucose for the brain, red cells, and wound healing meant that the approach to treatment was to treat the blood glucose only once high enough to cause an osmotic drag and produce a diuresis (approximately 11-12mmol/L). This approach was reconsidered following the publication of two randomised controlled trials from Leuven of insulin use in critically-ill patients (104, 105). The first study involved adults admitted to a surgical ICU with glucose targets in the intervention group of 4.5 - 6.1 mmol/L, compared with a comparatively high ceiling for the control group of 10.0 – 11.mmol/L) (105). Tight control reduced ICU mortality from 8% to 4.6%. Only 13% of the patients had diabetes. Most benefit was amongst patients with multiple organ failure and sepsis. Of importance, 62% of admissions were due to cardiac surgery and an effect of glucose/insulin on the myocardium was postulated. The insulin infusion rate was (mean) 0.04 iU/kg/hr; consuming 9g glucose/hr (105). In contrast, studies using a fixed glucose-insulin-potassium (GIK) regime, with acute myocardial infarction, to promote a switch away from myocardial fatty acid metabolism to glucose metabolism, were approximately 0.1 - 1 iU/kg/hr; 30 - 80 g glucose/hr) (106). Expectation that cardio-metabolic modulation with high-dose insulin could improve outcomes were diminished after the neutral results seen in the large Clinical Trial of Reviparin and Metabolic Modulation in Acute Myocardial Infarction Treatment and Evaluation-Estudios Clinicos Latino America (CREATE-ECLA) (107). Furthermore, post-hoc analysis of the Leuven surgical study (105) suggested that the benefit accrued from normoglycaemia, rather than from hyperinsulinaemia (108).
The second Leuven study was in medical ICU patients, where no mortality benefit was seen, except in those requiring ICU stays of three or more days (104). These data suggest that insulin may protect against the development of organ failure (particularly from sepsis), rather than reversing pathological processes once established. Three other studies also did not show benefit in mixed medical and surgical ICUs. The Volume Substitution and Insulin Therapy in Severe Sepsis (VISEP) study enrolled 480 severe sepsis patients who were randomized to tight glycaemic control or standard glucose control (109). VISEP was suspended early for increased rates of hypoglycaemia in the intensive control arm (17.6% vs 4.5%) and no difference in 28-day or 90-day mortality. The Glucontrol study was also suspended after enrolment of 1101 patients due to safety and protocol concerns (110). There was no difference in mortality, but rates of hypoglycaemia were approximately 4 times higher in the intensive insulin group (9.8% vs 2.7%). The Normoglycemia in Intensive Care Evaluation–Survival Using Glucose Algorithm Regulation (NICE-SUGAR) study randomised 6104 patients to a target of 4.5 - 6.0 mmol/L or to < 10 mmol/L (111). There was a greater risk of mortality in the intensive glycaemic control group (odds-ratio 1.14) with no difference in the length of ICU or hospital stay. Once again, the risk of hypoglycaemia was significantly higher in the intensively treated group than conventionally treated (6.8% vs 0.5%). Thereafter, glycaemic targets in ICU have been pragmatically orientated at 8 - 10 mmol/l (112).
By contrast, there has been little direct evidence that treating hyperglycaemia reduces morbidity or mortality on a general medical or surgical ward. New hyperglycaemia in hospitalized patients, of any aetiology, is associated with a much greater risk of mortality than chronic hyperglycaemia (113). Acute hyperglycaemia affects the innate and adaptive immune responses at multiple levels: it reduces neutrophil degranulation, chemotaxis, and phagocytic activity; impairs complement activation; and inhibits lymphocyte proliferative response (114). However, the pathogenesis of hyperglycaemia is important for the interpretation of clinical outcome data as in those without pre-existing diabetes it has worse prognosis. In these cases, it may be that hyperglycaemia is a surrogate for illness severity.
Historically, the effect of hyperglycaemia on viral outcomes has been less clear (44). However, given the unique interplay between hyperglycaemia and SARS-CoV-2 replication, an a priori case can be made for glycaemic control to reduce the severity of COVID-19. Retrospective reports have shown that glucose control preceding admission impacts illness severity and mortality (27, 29). Few data exist for post-admission glycaemic control. In a small study of 25 patients with hyperglycaemia and hospitalised with COVID-19, use of intravenous insulin to achieve a mean glucose of 7.69 ± 1.85 mmol/L (vs 10.65 ± 0.84 mmol/L in the no insulin infusion group) was associated with reduced IL-6 and D-dimer levels and improved composite end-point (admission to an ICU, the use of mechanical ventilation, or death) (23).
Anti-Catabolic Action
Hepatic Glucose Production and Peripheral Glucose Uptake
Glucose infusion at 4mg/kg/min, raising blood glucose to 10mmol/L and endogenous plasma insulin to ~400pmol/L failed to suppress lipolysis following elective colorectal surgery (115). By contrast, normalisation of blood glucose (to 5.9 ± 0.3 mmol/L) with exogenous insulin can significantly reduce plasma triglycerides within 24 hours (116), through suppression of lipolysis (68). Therefore, infusion of glucose, without concomitant insulin, is unable to suppress lipolysis in critical illness.
Normalisation of blood glucose is associated with an increase of peripheral glucose uptake (68, 116), but it has been suggested that exogenous insulin administration is unable to overcome hepatic glucose production in critically-ill patients (117). Insulin regulates hepatic gluconeogenesis via phosphoenolpyruvate carboxylase (PEPCK) which decarboxylates oxaloacetate to phosphoenolpyruvate in the gluconeogenic pathway. Uncontrolled expression of PEPCK was associated with poor prognosis in critically-ill patients (117), which led the authors to conclude that hepatic insulin resistance could not be overcome and that normalisation of blood glucose with insulin in critically-ill patients must instead be attributable to increasing glucose disposal. However, these data came from post-mortem studies and so the lack of an hepatic effect of insulin might simply represent the degree of metabolic derangement associated with illness severity: for instance glucocorticoids can independently up-regulate PEPCK gene expression (97). Patients in this study had an ICU stay greater than 5 days. This is pertinent as it has been proposed that the site of insulin-resistance could change with time; within 24 hours postoperatively it is mainly the peripheral tissues that are affected (118), whereas by the third postoperative day, the liver appears to be most resistant to insulin (119). Our group has shown that variable dose intravenous insulin administered to medical ICU patients for 48 hours (started within 36 hours of admission), to maintain blood glucose between 7 – 9 mmol/l is sufficient to limit hepatic glucose production rate (68).
Protein Turnover
Glucose intolerance seen in critical-illness is but one manifestation of insulin resistance – a process that could also manifest in terms of muscle protein catabolism.
Insulin’s effect on protein metabolism in the healthy adult has been contentious but it appears primarily to act via the inhibition of proteolysis (120–122), although increased protein synthesis has also been suggested (123). Interpreting the mechanism of action of insulin on protein anabolism is complicated by its other physiological action – that of causing hypoaminoacidaemia. Models of protein turnover involving the measurement of blood-flow across a limb combined with muscle biopsies have been used, predominantly in burned subjects, to examine the effect of insulin on protein turnover. It has been considered that critical-illness leads to impaired amino acid uptake by myocytes, resulting in reduced protein synthesis. In two papers it was suggested that resistance to amino acid uptake may be overcome by a combination of high-dose insulin infusion (to achieve plasma insulin concentrations in the range of 2000 to 5000 pmol/L) plus amino acid provision (124, 125). This had the effect of increasing protein synthesis by approximately 350%, due to a six-fold increase in amino acid transport into the cells. As amino acids by themselves were unable to fully support protein synthesis, it was suggested that insulin may have an independent role in protein synthesis. However, two groups have used the amino acid clamp technique to show that in the presence of adequate amino acid availability, increasing the insulin concentration had no further effect on protein synthesis (126, 127). One small study showed decreased whole-body protein breakdown and synthesis in cardiac surgery patients when administering glucose and insulin under maintenance of normoglycemia (128). However, other studies of ICU patients randomized to tight blood glucose control (4.4-6.1 mmol/L) with conventional, low-dose, insulin infusion protocols have shown no amelioration of muscle loss (81, 129), or whole-body protein turnover (68). None of these studies delivered supplemental amino acids although 0.13 to 0.26 g of nitrogen per kilogram per 24 hours was the standard approach, within 24 hours of ICU admission (68, 81).
What if a hyperinsulinaemic approach was used, rather than conventional low-dose insulin? Exogenous provision of glucose has several theoretical benefits in terms of protein sparing. Firstly, it would be expected to shift substrate utilisation towards increased oxidation of glucose instead of protein. Secondly, exogenous glucose might decrease hepatic glucose production and thereby act indirectly to reduce the need for gluconeogenic precursors. Thirdly, it might drive the accompanying need for insulin and the benefits on protein sparing that might ensue. We have previously reported that despite the infusion of high-dose insulin, causing a six-fold rise in plasma insulin (to ~1500 pmol/L) over the conventional insulin infusion rate, proteolysis was unaffected and remained significantly higher than in the control subjects (68). Such a finding is consistent with previous observations, in both normal subjects and surgical patients, that glucose administration (≥ 4mg/kg/min, causing a doubling of insulin concentration) does not influence the degradation of peripheral protein (130, 131). Our group has also shown that insulin and glucose administration was capable of full suppression of glucose rate of appearance despite ongoing proteolysis (68), suggesting that the function of proteolysis is not to provide gluconeogenic precursors.
Future Research Questions
Work is needed to further understand the interplay between diabetes and COVID-19. Mechanistic studies are needed to determine the effect of COVID-19 on tissue-specific insulin resistance, the impact on pancreatic B-cell dysfunction, and pulmonary perfusion in the presence of hyperglycaemia (44, 45). The international CoviDiab registry is expected to address a number of these questions (20, 44). Knowledge by which SARS-CoV-2 impacts upon glucose metabolism will be critical for understanding disease pathogenesis and development or choice of therapies.
It would be unrealistic to expect a prospective randomised controlled trial of glucose normalisation on COVID-19 outcomes, but effort must be made for retrospective analyses of propensity-matched subjects. Attention must also be paid to the long-term metabolic sequalae of COVID – given the catabolic processes outlined in this review. Further data are needed on COVID-19 survivors for nutritional status and measures of functional independence in the months after critical care for COVID-19. Early rehabilitation programs are already being evaluated in ongoing clinical studies (132).
Conclusion
Following the RECOVERY trial results, the use of short-courses of glucocorticoid therapy will be widespread in the remaining time of the COVID-19 pandemic. Based upon the evidence reviewed, the ten-day course of the RECOVERY protocol will be expected to increase both hepatic and peripheral insulin resistance and lead to skeletal muscle loss. Current evidence suggests exogenous insulin should be able to overcome the hepatic and peripheral insulin resistance of glucose metabolism but is unlikely to impact upon skeletal muscle loss engendered by glucocorticoids. Strategies to achieve glycaemic normalisation might have a direct disease modifying effect on the SARS-CoV-2 virus. Further work is needed to develop strategies to limit muscle loss. Even so, we may see a long-term effect on functional capacity from the critical-illness induced by COVID-19.
Author Contributions
All authors contributed to the article and approved the submitted version.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
