Qiang Wang
Yue Feng
Ping Gao
Guangming Meng
Xianming Xiao- School of Energy Resources, China University of Geosciences (Beijing), Beijing, China
The sedimentary environment and organic matter (OM) accumulation are vital indicators for shale gas exploration. However, research on deep shale gas systems is relatively limited; moreover, the exploration of deep shale gas in the southeastern Sichuan Basin has entered a period of stagnation. In this study, systematic geochemical analysis of Wufeng (WF) and the first member of the Longmaxi (Long-1) deep shale samples from the recently drilled DY7 well in the Dingshan area of the Sichuan Basin is carried out, and the longitudinal variations in major and trace elements are revealed. The differences in the WF, lower section of the Long-1 (Long-11) and upper section of the Long-1 (Long-12) shales are studied in terms of redox conditions, paleoproductivity, terrigenous detrital input, sedimentation rate and paleoclimate, and the different main controlling factors of OM accumulation for these three layers are discussed. The WF shale has a higher TOC content (mean: 5.73%), the Long-11 shale has a high TOC content (mean: 2.89%), while the Long-12 shale has a low TOC content (mean: 1.44%). For the WF shale, due to complex geological events and large fluctuations in element contents, its TOC content is poorly correlated with these indices, redox and paleoproductivity proxies have a positive association with the Long-11 shale’s TOC content, but negatively correlated with terrigenous input and sedimentation rate indices. The formation of these two sets of organic-rich shales (TOC > 2%) is jointly controlled by good preservation conditions. In contrast, the TOC content of the WF shale is higher than that of the Long-11 shale as the result that terrigenous input and sedimentation rate of the Long-11 shale represent the dilution and destruction of OM, which is different from the former. During the Long-12 depositional period, the water column experienced weak reducing conditions and low productivity, and its high terrigenous debris input further diluted the OM, leading to a low TOC content.
1 Introduction
In recent years, shale oil and gas have received extensive attention (Liu et al., 2021a; Feng et al., 2021; Wang E. Z. et al., 2022; Feng et al., 2023b; Lu et al., 2023; Wang et al., 2023; Hu et al., 2024; Meng et al., 2024), especially in the Wufeng-Longmaxi (WF-LMX) Formation (Guo et al., 2020; Ma et al., 2020; Ma et al., 2021). According to its lithofacies characteristics and reservoir physical properties, the WF-LMX shale is generally divided into upper and lower sets of reservoirs (Shu et al., 2020; Shu and Wang, 2021). The Long-12 shale has poor reservoir physical properties, while the Long-11 and WF shales have good physical properties. The middle-shallow (<3,500 m) shale gas reservoirs (e.g., the Jiaoshiba area) experienced large-scale commercial development. In the past 5 years, shale gas exploration in the Sichuan Basin has expanded to deeper depths (>3,500 m). Important progress has been made in the Dingshan, Yongchuan, and Luzhou blocks, with multiple wells yielding high production, indicating that the deep WF-LMX shale plays a crucial role in the shale gas supply (Wang et al., 2016; Nie et al., 2023). The study shows that middle-shallow shale gas, covers an area of about 6.3 × 104 km2, while deep shale is about 12.6 × 104 km2. Moreover, it is estimated that the amount of deep shale resources is approximately twice that of middle-shallow shale (He et al., 2021). Deep shale gas has been tested in areas such as Weiyuan, Yongchuan, Changning, Luzhou, Dingshan, and Dongxi, and many high-yield shale gas wells have been discovered (e.g., Well DY4, 3HF, L203, and Yang 101H2-8) (Guo et al., 2020; Zou et al., 2021). However, compared with those on middle-shallow shale reservoirs, only a few systematic studies have been performed on deep shale, and there are differences in the understanding of geological factors related to reservoir quality (Wang et al., 2019; Ma et al., 2021; Meng et al., 2022; Feng et al., 2023a; Feng et al., 2024).
Previous studies have reported that the high yield of shale gas is closely related to the organic matter accumulation (OMA) (Li et al., 2019; Ma et al., 2020; Lu et al., 2024). The sedimentary environment is a crucial factor for determining the quality of shale and is related to the material basis of shale gas generation and storage. Geochemical parameters are among the most used methods for reconstructing the paleoenvironment and exploring the driving mechanism for OMA (Liu et al., 2017; Zhang et al., 2022; Zhang et al., 2023; Lu et al., 2024). Previous studies have shown that basin confinement creates readily stratified sedimentary waters; in the case of anoxic environments, OM could be enriched in large quantities even if paleoproductivity is low (Algeo and Rowe, 2012). Pedersen and Calvert. (1990) believed that paleoproductivity plays a key role in OMA. In addition, Ma et al. (2020) proposed that organic-rich shale can form even in oxidized water bodies, e.g., the LMX shale in the Weiyuan and Changning areas. Moreover, two ways in which terrigenous debris input can impact OMA are (a) by controlling the rate of OM burial and deposition, and (b) by altering the conditions of OM in the ocean (Zhang et al., 2023). Specifically, Adams et al. (2010) suggested that the input of terrigenous detritus can provide nutrients for marine organisms, promote the flourishing of lower aquatic organisms, and is also a key factor in the enrichment of OM. However, Froelich et al. (1979) believed that the input of terrigenous debris into the seabed as a diluent resulted in the loss of OM. In fact, OMA is comprehensively influenced by geological processes, including redox conditions, primary productivity, water restriction, and terrigenous detrital input (Peng et al., 2023; Zhang et al., 2023).
Recently, geochemical studies have been carried out on the WF-LMX shale. Current studies have suggested that the environmental contexts of the Late Ordovician and Early Silurian were different (Zou et al., 2019). The paleoenvironment is the material basis that controls petroleum generation and accumulation in marine shale systems. However, there are few studies on the differences and mechanisms of OMA in deep reservoirs between the WF and LMX shales. In the present study, fresh core collected from recent shale gas exploration wells in the Dingshan area are selected to systematically investigate the three parts, including the WF, long-11, and long-12 shale. The objectives of this study are summarized as follows: (a) To determine how various environmental factors are reconstructed, and the effects of paleoproductivity, redox conditions, terrigenous debris input, sedimentation rate, paleoclimate, and upwelling on OMA are studied in detail. (b) To identify the differences and mechanisms of OMA in two sets of high-quality shales, the WF and long-11 shales, are emphatically discussed. These results provided new perspectives on the exploration and development potential of deep shale gas in the Sichuan Basin.
2 Geological setting
The Sichuan Basin, which is situated in southwestern China, tectonically belongs to the Upper Yangtze Platform (Liu et al., 2021b). The Kwangsian movement caused compression on the Upper Yangtze Platform during the Late Ordovician and Early Silurian, resulting in the formation of a constrained shelf basin (Chen et al., 2004; Gao et al., 2022), and forming several uplifts in and around the Sichuan Basin, such as the central Sichuan, central Guizhou and Jiangnan uplifts (Lu et al., 2021). Additionally, two large-scale global transgressions occurred in the Late Ordovician and Early Silurian (Khan et al., 2019; Gao et al., 2022). Against this background, deep-water shelf sedimentation developed extensively in the Sichuan Basin, while the shallow shelf deposits at the edge of the uplift are dominated by organic-poor siltstones (Figure 1; Wang et al., 2020; Lu et al., 2021; Wang H. Y. et al., 2022).

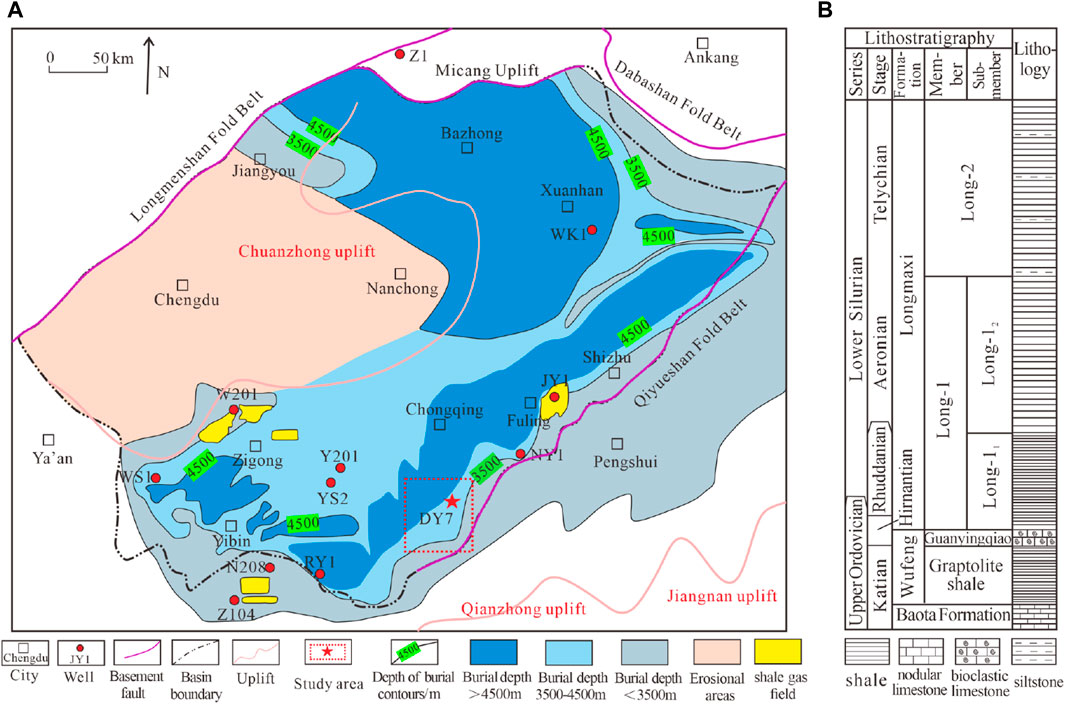

Figure 1. (A) Geological map of the Sichuan Basin and geographical location map of the study area (modified from Nie et al., 2023). (B) Stratigraphic column of the Wufeng-Longmaxi formations in the Sichuan Basin (modified from Wang H. Y. et al., 2022).
The Dingshan area is in the southeastern Sichuan Basin. The region experienced tectonic uplift during the Caledonian and burial during the Hercynian-Indian movement, as well as folding and rupture during the Yanshan-Himalayan movement (Cao et al., 2021). The present-day tectonics of the Dingshan area consist of a series of steep backslopes and fracture zones trending NE and NNE that are trough folds (Huang et al., 2011).
In addition to the absence of Devonian, Carboniferous, and Cenozoic strata, other layers are relatively well-developed in the Dingshan area, with the WF-LMX Formation being the primary focus of this study. The WF-LMX Formation consists mainly of siliceous, silty, calcareous, and sandy shale (Lu et al., 2021; Zheng et al., 2024). The high-quality shale (TOC >2%) at the bottom of the WF-LMX Formation is notably characterized by thin layering, high TOC and silicon contents. In the Dingshan area, the WF-LMX Formation hosts high-quality shale reservoirs. The burial depth is approximately 4,000 m, the thickness of the OM-rich shale is approximately 80 m, while that of high-quality shale ranges from 28.9 to 35.5 m (Wei et al., 2020).
3 Sample and methods
3.1 Sample
Fresh shale samples were taken from well DY7 in the Dingshan area, southeast Sichuan (Figure 1). The WF shale is mainly gray-black carbonaceous shale with a thickness of 2.84 m. The Long-11 shale is mainly gray-black (carbonaceous) shale with a thickness of 24.75 m. The Long-12 shale is mainly black-gray silty shale, with a thickness of 10.91 m. A total of 22 representative samples were selected, including six samples from Long-12, 10 samples from Long-11 and six samples from the WF (Supplementary Table S1).
3.2 Analysis
3.2.1 TOC test
The samples were crushed and sieved through a sieve of less than 200 mesh, 150 mg of each powdered sample was weighed and then removing carbonate minerals. The TOC contents were determined using a LECO CS230 analyzer.
3.2.2 Element testing
The major element tests were carried out by an X-ray fluorescence spectrometer (instrument model: AXios-mAX). The 200 mesh powdered samples were dried at 105°C for 2–3 h. First, 0.7 g of each sample and 7 g of Li2B4O7 reagent were weighed and mixed, and then melted at 1,150°C to form a glass slice, which was then tested on an X-fluorescence spectrometer. An analytical precision was better than ±5% (Tan et al., 2021).
The trace and rare earth elements contents of the samples were testing by was an ICP-MS (instrument model: ICAP RQ). An analytical precision was better than ±10%. The detailed analysis is described in the references (Yang, et al., 2021; He et al., 2022).
3.3 Proxy calculations
The enrichment factors (EF) can be used to evaluate the enrichment degree of trace elements in shales (Algeo and Tribovillard, 2009). The calculation formula of EF (Wedepohl, 1971) is as Equation 1:
where, X is the trace element content of the shale sample, and PAAS is a standard shale reference based on the Post-Archean Australian Shale (Taylor and McLennan, 1985). XEF > 1 indicates that the shale sample is more enriched in element X relative to the PAAS.
Anoxic conditions are more favorable for the preservation of OM but not for the preservation of P, as the reductive dissolution of ferric hydroxide could result in the release of P from sediments. P will be adsorbed on the surface of iron hydroxide to be preserved in sediments under both oxic and anoxic conditions, corresponding to the deficiency or enrichment of organic carbon (Algeo and Ingall, 2007; Steenbergh et al., 2011). Therefore, the mole ratio of Corg/P can be used to characterize the redox conditions, and its calculation formula is as Equation 2:
The chemical index of alteration (CIA) is a reliable indicator for assessing chemical weathering intensity (McLennan et al., 1993; Lu et al., 2024), reflecting the paleoclimate evolution of the sedimentary source area, and the CIA is calculated as Equation 3 (Nesbitt and Young, 1982; Lu et al., 2024).
The chemical formula for oxides is in moles, CaO* refers to CaO in silicate minerals, and non-silicate minerals should be removed in the calculation, the formula for CaO* is as Equations 4, 5 (McLennan et al., 1993):
4 Results
4.1 Organic matter amount
The TOC contents of the studied shale samples are shown in Supplementary Table S1. In general, the TOC contents show a gradually decreasing trend from bottom to top, but the variations in the different layers differed (Figure 2). The TOC contents of the WF shale are higher, ranging from 4.20% to 7.62% (mean: 5.73%), which shows significant longitudinal fluctuations. The TOC contents of the Long-11 shale are high, ranging from 1.42% to 4.26% (mean: 2.89%), and show an obvious gradually decreasing trend. The TOC contents of the Long-12 shale are low, ranging from 1.13% to 1.91% (mean: 1.44%). Vertically, the values consistently remain at a low level with no pronounced patterns of variation discernible.
Figure 2. Longitudinal variation characteristics of the TOC content and major elements in the deep shale samples.
4.2 Major elements
In this study, the major elements of the WF-LMX shale mainly consist of SiO2, Al2O3 and Fe2O3. The SiO2 contents range from 56.45% to 76.65% (64.05% on average). The Al2O3 contents range from 5.11% to 17.82% (12.67% on average). The Fe2O3 contents range from 1.77% to 6.41% (4.48% on average). The MgO, Na2O, K2O and CaO contents in the shale are 0.93%–3.10%, 0.36%–1.46%, 1.37%–4.38%, and 0.78%–6.96%, respectively. The shale contains small amounts of P2O5, TiO2 and MnO, the contents of which are 0.07%–0.16%, 0.24%–0.70% and 0.02%–0.10% respectively (the specific data are shown in Supplementary Table S1).
The major element contents are significantly different in the WF, Long-11 and Long-12 shales (Figure 2). The SiO2 contents in the WF (59.01%–75.45%, average of 68.84%) and Long-11 (58.15%–76.65%, average of 65.20%) shales are higher than that of the Long-12 shale (56.45%–58.19%, average of 57.35%). On the contrary, the Al2O3 and Fe2O3 contents of Long-12 are higher than those of in the WF and Long-11 shales. For these three shales, the average Al2O3 contents are 8.82%, 12.40%, and 16.97%, respectively, and the average Fe2O3 contents are 3.12%, 4.38%, and 6.00%, respectively. The MgO, K2O and TiO2 contents in the WF and Long-11 shales are lower than those in the Long-12 shale, while the Na2O contents in the Long-11 shale are the highest.
4.3 Trace elements
As shown in Figure 3, compared with the long-12 shale, the Mo, U, V and Ni concentrations in the WF and Long-11 shales are more obviously enriched. Vertically, these elements increase first and then decrease from the bottom to the top. However, Cr, Co and P fluctuate but have no obvious trend (see Supplementary Table S2). Compared with the PAAS (Wedepohl, 1971), the Mo and U contents of these shales in the present study are relatively enriched. The MoEF of the WF, Long-11 and Long-12 shales are 4.96–188.86 (average of 97.39), 8.70–114.00 (average of 31.19) and 2.25–11.16 (average of 7.12), respectively. The UEF of these three shales are 2.11–30.25 (average of 17.60), 2.37–19.08 (average of 5.98), and 1.26–2.14 (average of 1.72), respectively.
Figure 3. Characteristics of longitudinal variations in trace elements in deep shale samples.
4.4 Rare earth elements
The rare earth element contents of the studied samples are shown in Supplementary Table S3. The contents of rare earth elements (∑REE) in the WF, Long-11, and Long-12 shales range from 115.06 to 203.78 ppm (mean: 164.73 ppm), 93.14–277.37 ppm (mean: 186.44 ppm), and 174.70–225.97 ppm (mean: 194.18 ppm), respectively. From bottom to top, ∑REE is increasingly abundant. The ∑REE of all three shales are higher than the average value of the upper continental crust (146.4 ppm; McLennan, 2001), and the ∑REE of the WF and Long-11 shales are less than the North American shale (193.18 ppm; Gromet et al., 1984). The REE content of the WF shale is lower than that of the PAAS, while the ∑REE of the Long-11 and Long-12 shales is slightly higher than that of the PAAS (184.77 ppm; Taylor and McLennan, 1985).
For the WF, Long-11, and Long-12 shales, the average contents of light rare earth elements (LREE) are 147.10 ppm, 169.39 ppm, and 178.10 ppm, respectively. Moreover, the average contents of heavy rare earth elements (HREE) are 17.63 ppm, 17.05 ppm, and 16.08 ppm, respectively, and the LREE/HREE ratios are 8.30, 9.82, and 11.06, respectively, which are higher than those of North American shale (7.83; Larry et al., 1966), indicating a relative enrichment of LREE and deficit of HREE in the studied shale. The average (La/Yb)N (normalized by the PAAS) values of the WF, Long-11 and Long-12 shales are 0.91, 1.35 and 1.48, respectively (Figure 4).

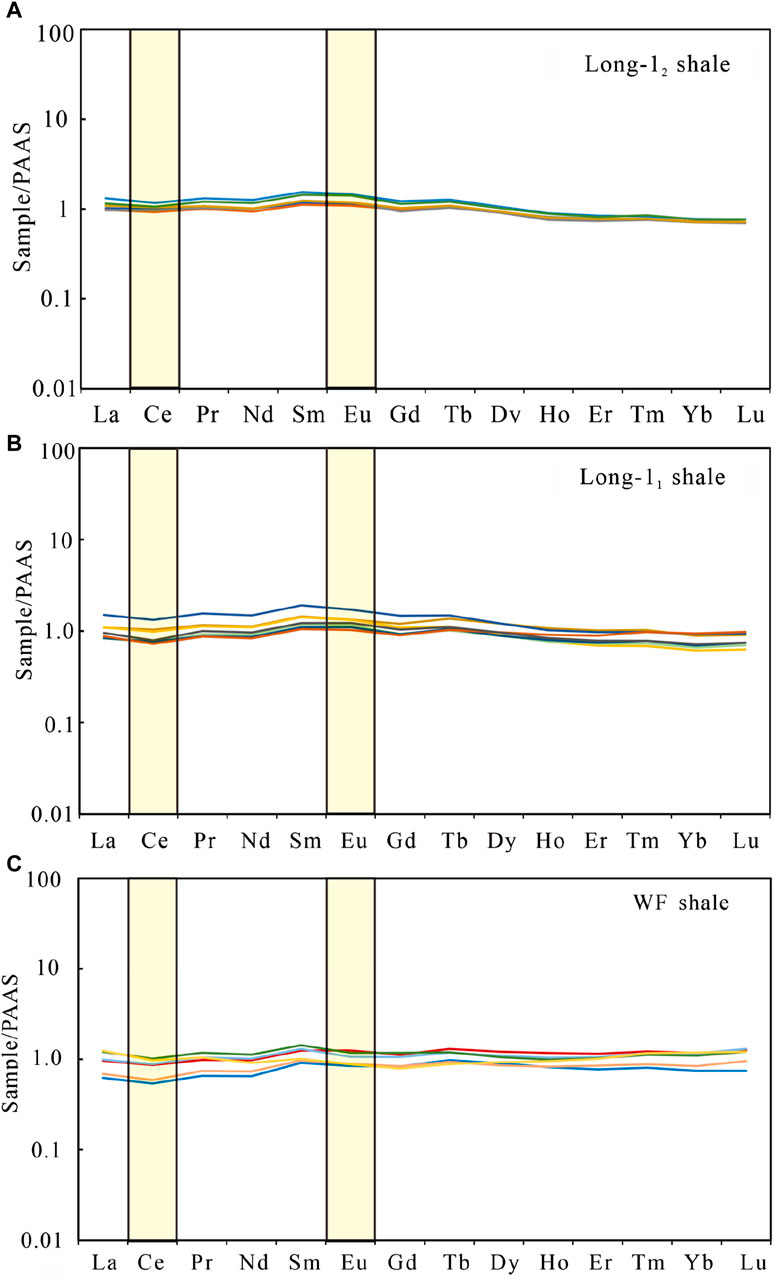

Figure 4. PAAS normalized REE distribution model of the (A) Long-12, (B) Long-11, (C) WF shale samples.
5 Discussion
5.1 Paleoclimatic conditions
The degree of chemical weathering of source rocks is controlled by temperature and humidity. Generally, a cold and dry environment is not conducive to chemical weathering, while a warm and humid environment is conducive to chemical weathering (Nesbitt and Young, 1982). The CIA is used to reflect the intensity of chemical weathering. CIA values of 50–65, 65–85, and 85–100 reflect cold and dry climate conditions, warm and humid climate conditions, and hot humid subtropical-tropical climates, respectively, with increasing weathering intensity (Nesbitt and Young, 1989; Nesbitt and Young, 1996). For the WF shale, as shown in Figure 5, the CIA values decrease with decreasing burial depth, reflecting a gradually colder climate corresponding to a widespread global ice age. Subsequently, for the Long-1 shale, although there are some fluctuations, the CIA increased gradually overall, reflecting the change in paleoclimate toward warm and humid conditions, accompanied by an increase in weathering intensity.
Figure 5. Longitudinal variation characteristics of geochemical indexes of deep shale samples.
5.2 Detrital influx and sedimentation rate
Mn, Al and Fe are commonly used to determine the silicon source. Al is generally the representative element of terrigenous detrital input, and Mn and Fe are generally related to submarine hydrothermal activity, therefore, the ω(Al)/ω(Mn+Al+Fe) ratio can be used to identify the origin of silicon (Adachi et al., 1986). In addition, researchers often use ω(Al2O3)/ω(TiO2)-ω(Al)/ω(Mn+Al+Fe) to distinguish silicon sources (Feng et al., 2023a). According to Figures 6A, B, the ω(Al)/ω(Mn+Al+Fe) values of the WF, Long-11 and Long-12 shales are 0.58–0.73, 0.60–0.70 and 0.62–0.66, respectively, with average values of 0.63, 0.64 and 0.64, indicating that their silicon sources should be the non-hydrothermal source (Gao et al., 2022). Fe2O3 and MnO are 1.77%–6.41% (mean: 4.48%) and 0.02%–0.10% (mean: 0.05%), respectively, suggesting that these three shales are of normal marine non-hydrothermal origin.

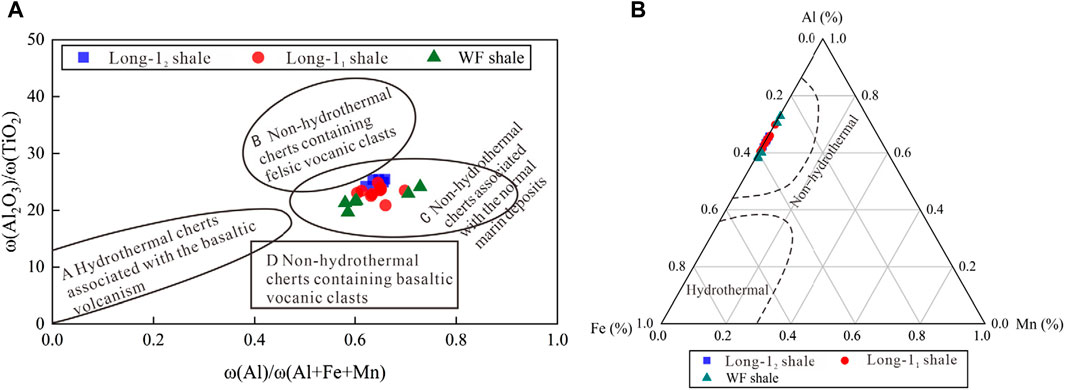

Figure 6. (A) Al2O3/TiO2 vs. (Al)/(Mn+Al+Fe) (Feng et al., 2023a); (B) Al-Fe-Mn ternary diagram (Adachi et al., 1986).
Al and Ti are the main components of the continental crust, Al mainly exists stably in the form of aluminosilicate minerals (Calvert and Pedersen, 1993), and Ti mainly exists in the form of heavy minerals (e.g., ilmenite) (Tribovillard et al., 2006). Al and Ti are stable during diagenesis and are less affected by diagenesis, so they are often used to indicate terrigenous detrital input. The lower the contents of Al and Ti are, the less affected they are by terrigenous input (Walker et al., 1988). Previous studies have shown that Al and Ti are strongly positively linearly correlated (Jin et al., 2020b), and Al can be used as an index of terrigenous detrital input. In this study, there is a strong positive linear correlation between Al and Ti (R2 = 0.98) in the shale samples. (Figure 7). The input of terrigenous debris has many effects on the enrichment and preservation of OM (Froelich et al., 1979), because changes in terrigenous detrital input may affect the concentration of OM in marine sediments.
Figure 7. Ti-Al diagram of the deep shale samples.
In the WF, Long-11 and Long-12 shales, the content of Al shows a trend of decreasing first and then increasing (Figure 5). Their Al contents are 2.71%–7.16% (average of 4.67%), 2.87%–8.40% (average of 6.57%) and 8.73%–9.43% (average of 8.98%), respectively. Consistent with the variation in Al, the corresponding Ti contents are 0.14%–0.35% (mean: 0.24%), 0.16%–0.40% (mean: 0.32%) and 0.40%–0.42% (mean: 0.41%), respectively. For the deep shales in this study, the increase in terrigenous input flux gradually increasing upward. Furthermore, the trend of variation of the terrigenous detrital input is opposite to that of TOC, confirming the negative synergistic relationship between TOC and terrestrial input indicators. (Figures 8A, B).
Figure 8. The relationships between TOC and Al (A) and Ti (B).
The difference in burial rate will affect the preservation of OM, thereby affecting its enrichment (Canfield, 1994). (La/Yb)N can reflect the sedimentation rate, and this proxy is positively correlated with the sedimentation rate (Zeng et al., 2015; Zheng et al., 2022). Our study found that the (La/Yb)N values of the WF, Long-11 and Long-12 shales range from 0.82 to 1.10 (mean: 0.91), 0.93–1.78 (mean: 1.36) and 1.35–1.70 (mean: 1.47), respectively. In terms of the sedimentation rate, the sedimentation rate gradually increases from bottom to top. As shown in Figure 5, an increase in the sedimentation rate would lead to a decrease in the OM content in the studied shales. However, the sedimentation rate appears to have a different effect on the various shale layers (Figure 9). The lower sedimentation rate contributes to the OMA in the WF shale. For the WF shale, an increase in the sedimentation rate helps to reduce the probability of OM being destroyed by oxidation during the sedimentation process. For the Long-1 shale, its sedimentation rate is obviously higher than that of the WF shale. Especially for the organic-rich shale of Long-11, the increase in sedimentation rate is synchronous with the decrease in TOC content.
Figure 9. TOC vs. (La/Yb)N in the studied shale samples.
5.3 Redox and water restriction conditions
The redox conditions of the water column are one of the contributing factors to OMA, to which, an anoxic, oxygen-deficient environment is particularly conducive (Algeo and Maynard, 2004). Redox-sensitive elements such as Mo, U, V, Cr, Co, Ni and Th have been widely used to assess the redox conditions of marine water bodies (Algeo and Lyons, 2006).
Although these redox-sensitive elements can be used to judge paleoredox conditions, an individual element is easily affected by factors such as the geological environment (Jones and Manning, 1994). Therefore, the trace element ratio is introduced to reconstruct the redox conditions of bottom water. Paleoredox indicators such as V/Cr and Ni/Co can serve as indicators to evaluate the paleoredox environment. The V/Cr ratio indicates the boundaries of oxic, dysoxic and anoxic environments at 2.00 and 4.25, respectively. For Ni/Co, the larger the ratio is, the more reductive the bottom water environment, with limits for oxic, dysoxic and anoxic environments at 5.00 and 7.00, respectively. In the WF shale, the V/Cr ratio ranges from 3.55 to 10.91 (6.04 on average), and the Ni/Co ratio ranges from 4.13 to 13.44 (9.49 on average). Similarly, in the Long-11 shale, the V/Cr ratio ranges from 1.51 to 6.61 (2.76 on average), and the Ni/Co ratio ranges from 2.97 to 12.60 (5.10 on average). Finally, in the Long-12 shale, these two proxies are 1.19–1.76 (1.40 on average) and 2.08–3.47 (2.57 on average), respectively. The variation trend in the profile of this study is consistent, depicting a transformation from strongly reducing conditions to an oxygen-deficient, dysoxic-oxic environment. Furthermore, there is a positive relationship between TOC and the redox proxy (Figure 5; Figure 10).

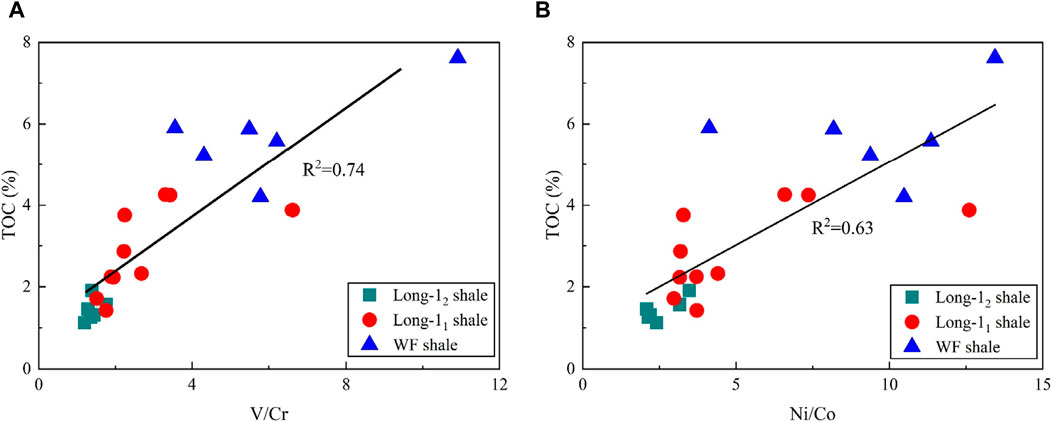

Figure 10. Relationships between TOC and the redox indexes V/Cr (A) and Ni/Co (B) in the studied deep shale.
Previous studies have indicated that the Corg/P ratio indicates the boundaries of oxic, dysoxic and anoxic environments at 50 and 100, respectively. (Algeo et al., 2020). The Corg/P values range between 217.91 and 500.30 (mean: 371.21) for the WF shale, between 76.48 and 327.36 (mean: 177.78) for the Long-11 shale, and between 60.53 and 112.87 (mean: 81.48) for the Long-12 shale. These data further confirm that the three sets of shales formed under different redox conditions as suggested by the redox agent discussed previously, i.e., from bottom to top, the transition from anoxic to dysoxic-oxic conditions (Figure 5). The Corg/P values of the Long-11 and WF shales are significantly higher than those of Long-12, indicating that deposition under more anoxic conditions is more conducive to OMA (Figure 11).
Figure 11. Relationship between TOC and the redox index Corg/P in the studied deep shale.
The MoEF and UEF excluding terrigenous debris can be used as indicators of water restriction and redox conditions. In the WF shale, the MoEF values range from 4.96 to 188.86 ppm, while the UEF values range from 2.11 to 30.25 ppm. In the Long-11 shale, the ranges are 8.70–114 ppm and 2.37–19.08 ppm, respectively. In the Long-12 shale, the ranges are 2.25–11.16 ppm for the MoEF and 1.26–2.14 ppm for the UEF. The enrichment rate of Mo is higher than that of U in the shale, and thus the Mo/U (MoEF/UEF) ratio tends to increase. The MoEF/UEF distribution in the Long-11 shale and the WF shale ranges from 1 to 3×SW, while in the Long-12 shale, it is nearly 1×SW. This means a transition in the covariant modes of MoEF and UEF from 3×SW to 1×SW and 0.3×SW from bottom to top, suggesting a shift from relatively sufficient to insufficient Mo supply. This shift reflects a change in the sedimentary water body from an open environment to a restricted environment and a transition from reduction to oxidation (Figure 12).

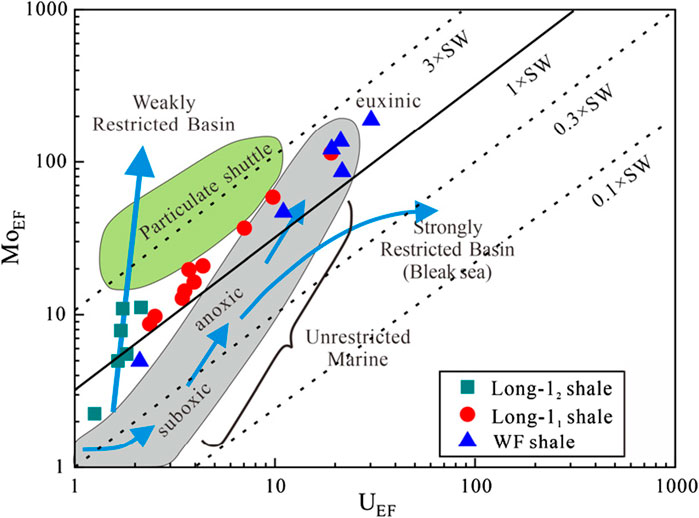

Figure 12. MoEF versus UEF in the studied deep shale samples (modified from Algeo and Tribovillard, 2009).
To sum up, the redox indexes in the WF-LMX shale exhibit a consistent change trend in this study. The bottom water of the WF shale is predominantly characterized by an oxygen-deficient vulcanization environment. During the deposition period of the Long-1 shale, the reduction weakens gradually from the bottom to the top, with the Long-11 shale being dominated by an anoxic environment, and the Long-12 shale exhibiting an oxidizing environment. Under anoxic conditions, the OM in shale is more likely to be preserved (Figures 10, 11).
5.4 Paleoproduction
In geological history, paleoproductivity has been a crucial measure of the OM produced by ancient marine organisms per unit area and per unit time. It significantly influences the accumulation of OM in geological records (Luo et al., 2013). Trace elements serve as effective indicators for reconstructing primary productivity (Tribovillard et al., 2006). P is not only one of the important nutrient elements in biological metabolism, but also a component of the skeleton of marine organisms, and precipitates with sediments after death. Ni plays a vital role in photosynthesis in marine phytoplankton, and the higher the Ni content is, the higher the organic mass in the sediment (Vink et al., 1997; Piper et al., 2004). After excluding the influence of terrigenous clasts, P/Al and Ni/Al can be used to evaluate the level of primary productivity. Larger values of these proxies indicate higher levels of paleoproductivity (Tribovillard et al., 2006; Pan et al., 2020).
The current investigation reveals that the P/Al (×10–4) ratio ranges from 60.96 to 153.26 (mean: 95.13), and the Ni/Al (×10–4) ratio varies from 14.03 to 40.83 (mean: 28.06). Specifically, the P/Al (×10–4) for the Long-11 shale ranges from 57.16 to 106.32 (average of 70.73), while the Ni/Al (×10–4) varies from 6.22 to 30.51 (average of 12.78). Meanwhile, the Long-12 shale exhibits a P/Al (×10–4) range of 44.26–60.02 (average of 51.93) and a Ni/Al (×10–4) range of 4.38–7.48 (average of 5.77). Notably, the trends in the P/Al and Ni/Al ratios show similar patterns (Figure 5). Subsequently, the primary productivity levels during the sedimentary period of the WF shale increased with decreasing depth. In contrast, the overall productivity in the Long-1 shale gradually decreases from bottom to top. Moreover, the TOC content of the Long-11 shale demonstrates a linear relationship with productivity, whereas the primary productivity of the WF and Long-12 shales displays a weaker relationship with TOC (Figure 13). This suggests that the productivity of the Long-11 shale positively influences its OMA.
Figure 13. Relationships between TOC and Ni/Al (A) and P/Al (B) in the studied deep shale.
Numerous studies have shown that there is a close relationship between volcanic eruptions and marine life. For example, the eruption of the Anatahan volcano in 2003 increased the level of productivity in the nutrient-poor region of the Pacific Northwest. The 2008 eruption of the Kasatochi volcano in the United States also promoted the reproduction of marine life (Qiu et al., 2019). During the formation of the WF shale, an area with frequent volcanic activity in the Upper Yangtze region (Li et al., 2017; Qiu et al., 2019), Yang et al. (2022) used the intersection diagram of Zr/Cr and Zr/Al2O3 to identify the presence of volcanic ash. In the present study, the nutrient flux and accompanying increased productivity of the WF shale originated from the input of volcanic ash (Figure 14). Previous studies have shown that intense volcanic activity has a dual-promoting effect on the OMA in shale (Wu et al., 2018). On the one hand, frequent volcanic eruptions led to the release of significant amounts of volcanic ash, which contributed to the rapid growth of marine surface producers and provided ample food sources for symbiotic siliceous organisms and algae, thereby increasing marine organism productivity (Figure 5). On the other hand, intense volcanic activity resulted in the formation of an extremely anoxic environment and the deterioration of seawater properties. Consequently, some organisms were unable to adapt and died over a wide area, with their remains rapidly deposited and buried before oxidative decomposition, thereby preserving OM.
Figure 14. Zr/Cr versus Zr/Al2O3 in the studied deep shale, Zr/Cr = 1.0 ppm/ppm, Zr/Al2O3 threshold = 6.0 ppm/wt% (threshold value cited Yang et al., 2022).
5.5 Implications for organic matter accumulation
The formation of organic-rich shales in marine environments is a complex process influenced by many factors. Globally, it is generally related to the activity cycle of ice age and plate movement (Shen et al., 2023). At the basin level, factors such as primary productivity, redox conditions, terrigenous detrital input and sedimentation rate play significant roles in controlling OMA (Demaison and Moore, 1980; Wu et al., 2021). The primary factors controlling OMA can vary distinctly across different stages, particularly during the complex geological events of the Late Ordovician and Early Silurian periods. Therefore, it is necessary to clarify the mechanism of OMA by considering the interplay between the main controlling factors and geological events.
By comparing the paleoclimate conditions during shale formation with the longitudinal variation trend of the TOC content (Figure 5), it is found that the chemical weathering index has no significant effect on the OMA. This can be attributed to the overall low to medium degree of chemical weathering during the sedimentation of the WF-Long-1 shales, indicating that individual climate factors had little influence on the OMA. These findings suggest that paleoclimate conditions are not the main controlling factor affecting the OMA.
Based on the aforementioned discussion, the OMA model of the WF-LMX Formation was established (Figure 15). In the early sedimentary stage of WF formation, tectonic uplift in the surrounding area led to the development of a barrier sea basin in the middle and upper Yangtze region. This basin experienced strengthened internal limitations, thereby creating a favorable environment for water retention (Li et al., 2017). The occurrence of volcanic eruptions resulted in the injection of significant amounts of volcanic ash into the ocean. The dissolution of volcanic ash served to supplies abundant nutrients to marine water, thereby facilitating the proliferation of plankton. Furthermore, volcanic activity led to the creation of an anoxic environment. In addition, the temperature gradually decreased during the Late Ordovician sedimentation period, which would have strengthened the thermohaline circulation and thus contributed to the productivity improvement. The various paleoproductivity proxy indicators all confirmed the high productivity level during this period (Figure 5). The slow deposition rate mitigated the adverse influence of terrigenous debris input on OMA to a certain extent, and finally resulted in the deposition of high-quality shale with a small thickness.

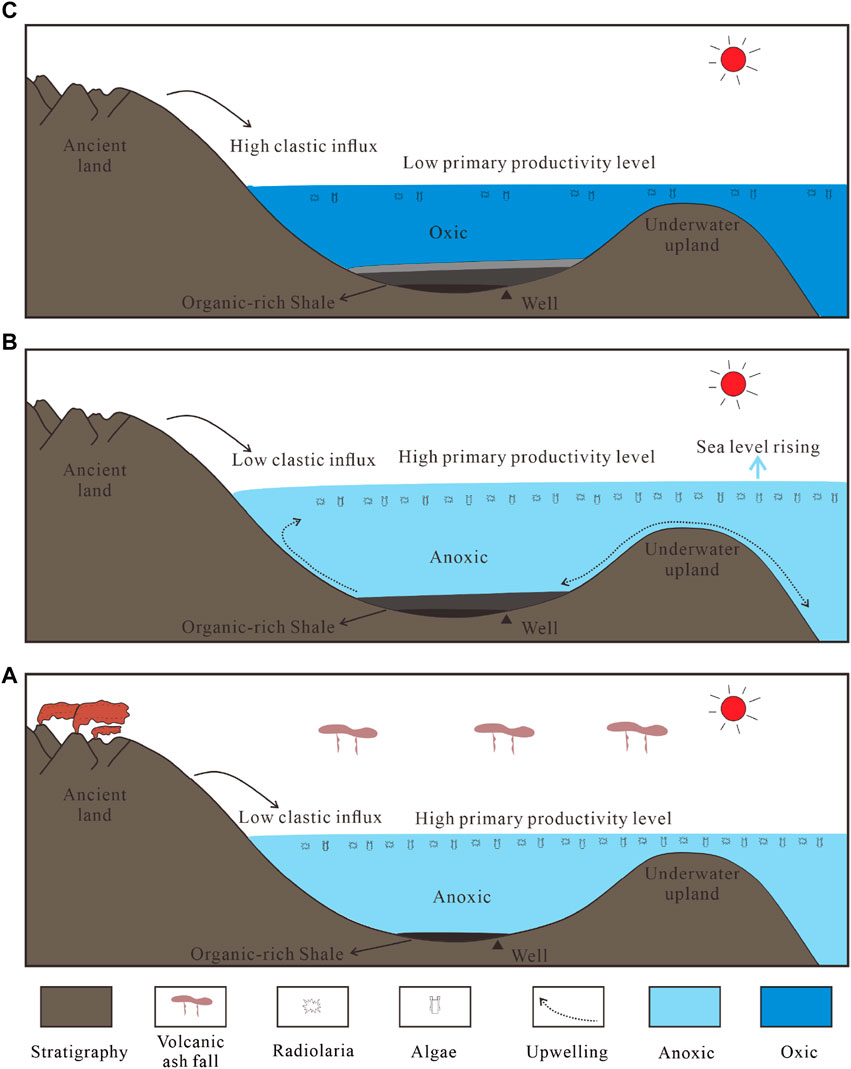

Figure 15. Organic matter enrichment model of the WF-LMX formation in the Dingshan area, Sichuan Basin. (A) WF shale; (B) Long-11 shale; (C) Long-12 shale.
During the sedimentary period of the Long-11 shale (Figure 15B), the TOC content of the Long-11 shale is positively correlated with the redox environment and paleoproductivity to a certain extent (Figures 10, 11, 13) but negatively correlated with terrigenous clastic input and sedimentation rate indicators (Figures 8, 9). This restricts the OMA in the Long-11 shale to some extent. The results show that the OMA is mainly controlled by the synergistic positive effects of the redox environment and paleoproductivity. In addition, during the early Silurian period, there was a significant shift in climate from cold to warm conditions. This change was accompanied by global sea level rise, increasing temperatures, and the melting of glaciers. As a result, the Yangtze Sea was able to connect with the broad sea, leading to the development of upwelling (Jin et al., 2020a; Feng et al., 2023a), the upwelling brought nutrients to the surface, creating ideal conditions for the growth and proliferation of aquatic organisms. Moreover, global sea level rise exceeds tectonic uplift, resulting in a low degree of basin limitation. This, in combination with the input of terrigenous clastic material and increased sedimentation rates, partially hindered the further OMA. As a result, the TOC content of the Long-11 shale was found to be lower than that of the WF shale. Nonetheless, the Long-11 shale remains a high-quality shale overall.
During the sedimentary period of the Long-12 shale (Figure 15C). In the absence of nutrients provided by upwelling, nutrient-poor seawater resulted in a low level of primary productivity. Meanwhile, the terrigenous debris input and sedimentation rate increased and diluted the OM flux due to the decrease in sea level (Figure 5). These three factors, namely, OM deficit, low productivity level and poor bottom water preservation conditions are the fundamental reasons for the formation of organic-poor shale.
6 Conclusion
The depositional environments of the WF-LMX shale at well DY7 in the Dingshan area of the Sichuan Basin, were investigated, and the mechanisms driving the OMA were explored. This work culminates in several pivotal conclusions:
During the WF sedimentation period, a prevailing strongly reducing environment, coupled with frequent volcanic activities that supplied abundant nutrients, fostered conditions conducive to heightened productivity. Low terrigenous clastic input and sedimentation rates further promoted optimal preservation conditions. Consequently, the WF shale is characterized by a notably high TOC.
During the Long-11 sedimentation period, the organic-rich shale was positively influenced by a strong reducing environment and high paleoproductivity, while terrigenous clastic input and sedimentation rate somewhat restricted OMA. Therefore, the TOC content of the Long-11 shale is lower than that of the WF shale, yet it remains a high-quality shale.
During the Long-12 sedimentation period, the oxic conditions of the water column prevented the effective preservation of OM. Additionally, the increase in terrigenous clasts and sedimentation rates further diluted the OM, leading to low productivity levels and subsequently low OM contents.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Author contributions
QW: Conceptualization, Data curation, Methodology, Writing–original draft, Writing–review and editing. YF: Investigation, Supervision, Writing–review and editing, Writing–original draft. PG: Writing–review and editing. GM: Visualization, Writing–review and editing. CL: Investigation, Visualization, Writing–review and editing. QF: Formal Analysis, Methodology, Writing–review and editing. GL: Formal Analysis, Writing–review and editing. YT: Formal Analysis, Writing–review and editing. XX: Funding acquisition, Resources, Writing–review and editing.
Funding
The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This study was financially supported by the National Natural Science Foundation of China (U19B6003-03-01; 42330811).The authors are grateful to the Sinopec Exploration Branch Company for providing core samples.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2024.1457377/full#supplementary-material
