The current work aims to describe the physico-mechanical characteristics and shielding efficiency with reference to the mineralogical and geochemical compositions of the Neoproterozoic Um Had composite granitoid pluton in order to deduce their favorability as dimension stones. The Um Had granitoid pluton has an elliptical outline with a mean diameter of about 10 km. This pluton is a composite (ranging from white to reddish pink color), hard, massive, and medium- to coarse-grained granitoid body. It is classified as syenogranite according to their modal and bulk chemical compositions. Geochemically, the granitoid pluton is a highly calc-alkaline, peraluminous granite, formed by low degree partial melting of tonalitic source rock in a post-collisional tectonic setting. The physico-mechanical properties of the granitoid pluton under study satisfy the requirements of dimension stone in terms of their bulk density (from 2561 to 2564 kg/m3), and to some extent water absorption capacity (from 0.38% to 0.55%). However, their compressive strength values (50.4–113.4 MPa) do not achieve the minimum requirement for interior use and light duty exterior use. This study delves into the potential of some of our syenogranite samples (I, IIA, IIS, and 10) as gamma radiation shielding materials. We have assessed the mass attenuation coefficient (GMAC), effective atomic number (Zeff), exposure build-up factor (EBF), and energy absorption build-up factor (EABF) for each of these samples. The GMAC and Zeff calculations were performed using the Phy-X online software, across a photon energy range of 0.015–15 MeV. Our findings suggest an inverse relationship between photon energy and GMAC, with the highest values observed for the (I) granite sample (∼18). This study shows the promising radiation shielding capacity of our samples. The insights derived from GMAC, Zeff, EBF, and EABF can serve as a guide for the development of effective, naturally sourced radiation shielding materials.
1 Introduction
Granitoid of variable sizes, shapes, chemical compositions, colors, and ages are abundant in south Sinai and the northern (in particular), central, and southern parts of the Egyptian Eastern Desert (e.g., Azer et al., 2020; Abdel-Karim et al., 2021; Lasheen et al., 2022a; Saleh et al., 2022a; Khaleal et al., 2023a; Khaleal et al., 2023b). They have grey, pink, and white (leucogranites) colors and range from calc alkaline (syn-collision) to alkaline (post-collision) as well as from metaluminous to strongly peraluminous in composition (Gharib, 2012; Abuamarah et al., 2022; Lasheen et al., 2022a). Notably, they are abundant, straddle about sixty percent of the total crystalline rocks in Egypt, and have high economic significance due to their high durability and aesthetic appearance (Alzahrani et al., 2022; Lasheen et al., 2023). Their distribution percent increases from the South to the North-Eastern Desert of Egypt (Stern and Hedge, 1985).
Recent studies show that some of these granitoids are rare-metal (Ta, Nb, Sn, Li, F, U, Th, and Zr), gemstone, and REE-bearing granitoid rocks (Khaleal et al., 2023a) and others can be utilized in the construction sector as decorative stones due to their high resistance and strength (Rashwan et al., 2019; 2023b; Alzahrani et al., 2022).
Worldwide, Egypt occupies the seventh place in the production of dimension stones (Mashaly et al., 2016), with a production volume of about 5.25 Million tons with 4% global sharing (Ericsson, 2019; Rashwan et al., 2023a). These rocks are widely used as decorative stones worldwide for construction of paving, flooring, cladding, and statues due to their great variety and high resistance and strength (Fort et al., 2013; Alzahrani et al., 2022; Rashwan et al., 2023a). Selected Igneous (granitoid of different types, basalt, gabbro, and ultramafic), metamorphic (marble and quartzite), and sedimentary (limestone) rocks represent the dominant natural industrial materials used as decorative stones in construction and building sectors (Gomes et al., 2020; Eroğlu and Çalik, 2023). Granitoid is a versatile natural material with a wide range of applications due to its excellent mechanical strength, durability, and radiation-shielding properties. With an impressive combination of high density, structural integrity, and low permeability, it offers excellent radiation protection and is often used in industries and facilities dealing with radioactive materials.
In the present work, we assess the ability of Um Had granitoid pluton for its use in the construction sector as a decorative stone. We reported new petrography and whole-rock chemical analyses (major oxides and trace elements) as well as mechanical and physical characteristics of Um Had granitoid. In addition, this study focuses on the utilization of the Um Had granitoid pluton as a radiation-shielding material. Granitoid, such as the one found in Um Had, possess unique geochemical characteristics that make them particularly suited to radiation-shielding applications.
2 Geologic setting
Egyptian Neoproterozoic rocks straddle the northern sector of the Arabian Nubian Shield (ANS), which represents the northern extension of the highly deformed Mozambique Belt. ANS makes up the eastern limb of the U-shaped Pan African Orogenic belt, one of the best examples of juvenile continental crust in the world (e.g., Lasheen et al., 2021; Khaleal et al., 2022a; Alharshan et al., 2022; Lasheen et al., 2022b; Hamdy et al., 2022; Kamar et al., 2022; Sami et al., 2023). The ANS encompasses both sides of the Red Sea: the Nubian Shield (western sector) and the Arabian Shield (Eastern sector) (e.g., Khaleal et al., 2022b; Saleh et al., 2022b; Sami et al., 2023).
The Um Had area lies in the Central Eastern Desert of Egypt, northwest to the intersection of Wadi Attala and Quseir—Qift asphaltic road (Figure 1A). Based on field observations, the main units exposed in the study area include gneiss, amphibolites, serpentinites, metavolcanics, ophiolitic mélange (metasediments), Hammamat metasedimentary rocks, Dokhan Volcanics, Attalla Felsite, and younger granitoid rocks (Figure 1B). Hammamat metasedimentary rocks (metaconglomerate, metagraywake, and metasiltstone) cover the greatest part of the study area, which are intruded by Attala felsite and the Um Had granitoid. The Um Had granitoid has a circular outline with a mean diameter of about 10 km. This pluton is hard, massive, and with a medium- to coarse-grained with buff, white to reddish pink in color (Figure 2A). It has an elevation point about 595 m above sea level. The southern part of the pluton has a sharp intrusive contact with Hammamat metasedimentary rocks, whereas the eastern part of the pluton lies against the Dokhan Volcanics. In addition, the Um Had granitoid is intruded by variable felsic (pegmatite and quartz), dikes, and veins. Some felsite and mafic xenoliths are recorded within the Um Had granitoid in the central and the northern parts. Some parts are intensively jointed in several trends, yielding small- to large-scale block weathering and exfoliation features (Figure 2B).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1228489/feart-11-1228489-HTML-r1/image_m/feart-11-1228489-g001.jpg)

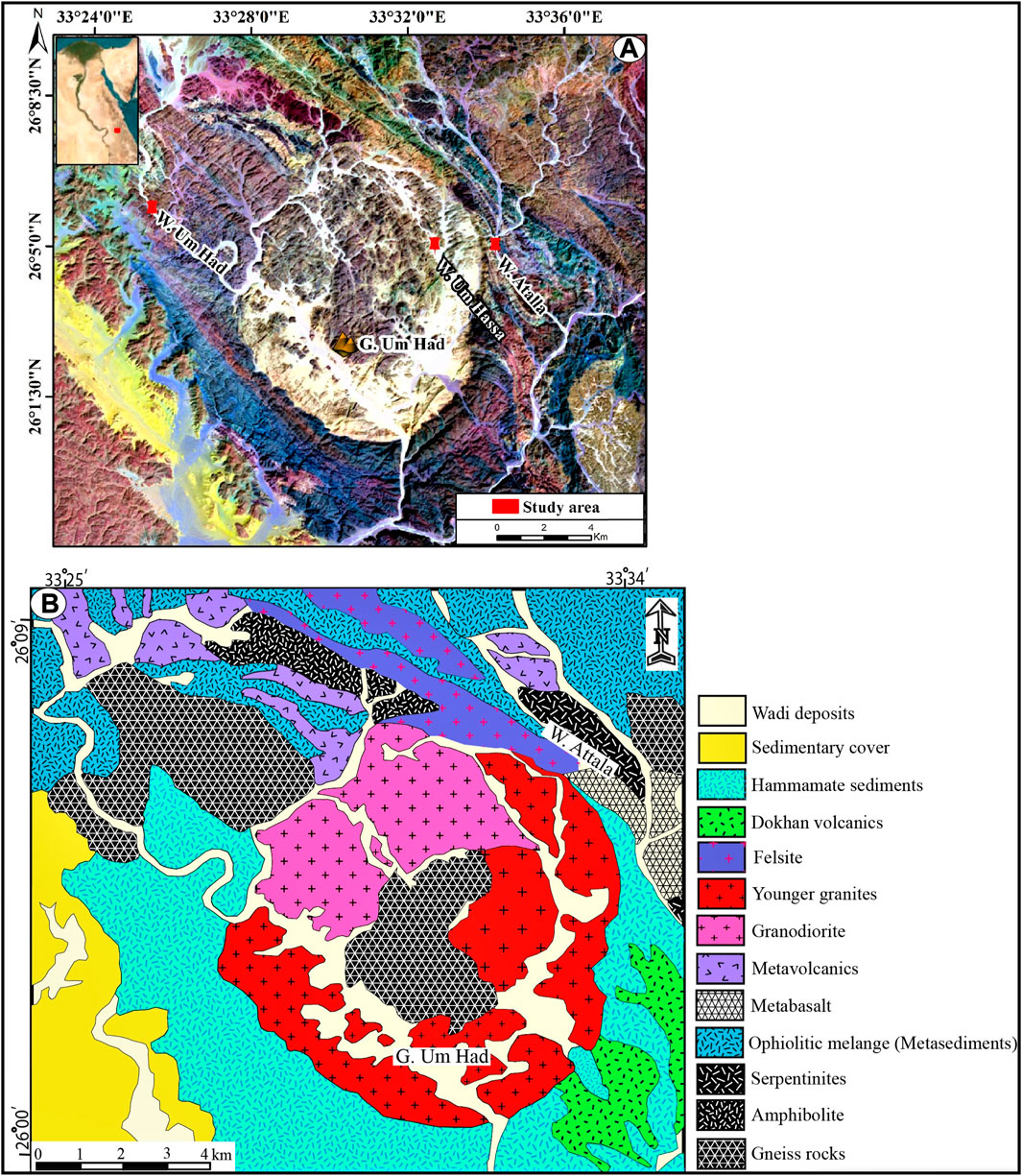

FIGURE 1. (A) Landsat image showing the location of Um Had area and (B) Geologic map of the area under investigation (Qaoud, 2014).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1228489/feart-11-1228489-HTML-r1/image_m/feart-11-1228489-g002.jpg)

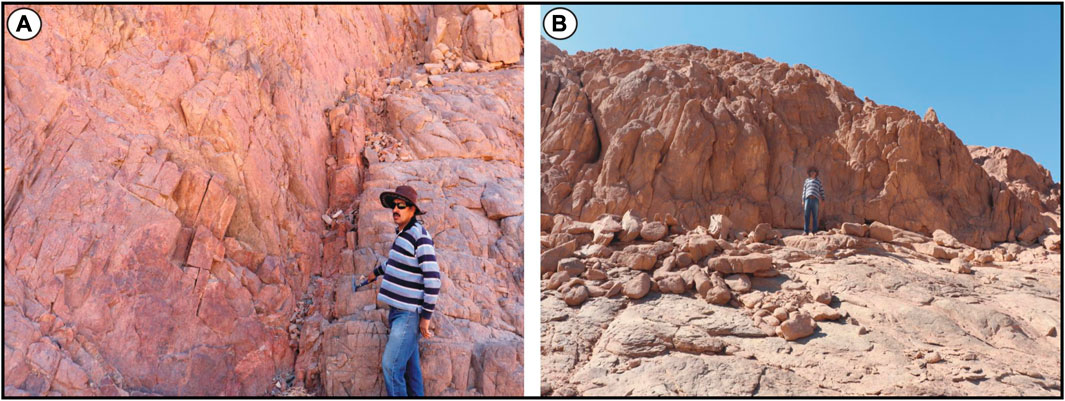

FIGURE 2. Field photographs exhibiting: (A) Variations in color of Um Had composite granitoid, and (B) Several joints, block weathering, and exfoliation features of Um Had granitoid. One of the authors is displayed for scale.
3 Materials and methods
Twenty-one samples were collected from the composite Um Had granitic pluton for our analyses. Twelve representative samples were examined in thin sections for the identification of preliminary mineral composition and textural relationships of rocks under investigation by using a polarizing microscope. The chemical (major oxides and trace elements) analyses of twelve samples were done using XRF (X-Ray Fluorescence technique) at the National Research Centre (NRC), Egypt. The samples were prepared as a bead with a 1 gm sample/10 gm flux ratio at 1150°C in an electroconductive furnace. ASTM E-1621 and ASTM D-7348 represent the dominant standard guides for analysis. The accuracy and precision of our analyses were better than ± 5% for major oxides and ±10% for trace elements.
The physical and mechanical characteristics of our studied samples were tested on cubic specimens of each Um Had granitoid sample (50 x 50 x 50 mm) (Figure 3). The water absorption, dry and wet bulk density, and apparent porosity were the main physical properties, which were measured following the international standard specifications (ASTM C97/C97M, 2015; EN, 1936) based on Archimedes’ method (Mosch and Siegesmund, 2007; Siegesmund and Snethlage, 2014; Rashwan et al., 2022; 2020). The mechanical tests including compressive strength with a rate of 0.5 MPa/s were also measured following the international standard specification (ASTM C170/C170M, 2015). The physical and mechanical tests were performed at the Marble and Granite Testing Laboratory (MGTL), National Research Centre, Egypt.
The examined samples were dried at 60°C until a constant mass was reached. Then, the weight was recorded to the nearest 0.01 gm. They were immersed in a tap water bath until complete saturation. The saturated samples were removed from the water bath, and the saturated-surface dry (SSD) weight was recorded to the nearest 0.01 gm. After that they were suspended in water and their suspended weight was then recorded to the nearest 0.01 gm. The physical properties were estimated through the following:
A cubic specimen of each sample (50 × 50 × 50 mm) was prepared for the measurements of mechanical properties (compressive strength) following the requirements of the international standard test method (ASTM C170/C170M, 2015). According to this method, the investigated samples were completely dried at about 60°C. The loading area of the samples were then calculated to the nearest 0.1 mm2, after which the load was applied at a rate of 0.5 MPa/s using a compressive testing machine (SOILTEST Model: CT-6200-8) with a maximum capacity of 3,000 kN, until sample failure (Mashaly et al., 2018). The compressive strength was then calculated according to the equation:
The mass attenuation coefficient (GMAC) measured the probability of gamma ray or X-ray interaction per unit mass of a material and was therefore essential in assessing a material’s potential for radiation shielding. The shielding parameters were computed using the platform Phy-X (Şakar et al., 2020).
4 Results and discussion
4.1 Petrographical investigation
On the basis of modal analysis, the examined Um Had composite granitoid with different colors were classified as syenogranites. They revealed a hypidiomorphic texture with medium- to coarse-grained crystals. Quartz, K-feldspars, plagioclase(An4-13), and muscovite were the dominant minerals with minor biotite, hornblende, and muscovite. Kaolinite, sericite, and epidote were the predominant secondary minerals, while iron oxides and zircon represented the main accessories. Quartz (22%-32%) occurred as anhedral crystals, revealing wavy extinction and sometimes present as small interstitial crystals. The dominant mineral was K-feldspar (microcline and orthoclase perthite) at 35%-42%. Perthite presented as flamey and string types (Figures 4A, B) with a clear to dusty surface and subhedral to anhedral crystals (Figure 4C). Occasionally, some fine-grained albitic plagioclase were enclosed in microcline megacryst (Figure 4A). Locally, they formed a micrographic texture due to intergrowths with quartz. Albite of medium- to coarse-graine ranged from 8% to 20%. In some samples, the albite exhibited a weak to strong saussurtization effect (Figure 4D). Biotite occurred as the main mafic mineral as fine flakes in the different granites. It was partially altered to chlorite along its periphery (Figure 4E). Minor hornblende occurred as fine-grained crystals with a clear set of two cleavages at an angle of ∼120° (Figure 4F). Zircon was the main accessory mineral, which presented as very fine crystals commonly enclosed in microcline (Figure 4B).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1228489/feart-11-1228489-HTML-r1/image_m/feart-11-1228489-g004.jpg)
FIGURE 4. Photomicrographs exhibit: (A) Flamey orthoclase perthite (Pr) engulfing fine-grained plagioclase (Pl); (B) String orthoclase perthite enclosing euhedral zircon (Zr) crystal; (C) Pristine microcline (Mc) crystal associated with foliated muscovite (Ms) flakes; (D) Twisted plagioclase that reveals extensive saussurtization; (E) Partially chloritized biotite (Bt); and (F) Aggregated perfect carlsbad hornblende (Hb). Abbreviation of minerals after Whitney and Evans (2010).
4.2 Bulk rock geochemistry
The examined samples collected from the Um Had granitoid exhibit marginal variations in their chemical composition and normative values (Table 1). They have SiO2 (71.58%–73.88%; av. 72.91%), Na2O+K2O (7.09–8.68; av. 7.88%), Al2O3 (13.01%–15.15%; av. 13.6%), and Fe2O3 (1.89–3.46; av. 2.53%), and minor concentrations (<1%) of TiO2, MnO, MgO, Cr2O3, and P2O5. In addition, they possess K2O/Na2O > 1 (av. 1.1) in mean reflecting potassic nature. The main normative values are quartz (av. 32.72%), albite (av. 31.90%), and orthoclase (av. 24.31%). The Um Had granitoid are classified using variable discrimination diagrams. They are subalkaline in nature (after Middlemost, 1994) (Figure 5A). In addition, the examined rocks are classified as syenogranites based on their Ab, Or, and An normative values (after Streckeisen, 1976), (Figure 5B). Notably, these rocks have a peraluminous nature on the basis of their A/CNK (av. 1.51) (after Maniar and Piccoli, 1989) (Figure 5C). The studied rocks are high calc alkaline, with their agpaitic index ranging from 0.71 to 0.84 (<0.87). This is indicated by the SiO2-K2O binary diagram after Rickwood (1989) (Figure 5D).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1228489/feart-11-1228489-HTML-r1/image_m/feart-11-1228489-t001.jpg)
TABLE 1. Bulk rock (major and trace elements) and normative minerals of the Um Had composite granitoid.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1228489/feart-11-1228489-HTML-r1/image_m/feart-11-1228489-g005.jpg)

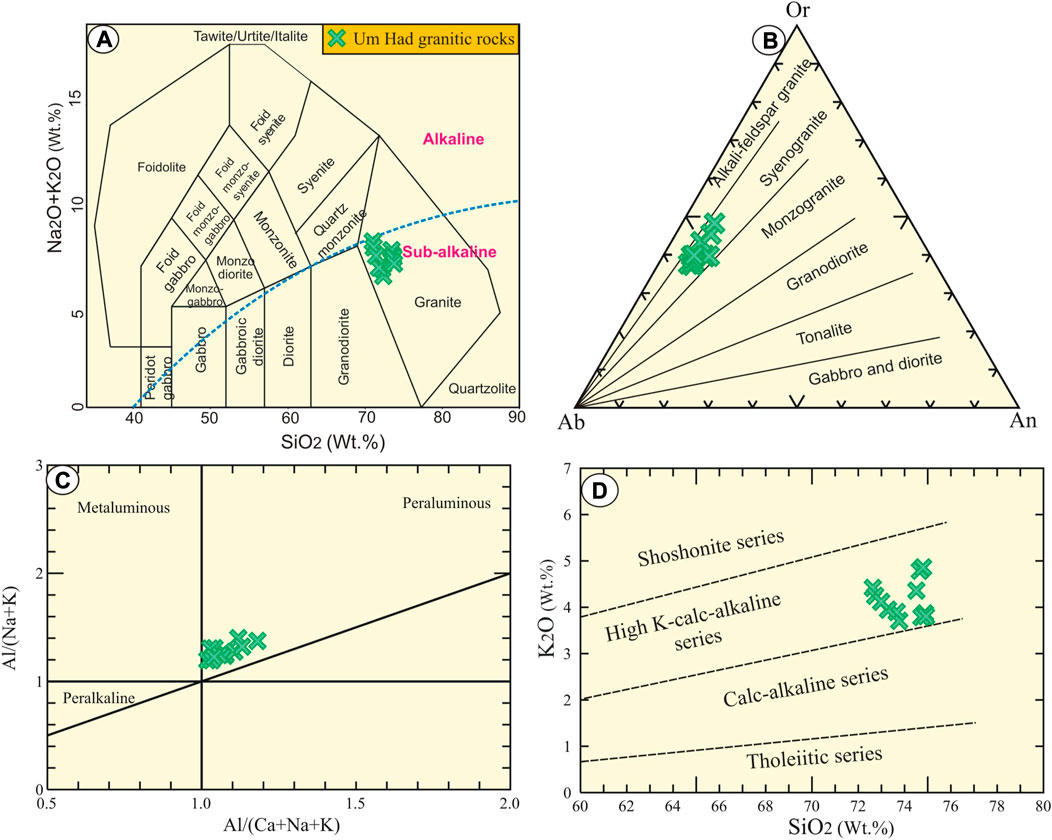

FIGURE 5. Bulk rock geochemistry of Um Had granitoid rocks: (A) SiO2 (wt.%) vs. Na2O+K2O (wt.%) diagram (Middlemost, 1994); (B) Ab-Or-An diagram (Streckeisen, 1976); (C) Al/(Ca+Na+K) vs. Al/(Na+K) diagram (Shand, 1951); and (D) SiO2 (wt.%) vs. K2O (wt.%) diagram of (Rickwood, 1989).
The studied granitoid samples match well with A-type granitoid, as indicated by the Ga/Al versus Zr binary diagram after Whalen et al. (1987) (Figure 6A). The investigated granitoid rocks are of calc-alkaline in composition and of late to post-collisional type (III field) (Figure 6B) (after Hassan and Hashad, 1990). Um Had granitoid source can be inferred by some geochemical diagrams (after Laurent et al., 2014). They can by developed by the low partial melting degree of crustal tonalitic rocks (after Laurent et al., 2014), (Figure 6C). On the other hand, the distribution of trace elements was normalized to primitive mantle (after Sun and McDonough, 1989) of the studied Um Had granitoid rocks, as shown in Figure 6D. It is obvious from this pattern that the spider diagram shows positive anomalies of Cs, Rb, and Pb, and pronounced Ba, Sr, and Ti negative anomalies.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1228489/feart-11-1228489-HTML-r1/image_m/feart-11-1228489-g006.jpg)

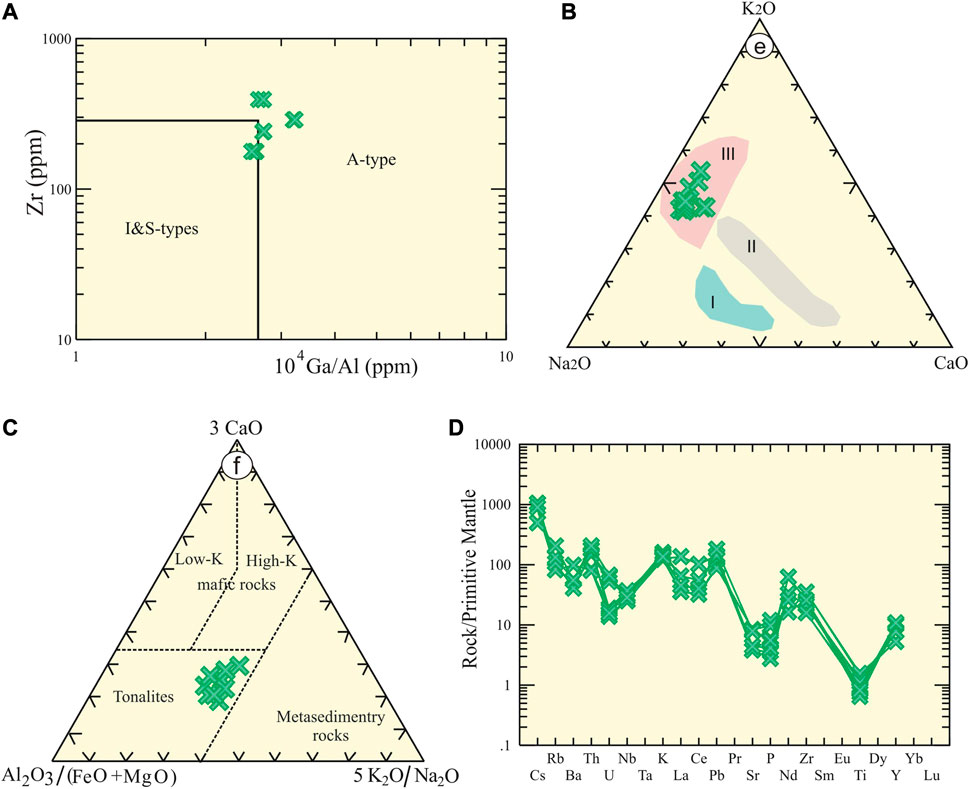

FIGURE 6. Bulk rock geochemistry of Um Had granitoid rocks: (A) 104 Ga/Al- Zr (ppm) (Whalen et al., 1987); (B) Na2O-K2O-CaO (wt.%) (Hassan and Hashad, 1990), I = granodiotite and metagabbro, II = early subphase of younger granites, and III = late phase of younger granites; (C) Al2O3/(FeO+MgO)-3 CaO- 5 K2O/Na2O (wt.%) (Laurent et al., 2014), and (D) Spider diagram normalized to primitive mantle (Sun and McDonough, 1989).
4.3 Physical and mechanical tests
Natural rocks used for decorative purposes in the interior (indoor) and exterior (outdoor) should undergo some physical and mechanical evaluations. The studied granitoid were tested for water absorption, bulk density, apparent porosity, and compressive strength. The main physico-mechanical properties of the studied granitoid are given in Supplementary Table S1 and illustrated in (Figures 7, 8 and Figure 9). The water absorption results (Figure 7A) ranged from 0.38% to 0.55%. The minimum value was recorded in granite (sample no. 10) with an average value of 0.41%, which corresponded with their porosity (Figure 7B) with an average value of 1.05%. On the other hand, the maximum water absorption value was recorded in granite (sample no. I) with an average value of 0.54% that matches their average porosity value (1.39%). These values indicate that the water absorption increases with increasing apparent porosity, exhibiting a significant positive correlation coefficient (r = 1), as shown in (Figure 7C).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1228489/feart-11-1228489-HTML-r1/image_m/feart-11-1228489-g007.jpg)

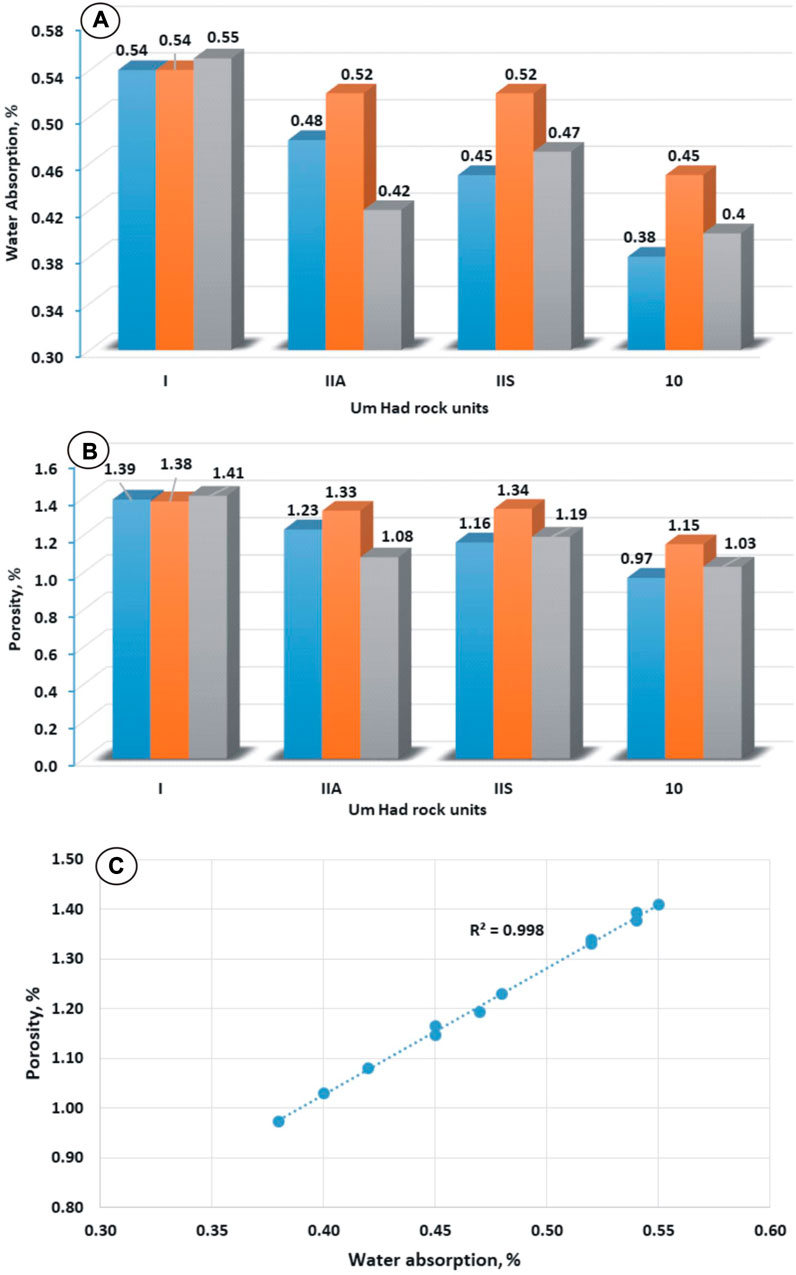

FIGURE 7. Physical properties of Um Had granitoid rocks: (A) water absorption, (B) porosity, and (C) water absorption vs. porosity relationships.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1228489/feart-11-1228489-HTML-r1/image_m/feart-11-1228489-g008.jpg)

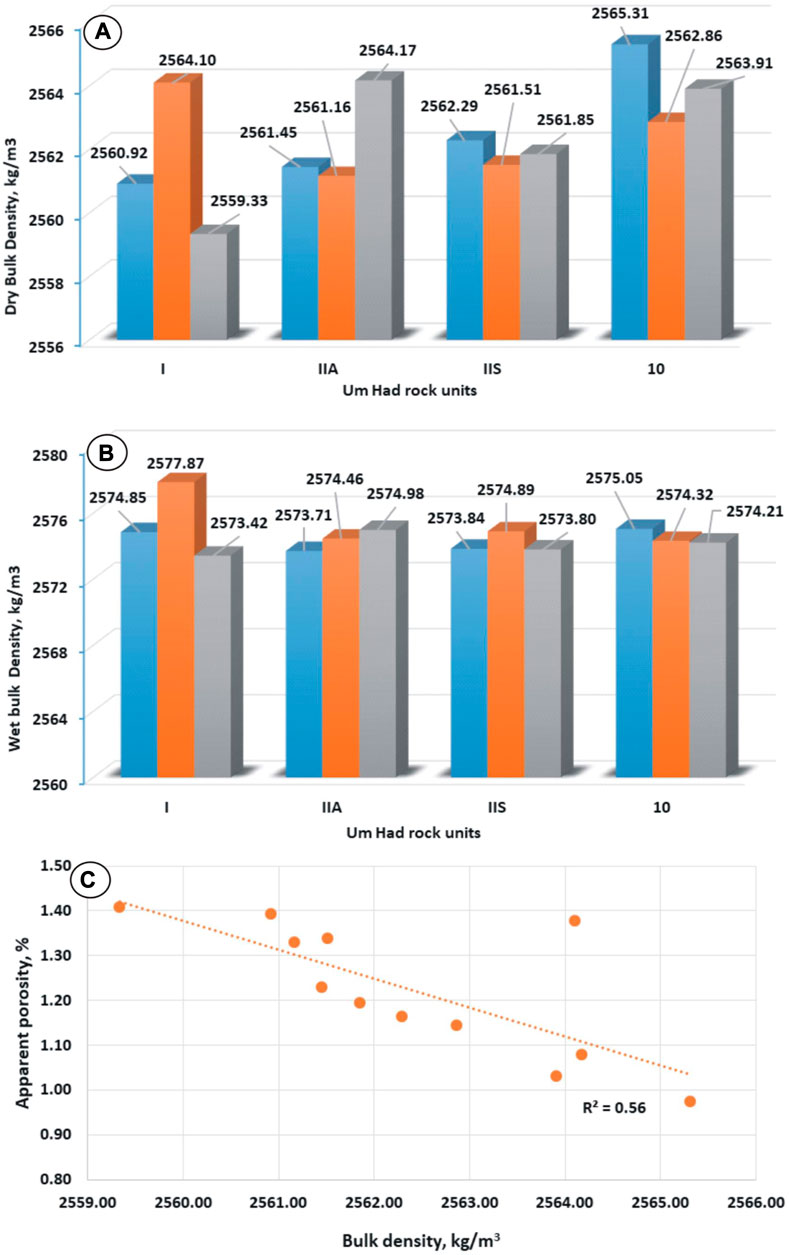

FIGURE 8. Physical properties of Um Had granitoid rocks: (A) dry bulk density, (B) wet bulk density, and (C) bulk density vs. apparent porosity relationship.
The dry and wet bulk densities of the granitoid rocks, as illustrated in Figures 8A, B, revealed that the granite sample (no. 10) recorded the maximum dry bulk density with average values of 2564.03 kg/m3 and the minimum apparent porosity. On the other hand, the minimum bulk densities were achieved in the granitoid (no. I) with average values of 2561.45 kg/m3 with the maximum apparent porosities. These results exhibit a relationship between the bulk density and apparent porosity (Figure 8C) with a significant negative correlation coefficient (r = −0.74).
Regarding the compressive strength results of the studied granites, there is a notable variation in the compressive strength values as shown in Figure 9. This figure shows that the granitoid rock sample of a minimum average normative quartz content (28.84%) and maximum average normative albite content (35.1%) (Table 1) records high strength values ranging from 1098.95 kg/cm2 to 1207.18 kg/cm2 with an average value of 1156.76 kg/cm2. On the contrary, the lowest strength with an average value of 514.42 kg/cm2 is recorded in the granitoid rock sample of a lowest average normative albite content (29.13%) and a highest average normative orthoclase content (27.36%) (Table 1). As mentioned above, the variations in the physical and mechanical strength may be attributed to the variations in the mineralogical composition of the studied granitoid rock samples as shown in Figures 10A–C. A negative variation in water absorption values with the total normative feldspar content (Figure 10A) with a correlation coefficient of r = −0.67 was observed, while a positive variation with normative hematite content (Figure 10B) with a correlation coefficient of r = 0.77 was also seen. Moreover, a positive variation in compressive strength values with the normative albite content (Figure 10C) with a correlation coefficient of r = 0.85 was also observed.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1228489/feart-11-1228489-HTML-r1/image_m/feart-11-1228489-g010.jpg)

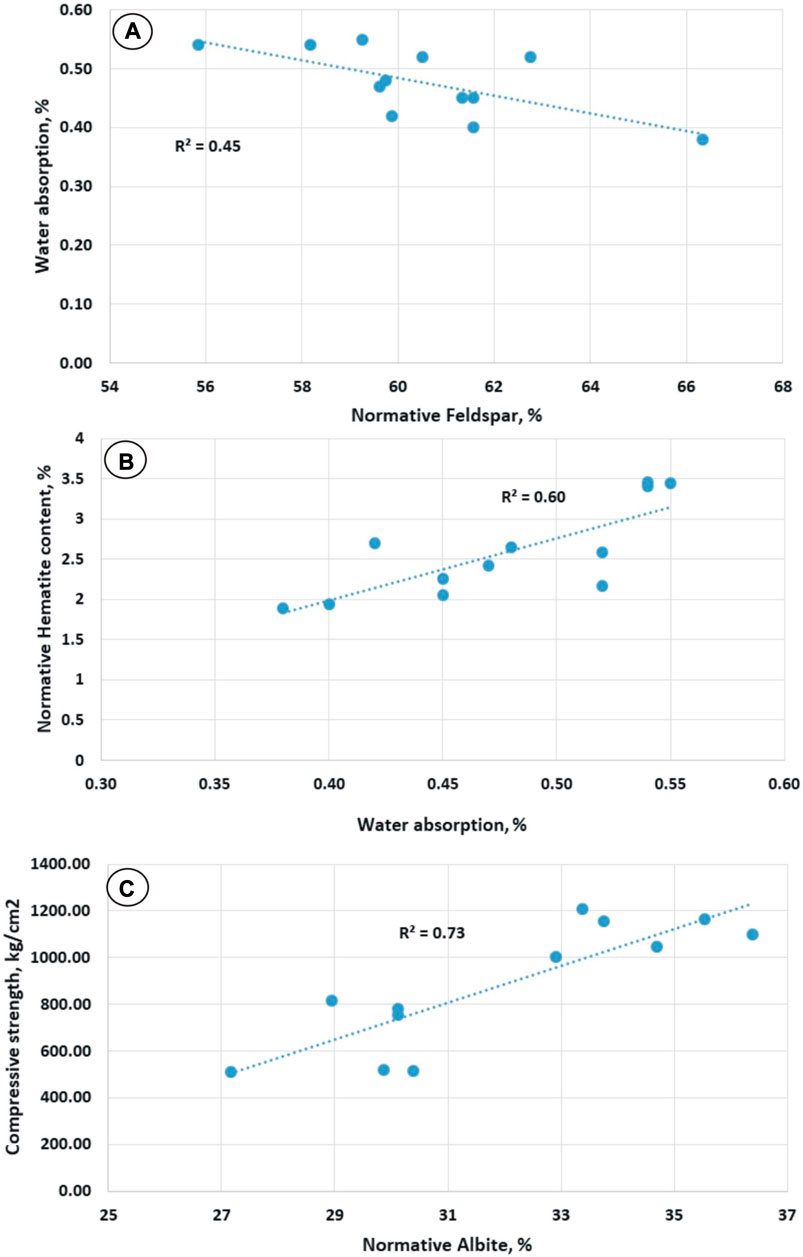

FIGURE 10. Relationship between physical properties of the Um Had granitoid and their mineralogical composition: (A) normative feldspar vs. water absorption and apparent porosity; (B) normative hematite vs. water absorption, and (C) normative albite vs. compressive strength.
Comparing the results of the physical and mechanical data of the studied granites with the standard specification limits of the granite dimension stones (ASTM C615), it is found that all studied samples comply with the requirements of bulk density of a minimum limit (2560 kg/m3). The determination of density is an important parameter for evaluating the compactness of rocks and consequently its hardness and resistance to abrasion. Regarding the water absorption results, the average value of the studied granitoid rock samples is 0.48%, which is slightly higher than the maximum specification limit (0.40%) and considered insignificant in countries with arid conditions. Although the compressive strength data of the studied granite does not achieve the minimum requirement of the same specification (131 MPa), making them suitable for exterior and heavy duty uses such as paving and landscape, these rocks could be acceptable for interior use and the light-duty purposes of exterior use as facades and cladding.
4.4 Radiation shielding
This research showed that among the examined Um Had granitoid, I, IIA, IIS, and 10, sample I exhibit the highest GMAC values at 2.108 (at 15 keV), implying that this granite sample may offer superior radiation-shielding capabilities (Madbouly et al., 2022). However, it is important to consider that GMAC decreases as the photon energy increases due to multiple types of photon-matter interactions, including the photoelectric effect, Compton scattering, and pair creation (Figure 11). This implies that while sample I exhibits superior shielding at lower photon energies, its performance may diminish with higher energy gamma rays. Moreover, another significant parameter in radiation shielding is the effective atomic number (Zeff). This quantity gives insights into a material’s capability to block incoming photons; a higher Zeff suggests better shielding efficiency (sample I). For the examined granitoid, Zeff reached its peak value at 15 MeV, with sample (I) having the highest Zeff at 10.76 (Figure 12). This further indicates that the Um Had granite pluton (sample I) can offer better gamma radiation shielding than the other natural samples. In this investigation, we utilized the Geometry Progressive (G-P) approach to calculate these factors for the granitic samples (I, IIA, IIS, and 10) (Singh and Badiger, 2014). This method, elaborated upon in a previous publication, enabled us to map out the correlation between the energy of the incoming photons and the variation in the EBF and EABF for these rock samples. The results (Figure 13; Supplementary Tables S2–S5) reveal an inverse relationship between the penetration depth and the incident photon energy. As the energy of the photons decreases, the depth-dependent absorbance increases, reaching its maximum in the medium energy range before starting to decline. This indicates that the granite rock samples (I, IIA, IIS, and 10) may offer better shielding for lower energy gamma rays but may lose effectiveness for higher energy gamma rays due to the decrease in depth-dependent absorbance.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1228489/feart-11-1228489-HTML-r1/image_m/feart-11-1228489-g011.jpg)

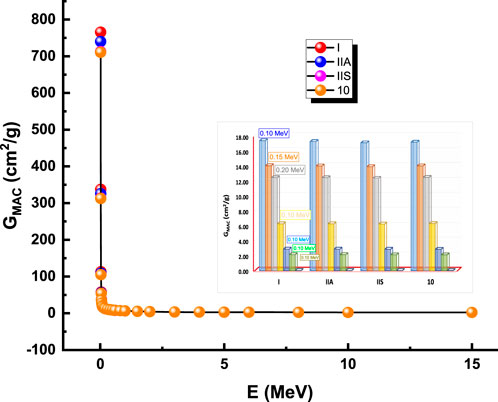

FIGURE 11. Depiction of the fluctuation in the mass attenuation coefficient relative to photon energy for the Um Had granitoid.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1228489/feart-11-1228489-HTML-r1/image_m/feart-11-1228489-g012.jpg)

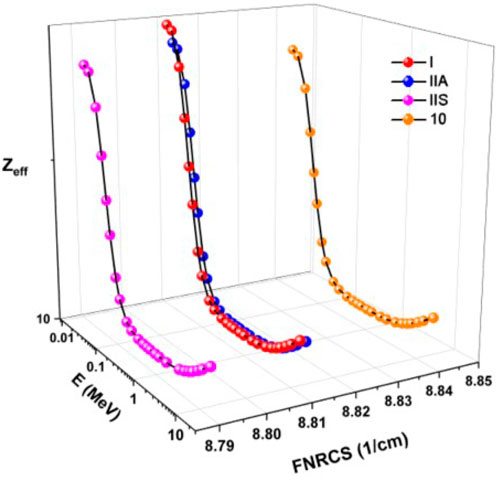

FIGURE 12. A three-dimensional plot illustrating the relationship between the effective atomic number (Zeff) and Fast neutron removal cross section (1/cm) as a function of energy for the Um Had granitoid.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1228489/feart-11-1228489-HTML-r1/image_m/feart-11-1228489-g013.jpg)

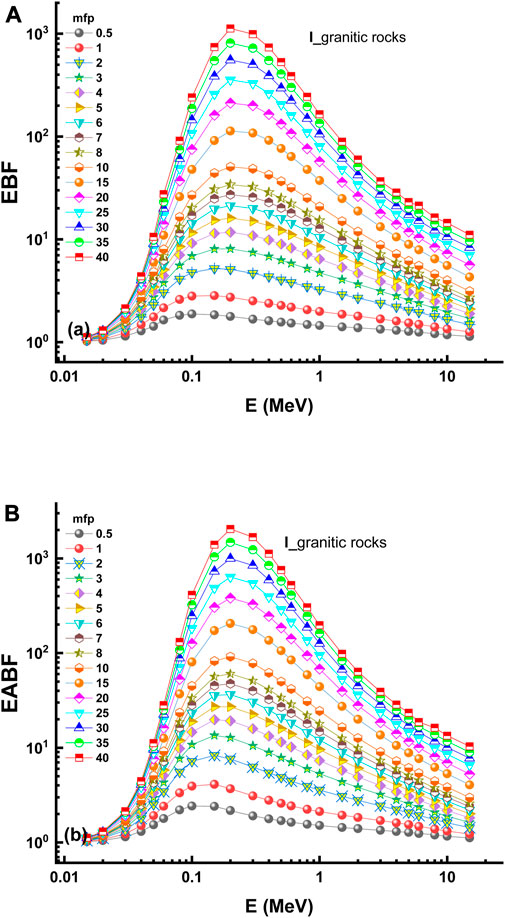

FIGURE 13. Illustration of the variation in: (A) exposure buildup factor (EBF) and (B) energy absorption buildup factor (EBF) in relation to photon energy in Um Had granitoid.
5 Conclusion
The present article studied the physico-mechanical characteristics and shielding efficiency of the Neoproterozoic granitoid of Um Had Area, Central Eastern Desert, Egypt with reference to their mineralogical and geochemical compositions. The main findings of this study are as follows:
• The studied granitoid rocks are characterized by their medium- to coarse-grained texture. They are classified as syenogranite based on their modal analyses and bulk rock chemistry.
• The main mineral composition of our studied granite samples includes quartz (22%-32%), microcline and orthoclase (35%-42%), and albite (8%-20%), in addition to minor amounts of biotite and hornblende. The predominant secondary minerals are kaolinite, sericite and epidote while iron oxides and zircon represent the main accessory minerals.
• The physical test data revealed that the water absorption and bulk density are significantly influenced by the percentages of apparent porosity. The water absorption ranges from 0.38% to 0.55% with an average value of 0.41%. The bulk density ranges from 2559 to 2565 kg/m3 with an average value of 2562 kg/m3. At the same time, a negative variation in water absorption values is observed with the total normative feldspar content with a correlation coefficient of r = −0.67, while a positive variation with normative hematite content is observed with a correlation coefficient of r = 0.77.
• The mechanical properties of the studied granitoid rocks show that the compressive strength ranged from 509 to 1207 kg/cm2 with an average value of 880 kg/cm2. The results also exhibit a positive variation in compressive strength values with the normative albite content with a correlation coefficient (r = 0.85).
• The studied granitoid rocks satisfy the bulk density requirements of dimension stones and, to some extent, water absorption. Although the compressive strength values do not achieve the minimum requirements, they could be acceptable for interior use and light-duty purposes for exterior uses.
• This comprehensive analysis provides strong evidence of the granitoid capabilities as a radiation-shielding material. However, this study is but a small step forward in our understanding and application of geological samples for radiation protection.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.
Author contributions
Conceptualization, EL and MR; methodology, EL and MR; software, EL and MR; validation, EL, WA, MA, and MR formal analysis, WA, IT, and MR; investigation, EL and MR; resources, MA; data curation, EL, WA, MA, IT, MR, and HZ; writing—original draft preparation, EL, WA, MA, and MR; writing—review and editing, EL, SA, IT, AE, HZ, and MR; visualization, EL, IT, and MR; supervision, EL and MR; funding acquisition, SA, AE, and HZ. All authors contributed to the article and approved the submitted version.
Funding
This research was supported by the Researchers Supporting Project number (RSP2023R496), King Saud University, Riyadh, Saudi Arabia.
Acknowledgments
The authors greatly appreciate all efforts and supports offered by the “Marble and Granite Test Lab” unit (MGTL) and its members at the National Research Centre (NRC) for measuring all physical and mechanical properties of the collected rock samples, being the first pioneer, specialized, and accredited unit in the field of dimension and ornamental stones testing in Egypt. The authors also appreciate the help of XRF Lab for chemical analysis measurements. The author AE would like to thank “Dunarea de Jos” University of Galati, Romania, INPOLDE infrastructure, for the material and technical support.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2023.1228489/full#supplementary-material
