Forecast of lacustrine shale lithofacies types in continental rift basins based on machine learning: A case study from Dongying Sag, Jiyang Depression, Bohai Bay Basin, China

Lacustrine shale in continental rift basins is complex and features a variety of mineralogical compositions and microstructures. The lithofacies type of shale, mainly determined by mineralogical composition and microstructure, is the most critical factor controlling the quality of shale oil reservoirs. Conventional geophysical methods cannot accurately forecast lacustrine shale lithofacies types, thus restricting the progress of shale oil exploration and development. Considering the lacustrine shale in the upper Es₄ member of the Dongying Sag in the Jiyang Depression, Bohai Bay Basin, China, as the research object, the lithofacies type was forecast based on two machine learning methods: support vector machine (SVM) and extreme gradient boosting (XGBoost). To improve the forecast accuracy, we applied the following approaches: first, using core and thin section analyses of consecutively cored wells, the lithofacies were finely reclassified into 22 types according to mineralogical composition and microstructure, and the vertical change of lithofacies types was obtained. Second, in addition to commonly used well logging data, paleoenvironment parameter data (Rb/Sr ratio, paleoclimate parameter; Sr %, paleosalinity parameter; Ti %, paleoprovenance parameter; Fe/Mn ratio, paleo-water depth parameter; P/Ti ratio, paleoproductivity parameter) were applied to the forecast. Third, two sample extraction modes, namely, curve shape-to-points and point-to-point, were used in the machine learning process. Finally, the lithofacies type forecast was carried out under six different conditions. In the condition of selecting the curved shape-to-point sample extraction mode and inputting both well logging and paleoenvironment parameter data, the SVM method achieved the highest average forecast accuracy for all lithofacies types, reaching 68%, as well as the highest average forecast accuracy for favorable lithofacies types at 98%. The forecast accuracy for all lithofacies types improved by 7%–28% by using both well logging and paleoenvironment parameter data rather than using one or the other, and was 7%–8% higher by using the curve shape-to-point sample extraction mode compared to the point-to-point sample extraction mode. In addition, the learning sample quantity and data value overlap of different lithofacies types affected the forecast accuracy. The results of our study confirm that machine learning is an effective solution to forecast lacustrine shale lithofacies. When adopting machine learning methods, increasing the learning sample quantity (>45 groups), selecting the curve shape-to-point sample extraction mode, and using both well logging and paleoenvironment parameter data are effective ways to improve the forecast accuracy of lacustrine shale lithofacies types. The method and results of this study provide guidance to accurately forecast the lacustrine shale lithofacies types in new shale oil wells and will promote the harvest of lacustrine shale oil globally.

1 Introduction

Shale oil has attracted increasing attention as an unconventional resource. It can be produced from both marine and lacustrine shales. Marine shale is generally developed in a stable and gentle tectonic environment, has a few types of lithofacies (Loucks and Ruppel, 2007; Abouelresh et al., 2020), and is widely distributed (Li et al., 2019). In comparison, lacustrine shale formed in a continental rift basin has various types of lithofacies owing to paleogeological conditions such as a relatively small lake area, multiple material sources, and frequent climate changes (Wang et al., 2016; Jia et al., 2018; Li et al., 2020). Moreover, the type and thickness of lithofacies change frequently across layers (Liang et al., 2017), which presents unprecedented challenges to the forecasting of favorable lithofacies types and the selection of shale oil targets (Cao et al., 2019). Conventional well logging interpretation can forecast shale mineral components by calibrating with X-ray mineral content analysis; however, it cannot accurately forecast the microstructure (mineral distribution and arrangement) of shales or find favorable lithofacies. The lithofacies type is mainly determined by mineralogical composition and microstructure, which not only determine shale oil reservoir performance but also affects the fracture characteristics of shales (Niu et al., 2023). The mineralogical composition and microstructure affect the pore development and the brittleness of shale; therefore, the accurate determination of lithofacies type is closely related to the target layer selection of shale oil horizontal wells and the design of hydraulic fracturing schemes.

Machine learning technology currently provides new ideas and methods to solve interpretation ambiguity and uncertainty in geological evaluations, which is a new field that urgently requires exploration (Zhou et al., 2018; Li et al., 2021). As available geological data grow exponentially, research on big data mining and machine learning in oil exploration and development is gradually increasing. Naeini and Prindle (2018) used examples to demonstrate the application of machine learning in petroleum geology research, such as document and image segmentation, well-logged facies recognition, petrophysical logging prediction, and fault interpretation. Bergen et al. (2019) systematically analyzed the application of data-driven machine learning methods in Earth science, and Alkinani et al. (2019) summarized the application of artificial neural networks in the oil and gas industry. Regarding mineral and complex lithology identification, some researchers have achieved good results using machine learning (Carey et al., 2015; Dev and Eden, 2019; Guo, 2021). Machine learning can also be used to identify the diagenetic facies of tight sandstone, with good results (Li et al., 2022; Zhang et al., 2022).

In shale research, machine learning has been used to identify marine shale lithofacies (Bhattacharya and Carr, 2019), sweet spots (Tahmasebi et al., 2017), reservoir potential (Ali et al., 2022), and total organic carbon content forecasts (Shi et al., 2016), and to model shale gas production (Kalantari-Dahaghi et al., 2015; Belyadi, 2021). However, no effective method or machine learning-based solution currently exists to forecast lacustrine shale lithofacies types in continental rift basins.

The Jiyang Depression is a typical Cenozoic continental rift basin in eastern China that is rich in shale oil, and many shale oil wells have been drilled with cores. Conventional logging interpretation methods to select target layers in the early stages of shale oil exploration are poor, and alternative methods for lithofacies types forecast and accurately identifying target layers are urgently needed. This study on the upper Es₄ member of the Dongying Sag in the Jiyang Depression is based on core observation, thin-section identification, and elemental and well logging analysis. This work performed lithofacies type forecast modeling using machine learning methods, compared the modeling results, and discussed factors affecting the accuracy of lithofacies type forecasts. As the exploration area has sufficient test data to establish an effective learning sample database, this work provides guidance to forecast the lithofacies types of shale strata with strong heterogeneity.

2 Geological background

The Bohai Bay Basin is a continental rift basin located in eastern China and contains a series of Paleogene-rifted depressions, namely, the Liaohe, Liaodong Bay, Bozhong, Jiyang, Huanghua, Jizhong, and Linqing Depression (Figure 1A; Liang et al., 2016). Dongying Sag developed during the Cenozoic rifting stage, in the southeastern of the Jiyang depression of the Bohai Bay Basin, and covers an area of 5,700 km². It can be subdivided into four subsags (Minfeng, Lijin, Niuzhuang, and Boxing subsags) by several normal faults and the central anticlinal belt (Figure 1B).

FIGURE 1

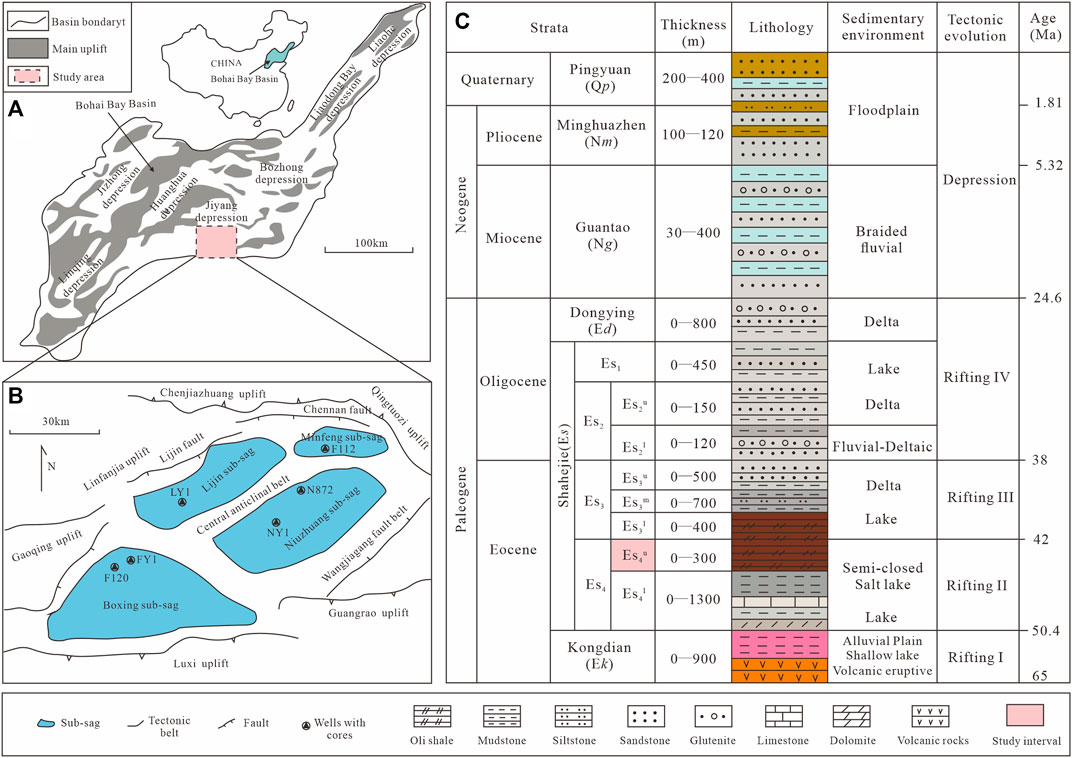

FIGURE 1. Location map (A), structural map and key well locations of the Dongying Sag, (B) and its stratigraphic column (C).

The Dongying Sag underwent rifting during the Paleogene period and a subsidence stage during the Neogene and Quaternary periods and was filled with a thick Cenozoic sediment sequence such as the Paleogene Kongdian (Ek), Shahejie (Es), and Dongying (Ed) formations (Figure 1C). The Es Formation is the main source rock and reservoir in the basin and is further divided into four members, Es_4, Es₃, Es₂, and Es₁ (from base to top). During the sedimentary period of Ek formation, the Dongying Sag was in the initial stage of rifting (Rifting I) due to crustal extension caused by an upwelling of the deep mantle and volcanic eruptions. The lacustrine basin had a shallow-water environment and a semi-arid climate, resulting in the deposition of red mudstone that contained gypsum salt. During the sedimentary period of Es₄ (Rifting II), the climate gradually changed to a warm–semi-arid condition and the lake level rose, resulting in the deposition of black oil shales (Figure 1C). The upper part of the Es₄ member (Es₄^u) consists of gray to black shales, calcareous shales, and mudstones. During the Es₃ period, the lacustrine basin witnessed rift spreading (Rifting III), causing lake area expansion and water depth increase, resulting in the deposition of dark mudstones and calcareous shales. During the Es₂ to Ed period, the lacustrine basin witnessed the shrinking of the rift (Rifting IV) and deposition of lacustrine delta strata.

At present, the shale oil wells drilled in the Es₄^u member of the Dongying Sag have achieved industrial oil flow. The member mainly comprises ∼300 m thick lacustrine shales and gradually becomes a very important exploration target for shale oil (Wang et al., 2019). During the early exploration for shale oil, a few exploratory wells (i.e., FY1, NY1, and LY1) (Figure 1B) drilled through the Es₄^u member, and a large amount of basic data was obtained. This study primarily focused on the Es₄^u member to forecast lacustrine shale lithofacies types based on machine learning.

3 Lithofacies classification

Lithofacies classification is the basis for building a learning sample database for machine learning. Recent studies have shown that the shale in the Dongying Sag can be divided into three major sedimentary categories (Wang et al., 2016). However, a unified understanding of the origin and sedimentary environment of each lithofacies is lacking. Well FY1 has a continuous core in the upper Es₄ unit (from 3,245 to 3,440 m) of the Dongying Sag. In this study, the 195 m core was carefully observed and a total of 753 thin sections were made to identify the rock composition and microstructure, with an average of 1 thin section per 0.25 m. Core observation and thin-section identification of the typical components and sedimentary structures of shale can reflect the characteristics of the sedimentary environment. Finally, according to the characteristics of the mineralogical compositions and microstructures, the shale lithofacies in the upper Es₄ unit of Well FY1 were divided into six major types and 22 minor types. A detailed description of this process is as follows.

The lithofacies deposited on lower coastal slopes include massive/layered silty fine sandstone (LL1), massive/layered cryptocrystalline granulated dolomite (LL2), and massive/layered cryptocrystalline granulated limestone (LL3). LL1 has a massive or layered structure and granular texture. The clastic particles are primarily very fine sand with a small amount of silt. The clastic components are mainly quartz and feldspar, as well as crystalline rock fragments, mica, and calcite. The intergranular fillings are mainly clay minerals, dolomite, and calcite. LL2 and LL3 have massive or layered structures and granular textures dominated by sand-sized grains and partial silt-sized grains. The grains include cryptocrystalline dolomitic and limy silt-to-sand sized allochem, oolites, and bioclasts with a certain amount of terrigenous clasts.

The lithofacies deposited in the upper shallow lake slope included layered silty mudstone muddy siltstone (US1), layered muddy cryptocrystalline dolomite bearing algal remains (US2), and layered ostracod-bearing muddy cryptocrystalline limestone (US3). US1 has a layered and partially laminated structure with relatively straight bedding and lamina boundaries. The silt is mixed with mud. US2 has a layered structure and is composed mainly of dolomite, calcite, mud, and small amounts of terrigenous clasts. The mud is uniformly mixed with dolomite. Deformed algal bands and algal remains filled completely by single-crystal calcite were also observed. US3 has a layered structure and is composed mainly of grains, calcite, mud, and silt. The grains are mainly ostracod fragments with a small amount of remaining microcrystalline-cryptocrystalline limy algal. The ostracod fragments show a significant directional arrangement.

The lithofacies deposited on the middle shallow lake slopes include layered mudstone (MS1), layered cryptocrystalline limestone (MS2), layered ostracod- and silt-bearing mudstone (MS3), and layered cryptocrystalline dolomite (MS4). MS1 has a layered structure and muddy texture. It is mainly composed of mud with a small amount of silt and occasional oriented ostracod fragments. MS2 and MS4 have layered structures. They are composed of cryptocrystalline lime or dolomite and a small amount of mud. MS2 and MS4 are generally homogeneous and not subjected to hydrodynamic action. MS3 has a layered structure and muddy texture. It is primarily composed of mud with silts and ostracod fragments oriented along the bedding plane.

The lithofacies deposited in the lower shallow lake slope include lenticular laminated limestone-mudstone (LS1), lenticular laminated dolomite-limestone (LS2), lenticular imbricate limy-silty-muddy peperite (LS3), and lenticular Ostracoda-bearing limestone-mudstone (LS4). LS1 exhibits a lenticular structure. Micritic or powder crystal limes are lenticular, banded, and wrapped in mud with small amounts of silt. LS2 also exhibits a lenticular structure. The micritic or powdered crystal limes are lenticular, banded, and wrapped in clay and dolomite layers. Dolomite displays a micritic texture with a uniform crystal size. LS3 also has a lenticular structure. The micritic or powdered crystal limes are lenticular, banded, and filled with or wrapped in mud and silt. LS4 features lenticular lamina. Micritic or powder crystal limes are lenticular, banded, and wrapped in mud containing a small amount of silt. Oriented ostracod fragments are also observed in LS4.

The lithofacies deposited in the semi-deep lake include laminated muddy cryptocrystalline limestone (SD1), laminated muddy sparite limestone (SD2), laminated muddy cryptocrystalline dolomite (SD3), and laminated dolomitic muddy cryptocrystalline limestone (SD4). SD1 and SD3 have laminated structures with fine, straight laminae. The lamination is mainly displayed in the interbedding of organic-rich clayey lamina and limy or dolomitic lamina. The laminae are evenly distributed with clear boundaries. The lamina is 0.05–0.15 mm thick. The limy and dolomitic materials have micritic or powder crystal textures. SD2 has the same structure and composition as SD1 but includes limy laminae with medium to fine crystal texture and a higher content of organic matter in the interbedded clayey laminae. The medium-to-fine crystal limy lamina was recrystallized from the micritic limy lamina. SD4 has a laminated structure. The three main types of laminae—limy, clayey, and dolomite mitochondrial laminae—show uneven thicknesses and distributions.

The lithofacies deposited in the deep lake include laminated organic-rich mudstone (D1), laminated lime-bearing mudstone (D2), laminated mudstone containing sparry calcite (D3), and laminated dolomitic mudstone (D4). D1 has a laminated structure and is mainly composed of clay minerals. The lamination is displayed in the interbedding of clayey and organic laminae, and the bedding or lamina interface is straight. D2 also has a laminated structure. The lamination is displayed as the interbedding of clayey and organic lamina, with a small amount of cryptocrystalline limy lamina unevenly distributed between the former types of laminae. The structure of D3 is like that of D1 but differs from that of D1 in the local distribution of leguminous coarse and chain-shaped fine crystal calcite along the lamina. Both leguminous and chain-shaped calcites were formed during diagenesis. Lastly, D4 also has a laminated structure. The bedding mainly consists of dolomite mitochondrial laminae. The dolomite presents a fine crystal and micritic texture and develops densely in the mitochondrial form, including some organic matter and clayey lamina.

The 22 lithofacies types varied in mineral compositions and structures (Figure 2). Typical microscopic images of the various lithofacies are shown in Figure 2. The laminated lithofacies deposited in a semi-deep lake (SD1–SD4) are the most favorable lithofacies to extract shale oil (Sun, 2017). Different sedimentary environments form shales with different components and structures, which function as the physical basis or mechanism to predict shale lithofacies.

FIGURE 2

FIGURE 2. Lithofacies types of shale in the upper member of Es₄ of the Dongying Sag.

In this study, the vertical lithofacies from 3,245 to 3,440 m in Well FY1 were distinguished using thin-section identification and color and structural changes in the continuous core section images (Figure 3A). The frequencies and thicknesses of the different lithofacies varied (Figure 3B). In the entire core section, LS1 was the thickest and had the second-largest frequency; MS1 was the second thickest and had the largest frequency; D2, LL1, LL2, LL3, LS2, LS4, MS2, MS4, and US2 had smaller thicknesses and frequencies; and the remaining lithofacies had medium thicknesses and frequencies.

FIGURE 3

FIGURE 3. Example of vertical lithofacies division (A) and frequency and thickness statistics of different lithofacies types (B).

4 Data and methods

4.1 Data acquisition

Nearly all oil and gas exploration and development wells have acquired well logging data. Logging data lithology and lithofacies identification have wide applicability; therefore, samples from well logging data were preferred in this study. A total of 1,561 logging data sampling points exist in the upper Es₄ of Well FY1, from 3,245 to 3,440 m, with a sampling interval of 0.125 m. Five logging parameters that are sensitive to shale lithology and lithofacies were selected as the sample sources, namely, natural gamma ray logging (GR), resistivity, acoustic slowness, density (DEN), and compensated neutron logging. All logging data were normalized by Shengli Logging Company before they were obtained. The relationship between well logging data and lithofacies was preliminarily analyzed, as shown in Figure 4. Different lithofacies have different ranges of GR values; a small portion has obvious differences, and a large portion has overlapping GR ranges (Figure 4A). Other logging responses exhibit similar characteristics. In the cross-plot of GR and DEN (Figure 4B), differentiation between the lithofacies was very low. With an increase in the number of lithofacies classifications, the difference in logging responses of various lithofacies decreases, and the difficulty of lithofacies prediction increases. The traditional method of attribute intersection is not sufficient to work with high-dimensional attributes because the attributes of various lithofacies are often intersectional or even inclusionary.

FIGURE 4

FIGURE 4. Boxplot of gamma-ray logging values for different lithofacies types (A) and cross-plot of DEN-GR (B).

In addition, because the components and sedimentary structures of shale are strongly related to the paleoenvironment (Croudace et al., 2015; Wang et al., 2021; Fu et al., 2018), paleoenvironmental parameters can reasonably be used to predict lithofacies. This is useful to determine differences between shale lithofacies. By testing the strength of the output signal, a portable X-ray fluorescence spectrum scanner (XRF) can qualitatively and semi-quantitatively analyze the chemical element compositions of sediments and obtain high-resolution, continuous element records. XRF is advantageous in that it is minimally destructive, convenient, and fast; it has been widely used to study sedimentary paleoenvironmental changes in sediments in lakes, oceans, rivers, and loess sedimentation (Tian et al., 2011). The present study used a handheld XRF (Bruker Company) on the core section of Well FY1 from 3,245 to 3,440 m using the general mode, 10 kV detection voltage, 0.15 mA current, 60 s detection time, and 4–15 cm sampling interval. A total of 2,334 data points were obtained, and major (Ca, Si, Al, Mg, Fe, K, etc.) and trace (Ti, Rb, Cr, Mn, Sr, p, Cu, Zr, etc.) elements were detected in more than 20 species. All elemental data obtained by XRF were normalized using Origin 9.0. Five paleoenvironmental parameters widely used to study sedimentary environments were obtained: the Rb/Sr ratio (paleoclimate parameter), Sr % (paleosalinity parameter), Ti % (paleoprovenance parameter), Fe/Mn ratio (paleo-water depth parameter), and P/Ti ratio (paleoproductivity parameter) (Fu et al., 2018; Liu et al., 2019; Yang et al., 2021). Lithofacies are the product of paleoenvironmental and diagenetic evolution, and the elements in shale are affected by both. The shale thickness in the study area reaches hundreds of meters, and the diagenesis process is in a closed system, hindering long-distance fluid migration and exchange. Therefore, the sedimentary environment is the main controlling factor for the composition and structure of shale in the study area. In addition, considering the influence of diagenesis, the selected paleoenvironmental parameters were elements with relatively slow migration rates in diagenetic evolution, which were often used as important indicators in previous research on the paleoenvironment of shale formation.

The sample distributions of different lithofacies are shown in Figure 5. Owing to the differences in thickness, the well logging and paleoenvironmental data quantity varied significantly for each lithofacies. In addition, owing to the detection limits of the XRF instrument, five paleoenvironmental parameters were incomplete at some depth points, resulting in slightly fewer paleoenvironmental parameter data points than logging data points.

FIGURE 5

FIGURE 5. Sample quantities for different lithofacies types.

4.2 Sample extraction

Lithofacies predicted by well logging or paleoenvironmental parameter data should be matched one-to-one with the lithofacies according to depth. Two correspondence or sample extraction modes were used in this study: point-to-point and curve shape-to-point (Figure 6).

FIGURE 6

FIGURE 6. Sketch of point-to-point and curve shape-to-point sample extraction modes.

The point-to-point sample extraction mode is suitable for predicting lithofacies from either well logging or paleoenvironmental parameter data. The well logging sampling interval was 0.125 m. Thus, the data and corresponding lithofacies were extracted at 0.125 m intervals in the depth domain to form a one-to-one sample database. The sampling interval of the paleoenvironmental parameters was 0.05–0.15 m; thus, the paleoenvironmental parameters and corresponding lithofacies were extracted at the same intervals. The two sample databases must be used separately owing to the different sampling intervals, which prevented their fusion.

When predicting lithofacies using two sets of data, the curve shape-to-point sample data extraction mode must be used to obtain fusion information of the two types of data. We selected the 0.05 m sampling interval as the final sampling interval to extract the depth points. For each depth point, the nearest data points (selecting the three nearest paleoenvironmental parameter data points and the four nearest well logging data points) were acquired to represent the morphological characteristics of the sample values.

4.3 Selection of machine learning methods

Considering the heterogeneous distribution and quantity differences of the different lithofacies types, two machine learning methods were chosen: support vector machine (SVM) and extreme gradient boosting (XGBoost).

SVM is a representative machine learning method that has significant advantages in solving identification problems with small, non-linear, and highly dimensional sample sizes. Its main function is to identify the most important learning samples (called support vectors) that affect pattern judgment during training and then complete the data prediction based on these samples, thereby greatly improving fault tolerance and calculation efficiency (Suykens and Vandewalle, 1999; Vapnik, 1999). Li et al. (2019) analyzed the importance of machine learning methods in lithology identification and demonstrated the effectiveness of the SVM model. The theory and specific formula of the SVM are described in detail in Machine Learning in Action (Harrington, 2012), and a principal map of the SVM is shown in Figures 7A,B. An SVM is essentially a classification method with the function:

$f\left(x\right)={\mathrm{w}}^{T}x+b.$

FIGURE 7

FIGURE 7. Principle sketch map of support vector machine (SVM); two-dimensional linear classification (A); two-dimensional non-linear classification (B) (quote from Harrington (2012) and modified locally) and extreme gradient boosting (XGBoost); the final prediction for a given example is the sum of the predictions from each tree (C) (quote from Chen and Guestrin (2016)).

The learning goal of the SVM is to identify a hyperplane in the n-dimensional data space. The equations for this hyperplane can be expressed as ${\mathrm{w}}^{T}x+b=0$, where w is a vector perpendicular to the hyperplane, defined as the normal vector, and b is the offset. Given the training dataset $D=\left(x1,y1\right),\left(x2,y2\right),\dots ,\left(xn,yn\right)$, let ${\mathrm{w}}^T{x}_i+b\ge 1,y_i=+1;{\mathrm{w}}^T{x}_i+b,y_i=-1$. The vertical distance from any point to the hyperplane is $\gamma$, where ${\gamma }_i=\left|{\mathrm{w}}^T{x}_i+b\right|/‖\mathrm{w}‖$. The vertical distance from the support vector to the hyperplane is $\stackrel{\sim }{\gamma }$, where $\stackrel{\sim }{\gamma }=1/‖\mathrm{w}‖$. When $\stackrel{\sim }{\gamma }$ is at its maximum (reaching the largest margin), the optimal hyperplane is obtained. Therefore, the objective is to solve $\underset{w,b}{\max }1/‖w‖$ , which is equivalent to solving $\underset{w,b}{\min }{‖\mathrm{w}‖}^2/2$.

Because of outliers (data points far from the normal position), the slack variable ${\xi }_i$ was introduced, which is the number of corresponding data points $x$ can deviate from the functional margin. If ${\xi }_i\ge 0$, then $\left({\mathrm{w}}^T{x}_i+b\right)+{\xi }_i\ge 1$. Finally, the objective is to solve:

$\underset{w,b,\xi }{\min }\left({‖\mathrm{w}‖}^2/2+\mathrm{C}{\displaystyle \sum _{i=1}^n}{\xi }_i\right),$

where C is a hyperparameter >0, called the penalty parameter, which controls the weight between the two items in the objective function; namely, finding the hyperplane with the largest margin and ensuring minimal deviation of data points.

Kernel functions $\left(k\left(x_i,x\right)\right)$ are required for non-linear classification problems. In this study, the radial basis function (RBF), $k\left(xi,yi\right)=\exp \left(-{‖xi-yi‖}^2/2{\sigma }^2\right),$ where $\gamma =-1/2{\sigma }^2$, is selected for the kernel functions. In calculating the optimal solution, the Lagrange multiplier $\left(\alpha \right)$ must be introduced, and the original classification function becomes:

$f\left(x\right)={\displaystyle \sum _{i=1}^n}{\alpha }_i{y}_{i}k\left(x_i,x\right)+b.$

When given values for C and $\gamma$, the optimal solution for W,b,α can be obtained through the Lagrange function to determine the hyperplane. C and $\gamma$ are two important parameters affecting the model accuracy.

XGBoost can solve related problems using less data. XGBoost is a distributed general gradient-boosting library that improves the gradient-boosting decision tree and aims for efficiency, flexibility, and portability. The calculation efficiency of the XGBoost model generally decreases with increasing numbers of independent variables in the sample. When considering more independent variables, several variables are randomly selected to reorganize the learning samples so that the model can quickly process smaller learning samples (Liu et al., 2021). XGBoost avoids overfitting with high probability during the training process, thereby ensuring its reliability. Owing to the integration of parallel computing technology, the calculation efficiency of the model does not decline significantly with increasing training sample size (Zhou et al., 2020; Den et al., 2019). The theory and specific formula of XGBoost are described in detail by Chen and Guestrin (2016), and a principal sketch map of XGBoost is shown in Figure 7C. The core concept of XGBoost is to constantly add trees and split features to grow a tree. By adding a tree each time, a new function $f\left(x\right)$ is learned to fit the residual predicted last time; when training is complete and K trees have been obtained, a sample will fall in a leaf node of each tree, and each leaf node obtains a score corresponding to the characteristics of the sample. Finally, the predicted value of the sample is obtained by adding the corresponding scores of each tree.

The prediction function of XGBoost model is defined as

${\widehat{y}}_i={\displaystyle \sum _{k=1}^K}{f}_k\left(x_i\right),f_k\in F,$

where $f_k$ is the kth regression tree, F represents the set of classification and regression trees, and ${\widehat{y}}_i$ is the predicted value of the ith sample.

The loss function L is represented by the predicted value $L$ and true value $y_i$:

$L={\displaystyle \sum _{i=1}^n}l\left(y_i,{\widehat{y}}_i\right),$

where n is the number of samples. The loss function represents deviation in the model, and the variance is determined by the regular term Ω that suppresses the model’s complexity. The objective function Obj can be defined as

$Obi={\displaystyle \sum _{i=1}^n}l\left(y_i,{\widehat{y}}_i\right)+{\displaystyle \sum _{k=1}^K}\mathrm{\Omega }\left(f_k\right),\mathrm{\Omega }\left(f_k\right)=\gamma T+\lambda {‖\omega ‖}^2/2,$

where T represents the number of leaf nodes, ω is the leaf weight value, γ is the penalty factor of the leaf tree, and λ is the leaf weight penalty factor. For each step, the loss function values must be calculated, and the objective function to obtain $f\left(x\right)$ must be optimized. Finally, an optimal ensemble model is obtained based on the additive method (Liu et al., 2021).

K-fold cross-validation was selected to optimize the model parameters in the present study. This robust hyperparameter optimization method identifies a hyperparameter value to optimize the model generalization performance, effectively utilizing limited data and making the evaluation results as close as possible to the performance of the model in the test set. The training set in our study was divided into five parts. In the cross-validation process, we selected one part for training and the other four parts for verification, cycle training, and testing to ensure that each part was trained and tested. The average of five test results was returned, which was used as an estimate of model accuracy. A sketch of the K-fold cross-validation process is shown in Figure 8.

FIGURE 8

FIGURE 8. Sketch of K-fold cross-validation process.

5 Modeling process

A total of six modeling processes were performed to forecast the lithofacies types as follows: a) well logging data based on the SVM method in the point-to-point sample extraction mode; b) paleoenvironmental parameter data based on the SVM method in the point-to-point sample extraction mode; c) paleoenvironmental parameter data based on the SVM method in the curve shape-to-point sample extraction mode; d) well logging data based on the SVM method in the curve shape-to-point sample extraction mode; e) well logging data and paleoenvironmental parameter data based on the SVM method in the curve shape-to-point sample extraction mode; f) well logging data and paleoenvironmental parameter data based on the XGBoost method in the curve shape-to-point sample extraction mode.

The modeling flowchart of the lithofacies type forecasts based on the SVM and XGBoost models is shown in Figure 9. Each modeling process could be divided into three steps, namely, data preprocessing, model building, and model application.

FIGURE 9

FIGURE 9. Modeling flowchart of lithofacies prediction based on support vector machine (SVM) and extreme gradient boosting (XGBoost) models.

Step 1. Data preprocessing: The lithofacies were numbered from 1 to 22: D1, 1; D2, 2; D3, 3; D4, 4; LL1, 5; LL2, 6; LL3, 7; LS1, 8; LS2, 9; LS3, 10; LS4, 11; MS1, 12; MS2, 13; MS3, 14; MS4, 15; SD1, 16; SD2, 17; SD3, 18; SD4, 19; US1, 20; US2, 21; and US3, 22. According to the different experimental conditions, a sample extraction mode was selected to extract samples from the raw data to build a correspondence sample dataset. Finally, the sample was randomly divided into training and prediction data at a ratio of 7:3, and the training data were further divided into five parts.

Step 2. Model building: The model was trained using the training data and K-fold cross-validation. The optimum model hyperparameters were selected. The SVM model had two important parameters, C and $\gamma$, as described in Section 4.3, where C was the penalty coefficient representing the error tolerance. When the C value was larger, the error is more intolerable and overfitting was more likely. When the C value is smaller, underfitting occurs more easily. Therefore, if the C value is too large or small, the generalization ability is poor. $\gamma$ is a parameter of the RBF that was selected as the kernel, which implicitly determined the distribution of the data mapped in the new feature space. When the $\gamma$ value was larger, there are fewer support vectors; similarly, when the $\gamma$ is smaller, more support vectors are present. The number of support vectors affected the training and prediction speeds. The ranges of C and $\gamma$ are presented, and the K-fold cross-validation method was used to calculate the scores of the training (Figure 10A) and testing (Figure 10B) samples. In building the XGBoost model, two important parameters, max_Depth and n_estimator, were selected for optimization. max_Depth represented the maximum depth of each binary tree, the value of which was used to avoid overfitting. When the max_Depth value was larger, the model learns more specific and local samples, and overfitting occurred more easily; when the max_Depth value was smaller, underfitting occurred more easily. The n_estimator was the total number of iterations in the decision tree. Similarly, the K-fold cross-validation method was used to select the optimal hyperparameter combination of max_Depth and n_estimator in the XGBoost model (Figures 10C,D).

FIGURE 10

FIGURE 10. Cross-validation and parameter optimization analysis of models (a) and (f): (A) and (C) show the scores of forecast accuracies caulated by using training samples in model (a) and (f); (B) and (D) show the scores of forecast accuracies caulated by using testing samples in model (a) and (f).

Step 3. Model application: The optimal model was selected, and the lithofacies type forecasts were conducted to output the resulting map. Figure 10 also shows the complex relationship between the accuracy and the parameters. Overall, we observed no obvious linear relationship between them, and the accuracy was controlled by either the C and $\gamma$ values or the max_Depth and n_estimator values. Based on the high scores of the training and testing samples, the optimal combination of the C and $\gamma$ values or max_Depth and n_estimator values determined the final prediction model.

6 Modeling results

The forecast accuracies of the six models were determined according to the output results, as shown in Figure 11 and Table 1. Model e) showed the highest average forecast accuracy for all lithofacies types, reaching 68%, as well as the highest average forecast accuracy for favorable lithofacies types at 98%. Model b) showed the lowest average forecast accuracy for all and favorable lithofacies types. Models d) and f) showed forecast accuracies similar to those of model e). Model c) showed a forecast accuracy similar to that of model b). Overall, model e) was the most applicable for the forecasting of lacustrine lithofacies types.

FIGURE 11

FIGURE 11. Shale lithofacies type modeling results at Well FY1 based on machine learning.

TABLE 1

TABLE 1. Comparison of machine learning results for different modeling conditions.

For favorable lithofacies types, the average forecast accuracy of models (a-f) reached 82%–98%. The accuracy fully met the exploration requirements for accurately identifying target layers and confirmed the feasibility of machine learning for forecasting lacustrine lithofacies types. In addition, based on SVM, the average forecast accuracy of all lithofacies types was improved by 7%–28% using both well logging data and paleoenvironmental parameter data, rather than using just either data, and by 7%–8% by using the curve shape-to-point sample extraction mode compared to the point-to-point sample extraction mode. These improvements in forecast accuracy indicated that the introduction of paleoenvironmental parameters data was effective and that the sample extraction mode can affect the forecasting results. Therefore, when using machine learning to forecast lacustrine lithofacies types, the selection of data extraction mode and the application of data types are prerequisites for obtaining good results.

Overall, the modeling results reveal the forecast accuracies under different conditions (see Section 5), laying a foundation for finding effective methods and processes to forecast lacustrine shale lithofacies types in continental rift basins. When using machine learning methods, selecting the curved shape-to-point sample extraction mode and inputting both types of data is an effective way to improve the forecast accuracy.

7 Discussion

From a geological perspective, the relatively low average forecast accuracy for all lithofacies types occurred because the learning sample quantity of the different lithofacies types varied significantly. With many learning samples, the average forecast prediction accuracy is high, whereas the training accuracy is very low, leading to lower forecast accuracy. Figure 12 shows the relationship between the learning sample size and forecast accuracy. When the number of learning samples was >45 for a single lithofacies type, the forecast accuracy was >90%.

FIGURE 12

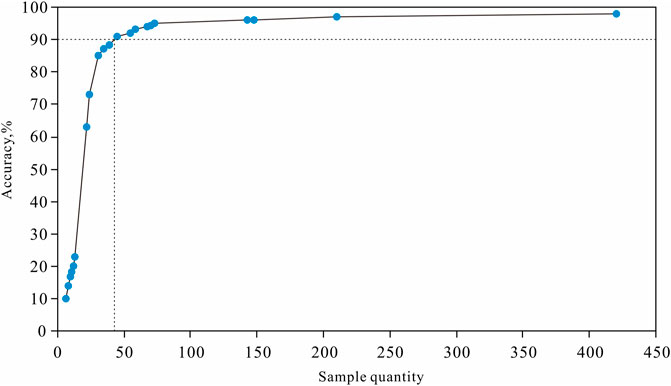

FIGURE 12. Relationship between learning sample quantity and forecast accuracy (statistics from model (a)).

Paleoenvironmental parameters directly influence shale lithofacies. Theoretically, the accuracy of lithofacies type forecasts using paleoenvironmental parameter data should be the highest; however, the actual forecast accuracy from the modeling results was quite low. The most likely explanation for this is the complex structure of lacustrine shale. For the same lithofacies tested by XRF at different locations, the paleoenvironmental parameters also differed due to heterogeneity within the lithofacies. In laminated lithofacies with limy and clayey lamina, the testing focal spot of XRF is in the lamina, producing different test results. This causes the value range of paleoenvironmental parameters to be relatively wide, overlapping with values in different lithofacies types, such as Sr content (Figure 13). This reduces the effectiveness of machine learning and the forecast accuracy, leading to a lower accuracy using paleoenvironmental parameter data.

FIGURE 13

FIGURE 13. Boxplot of Sr content for different lithofacies types.

Machine learning is an effective method for solving complex geological problems. However, further research is required regarding lacustrine shale with strong heterogeneity in continental rift basins. First, rock microstructure is the key factor affecting shale reservoirs and is an important criterion for lithofacies classification, leading to heterogeneity and anisotropy in classification results. Therefore, additional physical experiments of rock microstructure are needed to further reveal the typical features of various lithofacies types and to enrich the learning samples. Second, correlation studies between logging response, element content or ratio, and shale microstructure are needed. Third, the current study did not improve on the calculation methods of SVM and XGBoost; thus, further optimization and improvement of machine learning methods are the focus of future research. We believe that the forecast accuracy of lacustrine shale lithofacies types can be improved by machine learning methods, which will be a positive step in the evaluation of shale oil sweet spots in oil fields worldwide.

8 Conclusion

The shale lithofacies in the upper Es₄ unit of the Dongying Sag were distinguished using the components and structural changes shown in the core and thin sections. Considering the sedimentary composition and structure as the main criteria, the shale lithofacies of the upper Es₄ unit in Dongying Sag were divided into six major and 22 minor types. Statistical analysis showed that the quantities and thicknesses of the different lithofacies types varied significantly.

Six machine learning-based modeling processes were conducted using well logging and paleoenvironmental parameter data. The forecast accuracy for all and favorable lithofacies types was highest when using both types of data to forecast lithofacies types using the SVM method and the curved shape-to-point sample extraction mode, whereas the accuracy was lowest when using only paleoenvironmental parameter data based on the SVM method with the point-to-point sample extraction mode.

The differences in the learning sample quantities of different lithofacies types affect the average forecast accuracy of all lithofacies types. The heterogeneity within the lithofacies results in a value range overlap with the paleoenvironmental parameter data, which also affects forecast accuracy.

Taken together, our results demonstrate progress compared to previous studies (i.e., Tahmasebi et al. (2017); Naeini and Prindle (2018); Dev and Eden (2019); Guo (2021)). First, we used a machine learning method to forecast the key features of the sedimentary structure of shales and lacustrine shale lithofacies type classification, rather than using these methods mainly to forecast mineral components, as in previous studies. Second, this study is the first to apply paleoenvironmental parameter data with well logging to forecast shale lithofacies types, which achieved significant forecast accuracy.
