Fluid inclusion, zircon U-Pb geochronology, and O-S isotopic constraints on the origin and evolution of ore-forming fluids of the tashvir and varmazyar epithermal base metal deposits, NW Iran

Tashvir and Varmazyar deposits are part of the epithermal ore system in the Tarom–Hashtjin Metallogenic Belt (THMB), NW Iran. In both deposits, epithermal veins are hosted by Eocene volcanic-volcaniclastic rocks of the Karaj Formation and are spatially associated with late Eocene granitoid intrusions. The ore assemblages consist of pyrite, chalcopyrite, chalcocite, galena, and sphalerite (Fe-poor), with lesser amounts of bornite and minor psilomelane and pyrolusite. Fluid inclusion measurements from the Tashvir and Varmazyar revealed 182–287 and 194–285°C formation temperatures and 2.7–7.9 and 2.6–6.4 wt.% NaCl equivalent salinities, respectively. The oxygen isotope data suggested that the mineralizing fluids originated dominantly from a magmatic fluid that mixed with meteoric waters. The sulfur isotope data indicated that the metal and sulfur sources were largely a mixture of magma and surrounding sedimentary rocks. LA-ICP–MS zircon U–Pb dating of the granitoid intrusion at Tashvir and Varmazyar, yielded a weighted mean age of 38.34–38.31 and 40.85 Ma, respectively, indicating that epithermal mineralization developed between 40.85 and 38.31 Ma. Our data indicated that fluid mixing along with some fluid boiling were the main drives for hydrothermal alteration and mineralization at Tashvir and Varmazyar. All these characteristics suggested an intermediate-sulfidation epithermal style of mineralization. The THMB is proposed to be prospective for precious and base metal epithermal mineralization. Considering the extensional tectonic setting, and lack of advanced argillic lithocaps and hypersaline fluid inclusions, the THMB possibly has less potential for economically important porphyry mineralization.

1 Introduction

Epithermal deposits have various styles of mineralization characteristics, alteration, and ore mineral assemblage, and are classified as high-sulfidation (HS), intermediate-sulfidation (IS), and low-sulfidation (LS) types (White and Hedenquist, 1990; Cooke and Simmons, 2000; Hedenquist et al., 2000; Qin et al., 2002; Einaudi et al., 2003; Sillitoe and Hedenquist, 2003; Gemmell, 2004; Simmons et al., 2005). These deposits are commonly associated with subaerial volcanism and calc-alkaline to alkaline intrusions that formed in island arcs and continental arcs at convergent plate margins, as well as in intra-arc, back-arc, and post-collisional rift settings (White and Hedenquist, 1990; Cooke and Simmons, 2000; John, 2001; Sillitoe and Hedenquist, 2003; Simmons et al., 2005). The Alpine–Himalayan Orogenic Belt (AHOB) hosts numerous small-to large-sized porphyry Cu–Mo (Au), orogenic Au, epithermal Au, and Pb–Zn–Cu (Ag), and skarn Fe and polymetallic deposits (e.g., Hou and Wang, 2008; Xie et al., 2017; Richards, 2015; Hou and Zhang, 2015; Kouhestani et al., 2015; Moritz et al., 2016a, b; Searle et al., 2016; Mokhtari et al., 2019). The Tarom–Hashtjin Metallogenic Belt (THMB) is located in the central part of the AHOB (Figure 1A). As a part of the AHOB, the THMB was formed associated with Cenozoic closures of the Neo-Tethyan oceanic branches, i.e., Khoy–Zanjan ocean, and related microcontinental collisions (e.g., Azizi and Jahangiri, 2008; Asiabanha and Foden, 2012; Castro et al., 2013). The THMB is one of the most significant metallogenic belts in northwestern Iran and hosts many epithermal precious and base metal deposits and occurrences, such as Nikoueieh, Marshoun, Zajkan, Zehabad, Khalyfehlou, Chargar, Abbasabad, Chodarchay, Tashvir, Aliabad-Khanchy, Lubin-Zardeh, Aqkand, Jalilabad, Gulojeh, Varmazyar, Chomalou, and Shah Ali Beiglou (Figure 1B; Esmaeli et al., 2015; Mehrabi et al., 2016; Kouhestani et al., 2017; 2018a; 2019a; b, 2020, 2022; Yasami et al., 2017, 2018; Mikaeili et al., 2018; Yasami and Ghaderi, 2019; Mousavi Motlagh and Ghaderi, 2019; Mousavi Motlagh et al., 2019, 2021; Shahbazi et al., 2019; Zamanian et al., 2019; Ghasemi Siani et al., 2022). These deposits are mostly hosted by Eocene volcanic-volcaniclastic rocks of the Karaj Formation and generally cluster around the late Eocene granitoid intrusions which are thought to be genetically related (Ghasemi Siani et al., 2015; Mehrabi et al., 2016; Kouhestani et al., 2018a). On the basis of the sulfidation states, epithermal precious and base metal deposits in the THMB belong to three subtypes: 1) HS (i.e., Chodarchay and north Gulojeh deposits), 2) IS (i.e., Abbasabad, Zehabad, Zajkan, Marshoun, Lubin-Zardeh, Aliabad-Khanchy, south Gulojeh, Jalilabad, Aqkand, Chomalou, and Shah Ali Beiglou deposits), and 3) LS (i.e., Nikoueieh, Khalyfehlou, and Chargar deposits).

FIGURE 1

FIGURE 1. (A). Tectonic sketch map of the Alpine–Himalayan Orogenic Belt (AHOB) showing the location of the Tarom–Hashtjin Metallogenic Belt (THMB) in northwest Iran (modified after Johnson, 2021). (B). Simplified regional geology of the THMB (modified from 1:100,000 geological maps of Iran, Geological Survey of Iran) showing distribution of the Tashvir, Varmazyar, and other epithermal precious and base metal deposits.

The Tashvir and Varmazyar deposits are two small-scale epithermal base metal deposits located in the middle and northwestern parts of the THMB, respectively. According to a 2016 exploration report, the Tashvir deposit has a proven ore resource of 0.12 Mt with average grades of 1.5% Cu, 3% Pb + Zn, and 15 g/t Ag (Kouhestani, 2016). The Varmazyar deposit contains a proven ore resource of 0.10 Mt, grading at 3.1% Pb, 1.6% Zn, and 32 g/t Ag (Karimpouli, 2017). Both deposits are expected to be revealed as medium-sized deposits by more detailed exploration. The Varmazyar deposit has close spatial relationships with late Eocene granitoid intrusions, which provide a good case for studying the relationship between epithermal mineralization and late Eocene magmatism at THMB. The ore deposit geology, mineralogy, and whole-rock geochemistry of the Tashvir and Varmazyar deposits were conducted in previous studies, that were published in Persian (e.g., Kouhestani and Mokhtari, 2019; Ghorbani, 2020; Ghorbani et al., 2022). They argued that the Tashvir and Varmazyar deposits are probably IS-type epithermal mineralization. Nevertheless, little is known about the source of ore-forming fluids and materials and mineralization processes, and no specific information and age data about the relationship between mineralization and granitoid intrusions were reported. As a result, the mineralization type of these deposits is not well understood, which limits the better understanding of their ore-forming mechanism and genesis.

Based on detailed field investigations of the geological characteristics, fluid inclusion (FI) microthermometry, O–S isotopic geochemical analysis, and LA-ICP–MS zircon U–Pb dating of the granitoid intrusions, we discuss the ore genesis of the Tashvir and Varmazyar deposits and the relationship between epithermal mineralization and late Eocene magmatism in the THMB. The results provide helpful information about the mineralization processes of epithermal precious and base metal deposits in the THMB and give a new direction for further exploration in this belt and northwest Iran.

2 Geology and mineralization of the tashvir and varmazyar deposits

Geology and mineralization characteristics of the Tashvir and Varmazyar deposits have been documented in previous studies (e.g., Faridi and Anvari, 2000; Amini et al., 2001; Kouhestani and Mokhtari, 2019; Ghorbani et al., 2022) and the following summaries are from Kouhestani and Mokhtari (2019), and Ghorbani et al. (2022), as well as our field observations.

2.1 Tashvir deposit

The exposed strata at Tashvir include Eocene volcanic and volcaniclastic rocks of the Karaj Formation, and Oligo-Miocene, Miocene, and Plio-Quaternary sedimentary rocks (Figure 2, Kouhestani and Mokhtari, 2019). The Eocene Karaj Formation is widely distributed in the Tashvir area. It is the main strata hosting the ore veins and is composed mainly of tuff (i.e., lithic tuff, crystal tuff, and lithic crystal tuff), ignimbrite, sandy tuff, tuffaceous sandstone, and shale, with interbedded lava flows of andesite, andesitic basalt, and rhyolite-rhyodacite. The Oligo-Miocene strata unconformably overlie or are in fault contact with the Karaj Formation and comprise tuffaceous claystone, siltstone, and conglomerate. The Miocene strata consist mainly of marl, calcareous sandstone, claystone, and local conglomerate. The Plio-Quaternary rocks are less developed in the Tashvir area. They are predominantly composed of loosely cemented, polygenetic, locally marly conglomerates. Parallel and angular unconformities are observed in the contacts between the Oligo-Miocene strata and overlying Miocene strata and the Plio-Quaternary rocks, respectively. Exposed intrusive bodies at Tashvir include only late Eocene granitoid intrusion intrudes into the Eocene Karaj Formation in the southern periphery of the area (Figure 2). It is mainly composed of quartz monzonite, quartz syenite, granite, and alkali granite, and is closely associated to the Chodarchay Cu–Au epithermal deposit (Yasami et al., 2017, 2018; Yasami and Ghaderi, 2019).

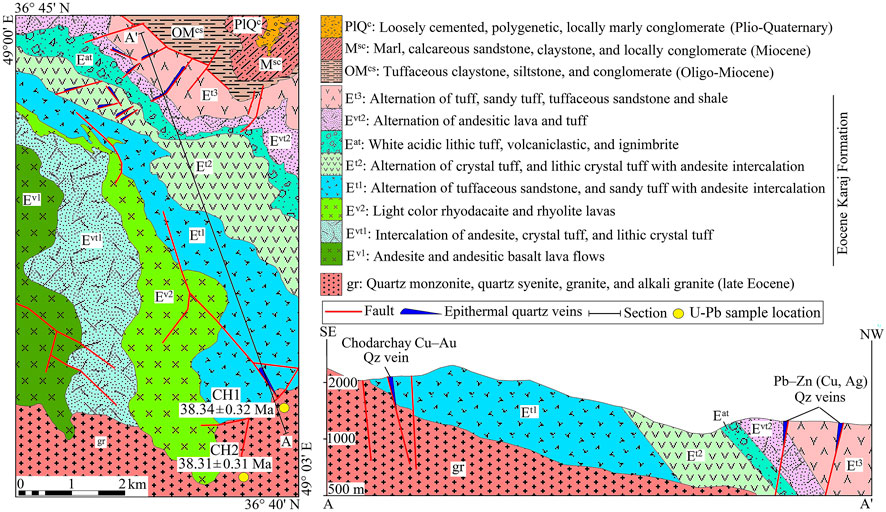

FIGURE 2

FIGURE 2. Geological map of the Tashvir Pb–Zn (Cu–Ag) deposit (modified from Kouhestani and Mokhtari, 2019).

NE- and NW-trending faults are the main faults present within the Tashvir deposit (Figure 2), both of them hosting the ore veins in the northern part. The NE-trending faults are the main ore-controlling structures consisting of a series of faults trending from N15 to N75 E, with dips ranging from 50° to 85°. The NW-trending faults trend from N20 to N40 W, with dip angles of 80–85° or nearly vertical.

Orebodies at Tashvir occur mainly as irregular quartz-sulfide veins along NE- and NW-trending faults in the volcanic-volcaniclastic units (E^t2, E^vt2, and E^t3 units) of the Eocene Karaj Formation (Figures 2, 3A). A total of nine Pb–Zn (Cu–Ag) quartz veins were explored (Kouhestani and Mokhtari, 2019). Seven of these veins strike northeast, with dips in northwestward or southeastward directions at 50°–85°. Two other veins trend northwest to southeast and dip steeply (∼85°) to the northeast. The length and thickness of the ore veins are various, ranging from 25 to 300 m and from 0.75 to 3 m, respectively. The ore veins have similar morphology, sharp contact with their wall rocks, and are enveloped by 1–2 m width intermediate argillic alteration haloes (Figure 3B). Sheeted and stockwork quartz-sulfide veinlets are found around the main veins within the hydrothermal alteration haloes (Figure 3C).

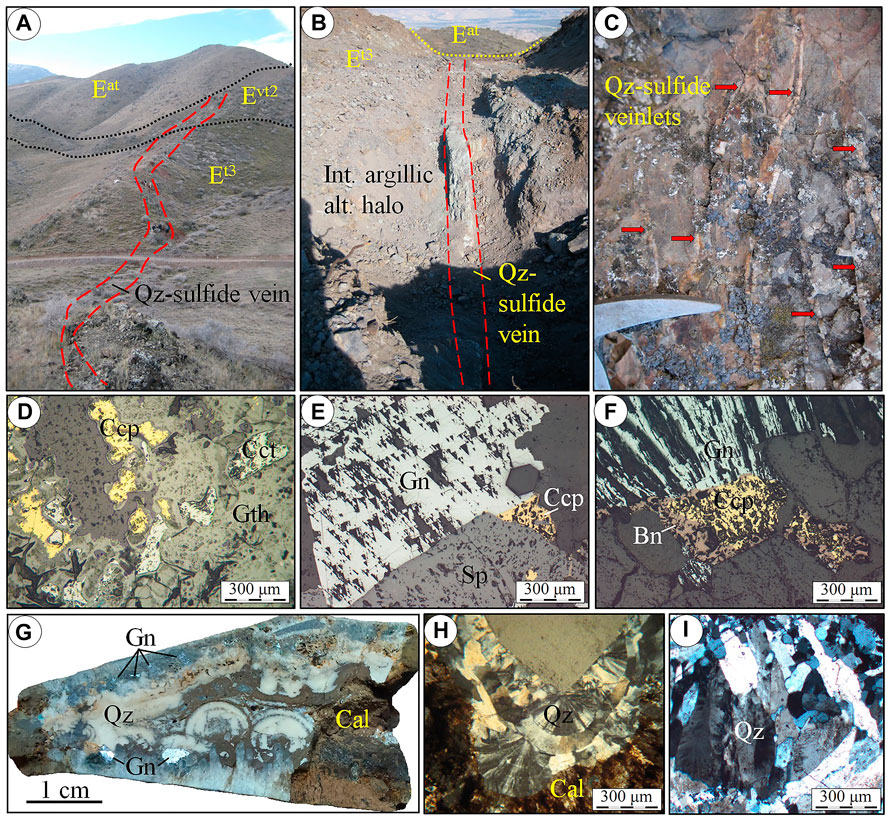

FIGURE 3

FIGURE 3. Photographs are showing characteristics of the ore veins, mineralogy, and textures at the Tashvir deposit. Images in (D–F) are from polished blocks in reflected light, while H and I are taken in transmitted light, XPL. (A). General view of the main quartz-sulfide vein hosted by the E^t3 and E^vt2 units of the Karaj Formation, looking northeast. (B). Quartz-sulfide vein surrounded by 2 m wide intermediate argillic alteration halo, looking northeast. (C). Sheeted mineralized quartz-sulfide veins (red arrows) within the hydrothermal alteration haloes of the main ore veins. (D). Anhedral chalcopyrite is intergrown with chalcocite. (E). Subhedral coarse-grained galena intergrowth with sphalerite and chalcopyrite. Sphalerite enclosed chalcopyrite inclusions. (F). Galena intergrowth with chalcopyrite. Chalcopyrite was replaced by bornite. (G,H). Colloform/crustiform texture of quartz vein. Calcite fills the vugs. (I). Quartz veins with plumose texture. Bn: bornite, Br: braunite, Cal: calcite, Ccp: chalcopyrite, Cct: chalcocite, Cer: cerussite, Gn: galena, Gth: goethite, Lith: tuff fragment, Py: pyrite, Pyr1: primary pyrolusite, Pyr2: secondary pyrolusite, Ps: psilomelane, Qz: quartz, Sm: smithsonite, Sp: sphalerite. Mineral abbreviations follow Whitney and Evans (2010).

The ore minerals in the Tashvir deposit are essentially chalcopyrite, chalcocite, galena, and sphalerite (Fe-poor), with lesser bornite (Figures 3D–F). Silver is not visible and is hosted by galena. The ore minerals occur in veins, vein breccias, stockworks, and breccia infill, and also as dissemination in altered wall rocks. The principal gangue minerals are quartz, calcite, and chlorite with vein-veinlet, vug infill, colloform/crustiform banding, and plumose textures (Figures 3G–I). On the basis of the mineral assemblages, ore textures, and crosscutting relationships, four paragenetic stages of mineralization are distinguished at Tashvir (Figure 4, Kouhestani and Mokhtari, 2019): 1) quartz-polymetallic sulfide (chalcopyrite–chalcocite–galena–sphalerite ± bornite) stage, 2) quartz stage, 3) calcite stage, and 4) chlorite stage. These stages are overprinted by a supergene oxidized zone characterized by covellite, smithsonite, cerussite, malachite, and goethite near the surface.

FIGURE 4

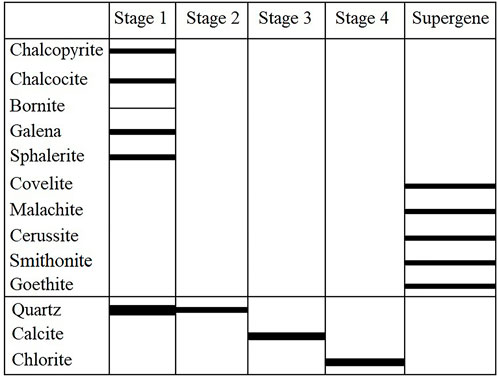

FIGURE 4. Simplified sequence of mineral paragenesis in the Tashvir deposit (after Kouhestani and Mokhtari, 2019).

The hydrothermal alteration is chiefly distributed along and in the locality of fracture zones which are filled by the quartz-sulfides and, or calcite and chlorite. Quartz, sericite‒illite (intermediate argillic), carbonate, and chlorite types of hydrothermal alteration occur close to the ore veins (10 cm–∼2 m from veins), whereas pervasive sericite‒epidote‒chlorite‒calcite (propylitic) alteration occurs at farther away locations (Kouhestani and Mokhtari, 2019).

2.2 Varmazyar deposit

The Varmazyar deposit is hosted by a series of Eocene volcanic and volcaniclastic strata of the Karaj Formation that were intruded by late Eocene intrusions (Figure 5, Ghorbani et al., 2022). The Karaj Formation can be subdivided into two units in ascending sequence. Unit one is dominated by alternating intermediate lithic tuff, lithic-crystal tuff, and crystal tuff with andesite, basaltic andesite, and basalt intercalations. Unit two is mainly composed of an alternation of acidic lithic tuff, lithic-crystal tuff, and crystal tuff with some rhyodacite intercalation. The intrusive rock in this area consists of the Haji Seyran pluton that is exposed mainly in the southern parts of the Varmazyar area (Figure 5). It ranges in composition from monzogranite to syenogranite and is composed of plagioclase (10–30%), K-feldspar (35–60%), quartz (15–20%), biotite (5–10%), and some hornblende (5%), with coarse-to medium-grained porphyritic to porphyroidic and granular textures. The accessory minerals are clinopyroxene, sphene, apatite, and zircon. The main structures in the Varmazyar area are N- and NE-trending faults (Figure 5). The NS-trending faults are the critical ore control faults that dip 65°–85° westward. The NE-trending faults trend from N20 to N40 E, with dip ranging from 60 to 75°.

FIGURE 5

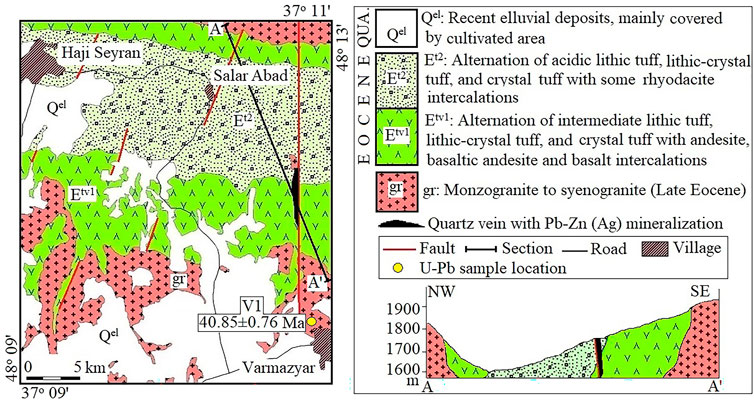

FIGURE 5. Geological map of the Varmazyar Pb–Zn (Ag) deposit (modified after Ghorbani et al., 2022).

Pb–Zn (Ag) mineralization at Varmazyar occurred as an asymmetrical quartz-sulfide brecciated vein that occupies an N-trending fault in the volcanic-volcaniclastic units (E^tv1 and E^t2 units) of the Eocene Karaj Formation (Figures 5, 6A). The Pb–Zn (Ag) ore vein has up to 300 m in length and 2–3 m in width and is usually dipping to the west at 65°–80° with about 150–200 m down-dip extensions (Ghorbani et al., 2022). It has clear contact with its wall rocks and is covered by a ∼2 m width intermediate argillic alteration halo in the hanging wall (Figures 6B,C). In some parts of the deposit, later Mn-bearing quartz-calcite vein-veinlets crosscut the primary Pb–Zn (Ag) ore vein (Figure 6C).

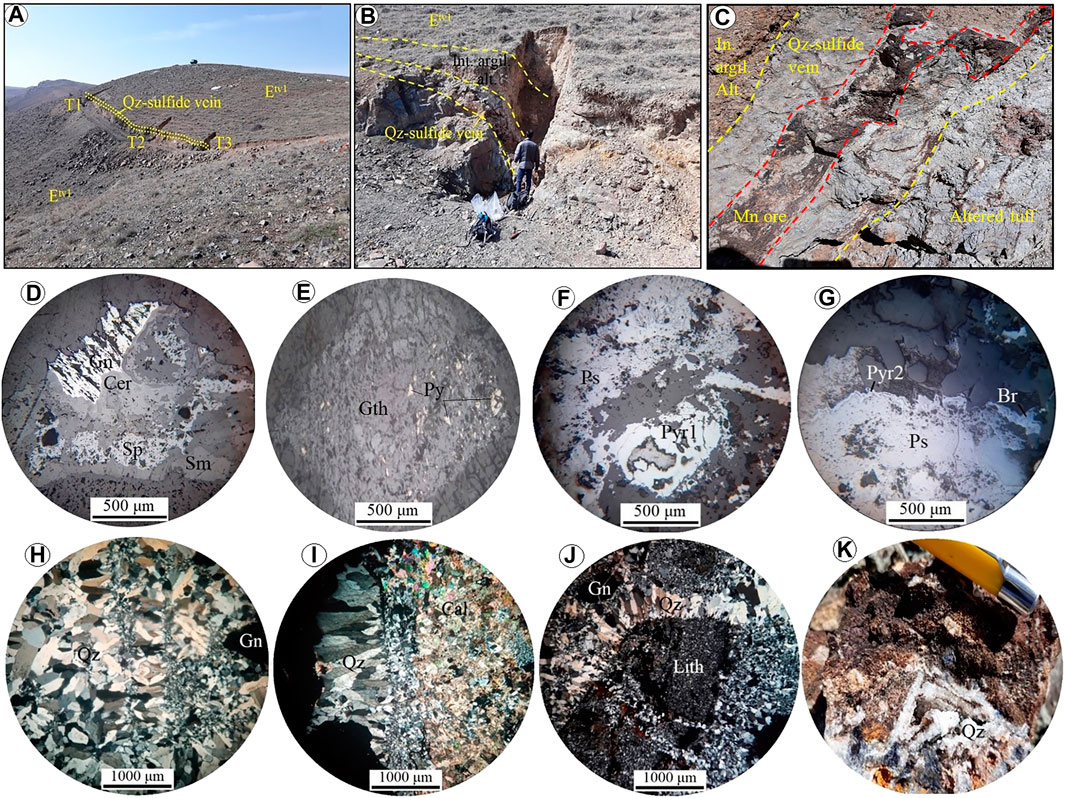

FIGURE 6

FIGURE 6. Photographs are showing features of the ore veins, mineralogy, and textures at the Varmazyar deposit. Images in (D–G) are from polished blocks in reflected light, while (H–J) are taken in transmitted light, XPL. (A). General view of the quartz-sulfide ore vein hosted by the E^tv1 unit of the Karaj Formation, looking southwest. (B). Quartz-sulfide ore vein covered by 2 m wide intermediate argillic alteration halo in the hanging wall, looking west. (C). Quartz-sulfide ore vein crosscutting by Mn-bearing quartz-calcite veins. (D). Intergrowth of galena and sphalerite. Both minerals, respectively, altered to cerussite and smithsonite along boundaries. (E). Anhedral pyrite crystal altered to goethite. (F). Intergrowth of psilomelane and primary pyrolusite. (G). Anhedral to subhedral psilomelane crystals altered to secondary pyrolusite and braunite along boundaries. (H,I). Crustiform texture of quartz in quartz-sulfide (H) and quartz-calcite (I) veinlets. In I, the plumose texture of quartz is also observed. (J). Cockade texture of quartz developed around tuff fragments. (K). Lattice-bladed calcite was replaced by quartz along with colloform texture of quartz. Abbreviations as in Figure 3.

Galena, sphalerite (Fe-poor), pyrite, psilomelane, and pyrolusite are the principal ore minerals; smithsonite, cerussite, goethite, secondary pyrolusite, and braunite are supergene minerals (Figures 6E–H). Silver is not visible and is hosted by galena. The main gangue phases include quartz and calcite. The ore and gangue minerals formed as vein-veinlet, vein breccias, and breccia infill, and show disseminated, vein-veinlet, brecciated, comb, colloform/crustiform, cockade, bladed, plumose, and vug infill textures (Figures 6I–L). According to ore textures and crosscutting relationships, mineral assemblages, and paragenetic sequence, at least four mineralization stages are identified in the Varmazyar deposit (Figure 7, Ghorbani et al., 2022): 1) pre-ore quartz-pyrite stage, 2) quartz-galena- sphalerite-minor pyrite stage, 3) quartz-calcite (Cal I)-manganese oxides-hydroxides (psilomelane, pyrolusite) stage, and 4) barren post-ore calcite (Cal II) stage. These stages are overprinted by a supergene oxidized zone near the surface.

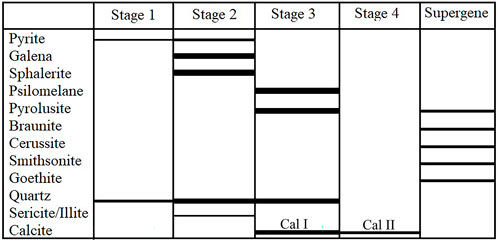

FIGURE 7

FIGURE 7. Paragenetic sequence of ore and gangue minerals at the Varmazyar deposit (after Ghorbani et al., 2022).

Wall-rock alteration is zoned. The quartz, sericite‒illite (intermediate argillic), and carbonate alteration occurs close to the ore veins (5 cm–∼2 m from veins), while the sericite‒epidote‒calcite‒chlorite (propylitic) alteration occurs at a greater distance (Ghorbani et al., 2022).

3 Sampling and methods

3.1 U–Pb zircon geochronology

Three samples, including quartz monzonite and granite intrusions at Tashvir and monzogranite body at Varmazyar, were selected for U–Pb zircon geochronology (Figures 2, 5). Zircons are obtained from crushed rocks by handpicking under the binocular microscope after sieving and conventional heavy-liquid and magnetic separation techniques at the Langfang Hongxin Geological Exploration Technology Service Co. Ltd., Langfang, China. The internal structure of zircon was examined using cathodoluminescence (CL) prior to U-Pb isotope analysis. CL imaging and U-Pb dating were both undertaken at the University of Tasmania, Hobart, Australia. The analyses were completed with an Agilent 7500cs quadrupole ICP–MS with a 193 nm coherent Ar-F gas laser and a Resonetics M50 ablation cell. The spot diameter was 29 μm. The LA-ICP–MS analysis followed the procedure described by Meffre et al. (2008). The downhole fractionation, instrument drift, and mass bias correction factors for U–Pb ratios on zircons were calculated using two analyses on the primary (91,500 standards of Wiendenbeck et al., 1995) and one analysis on each of the secondary (TEMORA standard of Black et al. (2003) and GJ1 standard of Jackson et al. (2004)) standard zircons analyzed at the beginning of the session and every 12 unknown zircons (roughly every 1/2 h) using the same spot size and conditions as used on the samples. Additional secondary standards (the Mud Tank zircon of Black and Gulson, 1978) were also analyzed. The correction factor for the ²⁰⁷Pb/²⁰⁶Pb ratio was calculated using three large spots of NIST-610 analyzed at the beginning and end and corrected using the values recommended by Baker et al. (2004). Element abundances on zircons were calculated, using the method outlined by Kosler (2001) using Zr as the internal standard element, assuming stoichiometric proportions, and using the 91,500 to standardize correction for mass bias. Isoplot 3.00 (Ludwig, 1998) was used for plotting radiogenic isotope data and for U–Pb age calculation. Age data are reported at 1σ errors, whereas the uncertainties for Concordia plots and weighted mean ages are given at a 95% confidence level (2σ).

3.2 Fluid inclusion systematics

Fifteen doubly polished thick (∼150 μm) sections including crystallized quartz and honey-colored (Fe-poor) sphalerite were prepared for FI analysis. Detailed petrographic observations with specific emphasis on applying the fluid inclusion assemblages (FIAs) concept (Goldstein and Reynolds, 1994; Goldstein, 2003) were first carried out to evaluate the shapes and types, distributions, and liquid/vapor ratios of FIs. Microthermometric analysis used a Linkam THMSG-600 heating–freezing stage (–196 to +600 °C) mounted in a ZEISS microscope at the FI laboratory of Iranian Mineral Processing Research Center (IMPRC), Karaj, Iran. The heating-freezing rate is commonly 3–5°C/min with an accuracy of ±0.5°C, nevertheless condensed to less than 0.2°C/min close to the phase transition with an accuracy of ±0.1°C. The stage was calibrated according to the melting points of the cesium nitrate (414°C) and n-hexane (–94.3°C) with precisions of ±0.6°C for heating and ±0.2°C for freezing measurements. Salinities (wt.% NaCl equivalent) of the aqueous inclusions were calculated based on final ice-melting points (Bodnar, 1993). The program sowatflinc_inclusion version 2007 (Driesner and Heinrich, 2007) was used to calculate densities (g/cm³) and P-T data.

3.3 O–S isotopes

Samples for stable isotope studies were collected from mineralized veins and breccias. Mineral aggregates were handpicked under a binocular microscope with a purity of >99%. Oxygen isotope analyses (five quartz and two calcite) were performed at the National Isotope Centre, New Zealand. The oxygen isotopic analysis of quartz was undertaken using a laser extraction technique with BrF₅ as the reagent. Isotope measurements, performed on molecular oxygen, were modified after the technique of Sharp (1990). Samples were heated using a CO₂ laser, and the isotope analyses were performed using a Europa Geo 20–20 stable isotope ratio mass spectrometer in dual inlet mode. Samples and standards were heated overnight to 150 °C before loading into the vacuum extraction line, where they were evacuated for ∼6 h. Blank BrF₅ runs were carried out until the yield was <0.2 µ-moles oxygen. Results are reported in δ notation relative to Vienna-Standard Mean Ocean Water (V-SMOW) using δ¹⁸O values of +9.6‰ and +5.8‰ for standards NBS-28 and UWG-2 Garnet, respectively. The reproducibility was better than ±0.15‰.

Calcite was analyzed on the GVI IsoPrime Carbonate Preparation System at a reaction temperature of 60°C and analyzed using a dual inlet on the IsoPrime mass spectrometer. The result is reported concerning VPDB (Vienna Pee Dee Belemnite), normalized to internal standards GNS marble, with reported values of −6.40‰ VPDB for δ¹⁸O. The oxygen isotope value was converted to δ¹⁸O_SMOW and expressed as δ¹⁸O_SMOW = 1.03092 × δ¹⁸O_VPDB + 30.92. This analysis provides δ¹⁸O with a precision of ±0.15‰.

Sulfur isotope measurements (n=12) were performed using the conventional methods of Robinson and Kusakabe (1975) on an Isoprime100 mass spectrometer coupled to an Elementar varioPYRO cube elemental analyzer at the Central Science Laboratory, University of Tasmania (Hobart, Australia). Calibration was based on the internal (homogenous galena from Broken Hill and Rosebery) and international (IAEA-S-1, -S-2, -S-3, -S-4, and -SO₅, plus NBS-123 and -127) reference standards with known isotopic composition. All results are reported in standard notation δ³⁴S relative to the Cañon Diablo Troilite (CDT). The analytical precision is ±0.2‰ (1σ) in the laboratory.

4 Results

4.1 U–Pb zircon geochronology

The LA-ICP–MS U–Pb data of zircons from Tashvir and Varmazyar are listed in Table 1. Most zircons are concordant to near-concordant and have limited variation in isotopic composition, resulting inclusters Wetherill Concordia diagrams (Figure 8). The quartz monzonite sample (CH1) at Tashvir yielded a Concordia age of 38.34 ± 0.32 Ma (MSWD = 0.71; Figure 8A) based on fourteen concordant data points. One concordant single-grain analysis (CH1-6, Table 1) yielded a Concordia age of 38.25 ± 0.84 Ma. This grain has a bigger uncertainty on its ²⁰⁶Pb/²³⁸U ratio and is not shown in the Concordia diagram of Figure 8A. The Concordia age of the granite sample (CH2) from Tashvir is 38.31 ± 0.31 Ma (MSWD = 0.73; Figure 8B) based upon thirteen concordant data points. This age is identical within error to the age of the concordant zircons in the quartz monzonite sample. Two separate zircons from sample CH2 (CH2-14 and CH2-15, Table 1), however, yielded older Concordia ages of 41 ± 0.63 Ma and 41 ± 0.95 Ma. These zircons were presumably xenocrysts derived locally from the Eocene volcanic-volcaniclastic rocks that had been incorporated into the melt. These two grains were excluded from the Concordia age and diagram of sample CH2. Fourteen concordant zircons from the monzogranite sample (V1) at Varmazyar gave a Concordia age at 40.85 ± 0.76 (MSWD = 2.9; Figure 8C). One zircon (V1-15, Table 1) yielded a discordant analysis that pointed to an inherited component of a 44 ± 0.75 Ma age. This grain was omitted from the Concordia age and is not shown in the Concordia diagram of Figure 8C. Overall, the LA-ICP–MS U–Pb dating of zircons from the Tashvir and Varmazyar deposits are in line with regional zircon U–Pb dating for the emplacement of the intrusions at THMB (∼40–36 Ma; Nabatian et al., 2014; Nabatian et al., 2016; Aghazadeh et al., 2015; Kouhestani, 2018; Mokhtari et al., 2022a).

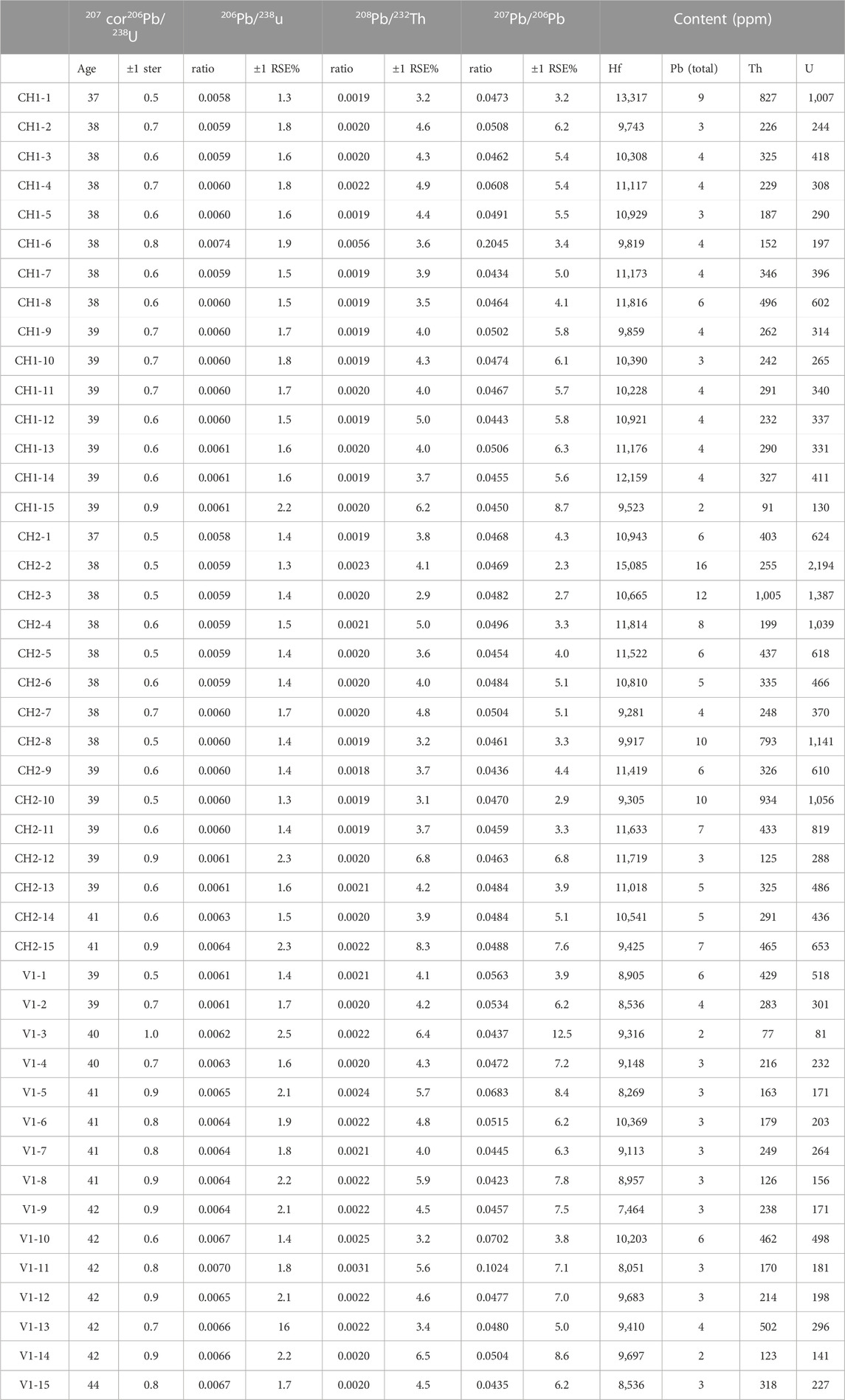

TABLE 1

TABLE 1. LA-ICP‒MS zircon U–Pb age data of granitoid intrusions from the Tashvir and Varmazyar deposits.

FIGURE 8

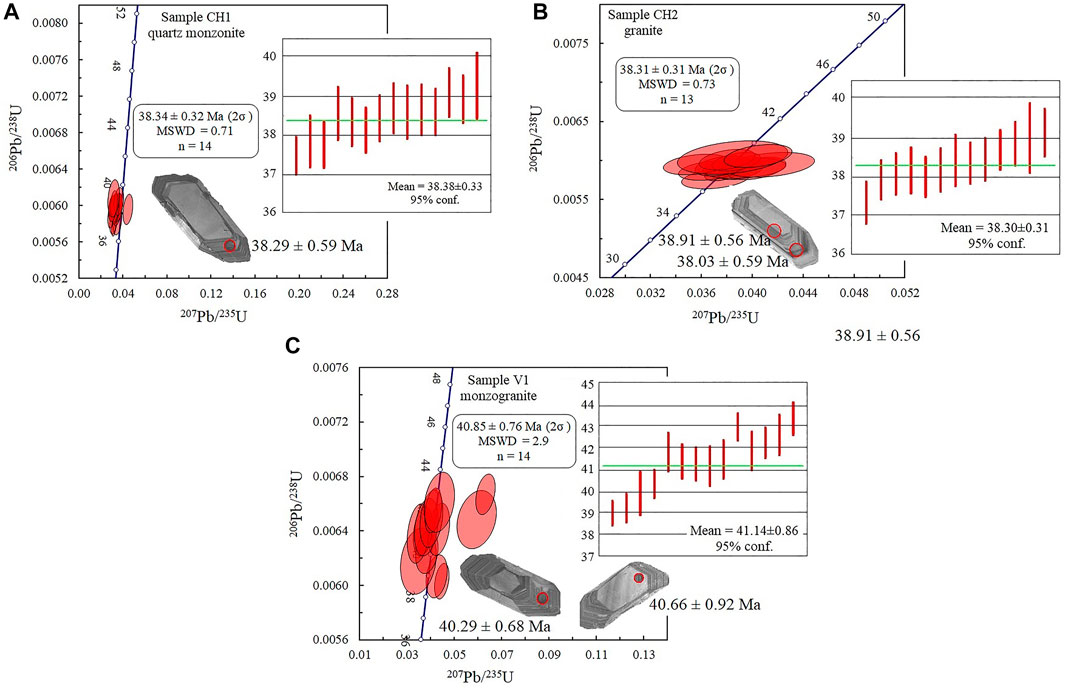

FIGURE 8. Zircon U–Pb Wetherill Concordia diagrams and representative CL images for granitoid intrusions in the Tashvir (A,B) and Varmazyar (C) deposits. Mean ²⁰⁶Pb/²³⁸U ages are reported with 2σ errors. MSWD = mean square weighted deviation. N = number of spot analyses.

4.2 Fluid inclusion petrography

Based on detailed FI petrography, three different types of FIs recognized at both the Tashvir and Varmazyar deposits (Figure 9): 1) liquid-rich two-phase aqueous inclusions (type 1), 2) vapor-rich two-phase aqueous inclusions (type 2), and 3) monophase vapor inclusions (type 3). There are also some monophase liquid inclusions in some samples that are probably the results of decrepitation or necking-down. Type 1 inclusions are the most abundant, >85 vol.% of the total FI populations, and are widespread in both quartz and sphalerite grains. These FIs contain liquid (70–90 vol.%) and vapor (10–30 vol.%) phases at room temperature and are primarily negative-crystal shaped, rounded, irregular, or elliptical with sizes between 5 and 50 μm (Figures 9A−F). They have no daughter minerals and are homogenized to the liquid phase. Type 2 inclusions contain vapor volumetric proportions around 50 to near 80%. These FIs are less abundant and mostly occur isolated or coexist with type 1 inclusions (Figures 9A, C−E). They vary in size from 5 to 30 μm, show negative crystal, irregular or ellipse shapes, and are homogenized to vapor when heated. Type 3 inclusions comprise only a vapor phase at room temperature (Figures 9A, C−E). They mainly appear as isolated, randomly distributed, and vary in size from <5 to 20 µm. No inclusions contained visible liquid CO₂. Although all three types of FIs found in the same quartz and sphalerite crystals, most FIs in quartz from ore-stage 1 at Tashvir and quartz and sphalerite from ore-stage 2 at Varmazyar were types 1 and 2 inclusions. Inclusions within quartz from the ore-stage 2 at Tashvir and ore-stage 3 at Varmazyar were commonly type 1.

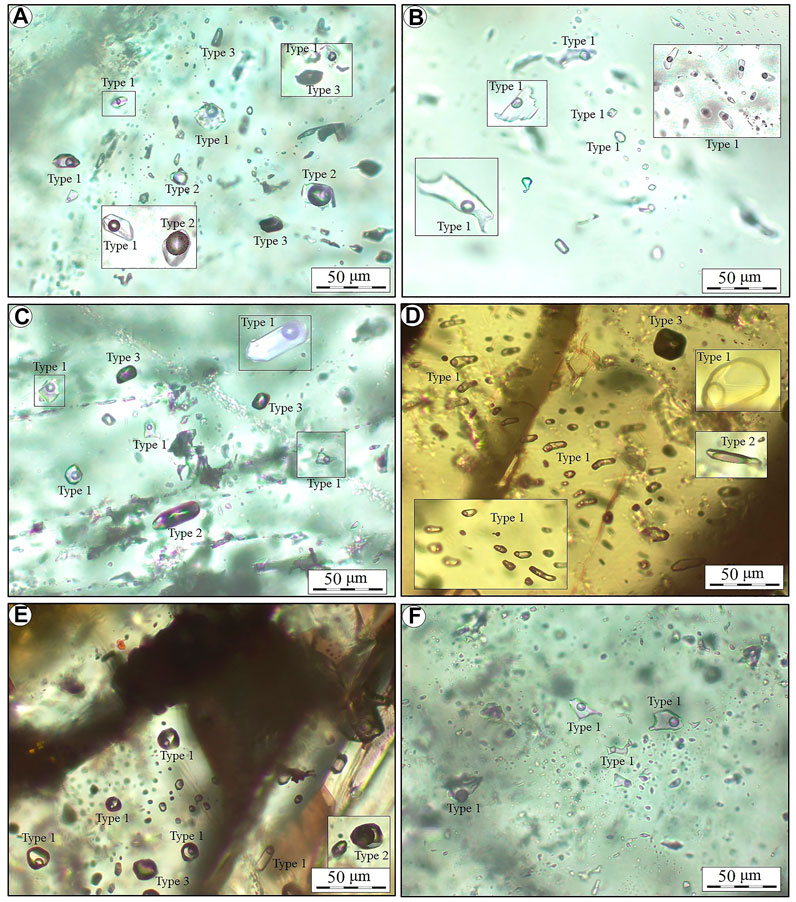

FIGURE 9

FIGURE 9. Representative photomicrographs are showing different FI types and assemblages in quartz and sphalerite from the Tashvir and Varmazyar epithermal base metal deposits. (A). Coexistence of types 1 and 2 inclusions together with type 3 inclusions hosted by quartz from ore-stage 1 at Tashvir. (B). Random, and scattered distribution of type 1 inclusions hosted by quartz from ore-stage 2 at Tashvir. C‒E. Assemblages of types 1, 2, and 3 FIs hosted by quartz (C) and sphalerite (D,E) from ore-stage 2 at Varmazyar. (F). Type 1 inclusions within quartz of ore-stage 3 at Varmazyar. Note that FIs enclosed in the rectangles are from different depths and are brought to focus as insets.

4.3 Microthermometric results

Only FIs thought to be primary (e.g., occur as isolations, and in clusters, Roedder, 1984; Goldstein, 2003) are selected for microthermometry. FIAs are defined as clusters or groups of inclusions that have similar phase proportions at room temperature (e.g., Goldstein and Reynolds, 1994). The mean values of individual FIAs, rather than those of individual FIs, are used to avoid data bias. Pseudo-secondary (occur as clusters and trails that are truncated at crystal boundaries), and secondary (distributed in trails crosscutting crystal boundaries) inclusions were not measured. The microthermometric results are summarized in Table 2.

TABLE 2

TABLE 2. Microthermometric data for primary type 1 fluid inclusion assemblages from Tashvir and Varmazyar deposits.

4.3.1 Tashvir deposit

At Tashvir, microthermometric measurements were performed on primary type 1 FIAs hosted by quartz in ore-stages 1 and 2. The two-phase aqueous type 1 inclusions at the Tashvir deposit have bulk densities of 0.80–0.94 g/cm³ (Table 2). Quartz-hosted type 1 inclusions in FIAs of ore-stage 1 had the final melting temperatures of ice (T_m-ice) from −5.0 to −1.5°C, which corresponds to calculated salinities of 2.6–7.9 (average value of 4.9) wt.% NaCl equivalent. They have homogenization temperatures (T_h) range from 186 to 287°C, with an average value of 224°C. Clustered FIs within quartz from ore-stage 2 yielded T_m-ice varying from −1.3 to −0.3°C (Table 2). The calculated salinities range from 0.5 to 2.7 (average value of 1.5) wt.% NaCl equivalent. These inclusions have T_h from 130 to 182°C, with the average value at 162°C. The T_h values of type 2 inclusions with small amounts of liquid contents could not normally be determined. Only five homogenization temperatures of type 2 FIs in quartz from ore-stage 1 were measured. They homogenize at temperatures ranging from 190 to 270°C, which is comparable with those of neighboring type 1 inclusions. It is hard to measure the T_m-ice values of type 2 FIs, due to small amounts of liquid contents.

4.3.2 Varmazyar deposit

In the Varmazyar deposit, we analyzed primary type 1 FIAs hosted by quartz and honey-colored (Fe-poor) sphalerite in ore-stages 2 and 3. Type 1 inclusions in quartz from ore-stage 2 have T_m-ice vary from –4.0 to –1.8°C, corresponding to the salinities of 3.1–6.4 (average value of 4.5) wt.% NaCl equivalent. These inclusions homogenized at temperatures ranging from 180 to 285 °C, with the average value at 214 °C. They have calculated bulk density of 0.78–0.93 g/cm³. Sphalerite-hosted type 1 inclusions in FIAs of ore-stage 2 record T_m-ice values ranging from −3.6 to −1.8°C with corresponding salinity ranges from 3.1 to 5.9 (average value of 4.7) wt.% NaCl equivalent. These fluids homogenized at temperatures between 170 and 249 °C, with the average value at 207 °C and densities ranging from 0.85 to 0.94 g/cm³ (Table 2). In the ore-stage 2, both quartz- and sphalerite-hosted type 2 inclusions showed meaningly different vapor/liquid ratios and had highly variable T_h values. Few of these inclusions in discrete FIAs homogenized to the vapor phase with the T_h values of 200–255°C within quartz and 180–225°C within sphalerite, which is parallel with those of type 1 inclusions in close areas. It is difficult to observe the final ice melting for type 2 inclusions in quartz and sphalerite (e.g., Roedder, 1984; Bodnar et al., 1985); therefore, we did not obtain any T_m-ice values of these FIs. The T_m-ice values of quartz-hosted type 1 inclusions in FIAs of ore-stage 3 are −1.5 to −0.1°C, yielding salinities of 0.2–2.6 (average value of 1.2) wt.% NaCl equivalent. FIs within quartz of ore-stage 3 homogenize at temperatures between 124 and 194°C, with an average value at 168 °C, and a density range of 0.88–0.93 g/cm³.

4.4 O–S isotopic compositions

Oxygen and sulfur isotope data from the Tashvir and Varmazyar deposits are listed in Table 3. The δ¹⁸O_VSMOW values of quartz samples in ore-stages 1 and 2 at Tashvir are +10.2‰ and +7.9‰, respectively (Table 3). These values for quartz samples of ore-stages 2 and 3 at Varmazyar are +9.7 to +9.3‰ and +8.9‰, respectively (Table 3). The calculated δ¹⁸O_water-VSMOW values of the ore-forming fluids range from +4.2‰ to +0.9‰ at Tashvir and +4.3‰ to +1.4‰ at Varmazyar (Table 3). Two calcite samples from ore-stage 3 at Tashvir and ore-stage 4 at Varmazyar yield δ¹⁸O_VSMOW values of +15.3‰ and +14.1‰, respectively. Using the calcite–water fractionation equation of Zheng (1999) and the average homogenization temperatures of FIAs, the δ¹⁸O_water-VSMOW values of the ore-forming fluids are calculated to be –0.5‰ and –1.7‰, respectively (Table 3).

TABLE 3

TABLE 3. Sulfur and oxygen isotope data for the Tashvir and Varmazyar deposits.

The six galena, chalcopyrite, and chalcocite samples from the early quartz-sulfide ore-stage at Tashvir yield δ³⁴S_CDT values of −20.2‰ to −7.9‰ (average −14.4‰) and the six galena and sphalerite samples from the second quartz–sulfide ore-stage at Varmazyar yield δ³⁴S_CDT values of −9.1‰ to −6.5‰ (average −7.8‰) (Table 3). The calculated δ³⁴S_H2S-CDT values range from −17.8‰ to −5.1‰ (average −12.7‰) at Tashvir and −8.6‰ to −3.8‰ (average −6.1‰) at Varmazyar (Table 3).

5 Discussion

5.1 Timing of epithermal base metal mineralization

In the past decade, many precious and base metal epithermal deposits have been found in the THMB, forming it as one of the most significant metallogenic belts in northwestern Iran. These deposits occur as quartz-sulfide veins in the fissures of the Eocene (zircon U–Pb ages of 49.3 ± 2.9 to 41.1 ± 1.6 Ma, Verdel et al., 2011) volcanic-volcaniclastic strata of the Karaj Formation, and hydrothermal alterations (i.e., silicification, intermediate argillic, chloritization, carbonatization, and propylitic) can be found in the ore-bearing volcanic-volcaniclastic strata. These alterations, together with the ore veins, are mainly controlled by fault structures, indicating that they should have formed later than their Eocene volcanic-volcaniclastic host rocks (e.g., Heald et al., 1987; John et al., 2003; Henning et al., 2008; Kirk et al., 2014; Peng et al., 2021). The geological investigations revealed that almost all the epithermal deposits in the THMB clustered around the late Eocene (∼40–36 Ma, Nabatian et al., 2014; Nabatian et al., 2016; Aghazadeh et al., 2015; Kouhestani, 2018; Mokhtari et al., 2022a) granitoid intrusions (Figure 1). There is now a broad consensus that these deposits resulted from shallow magmatic-hydrothermal processes related to the late Eocene magmatism (e.g., Ghasemi Siani et al., 2015; Mehrabi et al., 2016; Kouhestani et al., 2018a; 2019a; b, 2020, 2022). Mehrabi et al. (2016) reported a biotite Ar-Ar age of 41.87 ± 0.16 Ma for the crystallization of the Goljin granite intrusion, which was considered closely related to the Au mineralization of the Gulojeh deposit. This age approximately overlaps with the sericite Ar-Ar isochron age of 42.20 ± 0.34 Ma for the hydrothermal alteration and gold mineralization event in the Gulojeh deposit (Ghasemi Siani et al., 2015). Accordingly, it was suggested there is a close spatial-temporal and genetic relationship between the Gulojeh Au mineralization and Goljin granite intrusion (Ghasemi Siani et al., 2015; Mehrabi et al., 2016). In the case of the Tashvir and Varmazyar deposits, the mineralized quartz veins have crosscutting relationships with their Eocene volcanic-volcaniclastic host rocks. In both deposits, granitoid intrusions intruded into the Eocene volcanic-volcaniclastic strata and have, especially at Varmazyar, close spatial relationships with epithermal base metal mineralization. By analogy to the age of Au mineralization in the neighboring Gulojeh deposit and assuming that magmatic-related ore-forming fluids are responsible for the epithermal mineralization in the THMB, we speculate that zircon U–Pb crystallization ages of granitoid intrusions, 38.34–38.31 and 40.85 Ma (Table 1; Figure 8), might mirror the age of epithermal mineralization in the Tashvir and Varmazyar deposits. However, more attention is needed to be paid to illustrating the spatial patterns of the epithermal mineralization and granitoid intrusions, and detailed geochronological frameworks should be integrated with systematic geological observation to obtain the exact timing of the epithermal mineralization. The late Eocene is not only a primary period of plutonism but also an essential stage of large-scale epithermal mineralization in the THMB. This model can provide an essential guide for regional epithermal precious and base metal exploration in the THMB.

5.2 Source of ore-forming fluids

It has been discussed that the fluids responsible for HS mineralization are mostly highly acidic and oxidized magmatic fluids that interacted with much lesser amounts of meteoric water (Hedenquist et al., 1998, 2000; Qin and Ishihara, 1998; Einaudi et al., 2003; Sillitoe and Hedenquist, 2003; Simmons et al., 2005; Henley and Berger, 2011). In contrast, LS deposits are derived from reduced, near-neutral pH, and dilute fluids formed by the entrainment of magmatic components within deep circulating meteoric waters (White and Hedenquist, 1990; Hedenquist and Lowenstern, 1994; Matsuhisa and Aoki, 1994; White et al., 1995; Cooke and Simmons, 2000; Hedenquist et al., 2000; Simmons et al., 2005). IS deposits form from reduced, and near-neutral pH hydrothermal fluids similar to LS deposits, nevertheless they have direct links with magmas and show strong magmatic signatures in their mineralizing fluids (Gemmell, 2004; Kouhestani et al., 2015; Mehrabi et al., 2016; Xie et al., 2017; Li et al., 2018).

The ore-forming fluids associated with quartz and calcite from different ore-stages at Tashvir and Varmazyar have δ¹⁸O_water-VSMOW values ranging from +4.2‰ to –0.5‰ and +4.3‰ to –1.7‰, respectively (Table 3). These data are similar to the oxygen isotope data of global epithermal systems and IS epithermal base metal deposits of the THMB (Figure 10A). Considering the geological setting in which formed the Tashvir and Varmazyar hydrothermal systems, the δ¹⁸O_water-VSMOW values of earlier quartz samples (+4.2‰ and +4.3‰) are nearly close to the δ¹⁸O values of magmatic source (5.5‰–10‰; Taylor, 1974; Sheppard, 1986; Hoefs, 2018). The lower δ¹⁸O_water-VSMOW values of the calcite samples from the later ore-stages (–0.5‰ and –1.7‰) are closer to the δ¹⁸O values of Eocene meteoric water (–21‰ to –8‰; Koch et al., 1995; Seal and Rye, 1993). This advises that the initial fluids may be magmatic but mixed with meteoric water during the later stages of ore formation, which is usual in other global epithermal ore systems (e.g., Tindell et al., 2018; Guimarães et al., 2021; He et al., 2021; Peng et al., 2021; Xu et al., 2021; Figueroa et al., 2022; Niu and Jiang, 2022). Such interpretation is further supported by FIs evidence for fluid mixing of magmatic and meteoric fluids during the mineralizing event. In both the Tashvir and Varmazyar deposits, microthermometry results suggested that the ore-forming fluids in the early ore-stages belong to an H₂O-NaCl system with temperatures of 224 and 214–207°C and salinities of 4.9 and 4.5–4.7 wt.% NaCl equivalent, which is consistent with those from magmatic-hydrothermal fluids (Burnham, 1979; Hedenquist and Lowenstern, 1994; Baker, 2002; Simmons and Brown, 2006; Audétat et al., 2008). In the late ore-stages, the FIs are characterized by temperatures of 162 and 168°C and salinities of 1.5 and 1.2 wt.% NaCl equivalent, likely reflecting the dominant involvement of meteoric water in accordance with the oxygen isotope data.

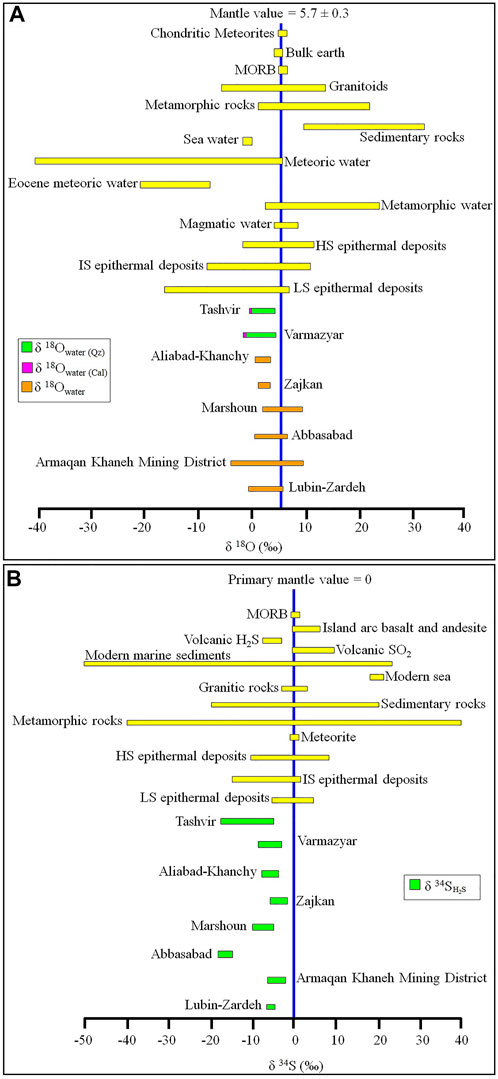

FIGURE 10

FIGURE 10. Comparison of oxygen (A) and sulfur (B) isotope compositions of the Tashvir and Varmazyar deposits (this study) with those from important geological reservoirs (Hoefs, 2018), typical high-, intermediate- and low-sulfidation epithermal deposits (Field and Fifarek, 1985; Hedenquist and Lowenstern, 1994; Arribas, 1995; Albinson et al., 2001; Oyman, 2019; Sun et al., 2021 and references therein) and major intermediate-sulfidation epithermal base metal deposits of the THMB (Kouhestani et al., 2018a; 2019a; b, 2020, 2022; Zamanian et al., 2019).

A similar scenario has been documented for several epithermal deposits within the THMB, including Aliabad-Khanchy, Zajkan, Marshoun, Abbasabad, Rashtabad, Jalilabad, Aqkand, and Lubin-Zardeh. These deposits have δ¹⁸O_water values ranging from +9.6‰ to –3.4‰ (Kouhestani et al., 2018a; 2019a; b, 2020, 2022; Zamanian et al., 2019), suggesting that their ore-forming fluids were most likely magmatic-derived in the early stages, but were mixed with meteoric water in the late stages. It is consistent with the geological characteristics of these deposits that are indicative of an IS epithermal origin for these deposits.

5.3 Ore-forming material and sulfur sources

Sulfur isotope systematic provides a valuable tool for outlining the sources of sulfur and ore-forming components in mineral deposits (Ohmoto, 1972, 1986; Ohmoto and Goldhaber, 1997; Seal, 2006; Lei et al., 2018). In the hydrothermal systems, sulfur isotope compositions of sulfides depend on the total sulfur values of source materials and physicochemical conditions (i.e., sulfur and oxygen fugacity, pH, and temperature variations) of ore-forming fluids (Ohmoto and Rye, 1979; Williams-Jones and Migdisov, 2014; Hoefs, 2018; Lei et al., 2018). In the Tashvir and Varmazyar deposits, sulfide assemblages are simple, and sulfate minerals are absent, demonstrating weak sulfur fractionation and a reduced mineralization environment. Thus, the sulfur isotope composition of sulfides could approximately represent the total sulfur values of ore-fluids (Ohmoto and Rye, 1979; Ohmoto and Goldhaber, 1997; Li et al., 2012; Sun et al., 2021; Yu et al., 2021; Zhao et al., 2021; Yang et al., 2022).

Sulfide minerals from the Tashvir deposit show a wide range of δ³⁴S_H2S-CDT values from −17.8‰ to −5.1‰ (average −12.7‰), and those from the Varmazyar deposit fall into a narrow range from −8.6‰ to −3.8‰, averaging −6.1‰. These data are lower than the range of mantle/magmatic δ³⁴S_VCDT values (±3‰; Chaussidon and Lorand, 1990) and are similar to the sulfur isotope compositions of IS epithermal base metal deposits (e.g., Aliabad-Khanchy, Zajkan, Marshoun, Abbasabad, Armaqan Khaneh, and Lubin-Zardeh) in the THMB (Figure 10B), whose sulfur is interpreted to have been originated from the magmatic system (Kouhestani et al., 2018a; Kouhestani et al., 2019a; Kouhestani et al., 2019b; Zamanian et al., 2019; Kouhestani et al., 2020; Kouhestani et al., 2022). Compared with different types of epithermal systems, δ³⁴S values of the Tashvir and Varmazyar deposits are mostly consistent with the HS and IS deposits (Figure 10B). In addition, the sulfur isotopic values of the Tashvir and Varmazyar deposits overlap with those of reduced sulfur in sedimentary rocks (δ³⁴S = <−15‰; Rollinson, 1993) and volcanic H₂S. These more negative δ³⁴S_H2S-CDT values can be interpreted as a result of oxygen fugacity changes or mixing between igneous and sedimentary sulfur (Ohmoto, 1972; Pearson et al., 1988; Pass et al., 2014; Liu et al., 2017; Lei et al., 2018). There is no evidence indicating the occurrence of fO₂ changes in the quartz-sulfide ore-stages of the Tashvir and Varmazyar deposits. Moreover, Mousavi Motlagh et al. (2019) reported the existence of framboidal pyrite in the host volcaniclastic rocks (δ³⁴S = −5.3‰ to −7.3‰) of the Chargar deposit which they suggested as the primary sedimentary source for sulfur. Thus, we conclude that δ³⁴S_H2S-CDT signatures of the Tashvir and Varmazyar deposits should specify the mixture of magmatic-derived and sedimentary-sourced sulfur (e.g., Hoefs, 2018; Mousavi Motlagh et al., 2019; Liu et al., 2021; Sun et al., 2021). The sedimentary pyrite sulfur source is expected to be derived from fluid-rock reactions between magmatic-sourced fluids and volcanic-volcaniclastic rocks of the Karaj Formation.

5.4 Minimum fluid trapping pressure and mineralization depth

An independent P or T constrain is needed for real trapping conditions estimations except for the boiling assemblage (i.e., coexisting brine polyphase and vapor FIs) which thought its temperature and pressure of homogenization represents actual fluid entrapment condition (e.g., Roedder and Bodnar, 1980; Simmons et al., 2005; Rusk et al., 2008; Kouhestani et al., 2015, 2020; Rabiei et al., 2017; Zhai et al., 2018; Sun et al., 2021). It is important to note that there was no evidence of boiling in the samples studied during our FI analysis. Consequently, the estimation of the minimum trapping pressure was calculated with the sowatflinc_inclusion computer program (Driesner and Heinrich, 2007) assuming the H₂O-NaCl system. The results show that quartz-sulfide veins of ore-stage 1 at Tashvir have minimum hydrostatic pressures varying from 11 to 69 (average 26) bars, and those for ore-stage 2 quartz veins range from 3 to 10 (average 7) bars. The calculated minimum trapping pressures for quartz-sulfide veins of ore-stage 2 at Varmazyar range from 8 to 68 (average 20) bars, and those for ore-stage 3 quartz veins vary from 2 to 14 (average 8) bars. Based on these data and related trapping pressure estimations, we conclude that ore-stage quartz-sulfide veins at Tashvir and Varmazyar essentially occurred at minimum hydrostatic pressures of 10–69 and 14–68 bars, respectively. Taking the average density of the FIs, the inferred minimum metallogenic paleodepths range from 103 to 706 m at Tashvir and 143–695 m at Varmazyar, which are comparable with those of mineralization depth of the epithermal deposits worldwide (<300–1,000 m, Cooke and Simmons, 2000; Albinson et al., 2001; Simmons et al., 2005), e.g., in the THMB of northwestern Iran (200–1,400 m, Kouhestani et al., 2018a; 2019a; b, 2020, 2022; Zamanian et al., 2019).

5.5 Fluid evolution and mineralization mechanism

Previous works revealed that boiling, dilution, and cooling or a combination of them are key fluid processes that enhance ore formation in the magmatic-hydrothermal systems (e.g., Hedenquist and Henley, 1985; Wilkinson, 2001; Canet et al., 2011). FI microthermometric measurements from the Tashvir and Varmazyar deposits show that ore-forming fluids belong to the H₂O–NaCl systems that evolved from a high-to moderate-temperature and moderate-salinity fluid to a low-temperature and low-salinity fluid during the mineralization processes. This decrease in temperature and salinity is consistent with the cooling and dilution of magmatic fluids that are mixed with meteoric waters (e.g., Hedenquist and Henley, 1985; Wilkinson, 2001; Kouhestani et al., 2015, 2020; Zhao et al., 2021; Niu and Jiang, 2022; Shi et al., 2022). This is in agreement with oxygen isotopic data, which shows that hydrothermal fluids at Tashvir and Varmazyar are magmatic-meteoric mixtures. On the fluid evolution diagram (Figure 11), the inclusions of the Tashvir and Varmazyar deposits show two groups of salinities with a positive T_h vs salinity correlation, reflecting that mineralization at these deposits involved the mixing of magmatic fluids and a dilute, cooler fluid of meteoric origin (e.g., Ulrich et al., 2001; Zhai et al., 2009; Canet et al., 2011; Li et al., 2019; Kouhestani et al., 2015; 2019a; b, 2020, 2022; Sun et al., 2021).

FIGURE 11

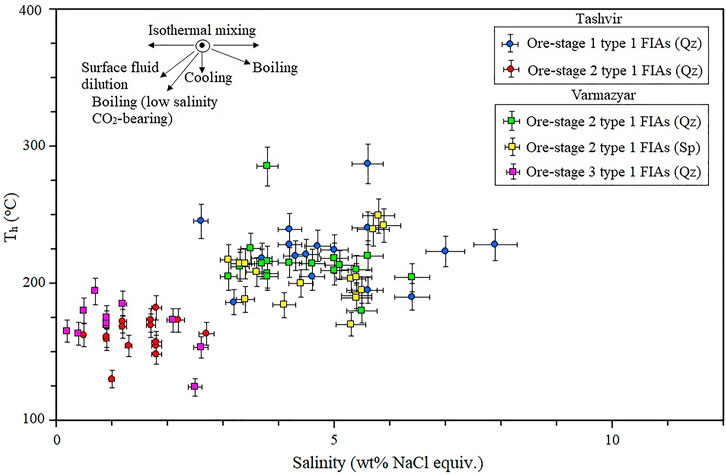

FIGURE 11. T_h-salinity plot showing the evolution of FIs representing ore-forming fluids for different ore-stages at the Tashvir and Varmazyar deposits. Inset illustrates the different fluid evolution paths based on Wilkinson (2001).

It has been discussed that silver and base metals (Pb, Zn, and Cu) are commonly transported as chloride complexes in hydrothermal fluids (e.g., Stefansson and Seward, 2003; Yardley, 2005). Fluid mixing can significantly alter the phase equilibrium of the hydrothermal fluid that cause the breakup of the chloride complexes and led to the precipitation of metal sulfides (Kouhestani et al., 2015; 2019a; b, 2020; An and Zhu, 2018; Wang L. et al., 2019). Therefore, fluid mixing is the main mechanism that could explain the deposition of base metal sulfides in mineralized ore veins at Tashvir and Varmazyar. Nevertheless, in both deposits, the presence of bladed calcite (later replaced by quartz), as well as plumose and colloform/crustiform banded quartz indicate that boiling also occurred during the evolution of the Tashvir and Varmazyar hydrothermal systems (e.g., White and Hedenquist, 1990; Hedenquist et al., 2000; Moncada et al., 2012, 2017; Kouhestani et al., 2019a; b, 2020, 2022). This is further supported by the occurrence of hydrothermal breccias in ore-stage veins, which is evidence of sharp pressure drops that might have caused fluid boiling (e.g., Jobson et al., 1994; Jébrak, 1997). It has been argued that at relatively shallow levels, fluid boiling can increase the permeability of host rocks allowing meteoric water influx into the hydrothermal system (e.g., Zhai et al., 2018) which generally causes temperature decreases, allowing base metals deposition (e.g., Henley, 1985; Fan et al., 2011; Zhong et al., 2018). An increase in pH that accompanied boiling also enhanced base metal precipitation (e.g., Thiersch et al., 1997).

5.6 Mineralization type

Compared to typical characteristics of epithermal deposits (Table 4), the geological and mineralogical features of the Tashvir and Varmazyar deposits are similar to those of IS epithermal deposits. In both deposits, orebodies consist of brecciated veins and veinlets and are hosted by fault-controlled alteration zones. The absence of Mn carbonates and sulfosalt minerals set the Tashvir and Varmazyar deposits apart from the IS epithermal deposits. However, their sulfide assemblages of pyrite, chalcopyrite, galena, sphalerite, and local chalcocite and bornite suggest an IS state (e.g., Hedenquist et al., 2000; Sillitoe and Hedenquist, 2003; Simmons et al., 2005; Camprubi and Albinson, 2007; Wang X. et al., 2019; Peng et al., 2021). The lack of adularia along with the sulfide assemblages (pyrite, arsenopyrite, pyrrhotite) representing an LS state, as well as the vuggy quartz and primary advanced argillic alteration assemblages (alunite, kaolinite, pyrophyllite) and ore minerals (enargite and luzonite) of HS state differentiate Tashvir and Varmazyar from LS and HS epithermal deposits (e.g., White and Hedenquist, 1990, 1995; Cooke and Simmons, 2000; Hedenquist et al., 2000; Simmons et al., 2005; Wang L. et al., 2019). Additionally, the medium-to low-temperature alteration minerals (sericite, illite, epidote, calcite, and chlorite) and sulfide assemblages designate that epithermal mineralization at Tashvir and Varmazyar was formed by reduced and near-neutral pH ore-forming fluids that are signatures of IS deposits (e.g., Einaudi et al., 2003; Sillitoe and Hedenquist, 2003; Kouhestani et al., 2015; Wang X. et al., 2019; Soberano et al., 2021). As well, FIs studies show that temperature (182–287 and 194–285 °C) and salinity (2.7–7.9 and 2.6–6.4 wt.% NaCl equivalent) of the ore-forming fluids at these deposits are similar to the majority of IS epithermal deposits worldwide (e.g., Wang L. et al., 2019). The presence of hydrothermal breccia, colloform/crustiform banding, cockade, plumose, comb, and bladed calcite (later replaced by quartz), as well as open-space filling textures, and, particularly, the spatial and temporal association with volcanic and shallow granitoid intrusions specify that mineralization at Tashvir and Varmazyar occurred in shallow epithermal depth. The stable isotopic data indicate the mixing of magmatic and meteoric fluids as hydrothermal alteration proceeded, with some evidence of boiling. All these characteristics are similar to those of epithermal deposits of the IS-type, which are usually found in Phanerozoic volcano-plutonic settings (Wang X. et al., 2019; Guimarães et al., 2021), e.g., in the THMB of northwestern Iran (Kouhestani et al., 2017; 2018a; 2019a; b, 2020, 2022).

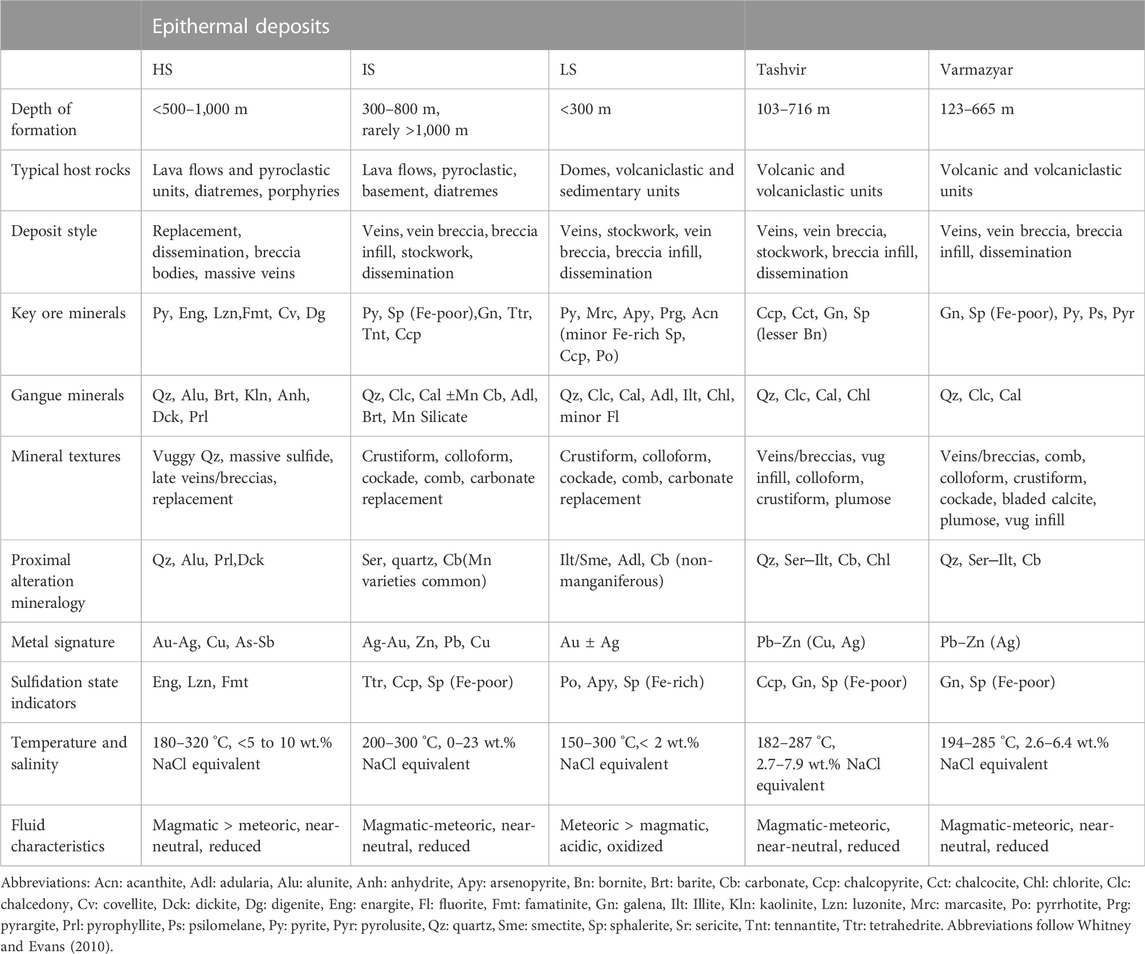

TABLE 4

TABLE 4. Comparison of main characteristics of the Tashvir and Varmazyar deposits with different types of epithermal deposits (Cooke and Simmons, 2000; Hedenquist et al., 2000; Einaudi et al., 2003; Sillitoe and Hedenquist, 2003; Simmons et al., 2005).

5.7 Genetic model

The late Eocene granitoid intrusions in the THMB were intruded into the Eocene volcanic and volcaniclastic rocks of the Karaj Formation (Figure 1). They have close spatial associations with the epithermal quartz-sulfide veins, which suggest that the epithermal deposits in THMB may form related to these intrusions (e.g., Ghasemi Siani et al., 2015; Mehrabi et al., 2016; Kouhestani et al., 2018a; 2019a; b, 2020, 2022). Stable isotopic data from the Tashvir and Varmazyar deposits show evidence of genetic links between epithermal base metal mineralization and magmatism, representing that the metals, sulfur, and ore-forming fluid sources of these deposits are similar to global epithermal deposits (Cooke and Simmons, 2000; Hedenquist et al., 2000; Simmons et al., 2005; He et al., 2021), as well as other epithermal deposits in the THMB, including the Aliabad-Khanchy, Zajkan, Marshoun, Abbasabad, Rashtabad, Jalilabad, and Aqkand (Kouhestani et al., 2018a; 2019a; b, 2020, 2022). LA-ICP–MS zircon U–Pb dating demonstrates that granitoid intrusions from the Tashvir and Varmazyar crystallized at ca. 38.34–38.31 and 40.85 Ma, respectively (Figure 8), which mirrors the timing of ore formation. These ages are somehow similar to the age of the Gulojeh polymetallic deposit (42.20 ± 0.34 Ma, Ghasemi Siani et al., 2015; Mehrabi et al., 2016) in the THMB. These results indicate there happened large-scale magmatism and associated epithermal mineralization in the THMB in the late Eocene.

The Eocene flare-up magmatism in NW Iran (including THMB) is developed in the extensional environment caused by slab roll-back of the Neo-Tethyan oceanic crust (Verdel et al., 2011; Shafaii Moghadam et al., 2018; Mokhtari et al., 2022b). A further response to the extension was the thinning of the thickened continental crust, asthenospheric upwelling, and partial melting of the subducting slab and metasomatized mantle wedge (Figure 12A, Agard et al., 2011; Verdel et al., 2011; Kargaran Bafghi and Neubauer, 2015; Shafaii Moghadam et al., 2018; Mokhtari et al., 2022b). This process led to the generation and emplacement of numerous late Eocene (37–42 Ma) granodiorite intrusions in the THMB (e.g., Aghazadeh et al., 2011; Castro et al., 2013; Nabatian et al., 2014, 2016; Kouhestani, 2018; Mokhtari et al., 2022a). It is generally accepted that these late Eocene intrusions contributed to the heat advection and composition of magmatic-hydrothermal fluids in the THMB (e.g., Ghasemi Siani et al., 2015; Mehrabi et al., 2016; Kouhestani et al., 2018a; 2019a; b, 2020, 2022; Ghasemi Siani et al., 2020). Some metallogenic elements and sulfur were transported well beyond the confines of the magmas by these fluids to shallower levels, where they mixed with meteoric waters, deposited and mineralized in syn-volcanic faults in the wall-rocks and the fissures formed through cooling of the intrusions (Figure 12B, Yasami et al., 2017; Kouhestani et al., 2018a; 2019a; b, 2020). Fluid cooling and/or dilution resulting from fluid mixing was likely the main promoting factor for base metal ore deposition.

FIGURE 12

FIGURE 12. (A). Schematic cartoon for subduction, slab roll-back, extension, and magmatism in NW Iran (including THMB) during the Eocene time (based on Verdel et al., 2011; Shafaii Moghadam et al., 2018; Mokhtari et al., 2022b). (B). Cartoon showing the type of fluids involved in the formation of the epithermal mineralization in the THMB.

In conclusion, the model proposed for the Tashvir and Varmazyar deposits highlights late Eocene syn-magmatic hydrothermal mineralization. This model also suggests that the close genetic relationship between late Eocene granitoid intrusions and epithermal mineralization in the THMB should form the basis for future mineral exploration in this belt.

5.8 Potential exploration significance

The late Eocene was a period of epithermal mineralization in the THMB and a large number of epithermal precious and base metal deposits were discovered in this belt in the vicinity of granitoid intrusions (Figure 1). These deposits are generally hosted by Eocene intermediate to acidic volcanic-volcaniclastic rocks of the Karaj Formation and are structurally controlled along the normal faults (Mehrabi et al., 2016; Kouhestani et al., 2018a; 2019a; b, 2020, 2022). The fault zones played a key role in fluid influx and ore minerals are hosted mainly by the fracture networks in the fault zone (Kouhestani et al., 2018a). Therefore, we propose that the normal faults within altered host rocks, principally at the intersection of granitoid intrusions, are suitable targets for further exploration of undiscovered epithermal deposits in the THMB. Furthermore, an understanding of mineralization systems and genetic models is crucial for the design of effective exploration strategies at the regional scale. The new data presented here indicate that Tashvir and Varmazyar are IS epithermal deposits. Consequently, the typical silica and intermediate argillic hydrothermal alteration associated with base metal mineralization may therefore provide an indication for searching for other IS epithermal deposits in the adjacent area and other parts of the THMB. Additionally, the epithermal deposits in the THMB are spatially and genetically linked to the late Eocene (40–36 Ma) granitoid intrusions (Ghasemi Siani et al., 2015; Mehrabi et al., 2016; Kouhestani et al., 2018a; 2019a; b, 2020, 2022). This relationship has provided a useful guide for exploration that could lead to the discovery of new IS mineralization adjacent to granitoid intrusions.

Given the recognition of both HS and IS epithermal mineralization in the THMB, which is usually considered the surface expression of a deeper porphyry system (Hedenquist et al., 1998, 2000; Sillitoe and Hedenquist, 2003; Seedorff et al., 2005; Valencia et al., 2008; Pudack et al., 2009; Sillitoe, 2010; Chang et al., 2011; Cooke et al., 2011; Wang L. et al., 2019), it is likely that porphyry mineralization would have the potential for prospecting at the deep sites and environs of the epithermal deposits at THMB. The Chodarchay Cu–Au deposit, characterized by the veinlet-disseminated chalcopyrite-pyrite-magnetite mineralization in the quartz monzonite overprinted by epithermal vein-type mineralization and relatively high-temperatures (up to 440°C) and high-salinity (up to 34 wt.% NaCl equivalent), was interpreted to represent a transition from porphyry to epithermal mineralization (Yasami et al., 2017; 2018; Yasami and Ghaderi, 2019). In addition, some HS (i.e., Chodarchay and north Gulojeh) and IS (i.e., Lubin-Zardeh and south Gulojeh) epithermal deposits from the THMB contain FIs features of porphyry mineralization which may be related to deeper porphyry parts of the THMB epithermal deposits (Mousavi Motlagh et al., 2019). Moreover, there are several Eocene porphyry-epithermal and related mineralization in the neighboring Ahar-Arasbaran metallogenic zone in NW Iran (Ebrahimi et al., 2011; Simmonds et al., 2017; Kouhestani et al., 2018b) and Lesser Caucasus in southern Armenia and Nakhitchevan (Moritz et al., 2016a, b; Rezeau et al., 2016) imply that the Eocene magmatic-hydrothermal metallogenic event could be favorable for porphyry Cu–Mo mineralization in NW Iran. However, pervasive advanced argillic lithocaps (including vuggy quartz and primary alunite) that are common in the upper parts of porphyry Cu–Mo systems (e.g., Cooke et al., 2005; Seedorff et al., 2005; John et al., 2010; Sillitoe, 2010), are not documented near the epithermal orebodies at THMB. Also, hypersaline (brine) FIs which are typical for porphyry-style mineralization have not been reported from the epithermal deposits in the THMB. Besides, the extensional tectonic setting of granitoid intrusions and shallow depth of magma generation from the THMB indicate that the Eocene magmatism in the THMP is less prospective for porphyry deposits (Ghasemi Siani et al., 2020). Therefore, it can be concluded that, although the possibility of porphyry ore formation in the THMB is much rarer than in neighboring regions such as Ahar-Arasbaran and Lesser Caucasus, the lack of porphyry deposits is not obviously known or understood. More detailed work needs to be conducted in the future to constrain the genesis of the epithermal deposits and the potential existence of porphyry deposits in the THMB. Detailed geological, geochemical, and geophysical data may be able to identify drilling sites to explore deeper porphyry-type deposits in this metallogenic belt.

6 Conclusion remarks

1) Geological characteristics, FIs data, and O-S isotopic evidence show that Tashvir and Varmazyar are IS epithermal base metal deposits hosted by Eocene volcanic and volcaniclastic rocks of the Karaj Formation.

2) The crystallization ages of the granitoid intrusions at Tashvir and Varmazyar are 38.34–38.31 and 40.85 Ma, respectively, which indicates that the epithermal mineralization took place during 40.85–38.31 Ma.

3) FIs and oxygen isotope systematics suggest that the ore-forming fluids evolved from magmatic-hydrothermal fluids to dominantly meteoric water.

4) The sulfur isotopes and mineral assemblages display that ore-forming materials and sulfur are sourced mainly from a mixture of magma and surrounding sedimentary rocks.

5) Mineralization happened in response to the mixing of magmatic-hydrothermal and meteoric fluids, along with some fluid boiling.

6) The THMB is proposed to be prospective for precious and base metal epithermal mineralization. Considering the extensional tectonic setting, and lack of advanced argillic lithocaps and hypersaline FIs, the THMB possibly has less potential for economically important porphyry mineralization.
