Global water distribution in the mantle transition zone from a seismic isotropic velocity model and mineral physics modeling

Although the discoveries of hydrous ringwoodite inclusions and ice-VII inclusions in natural diamonds suggest a hydrous mantle transition zone (MTZ), water content and distribution in the MTZ remain unclear. Here combining a global P- and S-wave isotropic velocity tomography and mineral physics modeling, we image the water distribution in the MTZ. Our results indicate that the MTZ is a main water reservoir inside the Earth, and the total water content of the MTZ is about 0.64–1 seawater. The upper MTZ (410–520 km) and the lower MTZ (520–660 km) contain 0.3–0.5 wt% and 0.15–0.2 wt% water, respectively, implying water contents of the MTZ decrease with increasing depths. The most hydrous regions are mainly located near subduction zones, where the upper MTZ and the lower MTZ can contain water up to 0.5–1 wt% and 0.2–0.5 wt%, respectively, indicating water is transported into the MTZ by hydrous slabs. In addition, old subducted slabs in the western Pacific subduction zone are more hydrous than young subducted slabs in the eastern Pacific subduction zone. We also propose a water circulation model which integrates our results of the water content and distribution in the MTZ.

1 Introduction

The presence of water in the Earth’s interior has significant effects on the melting temperature, rheological strength, phase boundary, ionic diffusion, electrical conductivity, and elasticity of mantle minerals (Karato, 1990; Hirth and Kohlstedt, 1996; Karato and Jung, 1998; Hier-Majumder et al., 2005; Frost and Dolejš, 2007; Mao et al., 2008a; Mao and Li, 2016). Understanding the water content and distribution in the Earth’s interior is essential to learning the Earth’s differentiation, mantle convection, and water circulation between the Earth’s interior and surface. Hence the topic of water content in the silicate mantle, especially in the mantle transition zone (MTZ), which is considered to be the maximum aquifer in the mantle (Inoue et al., 1995; Kohlstedt et al., 1996), has become one of the hottest topics in geophysics in the past 3 decades.

The hypothesis of a hydrous MTZ has been verified by the discoveries of hydrous ringwoodite inclusions with 1 wt% H₂O (Pearson et al., 2014) and ice-VII inclusions in natural diamonds (Tschauner et al., 2018). However, these isolated observations cannot represent the water contents in the whole MTZ. Many studies have attempted to infer the water contents and distributions in the MTZ from seismological observations (Mao et al., 2008a; Meier et al., 2009; Houser, 2016; Liu et al., 2018; Chang and Ferreira, 2019; Wang et al., 2019; Wang et al., 2021), but significant discrepancies exist between their results. Several studies support a dry MTZ, such as Houser’s (2016) result based on the 410- and 660-km discontinuities and shear velocities, and Chang and Ferreira’s (2019) result based on seismic anisotropy data. However, Meier et al. (2009) proposed a partly hydrated MTZ model which shows hydrous regions far away from subduction zones based on the MTZ thickness and S wave velocity. Mineralogists suggest a hydrous MTZ based on comparing mineralogical results with global seismic velocity models (Mao et al., 2008a; Wang et al., 2019).

The above discrepancies come from both the different seismic data for the water content determination and large uncertainties from mineral physics modeling. Compared with the upper mantle, anisotropy in the MTZ is controversial (Kustowski et al., 2008; Visser et al., 2008; Panning et al., 2010; Moulik and Ekström, 2014). Hence it is difficult to get a robust water distribution in the MTZ from anisotropy information. Due to large experimental uncertainties (Thio et al., 2016), the depths of the 410- and 660-km discontinuities hardly provide a reliable water content in the MTZ. Since the trade-off between temperature effects and water effects on seismic velocities in the MTZ, only using S wave velocity like the previous studies is not recommended. Combined studies of P and S wave velocities may be more informative (Thio et al., 2016). Furthermore, the previous studies tended to assume a linear relationship between seismic velocity and water content, which is inaccurate because of the complicated phase transformations and anelastic effect of water in the MTZ.

In this study, we improve our previous mineral physics modeling method (Weidner and Wang, 1998; Wang et al., 2006b; Wang et al., 2008, 2009) to involve water effects on phase transformations and velocities and predict seismic velocities under arbitrary compositions, water contents, and temperatures. We generate a complex relationship between P and S wave velocity perturbations and anomalies in composition, water content, and temperature. Then we combine our modeling results with the global P and S wave isotropic velocity model TX2019slab (Lu et al., 2019) to infer water distribution, thermal structure, and compositions in the MTZ and track the water circulation in the Earth’s interior.

2 Data and method

2.1 Introduction of the mineral physics modeling method

The lateral variation of P- and S-wave velocities in the mantle is dominantly caused by temperature, water content, and chemical composition anomalies. Our mineral physics modeling builds a bridge between observed velocity anomalies and these physics and chemical factors. In addition, only considering anharmonic effect in the inversion of thermal structure would introduce a large degree of partial melt and a much thicker oceanic crust than observation (Karato, 2008); hence our mineral physics modeling will consider both the anharmonic effect and anelastic effect on velocity.

2.1.1 Anharmonic effect of water, temperature, and composition

We modify our previous mineral physics method (Weidner and Wang, 1998; Wang et al., 2006b; Wang et al., 2008, 2009), which does not consider water effects, to involve water effects on both phase diagrams and elastic properties of olivine polymorphs (Wang et al., 2003; Litasov et al., 2005; Wang et al., 2006a; Mao et al., 2008a; Mao et al., 2008b; Jacobsen et al., 2009; Inoue et al., 2010a; Mao et al., 2010; Mao et al., 2011; Mao et al., 2012; Zhou et al., 2022). The modified method allows us to obtain the mantle velocities at arbitrary temperatures, water contents, and bulk compositions. Then the anharmonic velocity anomalies caused by temperature, water, and composition can be determined. Our mineral physics modeling method uses phase diagrams of the CaO-MgO-Al₂O₃-SiO₂ (CMAS) system (Gasparik, 2003) and hydrous olivine polymorphs (Litasov et al., 2005; Inoue et al., 2010a) to determine stable minerals for a certain mantle temperature, pressure, bulk composition, and water content, and cation distribution data (Weidner and Wang, 1998) to resolve their chemical compositions. Elastic properties and volume fractions of the stable minerals are calculated through the third order Birch-Murnaghan equation of state (Birch, 1978) based on the elastic database used in previous studies (Weidner and Wang, 1998; Wang et al., 2006b; Li et al., 2006; Wang et al., 2008, 2009; Li et al., 2011) and the high pressures and high temperatures experimental data of hydrous olivine polymorphs (Supplementary Table S1) (Wang et al., 2003, Wang et al., 2006a; Mao et al., 2008a; Mao et al., 2008b; Jacobsen et al., 2009; Mao et al., 2010; Mao et al., 2011; Mao et al., 2012; Zhou et al., 2022). In this study, we also involve water-iron correction parameters for elasticities of olivine polymorphs (Supplementary Table S1). After determining the elastic properties and volume fractions of the stable minerals at a certain mantle pressure, temperature, water content, and bulk composition, we use the Voigt-Reuss-Hill (VRH) average method (Hill, 1952) to calculate the velocity of the mineral assemblage. Since the water effect on seismic velocities of pyrope and orthopyroxene is subtle and even negligible (Fan et al., 2019; Hou et al., 2022), we ignore the water effect on them in our modeling. The water effect of other secondary minerals (e.g., calcium-perovskite and ilmenite) is also ignored.

2.1.2 Anelastic effect of water, temperature and composition

According to Chapter 20.3 in Karato (2008), the functional form of the temperature and water dependence for weak anelasticity is approximately given by:

${\mathit{V}}_{\mathit{P},\mathit{S}}\left(\mathit{\omega },\mathit{P},\mathit{T},\mathit{W}\right)={\mathit{V}}_{\mathit{P},\mathit{S}}^{\infty }\left(\mathit{T},\mathit{P},\mathit{W}\right)[1-\frac{1}{2}\cot \frac{\mathit{\alpha \pi }}{2}{\mathit{Q}}_{\mathit{P},\mathit{S}}^{-1}\left(\mathit{\omega },\mathit{T},\mathit{P},\mathit{W}\right)]$

where $V_{P,S}^{\infty }$ is anharmonic velocity, ω frequency, P pressure, T temperature, W water content, $Q_{P,S}$ quality factor, 0< α <1. Taking the logarithm and derivative of this equation with respect to temperature, one finds:

$\frac{\partial \log V_{P,S}}{\partial \text{T}}=\frac{\partial \log V_{P,S}^{\infty }}{\partial T}-\frac{{\beta }_{P,S}{T}_m{\mathit{Q}}_{P,S}^{-1}}{\pi T^2}$

the first and second term on the right side of this equation represent the anharmonic and anelastic effect of temperature respectively. we use the values given in Table 20.2 of Karato (2008) to infer the velocity perturbations caused by the anelastic effect of temperature.

Similarly, taking the logarithm and derivative of the first equation with respect to water content, one finds:

$\frac{\partial \log V_{P,S}}{\partial \log W}=\frac{\partial \log V_{P,S}^{\infty }}{\partial \log W}-\frac{\alpha }{2}\cot \frac{\alpha \pi }{2}{\mathit{Q}}_{P,S}^{-1}(\omega ,T,P,W)$

the first and second term on the right side of this equation represent the anharmonic and anelastic effect of water respectively. According to Karato (1995), $Q_{P,S}^{-1}\propto W^{\alpha }$, integrating the second term from reference water content, one finds velocity variations due to the anelastic effect of water:

$\text{δ}\log V_{P,S}=\frac{V_{P,S}\left(W\right)-V_{P,S}\left(W_0\right)}{V_{P,S}\left(W_0\right)}=-\frac{1}{2}\cot \frac{\alpha \pi }{2}\frac{{\mathit{Q}}_0^{-1}}{W_0^{\alpha }}(W^{\alpha }-W_0^{\alpha })$

$W_0$ and $Q_0$ are the reference water content and quality factor respectively. This equation shows that the velocity anomalies caused by anelastic water effect is the power exponential function of water content.

In addition, since the effect of major element on anelasticity is insignificant (Durham and Goetze, 1977; Darot and Gueguen, 1981; Shito et al., 2006), we ignore the anelastic effect of mantle composition in this study.

2.2 Mineral physics modeling results for different mantle conditions

Using the improved mineral physics method, we predict the P and S velocity perturbations at different mantle conditions relative to a reference model (Figure 1). We choose a one-dimensional 1,400°C adiabatic geotherm as the reference temperature model (Supplementary Figure S1B); the pyrolite model (Carmichael et al., 1974; McDonough and Sun, 1995) as the reference mantle composition model, which consists of 82.5 mol% harzburgite and 17.5 mol% basalt (Supplementary Table S2). In addition, according to the research of hydrous wadsleyite and ringwoodite (Wang et al., 2019; Wang et al., 2021), we assume the reference water model is wadsleyite with 0.5 wt% water for the upper MTZ, ringwoodite with 0.25 wt% water for the lower MTZ, and other secondary minerals are dry. Furthermore, the reference Q model for anelastic effect is derived from PREM (Dziewonski and Anderson, 1981). The velocity anomalies caused by anharmonic effect (about 0.5%–3%) are all larger than those caused by anelastic effect (lower than 0.5%) since the energy dissipation in the MTZ is much smaller than that in the upper mantle (Figure 1). However, the anelastic effect is not negligible in the MTZ. For instance, the S wave anelastic anomaly caused by 200 K temperature anomaly is up to 0.5% in the MTZ (Figures 1E,F). Compared with the velocity anomalies caused by ∼1 wt% water content and 200 K temperature anomaly, the velocity anomaly caused by 7.5 mol% harzburgite anomaly is minor and lower than 1% in the MTZ (Figures 1C,D), which indicates the composition effect in the MTZ is minor. There are several possible composition anomalies in the MTZ, such as basalt content anomaly, Fe content anomaly, and Al content anomaly. Since the following inversion procedure does not have enough information to distinguish the differences between those anomalies, we use basalt content anomaly to represent mantle composition anomaly.

FIGURE 1

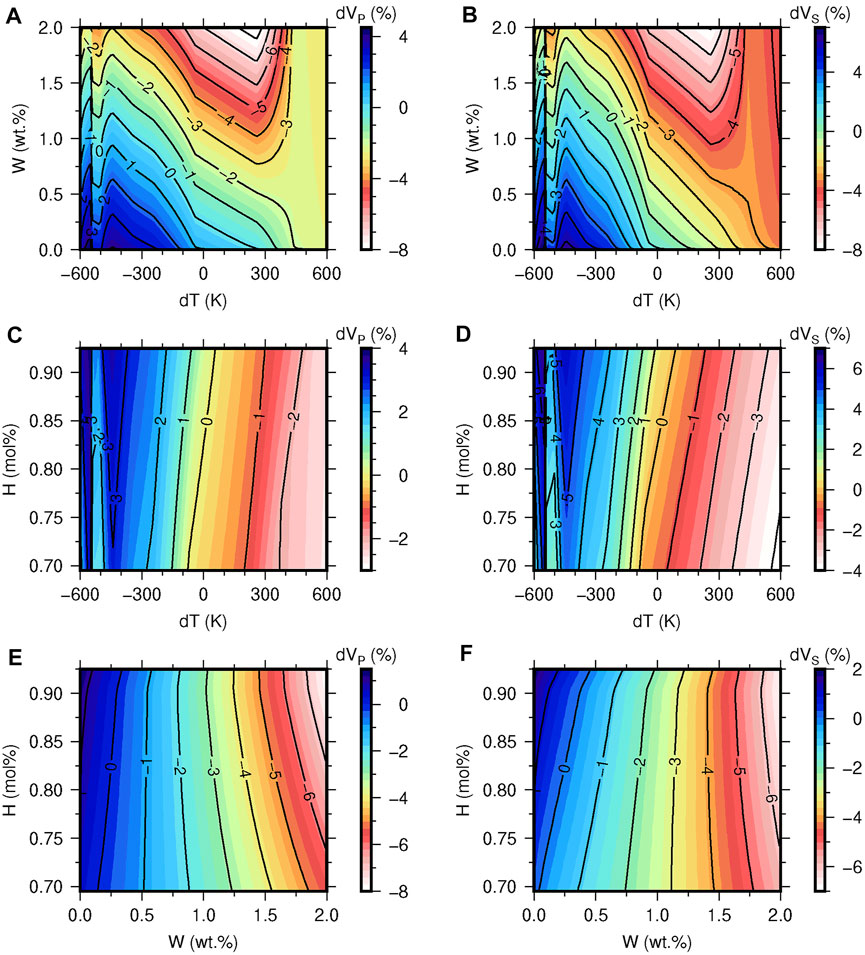

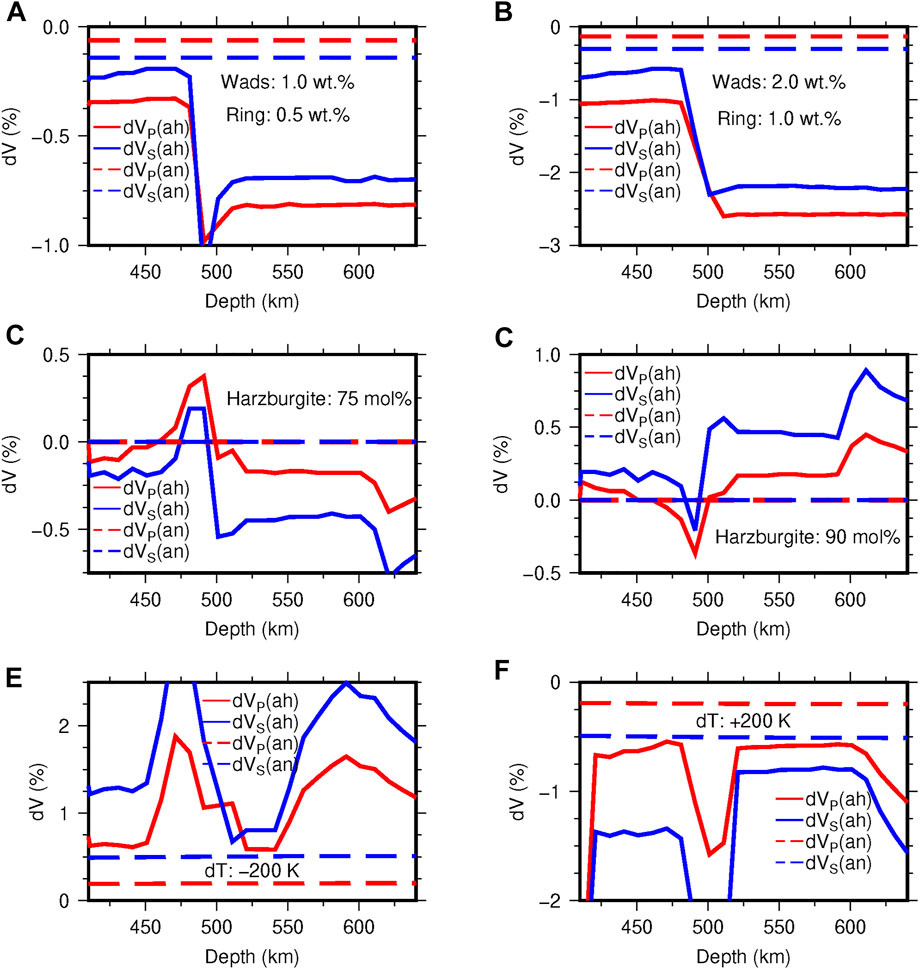

FIGURE 1. Velocity perturbations of (A) a water-unsaturated model (i.e., 1 wt% water in wadsleyite and 0.5 wt% in ringwoodite); (B) a water-saturated model (i.e., 2 wt% water in wadsleyite and 1 wt% in ringwoodite); (C) a depleted harzburgite model (75 mol% harzburgite + 25 mol% basalt); (D) an enriched harzburgite model (90 mol% harzburgite + 10 mol% basalt); (E) a cold model with a temperature 200 K lower than the reference temperature model; (F) a hot model with a temperature 200 K higher than the reference temperature model, relative to velocities of the reference mineral model. Subscripts an and ah represent the velocity anomalies caused by anelastic effect and anharmonic effect respectively.

Due to the complicated phase transformations caused by temperature variations, the profile has some slight fluctuations. For instance, when temperature decreases 200 K, the phase boundary of β to γ olivine will elevate (Supplemenatry Figure S1A), causing the velocity anomalies around 450 km to increase largely (Figure 1E). Moreover, since the volume fraction of ilmenite increases with decreasing temperature around 550 km (Supplemenatry Figure S1A), the velocity anomalies fluctuate in the lower MTZ (Figure 1E).

Because of the significant water storage capacity of wadsleyite and the large water sensitivity of ringwoodite, the reduction of anharmonic velocity can reach 1%–3% in the water-saturated situation, which is comparable with those from 200 K temperature anomaly (Figure 1B). Unlike olivine (Mao et al., 2010), the anharmonic water effect of wadsleyite and ringwoodite is not largely suppressed by increasing pressure, so there are still remarkable velocity reductions in the deep MTZ. The velocity reduction caused by water in the lower MTZ is more significant than in the upper MTZ since ringwoodite is more sensitive to water than wadsleyite. In addition, P wave anomalies caused by water effects are slightly larger than S wave anomalies (Figures 1A,B), which is different from those caused by temperature and composition effects.

The 3-D sensitivity kernels of P- and S-wave velocity anomalies to water, temperature, and harzburgite abundance for the upper MTZ (462 km depth) and lower MTZ (587 km depth) are calculated (Figures 2, 3). At the upper MTZ, both P- and S-wave anomalies show small sensitivities to water, and they only change 1% in the range of 0–2 wt% water content when $\text{dT}$ >0. However, they become more and more sensitive to water content when temperature decreases (Figures 2A,B) since the volume fraction of ringwoodite, which is more sensitive to water than wadsleyite, increases with decreasing temperature at 462 km (Supplementary Figure S1A). At the lower MTZ, water content significantly affects velocity anomalies because of the high sensitivity of ringwoodite to water content. For instance, shear wave velocity anomalies change from 6% to −2% with increasing water content when $\text{dT}$ = −400 K (Figure 3B). When $\text{dT}$ >400 K, velocity anomalies do not change with water content because when the temperature is greater than 2000 K, wadsleyite will directly decompose into garnet and magnesiowustite instead of transforming into ringwoodite (Figure 10.17 in Gasparik, 2003), which leads to the insensitivity of velocity anomalies to water content.

FIGURE 2

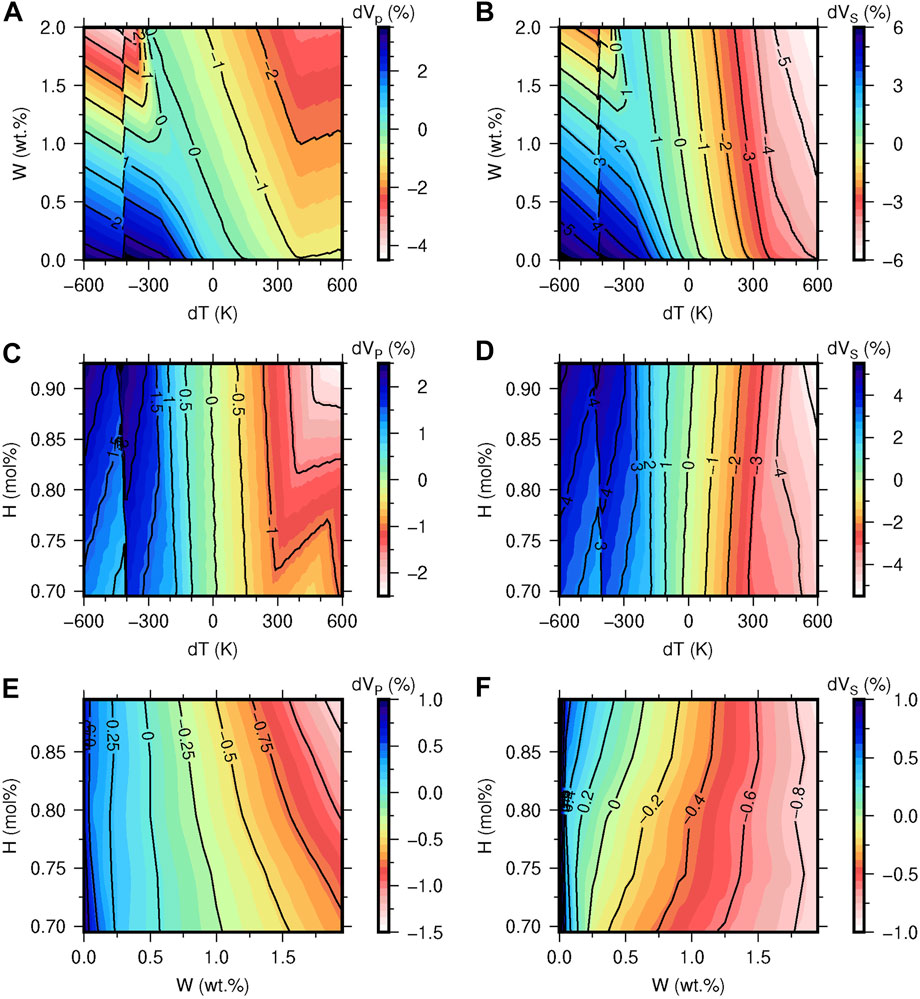

FIGURE 2. The sensitivity kernels of P- and S-wave velocity anomalies in the upper MTZ to water and temperature based on the pyrolite composition model (A,B); to temperature and harzburgite abundance based on a water content of 0.5 wt% in wadsleyite (C,D); to water and harzburgite abundance based on the 1,400°C adiabatic geotherm (E,F).

FIGURE 3

FIGURE 3. The sensitivity kernels of P- and S-wave velocity anomalies in the lower MTZ to water and temperature based on the pyrolite composition model (A,B); to temperature and harzburgite abundance based on a water content of 0.25 wt% in ringwoodite (C,D); to water and harzburgite abundance based on the 1,400 °C adiabatic geotherm (E,F).

The temperature effect is comparable with the water effect in the MTZ. P and S wave velocity anomalies change about 4% and 8%, respectively, in the whole range of temperature variation (Figures 2C,D, 3C,D). Although temperature effect decreases with depths due to the pressure effects on thermal expansion and attenuation (Karato, 2008), it is prominent in the MTZ.

Compared with temperature and water effects, the chemical composition effect is minor. The variations of velocity anomalies are lower than 1% when harzburgite abundance changes from 70 mol% to 90 mol% (Figures 2E,F, 3E,F). Since the chemical effect is not suppressed by pressure and becomes more visible in the deeper mantle (Karato, 2008), we find that the velocity variations in 587 km caused by composition anomaly are slightly larger than those in 462 km (Figures 2E,F, 3E,F).

2.3 Introduction of the inversion method

Based on the above mineral physics modeling, we can invert water content, temperature, and composition structures in the MTZ from a seismic tomography model. The grid search method is implemented to find the optimal temperature, composition, and water anomalies for observed P- and S-wave velocity anomalies. We define a misfit function $\text{χ}\left(\mathrm{m}\right)$ and regularization function $\text{R}\left(\mathrm{m}\right)$ as:

$\text{χ}\left(\mathbf{m}\right)=\left|(\delta \log V_P\left(\mathit{m}\right)){ }_{syn}-(\delta \log V_P){ }_{obs}\right|+\left|(\delta \log V_S\left(\mathit{m}\right)){ }_{syn}-(\delta \log V_S){ }_{obs}\right|$

$(\delta \log V_{P(S)}(\mathit{m})){ }_{syn}=(\delta \log V_{P(S)}(\mathit{m})){ }_{ah}+(\delta \log V_{P(S)}(\mathit{m})){ }_{an}$

$\text{R}\left(\mathbf{m}\right)=\left|(\mathit{m}-{\mathit{m}}_{ref})/{\mathit{m}}_{ref}\right|$

$\mathit{m}=\left(T,W,H\right)$

where the subscripts $syn$ and $obs$ represent the synthetic velocity anomalies from our mineral physics modeling and the observed velocity anomalies from seismic model respectively. The synthetic velocity anomalies equal anharmonic velocity anomalies (subscript ah) plus anelastic velocity anomalies (subscript an). m is the unknown model, and the degree of freedom of m is 3 representing temperature T, water content W, and harzburgite mole fraction H, respectively. Since the composition effect is minor, we only introduce harzburgite anomalies when the observed velocity anomalies cannot be explained well by temperature and water anomalies. Moreover, if there are multiple optimal solutions, we choose the solution closest to our reference model ${\mathit{m}}_{ref}$ as our final model (i.e., the solution makes the regularization term minimum). ${\mathit{m}}_{ref}$ represents the reference model described in 2.2. Unknown temperature anomalies are searched from −800 to 800 K with a search step length of 10 K. Unknown water contents are searched from 0 to 2 wt% H₂O with a search step length of 0.01 wt% H₂O in subduction zones, but for regions far away from subduction zones, we only search for solutions in the range of 0–1 wt% because the maximum water storage capacity of olivine polymorphs is 0.5–1 wt% along the normal geotherm (Ohtani et al., 2004). Harzburgite abundances are searched from 69.5 mol% to 92.5 mol% with a search step length of 1 mol%. We only keep the solutions with an error less than 0.2%. For the regions with a misfit greater than 0.2%, we cannot explain well, and other factors (e.g., the effect of dense hydrous magnesium silicates) should be involved in the future.

2.4 Seismic isotropic velocity model

In this study, we use TX2019slab (Lu et al., 2019), a P and S wave joint tomography model based on a linearized inversion of the major P- and S- body wave phases, to constrain the water distribution of the MTZ. TX2019slab shares some common features with other P and S wave joint tomography models (Houser et al., 2008; Simmons et al., 2010; Tesoniero et al., 2015) and has a higher resolution in the MTZ. Except for the North America (NAM) subduction zone, high velocity anomalies (1.5%–4%) related to subducted slabs in 7 subduction zones (i.e., the Calabria (CAL), western Java (JAV), northern Honshu (HON), northern Mariana (MAR), Tonga (TON), Central America (CAM) and northern Chile (CHI) subduction zones.) are well resolved. Low velocity anomalies (−1% to −2%) are dominantly located in Southern Eurasia, South Pacific, and East Africa (Figure 4). Compared with other models, TX2019slab reveals a more refined slab geometry and higher amplitude of velocity anomalies within slabs since they incorporated a 3-D subducting slab model into their starting reference model in inversion. Lu and Grand (2016) pointed out that the incorrect imaging of slabs can bias tomography results (Lu et al., 2019), so a tomography model with more accurate slab structures can provide a more reliable water distribution in the MTZ. The above analysis shows TX2019slab is an appropriate model for revealing the water anomalies near subduction zones.

FIGURE 4

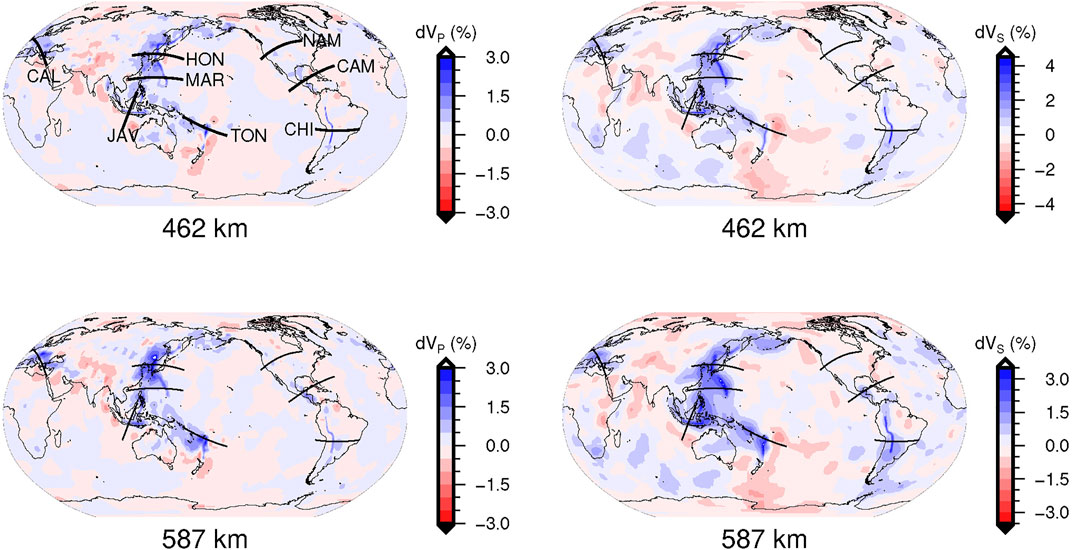

FIGURE 4. Isotropic P-wave and S-wave velocity anomalies in the upper and lower MTZ for TX2019slab (Lu et al., 2019). Eight black lines represent the subducting directions of slabs in eight subduction zones. They are the HON, MAR, TON, JAV, CHI, NAM, CAM, and CAL subduction zones.

3 Results

Our inversion results show that the MTZ is a main water reservoir of the Earth. The olivine polymorphs in the upper MTZ and the lower MTZ contain 0–2 wt% water and 0–1.5 wt% water, respectively (Figure 5). Considering the mass fractions of wadsleyite and ringwoodite (about 50–60 wt% in the mantle) and the uncertainties from the reference water model (Wang et al., 2019; Wang et al., 2021), the average water contents of the upper MTZ and the lower MTZ are 0.30–0.50 wt% and 0.15–0.20 wt%, respectively. The total water contents in the MTZ ($\sim 0.9\times {10}^{21}-1.4\times {10}^{21}$ kg) are about 0.64–1 seawater ($\sim 1.4\times {10}^{21}$ kg), which is consistent with Yoshino and Katsura (2013)’s estimation (0.29–0.87 seawater), slightly larger than Karato (2011)’s estimation (∼0.29 seawater), and significantly smaller than Fei et al. (2017)’s estimation (2.9–5.8 seawater).

FIGURE 5

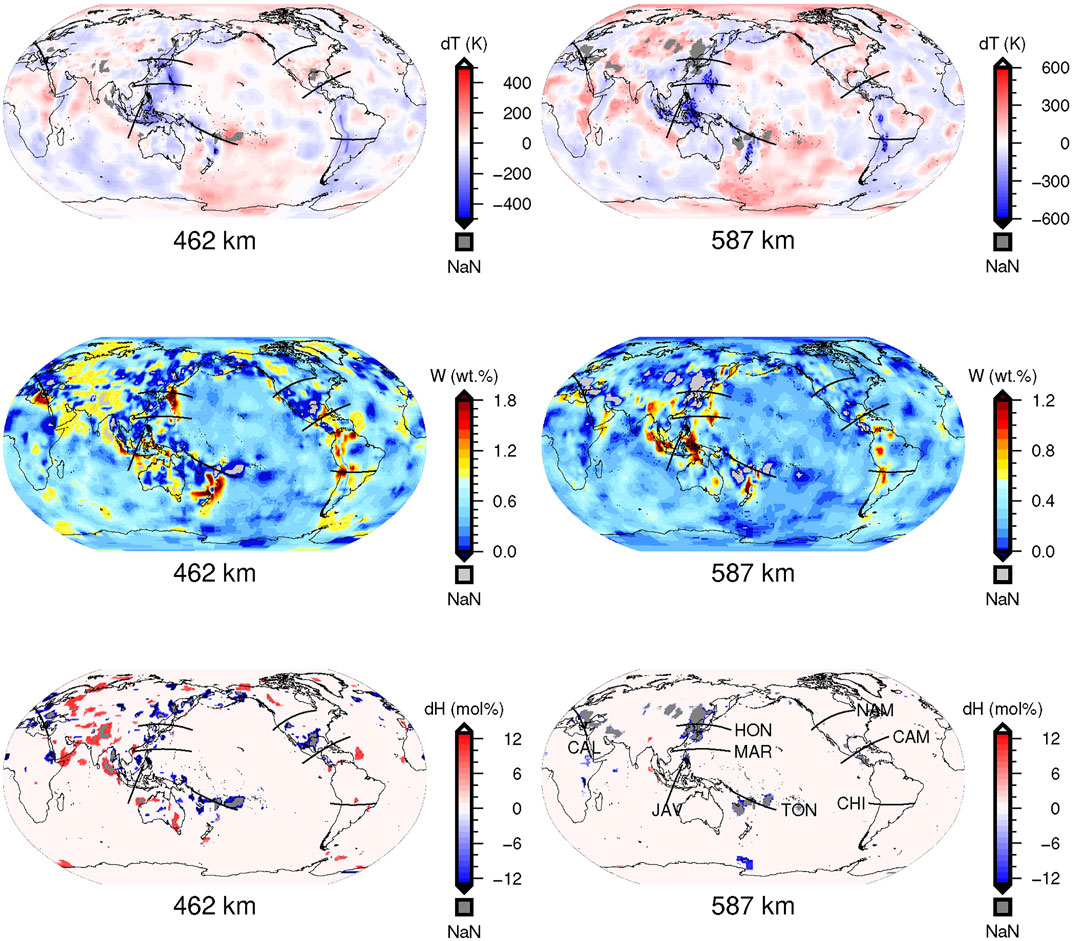

FIGURE 5. Distributions of temperature anomalies, water contents and harzburgite anomalies in the upper MTZ (462 km) and the lower MTZ (587 km). Only the optimal solutions with a misfit less than 0.2% are displayed, and those with an error greater than 0.2% (NaN) are marked in gray color. Eight black lines represent the subducting directions of slabs in eight subduction zones.

Most high water content areas in the MTZ are located near the subduction zones, and the water content of the slabs in the upper MTZ is higher than that in the lower MTZ, which indicates that slabs can transport water into the MTZ. Based on the inversion results, the eight slabs can be divided into three groups: 1. The HON, MAR, TON, JAV, and CHI subduction zones, which are colder (dT = −200 ∼ −600 K) than other slabs, display prominent hydrous signals in the whole MTZ. The water contents are up to 2 wt% and 1 wt% in the upper and the lower MTZ, respectively. 2. The CAM and CAL subduction zones, which have temperature anomalies between 0 and −200 K, display clear hydrous signals (wadsleyite with 0.7–1.4 wt% water) in the upper MTZ, and weak hydrous signals (ringwoodite with 0.5–0.7 wt% water) in the lower MTZ. 3. The NAM slab does not show an apparent low-temperature anomaly or hydrous signal in the whole MTZ, indicating it is relatively hot, significantly dehydrated in the upper mantle, and barely transporting water into the MTZ. Since dense hydrous magnesium silicates (DHMS) are stable at low temperatures (Poli and Schmidt, 2002) and the water storage capacities of hydrous phases are inversely proportional to temperature (Litasov and Ohtani, 2003), so colder slabs dehydrate more slowly, and carry more water into the deep mantle (van Keken et al., 2011), versa vice.

Besides the subduction zones, the central and southern Eurasia also show hydrous signals in the upper MTZ and contain water up to 0.6–1 wt%. Combining with the temperature and composition structures, we find that these hydrous regions have positive temperature anomalies and a mantle composition different from the surrounding pyrolite mantle. Future work is needed to determine the cause of this anomaly.

The composition structure indicates that the pyrolite model can represent the chemical composition of most areas in the MTZ. In addition, we find that composition anomalies are required to explain some of the velocity perturbations in the upper MTZ. Since our data cannot provide adequate information to distinguish differences between composition anomalies, our modeling results only indicate if a composition anomaly is needed to explain the velocity perturbations but cannot provide an accurate composition anomaly model. For example, our modeling suggests basalt accumulations up to 30% near the HON, MAR, and TON subduction zones in the upper MTZ. It could be a result of a large proportion (∼65% after ∼12.5 Myr) of pyroxene appearing in the oceanic crust due to slow diffusion in majoritic garnet (van Mierlo et al., 2013); or it only indicates those areas have chemical anomalies, and more information is needed to obtain a robust composition model in the future.

It is noteworthy that the lateral distribution patterns of water, temperature, and composition (Figure 5) are not affected by the reference models, but their absolute values can be different when we choose different reference models. Since the reference water model (Wang et al., 2019; Wang et al., 2021) we choose has a layered feature of water content in the MTZ, the upper MTZ is more hydrous than the lower MTZ in our results. This layered feature may be caused by the deep mantle melt redistribution (Karato et al., 2020): The hydrous melt above 410 km which is heavier than the surrounding mantle, has returned to the MTZ with downwelling flows (e.g., subducted slabs), causing the upper MTZ has accumulated more water.

Our results show some unresolved regions with misfits greater than 0.2%. We find that the unresolved places are dominantly near the HON, TON, and CAL subduction zones (Figure 5), where high velocity anomalies up to 2.5% ∼ 3.5% appear and P-wave velocity anomalies are slightly larger than S-wave velocity anomalies (Figure 4). Since the western Pacific subduction zone and the Mediterranean subduction zone have stagnant slabs (Fukao et al., 2009), other factors (such as the influence of Superhydrous phase B) need to be involved for a more accurate model in the future.

4 Discussions

4.1 Compared with other results

van Keken et al. (2011) used geodynamic calculation to model the thermal and petrological structures of the subduction zones and to predict water contents of downgoing slabs. Their calculation indicates that cold slabs, such as TON, MAR, HON, and JAV, dehydrate slowly and can transfer water into depths lower than 230 km. In contrast, warm slabs, such as NAM, become nearly anhydrous at shallow depths (Figures 6A,B), which is consistent with our results. Their study suggests that the CHI slab is warm and dehydrates significantly above 230 km depth, while our results show a clear hydrous signal in the MTZ close to the CHI slab. The possible reason for the discrepancy is that the subduction of the middle ocean ridge (Hu et al., 2016) at the CHI slab brings more water into the mantle than other slabs, so the slab remains hydrous in the MTZ, although it significantly dehydrates in the upper mantle.

FIGURE 6

FIGURE 6. Other results related to the water contents in the MTZ. (A) Thermal parameter Φ (the product of convergence speed and age of subducted slabs) of subducted slabs (Figure 1 in van Keken et al., 2011). A higher thermal parameter indicates a colder slab. (B) Predicted H₂O flux at selected depths in the global subduction zones. The black line is the position of trench. The parallel lines show H₂O input to the fore arc (15 km), volcanic front (100 km), 150 km depth and >230 km depth, respectively (Figure 7 in van Keken et al., 2011). (C) Variations of the electrical conductivity at 410–520 km depth (Sun et al., 2015). (D) Variations of the electrical conductivity at 520–670 km depth (Sun et al., 2015). plotted are log₁₀(σ), σ is electrical conductivity in S/m. Eight black lines represent the subducting directions of slabs in eight subduction zones.

Besides seismic velocity, electrical conductivity is also highly sensitive to water, and a small amount of water can significantly increase electrical conductivity (Karato, 1990). Sun et al. (2015) reported a high-resolution global electrical conductivity model, which shares some common features with our results (Figures 6C,D). Their model shows high electrical conductivity anomalies are mainly located in the HON, MAR, JAV, and CHI subduction zones (red areas in Figures 6C,D). Moderate electrical conductivity anomalies appear near the CAM subduction zone (white areas in Figures 6C,D). Low electrical conductivity anomalies appear close to the NAM subduction zone (blue areas in Figures 6C,D). Those characteristics are all consistent with our results (Figure 5). In addition, high conductivity anomalies are also located in central Eurasia and the northern Indian Ocean (red areas in Figures 6C,D), which show high water contents up to 0.6–1 wt% in the upper MTZ in our results (Figure 5). However, our results exhibit a hydrous MTZ beneath the TON subduction, which does not appear in the conductivity model. Since the electrical conductivity of minerals is not only affected by water but also by temperature and chemical composition (Huang et al., 2005; Yoshino et al., 2008; Yoshino and Katsura, 2009), we need to consider the combined effect of these factors to understand the high electrical conductivity in the MTZ.

4.2 Water circulation in the mantle

According to our water distribution results and the water contents and water distributions of the upper mantle (Peslier et al., 2017; Ohtani, 2021), together with the information on deep mantle melting (Karato et al., 2020) and plate tectonic history (Brown et al., 2020), we propose a water circulation model in Figure 7.

FIGURE 7

FIGURE 7. Schematic diagram for the water circulation in the mantle.

Hydrous regions in the upper mantle are near subduction zones, where slabs transported 0.03–0.3 wt% water into the MTZ (Suetsugu et al., 2010; Peslier et al., 2017; Ohtani, 2021). Because plate tectonics began in the early Paleoproterozoic (2.2 Ga) (Brown et al., 2020), the subduction of oceanic plates may have been going on for hundreds of millions of years. Since the diffusion rate of hydrogen is slow (∼1 km for 100 My) but the motion of water-rich melts is fast (∼100–1,000 km for 100 My), the motion of water-rich melts reflects the redistribution of water in the Earth (Karato et al., 2020). The thermal structure of our inversion results demonstrates that it is difficult to produce intensive partial melting in the MTZ. However, when subducted slabs penetrate the 660-km discontinuity, dehydration and partial melting will occur due to the significant contrast of water storage capacity between the MTZ and the lower mantle (Litasov and Ohtani, 2002; Hirschmann et al., 2009; Inoue et al., 2010b; Litasov et al., 2013), and most released water enters the melt, resulting in water-rich melts below the 660-km discontinuity. Since the water-rich melt is lighter than the surrounding mantle below 660 km, it returns to the MTZ with upwelling flows (e.g., mantle plumes) (Sanloup et al., 2013; Sakamaki, 2017; Karato et al., 2020). Similarly, dehydration melting occurs when upwelling flows pierce the 410-km discontinuity. Because the hydrous melt above 410 km is heavier than the surrounding mantle, the water-rich melt will return to the MTZ with downwelling flows (e.g., subducted slabs) (Sanloup et al., 2013; Sakamaki, 2017; Karato et al., 2020). Similar to the plate tectonic, such redistribution of water may have been going on for hundreds of millions of years, so the water released from slabs can be accumulated in the MTZ, the upper MTZ, and the lower MTZ have accumulated 0.3–0.5 wt% and 0.15–0.2 wt% water, respectively (Figure 7), during the whole tectonic history.

5 Conclusion

Based on the high temperatures and high pressures experimental data of hydrous olivine polymorphs (Wang et al., 2003; Litasov et al., 2005; Wang et al., 2006a; Mao et al., 2008a; Mao et al., 2008b; Jacobsen et al., 2009; Inoue et al., 2010a; Mao et al., 2010; Mao et al., 2011; Mao et al., 2012; Zhou et al., 2022), we improved our previous mineral modeling method (Weidner and Wang, 1998; Wang et al., 2006b; Wang et al., 2008, 2009) to involve water effects in the calculation. Then we combine the seismic isotropic velocity tomography TX2019slab (Lu et al., 2019) and our new mineral physics modeling method to map the water distribution in the MTZ.

We find that the MTZ is a main water reservoir of the Earth, and the total water content of the MTZ is about 0.64–1 seawater. The upper MTZ (410–520 km) and the lower MTZ (520–660 km) contain 0.3–0.5 wt% and 0.15–0.2 wt% water, respectively, implying water contents of the MTZ decrease with increasing depths. The most hydrous regions are mainly located near subduction zones, where the upper MTZ and the lower MTZ can contain water up to 0.5–1 wt% and 0.2–0.5 wt%, respectively, indicating water can be transported into the MTZ by slabs. In addition, old subducted slabs in the western Pacific subduction zone are more hydrous than young subducted slabs in the eastern Pacific subduction zone. Our results are consistent with petrological modeling (van Keken et al., 2011) and electrical conductivity tomography (Sun et al., 2015). We also proposed a water circulation model in the Earth’s mantle.
