Laboratory investigation of the influence of fractures on CO2 flooding

CO₂ injection is a promising method for low-permeability reservoirs. CO₂ is much easier to inject underground compared with water. The solubility of CO₂ in oil decreases the oil density and viscosity, leading to an enhancement of the oil recovery. CO₂ flooding could achieve the dual purpose of developing oil effectively and reducing greenhouse gas. Therefore, this technique has both economic and social benefits and is an essential technology for achieving green development. Natural fractures are widely developed in low-permeability reservoirs, and artificial fractures are often used to improve oil development. These fractures have a significant influence on flow patterns during CO₂ flooding. In addition, fractures are also one of the key factors of CO₂ channeling. Therefore, the influence of fractures on CO₂ flooding pressure distribution, fluid composition, and displacement efficiency needs to be studied. In this work, a CO₂ flooding experiment was implemented to test the pressure distribution and outlet composition changes during CO₂ flooding under different fracture lengths and apertures. The experiment shows that a long and wide fracture could effectively reduce the injection-production pressure difference. However, fractures also had a negative effect on oil development. Fracture length and aperture had a significant effect on the gas phase composition at the outlet, but had little effect on the oil phase composition.

1 Introduction

The development of low-permeability reservoirs and tight-oil reservoirs is often unsatisfactory due to problems such as small pore radius and low permeability. The poor flow conditions lead to difficulties in water injection development. Laboratory experiments and field applications have shown that the injection of CO₂ into low-permeability reservoirs has a significant ability to enhance oil. In CO₂ injection, oil mixed with CO₂ has much increased mobility and reduces the interfacial tension. Therefore, CO₂ flooding could greatly improve oil recovery. CO₂ injection has been recognized as the second-largest enhanced oil recovery (EOR) process in the world.

CO₂ has attracted the attention of experts around the world because of its excellent oil displacement capacity. There is a long research history on CO₂ flooding in theory research, and it has been frequently used in applications in the field. Since the 1950s, a large amount of theoretical research and field application research has been carried out (Guo et al., 2002; Jiang et al., 2010; He et al., 2011). In the 1970s, the application of CO₂ flooding made great progress (Cao et al., 2020). China started research on CO₂ flooding theory and application in the 1960s. This technology has not been widely promoted in China because of the lack of CO₂.

Global warming is a major issue for the world, as increased amounts of CO₂ and other greenhouse gases in the atmosphere have resulted in increases in sea levels and changes in the climate. Many countries have proposed policies to reduce carbon emissions. In CO₂ flooding, the injected CO₂ is trapped underground, and it is an important way to reduce carbon emissions. Therefore, CO₂ flooding has the dual purpose of oil recovery and CO₂ reduction, and has broad application prospects.

Laboratory experiments of CO₂ flooding are applied to support the implementation of CO₂ flooding in the field (Xie, 1991; Cheng et al., 2008; Ma et al., 2020). Many experts have made great contributions in this field. The influence of CO₂ on the viscosity and volume of oil was studied by Hao et al. (2005) through laboratory experiments, and the mechanism of CO₂ EOR was researched. Miller and Jones studied the effect of CO₂ on the physical properties of heavy oil (Miller and Jones, 1981; Sankur and Emanuel, 1983). Gao et al. (2020) analyzed the influence of development parameters on the CO₂ EOR through experiments (Gao et al., 2020). Wang et al. (2016) discussed periodic CO₂ injection through experiments in low-permeability porous media, and the influence of injection slug and velocity is revealed in their work (Wang et al., 2016). The differences between miscible flooding and immiscible flooding were compared by Zhao et al. (2018), and field experiments were conducted to support the research. The above works mainly focus on the mechanism of CO₂ EOR, and the effect of fractures was not studied.

Oil development of low permeability and tight reservoirs is often affected by fractures. On the one hand, by fracturing the injection well, the injection rate of CO₂ is improved and the reservoir energy can be recovered in a short time. On the other hand, the oil production well is usually fractured to improve the production rate in low-permeability reservoirs. As a high-conductivity channel, fractures are closely related to important parameters such as the swept volume and gas channeling during reservoir development. It is necessary to carry out experimental research on the effect of fractures on CO₂ flooding. In order to explore the effect of fractures on CO₂ flooding, Huang used cores with annulus to represent fractures (Huang et al., 2008). An experimental study of CO₂ huff and puff was conducted, showing that fractures had a great influence on the CO₂ huff and puff. In order to optimize the injection methods of CO₂ flooding after water flooding, CO₂ compound flooding experiments with single fracture and complex fracture in a five-spot well pattern were implemented, respectively (Shi et al., 2021). The physical model of fracture radial flow was used in their work. To develop fractured tight reservoirs effectively, Wang (2017) designed a CO₂ flooding experiment to analyze pressure transfer in fractured porous media (Wang, 2017). In this experiment, the fractures were formed with different apertures. By comparing the CO₂ flooding results with the control experiment, it was shown that the gas channeling caused by fracture was the key factor in the production of oil in the matrix. Existing experiments show that fractures have a significant impact on the development of CO₂ flooding in low-permeability and tight reservoirs. However, further research is required on pressure distribution, fluid composition, and fluid displacement.

In this study, artificial cores were made according to the formation parameters in Shengli Oilfield. Fracture length and aperture are the primary factors affecting CO₂ flooding. Therefore these fractures were made with different lengths and apertures. During CO₂ flooding, the pressure along the core and the components at the outlet was recorded. Then the influence of fractures on CO₂ flooding was investigated.

2 Experimental method

The experimental equipment contained UQT-120-70 high temperature and high pressure long-core test system, Bruker 450 GC, and Agilent 7890A GC as the main components. The pressure was measured with SENEX DG2113-C-70/B. The pressure measurement signal was automatically recorded by the computer data acquisition system and was set to be recorded every 2 min. The cores used in this experiment were artificially produced according to the formation parameters of Shengli Oilfield. After cleaning and drying, the basic parameters of the cores are shown in Table 1. The fractures were made by wire cutting, and quartz sand was used as a filler to support the fractures as shown in Figure 1.

TABLE 1

TABLE 1. Parameters of cores.

FIGURE 1

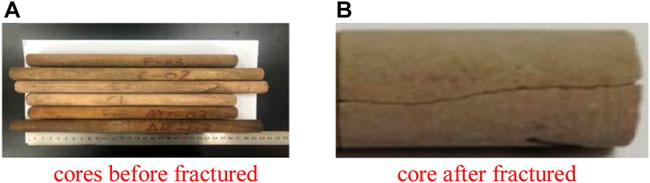

FIGURE 1. Part of cores used in this experiment. (A) Cores before fracture and (B) cores after being fracture.

Since it is difficult to obtain a single core longer than 0.5m, the commonly used method is splicing conventional cores in a certain arrangement. Filter paper was applied to connect short cores to eliminate the terminal effect. The arrangement of each core was as follows.

1) The harmonic mean permeability $\overline{k}$ of the n cores was calculated using Eq. 1. A comparison was made between $\overline{k}$ and the permeability of the n cores, to find the core whose permeability was closest to $\overline{k}$. Then this core was put in the first place at the outlet of the experimental device:

$\frac{L}{\overline{k}}=\frac{L_1}{K_1}+\frac{L_2}{K_2}+\cdots +\frac{L_n}{K_n}={\Sigma }_{i=1}^n\frac{L_i}{K_i}(1)$

where $L$ is total length of the core, cm, $\overline{k}$ is the harmonized mean permeability of the core, ${10}^{\mathrm{-}3}\mathrm{\mu }{\mathrm{m}}^2$, $L_i$ is the length of the ith core, and $K_i$ is the permeability of the ith core, ${10}^{\mathrm{-}3}\mathrm{\mu }{\mathrm{m}}^2$.

2) The harmonic mean permeability of the remaining n-1 cores $\overline{k}$was calculated. The core whose permeability was closest to $\overline{k}$ was arranged in the second place.

3) The long cores were obtained using the above method.

Four kinds of cores were considered in this experiment: the control group (without fracture in cores), a core with fracture length 10 cm and aperture 0.05mm, a core with fracture length 20 cm and aperture 0.05 mm, and a core with fracture length 20 cm and aperture 0.1 mm. By carrying out CO₂ flooding experiments on different types of cores, the influences of fracture length and aperture on the pressure distribution, composition, and displacement effect during CO₂ flooding were studied. The fluid used in this experiment was obtained by compounding the oil and gas samples from the surface separator of a well in the block.

The experimental steps mainly included the following: ① Firstly, the core was cleaned with petroleum ether and dried with nitrogen, then dead oil was injected with a pump to fully saturate the core, and keep the pressure and temperature at formation conditions for some time. After the core was fully saturated, the amount of dead oil was recorded. ② The pressure and temperature at the outlet were set to 20 MPa and 50°C, respectively. Then the prepared live oil was used to displace the dead oil in the core until the gas-oil ratio at the inlet and outlet was the same to ensure that the core was completely saturated with live oil. ③ Industrial-purity CO₂ (99.9%) was injected at a constant rate to displace the oil in the core until no more oil was driven out at the outlet. The data record changed over time, including oil production, gas production, pressure at the measuring points, etc. The produced gas and oil samples were collected for chromatographic analysis. ④ After each experiment was finished, the cores were cleaned, dried with nitrogen, evacuated with a vacuum pump, and steps ① to ③ were repeated for the next set of experiments.

3 Results analysis

3.1 Analysis of the influence of fracture length on CO₂ flooding

3.1.1 Pressure distribution in cores with different fracture lengths

3.1.1.1 Control experiment

Firstly, the CO₂ flooding experiment in cores without fractures was carried out as a control experiment. The measuring points were set every 10 cm from the injection point. The outlet pressure remained unchanged, and the CO₂ was injected at a constant rate of 0.2 ml/min. The value of the pressure at each measuring point was recorded, as shown in Figure 2.

FIGURE 2

FIGURE 2. Pressure distribution at different times of the control experiment.

The pressure at each measuring point gradually decreased with displacement time before CO₂ broke through the core. It indicated that in the initial stage of gas injection, high pressure was required to generate a pressure difference between the inlet and outlet. Stable flooding was formed after the experiment had been carried out for a period of time. At this stage, the required injection pressure at the inlet was decreased. The flow resistance was decreased by reducing the unswept area. Therefore the required pressure became smaller with CO₂ flooding. The gas-oil ratio in Figure 3 shows that the CO₂ broke through the core at 0.77 PV. Before CO₂ was detected at the outlet, it can be seen from Figure 2 that the pressure difference was significantly smaller than the initial pressure difference. It shows that, after the gas broke through, the constant-rate flooding could be achieved with a low pressure difference.

FIGURE 3

FIGURE 3. Gas-oil ratio at different times.

3.1.1.2 Fracture lengths of 10 and 20 cm

Two kinds of cores were considered in this case. One contained a 10-cm fracture and the other a 20-cm fracture. The aperture of both fractures was 0.05 mm. The measuring points were set every 10 cm from the injection point. The outlet pressure remained unchanged, and the CO₂ was injected at a constant rate of 0.2 ml/min. The values of the pressure at each measuring point were recorded, as shown in Figure 4. The curves of gas oil ratio for these two cases are shown in Figure 5.

FIGURE 4

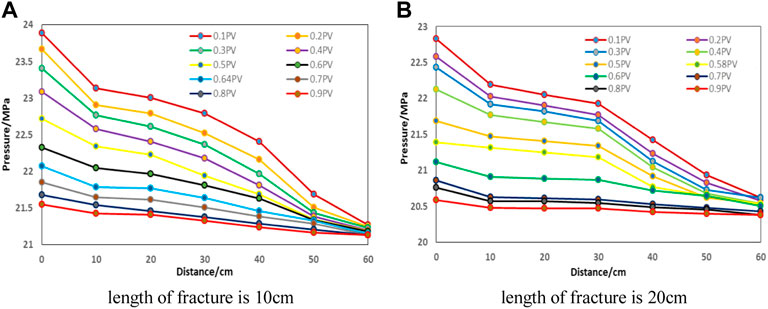

FIGURE 4. Pressure distribution in cores with different fracture lengths. (A) Length of fracture 10 cm and (B) length of fracture 20 cm.

FIGURE 5

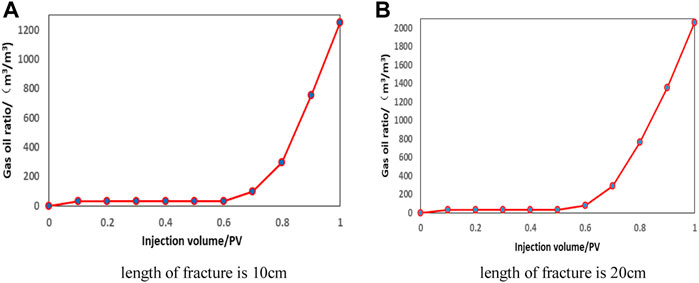

FIGURE 5. Gas oil ratio at outlet with different fracture lengths. (A) Length of fracture 10 cm and (B) length of fracture 20 cm.

Compared with the control experiment, the required injection pressure of the cores with fracture was smaller. Similarly, before CO₂ was detected at the outlet, the pressure at each measuring point decreased with the displacement time. The high permeability of the fractures led to low energy loss when fluid flowed through the fracture. Therefore the pressure in the fracture area did not decrease much with distance. But after passing through the fractured area, the descent rate of pressure was faster.

It indicates that fractures can reduce the required injection pressure because of their high permeability. As the experiment continued, the high-viscosity oil area gradually decreased and the flow resistance became smaller simultaneously. Figure 5 shows that the CO₂ broke through the core at 0.64 PV and 0.58 PV, respectively. Before CO₂ was detected at the outlet, it can be seen from Figure 4 that the pressure distribution had been reduced to 1.2 MPa. When the fracture length was 20 cm, the required injection pressure was lower than when the fracture length was 10 cm. It indicates that the fractures could effectively reduce the pressure difference between the injection and the production point.

3.1.2 Components at outlet of the cores with different fracture lengths

The outlet was used as the collection point to record the cumulative production of the cores at different times. The gas-oil ratio at different times was obtained according to the instantaneous production. The component composition under standard conditions was obtained by chromatography. Four time points were selected to analyze the component, including the time before CO₂ broke through the core, the time when CO₂ broke through the core, the time after CO₂ broke through the core, and the later stage of CO₂ flooding. The molar composition of each component in the gas phase and the oil phase was obtained according to the chromatographic analysis, as shown in the following Figures 6, 7.

1) Length of fracture 10 cm

2) Lengths of fracture 20 cm

The molar composition of gas and oil are shown in Figures 6, 7. It is obvious that CH₄ accounts for the largest proportion in the gas phase before CO₂ was detected. Part of the CO₂ was separated from the oil, less than 10%. After the CO₂ was detected, the proportion of CH₄ continued to decrease, and the proportion of CO₂ continued to increase, until the gas component at the outlet was mainly CO₂.

FIGURE 6

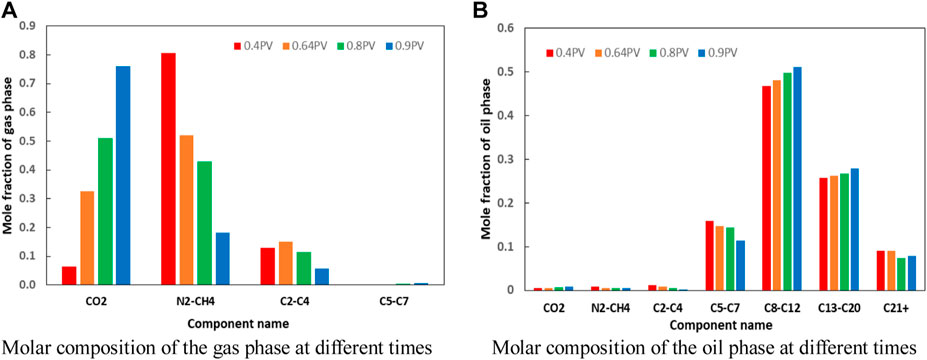

FIGURE 6. Molar composition at different times. (A) Molar composition of the gas phase at different times and (B) molar composition of the oil phase at different times.

FIGURE 7

FIGURE 7. Molar composition at different times. (A) Molar composition of the gas phase at different times and (B) molar composition of the oil phase at different times.

It can be seen from the oil phase composition that at the outlet, the proportion of light hydrocarbon components C₅-C₇ decreased after gas was detected. Meanwhile, the proportion of intermediate components C₈-C₁₂ and heavy components C₁₃-C₂₀ increased. This shows that CO₂ could extract light components from oil. After the light components were extracted, the viscosity of the oil in the swept area was increased, and it was difficult to bring out the heavy components. Therefore, the proportion of heavy components at the outlet continued to decrease.

The proportion of CO₂ in the gas was different, as seen by comparing the gas components in Figures 6, 7. The produced gas contained more CO₂ in the core with the 20-cm fracture. It demonstrates that the fracture could exacerbate the gas channeling of CO₂. On the other hand, the fracture had little effect on the component of the produced oil. The main difference was in the core with the 20-cm fracture; the final proportion of intermediate components C₈-C₁₂ was increased (the molar fraction of C₈-C₁₂ in the 10-cm fracture was increased to 0.51, and the mole fraction of C₈-C₁₂ in 20 cm fracture was increased to 0.62). It indicates that the fracture could lead to the reduction of the extraction and displacement of CO₂.

The results in Figure 8 show that the final oil recovery was closely connected to the fracture length. A longer fracture had a greater influence on the gas channeling during the CO₂ flooding process. Therefore, the oil recovery decreased as the fracture length increased.

FIGURE 8

FIGURE 8. Comparison of the recovery degree of different fracture lengths.

3.2 Analysis of the influence of fracture aperture on CO₂ flooding

The fracture with an aperture of 0.1 mm was made and compared with the above fracture with an aperture of 0.05 mm. The lengths of both fractures were 20 cm. The measuring points were set every 10 cm from the injection point. The outlet pressure remained unchanged, and the CO₂ was injected at a constant rate of 0.2 ml/min. The pressure distribution is shown in the following Figure 9.

FIGURE 9

FIGURE 9. Pressure distribution at different times.

Compared with the 0.05 mm fracture aperture in the previous section, the required pressure was smaller. Similar to the conclusion of fracture length, the larger the fracture aperture, the smoother the pressure change. The fracture aperture led to greater effective permeability to reduce the injection-production pressure difference.

The proportion of CO₂ in gas was different in the cores with different apertures as shown in Figure 10. The produced gas contained more CO₂ in the core with the 0.1 mm fracture. More than 60% of CO₂ was detected at the outlet when the fracture aperture was 0.1 mm. The fracture had little effect on the component of the produced oil.

FIGURE 10

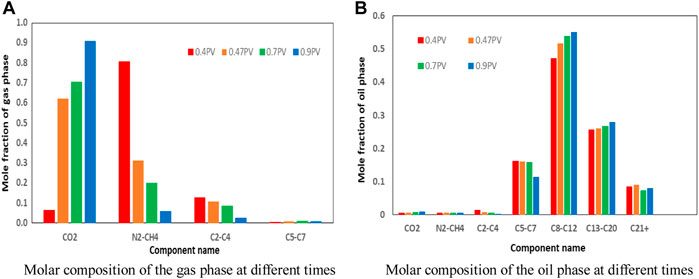

FIGURE 10. Molar composition at different times. (A) Molar composition of the gas phase at different times and (B) molar composition of the oil phase at different times.

The results in Figure 11 show that although the larger fracture aperture may have reduced the pressure difference between the injection and the production point, the gas was able to flow along the high-permeability fracture; this was not conducive to a balanced displacement.

FIGURE 11

FIGURE 11. Comparison of the recovery degree of different fracture apertures.

3.3 Analysis of the influence of fracture on CO₂ flooding

The pressure before CO₂ was detected at the injection and production point is shown in Figure 12.

FIGURE 12

FIGURE 12. Pressure in different experiments.

The results show that before CO₂ was detected, a larger pressure difference was required in the control experiment. The pressure difference between the injection and production point was about 1.4 MPa. The pressure difference would drop if there was a fracture, and the longer the fracture, the smaller the injection-production pressure difference. The fracture aperture had a similar influence on the pressure. Comparing the control experiment and experiment with the fracture of 0.1 mm and aperture 20 cm length, the injection-production pressure difference was reduced by 40%.

The outlet molar fraction was taken at the moment of gas being detected under the five conditions for comparison, and the results are shown in Figure 13.

FIGURE 13

FIGURE 13. Main components of the gas phase at the moment when gas was detected.

The results show that at the moment of gas being detected, the mole fraction of CO₂ was the lowest in the control experiment, which was only 12.7%. With an increase in fracture length and aperture, the proportion of CO₂ increased to 62.3% when the CO₂ broke through the core. Long and wide fractures shortened the CO₂ breakthrough time at the outlet, and the injected CO₂ had no chance to contact the oil and improve the condition. Therefore the rapid increase of CO₂ affected the displacement efficiency.

The light components C₅-C₇, intermediate components C₈-C₁₂, and heavy components C₁₃-C₂₀ were taken under five conditions for comparison, and the results are shown in Figure 14.

FIGURE 14

FIGURE 14. Main components of the oil phase at the moment when CO₂ was detected.

The results show that the increase of fracture aperture and length had little influence on the oil phase composition at the moment of CO₂ breaking the core.

Figure 15 shows that the control experiment had the highest oil recovery. The increase in fracture length and aperture aggravated the gas channeling which led to a decrease in oil recovery. Besides this, compared with the fracture width, the fracture length had a greater impact on the CO₂ flooding.

FIGURE 15

FIGURE 15. Comparison of the recovery degree of the different cases.

4 Conclusion

A CO₂ flooding experiment in a long core was designed. The artificial cores and live oil were prepared according to the reservoir parameters in Shengli Oilfield. The inlet was injected with CO₂ at a constant speed of 0.2 ml/min. The pressure distribution along the core and components of the gas phase and oil phase at the outlet was tested. The results demonstrate the following:

1) The CO₂ flooding experiments on the matrix cores show that the pressure of each measuring point decreased rapidly with time in the early stage. After CO₂ broke through the core, the injection-production pressure difference decreased with the decrease of flow resistance. It indicates that constant speed displacement could be achieved without high injection pressure after the gas broke through. The proportion of CH₄ in the gas phase at the outlet exceeded 70% when CO₂ broke through the core. Then the proportion of methane continued to decrease, and the proportion of CO₂ continued to increase until the gas component at the outlet was mainly CO₂. The proportion of light and intermediate components increased after CO₂ broke through the core.

2) It shows that the long and wide fracture could effectively reduce the injection-production pressure difference. With the increase in fracture length and aperture, the recovery degree decreased from 72.41% to 48.15%. In general, the fracture length and aperture had obvious effects on the pressure distribution and the displacement efficiency.

3) Fracture length and aperture had a significant effect on the gas phase composition at the outlet. Wide and long fractures shortened the CO₂ breakthrough time, and the rapid increase of CO₂ at the outlet affected the displacement efficiency. Generally speaking, the increase of fracture aperture and length had little effect on the oil phase composition.
