Gas hydrate production testing was conducted in 2017 in the Shenhu Area in the northern part of the South China Sea, and unprecedented success was achieved. In order to obtain gas production and physical properties of gas hydrate reservoirs in the study area and determine the location of test production wells, the seismic and logging data and drilling cores were analyzed in detail, the physical characteristics of the sediments, faults, gas components, and reservoir were studied. The results show that 1) the gas hydrates are diffusion type, with reservoirs dominated by clayey silt sediments, and the gas hydrate-bearing layers are characterized by soup-like, porridge-like, cavity, and vein structures; 2) the resistivity and acoustic velocity of gas hydrate formation are significantly higher than those of the surrounding sediments, while the neutron porosity, density, and natural gamma are slightly lower; the Bottom Simulating Reflectors (BSRs) in seismic profiles exhibit the exist of gas hydrates; 3) gas chimneys and faults are well-developed beneath the BSRs, and hydrocarbon gases can easily migrate into the gas hydrate reservoirs in areas with stable temperature and pressure conditions; 4) the gas hydrate saturation is high, the highest saturation in site W17 was up to 76%, with an average of 33%; while the highest saturation in site W19 was up to 68%, with an average of 31%. The gas source is considered as mixed gas of thermogenic gas and microbial gas. By comparing the core samples and geophysical characteristics of sites W17 and W19 in the study area and calculating the thickness, distribution area, and saturation of the hydrate deposition layer, it was found that site W17 is characterized by a thick layer, large area, high saturation, and good sealing, and thus, site W17 was established as the test production site. The development of gas chimney and faults provides pathways for the upward migration of deep gas, and the gas migrates to gas hydrate stable zone in forms of diffusion, water soluble and free state, forming high saturation of diffusion gas hydrates.
Introduction
Natural gas hydrates (hereinafter referred to as hydrates) mainly exist in the shallow sedimentary strata in marine continental margins and permafrost regions in alpine areas on land (Kvenvolden and Lorenson, 2001; Collett, 2002, 2010; Klauda and Sandier, 2005; Demirbas, 2010; Chong et al., 2016). Under high pressure and low-temperature conditions, they are cage structure compounds composed of an ice lattice and adsorbed natural gas molecules (Booth et al., 1994; Wang et al., 2006; Wang et al., 2014). In recent years, gas hydrate reservoirs closely related to levee facies have been discovered by exploration or drilling in several sea areas around the world (Boswell et al., 2012; Lee and Collett, 2012).
At present, the geophysical characteristics of hydrate-bearing sediments has been studied by many experts and scholars (Liang et al., 2013; Yu et al., 2014). Compared with the surrounding unconsolidated sediments, pure hydrates are considered to have the physical properties of a high acoustic velocity and resistivity and low density. The high acoustic velocity of hydrates changes the seismic reflection characteristics of the sedimentary strata, forming a strong amplitude Bottom Simulating Reflector (BSR), weak amplitude blank zone, and bottom reverse polarity from that of the seafloor on seismic reflection profiles (Wang et al., 2005; Liang et al., 2014). Under the sufficient gas supply, suitable migration channels, and storage space, the distribution of natural gas hydrate stability zone is only related to the temperature and pressure of the sedimentary strata. Therefore, when the sedimentary strata are inclined on the continental slope or in the shallow seabed, the BSR on the seismic profile usually obliquely crosses the sedimentary strata (Paull et al., 1991; Kvenvolden, 1993; Liang et al., 2016). On the logging curve, gas hydrate-bearing strata usually has obvious high resistivity and high acoustic velocity (Hyndman and Davis, 1992; Liang et al., 2013). In addition, since gas hydrates are usually formed in sedimentary layers with relatively large pores, the neutron porosity is slightly higher and the spontaneous potential value is relatively small (Kawasaki et al., 2011; Boswell et al., 2012; Lee and Collett, 2012). The density of hydrate-bearing formations is usually only slightly lower, but for relatively pure and massive hydrates, the density log value can be significantly lower (Lee et al., 1993; Walter et al., 1999; Liang et al., 2006). These results play a guiding role in general surveys and detailed surveys of hydrates, but due to the limitations of the available data (usually only seismic data and a small amount of logging data), and the lack of verification of cores, lithologic interpretation has the limitation of multiple solutions, and the gas hydrate occurrences cannot be finely characterized. Therefore, it is hard to accurately determine the experimental exploitation wells of natural gas hydrates.
In 2015, gas hydrate drillings were carried out before production test in the Shenhu area of the northern South China Sea. Logging while drilling was conducted at 19 drilling sites, and in situ measurements and coring were conducted at four sites. The logging data show that gas hydrates with different saturation were developed in the 19 sites. High saturation and very thick diffusion hydrate samples were acquired from the four drilling sites (Yang et al., 2015, Yang et al., 2017 S. X.; Zhong et al., 2017; Zhang et al., 2018).
In 2017, test drilling in the Shenhu area in the northern South China Sea were conducted by Guangzhou Marine Geological Survey. This test produced 309000 m3 gas, with average daily gas production of more than 5000 m3 and methane content of up to 99.5%. Before the location of production test drilling was determined, the lithological characteristics, vertical variation of gas hydrate-bearing sedimentary strata, gas hydrate saturation, reservoir thickness, and gas source should be cleared. Through detailed analysis of pressure cores and 3-D seismic and geophysical well logging data, gas hydrate-bearing sediments were finely characterized, overcoming the limitations and interpretation ambiguity that exist when only geophysical data are used and revealing the physical properties and storage characteristics of the hydrate-bearing sedimentary strata. The gas migration and accumulation characteristics were studied based on the regional geological structure and metallogenic conditions, and the location of the test well was finally determined. The great success of the production test verified the accuracy of the interpretation of the geophysical characteristics of gas hydrate-bearing sediments.
Geological Setting
The study area is located in the continental slope zone in the Shenhu area in the northern part of the South China Sea (Figure 1), with a water depth range of 350–1750 m. The water depth contours are roughly parallel to the coastline. The measured heat flow in the Shenhu area is about 60–96 mW/m2, and the average heat flow is about 76 mW/m2. Compared with the heat flow in the Pearl River Mouth Basin in the northern part of the South China Sea, the average heat flow in the Shenhu area is about 5–6 mW/m2 higher than those in the southern depression and central uplift in the Pearl River Mouth Basin, indicating that the hydrothermal activity within the deep strata in the Shenhu area is relatively active, and the velocity of the fluid migration in the strata is relatively fast. The seafloor temperature in the study area is about 2–4°C, the geothermal gradient of the seafloor sediments is about 46–68°C/km, and the water depth pressure of the seafloor is greater than 10 MPa. Therefore, the conditions of the hydrate accumulation in the study area are relatively stable (Zhang et al., 2017). The seafloor topography in the study area fluctuates greatly and the changes are relatively complex. The slope of the seafloor decreases slowly from north to south, and the average value of the sea floor slope gradient is about 18‰. Under the joint impact of the gravity current and submarine current, a submarine landslide is relatively well-developed in the study area, which is manifested by the alternating arrangement of dunes and troughs, forming a pattern of scour trenches and submarine ridges spreading in a nearly north-south direction. The formation and decomposition of the gas hydrates are closely related to the submarine landslide. The landslide is a favorable geological body for the formation and distribution of gas hydrates. The large amount of water and gas released during the decomposition of gas hydrates, which could result in the instability of the overlying strata and accelerates the submarine landslide.
FIGURE 1. Location of production testing and drilling sites in the pearl river mouth basin, south china sea. Note: the two black lines show the location of seismic profiles in Figures 7, 8 respectively.
There is an excellent correspondence between the seabed landslide and BSRs in the study area, and the BSRs can be seen clearly at the bottom of the landslide. The extremely high sedimentation rate in the Shenhu Sea area has resulted in a very thick sedimentary layer. The research area is located in the Baiyun Depression, which has a large area and a very thick sedimentary layer. It is the main hydrocarbon generation and expulsion depression in the Shenhu area, with TOC content in the range of 0.50–1.52%, and Ro content in the range of 0.6–1.3%, and it has very favorable conditions for the formation of hydrates. The upper strata in the study area are mainly argillaceous deposits with relatively low sand contents, high organic matter contents, and low thermal maturity. Therefore, large quantities of biogas are easily generated, and hydrate orebodies can be formed under certain temperature and pressure conditions. Neritic detrital and bathyal clastic sedimentary substrata are relatively well-developed. Their sediment organic matter contents are higher. The organic matter in the eastern Pearl River Mouth Basin near the study area is in mature or highly mature stage (Ro = 1.3–2.5%), and in the local area, the organic matter has entered the overly mature stage. This has resulted in oil and gas formation (i.e., cracking gas and thermogenic gas), providing abundant thermogenic gas for hydrate formation (Zhang et al., 2014; He et al., 2008; 2013). In addition, the neotectonic movement led to the plastic flow of thick over pressurized mud, forming a large-scale diapir active zone, resulting in the abnormal development of mud diapirs, gas chimneys, faults and vertical fissures, and providing favorable gas-bearing fluid migration and transport channels for gas hydrate formation in the study area (He et al., 2014; Zhang et al., 2017).
Data and Methods
In 2015, Logging While Drilling (LWD) was conducted at 19 drilling sites by the China Geological Survey (CGS) in the hydrate production test area in the Shenhu Sea, and pressure coring was conducted at 4 sites (Figure 1). The logging parameters mainly included resistivity, bit resistivity imaging, p-wave acoustic time difference, full-wave logging and neutron, density, well diameter, and natural gamma logging. After the sample coring, in-situ temperature and formation pore pressure dispersion tests were performed. The geochemical analysis of the samples was conducted in the field. The logging data revealed that various amounts of gas hydrates existed in the 19 sites, and the core samples directly proved that gas hydrates filled the pore spaces of the formation in the study area. Among the 19 sites, sites W11, W17, and W19 have the most obvious gas hydrate characteristics. Sites W11 and W17 are located close to each other and have similar geophysical properties. In this study, sites W17 and W19 were taken as examples to analysis the logging characteristics of gas hydrates. In addition, the quasi-3-D seismic data collected by the Fendou 4 (research vessel) in the research area in 2008 were used. The original surface element size was 12.5 m × 50 m, the number of receiving channels was 192, the channel spacing was 12.5 m, the gun spacing was 25 m, the minimum offset was 125 m, the sampling rate was 1 ms, the recording length was 5 s, and the cable and source-sink depth was 5 m. The Source capacity was 160 Cu. in, and the working pressure was 2000 Psi. In terms of seismic data processing for gas hydrate characteristics, prestack noise suppression, deconvolution and multiple wave suppression are mainly used to achieve high SNR, high resolution and high fidelity processing effect.
Results
Characteristics of Gas Hydrate-Bearing Sediments
Through the observation of drilling cores, it was found that gas hydrates are closely related to the medium-coarse sediments and fractures. The high saturation gas hydrates mainly occur as pore-filling, blocky, and vein forms in the medium-coarse sediments and small fractures. However, the core and lithological analysis of sediment samples from the study area indicates that gas hydrates accumulated and occur in the fine-grained sediments, and the gas hydrates are uniformly distributed within the sediments (Figures 2, 3). The gas hydrate-bearing sediments can be divided into four lithologic types: siliceous-bearing calcareous clayey silt, calcareous and siliceous-bearing clayey silt, calcareous silt, and calcareous clayey silt. Most of the free gas accumulates in the gas hydrate stability zone in the form of diffuse deposits, and a small part migrates along the faults. In the study area, gas chimneys are developed below the BSR, but the faults are not developed above the BSR, so diffusive gas hydrates are easily formed. Shallow biogenic gas and deep thermogenic gas enters the bottom of the hydrate stability zone, and then, they diffuse and are stored in the sediment pores. Because there are no fractures, it is easy for a stable gas hydrate accumulation area with an uneven distribution to form. The core samples from 1465 to 1475 m (water depth) and core infrared images taken at 1490–1510 m in site W17 (Figure 2) show that the main lithology is calcareous clay medium-coarse silt, and the hydrates in this depth interval often occur as dispersed fine particles. The sedimentary structures include vein, soup-like, and porridge-like occurrences (Figure 2). Low temperature anomalies (10–12°C) were observed in the core samples due to hydrate decomposition. The gas hydrates are evenly distributed in the sediment pore space. Figure 3 shows core samples from 1418 to 1426 m (water depth) in site W19 and the core infrared image was taken at 1424–1438 m. Strong gas swelling phenomenon and cavity and congee core structures formed during the decomposition of the hydrates were observed after the cores arrived in the lab. The core from this section was obtained from the gas hydrate enrichment layer. Through pressure relief and degassing treatment, a large amount of gas was collected. The infrared image scanning of the core revealed a low temperature region (10–12°C) with a geothermal gradient of 5.58°C/100 m. The core from site W19 is mainly composed of calcareous nodular silt. The gas migrated upward through the migration channels formed by the gas chimneys, and abundant inorganic substances were gathered in this area, which promoted the enrichment of microorganisms and other calcium-rich substances, forming calcareous nodular silt.

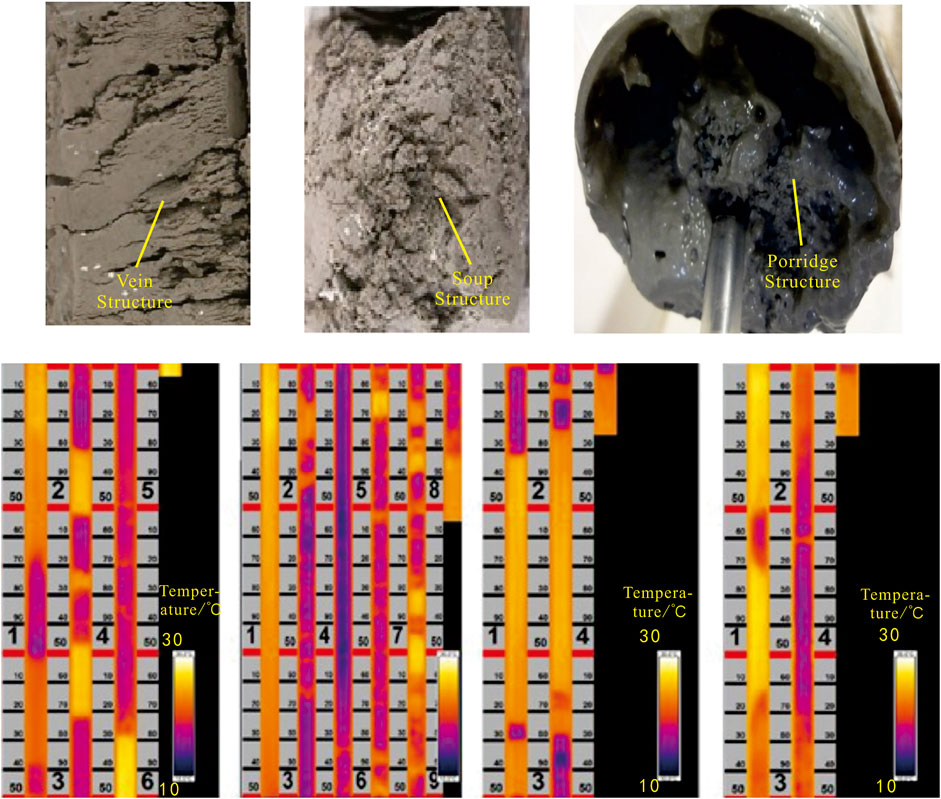

FIGURE 2. Characteristics of gas hydrates and gas hydrate-bearing sediments at site W17 based on drilling cores and infrared scanning images.

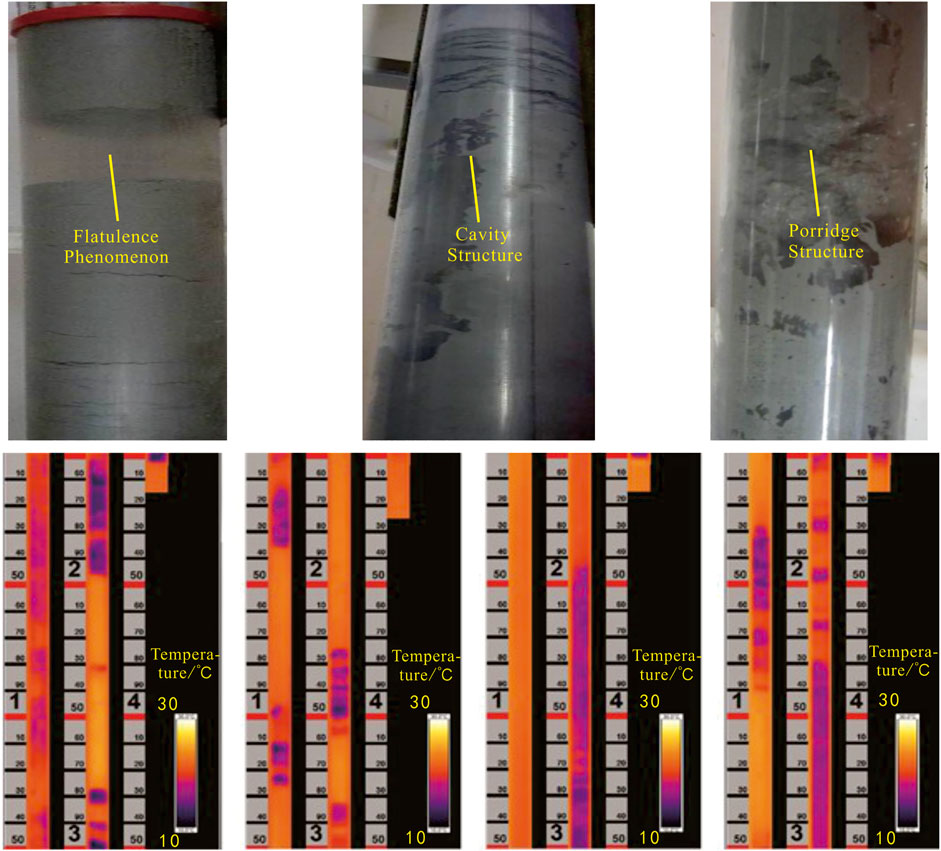

FIGURE 3. Characteristics of gas hydrates and gas hydrate-bearing sediments at site W19 based on drilling cores and infrared scanning images (Zhang et al., 2017).
The chemical properties and gas sources of hydrates are reflected by the gas composition and carbon isotopic characteristics of the gas hydrates (Chen et al., 2002; Fu et al., 2011; Fang et al., 2019). The methane contents of the gas samplesare greater than 98.5%, while ethane and propane are about 1 and 0.5%, respectively, but high concentrations of ethane and propane were detected in the fractured gas (gas extracted from the core expansion fracture) and pressure release gas in the pressure cores from sites W17 and W19 (Figure 4).
FIGURE 4. Vertical variations in the gas compositions in sites W17 and W19.
The C1/(C2+C3) value for the fissure gas and air release slowly decreases with increasing depth in site W17, and the C1/(C2+C3) values are around 800 (Figure 4A). At the top of the bottom interface of the gas hydrate reservoir, the values exhibit mutation at around 206 m. The C1/(C2+C3) values of the gas samples from the hydrate reservoir are less than 300, and the ethane and propane contents slowly increase with increasing depth. In addition, mutations occur near 206 m at the top of the bottom interface of the gas hydrate reservoir, and the concentration is more than 104 ppm, which is higher than the ethane and propane contents. Presumably, the gas source of the hydrates is mainly a mixture of thermogenic gas (thermal) and microbial gas. The decrease of propane content below 206 m may the result of lateral gas migration and accumulation near 206 m to form gas hydrate. An abrupt change in the C1/(C2+C3) values was observed at the top of the hydrate reservoir interface in site W19 (Figure 4B), the C1/(C2+C3) values within the reservoir decreased with increasing depth, the C1/(C2+C3) values of the gas samples from the hydrate reservoir are less than 300, and the propane content is higher than the ethane content near the top boundary of the gas hydrate reservoir. It is speculated that the gas hydrate reservoir in site W19 was mainly formed from a mixture of thermogenic gas and microbial gas. In addition, the carbon isotope compositions of the methane gas from sites W17 and W19 are −45‰ to −80‰, and the methane/ethane ratio is 90–1000; this further indicates that the gas source is mainly a mixture of thermogenic gas and microbial gas (Figure 5).
FIGURE 5. Cross plot of methane carbon isotope (δ13C1) and C1/(C2+C3) of gas hydrates.
Logging Characteristics of Gas Hydrates
Gas hydrate reservoirs can be identified by analyzing the logging characteristics of the sedimentary strata. The distribution of the gas hydrates in the sedimentary layer can be estimated effectively using the multi-means exploration technology of geophysical logging (Lu et al., 2008; Liang et al., 2010; Liang et al., 2017a). The gas hydrate reservoirs with different types or different saturations have different logging responses: the resistivity and acoustic velocity in gas hydrate reservoirs are significantly higher than those of the surrounding sediments, while the neutron porosity, density, and natural gamma are slightly lower, and the acoustic velocity, density, and neutron porosity are significantly lower (Wang et al., 2003; Mo et al., 2008; Liang et al., 2017b).
Site W17 is located in the southeastern part of the study area, at the bottom of the northern continental slope of the South China Sea, with a water depth of 1249 m and a maximum well depth of 319 m. The logging curve for site W17 shows that the abnormal characteristics of “two highs and three lows” values of the logging curves are obvious in the 1460–1522 m section (Figure 6). The acoustic velocity increases rapidly from 1460 m to 1522 m and reaches the highest value of 2295 m s−1 at 1490 m. The upper part of the density curve is relatively gentle, with little change. The lower part is the 1510–1522 m section, in which the lowest density is 1.72 g cm−3. The resistivity curve starts at 1460 m and changes in a wavy shape with increasing depth. It also exhibits the abnormal features of low values at both ends and large values in the middle. The maximum resistivity value is 4.6 Ω m. The neutron porosity decreases due to the filling of the sediment pores with hydrates and/or free gas. The porosity curve begins to decrease slowly at 1460 m, with a minimum porosity value of 28%. The natural gamma logging curve is relatively flat overall, and there is no large mutation. It is concluded that the deposition near site W17 is relatively stable, and the grain size of the hydrate enrichment section is mainly medium silt to coarse silt (Liang et al., 2009; Guo et al., 2017; Yang et al., 2020). Obvious turbidity deposits are observed in this section of the channel on the seismic profile beside the well, which is speculated to be the levee facies of the turbidity current. The overall seismic signal is relatively continuous, and the strongly reflective hydrate-bearing sediment layer is located near the natural levee (Figure 7). According to the logging curve for site W17, it is speculated that there is a ∼ 45 m thick hydrate sedimentary layer near the site, with the average saturation of 19.4%, and an ∼ 12 m thick free gas layer beneath the hydrate layer, with the average saturation of 30.1%.
FIGURE 6. Characteristics of well logging curves and lithology of site W17.
FIGURE 7. The seismic reflection profile across site W17. The location of the seismic profile is shown in Figure 1B.
Site W19 is located in the central and southern parts of the study area, and it is also at the bottom of the continental slope, with a water depth of 1274 m and a maximum well depth of 245 m. The logging anomaly at site W19 mainly shows that the acoustic velocity increases rapidly from 1788 m·s−1 from 1411 m–1432 m (Figure 8). It rapidly reaches 2522 m s−1, and the highest value is 2790 m s−1.
FIGURE 8. Characteristics of well logging curves and lithology of site W19.
Then, it drops sharply to 1821 m s−1 at 1432 m. The acoustic velocity curve oscillates and decreases with increasing depth. The entire section of the density curve is relatively flat with little change, and there is no low segment that corresponds to the acoustic velocity curve. Therefore, it is speculated that the hydrates occur in the form of diffuse hydrates, and there is no obvious free gas layer under the hydrate-bearing sedimentary layer. The resistivity rises rapidly from 1 Ω m to 8 Ω m starting at 1411 m. The maximum value (8.67 Ω m) occurs at 1415 m, and then, it oscillates with increasing depth. The neutron porosity decreases due to the filling of the sediment pores with hydrates, and the minimum porosity value is 26%. The natural gamma logging curve decreases slightly in the hydrate formation (Figure 7), the effective thickness of gas hydrate layer is about 25 m and the average saturation is 30.4%. According to the core characteristics, there are three hydrate enrichment layers in site W19. The gas hydrates in the 1401–1403 m are mainly in fine silts and silts with relatively coarse grain size, and there are silts and muds interlayers with vertical discontinuity. Based on the seismic reflection characteristics, it can be concluded that the hydrates in this section are concentrated in the shallow natural gas layer of the slump body. In the 1412–1425 m and 1430–1438 m intervals, the granularity of the hydrate layer is low, the vertical continuity is good. It is a powdery sand-shale deposit, with a soup-like core structure and fracture development (Figure 9). For the hydrate layer with the relatively cluttered seismic reflection, it is speculated that the hydrate development channel is located in the slump. The hydrate layer with a wedge seismic reflection is most likely a silty turbidity deposit such as levee facies.

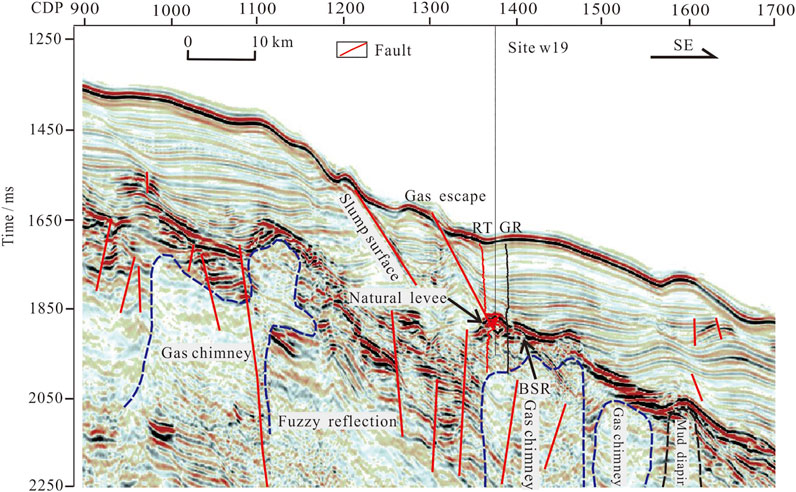

FIGURE 9. The seismic reflection profile across site W19. The location of the seismic profile is shown in Figure 1B.
Seismic Reflection and Gas Migration Characteristics of Hydrate Layer
The seismic exploration of the hydrates in the study area revealed that the bottom-simulating reflector is an important indicator of the hydrate content of the sedimentary strata (Santamarina et al., 2015; Sua et al., 2018; Shukla et al., 2019). It usually has a medium-strong amplitude and medium-high continuous reflection on the seismic profile, which is roughly parallel to the seafloor reflection. The BSR is usually oblique to the formation in the slope zone. If there is free gas in the formation, due to the large wave impedance difference between the hydrates and free gas, the seismic reflection is enhanced and an amplitude enhancer is formed (Su et al., 2014; Yang et al., 2017b; Zhang et al., 2020). The seismic wave velocity of the hydrate-bearing sedimentary layer is relatively high, so the reflection time is short, and the seismic event on the profile stretches upward; while the seismic wave velocity of the free gas-bearing stratum is relatively low and the reflection time is short, which causes downward stretching of the seismic event, forming an abnormal eyeball velocity amplitude structure (V’AMP). In addition, when the sedimentary formation is filled with hydrates and is further cemented, the formation’s pore space becomes uniform, and the seismic profile shows blank or weak amplitude zones. The waveform of the BSR subwave generally has a negative polarity, which is opposite to the waveform of the wave reflected by the seafloor, and the absolute value of the reflection coefficient is relatively large. These seismic reflection characteristics of hydrates can be used to identify the existence of hydrate-bearing deposits.
The BSR in the seismic profile cross site W17 has a medium-strong amplitude and medium-high continuity (Figure 8). There is an obvious amplitude gap above the BSR, and the formation had good ductility. The polarity of the BSR waveform is opposite to that of the submarine waveform. Under the temperature and pressure conditions, the BSR waveform cuts through the seismic event of the formation, and the seismic event exhibits an enhanced reflection, which has quite obvious BSR characteristics. An obvious domed reflection occurs below the BSR, this is due to the velocity amplitude anomaly augen structure, which is formed by the hydrates in the stable zone, with the upper interface causing the seismic reflection wave velocity to increase and the reflection time to shorten. On the seismic profiles, the seismic event bends upward, and the seismic wave velocity is lower due to the low amount of free gas, producing a prolonged reflection time under the gas hydrate stable zone. On the seismic profiles, the seismic event bending exhibits an obvious V’AMP phenomenon. The shallow deposits above the BSR are mound and sheet slump deposits, and the entire deposit is composed of mounds and sheets. The seismic event in the sedimentary layer exhibits an asymmetric wavy reflection structure and gradually migrates upward towards the continental slope. The high wave impedance (RT) value corresponds to the hydrate layer in the natural levee, and the gamma ray (RT) curve does not change much. The cap layer is developed above the BSR, a fracture pathway exists at the edge of the hydrate layer, and gas escapes to the seabed through this pathway. The reinforced reflection is obvious below the BSR, there is a lot of free gas, and the fault structure is developed below the BSR. There are large gas chimneys and many disorderly and fuzzy reflections on the seismic profile.
The BSR on the seismic profiles cross site W19 exhibits enhanced reflection, with the polar opposite to the bottom reflection polarity (Figure 9). The high wave impedance (RT) value corresponds to the gas hydrate layer in the natural embankment, while the low gamma ray value corresponds to the gas hydrate layer. On the seismic profile, the fractures are well developed on the left side of the BSR, and many disorderly and fuzzy reflections can be seen below the BSR, indicating that a large number of gas chimneys exist near site W19. The shallow deposits above the BSR are sheet-like and U-shaped slump deposits (Wu et al., 2003, Wu et al., 2007). Their overall distribution is sheet-like, and an obvious slip surface at the bottom of the slump deposit and erosion trough deposits above the BSR exist. The erosion trough deposits exhibit high frequency, medium amplitude, and U-shaped filling features on seismic reflection (Figure 9). In addition, faults that extending to the seafloor indicate gas escaping. The seismic profile below the BSR exhibits a medium frequency and medium amplitude, which is interpretated as submarine fan deposits in the upper Miocene.
Through many years of seismic and geological investigation and oil and gas exploitation in the Pearl River Mouth Basin, it has been shown that there are many natural gas fields in the Shenhu Sea area in the southern part of the basin, especially in the Baiyun sag, in which the natural gas distribution area is concentrated. That is, there is plenty of hydrocarbon gas in the deep layer near the study area. Under the effect of the formation pressure, the deep gas gradually migrates upward along the gas chimneys, unconformity surfaces, faults, fractures, and sandstone channels, and then, it gathers in the hydrate stability zone, which has suitable temperature and pressure conditions. There are several vertical fuzzy zones on the seismic reflection profile in the deep and central parts of the study area. These phenomena are gas chimneys formed by the movement of deep gas upward along the fractures, causing disturbance of the stratum. In addition, submarine canyon channel is an important migration pathway of terrigenous materials to the deep sea, and the formation and development of turbidity channels and levees are closely related to gas hydrate accumulation (Kuang et al., 2018). Channel-filling sediments is not only a good reservoir, but also a good gas migration and transport pathway, which is a dominant gathering place for gas hydrate formation and occurrence (Kuang and Guo, 2011; Davies et al., 2012).
Gas chimneys and fault structures are well developed near site W17, and there are gas chimneys under the BSR (Figure 8). Gas chimneys and deep faults are developed. The hydrocarbon gases in the middle and deep strata migrated to the seafloor along the dense fractures and faults and formed a hydrate layer with a high saturation under the low temperature and pressure conditions. There are also faults and gas chimney clusters near site W19, which are larger in scale than those at site W17 (Figure 9). Thermogenic gas migrates upward with the overpressure fluid through deep and large faults, and then, it migrates laterally along the conformable surfaces with appropriate porosity and permeability to form reservoirs in suitable stratigraphic traps and/or structures. Under the action of the fluid potential, part of the thermogenic gas continues to migrate into the shallow strata along the channels formed by the faults and fractures. Once the temperature and pressure conditions of the hydrocarbon gas in the fracture channels are suitable, a seepage hydrate is formed. In addition, the microbial gas in the shallow strata can migrate and accumulate through sediment pores or interlayer micro-fissures to form diffusive hydrates, and the microbial gas in the lower part of the gas hydrate stable zone can also migrate upward through gas chimneys, mud diapirs, and faults to form gas hydrates.
Discussion
How is Gas Hydrate Production Test Site Selected?
The above analysis shows that gas hydrates in sites W17 and W19 belong to diffuse type. The reservoir properties of two sites show similar permeability, porosities, and shale contents. The engineering geological conditions (e.g., water depth, bottom slope, reservoir depth, and engineering mechanics) conform to the conditions for gas hydrate exploration. The following questions are thus raised: why was site W17 chosen as the final test site rather than site W19? The reservoir saturation, reservoir thickness, and gas sealing ability of these two sites are analyzed and discussed below.The gas hydrate saturation was calculated from the desalination degree of the chloride ions in the pore water of the hydrate-bearing deposits from sites W17 and W19 (Figure 10). At site W17, the thickness of the gas hydrate-bearing sediment layer is about 45 m, and the maximum saturation is 76%, with an average of 33%. At site W19, the thickness of the gas hydrate-bearing sediment layer is about 25 m, and the maximum saturation is 68%, with an average of 31%. Through the seismic profile analysis and well logging curve calculation, the gas hydrate sediments in W17 site containing thicker, and higher saturation of gas hydrate, the W17 orebody area is 3 times than that of W19 orebody, and the resources of W17 orebody is 7 times higher than that of in W19 site. Beside the W17 orebody has good continuity reservoir, sealing layer, fault pathway at orebody edge. The logging curve shows that the thickness of the gas layer is 12 m and the average gas saturation is 30.1%, which can provide sufficient gas source for gas hydrate formation. The seismic profile shows that there is a large gas chimney structure under the gas layer, which is the upward migration channel of deep cracked gas and the gas source guarantee for the formation of free gas layer. While site W19 has thinner gas hydrate reservoirs, faults directly leading to the bottom of the seafloor above the BSR, and gas escape. Thus, site W17 was chosen for the hydrate exploration.
FIGURE 10. Vertical variations in the gas hydrate saturation in sites W17 and W19.
Why do Silty Clay Sediments Develop High Saturation of gas Hydrates?
The gas hydrates in the study area are mainly developed in or near the levee facies sediments. In this study, it was revealed that the sand-bearing sediments in the levee facies are relatively developed, and the sandy reservoir is a good sedimentary environment for gas hydrate formation (Riedel et al., 2011; Crutchley et al., 2017). Compared with muddy and silty mudstone sediments, the sandy sediments in the levee facies have more reservoir space due to their higher porosity and permeability (Su et al., 2018; Liang et al., 2019; Meng et al., 2021). Hydrocarbon gases tend to accumulate in strata with high porosities and permeabilities, which are more conducive to the formation of gas hydrates with higher saturation (Lu et al., 2011; Dai et al., 2012; Bahk et al., 2013). The core samples from sites W17 and W19 in the study area indicate that the hydrate deposits are fine-grained silty clay deposits. However, the highest gas hydrate saturation at site W17 is 76%, with an average of 33%; while the highest gas hydrate saturation at site W19 is 68%, with an average of 31%. Both of these sites have high saturation. The gas hydrates in the study area are diffused within the fine-grained sediments, and it is difficult to form high saturation gas hydrates through diffusion migration alone because the capillaries with a high resistance need to be broken through before fluid migration can occur. Therefore, what caused the high saturation in the fine-grained silty clay sediments? Some studies have reported that the gas mainly reaches the gas hydrate stable zone via diffusion migration, water-soluble migration, and free migration through certain migration and transport channels (Collett et al., 2009). Post-drilling research in the study area revealed that the migration and transport pathways, such as gas chimneys, mud diapers, and faults, which play a key role in the accumulation of high saturation gas hydrates (Wang et al., 2014; Su et al., 2017). Gas chimneys and mud diapirs are identified in the lower part of the BSR, and faults are developed nearby, which should be the migration channel through which the deep gas-bearing fluid migrates into the gas hydrate stable zone. In addition, the study area is located close to the center of Baiyun Sag, and thermogenic gas from the deep part of the sag continuously migrates upward through the faults, diapirs, and gas chimneys, and then, it mixes with microbial gas. These mixed gases then migrate into the hydrate stable zone to form high saturation gas hydrates (Zhang et al., 2017).
Conclusion
Based on logging data, seismic data, drilling core data, gas composition and carbon isotope characteristics, and gas hydrate saturation data, the logging and geophysical characteristics and variations in the gas hydrate-bearing sediments were summarized.
1) the gas hydrates are diffusion type, with reservoirs dominated by clayey silt sediments, and the gas hydrate-bearing layers are characterized by soup-like, porridge-like, cavity, and vein structures;
2) the resistivity and acoustic velocity of gas hydrate formation are significantly higher than those of the surrounding sediments, while the neutron porosity, density, and natural gamma are slightly lower; the Bottom Simulating Reflectors (BSRs) in seismic profiles exhibit the exist of gas hydrates;
3) gas chimneys and faults are well-developed beneath the BSRs, and hydrocarbon gases can easily migrate into the gas hydrate reservoirs in areas with stable temperature and pressure conditions;
4) the gas hydrate saturation is high, the highest saturation in site W17 was up to 76%, with an average of 33%; while the highest saturation in site W19 was up to 68%, with an average of 31%. The gas source is considered as mixed gas of thermogenic gas and microbial gas.
By comparing the core samples and geophysical characteristics of sites W17 and W19 in the study area and calculating the thickness, distribution area, and saturation of the gas hydrate deposition layer, it was found that site W17 is characterized by a thick layer, large area, high saturation, and good sealing, besides, the gas sources are sufficient and gas migration pathway are well developed, thus site W17 was established as the test production site. The development of gas chimney and faults provides driving force for the upward migration of deep gas, and the gas migrates to gas hydrate stable zone in forms of diffusion, water soluble and free state, forming high saturation of diffusion gas hydrates.
