Influence of the Xianshuihe Fault Zone on In-Situ Stress Field of a Deep Tunnel and its Engineering Effect

The in-situ stress distribution near a fault zone is affected by factors such as tectonic movement and rock mass property deterioration, and it often shows unique characteristics and further affects the mechanical response of the rock mass and the safety of underground engineering construction. The Xianshuihe fault zone is one of the most active fault zones in the world. To understand the impact of the Xianshuihe fault zone on a tunnel under construction in southwestern China, the in-situ stress measured near the tunnel site at different distances from the faults of the Xianshuihe fault zone is obtained. Furthermore, the characteristics of the in-situ stress at the tunnel site and its engineering influence effect are analyzed. The results indicate the following: 1) Around the Xianshuihe fault zone, the fault mainly affects the maximum horizontal principal stress and the minimum horizontal principal stress in the shallow strata, and the in-situ stress closer to the fault is more greatly affected. 2) In the shallow area near the Selaha-Kangding fault, the maximum horizontal principal stress, minimum horizontal principal stress and lateral pressure coefficient at a borehole increase with increasing distance from the fault. Greater than 600 m from the fault, the horizontal stress plays a dominant role. In the deeper strata, the maximum horizontal principal stress, the minimum horizontal principal stress and the lateral pressure coefficient exhibit no obvious change with distance from the fault. 3) According to the inversion of the in-situ stress field and the stress in the tunnel site, the in-situ stress in the tunnel barrel is affected by the depth and the fault. The in-situ stress is higher at greater depths. The in-situ stress is partially released at the fault so that the in-situ stress is relatively low, and the degree of stress decline at different faults is different. 4) Tunnel rockbursts tend to occur in surrounding rock sections with high stress, which are usually located in the middle of a rock mass between two faults. Large deformation mainly occurs in the fault and its influence zone.

Introduction

Regarding underground engineering construction, the in-situ stress field environment affects the mechanical response of the surrounding rock during excavation, so it is necessary to investigate the in-situ stress characteristics of the surrounding rock (Lu et al., 2012; Ai et al., 2020). As the number of deeply buried long tunnels in complex and dangerous mountain areas increases, the difficulties tunnel construction faced, such as rockburst and large deformation, are becoming more prominent, which is closely related to the geological environment (Jia et al., 2020; Lin et al., 2017). For example, the tunnel of the Shiman expressway had serious deformation, which was related to the tectonic effect of the Yunxi-Yunxian fault zone in the crossing area (Luo et al., 2006). The geological structure of Pajares in the Cantabrian Mountains in northern Spain or the geomechanical anisotropy of the rock contact zone with its strength differences affected the high-speed railway tunnels in this area, resulting in significant deformation along some areas of four tunnels during excavation (Hijazo and de Vallejo, 2012). Gaoligong Mountain is located in the southern Hengduan Mountain near the collision suture zone between the Indian plate and Eurasian plate. Due to large topographic fluctuations, complex structures and strong activity, tunnel construction was facing many problems (Yu et al., 2017). The rock mass along a tunnel of the Iranian water conveyance system located in the contact zone between the Iranian plate and the Arabian plate intensified the problems related to tunnel excavation and compression due to strong joints and faults in the surrounding rock (Ajalloeian et al., 2017). The in-situ stress field will be disturbed when the tunnel crosses the fault zone. And the in-situ stress field is an important factor that determines the stress, displacement distribution and failure form of the surrounding rock encountered in underground engineering (Li et al., 2017; Zhang et al., 2019). Therefore, studying the influence of faults on the in-situ stress field is helpful to analyze the geological information and risk of tunnel rock mass instability, to ensure the safe design and construction of underground engineering.

Many scholars (Li and Miao, 2016; Guo et al., 2017; Cao et al., 2018; Zhao et al., 2019; Qiao, 2021; Zhang, 2021) have analyzed the characteristics of in-situ stress based on measured data or stress field inversion results, and some scholars (Zoback and Roller, 1979; Bell and Babcock, 1986; Stephansson and Angman, 1986; Martin, 1990; Aleksandrowski et al., 1992; Lei and Chen, 2011; Li et al., 2012; Ren et al., 2019; Pham et al., 2020; Yang, 2020) have studied the influence of fault zones on in-situ stress. Ren Huiliang et al. studied the influence of composite structures, including faults and folds, on the distribution patterns of the in-situ stress field (Ren et al., 2019). Yang Yalun investigated the influence of fault structure on the in-situ stress field by establishing a small-scale model of a fault area (Yang, 2020). Aleksandrowski et al. found that in a NE-trending normal fault, the stress orientation on one of the two sides of the fault was consistent with the regional stress orientation, while the maximum horizontal principal stress of the other plate was deflected by nearly 90°. Near a fault in Canada, the maximum deflection was measured to be more than 45° from the direction of a regional principal stress (Aleksandrowski et al., 1992). Lei Xianquan et al. applied the discontinuous contact model to study the impact of faults on crustal stress and concluded that the fault zone had a high shear stress, while the maximum horizontal principal stress in the nearby local area was weakened to a certain extent (Lei and Chen, 2011). Zoback found that the horizontal principal stress increases with increasing depth and increases gradually with increasing distance from the fault (Zoback and Roller, 1979). The maximum principal stress and shear stress near a fault are low. With the gradual increase in the distance between a measuring point and a fault, the two types of stress values increase significantly. Some scholars also found that the change in the maximum horizontal principal stress near a fault zone was not continuous. There have been many studies on the distribution characteristics of the in-situ stress field. However, because a fault is usually simplified into a homogeneous rock mass in simulation and in-situ stress data measured across faults are relatively scarce, the influence of a fault zone on the local in-situ stress is still not particularly clear (Chen, 2022). Therefore, it is of great significance to further study the influence of fault zones on the in-situ stress field.

Taking a tunnel in the Xianshuihe fault zone as the research object, this paper analyzes the influence of the Xianshuihe fault zone on the local in-situ stress field based on measured in-situ stress data. Combined with the three-dimensional inversion of the in-situ stress field, the distribution characteristics of the in-situ stress along the tunnel are studied. The prediction and analysis of tunnel rockburst and large deformation are carried out, which provides a reference for the design of engineering construction and safety plans.

Geological Setting

Topography

The tunnel is located on the southwestern margin of the transition between the Sichuan Basin and the Tibetan Plateau. The Minjiang River, Dadu River and other river systems with severe cutting result in large topographic height differences and complex landforms. The surface elevation of the region is 2,715–4,225 m, and the exogenous forces are mainly glacial water erosion and freezing and thawing, accompanied by biological weathering. The tunnel site topography is a typical plateau landform as shown in Figure 1.

FIGURE 1

FIGURE 1. Topographic map of the tunnel site.

Formation Lithology

As shown in Figure 2, the strata exposed in the tunnel site mainly consist of Quaternary Holocene sediments: the colluvial layer is coarse breccia soil, gravel soil and block rock soil, the alluvial-diluvial layer is silty clay (breccia), fine pebble soil, pebble soil and drift rock soil, and the slope residual layer is silty clay (breccia), coarse (fine) breccia soil and gravel soil (breccia). The underlying bedrock is metamorphic quartz sandstone with slate of the Upper Triassic Zagunao Formation. The strata in this area also include granodiorite, fine-grained biotite monzogranite and mylonitized granite.

FIGURE 2

FIGURE 2. Geological section of the tunnel site.

Geological Structure

The tunnel is located west of the junction between the Yangtze block and the Qiangtang-Sanjiang orogenic system, the Kang-Yunnan basement complex belt of the Yangtze block in the east, and the Yajiang remnant basin of the Qiangtang-Sanjiang orogenic system in the west. The tunnel site is located in the southeastern margin of the Songpan-Ganzi orogenic belt, where folds and faults are well developed and predominantly trend NNE, followed by NS and NNW. In terms of first-order structure, the tunnel site is located at the junction of the Sichuan-Yunnan syncline, Kang-Yunnan syncline and Longmenshan fold belt of the Songpan-Ganzi fold belt on the western margin of the Yangtze platform, adjacent to the Kang-Yunnan axis to the west, the Longmenshan structural belt to the north, the Western Sichuan platform depression of the Sichuan platform depression to the east, and the Liangshan depression fold bundle to the south. In terms of secondary structure, it is located in the Xianshuihe structural belt. The orientations of the structures near the tunnel site are mainly N20°∼30°W, which is consistent with the strike of the Xianshuihe fault zone, as shown in Figure 3. The faults developed around the tunnel and were greatly influenced by the Yalahe fault and Selaha-Kangding fault. The Yalahe fault is near the entrance end of the tunnel, and the rocks at the entrance end of the tunnel have been seriously crushed. The rocks are obviously cataclastic, and joints have developed. The tunnel site is dominated by NW-trending faults, followed by NE-trending faults (interpreted faults).

FIGURE 3

FIGURE 3. Fault distribution map of the tunnel site.

In-Situ Stress Measurements and Main Characteristics

The In-Situ Stress Testing Method

The hydraulic fracturing method, one of the recommended methods for determining rock stress issued by the ISRM Commission on Testing Methods in 1987, was used to measure the in-situ stress of deep holes near the tunnel. The test section of each borehole was determined according to the test requirements and the actual situation of the corresponding test hole, and the straddle packer system was used for the test. Water was injected into the test section through the drill pipe, and the water injection pressure was recorded through the wireless pressure sensor placed on the surface. The measured record curve was analyzed to obtain the characteristic pressure parameters and the minimum principal stress of the formation. Then, according to the corresponding theoretical formula, the magnitude of the maximum horizontal principal stress at the measuring point and the rock mechanical parameters such as the hydraulic fracturing tensile strength of the rock were calculated. The baseline orientation and fracturing crack orientation can be obtained through the impression tool and orientation tool, and the orientation of the maximum horizontal principal stress can be further calculated. Thirteen boreholes were tested for in-situ stress by the hydraulic fracturing method. Their positions are shown in Figure 4, and the measurements are shown in Table 1. Based on the measured data, the in-situ stress magnitude, maximum principal stress direction and lateral pressure coefficient of the tunnel section were analyzed.

FIGURE 4

FIGURE 4. The location sketch of boreholes.

TABLE 1

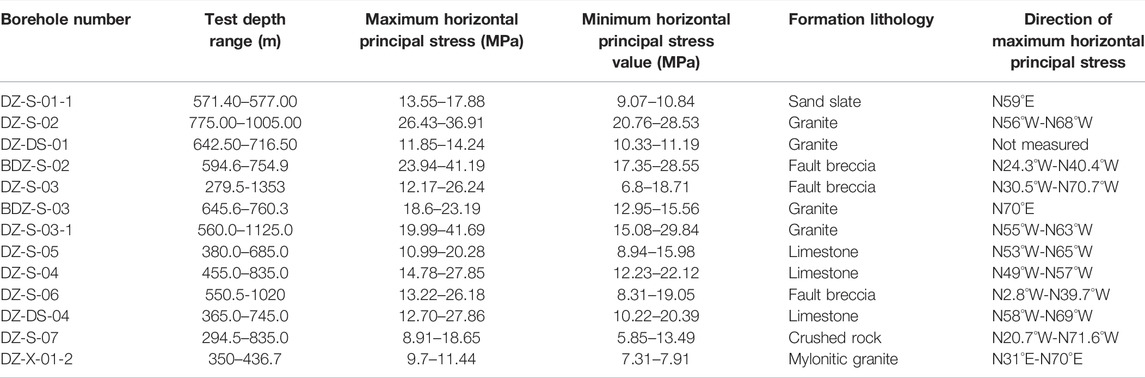

TABLE 1. Statistical table of in-situ stress and rock types in the tunnel site of the Xianshuihe fault zone.

The In-Situ Stress Value

Table 1 shows that the maximum horizontal principal stress (S_H) measured in the Xianshuihe fault zone ranges from 6.18 to 41.69 MPa, the minimum horizontal principal stress (S_h) ranges from 4.37 to 29.84 MPa, and the vertical stress (S_V) ranges from 7.41 to 35.85 MPa within the hole depth range of 279.5–1,353 m. According to the measured borehole stress data, a scatter diagram of the stress value and depth is shown in Figure 5. In general, the in-situ stress increases gradually with increasing depth. Through linear fitting, the formula of the principal stress gradient can be obtained:

${\mathbf{S}}_{\mathbf{H}}=0.0533\mathbf{H}-14.6247(1)$

${\mathbf{S}}_{\mathbf{h}}=0.0382\mathbf{H}-10.2708(2)$

where H represents the depth, m. The maximum and minimum horizontal principal stress gradients are approximately 5.33 MPa/100 m and 3.82 MPa/100 m, respectively, and the S_h gradient is less than 2.66 MPa/100 m of the vertical stress gradient.

FIGURE 5

FIGURE 5. Scatter diagram and fitting curves of |in situ stress.

Maximum Principal Stress Direction

Figure 6 shows the relationship between the principal stress directions and depth of the measured holes near this tunnel, and the dominant orientation of the maximum horizontal principal stress is NW. The direction of the maximum horizontal principal stress is mainly N40°W ∼ N75°W, and the azimuth angle of the maximum horizontal principal stress becomes more concentrated in distribution with increasing burial depth. Faults in the tunnel site mainly strike NW, and the direction of the maximum horizontal principal stress is consistent with the strike of fault.

FIGURE 6

FIGURE 6. Direction of the maximum horizontal principal stress.

Lateral Pressure Coefficient

The lateral pressure coefficient k is used to study the distribution law of horizontal stress. The closer this value is to 1, the closer the stress state is to hydrostatic. The larger the value is, the more dominant the horizontal tectonic force. The lateral pressure coefficient k is also expressed by the ratio of the average value of the two horizontal stresses to the vertical stress, and the calculation formula is as follows:

$\mathbf{k}=\frac{\left({\mathbf{S}}_{\mathbf{H}}+{\mathbf{S}}_{\mathbf{h}}\right)}{\left(2{\mathbf{S}}_{\mathbf{V}}\right)}(3)$

According to Formula (3), the lateral pressure coefficients of each measured hole are shown in Table 2. The lateral pressure coefficients range from 0.560 to 1.744. The lateral pressure coefficients of holes DZ-S-02, BDZ-S-02, DZ-S-03-1, DZ-S-05, DZ-S-04 and DZ-DS-S-04 are greater than 1, and the in-situ stress is S_H＞S_h＞S_v, indicating that horizontal tectonic activity is dominant in the vicinity of these holes. The lateral pressure coefficients of holes DZ-DS-01, BDZ-S-03, DZ-S-06, DZ-S-07 and DZ-X-01-2 are mainly less than 1, and the in-situ stress mainly shows S_H＞S_v＞S_h, indicating that the self-weight of the rock plays a dominant role in determining the stress state near these holes.

TABLE 2

TABLE 2. Lateral pressure coefficients of different boreholes.

Influence of the Fault Zone on the Stress Distribution of the Tunnel Site

The Xianshuihe fault zone mainly experienced two periods of tectonic stress field activity (Xie et al., 1995). At present, the Xianshuihe horizontal fault zone is characterized by sinistral strike-slip movement, and its activity may affect the local in-situ stress field.

Influence Characteristics of the Fault Zone on the In-Situ Stress

To understand the influence of the Xianshuihe fault zone on the in-situ stress as a whole, the boreholes near a tunnel are divided into four categories according to the distance perpendicular to the nearest fault strike: 0–500 m, 500–1,000 m, 1,000–1,500 m and 1,500–2000 m. The relationships between the measured maximum horizontal principal stress, minimum horizontal principal stress, maximum principal stress direction and the burial depth and distance to the fault are shown in Figures 7A,B,C, respectively. As shown in Figures 7A,B, the maximum horizontal principal stress and the minimum horizontal principal stress linearly increase with increasing burial depth. Regardless of the distance from the fault, the rate of increase in the maximum horizontal principal stress with burial depth is greater than that in the minimum horizontal principal stress. In addition, when the burial depth is less than 600 m, the farther the borehole is from the fault, the greater the measured maximum horizontal principal stress and minimum horizontal principal stress. When the burial depth is greater than 600 m, the variations in the maximum horizontal principal stress and minimum horizontal principal stress with increasing distance to the fault are not consistent. Therefore, the fault has a significant differential impact on the in-situ stress of the shallow stratum. The fastest rates of increase in the maximum horizontal principal stress and minimum horizontal principal stress, which are 0.0910 MPa/m and 0.0534 MPa/m, respectively, are observed at the boreholes less than 500 m from the fault. When the distance from a borehole to the fault is greater than 500 m, the trend of the rate of increase in maximum horizontal principal stress with the distance from the borehole to the fault is not obvious, and the rate of increase in the minimum horizontal principal stress increases slightly with increasing distance from the fault. As shown in Figure 7C, when a borehole is less than 1,000 m from the fault, the direction of the maximum principal stress of the borehole is different from the dominant NW direction of the maximum principal stress in the area, instead showing a NE direction. The in-situ stress direction near the fault is complex and may be deflected under the influence of the fault.

FIGURE 7

FIGURE 7. In-situ stress at different spatial locations (A) Maximum horizontal principal stress (B) Minimum horizontal principal stress (C) Direction of maximum horizontal principal stress.

To investigate the distribution characteristics of in-situ stress in the control area of a single fault in the Xianshuihe fault zone, the measured in-situ stress values of boreholes perpendicular to the strike of the Selaha-Kangding fault are selected for analysis. Because the factors affecting the in-situ stress are mainly the burial depth and fault, the horizontal principal stress of the same burial depth is selected for comparison between different boreholes to eliminate the influence of burial depth. Considering that there are some differences in the range of the measured sections of the boreholes, boreholes with the same depths are selected for analysis. According to the above analysis, the in-situ stress obeys different laws in deep and shallow strata. Therefore, for the borehole measured sections selected, burial depth ranges of less than 600 m and more than 600 m are selected for comparison (namely, burial depths of 450 and 750 m). Among them, boreholes DZ-X-01-2, BDZ-S-03, DZ-S-03, DZ-S-04 and DZ-S-05 are selected for the 450 m burial depth, and boreholes BDZ-S-02, DZ-S-02, DZ-DS-01, DZ-S-03-1 and DZ-S-06 are selected for the 750 m burial depth. The stress values of each burial depth are obtained based on the approximate linear relationship between the measured stress value and the burial depth. The relationships between the maximum horizontal principal stress, the minimum horizontal principal stress, the lateral pressure coefficient and the distance from the borehole to the fault are shown in Figure 8. As shown in Figure 8A, for the boreholes near the Selaha-Kangding fault, when the burial depth is 450 m, the overall maximum horizontal principal stress and minimum horizontal principal stress increase with increasing distance from the fault. The maximum horizontal principal stress and the minimum horizontal principal stress of the borehole farthest from the fault increased by nearly 47 and 66%, respectively, compared with the maximum horizontal principal stress and the minimum horizontal principal stress of the borehole nearest to the fault. Figure 8B shows that when the borehole is close to the fault, k is less than 1, which means that the geostatic stress is dominant; however, when the fault distance is greater than 600 m, k is greater than 1, which means that the tectonic stress is dominant. This may be because in the shallow area, the tectonic influence is weakened due to the deterioration of rock mass properties near the fault, so the horizontal stress is reduced more. As shown in Figures 8C,D, when the burial depth is 750 m, the variation pattern of the maximum horizontal principal stress, minimum horizontal principal stress and lateral pressure coefficient with the distance from the borehole to the fault is not significant, which may be due to the greater influence of gravity of the rock mass in the deep area and the weakening of tectonic influence, so the change in horizontal stress is not obvious.

FIGURE 8

FIGURE 8. The relationship between horizontal principal stress and lateral pressure coefficient of borehole and the distance to the fault (d represents the distance from borehole to fault) (A) Horizontal principal stress at 450 m burial depth (B) Lateral pressure coefficient at 450 m burial depth (C) Horizontal principal stress at 750 m burial depth (D) Lateral pressure coefficient at 750 m burial depth.

Distribution Characteristics of the In-Situ Stress at the Tunnel Barrel

To ensure the safety of tunnel construction, it is necessary to determine the in-situ stress distribution along the tunnel. Therefore, based on the inversion of the in-situ stress field at the tunnel site, the contour map of the maximum principal stress of the section where a tunnel is located and the line map of the maximum principal stress at the tunnel depth are extracted, as shown in Figure 9. It can be seen from this figure that the maximum horizontal principal stress of the tunnel is 3∼44 MPa, and the in-situ stress of the entrance and exit of the tunnel is low, while the in-situ stress in the surrounding rock of the tunnel barrel is high. The maximum horizontal principal stress of the tunnel barrel is affected by the depth and fault. The maximum horizontal principal stress increases with increasing depth, while the in-situ stress release at the fault leads to a decrease in the in-situ stress, which corresponds to an area of lower in-situ stress at the fault on the contour map of the maximum horizontal principal stress. However, the in-situ stress increases away from the fault, and there is usually a maximum in-situ stress in the tunnel segment between two faults due to the dual influence of burial depth and fault. For example, the highest maximum horizontal principal stress between the Yalahe fault and the Sandaoqiao fault is 34 MPa, which is approximately three times the maximum horizontal principal stress at the Yalahe fault and the Sandaoqiao fault. The highest maximum horizontal principal stress between the Sandaoqiao fault and the Selaha-Kangding fault is approximately 28 MPa, which is approximately three times the maximum horizontal principal stress value at the Sandaoqiao fault and approximately twice the maximum horizontal principal stress value at the Selaha-Kangding fault. From the variation in the maximum horizontal principal stress between the Sandaoqiao fault and the Selaha-Kangding fault, it is obvious that the variation in the maximum horizontal principal stress of the rock mass between the two faults is roughly the same as that of the burial depth of the tunnel barrel. This phenomenon indicates that the maximum horizontal principal stress of the middle segment is mainly controlled by depth. Moreover, there is stress concentration near the fault due to tectonic influence.

FIGURE 9

FIGURE 9. The contour map and line chart of the maximum horizontal principal stress of a tunnel.

The relationship between the maximum horizontal principal stress in the intersection area of the tunnel barrel and fault and depth is shown in Figure 10. The maximum horizontal principal stress in the intersection area of the tunnel barrel and fault increases roughly with increasing depth, except at the Sandaoqiao fault, Yala River fault and the interpreted fault of mile D6K276 + 996. That is, the depth of the tunnel barrel section of one fault is less than that of the tunnel barrel section of another fault, but the in-situ stress value of the former may be greater than that of the latter. For example, the depth of the Sandaoqiao fault (1,467 m) is greater than that of the D6K270 + 565 fault (1,396 m), while the maximum horizontal principal stress value of the former (10 MPa) is less than that of the latter (15 MPa). This indicates that different faults have different effects on the in-situ stress.

FIGURE 10

FIGURE 10. Maximum horizontal principal stress and depth in the intersection area of fault and the tunnel barrel.

Engineering Effect Analysis

On the whole, the formation of the fault zone reflects the considerable tectonic activity and high in-situ stress in this region, and the disturbance of tunnel excavation under high in-situ stress can easily induce underground engineering disasters such as rockburst and large deformation (Zhang et al., 2021). Many scholars have carried out relevant research (Aydan et al., 1993; Feng et al., 2015; Chen et al., 2020; Feng et al., 2022; Yu et al., 2022). In this section, the prediction of rockburst and large deformation in the tunnel site are carried out.

Rockburst Prediction at the Tunnel Site

The occurrence of rockburst is affected by many factors, so these factors should be comprehensively considered to establish their prediction criteria. In this paper, the strength-stress ratio method is used for prediction and combined with the results of the geological analysis method. The geological analysis method mainly aims at macroscale prediction, taking geological exploration data as the basis and similar engineering data as the analogy to make a simple macroscale prediction of the research object from the aspects of in-situ stress, lithology, hydrology, structural geology and so on. The strength-stress ratio rule is used to establish the quantitative index of rockburst prediction according to the in-situ stress and rock mass properties, which is calculated according to the following formula (National Railway Administration of the People Republic of China, 2016):

$\mathbf{p}=\frac{{\mathbf{R}}_{\mathbf{c}}}{{\mathbf{\sigma }}_{\mathbf{max}}}(4)$

where p is the rockburst classification index, and the relationship between its value and rockburst classification is shown in Table 3. R_c is the saturated uniaxial compressive strength of the rock mass; σ_max is the maximum in-situ stress. Although the occurrence of rockburst is caused by stress redistribution due to excavation, the stress redistribution is based on the initial stress of the rock mass. Therefore, the initial maximum horizontal principal stress of the surrounding rock is used in this paper to reflect the relative magnitude of stress redistribution after excavation.

TABLE 3

TABLE 3. Rockburst grade of hard rock section (National Railway Administration of the People Republic of China, 2016).

The strength-stress ratio method and geological analysis method were used to analyze and predict a tunnel rockburst. Due to the complex strata, broken rock mass and severe weathering, the surrounding rock is mostly grade Ⅳ∼Ⅴ, and only some parts of ηγ³N₂ are grade Ⅲ. First, it is preliminarily found that the surrounding rocks of grade Ⅳ and below do not have the conditions of rockburst, so rockburst is not considered, and only the possibility of rockburst occurring in the surrounding rocks of grade Ⅲ and above is considered, so the rockburst discrimination and prediction analysis is carried out only for the surrounding rocks of grade Ⅲ. According to the rock burst prediction results of a tunnel obtained by the strength stress ratio method and geological analysis method (as shown in Figure 11A), rockburst occurs mainly in grade III surrounding rock of ηγ³N₂, where the rock mass strength is higher, and the section is mainly in the middle of a rock mass between two adjacent faults, so the maximum principal stress value is relatively high (greater than 30 MPa). The tunnel is mainly subject to moderate rockburst, and the length of the tunnel with moderate rockburst is 980 m.

FIGURE 11

FIGURE 11. Prediction results of underground engineering disasters (A) Rockburst prediction of a tunnel (B) Large deformation prediction of a tunnel.

Prediction of Large Deformation at the Tunnel Site

The classification index for large deformation prediction of soft rock segments is calculated according to the strength-stress ratio formula (5)(National Railway Administration of the People Republic of China, 2016):

$\mathbf{q}=\frac{{\mathbf{R}}_{\mathbf{b}}}{{\mathbf{\sigma }}_{\mathbf{max}}}(5)$

where q is the large deformation classification index, and its value and corresponding large deformation classification are shown in Table 4. R_b is the strength of the surrounding rock mass; σ_max is the maximum in-situ stress.

TABLE 4

TABLE 4. Large deformation grade (National Railway Administration of the People Republic of China, 2016).

According to the numerical results of the tunnel axis stress corresponding to the mileage section of the in-situ stress simulation and geological prospecting section division, the identification and division of the large deformation of the surrounding rock were carried out, and the prediction results of large deformation were obtained (as shown in Figure 11B). The results of large tunnel deformation include slight large deformation, moderate large deformation, and severe large deformation, and most of them occur in fault zones or affected areas of fault zones. Although the in-situ stress at the fault is relatively low, the rock strength here is also low, so large deformation easily occurs. In the statistical range, the length of the section with severe large deformation is 1900 m, accounting for 11% of the total length of the tunnel, and almost all of them occur at the fault. In these sections, the in-situ stress is higher than 12 MPa, mostly at the moderate stress level. Due to the low strength of the surrounding rock, the final strength-stress ratio is low. The moderately large deformation section is 3,170 m, accounting for 18.35% of the total length of the tunnel. Most of these sections are faults or fault-affected areas. There are two situations: one is that the in-situ stress value is equal to or even slightly lower than the in-situ stress value of the section with severe large deformation, and the strength of the surrounding rock is slightly higher than that of the section with severe large deformation; the other is that the in-situ stress value of the ηγ³N₂ stratum is very high (all greater than 40 MPa), and the strength of the surrounding rock is relatively high. In both cases, moderate deformation is more likely to occur. The section with slightly large deformation is 2,940 m, accounting for 17.02% of the total length of the tunnel. Most of these sections are affected areas of fault zones or T₃z and myl strata. The in-situ stress level of this section is relatively low, mostly below 20 MPa, and the strength of the surrounding rock is relatively high.

Conclusion

The in-situ stress of a tunnel site in the Xianshuihe fault zone is analyzed, and the following conclusions are drawn:

1) Regarding the overall situation of the Xianshuihe fault zone, the fault mainly affects the maximum horizontal principal stress and the minimum horizontal principal stress in the shallow stratum. The in-situ stress near the fault is greatly affected, resulting in a deviation in the direction of the maximum principal stress from the direction of the regional dominant principal stress. In the shallow area near the Selaha-Kangding fault, the maximum horizontal principal stress, minimum horizontal principal stress and lateral pressure coefficient of the borehole increase with increasing distance from the fault. Farther than 600 m from the fault, the horizontal stress is greatest. In the deeper area, the maximum horizontal principal stress, the minimum horizontal principal stress and the lateral pressure coefficient exhibit no obvious change with increasing distance from the fault.

2) According to the inversion of the in-situ stress field in the studied tunnel site and the stress in the tunnel, the maximum principal stress in the axial direction of a tunnel is 3∼44 MPa, the in-situ stress at the entrance and exit of the tunnel is low, and the in-situ stress at the tunnel barrel is high. The in-situ stress around the tunnel barrel is affected not only by the burial depth but also by the fault. The in-situ stress at greater burial depths is high, and the in-situ stress at the fault has been released to a certain extent. The in-situ stress is relatively low, and the degree of stress decline at different faults is different.

3) The rockburst prediction results for the tunnel are obtained by the comprehensive strength-stress ratio method and geological analysis method. The prediction results are as follows: the length of the moderate rockburst risk is 980 m, accounting for 5.67%, which tends to coincide with the rock section with high stress located in the middle of a rock mass between two faults. The large deformation grade of the tunnel is obtained by the strength-stress ratio method, which mainly indicates in slight large deformation, moderate large deformation, and severe large deformation mainly occurs in the fault and its influence zone. The length of slight large deformation is 2,940 m, accounting for 17.02%. The length of moderate large deformation is 3,170 m, accounting for 18.35%. The length of severe large deformation is 1900 m, accounting for 11%.
