Hydrocarbon charging stages and natural gas hydrate accumulation models were established in the Songnan Low Uplift, Qiongdongnan Basin (QDNB), China. Detailed geochemical analysis, paleotemperature and paleopressure analyses, seismic interpretation, and hydrocarbon charging characterization were conducted to investigate the controlling factors of natural gas hydrate accumulation. The Yacheng and Lingshui formations in the Lingshui Sag were identified as effective source rocks. The δ13C1 values of the gas hydrates vary from −35.97‰ to −59.50‰, following a direction from the Sag Center to the Low Uplift, indicating that δ13C1 values became relatively lighter during gas migration. Seismic data evidence revealed that large-scale faults, laterally distributed sandstones, and gas chimneys were comprehensive, however efficient hydrocarbon migration pathways. Systematic overpressure was developed in the Yacheng and Huangliu formations, which offer sufficient hydrocarbon migration impetus. Hydrocarbon-bearing aqueous inclusions and their coexisting aqueous inclusions were observed in the Huangliu Formation in the Lingshui Sag, indicating four stages of hydrocarbon charging in the QDNB. Based on the comprehensive analysis in this research, two gas hydrate accumulation models were proposed in the Songnan Low Uplift, QDNB, as follows: 1) a mixture of gas migrated by large-scale faults and a thermogenic-biogenic mixed gas model and 2) gas hydrates from laterally distributed sandstones sealed by MTDs.

Introduction

The Qiongdongnan Basin (QDNB) is located in the northwestern continental margin of the South China Sea, which is a petroliferous Cenozoic basin with strong overpressure being widely developed (Huang et al., 2003; Hao et al., 2007; Zhu et al., 2009; Huang et al., 2012; Huang et al., 2016). A series of large gas fields, including LS25-1, LS17-2, LS18-1, and YL8 gas fields, were discovered in the Neogene Huangliu and Yinggehai formations in the west of the QDNB in the last few decades, with the main source rocks of the Paleogene Yacheng and Lingshui formations being deposited in a coastal plain or littoral to a neritic environment (Huang et al., 2012; Zhang et al., 2014; Huang et al., 2016; Su et al., 2017; Zhu et al., 2018; Xie et al., 2019; Zhang et al., 2019a, Zhang et al., 2019b, Zhang et al., 2019c; Su et al., 2021). The Yacheng and Lingshui formations of the LS25-1 and LS17-2 gas fields in the Lingshui Sag were overpressured, while the main gas-bearing layers, the Mesozoic granite Yacheng reservoirs of the YL8-1 and YL8-3 gas fields in the Songnan Low Uplift, were normal pressured (Wang et al., 2016; Gan et al., 2019; Shi et al., 2019; Yang et al., 2021).

A clean and efficient energy resource natural gas hydrate has been widely discovered in the QDNB (Zhang et al., 2018; Fang et al., 2019; Liang et al., 2019; Wei et al., 2019; Ye et al., 2019), showing significant exploration potentials in this area. In addition, a number of typical and representative gas hydrates were discovered and are being sampled at sites GMGS5, W07, W08, and W09 by the Guangzhou Marine Geological Survey (GMGS) in 2018, which were identified as typical gas hydrate sites in the Songnan Low Uplift. Stable carbon isotope analysis of the hydrated gas indicated a mixed microbial and thermogenic origin for their formation (Liang et al., 2019; Wei et al., 2019; Ye et al., 2019; Zhang et al., 2020; Lai et al., 2021).

Numerous research studies on the geological, geochemical, and geophysical characteristics of the gas hydrate system have been conducted in the QDNB (Zhang et al., 2018; Liang et al., 2019; Wei et al., 2019; Ye et al., 2019; Deng et al., 2021); however, natural gas hydrate accumulation mechanisms, reservoir characterization, and production trials need further research, especially on the influences of hydrocarbon charge on natural gas hydrate accumulation. The Yacheng and Lingshui formations are the most important source rocks in the Lingshui Sag, which have entered the dry gas window. The overpressured source rock intervals and preferential migration pathways offer continuous gas sources into the hydrate-bearing reservoirs. As a result, source rock maturations, migration pathways, overpressure, and hydrate-bearing reservoir characteristics co-contribute to natural gas hydrate accumulation.

Aims of this research are to

(1) investigate the migration pathways and overpressure characteristics of natural gas hydrates in the QDNB;

(2) clarify the influence of hydrocarbon charge on gas hydrate accumulation;

(3) understand origins of gas forming the gas hydrates; and

(4) establish natural gas hydrate accumulation models.

Geological Setting

The Lingshui Sag is located in the west of the deep-water area of the QDNB (Figure 1). The LS25 gas field is located in the west of the Lingshui Sag, adjacent to the Ledong Sag, and the LS17-2 and LS18 gas fields are located in the eastern slope of the Lingshui Sag (Figure 1B, Yao et al., 2015; Zhang et al., 2016; Huang et al., 2017; Li et al., 2017; Zhang et al., 2019c). Tectonic evolution of the QDNB comprises two stages: rifting from Eocene to Oligocene and a depression stage from Miocene to Quaternary (Hu et al., 2013). The QDNB experienced multi-stage tectonic movements, including Shenhu, Zhujiang, Nanhai, and Dongsha tectonic movements (Wang et al., 2021). Tectonic evolution of the Lingshui Sag is consistent with that of the QDNB, leading to the deposition of 6,000–12,000 m Cenozoic strata (Figure 2), which are divided into eight formations, including the Oligocene Yacheng and Lingshui formations (36∼30 Ma and 30∼21 Ma), the Miocene Sanya, Meishan, and Huangliu formations (21∼15.5 Ma, 15.5∼10.5 Ma, and 10.5∼5.5 Ma), and the Pliocene Yinggehai Formation (5.5∼1.9 Ma) (Figure 2) (Su et al., 2018).

FIGURE 1
www.frontiersin.org

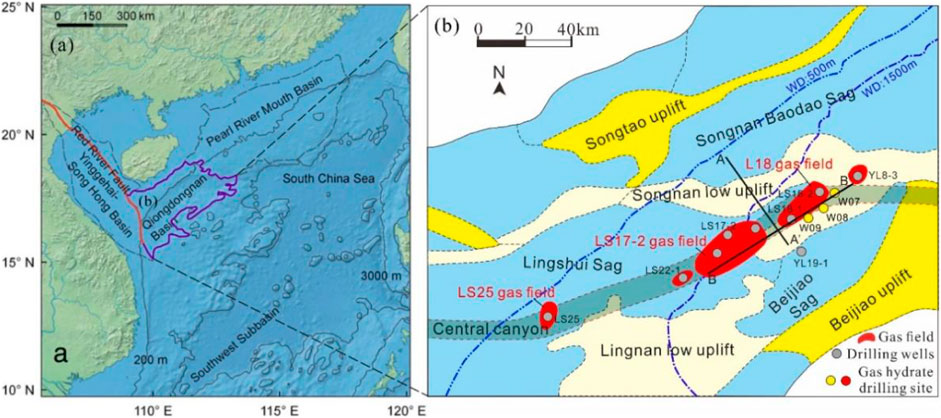

FIGURE 1. (A) Location of the Qiongdongnan Basin (QDNB) with purple color in the northwestern South China Sea. (B) Structural sketch of the western QDNB (modified after He et al., 2021) with gas fields and drilling wells being labeled. WD, water depth.

FIGURE 2
www.frontiersin.org

FIGURE 2. Simplified stratigraphic column of the QDNB (modified after Su et al., 2018; Lai et al., 2021). Dep. Envir., depositional environment.

The Songnan Low Uplift—which is bounded by the Lingshui Sag, the Songnan-Baodao sags, the Changchang Sag, and the Beijiao Sag (Figure 1B)—comprises the main targeted areas for natural gas hydrate exploration. Discoveries of the YL8 and YL1 gas fields indicated that the Songnan Low Uplift is an area of natural gas accumulation (Shi et al., 2019; Zhang et al., 2019c; Yang et al., 2021), which is also subject to gas hydrate accumulation. Gas-bearing formations of the YL8-1/3, LS25/17-2, and LS18-1 gas fields are mainly the Huangliu, Yinggehai, and Yacheng formations, and the hydrate-bearing formation in the GMGS5-W07/W08/W09 sites are mainly in the Quaternary formation (Figure 2).

Results and Discussion

Gas Source

TOC contents and Rock-Eval parameters were effective to characterize hydrocarbon generation potentials of source rocks (He et al., 2018; He et al., 2022). TOC contents of the analyzed mudstones, carbonaceous mudstones, and coal samples in the Yacheng and Lingshui formations range from 0.13 wt.% to 96.51 wt.% (Figure 3A). Rock-Eval data reveal hydrocarbon generation potentials of free hydrocarbon (S1) and generative hydrocarbon potential (S2) of the analyzed samples ranging from 0.02 mg HC/g TOC to 154.05 mg HC/g TOC (Figure 3A), which are identified as the main source rocks forming the discovered gas fields. Most of the analyzed samples were characterized as fair to very good source rocks, with carbonaceous mudstones and coal samples being identified as excellent source rocks, indicating great hydrocarbon generation potential for the source rock formations (Figure 3A).

FIGURE 3
www.frontiersin.org

FIGURE 3. (A) Hydrocarbon generation potential evaluation and (B) organic matter types of the Yacheng and Lingshui formations in the QDNB.

Maximum temperature (Tmax) and hydrogen index (IH) values show close-set distribution, with Tmax values ranging from 408 to 482°C and IH values ranging from 11 mg HC/g TOC to 462 mg HC/g TOC, respectively (Figure 3B). The average Tmax reaches 444°C, and the average IH value is 101 mg HC/g TOC, indicating that source rocks of the Yacheng and Lingshui formations are sufficiently mature to generate dry gas. In the Tmax versus IH plots (Figure 3B), most of the analyzed samples were considered to be Type II2 and III kerogens, with a smaller number of analyzed samples being characterized as Type II1 kerogen (Figure 3B).

Vitrinite reflectance (Ro%) was measured to assess thermal maturities of the source rocks in this research. Ro% values of the samples in the Yacheng Formation are >2.0% in the Lingshui Sag, a higher value than that of the samples in the Low Uplift (Table 1). The results indicate that the Yacheng and Lingshui formations in the QDNB are highly matured to over-matured.

TABLE 1
www.frontiersin.org

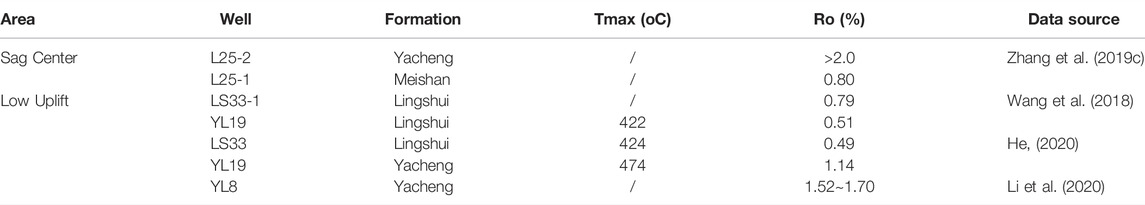

TABLE 1. Thermal maturity of source rocks, namely, Meishan, Lingshui, and Yacheng formations, in the Sag Center and Low Uplift in the QDNB.

Natural gas compositions in the LS25, LS17-2, LS18-1, YL8-1, and YL8-3 gas fields and the GMGS5-W08 hydrate site are dominated by hydrocarbon gas, accounting for 76.38∼99.79% of the total gas volumes (Table 2). Methane (CH4) contents of the gas fields and the GMGS5-W08 gas hydrate site range from 75.48 to 96.14% and 79.16 to 97.69%, respectively (Table 2). Wet gas (C2+) contents vary from 0.85 to 8.44% for the gas fields and from 2.10 to 19.55% for the gas hydrate samples (Table 2). Dryness coefficients (C1/C1-5 by volume) were in the range of 0.91–0.95 (Table 2). The δ13C1, δ13C2, and δ13C3 values of all gas fields and W08 range from −59.5 to 35.97‰, −28.40 to 22.40‰, and −27.80‰ to −20.20‰, respectively. The δ13C values of the CO2 samples vary from −20.70‰ to −2.70‰ in the gas fields (Table 2).

TABLE 2
www.frontiersin.org

TABLE 2. Gas composition and isotopic composition of the LS25, LS17-2, LS18-1, YL8-1, and YL8-3 large gas fields and hydrate-related gas at site GMGS-W08 in the QDNB. (Data were collected from Liang et al., 2015; Zhang et al., 2019a; Zhang et al., 2019b; Li et al., 2020; Lai et al., 2021; Yang et al., 2021; Zhu et al., 2021).

Previous studies suggested that δ13C1 and δ13C2 threshold values to distinguish thermogenic and microbial origins of CH4 and C2H6 are −55‰ and −42‰, respectively, (Milkov, 2005). Thermogenic gas can be subdivided into coal-type and oil-type gas by δ13C2 and δ13C3 threshold values of −28‰ and −25‰, respectively (Xu and Shen, 1996; Huang et al., 2016; Liu Q. et al., 2019; Lai et al., 2021). A plot of the δ13C1 values versus the δ13C2 values of the analyzed gas samples shows that methane (CH4) in both the gas hydrates and gas fields was composed of thermo-microbial methane (CH4) and thermogenic methane (CH4). Ethanes (C2H6) were derived solely from coal-type thermogenic gas with δ13C2 values > −28‰ (Figure 4A).

FIGURE 4
www.frontiersin.org

FIGURE 4. (A) Genetic diagram of δ13C1 versus δ13C2 showing a thermogenic and microbial mixed gas of the natural gas hydrate (modified from Milkov, 2005). (B) Genetic diagram of δ13C2 versus δ13C3 (Modified from Liu S. Y. et al., 2019) showing a coal-type gas of the natural gas hydrate. All data were collected from the LS25, LS17-2, LS18-1, YL18, and GMGS5-W08 gas fields (Table 2).

A notable phenomenon is that the δ13C1 values decreased from −35.97‰ to −59.5‰ along gas migration pathways (from LS25 to W08 or from the Sag Center to the Low Uplift), indicating lighter δ13C1 values due to fraction effects of secondary migration and increased contents of biogenic gas. The C2+ hydrocarbon gas in the hydrate was mainly derived from the deeply buried coal-type source rocks, and methane (CH4) often has a mixed thermogenic and microbial origin.

Migration Pathways

Natural gas hydrate accumulation, which is similar to the conventional oil and gas reservoirs, is often associated with faults, gas chimneys, and diapirism. Faults that fail to reach the gas hydrate stability zone (GHSZ) directly are not efficient pathways for hydrate accumulation that some large-scale faults, however, are often connected with gas chimneys to form efficient fluid migration pathway systems. Normal faults are identified in the study area, which extend from the source rocks to the Quaternary strata or connected with gas chimneys at shallower burial depths (Figure 5A), a characteristic indicating intense fluid migration from deep areas to the seafloor or shallow traps through the fault-chimney pathways. In parallel, enhanced reflections (ERs) were widely developed on the top of or at the flanks of the gas chimneys, faults, and central channel (Figures 5B,C), indicating significant fluid flow in the study area (Cartwright et al., 2007; Horozal et al., 2009; Petersen et al., 2010; Karstens & Berndt, 2015; Kang et al., 2016).

FIGURE 5
www.frontiersin.org

FIGURE 5. (A) Representative seismic profiles of the Songnan Low Uplift. (B,C) Partial enlarged details for the geological characteristics of the Songnan Low Uplift.

Gas chimneys were developed mainly in the Low Uplift, exhibiting vertical columnar or finger shapes (Figure 5B and Figure 6). The GMGS5 W07, W08, and W09 gas hydrate sites are located directly on the top of three large gas chimneys (Figure 6). Diameters of the gas chimneys vary from 3 to 5 km, and the top of the chimneys terminates at the T1 interface, ∼150 m from the seafloor (Figure 6). Gas chimneys are characterized by mushroom-shaped acoustic blanking zones, with weak internal push-down reflections being interpreted (Figure 6). The high-amplitude reflections at the edge or within the gas chimneys were identified as high-velocity gas hydrate in the soft sediments (Figure 6). Normal faults were interpreted within the gas chimneys, with invisible faults and/or fractures beyond seismic resolution being widely developed in the interior of the gas chimneys. With widely distributed enhanced reflections (ERs) on the top of or at the flanks of the gas chimneys (Figure 6), fluid charging should occur constantly in the study area.

FIGURE 6
www.frontiersin.org

FIGURE 6. Seismic reflection features of the bottom simulating reflector (BSR), diapirs, gas chimneys, and faults in the QDNB, showing the accumulation process of the hydrate-related gas at the site GMGS5-W08.

Overpressures

Pressure and temperature, especially overpressure, are important driving forces for sub-surface fluid flow, and understanding their origins and evolution is the key aspect to understand oil and gas migration and accumulation mechanisms.

In the LS25 gas field of the QDNB, two separate overpressure systems were identified (Figure 7, Gan et al., 2019). The lower overpressure system is mainly formed by hydrocarbon generation, with a maximum pressure coefficient (Pc) > 1.8, which extends up to the bottom of the Huangliu Formation. The upper overpressure system is in the second member of the Yinggehai Formation, which was subject to rapid subsidence and disequilibrium compaction of the shallow marine mudstones, with a pressure coefficient (Pc) of c. 1.4. Gas accumulation in the Huangliu Formation (from 1.8 Ma to the present) is relatively later than that in the second member of the Yinggehai overpressured interval, indicating that gas accumulation in the late Huangliu channel system occurred between the formation of the two high-pressure systems since 1.8 Ma, a timing with large-scale hydrocarbon generation and migration. Two thick gas layers in the early and late phases of channel depositions have pressure coefficients of 1.5 and 1.0, respectively. Sandstone intervals deposited early in the channel have a pressure coefficient (Pc) up to 1.8, a characteristic indicating poor gas preservation conditions of upper units of the channel due to the development of intense fractures.

FIGURE 7
www.frontiersin.org

FIGURE 7. Pressure distribution of LS25 gas fields in the Lingshui Sag (Li et al., 2021).

Gas generated source rocks were accumulated in the distinct reservoirs of the channel system by overpressure and buoyancy, with continuous upward migration into the second member of the Yinggehai Formation being hindered by the existence of the upper overpressure system. However, the fluid can be migrated laterally along the porous sandstones in the channels which were proved by the discovery of the LS18 gas field, east of the Central Canyon.

Hydrocarbon-Charging Stages

Fluid inclusion can be applied to confirm phases of oil and gas accumulation, which record important information on fluid properties, trapping temperatures, and pressures under in situ conditions. Hydrocarbon-bearing aqueous inclusions and aqueous inclusions were widely developed in the Huangliu Formation in the LS25 and LS17-2 gas fields in the Lingshui Sag (Xu et al., 2014; Gan et al., 2018; He, 2020). Homogenization temperatures (Ths) of the hydrocarbon-bearing aqueous inclusions are >120oC, ranging from 130 to 160oC. The Ths of the aqueous inclusions range from 78 to 90.2oC and from 99.7 to 101.2oC in wells LS17-2-7 and LS25-3-1, respectively, which is significantly lower than that of the hydrocarbon-bearing aqueous inclusions (He, 2020).

At least three hydrocarbon charging stages were identified in the study area according to the Ths of the hydrocarbon-bearing aqueous inclusions in the Huangliu Formation of the LS17 gas field, corresponding to Ths of 87.2oC, 110∼120oC, and 140∼160oC, respectively (Gan et al., 2019; Table 3). Timing for hydrocarbon charging is estimated to be c. 0.3 Ma at a temperature of 87.2oC. Some of the Ths of the hydrocarbon-bearing aqueous inclusions are relatively higher than the current strata temperature (approximately 100oC), indicating the influence of deep thermal fluids/gas in the Central Canyon gas fields in the Lingshui Sag, which were driven by the deep high-pressure/temperature fluid systems.

TABLE 3
www.frontiersin.org

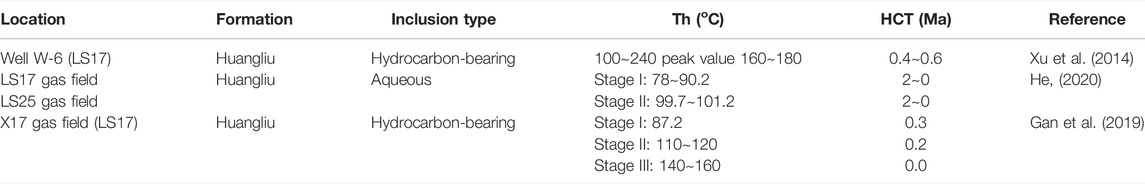

TABLE 3. Homogenization temperatures (Ths) of coexisting aqueous inclusions and hydrocarbon charging time (HCT) of the large gas fields in the Lingshui Sag.

In addition, hydrocarbon-bearing aqueous inclusions and the coexisting aqueous inclusions were commonly developed in the target formation, indicating multi-stages of fluid migration in the QDNB. The Ths of the coexisting aqueous inclusions range from 78 to 90.2oC and from 99.7 to 101.2oC in wells LS17 and LS25 in the Lingshui Sag, matching a trapping time of 2∼0 Ma (Table 3).

The previous study indicates four stages of hydrocarbon and fluid migration stages in the QDNB, with charging times from 17.5 to 13 Ma (Stage I), 10 to 5.5 Ma (Stage II), 4 to 2 Ma (Stage III), and 2 to 0 Ma (Stage VI), respectively (Figure 8) (Liu and Chen, 2011; Huang et al., 2012; Xu et al., 2014; Su et al., 2016a, 2016b; Xu et al., 2017; Gan et al., 2018; Zhong et al., 2019; He, 2020).

FIGURE 8
www.frontiersin.org

FIGURE 8. Hydrocarbon-charging orders and times in the eastern part of the QDNB.

Natural Gas Hydrate Accumulation Mechanism

Based on the geochemical analysis, paleotemperature/pressure and hydrocarbon charging analyses, and the structural characteristics of the QDNB, preliminary accumulation models for natural gas hydrates were proposed in the Songnan Low Uplift (Figure 9).

FIGURE 9
www.frontiersin.org

FIGURE 9. Hydrocarbon-charging and gas hydrate accumulation model of the Songnan Low Uplift in the QDNB.

Prior to the accumulation processes forming gas hydrates, favorable hydrocarbon generation conditions, efficient migration pathways, and sufficient driving forces are key aspects to form gas hydrates. TOC contents and Rock-Eval results indicate good hydrocarbon generation potential of the Yacheng and Lingshui source rock formations, which are highly matured or over-matured. Effective hydrocarbon migration systems in the study area mainly comprise faults, laterally distributed extended channel sandstones, and gas chimneys. Faults that extend from the source rock intervals up to the Quaternary strata or gas chimneys provide efficient hydrocarbon migration pathways. In the LS25 gas field, late deposition in the channel of the Huangliu Formation has a Pc value of 1.0, and the early deposited intervals in the channel have Pc values of 1.5∼1.8, which are significantly higher. Some of the Pc values in the Yacheng Formation can even reach 2.1 (Zhang et al., 2016), indicating that strong overpressure at depth can provide sufficient impetus for hydrocarbon migration.

With our analysis, high-overmatured thermogenic gas was postulated to be derived from mudstone or coal-bearing strata of the Oligocene Yacheng and Lingshui formations. Gases in the Lingshui Sag could migrate upward through faults. Meanwhile, natural gas was also migrated through laterally distributed sandstone due to the sealing effect of the MTDs (Figure 9). Furthermore, migration of gas was mixed with shallow biogenic gas, thus forming the gas hydrate, such as the cases of the W09 and W08 gas hydrates (Figure 9). Biogenic gas derived from immature or low mature source rocks of the shallow Sanya and Meishan formations can also migrate through faults to form gas hydrates in the study area, such as the W07 gas hydrates (Figure 9). A mixture of biogenic gas in the study area can also be the result of diffusion through interbedded microcracks and pore networks in the shallower strata.

Conclusion

Detailed geochemical analysis, paleotemperature and paleopressure analyses, seismic interpretation, and hydrocarbon charging characterization were conducted to investigate the controlling factors of natural gas hydrate accumulation. Our research reaches the following conclusions.

(1) The Yacheng and Lingshui formations with high-overmatured source rocks are effective to generate thermogenic gas, and the Meishan and Sanya formations with immature to low matured source rocks can provide abundant biogenic gas.

(2) Large-displacement faults, laterally distributed sandstones, and overpressure are the main driving force and migration pathways for the formation of gas hydrates at shallow burial depths.

(3) Four stages of fluid migration occurred in the QDNB, with stage IV (2∼0 Ma) hydrocarbon migration as the main stage of gas hydrate formation.

(4) The natural gas hydrate accumulation model was subscribed into two types: large-scale fault migration and lateral migration of thermogenetic gases to form the hydrate in shallow sediments.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author Contributions

YW and RJ wrote the whole manuscript and provided all figures. NZ, XC, and LH gathered and prepared data. CR provided all tables. KZ, LJ, and LH contributed to the discussion and outline. ZB, CJ, ZX, and LL imporved the grammar of writing.

Funding

This article was granted by the Key Special Project for Introduced Talents Team of Southern Marine Science and Engineering Guangdong Laboratory (Guangzhou) (Grant No. GML2019ZD0102), the State Key Laboratory of Organic Geochemistry, GIGCAS (Grant No. SKLOG 2020**), and the Guangdong Basic and Applied Basic Research Foundation (No. 2020A1515110405).

Conflict of Interest

Author LL was employed by the company Beijing International Engineering Consulting Co., Ltd.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
