Gold–Cu skarn deposits are characterized by a diverse mineral assemblage, whose in-situ major/trace elements and isotope compositions can provide key constraints to the migration and enrichment of Au during hydrothermal processes. The Yi’nan Tongjing Au–Cu deposit is located in the central part of the Luxi district, and both skarn and Au–Cu ore bodies occur at the contact between the Early Cretaceous diorite porphyry and the Neoproterozoic to Cambrian carbonate rocks. Five stages of mineralization were identified: 1) early skarn (garnet–diopside–wollastonite); 2) late skarn (magnetite–epidote–actinolite±tremolite); 3) oxide (specularite–hematite); 4) sulfide (pyrite–chalcopyrite–sphalerite–quartz–chlorite); and 5) late quartz–calcite. The mineralization process in the Tongjing Au-Cu deposit was revealed by detailed scanning electron microscope-backscattered electron imaging, electron probe microanalysis, in-situ trace element, sulfur and lead isotope analysis. Magnetite is enriched in chalcophile elements (Cu, Zn, Pb), Co and Ni, probably due to hydrothermal overprint. The substitution of As and other elements in the formation of pyrite is conducive to the entry of Au into pyrite. The increase of Se and As contents in pyrite from stage IVa to IVb indicates that the temperature, salinity and oxygen fugacity of the ore-forming fluid decrease while the pH rises, resulting in the unloading of Au. The temperature of Au mineralization based on the Se content in pyrite does not exceed 300°C. Furthermore, V positively correlated with Ti and Ni/Cr ratios ≥1 in magnetite and most Co/Ni ratios in pyrite >10 all confirm their hydrothermal origins. The restricted sulfur (δ34SV-CDT = −0.5–1.2‰; mean = 0.4‰) and lead (206Pb/204Pb = 17.323–17.383; 207Pb/204Pb = 15.424–15.452; 208Pb/204Pb = 37.367–37.454) isotopic compositions suggest that the deep magma provided the primary mineralized material, accompanied by a relatively small amount of shallow crustal material. The Yi’nan Tongjing Au–Cu skarn deposit was formed in the Early Cretaceous, which is an important metallogenic response to the strong decratonization of the North China Craton induced by the paleo-Pacific Plate roll-back. This study shows that there is a large potential of Early Cretaceous skarn mineralization in the Luxi district.
1 Introduction
Skarn deposits are an important resource of Au, Ag, Pb, Zn, W, Sn, Fe, and Cu and other metals on a global scale (Einaudi et al., 1981; Hedenquist and Lowenstern, 1994; Meinert et al., 2005; Chen et al., 2007; Chang et al., 2019; Shu et al., 2021; Niu et al., 2022). Skarn deposits, also known as contact metasomatic deposits, form at the contact between intermediate-acid intrusions and carbonate strata (Meinert et al., 2005; Shu et al., 2017; Chang et al., 2019). It has experienced a complex mineralization process (magma/fluid-rock interaction), resulting in a diverse mineral assemblage (Meinert, 1992; Meinert et al., 2005). Minerals, especially mineralization-related (e.g., pyrite, chalcopyrite and magnetite; Cook et al., 2009; Deditius et al., 2014; Nadoll et al., 2014; George et al., 2018a), can be used to reveal the key mineralization information such as ore-forming temperature, elemental substitution and physicochemical conditions as they often are treated as a recorder of mineralization processes. Most types of Au deposits (e.g., orogenic-, epithermal-, intrusion-related, and carlin-type; Groves et al., 1998; Thompson et al., 1999; Hedenquist et al., 2005; Baker et al., 2006; Goldfarb and Groves, 2015) are relatively simple in mineral assemblages, mainly pyrite and chalcopyrite, where only gold-bearing pyrite can constrain the detailed mineralization process (Sung et al., 2009; Fougerouse et al., 2017; Hastie et al., 2020; Chinnasamy et al., 2021). On the other hand, skarn Au deposits have a wide range of mineral assemblages and the major and trace elements of these minerals record a wealth of mineralization information, which helps us to better understand the ore-forming mechanism.
The Luxi district is located in the eastern part of North China Craton (NCC) (Figure 1), and hosts a range of Fe and Au–Cu skarn deposits (Figure 2). These deposits are closely associated with Early Cretaceous intermediate magmatic rocks (diorite and/or diorite porphyry; Xu et al., 2007; Wang et al., 2011; Duan et al., 2020). The Yi’nan Tongjing is a representative Au–Cu deposit in the district. Previous studies mainly focused on fluid inclusions, bulk-ore C–H–O–S–Pb–He–Ar isotopes, zircon U-Pb and whole-rock geochemistry (Qiu et al., 1996; Dong, 2008; Gu et al., 2008; Li et al., 2009; Wang, 2010; Li et al., 2011; Tian et al., 2015; Zhu et al., 2018), revealing that fluid immiscibility led to the precipitation of mineralized material, but the physicochemical conditions for occurrence, migration and unloading of ore-forming elements are still unclear. The wide range of sulfur and lead isotopic compositions of metal minerals makes it difficult to determine the source of the ore-forming material, and lacks sufficient spatial resolution to reveal the possible multi-stage mineralization processes.

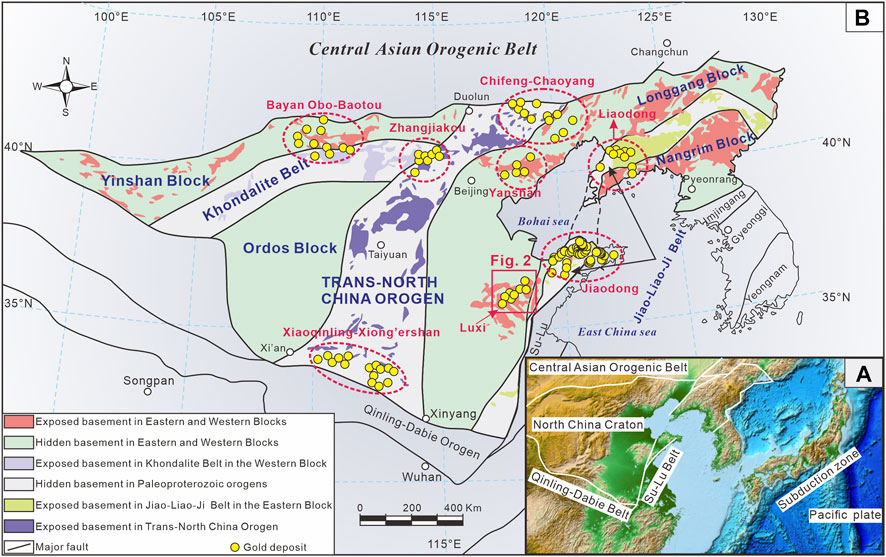

FIGURE 1. (A) Simplified geological and tectonic map of the NCC (modified after Yang et al., 2021); (B) Geological map with the distribution of gold deposits in the NCC (modified after Zhao et al., 2005; Deng and Wang, 2016; Li and Santosh, 2017; Li et al., 2020).

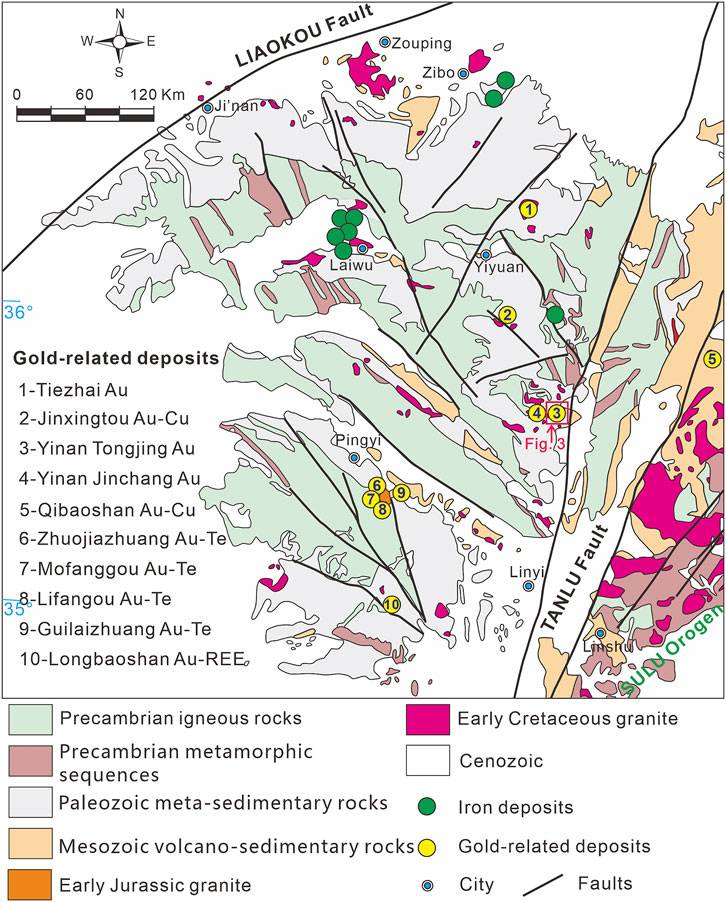

FIGURE 2. Simplified geological map of the Luxi district with major deposits marked (modified after Deng et al., 2018).
In this study, the possible substitution mechanism between elements, elemental behavior during mineralization and key controlling factors were investigated, and the source of ore-forming material was also constrained. Based on detailed field geological investigations and ore texture, electron probe microanalysis and in-situ laser ablation-inductively coupled plasma-mass spectrometry (LA-ICP-MS) trace element composition analyses were performed on metal minerals (magnetite, pyrite, sphalerite and chalcopyrite), and in-situ LA–ICP–MC–MS sulfur and lead isotope analyses were conducted on pyrite and chalcopyrite.
2 Geological setting
The NCC is adjacent to the Central Asian Orogenic Belt in the north, and the Qinling–Dabie Su–Lu Orogenic Belt in the south (Figure 1). The NCC is the oldest and largest craton in China (Zhai and Santosh, 2011; Zhao and Cawood, 2012) and eventually cratonized and stabilized at approximately 1.85 Ga (Zhao et al., 2001; Santosh, 2010; Zhai, 2011). During the Mesozoic, the nature and thickness of the subcontinental lithospheric mantle beneath the eastern NCC were changed (Menzies et al., 1993; Xu, 2001; Zhu et al., 2011; Yang et al., 2012), which triggered extensive tectonism, magmatism, and large-scale metal mineralization (e.g., Au, Fe and Cu) (Mao et al., 2003; Wu et al., 2005a; 2005b; Zhu et al., 2012; Zeng et al., 2013, 2020). The NCC holds approximately 50% Au production and proven reserves of China (Deng and Wang, 2016; Yang et al., 2021). These Au deposits are mainly distributed in the Xiaoqinling-Xiong’ershan, Liaodong, Chifeng-Chaoyang, Yanshan, Zhangjiakou, Bayan Obo-Baotou, Jiaodong and Luxi districts (Figure 1B).
The Luxi terrane is dominantly composed of Neoarchaean gneisses, amphibolites and TTGs and Paleoproterozoic granitoids (Song et al., 2001; Wan et al., 2011; Wu et al., 2013), which are overlain by Neoproterozoic Tumen Group (littoral clastic and carbonate rocks) and Paleozoic to Cenozoic sequences (Guo et al., 2014; Deng et al., 2018). The Paleozoic strata are widely exposed in Luxi, including carbonate, shale and clastic rocks (Dong, 2008), whilst the Mesozoic to Cenozoic strata mainly consist of terrestrial clastic and volcanic-sedimentary rocks (Niu et al., 2004; Hu et al., 2006).
Ninety-five percent of the exposed igneous rocks in Luxi are Precambrian units, and the rest are small-scale Mesozoic intrusive rocks, mainly formed in the Early Jurassic (ca. 185–180 Ma; Lan et al., 2012) and Early Cretaceous (ca. 135–125 Ma; Xu et al., 2004; Yang et al., 2006; 2008; Zhang et al., 2021). The Early Cretaceous magmatism is exemplified by the Laiwu kuangshan and Yi’nan Tongjing intrusive complex (Wang et al., 2011; Duan et al., 2020; Gao et al., 2022). They are mainly composed of diorite and gabbro, with a small amount of granite, which is closely related to the large-scale Fe and Au deposits in the area (Hu et al., 2010; Wang, 2010; Duan and Li, 2017).
3 Deposit geology
The Yi’nan Tongjing Au-Cu deposit is located 8 km north of Yi’nan County in western Shangdong Province, China, which is mainly composed of six ore segments: Shanzijian, Gongquan, Jinlong, Gongquandong, Duijinshan and Tonghanzhuang (Figure 3).

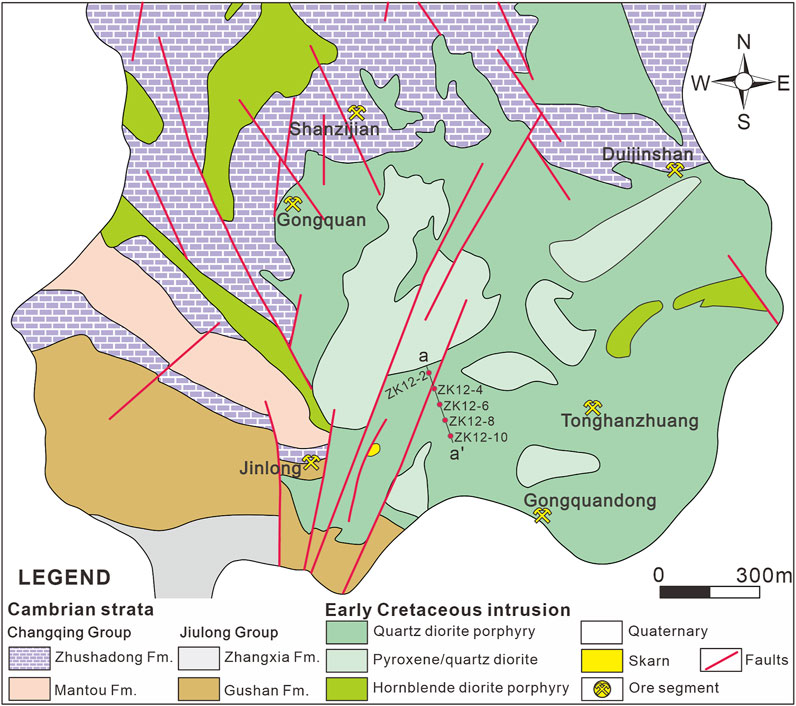

FIGURE 3. Geological map of the Yi’nan Tongjing Au–Cu deposit, modified after SDGM (2015) and Duan et al. (2020). The cross section of the exploration line (a-a') is shown in Figure 4B.
Cambrian sequences are widely exposed in the ore district (Figure 3), including Changqing Group (Zhushadong and Mantou formations) and Jiulong Group (Zhangxia and Gushan formations), which are the main ore-hosting rocks (Figure 4A; Liu et al., 2014). They consist of limestone, dolomite, sandstone and shale (Figure 4A; Dong, 2008), whilst these rocks extend along NW–SE (300°) and incline to the SW at angles of 10–30° (SDGG, 2008). The Archean Taishan Group (metabasic volcanic–sedimentary rocks; Guo et al., 2014) is overlain by the Proterozoic Tumen Group (Tongjiazhuang Formation) in unconformable contact (Figure 4A; Dong, 2008). The Tongjiazhuang Formation includes shale intercalated with thin limestone, in which skarnization occurred (Figure 4A; SDGM, 2015). Faults in Tongjing are affected by the Tan-lu fault, mainly including NNE-, NW-, and SN-trending faults (Figure 3). The NNE- and NW-trending faults are characterized by multi-stage activities, which are filled with mineralized quartz or carbonate veins (SDGG, 2008). Besides, the NNE-trending faults were cut by NW-trending faults. Magmatic intrusion (e.g., Tongjing intrusive complex) often occurred at the intersections of these two sets of faults (Dong, 2008). Tongjing complex comprises pyroxene/quartz diorite in the middle as xenoliths, a small volume of hornblende diorite porphyry in the west and quartz diorite porphyry distributed around them (Figure 3), which were formed in the Early Cretaceous (136–126 Ma; Xu et al., 2007; Wang, 2010; Wang et al., 2011; Li et al., 2011; Duan et al., 2020). Diorite is intruded by the diorite porphyry or occurs as xenoliths in the latter, indicating its early emplacement (Duan et al., 2020). Skarnization and Au-Cu mineralization mainly occur in the contact zone between the Tongjing complex and Proterozoic to Cambrian carbonate sequences (Figure 4A) and in the structurally weak zone of the strata (Dong, 2008; SDGG, 2008).

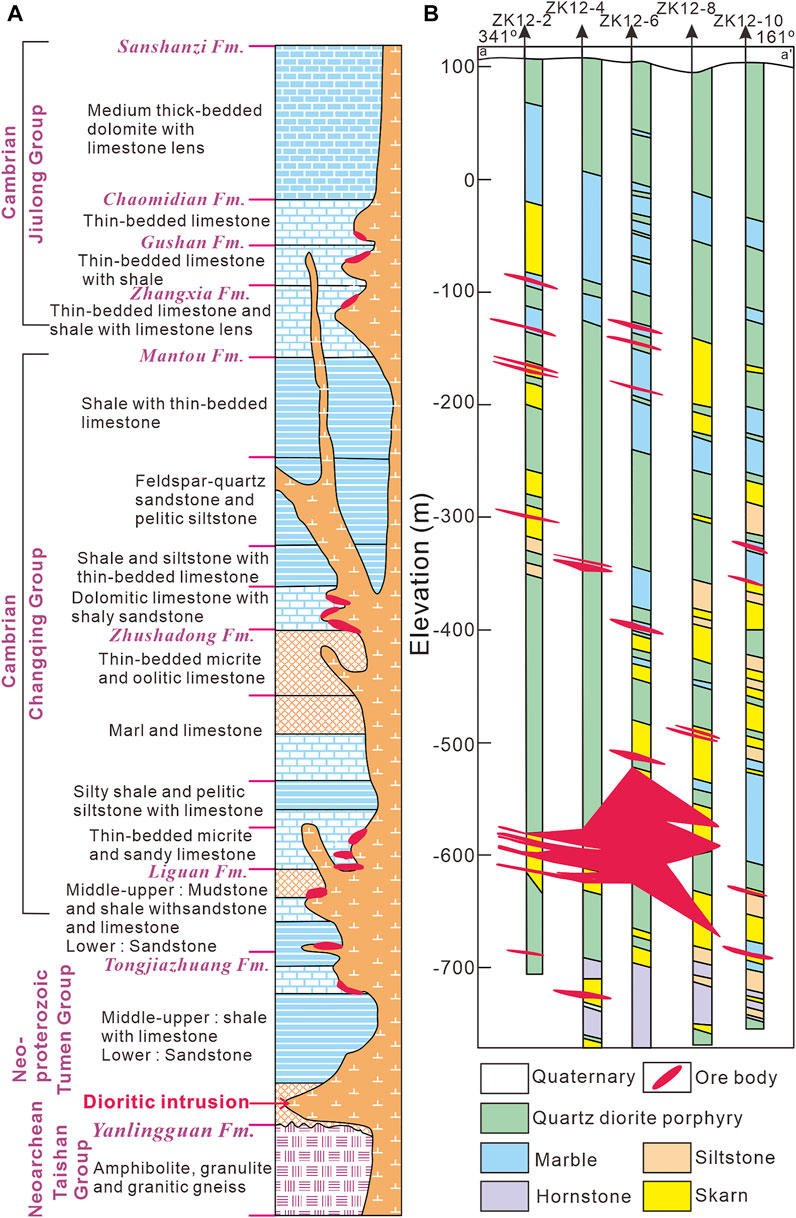

FIGURE 4. Sketch map showing the stratigraphy and the occurrence of ore bodies in the Yi’nan Au–Cu skarn deposit (A), modified after Dong et al. (2008); Geological cross-section along exploration line 12 of Jinlong ore segment (B), modified after SDGM (2015).
More than ten major ore bodies have been identified in Tongjing, and they are mainly hosted in Neoproterozoic to Cambrian strata or the contact between these strata and diorite porphyry (Figure 4A; SDGM, 2015). The ore bodies occur around intrusive rocks in a circular belt (Dong, 2008), so the trends of the ore bodies vary greatly. The ore bodies are layered and lenticular (Figure 4B), with lengths of 15–240 m, widths of 0.5–25 m and depths of 200 m (SDGG, 2008). However, the scale of a single Au–Cu ore body is generally small (Figure 4B). For example, the No. 1 ore body is hosted in thin sandstone and shale of the Zhushadong Formation and occurs in layers. The ore body has a strike of 134° and dips at 10–15° to the SW. It is approximately 160 m long, 0.5–8.95 m thick, and extends to depths of 150 m. The average grades of Au, Cu and Fe in the ore body are 2.89 g/t, 0.19% and 0.63%, respectively (SDGG, 2008).
Based on field and petrographic observations, five paragenetic stages at Tongjing deposit are recognized: 1) early skarn; 2) late skarn; 3) oxide; 4) sulfide; and 5) late quartz–calcite (Figure 5, Figure 6, Figure 7). The mineral assemblage of the early skarn stage consists mainly of anhydrous garnet, diopside and wollastonite. They are mainly present in striped, veinlet, and scarce relics in Au-Cu ores (Figures 5F,H). The coarse garnet is replaced by an epidote along the edge (Figure 6K). The wollastonite occurs as long-prismatic and platelike. As the main stage of Fe mineralization, the late skarn is characterized by the occurrence of epidote, tremolite, actinolite and magnetite (Figures 5B,E–G), which are widely developed in strips or blocks. Magnetite and epidote are filled by late pyrite, chalcopyrite and calcite along the gap between particles (Figures 6A,L). The oxide stage is marked by the pervasive occurrence of hematite, specularite and quartz, occurring in veinlets and lumpy, which is superimposed on the early skarn stage. Specularite is mostly acicular and cut by late sulfides or chlorite veins (Figures 5H, 6C), whilst hematite grew along the edge of magnetite. Pyrite and chalcopyrite as well as minor sphalerite and bornite occur in the sulfide stage (Figure 6B). These minerals often replace the skarn minerals (Figures 5B,E), occurring as interstitial fillings or cross-cut veins (Figures 5F,G, 6A). The gangue minerals in this stage include chlorite, quartz, sericite, fluorite and calcite. Chlorite is veined, striped or irregularly shaped and overprinted on the early reddish brown or dark green hornstone (Figure 5H). This is the main Au-Cu mineralization stage, and the formation of native gold is related to chalcopyrite and pyrite (Figures 6D–G). Gold is wrapped in pyrite and chalcopyrite in granular or irregular shape (Figures 6D,G; Supplementary Figure S1A,B), and occurs along the edge of euhedral pyrite (Figure 6E; Supplementary Figure S1D) or in quartz vein (Figure 6F; Supplementary Figure S1C,E). Stage IV is further divided into two sub-stages: Stage IV-a mainly includes pyrite and minor chalcopyrite, occurring in massive, disseminated or stripped, and quartz is rare in this sub-stage (Figure 5A); Chalcopyrite-pyrite-quartz veins occur in the stage IV-b, and these veins cut through the stage IV-a and earlier stages (Figures 5C,D,F–G). The quartz–calcite veins in stage V are poor in sulfides, and both they and fluorite veins cut early ores (Figure 5I, Figures 6K,L).
FIGURE 5. Photographs of hand specimens from the Tongjing Au–Cu deposit. (A) Striped Au ore with specularite precursor, accompanying chlorite and pyrite; (B) Au–Cu ore including chalcopyrite, pyrite and magnetite and hematite relic, cut by later quartz and fluorite veinlets; (C) Chalcopyrite–pyrite–quartz vein cutting the massive Au–Cu ore; (D) Pyrite–quartz vein cutting the disseminated Au ore; (E) Au–Cu ore with magnetite relics, crossed by later quartz veinlets; (F,G) Garnet or epidote skarn with magnetite and hematite, cut by chalcopyrite–pyrite–quartz vein; (H) Au–Cu ore showing striped sulfides and oxides, reddish and grey hornstone, epidote, chlorite and garnet relic. Most specularite and magnetite are replaced by pyrite in situ, the irregular (pyrite–) chlorite veins cutting hornstone or magnetite vein, with late carbonate–quartz vein cutting the ore; (I) Multistage carbonate veins cutting early dark grey hornstone. Abbreviations: Cab–carbonate; Ccp–chalcopyrite; Chl–chlorite; Ep–epidote; Fl–fluorite; Grt–garnet; Hem–hematite; Hr–hornstone; Mgt–magnetite; Py–pyrite; Qtz–quartz; Spe–specularite.
FIGURE 6. Photomicrographs of Au–Cu mineralization in Tongjing deposit. (A) Pyrite and chalcopyrite filled along the gap of subhedral magnetite; (B) Pyrite is replaced by chalcopyrite along the edges of pyrite, chalcopyrite overprinted by sphalerite; (C) Acicular specularite filled or replaced by pyrite and chalcopyrite; (D) Natural gold occurring in euhedral pyrite as irregular particles, they wrapped by chalcopyrite; (E) Irregular or granular natural gold grew along the outer edge of euhedral pyrite, they appearing in chalcopyrite in BSE images; (F) Irregular stripped native gold occurring in fissures inside the euhedral pyrite in BSE images; (G) Silver-bearing natural gold wrapped in chalcopyrite in BSE images; (H) Chalcopyrite, pyrite and early residual magnetite occurring in Au–Cu ores; (I) Pyrite containing spindle-shaped hessite; (J) Pyrite and tetradymite growing together; (K) Carbonate veins filled along the gap of euhedral garnet, epidote replacing garnet around the edge of garnet; (L) Epidote, chlorite and carbonate alterations with specularite. Sp–sphalerite; Au–native gold; other abbreviations as for Figure 5.
FIGURE 7. Mineral paragenesis for the Yi’nan Tongjing Au–Cu deposit.
4 Samples and analytical methods
Twenty-two samples (21YNT01 to 21YNT22) in this investigation were selected from the Jinlong ore segment 526 m level and the Gongquandong ore segment 180 m level. Forty-one polished thin sections with thicknesses of 30 and 50 μm for subsequent mineralogical and geochemical analyses. Pyrite, chalcopyrite, sphalerite and magnetite from Au-Cu ores were chosen for EPMA, LA–ICP–MS and in-situ S and Pb isotope analyses.
4.1 Electron probe microanalysis (EPMA)
Mineral compositions of gold, sulfides and oxides grains were analyzed by a Japan JEOL JXA-8320 electron probe with four wavelength-dispersive spectrometers at Shandong institute of geological sciences, Ji’nan, China. Gold and sulfides analyses were conducted using an accelerating voltage of 20 kV, a beam current of 20 nA and a beam size of 1 μm. Natural pyrite (S, Fe), chalcopyrite (Cu), sphalerite (Zn), galena (Pb), bismuth selenide (Bi, Se), antimony telluride (Te, Sb) and arsenopyrite (As) were used for standardization, while other elements (Co, Ni, Au, Ag) were standardized on metals. The operational voltage was 15 kV, with a beam current of 10 nA, and a diameter of 5 μm for oxides analyses. The standardized natural minerals and synthetic compounds were followed: magnetite (Fe), almandine (Al), jadeite (Si), diopside (Mg), rutile (Ti), rhodonite (Mn), celestite (Sr), nickel (Ni), vanadium (V), chromium trioxide (Cr), sphalerite (Zn). Raw data ZAF corrections were made with proprietary JEOL software. The minimum detection limit is usually <0.01 wt%.
4.2 LA-ICP-MS in situ trace element analysis
Element analysis of mineral in thin sections was conducted by LA–ICP–MS at Nanjing FocuMS Technology Co. Ltd. LA–ICP–MS analyses of metal oxides and sulfides were performed using a Teledyne Cetac Analyte Excite laser-ablation system coupled to an Agilent 7,700× quadrupole ICP–MS. The 193 nm ArF excimer laser was focused on the surface of oxides and sulfides, with a fluence of 6.0 J/cm2 and 3.0 J/cm2 respectively. Each acquisition incorporated 20 s background (gas blank), followed by a spot diameter of 40 um at 6 Hz (oxides) or 5 Hz (sulfides) repetition rate for 40 s. Helium (370 ml/min) was applied as a carrier gas to efficiently transport aerosol and was mixed with argon (∼1.15 L/min) via T-connector before entering the ICP torch.
Forty-one isotope signals in sulfide were collected in this experiment, and the values were calculated by using MASS-1 and GSE-1G as an external standard and no internal standard. For oxide, United States Geological Survey basaltic glasses, including BIR-1G, BHVO-2G, BCR-2G and GSE-1G, were used as external calibration standards as these are of the similar matrix as anhydrous silicate. Raw data was performed offline by ICPMSDataCal software (Liu et al., 2008). The precision of each analysis is better than 20% for the most elements.
4.3 In-situ S isotope analysis
In-situ sulfur isotope spot analysis of sulfides (pyrite and chalcopyrite) was carried out at Nanjing FocuMS Technology Co. Ltd., utilizing an Analyte Excite laser-ablation system (Bozeman, Montana, United States) and a Nu Plasma II MC–ICP–MS (Wrexham, Wales, United Kingdom). The 193 nm ArF excimer laser was focused on the surface with a spot of 50 μm pit size for chalcopyrite, 33 µm for pyrite and 40 µm for sphalerite, 5 Hz pulse frequency and 2.5 J/cm2 fluences. The single spot was ablated for 30 s collection of background signal and 35 s data. The integration time of Nu Plasma II was set to 0.3 s (equating to 115 cycles during the 35 s). Natural pyrite Wenshan (δ34S = +1.1‰) was used as an external bracketing standard every fourth analysis to ensure precision and account for instrument drift. Pressed powder pellets of pyrite GBW07267 and chalcopyrite GBW07268 (δ34S = +3.6‰, −0.3‰ respectively, from the National Research Center for Geoanalysis, China) and fine-grained sphalerite SRM 123 (δ34S = +17.5‰, from National Institute of Standards and Technology, U.S) were treated as quality control. All measurements are presented relative to CDT, and the long-term reproducibility of δ34S is better than 0.6‰ (1 Standard Deviation).
4.4 In-situ Pb isotope analysis
The in-situ lead isotope analyses of pyrite were performed on a Neptune Plus MC–ICP–MS (Thermo Fisher Scientific, Bremen, Germany) equipped with a Geolas HD excimer ArF laser ablation system (Coherent, Göttingen, Germany) at the Wuhan Sample Solution Analytical Technology Co., Ltd., Hubei, China. The spot diameter ranged from 60 to 90 μm dependent on Pb signal intensity, with 8 Hz pulse frequency and 6.0 J/cm2 fluence. A new signal-smoothing and mercury-removing device were used downstream from the sample cell to efficiently eliminate the short-term variation of the signal and remove the mercury from the background and sample aerosol particles (Hu et al., 2015). Sph-HYLM as an external standard was used to monitor the precision and accuracy of the measurements. The obtained accuracy is estimated to be equal to or better than ±0.2‰ for 208Pb/204Pb, 207Pb/204Pb, and 206Pb/204Pb, with an external precision of 0.4‰ (2σ). More detail of the in-situ Pb isotopic ratios analysis was described. All data reduction for the MC–ICP–MS analysis of Pb isotope ratios was conducted using “Iso-Compass” software (Zhang et al., 2020).
5 Results
5.1 Major element compositions analyzed by EPMA
A total of 76 EPMA analyses spots were completed on single particles of metal oxides and sulfides, including 45 spots of pyrite, 12 spots of chalcopyrite, 4 spots of sphalerite from the stage IVa and IVb and 15 spots of magnetite as euhedral-subhedral octahedron in stage II or relics in stage IV. The above EPMA results are listed in Supplementary Table S1.
The Fe content of the magnetite ranged from 65.39 to 71.33 wt%, lower than the stoichiometric value of 72.40 wt%. In general, the trace element contents for the magnetite vary from below detection limits to ∼2 wt% (Supplementary Table S1). Silicon, Mg and Al contents of magnetite are 0.17–1.70 wt% (avg. 1.24 wt%), 0–0.57 wt% (avg. 0.23 wt%) and 0–0.75 wt% (avg. 0.36 wt%). EPMA elements mappings of magnetite show the oscillatory variation of Si, Al and Mg (Figure 8), indicating a change in the composition of ore-forming fluid.
FIGURE 8. BSE image (A) and maps of Fe (B), Si (C), Al (D), Mg (E) and Cr (F) in zoned magnetite from Tongjing Au-Cu deposit.
Iron and S contents of pyrite are 46.11–46.75 wt% (avg. 46.42 wt%) and 53.32–53.62 wt% (avg. 53.49 wt%) in stage IVa, 40.49–46.78 wt% (avg. 45.38wt%) and 51.72–53.29 wt% (avg. 53.35 wt%) in stage IVb. The contents of Fe, Cu, S and Zn in chalcopyrite from stage IVb are 28.55–30.12 wt% (avg. 29.64 wt%), 33.39–34.83 wt% (avg. 34.26 wt%), 33.52–35.11 wt% (avg. 34.44 wt%) and 0.01–1.51 wt% (avg. 0.21 wt%), respectively. Zinc and S contents of sphalerite are 51.36–59.13 wt% (avg. 55.73 wt%) and 32.38–32.83 wt% (avg. 32.62 wt%) in stage IVb, with a Fe content of 3.74–7.07 wt% (avg. 4.94 wt%) and a Cu content of 3.54–7.84 wt% (avg. 5.25 wt%).
The fineness [1,000·Au/(Au+Ag), by weight; Hough et al. (2009)] of Au grains has been calculated based on EPMA results (n = 11), with the detailed data in Supplementary Table S1. The two generations of visible gold have distinct characteristics in mineral assemblage and composition (Supplementary Table S1). Au-1 exhibits irregular droplets and is wrapped by chalcopyrite and euhedral pyrite (Figures 6D,G; Supplementary Figure S1A,B), and the Au content of Au-1 (85.94–97.02 wt%, avg. 91.16 wt%) is significantly higher than that of Au-2 (62.03–84.91 wt%, avg. 71.70 wt%). Au-2 mainly occurs at the edge of pyrite or in pyrite–quartz vein (Figures 6E,F; Supplementary Figure S1C,E), and the Au-2 has a higher Ag content (14.65–29.68 wt%, avg. 24.24 wt%) than the Au-1 (1.51–7.51 wt%, avg. 5.88 wt%). The average fineness of Au-1 and Au-2 is 939.17 (919.65–984.69, n = 5) and 745.68 (690.28–852.89, n = 6), respectively. According to the gold and silver series mineral classification (Zhang and Chen, 1995), the Au fineness indicates that Au-1 and Au-2 belong to the high-medium temperature Au–Ag series in the Yi’nan Tongjing Au–Cu deposit.
5.2 Trace element chemistry by LA–ICP–MS
The 98 individual LA–ICP–MS spots were analyzed for the pyrite, chalcopyrite, sphalerite and magnetite relics from Au-Cu ores. The analytical results are presented in Supplementary Table S2 and Figures 9, 11–13 and Supplementary Figure S1, S2. We selected chalcopyrite and pyrite with no inclusions for analysis to obtain precise results.

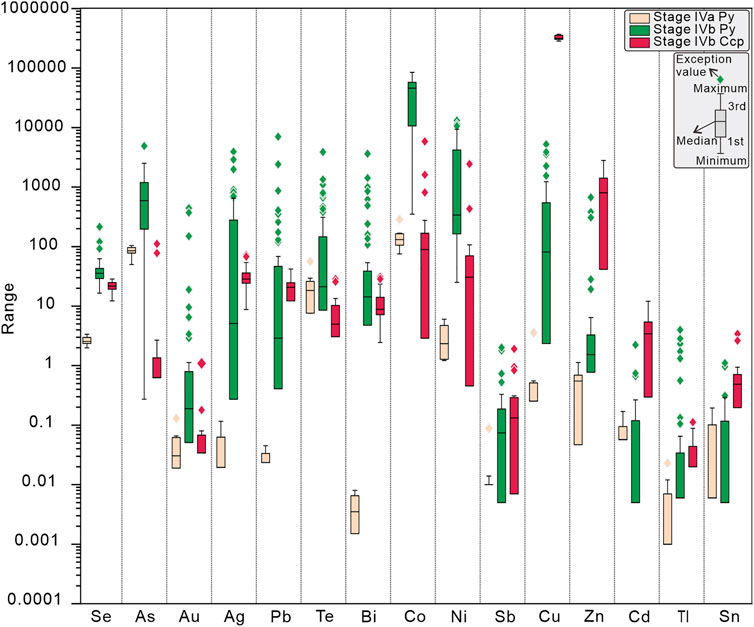

FIGURE 9. Trace element distribution diagram showing the variation in the Se, As, Au, Ag, Pb, Te, Bi, Co, Ni, Sb, Cu, Zn, Cd, Tl, and Sn concentrations (in ppm) for pyrite and chalcopyrite.
5.2.1 Magnetite
The lithophile elements in magnetite grains include Na (179–380 ppm, avg. 251 ppm), Mg (27.06–186 ppm, avg. 109 ppm), Al (146–4,427 ppm, avg. 2069 ppm), Si (7,316–116616 ppm, avg. 8,965 ppm), K (202–605 ppm, avg. 371 ppm), Ti (15.44–283 ppm, avg. 113 ppm), Sr (8.04–17.30 ppm, avg. 12.14 ppm) and Ba (5.20–20.60 ppm, avg. 10.15 ppm). Magnetite has a high content of chalcophile elements, including Cu (4.74–1,199 ppm, avg. 216 ppm), Zn (19.51–81.83 ppm, avg. 50.74 ppm), Ga (1.83–13.12 ppm, avg. 7.47 ppm), In (0.38–13.71 ppm, avg. 3.72 ppm) and Pb (9.12–66.76 ppm, avg. 27.82 ppm). The contents of As (319–1,456 ppm, avg. 703 ppm), Ni (39.39–369 ppm, avg. 182 ppm), Cr (12.35–1,416 ppm, avg. 236 ppm), W (5.39–176 ppm, avg. 86.34 ppm) and Mo (6.52–65.48 ppm, avg. 34.77 ppm) in magnetite are relatively high, and the Ca content is lower than the detection limit.
5.2.2 Pyrite
Pyrite in stage IVa has large compositional variations (Supplementary Table S2, Figure 9). The contents of Co (75.60–285 ppm, avg. 146 ppm), Ni (1.22–6.01 ppm, avg. 2.99 ppm), As (50.10–104 ppm, avg. 84.20 ppm), Se (1.99–3.36 ppm, avg. 2.64 ppm) and Te (7.55–56.53 ppm, avg. 21.01 ppm) are distinctly higher than other trace elements in pyrite, such as Cu (3.60 ppm), Zn (1.13 ppm) and Au (0.02–0.13 ppm, avg. 0.06 ppm). Compared with pyrite in stage IVa, pyrite in stage IVb contains relatively higher trace elements (Co (350–84521 ppm, avg. 39,259 ppm), Ni (25.06–13117 ppm, avg. 2,408 ppm), Cu (0.55–5,227 ppm, avg. 582 ppm), Se (16.49–215 ppm, avg. 43.26 ppm), Ag (0.24–3,921 ppm, avg. 443 ppm), Bi (0.45–3,641 ppm, avg. 201 ppm), Pb (0.06–7,021 ppm, avg. 271 ppm), Te (1.77–3,877 ppm, avg. 257 ppm), As (1.08–4,899 ppm, avg. 842 ppm), Zn (1.02–28.15 ppm, avg. 4.65 ppm; 309–674 ppm, avg. 455 ppm), Au (0.05–444 ppm, avg. 28.42 ppm), and Sb (0.07–2.01 ppm, avg. 0.48 ppm)).
5.2.3 Chalcopyrite
Trace element data of chalcopyrite from stage IVb are shown in Figure 9. The contents of Zn (3.80–2,799 ppm, avg. 979 ppm), Co (0.36–5,839 ppm, avg. 410 ppm), Ni (0.27–2,451 ppm, avg. 177 ppm), Ag (8.80–72.34 ppm, avg. 34.02 ppm), Pb (1.50–42.00 ppm, avg. 20.54 ppm), Bi (2.45–31.07 ppm, avg. 11.42 ppm) and Se (12.23–28.61 ppm, avg. 21.90 ppm) from chalcopyrite are distinctly higher than other trace elements (Figure 9). The contents of Ti, As, Cd, In, Sn, Sb, Te and Au from chalcopyrite are 0.87–2.34 ppm (avg. 1.45 ppm), 1.15–111 ppm (avg. 32.86 ppm), 0.30–12.05 ppm (avg.4.91 ppm), 2.00–3.74 ppm (avg. 3.11 ppm), 0.71–3.40 ppm (avg. 1.70 ppm), 0.23–1.91 ppm (avg.0.57 ppm), 1.22–28.62 ppm (avg. 8.26 ppm), and 0.03–1.09 ppm (avg. 0.22 ppm), respectively (Supplementary Table S2, Figure 9).
5.3 Sulfur and lead isotope compositions
Sulfur isotope compositions were determined in chalcopyrite and pyrite by LA–MC–ICP–MS, and the results are listed in Supplementary Table S3, Supplementary Figure S2 and plotted in Figure 10A,B. In general, the sulfur isotope compositions of different sulfides are consistent and fall within a narrow δ34S range of -0.54 to +1.22‰ (avg. 0.44‰, n = 38). The δ34S values of pyrite in stage IVa and stage IVb are -0.54 ∼ +0.95‰ (avg. 0.24‰, n = 8) and 0.11 ∼ +1.22‰ (avg. 0.65‰, n = 18), respectively; the δ34S values of chalcopyrite in stage IVb range from -0.19 to +0.73‰ (avg. 0.26‰, n = 12). The in-situ Pb isotopic ratios of pyrite in stage IVb are presented in Supplementary Table S4, Supplementary Figure S2 and Figure 10C,D, and the 206Pb/204Pb, 207Pb/204Pb and 208Pb/204Pb ratios are 17.323–17.383, 15.424–15.452 and 37.367–37.454, respectively (n = 12).

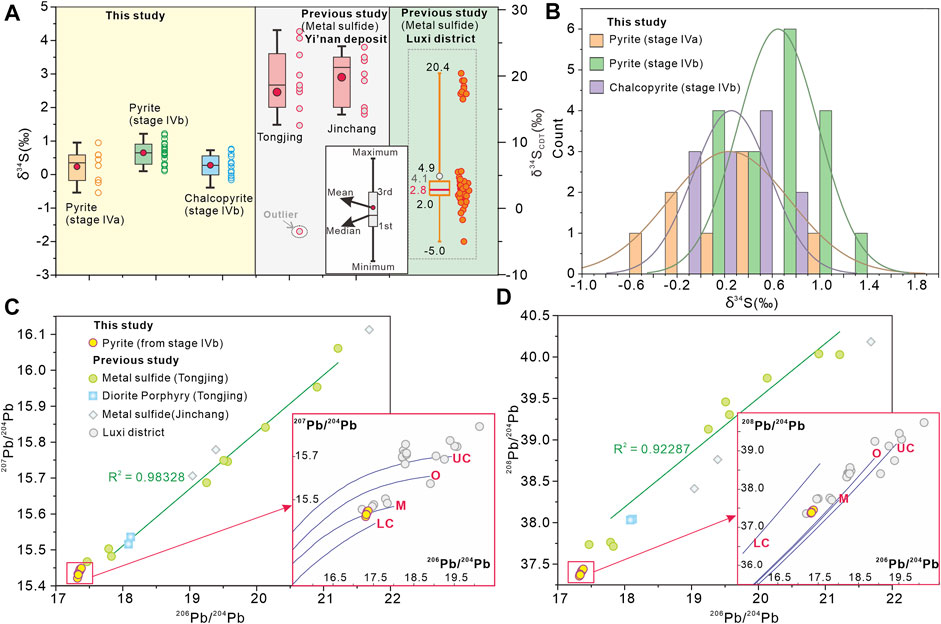

FIGURE 10. (A). Sulfur isotope compositions of various sulfide minerals in the Yi’nan Tongjing Au-Cu deposit; (B). The histogram of sulfur isotope compositions; (C). 206Pb/204Pb vs 207Pb/204Pb diagram; (D). 206Pb/204Pb vs 208Pb/204Pb diagram (Zartman and Doe, 1981). The data from the previous study were obtained from Wan et al., 1992; Qiu et al., 1996; Lin et al., 1997; Hu et al., 2007; Li et al., 2009; Shi, 2014; Zhu, 2014; Tian et al., 2015; Abbreviations: LC = lower crust; UC = upper crust; O = orogen; M = mantle.
6 Discussion
6.1 Element behavior during the skarn formation process
6.1.1 Magnetite
There are weak positive correlations between Al (Mg, Na) and Si in magnetite (Supplementary Figure S1), which may indicate the absence of sub-micro-scale silicate inclusions in magnetite (Bowles et al., 2011; Xie et al., 2017), consistent with their flat depth profiles (Figure 13A). Considering magnetite with pervasive micro-porosities is wrapped in metal sulfide (Figure 6H), magnetite in Tongjing deposit was interpreted as a hydrothermal overprint that may have leached Mg, Si, Al and Ca during the dissolution–reprecipitation process (Hu et al., 2014). Positive correlations exist for Sn vs W, Pb vs W and Sn vs Pb (Figure 11A–C) showing that these elements behave similarly during the skarn formation process. A correlation between Al and Ga (Figure 11D) indicates similar geochemical behaviors (Huang et al., 2016). The contents of Co, Ni, Mo, Cu, Zn and Pb in magnetite would be affected by sulfides because these elements can partition into magnetite and sulfide phases in sulfide-bearing magmatic and hydrothermal systems (Huang et al., 2016). Pyrrhotite and pentlandite do not occur in the Tongjing deposit, so Ni tends to partitioned into magnetite (Dare et al., 2012), with a high content of Ni (39–369 ppm; avg. 182.2 ppm; n = 9) in magnetite. The low Co content of magnetite in the Tongjing and a positive correlation of Cu vs Co (Figure 11E) imply the increasing amounts of sulfides during the skarn formation (Huang et al., 2014; Zhao and Zhou, 2015), consistent with the fact that magnetite is wrapped by pyrite (Figure 6H).

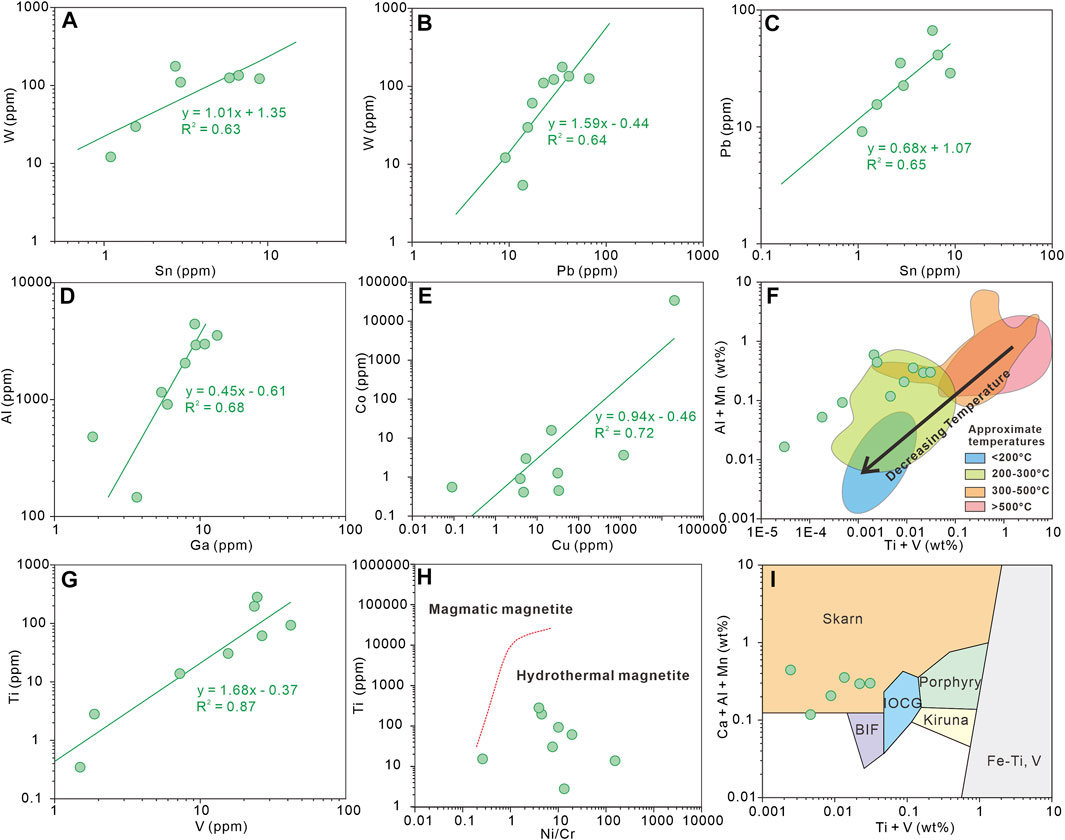

FIGURE 11. Correlation diagrams of various trace elements (in ppm) in the studied magnetite from the Yi’nan Tongjing Au–Cu deposit. (A) Sn vs W; (B) Pb vs W; (C) Sn vs Pb; (D) Ga vs Al; (E) Cu vs Co; (F) The Ti + V vs Al + Mn plots displays are clear decreasing temperature trend. Note that those temperatures are estimates based on published values (Ahmad and Rose, 1980; Beane and Titley, 1981; Leach et al., 1988; Hayes, 1990; Landis and Hofstra, 1991; Doughty and Chamberlain, 1996; Manske and Paul, 2002; Audetat and Pettke, 2006; Thorne et al., 2008; Sillitoe, 2010; Nadoll et al., 2012); (G) V vs Ti; (H) Ni/Cr vs Ti; (I) Ti + V vs Ca + Al + Mn (Dupuis and Beaudoin, 2011). Abbreviations: BIF–Banded iron formation, IOCG–Iron oxide-copper-gold deposits, PCDs–Porphyry Cu deposits, Kiruna–Kiruna apatite–magnetite deposits, Fe–Ti, V–Magmatic Fe–Ti–oxide deposits.
6.1.2 Sulfide (pyrite and chalcopyrite)
Although the As content of pyrite in stage IVa is lower than in stage IVb, all points plot well below the solubility saturation line on the Au-As discrimination diagram (Figure 12) proposed by Reich et al. (2005), suggesting that Au+ is the dominant form of Au within the pyrite crystal lattice and that gold-bearing ore fluids deposited this sulfide were largely undersaturated (Reich et al., 2013). Arsenic is relatively rich in pyrite, generally greater than 20 ppm. A positive correlation exists between As and Au (Figure 12A) as described by numerous scholars (Mumin et al., 1994; Reich et al., 2005; Deditius et al., 2014), which is related to the preferential precipitation of Au in the As-rich sulfides (Voute et al., 2019). The above positive correlation indicates As could enter the pyrite lattice through coupled substitution with Au (Au+ + As3+ ↔ 2Fe2+; Deditius et al., 2008), illustrated by the fact that As has a flat depth profile (Figures 13C,D) and the negative correlation between As and Fe (Figure 12B).

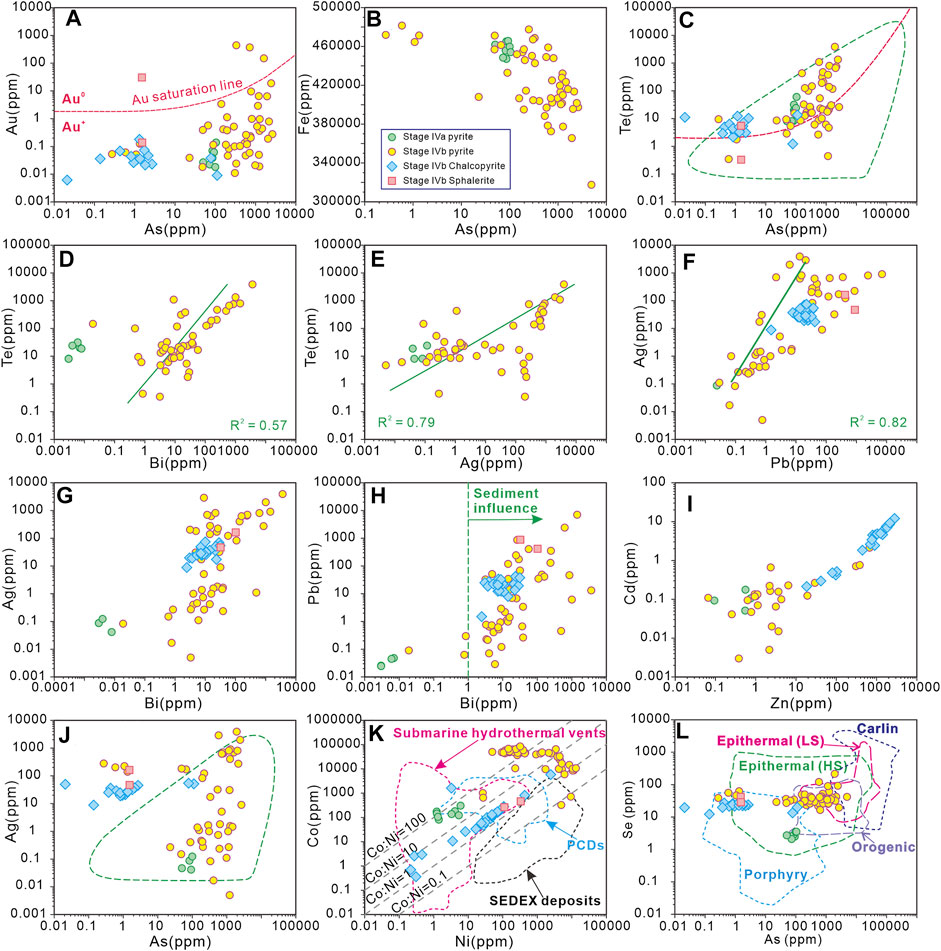

FIGURE 12. Plots of various trace elements in the studied pyrite from the Yi’nan Tongjing Au–Cu deposit. (A) Au vs As (Gold saturation line is from Reich et al., 2005); (B) As vs Fe; (C) As vs Te (The green dashed line defines the wedge-shaped zone indicating Te solid solution for pyrites. The red dashed line defines the solubility limit for Te solid solution in pyrite as a function of As, which is based on the equation presented by Reich et al. (2005) for the Au-As system.); (D) Bi vs Te; (E) Ag vs Te; (F) Pb vs Ag; (G) Bi vs Ag; (H) Bi vs Pb (after Keith et al., 2016); (I) Zn vs Cd; (J) As vs Ag (The green dashed line define the wedge-shaped zone indicating Ag solid solution for pyrites; Reich et al., 2005); (K) Ni vs Co (Deditius et al., 2013; Cioacă et al., 2014; Keith et al., 2016); (L) As vs Se (Gadd et al., 2016; Mukherjee and Large, 2017; Keith et al., 2018 and references therein).

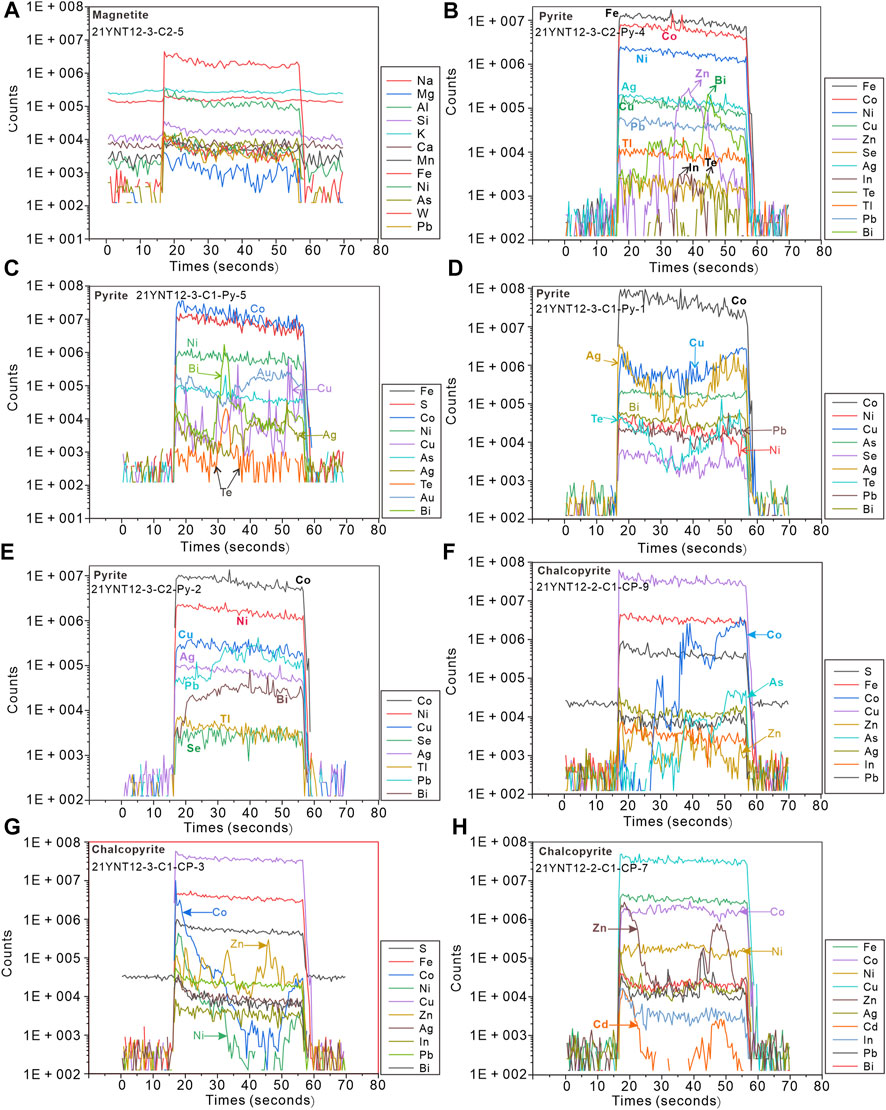

FIGURE 13. Representative time-resolved LA–ICP–MS depth profiles for magnetite (A), pyrite (B–E) and chalcoprite (F–H).
The Co and Ni contents of pyrite in stage IVb are higher than those in stage IVa and they have nearly flat depth profiles (Figures 13B–E). The atomic radius and ionic charge of Co and Ni are very close to Fe2+ (Vaughan and Rosso, 2006; George et al., 2018b), indicating that Co and Ni were lattice-bound or homogeneously distributed as nanoparticles in the pyrite crystals (e.g., Zhang et al., 2022). Almost all pyrite are below the Au solubility line (Figure 12A) but above the Te solubility line (Figure 12C), despite the fact that the Te content of pyrite in stageIVb is higher than stage IVa. Hence, potential telluride inclusions may be characterized by high Te/Au ratios either due to high Te content or high abundances of other elements, such as Cu, Ag, Pb and Bi (e.g., high-sulfidation epithermal pyrite; Naden and Henney, 1995; Berger et al., 2014). Tellurium of pyrite in stage IV is positively correlated with Bi (R2 = 0.57, Figure 12D) but also with Ag (R2 = 0.79, Figure 12E), which may be related to the occurrence of Bi-Te or Ag-Te mineral inclusions. The identification of the hessite (Ag2Te), cervelleite (Ag4TeS) and tetradymite (Bi2Te2S) by microscopic observation (Figures 6I,J; Supplementary Figure S1F) and their similar peaks and irregular depth profiles (Figures 13B–D) prove the above conclusion. It is also worth noting that the concentrations of Ag, Bi and Pb are highly variable in pyrite and chalcopyrite (Supplementary Table S2), and they are significantly positively correlated (Figures 12F,G). The ionic radius of Ag, Pb and Bi are quite different from those of Cu and Fe (Wang et al., 2021), thus they cannot enter the lattice of chalcopyrite or pyrite in the form of a solid solution. Furthermore, they have similar peaks and irregular depth profiles (Figure 13E), probably due to the micron-scale inclusions of matildite (AgBiS2), galenobismutite (PbBi2S4) and gustavite (AgPbBi3S6) or bismuth-bearing galena (Maslennikov et al., 2009). Almost all pyrite, chalcopyrite and sphalerite samples show elevated Bi content (>1 ppm) (Figure 12H), which probably reflects the contribution of sedimentation to the hydrothermal system (Koski et al., 1988; Zierenberg et al., 1993). This is consistent with the fact that Proterozoic to Cambrian carbonate sequences was involved during the formation of the Tongjing skarn deposit.
Given the high contents of Co (350–84521 ppm) and Ni (25–13117 ppm) in stage IVb pyrite, the high Co and Ni contents in stage IVb chalcopyrite may be due to the inheritance of the replaced pyrite in stage IVb (Figure 6H; e.g., the Yaman-Kasy volcanic-hosted massive sulfide deposit; Maslennikov et al., 2009). The contents of As, Co and Ni in chalcopyrite vary greatly (Supplementary Table S2) and generally show a similar peak on the depth profiles (Figures 13F,G), suggesting the existence of inclusions, for example siegenite (CoNi2S4). The high Zn content in chalcopyrite (mostly >100 ppm) may be attributed to the inclusion of sphalerite or zinc-bearing minerals (e.g., Song et al., 2019). Furthermore, the Zn vs Cd diagram (Figure 12I) shows a positive correlation between the two elements in chalcopyrite, and they share the same irregular depth profiles (Figure 13H). This also suggests that the Zn content reflects the proportion of sphalerite inclusions. In addition, the multi-peaked curve of Zn on the depth profiles (Figures 13F–H) implies the presence of zinc-bearing minerals inclusions in chalcopyrite. Chalcopyrite samples with high Ag/As ratios plotting outside of the triangular wedge-shaped zone (Figure 12J) may suggest the presence of silver-bearing inclusions, as supported by a positive correlation between Pb and Ag (Figure 12F).
6.2 Possible factors controlling the composition of magnetite and sulfides
It is well known that oxygen fugacity (fO2) is a major factor that governs element behavior and possibly influenced Au speciation during the ore-forming process (e.g., Keith et al., 2014; Ma et al., 2022). The content of V in magnetite can be used to estimate the relative oxygen fugacity during the ore-forming process (Nadoll et al., 2014, 2015; Canil et al., 2016), and increasing oxygen fugacity would decrease the V content in magnetite by converting V3+ to V4+ or V5+(Takeno, 2005; Papike et al., 2015). The low V content in magnetite varies from 1.50 ppm to 41.87 ppm (avg. 18.06 ppm), implying a high oxygen fugacity. Temperature is considered another major governing factor for the composition of hydrothermal magnetite, and Ti is a good temperature indicator (Nadoll et al., 2014). There is a visible temperature trend in the data. Figure 11F shows a Ti + V vs Al + Mn plot where data points have been attributed with approximate temperatures—from low temperature (Thorne et al., 2008), intermediate temperature to high temperature (e.g., Manske and Paul, 2002; Sillitoe, 2010). The magnetite grains mainly fall in the overlapping area of medium temperature (200–300°C) and high temperature (300–500°C), higher than the formation temperature of pyrite (see below).
Selenium in pyrite can be used as a proxy for relative temperature estimations in ore-forming fluids (Huston et al., 1995; Keith et al., 2018). Selenium can substitute for S in pyrite (Chouinard et al., 2005), and its concentration increases as fluid temperature decreases (Keith et al., 2018). Selenium is nearly completely removed from the fluid at temperatures above 300 °C (Huston et al., 1995). Compared with the Se content (16.49–214.74 ppm) of pyrite in stage IVb, the Se content of pyrite in stage IVa is low, distributed between 1.99 and 3.36 ppm. It indicates that the temperature of ore-forming fluids in the Tongjing deposit is not high (<300 °C), consistent with previous studies (190–250°C; Dong, 2008), but it cannot be excluded from the genetic relationship with magmatic activities. The Se content of pyrite may vary with the pH and redox conditions of the ore-forming fluid (Keith et al., 2018). The low Se (<10 ppm) and (As < 100 ppm) contents of pyrite are consistent with the Se (avg. 2.64 ppm) and As (avg. 84.20 ppm) contents of pyrite from stage IVa, indicating that the ore-forming fluid is characterized by high temperatures, high fO2, moderate to high salinity and acidic pH, for example porphyry deposit (Figure 12L; Goldfarb et al., 2005). The high Se (>10 ppm) and As (>100 ppm) contents of pyrite are consistent with the Se (avg. 43.26 ppm) and As (avg. 842 ppm) contents of pyrite from Stage IVb, suggesting that the ore-forming fluids were distinguished by low temperatures, low fO2, low salinity and near-neutral pH, as in orogenic and epithermal (LS) deposits (Figure 12L; Goldfarb et al., 2005; Simmons et al., 2005). Thus, as ore-forming fluid evolves, the temperature, salinity and fO2 of the ore-forming fluid decrease and the pH rises, resulting in the unloading of Au. Furthermore, pyrite and telluride precipitation in the Tongjing deposit was caused by a decrease in fO2 but pH-independent (Cooke and McPhail, 2001; Grundler et al., 2013; Keith et al., 2018), which is similar to the Dongping Au deposit (Cook et al., 2009; Gao et al., 2017).
6.3 Source of ore-forming materials
The sulfur isotope composition of hydrothermal minerals depends on the total sulfur isotope composition, fO2, pH and temperature of the fluid (Ohmoto, 1972). At Tongjing, pyrite has higher δ34S values (avg. 0.52‰; Supplementary Table S3; Figures 10A,B) than chalcopyrite (avg. 0.26‰), indicating that the ore-forming system is in equilibrium for sulfur isotope fractionation (Chen et al., 2008). Thus, the total sulfur isotope value of hydrothermal fluids can be used to indicate the source of ore-forming material (Chen et al., 2008). The δ34SSulfide-H2S of pyrite at 200°C and 250°C are 0.1‰ and -0.3‰ respectively (Kajiwara and Krouse, 1971). Previous microthermometric measurements of fluid inclusions (Dong, 2008) and this study of Se content in pyrite indicated that the ore-forming temperatures of stages IVa and IVb are approximately 200°C and 250°C, respectively. According to the formula (δ34S∑S= δ34SSulfide-δ34SSulfide-H2S; Ohmoto, 1972), the δ34S∑S values were calculated to be 0.14‰ and 0.95‰ (Supplementary Table S3) for stages IVa and IVb, respectively. This narrow variation is comparable to magmatic origin (δ34S = 0 ± 3‰; Ohmoto and Rye, 1979; Chaussidon and Lorand, 1990). Combined with previous bulk-sulfur isotope analyses (Figure 10A), high δ34S values (up to 5‰) do not exclude a small contribution from wall rocks (sedimentary or metamorphic rocks). Such a sulfur isotopic composition, consistent with the sulfur isotope composition of the other gold deposits in the Luxi district (Figure 10A), is common in skarn-type deposits (e.g., Shu et al., 2013; Peng et al., 2016; Cai et al., 2021).
Lead isotope composition can be used to infer the source of Pb, and thus the ore-forming materials. The Pb isotope data in this study show a strong linear relationship with the previous data obtained by bulk analyses (sulfides and diorite porphyry) (Figures 10C,D), implying that diorite porphyry is a key source of ore-forming material for mineralization. The in-situ Pb isotope data are more concentrated (206Pb/204Pb = 17.323–17.383; 207Pb/204Pb = 15.424–15.452; 208Pb/204Pb = 37.367–37.454), indicating a uniform source. In the 206Pb/204Pb vs 207Pb/204Pb diagram, the Pb isotope data of pyrite from the Tongjing deposit fall near the mantle evolution curve (Figure 10C); the data are close to the mantle/orogen and lower crust curves in the 206Pb/204Pb vs 208Pb/204Pb diagrams (Figure 10D). This implies that diorite porphyry (major) and marble/limestone are the source of the ore-forming materials, consistent with what is suggested by the sulfur isotope composition.
6.4 Ore genesis of Tongjing Au-Cu deposit
Magnetite shows a positive correlation between V and Ti (Figure 11G), and the behavior of Ni and Cr in magnetite is decoupled (Ni/Cr ratios ≥1; Figure 11H; Dare et al., 2014), indicating a hydrothermal magnetite origin (e.g., Huang et al., 2016). Magnetite is Ca-depleted (below detection limit) and has low REE contents (1.66–12.15ppm; avg. 4.87ppm), consistent with the characteristics of hydrothermal magnetite (Knipping et al., 2015). Furthermore, the plot of Ca + Al + Mn vs Ti + V (Figure 11I; Dupuis and Beaudoin, 2011) can distinguish magnetite from various origins. For the Tongjing deposit, the data of magnetite plot into the skarn field, though a small number of grains plot in the undefined field due to lower Ca + Al + Mn contents (Figure 11I).
Cobalt and Ni contents of pyrite can reflect the temperature and origin of pyrite (Bralia et al., 1979; Campbell and Ethier, 1984; Bajwah et al., 1987; Gregory et al., 2015). Cobalt prefers to enter pyrite at high temperatures, while Ni prefers to enter pyrite at low temperatures (Maslennikov et al., 2009; Zhang et al., 2020). The Co/Ni ratios of pyrite from Tongjing vary widely, ranging from 0.07 to 1,009 (Figure 12K). Most values are greater than 10, suggesting that pyrite was formed at a high temperature and originated from hydrothermal/magmatic (Bralia et al., 1979; Bajwah et al., 1987; Meng et al., 2018). Low Co/Ni ratios (generally <1; Figure 12K) are suggested to represent pyrite of syn-sedimentary origin (Koglin et al., 2010; Large et al., 2014). A few Co/Ni ratios are between 0.01 and 1, indicating the mixing of carbonate rocks during mineralization. The variable Co and Ni contents of the studied pyrite are mainly plotted in or outside the porphyry copper deposit area (away from the submarine hydrothermal vents and SEDEX deposits areas) (Figure 12K), also indicating the result of magmatic–hydrothermal processes. Chalcopyrite and pyrite have low U and V contents (Supplementary Table S2), indicating that they precipitated in the hydrothermal fluids.
Deditius et al. (2009) and Tardani et al. (2017) pointed out that processes such as fluid boiling can fractionate trace elements in hydrothermal fluids causing systematic compositional differences and chemical zonation in precipitated pyrite. Results of Loftus-Hill and Solomon (1967) and Schirmer et al. (2014) highlighted that oceanic sediments and carbonate-bearing rocks are enriched in Te compared to other rocks. As the ore-forming intrusion of the Tongjing Au-Cu deposit, the formation of the Tongjing pluton is related to the mantle metasomatism by the paleo-Pacific plate (Guo et al., 2014). The Cambrian sequences are the main wall rock of the Tongjing Au-Cu deposit, mainly including carbonate rocks such as limestone and dolomite (Figure 4A; Dong, 2008). We conclude that the Te of pyrite from the Tongjing deposit may be controlled by its concentration in the source rocks, which is also supported by the occurrence of the nearby Mesozoic Guilaizhuang Au (-Te) deposit (Yu et al., 2019).
During the Late Mesozoic, the NCC underwent significant decratonization and massive thinning of the lithospheric mantle, accompanied by huge upwelling of the asthenosphere due to the roll-back of the paleo-Pacific plate (Zhu et al., 2011; Li et al., 2020; Yang et al., 2021). The response to this tectonic event in the eastern part of the NCC is mainly characterized by large-scale gold mineralization in the Jiaodong and Luxi districts. The highly concentrated sulfur and lead isotope values/ratios in this study indicate that deep magma (probable mantle) source of ore-forming materials. That is the Tongjing diorite porphyry enriched in ore-forming elements intruded into limestone and formed a large number of skarn and Cu–Au ore bodies.
Conclusion
1) Five hydrothermal stages are identified in the Yi’nan Tongjing Au-Cu deposit: 1) early skarn; 2) late skarn; 3) oxide; 4) sulfide; and 5) late quartz–calcite.
2) Gold occurs mainly as (silver-bearing) native grains. The trace element composition of the sulfides and oxides implies that the original ore-forming fluid is of medium-high temperature magmatic-hydrothermal origin. The decrease in temperature, salinity and fO2 of the ore-forming fluid, and the increased pH of the ore-forming fluid are critical to the precipitation of ore minerals.
3) In-situ LA–ICP–MS sulfur and lead isotope compositions indicate that the origin of ore-forming materials comes from the Early Cretaceous diorite porphyry and partly from the host rocks (carbonate rocks).
4) The present study provides new constraints for the mineralization process of skarn deposits in the Luxi district.
