Characterization of the Full-Sized Pore Structure and Controlling Factors of the Coal-Bearing Shale in the Wuxiang Block, South-Central Qinshui Basin, China

The characterization of the full-sized pore structure is important for the evaluation and prediction of the reservoir of shale gas with strong heterogeneity. It is of great scientific significance to explore the pore structure characteristics of overmature coal-bearing shale. Core descriptions, X-ray diffraction (XRD), vitrinite reflectance (Ro), field emission scanning electron microscopy (FE-SEM), high-pressure mercury intrusion porosimetry (MIP), and low-pressure N₂/CO₂ gas adsorption (N₂-/CO₂-GA) experiments were performed on overmature coal-bearing shale samples from the Wuxiang block, south-central Qinshui Basin, China. The results show that the total organic carbon (TOC) ranged from 0.29 to 8.36%, with an average of 3.84%, and the organic matter (OM) is dominated by type III kerogen. The minerals in the shale primarily consist of clay (43–85.5%, averaging 52.1%) and quartz (12.6–61.2%, averaging 43.5%). The major clay minerals are illite-smectite (I/S) and illite, ranging from 22.5 to 55.6% (mean 41.4%) and 8.7–52.7% (mean 32%), respectively. FE-SEM images reveal that intraparticle pores (IntraP pores) and interparticle pores (InterP pores) are widely developed in clay minerals, and organic pores are occasionally present. Mesopores make the greatest contribution to the total pore volume (PV), and micropores are the major contributors to the specific surface area (SSA). Clays are the main controllers of micropore development. Mesopores developed in the clay mineral layers are promoted by I/S but inhibited by illite. Macropores and microfractures are mainly developed in clays and quartz and do not correlate significantly with the TOC, or mineral composition, due to the influence of compaction and cementation. The TOC and minerals affect pore structure characteristics mainly by influencing micropores.

Highlights

(1) Introduce standard deviation to characterize the coefficient of shale heterogeneity.

(2) TOC and minerals affect the pore structure mainly through their effect on micropores.

(3) Illite-smectite in clay minerals is the main controller of characterization of the pore.

1 Introduction

The increased energy and environmental demands promoted rapid development of the shale gas industry (Sun et al., 2017; Liu J. et al., 2019; Zhang J. et al., 2019; Xie et al., 2021). Unlike conventional reservoirs, shale gas is mainly stored in adsorbed and free states in complex pore systems (Ding et al., 2013; Wang et al., 2015; Chen et al., 2016; Sun et al., 2021; Tang et al., 2021). The shale has a complex pore structure system dominated by nanoscale pores, varying lithofacies, total organic carbon (TOC) content, and mineral composition, which together result in heterogenous pore morphology, pore size distribution (PSD), pore volume (PV), and specific surface area (SSA), which directly affect the subsequent exploration and development of shale gas (Nelson, 2009; Dang et al., 2016; Hu et al., 2017; Zhang M. et al., 2019; Qin et al., 2020). The characterization of the pore structure plays an important role in shale gas reservoir evaluation and is one of the main factors controlling the enrichment of shale gas (Zhang et al., 2018; Guan et al., 2020; Li et al., 2020; Phaye et al., 2021). Due to the heterogeneity of the pore structure of shales, it is problematic to interpret the occurrence mechanism of shale gas (Liu et al., 2018; Liu R. et al., 2019; Tang et al., 2019; Ge et al., 2020; Luo et al., 2021). Therefore, it is necessary to carry out characterization of shale heterogeneity, and the degree of this strong heterogeneity needs to be investigated in detail.

The heterogeneity of shales has been studied on different scales. The macroscale heterogeneity of shales is mainly manifested in the regional variation of lithology, the total organic carbon (TOC) content, and the organic matter type (Xi et al., 2017a; Luo et al., 2017; Zhang et al., 2018; Yan et al., 2021). The microscale heterogeneities of shales mainly include mineral composition, lithology, organic matter content, and the physical properties of pore structures. Quantitative and qualitative methods for determining pore properties in shales, such as the specific surface area (SSA) or pore volume (PV), can be subdivided into three types, namely, image analysis, intrusive methods, and nonintrusive methods (Liu et al., 2015; Tang S. et al., 2016; Yang R. et al., 2017; Wang et al., 2017; Ju et al., 2018; Zhang and Fu, 2018). Among these methods, the electron microscopy methods (e.g., scanning electron microscopy (SEM), field emission scanning electron microscopy (FE-SEM), and computerized tomography (CT)) provide qualitative characterization of the pore shape, diameter, distribution, and pore connectivity of shales (Curtis et al., 2012; Milliken et al., 2013; Jiang et al., 2017; Wang et al., 2018). Pore properties can be quantified by indirect methods, including small-angle neutron scattering/ultra-small-angle neutron scattering (SANS/USANS) and intrusive methods (especially mercury intrusion and N₂ and CO₂ gas adsorption methods) (Tang X. et al., 2016; Jiang et al., 2017; Yang R. et al., 2017; Zhang L. et al., 2017; Sun et al., 2018). Each method provides information typically for a specific pore diameter range, and hence, in recent years, multiple techniques have been used to analyze the properties of shale pores over the complete pore diameter range (Yang et al., 2017b; Liu et al., 2021a; Liu et al., 2021b).

In recent years, many studies have attempted to characterize shales using these methods, thus recognizing the significance of pore structure characterization for the evaluation of shale gas reservoirs. Loucks et al. (2009) studied the origin and characteristics of nanopores in the Mississippian Barnett Shale, and intraparticle organic nanopores and pyrite-framboid intercrystalline pores contribute to gas storage in Barnett mudstones. Guo et al. (2018) indicated the characteristics of the pore of coal-bearing shales in Turpan-Hami Basin, NW China. Tang et al. (2019) revealed the characteristics of marine shale and the shale gas adsorption capacity in the Upper Yangtze region, China. Ge et al. (2020) studied the characteristics of the transitional shale in southern North China, reporting that shale reservoirs have strong heterogeneity, and analyzed its main controlling factors, which are organic matter maturity and mineral composition.

Individual qualitative and quantitative methods have shown that shales are highly heterogenous at the microscopic scale (Liu et al., 2020; Dang et al., 2021). However, these methods can only reflect marine shales and the middle-to-high maturity stage of the coal-bearing shale heterogeneity to a limited extent. Knowledge of the variability of pore properties of overmature coal-bearing shales is relatively low, and there has been a lack of systematic research integrating the results from various methods to give a more complete picture of the heterogeneity of overmature coal-bearing shales. In addition, the degree of pore heterogeneity in shale gas reservoirs remains unclear in relation to the intrinsic linkage of various influencing factors. It can be seen that addressing these issues is very helpful for predicting the prospect area and reducing the risk in overmature coal-bearing shale gas exploration.

In this study, XRD, FE-SEM, MIP, and N₂-/CO₂-GA introduce standard deviation that has been used to determine the full-sized pore structure of the overmature coal-bearing shale using samples from the Taiyuan and Shanxi Formations from the Wuxiang block, south-central Qinshui Basin, China. In addition, the key factors that control the pore structure of the shale in Wuxiang block, south-central Qinshui Basin, China, have been identified.

2 Geological Setting

The Wuxiang Block is located on the east flank of the central section of the Qinshui composite slope, south-central Qinshui Basin (Figure 1). Faults are relatively well-developed in the study area. The orientations of the faults are primarily NE and NNE trends. The coal-bearing source rocks were mainly deposited in Taiyuan and Shanxi Formations. The Taiyuan Formation was primarily developed by the barrier coast and carbonate platform system which consists of shale, sandstone, limestone, and coal seams. The Shanxi Formation is dominated by river-delta marsh sediments, which contain sandstone and coal, and three to five sets of shale with a thickness of 30–40 m. The thickness of the argillaceous layer in the Shanxi and Taiyuan Formations is 12–82 m (average 36 m) and 46–122 m (mean 79 m), respectively.

FIGURE 1

FIGURE 1. Geological structure of the Wuxiang block in Qinshui Basin, China.

3 Samples and Methods

3.1 Samples

A total of 11 fresh shale core samples were collected from two wells at a burial depth of 1,580–1,910 m in the Wuxiang block of the south-central Qinshui Basin, China. The well locations are shown in Figure 1. A series of experiments including TOC, Ro, XRD, N₂-/CO₂-GA, MIP, and FE-SEM were carried out.

3.2 Experimental Methods

A LECO CS230 carbon/sulfur analyzer was used to measure the TOC content of the samples based on the method GB/T 19145-2003 of China National Standards. Vitrinite reflectance was determined using an MPV-SP microphotometer following ASTM D2799-13 (2013). The Bruker AXS D8 Discover X-ray diffractometer was used to determine mineralogies. Mineral and relative mineral percentages were estimated for each sample according to SY/T 5163-2018. Zeiss Merlin FE-SEM was used to analyze the pore types and morphology at the nanoscale. The experimental conditions of FE-SEM were 24°C and 35% humidity. All observations and analyses were in accordance with SY/T 5162-1997.

A Micromeritics AutoPore IV 9500 V2.03.01 porosity instrument was used to perform the MIP experiment. The PSD of pores ranging from 6 nm to 201 μm was measured. The experiment was conducted in accordance with the standard CB/T 21650.1-2008/ISO 15901-1:2005. The temperature was 35°C, and the pressure range was 0.90 ∼ 30000 psia. N₂ adsorption/desorption experiments were carried out using a Micromeritics ASAP 2460 V2.02 system, and a Micromeritics ASAP 2020 V4.03 system was used for low-pressure CO₂ adsorption/desorption experiments. Prior to the experiments, all shale samples were dried and degassed for 72 h. The N₂ and CO₂ adsorption/desorption isotherms were measured at 77 and 273 K, respectively. The relative pressure (P/P_o) of N₂ adsorption/desorption isotherms ranges from 0.011 to 0.995 and that of CO₂ adsorption/desorption isotherms ranges from 0.0001 to 0.032. Brunauer–Emmett–Teller (BET) and Barrett–Joyner–Halenda (BJH) algorithms were used to calculate the SSA and PSD from N₂ adsorption, respectively. (Liu J. et al., 2019). The Dubinin–Astakhov (D-A) model and the density functional theory (DFT) method were used for CO₂ adsorption data (Zhang M. et al., 2019; Song et al., 2019).

The standard deviation is the arithmetic square root of the arithmetic mean of the square of the deviation from the mean. It is represented by σ. The standard deviation is the most commonly used form of quantification that reflects the degree of dispersion of a set of data and is an important indicator of accuracy. We introduce the standard deviation combined with pore volume data for our samples to characterize the shale pore heterogeneity (Eq. 1).

${\sigma }_{pv}=\sqrt{\frac{{{\displaystyle \sum }}_{i=1}^n{\left(x_i-\overline{x}\right)}^2}{\text{n}}},(1)$

where $\overline{x}$ is the mean of the pore volume, and x_i is pore volume data for the i^th sample.

4 Results

4.1 Geochemical Characteristics and Mineral Compositions

The TOC of the 11 samples ranges from 0.29 to 8.36%, with an average of 3.84% (Table 1). All of the samples are overmature for oil and gas generation, with Ro values ranging from 2.33 to 2.65% (average 2.44%), thus indicating that the transitional shales of the Wuxiang block have experienced strong thermal degradation. As a result, the pore structure has been affected by diagenesis and thermal maturation over a wide range of pressures and temperatures. The T_max of the shale samples vary from 549 to 580°C, illustrating that the organic matter were in the post-maturity stage with a high degree of hydrocarbon conversion, and a large amount of gas has been generated from the organic matter. As can be seen from Figure 2, the kerogen type of the OM is type III kerogen.

TABLE 1

TABLE 1. Vitrinite reflectance, TOC, and Rock-Eval pyrolysis data for the shale samples.

FIGURE 2

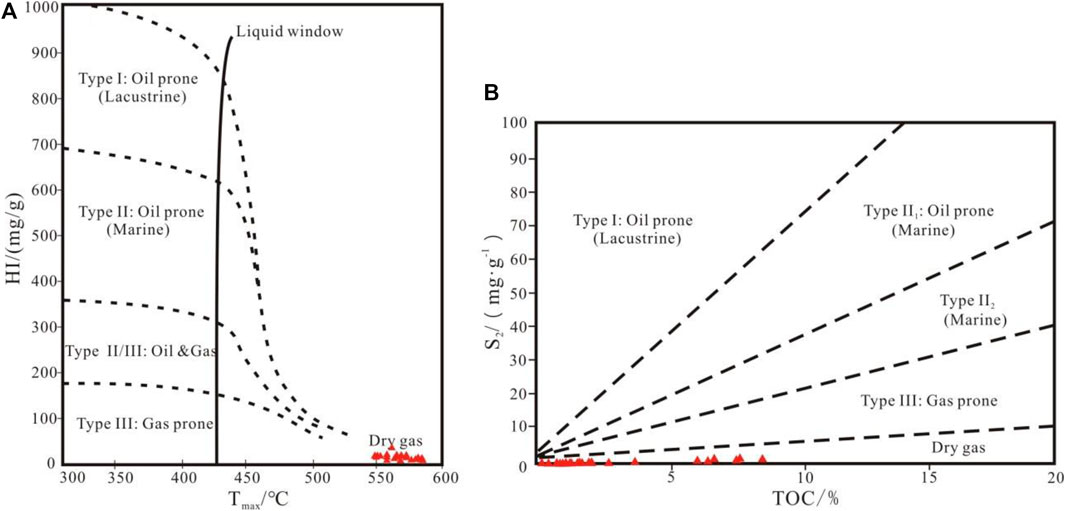

FIGURE 2. Plot of T_max°C and HI and plot of TOC and S₂ [modified from Mendhe et al. (2017)]. Rock-Eval plots for the samples: (A) HI versus T_max, and (B) S₂ versus TOC content.

Table 2 lists the mineral compositions. Clay and quartz are the main minerals (Figure 3). The clay mineral content ranges from 43 to 85.5% with an average of 52.1%, and the quartz content ranged from 12.6 to 61.2%, with the mean value of 43.5%. There is a low abundance of feldspar (0–2.4%), siderite (0–11.3%), and pyrite (0–5.3%). The clay compositions mainly consist of illite-smectite (I/S) and illite, with percentages ranging from 22.5 to 55.6% (mean value of 41.4%), and 8.7–52.7% (mean value of 32%), respectively, followed by kaolinite (8.5–29.8%; mean value 17.7%) and some chlorite (2.6–11.8%; mean value of 8.1%).

TABLE 2

TABLE 2. Mineralogical composition of shales in the Wuxiang block.

FIGURE 3

FIGURE 3. Mineral composition percentage of the shale samples.

4.2 Pore Morphology

A large number of intraparticle pores (IntraP pores) and interparticle pores (InterP pores) were observed in clay minerals of all shale samples. They include interbedded pores (Figure 4E), interparticle pores between clay mineral fragments (Figure 4F), and dissolution-related IntraP pores (Figure 4A). Abundant pores with wedge or slit shapes were observed in either illite or I/S (Figure 4I). The wedge-shaped pore size is 50 nm–5 μm, and the slit length can be up to 15 μm. In addition, intergranular pores in strawberry pyrite were observed in the shale (Figure 4C). However, pores in the organic matter were only observed in samples WXN-18-03, WXN-18-08, and WXN-28-19 with a high TOC content (Figures 4B,H). In general, the development of OM pores is related to the TOC content and thermal maturity. When Ro is greater than 2%, the number of OM pores will decrease as the Ro increases (Jarvie et al., 2007; Ge et al., 2020). Moreover, a number of microcracks were observed (Figures 4B,D). These microcracks can be divided into two types: shrinkage cracks and cracks between organic matter and clay. The shrinkage cracks were probably formed by the dewatering of clay minerals. InterP pores and microcracks have better interconnection for the pore network than that of IntraP pores.

FIGURE 4

FIGURE 4. FE-SEM images of the coal-bearing shales from the Wuxiang block. FE-SEM images of the coal-bearing shales from the Wuxiang block: (A), WXN-18-06; (B–D), WXN-18-08; (E), WXN-18-22; (F), WXN-28-13; (G), WXN-28-15; (H,I), WXN-28-19.

4.3 Pore Structure Characteristics

4.3.1 Macropore Structure Based on MIP Measurements

Based on the plots of cumulative mercury volume intruded versus pore diameter (Figure 5), pore structures of all the samples were divided into two types.

FIGURE 5

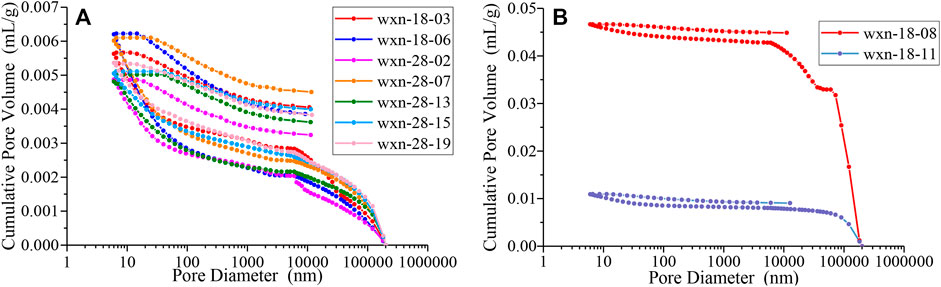

FIGURE 5. Two different relationships between mercury intrusion and extrusion and the pore diameters based on MIP. Two different relationships between mercury intrusion and extrusion and the pore diameters based on MIP (A) wide hysteresis loops, (B) narrow hysteresis loops.

For the first type of curve, the volume of mercury intruded increases as the pore diameter decreases (Figure 5A). These characteristics reflect the good connectivity between the pores; the ends of the pores are mostly open, and these samples contain a mixture of slit-shaped and ink bottle-shaped pores. As can be seen from Figure 5B, the second-type of curve has narrow hysteresis loops. Due to the relatively well-developed microfractures in this type of shale (Figure 4D), mercury mainly intrudes into pores larger than 10 µm. The microfractures may have been formed during the diagenesis process or during the sample preparation process (Xi et al., 2017b). There is almost no mercury injected into the pores ranging from 50 nm to 10 µm in diameter.

Figure 6 shows the PSD of the samples which are obtained from the mercury injection data using dV/d (logD) plots, and two types of curves are observed. The first type (Figure 6A) shows the presence of a small amount of mercury in the macropores; however, it is mainly intruded into the mesopores. As can be seen from Figure 6B, the macropore volume of the second type shale is mainly controlled by pores with a pore size greater than 10 µm, while pores between 50 nm and 10 µm are not developed. Although they both have a peak near 10 µm, the pores of WXN-18-08 are more developed in the 50–100 nm range than WXN-18-11.

FIGURE 6

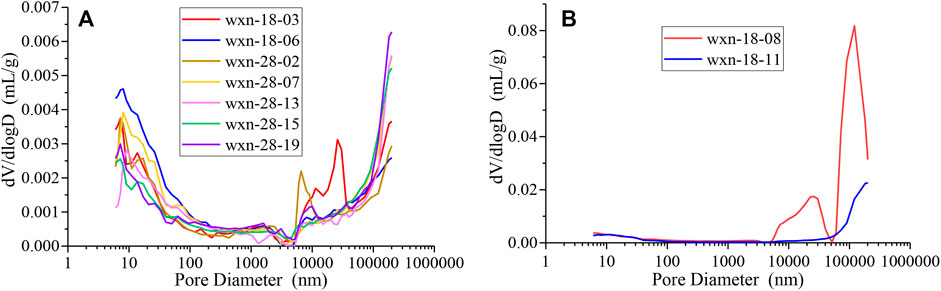

FIGURE 6. PSD of the samples based on MIP. PSD of the samples based on MIP (A) wide hysteresis loops, (B) narrow hysteresis loops.

4.3.2 Mesopore Structure Based on N₂ Adsorption Isotherms

Figure 7 shows the N₂ adsorption and desorption isotherms, which are generally “S”-shaped. Based on the IUPAC classification, the N₂ adsorption isotherms of the samples belong to type IV isotherms, which indicates that the shale pores are distributed continuously and are classified as mesopores (Rouquerol et al., 1994). The hysteresis loop has been used to characterize pore shapes (Liu J. et al., 2019). Based on the classification of hysteresis loops by IUPAC, the nine samples can be divided into the H2 type or H3 type, which are dominated by slit-shaped pores, wedge-shaped pores, and narrow neck pores.

FIGURE 7

FIGURE 7. N₂ adsorption−desorption isotherms of nine representative shale samples.

The PSD of the samples can be obtained by analyzing the N₂ adsorption and desorption curves using the BJH model. However, studies have shown that the PSD curves, calculated by desorption isotherms that are affected by tensile strength, cannot accurately reflect the real pore size distribution in porous media (Groen et al., 2003; Wang et al., 2015; Xi et al., 2017b). The PSD calculated from N₂ adsorption for each of the nine samples is illustrated in Figure 8. The PSD distribution curves of all samples showed a single-peak curve with the main peak at 2 ∼ 3 nm.

FIGURE 8

FIGURE 8. PSD obtained from low-pressure N₂ adsorption isotherms of the coal-bearing shale samples.

4.3.3 Micropore Structure Based on CO₂ Adsorption Isotherms

Figure 9 shows that the CO₂ adsorption isotherms of nine shale samples belong to type I, which indicates the existence of open micropores with monolayer adsorption. Figure 10 shows the relationship between the dV/dW pore volume and pore width. All samples have three peaks in the pore width range of 0.45–0.60 nm, 0.75–0.80 nm, and 0.82–0.87 nm, respectively. Pore widths less than 0.9 nm are the main contributors to micropore volume. When the pore size is larger than 0.9 nm, the volume of micropores does not change with the increase in the pore size.

FIGURE 9

FIGURE 9. CO₂ adsorption–desorption isotherms of the coal-bearing shale samples.

FIGURE 10

FIGURE 10. PSD derived from CO₂ adsorption using the DFT model.

5 Discussion

5.1 Characterization of the Full-Sized Pore Structure

The pore structure of shales has strong heterogeneity, such as the PSD in the shale ranges from nanometer to micrometer scales; macropores, mesopores, and micropores have different contributions to the PV and SSA, respectively (Zhang J. et al., 2017; Zhang J. et al., 2019). The pore is the main place to adsorb and gather gas. Studying pore anisotropy is helpful to understand the accumulation mechanisms of shale gas. Consequently, the PV, SSA, and the standard deviation of the pore volume data (σ_PV) of the samples were calculated (Table 3), and the coefficient of pore heterogeneity is listed in Table 4.

TABLE 3

TABLE 3. PV and SSA for samples from MIP (macropore), N2 (mesopore) and CO2 (micropore) adsorption experiments.

TABLE 4

TABLE 4. Coefficient of pore heterogeneity for shale samples.

As can be seen from Figure 11, the PSD curves contain multiple-peak distribution, with the peaks mainly distributed in the range of 0.4 ∼ 0.9 nm, 2 ∼ 3 nm, and 5 ∼ 30 μm. Figure 12 shows the PV percentages and SSA percentages for shale samples. Mesopores are the largest contributors to the PV of most samples, except sample WXN-18-08 (Figure 12A), which contains microfractures (Section 4.3.1), and hence, more macropores larger than 10 µm are present. The mesopore PV ranges from 0.0086 cm³/g to 0.029 cm³/g (Table 3), accounting for 18.9–77.8% of the total PV, but its contribution to the SSA is less than from micropores (Figure 12B). The contribution of micropores to the PV is small, accounting for 6.2–19.5% (Figure 11A), but their SSA accounts for 51.8–80.1% (Figure 12B). The macropores’ PV ranges from 0.0029 cm³/g to 0.0443 cm³/g (Table 3), and the contribution to the pore volume is secondary only to that of mesopores, but its contribution to the SSA is less than 0.5% (Figure 12B).

FIGURE 11

FIGURE 11. PSD of full-sized pores combining MIP and N₂/CO₂-GA.

FIGURE 12

FIGURE 12. (A) PV percentages and (B) SSA percentages for the shale samples in the Wuxiang block.

5.2 Controlling Factors of the Shale Pore Structure

5.2.1 Effects of the TOC Content on the Pore Structure

It has been reported that the TOC content has an important effect on the pore structure of shales (He et al., 2016; Ge et al., 2020). The effect of the TOC on the SSA and PV is shown in Figure 13. A positive relationship exists between the micropore PV, micropore SSA, and TOC content. However, there is no clear correlation for the macropore or mesopore PV or SSA and the TOC content. This is different from previous studies where the TOC in coal-bearing shales with Ro <2% showed a significant positive correlation with both mesopores and micropores (Zhang M. et al., 2019; Yu et al., 2020). This is because when the maturity is in the immature to petroleum generation maturity stages, a large number of mesopores and micropores are developed in the organic matter, but when the shale reaches the overmature stage, the mesopores in the organic matter, in particular, are affected by compaction. Two overmature samples (WXN-28-13 and WXN-28-19) with similar maturity and mineral contents but with significantly different TOC contents (1.57 versus 6.30%, respectively) were selected to investigate the relationship between the TOC content and pore structure in overmature samples. The results show that the total PV, macropore PV, and mesopore PV of the two samples have similar characteristics, but there are obvious differences in the micropore PV. The latter value for sample WXN-28-19 (0.00373 cm³/g) is approximately twice that of sample WXN-28-13 (0.00182 cm³/g) (Table 3). Similarly, the micropore SSA from sample WXN-28-19 is considerably greater than that of sample WXN-28-13. The results show that a higher TOC content results in a higher micropore content for a given mineralogy, which is consistent with the results observed by FE-SEM (organic pores are only observed in samples with a high TOC content). The relationship between the TOC and σ_PV (Figure 13) shows that the TOC has a significantly positive correlation with the σ_PV for micropores, while the correlation with macropores and mesopores is weak, which indicates that the TOC mainly affects the non-homogeneity of micropores. This is consistent with the results of the above study. Earlier work considered that maturity may be the main controlling factor for overmature shale pore development overriding the effects of the TOC content (Xi et al., 2018).

FIGURE 13

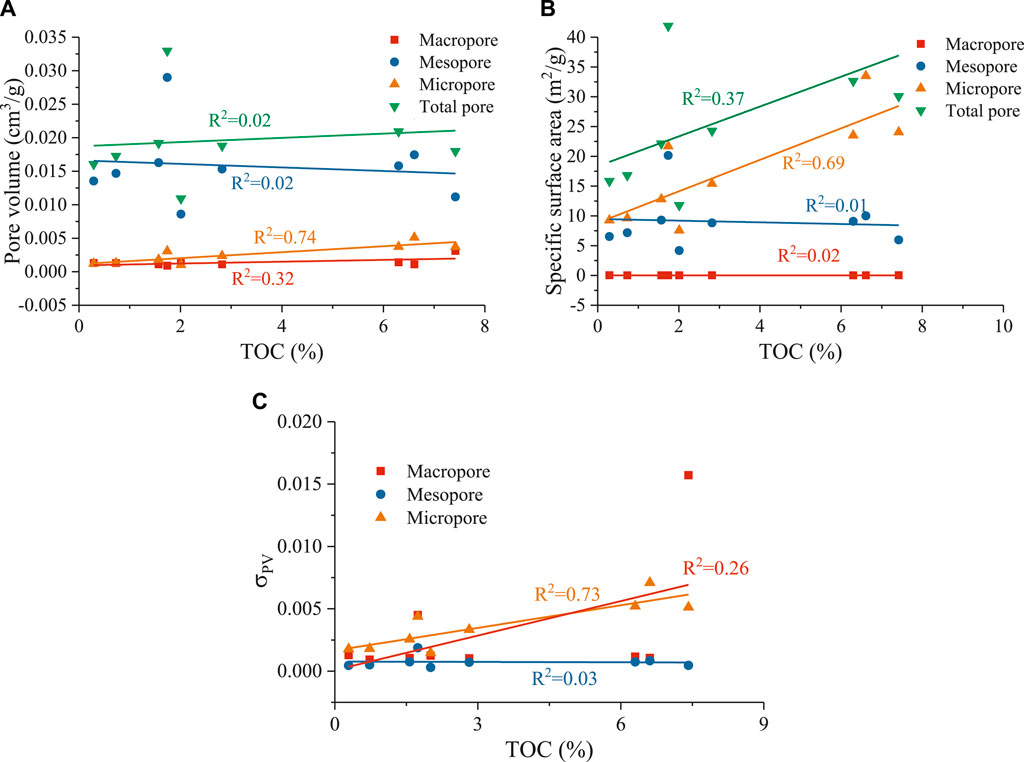

FIGURE 13. Relationships between the TOC content, (A) pore volume, and (B) pore specific surface area for the shale samples. (C) Relationships between the TOC content and σ_PV for the shale samples.

5.2.2 Effects of the Quartz Content on the Pore Structure

The brittle minerals in the shale are dominated by quartz, which can provide support for the reservoir and improve permeability (Yan et al., 2017). Figure 14 shows that there is no clear relationship between quartz and the PV or SSA. This suggests that the quartz content is not a key parameter that determines the pore structure. Figure 14 shows that there is no significant relationship between quartz and σ_PV, which is consistent with the lack of correlation between PV, SSA, and quartz. Previous studies of samples in the middle-to-high maturity stages show that quartz has a positive relationship with the macropore PV and has a weakly negative correlation or no correlation with the mesopore and micropore PV (Wang et al., 2015; Pan et al., 2017). It is generally believed that this is caused by two reasons: on the one hand, there are few intragranular pores associated with quartz, which are mostly lost by compaction, cementation, or plugging by either inorganic or organic matter such as clay particles or bitumen (Loucks et al., 2009; Wang et al., 2019).

FIGURE 14

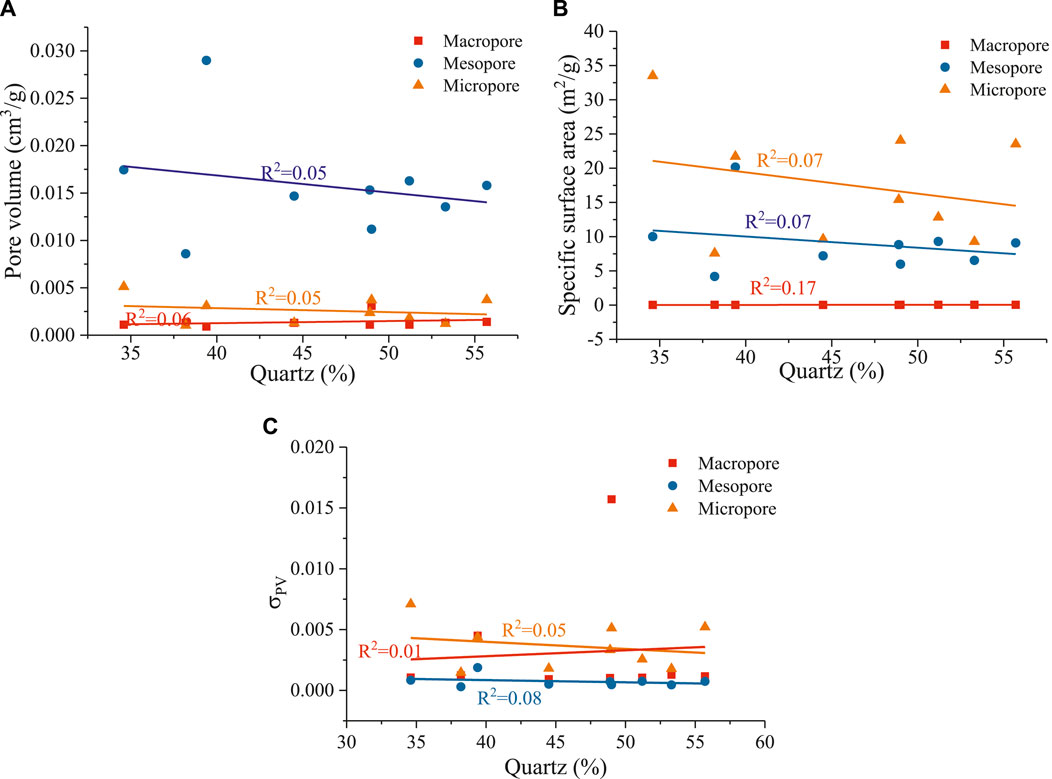

FIGURE 14. Relationship between quartz contents and (A) with pore volume, and (B) specific surface area. (C) Relationship between quartz contents and σ_PV.

5.2.3 Effects of the Clay Content on the Pore Structure

SEM images show that clay mineral pores are the main pores in these overmature samples (Figure 4). The relationship between clay minerals and pore structure properties is shown in Figure 15. The SSA of micropores is weakly positively correlated with the content of clay minerals but not the PV, whereas for other types of pores, there is no obvious correlation with either the PV or SSA. The relationship between clay minerals and coefficient of pore heterogeneity is shown in Figure 15, and it can be found that there is a weakly positive correlation between clay minerals and σ_PV, which indicates that clay minerals contribute to the pore heterogeneity mainly through micropores. This differs from the medium-to-high maturity stage of the similar samples, where clay not only affects the development of micropores but also has a significant positive correlation with mesopores. In early diagenesis, clay minerals have various morphologies of micropores, mesopores, and microcracks. When the degree of thermal evolution increases, as the degree of compaction increases, the volume of the macropores gradually decreases, until it disappears (Li et al., 2020). In addition, the combination of clay minerals and soluble organic matter plays an important role in the development of micropores in shales (Ge et al., 2020).

FIGURE 15

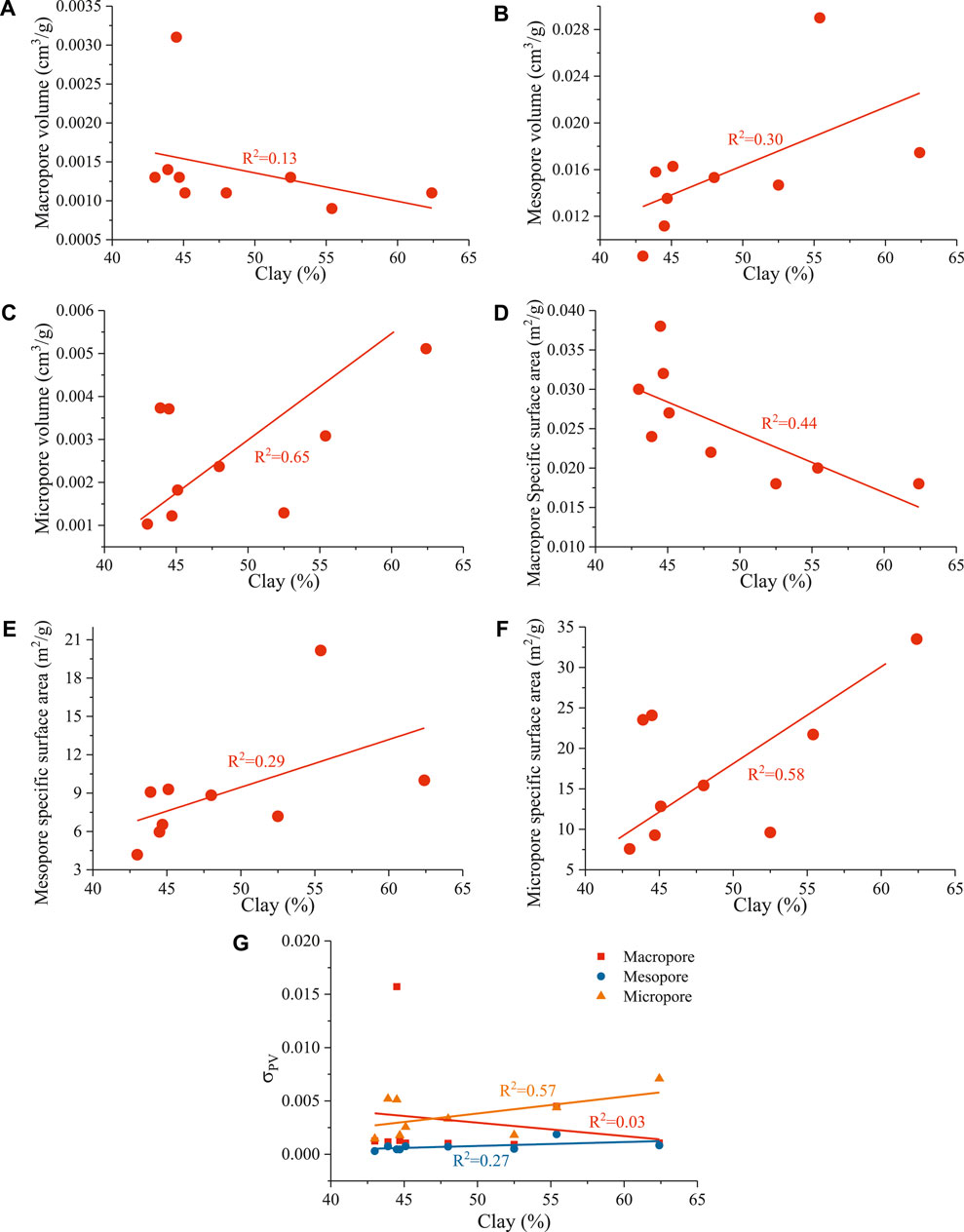

FIGURE 15. Relationship between clay contents with the pore volume and specific surface area. Relationship between clay contents with the pore volume (A–C) and specific surface area (D–F) and with σ_PV (G).

In order to understand which clay minerals play an important role in pore heterogeneity, the correlation between PV, σ_PV, and subtypes of clay minerals is shown in Figure 16. I/S is positively correlated with the micropore, mesopore, and total PV (Figure 16B) However, the content of illite and chlorite has a negative correlation with the micropore, mesopore, and total PV (Figures 16A,D). In addition, this study did not find a correlation between kaolinite and pore volume (Figure 16C). Also, the plots of clay minerals versus σ_PV confirm that I/S is the main clay mineral component affecting pore heterogeneity, especially affecting micropores and mesopores (Figures 16E–H). Previous studies have indicated that a large amount of K⁺ will be consumed during the process of montmorillonite illitization forming I/S, which will promote the dissolution of feldspar and increase the pore volume (Peltonen et al., 2009; Yang et al., 2017a). Chlorite is mainly produced in late diagenesis. Chlorite itself has a high degree of compaction and a denser arrangement of minerals, resulting in poor pore development (Zhang M. et al., 2019). Therefore, I/S plays a key role in the development of pore properties in overmature samples.

FIGURE 16

FIGURE 16. Relationships between clay minerals with pore volume (A–D) and σ_PV (E–H).

In summary, comprehensive analysis of relationships between the TOC content and mineral composition with pore structure properties (PV, SSA, and σ_PV), together with FE-SEM images of the overmature coal-bearing shale, shows that the micropores are mainly developed in clay minerals, and some micropores are also developed in shales with a high TOC content. The I/S content exerts the most significant control on the pore structure. Mesopores are mainly developed in the clay mineral layers, especially in I/S, while increasing the illite content reduces the development of mesopores. Macropores and microfractures are mainly developed in clays and quartz and do not correlate significantly with the TOC and mineral composition due to the influence of compaction and cementation.

6 Conclusion

(1) There are great differences in pore morphology between the overmature coal-bearing shale and marine shale. The slit-shaped and wedge-shaped intraP pores in clay minerals are dominant in the shale. OM pores were only developed in some samples with a high TOC content. Shrinkage cracks are commonly formed by dehydration of clay minerals.

(2) Overmature coal-bearing shale reservoirs have very heterogenous pore structures. Mesopores are the largest contributors to the pore volume, but their contribution to the SSA is less than micropores. The contribution of micropores to the PV is low, accounting for 6.2–19.5%, but their SSA accounts for 51.8–80.1%. The macropore contribution to the pore volume is second only to that of the mesopore, but their contribution to the SSA is less than 0.5%.

(3) The pore structure is mainly controlled by i) the differences in mineral composition and ii) diagenesis thermal maturation. The TOC and clay minerals affect the heterogeneity of the pore structure mainly by controlling the abundance of micropores, while quartz has no clear relationship between the pore volume, specific surface area, and σ_PV. I/S is the main component in clay minerals that affects the pore properties.
