Cuiping Qiao1
Zhongrui Ning
Yan Wang
Qianguo Lin
Guoqing Wang- 1North China University of Water Resources and Electric Power, Zhengzhou, China
- 2College of Hydrology and Water Resources, Hohai University, Nanjing, China
- 3Yangtze Institute for Conservation and Development, Nanjing, China
- 4Research Center for Climate Change, Ministry of Water Resources, Nanjing, China
- 5State Key Laboratory of Hydrology-Water Resources and Hydraulic Engineering, Nanjing Hydraulic Research Institute, Nanjing, China
- 6College of Environmental Science and Engineering, North China Electric Power University, Beijing, China
The South-to-North Water Diversion project (SNWD project) is a mega water project designed to help solve water shortages in North China. The project’s management and operation are highly influenced by runoff change induced by climate change in the water source areas. It is important to understand water availability from the source areas in the context of global warming to optimize the project’s regulation. Based on the projections of nine GCMs, the future runoff in the water source areas of the three diversion routes was simulated by using a grid-based model RCCC-WBM (Water Balance Model developed by Research Center for Climate Change). Results show that temperature will rise by about 1.5°C in the near future (2035, defined as 2026–2045) and 2.0°C in the far future (2050, defined as 2041–2060) relative to the baseline period of 1956–2000. Although GCM projections of precipitation are highly uncertain, the projected precipitation will likely increase for all three water source areas. As a result of climate change, the simulated runoff in the water source areas of the SNWD project will likely increase slightly by less than 3% relative to the baseline period for the near and far future. However, due to the large dispersion and uncertainty of GCM projections, a high degree of attention should be paid to the climate-induced risk of water supply under extreme situations, particularly for the middle route of the SNWD project.
Introduction
Water is the most direct and vulnerable sector influenced by climate change (Zhang and Wang, 2007; IPCC, 2008, 2013, 2021). China faces shortages in water sources due to a huge population (Liu et al., 2019). Uneven spatiotemporal distribution of water resources further exacerbates water scarcity in many arid regions (Hoekstra, 2014; Cosgrove and Loucks, 2015; Montanari et al., 2015). How much water is available in the context of global warming has been attracting tremendous attention from various arms of the central government, local communities, and river basin managers (Kundzewicz et al., 2018; Lu et al., 2019; Luo et al., 2019).
Studies show that only 10% of the total renewable water resources are currently used by people, and nearly 80% of the world’s population is exposed to high levels of threat to water security (Oki and Kanae, 2006; Vörösmarty et al., 2010). Both climate change and human activities add complexity to the formation, migration, and transformation mechanisms of water resources by altering hydrological cycles, thereby aggravating water scarcity and water conflicts among different socioeconomic sectors (Haddeland et al., 2014; Liu et al., 2017; Tang et al., 2019). Because of the critical importance of water to socioeconomic development, climate change and its impacts on water resources have been investigated in previous studies (Wang et al., 2017; Liu et al., 2018; Bao et al., 2019; Sun et al., 2019). Regional and global hydrologic models combined with global climate model projections have been widely used to assess changes in water resources induced by climate change (Sivakumar, 2011; Schewe et al., 2013; Wang et al., 2012, 2017). The Xin’anjiang model which is based on the saturation excess mechanism has been mostly applied to humid catchments (Yuan et al., 2016; Zhang et al., 2019), while infiltration excess-based watershed models (e.g., GR4J model, SIMHYD model, etc.) have been used for assessing climate change impacts in arid catchments (Jones et al., 2006; Trudel et al., 2017). Land surface models (e.g., VIC model, CAS-LSM model, etc.) are mainly applied to large scale regions or applied at continental scale for hydrological modeling and climate change study (Wang et al., 2012; Wang et al., 2020). Due to the lack of observations, hydrological models with physical interpretation and simple model structure have attracted more interest and been applied in climate change study (Wang et al., 2014; Shahid et al., 2017). Compared with some of the well-known hydrological models (e.g., Xin’anjiang model, Tank model, etc.), simple models (e.g., RCCC-WBM) have advantages of easier understanding, fewer model parameters, more feasible transferability to the poorly gauged areas, etc. (Guan et al., 2019). The projected climate change impacts showed that water cycles have undergone considerable changes in the context of global warming, and such changes have altered water resource distribution in time and space (Bierkens, 2015; Mehran et al., 2017). Available water resources in the eastern monsoon region of China are decreasing and extreme hydrological events are occurring more frequently (Duan and Phillips, 2010; Xia et al., 2017), which increases the vulnerability of water resources and adds extra pressure on the security of water supplies, particularly in arid and semi-arid areas (Wang and Zhang, 2015; Jin et al., 2020).
China suffers from water shortages due to its large population and extremely low per capita water volume, accounting for less than one-third of the world average (CREEI, 2014; Liu et al., 2019). Conditions are particularly severe in the country’s northern regions, where half of the population and two-thirds of the nation’s farmland are located, but where there is only one-fifth of its water resources (Liu and Zheng, 2002; Liu and Xia, 2004). To alleviate water scarcity and maintain socioeconomic development in northern China, the central government has embarked on a strategic and ambitious infrastructure project known as the South-to-North Water Diversion project (SNWD project; Zhang, 2009; Zhao et al., 2017). The project is designed to transfer 44.8 km3 of water per year from the water-abundant Yangtze River to the Huang-Huai-Hai region via its eastern, middle, and western routes, at a total cost of about US$62 billion (Stone and Jia, 2006; Liu et al., 2012; Yan and Chen, 2013; Long et al., 2020). By the end of 2018, the eastern route had brought an accumulated 3.1 billion m3 of water to Shandong and the middle route had brought an accumulated 17.8 billion m3 of water (http://nsbd.mwr.gov.cn; Yin et al., 2020). It has been observed that streamflow into the Danjiangkou Reservoir, the headwater source in the middle route of the SNWD project, has continuously decreased since the 1980s (Liu et al., 2012; Sun et al., 2014; She et al., 2017), negatively affecting the water supply of the middle route of the SNWD project. Using a climate elasticity method, Liu et al. (2012) concluded that the climatic variation (indicated by precipitation and potential evapotranspiration) was responsible for 84.1–90.1% of the stream decline. She et al. (2017) also showed that the sharp decrease in annual runoff from the Danjiangkou Reservoir is mainly influenced by the decrease in annual precipitation. While climate change affects the water availability of the water source area, it also affects the encounter probability of flood and drought between the water source areas and the water receiving areas (Chen and Xie, 2012; Liu et al., 2015; Xia et al., 2017).
Climate change will be one of the major challenges to the management and operation of the SNWD project, as water resources are sensitive to climate change and variability (Wang et al., 2012, 2017). With the expectation that water supplies will only become tighter in the future (Rodell et al., 2018; Pokhrel et al., 2021), it is essential to understand water availability in water source areas under climate change for the efficient and reasonable allocation of water resources by the SNWD project. However, previous studies on the SNWD project mainly focused on the historical variation of stream flow, so there are limited studies on future water availability of water source areas of the SNWD project, particularly for all three source areas together (Su et al., 2016; Yu et al., 2017). The objective of this study is to investigate future climate changes in the three water source areas and the extent to which the stream flow will change in the coming decades relative to the design period (1956–2000) of the SNWD project and finally to support the project operation practices and revisions of the second phase plan.
Data Sources and Methodology
Study Areas and Data Sources
The SNWD project approved by China’s State Council in 2002 is a national strategic project that transfers water from the Yangtze River to the Huai River, Yellow River, and Hai River to solve water shortages in North China. The project was designed with three water diversion routes among which the eastern route and the middle route have been constructed and in use since 2013 and 2014, respectively, while the western route is still in the planning stages. Based on the project planning, the water source areas of the project consist of the upper Yangtze River for the western route with a drainage area of 299,087 km2, the middle and upper Han River for the mid-route with a drainage area of 94,784 km2, and the area (1,705,383 km2) above Datong hydrometric station for the eastern route, which covers almost the entire Yangtze River basin. The water source areas of the project, major river systems of the Yangtze River, and locations of key hydrometric stations controlling water source areas are shown in Figure 1.
FIGURE 1. Water source areas, river systems, and locations of key hydrometric stations of the South-to-North Water Diversion Project in the Yangtze River basin.
The daily grid meteorological data over the Yangtze River basin with a spatial resolution of 0.25° and 1951–2020 data series were collected from the China Meteorological Administration (CMA). The daily observed discharge data at five hydrometric stations which control drainage source areas of the SNWD project, shown in Figure 1, were collected from the Hydrology Bureau of the Ministry of Water Resources (MWR). These hydro-meteorological data were used to calibrate hydrological models for climate change impact assessment.
The SNWD project was designed by using the 1956–2000 data series. In order to understand the future climate changes relative to those in the design period, we defined two future periods as follows: near future (NF) from 2026 to 2045, and far future (FF) from 2041 to 2060. The future climate scenarios were downloaded from httpps://www.wcrp-climate.org/wgcm-cmip/wgcm-cmip6. As both the high-emission scenarios, e.g., SSP5-8.5, and the low-emission scenarios, e.g., SSP1-2.6, consider extreme emission pathways, the medium-emission scenarios, e.g., SSP2-4.5, will probably occur in the future. We therefore only used climate change projections under the SSP2-4.5 scenario in this study. Based on simulation performance to the past variation of climate variables and consideration of GCM independence (Xin et al., 2020; Zhao et al., 2021), nine GCMs were selected and used in this study (Table 1). The nine GCM projections under the SSP2-4.5 scenario were downscaled to a 0.25° grid by using a LARS-WG statistical downscaling method (Hassan et al., 2014). The data series of the projected climate scenarios are from 1901 to 2099.
TABLE 1. Overview of nine GCMs used in this study.
RCCC-WBM
In this study, the RCCC-WBM (Water Balance Model developed by the Research Center for Climate Change) was applied to the study areas for climate change impact assessment. The model is a conceptual hydrological model that considers the three runoff components of surface flow, underground flow, and snowmelt flow. The model inputs include monthly precipitation, pan evaporation, and temperature. The model has been applied to hundreds of catchments worldwide (Wang et al., 2014; Guan et al., 2019). The model structure is shown in Figure 2.
FIGURE 2. The model structure and principle of the RCCC-WBM.
Based on the RCCC-WBM, we developed a grid-based model covering the entire Yangtze River basin, which was divided into 1,812 grid cells with a spatial resolution of 0.25°. The RCCC-WBM is employed to calculate runoff yield in each grid cell. For a catchment that covers numerous grid cells, the flow routing scheme in the VIC (Variable Infiltration Capacity) model was referenced in the model flow concentrating from grid cells to catchment outlet (Wang et al., 2012, 2014).
The RCCC-WBM has four parameters that need to be calibrated by comparing the simulated and recorded discharge series. The Nash and Sutcliffe efficiency criterion (NSE) and the relative error of volumetric fit (RE), which describe the fitting performance of the simulated discharge to the recorded discharge, are employed as the objective functions to calibrate the model (Nash and Sutcliffe, 1970; Moriasi et al., 2007; Gupta et al., 2009).
Results and Discussion
Changes in Temperature and Precipitation for Water Source Areas
Taking 1956–2000 as a baseline period, changes in temperature in the near and far future relative to the baseline period for all three source areas, i.e., the western route source area (WRSA), middle route source area (MRSA), and eastern route source area (ERSA), of the SNWD project were investigated (Figure 3).

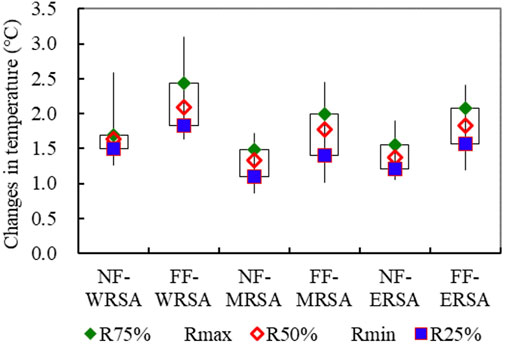

FIGURE 3. Temperature changes in two periods of near future (NF) and far future (FF) relative to baseline of 1956–2000 for all three source areas of the South-to-North Water Diversion Project (WRSA, MRSA, and ERSA denote the western route source area, the middle route source area, and the eastern route source area, respectively; same as Figure 4 and Figure 7).
Figure 3 shows that the nine GCMs all projected that temperatures will continue to rise in the near future and far future although they projected different rise ranges. In the near future of 2026–2045, temperature will rise by 1.64°C [1.27°C, 2.58°C], 1.33°C [0.87°C, 1.71°C], and 1.37°C [1.06°C, 1.89°C] for WRSA, MRSA, and ERSA, respectively. However, temperature will rise higher in the far future of 2041–2060. On average, temperature would rise by 2.09°C, 1.78°C, and 1.82°C, respectively, with ranges of [1.64°C, 3.09°C], [1.02°C, 2.44°C], and [1.19°C, 2.41°C] for the three water source areas.
Temperature is a thermal driver of the hydrological cycle, and temperature rise could reduce runoff yield by increasing catchment evaporation. According to IPCC, there is high confidence that global mean evaporation increases with global warming, with evaporation increasing by 1–3% for every 1°C increase in temperature (IPCC, 2021). Previous studies indicate that a 1°C rise in temperature might lead to an approximately 5% decrease in runoff for humid areas (IPCC, 2008; Wang et al., 2016). Changes in temperature will definitely influence water availability in the water source area of the SNWD project.
Figure 4 shows changes in precipitation during the coming periods of the near future and far future relative to the baseline period. The figure indicates that precipitation projections have a higher uncertainty than that of temperature as a GCM might project decrease in precipitation while another one might project precipitation increase. For the WRSA, all GCMs project that precipitation in near future will increase by 4.9% with a range of [1.43%, 14.1%], and most of the GCM projections show a 6.06% precipitation increase in the far future on average with a range of [−1.68%, 18.77%]. For the MRSA, more than half of the GCMs projected that precipitation will increase by 0.45% [−3.23%, 8.61%] in the near future and 2.54% [−1.77%, 7.5%] in the far future. For the ERSA, most of the GCMs projected that precipitation will increase by 1.63% [−3.62%, 4.84%] in the near future and 3.71% [−3.13%, 7.45%] in the far future.

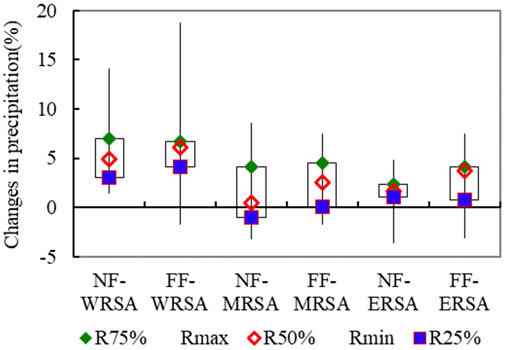

FIGURE 4. Precipitation changes in two periods of near future (NF) and far future (FF) relative to baseline of 1956–2000 for all three source areas of the South-to-North Water Diversion Project.
According to the definition of uncertainty by the IPCC (IPCC, 2013), precipitation in the WRSA will almost certainly increase in the near future and will very likely increase in the far future, while precipitation in both the MRSA and ERSA is likely to increase in both the near and far future. Increases in precipitation for the source areas could increase runoff yield and will no doubt benefit implementation of the SNWD project.
Model Calibration and Discharge Simulation
A suitable hydrological model is essential to quantify the impact of climate change on water resources. Within the source areas of the SNWD project, there are daily discharges available at five hydrometric stations with a data series length of over 30 years. The grid meteorological data were used to drive the grid-based model RCCC-WBM for discharge simulation. Simulation results are given in Table 2. The monthly recorded and simulated discharges at the Yajiang hydrometric station were compared, as shown in Figure 5.

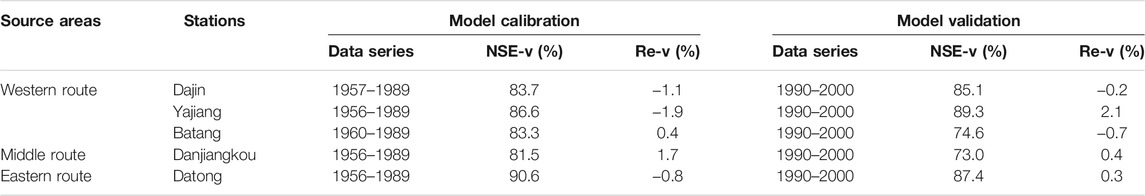

TABLE 2. Discharge simulation results for the five hydrometric stations within source areas of the South-to-North Water Diversion Project.
FIGURE 5. Monthly recorded and simulated runoff at the Yajiang station during 1956–2000.
Table 2 shows that the grid-based model RCCC-WBM performs well in the discharge simulation for all five catchments. The NSEs in both calibration and validation periods are above 0.7, while the REs in the periods are limited in the range of ±2.0%. Figure 5 indicates that the monthly recorded and simulated runoff series at the Yajiang station for 1956–2000 matched well, which is in accordance with the results in Table 2. Table 2 and Figure 5 both sufficiently illustrate that the RCCC-WBM is qualified for simulating runoff under the future climate change scenarios.
By using the downscaled grid climate scenarios of nine GCMs to drive the grid-based model RCCC-WBM, monthly runoff yield series for grid cells were simulated for 1951–2090. The catchment average annual runoff yields of the three source areas of the SNWD project over the period were then calculated based on the areal weighted method. The 9-GCM-based annual runoff simulations for the three source areas and the simulation-based median runoff series over the period of 1951–2090 are shown in Figure 6. Figure 6 shows that the nine simulated annual runoff series all exhibited a natural fluctuation with no significant variation trends. However, the range of runoff variability in the coming decades becomes larger than that in the past.

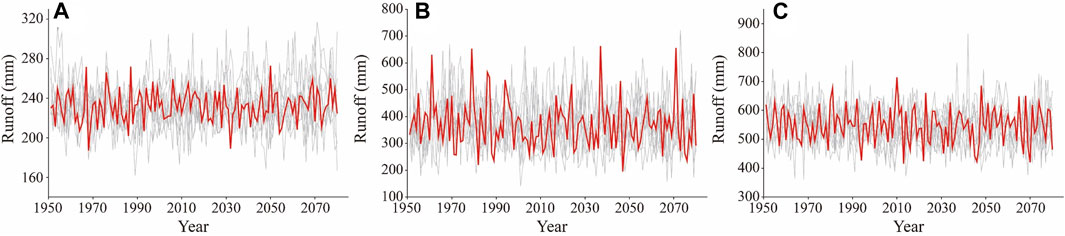

FIGURE 6. The simulated annual runoff series (gray lines) of the nine GCMs and the simulation-based median runoff series (red line) during 1951–2090 for all three source areas of the South-to-North Water Diversion project ((A–C) denote source areas of the western route, the middle route, and the eastern route, respectively).
Changes in Runoff for the Three Water Diversion Areas
Runoff changes in the near future and far future relative to the baseline period of 1956–2000 were investigated based on the simulated runoff over the period of 1951–2090 under the nine GCM scenarios for all three source areas (Figure 7).

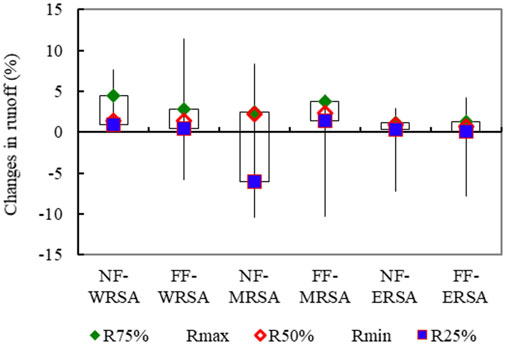

FIGURE 7. Runoff changes in two periods of near future (NF) and far future (FF) relative to the baseline period of 1956–2000 for all three source areas of the South-to-North Water Diversion Project.
Figure 7 indicates that for the WRSA, all GCMs project that runoff in the near future will increase by 1.42% with a range of [0.29%, 7.69%], and most of the GCMs project a 1.36% runoff increase in the far future on average with a range of [−5.84%, 11.40%]. The projected runoff in the WRSA will very likely increase in both the near and far future. For the MRSA, over 50% of the GCMs project that runoff will increase by 2.25% [−10.48%, 8.31%] in the near future and 2.35% [−10.27%, 4.60%] in the far future. Although more than half of the GCMs project runoff in the middle route source area will increase in the future, we also find that the projected runoff might decrease by > 10% in extreme conditions. Attention to the risk of runoff reduction induced by climate change should be given in the practical operation of the middle route sub-project. For the ERSA, most of the nine GCMs project runoff will increase in the near future with the exception of the GISS-E2-R which projects runoff will decrease by −7.3%. The GISS-E2-R and GFDL-ESM2G project annual runoff will decrease by −7.8% and −7.0% in far future while the other seven GCMs project annual runoff will increase by [0.1%, 4.2%]. On average, the median GCM project runoff will increase by 0.88% in the near future and 0.7% in the far future. In general, the projected runoff in the eastern route source area will likely increase in the coming decades, which could support operation of the eastern route sub-project.
Discussion
Both changes in temperature and precipitation could affect regional water resources by altering hydrological cycles. Global land surface temperature rose by 0.85°C during the period 1880–2012 (IPCC, 2013) while temperatures in China rose by 0.9°C in the same period. Temperatures in China have risen particularly fast during recent decades (1956–2012), increasing at a rate of 0.25°C/10a, which is higher than the global average (Qin et al., 2012). The variation of the projected temperature over the three source areas in this study are in accordance with the previous studies, which will continue to rise in the future (Tao et al., 2011). However, the projected increase in temperature in this study is approximately 0.33°C/10a, which is much higher than that in the past (Huang et al., 2014). The projected regional average precipitation over the three source areas will likely increase in the rapid warming situation although several GCMs project a certain decrease in precipitation. Most previous studies support the findings although there is great uncertainty in precipitation projections (Zhang et al., 2010; Guo et al., 2012).
Numerous studies have indicated that the precipitation in the Yangtze River basin will increase in the coming decades, and, as a result, stream flow will probably increase (Bian et al., 2017; Yu et al., 2017; Lu et al., 2018), which is in accordance with the findings in this study. However, Gu et al. (2015) found that annual runoff at the Panzhihua station in the upper Yangtze River basin during 2011–2040 may decrease by 1.2–3.5% compared to that in 1970–1999, which is counter to the conclusions drawn in this study. The discrepancy might result from differences in the baseline period, future periods, GCMs, and the study catchments selected. Although inflow to the Danjiangkou Reservoir decreased in the past (Liu et al., 2012; Sun et al., 2014), the projected runoff will likely increase by 2% in the coming decades. The hydrological regime is shifting to benefit the operation of the SNWD project due to climate change.
Summary and Conclusions
In the context of global warming, temperatures in the source areas of the SNWD project will continue to rise. Relative to the baseline period (1956–2000), temperatures will rise by about 1.5°C and 2.0°C in the near future (2026–2045) and the far future (2041–2060). Precipitation will likely increase for all three source areas although GCM projections are quite dispersed and uncertain.
The grid-based model RCCC-WBM performs well for discharges in the study areas. The simulated runoff is associated with GCM projections. According to the nine GCMs, the median runoff will likely increase by less than 3% relative to the baseline for all three source areas of the SNWD project, which could guarantee the security of water supply to some extent. However, attention should be paid to the risk to water supply induced by extreme climate change conditions when the project operates in practice.
Data Availability Statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Author Contributions
CQ: conceptualization and methodology. GW and JQ: data curation and model. ZN: formal analysis and visualization. YW and GW: writing and editing the manuscript. QL: discussion and suggestions for data analysis.
Funding
This research was financially supported by the National Key Research and Development Programs of China (Grants 2016YFA0601500, 2017YFA0605002, and 2017YFC0404602), the National Natural Science Foundation of China (Grant nos. 41830863, 51879162, 51609242, 51779146, and 41601025), and the State Key Laboratory of Hydrology-Water Resources and Hydraulic Engineering (Grant no. 2019nkzd02).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
