Clinical evaluation of the Multimapping technique for simultaneous myocardial T1 and T2 mapping

The Multimapping technique was recently proposed for simultaneous myocardial T₁ and T₂ mapping. In this study, we evaluate its correlation with clinical reference mapping techniques in patients with a range of cardiovascular diseases (CVDs) and compare image quality and inter- and intra-observer repeatability. Multimapping consists of an ECG-triggered, 2D single-shot bSSFP readout with inversion recovery and T₂ preparation modules, acquired across 10 cardiac cycles. The sequence was implemented at 1.5T and compared to clinical reference mapping techniques, modified Look-Locker inversion recovery (MOLLI) and T₂ prepared bSSFP with four echo times (T₂bSSFP), and compared in 47 patients with CVD (of which 44 were analyzed). In diseased myocardial segments (defined as the presence of late gadolinium enhancement), there was a high correlation between Multimapping and MOLLI for native myocardium T₁ (r² = 0.73), ECV (r² = 0.91), and blood T₁ (r² = 0.88), and Multimapping and T₂bSSFP for native myocardial T₂ (r² = 0.80). In healthy myocardial segments, a bias for native T₁ (Multimapping = 1,116 ± 21 ms, MOLLI = 1,002 ± 21, P < 0.001), post-contrast T₁ (Multimapping = 479 ± 31 ms, MOLLI = 426 ± 27 ms, 0.001), ECV (Multimapping = 21.5 ± 1.9%, MOLLI = 23.7 ± 2.3%, P = 0.001), and native T₂ (Multimapping = 48.0 ± 3.0 ms, T₂bSSFP = 53.9 ± 3.5 ms, P < 0.001) was observed. The image quality for Multimapping was scored as higher for all mapping techniques (native T₁, post-contrast T₁, ECV, and T₂bSSFP) compared to the clinical reference techniques. The inter- and intra-observer agreements were excellent (intraclass correlation coefficient, ICC > 0.9) for most measurements, except for inter-observer repeatability of Multimapping native T₁ (ICC = 0.87), post-contrast T₁ (ICC = 0.73), and T₂bSSFP native T₂ (ICC = 0.88). Multimapping shows high correlations with clinical reference mapping techniques for T₁, T₂, and ECV in a diverse cohort of patients with different cardiovascular diseases. Multimapping enables simultaneous T₁ and T₂ mapping and can be performed in a short breath-hold, with image quality superior to that of the clinical reference techniques.

Introduction

Myocardial T₁ and/or T₂ values are altered in many cardiovascular diseases (1). T₁ and T₂ quantification, along with disease-specific patterns of regional and global distribution, can be captured with myocardial mapping techniques (2). In the last 15–20 years, a number of T₁ and T₂ mapping techniques have been published, with different strengths and weaknesses in terms of quantification accuracy, precision, scan time, spatial resolution, and coverage (3). Despite being one of the first T₁ mapping techniques, the modified Look-Locker inversion recovery (MOLLI) remains the most clinically used method due to its high precision and availability on all major scanner platforms (4, 5). However, MOLLI T₁ accuracy is relatively low, and the quantification is susceptible to confounding effects from heart rate or T₂-dependent variability, magnetization transfer effects, motion artifacts, and system imperfections (5, 6). Different T₁ mapping methods have been proposed to address these shortcomings, yet have failed to make significant inroads in the market share of clinical use (7–11). Myocardial T₂ mapping can be performed with multi-echo spin-echo or T₂-prepared balanced steady-state free precession (T₂bSSFP) techniques (12–14). The latter approach is likely the most widely used clinically due to its relative robustness to physiological motion.

In recent years, there has been a growing interest in techniques to simultaneously map T₁ and T₂ in a single scan (15–21). Advantages of this approach compared to conventional mapping, which is performed separately for T₁ and T₂, are that the images are intrinsically spatially aligned, scan time is typically shorter, and the confounding effects of T₁ or T₂ on the quantification of the opposite parameter are minimized. Despite the many theoretical advantages of simultaneous T₁ and T₂ mapping, there is a paucity of translational studies using these techniques in patients with cardiovascular disease (22, 23). This may be due to the more sophisticated acquisition, reconstruction, and mapping strategies necessary for such techniques, which pose challenges for clinical translation. Recently, a new technique for simultaneous T₁ and T₂ mapping, termed Multimapping, was proposed using a standard Cartesian trajectory and evaluated (primarily) in healthy subjects (24). Due to its simplicity, Multimapping may be readily applied in a clinical setting to enable the evaluation of simultaneous T₁ and T₂ mapping in patients with cardiovascular disease.

The primary aim of this study is to validate Multimapping T₁ and T₂ values against clinical reference techniques in patients with different cardiovascular diseases in terms of parameter quantification and image quality. The secondary aim of this study is to evaluate Multimapping intra- and inter-observer variability.

Materials and methods

Study population

All patients provided written informed consent prior to participation, and the study was approved by the local ethics committee (Linköping Regional Ethics Committee, 2015/396–31) and conducted according to the Declaration of Helsinki. Patients referred for CMR at Linköping University Hospital between June and November 2021 were considered for inclusion in this study. In total, 47 patients were recruited. Datasets from three patients were excluded, two because no late gadolinium enhancement (LGE) images were acquired and one due to excessive fold-over artifacts. Clinical characteristics of the remaining patients can be seen in Table 1. Of the included patients, normal cardiac MRI scan was found in 15 (34.1%) patients, myocarditis in 11 (25%) patients, dilated cardiomyopathy (DCM) in 6 (13.6%) patients, ventricular hypertrophy (hypertrophic cardiomyopathy or hypertrophy of unknown origin) in 5 (11.4%) patients, ischemic myocardial injury (acute/recent or old) in 3 (6.8%) patients, arrhythmogenic right ventricular cardiomyopathy in 2 (4.5%) patients, pericarditis in 1 (2.3%) patient, and congenital heart disease in 1 (2.3%) patient.

TABLE 1

Table 1. Clinical characteristics.

Data acquisition and reconstruction

All scans were performed on a 1.5T Philips clinical CMR scanner (Philips Healthcare, Best, The Netherlands) using a 28-channel torso coil. The Multimapping pulse sequence and post-processing steps are illustrated in Figure 1. Ten single-shot images are acquired across consecutive cardiac cycles using balanced steady-state free precession (bSSFP) readouts, triggered to the mid-diastolic rest period. Adiabatic inversion radiofrequency (RF) pulses with delay times of 300 ms are performed in the 1^st and 5^th cardiac cycles to improve T₁ sensitization. The inversion pulse used a hyperbolic secant shape, had a duration of 8.4 ms, and a B₁ amplitude of 13.5 μT. A previous study has shown that similar settings yield an inversion efficiency of approximately 0.89 (25), which was assumed for this study. T₂ preparation modules with hard 90° RF pulses and four adiabatic refocusing RF pulses are performed in the 8^th, 9^th, and 10^th cardiac cycles to improve T₂ sensitization using echo times of 30, 50, and 70 ms, respectively. The Multimapping imaging parameters for all experiments are: field of view = 320 × 320 mm, spatial resolution = 2 × 2 mm, slice thickness = 10 mm, nominal flip angle = 50°, bandwidth = 1,076 Hz/pixel, TR = 2.3 ms, TE = 1.2 ms, SENSE factor = 2, linear profile order. Ten startup RF pulses are used with linearly increasing flip angles. The Multimapping scan was acquired in a mid-ventricular short-axis slice (except in one patient which was mistakenly acquired in a four-chamber view) during a breath-hold. Native Multimapping was acquired in all 47 patients, and post-contrast Multimapping was performed in 31 patients approximately 15 to 20 min after contrast agent administration (0.2 mmol/kg gadobutrol). Due to clinical prioritization, the post-contrast Multimapping was performed after the acquisition of post-contrast MOLL and LGE.

FIGURE 1

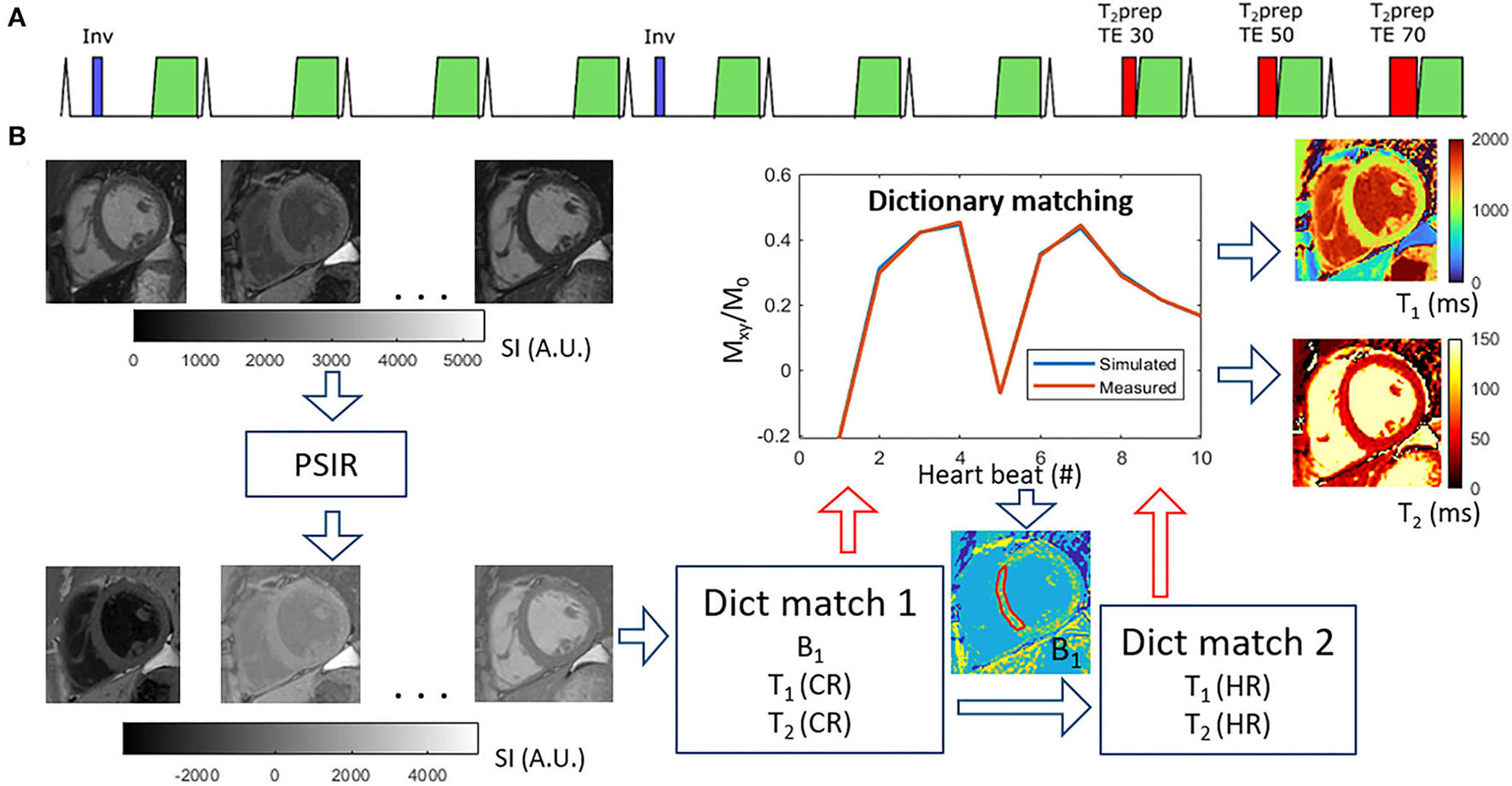

Figure 1. Multimapping pulse sequence (A) and post-processing (B). The pulse sequence consists of ECG-triggered 2D single-shot acquisitions in 10 consecutive cardiac cycles, preceded by inversion pulses in cycles 1 and 5, and T₂prep with different echo times (TE) in cycles 8, 9, and 10. The post-processing involves first performing a phase-sensitive inversion recovery (PSIR) operation to restore the polarity of the signal, followed by an initial dictionary matching (Dict match 1) to estimate a global B₁ correction factor based on an ROI in the myocardial septum. The dictionary matching finds the pixel-wise closest match between acquired data and the simulated acquisition (with scan-specific delays) for different T₁, T₂, and RF scaling factor (B₁) combinations. A second dictionary matching step (Dict match 2) is then performed for only T₁ and T₂ with high temporal granularity (1 ms resolution) to generate the final T₁ and T₂ maps.

All Multimapping source images were reconstructed on the scanner and transferred to an offline workstation (Intel Core i7-8565U 1.80 GHz processor with 16Gb RAM) to generate T₁ and T₂ maps using MATLAB R2021b (The MathWorks, Natick, MA). The MATLAB code used to generate the maps, including example Multimapping source images from one subject, is available at https://github.com/Multimapping/Matlab_files. Since blood samples were not available for all patients, Multimapping synthetic ECV maps were generated using synthetic hematocrit values, based on the native MOLLI left ventricular blood pool measurements, as previously outlined (26). Image registration using a rigid body transformation was applied to spatially align the native and post-contrast T₁ maps prior to ECV calculation.

MOLLI was acquired in all 47 patients and T₂bSSFP was acquired in 45 patients, in the same slice as Multimapping and used as clinical reference techniques for T₁ and T₂ mapping, respectively. All imaging parameters for the reference techniques (field of view, spatial resolution, etc.) were the same as for Multimapping, except for the flip angle which was 35°. MOLLI was acquired with the 5 (3s) 3 scheme and used the same adiabatic inversion pulse as Multimapping. T₂bSSFP was acquired with four images at different T₂ preparation echo times (0, 23, 46, and 70 ms) and used 3 pause cardiac cycles between each image. Furthermore, T₂bSSFP used the same RF pulse types for the T₂ preparation module as Multimapping. The reference maps were reconstructed on the scanner using vendor-provided inline mapping algorithms, except for the ECV maps which were generated offline using MATLAB. Similar to Multimapping, synthetic ECV maps were generated using a synthetic hematocrit value derived from the left ventricular blood pool T₁ measured in the native MOLLI image. As for Multimapping, image registration was applied to native and post-contrast MOLLI T₁ maps before ECV was calculated. LGE imaging parameters were TR/TE = 5.6/2.0 ms, flip angle = 25°, FOV = 350 × 350 mm², spatial resolution = 1.8 × 1.8 mm².

Image analysis

T₁ (native and post-contrast), T₂ (native), and ECV measurements were made by drawing manual regions of interest (ROIs) in all datasets. To compare Multimapping to the clinical reference techniques, two sets of myocardial measurements were performed, one targeting any diseased myocardium and one targeting healthy myocardium. For the measurements of diseased myocardium in all maps, ROIs were drawn in the area corresponding with the most prominent positive LGE findings of each patient. Since only a subset of patients had positive LGE findings in the imaged slice, this resulted in 21 measurements for native T₁ and T₂ and 12 measurements for post-contrast T₁ and ECV. For the measurements of healthy myocardium in all maps, ROIs were drawn in the area remote of any LGE abnormality and preferentially in the interventricular septum if it was free of abnormal LGE. Patients were excluded from this analysis if there were indications suggestive of global or diffuse myocardial disease. The measurements in the healthy myocardium were performed in a total of 19 patients for native T₁, 12 patients for T₁ post-contrast and ECV, and 18 patients for T₂.

Measurements were performed in all patients by one observer (CJ, 1 year of CMR experience). To allow intra-observer variability analysis, measurements were repeated in 23 patients by the same observer 2 weeks later. For inter-observer variability analysis, the same 23 patients were measured by two additional observers (MH and CJC with 14 and 21 years of CMR experience, respectively). Furthermore, to compare blood T₁ (native and post-contrast), ROIs were drawn in the left ventricular blood pool (avoiding any papillary muscles) in the Multimapping T₁ and MOLLI images.

The image quality of the acquired maps was qualitatively compared using a Likert scale as devised by Jaubert et al. (22) with the following categories: 1 = uninterpretable, 2 = poor definition of edges, significant noise and/or residual artifacts, 3 = mildly blurred edges, mild noise and/or residual artifacts, 4 = slightly blurred edges, minor residual artifacts, and 5 = negligible blurring or residual artifacts. Visual scoring was performed for T₁ (native and post-contrast), T₂ (native), and ECV separately using the different mapping techniques, and this analysis was performed in 20 patients. The visual scoring was performed by consensus of two blinded observers (CJ and CJC).

Statistical analysis

Continuous variables are expressed as mean ± SD. Categorical variables are expressed as counts and percentages. For the remote measurements, two-tailed Student's paired t-tests were performed to compare Multimapping to MOLLI for native T₁, post-contrast T₁, and ECV, and Multimapping and T₂bSSFP for native T₂. For the remote measurements, all parameters tested positive for normality using a Shapiro–Wilk test. Bland–Altman and correlation plots were used to evaluate the agreement and correlation, respectively, between Multimapping and the reference techniques of the measurements in diseased myocardium for native T₁, post-contrast T₁, ECV, and native T₂. To investigate any heart rate dependency for the mapping techniques, the measurements of the remote myocardium were correlated with the heart rate at the time of the scan. Similarly, dependency on T₂ for T₁ (and vice versa) was evaluated by correlating remote T₁ with T₂ for both Multimapping and the reference techniques, and testing for statistical significance. To account for multiple comparisons, Bonferroni correction was performed on the threshold for all significance tests. Since four comparisons were performed (native and post-contrast T₁, native T₂, and ECV), a threshold of 0.05/4 = 0.0125 was used. Intra-observer repeatability and inter-observer repeatability were assessed with intraclass correlation coefficient (ICC) analysis. ICC was calculated using absolute agreement two-way mixed model. Statistical analysis was performed using IBM SPSS Statistics, version 27.0.

Results

Representative parameter maps acquired with Multimapping, reference techniques, and LGE in a patient with no cardiovascular disease findings are shown in Figure 2. Parameter maps from a patient with myocarditis are shown in Figure 3, with prominently altered quantitative values seen in both Multimapping and reference techniques. The final example, in Figure 4, shows parameter maps from a patient with myocardial infarction with a clearly delineated area of infarction in the Multimaps, correlating with LGE. Multimaps for all patients can be downloaded from https://github.com/Multimapping/Patient_study/raw/main/MapReconstructions.pdf.

FIGURE 2

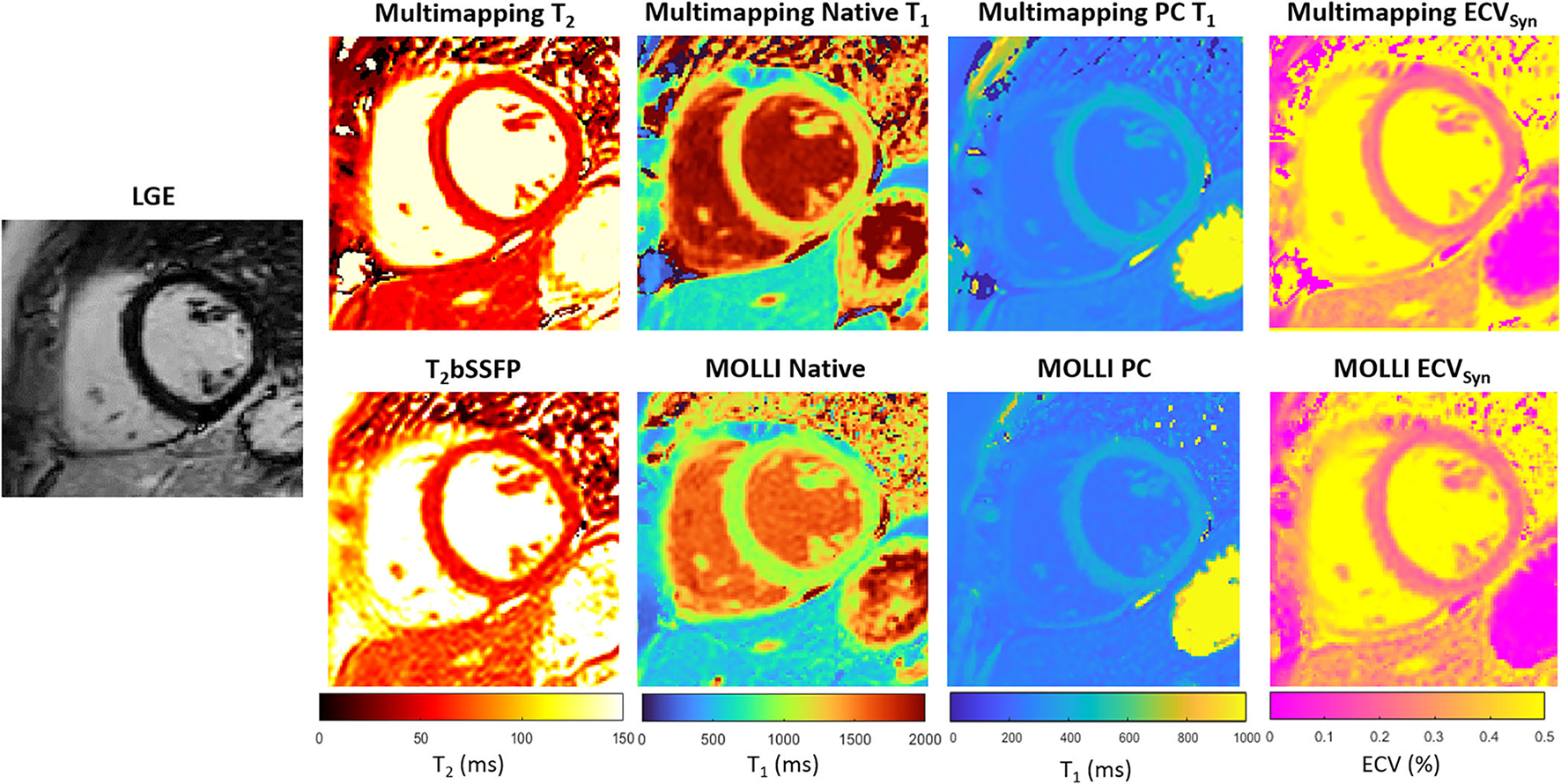

Figure 2. LGE and parameter maps (native T₂, native T₁, post-contrast T₁, and ECV) are shown for a patient with no cardiovascular disease findings. The parameter maps were acquired using either Multimapping (top row) or reference techniques (bottom row). Septal T₂ was 49.6 ms and 56.7 ms for Multimapping and T₂bSSFP, respectively. Septal (native/post-contrast) T₁ was 1,144/422 ms and 1,003/381 ms for Multimapping and MOLLI, respectively. Septal ECV was 24.9 and 23.8% for Multimapping and MOLLI, respectively.

FIGURE 3

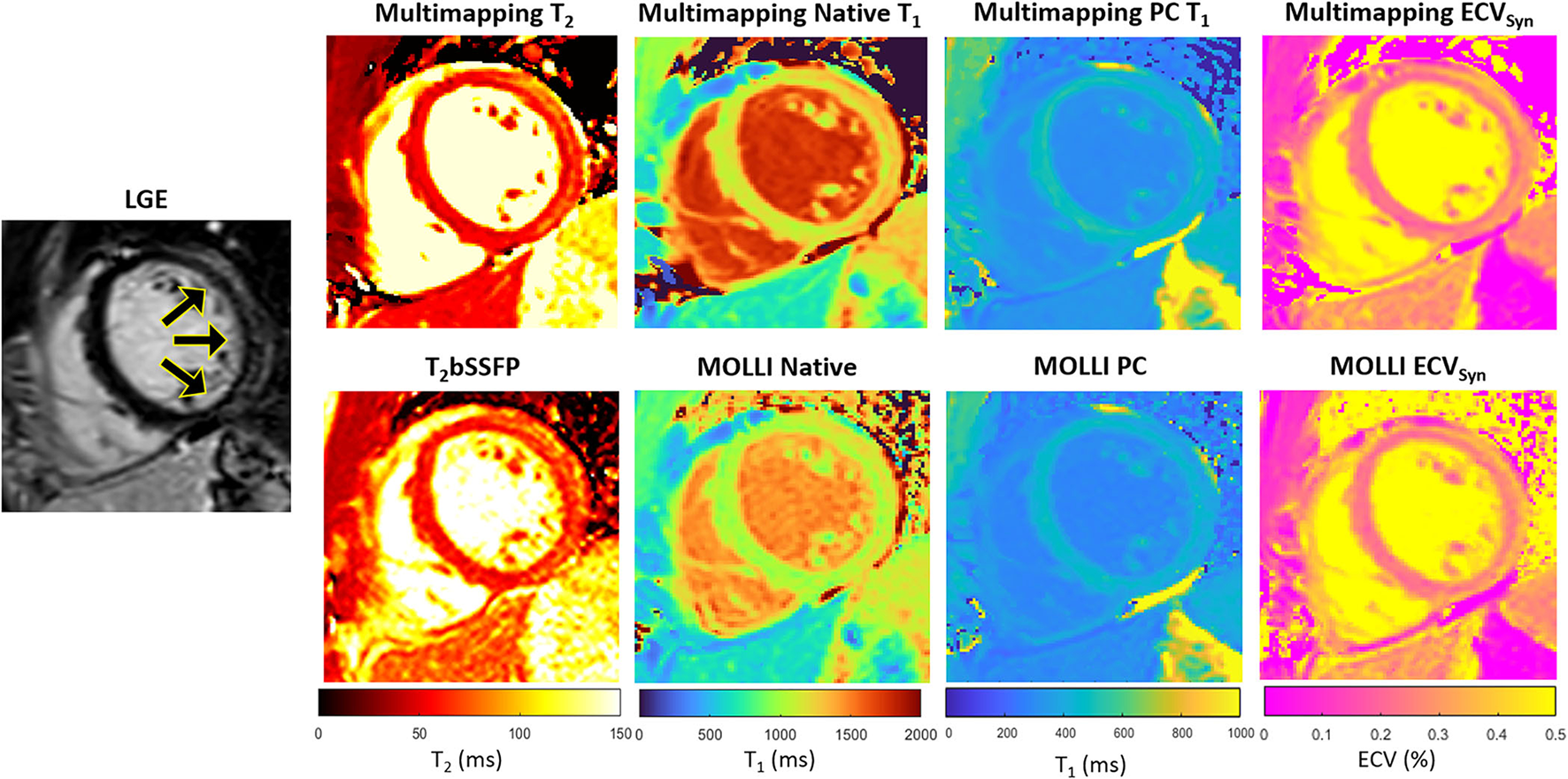

Figure 3. LGE and parameter maps in a patient with myocarditis, as indicated by the increased signal in the lateral wall in the LGE and also apparent as altered values in the parameter maps (Multimapping: top row, reference techniques: bottom row). Measurements in the area of enhancement (lateral wall) yielded T₂ of 65.7 ms and 62.4.6 ms for Multimapping and T₂bSSFP, respectively. T₁ values (native/post-contrast) in the same area were 1,286/446 ms and 1,111/423 ms for Multimapping and MOLLI, respectively. ECV was 26.6 and 28.3% in the enhanced area for Multimapping and MOLLI, respectively.

FIGURE 4

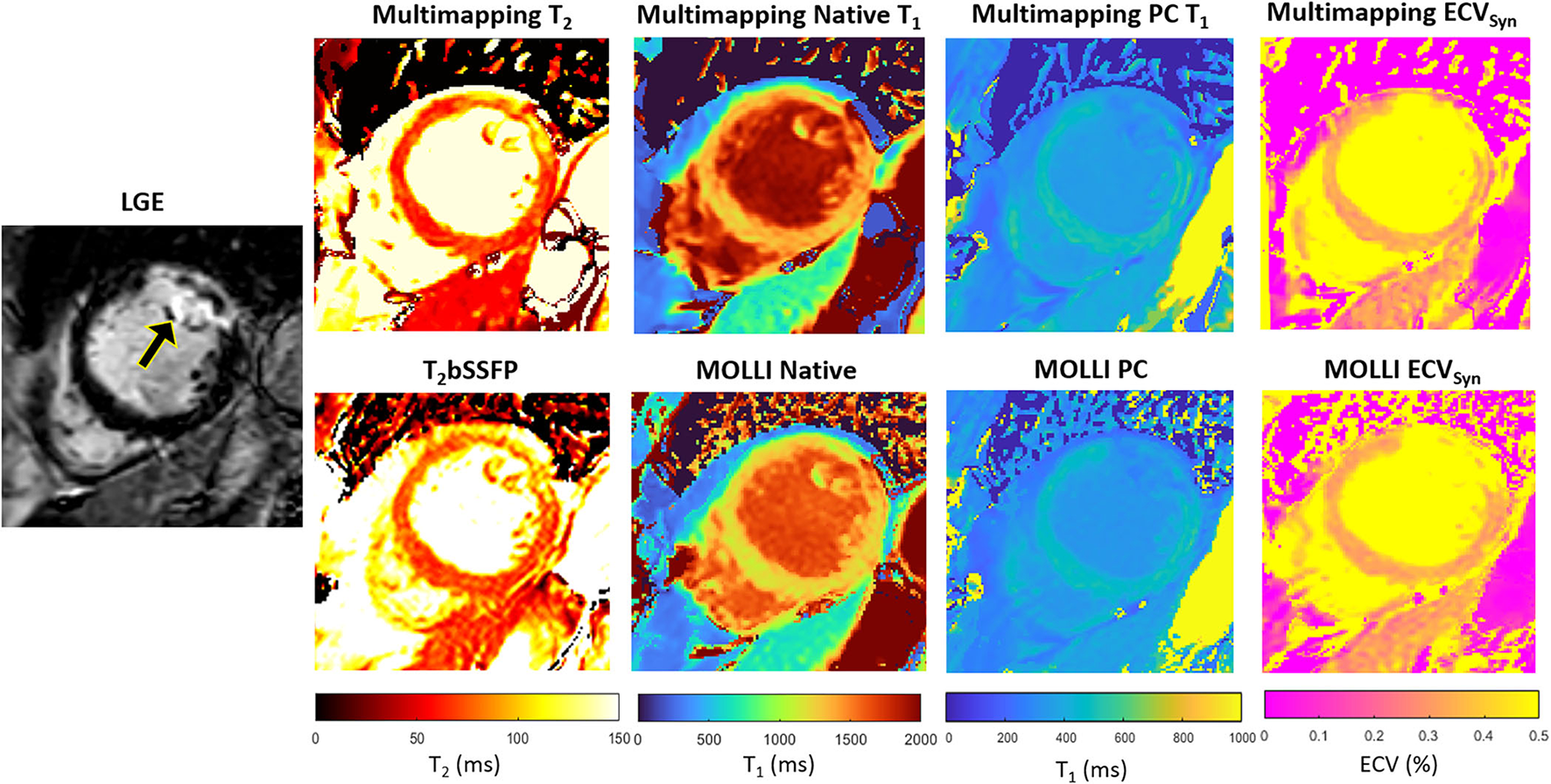

Figure 4. LGE and parameter maps in a patient with myocardial infarction, clearly visualized using all techniques, both native and post-contrast. Measurements in the area of enhancement (anterolateral segment) yielded T₂ of 90.5 ms and 88.6 ms for Multimapping and T₂bSSFP, respectively. T₁ values (native/post-contrast) in the same area were 1,516/355 ms and 1,440/338 ms for Multimapping and MOLLI, respectively. ECV was 33.3% and 33% in the enhanced area for Multimapping and MOLLI, respectively.

Comparison of Multimapping and reference techniques in remote myocardium

The Multimapping native T₁ was 1,116 ± 21 ms and for MOLLI 1,002 ± 21 ms, resulting in a statistically significant bias of 114 ms (P < 0.001). Multimapping post-contrast T1 was 479 ± 31 ms and for MOLLI 426 ± 27 ms, yielding a bias of 53 ms which was statistically significant (P < 0.001). Multimapping ECV was 21.5 ± 1.9%, and MOLLI ECV was 23.7 ± 2.3%, resulting in a bias of −2.2% which was statistically significant (P = 0.001). Multimapping native T₂ was 48.0 ± 3.0 ms while T₂bSSFP was 53.9 ± 3.5 ms, a statistically significant bias of –.9 ms (P < 0.001) (Figure 5).

FIGURE 5

Figure 5. The two top rows show the correlation analysis of heart rate dependency to T₁ (native and post-contrast), ECV, and T₂. The bottom row shows the correlation analysis between native T₁ and T₂.

There was no correlation between native T₁ and T₂ for neither Multimapping nor MOLLI and T₂bSSFP. Multimapping T₁ (native and post-contrast), T₂, or ECV and MOLLI T₁ (native and post-contrast) or ECV did not correlate with heart rate either. However, T₂bSSFP showed a correlation with heart rate (P < 0.001) (Figure 5).

Comparison of Multimapping and reference techniques for diseased myocardium

In general, the correlation between Multimapping and the clinical reference techniques was very strong (r² > 0.7) for most variables (Figure 6). A strong correlation coefficient (r² > 0.5) was found between Multimapping and MOLLI for myocardial T₁ post-contrast (r² = 0.66) and blood T₁ post-contrast (r² = 0.53).

FIGURE 6

Figure 6. Correlation and Bland–Altman plots comparing Multimapping (MM) to MOLLI and T₂bSSFP. For the correlation plots, black and gray lines indicate line of best fit, and the dotted lines show the identity lines. The black lines indicate bias in the Bland–Altman plots. Correlation coefficient (r²) is reported in the correlation plots and mean difference, and lower and upper limits of agreement (1.96 SD) in the Bland–Altman plots.

Inter- and intra-observer variability

The myocardial measurements and measurements of the left ventricular blood pool for intra-repeatability assessment showed excellent repeatability (myocardial ICC > 0.97, LV blood pool ICC = 1.00) (Table 2). The myocardial measurements for inter-repeatability showed moderate to excellent repeatability (ICC > 0.73) for all mapping techniques. The native and post-contrast T₁ measurements of the blood pool for inter-repeatability showed good to excellent repeatability (ICC > 0.92).

TABLE 2

Table 2. Inter- and intra-observer ICC (95% confidence interval).

Image quality assessment

The image quality was scored significantly higher for Multimapping compared to T₂bSSFP (P < 0.001), MOLLI native T₁ (P = 0.007), MOLLI post-contrast T₁ (P < 0.001), and MOLLI ECV (P < 0.001) (Figure 7).

FIGURE 7

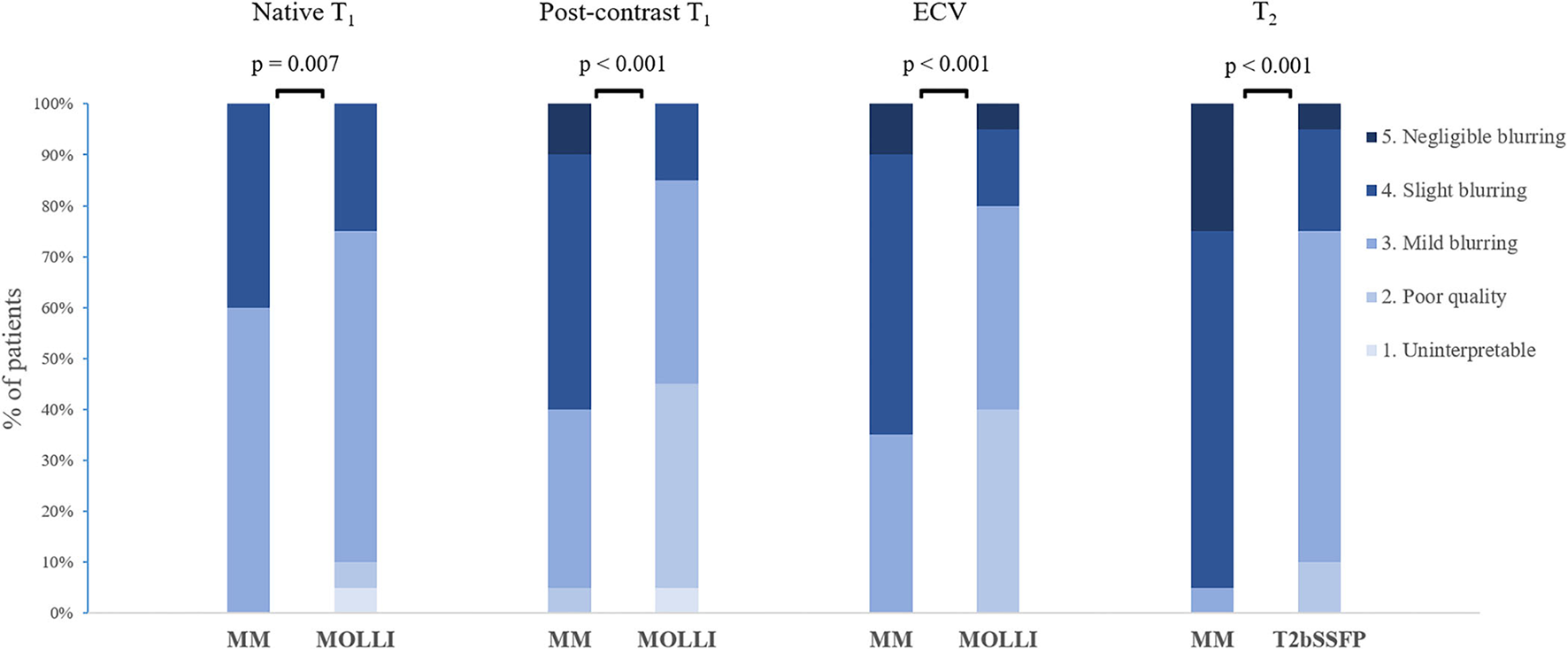

Figure 7. Distribution of image quality scores for Multimapping (MM) and in vivo reference techniques.

Discussion

In this study, a new method for simultaneous T₁ and T₂ mapping was compared to the clinical reference mapping technique in a cohort of patients with cardiovascular disease. We found a strong to very strong correlation between the methods for all measured parameters (native T₁, post-contrast T₁, ECV, and native T₂), while the image quality was considered better using the proposed Multimapping technique compared to the reference methods. Furthermore, intra- and inter-observer variability of Multimapping parameter measurements were in general low and similar to those obtained with the clinical reference techniques.

In segments of healthy/remote myocardium, we measured a mean native T₁ of 1116 ms using Multimapping, more than 100 ms higher than for MOLLI. However, MOLLI is known to significantly underestimate T₁ when compared to more accurate methods such as SASHA (5), which typically yields native T₁ of around 1,200 ms at 1.5T (7, 27). The native T₁ Multimapping values are also in line with the previous study using this technique in healthy volunteers which measured 1,114 ms (24). For post-contrast T₁ mapping, there was also a significantly longer T₁ using Multimapping (479 ms) compared to MOLLI (427 ms). Although post-contrast T₁ values are more difficult to compare between studies due to differences in contrast agents and the timing of acquisition after injection, previous studies have shown underestimation of post-contrast T₁ for MOLLI compared to more accurate techniques such as SASHA (28, 29). The study by Nordlund et al. (29) also demonstrated that MOLLI overestimates ECV by approximately 4% in healthy volunteers compared to SASHA, the latter technique correlating more closely with radioisotopes in pigs. This suggests that the significantly lower ECV measured in this study with Multimapping (22%) may be more accurate compared to MOLLI (24%). However, the conversion from T₁ to hematocrit was based on the relationship established for MOLLI in a previous study, which may bias measurements if applied to Multimapping synthetic ECV. For Multimapping synthetic ECV to be used independently of MOLLI, then the relationship between Multimapping blood T₁ and hematocrit should be established. Alternatively, the hematocrit could be directly measured to calculate Multimapping ECV without the need for a MOLLI acquisition. Correlation of T₁ and T₂ values with potential confounding variables such as heart rate or the opposite (T₂ or T₁) parameter did not show any particular dependency for Multimapping in this regard. However, T₂bSSFP appeared to be inversely correlated with heart rate. This suggests additional delayed cardiac cycles may be required to yield less biased T₂ values for high heart rates. Conversely, Multimapping may be a more robust approach for T₁ and T₂ mapping at higher heart rates as no additional modification of the pulse sequence is required.

In the measurements of myocardial segments with disease, we found a high correlation between Multimapping and the clinical reference techniques for native T₁ (blood and myocardium), T₂, and ECV. While correlations for post-contrast T₁ (blood and myocardium) were more moderate, this may be explained by the confounding factor of time after injection, which affect the T₁ measurements. Furthermore, measured post-contrast T₁ in this study had a narrower range for both Multimapping and MOLLI compared to native T₁ which can contribute to a weaker correlation between techniques. Nevertheless, a very strong correlation between Multimapping and reference techniques for native T₁, T₂, and ECV indicates that Multimapping is a useful technique that can be used to detect disease.

Dictionary-based mapping techniques such as Multimapping typically assume that there is no through-plane motion, which is not the case for flowing blood. Such through-plane motion leads to T₁ overestimation as inflowing spins have seen fewer RF pulses and are therefore less saturated. This can explain the observed overestimation of blood (particularly native) T₁ relative to MOLLI. However, it should also be noted that, due to the strong correlation for native blood T₁ blood between Multimapping and MOLLI, the Multimapping technique can likely still capture variability in blood T₁ (due to, e.g., different hematocrit levels) with a similar sensitivity as MOLLI.

The image quality was superior using Multimapping compared to all clinical reference techniques. This could be due to the higher flip angle of 50° using Multimapping, compared to MOLLI and T₂bSSFP which both use a flip angle 35°, with otherwise identical imaging parameters to Multimapping. A higher flip angle for bSSFP-based mapping techniques leads to a higher signal-to-noise ratio which typically contributes to improved image quality. The shorter duration of Multimapping (10 beats) compared to both MOLLI (11 beats) and T₂bSSFP (16 beats) means that Multimapping is less prone to respiratory motion-induced misalignment, which may also contribute to a better image quality. While the Multimapping and MOLLI pulse sequences are very similar (both inversion recovery with bSSFP readouts), Multimapping benefits from phase-sensitive inversion recovery post-processing step which has been shown to improve T₁ map image quality compared to fitting with magnitude images (30), used in the vendor-provided fitting algorithm for MOLLI. Compared to Multimapping, T₂bSSFP uses significantly fewer source images for T₂ mapping, and while only three T₂ preparation modules are included in the Multimapping pulse sequence, the bSSFP readout is intrinsically T₂/T₁ weighted which contributes to the T₂ sensitivity and may explain the improved image quality.

The intra- and inter-observer repeatability analysis showed an excellent repeatability for most measurements using both Multimapping and reference techniques. While Multimapping post-contrast myocardial T₁ inter-observer ICC of 0.73 was relatively low compared to that of MOLLI (ICC = 0.95), post-contrast T₁ mapping is primarily used to generate ECV maps, and here, Multimapping and MOLLI yielded near identical ICC values of 0.94 and 0.93, respectively.

Comparison with other simultaneous T₁ and T₂ mapping techniques

Several simultaneous T₁ and T₂ mapping techniques have been proposed over the last years, comparable to Multimapping. Published studies using similar methods in healthy volunteers are summarized in Table 3, including Multimapping (24). Multimapping has a shorter scan duration than nearly all other simultaneous T₁ and T₂ mapping techniques, requiring 10 beats, which is also shorter than both MOLLI and T₂bSSFP. As many patients with cardiovascular diseases struggle to hold their breath for an extended period, reducing the scan time of mapping techniques is important and has been the focus of several studies (11, 38). This is also in line with the endeavor of utilizing less time-consuming CMR protocols in order to improve the adoption of CMR in routine cardiovascular practice. Inversion recovery magnetization preparation pulses are often used for myocardial T₁ mapping as they increase quantification precision compared to saturation recovery (5), using the full dynamic range of the longitudinal magnetization, at the expense of accuracy as inversion pulses are more sensitive to confounding elements such as magnetization transfer and transverse relaxation during the pulses, which reduce their efficiency (6, 25, 39). Therefore, saturation recovery technique measurements are generally considered to be closer to the “true” in vivo T₁ times, typically several 100 ms higher than MOLLI on either 1.5T and 3T scanners. In this regard, Multimapping, which uses inversion recovery, generates T₁ values in healthy/remote myocardium of 1,116 ms, which is closer to the saturation recovery-based techniques (of approximately 1,200 ms) than MOLLI (approximately 1,000 ms) or the most comparable simultaneous T₁ and T₂ mapping studies, Blume et al. (15) and Jaubert et al. (33), which report a myocardial T₁ of 1,017 ms and 1,045 ms, respectively. This may be due to the assumed lower inversion efficiency of 0.89 for the inversion pulses, incorporated into the Multimapping signal model, which is likely closer to the true inversion efficiency than assuming perfect efficiency. However, the inversion efficiency potentially varies between field strengths and vendors, or even spatially across an image due to B₀ and B₁ inhomogeneity. Furthermore, the current Multimapping technique does not consider magnetization transfer. To yield more accurate T₁ values, reproducible across scanner platforms, these confounding effects should be included in the Multimapping signal model, preferably on a pixel-wise basis, although this will likely negatively impact the precision.

TABLE 3

Table 3. Comparable published simultaneous T₁ and T₂ mapping techniques.

It can be difficult to precisely pinpoint the sources of differences in T₁ and T₂ values for the different techniques outlined in Table 3, particularly as many techniques rely on the unconventional acquisition, reconstruction, and mapping strategies. These include, for example, non-Cartesian (radial or spiral) trajectories with iterative reconstruction algorithm, coupled with sophisticated and advanced mapping techniques which may be difficult to reproduce. In contrast, the Multimapping pulse sequence consists of a MOLLI-like acquisition scheme (inversion recovery with Cartesian single-shot 2D bSSFP readout) which are available on all major vendor platforms, with the addition of T₂prep modules which have also been implemented on all vendor platforms. For transparency, the Multimapping parameter mapping method using dictionary matching has been provided open source to enable reproduction of this technique by other investigators which may also enable direct comparison of Multimapping with other simultaneous T₁ and T₂ mapping techniques.

Limitations

This study has several limitations: no respiratory motion correction was performed. Correcting for respiratory-induced image misalignment is important even for breath-held scans and can be achieved using image registration (40). Although image registration could be readily applied to Multimapping source image to this end, this was not performed in order to have a fair comparison with MOLLI and T₂bSSFP maps which were generated using inline vendor algorithm without motion correction. A second technical limitation of Multimapping is that manual interaction is required to define an ROI in the myocardial septum for the B₁ estimation. However, this is a relatively simple step, comparable to the input required to define ROIs for ECV maps. Further work is required to automatize this step or to incorporate B₁ in the high-resolution T₁ and T₂ dictionary matching, which would obviate the need for any manual interaction but with a potential penalty to the precision. A study limitation is that the patient cohort consisted of a small, heterogeneous population of patients with various cardiovascular diseases and performed on a single 1.5T Philips scanner. Further studies are required to evaluate the performance of Multimapping at 3T and using other vendors. The evaluation of heart rate dependence of the mapping techniques was limited by the relatively narrow heart rates of nearly all patients (only one with heart rate over 100 bpm).

Conclusions

Multimapping T₁ and T₂ values show high correlations with clinical reference mapping techniques in a diverse cohort of patients with different cardiovascular diseases. Multimapping enables simultaneous T₁ and T₂ mapping and can be performed in a short (10 cardiac beats) breath-hold, with image quality superior to that of the clinical reference techniques.

Data availability statement

The dataset presented in this study can be found in online at: https://github.com/Multimapping/Patient_study/raw/main/MapReconstructions.pdf.

Ethics statement

The studies involving human participants were reviewed and approved by Linköping Regional Ethics Committee. The patients/participants provided their written informed consent to participate in this study. Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.

Author contributions

MH and C-JC conceived of the study. MH developed the methods, acquired the data, and performed image reconstruction and processing. MH, CJ, and C-JC analyzed the data. All authors participated in revising the manuscript, read, and approved the final manuscript.

Funding

The research leading to these results has received funding from the Swedish Medical Research Council [2018-02779], the Swedish Heart and Lung Foundation [20170440], ALF Grants Region Östergötland [LIO-797721], and the Swedish Research Council [2018-04164].

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
