- 1Department of Cardiovascular Diseases, Tongji Hospital Affiliated to Tongji Medical College, Huazhong University of Science and Technology, Wuhan, China
- 2School of Humanities and Social Sciences, University of Science and Technology of China, Hefei, China
Aims: This study intends to explore the research focus and trends of fulminant myocarditis (FM) to have a better understanding of the topic.
Materials and methods: The data were downloaded from the Web of Science (WoS) database using the topic (TS) advanced search strategy. Many instruments were used to extract, analyze, and visualize the data, such as Microsoft Excel, HistCite Pro, GunnMap, BibExcel, and VOSviewer.
Results: From 1985 to 2022, 726 documents were indexed in the WoS. The United States and Columbia University were the most productive country and institutions. Keywords co-occurrence was carried out and four research themes were identified. In addition, the top three prolific authors, the first three highly cited authors, and the core authors of the author co-citation network were identified. The topics that they kept an eye on were analyzed, and the research areas of key authors were similar to the results of keyword co-occurrence. The hot topics of FM were related to the mechanical circulatory support, etiology, diagnosis, and the disease or therapy associated with FM.
Conclusion: This study carried out a systematic analysis of the documents related to FM from 1985 to 2022, which can provide a guideline for researchers to understand the theme trend to promote future research to be carried out.
Introduction
Myocarditis can be divided into two categories, fulminant myocarditis (FM) and non-fulminant myocarditis (NFM), which is based on the medical history, clinical manifestation, physical examination, examination result, and test result (1). FM is the most serious and special type of myocarditis, which is characterized by its acute and explosive nature (1, 2). FM is a sudden-onset and life-threatening disease and has a high fatality rate. The study indicated that the mortality rate of FM was more than 50%, though FM only occupied approximately 10–38% of all cases of acute myocarditis (2–4).
Fulminant myocarditis can be caused by viruses, bacteria, and non-infectious origins, and the virus is the main etiology (2). Several specific conditions may result in FM, such as lymphocytic myocarditis, giant cell myocarditis, eosinophilic myocarditis, and immune checkpoint inhibitors (ICI)-associated myocarditis (3, 5, 6). Coronavirus has been also reported to be associated with FM. For example, studies showed that OC43 subtype coronavirus and coronavirus disease (COVID-19) are related to FM (7, 8). Besides, studies indicated that the influenza A (HINI) pandemic was related to a high prevalence of FM (9, 10).
Fulminant myocarditis is difficult to diagnose, because the manifestations are often atypical, such as chest pain, arrhythmia, and dyspnea (11). In addition, most patients with FM are often younger and healthier and are easy to be ignored (3). FM can lead to cardiovascular damage and ventricular dysfunction (1, 12), presenting with cardiogenic shock, progressive hemodynamic, and fatal arrhythmia (13, 14). The above manifestations may occur about 2 weeks after virus infection, which may be life-threatening for patients (3, 15). The patients can be rescued if they receive therapy in time. For example, mechanical circulatory support is an effective therapy for FM (2, 16). Early recognition, diagnosis, and treatment are very important, which is the basis of favorable outcomes (17). It is important to note that although the early mortality of FM is high, the long-term prognosis of FM is still controversial. Some studies reported that the long-term prognosis is better than patients with acute myocarditis once patients pass the acute crisis. For example, an 11-year study found that patients with FM had a 93% survival rate if they did not receive heart transplantation, while the survival rate of the patients with acute myocarditis was only 45% (12). But some studies show that the outcome of the FM is worse than the NFM (18). For example, a 7-year study found that patients diagnosed with FM with left ventricular systolic dysfunction have higher rates of cardiac death and heart transplantation when compared with patients with NFM. In the future, the researchers need to carry out more parallel studies to explore the outcome difference between FM and NFM, maybe the subtype of FM.
There were reviews of FM, and they were mainly concentrated on the etiology, diagnosis, therapy, or outcome of FM (19, 20). In addition, they often paid attention to a specific topic of FM and did not present an overall result of FM research for readers. As researchers pay more attention to FM, the number of documents published has been increasing, and the research topics have been enriched. Therefore, to understand the research trend of FM deeply, a comprehensive literature analysis needs to be carried out from a bibliometric perspective. Bibliometric analysis is an effective way to explore and analyze large volumes of scientific data (21), and it has been used in various areas (22–24). In this study, the bibliometric method will be used to gain a better understanding of the research on FM based on the Web of Science (WoS) core collection database, which can provide a reference for researchers in the future.
Materials and methods
To analyze and visualize the data collected, Microsoft Excel software, HistCite Pro, GunnMap 2, BibExcel, and the Java program VOSviewer software were used. The workflow of the methodology is shown in Figure 1.
Search strategy
Bibliometric data can be obtained through diverse search engines, such as the WoS database, Scopus database, and PubMed database. The WoS database was used as the scientific research output in this bibliometric study, as it is one of the largest, most reliable, complete, and comprehensive bibliographic databases covering multidisciplinary areas (25). The 2021 JCR covers 26,696 journals across 254 categories, spanning 118 countries.
In this study, information about scientific output was extracted from 6 databases in the Web of Science Core Collection [Science Citation Index EXPANDED (SCI-EXPANDED), Social Sciences Citation Index (SSCI), Conference Proceedings Citation Index-Science (CPCI-S), Conference Proceedings Citation Index-Social Science & Humanities (CPCI-SSH), Current Chemical Reactions (CCR-EXPANDED), and Index Chemicus (IC)]. The key topic used for retrieval in this study is “TS = ((‘Fulminant’) AND (‘Myocarditis’)).”
Inclusive and exclusive criteria
English is a universal language and is easily understood and retained. Therefore, this study has included documents published in English only, and the rest have been excluded from the survey. The majority of documents are either articles or conference proceedings, and it would not make much difference to leave others, so document type has no exclusion. Other parameters, such as open access, author name, subject area, affiliation, funding sponsor, and country, should also not be used to exclude any other document, because they do not affect the selection criteria (26).
To ensure the systematic and accurate retrieval of the article, the search strategy and inclusive and exclusive criteria were determined by the research team member. In addition, this study has carried out a detailed survey of publications related to FM according to inclusive and exclusive criteria by two researchers. If there were any different opinions, the third researcher would participate in the discussion. Finally, 726 documents about FM were collected from its inception to 5 January 2022.
Data analysis and visualization
First, the text format documents containing all the bibliometric information were downloaded from the WoS database. Then, the data analysis and visualization were carried out using various instruments, including the Microsoft Excel software, HistCite Pro, GunnMap 2,1 BibExcel, and the Java program VOSviewer software. HistCite is a software developed to allow researchers to visualize the results of literature searches on the WoS. It helps the users analyze and organize the results of a search to obtain various views of the topic’s structure, history, and relationships (27, 28). BibExcel is a great tool for helping with bibliometric analysis and citation studies in particular (29–31). BibExcel can realize the data extraction, case conversion, synonym disambiguation, formation of the co-word matrix, and visualization of network files. VOSviewer is a software tool for constructing and visualizing bibliometric networks (24, 32). In this study, the Microsoft Excel software and HistCite Pro were used to obtain information concerning publication year, countries, annual output, journals, institutions, authors, language, and most cited documents. GunnMap 2 was selected to depict the world map, presenting publication distribution. In addition, BibExcel and VOSviewer were used to visualize and analyze the co-occurrence network of keywords extracted from the article, the collaboration networks between countries, and co-citation network relationships among authors.
Keyword co-occurrence network
Keyword co-occurrence network (KCN) refers to the statistics and displaying of keywords in the literature, focusing on uncovering the knowledge components and structure of a certain research field by analyzing the link between keywords (26, 33). All keywords were included in this study, including author keywords and keywords plus, and KCN was analyzed by BibExcel and VOSviewer.
Author co-citation analysis
Author co-citation analysis (ACA) defines two authors as co-cited when at least one document from each author’s oeuvre occurs in the same reference list and their co-citation count as the number of different publications that co-cite them in this sense. Ever since it was introduced by White and Griffith in 1981, ACA has been a primary research tool for the study of the intellectual structure of research fields and the social structure of the underlying communities of researchers (34). ACA can be carried out by many software, such as Citespace, NetDraw, Gephi, BibExcel, and VOSviewer. In this study, ACA was achieved by analyzing the references through the BibExcel and VOSviewer software.
Result
The most prolific countries, journals, institutions, authors, and main research category concerning FM and the influential articles in this area were displayed in this part.
Descriptive analysis
After retrieval, 726 documents about FM, indexed in the WoS from 1985 to 2021, were included in this study. The literature included 685 articles (94.35%), 27 proceedings papers (3.72%), 12 early access (1.65%), and 1 book chapter (0.14%).
Publication distribution across time and countries
Figure 2 shows the annual publications from 1985 to 2021 (by 5 January 2022). It was clear that there were limited publications before 2000. The documents began to increase steadily during the period from 2014 to 2021, and documents have grown rapidly since 2019, reaching a peak (102) in 2021. This indicates that the research community has had an increasing interest in FM in recent years. There were 652 (89.8%) documents indexed in the SCI-Expanded, 3 (0.4%) documents indexed in the SSCI, 74 (10.2%) documents indexed in the ESCI, and 27 papers indexed in the CPCI-S (3.7%). No article was indexed in A&HCI and CPCI-SSH.
Figure 2. Growth trend of the Web of Science documents “fulminant myocarditis” research over the last 30 years.
The data indicated that 71 countries/regions participated in research on FM. Figure 3 is a world map with productive countries based on the total number of documents on this theme. There were 49 countries that published only 1–5 articles and 22 countries that published at least 7 articles. The color of each pattern represents the total number of articles published. The more reddish the color of the pattern, the higher the number of total articles (TA) was. The United States, with 217 publications, was the most prolific country in producing articles related to FM, followed by Japan (132 publications), China (76 publications), Germany (65 publications), and France (44 publications). The 22 most productive countries generated 809 articles (111.4%), which indicated that there existed cooperation among nations. To find out the international collaboration networks among countries, country co-authorship network visualization was introduced. Figure 4 shows the collaboration network of countries that had at least one article. The nodes of the United States, Italy, Germany, the United Kingdom, France, and Switzerland were the biggest, which means they had the closest collaboration with other countries. The United States was the most networked country, collaborating with 111 countries, followed by Italy (n = 62), Germany (n = 59), the United Kingdom (n = 59), France (n = 48), and Switzerland (n = 32). This shows that many countries attach great importance to FM and have formed close international cooperation networks, especially in developed countries, which may be related to their relatively advanced medical systems.
Figure 3. (A) Global geographic distribution of the total number of documents by country and (B) the top 10 prolific countries based on the number of publications related to “fulminant myocarditis” research.
Figure 4. Network visualization map of country co-authorships. Thicker lines indicate stronger collaborations. Countries represented with larger circle size or font size had relatively more publications.
Publication analysis based on journals
The 322 source journals publishing articles concerning FM were identified in this study. To evaluate the journals, five major measurement indexes were included in this study, such as the journal impact factor (JIF), TA, and total global citation score (TGCS). The top 20 productive journals are shown in Table 1, which published 231 articles and accounted for 31.8% of the TA on this topic. Circulation Journal (22, 3.0%) was the most prolific journal in this field, followed by the Journal of Heart and Lung Transplantation (19, 2.6%), Annals of Thoracic Surgery (17, 2.3%), and ESC Heart Failure (17, 2.3%). Journals of the American College of Cardiology and Circulation also played an important role because of the huge number of GCSA (153.6) and JIF (29.7), respectively. Besides, there were 12 journals with the JIF not less than 2.5, accounting for 60% of the top 20 prolific journals. In addition, 10 of the top 20 productive journals were from the United States, the others were from Japan, England, Australia, Switzerland, Ireland, and Germany.

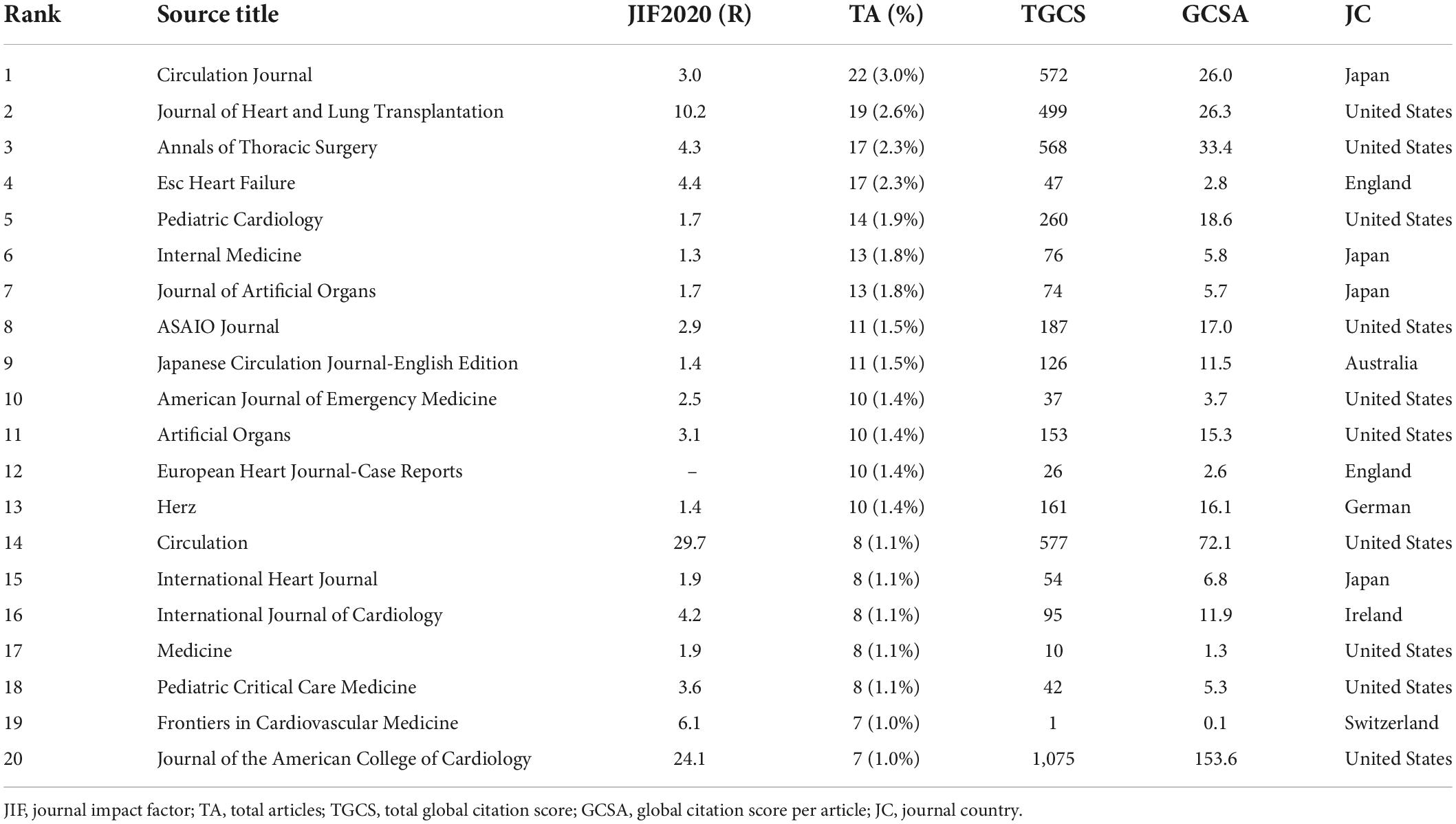

Table 1. Quantitative measurements of journals publishing documents concerning “fulminant myocarditis” research.
Publication analysis based on institutions
The top 20 productive institutions, based on the number of documents concerning FM, are illustrated in Table 2. In terms of the number of articles published, Columbia University (n = 15, 2.1%) ranked first, followed by Huazhong University Science and Technology (13 articles, 1.8%), and National Cerebral and Cardiovascular Center (12 articles, 1.7%). By the way, although some institutes with fewer articles, the TGCS was high. For example, from the perspective of TGCS, Johns Hopkins University was in first place among the top 20 productive institutions, even though the number of articles only ranked eighteenth. Besides, the top 20 most active institutions were from 5 countries, namely, the United States, Japan, China, Italy, and Germany. Notably, 50% of the top 20 institutions were from the United States.
Table 2. Quantitative measurements of institutions publishing articles concerning “fulminant myocarditis” research.
Research-focused analysis by the co-occurrence of keywords and research category
Keywords can reflect the main content of a research area. Therefore, to better understand research priorities and trends, keyword co-occurrence analysis is often performed (25). In this study, keywords with occurrences of five or more were extracted and analyzed. Finally, 201 terms met the inclusion criteria, and the occurrence result is shown in Figure 5. The result showed that there were four clusters, including red cluster (cluster 1), green cluster (cluster 2), blue cluster (cluster 3), and yellow cluster (cluster 4), and the top five representative keywords of each cluster were presented in Figure 6. In addition, the research primarily concentrated on the etiology, diagnosis, and therapy of FM.
Figure 5. Co-occurrence network of the terms with occurrences of 5 or more extracted. The larger circle size or font size indicates a higher occurrence.
To better understand the research area, the top 10 research categories (seen in Figure 7) were analyzed. The cardiac cardiovascular system (309, 42.56%) ranked first, followed by medicine general internal (87, 11.98%), pediatric (77, 10.61%), and surgery (74, 10.19%).
Analysis of top 20 cited articles
The top 20 cited articles, based on total citation (TC), were identified and are shown in Table 3. Among the top three cited articles, two of them were focused on ICI-associated FM (6, 35). The third most cited article was about the outcome difference between FM and NFM, published in 2000 (36). Of the 20 articles, four concentrated on ICI-associated FM (6, 35, 37, 38), published from 2016 to 2018. Of the top 20 cited articles, six were about mechanical support for patients diagnosed with FM (39–44), published from 2001 to 2013. In addition, the 19th article was also about mechanical support, which focused on the application of venoarterial extracorporeal membrane oxygenation (ECMO) in adults, published in 2019 (45). Of the top 20 cited articles, two focused on the outcome or echocardiographic characteristics between FM and NFM (36, 46), both published in 2000. Notably, two articles focused on the COVID-19-associated FM (47, 48), published in 2020. Of the top 20 cited articles, three were about clinicopathological description, recognition, and management of myocarditis (3, 49, 50), and they were ranked 7th, 15th, and 18th, respectively. The 7th article was published in 1991 (49), the 15th article was published in 2020 (3), and the 18th article was published in 2019 (39). The other two articles explored the relationship between enterovirus infection and myocarditis (36) and the management of myocarditis induced by clozapine (37), respectively.

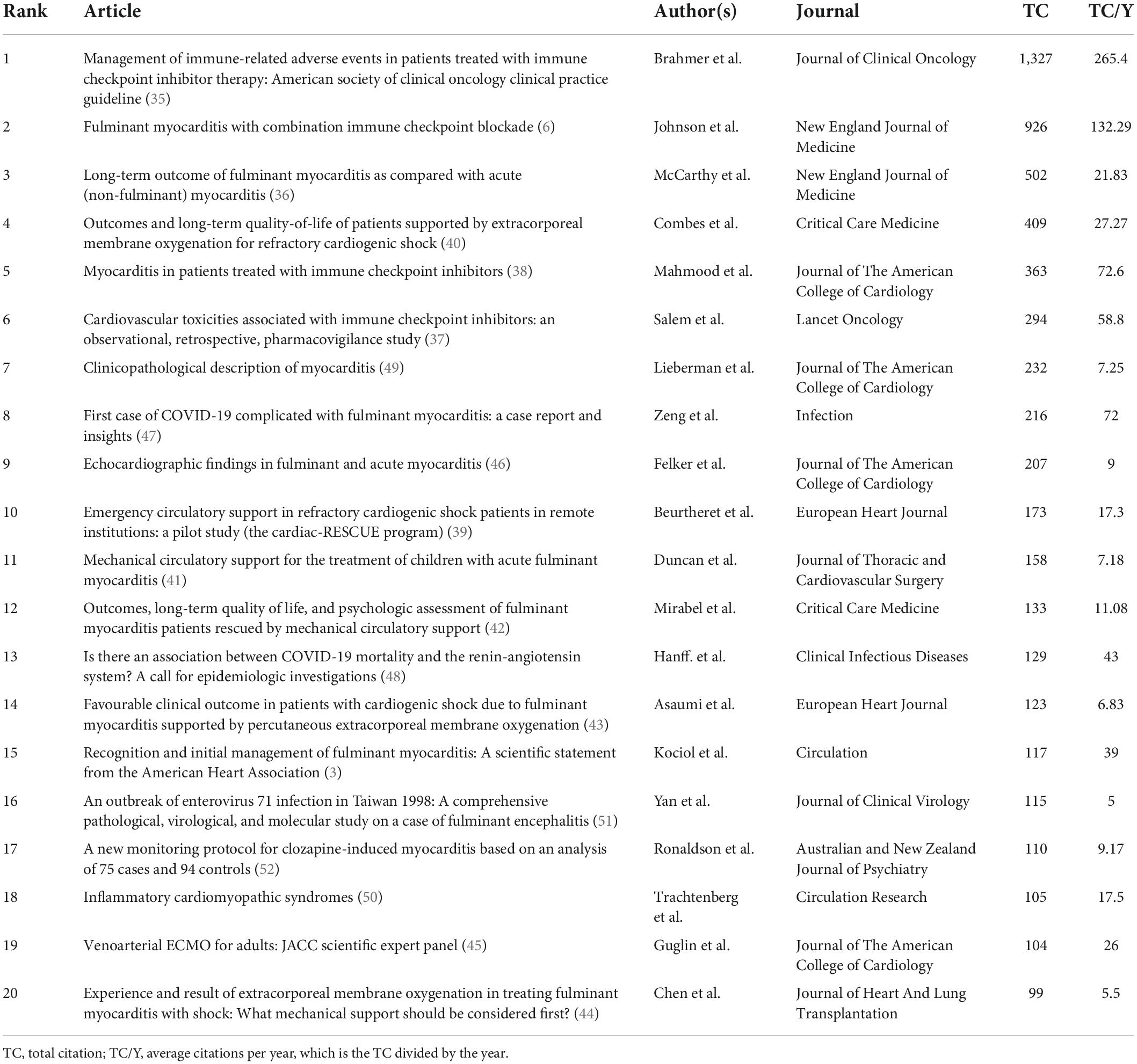

Table 3. Top 20 cited articles on “fulminant myocarditis” research from the inception of the searched databases to 2022.
Among the top 20 articles, 11 were published earlier and were all before 2015, which may be contributed to the high citation. The other nine articles were published latest, but they were also paid high attention to. In addition, this can be illustrated for different reasons. First, four articles were about ICI-associated FM; this topic was the research hotspot of FM, although they were published in recent years. Second, two articles were expert consensus, which can attract the attention of researchers quickly. Third, two articles focused on the COVID-19-associated FM, which may be attributed to the COVID-19 pandemic. Finally, the 18th article was a review, which usually has high citations.
Author analysis
To identify important contributors, the author’s information was obtained through author analysis. In addition, the main citation network could be summarized through the co-citation network analysis, and the research focus among authors could be analyzed. In addition, different name abbreviations of the same author were merged before analysis.
Influential authors
To a certain degree, the authors’ contribution could be evaluated by the following measurement indexes, including the TA published, TGCS, and GCSA. The top 20 contributors are shown in Table 4. A total of 4,411 authors were devoted to the research on FM, of which 54 authors had published more than five documents. Among all of the authors, Professor Klingel K published the most articles (12 articles), followed by Ammirati E (11 articles), Frigerio M (11 articles), and Izumi T (10 articles). In addition, the results showed that the number of articles by Moslehi JJ and Combes A was lower, but they were cited with high frequency. In addition, this indicated that they were very popular and with high attention.
Author co-citation network analysis
Among the 4,411 authors, 264 authors (6.0%) were cited not less than 100 times, 101 authors (2.3%) were cited at least 300 times, and 76 authors (1.7%) were cited not less than 500 times. To present the citation relations among authors, the ACA was carried out in this study, which was achieved by analyzing the references through BibExcel and VOSviewer software. After the ACA, authors’ names of the same color formed a cluster. The results of the authors’ co-citation network are presented in Figure 8, and there were six clusters. In addition, the core-authors at the center of the six clusters could be identified by the largest circle size or font size, and they were Cooper LT, Mccarthy RE, Maisch B, Chen YS, Acker MA, and Johnson B, which indicated that they made more contributions on this field.
Figure 8. Author co-citation network analysis in the field of “fulminant myocarditis” research. (A-1,A-2) are partially enlarged views of (A).
Discussion and managerial implications of the study
Fulminant myocarditis is a sudden-onset and life-threatening disease (3). Researchers have paid much attention to FM, including the diagnosis (11), therapy (53), and the relationship with other diseases (8). In the past three decades, the number of articles related to FM has been increasing. To better learn the research trends of FM, the bibliometric analysis was carried out, which could contribute to capturing the hot topic and research gap so that the researchers can gain the information quickly.
The first article about FM was published in 1985. Overall, the publications have been with fluctuating growth. In addition, the number of articles has grown rapidly since 2019, which might attribute to the international meeting related to FM held in 2019 (54). In the research about FM, 71 countries have concentrated, and they cooperate. The United States has played an important role in this area, publishing the most articles. In addition, 50% of the productive journals were from the United States. Japan played a second role in the number of articles, followed by China, Germany, and France.
The co-occurrence of keywords was analyzed to understand the research content better. The results indicate that there were four main topics in the area of FM: (I) Concentrate on the application of mechanical circulatory support to patients diagnosed with FM, especially for those with cardiogenic shock (55, 56). In addition, children with FM have been paid much attention to (57, 58). (II) Analyze diagnosis methods of FM, such as the endomyocardial biopsy (59), cardiac magnetic resonance (60), and the clinical manifestations (61). (III) Explore the etiology and pathogenesis of myocarditis, and the virus infection was the most popular mechanism, such as COVID-19 (62), parvovirus b19 (63), and influenza virus (64, 65). (IV) Monitor the ICI-associated with myocarditis (6, 66).
To further understand the topic, the research content of the top three prolific authors, the first three highly cited authors, and the core authors of co-citation network analysis were analyzed.
Klingel K, Ammirati E, Frigerio M, and Izumi T were identified as the top four prolific authors. Klingel K was the most productive author in this area, whose research area could be classified into two categories. On the one hand, the pathogenesis of FM has been paid much attention to since 2001. For example, Klingel K explored the mechanism of the parvovirus B19 (67), human herpesvirus 6 (67), and coxsackievirus B3 (68) causing FM. On the other hand, the therapy of FM has been kept an eye on since 2008, such as the role of Artesunate in the treatment of human herpesvirus 6B myocarditis (69), the protective role of effective chemokine secretion by dendritic cells and expansion of cross-presenting CD4(−)/CD8(+) in the coxsackievirus myocarditis (70), and mechanical circulatory support (71). Ammirati E and Frigerio M were the second productive authors, and their research hotspots were similar. They both paid attention to the prognosis and outcome of FM. For example, they were concerned about the outcomes of patients presenting with life-threatening ventricular arrhythmias (72) and explored the survival difference between FM and NFM (73). In addition, they both paid attention to some special cases, such as the OC43 subtype coronavirus-associated FM (7) and FM masked by acalculous cholecystitis (74). Compared with Ammirati E, Frigerio M also paid attention to mechanical circulatory support (75). Izumi T was the third productive author, who mainly kept an eye on the etiology, therapy, and outcome of FM, such as the mechanism of giant-cells associated myocarditis (76), the therapeutic effect of the cardiopulmonary support system for FM (77), and long-term prognosis of patients diagnosed with FM surviving from cardiopulmonary support (78). In addition, Izumi T also paid attention to the relationship between the influenza pandemic and FM (9). Puzanov I, Moslehi JJ, and Ernstoff MS were the top three highly cited authors. Their research area was extremely similar, and they all paid much attention to ICI-associated with myocarditis (6, 35). In addition, the publishing time of their article ranges from 2016 to 2021, which means that researchers have paid much attention to this area in the recent 5 years. Cooper LT, Mccarthy RE, Maisch B, Chen YS, Acker MA, and Johnson B were identified as the important contributors in this area by co-citation network analysis. Cooper LT mainly concentrated on the diagnosis, therapy, and outcome of giant cell myocarditis (59, 79). Mccarthy RE is concerned about the outcome of FM as compared with NFM (36). Maisch B kept an eye on etiology-directed immune therapies for myocarditis (80). The interest of Chen YS and Acker MA was similar; they both paid attention to the application of mechanical circulatory support in the treatment of FM (44, 81). Johnson B had an interest in the early recognition, clinical manifestations, and interventions of ICI-associated with FM (6, 37).
To a large extent, the research areas of key authors were similar to the results of keyword co-occurrence, the theme of the top 10 cited articles. With the understanding of FM, the research content has gradually been deepened. In addition, the recognition ability has been also improved. For example, the researchers have identified a new etiology of FM in recent years, that is, ICI (53). Although ICI is an important therapy for cancer patients, it can have serious side effects on patients, which can lead to FM (3). From the above analysis, we found that researchers have paid close attention to this area, which may have a significant influence on cancer patients. In addition, researchers have been continuing in exploring the diagnosis, therapy, and outcome of FM. In addition, they have paid attention to etiology-directed management (80). Researchers will have a better understanding of FM with the deepening of research.
This study has managerial implications for academia and researchers, and it has analyzed the research area of FM from the bibliometric perspective, which could help researchers have a holistic understanding of this area under the challenge of more articles being published. The research results help us learn the paper publishing trends, the countries and institutions participating in this area, the main journals, influential authors, the research trends, and hotspots of this area. According to the results, researchers can quickly identify the content they are interested in. For example, it can help authors choose a journal that is suitable for them when submitting their manuscript according to the journal analysis, and they also can find the potential cooperator according to the author’s analysis. In addition, researchers can quickly catch the research hotspots, which can guide their research. In general, this study can provide a reference for researchers to some extent.
This study provides a systematic analysis for us. But, notably, there are some limitations needed to be illustrated. First, the only information source for this study was from the WoS database, and the documents not covered by WoS were not involved. Second, the data were confined to articles published in English only. Finally, there may be a gap between the actual research conditions and the results of bibliometric analysis because of certain time factors. For example, the database updates the study continuously.
Conclusion
Fulminant myocarditis can bring a serious threat to an individual’s life. Researchers are concerned about the disease, whether the etiology or the therapy. In addition, the diagnosis and recognizing ability have been also paid attention to. To have a comprehensive understanding of FM, this study carried out a bibliometric analysis of the study data. The results depicted the contributor authors, the hot topic, the participating countries, etc., which could provide a guideline for researchers. The results will deepen researchers’ understanding and lay the foundation for them to carry out research in the future.
This study showed that the following points should be paid high attention to in the future. First, productive countries should develop more international cooperation. Second, authors should make more contributions to FM in the future, because only 54 of 4,411 authors published 5 more documents. Third, researchers can pay more attention to ICI-associated myocarditis, research progress on etiology, diagnosis, therapy, and outcomes of FM, such as the new virus infection, the mechanical support option, and etiology-directed management.
Data availability statement
The original contributions presented in this study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.
Author contributions
WMY, XFH, ZZW, and XYH wrote the main manuscript text. WMY, XYH, LJL, and JC prepared the Figures 1–8. WMY, XYH, and GZ collected, processed, and analyzed the data. All authors reviewed the manuscript.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Footnotes
References
1. Wang Z, Wang Y, Lin H, Wang S, Cai X, Gao D. Early characteristics of fulminant myocarditis vs non-fulminant myocarditis: a meta-analysis. Medicine. (2019) 98:e14697. doi: 10.1097/MD.0000000000014697
2. Liu D, Xu J, Yu X. Successful treatment of fulminant myocarditis in an adult in emergency department: a case report. Medicine. (2019) 98:e18292. doi: 10.1097/MD.0000000000018292
3. Kociol RD, Cooper LT, Fang JC, Moslehi JJ, Pang PS, Sabe MA, et al. Recognition and initial management of fulminant myocarditis: a scientific statement from the American Heart Association. Circulation. (2020) 141:e69–92. doi: 10.1161/CIR.0000000000000745
4. Heinsar S, Raman S, Suen JY, Cho HJ, Fraser JF. The use of extracorporeal membrane oxygenation in children with acute fulminant myocarditis. Clin Exp Pediatr. (2021) 64:188–95. doi: 10.3345/cep.2020.00836
5. Salem J-E, Allenbach Y, Vozy A, Brechot N, Johnson DB, Moslehi JJ, et al. Abatacept for severe immune checkpoint inhibitor–associated myocarditis. N Engl J Med. (2019) 380:2377–9. doi: 10.1056/NEJMc1901677
6. Johnson DB, Balko JM, Compton ML, Chalkias S, Gorham J, Xu Y, et al. Fulminant myocarditis with combination immune checkpoint blockade. N Engl J Med. (2016) 375:1749–55. doi: 10.1056/NEJMoa1609214
7. Veronese G, Cipriani M, Bottiroli M, Garascia A, Mondino M, Pedrotti P, et al. Fulminant myocarditis triggered by Oc43 subtype coronavirus: a disease deserving evidence-based care bundles. J Cardiovasc Med. (2020) 21:529–31. doi: 10.2459/JCM.0000000000000989
8. Ishikura H, Maruyama J, Hoshino K, Matsuoka Y, Yano M, Arimura T, et al. Coronavirus disease (Covid-19) associated delayed-onset fulminant myocarditis in patient with a history of severe acute respiratory syndrome coronavirus 2 (Sars-Cov-2) infection. J Infect Chemother. (2021) 27:1760–4.
9. Ukimura A, Ooi Y, Kanzaki Y, Inomata T, Izumi TA. National survey on myocarditis associated with influenza H1n1pdm2009 in the pandemic and postpandemic season in Japan. J Infect Chemother. (2013) 19:426–31. doi: 10.1007/s10156-012-0499-z
11. Huang X, Gao Y, Hua F, Ying J. Differential diagnosis of fulminant myocarditis and acute coronary syndromes in the case of failure of coronary angiography: a case report. Front Cardiovasc Med. (2021) 8:690974. doi: 10.3389/fcvm.2021.690974
13. Veronese G, Ammirati E, Cipriani M, Frigerio M. Fulminant myocarditis: characteristics, treatment, and outcomes. Anatol J Cardiol. (2018) 19:279–86. doi: 10.14744/AnatolJCardiol.2017.8170
14. Allan CK, Fulton DR. Clinical Manifestations and Diagnosis of Myocarditis in Children[Db/Ol]. Waltham, MA: UpToDate (2022).
15. Cooper LT. Clinical Manifestations and Diagnosis of Myocarditis in Adults[Db/Ol]. Waltham, MA: UpToDate (2022).
16. Kim UJ, Park H, Kim KH, Kim DM, Kim SE, Kang SJ, et al. Veno-arterial extracorporeal membrane oxygenation for severe fever with thrombocytopenia syndrome with fulminant myocarditis: a case report. BMC Infect Dis. (2021) 21:803. doi: 10.1186/s12879-021-06446-4
17. Sharma AN, Stultz JR, Bellamkonda N, Amsterdam EA. fulminant myocarditis: epidemiology, pathogenesis, diagnosis, and management. Am J Cardiol. (2019) 124:1954–60. doi: 10.1016/j.amjcard.2019.09.017
18. Ammirati E, Veronese G, Brambatti M, Merlo M, Cipriani M, Potena L, et al. Fulminant versus acute nonfulminant myocarditis in patients with left ventricular systolic dysfunction. J Am Coll Cardiol. (2019) 74:299–311. doi: 10.1016/j.jacc.2019.04.063
19. Gupta S, Markham DW, Drazner MH, Mammen PPA. Fulminant myocarditis. Nat Clin Pract Cardiovasc Med. (2008) 5:693–706. doi: 10.1038/ncpcardio1331
20. Tschöpe C, Van Linthout S, Klein O, Mairinger T, Krackhardt F, Potapov EV, et al. Mechanical unloading by fulminant myocarditis: lv-impella, ecmella, bi-pella, and propella concepts. J Cardiovasc Transl Res. (2019) 12:116–23. doi: 10.1007/s12265-018-9820-2
21. Donthu N, Kumar S, Mukherjee D, Pandey N, Lim WM. How to conduct a bibliometric analysis: an overview and guidelines. J Bus Res. (2021) 133:285–96. doi: 10.1016/j.jbusres.2021.04.070
22. Zhao J, Yu G, Cai M, Lei X, Yang Y, Wang Q, et al. Bibliometric analysis of global scientific activity on umbilical cord mesenchymal stem cells: a swiftly expanding and shifting focus. Stem Cell Res Ther. (2018) 9:32. doi: 10.1186/s13287-018-0785-5
23. Zhai X, Zhao J, Wang Y, Wei X, Li G, Yang Y, et al. Bibliometric analysis of global scientific research on lncrna: a swiftly expanding trend. Biomed Res Int. (2018) 2018:7625078. doi: 10.1155/2018/7625078
24. Kumar R, Singh S, Sidhu AS, Pruncu CI. Bibliometric analysis of specific energy consumption (sec) in machining operations: a sustainable response. Sustainability. (2021) 13:5617. doi: 10.3390/su13105617
25. Yang W, Hao X, Qu J, Wang L, Zhang M, Jiang Y, et al. Collaborative networks and thematic trends of research on the application of complementary and alternative medicine in cancer patients: a bibliometric analysis. Complement Ther Clin Pract. (2019) 37:58–67. doi: 10.1016/j.ctcp.2019.08.008
26. Kumar R, Goel P. Exploring the domain of interpretive structural modelling (ISM) for sustainable future panorama: a bibliometric and content analysis. Arch Comput Methods Eng. (2021) 29:2781–810. doi: 10.1007/s11831-021-09675-7
27. Li B, Hu K, Lysenko V, Khan KY, Wang Y, Jiang Y, et al. A scientometric analysis of agricultural pollution by using bibliometric software vosviewer and histcite. Environ Sci Pollut Res Int. (2022) 29:37882–93. doi: 10.1007/s11356-022-18491-w
28. Zhang XQ, Chen H, Hou XH. Research on the Academic Frontier of International Football Based on Histcite. In: Proceedings of the 2021 International Conference on Information Technology and Contemporary Sports (TCS). Piscataway, NY: IEEE (2021).
29. Danell R, Schneider JW. How to Use Bibexcel for Various Types of Bibliometric Analysis. Umeå: Umeå University (2017).
30. Thirumagal A, Mani M. Literature growth and development of “E-Learning”: a bibliometric analysis using bibexcel. J Inf Syst Manage. (2019) 9:108. doi: 10.6025/jism/2019/9/3/108-114
31. Persson O, Danell R, Schneider J. How to Use Bibexcel for Various Types of Bibliometric Analysis. In: F Åström, R Danell, B Larsen, J Schneider editors. Celebrating Scholarly Communication Studies: A Festschrift for Olle Persson at His 60th Birthday. Leuven: International Society for Scientometrics and Informetrics (2009).
32. Shah SHH, Lei S, Ali M, Doronin D, Hussain ST. Prosumption: bibliometric analysis using histcite and vosviewer. Kybernetes. (2020) 49:1020–45. doi: 10.1108/K-12-2018-0696
33. Radhakrishnan S, Erbis S, Isaacs JA, Kamarthi S. Novel keyword Co-Occurrence network-based methods to foster systematic reviews of scientific literature. PLoS One. (2017) 12:e0172778. doi: 10.1371/journal.pone.0172778
34. Kim HJ, Jeong YK, Song M. Content and proximity-based author co-citation analysis using citation sentences. J Inform. (2016) 10:954–66. doi: 10.1016/j.joi.2016.07.007
35. Brahmer JR, Lacchetti C, Schneider BJ, Atkins MB, Brassil KJ, Caterino JM, et al. Management of immune-related adverse events in patients treated with immune checkpoint inhibitor therapy: American society of clinical oncology clinical practice guideline. J Clin Oncol. (2018) 36:1714–68. doi: 10.1200/jco.2017.77.6385
36. McCarthy RE, Boehmer JP, Hruban RH, Hutchins GM, Kasper EK, Hare JM, et al. Long-term outcome of Fulminant myocarditis as compared with acute (Nonfulminant) myocarditis. N Engl J Med. (2000) 342:690–5. doi: 10.1056/NEJM200003093421003
37. Salem J-E, Manouchehri A, Moey M, Lebrun-Vignes B, Bastarache L, Pariente A, et al. Cardiovascular toxicities associated with immune checkpoint inhibitors: an observational, retrospective, pharmacovigilance study. Lancet Oncol. (2018) 19:1579–89. doi: 10.1016/s1470-2045(18)30608-9
38. Mahmood SS, Fradley MG, Cohen JV, Nohria A, Reynolds KL, Heinzerling LM, et al. Myocarditis in patients treated with immune checkpoint inhibitors. J Am Coll Cardiol. (2018) 71:1755–64. doi: 10.1016/j.jacc.2018.02.037
39. Beurtheret S, Mordant P, Paoletti X, Marijon E, Celermajer DS, Leger P, et al. Emergency circulatory support in refractory cardiogenic shock patients in remote institutions: a pilot study (the Cardiac-Rescue Program). Eur Heart J. (2013) 34:112–20. doi: 10.1093/eurheartj/ehs081
40. Combes A, Leprince P, Luyt C-E, Bonnet N, Trouillet J-L, Léger P, et al. Outcomes and long-term quality-of-life of patients supported by extracorporeal membrane oxygenation for refractory cardiogenic shock. Crit Care Med. (2008) 36:1404–11.
41. Duncan BW, Bohn DJ, Atz AM, French JW, Laussen PC, Wessel DL. Mechanical circulatory support for the treatment of children with acute Fulminant myocarditis. J Thor Cardiovasc Surg. (2001) 122:440–8. doi: 10.1067/mtc.2001.115243
42. Mirabel M, Luyt CE, Leprince P, Trouillet JL, Leger P, Pavie A, et al. Outcomes, long-term quality of life, and psychologic assessment of fulminant myocarditis patients rescued by mechanical circulatory support. Crit Care Med. (2011) 39:1029–35. doi: 10.1097/CCM.0b013e31820ead45
43. Asaumi Y, Yasuda S, Morii I, Kakuchi H, Otsuka Y, Kawamura A, et al. Favourable clinical outcome in patients with cardiogenic shock due to fulminant myocarditis supported by percutaneous extracorporeal membrane oxygenation. Eur Heart J. (2005) 26:2185–92. doi: 10.1093/eurheartj/ehi411
44. Chen YS, Yu HY, Huang SC, Chiu KM, Lin TY, Lai LP, et al. experience and result of extracorporeal membrane oxygenation in treating fulminant myocarditiis with shock: what mechanical support should be considered first? J Heart Lung Trans. (2005) 24:81–7. doi: 10.1016/j.healun.2003.09.038
45. Guglin M, Zucker MJ, Bazan VM, Bozkurt B, El Banayosy A, Estep JD, et al. Venoarterial ECMO for adults: JACC scientific expert panel. J Am Coll Cardiol. (2019) 73:698–716. doi: 10.1016/j.jacc.2018.11.038
46. Felker GM, Boehmer JP, Hruban RH, Hutchins GM, Kasper EK, Baughman KL, et al. Echocardiographic findings in fulminant and acute myocarditis. J Am Coll Cardiol. (2000) 36:227–32. doi: 10.1016/s0735-1097(00)00690-2
47. Zeng JH, Liu YX, Yuan J, Wang FX, Wu WB, Li JX, et al. First case of covid-19 complicated with fulminant myocarditis: a case report and insights. Infection. (2020) 48:773–7. doi: 10.1007/s15010-020-01424-5
48. Hanff TC, Harhay MO, Brown TS, Cohen JB, Mohareb AM. Is there an association between COVID-19 mortality and the renin-angiotensin system? A call for epidemiologic investigations. Clin Infect Dis. (2020) 71:870–4. doi: 10.1093/cid/ciaa329
49. Lieberman EB, Hutchins GM, Herskowitz A, Rose NR, Baughman KL. Clinicopathoiogic description of myocarditis. J Am Coll Cardiol. (1991) 18:1617–26. doi: 10.1016/0735-1097(91)90493-S
50. Trachtenberg BH, Hare JM. Inflammatory cardiomyopathic syndromes. Circul Res. (2017) 121:803–18. doi: 10.1161/CIRCRESAHA.117.310221
51. Yan J-J, Wang J-R, Liu C-C, Yang H-B, Su I-J. An outbreak of enterovirus 71 infection in taiwan 1998: a comprehensive pathological, virological, and molecular study on a case of fulminant encephalitis. J Clin Virol. (2000) 17:13–22. doi: 10.1016/S1386-6532(00)00067-6
52. Ronaldson KJ, Fitzgerald PB, Taylor AJ, Topliss DJ, McNeil JJA. New monitoring protocol for clozapine-induced myocarditis based on an analysis of 75 cases and 94 controls. Austral N Zeal J Psychiatry. (2011) 45:458–65. doi: 10.3109/00048674.2011.572852
53. Schneider BJ, Naidoo J, Santomasso BD, Lacchetti C, Adkins S, Anadkat M, et al. Management of immune-related adverse events in patients treated with immune checkpoint inhibitor therapy: asco guideline update. J Clin Oncol. (2021) 39:4073–126. doi: 10.1200/JCO.21.01440
54. Veronese G, Ammirati E, Chen C, Klingel K, Suzuki M, Okumura T, et al. Management perspectives from the 2019 Wuhan International Workshop on fulminant myocarditis. Int J Cardiol. (2021) 324:131–8. doi: 10.1016/j.ijcard.2020.10.063
55. Tadokoro N, Fukushima S, Minami K, Taguchi T, Saito T, Kawamoto N, et al. Efficacy of central extracorporeal life support for patients with fulminant myocarditis and cardiogenic shock. Eur J Cardiothor Surg. (2021) 60:1184–92. doi: 10.1093/ejcts/ezab231
56. Lim Y, Kim MC, Kim KH, Jeong IS, Cho YS, Choi YD, et al. case report: acute fulminant myocarditis and cardiogenic shock after messenger RNA coronavirus disease 2019 vaccination requiring extracorporeal cardiopulmonary resuscitation. Front Cardiovasc Med. (2021) 8:758996. doi: 10.3389/fcvm.2021.758996
57. Fick TA, Morris SA, Tume SC, Stafford TD, Aagaard K, Schady D, et al. Fulminant enteroviral myocarditis in a newborn accompanying maternal Sars-Cov-2 infection. World J Pediatr Congenit Heart Surg. (2021) 12:669–71. doi: 10.1177/2150135120975771
58. Ohki S, Hosokawa K, Tomioka S, Matsuoka M, Fushimi K, Matsuda S, et al. Pediatric fulminant myocarditis in Japan: a retrospective nationwide database study of hospital volume, management practices, and mortality. Pediatr Crit Care Med. (2021) 22:e391–401. doi: 10.1097/PCC.0000000000002692
59. Shields RC, Tazelaar HD, Berry GJ, Cooper LT. The role of right ventricular endomyocardial biopsy for idiopathic giant cell myocarditis. J Cardiac Fail. (2002) 8:74–8. doi: 10.1054/jcaf.2002.32196
60. Lv J, Han B, Wang C, Wang J, Jiang D, Zhao L, et al. The clinical features of children with acute fulminant myocarditis and the diagnostic and follow-up value of cardiovascular magnetic resonance. Front Pediatr. (2019) 7:388. doi: 10.3389/fped.2019.00388
61. Ghafoor K, Ahmed A, Abbas M. Fulminant myocarditis with st elevation and cardiogenic shock in a Sars-Cov-2 patient. Cureus. (2021) 13:e16149. doi: 10.7759/cureus.16149
62. Hussain H, Fadel A, Alwaeli H, Guardiola V. Coronavirus (Covid-19) fulminant myopericarditis and Acute Respiratory Distress Syndrome (ARDS) in a middle-aged male patient. Cureus. (2020) 12:e8808. doi: 10.7759/cureus.8808
63. Callon D, Berri F, Lebreil AL, Fornes P, Andreoletti L. Coinfection of parvovirus B19 with influenza a/H1n1 causes fulminant myocarditis and Pneumonia. an autopsy case report. Pathogens. (2021) 10:958. doi: 10.3390/pathogens10080958
64. Thomas TP, Kumar S, Anand A, Kiran R, Sabu V, Gaffoor AA. Rare presentation of fulminant viral myocarditis associated with H1n1: a series of four cases. Indian J Crit Care Med. (2019) 23:538–41. doi: 10.5005/jp-journals-10071-23288
65. Hamoudi A, Vais D, Taqi V. H1n1 influenza causing fulminant myocarditis requiring extracorporeal membrane oxygenation. Cureus. (2019) 11:e4665. doi: 10.7759/cureus.4665
66. Berg DD, Vaduganathan M, Nohria A, Davids MS, Alyea EP, Torre M, et al. Immune-related fulminant myocarditis in a patient receiving ipilimumab therapy for relapsed chronic myelomonocytic leukaemia. Eur J Heart Fail. (2017) 19:682–5. doi: 10.1002/ejhf.806
67. Rohayem J, Dinger J, Fischer R, Klingel K, Kandolf R, Rethwilm A. Fatal myocarditis associated with acute parvovirus B19 and human herpesvirus 6 coinfection. J Clin Microbiol. (2001) 39:4585–7. doi: 10.1128/JCM.39.12.4585-4587.2001
68. Szalay G, Sauter M, Hald J, Weinzierl A, Kandolf R, Klingel K. Sustained nitric oxide synthesis contributes to immunopathology in ongoing myocarditis attributable to interleukin-10 disorders. Am J Pathol. (2006) 169:2085–93. doi: 10.2353/ajpath.2006.060350
69. Hakacova N, Klingel K, Kandolf R, Engdahl E, Fogdell-Hahn A, Higgins T. First therapeutic use of artesunate in treatment of human herpesvirus 6b myocarditis in a child. J Clin Virol. (2013) 57:157–60. doi: 10.1016/j.jcv.2013.02.005
70. Weinzierl AO, Szalay G, Wolburg H, Sauter M, Rammensee HG, Kandolf R, et al. Effective chemokine secretion by dendritic cells and expansion of cross-presenting Cd4-/Cd8+ dendritic cells define a protective phenotype in the mouse model of coxsackievirus myocarditis. J Virol. (2008) 82:8149–60. doi: 10.1128/JVI.00047-08
71. Schubert S, Opgen-Rhein B, Boehne M, Weigelt A, Wagner R, Muller G, et al. Severe heart failure and the need for mechanical circulatory support and heart transplantation in pediatric patients with myocarditis: results from the prospective multicenter registry “Mykke”. Pediatr Transplant. (2019) 23:e13548. doi: 10.1111/petr.13548
72. Gentile P, Merlo M, Peretto G, Ammirati E, Sala S, Della Bella P, et al. Post-discharge arrhythmic risk stratification of patients with acute myocarditis and life-threatening ventricular tachyarrhythmias. Eur J Heart Fail. (2021) 23:2045–54. doi: 10.1002/ejhf.2288
73. Ammirati E, Cipriani M, Lilliu M, Sormani P, Varrenti M, Raineri C, et al. Survival and left ventricular function changes in fulminant versus nonfulminant acute myocarditis. Circulation. (2017) 136:529–45. doi: 10.1161/CIRCULATIONAHA.117.026386
74. Bellamoli M, Pellegrini P, de Manna ND, Genco B, Prati D, Carbonieri E, et al. An odd couple: acalculous cholecystitis masking a fulminant myocarditis. J Cardiovasc Med. (2020) 21:327–32. doi: 10.2459/JCM.0000000000000909
75. Garatti A, Colombo T, Russo C, Lanfranconi M, Milazzo F, Catena E, et al. Left ventricular mechanical support with the impella recover left direct microaxial blood pump: a single-center experience. Artif Organs. (2006) 30:523–8. doi: 10.1111/j.1525-1594.2006.00254.x
76. Kodama M, Matsumoto Y, Fujiwara M, Zhang SS, Hanawa H, Itoh E, et al. Characteristics of giant cells and factors related to the formation of giant cells in myocarditis. Circul Res. (1991) 69:1042–50. doi: 10.1161/01.RES.69.4.1042
77. Aoyama N, Izumi T, Hiramori K, Isobe M, Kawana M, Hiroe M, et al. National survey of fulminant myocarditis in Japan: therapeutic guidelines and long-term prognosis of using percutaneous cardiopulmonary support for fulminant myocarditis (special report from a scientific committee). Circul J. (2002) 66:133–44. doi: 10.1253/circj.66.133
78. Takehana H, Inomata T, Kuwao S, Nakahata J-I, Sasaki T, Nishii M. recurrent fulminant viral myocarditis with a short clinical course. Circul J. (2003) 67:646–8. doi: 10.1253/circj.67.646
79. Moloney ED, Egan JJ, Kelly P, Wood AE. Cooper LTJTJoH, transplantation L. transplantation for myocarditis: a controversy revisited. J Heart Lung Transplant. (2005) 24:1103–10. doi: 10.1016/j.healun.2004.06.015
80. Maisch B, Pankuweit S. Standard and etiology-directed evidence-based therapies in myocarditis: state of the art and future perspectives. Heart Fail Rev. (2013) 18:761–95. doi: 10.1007/s10741-012-9362-7
