ORIGINAL RESEARCH article

Front. Cardiovasc. Med., 13 April 2022
Sec. Coronary Artery Disease

Clinical Outcomes of Drug-Coated Balloon Treatment After Successful Revascularization of de novo Chronic Total Occlusions

\nEun Jung Jun,&#x;Eun Jung Jun1,2Eun-Seok Shin,
&#x;&#x;Eun-Seok Shin1,2*Eu-Vin TeohEu-Vin Teoh3Youngjune BhakYoungjune Bhak4Song Lin Yuan,Song Lin Yuan1,5Chong-Mow ChuChong-Mow Chu3Scot GargScot Garg6Houng Bang Liew
&#x;Houng Bang Liew3*
  • 1Department of Cardiology, Ulsan Medical Center, Ulsan, South Korea
  • 2Department of Cardiology, Ulsan University Hospital, University of Ulsan College of Medicine, Ulsan, South Korea
  • 3Cardiology Department and Clinical Research Center, Queen Elizabeth Hospital II, Kota Kinabalu, Malaysia
  • 4Department of Biomedical Engineering, College of Information-Bio Convergence Engineering, Ulsan National Institute of Science and Technology (UNIST), Ulsan, South Korea
  • 5Department of Cardiology, Dong-A University Hospital, Busan, South Korea
  • 6Department of Cardiology, East Lancashire Hospitals NHS Trust, Lancashire, United Kingdom

Background: The safety and efficacy of drug-coated balloon (DCB) treatment for de novo coronary chronic total occlusion (CTO) remain uncertain. The aim of this study was to evaluate the outcomes of DCB only treatment for de novo CTO.

Methods: In this retrospective study, 101 vessels with de novo CTO lesions dilated by balloon angioplasty with thrombolysis in myocardial infarction flow grade 3 were included. Among them, 93 vessels successfully treated with DCB only treatment were analyzed. The study endpoint was major adverse cardiac events (MACE) at 2 years, a composite of cardiac death, non-fatal myocardial infarction (MI), target vessel revascularization (TVR), and target vessel thrombosis. The secondary endpoint was late lumen loss (LLL) on follow-up coronary angiography.

Results: All 84 patients were followed up clinically, and 67 vessels underwent scheduled coronary angiography after 6 months. There were no procedural complications, and three vessels required bailout-stenting. The median follow-up was 720 days (interquartile range [IQR]; 406–1,268 days). MACE occurred in 8.3% of the patients after 1 year, including cardiac death (1.2%), TVR (7.1%), and no non-fatal MI and target vessel thrombosis. Two years after treatment, MACE occurred in 16.7% of the patients, including cardiac death (2.4%), non-fatal MI (3.6%), TVR (13.1%), and no target vessel thrombosis. The mean LLL was 0.03 ± 0.53 mm. Binary restenosis occurred in 14.9% of the treated vessels, and 3.0% of the vessels had late re-occlusion on follow-up coronary angiography.

Conclusions: If the result of revascularization using balloon angioplasty is good, the clinical outcomes of DCB only treatment of de novo CTOs at the 2-year follow-up are encouraging, with a low rate of hard endpoints and acceptable MACE rates (Clinical Trial Registration Information; Impact of Drug-coated Balloon Treatment in de novo Coronary Lesion; NCT04619277).

Introduction

Chronic total occlusions (CTOs) account for 20% of the lesions detected using coronary angiography, and approximately half of them are treated with revascularization, whereas the other half are treated with medical therapy (1). Recently, percutaneous coronary intervention (PCI) for CTOs has rapidly evolved, and although there have been major improvements in equipment and techniques, CTO remains one of the biggest challenges for interventional cardiologists, especially as the risks of restenosis and stent thrombosis (ST) remain high (2). This aspect is most problematic for vessels distal to the occlusion, which often enlarge after the restoration of antegrade flow; therefore, residual distal stenoses observed immediately after PCI of the CTO that do not affect antegrade flow may not require stenting (3).

There is much evidence that drug-coated balloon (DCB) treatment results in lower rates of restenosis and thrombosis and better long-term outcomes when used for PCI of in-stent restenosis (ISR) compared to plain old balloon angioplasty or additional stenting with drug-eluting stents (DES) (46). Considering the prevalence of CTOs and their high risk of restenosis and ST following PCI, investigating the safety and efficacy of DCB treatment in CTO PCI is necessary (7, 8).

Studies on DCB only treatment for CTO are scarce; however, recent registry data suggest that it is a feasible and well-tolerated treatment, provided that the result from pre-dilation is good (9, 10). In the feasibility and safety assessment, the incidence of angiographic restenosis was 11.8% at a mean follow-up of 8 months. This was not higher than prior results on CTO using either DES (14.2%) or bare-metal stents (36.6%) of 15 studies that included 3,193 patients (10). Furthermore, positive late lumen gain was reportedly found in 67.6% of patients, which was attributed to an increase in DCB-treated vessel size (9). Although registry data showed that DCB only treatment for CTO is feasible, the clinical impact of DCB treatment on CTO PCI remains uncertain. Therefore, this study aimed to evaluate the clinical outcomes of DCB only treatment approach without stenting for de novo coronary CTO lesions.

Materials and Methods

Patient Population

This retrospective observational study was conducted at two centers (Queen Elizabeth Hospital II and Ulsan Medical Center) experienced in treating patients with de novo CTOs with DCB (SeQuent® Please; B. Bruan Melsungen AG, Berlin, Germany or IN.PACT™ Admiral™; Medtronic, Minneapolis, USA) treatment (Clinical Trial Registration Information; Impact of Drug-coated Balloon Treatment in De Novo Coronary Lesion; NCT04619277). In this study, 101 vessels (92 patients who have consented) with de novo CTO lesions dilated using balloon angioplasty with thrombolysis in myocardial infarction (TIMI) flow grade 3 were included. Among them, all patients with successful PCI (defined as TIMI flow grade 3 and residual stenosis of ≤ 50%) for de novo CTO lesions performed using only DCB were eligible for inclusion. Patients treated with DCB for CTO due to occlusive ISR, stenting of the vessel during the index procedure, or unstable hemodynamic conditions at presentation were excluded. All patients were followed up clinically, and angiographic follow-up was performed in 72% of the vessels (Figure 1). The study protocol was approved by the institutional review board at each participating center, and all patients provided written informed consent to participate at the time of enrollment.

FIGURE 1
www.frontiersin.org

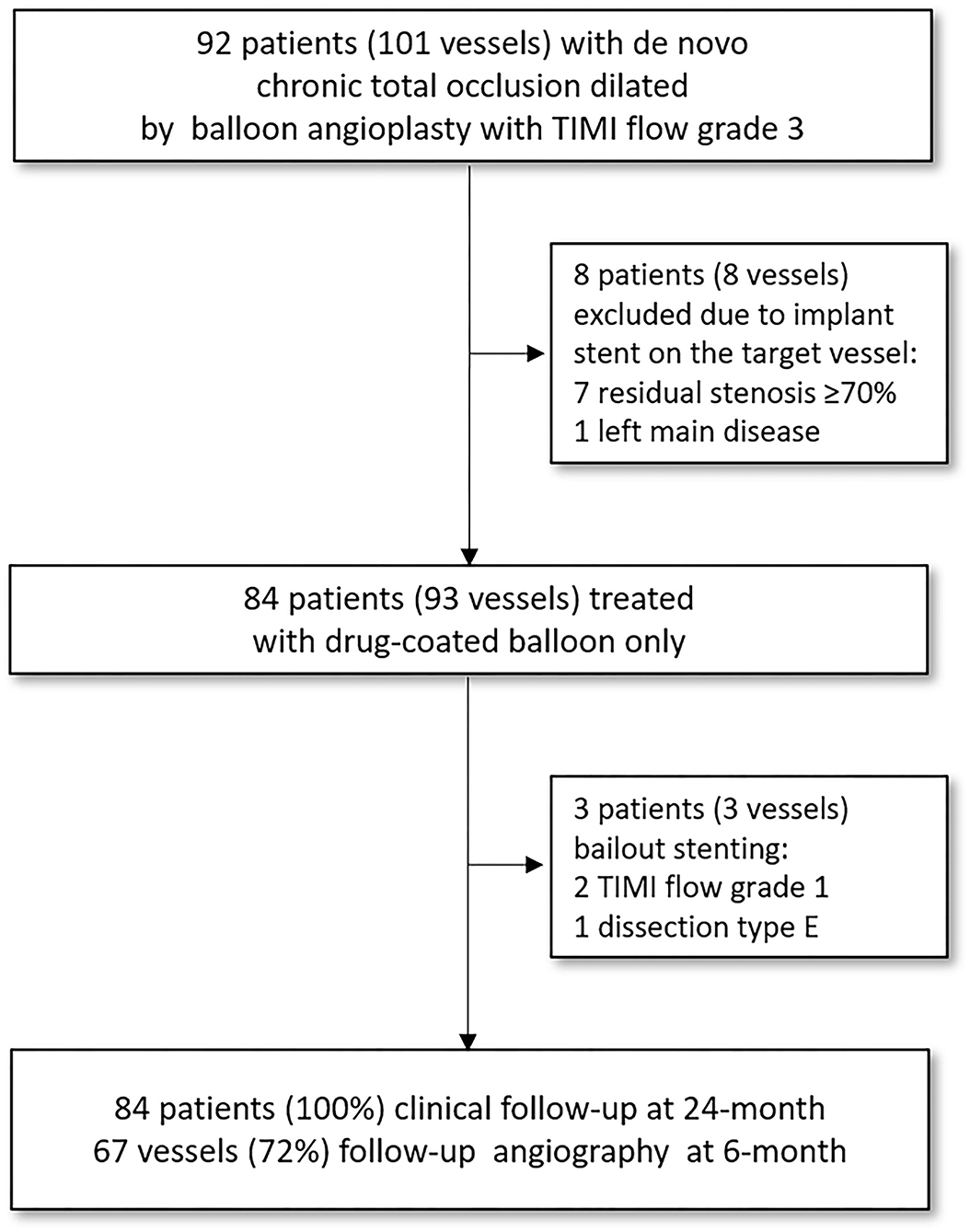

Figure 1. Flow chart of the study. The study population consisted of 93 vessels with de novo coronary CTO lesions that had TIMI flow grade 3 and <50% of residual stenosis following pre-dilatation balloon angioplasty and were successfully treated with DCB without requiring stent implantation. All patients were followed clinically, and angiographic follow-up was performed in 72% of the vessels under study. CTO, chronic total occlusion; TIMI, thrombolysis in myocardial infarction.

Procedure

All interventions were performed using the antegrade approach for recanalization. The intervention was performed according to the International DCB Consensus and the Asia-Pacific Consensus on DCB PCI (11, 12). Specifically, an optimal-sized pre-dilation balloon, including a scoring balloon, was mandatorily used at the recommended balloon-to-vessel ratio of 0.8–1.0. After pre-dilation balloon angioplasty, stenting was deferred in all types of dissections (A to E) (13), provided there was TIMI flow grade 3. In cases of flow-limiting dissection after pre-dilation balloon angioplasty (TIMI flow grade of <3), more than 50% of residual stenosis, and left main disease, PCI with stent insertion was recommended without using a DCB. The DCB was inflated for at least 60 s with its nominal pressure. After DCB use, a final assessment was undertaken at least 5 min after injection of intracoronary vasodilators, such as nitroglycerin, to catch early vessel closure. In this event, bailout stenting was considered. A bailout glycoprotein IIb/IIIa receptor inhibitor strategy was allowed in cases of high thrombus burden (14). After PCI, even though the duration of the prescribed dual-antiplatelet therapy was left to the attending doctors' discretion, almost all patients received dual-antiplatelet therapy for at least 1 month with life-long continuation of aspirin once daily afterward.

Definitions

Chronic total occlusions are defined as completely occluded coronary arteries without antegrade coronary flow with a duration of more than 3 months (15). Angiographic success was defined as a final residual stenosis of ≤ 50% on quantitative coronary angiography (QCA), with TIMI flow grade 3 after DCB treatment. Procedural success was defined as angiographic success without the occurrence of in-hospital adverse cardiac events (defined as any occurrence of cardiac death, non-fatal myocardial infarction [MI], target vessel revascularization [TVR], or target vessel thrombosis). Binary restenosis was defined as stenosis of at least 50% of the luminal diameter at the angiographic follow-up.

Endpoints

The study endpoint was cumulative major adverse cardiac events (MACE), a composite of cardiac death, non-fatal MI, TVR, and target vessel thrombosis, during the 2-year follow-up. The angiographic endpoint was late lumen loss (LLL) at the 6-month scheduled follow-up angiography.

Statistical Analysis

Analyses were performed on a per-patient basis for clinical characteristics and primary outcome (and its individual components) and a per-vessel basis for vessel-related parameters and vessel-level clinical outcomes. Categorical variables are presented as numbers with relative frequencies (percentages) and continuous variables as means with standard deviations or medians with interquartile ranges (IQRs; first and third quartiles), according to their distributions determined using the Kolmogorov–Smirnov test. For demographic characteristics, continuous data were summarized as descriptive statistics (i.e., number of subjects, means, and standard deviations) and categorical data as frequencies and fractions. To compare two groups, the independent two-sample t-test or Wilcoxon rank-sum test was used. If necessary, the chi-square test or Fisher's exact test was performed to compare the two groups. All statistical analyses were performed at a two-sided significance level of 0.05 using Statistical Package for the Social Sciences (version 21.0; IBM Corporation, Armonk, NY, USA), NCSS (NCSS LLC, East Kaysville, UT, USA), and R (version 3.6.3; R Foundation for Statistical Computing, Vienna, Austria).

Results

The study population consisted of 84 patients with de novo coronary CTO lesions (93 vessels) who had TIMI flow grade 3 and < 50% of residual stenosis following pre-dilatation balloon angioplasty, and were successfully treated with DCB without requiring stent implantation. The median follow-up duration was 720 days (IQR, 406–1,268 days) after the index procedure. Angiographic follow-up was not compulsory, but encouraged, and was performed in 72% of the vessels (Figure 1). Bailout stenting was required in three patients (3 vessels) after DCB treatment (due to TIMI flow grade 1 in 2 vessels and type E dissection in 1 vessel; all these lesions were treated with new-generation DES). Overall, the angiographic success rate was 95.7%, and no in-hospital adverse cardiac events occurred (Table 4).

The baseline clinical characteristics of the included subjects are presented in Table 1. The mean age was 56 years, and most patients were male (85.7%), with only over a third having diabetes mellitus. The mean left ventricular ejection fraction was 50.4 ± 12.9% (the ejection fraction in 9.5% of the patients was ≦35%). Clinical presentations were chronic stable angina (61.9%) and acute coronary syndrome (38.1%).

TABLE 1
www.frontiersin.org

Table 1. Baseline patient characteristics.

Table 2 summarizes the angiographic and procedural data. Most patients were treated via radial access, and the median SYNergy between PCI with TAXUS and Cardiac Surgery (SYNTAX) score was 21.5 (IQR; 15.5–28.0; 53.8% <23 points, 28% 23–32 points, and 18.3% >32 points). In 48.4% of cases, the left anterior descending artery was treated, and a scoring balloon was used to treat a fifth of the vessels. The mean pre-dilation balloon diameter was 2.4 ± 0.5 mm and the mean DCB diameter was 2.7 ± 0.4 mm. SeQuent® Please DCB was used in most cases (80.6%). The mean number of used DCBs was 1.5 ± 0.6 and the DCB to reference vessel ratio was 1.0 ± 0.2. The mean DCB length was 42.3 ± 17.1 mm. The mean inflation time was 72.0 ± 29.7 s. After DCB treatment, 73.1% of the vessels had dissections (23.7%, type A; 43.0%, type B; 4.3%, type C; 1.1%, type D; and 1.1%, type E). Chronic stable angina (66.2%) and left anterior descending artery (51.5%) were more frequent in the dissection group. One case of type E dissection underwent bailout stenting using a DES. Almost all dissections disappeared (93.6%) at the follow-up coronary angiography. Representative images of the impact of DCB treatment on de novo CTO are presented in Figure 2.

TABLE 2
www.frontiersin.org

Table 2. Angiographic and procedural characteristics.

FIGURE 2
www.frontiersin.org

Figure 2. Representative CTO cases. (A) Left anterior descending artery lesion. (B) Left circumflex artery lesion. (C) Right coronary artery lesion. Number 1; Preprocedure. Number 2; Post-DCB treatment. Number 3; Follow-up. CTO, chronic total occlusion.

Clinical Outcomes

Table 3 summarizes the procedural complications and clinical outcomes. No procedural and in-hospital complications, such as perforation, pericardiocentesis, emergency bypass surgery, or stroke, were observed in this registry. MACE occurred in 8.3% of the patients 1 year after the procedure, including cardiac death (1.2%) and TVR (7.1%). MACE occurred in 16.7% of the patients 2 years after the procedure, including cardiac death (2.4%), non-fatal MI (3.6%), and TVR (13.1%); however, no target vessel thrombosis occurred. Among the two cases of cardiac death, one died 4 months after the follow-up due to decompensated heart failure secondary to pneumonia, and the other died out-of-hospital 9 months after the follow-up due to a heart attack. Of the TVR cases, six were treated with DES, one underwent coronary artery bypass graft surgery, and three underwent repeat DCB. The rate of new vessel revascularization was 10.7%.

TABLE 3
www.frontiersin.org

Table 3. Procedural complications and clinical outcomes.

Angiographic Outcomes

After the index procedure, 61 (72.6%) patients returned for scheduled follow-up angiography at a median duration of 186 days (IQR, 134–291 days), ensuring that serial QCA data were available for 67 vessels. The angiographic outcomes are presented in Table 4, and representative cases of each coronary artery are shown in Figure 2. Due to the nature of the CTO, the baseline QCA data required to calculate the LLL were only available after DCB treatment. The mean reference vessel diameter (RVD) after DCB treatment was 2.3 ± 0.5 mm, while the mean residual diameter stenosis was 30.6 ± 9.3%. The acute lumen gain was 1.6 ± 0.4 mm. Binary restenosis occurred in 14.9% of the treated vessels, among which two (3.0%) lesions were totally re-occluded at the follow-up angiography. LLL was 0.03 ± 0.53 mm, with 37 (55.2%) lesions having LLL values below 0 due to an increase in vessel size.

TABLE 4
www.frontiersin.org

Table 4. Quantitative coronary angiography and late luminal loss.

No significant changes in the minimum lumen diameter (MLD) were observed between the index procedure and follow-up angiography (post-DCB vs. follow-up, 1.6 ± 0.4 mm vs. 1.6 ± 0.6 mm; p = 0.675 (Table 4 and Supplementary Table 1); however, the RVD was significantly larger at follow-up than after DCB treatment (post-DCB vs. follow-up, 2.3 ± 0.5 mm vs. 2.5 ± 0.7 mm; p = 0.033); hence, the diameter stenosis significantly increased at follow-up (post-DCB vs. follow-up, 31.5 ± 9.0% vs. 37.8 ± 17.3%; p = 0.005). Figure 3 presents the cumulative frequency distributions of MLD.

FIGURE 3
www.frontiersin.org

Figure 3. Cumulative frequency distribution of MLD. MLD, minimal lumen diameter.

Discussion

In this study, we investigated the feasibility and clinical outcomes of DCB only treatment for de novo coronary CTO lesions. The main findings were as follows; first, after successful balloon angioplasty of de novo CTO lesions, DCB only treatment is feasible and effective; second, the rate of MACE, the primary endpoint, was 16.7%, and was driven primarily by TVR without target vessel thrombosis during a median follow-up of 720 days; third, LLL, the angiographic outcome, was minimal (0.03 ± 0.53 mm), confirming the efficacy of DCB in inhibiting neointimal hyperplasia.

Although DES has significantly reduced the incidence of restenosis and clinical events compared with bare-metal stents, risks associated with their use remain, such as neoatherosclerosis due to their pro-inflammatory effect, and ST due to delayed neointimal coverage (16, 17). Using first-generation DESs, ST accrued at a rate of 0.6% per year (18), while rates fell to 0.3% per year using second-generation DESs. Nevertheless, this risk persists for at least 5 years after stent insertion (19). In a recent large-scale, individual patient-level pooled study (n = 25,032), very-late ST occurred between 1 and 5 years after PCI at a rate of 0.4% per year with all stent types, without an evident plateau (20). In contrast to DES, DCB can reduce this risk, while eluting drugs for a short time can effectively prevent neointimal hyperplasia in the absence of foreign substances, as shown in several DCB experiments with long-term follow-up (21, 22). In the Swedish Coronary Angiography and Angioplasty Registry, the rate of target lesion thrombosis in de novo lesions in small coronary vessels undergoing PCI was 0.6% at 6 months, without events occurring between 6 months and the final follow-up at 3 years (22). In the BASKET-SMALL 2 trial, a multicenter, open-label, randomized non-inferiority trial for small native coronary artery disease (n = 758), probable or definite ST was lower using DCBs (DCB vs. DES; 0.8% vs. 1.1%; hazard ratio [HR], 0.73 [95% confidence interval [CI], 0.16–3.26]) (21). Recently, they demonstrated that no significant difference in the rate of MACE (15% in both groups) has been shown between the DCB and DES groups (HR, 0.99; 95% CI, 0.68–1.45; p = 0.95) for 3 years. The rates of probable or definite ST (Kaplan–Meier estimate, 1% vs. 2%; HR, 0.33; 95% CI, 0.07–1.64; p = 0.18) and major bleeding (Kaplan–Meier estimate, 2% vs. 4%; HR, 0.43; 95% CI, 0.17–1.13; p = 0.088) were numerically lower in the DCB group than in the DES group.

In this study, there were no cases of target vessel thrombosis during a median follow-up of 720 days, despite a similar lesion severity compared with previous CTO studies (20, 23). In the DECISION-CTO trial (24), the SYNTAX score was 20.8 ± 9.2 and the mean stent length was 41.1 ± 25.9 mm. In comparison, the median SYNTAX score in this study was 21.5 (IQR, 15.5–28.0), and the mean lesion length was 42.3 ± 17.1 mm, which was not significantly different from that of the CTO lesions treated with stents in previous studies (25, 26). Nevertheless, the MACE results in this study were similar to those detected by the DECISION-CTO trial, which used second-generation DES in 82.6% of patients. In the DECISION-CTO trial, the rate of cardiac death, MI, and TVR were 1.9%, 11.3%, and 7.9%, respectively; this study showed comparable event rates (i.e., 2.4%, 3.6%, and 13.1%, respectively). In the DECISION-CTO trial, the rate of definite ST was 0.2% during a median follow-up of 4 years, while the rate of definite or probable ST was 0.4% in the EURO-CTO trial at the 12-month follow-up (25).

The high risk of restenosis and ST in patients with CTO remains a challenging problem. One of the mechanisms for these clinical events is that stents in newly opened CTOs are commonly undersized because the vessel does not grow immediately after recanalization (27). Vessels distal to a CTO are narrow because of the absence of blood flow for a long time. After balloon angioplasty, the antegrade flow increases and the vessels become more expansive; however, this may take several weeks or months. Therefore, immediately after balloon angioplasty of a CTO, underestimating the actual vessel size is easy, thus increasing the risk of stent undersizing and subsequent risks of restenosis, late stent malapposition, and ST. Moreover, the metallic cage can inhibit positive remodeling, leaving a small luminal size after vessel recovery. However, after DCB treatment, vessels may return to their original sizes over time, without fixing the size of the vessel using a foreign body, such as a metal stent, which is one of the most appealing and important advantages of using DCB in treating CTO lesions. These findings show the feasibility of DCB as a treatment for CTO lesions, especially in patients with poor medication compliance (28) or those at a high bleeding risk (29, 30). Additionally, the hybrid approach, where a DES is implanted at the proximal segment of a CTO lesion and the distal lesion is treated with a DCB, may reduce the risk of stent-related events by reducing the stent burden. Only a few studies have investigated the impact of DCB only treatment on de novo CTO lesions (31, 32). According to a recent study, DCBs were successfully used for two totally occluded lesions in a patient with acute coronary syndrome (7). After 3 months, follow-up angiography confirmed adequate patency of the DCB-treated lesions, without symptoms until 13 months. Recently, Koln et al. have shown that the use of DCB is a feasible and well-tolerated treatment that provided promising results from pre-dilation (9). They have shown that the positive late lumen gain in 67.6% of the patients was due to increased vessel size following DCB treatment. This is comparable to our data, which confirmed positive late lumen gain in 55.2% of the patients under study.

The most compelling advantage of this study is that DCB treatment without stenting might be a safe and effective modality for treating de novo CTO lesions if the result after pre-dilation is good with TIMI flow grade 3. However, this study has several limitations. First, the population is limited and comes from only two expert centers with this type of PCI. Thus, the findings of this study may not be reproducible everywhere without an adequate learning curve. Second, this study did not target all-comer CTO lesions, but consisted only of patients who were successfully re-perfused by pre-dilation and received DCB treatment. Therefore, the results of this study should be interpreted with caution. Prospective and randomized large-scale studies are needed to clarify the efficacy of DCB treatment in de novo CTO lesions and compare the efficacy with that of DES implantation.

Conclusions

If the revascularization result of balloon angioplasty is good, the clinical outcomes of DCB only treatment for de novo CTO lesions are encouraging at the 2-year follow-up, with a low rate of hard endpoints and acceptable MACE rates.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Materials, further inquiries can be directed to the corresponding author/s.

Ethics Statement

The studies involving human participants were reviewed and approved by Queen Elizabeth Hospital II and Ulsan Medical Center. The patients/participants provided their written informed consent to participate in this study. Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.

Author Contributions

E-SS and HL contributed substantially to the design of this study. EJ and E-SS provided the first draft of the manuscript. EJ, E-VT, and YB performed the data and statistical analyses. All coauthors participated in interpreting the data and critically revised the manuscript. The authors confirm that the manuscript has been blinded to follow the double-blind peer review model. All authors have approved the final version of the manuscript to be submitted. E-SS and HL had full access to the database and take responsibility for the integrity of the data and the data analyses. All authors contributed to the article and approved the submitted version.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

The authors acknowledge YMK and YHN for their contributions in patient data recording and QCA analysis.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcvm.2022.821380/full#supplementary-material

Abbreviations

CTO, chronic total occlusion; DCB, drug-coated balloon; DES, drug-eluting stent; ISR, in-stent restenosis; IQR, interquartile range; LLL, late lumen loss; MACE, major adverse cardiac events; MI, myocardial infarction; PCI, percutaneous coronary intervention; ST, stent thrombosis; TIMI, thrombolysis in myocardial infarction; TLR, target lesion revascularization; TVR, target vessel revascularization.

References

1. Azzalini L, Jolicoeur EM, Pighi M, Millan X, Picard F, Tadros VX, et al. Epidemiology, management strategies, and outcomes of patients with chronic total coronary occlusion. Am J Cardiol. (2016) 118:1128–35. doi: 10.1016/j.amjcard.2016.07.023

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Brilakis ES, Karmpaliotis D, Patel V, Banerjee S. Complications of chronic total occlusion angioplasty. Interv Cardiol Clin. (2012) 1:373–89. doi: 10.1016/j.iccl.2012.04.006

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Gomez-Lara J, Teruel L, Homs S, Ferreiro JL, Romaguera R, Roura G, et al. Lumen enlargement of the coronary segments located distal to chronic total occlusions successfully treated with drug-eluting stents at follow-up. EuroIntervention. (2014) 9:1181–8. doi: 10.4244/EIJV9I10A199

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Giacoppo D, Alfonso F, Xu B, Claessen B, Adriaenssens T, Jensen C, et al. Drug-coated balloon angioplasty vs. drug-eluting stent implantation in patients with coronary stent restenosis. J Am Coll Cardiol. (2020) 75:2664–78. doi: 10.1016/j.jacc.2020.04.006

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Scheller B, Hehrlein C, Bocksch W, Rutsch W, Haghi D, Dietz U, et al. Treatment of coronary in-stent restenosis with a paclitaxel-coated balloon catheter. N Engl J Med. (2006) 355:2113–24. doi: 10.1056/NEJMoa061254

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Buccheri D, Lombardo RM, Cortese B. Drug-coated balloons for coronary artery disease: current concepts and controversies. Future Cardiol. (2019) 15:437–54. doi: 10.2217/fca-2019-0009

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Yuan SL, Kim MH, Garg S, Shin ES. A case of drug-coated balloon treatment for two total occluded lesions in a patient with acute coronary syndrome. Cardiol J. (2020) 27:320–1. doi: 10.5603/CJ.2020.0083

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Cortese B, Buccheri D, Piraino D, Silva-Orrego P, Seregni R. Drug-coated balloon angioplasty: an intriguing alternative for the treatment of coronary chronic total occlusions. Int J Cardiol. (2015) 187:238–9. doi: 10.1016/j.ijcard.2015.03.223

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Koln PJ, Scheller B, Liew HB, Rissanen TT, Ahmad WA, Weser R, et al. Treatment of chronic total occlusions in native coronary arteries by drug-coated balloons without stenting - a feasibility and safety study. Int J Cardiol. (2016) 225:262–7. doi: 10.1016/j.ijcard.2016.09.105

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Yang S, Tang L, Ge G, Li R, Qu X, Fang W, et al. Efficacy of drug-eluting stent for chronic total coronary occlusions at different follow-up duration: a systematic review and meta-analysis. Eur Rev for Med and Pharmacol Scien. (2015) 19:1101–16.

PubMed Abstract | Google Scholar

11. Her AY, Shin ES, Bang LH, Nuruddin AA, Tang Q, Hsieh IC, et al. Drug-Coated balloon treatment in coronary artery disease: recommendations from an Asia-Pacific consensus group. Cardiol J. (2021) 28:136–49. doi: 10.5603/CJ.a2019.0093

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Jeger RV, Eccleshall S, Wan Ahmad WA, Ge J, Poerner TC, Shin ES, et al. Drug-Coated balloons for coronary artery disease: third report of the international DCB consensus group. JACC Cardiovasc Interv. (2020) 13:1391–402. doi: 10.1016/j.jcin.2020.02.043

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Shimony A, Joseph L, Mottillo S, Eisenberg MJ. Coronary artery perforation during percutaneous coronary intervention: a systematic review and meta-analysis. Can J Cardiol. (2011) 27:843–50. doi: 10.1016/j.cjca.2011.04.014

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Boden WE, O'Rourke RA, Teo KK, Hartigan PM, Maron DJ, Kostuk WJ, et al. Optimal medical therapy with or without PCI for stable coronary disease. N Engl J Med. (2007) 356:1503–16. doi: 10.1056/NEJMoa070829

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Tajti P, Burke MN, Karmpaliotis D, Alaswad K, Werner GS, Azzalini L, et al. Update in the percutaneous management of coronary chronic total occlusions. JACC Cardiovasc Interv. (2018) 11:615–25. doi: 10.1016/j.jcin.2017.10.052

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Joner M, Finn AV, Farb A, Mont EK, Kolodgie FD, Ladich E, et al. Pathology of drug-eluting stents in humans: delayed healing and late thrombotic risk. J Am Coll Cardiol. (2006) 48:193–202. doi: 10.1016/j.jacc.2006.03.042

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Nakazawa G, Vorpahl M, Finn AV, Narula J, Virmani R. One step forward and two steps back with drug-eluting-stents: from preventing restenosis to causing late thrombosis and nouveau atherosclerosis. JACC Cardiovasc Imaging. (2009) 2:625–8. doi: 10.1016/j.jcmg.2009.01.011

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Daemen J, Wenaweser P, Tsuchida K, Abrecht L, Vaina S, Morger C, et al. Early and late coronary stent thrombosis of sirolimus-eluting and paclitaxel-eluting stents in routine clinical practice: data from a large two-institutional cohort study. Lancet. (2007) 369:667–78. doi: 10.1016/S0140-6736(07)60314-6

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Von Birgelen C, Van Der Heijden LC, Basalus MW, Kok MM, Sen H, Louwerenburg HW, et al. Five-year outcome after implantation of zotarolimus-and everolimus-eluting stents in randomized trial participants and nonenrolled eligible patients: a secondary analysis of a randomized clinical trial. JAMA Cardiol. (2017) 2:268–76. doi: 10.1001/jamacardio.2016.5190

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Madhavan MV, Kirtane AJ, Redfors B, Genereux P, Ben-Yehuda O, Palmerini T, et al. Stent-Related adverse events >1 year after percutaneous coronary intervention. J Am Coll Cardiol. (2020) 75:590–604. doi: 10.1016/j.jacc.2019.11.058

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Jeger RV, Farah A, Ohlow MA, Mangner N, Mobius-Winkler S, Weilenmann D, et al. Long-term efficacy and safety of drug-coated balloons versus drug-eluting stents for small coronary artery disease (BASKET-SMALL 2): 3-year follow-up of a randomised, non-inferiority trial. Lancet. (2020) 396:1504–10.

PubMed Abstract | Google Scholar

22. Silverio A, Buccheri S, Venetsanos D, Alfredsson J, Lagerqvist B, Persson J, et al. Percutaneous treatment and outcomes of small coronary vessels: a SCAAR report. JACC Cardiovasc Interv. (2020) 13:793–804. doi: 10.1016/j.jcin.2019.10.062

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Moreno R, Garcia E, Teles R, Rumoroso JR, Cyrne Carvalho H, Goicolea FJ, et al. Randomized comparison of sirolimus-eluting and everolimus-eluting coronary stents in the treatment of total coronary occlusions: results from the chronic coronary occlusion treated by everolimus-eluting stent randomized trial. Circ Cardiovasc Interv. (2013) 6:21–8. doi: 10.1161/CIRCINTERVENTIONS.112.000076

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Lee SW, Lee PH, Ahn JM, Park DW, Yun SC, Han S, et al. Randomized trial evaluating percutaneous coronary intervention for the treatment of chronic total occlusion. Circulation. (2019) 139:1674–83. doi: 10.1161/CIRCULATIONAHA.118.031313

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Werner GS, Martin-Yuste V, Hildick-Smith D, Boudou N, Sianos G, Gelev V, et al. A randomized multicentre trial to compare revascularization with optimal medical therapy for the treatment of chronic total coronary occlusions. Eur Heart J. (2018) 39:2484–93. doi: 10.1093/eurheartj/ehy220

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Lee PH, Lee S-W, Park H-S, Kang SH, Bae BJ, Chang M, et al. Successful recanalization of native coronary chronic total occlusion is not associated with improved long-term survival. JACC Cardiovasc Interv. (2016) 9:530–8. doi: 10.1016/j.jcin.2015.11.016

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Shin ES, Bang LH, Jun EJ, Her AY, Chung JH, Garg S, et al. Provisional drug-coated balloon treatment guided by physiology on de novo coronary lesion. Cardiol J. (2020). doi: 10.5603/CJ.a2020.0105

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Kim M, Yuan SL, Shin ES. Percutaneous treatment of left main chronic total occlusion with paclitaxel-coated balloon. Eur Heart J Case Rep. (2021) 5:1–2. doi: 10.1093/ehjcr/ytab442

PubMed Abstract | CrossRef Full Text | Google Scholar

29. Rissanen TT, Uskela S, Eranen J, Mantyla P, Olli A, Romppanen H, et al. Drug-coated balloon for treatment of de-novo coronary artery lesions in patients with high bleeding risk (DEBUT): a single-blind, randomised, non-inferiority trial. Lancet. (2019) 394:230–9. doi: 10.1016/S0140-6736(19)31126-2

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Shin ES, Lee JM, Her AY, Chung JH, Eun Lee K, Garg S, et al. Prospective randomized trial of paclitaxel-coated balloon versus bare-metal stent in high bleeding risk patients with de novo coronary artery lesions. Coron Artery Dis. (2019) 30:425–31. doi: 10.1097/MCA.0000000000000755

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Cortese B, Buccheri D, Piraino D, Silva-Orrego P. Drug-coated balloon without stent implantation for chronic total occlusion of coronary arteries: description of a new strategy with an optical coherence tomography assistance. Int J Cardiol. (2015) 191:75–6. doi: 10.1016/j.ijcard.2015.04.278

PubMed Abstract | CrossRef Full Text | Google Scholar

32. Cortese B, Buccheri D, Piraino D, Silva-Orrego P. Drug-coated balloon angioplasty for coronary chronic total occlusions. an OCT analysis for a “new” intriguing strategy. Int J Cardiol. (2015) 189:257–8. doi: 10.1016/j.ijcard.2015.04.102

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: de novo, clinical outcome, coronary artery disease, drug-coated balloon (DCB), chronic total occlusion (CTO)
