Nicole Eisenhuth1†
Elisa Theres Rauh1†
Melina Mitnacht1Andrea Debus2
Ulrike Schleicher2Falk Butter3Katerina Pruzinova4
Petr Volf4
Christian J. Janzen1*- 1Department of Cell and Developmental Biology, Biocenter, University of Würzburg, Würzburg, Germany
- 2Microbiology Institute-Clinical Microbiology, Immunology and Hygiene, University Hospital Erlangen and Friedrich-Alexander-University, Erlangen, Germany
- 3Proteomics und Systems Biology, Institute of Molecular Virology and Cell Biology (IMVZ), Friedrich Loeffler Institute, Greifswald, Germany
- 4Department of Parasitology, Charles University, Prague, Czechia
Conserved histone methyltransferases of the DOT1 family are involved in replication regulation, cell cycle progression, stage differentiation, and gene regulation in trypanosomatids. However, the specific functions of these enzymes depend on the host evasion strategies of the parasites. In this study, we investigated the role of DOT1B in Leishmania mexicana, focusing on life cycle progression and infectivity. In contrast to Trypanosoma brucei, in which DOT1B is essential for the differentiation of mammal-infective bloodstream forms to insect procyclic forms, L. mexicana DOT1B (LmxDOT1B) is not critical for the differentiation of promastigotes to amastigotes in vitro. Additionally, there are no significant differences in the ability to infect or differentiate in macrophages or sand fly vectors between the LmxDOT1B-depleted and control strains. These findings highlight the divergence of the function of DOT1B in these related parasites, suggesting genus-specific adaptations in the use of histone modifications for life cycle progression and host adaptation processes.
Introduction
One of the greatest challenges for eukaryotic cells is to organize and maintain a dynamic genome architecture that allows precise access to protein machinery to allow DNA replication, DNA repair, and gene expression. This balance between compaction and regulated access is achieved by the organization of DNA into a dynamic nucleoprotein complex called chromatin. Chromatin properties can be altered through various mechanisms, including the action of ATP-dependent chromatin remodelers, the replacement of core histones with specialized histone variants, DNA modifications, or a variety of histone modifications. Posttranslational histone modifications (PTMs) can modulate histone–histone and histone–DNA interactions, thereby altering chromatin structure. Furthermore, histone modifications can serve as binding platforms for effector proteins that mediate diverse biological processes. One of the most conserved histone modifiers is the histone methyltransferase DOT1 (disruptor of telomere silencing), which is the sole enzyme required for catalyzing mono-, di-, and trimethylation (me1, me2, and me3, respectively) of histone H3 lysine 79 (H3K79) (Q. Feng et al., 2002; Frederiks et al., 2008; Min et al., 2003). Loss of DOT1 results in the complete absence of this methylation mark in humans, mice, flies, and yeast (Deshpande et al., 2014; Feng et al., 2010; Jones et al., 2008; Ng et al., 2002; Shanower et al., 2005). Initially discovered for its role in disrupting transcriptional silencing of reporter genes adjacent to telomeres, DOT1 has multiple functions beyond telomeric silencing, including genome-wide marking of actively transcribed chromatin, cell cycle regulation, maintenance of genome integrity in response to DNA damage, and initiation of replication (Farooq et al., 2016; Wood et al., 2018).
In previous work, we investigated the functions of DOT1 enzymes in trypanosomatids, which are extremely successful single-celled pathogens belonging to the class Kinetoplastida. The most significant representatives for human and domestic animal health are Trypanosoma brucei (African trypanosomiasis), Trypanosoma cruzi (Chagas disease), and Leishmania spp. (leishmaniasis). Trypanosomatids have developed sophisticated cell differentiation strategies to transform into highly specialized stages to survive and proliferate in different host and vector environments. These adaptation processes involve changes in many cellular functions and are also accompanied by changes in nuclear architecture and chromatin structure (Burri et al., 1994; Povelones et al., 2012; Rout and Field, 2001; Schlimme et al., 1993). However, the exact function of chromatin structure alterations during developmental differentiation is not well understood. Already decades ago, different migration of histones in triton acid urea gels, which separate proteins according to their hydrophobicity, suggested differences in life cycle-specific histone PTMs (Burri et al., 1994; Porto et al., 2002). This observation was supported by mass spectrometry analysis comparing histone PTMs of different life cycle stages in T. brucei and T. cruzi (Janzen et al., 2006a; de Jesus et al., 2016; Mandava et al., 2007). Enzymes of the DOT1 family likely contribute to the chromatin remodeling process during differentiation. For example, TbDOT1B expression is upregulated during differentiation and is essential for the differentiation of mammalian-infective bloodstream forms (BSFs) to insect procyclic forms (PCFs) (Dejung et al., 2016).
In contrast to yeast and humans, trypanosomes possess two paralogs of DOT1, namely, DOT1A and DOT1B, with distinct catalytic activities. DOT1A mediates mono- and dimethylation of H3K76, while DOT1B catalyzes trimethylation of the same residue (Janzen et al., 2006b). H3K76 methylation exhibits a cell cycle-dependent pattern (Gassen et al., 2012). Histones are predominantly trimethylated on H3K76 in the G1 phase of the cell cycle. Newly synthesized histones are not modified during the S phase. DOT1A-mediated mono- and dimethylation can be detected at the earliest in the G2 phase and seem to be crucial for replication regulation because depletion of DOT1A abolishes replication, and overexpression causes continuous reinitiation of replication (Gassen et al., 2012). In contrast, TbDOT1B is not essential for cell viability under standard cell culture conditions but is involved in the repression of silent variant surface glycoprotein (VSG) genes and in switching kinetics of VSGs (Figueiredo et al., 2008; Janzen et al., 2006b). In addition to its contribution to the transcriptional control of VSG genes, TbDOT1B is essential for developmental differentiation from BSF to PCF (Janzen et al., 2006b). During this process, the replicative so-called long slender forms initially differentiate into short stumpy forms, a process that is accompanied by cell cycle arrest in the G1 phase. Short stumpy forms are preadapted for survival in the midgut of the tsetse fly, and upon further environmental stimuli in the fly, they are able to differentiate into the next life cycle stage, the PCF. TbDOT1B-deleted cells still express the stumpy marker PAD1 and can re-enter the cell cycle during differentiation to the PCF but exhibit asymmetric nuclear division and accumulation of DNA damage after the S phase (Dejung et al., 2016). Chromatin structure and nuclear architecture of BSF and PCF are different (Burri et al., 1994; Povelones et al., 2012; Rout and Field, 2001; Schlimme et al., 1993). Chromatin remodeling may occur during the first S phase after the initiation of differentiation, and TbDOT1B appears to be essential for this process (Dejung et al., 2016).
Little is known about the functions of DOT1 enzymes in other trypanosomatid species. In T. cruzi, H3K76 cell cycle-specific mono- and dimethylation patterns are conserved (de Jesus et al., 2016). However, unlike in T. brucei, TcDOT1B is involved in proper cell cycle progression (Nunes et al., 2020). Depletion of TcDOT1B causes a growth phenotype due to an accumulation of parasites in the G2 phase and increased DNA damage. The function of TcDOT1A has not been investigated yet. To date, little is known about DOT1 enzymes in Leishmania. In this study, we aimed to investigate the functions of DOT1 in Leishmania mexicana. We generated double-knockout cell lines of LmxDOT1B and analyzed the cell cycle-dependent H3K73 methylation patterns (based on sequence alignment of the homologous residue of T. brucei H3K76) as well as the influence of LmxDOT1B on parasite life cycle progression. Surprisingly, unlike in T. brucei, LmxDOT1B is not essential for the differentiation of axenic procyclic promastigotes to amastigotes in vitro. Additionally, we show that LmxDOT1B is dispensable for efficient establishment of an infection in bone marrow-derived macrophages and sand fly vectors. Our findings suggest that while the enzymatic activity of the LmxDOT1B enzyme is conserved, L. mexicana parasites have developed novel functions specific to their life cycle requirements.
Materials and methods
Leishmania cultivation and cell line generation
L. mexicana procyclic promastigotes were grown in Schneider’s Drosophila medium (Serva). The basic medium was supplemented with 10% heat-inactivated fetal calf serum, 10 mM 4-(2-hydroxyethyl)-1-piperazine ethanesulfonic acid (HEPES), 2% sterile-filtered human urine, and 4% acid–antibiotics–pyruvate solution (AAP mix) [200 mL AAP: 50 mL penicillin/streptomycin solution (Invitrogen, Carlsbad, CA, USA), 50 mL sodium pyruvate (100 mM stock), 50 mL l-glutamine (200 mM stock), 50 mL “Dulbecco’s modified Eagle’s medium” (DMEM) without phenol red with 1 g/L glucose and NaHCO3 (Sigma, St. Louis, MO, USA), 0.18 g l-asparagine, and 0.58 g l-arginine)]. For routine culture, L. mexicana procyclic promastigotes were grown at 28°C and 5% CO2 in humidified air. To maintain the logarithmic growth phase (1 × 105 to 1 × 107 cells/mL), the cells were regularly diluted based on cell counts obtained using a Coulter Counter Z2 particle counter. Transfections and drug selections were carried out as described previously (Beneke et al., 2017; Burkard et al., 2007). The transgenic Cas9 T7-expressing cell line was used as a parental cell line. Briefly, 2 × 107 log-phase promastigotes were harvested by centrifugation and washed once with 10 mL phosphate-buffered saline (PBS). The pellet was resuspended in 400 μL of 90 mM Na2PO4, 5 mM KCl, 0.15 mM CaCl2, and 50 mM HEPES, pH 7.3, and electroporated using a Nucleofector II (Amaxa Biosystems, Cologne, Germany; single pulse “X001 free choice”). For genome editing using CRISPR/Cas9 technology (Beneke et al., 2017), 7 μg of PCR products and 20 μL of sgRNA templates were transfected. For the add-back, 10 μL of plasmid was used. To generate ΔDOT1B cells, both alleles of LmxDOT1B (LmxM.20.0030) were successively replaced with a geneticin and puromycin resistance cassette, using the pTNeo_v1 and pTPuro_v1 plasmids and primers designed with LeishGedit (Supplementary Table S1) (Beneke et al., 2017). To generate the add-back cell line ΔDOT1B[DOT1B], the open reading frame (ORF) of DOT1B and the flanking 3′ and 5′ untranslated regions (UTRs) were PCR-amplified and inserted into pRM005 using the EcoRI and SpeI cloning sites (Supplementary Table S1). The resulting plasmid was then transfected, and cells were selected using phleomycin. For antibiotic selections, the following concentrations were used: 32 mg/mL hygromycin B, 40 mg/mL G418 disulfate, 20 mg/mL puromycin, and 25 mg/mL phleomycin (Beneke et al., 2017).
BMDM generation and infection
All experiments followed the EU Directive 2016/63/EU, Article 23, Function A, and the German Tierschutz-Versuchstierverordnung (TierSchVersV, Anlage 1, Abschnitt 3). Bone marrow-derived macrophages (BMDMs) were generated from myeloid progenitor cells isolated from C57BL/6 mice. Differentiation was induced by incubation with macrophage colony-stimulating factor (M-CSF) secreted by L929 cells in a 10% conditioned medium for 7 days at 37°C and 5% CO2. The macrophages were harvested by incubation on ice for 5 min and gently scraped; a total of 2 × 105 cells per well were seeded in 24-well plates with coverslips in each well and allowed to adhere to the coverslips overnight. The next day, the macrophages were infected with stationary phase promastigotes at a multiplicity of infection of 5. Leishmania was incubated with BMDMs for 4 h and washed before they were incubated at 37°C and 5% CO2 for 12 h, 24 h, 48 h, or 72 h. After the designated infection time, the wells were washed with prewarmed PBS to remove dead cells. The remaining cells were fixed with 4% paraformaldehyde (PFA)/PBS for 10 min in the dark. After an additional three washes with PBS, the samples were permeabilized with 0.5% Triton X-100/PBS for 20 min. After two washing steps in 0.1% Triton X-100/PBS for 1 h, the samples were mounted on microscopy slides with 4′,6-diamidino-2-phenylindole (DAPI) Fluoromount-G mounting medium. Infection rates were determined manually by counting infected and non-infected macrophages in at least five fields of view (50–100 macrophages per FOV) of the microscope (Zeiss, Oberkochen, Germany; 60 × 1.25 oil). The mean and standard deviation were calculated for the bar graphs. Statistical analysis was performed using GraphPad Prism 9.5.1 (Dotmatics, Bishop’s Stortford, UK) and included tests for normal distribution, which were inconclusive due to the small replicate number (n = 6–8). Thus, the Mann–Whitney test was used to compare infection rates at individual timepoints.
Western blotting analysis
Western blotting analyses were carried out according to standard protocols. In brief, lysates of 2 × 106 cells were separated by sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS–PAGE) on 12% to 15% polyacrylamide gels and transferred to polyvinylidene difluoride (PVDF) membranes. After blocking the membranes [1 h, room temperature (RT)], they were incubated with primary antibodies [rabbit anti-H3K73me2 (1:2,000), rabbit anti-H3K73me3 (1:2,000), and mouse anti-PFR1,2 (L13D6) monoclonal antibodies were a gift from Keith Gull (Oxford, UK) (Kohl et al., 1999)] diluted in 0.1% Tween/PBS (1 h, RT). After three washing steps with 10 mL of 0.2% Tween/PBS, the membranes were incubated with IRDye 800CW- and 680LT-coupled secondary antibodies (LI-COR, Lincoln, NE, USA) diluted 1:20,000 in 0.1% Tween/PBS supplemented with 0.02% SDS (1 h, RT). The signals were imaged using a LI-COR Odyssey CLx and quantified using the Image Studio software.
Immunofluorescence analysis
In 1 mL of culture medium containing 4% formaldehyde, 1 × 107 cells were fixed for 5 min at RT. After three washes with 1 mL of PBS (1,000 × g, 5 min, RT), the cells were resuspended in 300 µL of PBS. Cells were allowed to settle on poly-l-lysine-coated slides (Sigma) in a humidified chamber for 30 min. The cells were permeabilized in 100 µL of 0.2% Igepal CA-630/PBS (5 min, RT), and the slides were washed twice for 5 min in a glass slide jar filled with PBS. The cells were blocked with 100 µL of 1% bovine serum albumin (BSA)/PBS (1 h, RT) in a humidified chamber. After removing the blocking solution, 100 µL of primary antibody solution [anti-H3K73me2 (1:2,000) or anti-H3K73me3 (1:2,000)] in 0.1% BSA/PBS was added, and the slides were incubated for 1 h in a humidified chamber. Slides were washed three times for 5 min with PBS prior to the addition of 100 µL of secondary antibody solution [polyclonal goat Alexa Fluor 594 anti-rabbit (1:2,000) (Thermo Fisher Scientific, Waltham, MA, USA) in 0.1% BSA/PBS supplemented with 5 μg/mL Hoechst or 1 µg/mL DAPI] or ExtrAvidinCy3 (Sigma) solution (1:100 in 0.1% BSA/PBS supplemented with 5 μg/mL Hoechst). The slides were incubated in a humidified chamber for 30 min at RT in the dark. After three washes with PBS, the cells were mounted with 10 µL of Vectashield (Vector Laboratories, Burlingame, CA, USA) and capped with coverslips. Images were captured using a Leica DMI 6000B microscope and processed using the Fiji software.
Scanning electron microscopy
Briefly, 1 × 107 L. mexicana cells per sample were harvested (1,000 × g, 3 min, RT), and the supernatants were removed, except for a few microliters. The cells were fixed by the addition of 900 µL of prewarmed (27°C) Karnovsky solution (2% paraformaldehyde, 100 mM cacodylate buffer, pH 7.2, and 2.5% glutaraldehyde), mixed by inversion, and incubated for 1 h at RT. Fixed cells were harvested (1,000 × g, 2 min, RT), washed three times with cacodylate buffer (100 mM, pH 7.2) (1,500 × g, 5 min, RT), and resuspended in 500 µL of cacodylate buffer. The attachment of cells to poly-l-lysine-coated coverslips was carried out in 24-well plates by centrifugation (1,000 × g, 5 min, RT). Then, the samples were washed with 1 mL of cacodylate buffer for 5 min (1,000 × g, 5 min, RT). To increase the contrast, the samples were incubated in 2% tannic acid in cacodylate buffer for 1 h at 4°C. Afterward, the cells were washed again once with 1 mL of cacodylate buffer and three times with H2O for 5 min each (1,000 × g, 5 min, RT). The coverslips were divided and transferred into vessels suitable for critical point drying. The samples were dehydrated in a series of ethanol (EtOH) solutions (30%, 50%, 70%, and 90% EtOH for 5 min each and six times in 100% EtOH for 5 min), critical point-dried in CO2, coated with gold palladium, and imaged using a JEOL JSM-7500F scanning electron microscope.
Sand fly infection
A colony of Lutzomyia longipalpis (Jacobina, Brazil) was maintained under standard conditions (temperature 25°C–26°C, humidity 70%–95%) as described previously (Volf and Volfova, 2011). Sand fly adult females (3–5 days old) were infected by feeding through a chicken skin membrane on heat-inactivated sheep blood containing 1 × 106 log-phase promastigote Leishmania per mL. Engorged females were separated and maintained at 25°C with free access to 50% sugar solution. On days 2, 6, and 9 post-infection, females were dissected in drops of saline solution. The individual guts were checked for the presence of Leishmania promastigotes under a light microscope. The intensities of Leishmania infections were classified into three categories, as follows (Myskova et al., 2008): light (<100 parasites/gut), moderate (100–1,000 parasites/gut), and heavy (>1,000 parasites/gut). In each experimental group, 120 females were used, and approximately one-half of them were willing to take blood through the chicken skin membrane. The mortality of infected females of both groups was comparable to that observed in uninfected females reared in the colony, not exceeding 20%. The experiment was repeated twice with two different batches of sand fly females (each batch contained 240 females).
Results
The enzymatic activity of LmxDOT1B is conserved
The catalytic cores of HsDOT1L and ScDOT1p share only a few conserved sequence motifs responsible for substrate and cofactor binding (Q. Feng et al., 2002; Min et al., 2003). Trypanosomatids possess two paralogs of DOT1 enzymes, namely, DOT1A and DOT1B (Janzen et al., 2006b). Both paralogs contain conserved sequence motifs responsible for substrate and cofactor binding, along with trypanosomatid-specific motifs, which confer unique product specificity and distinct functions. Leishmania also possesses two DOT1 paralogs (Janzen et al., 2006b), and this study focused on LmxDOT1B. To determine whether LmxDOT1B contains conserved motifs essential for enzymatic activity within the DOT1 family, we conducted a sequence alignment with other trypanosomal DOT1B enzymes (Figure 1A). The alignment revealed conserved motifs important for co-factor and substrate binding in LmxDOT1B. Specifically, LmxDOT1B contains conserved motifs (I, I′, II, and D2) that are crucial for cofactor S-adenosylmethionine (SAM) binding and the formation of lysine-binding channels, similar to other DOT1 enzymes (Min et al., 2003). Interestingly, in T. brucei, the conventional D1 motif is substituted by the CAKS sequence, which constitutes one side of the lysine-binding channel (Dindar et al., 2014). This CAKS sequence is also present in LmxDOT1B. Additionally, LmxDOT1B harbors the DOT1B-specific CYφS motif (where φ represents hydrophobic amino acids), positioned adjacent to the CAKS sequence, contributing to the geometry of the lysine-binding channel. Furthermore, a negatively charged acidic patch near the active site of TbDOT1A and TbDOT1B is proposed as a binding counterpart for the positively charged residues of H3K76 and is therefore involved in nucleosome targeting (Dindar et al., 2014). This patch is conserved among trypanosomal DOT1 enzymes and is also present in LmxDOT1B.

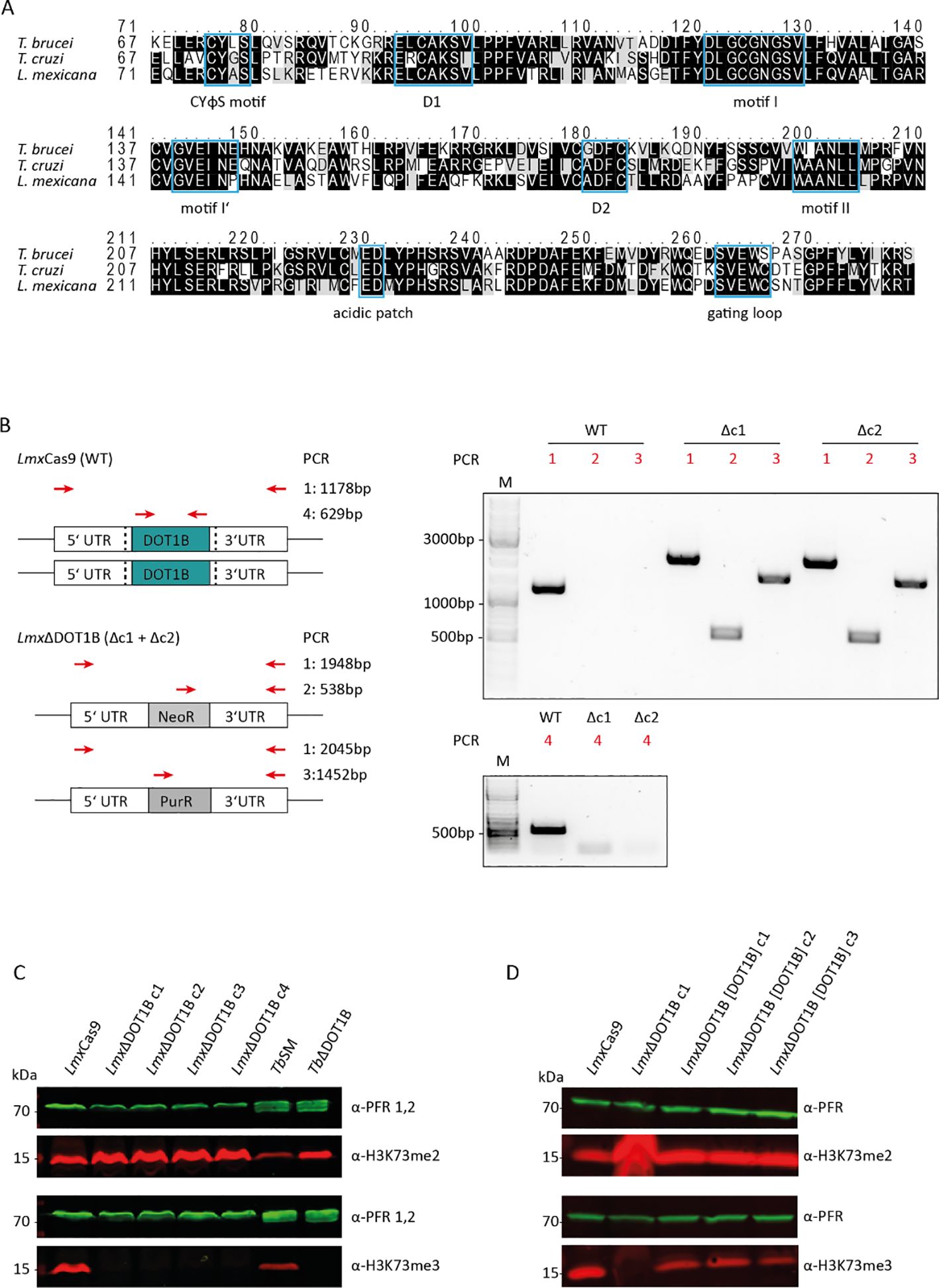

Figure 1. Leishmania mexicana DOT1B deletion in procyclic promastigotes. (A) Alignments of TbDOT1B, TcDOT1B, and LmxDOT1B sequences. Conserved structural motifs are highlighted with blue boxes. The black background indicates sequence identity, and the gray background indicates sequence similarity. (B) Schematic representation of the DOT1B gene locus in L. mexicana Cas9 and ΔDOT1B cells. Both alleles of DOT1B were replaced by introducing neomycin (NeoR) and puromycin (PurR) resistance cassettes (left panels). Red arrows indicate the primers used for integration control. Black dotted lines indicate the sites of the double-strand breaks. Right panels show integration PCR with different primer pairs to verify LmxDOT1B gene deletion. (C) Confirmation of trimethyl transferase activity in LmxDOT1B. Whole-cell lysates from LmxCas9 and LmxΔDOT1B cells were subjected to immunoblotting with anti-H3K76me2 and anti-H3K76me3 antibodies as indicated. The blots were also probed with anti-paraflagellar rod (PFR) antibodies as a loading control. Lysates of Trypanosoma brucei were included as controls. (D) Confirmation of trimethyl transferase activity in LmxDOT1B through “add-back” (ab) cell lines, which restored H3K73me3.
To test for conserved or novel functions of DOT1B in L. mexicana, DOT1B-deficient procyclic promastigote cells were generated. The LmxCas9 T7 (hereafter referred to as LmxCas9) cell line was co-transfected with two PCR-amplified sgRNA templates, creating a double-strand break upstream and downstream of the LmxDOT1B ORF, thereby generating LmxDOT1B knockout cells (referred to as “LmxΔDOT1B”). LmxDOT1B deletion and successful integration of the drug resistance markers were confirmed by PCR using specific primer pairs annealing in the UTRs of LmxDOT1B, drug resistance ORFs, and LmxDOT1B ORFs (Figure 1B). To examine the specific trimethylation activity of LmxDOT1B on H3K73, whole-cell lysates from LmxCas9 and LmxΔDOT1B were analyzed by Western blotting using antibodies against H3K73me3 and H3K73me2 (Figure 1C). Lysates of wild-type and DOT1B-depleted T. brucei (TbSM and TbΔDOT1B) were included as positive and negative controls, respectively. Deletion of DOT1B led to an increased dimethylation signal as shown previously, while trimethylation signals were undetectable, indicating that histone H3 is methylated at the conserved H3K73 residue in Leishmania and that LmxDOT1B specifically catalyzes the trimethylation of H3K73. Restoring LmxDOT1B expression by introducing an add-back construct (LmxΔDOT1B[DOT1B]c1-c3) also restored H3K73 trimethylation signals (Figure 1D), confirming that LmxDOT1B is solely responsible for H3K73 trimethylation in L. mexicana.
The H3K73 methylation pattern is cell cycle-regulated
Precise regulation of cell cycle-dependent methylation patterns is crucial for proper replication control. TbDOT1A-specific mono- and dimethylation of TbH3K76 occur only during the G2 and M phases, while trimethylation can be observed throughout the cell cycle (Gassen et al., 2012; Janzen et al., 2006b). Similar cell cycle-specific methylation patterns have been observed in T. cruzi (de Jesus et al., 2016; Nunes et al., 2020). To investigate whether L. mexicana H3K73 methylation (the homologous residue of TbH3K76 based on sequence alignment) is also cell cycle-regulated, the presence of H3K73me2 and H3K73me3 was monitored in procyclic promastigote cells using immunofluorescence analysis (Figure 2). As exponentially growing promastigotes progress asynchronously through the cell cycle, the DNA of the nucleus and kinetoplast was stained to distinguish between parasites in different cell cycle phases (Wheeler et al., 2011). In LmxCas9, H3K73me2 was detected only in mitotic/cytokinetic cells, similar to the pattern observed in T. brucei (Figure 2A). H3K73me3 was detectable throughout the cell cycle (Figure 2B). In LmxΔDOT1B, no trimethylation signal was detected, confirming the loss of LmxDOT1B activity. Consistent with the loss of H3K73me3 in LmxΔDOT1B, the H3K73me2 signal increased and was detectable in all cell cycle phases. We did not include the add-back cell lines (LmxΔDOT1B[DOT1B]) because we noticed a heterogeneous expression in these cells most likely due to heterogeneous episomal copy numbers. These findings indicate that the DOT1-mediated cell cycle-dependent H3K76 methylation pattern found in T. brucei is conserved in Leishmania.

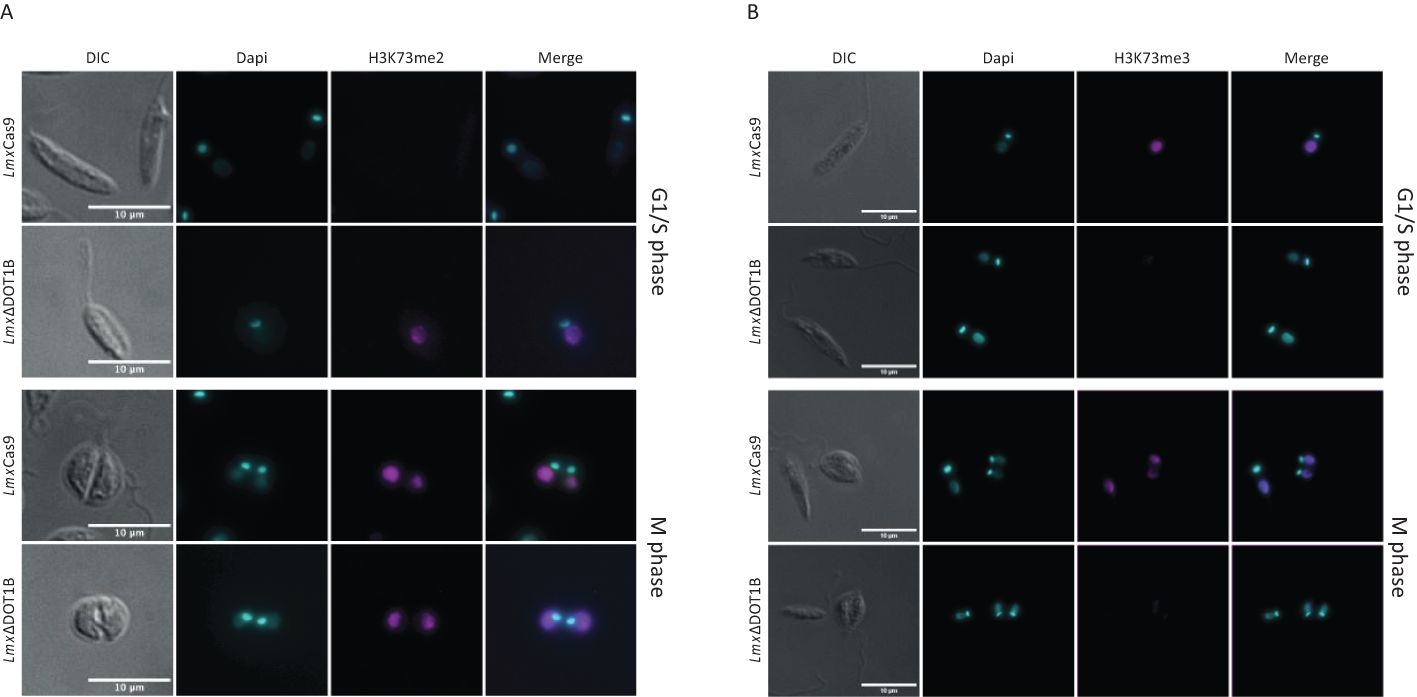

Figure 2. Methylation patterns in procyclic promastigotes during the cell cycle. Immunofluorescence analysis was performed to investigate the methylation patterns of H3K73 in the procyclic promastigote cells of the LmxCas9 and LmxΔDOT1B strains. (A) H3K73me2 was predominantly observed during mitosis and cytokinesis in LmxCas9 cells. In LmxΔDOT1B cells, cell cycle specificity was absent, and H3K73me2 was also observable in G1- and S-phase cells. (B) No cell cycle-dependent distribution of H3K73me3 was detected. Notably, LmxΔDOT1B cells lack H3K73me3. DNA was stained with 4′,6-diamidino-2-phenylindole (DAPI).
LmxDOT1B is not essential for life cycle progression
The kinetoplastid parasites have evolved complex developmental cycles enabling adaptation to different host environments. Previous studies have shown that TbDOT1B is essential for differentiation from the mammalian BSF to the insect PCF (Dejung et al., 2016; Janzen et al., 2006b). In our study, the differentiation capacity of LmxΔDOT1B was compared to that of LmxCas9 (Figure 3). To differentiate procyclic promastigote Leishmania, cells were first grown until they reached the stationary phase. For differentiation into amastigotes, stationary phase promastigotes were transferred to SDM (pH 5.4) and cultivated at elevated temperatures (Figure 3A). First, the growth of procyclic promastigotes in axenic culture conditions was monitored, and a minor growth delay was observed in DOT1B-depleted parasites (left panel). No significant differences were detected in the proportions of dead cells in either the promastigote or amastigote stage, as determined by live/dead analysis via flow cytometry (Supplementary Figure S1). Thus, cell death was ruled out as a cause of the slight growth delay in the LmxΔDOT1B cells. DOT1B-depleted parasites reached the stationary phase with a slight delay but at identical cell density compared to wild-type (WT) cells (middle panel). Finally, LmxΔDOT1B and WT cells were differentiated to amastigotes in vitro. Both cell lines started to proliferate after induction of differentiation, although LmxΔDOT1B parasites again exhibited a slight growth delay (left panel). The transition from the procyclic to the amastigote stage in L. mexicana was marked by profound morphological changes. While procyclic cells exhibited an elongated shape and long flagellum, amastigote cells were ovoid-shaped and possessed short flagella. Scanning electron microscopy was used to compare morphological changes in LmxΔDOT1B and WT cells during the differentiation process (Figure 3B). No discernible differences were observed between the two populations, which led us to conclude that DOT1B is not involved in the morphological transition during differentiation of L. mexicana. In addition to morphology, the differentiation process can be further monitored by the analysis of stage-specific protein abundance. For example, the paraflagellar rod (PFR) protein is downregulated during differentiation to amastigotes due to the shortening of the flagellum. Thus, PFR expression levels were measured via Western blotting analysis, and different life cycle stages in parental LmxCas9 cells and LmxΔDOT1B cells were evaluated (Figure 3C). No major differences could be detected between WT and DOT1B-depleted parasites. While the PFR signal was present in lysates of procyclic and stationary phase promastigotes, it was undetectable in amastigotes for both LmxCas9 and LmxΔDOT1B cells.

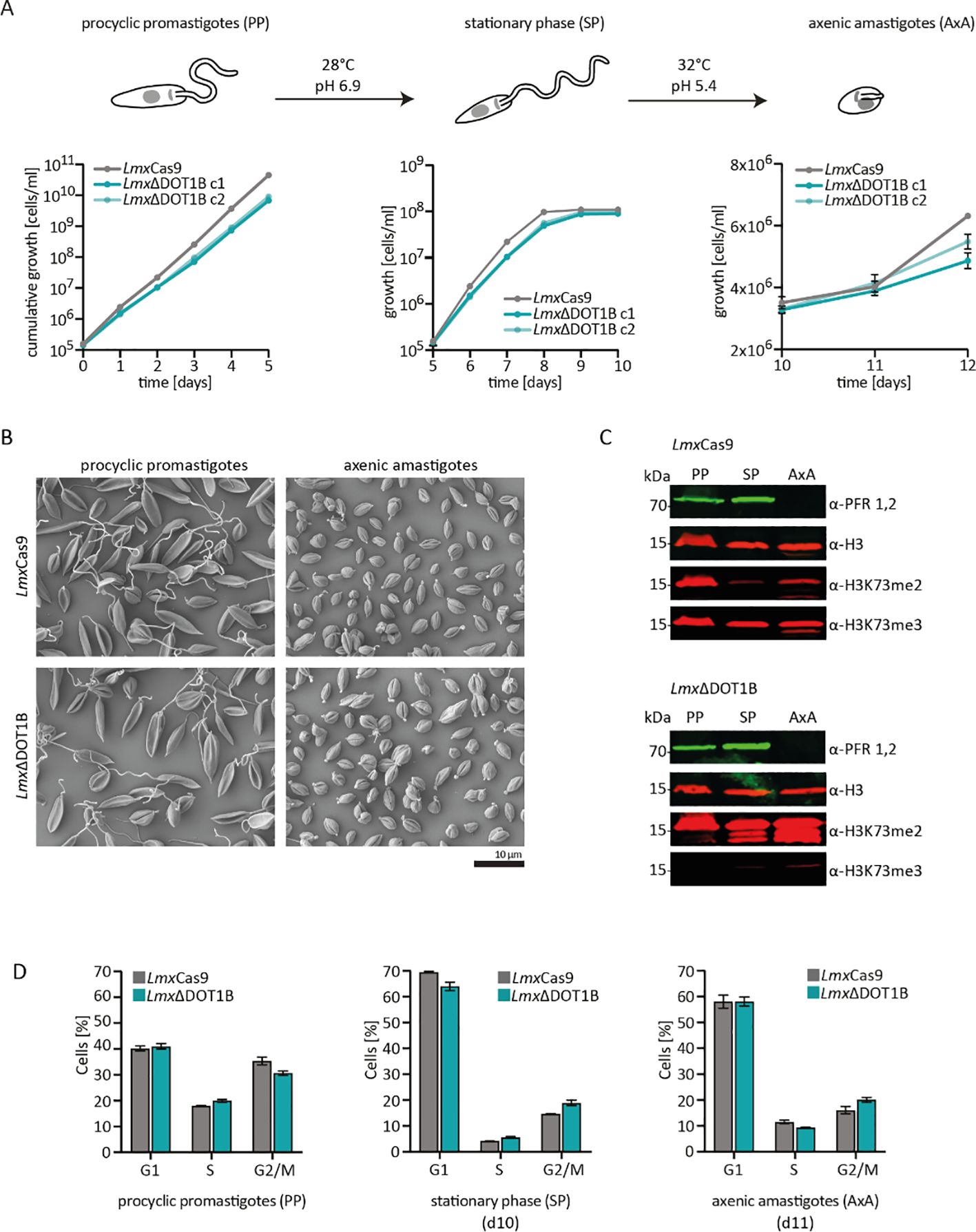

Figure 3. In vitro differentiation of LmxΔDOT1B. (A) For differentiation, logarithmically growing procyclic promastigotes were diluted to 1 × 105 cells/mL and left to grow to stationary phase for 5 days (28°C, pH 6.9). Stationary phase promastigotes were differentiated into axenic amastigotes at 32°C and pH 5.4. The growth of two LmxΔDOT1B clones and LmxCas9 cells was monitored during the differentiation process. Compared to the LmxCas9 cells, the LmxΔDOT1B mutants exhibited slightly slower growth. The means and standard deviations of four biological replicates are shown. (B) Procyclic promastigote and axenic amastigote LmxΔDOT1B populations show life cycle stage-specific morphologies, as observed by SEM. LmxCas9 cells were analyzed as a control. (C) Western blotting confirming the expression of the promastigote-specific marker paraflagellar rod (PFR) in procyclic promastigotes (PPs) and its loss in axenic amastigotes (AxAs). The H3K73me2 signal is undetectable in G1-arrested stationary phase (SP) LmxCas9 cells but reoccurs in AxA cells upon resumption of the cell cycle. LmxΔDOT1B results in a decrease in H3K73 trimethylation and a simultaneous increase in dimethylation, irrespective of the life cycle stage. Histone H3 was used as a protein loading control. (D) Evaluation of the cell cycle profiles of fixed propidium iodide (PI)-stained LmxCas9 and LmxΔDOT1B cells at different life cycle stages. Growth to the stationary phase leads to the arrest of cells in the G1 phase. Following differentiation into the amastigote form, the cells resume their cell cycle. The percentage of the mean values of each cell cycle stage is displayed in the bar graph (n = 3). No significant differences could be observed (Mann–Whitney test).
The absence of a H3K73me2 in stationary phase LmxCas9 points toward cell cycle arrest in the G1 phase since we previously demonstrated that the H3K73me2 mark is missing in this phase (Gassen et al., 2012). To determine whether DOT1B-depletion influences cell cycle progression during differentiation in L. mexicana, cells were stained with propidium iodide (PI) and analyzed by flow cytometry (Figure 3D; Supplementary Figure S2). The fluorescence intensity of the DNA-intercalating PI correlated with the DNA content of the cells, allowing us to classify the cells into G1-, S-, and G2/M-phase populations. When comparing parental with DOT1B KO cells, no statistically significant differences were observed. Forty percent of the exponentially growing procyclic promastigote WT cells could be assigned to the G1 phase, 20% to the S phase, and 35% to the G2 phase. The proportion of G1 phase cells increased to 70% with a concomitant decrease in the other cell cycle stages in stationary procyclic promastigotes, demonstrating that most cells were arrested in the G1 phase. After differentiation to the amastigote form, G1-arrested parasites re-entered the cell cycle, which is indicated by an increase in S-phase and G2-phase populations.
Loss of LmxDOT1B does not impair sand fly and macrophage infection
Next, the ability of WT and DOT1B KO Leishmania to infect the sand fly vector L. longipalpis was addressed. The female sand flies were infected by feeding heat-inactivated sheep blood containing log-phase promastigote LmxCas9 or LmxΔDOT1B Leishmania. Engorged females were separated; dissected at 2, 6, or 9 days post-infection; and evaluated microscopically according to their infection rates and intensities. To monitor the progress of infection, the localization of the parasites within the sand fly midgut was also assessed.
No significant differences in infection rates or intensities were detected between LmxCas9 and LmxΔDOT1B. Both experimental groups showed similar proportions of light, moderate, and heavy infection intensities (Figure 4A) and yielded infection rates of approximately 80% throughout the experiment. The course of infection was also quite similar between LmxCas9 and LmxΔDOT1B. Starting on day 6, in 70%–80% of infected sand fly females, Leishmania parasites colonize the stomodeal valve, an important prerequisite for further transmission during the parasite’s life cycle (Figure 4B). These data suggest that LmxDOT1B is dispensable for efficient and transmissible infection of the sand fly vector.

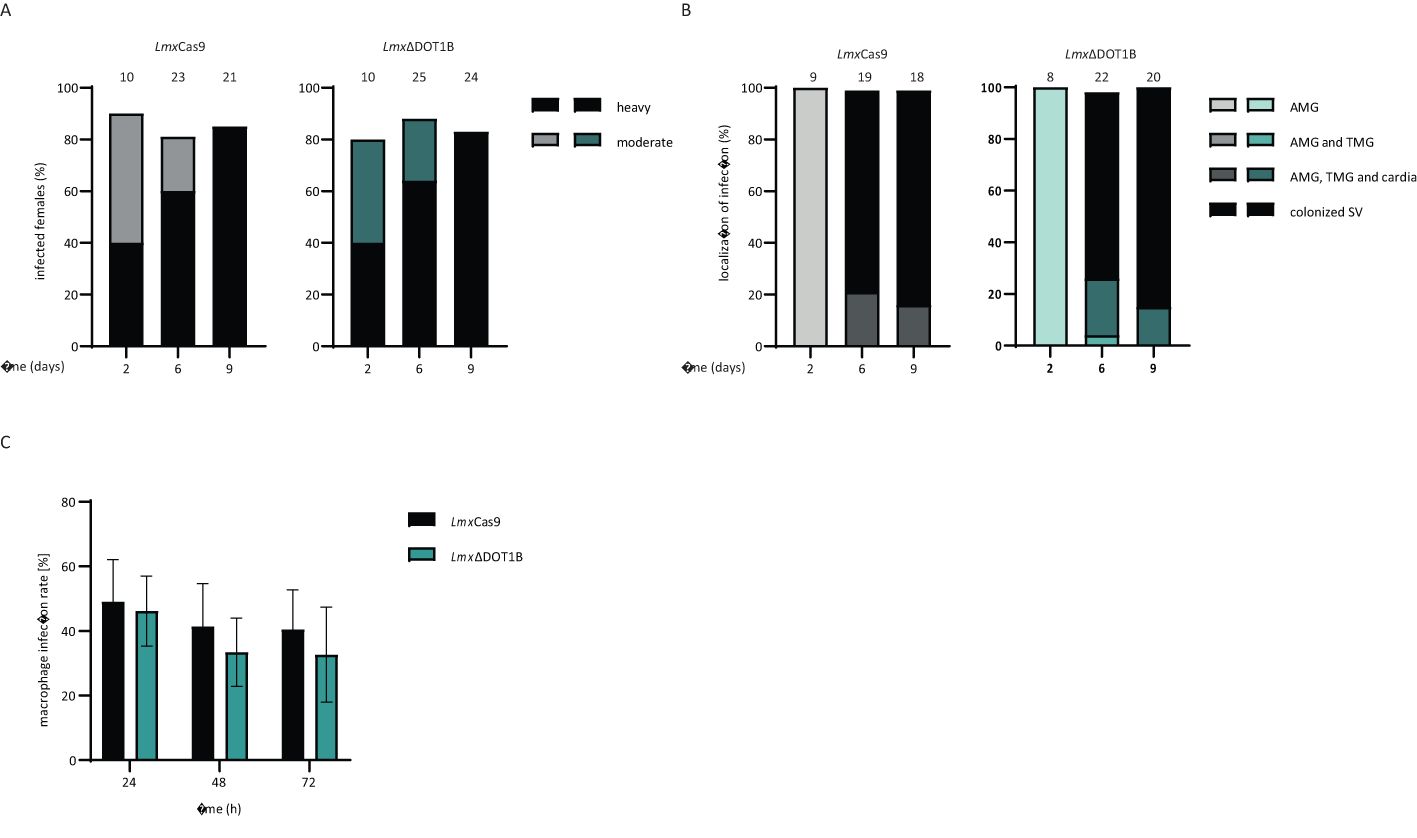

Figure 4. Infection of sand flies and macrophages. (A) LmxΔCas9 and LmxΔDOT1B infection rates and intensities in Lutzomyia longipalpis were assessed on days 2, 6, and 9 post-infection of the sand flies. The numbers above the bars indicate the total number of dissected females. Leishmania infection intensities were categorized into three classes: light (<100 parasites/gut), moderate (100–1,000 parasites/gut), and heavy (>1,000 parasites/gut). (B) Localization of infections in the abdominal midgut (AMG), thoracic midgut (TMG), and stomodeal valve (SV) on days 2, 6, and 9 post-infection. The numbers above the bars represent the total number of evaluated females with detectable infections. (C) Stationary phase promastigotes were used to infect C57BL/6 bone marrow-derived macrophages (BMDMs) at a multiplicity of infection of 5. The percentage of infected macrophages was assessed at 24, 48, and 72 h post-infection. The mean and standard deviation were calculated for the bar graphs (n = 6–8). No significant differences could be observed between LmxCas9 and LmxΔDOT1B cells (Mann–Whitney test).
An important part of the Leishmania life cycle is the ability to infect mammalian hosts, where the parasites differentiate and multiply inside macrophages. They developed sophisticated strategies to modulate the host immune response to survive within a hostile environment, which is usually responsible for the elimination of pathogens. To determine whether such complex processes are impaired upon the loss of LmxDOT1B, we infected BMDMs with LmxΔDOT1B parasites to analyze the uptake and survival rates of the mutant parasites within the first 3 days post-infection. LmxDOT1B parasites showed no statistically significant differences in the ability to infect macrophages compared to LmxCas9 cells (Figure 4C). Both cell lines were able to achieve approximately 50% initial infection rates after 24 h, which declined to approximately 40% 72 h post-infection. We did not include the add-back cell lines (LmxΔDOT1B[DOT1B]) in the infection experiments because we did not observe a phenotype that could be rescued by adding back a DOT1B gene.
In summary, in contrast to other Kinetoplastida members, LmxDOT1B is not essential for normal growth in cell culture or stage differentiation. Furthermore, it is dispensable for the establishment of an infection efficiently in mammalian macrophages and the insect vector.
Discussion
T. brucei, T. cruzi, and L. mexicana, despite all being members of the Kinetoplastida, exhibit distinct dependencies on DOT1B for their growth, stage development, and pathogenicity. Understanding these differences at a molecular level can provide valuable insights into parasite biology and open possibilities for targeted therapeutic strategies that exploit these species-specific dependencies. In this study, we aimed to shed light on the function of DOT1B in L. mexicana.
In T. brucei and T. cruzi, DOT1B is necessary for some of these processes. Although TbDOT1B is not essential for cell viability under standard cell culture conditions, it is involved in the repression of silent variant surface glycoprotein genes and the kinetics of VSG switching (Figueiredo et al., 2008; Janzen et al., 2006b). Furthermore, TbDOT1B is crucial for developmental differentiation from bloodstream forms to procyclic forms (Dejung et al., 2016; Janzen et al., 2006b). Differentiation to so-called stumpy forms, including G1 arrest, is not impaired in TbDOT1B knockout cells. However, after re-entry into the cell cycle, ΔDOT1B T. brucei exhibits defects in karyokinesis and accumulation of DNA damage. This suggests that TbDOT1B is required for changes in chromatin structure that occur in the first S phase after re-entry into cell cycle progression during developmental differentiation.
In T. cruzi, DOT1B also plays a significant role in cell cycle progression. Deletion of TcDOT1B causes a growth phenotype characterized by an accumulation of parasites in the G2 phase and increased DNA damage markers. While the exact mechanism by which DOT1B is necessary for normal cell cycle progression in T. cruzi remains elusive, Nunes and colleagues suggested that DOT1B is involved in checkpoint activation after DNA damage accumulation (Nunes et al., 2020).
The function of DOT1B in Leishmania seems to be different compared to that in the aforementioned trypanosomes. Our findings demonstrate that DOT1B is dispensable for the parasite’s life cycle progression, infectivity, and differentiation. However, as in T. brucei and T. cruzi, dimethylation could be observed only in mitotic or cytokinetic cells, while trimethylation was detectable throughout the cell cycle, indicating that LmxDOT1-mediated methylation could also be involved in DNA replication regulation as described in other trypanosomes (Gassen et al., 2012). The mechanisms of DNA replication and damage repair in Leishmania spp. are not well understood. One explanation for the absence of defects in cell cycle progression and karyokinesis after DOT1B depletion may be that Leishmania parasites mainly utilize different strategies for DNA damage detection compared to other kinetoplastids, and rearrangements of chromatin structure may not be necessary during stage development in these parasites. These results underscore the diversity of chromatin and DNA repair strategies across kinetoplastids, suggesting that Leishmania has evolved distinct regulatory pathways less dependent on DOT1B for life cycle progression.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.
Ethics statement
Ethical approval was not required for the study involving animals in accordance with the local legislation and institutional requirements because generation of BMDM does not require ethical approval according to German Tierschutzversuchstieranordnung (TierSchVersV, Anlage 1, Abschnitt 3).
Author contributions
NE: Investigation, Writing – original draft. ER: Investigation, Writing – original draft. MM: Investigation, Writing – review & editing. AD: Investigation, Writing – review & editing. US: Conceptualization, Funding acquisition, Supervision, Writing – review & editing. FB: Investigation, Resources, Writing – review & editing. KP: Investigation, Writing – review & editing. PV: Conceptualization, Funding acquisition, Supervision, Writing – review & editing. CJ: Conceptualization, Funding acquisition, Supervision, Writing – original draft, Writing – review & editing.
Funding
The author(s) declare financial support was received for the research, authorship, and/or publication of this article. NE and CJ were supported by the German Research Foundation (JA 1013/7-1). KP and PV were supported by the European Regional Development Fund (ERDF)—project CePaViP 16_019/0000759. US was supported by the German Research Foundation (RTG 2740 “ImmunoMicroTope”, project A6).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcimb.2024.1502339/full#supplementary-material
References
Beneke, T., Madden, R., Makin, L., Valli, J., Sunter, J., Gluenz, E. (2017). A CRISPR Cas9 high-throughput genome editing toolkit for kinetoplastids. R. Soc. Open Sci. 4, 170095. doi: 10.1098/rsos.170095
Burkard, G., Fragoso, C. M., Roditi, I. (2007). Highly efficient stable transformation of bloodstream forms of Trypanosoma brucei. Mol. Biochem. Parasitol. 153, 220–223. doi: 10.1016/j.molbiopara.2007.02.008
Burri, M., Schlimme, W., Betschart, B., Hecker, H. (1994). Characterization of the histones of Trypanosoma brucei brucei bloodstream forms. Acta Tropica 58, 291–305. doi: 10.1016/0001-706x(94)90023-x
de Jesus, T. C. L., Nunes, V. S., de Lopes, M. C., Martil, D. E., Iwai, L. K., Moretti, N. S., et al. (2016). Chromatin Proteomics Reveals Variable Histone Modifications during the Life Cycle of Trypanosoma cruzi. J. Proteome Res. 15, 2039–2051. doi: 10.1021/acs.jproteome.6b00208
Dejung, M., Subota, I., Bucerius, F., Dindar, G., Freiwald, A., Engstler, M., et al. (2016). Quantitative proteomics uncovers novel factors involved in developmental differentiation of trypanosoma brucei. PloS Pathog. 12, e1005439. doi: 10.1371/journal.ppat.1005439
Deshpande, A. J., Deshpande, A., Sinha, A. U., Chen, L., Chang, J., Cihan, A., et al. (2014). AF10 regulates progressive H3K79 methylation and HOX gene expression in diverse AML subtypes. Cancer Cell 26, 896–908. doi: 10.1016/j.ccell.2014.10.009
Dindar, G., Anger, A. M., Mehlhorn, C., Hake, S. B., Janzen, C. J. (2014). Structure-guided mutational analysis reveals the functional requirements for product specificity of DOT1 enzymes. Nat. Commun. 5, 5313. doi: 10.1038/ncomms6313
Farooq, Z., Banday, S., Pandita, T. K., Altaf, M. (2016). The many faces of histone H3K79 methylation. Mutat. Rese/Rev Mutat. Res. 768, 46–52. doi: 10.1016/j.mrrev.2016.03.005
Feng, Q., Wang, H., Ng, H. H., Erdjument-Bromage, H., Tempst, P., Struhl, K., et al. (2002). Methylation of H3-lysine 79 is mediated by a new family of HMTases without a SET domain. Curr. Biol. 12, 1052–1058. doi: 10.1016/s0960-9822(02)00901-6
Feng, Y., Yang, Y., Ortega, M. M., Copeland, J. N., Zhang, M., Jacob, J. B., et al. (2010). Early mammalian erythropoiesis requires the Dot1L methyltransferase. Blood 116, 4483–4491. doi: 10.1182/blood-2010-03-276501
Figueiredo, L. M., Janzen, C. J., Cross, G. A. M. (2008). A histone methyltransferase modulates antigenic variation in african trypanosomes. PloS Biol. 6, e161. doi: 10.1371/journal.pbio.0060161
Frederiks, F., Tzouros, M., Oudgenoeg, G., Welsem, T., Fornerod, M., Krijgsveld, J., et al. (2008). Nonprocessive methylation by Dot1 leads to functional redundancy of histone H3K79 methylation states. Nat. Struct. Mol. Biol. 15, 550–557. doi: 10.1038/nsmb.1432
Gassen, A., Brechtefeld, D., Schandry, N., Arteaga-Salas, J. M., Israel, L., Imhof, A., et al. (2012). DOT1A-dependent H3K76 methylation is required for replication regulation in Trypanosoma brucei. Nucleic Acids Res. 40, 10302–10311. doi: 10.1093/nar/gks801
Janzen, C. J., Fernandez, J. P., Deng, H., Diaz, R., Hake, S. B., Cross, G. A. M. (2006a). Unusual histone modifications in Trypanosoma brucei. FEBS Lett. 580, 2306–2310. doi: 10.1016/j.febslet.2006.03.044
Janzen, C. J., Hake, S. B., Lowell, J. E., Cross, G. A. M. (2006b). Selective di- or trimethylation of histone H3 lysine 76 by two DOT1 homologs is important for cell cycle regulation in trypanosoma brucei. Mol. Cell 23, 497–507. doi: 10.1016/j.molcel.2006.06.027
Jones, B., Su, H., Bhat, A., Lei, H., Bajko, J., Hevi, S., et al. (2008). The histone H3K79 methyltransferase dot1L is essential for mammalian development and heterochromatin structure. PloS Genet. 4, e1000190. doi: 10.1371/journal.pgen.1000190
Kohl, L., Sherwin, T., Gull, K. (1999). Assembly of the paraflagellar rod and the flagellum attachment zone complex during the trypanosoma brucei cell cycle. J. Eukaryotic Microbiol. 46, 105–109. doi: 10.1111/j.1550-7408.1999.tb04592.x
Mandava, V., Fernandez, J. P., Deng, H., Janzen, C. J., Hake, S. B., Cross, G. A. M. (2007). Histone modifications in Trypanosoma brucei. Mol. Biochem. Parasitol. 156, 41–50. doi: 10.1016/j.molbiopara.2007.07.005
Min, J., Feng, Q., Li, Z., Zhang, Y., Xu, R.-M. (2003). Structure of the catalytic domain of human DOT1L, a non-SET domain nucleosomal histone methyltransferase. Cell 112, 711–723. doi: 10.1016/s0092-8674(03)00114-4
Myskova, J., Votypka, J., Volf, P. (2008). Leishmania in sand flies: comparison of quantitative polymerase chain reaction with other techniques to determine the intensity of infection. J. Med. Entomol 45, 133–138. doi: 10.1093/jmedent/45.1.133
Ng, H. H., Feng, Q., Wang, H., Erdjument-Bromage, H., Tempst, P., Zhang, Y., et al. (2002). Lysine methylation within the globular domain of histone H3 by Dot1 is important for telomeric silencing and Sir protein association. Genes Dev. 16, 1518–1527. doi: 10.1101/gad.1001502
Nunes, V. S., Moretti, N. S., da Silva, M. S., Elias, M. C., Janzen, C. J., Schenkman, S. (2020). Trimethylation of histone H3K76 by Dot1B enhances cell cycle progression after mitosis in Trypanosoma cruzi. Biochim. Biophys. Acta (BBA) Mol. Cell Res. 1867, 118694. doi: 10.1016/j.bbamcr.2020.118694
Porto, R. M., Amino, R., Elias, M. C. Q., Faria, M., Schenkman, S. (2002). Histone H1 is phosphorylated in non-replicating and infective forms of Trypanosoma cruzi. Mol. Biochem. Parasitol. 119, 265–271. doi: 10.1016/s0166-6851(01)00430-3
Povelones, M. L., Gluenz, E., Dembek, M., Gull, K., Rudenko, G. (2012). Histone H1 plays a role in heterochromatin formation and VSG expression site silencing in trypanosoma brucei. PloS Pathog. 8, e1003010. doi: 10.1371/journal.ppat.1003010
Rout, M. P., Field, M. C. (2001). Isolation and characterization of subnuclear compartments from trypanosoma brucei IDENTIFICATION OF A MAJOR REPETITIVE NUCLEAR LAMINA COMPONENT*. J. Biol. Chem. 276, 38261–38271. doi: 10.1074/jbc.m104024200
Schlimme, W., Burri, M., Bender, K., Betschart, B., Hecker, H. (1993). Trypanosoma brucei brucei: differences in the nuclear chromatin of bloodstream forms and procyclic culture forms. Parasitology 107, 237–247. doi: 10.1017/s003118200007921x
Shanower, G. A., Muller, M., Blanton, J. L., Honti, V., Gyurkovics, H., Schedl, P. (2005). Characterization of the grappa gene, the drosophila histone H3 lysine 79 methyltransferase. Genetics 169, 173–184. doi: 10.1534/genetics.104.033191
Volf, P., Volfova, V. (2011). Establishment and maintenance of sand fly colonies. J. Vector Ecol. 36, S1–S9. doi: 10.1111/j.1948-7134.2011.00106.x
Wheeler, R. J., Gluenz, E., Gull, K. (2011). The cell cycle of Leishmania: morphogenetic events and their implications for parasite biology. Mol. Microbiol. 79, 647–662. doi: 10.1111/j.1365-2958.2010.07479.x
