Athmanya K. Eshwar
Claudia Guldimann1
Taurai Tasara- 1Institute for Food Safety and Hygiene, Vetsuisse Faculty, University of Zurich, Zurich, Switzerland
- 2Neuropathology—Division of Neurological Sciences, Vetsuisse Faculty, University of Bern, Bern, Switzerland
Cold shock-domain family proteins (Csps) are highly conserved nucleic acid binding proteins regulating the expression of various genes including those involved in stress resistance and virulence in bacteria. We show here that Csps are involved in virulence, cell aggregation and flagella-based extracellular motility of Listeria monocytogenes. A L. monocytogenes mutant deleted in all three csp genes (ΔcspABD) is attenuated with respect to human macrophage infection as well as virulence in a zebrafish infection model. Moreover, this mutant is incapable of aggregation and fails to express surface flagella or exhibit swarming motility. An evaluation of double csp gene deletion mutant (ΔcspBD, ΔcspAD and ΔcspAB) strains that produce single csp genes showed that there is redundancy as well as functional differences among the three L. monocytogenes Csps in their contributions to virulence, cellular aggregation, flagella production, and swarming motility. Protein and mRNA expression analysis further showed impaired expression of key virulence and motility genes in the csp mutants. Our observations at protein and mRNA level suggest Csp-dependent expression regulation of these genes at transcriptional and post-transcriptional levels. In a mutant lacking all csp genes (ΔcspABD) as well as those possessing single csp genes (ΔcspBD, ΔcspAD, and ΔcspAB) we detected reduced levels of proteins or activity as well as transcripts from the prfA, hly, mpl, and plcA genes suggesting a Csp-dependent transcriptional regulation of these genes. These csp mutants also had reduced or completely lacked ActA proteins and cell surface flagella but contained elevated actA and flaA mRNA levels compared to the parental wild type strain suggesting Csp involvement in post-transcriptional regulation of these genes. Overall, our results suggest that Csps contribute to the expression regulation of virulence and flagella-associated genes thereby promoting host pathogenicity, cell aggregation and flagella-based motility processes in L. monocytogenes.
Introduction
The Gram-positive bacterium Listeria monocytogenes is an opportunistic foodborne pathogen that poses a serious public health risk if introduced into the food chain (Allerberger and Wagner, 2010; Anonymous, 2016). The ingestion of contaminated food can lead to listeriosis, a disease associated with severe illnesses, high mortality, abortions, and stillbirths in susceptible or immunocompromised human individuals (Allerberger and Wagner, 2010; Silk et al., 2012). Besides these serious human health risks, listeriosis is also responsible for significant food hygiene challenges and substantial economic losses to the food industry (Kramer et al., 2005; Jami et al., 2015; Melo et al., 2015). L. monocytogenes occurs ubiquitously in the environment and can survive in a wide range of environmental conditions. Molecular mechanisms governing resilience in unfavorable conditions, e.g. those associated with food preservation measures or host defenses, as well as the expression of virulence factors that facilitate host cell invasion have been a focus of intense investigation in this bacterium (Dussurget, 2008; Freitag et al., 2009; Soni et al., 2011; Melo et al., 2015).
Upon oral ingestion, various virulence factors mediate the invasion of L. monocytogenes into host cells and facilitate spread to neighboring cells (Dussurget, 2008; Freitag et al., 2009). These processes are tightly regulated, mainly by the transcriptional regulator PrfA that gets activated upon host infection (de las Heras et al., 2011). The entry into non-phagocytic host cells depends on InlA and InlB surface proteins, whereas uptake into phagocytic host cells is by phagocytosis (Gaillard et al., 1991; Dramsi et al., 1995). A combination of Listerolysin O (LLO), phospholipases (PlcA and PlcB) and the metalloprotease Mpl facilitate the escape of L. monocytogenes from the internalization vacuoles or phagosomes into the host cell cytosol where the bacteria replicate (Portnoy et al., 1988; Camilli et al., 1993; Slepkov et al., 2010). Intracellular motility and cell-to-cell spread is mediated through the surface protein ActA and the internalin protein InlC (Kocks et al., 1992).
Besides these well-defined virulence factors, the expression of flagella and flagella-based motility has also been implicated in virulence functions in various bacteria including L. monocytogenes (Josenhans and Suerbaum, 2002; Duan et al., 2013). Flagella provide L. monocytogenes with a crucial advantage compared to non-motile bacteria inside (Dons et al., 2004; Bigot et al., 2005; O'Neil and Marquis, 2006) as well as outside the host by enabling the bacteria to actively evade negative stimuli and migrate toward nutrients, to grow at low temperatures (Mattila et al., 2011), or by mediating surface attachment and biofilm formation (Vatanyoopaisarn et al., 2000; Lemon et al., 2007).
Bacterial cold shock-domain protein family proteins (Csps) are small, highly conserved nucleic acid binding proteins that are involved in regulation of various gene expression events (Horn et al., 2007; Keto-Timonen et al., 2016). Occurring in a broad range of bacterial species, these proteins were originally discovered in connection with cold adaptation functions, but they have now been subsequently linked to roles in normal growth as well as regulation of stress adaptation and virulence-associated responses in different bacteria (Horn et al., 2007; Phadtare and Severinov, 2010; Michaux et al., 2012, 2017; Sahukhal and Elasri, 2014; Keto-Timonen et al., 2016; Wang et al., 2016). Although the molecular mechanisms underpinning the Csp-dependent regulation of gene expression are not fully understood, they appear to include nucleic acid binding events allowing modulation of transcription, mRNA stability, translation, DNA replication, and chromosomal condensation processes (Feng et al., 2001; Yamanaka et al., 2001; Phadtare and Severinov, 2010; Batte et al., 2016; Michaux et al., 2017).
L. monocytogenes produces three highly conserved Csps named CspA, CspB, and CspD, which similar to other bacteria appear crucial in regulation of stress resistance and virulence related functions in this bacterium (Schmid et al., 2009). Early studies suggested a role for Csps in the adaptation to environmental stresses relevant to the food processing environment since csp mutants of this bacterium showed reduced fitness during cold growth, as well as under NaCl and oxidative stress conditions (Wemekamp-Kamphuis et al., 2002; Chan et al., 2007; Schmid et al., 2009; Loepfe et al., 2010). Apart from stress survival functions, Csps also seem crucial in the regulation of virulence functions in L. monocytogenes as we previously also discovered that a cspABD gene deletion that removes all csp genes, does not only reduce the invasion capacity of this bacterium in human Caco-2 and murine macrophage cell lines, but also leads to reduced LLO secretion relative to the parental wild type strain (Loepfe et al., 2010; Schärer et al., 2013). These previous results have led us to hypothesize that, in addition to functions in stress protection, Csps are involved in cell regulatory networks governing the expression of virulence in L. monocytogenes.
Our aims in this study were to further assess such roles of Csps in L. monocytogenes virulence in vitro using a human macrophage cell line as well as in vivo using a zebrafish embryo based infection model. Zebrafish embryos are an attractive multicellular model for infection studies, that are easily accessible for microscopy due to their translucent nature, and have been widely used in microbial research with various bacteria including L. monocytogenes (Prajsnar et al., 2008; Levraud et al., 2009; Widziolek et al., 2016). Observations from these virulence studies also led us to examine the role of Csps in cellular aggregation as well as in extracellular motility and flagella production of L. monocytogenes. A set of L. monocytogenes csp mutant strains that either lack all (ΔcspABD) or retain only one (ΔcspBD, ΔcspAD, and ΔcspAB) of the three csp genes found in this bacterium were used to assess for phenotypes and the expression regulation of selected target genes of the L. monocytogenes Csp regulon. Our findings show that besides promoting survival and growth during human macrophage infection and virulence in zebrafish embryos, Csps also facilitate cell aggregation, flagella production, and swarming motility in L. monocytogenes. An expression analysis of specific virulence and motility associated genes indicate that Csps are an integral part of the regulatory circuitry that controls expression of virulence and flagella associated genes. Our observations at protein and mRNA levels suggest that Csps probably accomplish their roles by influencing the expression of key virulence and motility associated genes at transcription and translation levels in L. monocytogenes.
Materials and Methods
Ethics Statement
Animal research during this study was conducted in accordance with recommendations of approval No. 216/2012 and following the guidelines provided by the Veterinary Office of the Public Health Department of the Canton of Zurich (Switzerland). The number of dead larvae post infection was determined at various time points visually based on the lack of a heartbeat. Experiments were carried out until 72 h post infection (hpi) and at the end of the experiments embryos that were alive were euthanized with an overdose of 4 g L−1 buffered tricaine. Usually, with the evaluation of distress and pain by behavioral observations, embryos were euthanized by prolonged immersion in overdose of tricaine solution and were left in the solution for at least 10 min after cessation of opercular movement. Since pain sensitivity has not been developed at these earlier stages (4 dpf−7 dpf), this is not contemplated as a painful technique. The maximum age attained by the embryos throughout investigation was 72 hpf and embryos had not yet reached free feeding stage.
Bacterial Strains and Growth Conditions
The WT and csp deletion mutants L. monocytogenes EGDe used in this study are described in Table 1. All csp mutants were constructed in-frame as previously described (Schmid et al., 2009). Green fluorescent protein (GFP) expressing derivatives of the strains were generated through site specific PSA-integrase mediated single copy integration of the pPL3-eGFP plasmid (Shen and Higgins, 2005) into the tRNA-Arg locus (Lauer et al., 2002). Sixteen hours secondary stationary phase cultures that were confirmed through optical density measurements and viable cell counting were used in this study. Primary cultures were prepared by inoculating 10 mL BHI (BHI; Oxoid, Hampshire, UK) broth and growing for 16 h at 37°C and 150 rpm. Secondary cultures were subsequently prepared by inoculating 10 ml BHI with these primary cultures (1:1,000) and growing for 16 h at 37°C and 150 rpm. Optical density measurement (OD600) and viable cell count based growth curves conducted for each strain showed that all secondary cultures grown in this way and subsequently used for experiments were in the stationary growth phase stage. The pPL3-eGFP integrated strains were similarly grown on BHI agar and broth medium supplemented with erythromycin at 5 μg ml−1.
Table 1. Bacteria strains and plasmids used in this study.
THP1 Cell Culture
THP-1 cells (ATCC TIB-202) were maintained in T75 tissue culture flasks (TPP- Techno plastic products, Switzerland) and grown to confluence in RPMI 1640 medium (RPMI; Sigma Aldrich, Germany) containing 0.3 g l−1 L-glutamine, 2 g l−1 sodium bicarbonate supplemented with 10 mM HEPES (Sigma Aldrich, Buchs, Switzerland), 1 mM sodium pyruvate (Sigma Aldrich, Buchs, Switzerland), 4.5 g l−1 glucose and 10 % fetal bovine heat-treated (56°C, 30 min) serum (Sigma Aldrich, Buchs, Switzerland Germany) and incubated at 37°C with 5% CO2.
Gentamicin Protection Assays
THP-1 cells were seeded at a density of 105 cells per well in 24-well tissue plates and incubated for at least 24 h (37°C and 5% CO2) in RPMI 1640 containing 0.1 μg ml−1 of phorbol 12-myristate 13-acetate (PMA; Sigma Aldrich, Buchs, Switzerland) to induce stable differentiation of the THP-1 monocytes into macrophages. The PMA containing medium was removed and the cells washed once using 500 μl RPMI 1640. THP-1 macrophages were infected at ratio of 10 bacteria organisms per cell using Listeria that had been cultivated as described above and diluted in RPMI 1640. After 45 min (37°C and 5% CO2) of incubation the macrophages were washed twice using DPBS (500 μl) before incubation for 45 min in RPMI 1640 (500 μl) containing 50 μg ml−1 gentamicin to kill extracellular bacteria. The macrophages were washed once using 0.5 ml of antibiotic free RPMI 1640 after this step and then incubated in 0.5 ml RPMI 1640 that contained 10 μg ml−1 gentamicin. Infections immediately stopped at this point represented time point t0 and the initial macrophage internalized inoculum. For the rest of the samples incubation was continued and infections were stopped after 6 (t6) and 24 (t24) h of macrophage infection. To stop infections the macrophages were washed twice using 0.5 ml DPBS and then lysed using 0.5 ml of DPBS plus 0.5% Triton X-100. The cell lysates were 10-fold serially diluted, plated out on plate count agar plates (PC agar, Sigma) and incubated for 24 h at 37°C before enumerating the number of viable intracellular bacteria. Intracellular amounts of bacteria (IBC) CFUs (colony forming units) present at 6 (t6) and 24 (t24) h of THP-1 macrophage infection were determined and expressed as a percentage relative to the initial intracellular inoculum found in macrophages at time point zero (t0) as follows: (IBCtn – IBCt0/IBCt0) × 100, where IBCt0 and IBCtn are the intracellular bacterial CFUs determined at time points zero (t0) and n (t6 and t24), respectively.
Confocal Laser Scanning Microscopy
GFP expressing EGDe WT and csp mutant strains (Table 1) were used in macrophage infection assays with subsequent microscopic analysis. In each well of the 24 well plate, a sterile glass coverslip (13 mm in diameter, Menzel-Gläser) was placed and THP-1 cells were seeded on the coverslips. Cell culture, PMA activation and infection assays were carried out as mentioned above. At each indicated time point (t0, t6, and t24), THP-1 macrophages adhered to coverslips were gently washed twice with DPBS and fixed with 4% paraformaldehyde (PFA, Sigma) at 4°C for 15 min. After fixation, the PFA was removed, the macrophages were gently washed twice with DPBS to remove residual PFA, and the samples were stained for 1 h at room temperature with Hoechst Dye (Life Technologies, Zug, Switzerland) and Concanavalin A Alexa Fluor® 594 Conjugate (Life Technologies). After staining, the macrophages were washed 3–5 times with DPBS, mounted on glass slide using Fluoromount (Sigma) mounting medium, air dried in the dark and imaged using a Leica TCS SP5 Confocal microscope (63x or 40x oil-immersion objective, excitation at 405 nm for Hoechst, 488 nm for GFP and 594 nm for Concanavalin A).
Zebrafish Lines and Husbandry
Zebrafish (Danio rerio) strains used in this study were wik lines. Adult fish were kept at a 14/10 h light/dark cycle at a pH of 7.5 and at 27°C. Eggs were obtained from natural spawning between adult fish which were set up pairwise in individual breeding tanks. Embryos were raised at 28°C in petri dishes containing E3 medium (5 mM NaCl, 0.17 mM KCl, 0.33 mM CaCl2, and 0.33 mM MgSO4) supplemented with 0.3 μg/ml of methylene blue. From 24 h post fertilization (hpf), 0.003% 1-phenyl-2-thiourea (PTU; Sigma Aldrich, Buchs, Switzerland) was added to prevent melanin synthesis. Staging of the embryos was performed according to Kimmel et al. (1995). All zebrafish experiments were conducted with the approval (no. 216/2012) from the Veterinary Office, Public Health Department, Canton of Zurich (Switzerland).
Microinjection Experiments
Injections were performed using borosilicate glass microcapillary injection needles (Science Products, 1210332, 1 mm OD × 0.78 mm ID) and a PV830 Pneumatic PicoPump (World Precision Instruments). Bacteria for microinjection experiments were harvested from stationary phase BHI bacteria cultures by centrifugation at 5,000 × g for 10 min and washed in 10 ml Dulbecco's Phosphate-Buffered Saline (DPBS) before the cells were resuspended in DPBS and appropriate dilutions prepared. Two-day post fertilization (dpf) embryos were manually dechorionated and anesthetized with 200 mg/l buffered tricaine (Sigma Aldrich, Buchs, Switzerland, MS-222) prior to injections. Subsequently, the embryos were aligned on an agar plate and injected with 100 CFU (range: 90–136 CFU) in 1–2 nl volume of a bacterial suspension in DPBS into the yolk sac or blood circulation via the caudal vein close to the urogenital opening. Prior to injections the volume of the injection suspension was adjusted by injecting a droplet into mineral oil and measuring its diameter over a micrometer scale bar. The number of CFU injected was determined by direct microinjection of a DPBS droplet on agar plates and confirmed by disintegrating five embryos individually immediately after microinjection (0 hpi) and plating the lysates on LB agar. Post injection the infected embryos were allowed to recover in a petri dish in fresh E3 medium for 15 min. To follow the infection and mortality kinetics, embryos were transferred into 24-well plates (one embryo per well) in 1 ml E3 medium per well, incubated at 28°C and observed for signs of disease and survival under a stereomicroscope twice a day. For survival assays after infection, the number of dead larvae was determined visually based on the absence of a heartbeat. At each time point, five embryos or larvae were collected, euthanized, and individually treated for bacterial enumeration. For subsequent microscopic analyses larvae were euthanized with an overdose of 4 g/l buffered tricaine and transferred into respective buffers and fixatives.
Bacterial Enumeration by Plate Counting
The larvae were transferred to a 1.5 ml Eppendorf tube containing 1 ml DPBS supplemented with 1% Triton X-100 and disintegrated by repeated pipetting and vortexing for 3 min. Subsequently, 100 μl of this mixture was plated onto BHI selective plates (i.e., erythromycin 5 μg l−1 for strains harboring pPL3::GFP) and the plates were incubated up to 48 h at 37°C.
RNA Extraction and RT-qPCR
Reverse transcription quantitative-PCR (RT-qPCR) was used to determine transcript levels of selected genes in EGDe WT and the csp mutant strains. Bacteria grown to stationary phase in BHI as described above or recovered from THP-1 macrophages that were infected for 6 h with Listeria, and then washed and lysed as described above were used. L. monocytogenes cells (109 CFUs) in 1 ml of stationary phase BHI broth cultures prepared as described above were harvested in RNA protect Bacteria reagent (Qiagen AG, Hombrechtikon, Switzerland) and resuspended using 0.5 ml of the RNeasy Plus Mini Kit (Qiagen AG, Hombrechtikon, Switzerland) lysis buffer. Bacteria recovered from macrophage lysates by centrifugation were similarly harvested in RNA-protect Bacteria Reagent and subsequently re-suspended in the lysis buffer. L. monocytogenes cells resuspended in the lysis buffer were transferred into beads in MagNA lyser tubes and mechanically disrupted using the MagNA Lyser Instrument (Roche Molecular Diagnostics, Rotkreuz, Switzerland). RNA was subsequently isolated from the lysates following the RNeasy Plus Mini Kit protocol. Purified RNA was quantified using a Nanodrop (Thermo Scientific, USA) and its quality was verified using a BioAnalyzer (Agilent technologies, USA). cDNA was synthesized from 100 ng of RNA samples with RNA integrity numbers (RINs) of 7 or above. The Quantitect Reverse Transcription Kit (Qiagen AG, Hombrechtikon, Switzerland) was used. Residual DNA contamination of RNA samples was ruled out through the inclusion of no RT controls in the analysis. 2.5 ng of the cDNA were used as templates for the RT-qPCR. Primers listed in Table 2 and the SYBR green I kit (Roche Molecular Diagnostics, Penzbrug, Germany) were used for the RT-qPCR in a LC480 instrument (Roche Molecular Diagnostics, Rotkreuz, Switzerland). Relative cDNA quantification was performed using the Light Cycler 480 Relative Quantification Software (Roche Molecular Diagnostics). Amounts of the transcript amounts were normalized to 16S rRNA as reference gene. Using a delta-delta CT approach, transcript levels of each gene were expressed relative to the values of a calibrator mRNA sample, which was derived from stationary phase EGDe WT culture grown in BHI broth.
Table 2. Primers used in this study.
Immunoblotting
Virulence protein expression was assessed in both extracellular and intracellular grown L. monocytogenes. To assess protein expression in extracellular bacteria, L. monocytogenes were cultured to stationary phase in BHI (30 ml; 16 h at 37°C and 150 rpm) as described above, standardized to OD600 of 1.0 by dilution in BHI broth and the cells were collected by centrifugation (10,000 g for 2 min) at 4°C. To assess intracellular virulence protein expression THP-1 macrophages infected with Listeria for 6 h. Post infection the THP-1 macrophages were washed and lysed to release intracellular bacteria as described above. L. monocytogenes were recovered from the THP-1 macrophage lysates by centrifugation (10,000 g for 10 min) at 4°C.
To extract proteins, L. monocytogenes pellets were resuspended in RIPA lysis buffer (1 ml) containing a protease inhibitor cocktail (Cell Biolabs Inc, San Diego, USA) and mechanically disrupted (2 × 6,500 rpm for 1 min) in the MaGNA lyser instrument (Roche Molecular Diagnostics). The resulting L. monocytogenes lysates were cleared by centrifugation (10,000 g for 10 min at 4°C) and protein concentration in the supernatants was determined. Equal amounts of proteins (20 μg) from each sample were separated by sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE; 4–20%) and transferred onto PVDF membranes. The membranes were probed with primary rabbit polyclonal antibodies raised against PrfA (1:5,000), Mpl (1:5,000) and LLO (Diatheva, Fano PU, Italy; 1:1,000), as well as primary mouse monoclonal antibodies directed against ActA (Abanova, Taipei, Taiwan, 1:1,000) and P60 (Adipogen, San Diego, USA; 1:2,000). A HRP-conjugated anti-rabbit IgG (Sigma-Aldrich, Buchs, Switzerland; 1:2,000) secondary antibody was subsequently used to probe all blots except the ActA and P60 blots, which were probed using an HRP-conjugated anti-mouse IgG (Sigma-Aldrich, Buchs, Switzerland; 1:100,000) secondary antibody. The primary and secondary antibodies were diluted in 1% skimmed milk solution prepared in tris buffered saline with tween 20. The densitometric quantification of the proteins was carried out using the ImageJ software (National Institute of Health, USA. The intensities of PrfA, Mpl, LLO, and ActA bands obtained by chemiluminescence were normalized using the intensity of P60 from the corresponding sample.
Analysis of Phosphatidylinositol-Specific Phospholipase C (PI-PLC) Activity, Aggregation, and Swarming Motility
To compare PI-PLC activities, the colonies of L. monocytogenes strains were streaked on ALOA (Agar Listeria according to Ottaviani and Agosti) plates, incubated at 37°C and visually examined after 48 h for the zone of opacity. Aggregation of Listeria strains was compared as previously described (46). In short, 16 h stationary phase BHI cultures of WT and csp mutant L. monocytogenes strains were adjusted to OD600 of 3.5 in BHI. The adjusted cultures were statically incubated at 37°C for 24 h and monitored through visual and microscopic examination for aggregation. Aggregation was indicated by decreasing cultural supernatant optical density and the development of bacterial sediments. To determine the optical density, aliquots were collected ~1 cm from the top of each sample at defined time intervals to measure OD600.
Swarming motility was compared by spotting 16-h stationary phase BHI cultures from each strain (5 μl) onto the surfaces of 0.25% BHI agar plates and incubating 48 h at 25°C. For electron microscopic examination bacteria colonies grown overnight at 25°C on a 0.25% BHI agar plate were picked up using an inoculation loop and transferred to an Eppendorf tube containing 100 μl of 2.5% glutaraldehyde and incubated for at least 30 min at room temperature to fix. Further, 1:1 suspensions were prepared using 0.1 M sodium phosphate buffer and bacteria-glutaraldehyde mix. These suspensions were then transferred onto 150 mesh copper grids with Formvar carbon film (Electron Microscopy Sciences, USA) and incubated at room temperature for 2 min for adhesion. Following adhesion, bacterial flagella were negatively stained with uranyl acetate for 10 s and with 1:1 suspension of uranyl acetate and water for 20 s, and observed in an electron microscope.
Statistical Analysis
Statistical analyses were carried out using JMP software (Version 12.1.0, SAS Institute Inc., NC, USA). All experiments presented were performed independently at least three times. One way ANOVA with post-hoc Tukey HSD tests were used to assess statistical significance of differences relative to the WT as well as between the different csp mutant strains in macrophage and zebra infection as well as RT-qPCR assays. Kaplan Meier survival analysis and statistics for experiments with zebrafish were done with GraphPad Prism 7 software (GraphPad Software, United States). p < 0.05 were considered to be statistically significant.
Results
Csp Loss Impairs Survival and Growth of L. monocytogenes in Human Macrophages
Since the survival and multiplication of L. monocytogenes within target host cells is crucial step for successful host infections, we initially examined the functional contribution of Csps in this bacterium during human macrophage infection in cell culture. The survival and growth of WT and csp gene deletion mutant strains of L. monocytogenes EGDe during the infection of human derived THP-1 macrophages was compared. Based on comparison of viable bacteria CFUs that were recovered inside macrophages at infection time point zero (t0) we determined that there are similar levels of bacteria that were initially internalized into THP-1 macrophages for the WT strain as well as all the csp mutants (Figure S1). Subsequent monitoring of changes in intracellular bacterial CFUs conducted after 6 (t6) and 24 (t24) h of macrophage infection however showed that the complete deletion of all the three csp genes (ΔcspABD), as well as the presence of only single csp genes (ΔcspBD, ΔcspAD, and ΔcspAB) is associated with impaired survival and growth of L. monocytogenes in THP-1 macrophages (Figure 1A). In samples examined at 6 h (t6) post infection, the WT strain bacteria levels inside macrophages had increased by an average of 33.3% when compared to the inoculum found inside macrophages at 0 (t0) h of infection. But a ΔcspABD mutant deleted in all the three csp genes only displayed limited growth with its levels inside macrophages having increased by an average of only 2.8% at this time point. At 24 h (t24) post infection, the WT strain levels in macrophages showed further increase (40.5% increase relative to the t0 levels), whereas the ΔcspABD mutant could not be detected in THP-1 macrophage infected for 24 h. This suggests that both long-term growth and survival of L. monocytogenes inside human macrophages are significantly impaired without Csps (Figure 1A).

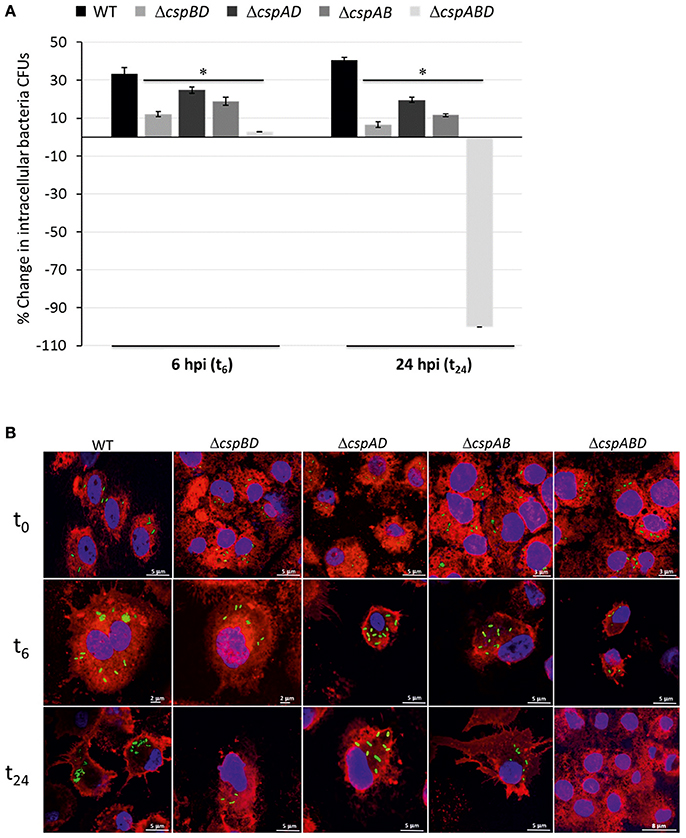

Figure 1. Csp loss impairs survival and growth of L. monocytogenes in human macrophages. (A) Bar charts depicting percentage change in intracellular bacterial CFUs for the WT and csp mutants of L. monocytogenes EGDe at 6 (t6) and 24 (t24) h post infection (hpi) of human derived THP-1 macrophages. The percentage changes (CFUs) are expressed relative to the intracellular bacteria CFUs determined at time point 0 (t0). Data showing the means and standard deviations derived from three independent biological experiments are presented. *p < 0.05 based on one-way ANOVA and Tukey post-hoc test comparison relative to the WT strain as well as between the different csp mutants. (B) Representative images from the fluorescent microscopic analysis based monitoring of the intracellular fates of GFP expressing WT and csp mutants of L. monocytogenes EGDe strain during THP-1 macrophage infections at 0(t0), 6(t6), and 24(t24) hpi.
A caveat in assessing the functional role of individual csp genes in L. monocytogenes using single gene deletion mutant backgrounds is that some phenotypes might be masked due to functional redundancy that exist between the three csp genes found in this bacterium. To overcome this caveat and allow us to confirm as well as assess the level of phenotypic contributions of the individual csp genes during THP-1 macrophage infections, three mutant strains, which are deleted in two leaving only one of the three csp genes intact were analyzed. To this end the ΔcspBD, ΔcspAD, and ΔcspAB mutant strains expressing CspA, CspB, and CspD, respectively, were compared with respect to growth and survival in human macrophages. We found that the survival and growth phenotypes achieved by the three single Csp producing strains in THP-1 macrophages although variable were all significantly above those observed for ΔcspABD mutant, which lacks all the three csp genes (Figure 1A). These observations thus did not only confirm that all three csp genes were functionally relevant but that they also contribute to varying extents toward L. monocytogenes survival and growth in human macrophages. We found that none of the three Csps when produced alone is capable of restoring the WT phenotypic levels without the other two csp genes (Figure 1A). Overall there was a clear hierarchical trend of WT > ΔcspAD (CspB) > ΔcspAB (CspD) > ΔcspBD (CspA) > ΔcspABD (Figure 1A; P < 0.05) observed with respect to the intracellular bacteria CFU levels reached inside the THP-1 macrophages at 6 and 24 h post infection (Figure 1A).
We similarly also used GFP expressing bacteria and fluorescent microscopy to qualitatively follow the intracellular fates of WT and csp mutant strains during THP-1 macrophage infections. This approach despite being qualitative revealed that intracellular multiplication and survival of the ΔcspABD mutant without Csps was impaired compared to the WT strain during human macrophage infection (Figure 1B). Samples collected immediately post macrophage infection at the t0 time point showed no microscopically visible differences with respect to macrophage internalized bacteria observed inside infected THP-1 macrophages between the WT strain and the different csp mutants (Figure 1B). Such observations were therefore consistent with viable bacterial counts results that had quantitatively shown no significant differences in the initial macrophage entry between WT and the csp mutant strains (Figure S1). Significant differences were however observed between the WT and the csp mutant strains upon examination of samples collected 6 (t6) and 24 (t24) h after infection (Figure 1B). At both these time points samples infected with the WT strain displayed relatively higher amounts of bacteria inside macrophages compared to their t0 samples as well as to samples of macrophages that were infected with different csp mutants. The WT bacteria found inside the macrophages at these points occurred in large clumps consistent with an ongoing multiplication inside the THP-1 macrophages. In contrast, there were relatively fewer and visibly smaller intracellular bacteria clumps observed for the ΔcspABD and the three single Csp strains at 6 h (t6) post infection compared to WT. This was indicative of slower intracellular replication of these mutants compared to WT inside the human macrophages. Moreover, consistent with the quantitative viable bacterial count results there were no ΔcspABD detected inside THP-1 macrophages infected for 24 (t24) h with this mutant (Figure 1B). Although all three single Csp strains could be detected and also displayed microscopic evidence of ongoing intracellular multiplication at 6 (t6) as well as 24 (t24) h post macrophage infection, the levels of intracellular replicating bacteria observed inside the macrophages for all were visibly lower than the WT strain but more than those observed for the ΔcspABD mutant.
Overall our analysis of the different csp mutants using this in vitro cell culture based virulence model thus indicates that all three Csps are functionally relevant but to varying degrees in promoting L. monocytogenes survival and growth during human macrophage infection. Moreover, the fact that none of the three Csps when expressed alone can restore these phenotypes to WT levels indicates that the functional activities of all the three csp genes is necessary for maximal survival and growth of this bacterium during human macrophage infection.
Csp Loss Attenuates Virulence of L. monocytogenes in Zebra Fish Embryos
The impaired survival and growth observed for the different csp mutants in human macrophages prompted us to further examine the functional relevance of Csps to L. monocytogenes virulence using a zebrafish embryo based multicellular in vivo infection model. Zebrafish embryos were infected with WT and csp mutants of L. monocytogenes EGDe strains by injecting into the blood stream and the capability of the different strains to induce mortality of the infected zebra fish embryos was monitored over a 3 day (72 h) infection period. Survival curves generated showed that while all WT strain infected zebrafish embryos succumbed to the infection within 2 days of infection none of those infected with ΔcspABD infected embryos had died even after 3 days post injection (dpi) (Figure 2A). All embryos infected with the three strains harboring single csp genes also eventually succumbed but 100% mortality level in all the three strains was delayed occurring a day later than WT at 3 dpi. A comparison of the level of mortality associated with all strains at 1 and 2 dpi showed a hierarchical trend of WT > ΔcspAD (cspB) > ΔcspAB (cspD) > ΔcspBD (cspA) > ΔcspABD; P < 0.05), which was similar to the survival and growth efficiency trends observed using the THP-1 human macrophage cell infection model (Figure 2A). To additionally assess for differences observed in virulence we monitored for trends in the bacterial loads associated with the WT and csp mutant strains during the course of the zebra fish embryo infections. Bacterial CFU levels within infected zebrafish embryos at 0, 1, and 2 dpi were determined. At 0 dpi similar levels of bacterial loads were determined in embryos infected with the WT strain and all the csp mutants. In 1 and 2 dpi samples we detected similar progressive increase in the bacterial loads relative to the initial bacterial loads found at 0 dpi (Figure 2B). More importantly there were no significant differences in overall bacterial loads achieved between the WT strain and the three strains possessing single csp genes. In contrast, the bacterial loads in ΔcspABD mutant infected embryos also increased on 1 dpi relative to 0 dpi, but the bacterial load increases were lower compared to those observed for WT and single Csp strain infected embryos. Furthermore, in contrast to the bacterial loads of the other strains that increased, the ΔcspABD bacterial loads showed a significant reduction between 1 and 2 dpi, indicating that the long-term survival of the ΔcspABD mutant was also compromised within infected zebrafish embryos. Overall the ΔcspABD bacterial loads achieved at 1 and 2 dpi were significantly lower than those of the WT and single Csp strains. Overall our results thus indicated that the three Csps while all functionally relevant also showed variable capacities in enabling full L. monocytogenes virulence expression using this in vivo multicellular infection model based on zebrafish embryos.
Figure 2. Csp loss attenuates virulence and reduces bacterial loads of L. monocytogenes in zebrafish embryos. (A) Survival curves were generated for zebrafish embryos (n = 5 per L. monocytogenes strain and time-point) infected (100 CFU per embryo) with WT and csp mutants of L. monocytogenes EGDe and monitored over 3 days. Zebrafish embryos rapidly succumbed to the WT strain, while those infected with the csp mutants died later or were not killed at all. Survival curves and trends were significantly different (log-rank test p < 0.05) between WT and different csp mutant strains. (B) Bacterial load quantifications were conducted at 1 and 2 days post infection in zebrafish embryos (n = 30) infected with WT and csp mutant strains. Data showing the mean and standard deviations of three independent biological experiments are presented. *p < 0.05 based on one-way ANOVA and Tukey post-hoc test comparison relative to the WT strain.
Csp Loss Reduces Expression of Key Virulence Proteins in L. monocytogenes
In seeking for a possible explanation of the virulence impairment observed in the csp mutants we next considered the impact Csp loss on the expression of some key virulence proteins in L. monocytogenes. In our previous studies we could show that a strong reduction of LLO protein expression and hemolytic activity was imposed by deletion of csp genes in L. monocytogenes (Schärer et al., 2013). To examine the impacts of Csp loss on the expression of the other virulence proteins we combined Western blot analysis and densitometry based protein band quantification and compared PrfA, LLO, Mpl, and ActA production between the different csp mutants and the parental WT strain (Figure 3, Figures S2–S4). BHI cultured and THP-1 macrophage grown (6 h post macrophage infection) bacteria were used for this analysis. To provide a control and reference protein for the analysis we also determined and quantified the amounts of the secreted P60 protein. Despite all strains showing similar P60 levels, significant differences in PrfA, LLO, Mpl, and ActA levels were detected among the different csp mutants as well as in comparison to the WT strain. A ΔcspABD mutant lacking all three csp genes in particular produced significantly lower amounts of all the examined virulence proteins compared to the WT strain and all three single Csp strains (Figures 3B,C). The three single Csp producing strains in turn all displayed lower levels of these virulence proteins relative to the WT strain. Comparing the single Csp producing strains to each other, we found that PrfA and LLO levels were highest in ΔcspAB (cspD) followed by ΔcspAD (cspB) strains, whereas the ΔcspBD (cspA) consistently showed lowest amounts for these proteins. On the other hand, Mpl levels were similar (BHI cultured bacteria) to slightly different (THP-1 grown bacteria) between the ΔcspBD (cspA) and ΔcspAD (cspB) strains, but the levels in these two strains were significantly below those of the ΔcspAB (cspD) strain. No ActA proteins were detected in the ΔcspABD and ΔcspAB (cspD) strains, whereas ActA amounts found in ΔcspBD (cspA) and ΔcspAD (cspB) strains were below WT levels. Among the single Csp producing strains the ΔcspAD (cspB) strain showed significantly higher ActA levels than the ΔcspBD (cspA) strain (Figures 3B,C).

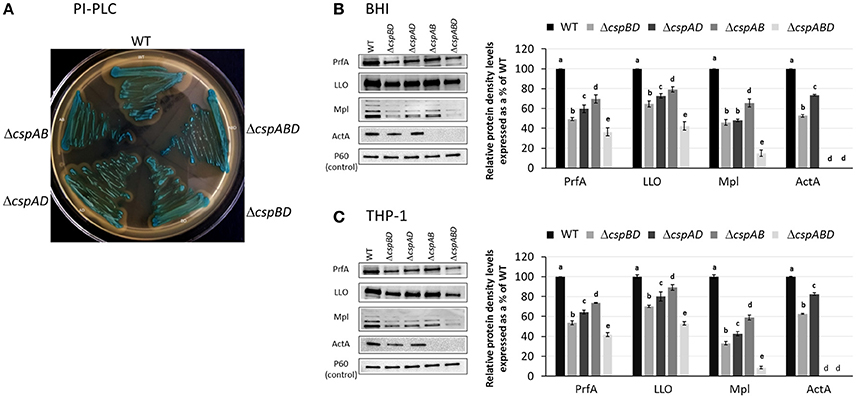

Figure 3. Impact of Csp on the expression of virulence proteins. (A) Representative image from the qualitative assessment of PI-PLC activity (turbid zone around streaked bacteria) WT and csp mutants of L. monocytogenes EGDe grown on ALOA plates. (B,C) Representative Western blot images and densitometry based quantification of the PrfA, LLO, Mpl, ActA proteins in BHI cultured (16 h at 37°C and 150 rpm) and THP-1 macrophage grown (6 hpi) WT and csp mutants of L. monocytogenes EGDe. Virulence proteins densities were normalized to P60 levels and expressed as a percentage relative to WT strain levels. Data showing the means and standard deviations of three independent biological experiments are presented. Bars denoting relative protein abundance levels that share a letter are not significantly different, whereas those marked with different letters are significantly different compared to each other (p < 0.05 based on one-way ANOVA and Tukey post-hoc test pairwise comparison of all the strains).
The combined results from qualitative PlcA (PI-PLC) activity analysis and Western blot quantification of PrfA, LLO, Mpl, and ActA proteins indicated that the loss csp genes significantly reduces virulence protein production. In order to access if reduced virulence protein production is also reflected at transcript level within the different csp mutants we used RT-qPCR and compared the prfA, hly (LLO), mpl, and actA mRNA levels between the WT and the csp mutants. In RNA isolated from both BHI and THP-1 macrophage grown bacteria, we found that consistent with low PrfA, LLO and Mpl levels observed in ΔcspABD, the prfA, hly, and mpl mRNA levels in this mutant were also significantly lower compared to the WT strain (Figure 4). A comparison with the single Csp strains also showed that the prfA, hly, and mpl mRNA levels in ΔcspABD are generally also lower compared to these strains although in some instances the differences were not statistically significant (Figure 4). The prfA, hly, and mpl mRNA levels in the single Csp producing strains on the other hand were for most cases also significantly lower than the WT strain, which is consistent with their reduced PrfA, LLO, and Mpl protein levels compared to the WT strain. An exception to such trends was however observed in case of hly and mpl mRNA levels, which were not significantly different compared to the WT strain in RNA derived from BHI cultured bacteria of the cspB harboring ΔcspAD mutant (Figure 4). Although containing lower PrfA, LLO, and Mpl protein amounts compared to the cspD harboring ΔcspAB mutant, the cspB harboring ΔcspAD mutant however contained higher prfA, hly, and mpl mRNA amounts (Figures 3, 4). More surprising was the fact that all the csp mutants despite presence of lower (ΔcspBD and ΔcspAD) or no (ΔcspABD and ΔcspAB) ActA proteins contained significantly more actA mRNA compared to the WT strain (Figure 4). As such the reduced amounts and absence of ActA in the csp mutants was not associated with a reduction or lack of actA mRNA in these mutants (Figures 3, 4). Overall our observations thus showed that the complete removal or the production of only single Csps leads to either a reduction of proteins as well as their corresponding transcripts (PrfA, LLO, and Mpl) or reduced protein levels while the encoding transcripts are present at elevated (ActA) levels.

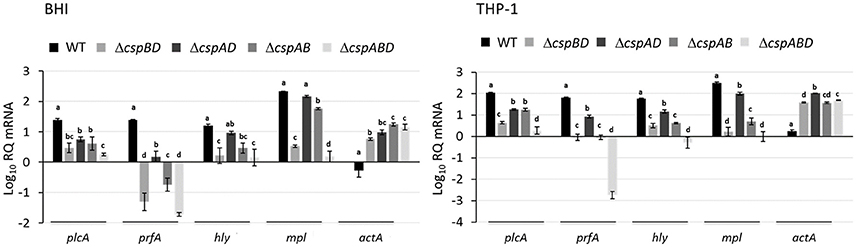

Figure 4. Impact of Csp loss on virulence gene mRNA levels. Quantification of plcA, prfA, hly, mpl, and actA mRNAs using qRT-PCR in L. monocytogenes EGDe WT and csp mutant strains that were cultured in BH broth (16 h at 37°C and 150 rpm) and grown in THP-1 macrophage (6 hpi). Relative quantities (RQ) of plcA, prfA, hly, and actA mRNA levels were normalized to 16S rRNA and expressed relative to those in an EGDe WT strain based mRNA calibrator sample. Data showing the means and standard deviations of three independent biological experiments are presented. Bars denoting relative mRNA abundance levels that share a letter are not significantly different, whereas those marked with different letters are significantly different compared to each other (P < 0.05 based on one-way ANOVA and Tukey post-hoc test pairwise comparison of all the strains).
Csp Loss Abrogates Cellular Aggregation in L. monocytogenes
Besides intracellular motility roles, ActA has also been described as one of the major cell aggregation determinants in L. monocytogenes. Our observations of reduced amounts and complete lack of ActA amongst the csp mutants led us to hypothesize that cell aggregation in L. monocytogenes might have also been indirectly compromised due to Csp deficiency. To examine this hypothesis, we compared cellular aggregation capacities between WT and csp mutant strains of L. monocytogenes EGDe. To do this, stationary phase cultures that were statically incubated for 24 h were monitored for aggregation visually and through optical density measurement (Figure 5). Under these conditions the WT strain displayed complete aggregation whereas no significant aggregation was observed for the ΔcspABD (no csp genes), ΔcspBD (cspA), and ΔcspAB (cspD) strains. The ΔcspAD (cspB) strain although able to aggregate the levels of cellular aggregation it exhibited were significantly reduced compared to WT. Trends observed in aggregation phenotypes displayed by the different csp mutants interestingly also appear to correlate with their ActA levels as determined by Western blot analysis in BHI cultured bacteria of these mutants (Figure 3A). The ΔcspABD and ΔcspAB strains that produced no ActA as well as the ΔcspBD displaying the lowest detected ActA amounts were all unable to aggregate. In contrast the ΔcspAD, which produced the highest ActA amounts among the mutants was the only csp mutant capable of aggregation. Overall, these results indicated that Csps are also an important determinant of cellular aggregation in L. monocytogenes and this might involve Csp-dependent expression of cell surface proteins including ActA.

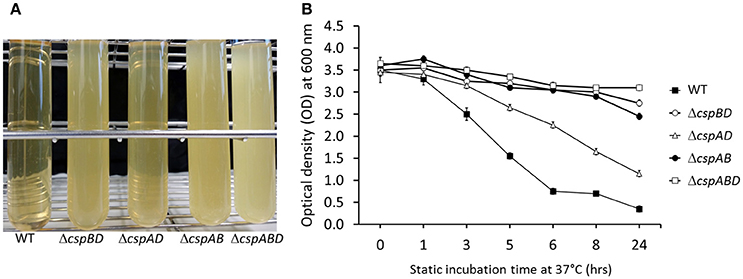

Figure 5. Aggregation analysis in stationary phase BHI cultures of L. monocytogenes EGDe WT and csp mutant strains incubated for 24 h at 37°C without shaking. (A) Bacterial sedimentation observed at 24 h and (B) time resolved aggregation kinetics based on changes in the culture supernatant OD600 during 24 h of static incubation.
Csp Loss Abolishes Flagella Production and Swarming Motility
The production of flagella and expression of motility contributes to virulence and cellular aggregation phenotypes in L. monocytogenes. Assessing for swarming motility and surface flagellation we also found striking differences between csp mutants and the WT strain of L. monocytogenes EGDe. Although the WT strain showed swarming motility at 25°C, the ΔcspABD (without Csps) and ΔcspAB (cspD) were not motile (Figure 6). The ΔcspBD (cspA) and ΔcspAD (cspB) strains although capable of swarming motility did so to visibly reduced extents when compared to the WT strain. Electron microscopic examination showed that while the motile WT strain exhibited peritrichous flagellation there were no flagella observed on the surfaces of the non-motile ΔcspABD and ΔcspAB mutants (Figure 6). In the weakly motile ΔcspBD and ΔcspAD strains flagellation was detected but at a low frequency compared to the WT strain. While almost all examined WT cells showed peritrichous flagellation, surface flagella expression could only be observed in 20–30% of all cells from these two csp mutants examined. Moreover, in those cells that were flagellated there was relatively fewer flagella per cell observed compared to the WT strain (Figure 6). To further explore the basis for these flagellation differences we also quantified flaA mRNA, which encodes flagellin, the main structural component for flagella, in the WT and csp mutant strains grown in BHI cultures grown at 25°C. Unexpectedly we found that flaA mRNA levels were significantly higher (P < 0.05) than those in the WT strain for all of the csp mutants including the ΔcspABD and ΔcspAB strains, which completely lack flagella (Figure 6). This observation indicated that although flaA mRNA was present in the csp mutants, it might be that it is not being efficiently translated to make the flagellin proteins. Such a scenario might lead to the reduced or lack of flagellation as observed in the csp mutants. Overall these observations therefore indicated that csp genes, particularly cspA and cspB, also influence flagella production and extracellular motility in L. monocytogenes.
Figure 6. Impact of Csp loss on swarming motility, surface flagellation and flaA mRNA levels. Representative images of swarming motility assessment from bacteria cultures spotted on 0.25% BHI agar and incubated at 25°C for 48 h and transmission electron microscopy analysis for bacterium-associated flagella, as well as qRT-PCR quantification of flaA mRNA in EGDe WT and csp mutants cultivated to stationary phase in BHI at 25°C. Relative quantity (RQ) of flaA mRNA levels normalized 16S rRNA and expressed relative to an EGDe WT strain derived mRNA calibrator sample are shown. Data showing the means (bars) and standard deviations (error bars) of three independent biological experiment are presented. *p < 0.05 based on one-way ANOVA and Tukey post-hoc test comparison relative to the WT strain. Presence or lack of flagella on cell surfaces is highlighted by red arrows.
Discussion
Bacteria presumably use Csp proteins for the transcriptional and translational regulation of various genes to promote a wide range of physiological functions including stress resistance and virulence associated responses. To date Csps have been found important for pathogenicity in different bacteria including Enterococcus fecalis, Staphylococcus aureus, Salmonella enterica, Brucella melitensis, and csp gene deletions in such organisms were shown to cause attenuated virulence phenotypes (Michaux et al., 2012, 2017; Sahukhal and Elasri, 2014; Wang et al., 2016). On the other hand the phenotypic roles and molecular functional mechanisms associated with Csps in L. monocytogenes are not yet fully illuminated. In our present studies we show that Csps are not only involved in facilitating virulence but they also promote cellular aggregation as well as flagella-based motility, properties which are also important for survival of this bacterium outside the host environments.
We show here that a ΔcspABD mutation that removes all the csp genes also severely compromises pathogenicity of L. monocytogenes in human macrophages and zebra fish embryos. A ΔcspABD mutant shows a non-lethal phenotype when tested in a zebrafish embryo based infection model, while the WT induces 100% mortality of zebra fish embryos infected under similar conditions. Moreover, such a mutant while displaying limited intracellular growth during 6 h of infection could not be detected after 24 h of infection of a human derived macrophage cell line. In contrast, the WT L. monocytogenes strain efficiently multiplies and persists over 24 h of infection of such a human macrophage cell line. The phenotypic involvement and level of contribution of each of the three L. monocytogenes Csps was also confirmed through analysis of double csp gene deletion mutants that express single rather than all the three csp genes. Overall there appears to be a hierarchical phenotypic trend observed ranging from maximal virulence in the WT strain with all three csp genes, to variable but reduced virulence level in the double csp gene deletion mutants expressing single Csps and complete virulence attenuation in the ΔcspABD deletion mutant lacking all the three csp genes. As previously shown all csp mutants examined have no growth defects compared to the WT strain under optimal laboratory conditions in BHI at 37°C (Loepfe et al., 2010), our observations here thus suggest that inside human macrophages without Csps, L. monocytogenes either: (i) has an impaired ability to survive and grow, (ii) has a reduced capacity to spread from cell to cell, or (iii) gets cleared at a higher rate from host cells.
Consistent with Csps being involved in L. monocytogenes virulence gene expression modulation we previously showed that the csp mutants examined here produce low amounts of the virulence protein LLO, and this is in part linked to reduced amounts and low stability of the hly mRNA encoding for the LLO proteins observed without Csps in this bacterium (Schärer et al., 2013). In addition such L. monocytogenes csp mutants are also rendered more susceptible to oxidative stress conditions by the lack of Csps (Loepfe et al., 2010). Our findings here now revealed that besides such defects, there are also extensive defects in production of other virulence factors including ActA among the csp mutants. Taken together without csp genes, L. monocytogenes might therefore have a reduced ability to proliferate within host cells due to an impaired capacity to survive and escape from the hostile environment of the phagocytic vacuole coupled with an inability to spread to neighboring cells due to attenuated ActA production. Meanwhile the fact that we could not detect the ΔcspABD mutant in infected THP-1 macrophages after 24 h of infection might mean that there is complete destruction of the mutant within infected macrophages due to its inability to spread to neighboring cells.
Phenotypes observed with mutant strains carrying individual csp genes did not only provide functional confirmation for all the three csp genes in promoting L. monocytogenes virulence but they also showed that individual Csps do not function equally in this respect. Our observation that none of the csp genes expressed individually can recapitulate WT strain virulence but they all restore the phenotypes to levels above a ΔcspABD mutant without Csps, indicates that maximal phenotypic expression of virulence requires the functional activities of all the three Csps in L. monocytogenes. Meanwhile with respect to the different csp genes there was a general phenotypic trend observed showing that cspB followed by cspD are the genes with largest functional contributions to virulence, whereas the cspA gene, which is important in cold growth seems to have the least functional contributions to virulence. Based on this our findings thus indicated that despite being highly conserved the three L. monocytogenes Csps are not functionally equivalent nor are they completely redundant. The variable contribution of Csps to L. monocytogenes virulence could be down to variable Csp expression, differences in Csp regulated gene targets, or nucleic acid binding efficiencies. Under optimal growth conditions in BHI at 37°C we have previously observed that csp genes are variably expressed with cspB and cspD transcripts showing 20- and 4-fold, respectively, higher abundance than cspA mRNA in L. monocytogenes EGDe (Schmid et al., 2009). Such differences in csp gene expression at 37°C a temperature applied in our studies might therefore be part of the explanation behind the virulence phenotypic trends observed for the different Csps in the current study.
In other microorganisms Csp-dependent increases in the mRNA levels of various genes are linked to Csps either promoting the transcription or mRNA stability of transcripts derived from their target genes (Jiang et al., 1997; Bae et al., 2000; Feng et al., 2001; Michaux et al., 2017). Apart from increasing transcript levels, Csps can further increase protein synthesis through direct interactions with transcripts leading to translation promotion either by facilitating translation initiation or through destabilization of translation inhibiting mRNA secondary structures (Jiang et al., 1997; Bae et al., 2000). Since we had observed that virulence and macrophage persistence and growth were defective in csp mutants, we also assessed the csp mutants for the expression patterns of some of the known L. monocytogenes virulence genes at mRNA and protein levels. Overall the expression patterns observed for PrfA, LLO, ActA, Mpl, and PlcA (PI-PLC activity) in the ΔcspABD mutant compared to the WT is suggestive of at least two different mechanisms of interaction between Csps and their targets. In the case of prfA, hly, plcA, and mpl and the corresponding proteins (PrfA, LLO, and Mpl) or their activity (PI-PLC) we observed decreased amounts of mRNA as well as protein levels in the ΔcspABD mutant compared to the WT. Such findings are consistent with our earlier study that found reduced LLO protein expression and hemolytic activity in the ΔcspABD mutant (Schärer et al., 2013). In addition, there were recent transcriptome studies revealing an extensive regulation of various genes including those involved in virulence by Csps at the transcription level in B. melitensis and S. enterica (Wang et al., 2016; Michaux et al., 2017). Our observations here suggest that Csp-dependent regulation with respect to virulence gene expression might involve both direct and indirect mechanisms. Direct roles could be mediated through Csps directly targeting the prfA, hly, mpl, and plcA and actA mRNAs at transcriptional and translational levels. Csp-dependent regulation of PrfA expression further suggests an indirect transcriptional regulation of virulence genes that are under PrfA control including the hly, plcA, mpl, and actA genes.
In addition, we also found that in ΔcspABD and ΔcspAB mutants there was a complete lack of ActA and surface flagella although such strains showed significantly higher actA and flaA mRNA amounts compared to the WT strain. This expression pattern seems suggestive of a broken positive feedback loop where the lack of ActA and flagella might be sensed and the cells respond by increasing their expression at the transcript level, but these transcripts are not efficiently translated to proteins. Among the single Csp producing strains we similarly also found that while the CspB harboring ΔcspAD mutant had significantly higher prfA, hly, and mpl mRNA amounts, it exhibited similar or even lower amounts of their corresponding proteins when compared to the ΔcspAD mutant harboring CspD. Taken together these observations suggest possible involvement of the different Csps in post-transcriptional level expression regulation of these genes although such activities will need to be confirmed through further experimental work for the L. monocytogenes Csps. Meanwhile L. monocytogenes also regulates many of its virulence genes by mechanisms that involve the 5′-UTR of mRNA, including a thermoswitch in the prfA mRNA that prevents translation at low temperatures as well as other factors acting at post-transcription and translation levels (Johansson et al., 2002; Netterling et al., 2015; Reniere et al., 2016; Lebreton and Cossart, 2017). At this stage, it is tempting to speculate that Csps might be interacting with the actA and flaA mRNA in ways that promote their translation in L. monocytogenes. Possible but not yet proven mechanisms could also involve a role of Csps in the unmasking of the ribosomal binding site through mRNA structural destabilization or, in the case of flaA, Csps might somehow influence the interaction of the flaA transcript with an antisense mRNA transcribed from the P1 mogR promoter (Toledo-Arana et al., 2009).
Our findings here are also similar with reports from other bacteria linking Csp function to the regulation of flagella expression. Derman et al. previously reported a reduction in flagella formation and motility in cspA and cspC deleted mutants of Clostridium botulinum ATCC 3502 (Derman et al., 2015). A csp deletion mutant of B. melitensis showed increased flaA mRNA levels based on RNAseq (Wang et al., 2016), whilst an Escherichia coli cspABGE deletion mutant had reduced transcripts of the flagellar genes flg and fli based on a microarray analysis (Phadtare and Inouye, 2004). In external and food-associated environments flagella expression regulation through Csps and other gene expression regulators is also important for cold growth and biofilm production. The expression of Csps and flagella in L. monocytogenes gets induced at low temperature and these responses have been found important for cold growth, whilst flagella have also been shown to influence surface attachment and biofilm formation in this bacterium (Vatanyoopaisarn et al., 2000; Lemon et al., 2007; Schmid et al., 2009; Mattila et al., 2011). Although Csp involvement in biofilm production has not yet been reported in L. monocytogenes, Csps have been found important for biofilm production in bacteria such as S. enterica, S. aureus and Vibrio cholera (Sahukhal and Elasri, 2014; Townsley et al., 2016; Michaux et al., 2017).
In another interesting observation we also found that ActA protein expression patterns as determined by Western blot were reflected in the cell aggregation patterns observed in different L. monocytogenes csp mutants. In ΔcspABD and ΔcspAB lacking ActA as well as the ΔcspBD mutant containing the lowest amounts of ActA proteins we observed almost no bacterial aggregation. In contrast the ΔcspAD and WT strains showing highest amounts of ActA showed bacterial aggregation. Besides promoting intracellular motility and cell to cell dissemination, the surface protein ActA also mediates cellular aggregation and has been found to promote biofilm formation in L. monocytogenes (Travier et al., 2013). It would thus appear that similar to what was previously observed for PrfA, Csps also indirectly contribute to ActA-dependent aggregation in L. monocytogenes (Travier et al., 2013). Apart from altered ActA expression, the impaired aggregation phenotypes exhibited by the L. monocytogenes csp mutants could also have been due to the altered surface flagellation patterns exhibited among the different csp mutants, which either completely lacked (ΔcspABD and ΔcspAB) or showed reduced (ΔcspBD and ΔcspAD) surface flagellation. Cell surface flagella might contribute to cellular aggregation processes based on their roles in mediating surface attachment of L. monocytogenes cells (Vatanyoopaisarn et al., 2000; Lemon et al., 2007).
In conclusion our studies have shown that Csp functions are important for virulence as well as cell aggregation and flagella-based motility of L. monocytogenes. Our study shows for the first time in L. monocytogenes that Csp functions are involved in facilitating aggregation, flagella biosynthesis, and consequently extracellular motility. Notably the three Csps of L. monocytogenes, although highly conserved, clearly show both redundancy and variable functional relevance in enabling the Csp associated phenotypes. CspA has been found to be most important in cold adaptation and CspD in osmotic stress adaptation (Schmid et al., 2009), while this study suggests that CspB is the most relevant Csp with regard to virulence, aggregation and motility in L. monocytogenes. In conclusion, whilst the exact mechanisms through which Csps are involved in gene expression regulation in this bacterium remain to be investigated, we currently hypothesize based on molecular functions assigned to Csps from other bacteria, that the phenotypic roles associated with Csps in L. monocytogenes are most likely also linked to the involvement of these proteins in regulation of gene expression at both transcriptional and post-transcriptional levels in this bacterium.
Author Contributions
TT designed and supervised the study. AE performed the experiments. TT, AE, CG, and AO analyzed the data and wrote the manuscript.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We thank Stephan Neuhauss (Institute of Molecular Life Sciences, University of Zurich) for allowing us to share the zebrafish facility, Martin Loessner (Institute of Food Nutrition and health, ETH Zurich), Nancy Freitag (Department of Microbiology and Immunology, Chicago College of Medicine, University of Illinois), Helen Marquis (Department of Microbiology and Immunology, College of Veterinary Medicine, Cornell University) for kindly providing us with the pPL3e-gfp plasmid, anti- PrfA, and anti-Mpl antibodies, respectively.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcimb.2017.00453/full#supplementary-material
