Disentangling the role of electrons and phonons in the photoinduced CO desorption and CO oxidation on (O,CO)-Ru(0001)

The role played by electronic and phononic excitations in the femtosecond laser induced desorption and oxidation of CO coadsorbed with O on Ru(0001) is investigated using ab initio molecular dynamics with electronic friction. To this aim, simulations that account for both kind of excitations and that only consider electronic excitations are performed. Results for three different surface coverages are obtained. We unequivocally demonstrate that CO desorption is governed by phononic excitations. In the case of oxidation the low statistics does not allow to give a categorical answer. However, the analysis of the adsorbates kinetic energy gain and displacements strongly suggest that phononic excitations and surface distortion also play an important role in the oxidation process.

1 Introduction

The use of intense femtosecond laser pulses in the near infrared, visible, and ultraviolet regime constitutes an efficient tool to promote adsorbate reactions at metal surfaces that are forbidden or less likely under thermal conditions (Cavanagh et al., 1993; Guo et al., 1999; Frischkorn and Wolf, 2006; Saalfrank, 2006). The laser excites the electrons of the metal and energy is subsequently transferred to the surface atoms by means of electron-phonon coupling. As a consequence, the adsorbates can gain energy from both the excited electronic and phononic systems. Experimentally, two-pulse correlation measurements have been used to disentangle which the timescale for the energy transfer to the adsorbates is (Budde et al., 1991; Busch et al., 1995; Bonn et al., 1999; Funk et al., 2000; Denzler et al., 2003; Frischkorn and Wolf, 2006; Szymanski et al., 2007; Hong et al., 2016). In this way, the reaction is ascribed to be a dominant electron-assisted process when its timescale is of few picoseconds or less and to be a dominant phonon-assisted process when its timescale is longer.

From the theoretical side, a proper understanding of this kind of experiments and of their outcome requires a proper characterization of the reaction dynamics. The excitation generated by the laser on the surface is accounted for using a two temperature model (2TM) in which the electronic and phononic excitations are described in terms of time-dependent electronic (T_e) and phononic (T_l) temperatures (Anisimov et al., 1974). Subsequently, the dynamics of the adsorbates in the highly excited environment are simulated (Springer et al., 1994; Springer and Head-Gordon, 1996; Vazhappilly et al., 2009; Füchsel et al., 2010; 2011; Lončarić et al., 2016a; Lončarić et al., 2016b; Scholz et al., 2016). In this respect, the extension of the ab initio molecular dynamics with electronic friction method (Novko et al., 2015; Novko et al., 2016a; Novko et al., 2017) to incorporate the effect of time-dependent electronic and phononic temperatures in the adsorbate dynamics [hereafter denoted as (T_e, T_l)-AIMDEF] (Alducin et al., 2019; Scholz et al., 2019; Tetenoire et al., 2022; Tetenoire et al., 2023) constitutes a way of treating the multidimensional dynamics of the adsorbates and surface atoms at the density functional theory (DFT) level, incorporating the coupling of the adsorbates to both the excited electronic and phononic systems.

An important reaction that cannot be thermally activated under ultrahigh vacuum conditions (Kostov et al., 1992; Bonn et al., 1999) but can be propelled by femtosecond laser pulses (Bonn et al., 1999; Öberg et al., 2015; Öström et al., 2015) is CO oxidation when coadsorbed with atomic O on the Ru(0001) surface. Still, even in these conditions, CO desorption is around 30 times more probable than CO oxidation (Bonn et al., 1999; Öberg et al., 2015). In two previous works (Tetenoire et al., 2022; Tetenoire et al., 2023), we have applied the (T_e, T_l)-AIMDEF method to this system. Different surface coverages, for which the reaction paths under equilibrium conditions for CO desorption and oxidation had been previously studied (Tetenoire et al., 2021), were taken into account. Our results reproduced the experimental fact regarding the CO desorption to oxidation branching ratio being larger than one order of magnitude. Additionally, our dynamics simulations showed the reason for this behavior. We observed that CO desorption is a direct process only limited by the energy the CO molecules need to gain to overcome the desorption energy barrier. In contrasts, the oxidation dynamics is much more complex, the configurational space to oxidation is very restricted, and the fact that the O and CO adsorbates gain energy enough to overcome the energy barrier to oxidation does not guarantee their recombination. Our simulations also reproduced the changes in the O K-edge XAS experimental spectra attributed to the initial stage of the oxidation process (Öström et al., 2015), further confirming the robustness of the theoretical model.

An important question that was not studied in the previous works is the relative importance of electronic and phononic excitations in both CO desorption and CO oxidation reactions. In the present paper we aim to elucidate this question. We perform the so-called T_e-AIMDEF simulations (Juaristi et al., 2017), in which the Ru surface atoms are kept frozen in their equilibrium positions, so that the adsorbates are uniquely coupled to the excited electrons. In this way, we gain information about the CO desorption and oxidation probabilities, and about the dynamics of these processes, when only electronic excitations are considered. Comparison of these results with those obtained in the (T_e, T_l)-AIMDEF simulations, in which the effect of both electronic and phononic excitations is accounted for, allows us to answer the question about which channel dominates each reaction on each of the studied surface coverages.

The paper is organized as follows. The theoretical model and computational settings are described in the Theoretical Methods section. The results of both the T_e-AIMDEF and the (T_e, T_l)-AIMDEF simulations for the CO desorption and oxidation probabilities, kinetic energy gains, and adsorbate displacements are presented in the Results and Discussions section. Finally, the main conclusions of the paper are summarized in the Conclusions section.

2 Theoretical methods

2.1 Photoinduced desorption model

The photoinduced desorption and oxidation of CO from the (O,CO)-covered Ru(0001) surface was simulated in (Tetenoire et al., 2022; Tetenoire et al., 2023) with the ab initio classical molecular dynamics with electronic friction method (T_e, T_l)-AIMDEF that allows to include the effect of both the laser-induced hot electrons and concomitant electron-excited phonons (Alducin et al., 2019). As described in detail elsewhere (Alducin et al., 2019; Tetenoire et al., 2022), the electronic and ensuing phononic excitations created in the metal surface by near infrared laser pulses are described within a two-temperature model (2TM) (Anisimov et al., 1974) in terms of two coupled heat thermal baths. The time-dependent temperatures that are associated to the electron and phonon baths, T_e(t) and T_l(t), are obtained by solving the following differential equations:

$C_e\frac{\partial T_e}{\partial t}=\frac{\partial }{\partial z}\kappa \frac{\partial T_e}{\partial z}-g\left(T_e-T_l\right)+S\left(z,t\right),(1)$

$C_l\frac{\partial T_l}{\partial t}=g\left(T_e-T_l\right),(2)$

where C_e and C_l are the electron and phonon heat capacities, respectively, κ is the electron thermal conductivity, g is the electron-phonon coupling constant, and S(z, t) is the absorbed laser power per unit volume that depends on the shape, wavelength, and fluence of the applied pulse. According to the above equations, the laser pulse is responsible of heating directly the electron system that subsequently transfers part of its energy into either the bulk electrons or the lattice phonons [first and second terms in the r.h.s. of Equation 1, respectively]. The diameter of the laser beam, on the one hand, and the time scale of few tens of picoseconds of interest, on the other hand, justify neglecting lateral heat diffusion by electrons in Equation 1 and heat diffusion by phonons in Equation 2 (Frischkorn and Wolf, 2006). All the simulations performed in the present work as well as those in (Tetenoire et al., 2022; Tetenoire et al., 2023) correspond to irradiating the surface with the experimental pulse of ref. (Bonn et al., 1999), i.e., a 800 nm Gaussian pulse of 110 fs duration. Figure 1 shows the results for T_e(t) and T_l(t) as obtained from 2TM for the experimental absorption fluences F = 200 and 300 J/m². As input parameters for the Ru(0001) surface in Equations 1, 2, we use those of refs. (Vazhappilly et al., 2009; Scholz et al., 2016; Juaristi et al., 2017; Tetenoire et al., 2022).

FIGURE 1

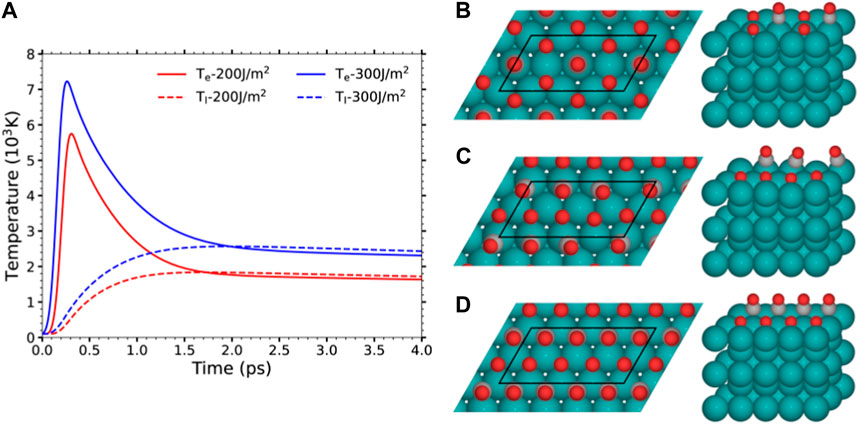

FIGURE 1. (A) 2TM-calculated electronic (solid) and lattice (dashed) temperatures induced by a 800 nm laser pulse with 110 fs FWHM and F = 200 and 300 J/m². (B–D) Top and perspective views of the energetically favored structures found in (Tetenoire et al., 2021) for Ru(0001) covered by: (B) 0.5 ML O+ 0.25 ML CO, (C) 0.5 ML O+ 0.375 ML CO, and (D) 0.5 ML O+ 0.5 ML CO. The black parallelograms depict the (4 × 2) surface unit cell used in the AIMDEF calculations for each coverage. Color code: O atoms in red, C in gray, and Ru in blue. For clarity, the periodic images of the O and CO adsorbates in the perspective view are not shown. Images prepared with ASE (Larsen et al., 2017).

Next, the effect of the laser-excited electrons on each adsorbate is described through the following Langevin equation:

$m_i\frac{d^2{\mathbf{r}}_i}{d{t}^2}=-{\nabla }_{{\mathbf{r}}_i}V\left({\mathbf{r}}_1,\dots ,{\mathbf{r}}_N\right)-{\eta }_{e,i}\left({\mathbf{r}}_i\right)\frac{d{\mathbf{r}}_i}{dt}+{\mathbf{R}}_{e,i}\left[T_e\left(t\right),{\eta }_{e,i}\left({\mathbf{r}}_i\right)\right],(3)$

where m_i, r_i, and η_e,i are the mass, position vector, and electronic friction coefficient of the ith atom conforming the set of adsorbates. The adiabatic force [first term in the r.h.s. of Equation 3] depends on the position of all atoms in the system (i.e., adsorbates and surface atoms). The electronic friction force (second term) and the electronic stochastic force (third term), which are related by the fluctuation-dissipation theorem, describe the effect of the electronic excitations and deexcitations on the adsorbate dynamics. In particular, R_e,i is modeled by a Gaussian white noise with variance, Var[R_e,i(T_e, η_e,i)] = (2k_BT_e(t)η_e,i(r_i))/Δt, with k_B the Boltzmann constant and Δt the time-integration step. For each atom i, the electronic friction coefficient η_e,i(r_i) is calculated with the local density friction approximation (LDFA) (Juaristi et al., 2008; Alducin et al., 2017). Within this approximation, the friction coefficient is assumed to be equal to the friction coefficient that the same atom i would experience in case of moving within a homogeneous free electron gas (FEG) of density n₀ = n_sur(r_i), with n_sur(r_i) being the electron density of the bare metal surface at the position r_i. As proposed by Novko et al. (Novko et al., 2015; 2016a), an efficient method to extract on-the-fly the bare surface electron density from the self-consistent DFT electron density of the whole system (adsorbates and surface), which is calculated at each integration step in AIMDEF, consists in applying the Hirshfeld partitioning scheme (Hirshfeld, 1977). Specifically, the latter is used to subtract the contribution of the adsorbates from the self-consistent electronic density in order to obtain the bare surface electron density.

In the (T_e, T_l)-AIMDEF simulations also the heating of the surface lattice due to the laser-induced electronic excitations is included. The latter is achieved by coupling the surface atoms to a Nosé-Hoover thermostat (Nosé, 1984; Hoover, 1985) that follows the temperature T_l(t) obtained from 2TM. In contrast, in the T_e-AIMDEF simulations that we perform in this work all the surface atoms are kept fixed at their equilibrium positions and only the adsorbates are allowed to move as dictated by the T_e-dependent Langevin dynamics [Equation 3]. These dynamics-restricted simulations are an attempt to single out the direct effect of the laser-excited electrons on the adsorbates from the effect due to energy transfer between the adsorbates and the surface atoms, which are also vibrationally excited by the electrons.

2.2 General DFT computational settings

The new T_e-AIMDEF simulations presented here were performed with VASP (Kresse and Furthmüller, 1996a; Kresse and Furthmüller, 1996b) (version 5.4) and the AIMDEF module (Blanco-Rey et al., 2014; Saalfrank et al., 2014; Novko et al., 2015; Novko et al., 2016a; Novko et al., 2016b, Novko et al., 2017; Juaristi et al., 2017) using the same computational settings that we used in our previous (T_e, T_l)-AIMDEF simulations of the desorption and oxidation of CO on different covered Ru(0001) surfaces (Tetenoire et al., 2022; 2023). Figure 1 shows the supercells used to characterized the three coverages under study:

• The low coverage (0.5 ML O+0.25 ML CO), in which each atop CO is surrounded by six O atoms that adsorb on the nearest hcp and fcc sites forming a honeycomb arrangement.

• The intermediate coverage (0.5 ML O+0.375 ML CO), in which the O atoms adsorb at hcp sites forming a p(1 × 2) structure, while the CO molecules occupy the empty space left between the O arrays.

• The high coverage (0.5 ML O+0.5 ML CO), in which both the O and CO adsorb on hcp sites forming two inserted p(1 × 2) structures.

As seen in the figure, the three coverages are modeled with the same supercell that consists of a (4 × 2) surface unit cell and a vector length along the surface normal of 30.22 Å. Within this supercell, each covered Ru(0001) surface is described by five layers of Ru atoms and the corresponding (O,CO) overlayer. The Ru topmost layer and the bottom of the nearest periodic Ru slab are separated by about 19 Å of vacuum. The employed (4 × 2) surface cell contains various adsorbates and, hence, it will provide a reasonable description of the interadsorbate interactions and their effect in the adsorbate dynamics, which become important at sufficiently large coverages (Denzler et al., 2003; Xin et al., 2015; Hong et al., 2016; Juaristi et al., 2017; Alducin et al., 2019; Serrano-Jiménez et al., 2021; Lidner et al., 2023). Let us remark that the low and intermediate coverages have been found in experiments (Kostov et al., 1992), while the high coverage is predicted to be stable by DFT (Tetenoire et al., 2021) but has not been experimentally observed.

In the T_e-AIMDEF simulations, the adiabatic forces are calculated with non spin-polarized DFT using the van der Waals exchange-correlation functional proposed by (Dion et al., 2004) and the same computational parameters that were used in our previous studies on the energetics (Tetenoire et al., 2021) and (T_e, T_l)-AIMDEF dynamics of the O + CO-Ru(0001) system (Tetenoire et al., 2022; Tetenoire et al., 2023). Specifically, the electronic ground state energy is determined at each integration step within a precision of 10^–6 eV. Integration in the Brillouin zone is performed using a Γ-centered 3 × 6 × 1 Monkhorst-Pack grid of special k points (Monkhorst and Pack, 1976) and the Methfessel and Paxton scheme of first order with a broadening of 0.1 eV (Methfessel and Paxton, 1989). The Kohn-Sham orbitals are expanded in a plane-wave basis set with an energy cutoff of 400 eV. The projector augmented wave (PAW) method (Blöchl, 1994) that is implemented in VASP (Kresse and Joubert, 1999) is used to describe the electron-core interaction. Integration of the Langevin equation is performed with the Beeman method implemented in our AIMDEF module (Blanco-Rey et al., 2014). Each trajectory starts with the adsorbates at rest at their equilibrium position and is propagated up to 4 ps using a time step of 1 fs. For each coverage and absorbed fluence we run 100 trajectories.

2.3 Calculation of observables

Following (Tetenoire et al., 2022; Tetenoire et al., 2023), a CO molecule is counted as desorbed if its center of mass height reaches the distance Z_cm = 6.5 Å from the Ru(0001) topmost layer with positive momentum along the surface normal (P_z > 0). After analyzing all the trajectories, the CO oxidation (i.e., the O + CO recombinative desorption as CO₂) and CO desorption probabilities per CO molecule are calculated for each coverage as

$P_{\text{des}}\left(A\right)=\frac{N_{\text{des}}\left(A\right)}{N_{\text{t}}{N}_{\text{CO}}}(4)$

with N_des(A) the number of the desorbing molecules under consideration (i.e., A stands for CO or CO₂), N_t the total number of trajectories, and N_CO the number of CO molecules in the simulation cell (2, 3, and 4, respectively, for low, intermediate, and high coverages).

The mean total kinetic energy ⟨E_kin⟩(t) and mean center-of-mass kinetic energy ⟨E_cm⟩(t) per adsorbate type are calculated at each instant t as

$⟨E_{\text{kin\hspace{0.17em}}\left(\text{cm}\right)}⟩\left(t\right)=\sum _{i=1}^{N_{\text{t}}}\sum _{j=1}^{N_a}\frac{E_{\text{kin\hspace{0.17em}}\left(\text{cm}\right)}^j\left(t\right)}{N_{\text{t}}{N}_a}(5)$

where N_a is the total number of the specific species under consideration (e.g., nondesorbing CO molecules that remain adsorbed on the surface at the end of the simulation, CO molecules that desorb, nondesorbing O adatoms…) and $E_{\text{kin\hspace{0.17em}}\left(\text{cm}\right)}^j$ is the kinetic (center-of-mass) energy of adsorbate j at instant t.

3 Results and discussion

The CO desorption and CO oxidation probabilities obtained from the T_e-AIMDEF and (T_e, T_l)-AIMDEF simulations at the same absorbed fluence of 200 J/m² are compared for each coverage in Table 1. The CO desorption probabilities in the intermediate and high coverages are reduced by a factor 33.8 and 34.5, respectively, when only the direct effect of the excited electrons are included (T_e-AIMDEF). Assuming that a similar factor of ∼34 stands for the low coverage, we consider that the predicted desorption probability of $\sim 0.5\%$ is compatible with the lack of CO desorption events we obtain within our limited statistics. As found in the (T_e, T_l)-AIMDEF simulations (Tetenoire et al., 2023), the P_des(CO) values correlate well with the CO desorption barriers calculated with DFT-vdW for each coverage (Tetenoire et al., 2021). That is, the number of CO desorption events increases as the barrier decreases. Let us remark that the drastic reduction we obtain in the T_e-AIMDEF desorption probabilities aligns with the two-pulse correlation measurements suggesting that the photoinduced desorption of CO on the O + CO-Ru(0001) surface is a phonon-dominated process (Bonn et al., 1999). Interestingly, this feature, the importance of the excited phonons in the photodesorption of CO, is not exclusive of the (O,CO)-covered surface, as it has been observed in diverse experiments in which Ru(0001) is covered with CO (Funk et al., 2000) and in molecular dynamics calculations motivated by those experiments (Scholz et al., 2016), which included the effect of T_e(t) and T_l(t) following the model by (Lončarić et al., 2016a).

TABLE 1

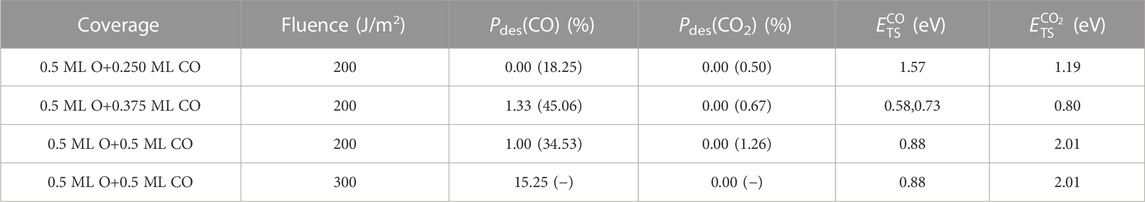

TABLE 1. T_e-AIMDEF CO desorption probability P_des(CO) and CO oxidation probability P_des(CO₂) calculated for the low, intermediate, and high (O,CO)-Ru(0001) coverages at an absorbed fluence F = 200 J/m². For the high coverage also results at F = 300 J/m² are shown (last row). For comparison, the probabilities obtained from (T_e, T_l)-AIMDEF simulations with F = 200 J/m² in ref (Tetenoire et al., 2023) are reproduced within parenthesis. Activation energies (in eV) for CO desorption $E_{\text{TS}}^{\text{CO}}$ and CO oxidation $E_{\text{TS}}^{{\text{CO}}_2}$ are from ref (Tetenoire et al., 2021).

In respect of the CO oxidation process, there are no events in the case of the T_e-AIMDEF simulations. Nevertheless, the statistics is insufficient to exclude that the laser-excited electrons are the dominant driving mechanism, as proposed in (Bonn et al., 1999). The analysis of the kinetic energy and displacements below will show however that there are distinct features in the (T_e, T_l)-AIMDEF adsorbate dynamics as compared to the T_e-AIMDEF adsorbate dynamics suggesting that not only electrons but also the highly excited phonons are contributing to the oxidation process, similarly to what was obtained for the laser-induced desorption of CO from Pd(111) (Alducin et al., 2019).

In order to confirm the above idea and gain further insights into the role of the excited electrons and phonons we also calculated for illustrative purposes an additional set of 100 T_e-AIMDEF trajectories assuming a extreme absorption fluence F = 300 J/m² for one of the covered surfaces, namely, the high coverage. As shown in Figure 1A, the maximum of the electronic temperature for the new fluence is about 1600 K higher than for F = 200 J/m². After reaching the maximum, a difference of about 800 K is still maintained during the rest of the integration time used in our calculations. The purpose of these new simulations is to increase the energy provided to the adsorbates but excluding effects due to the lattice distortions inherent to phonon excitations. The results in Table 1 show that P_des(CO) increases from 1% to 15.25% because of the fluence. The latter value is still about a factor 2 smaller than in the (T_e, T_l)-AIMDEF simulations for F = 200 J/m². Lastly, neither at this high fluence there are oxidation events, although the analysis of the adsorbate displacements below will show that in a few cases the adsorbates can eventually abandon their adsorption well.

3.1 Kinetic energy gain

The time evolution of the mean kinetic energy of the adsorbates along the T_e-AIMDEF (thick solid lines) and (T_e, T_l)-AIMDEF dynamics (dotted lines) is compared in Figure 2 for each adsorbate type and each coverage. In both simulations the absorbed laser fluence is F = 200 J/m². For simplicity, only the results of the nondesorbing species, i.e., the adsorbates that remain on the surface at the end of our simulations, will be discussed. A detailed analysis of the kinetic energy gained by the desorbed CO in the (T_e, T_l)-AIMDEF simulations can be found elsewhere (Tetenoire et al., 2023). A common observation in Figure 2 is that irrespective of the coverage the adsorbates gain less kinetic energy in the T_e-AIMDEF simulations than in (T_e, T_l)-AIMDEF. There exist some interesting features worth mentioning. As discussed in (Tetenoire et al., 2023) in the case of (T_e, T_l)-AIMDEF simulations a quasithermalized state was obtained at the end of the simulations, and even more rapidly for the intermediate and high coverages. This is shown by the fact that the average total kinetic energy of the CO molecules is twice the average kinetic energy of their center of mass, and that this coincides, roughly, with the average kinetic energy of the O atoms. This is what is expected when there exists equipartition of the energy among the different degrees of freedom. This is clearly not the case in the T_e-AIMDEF simulations. For instance, we observe that for all coverages the average kinetic energy of the atomic O is larger than the average kinetic energy of the center of mass of the CO molecules. This can be rationalized by the fact that the O atoms are more strongly bound than the CO molecules and therefore their coupling to the electronic system is stronger. Note, finally, that even though this statement is generally true for all the coverages, in the high coverage case the difference between these two energies is much smaller and that tends to disappear at the end of the simulation time. This may be due to an increased importance of interadsorbate energy exchange that favors the thermalization of the system when the concentration of adsorbates at the surface is larger.

FIGURE 2

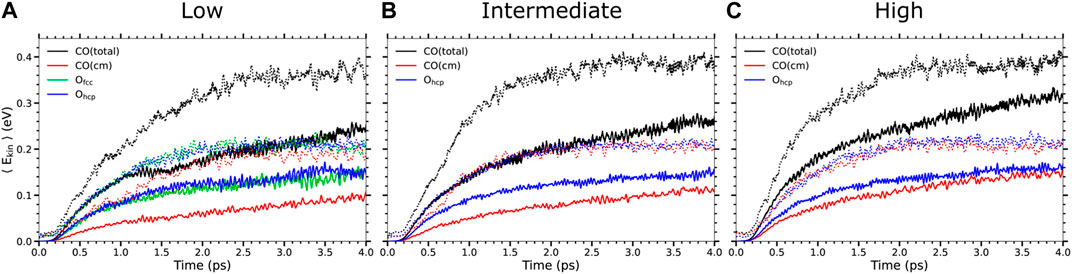

FIGURE 2. Time evolution of the adsorbate mean kinetic energy in the low (A), intermediate (B), and high (C) coverages as obtained in T_e-AIMDEF (solid lines) and (T_e, T_l)-AIMDEF (dotted lines) for an absorbed laser fluence F = 200 J/m². Shown for each coverage are: the mean total kinetic energy ⟨E_kin⟩ (black) and mean center-of-mass kinetic energy ⟨E_cm⟩ (red) of nondesorbing CO and the mean total kinetic energy of nondesorbing O_hcp (blue) and O_fcc (green).

Nevertheless, note that the energy gain when only electronic excitations are considered is roughly one-half of the energy gain when both electronic and phononic excitations are taken into account. It is difficult to rationalize reduction factors larger than 30 in the CO desorption probabilities such as those presented in Table 1 in terms of this reduction in the energy gain. This suggests that not only the increased energy gain but also other effects are playing a role in the increased CO desorption and oxidation probabilities when phononic excitations are considered. In order to strengthen this point further, in Figure 3 we show the results for the kinetic energy gain of the adsorbates in T_e-AIMDEF simulations in the high coverage case for a larger fluence, namely, F = 300 J/m². In this case, albeit a slightly different time dependence, the energy gain is very similar to that obtained with F = 200 J/m² in the (T_e, T_l)-AIMDEF simulations. Nevertheless, even with similar energy gains desorption and oxidation probabilities are, as shown in Table 1, much lower when only electronic excitations are accounted for. This constitutes a definitive proof of the fact that the role played by phononic excitations in the desorption and oxidation probabilities is not limited to being a energy source channel. This important point is further analyzed in the next subsection.

FIGURE 3

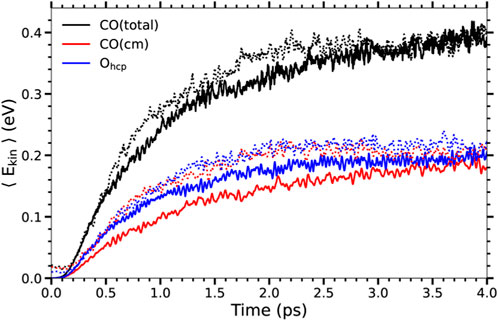

FIGURE 3. Same as Figure 2 for the high coverage. The results from T_e-AIMDEF at F = 300 J/m² (solid lines) are compared to those from (T_e, T_l)-AIMDEF at F = 200 J/m² (dotted lines).

3.2 Adsorbate displacements

Evidence of the important role of the excited phonons in the photoinduced reactions on (O+CO)-Ru(0001) is provided by comparing the in-plane displacement of the adsorbed species between both types of calculations, T_e-AIMDEF and (T_e, T_l)-AIMDEF. As in the previous section, only the diffusion of the nondesorbing species will be discussed.

The displacement data is presented in terms of colored density plots, which correspond to two-dimensional histograms of the adsorbates (x, y) positions over the surface (Figures 4–6). For each kind of adsorbate and simulation type, each density plot is constructed using the in-plane positions along the whole trajectory (4 ps, i.e., 4,000 steps) of all the adsorbates of that kind and of all the simulated trajectories. Thus, the density color code gives qualitatively an idea of the amount of time the adsorbates have spent in a given position (higher densities will correspond to longer times). Let us also remark that in each plot the atoms are allowed to go out of the unit cell (enclosed by a black solid line in the figures). The reason is that we are using a extended coordinate representation in order to show the continuous path followed by the adsorbates.

FIGURE 4

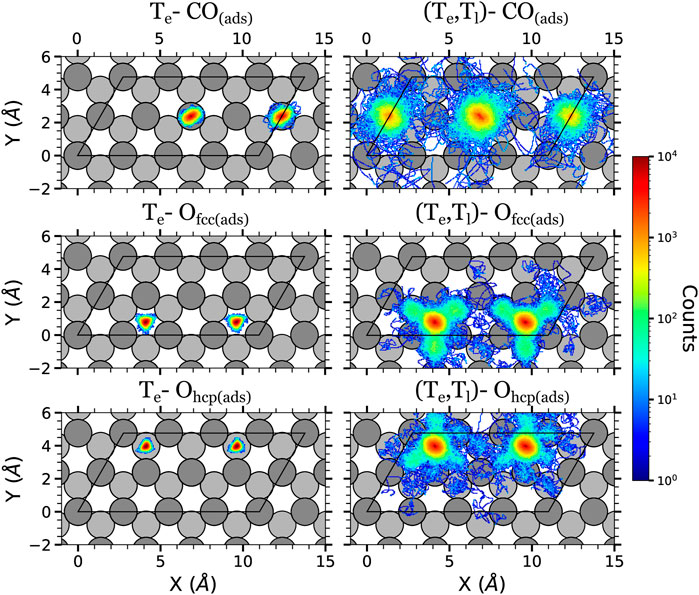

FIGURE 4. Density plots of the (x, y) positions over the surface of the adsorbates at the low surface coverage in the AIMDEF simulations. Only the positions of the adsorbates that remain adsorbed on the surface at the end of the simulation are shown. Left (right) column shows the results of the T_e-AIMDEF [(T_e, T_l)-AIMDEF] simulations. Top panels correspond to the center of mass of CO molecules, middle panels to the position of O atoms initially on fcc sites, and bottom panels to the position of O atoms initially on hcp sites. The black line encloses the simulation cell. For clarity, the position of the adsorbates is shown in an extended coordinate representation.

FIGURE 5

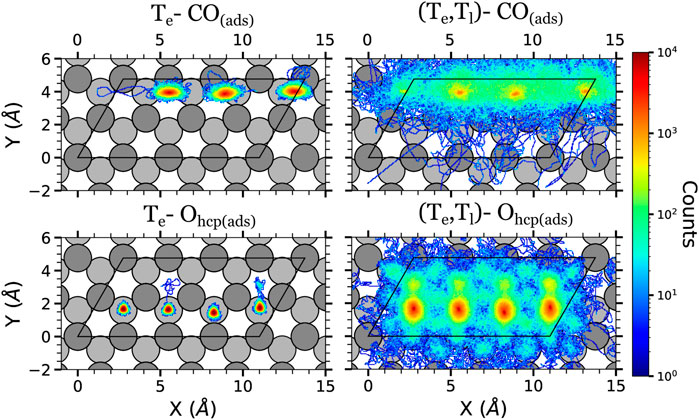

FIGURE 5. Density plots of the (x, y) positions over the surface of the adsorbates at the intermediate surface coverage in the AIMDEF simulations. Only the positions of the adsorbates that remain adsorbed on the surface at the end of the simulation are shown. Left (right) column shows the results of the T_e-AIMDEF [(T_e, T_l)-AIMDEF] simulations. Top panels correspond to the center of mass of CO molecules and bottom panels to the position of O atoms. The black line encloses the simulation cell. For clarity, the position of the adsorbates is shown in an extended coordinate representation.

FIGURE 6

FIGURE 6. Density plots of the (x, y) positions over the surface of the adsorbates at the high surface coverage in the AIMDEF simulations. Only the positions of the adsorbates that remain adsorbed on the surface at the end of the simulation are shown. Left, center, and right columns show the results of the T_e-AIMDEF with F = 200 J/m², T_e-AIMDEF with F = 300 J/m², and (T_e, T_l)-AIMDEF with F = 200 J/m² simulations, respectively. Top panels correspond to the center of mass of CO molecules and bottom panels to the position of O atoms. The black line encloses the simulation cell. For clarity, the position of the adsorbates is shown in an extended coordinate representation.

The adsorbate displacements in the low coverage case are plotted in Figure 4. In the T_e-AIMDEF simulations (left panels of Figure 4), the O adatoms stay on (or very close to) their respective adsorption sites. Something similar is observed for the CO molecules. They remain in top/near-top sites, showing no preference to move neither towards fcc sites nor towards hcp sites. The CO molecules explore an ellipse centered on the top position with a long axis of ∼1.3 Å and a short axis of ∼1 Å. These short displacements are clearly insufficient for CO oxidation to occur because the CO and O adsorbates cannot get close enough to recombine.

The in-plane mobility of all the adsorbates increases much when the Ru lattice excitation is incorporated with the (T_e, T_l)-AIMDEF simulations (right panels of Figure 4). The O adatoms can now abandon their initial adsorption site and cross the surrounding bridge sites. In particular, O atoms initially located at the fcc sites (O_fcc) show a tendency to move to the nearest hcp sites, whereas the ones initially located at the hcp sites (O_hcp) show a tendency to move to the closest fcc sites. We also observe that O_hcp shows a slightly smaller mobility than O_fcc. This is consistent with the larger adsorption energy of the former (5.62 eV) as compared to the latter (4.95 eV) (Tetenoire et al., 2023). Although less probable, note that there also exist events in which the O atoms move beyond the nearest neighbor adsorption sites. The mobility of the CO molecules is also much increased in the (T_e, T_l)-AIMDEF simulations. Now they explore a circle of radius ∼2.3 Å centered at their equilibrium position. In some cases, the excited CO may even move beyond their first neighboring site.

Figure 5 shows that the adsorbate mobility is drastically reduced also in the intermediate coverage when the effect of the hot Ru lattice is not included. In the T_e-AIMDEF simulations (left column of Figure 5), the CO molecules basically move within an ellipse centered at their corresponding adsorption site as in the low coverage case, although the explored area is larger (long and short axis lengths of ∼2.5 Å and ∼1.3 Å, respectively). We also observe a few cases in which the CO diffuses either along the x direction or to a nearest top site. The O adatoms mostly remain in their hcp adsorption sites, although there exist a few events in which O diffuses towards the nearest fcc site that is located farther from the other adatoms. Furthermore, these diffusing atoms are the ones that have not a CO molecule adsorbed on the near-top site that is located above them in the density plot. We checked that the displacement of the second left O occurs once the nearest CO above it desorbs.

The mobility of both kind of adsorbates increases considerably in the (T_e, T_l)-AIMDEF simulations (right column of Figure 5). In fact, the difference respect to the T_e-AIMDEF simulations is even more pronounced than in the low coverage because in the intermediate coverage basically every spot in the simulation cell is at some instant occupied by either O or CO. Still, we observe that in the case of CO molecules, the O row acts as a barrier that prohibits the CO molecules to access the lower part of the simulation cell, except for very few rare events. In contrast, the O adatoms can move all over the cell albeit it is less probable to find them at top sites than on hcp or fcc sites. These features provide, in a qualitative manner, indirect information on the properties of the potential energy surface and were already discussed in detail elsewhere (Tetenoire et al., 2023).

The in-plane displacement of the adsorbates in the high coverage are shown in Figure 6. Recall that in this case, the T_e-AIMDEF simulations were performed for two different fluences, namely, F = 200 and 300 J/m². In T_e-AIMDEF simulations with a laser fluence of 200 J/m² (left column of Figure 6), the in-plane motion of the CO molecules is mostly restricted to a circle of radius ∼1 Å. Still, we observe some events that involve lateral displacement of the CO molecules from one hcp site to another along the row in which they are located. However, since O atoms hardly move away from their corresponding adsorption sites, no CO oxidation event is expected to take place under these conditions.

As in the intermediate coverage, all adsorbates become extremely mobile when we also include the effect of the excited phonons [right column of Figure 6, (T_e, T_l)-AIMDEF simulations]. In fact the pattern of the density plots for both coverages, which share the same p(1 × 2) arrangement of the O adatoms, is very similar. Specifically, the CO molecules move predominantly along the row in which they are adsorbed, while the O adatoms end moving all over the surface.

The comparison of the O and CO displacements in the T_e-AIMDEF simulations with F = 300 J/m² (middle column of Figure 6) and in the (T_e, T_l)-AIMDEF simulations with F = 200 J/m² (right column of Figure 6) is probably the most clear evidence of the importance that the hot phonons created indirectly by the laser pulse has on the reaction dynamics. As shown in the previous section, the energy gained by both O and CO is very similar in the two simulations (see Figure 3). In spite of it, we show here that the mobility of the adsorbates is still very limited in the high fluence T_e-AIMDEF simulations as compared to the displacements obtained in the (T_e, T_l)-AIMDEF simulations at lower laser fluence. For example, the in-plane motion of the CO molecules is mostly restricted to a circle of radius ∼1.2 Å in the former, while it basically occupies the whole surface in the latter. Nonetheless, it is also worth noticing that compared to T_e-AIMDEF with F = 200 J/m², the lateral displacement along the y-axis in between the two nearest rows of Ru atoms is clearly much more probable in the high fluence simulations. In the case of the O adatoms, even if they remain mostly at their adsorption site, we observe some events in which they go through bridge sites, toward the nearest fcc sites. Clearly, the adsorbates have an increased mobility when the laser fluence is increased that could allow them to eventually recombine, even if there is no motion of the surface, but with a much smaller probability.

All in all, the present analysis shows that, for all coverages, the inclusion of lattice motion and phononic excitations increase the mobility of the adsorbates and allow them to explore larger regions of the configurational space. Therefore, though the low statistics does not allow us to categorically establish whether electronic or phononic excitations govern the CO oxidation process, these results strongly suggest that the role of phononic excitations cannot be neglected.

Regarding the CO desorption process, it is also interesting to compare the displacements along the surface normal with and without including the effect of the phonon excitations. Similar to the in-plane displacements, the CO mobility along the z-axis is higher in (T_e, T_l)-AIMDEF than in T_e-AIMDEF for each coverage. As an example, we show in Figure 7 the time evolution of the CO center of mass height Z_CM for the high coverage. Comparing the results calculated for the same absorbed fluence (F = 200 J/m²), we observe that the Z_CM displacements of the nondesorbing CO increase from about 0.5–1 Å in T_e-AIMDEF to 2–3 Å in (T_e, T_l)-AIMDEF. Increasing the fluence in the T_e-AIMDEF simulations also implies an increase in the Z_CM displacements and, importantly, in the number of desorption events, but still significantly smaller than in the (T_e, T_l)-AIMDEF simulations at 200 J/m².

FIGURE 7

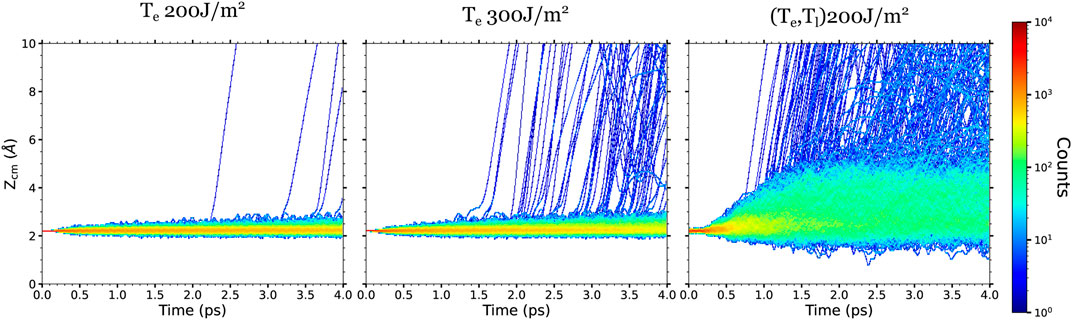

FIGURE 7. Density plots of the CO center-of-mass height Z_CM respect to the surface topmost layer obtained for the high surface coverage in the AIMDEF simulations. Left, center, and right columns show the results of the T_e-AIMDEF with F = 200 J/m², T_e-AIMDEF with F = 300 J/m², and (T_e, T_l)-AIMDEF with F = 200 J/m² simulations, respectively.

4 Conclusion

The photoinduced desorption and oxidation of CO coadsorbed with O on Ru(0001) has been simulated with ab initio molecular dynamics with electronic friction that include the effect of the laser-induced hot electrons but neglects that of the phonon excitations (T_e-AIMDEF). Comparison of these new results with those we obtained previously with simulations that incorporated in the adsorbate dynamics both the effect of the hot electrons and hot phonons [(T_e, T_l)-AIMDEF)] allows us to discern the role of electrons and phonons in the oxidation and desorption of CO from the covered surface. The probability of both reactions are drastically reduced when only the coupling to electrons is included. As suggested by two pulse correlation experiments in this system, CO desorption is dominated by the transient high temperature that is indirectly created by the laser pulse. Unfortunately, the statistics for CO oxidation is insufficient to determine the relative importance of the electronic and phononic mechanisms. Nonetheless, the comparative analysis of various dynamical properties such as the adsorbate kinetic energy and adsorbate displacements indicates that energy exchange with the hot lattice and the associated strong surface distortions are important ingredients to understand the CO oxidation reaction. This conclusion is supported by T_e-AIMDEF simulations performed at a high laser fluence. The kinetic energy gain is similar to that obtained in (T_e, T_l)-AIMDEF at a lower fluence but the adsorbate displacements are still insufficient to facilitate recombination.

Data availability statement

The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.

Author contributions

All authors listed have made a substantial, direct, and intellectual contribution to the work and approved it for publication.

Funding

The authors acknowledge financial support by the Gobierno Vasco-UPV/EHU Project No. IT1569-22 and by the Spanish MCIN/AEI/10.13039/501100011033 (Grant No. PID2019-107396GB-I00).

Acknowledgments

Computational resources were provided by the DIPC computing center. This research was conducted in the scope of the Transnational Common Laboratory (LTC) “QuantumChemPhys–Theoretical Chemistry and Physics at the Quantum Scale”.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

Alducin, M., Camillone, N., Hong, S.-Y., and Juaristi, J. I. (2019). Electrons and phonons cooperate in the laser-induced desorption of CO from Pd(111). Phys. Rev. Lett. 123, 246802. doi:10.1103/PhysRevLett.123.246802

PubMed Abstract | CrossRef Full Text | Google Scholar

Alducin, M., Díez Muiño, R., and Juaristi, J. I. (2017). Non-adiabatic effects in elementary reaction processes at metal surfaces. Prog. Surf. Sci. 92, 317–340. doi:10.1016/j.progsurf.2017.09.002

CrossRef Full Text | Google Scholar

Anisimov, S. I., Kapeliovich, B. L., and Perel’man, T. L. (1974). Electron emission from metal surfaces exposed to ultrashort laser pulses. Sov. Phys.-JETP 39, 375.

Google Scholar

Blanco-Rey, M., Juaristi, J. I., Díez Muiño, R., Busnengo, H. F., Kroes, G. J., and Alducin, M. (2014). Electronic friction dominates Hydrogen hot-atom relaxation on Pd(100). Phys. Rev. Lett. 112, 103203. doi:10.1103/PhysRevLett.112.103203

PubMed Abstract | CrossRef Full Text | Google Scholar

Blöchl, P. E. (1994). Projector augmented-wave method. Phys. Rev. B 50, 17953–17979. doi:10.1103/PhysRevB.50.17953

CrossRef Full Text | Google Scholar

Bonn, M., Funk, S., Hess, C., Denzler, D. N., Stampfl, C., Scheffler, M., et al. (1999). Phonon-versus electron-mediated desorption and oxidation of CO on Ru(0001). Science 285, 1042–1045. doi:10.1126/science.285.5430.1042

PubMed Abstract | CrossRef Full Text | Google Scholar

Budde, F., Heinz, T. F., Loy, M. M. T., Misewich, J. A., de Rougemont, F., and Zacharias, H. (1991). Femtosecond time-resolved measurement of desorption. Phys. Rev. Lett. 66, 3024–3027. doi:10.1103/PhysRevLett.66.3024

PubMed Abstract | CrossRef Full Text | Google Scholar

Busch, D. G., Gao, S., Pelak, R. A., Booth, M. F., and Ho, W. (1995). Femtosecond desorption dynamics probed by time-resolved velocity measurements. Phys. Rev. Lett. 75, 673–676. doi:10.1103/PhysRevLett.75.673

PubMed Abstract | CrossRef Full Text | Google Scholar

Cavanagh, R. R., King, D. S., Stephenson, J. C., and Heinz, T. F. (1993). Dynamics of nonthermal reactions: Femtosecond surface chemistry. J. Phys. Chem. 97, 786–798. doi:10.1021/j100106a002

CrossRef Full Text | Google Scholar

Denzler, D. N., Frischkorn, C., Hess, C., Wolf, M., and Ertl, G. (2003). Electronic excitation and dynamic promotion of a surface reaction. Phys. Rev. Lett. 91, 226102. doi:10.1103/PhysRevLett.91.226102

PubMed Abstract | CrossRef Full Text | Google Scholar

Dion, M., Rydberg, H., Schröder, E., Langreth, D. C., and Lundqvist, B. I. (2004). Van der Waals density functional for general geometries. Phys. Rev. Lett. 92, 246401. doi:10.1103/PhysRevLett.92.246401

PubMed Abstract | CrossRef Full Text | Google Scholar

Frischkorn, C., and Wolf, M. (2006). Femtochemistry at metal surfaces: Nonadiabatic reaction dynamics. Chem. Rev. 106, 4207–4233. doi:10.1021/cr050161r

PubMed Abstract | CrossRef Full Text | Google Scholar

Füchsel, G., Klamroth, T., Monturet, S., and Saalfrank, P. (2011). Dissipative dynamics within the electronic friction approach: The femtosecond laser desorption of H₂/D₂ from Ru(0001). Phys. Chem. Chem. Phys. 13, 8659–8670. doi:10.1039/C0CP02086A

PubMed Abstract | CrossRef Full Text | Google Scholar

Füchsel, G., Klamroth, T., Tremblay, J. C., and Saalfrank, P. (2010). Stochastic approach to laser-induced ultrafast dynamics: The desorption of H₂/D₂ from Ru(0001). Phys. Chem. Chem. Phys. 12, 14082–14094. doi:10.1039/C0CP00895H

PubMed Abstract | CrossRef Full Text | Google Scholar

Funk, S., Bonn, M., Denzler, D. N., Hess, C., Wolf, M., and Ertl, G. (2000). Desorption of co from ru(001) induced by near-infrared femtosecond laser pulses. J. Chem. Phys. 112, 9888–9897. doi:10.1063/1.481626

CrossRef Full Text | Google Scholar

Guo, H., Saalfrank, P., and Seideman, T. (1999). Theory of photoinduced surface reactions of admolecules. Prog. Surf. Sci. 62, 239–303. doi:10.1016/S0079-6816(99)00013-1

CrossRef Full Text | Google Scholar

Hirshfeld, F. L. (1977). Bonded-atom fragments for describing molecular charge densities. Theor. Chim. Acta 44, 129–138. doi:10.1007/BF00549096

CrossRef Full Text | Google Scholar

Hong, S.-Y., Xu, P., Camillone, N. R., White, M. G., and Camillone, N. (2016). Adlayer structure dependent ultrafast desorption dynamics in carbon monoxide adsorbed on Pd(111). J. Chem. Phys. 145, 014704. doi:10.1063/1.4954408

PubMed Abstract | CrossRef Full Text | Google Scholar

Hoover, W. G. (1985). Canonical dynamics: Equilibrium phase-space distributions. Phys. Rev. A 31, 1695–1697. doi:10.1103/PhysRevA.31.1695

CrossRef Full Text | Google Scholar

Juaristi, J. I., Alducin, M., Díez Muiño, R., Busnengo, H. F., and Salin, A. (2008). Role of electron-hole pair excitations in the dissociative adsorption of diatomic molecules on metal surfaces. Phys. Rev. Lett. 100, 116102. doi:10.1103/PhysRevLett.100.116102

PubMed Abstract | CrossRef Full Text | Google Scholar

Juaristi, J. I., Alducin, M., and Saalfrank, P. (2017). Femtosecond laser induced desorption of H₂, D₂, and HD from Ru(0001): Dynamical promotion and suppression studied with ab initio molecular dynamics with electronic friction. Phys. Rev. B 95, 125439. doi:10.1103/PhysRevB.95.125439

CrossRef Full Text | Google Scholar

Kostov, K. L., Rauscher, H., and Menzel, D. (1992). Adsorption of CO on oxygen-covered Ru(001). Surf. Sci. 278, 62–86. doi:10.1016/0039-6028(92)90584-S

CrossRef Full Text | Google Scholar

Kresse, G., and Furthmüller, J. (1996a). Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mat. Sci. 6, 15–50. doi:10.1016/0927-0256(96)00008-0

CrossRef Full Text | Google Scholar

Kresse, G., and Furthmüller, J. (1996b). Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B 54, 11169–11186. doi:10.1103/PhysRevB.54.11169

CrossRef Full Text | Google Scholar

Kresse, G., and Joubert, D. (1999). From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 59, 1758–1775. doi:10.1103/PhysRevB.59.1758

CrossRef Full Text | Google Scholar

Larsen, A. H., Mortensen, J. J., Blomqvist, J., Castelli, I. E., Christensen, R., Dułak, M., et al. (2017). The atomic simulation environment—A python library for working with atoms. J. Phys-Condes. Mat. 29, 273002. doi:10.1088/1361-648x/aa680e

CrossRef Full Text | Google Scholar

Lidner, S., Lončarić, I., Alducin, M., Saalfrank, P., and Juaristi, J. I. (2023). Femtosecond laser-induced desorption of hydrogen molecules from Ru(0001): A systematic study based on machine-learned potentials. ChemRxiv. doi:10.26434/chemrxiv-2023-34g9n

CrossRef Full Text | Google Scholar

Lončarić, I., Alducin, M., Saalfrank, P., and Juaristi, J. I. (2016b). Femtosecond laser pulse induced desorption: A molecular dynamics simulation. Nucl. Instrum. Methods B 382, 114–118. doi:10.1016/j.nimb.2016.02.051

CrossRef Full Text | Google Scholar

Lončarić, I., Alducin, M., Saalfrank, P., and Juaristi, J. I. (2016a). Femtosecond-laser-driven molecular dynamics on surfaces: Photodesorption of molecular Oxygen from Ag(110). Phys. Rev. B 93, 014301. doi:10.1103/PhysRevB.93.014301

CrossRef Full Text | Google Scholar

Methfessel, M., and Paxton, A. T. (1989). High-precision sampling for Brillouin-zone integration in metals. Phys. Rev. B 40, 3616–3621. doi:10.1103/PhysRevB.40.3616

CrossRef Full Text | Google Scholar

Monkhorst, H. J., and Pack, J. D. (1976). Special points for Brillouin-zone integrations. Phys. Rev. B 13, 5188–5192. doi:10.1103/PhysRevB.13.5188

CrossRef Full Text | Google Scholar

Nosé, S. (1984). A unified formulation of the constant temperature molecular dynamics methods. J. Chem. Phys. 81, 511–519. doi:10.1063/1.447334

CrossRef Full Text | Google Scholar

Novko, D., Blanco-Rey, M., Alducin, M., and Juaristi, J. I. (2016a). Surface electron density models for accurate ab initio molecular dynamics with electronic friction. Phys. Rev. B 93, 245435. doi:10.1103/PhysRevB.93.245435

CrossRef Full Text | Google Scholar

Novko, D., Blanco-Rey, M., Juaristi, J. I., and Alducin, M. (2015). Ab initio molecular dynamics with simultaneous electron and phonon excitations: Application to the relaxation of hot atoms and molecules on metal surfaces. Phys. Rev. B 92, 201411. doi:10.1103/PhysRevB.92.201411

CrossRef Full Text | Google Scholar

Novko, D., Blanco-Rey, M., Juaristi, J. I., and Alducin, M. (2016b). Energy loss in gas-surface dynamics: Electron-hole pair and phonon excitation upon adsorbate relaxation. Nucl. Instrum. Methods B 382, 26–31. doi:10.1016/j.nimb.2016.02.031

CrossRef Full Text | Google Scholar

Novko, D., Lončarić, I., Blanco-Rey, M., Juaristi, J. I., and Alducin, M. (2017). Energy loss and surface temperature effects in ab initio molecular dynamics simulations: N adsorption on Ag(111) as a case study. Phys. Rev. B 96, 085437. doi:10.1103/PhysRevB.96.085437

CrossRef Full Text | Google Scholar

Öberg, H., Gladh, J., Marks, K., Ogasawara, H., Nilsson, A., Pettersson, L. G. M., et al. (2015). Indication of non-thermal contribution to visible femtosecond laser-induced CO oxidation on Ru(0001). J. Chem. Phys. 143, 074701. doi:10.1063/1.4928646

PubMed Abstract | CrossRef Full Text | Google Scholar

Öström, H., Öberg, H., Xin, H., LaRue, J. b., Beye, M. b., Dell’Angela, M., et al. (2015). Probing the transition state region in catalytic CO oxidation on Ru. Science 347, 978–982. doi:10.1126/science.1261747

PubMed Abstract | CrossRef Full Text | Google Scholar

Saalfrank, P., Juaristi, J. I., Alducin, M., Blanco-Rey, M., and Díez Muiño, R. (2014). Vibrational lifetimes of Hydrogen on Lead films: An ab initio molecular dynamics with electronic friction (AIMDEF) study. J. Chem. Phys. 141, 234702. doi:10.1063/1.4903309

PubMed Abstract | CrossRef Full Text | Google Scholar

Saalfrank, P. (2006). Quantum dynamical approach to ultrafast molecular desorption from surfaces. Chem. Rev. 106, 4116–4159. doi:10.1021/cr0501691

PubMed Abstract | CrossRef Full Text | Google Scholar

Scholz, R., Floß, G., Saalfrank, P., Füchsel, G., Lončarić, I., and Juaristi, J. I. (2016). Femtosecond-laser induced dynamics of CO on Ru(0001): Deep insights from a hot-electron friction model including surface motion. Phys. Rev. B 94, 165447. doi:10.1103/PhysRevB.94.165447

CrossRef Full Text | Google Scholar

Scholz, R., Lindner, S., Lončarić, I., Tremblay, J. C., Juaristi, J. I., Alducin, M., et al. (2019). Vibrational response and motion of carbon monoxide on Cu(100) driven by femtosecond laser pulses: Molecular dynamics with electronic friction. Phys. Rev. B 100, 245431. doi:10.1103/PhysRevB.100.245431

CrossRef Full Text | Google Scholar

Serrano-Jiménez, A., Muzas, A. P. S., Zhang, Y., Ovčar, J., Jiang, B., Lončarić, I., et al. (2021). Photoinduced desorption dynamics of CO from Pd(111): A neural network approach. J. Chem. Theory Comput. 17, 4648–4659. doi:10.1021/acs.jctc.1c00347

PubMed Abstract | CrossRef Full Text | Google Scholar

Springer, C., and Head-Gordon, M. (1996). Simulations of the femtosecond laser-induced desorption of CO from Cu(100) at 0.5 Ml coverage. Chem. Phys. 205, 73–89. doi:10.1016/0301-0104(95)00316-9

CrossRef Full Text | Google Scholar

Springer, C., Head-Gordon, M., and Tully, J. C. (1994). Simulations of femtosecond laser-induced desorption of CO from Cu(100). Surf. Sci. 320, L57–L62. doi:10.1016/0039-6028(94)00569-9

CrossRef Full Text | Google Scholar

Szymanski, P., Harris, A. L., and Camillone, N. (2007). Adsorption-state-dependent subpicosecond photoinduced desorption dynamics. J. Chem. Phys. 126, 214709. doi:10.1063/1.2735594

PubMed Abstract | CrossRef Full Text | Google Scholar

Tetenoire, A., Ehlert, C., Juaristi, J. I., Saalfrank, P., and Alducin, M. (2022). Why ultrafast photoinduced co desorption dominates over oxidation on ru(0001). J. Phys. Chem. Lett. 13, 8516–8521. doi:10.1021/acs.jpclett.2c02327

PubMed Abstract | CrossRef Full Text | Google Scholar

Tetenoire, A., Juaristi, J. I., and Alducin, M. (2021). Insights into the coadsorption and reactivity of O and CO on Ru(0001) and their coverage dependence. J. Phys. Chem. C 125, 12614–12627. doi:10.1021/acs.jpcc.1c01618

CrossRef Full Text | Google Scholar

Tetenoire, A., Juaristi, J. I., and Alducin, M. (2023). Photoinduced CO desorption dominates over oxidation on different O + CO covered Ru(0001) surfaces. J. Phys. Chem. C 127, 10087–10096. doi:10.1021/acs.jpcc.3c01192

CrossRef Full Text | Google Scholar

Vazhappilly, T., Klamroth, T., Saalfrank, P., and Hernandez, R. (2009). Femtosecond-laser desorption of H₂(D₂) from Ru(0001): Quantum and classical approaches. J. Phys. Chem. C 113, 7790–7801. doi:10.1021/jp810709k

CrossRef Full Text | Google Scholar

Xin, H., LaRue, J., Öberg, H., Beye, M., Dell’Angela, M., Turner, J. J., et al. (2015). Strong influence of coadsorbate interaction on CO desorption dynamics on Ru(0001) probed by ultrafast X-Ray spectroscopy and ab initio simulations. Phys. Rev. Lett. 114, 156101. doi:10.1103/PhysRevLett.114.156101

PubMed Abstract | CrossRef Full Text | Google Scholar
