Xinxin Pang1†Li Mao2†Danyang Ye1Wenqi Wang1Hongliu Yang1Xiaoxiao Fan1Yuping Yang1Zhijun Su1Tao Ma1*
Mingqian Sun3*
Yonggang Liu1*- 1School of Chinese Materia Medica, Beijing University of Chinese Medicine, Beijing, China
- 2Beijing Tide Pharmaceutical Co, Ltd., Beijing Econnomi Technological Development Area (BDA), Beijing, China
- 3Institute of Basic Medical Sciences, Xiyuan Hospital, China Academy of Chinese Medical Sciences, Beijing, China
Magnolol (M), a hydroquinone containing an allyl side chain, is one of the major active components of Houpoea officinalis for antioxidation and anti-aging. To enhance the antioxidant activity of magnolol, the different sites of magnolol were structurally modified in this experiment, and a total of 12 magnolol derivatives were obtained. Based on the preliminary exploration of the anti-aging effect of magnolol derivatives in a Caenorhabditis elegans (C. elegans) model. Our results indicate that the active groups of magnolol exerting anti-aging effects were allyl groups and hydroxyl on the phenyl. Meanwhile, the anti-aging effect of the novel magnolol derivative M27 was found to be significantly superior to that of magnolol. To investigate the effect of M27 on senescence and the potential mechanism of action, we investigated the effect of M27 on senescence in C. elegans. In this study, we investigated the effect of M27 on C. elegans physiology by examining body length, body curvature and pharyngeal pumping frequency. The effect of M27 on stress resistance in C. elegans was explored by acute stress experiments. The mechanism of M27 anti-aging was investigated by measuring ROS content, DAF-16 nuclear translocation, sod-3 expression, and lifespan of transgenic nematodes. Our results indicate that M27 prolonged the lifespan of C. elegans. Meanwhile, M27 improved the healthy lifespan of C. elegans by improving pharyngeal pumping ability and reducing lipofuscin accumulation in C. elegans. M27 increased resistance to high temperature and oxidative stress in C. elegans by reducing ROS. M27 induced DAF-16 translocation from cytoplasm to nucleus in transgenic TJ356 nematodes and upregulated the expression of sod-3 (a gene downstream of DAF-16) in CF1553 nematodes. Furthermore, M27 did not extend the lifespan of daf-16, age-1, daf-2, and hsp-16.2 mutants. This work suggests that M27 may ameliorate aging and extend lifespan in C. elegans through the IIS pathway.
1 Introduction
Magnolol (M) is a natural active monomer containing allyl bisphenol isolated from Houpoea officinalis (Tomita et al., 1968). Its biological activities are various, including antioxidant (Subramaniyan et al., 2019), antibacterial (Liu et al., 2021a; Liu et al., 2021b), anti-inflammatory (Zhou et al., 2019), and anti-tumor (Wang et al., 2022). Magnolol is a major component of the antiaging and antioxidant properties of Houpoea officinalis (Zhang et al., 2019). In recent years, less attention has been paid to the structural modifications of magnolol for antioxidants and anti-aging. Studies have found that magnolol has effects on antioxidant and anti-aging because of two free phenolic hydroxyl and allyl groups. In this experiment, the addition reaction at the allyl group occurred and the hydroxyl group on the phenyl of magnolol was replaced. Additionally, it was found that the cytotoxicity to normal cells could be significantly reduced by methylation/di-methylation at hydroxyl on the phenyl of magnolol (Rempel et al., 2013; Wang et al., 2017). In our study, methyl (Zhang et al., 2022) and isopropyl (Niu et al., 2022) groups adding at the hydroxyl group on the phenyl aim to reduce toxicity and increase efficacy. In this experiment, allyl, 2-propynyl (Niu et al., 2022), and nitroso (Lin et al., 2019) with better antioxidant activity were introduced to improve the effect on anti-aging. The ester and benzyl group were also introduced to magnolol, hoping to find magnolol derivatives with better anti-aging effect. Twelve magnolol derivatives were obtained in this experiment and their anti-aging activity was explored in vivo. This experiment has verified the relationship between the anti-aging effect of magnolol and the free phenolic hydroxyl and allyl double bonds. The activity screening in vivo has revealed that the anti-aging activity of 3,3′-dinitroso magnolol (M27) is superior to that of magnolol and further explored the anti-aging mechanism of M27.
In recent years, as the aging population has gradually increased, the number of patients with diseases related to aging is on the rise (Collier et al., 2011). Physiological changes caused by aging underlie the vast majority of chronic diseases, including neurodegenerative diseases, tumors, cardiovascular diseases, and type II diabetes, among others (Movahedian et al., 2020; Sander et al., 2015; Solfrizzi et al., 2019). With the development of research on aging, there are many theories proposed for the generation of aging, including free radical aging theory, telomere theory, immunology theory, mitochondrial theory, and apoptosis(Lopez-Otin et al., 2013), and the free radical theory proposed by Denham is one of the mainstreams to explain aging in the current year (HARMAN, 1956; HARMAN, 1972). According to the free radical theory, the excess of free radicals in the body leads to mutation, deletion, or accumulation of mtDNA, which causes aging (Pomatto and Davies, 2018). Although senescence is inevitable, the process of senescence may be controlled by antioxidants. Therefore, small molecules with natural antioxidation are attracting more and more attention. More than 300 compounds with significant antioxidant activity have been reported to date, including 185 natural compounds (Ding et al., 2017; Liu et al., 2021; Zhu et al., 2020). Over the past several decades, anti-senescence research has progressed substantially and many genetic pathways related to improved aging have been identified. These pathways mainly include dietary restriction, rapamycin, and the insulin/IGF-1 signaling pathway (ⅡS), and ⅡS is the first discovered pathway who is very conserved (Zhang S et al., 2020).
C. elegans is a multicellular model organism, and its somatic development lineage has been studied (Zeng et al., 2021). More than 65% of the genes of C. elegans are homologous to humans, and their general aging characteristics in the aging process are same as that of higher organisms (He et al., 2018). Because of its short lifespan, simple physiology, and genetic traceability, C. elegans is an ideal model for anti-aging research and anti-aging drug screening (Li et al., 2021a). This experiment based on the C. elegans model aims to explore the anti-aging mechanism of M27.
2 Materials and methods
2.1 Synthesis of magnolol derivatives
Based on the existing studies, 12 derivatives of magnolol were designed and synthesized (Scheme 1). Compounds M21-M26 and M29-M31 were synthesized by Williamson alkylation (Zhang et al., 2022). Compound M27 (Lin et al., 2019) was prepared by nitration method (Li et al., 2021b). Compound M28 was prepared by the acetylation method (Lin et al., 2016). Compound M32 was prepared by an addition reaction.
SCHEME 1. Reagents and conditions: (a) Propargyl bromide, Sodium hydride, DMF, CH3I, r.t; (b) Acetylene bromide,K2CO3,DMF, r.t; (c) 2-Iodopropane, K2CO3, DMF, r.t; (d) Allyl bromide, sodium hydride, DMF, CH3I, r.t; (e) sodium nitrite, HCl (36%), ACN/H2O, r.t; (f) Acetic anhydride, AC, pyridine, r.t; (g) 3-fluorobenzylchloride, K2CO3, DMF, r.t; (h) Methyl bromoacetate, K2CO3, DMF, 80°C; (i) Sodium borohydride, Nickel (ii) Chloride hexahydrate, MeOH, 0°C.
2.1.1 Materials and instruments
All reagents and chemicals were purchased from China and used without further purification. 1H NMR spectra and 13C NMR were recorded on a Bruker AVANCE NEO400 MHz. The chemical shifts are given in ppm, and J-values are reported in Hz.
2.1.2 2,2′-O-dimethylmagnolol M21
Compound M21 was obtained using previously reported methods (Zhang et al., 2022). Yield: 40%, colorless oil, 1H NMR (Chloroform-d, 400 MHz) δ 7.14 (2H, dd, J = 8.4, 2.3 Hz, H-4, H-4′), 7.06 (2H, d, J = 2.3 Hz, H-6, H-6′), 6.91 (2H, d, J = 8.4 Hz, H-3, H-3′), 5.99 (2H, ddt, J = 16.8, 10.0, 6.7 Hz, H-8, H-8′), 5.19–4.91 (4H, m, H-9, H-9′), 3.76 (6H, s, H-10, H-10′), 3.37 (4H, d, J = 6.8 Hz, H-7, H-7’) 13C NMR (DMSO-d6, 101 MHz) δ 155.65, 138.54, 131.60, 131.41, 128.69, 128.01, 115.94, 111.78, 55.94, and 39.09
2.1.3 2-O-methyl magnolol M22
Compound M22 was obtained using previously reported methods (Zhang et al., 2022).Yield: 28%, yellow oil, 1H NMR (400 MHz, Chloroform-d) δ 7.20 (1H, dd, J = 8.4,2.3 Hz, H-4), 7.16 (1H, d, J = 2.3 Hz, H-6), 7.12 (1H, dd, J = 8.2, 2.3 Hz, H-4′), 7.07 (1H, d, J = 2.2 Hz, H-6′), 6.98 (1H, d, J = 5.4 Hz, H-3), 6.96 (1H,d, J = 5.2 Hz, H-3′), 6.23 (1H, s, -OH), 5.98 (2H, m, H-8, H-8′), 5.14–5.02 (4H, m, H-9, H-9′), 3.88 (3H, s, H-10), 5.98 (2 h, ddd, J = 16.9, 10.1, 6.8 Hz, H-8, H-8′), 5.14–5.08 (2H, m, H-9), 5.08–5.04 (2H, m, H-9′), 3.88 (3H, s, H-10), 3.44–3.34 (4H, m, H-7, H-7’). 13C NMR (DMSO-d6, 101 MHz) δ 155.60, 153.42, 138.78, 138.59, 131.69, 131.56, 131.46, 129.83, 128.49, 128.46, 128.28, 126.03, 115.92, 115.83, 115.72, 111.75, 55.89, 39.18, and 39.13
2.1.4 2-O-propargyl magnolol M23
Compound M23 was obtained using previously reported methods (Niu et al., 2022). Yield: 60.5%, colorless oil, 1H NMR (Chloroform-d, 400 MHz) δ 7.21 (1H, dd, J = 8.4, 2.3 Hz, H-4), 7.15 (1H, d, J = 2.3 Hz, H-6), 7.12 (1H, d, J = 3.5 Hz, H-6′), 7.11–7.09 (1H, m, H-4′), 7.05 (1H, d, J = 2.2 Hz, H-3), 6.95 (1H, d, J = 8.2 Hz, H-3′), 6.04–5.91 (2H, m, H-8, H-8′), 5.21–4.98 (4H, m, H-9, H-9′), 4.69 (2H, d, J = 2.4 Hz, H-10), 3.52–3.26 (4H, m,H-7, H-7’), 2.50 (1H, s, H-12).13C NMR (DMSO-d6, 101 MHz) δ 153.62, 153.40, 138.71, 138.44, 132.37, 131.96, 131.66, 129.80, 128.80, 128.56, 128.29, 125.58, 115.99, 115.85, 115.72, 113.53, 80.15, 78.28, 60.22, 39.20, and 39.15.
2.1.5 2-O-isopropyl magnolol M24
Compound M24 was obtained using previously reported methods (Niu et al., 2022). Yield: 75%, colorless oil, 1H NMR (Methanol-d4, 400 MHz) δ 7.12 (1H, dd, J = 8.2, 2.3 Hz, H-4), 7.09 (1H, d, J = 2.2 Hz, H-6), 7.02 (1H, d, J = 2.3 Hz, H-6′), 7.00 (1H, m, H-4′), 6.98 (1H, s, H-3), 6.83 (1H, d, J = 8.7 Hz, H-3′), 5.98 (2H, ddd, J = 17.0, 10.1, 2.1 Hz, H-8, H-8′), 5.13–5.05 (2H, m, H-9), 5.05–4.99 (2H, m, H-9′), 4.36 (1H, h, J = 6.1 Hz, H-10), 3.36 (2H, d, J = 6.8 Hz, H-7), 3.34–3.30 (2H, m, H-7’), 1.17 (6H, d, J = 6.1 Hz, H-11, H-12). 13C NMR (DMSO-d6, 101 MHz) δ 153.69, 153.25, 138.79, 138.51, 132.22, 131.98, 131.58, 129.59, 129.41, 128.40, 128.30, 125.89, 115.95, 115.88, 115.57, 115.36, 70.68, 39.37, 39.24, 22.35, and 21.18.
2.1.6 2-O-Vinyl magnolol M25
Compound M25 was obtained using previously reported methods (Zhang et al., 2022).Yield: 42.5%, colorless oil.1H NMR (Chloroform-d, 400 MHz) δ 7.10 (2H, d, J = 2.4 Hz, H-4, H-4′), 7.07 (2H, d, J = 2.3 Hz, H-6, H-6′), 6.86 (2H, d, J = 8.1 Hz, H-3, H-3′), 6.05–5.95 (2H, m, H-11, H-11′), 5.95–5.85 (2H, m, H-8, H-8′), 5.26–5.10 (4H, m, H-12, H-12′), 5.10–5.00 (4H, m, H-9, H-9′), 4.46 (4H, dd, J = 4.7, 1.8 Hz, H-10, H-10′), 3.35 (4H, d, J = 6.7 Hz, H-7, H-7’). 13C NMR (DMSO-d6, 101 MHz) δ 154.45, 138.48, 134.35, 131.64, 131.62, 128.66, 128.07, 116.72, 115.96, 112.81, 68.74, and 39.13.
2.1.7 2,2′-O-divinylmagnolol M26
Compound M26 was obtained using previously reported methods (Zhang et al., 2022).Yield: 25.5%, colorless oil.1H NMR (Chloroform-d, 400 MHz) δ 7.18 (1H, d, J = 4.4 Hz, H-4), 7.17 (1H, s, H-3), 7.12 (1H, dd, J = 8.1, 2.2 Hz, H-4′), 7.08 (1H, d, J = 2.2 Hz, H-3′), 6.98 (1H, d, J = 3.0 Hz, H-6′), 6.96 (1H, d, J = 2.2 Hz, H-6′), 6.38 (1H, s,-OH), 6.07–5.99 (1H, m, H-11), 5.99–5.91 (2H, m, H-8, H-8′), 5.48–5.19 (2H, m, H-12), 5.10 (4H, dd, J = 17.0, 1.8 Hz, H-9, H-9′), 4.58 (2H, d, J = 5.3 Hz, H-10), 3.58–3.13 (4H, m, H-7, H-7’).13C NMR (DMSO-d6, 101 MHz) δ 154.41, 153.40, 138.76, 138.55, 134.42, 131.83, 131.72, 131.65, 129.70, 128.50, 128.38, 125.79, 116.75, 115.96, 115.80, 115.71, 113.19, 68.78, 39.20, and 39.16.
2.1.8 3,3′-dinitrosomagnolol M27
Magnolol (266 mg) and sodium nitrite (2.07 g) were dissolved in 30 mL of acetonitrile in aqueous solution (V/V = 5:1), followed by the addition of concentrated hydrochloric acid (36%, 5 mL) in an ice bath for 1 h with stirring, and the mixture was stirred for 30 min at room temperature. Yield: 89%, Yellow crystal. 1H NMR (Chloroform-d, 400 MHz) δ 10.86 (2H, d, J = 0.6 Hz, -OH), 8.01 (2H, d, J = 2.4 Hz, H-4, H-4′), 7.44 (2H, d, J = 2.3 Hz, H-6, H-6′), 6.01–5.89 (2H, m, H-8, H-8′), 5.18–5.11 (4H, m, H-9, H-9′), 3.42 (4H, d, J = 6.7 Hz, H-7, H-7’). 13C NMR (DMSO-d6, 101 MHz) δ 149.60, 138.47, 137.35, 136.34, 131.54, 128.89, 124.44, 117.18, and 38.25
2.1.9 2,2′-O-diacetyl magnolol M28
Compound M28 was obtained using previously reported methods (Lin et al., 2016). Yield: 85%, White solid 1H NMR (DMSO-d6, 400 MHz) δ 7.24 (2H, dd, J = 8.3, 2.2 Hz, H-4, H-4′), 7.13 (2H, d, J = 8.2 Hz, H-3, H-3′), 7.06 (2H, d, J = 2.1 Hz, H-6, H-6′), 6.05–5.91 (2H, m, H-8, H-8′), 5.13–5.03 (4H, m, H-9, H-9′), 3.39 (4H, d, J = 6.8 Hz, H-7, H-7′), 1.99 (6H, s, H-11, H-11’). 13C NMR (DMSO-d6, 101 MHz) δ 169.39, 146.44, 137.84, 131.15, 130.21, 129.39, 123.35, 116.62, 39.17, and 20.97.
2.1.10 2-O-4-fluorobenzyl magnolol M29
Compound M29 was obtained using previously reported methods (Maioli et al., 2018). Yield: 25.7%, pale yellow oils; 1H NMR (DMSO-d6, 400 MHz) δ 9.05 (1H, s, -OH), 7.37 (2H, dd, J = 8.5, 5.7 Hz, H-12, H-16), 7.14 (2H, d, J = 8.9 Hz, H-13, H-15), 7.08 (1H, dd, J = 8.4, 2.3 Hz, H-4), 7.02 (2H, d, J = 10.8 Hz,H-3,H-3′), 6.96–6.89 (2H, m, H-6, H-6′), 6.81 (1H, d, J = 8.0 Hz, H-4′), 6.07–5.82 (2H, m, H-8, H-8′), 5.13–5.01 (4H, m, H-9, H-9′), 4.99 (2H, s, H-10), 3.32 (2H, d, J = 6.9 Hz, H-7), 3.26 (2H, d, J = 6.8 Hz, H-7). 13C NMR (DMSO-d6, 101 MHz) δ 163.20, 154.40, 153.41, 138.75, 138.51, 134.21, 134.18, 131.95, 131.90, 131.72, 129.78, 129.74, 129.66, 128.70, 128.59, 128.43, 125.73, 115.99, 115.71, 115.53, 115.32, 113.46, 69.28, 39.19, and 39.17
2.1.11 2,2′-O-di-4-fluorobenzyl magnolol M30
Compound M30 was obtained using previously reported methods (Maioli et al., 2018). Yield: 40.8%, White crystal; 1H NMR (Chloroform-d, 400 MHz) δ 7.13 (2H, s, H-12, H-12′), 7.12 (2H, d, J = 3.6 Hz, H-16, H-16′), 7.11 (2H, s, H-13, H-13′), 7.10–7.07 (2H, m, H-15, H-15′), 6.90 (2H, s, H-4, H-4′), 6.88 (2H, s, H-3, H-3′), 6.86 (1H, d, J = 2.0 Hz, H-6, H-6′), 5.96 (2H, ddt, J = 16.7, 10.0, 6.7 Hz, H-8, H-8′), 5.06 (4H, dd, J = 16.9, 1.8 Hz, H-9, H-9′), 4.90 (4H, s, H-10, H-10′), 3.35 (4H, d, J = 6.7 Hz, H-7, H-7’). 13C NMR (DMSO-d6, 101 MHz) δ 162.79, 154.30, 138.44, 134.03, 131.94, 131.87, 129.56, 129.47, 128.80, 128.03, 115.99, 115.54, 115.33, 113.34, 69.21, and 39.10
2.1.12 2,2′-O-methyl acetate magnolol M31
Compound M31 was obtained using previously reported methods (Jia et al., 2018). Yield: 75%, White crystal 1H NMR (Chloroform-d, 400 MHz) δ 7.14 (2H, d, J = 2.3 Hz, H-6, H-6′), 7.10 (2H, dd, J = 8.3, 2.3 Hz, H-4, H-4′), 6.80 (2H, d, J = 8.3 Hz, H-3,H-3′), 5.98 (2H, ddt, J = 16.9, 10.0, 6.8 Hz, H-8, H-8′), 5.05 (4H, d, J = 9.9 Hz, H-9, H-9′), 4.56 (4H, s,H-10,H-10′), 3.73 (6H, s, H-12, H-12′), 3.37 (4H, d, J = 6.8 Hz, H-7, H-7’) .13C NMR (DMSO-d6, 101 MHz) δ 169.90, 154.08, 138.39, 132.60, 131.83, 128.74, 127.82, 116.08, 113.03, 65.91, 52.15, and 39.11
2.1.13 5,5′- dipropyl - Resorcinol M32
Magnolol (266 mg) and nickel chloride hexahydrate (0.628 mg) were dissolved in 20 mL of anhydrous methanol, and sodium borohydride (756 mg) was added slowly with stirring in an ice salt bath. The temperature of the system do not exceed 5°C. After stirring for 0.5 h at low temperature, the mixture continued to be stirred for 1.5 h at room temperature. Yield: 34.6%, White powder 1H-NMR (Chloroform-d, 400 MHz) δ 7.12 (2H, dd, J = 8.3, 2.2 Hz, H-4, H-4′), 7.07 (2H, d, J = 2.2 Hz, H-6, H-6′), 6.95 (2H, d, J = 8.2 Hz, H-3, H-3′), 5.39 (2H, s,-OH), 2.62–2.48 (4H, m, H-7, H-7′), 1.64 (4H, dt, J = 15.0, 7.5 Hz, H-8, H-8′), 0.95 (6H, t, J = 7.3 Hz, H-9, H-9′). 13C NMR (DMSO-d6, 101 MHz) δ 152.67, 132.78, 131.75, 128.24, 126.24, 116.10, 36.99, 24.89, and 14.17.
2.2 C. elegans strains and culture conditions
All strains were obtained from the Genetics Center (Caenorhabditis Genetics Center, CGC), including N2 (wild type), CF1553 (muIs84 [(pAD76) sod-3::GFP)], DR26 daf-16 (m26), TJ356 (zIs356 [daf-16p::daf-16a/b: GFP + rol-6]), VC475 hsp-16.2 (gk249), CB1370 daf-2 (e1370) III and TJ1052 age-1 (hx546). In the whole experiment, all strains were maintained and grown on the nematode growth medium (NGM) plate inoculated with E. coli OP50.
2.3 Determination of body length
Nematode eggs were incubated at 20°C for 48 h to obtain synchronized wild-type L4 larvae worms. M and M27 were dissolved in E. coli OP50 to obtain 100 μmol·L−1 of M cultures and 12.5, 50, and 100 μmol·L−1 of M27 cultures, respectively. Synchronized L4 worms were randomly transferred to normal medium and NGM plates with M or different concentrations of M27. After 24 h incubation at 20°C, worms were picked onto slides with 1 drop of M9 solution and 1 drop of 0.5% 1-phenoxy-2-propanol solution. Images of the worms were taken with a fluorescent inverted microscope (Nikon, TS-2), and the body length of the worms was measured by NIS-Elements software. The experiment was repeated three times independently.
2.4 Exercise capacity measurement
Synchronized wild-type L4 worms were incubated on NGM plates same to 2.3. The body bend number of worm within 20 s was counted with microscope on the fourth and eighth day, respectively. The experiment was repeated three times independently, 20 worms per group.
2.5 Pharyngeal pumping assay
Synchronized L4 worms were incubated on blank and NGM plates same to 2.3. The pharyngeal pump frequency of nematode was counted under the microscope for the 20 S on days 5 and 9, respectively. The experiment was repeated three times independently, 20 nematodes per group.
2.6 Determination of the lipofuscin level
Synchronized wild-type L4 larvae worms were incubated on NGM plates same to 2.3 for 5 days. Worm morphology was observed in the bright and dark using a fluorescent inverted microscope (Nikon, TS -2), image of individual was taken and the fluorescence intensity was analyzed using ImageJ software. The experiment was repeated three times independently.
2.7 Oxidative stress assay
Synchronized wild-type L4 larvae worms were transferred to NGM plates same to 2.3 for 4 days before nematodes were transferred to new plates containing 450 μmol·L−1 of carob quinone. The number of dead worms was counted every 1 h until all nematodes were dead. The experiment was repeated three times independently.
2.8 Thermal stress resistance assay
Synchronized wild-type L4 larvae worms were transferred to blanks and NGM plates same to 2.3 and incubated for 4 days at 20°C. These nematodes were left at 35°C for 3 h, then the number of dead worms was counted for worm mortality every hour until all worms were dead. The experiment was repeated three times independently, 40 worms per group.
2.9 Measurement of reactive oxygen species (ROS)
Synchronized wild-type L4 larvae were transferred to an NGM medium same to 2.3. After 5 days, the worms were washed with M9 buffer and then stained with 20 μmol·L−1 H2DCFDA for 2 h at 20°C. The worms were washed with M9 to remove the dye. The worms were picked onto slides with 1 drop of M9 solution and 1 drop of 0.5% 1-phenoxy-2-propanol solution to observe their morphology in the bright and dark fields by a fluorescent inverted microscope (Nikon, TS-2). Images of individual worms were taken and the fluorescence intensity of worms were analyzed by ImageJ software.
2.10 Lifespan assays
At least 50 synchronized wild-type L4 larvae were transferred to NGM plates same to 2.3 for lifespan experiment. The days of transferring nematodes to the experimental plate was day 0. Death of worms was determined by mechanical stimulation. Live and dead worms were counted daily until all nematodes were dead. The nematodes were transferred to a new experimental plate each day. The experiment was repeated three times independently.
2.11 DAF-16 nuclear localization assays
The subcellular location of DAF-16::GFP was determined using the transgenic worms TJ356 (zls356IV). Synchronized nematode eggs were treated with M and M27. 4 days later, picture of individual was taken with a fluorescent inverted microscope (Nikon, TS-2). Worms were divided into 3 categories according to the localization of DAF-16::GFP and the number of worms in each category was counted. The experiment was repeated three times independently.
2.12 Sod-3 expression in transgenic strains of C. elegans
Transgenic C. elegans strain CF1553 (muIs84) [sod-3::GFP] nematodes are sod-3 and GFP fusion-expressing worms. Synchronized transgenic worm eggs were treated with M and M27 for 4 days. Images were taken by inverted fluorescence microscopy and the GFP fluorescence intensity of each group was analyzed by ImageJ software to detect the sod-3 level in C. elegans. The experiment was repeated three times independently.
2.13 Effect of M27 on the survival of Hsp-16.2, Daf-2, Daf-16, and Age-1 mutants
Synchronized transgenic L4 larvae were transferred to normal NGM plates and NGM plates with 100 μmol·L−1 of drug and incubated at 20°C. They were transferred to a new NGM plate each day. On day 4, they were transferred to a new plate containing 450 μmol·L−1 carob quinone. If the nematodes did not respond to gentle touch every 1 h, they were considered dead and the number of C. elegans deaths was counted. The experiment was repeated three times independently.
2.14 Statistical analysis
Graphs were generated using GraphPad Prism 8 (GraphPad Software Inc.), origin 2021. Lifetimes were compared using GraphPad Prism 8 (GraphPad Software Inc.). Statistical analysis was performed using SPSS 26 and results are expressed as ‾x ± s. Comparisons between multiple groups were made using one-way ANOVA if they conformed to a normal distribution with equal variance, or the Wilcoxon rank sum test if they did not conform to a normal distribution, with differences being statistically significant at p < 0.05.
3 Results and discussion
3.1 Anti-aging activity study of magnolol derivatives
This assay evaluates the anti-aging activity of derivatives using the C. elegans model. Lipofuscin, an insoluble particle produced by the oxidation of unsaturated fatty acids, can reflect aging in C. elegans fully (Zhang X et al., 2020; Pincus et al., 2016). Lipofuscin accumulates in lysosomes and cannot be efficiently degraded. Excessive lipofuscin impairs normal protein metabolism and cellular function, which in turn accelerates nematode aging (Herndon and Driscoll, 2000). Under an inverted fluorescence microscope, blue autofluorescence of lipofuscin in C. elegans can be observed. In this study, the content of lipofuscin in C. elegans of each administration group was measured. Among these magnolol derivatives, M27 is the most effective in reducing the level of lipofuscin in C. elegans (Figures 1A-L) (p < 0.0001). According to the experimental results, we found that most of the dominant compounds were mono-substituents. The possible reason is that the formation of intramolecular hydrogen bond of magnolol is effectively reduced by mono-substitution on the phenolic hydroxyl group. In addition, mono methyl, mono allyl, and mono propynyl groups could all significantly increase the anti-aging effect of magnolol, the probably reason is that chain hydrocarbyl groups reduced the toxicity of magnolol. The 3,3′-dinitrosomagnolol was the most effective derivative, probably because of the excellent antioxidant activity of the nitroso group. However, when the two phenolic hydroxyl groups were substituted or the allyl group was added, the anti-aging activity of magnolol was significantly reduced, indicating that phenolic hydroxyl group and the allyl group play an irreplaceable role in the anti-aging activity of magnolol.

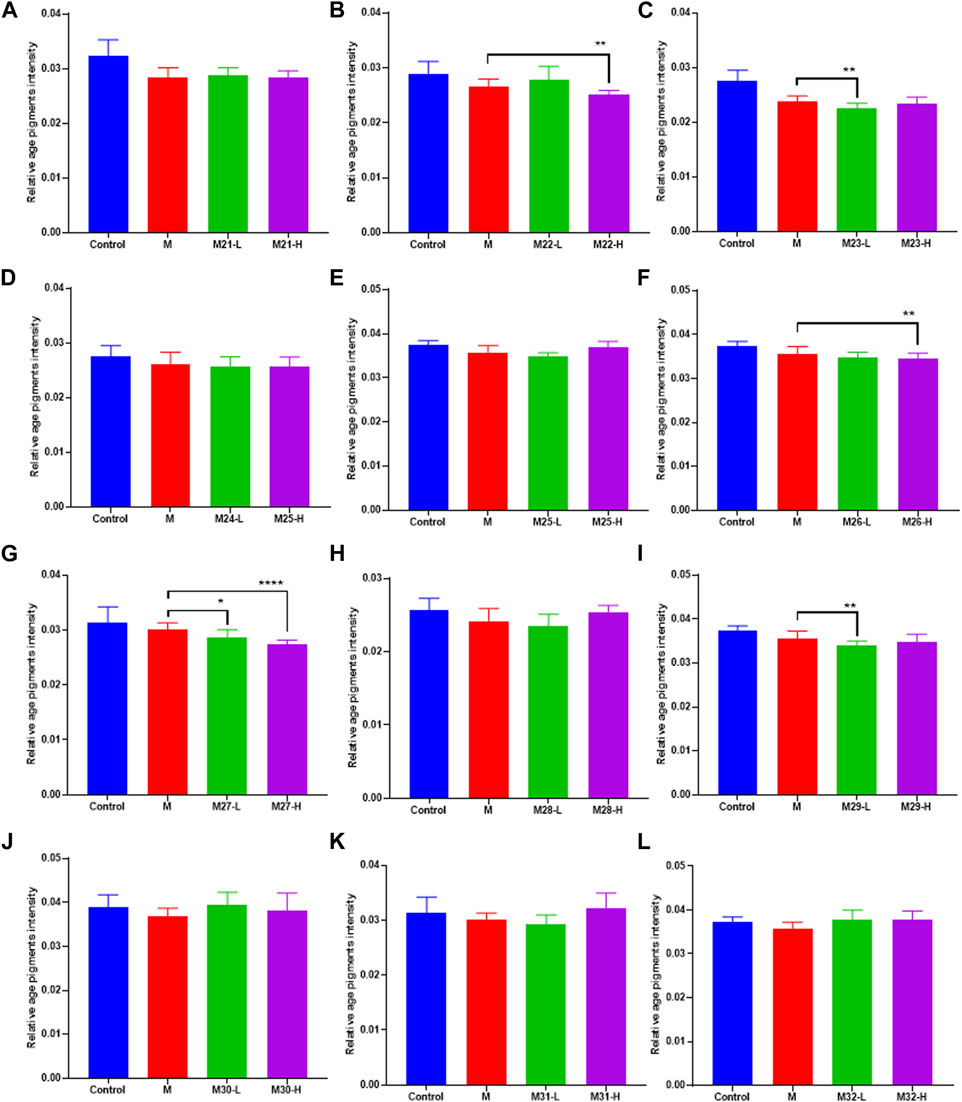

FIGURE 1. Effect of magnolol derivatives on lipofuscin levels in wild-type C. elegans. (A–L) Relative fluorescence intensity of lipofuscin accumulation in C. elegans after treatment with magnolol derivatives. n = 60, x‾ ± s. *p < 0.05, **p < 0.01, ***p < 0.001 ****p < 0.0001.
3.2 Effects of M27 on the healthy lifespan of C. elegans
The change in body length reflects the growth and development status of nematodes and the toxicity of drugs. Toxic substance will shorten the body length of nematodes (Yin, 1996). During normal aging, muscle strength and coordination decline in most animals. As they age, the number of body bends and swallows per unit of time decreases (Shi et al., 2021). We examined the effect of various concentrations of M27 on C. elegans body length. The nematode body length of treated groups was not significantly different from that of the blank control (Figure 2A). The motility and pharyngeal pumping rate of nematodes were measured separately. M27 had no effect on nematode motility, compared with the control group (Figure 2B). M27-M and M27-H significantly improved the pharyngeal pumping rate of C. elegans which declined with age (Figure 2B). The decline in muscle capacity and coordination could be partially improved by M27 treatment. The above experimental results show that M27 has no effect on the growth and development of C. elegans and no toxic to C. elegans, and can partially improve its healthy lifespan.
FIGURE 2. Effect of M27 on nematode healthy lifespan (A) Effect of M27 on body length of N2 nematodes; (B) Effect of M27 on locomotor activity of N2 nematodes; (C) Effect of M27 on pharyngeal pumping rate of N2 nematodes. n = 20, x‾ ± s.
3.3 M27 improves survival of C. elegans under acute stress
As ages, the nematode’s resistance to external stressful environments diminishes. Heat stress and oxidative stress have been shown to accelerate cellular oxidation in organisms (Jeon and Cha, 2016), causing high-intensity oxidative damage to C. elegans in a short period, expediting worm senescence. In the heat stress experiment (Figure 3A), the median lifespan of C. elegans in different groups was 2 h, 3 h, 2.5 h, 3 h, and 3 h. The survival curve shifted significantly to the right in the M27-H group compared with other groups, meaning that M27-H significantly extending the lifespan of C. elegans under heat emergency. The median lifespan of C. elegans in each group was 3 h, 4 h, 4.5 h, 6 h, and 6 h in the carob quinone-induced oxidative stress assay (Figure 3B). All the above results indicated that M27 and M could significantly improve the ability of C. elegans to resist stress under acute stress, and the effect of M27 has a significantly better than that of M, further indicating that M27 has a superior antioxidant.
FIGURE 3. Survival curves of C. elegans under acute stress after M27 treatment. (A) Survival curves of C. elegans under high-temperature stress (35°C) stimulation after treatment with M (100 μmol·L−1) and M27 (12.5 μmol·L−1, 50 μmol·L−1, 100 μmol·L−1); (B) Survival curves of C. elegans after treatment with M (100 μmol·L−1), M27 (12.5 μmol·L−1, 50 μmol·L−1, 100 μmol·L−1) stimulated with 430 μmol·L−1 carob quinone. n = 40, x‾ ± s.
3.4 M27 reduces intracellular ROS accumulation in C. elegans
The above results suggest that M27 significantly improves the resistance of C. elegans, but the mechanism is not clear. Natural antioxidants cooperate with endogenous antioxidants to increase the defense against ROS and restore the proper balance by neutralizing ROS. The fluorescent probe H2DCFDA can be used to determine ROS levels in C. elegans. In this experiment, the levels of ROS in C. elegans were significantly reduced in M, M27-M, and M27-H groups compared to the blank group (Figure 4F), and fluorescence intensity of M27-H group is the lowest (p < 0.0001) (Figures 4A–F). It indicated that M27 improved stress resistance of C. elegans may be associated with reducing ROS level in C. elegans.

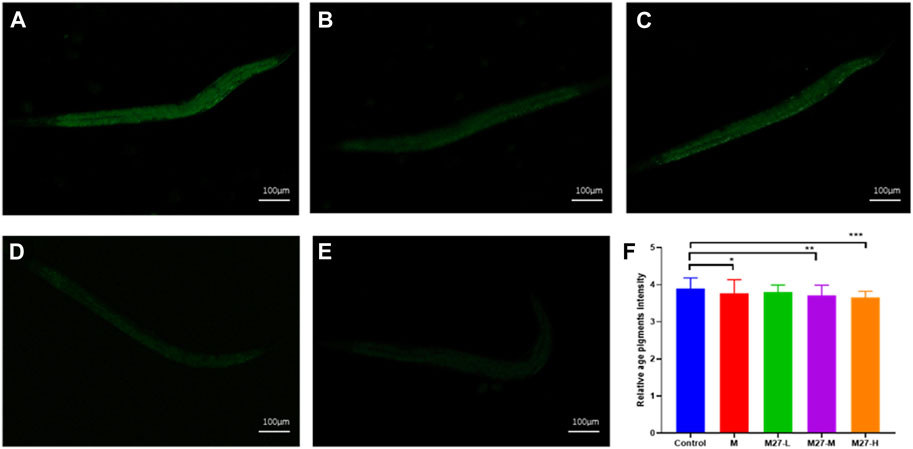

FIGURE 4. ROS levels in C. elegans after M27 treatment. (A–E) ROS levels in control, M (100 μmol·L−1), M27-L (12.5 μmol·L−1), M27-M (50 μmol·L−1), and M27-H (100 μmol·L−1) groups; (F) Relative fluorescence intensity of intracellular ROS in C. elegans from control, M, M27-L, M27-M, and M27-H groups. n = 30, x‾ ± s. *p < 0.05, **p < 0.01, ****p < 0.0001.
3.5 M27 extends the lifespan of C. elegans
The above results showed that M27-H was the most effective, therefore this concentration was chosen for subsequent experiments. To investigate whether M27 could prolong the lifespan of C. elegans, in this study, wild-type C. elegans was used as a model. As shown in Figure 5, the survival curve of M27-H shifted significantly to the right compared to the blank group (p < 0.05), which showed that M27 could extend the lifespan of C. elegans.
FIGURE 5. Effect of M27 on the longevity of C. elegans. n = 40, x‾ ± s. *p < 0.05.
3.6 M27 induces nuclear translocation of DAF-16::GFP and expression of sod-3
TJ356 nematodes are DAF-16 and GFP fusion-expressing nematodes. DAF-16 is essential for dauer phase formation, lifespan extension, and stress resistance in nematodes. DAF-16 is repressed by the insulin signaling pathway (Yin, 1996b). Under normal growth conditions, DAF-16 of TJ356 worms is mainly in the cytoplasm (Figure 6A). M27 was able to promote the transfer of DAF-16 from the cytoplasm to the nucleus (Figures 6B,C). M27 could significantly activate DAF-16 translocation to the nucleus (Figure 6D). Entry of DAF-16 into the nucleus activates the expression of downstream gene, sod-3. sod-3 gene encodes nematode superoxide dismutase (SOD), which is involved in oxidative and antioxidant homeostasis in vivo. CF1553 worms are sod-3 and GFP fusion-expressing nematodes. In this experiment, the expression of sod-3 in nematodes was detected by observing the GFP fluorescence intensity using inverted fluorescence microscopy. The expression of sod-3 was significantly upregulated after M27-H treatment compared to the control (Figure 6E). M27 significantly enhanced the expression of anti-oxidative stress genes. The above experimental results indicate that the anti-aging mechanism of M27 is closely related to DAF-16 and sod-3.

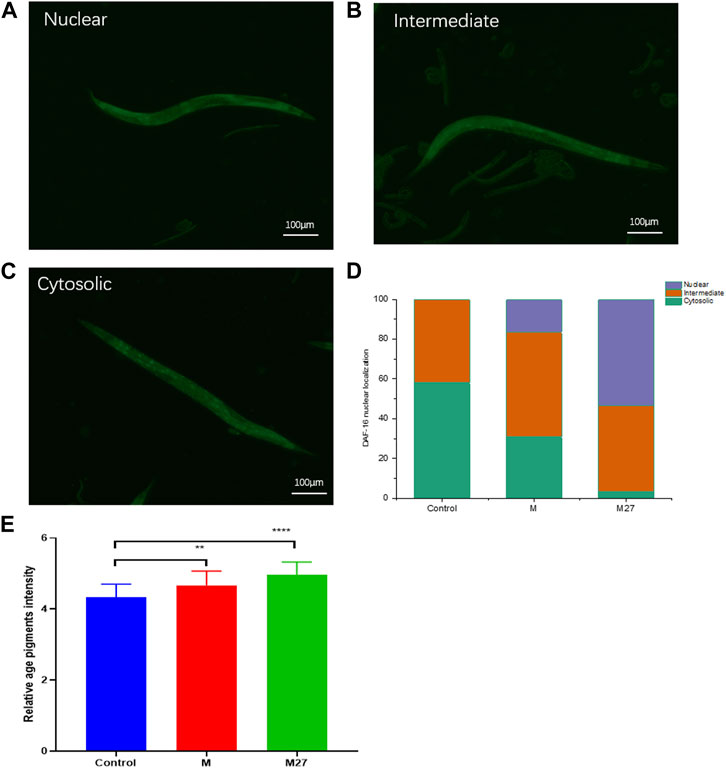

FIGURE 6. M27 induces nuclear localization of DAF-16::GFP. (A–C) Three expression patterns of DAF-16 in C. elegans; (D) Proportion of nuclear translocation of DAF-16 induced by M27 in TJ356 worms; (E) Effect of M27 on the fluorescent expression of CF1553 worms. n = 40, x‾ ± s.**p < 0.01, ***p < 0.001.
3.7 M27 ameliorates senescence in C. elegans through activation of stress response signaling pathways
Downstream targets of DAF-16 include antioxidant genes such as sod-3 and small molecule heat shock protein gene (hsp-16.2). Overexpression of these gene can effectively prolong the lifespan of worms and improve their ability to resist external stress. M27 could significantly increase the survival rate of N2 worms suffering from heat stress. This may be due to the upregulation of hsp-16.2 expression by M27 increases stress resistance of worms. As shown in the figure, M27 did not improve survival after oxidative stress in hsp-16.2 (gk249) worms (Figure 7A). The results suggest that M27 prolongs the lifespan of C. elegans through the activation of stress response signaling pathways.

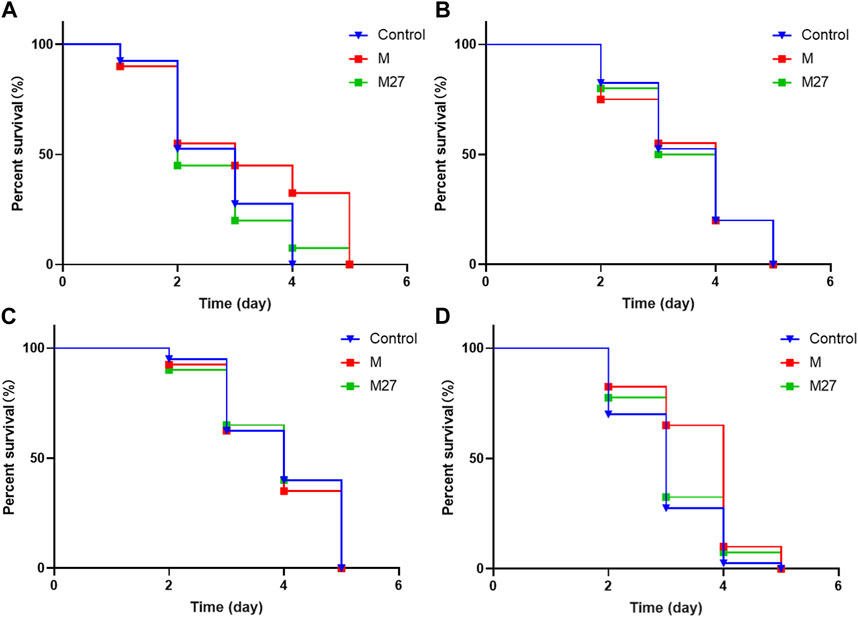

FIGURE 7. Effect of M27 on survival of loss-of-function mutant strains. (A) Hsp-16.2, (B) Age-1, (C) Daf-2, (D) Daf-16 mutant worms. n = 40, x‾ ± s.
The insulin/insulin-like pathway (IIS) is associated with lifespan, stress tolerance, metabolic regulation, protein homeostasis, and so on (Cohen and Dillin, 2008). DAF-2/IGF-1R, AGE-1/PI3K, and DAF-16/FOXO are the three main upstream, midstream, and downstream nodes of this pathway, respectively. They are commonly used as gene-related indicators to determine the antioxidant and anti-aging activity of C. elegans (Fei et al., 2017). In order to understand whether M27 improves the aging of C. elegans through the IIS pathway, oxidative stress assays were performed using age-1 (hx546), daf-2 (e1370), and daf-16 (m26) worms, respectively. It was found that M27 did not improve the survival of age-1 (hx546), daf-2 (e1370), and daf-16 (m26) worms under Juglone-induced oxidative stress (Figures 7B–D). This suggests that age-1, daf-2, and daf-16 are required for M27 mediated delayed senescence in C. elegans. The above experimental results illustrate that M27 may exert anti-aging effects through the insulin signaling pathway.
4 Conclusion
According to reports, the natural product magnolol has various biological activities such as antioxidant, anti-inflammatory and anti-tumor. To improve the anti-aging activity of magnolol, a series of derivatives were designed and synthesized in this study. Through the evaluation of the activity of the derivative, it was found that M27 has the best anti-aging effect, and its effect was better than that of magnolol. It is the first time to verify the antioxidant and anti-aging activities of M27 by the C. elegans model system.
This study showed that M27 can extend the lifespan and reduce the accumulation of lipofuscin in C. elegans. M27 can significantly increase stress resistance and SOD activity and reduce ROS levels in vivo in C. elegans. M27 significantly activates the translocation of DAF-16 to the nucleus, which activates the expression of sod-3 and hsp-16.2. In addition, it was found that the anti-aging mechanism of M27 could be associated with age-1, daf-2, and daf-16, suggesting that M27 may improve aging and prolong the lifespan of C. elegans through the IIS pathway. But the effect of compound M27 on the expression of genes (daf-2, age-1, hsp-16) on this pathway, needs to be further examined by RT-PCR. In addition, based on the experimental results, it can be found that the lifespan of nematodes in the magnolol group was shorter than that in the blank group, and it is speculated that magnolol may have some chronic toxicity. However, when magnolol was derivatized, the lifespan of the nematode was extended, indicating that the toxicity of magnolol derivatives is significantly reduced compared with that of magnolol, which can be further examined by a later toxicity experiment.
Data availability statement
The original contributions presented in the study are included in the article, further inquiries can be directed to the corresponding authors.
Author contributions
XP and WW conceived and designed the experiments. XP,DY, HY, and XF executed and analyzed the experiments. XP, LM, YY, and ZS drafted the article and interpreted the data. DY, LM, MS, TM and YL revised the article. All the authors approved the final version of this article. All authors contributed to the article and approved the submitted version.
Funding
National Natural Science Foundation of China (grant nos. 82130113); Fundamental Research Funds for the Central Universities (grant nos. 2020-JYB-ZDGG-040).
Conflict of interest
Author LM was employed by Beijing Tide Pharmaceutical Co, Ltd.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Cohen, E., and Dillin, A. (2008). The insulin paradox: Aging, proteotoxicity and neurodegeneration. Nat. Rev. Neurosci. 9 (10), 759–767. doi:10.1038/nrn2474
Collier, T. J., Kanaan, N. M., and Kordower, J. H. (2011). Ageing as a primary risk factor for Parkinson's disease: Evidence from studies of non-human primates. Nat. Rev. Neurosci. 12 (6), 359–366. doi:10.1038/nrn3039
Ding, A. J., Zheng, S. Q., Huang, X. B., Xing, T. K., Wu, G. S., Sun, H. Y., et al. (2017). Current perspective in the discovery of anti-aging agents from natural products. Nat. Product. Bioprospecting. 7 (5), 335–404. doi:10.1007/s13659-017-0135-9
Fei, T., Fei, J., Huang, F., Xie, T., Xu, J., Zhou, Y., et al. (2017). The anti-aging and anti-oxidation effects of tea water extract in caenorhabditis elegans. Exp. Gerontol. 97, 89–96. doi:10.1016/j.exger.2017.07.015
Harman, D. (1956). Aging: A theory based on free radical and radiation chemistry. J. Gerontol. 11 (3), 298–300. doi:10.1093/geronj/11.3.298
Harman, D. (1972). The biologic clock: The mitochondria? J. Am. Geriatr. Soc. 20 (4), 145–147. doi:10.1111/j.1532-5415.1972.tb00787.x
He, B., Zhang, J., Wang, Y., Li, Y., Zou, X., and Liang, B. (2018). Identification of cytochrome b5 cytb-5.1 and cytb-5.2 in C. elegans; Evidence for differential regulation of scd. Biochim. Biophys. Acta Mol. Cell Biol. Lipids. 1863 (3), 235–246. doi:10.1016/j.bbalip.2017.12.007
Herndon, L. A., and Driscoll, M. (2000). Contributions of cell death to aging in C. elegans. Results Probl. Cell Differ. 29, 113–129. doi:10.1007/978-3-540-48003-7_6
Jeon, H., and Cha, D. S. (2016). Anti-aging properties of ribes fasciculatum in caenorhabditis elegans. Chin. J. Nat. Med. 14 (5), 335–342. doi:10.3724/SP.J.1009.2016.00335
Jia, D., Li, Z., Gao, Y., Feng, Y., and Li, W. (2018). A novel triazine ring compound (md568) exerts in vivo and in vitro effects on lipid metabolism. Biomed. Pharmacother. 103, 790–799. doi:10.1016/j.biopha.2018.04.065
Li, H., He, Y. H., Hu, Y. M., Chu, Q. R., Chen, Y. J., Wu, Z. R., et al. (2021a). Design, synthesis, and structure-activity relationship studies of magnolol derivatives as antifungal agents. J. Agric. Food Chem. 69 (40), 11781–11793. doi:10.1021/acs.jafc.1c01838
Li, H., Yu, X., Meng, F., Zhao, Z., Guan, S., and Wang, L. (2021b). Ferulic acid supplementation increases lifespan and stress resistance via insulin/igf-1 signaling pathway in C. elegans. Int. J. Mol. Sci. 22 (8), 4279. doi:10.3390/ijms22084279
Lin, C. F., Hung, C. F., Aljuffali, I. A., Huang, Y. L., Liao, W. C., and Fang, J. Y. (2016). Methylation and esterification of magnolol for ameliorating cutaneous targeting and therapeutic index by topical application. Pharm. Res. 33 (9), 2152–2167. doi:10.1007/s11095-016-1953-x
Lin, D., Yan, Z., Chen, A., Ye, J., Hu, A., Liu, J., et al. (2019). Anti-proliferative activity and structure-activity relationship of honokiol derivatives. Bioorg. Med. Chem. 27 (16), 3729–3734. doi:10.1016/j.bmc.2019.06.042
Liu, X., Liu, H., Chen, Z., Xiao, J., and Cao, Y. (2021). Daf-16 acts as the "hub" of astaxanthin's anti-aging mechanism to improve aging-related physiological functions in caenorhabditis elegans. Food Funct. 12 (19), 9098–9110. doi:10.1039/d1fo01069g
Lopez-Otin, C., Blasco, M. A., Partridge, L., Serrano, M., and Kroemer, G. (2013). The hallmarks of aging. Cell 153 (6), 1194–1217. doi:10.1016/j.cell.2013.05.039
Maioli, M., Basoli, V., Carta, P., Fabbri, D., Dettori, M. A., Cruciani, S., et al. (2018). Synthesis of magnolol and honokiol derivatives and their effect against hepatocarcinoma cells. Plos One 13 (2), e0192178. doi:10.1371/journal.pone.0192178
Movahedian, M., Thomas, J., Rahmani, J., Clark, C., Rashidkhani, B., and Ghanavati, M. (2020). Association between dietary glycemic index and glycemic load, insulin index and load with incidence of age-related cataract: Results from a case-control study. Diabetes Metab. Syndr. -Clin. Res. Rev. 14 (3), 199–204. doi:10.1016/j.dsx.2020.02.013
Niu, L., Wang, J., Shen, F., Gao, J., Jiang, M., and Bai, G. (2022). Magnolol and honokiol target trpc4 to regulate extracellular calcium influx and relax intestinal smooth muscle. J. Ethnopharmacol. 290, 115105. doi:10.1016/j.jep.2022.115105
Pincus, Z., Mazer, T. C., and Slack, F. J. (2016). Autofluorescence as a measure of senescence in C. elegans: Look to red, not blue or green. Aging (Albany NY) 8 (5), 889–898. doi:10.18632/aging.100936
Pomatto, L., and Davies, K. (2018). Adaptive homeostasis and the free radical theory of ageing. Free Radic. Biol. Med. 124, 420–430. doi:10.1016/j.freeradbiomed.2018.06.016
Rempel, V., Fuchs, A., Hinz, S., Karcz, T., Lehr, M., Koetter, U., et al. (2013). Magnolia extract, magnolol, and metabolites: Activation of cannabinoid cb2 receptors and blockade of the related gpr55. Acs Med. Chem. Lett. 4 (1), 41–45. doi:10.1021/ml300235q
Sander, M., Oxlund, B., Jespersen, A., Krasnik, A., Mortensen, E. L., Westendorp, R. G., et al. (2015). The challenges of human population ageing. Age Ageing 44 (2), 185–187. doi:10.1093/ageing/afu189
Shi, H., Hu, X., Zheng, H., Li, C., Sun, L., Guo, Z., et al. (2021). Two novel antioxidant peptides derived from arca subcrenata against oxidative stress and extend lifespan in caenorhabditis elegans. J. Funct. Food. 81, 104462. doi:10.1016/j.jff.2021.104462
Solfrizzi, V., Scafato, E., Lozupone, M., Seripa, D., Schilardi, A., Custodero, C., et al. (2019). Biopsychosocial frailty and the risk of incident dementia: The Italian longitudinal study on aging. Alzheimers. Dement. 15 (8), 1019–1028. doi:10.1016/j.jalz.2019.04.013
Subramaniyan, S., Alugoju, P., Sj, S., Veerabhadrappa, B., and Dyavaiah, M. (2019). Magnolol protects saccharomyces cerevisiae antioxidant-deficient mutants from oxidative stress and extends yeast chronological life span. Fems Microbiol. Lett. 366(8). doi:10.1093/femsle/fnz065
Tomita, M., Lu, S. T., Wang, S. J., Lee, C. H., and Shih, H. T. (1968). studies on the alkaloids of magnoliaceous plants. Xxxix. Alkaloids of magnolia kachirachirai dandy (3). Yakugaku Zasshi-J. Pharm. Soc. Jpn. 88(9), 1143–1147. doi:10.1248/yakushi1947.88.9_1143
Wang, T. H., Chan, C. W., Fang, J. Y., Shih, Y. M., Liu, Y. W., Wang, T. V., et al. (2017). 2-o-methylmagnolol upregulates the long non-coding rna, gas5, and enhances apoptosis in skin cancer cells. Cell Death Dis. 8 (3), e2638. doi:10.1038/cddis.2017.66
Wang, X., Liu, Q., Fu, Y., Ding, R. B., Qi, X., Zhou, X., et al. (2022). Magnolol as a potential anticancer agent: a proposed mechanistic insight. Molecules. 27(19). doi:10.3390/molecules27196441
Yin, D. (1996). Biochemical basis of lipofuscin, ceroid, and age pigment-like fluorophores. Free Radic. Biol. Med. 21 (6), 871–888. doi:10.1016/0891-5849(96)00175-x
Zeng, W. Y., Tan, L., Han, C., Zheng, Z. Y., Wu, G. S., Luo, H. R., et al. (2021). Trigonelline extends the lifespan of C. elegans and delays the progression of age-related diseases by activating ampk, daf-16, and hsf-1. Oxidative Med. Cell. Longev. 2021, 1–11. doi:10.1155/2021/7656834
Zhang, J., Chen, Z., Huang, X., Shi, W., Zhang, R., Chen, M., et al. (2019). Insights on the multifunctional activities of magnolol. Biomed Res. Int., 1847130. doi:10.1155/2019/1847130
Zhang, S., Li, F., Zhou, T., Wang, G., and Li, Z. (2020). Caenorhabditis elegans as a useful model for studying aging mutations. Front. Endocrinol. 11, 554994. doi:10.3389/fendo.2020.554994
Zhang, X., Zhong, H. Q., Chu, Z. W., Zuo, X., Wang, L., Ren, X. L., et al. (2020). Arsenic induces transgenerational behavior disorders in caenorhabditis elegans and its underlying mechanisms. Chemosphere 252, 126510. doi:10.1016/j.chemosphere.2020.126510
Zhang, Y., Chen, Y., Xun, X., Chen, S., Liu, Y., and Wang, Q. (2022). Design, synthesis, acaricidal activities, and structure-activity relationship studies of oxazolines containing ether moieties. J. Agric. Food Chem. 70 (42), 13538–13544. doi:10.1021/acs.jafc.2c04628
Zhou, F., Jiang, Z., Yang, B., and Hu, Z. (2019). Magnolol exhibits anti-inflammatory and neuroprotective effects in a rat model of intracerebral haemorrhage. Brain Behav. Immun. 77, 161–167. doi:10.1016/j.bbi.2018.12.018
