Design, synthesis, and herbicidal activity of indole-3-carboxylic acid derivatives as potential transport inhibitor response 1 antagonists

Auxins as an important class of phytohormones play essential roles in plant life cycle; therefore, developing compounds with auxin-like properties for plant growth regulation and weed control applications is of great significance. Herein, we reported the design, synthesis, and herbicidal activity evaluation of a series of novel indole-3-carboxylic acid derivatives as auxin receptor protein TIR1 antagonists. Petri dish herbicidal activity assay demonstrated that most of the as-synthesized target compounds exhibited good-to-excellent inhibition effects (60–97% inhibitory rates) on roots and shoots of both dicotyledonous rape (B. napus) and monocotyledonous barnyard grass (E. crus-galli). The inhibition rates of compounds 10d and 10h reached up to 96% and 95% for the root of rape (B. napus) at 100 mg/L, and they also maintained 92% and 93% inhibition rates even if at 10 mg/L, respectively. Molecular docking revealed that the interactions between these synthesized target compounds and TIR1 protein include tight π–π stacking, hydrogen bond, and hydrophobic interactions. This work expands the range of auxin chemistry for the development of new auxin mimic herbicides.

1 Introduction

Sustainable technologies that increase the yield of crop and lower the impact on environment are critically important to meet the growth and demographic changes of population. One of the keys to implement agriculture intensification is to minimize crop losses due to competition from weeds with crops for water, light, and nutrients (Rauzan and Lorsbach, 2021). Weeds can be controlled by physical, biological, mechanical, or chemical methods, and chemical control is the most efficient. Herbicides as weed control agrochemicals play an irreplaceable role in achieving increase in crop production and ensuring national food security (Gianessi, 2013), and they were considered as a convenient, effective, and powerful tool to interrupt or destroy the growth of weeds in agricultural fields (Moss, 2019). However, with the extensive and frequent use of chemical herbicides, weed resistance and environment hazard are dramatically increased over the world (Tudi et al., 2021; Heap, 2022). Therefore, sustainability in agriculture calls for designing sustainable herbicides with high efficacy, low toxicity, low-persistent, low-level resistance, and environmental-friendly properties, which as parts of the 2030 sustainability goals set by Corteva Agriscience (sustainability, 2021). Designing small molecules that mimic naturally occurring molecules in the plants provides an opportunity to deliver sustainable herbicide active compounds. Natural auxins are an important class of phytohormones which regulate cell division, elongation, and developmental processes, including vascular tissue and floral meristem differentiation, leaf initiation, senescence, and apical dominance (Grossmann, 2010). Indole-3-acetic acid (IAA) is one of the natural auxins and considered as a “master hormone” in the network of interactions with other phytohormones regulating plant growth and development (Bauer et al., 2018). The cellular concentration and stability of the natural auxin IAA are controlled by multiple pathways such as biosynthesis, transport, localization, derivatization, and degradation (Zhao, 2010). On the contrary, synthetic auxin herbicides are relatively long-lived xenobiotic compounds which are not controlled by these complex homeostatic mechanisms that keep endogenous IAA levels in balance. Therefore, synthetic auxin mimics have found practical use not only as plant growth regulators but also as herbicides to control weeds (Ross et al., 2001; Grossmann 2003; Pieterse et al., 2012; Tan et al., 2012; Agehara and Leskovar, 2015; Ebrahimzadeh et al., 2018; Tung et al., 2018).

Auxinic herbicides, which include four groups such as phenoxyalkanoic acid (2,4-D, 2,4-DP, 2,4-DB, 2,4,5-T, MCPA, and MCPB), pyridinecarboxylic acid (fluroxypyr, triclopyr, clopyralid, and picloram), benzoic acid (dicamba), and quinoline acid (quinmerac and quinclorac) (Figure 1), are widely used in agriculture to selectively control broadleaf weeds and revolutionized modern agricultural production throughout the world (Marumo et al., 1971; Bandurski et al., 1995; Indegit and Duke, 2003; Verma et al., 2009; Mithila et al., 2011; Du et al., 2014; Jeschke et al., 2019). Due to their absolute advantages such as selectivity, efficacy, wide spectrum of weed control, and low application costs (Dharmasiri et al., 2005), these herbicides have been a preferred choice for weed control and are the most extensively used herbicides worldwide for more than 80 years since 2,4-D was developed in 1945. Auxinic herbicides are structurally similar to the natural plant hormone auxin, indole-3-acetic acid (IAA), and induce several of the same physiological and biochemical responses at high concentrations but are more durable and effective because they are not rendered inactive by the plant as rapidly as the endogenous auxins.

FIGURE 1

FIGURE 1. Chemical structures of typical auxinic herbicides and indole-3-acetic acid (IAA).

The receptor for auxin was identified in recent studies as transport inhibitor response 1 (TIR1) protein, which is an F-box protein component of an SCF (SKP1, Cullin1, F-box)-type E3 ubiquitin ligase complex and responsible for tagging Aux/IAA proteins for proteolysis by 26S proteasomes (Leyser, 2002; Kepinski and Leyser, 2005; Hayashi, 2012; Korasick et al., 2015; Salehin et al., 2015). In this signaling pathway, auxinic herbicide molecule binds to auxin receptor TIR1, which facilitates the interactions between TIR1 and co-repressor Aux/IAA proteins, leading to the ubiquitination and degradation of the Aux/IAA proteins. Consequently, the expression of auxin responsive genes is elevated, which leads to the death of weeds (Enders and Strader, 2015; Cao et al., 2017; Myo et al., 2019; Duca and Glick, 2020). Thus, the chemical manipulation of the auxin-signaling pathway via synthetic auxin mimics for developing herbicides has gained enormous interest.

Recently, a lot of auxin mimic herbicides have been uncovered with greater herbicidal activities on a broader spectrum of weeds at lower use rates (Bell et al., 2019). These newer herbicides generally consist of a planar pyridine or pyrimidine group with an attached carboxylic acid functionality and act as TIR1 agonists. However, there are few reports on anti-auxinic compounds. Hayashi et al. reported two IAA analogs, tert-butoxycarbonylaminohexyl-IAA and auxinole (Figure 2), which exhibited potent antagonistic activity by blocking the formation of the TIR1-IAA-Aux/IAA complex and inhibited auxin-responsive gene expression in plants (Hayashi et al., 2008; Hayashi et al., 2012). Molecular docking analysis indicated that the phenyl ring in auxinole would strongly interact with Phe82 of TIR1, a residue that is crucial for Aux/IAA recognition. Related work provided a new method for developing TIR1 antagonists as novel auxinic herbicides for weed control.

FIGURE 2

FIGURE 2. Reported structures of TIR1 antagonists and our designed molecules

In order to discover new TIR1 antagonists as auxinic herbicides, a total of 24 novel α-substituted indole-3-carboxylic acid derivatives were designed, synthesized, and characterized in this study. These compounds were assessed under incubator conditions to determine their herbicidal activities against monocotyledon and dicotyledon weeds, and their structure–activity relationships were studied.

2 Materials and methods

2.1 General

¹H NMR spectra were recorded using 400/600 MHz spectrometers. Chemical shifts (δ) were reported in ppm quoted relative to internal tetramethylsilane (internal standard, 0.0 ppm) with the coupling constants (J) given in Hz. ¹³C NMR spectra were recorded with the same spectrometer operating at 100/150 MHz with complete proton decoupling (internal standard CDCl₃: 77.0 ppm, DMSO-d₆: 39.5 ppm). Splitting patterns were assigned, s = singlet, d = doublet, t = triplet, dd = double doublet, etc. Mass spectra were measured with a Finnigan Trace MS spectrometer. IR measurements were performed on Bruker TENSOR27 using KBr as the substrate. Elementary analysis was taken with a Vario EL III elemental analysis instrument. Melting points (m.p.) were obtained on a digital melting point apparatus (Biddy-Electrothermal) without correction. Unless otherwise noted, materials were used as commercially supplied. All reactions were monitored by TLC analysis on silica gel–coated plates. Flash column chromatography was performed by using 200–300 mesh silica gel.

2.2 Chemical synthesis

All the indole-3-carboxylic acid derivatives included in this report were synthesized using the sequences shown in Figure 3 and Figure 4. As shown in Figure 3, protection of indole-3-acetic acid in the presence of methanol and methyl chloroformate allowed the formation of the intermediate 3, which undergoes nucleophilic substitution reaction with alkyl bromide under strong base lithium diisopropylamide (LDA) conditions to give intermediates 7 and 8. Finally, deprotection of intermediates 7 and 8 in the presence of 30% sodium hydroxide aqueous solution allowed the formation of the target compounds 9 and 10. The 3,3-diindolepropionic acid compounds 12 can be conveniently obtained by a potassium bisulfate catalyzed one-pot reaction using substituted indole acetic acid and ethyl 3,3-diethoxypropionate as raw materials. Then, the nucleophilic substitution of compounds 12 with alkyl bromide produces compounds 13, which undergoes hydrolyzation under lithium hydroxide and methanol conditions to give compounds 14 (Figure 4).

FIGURE 3

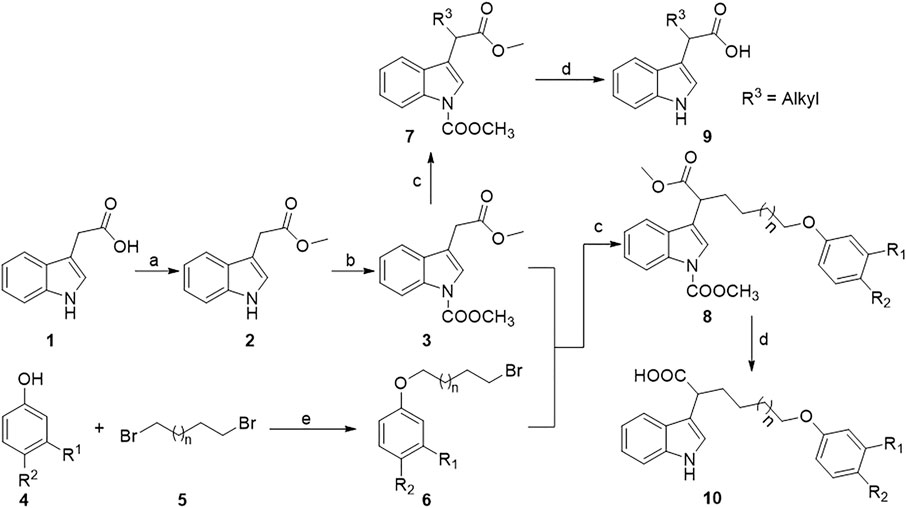

FIGURE 3. Synthetic route of α-substituted indole-3-acetic acids. Reagents and conditions: a) DCC, DMAP, MeOH, dry CH₂Cl₂, r.t.; b) TEBAC, methyl chloroformate, DCM, 30% NaOH (aq.), ice bath; c) R-Br, LDA, HMPA, THF, −78°C–0°C; d) 30% NaOH (aq.): CH₃OH = 1:2 (v/v), 70°C, 4 h, 2 M HCl.

FIGURE 4

FIGURE 4. Synthetic route of 3,3-diindolepropionic acid derivatives. Reagents and conditions: a) CH₃COOH, KHSO₄ < 80°C, 5 h; b) KOH, R-X, THF, r.t.; c) LiOH, CH₃OH: H₂O = 1:1 (v/v), 75°C, 2 h, 2 M HCl.

Synthesis of intermediate 2: indole-3-acetic acid (10.0 mmol, 1.75 g), dicyclohexylcarbodiimide (DCC, 2.06 g, 10.0 mmol), 4-dimethylaminopyridine (DMAP, 1.0 mmol, 0.13 g), anhydrous dichloromethane (40 ml), and methanol (1 ml) were successively added into a 100-ml round-bottom flask at room temperature. The mixture was stirred for 4 h and monitored using thin-layer chromatography (TLC). When the reaction was completed, the resulting dicyclohexylurea was filtered out and 20 ml water was added into the filtrate, and extracted with dichloromethane for 3 times (3 × 50 ml). The combined organic phase was washed with saturated saline solution (3 × 100 ml), dried with anhydrous Na₂SO₄, and concentrated in vacuo to give a residue. The residue was purified by column chromatography on silica gel using 10:1 (v/v) petroleum ether/ethyl acetate mixtures to obtain intermediate 2 as faint yellow oil in 79% yield.

Synthesis of intermediate 3: methyl indole-3-acetate (10.0 mmol, 1.89 g), benzyltriethylammonium chloride (0.05 mmol, 0.11 g), dichloromethane (15 ml), and 30% NaOH aqueous solution (15 ml) were successively added into a 50-ml round-bottom flask under an ice-bath condition. Then, methyl chloroformate (15 mmol, 1.43 g) was slowly added dropwise. After that, the reaction mixture was gradually warmed up to room temperature and stirred for 2 h. Then, the typical treating process as aforementioned for intermediate 2 was followed to obtain intermediate 3 as yellow oil in 85% yield.

Synthesis of intermediate 6: 1, 4-dibromobutane (10 mmol, 2.16 g) or 1,5-dibromopentane (10 mmol, 2.30 g), cesium carbonate (10 mmol, 3.25 g), and 25 ml acetonitrile were added into a 50-ml round-bottom flask. The mixture was stirred at 85°C, and then, a solution of substituted phenol (5 mmol, 0.5 equiv.) in 5 ml acetonitrile was slowly added dropwise. After that, the reaction mixture was stirred for 3 h and monitored by TLC. When the reaction was finished, 20 ml water was added and extracted with ethyl acetate for three times (3 × 50 ml). Then, the typical purification process as aforementioned was carried out to obtain intermediate 6.

Synthesis of intermediates 7 and 8: the solution of redistilled diisopropylamine (3.0 mmol, 0.43 ml) in 5 ml tetrahydrofuran (THF) was added into a 50-ml dry three-neck flask under argon atmosphere, the flask was placed in a −78 °C constant temperature reactor, and then n-butyllithium (3 mmol, 1.3 ml) was slowly added dropwise into the mixture and stirred for 1 h. After that, hexamethylphosphoric triamide (HMPA, 14.65 mmol, 2.63 g) was added and stirred for another 20 min, and then, a solution of intermediate 3 (2.0 mmol, 0.49 g) in 5 ml THF was added and continued to stir for 30 min. Finally, the solution of alkyl bromide or intermediate 6 (3 mmol, 1.5 equiv.) in THF (5 ml) was added and stirred for another 1 h. Then, the reaction mixture was gradually heated to 0°C and monitored by TLC. When the reaction was completed, 20 ml water was added to quench the reaction and extracted with ethyl acetate for three times (3 × 50 ml). Then, the typical purification process as aforementioned was carried out to obtain intermediates 7 and 8.

Synthesis of target compounds 9 and 10: intermediate 7 or 8 (1 mmol) was dissolved in 10 ml mixed solution of MeOH and 2 M NaOH (v/v, 4:1), and the mixture was stirred and reacted at 75°C for 4 h. After that, the reaction mixture was cooled to room temperature, acidified with 2 M hydrochloric acid to pH = 3, and extracted with ethyl acetate for three times (3 × 30 ml). Then, the typical purification process as aforementioned was carried out to produce the target compounds 9 in 71–78% yields and 10 in 54–68% yields, respectively.

2.3 2-(1H-indol-3-yl)hexanoic acid (9a)

As a rufous oil in 71% yield. ¹H NMR (600 MHz, CDCl₃): δ 10.77 (s, 1H), 7.79 (s, 1H), 7.66 (d, J = 7.7 Hz, 1H), 7.16–7.02 (m, 3H), 6.77 (s, 1H), 3.80 (t, J = 7.5 Hz, 1H), 2.14–2.03 (m, 1H), 1.90–1.79 (m, 1H), 1.28–1.24 (m, 4H), 0.80 (d, J = 6.1 Hz, 3H); ¹³C NMR (150 MHz, CDCl₃): δ 181.31, 135.93, 126.28, 122.39, 121.91, 119.43, 118.97, 112.73, 111.31, 42.85, 31.94, 29.67, 22.32, 13.76; IR (KBr, cm⁻¹): 3417, 3061, 2961, 2870, 1710, 1461, 1417, 1353, 1212, 1104, 947, 739; EI-MS m/z: 231.14 (M⁺, 58.63), 130.04(100); Elem. Anal. Calcd. for C₁₄H₁₇NO₂: C, 72.70; H, 7.41; N, 6.06. Found: C, 72.95; H, 7.35; N, 6.22.

2.4 2-(1H-indol-3-yl)decanoic acid (9b)

As a rufous oil in 73% yield. ¹H NMR (600 MHz, DMSO): δ 12.10 (s, 1H), 10.93 (s, 1H), 7.57 (d, J = 7.9 Hz, 1H), 7.33 (d, J = 8.2 Hz, 1H), 7.19 (s, 1H), 7.06 (t, J = 7.6 Hz, 1H), 6.96 (t, J = 7.4 Hz, 1H), 3.69 (t, J = 7.6 Hz, 1H), 2.05–1.96 (m, 1H), 1.80–1.72 (m, 1H), 1.27–1.21 (m, 12H), 0.84 (t, J = 6.8 Hz, 3H); ¹³C NMR (150 MHz, CDCl₃): δ181.33, 136.02, 126.42, 122.27, 122.07, 119.55, 119.15, 113.15, 111.24, 42.93, 32.35, 31.79, 29.36, 29.33, 29.21, 27.64, 22.60, 14.07; IR (KBr, cm⁻¹): 3417, 3068, 2928, 2860, 1710, 1454, 1353, 1296, 1220, 1104, 947, 741; EI-MS m/z: 287.32 (M⁺, 32.10), 130.07(100); Elem. Anal. Calcd. for C₁₈H₂₅NO₂: C, 75.22; H, 8.77; N, 4.87. Found: C, 75.56; H, 8.94; N, 4.84.

2.5 2-(1H-indol-3-yl)tetradecanoic acid (9c)

As a pale yellow solid in 78% yield, m.p. 72.7–73.6°C. ¹H NMR (600 MHz, DMSO): δ 11.80 (s, 1H), 8.03 (d, J = 8.1 Hz, 1H), 7.80 (t, J = 6.8 Hz, 1H), 7.36 (d, J = 7.9 Hz, 1H), 7.30–7.24 (m, 1H), 7.21 (dd, J = 13.6, 6.5 Hz, 1H), 7.09 (d, J = 10.6 Hz, 1H), 3.95 (d, J = 6.9 Hz, 1H), 2.21 (d, J = 12.7 Hz, 1H), 2.00 (s, 1H), 1.58–1.17 (m, 20H), 0.98 (t, J = 6.9 Hz, 3H).; ¹³C NMR (150 MHz, CDCl₃): δ 181.29, 136.03, 126.46, 122.24, 122.12, 119.59, 119.20, 113.26, 111.22, 42.93, 32.39, 31.90, 29.64, 29.41, 29.34, 27.67, 22.68, 14.12; IR (KBr, cm⁻¹): 3424, 3061, 2928, 2852, 1693, 1461, 1421, 1212, 1096, 955, 739; EI-MS m/z: 343.16 (M⁺, 60.74), 130.04(100); Elem. Anal. Calcd. for C₂₂H₃₃NO₂: C, 76.92; H, 9.68; N, 4.08. Found: C, 77.37; H, 9.98; N, 4.25.

2.6 6-(4-Fluorophenoxy)-2-(1H-indol-3-yl)hexanoic acid (10a)

As a rufous oil in 65% yield. ¹H NMR (600 MHz, DMSO): δ 10.18 (s, 1H), 8.21 (s, 1H), 7.85 (d, J = 7.9 Hz, 1H), 7.36 (d, J = 8.0 Hz, 1H), 7.31 (t, J = 7.4 Hz, 1H), 7.25 (t, J = 7.4 Hz, 1H), 7.08 (d, J = 1.5 Hz, 1H), 7.05 (t, J = 8.6 Hz, 2H), 6.97–6.72 (m, 2H), 4.14–3.99 (m, 1H), 3.87 (dt, J = 14.8, 7.6 Hz, 2H), 2.44–2.21 (m, 1H), 2.10 (dq, J = 9.5, 7.2 Hz, 1H), 1.99–1.77 (m, 2H), 1.71–1.51 (m, 2H); ¹³C NMR (150 MHz, CDCl₃): δ 180.67, 157.75, 156.18, 154.85, 135.99, 126.24, 122.40, 122.06, 119.54, 119.02, 115.65, 115.50, 115.35, 115.30, 112.62, 111.30, 68.10, 42.76, 31.82, 28.80, 24.00; IR (KBr, cm⁻¹): 3433, 3078, 2946, 2854, 1693, 1502, 1460, 1302, 1245, 1212, 1104, 1038, 938, 831, 739; EI-MS m/z: 341.25 (M⁺, 79.86), 130.05(100); Elem. Anal. Calcd. for C₂₀H₂₀FNO₃: C, 70.37; H, 5.91; N, 4.10. Found: C, 70.51; H, 5.88; N, 4.21.

2.7 6-(4-Chlorophenoxy)-2-(1H-indol-3-yl)hexanoic acid (10b)

As a pale red solid in 54% yield, m.p. 80.3–81.1°C. ¹H NMR (400 MHz, DMSO): δ 12.08 (s, 1H), 10.90 (s, 1H), 7.56 (d, J = 7.9 Hz, 1H), 7.32 (d, J = 8.0 Hz, 1H), 7.26 (d, J = 8.9 Hz, 2H), 7.19 (d, J = 2.4 Hz, 1H), 7.04 (t, J = 7.5 Hz, 1H), 6.94 (t, J = 7.4 Hz, 2H), 6.88 (d, J = 8.9 Hz, 1H), 3.90 (t, J = 6.4 Hz, 2H), 3.72 (t, J = 7.5 Hz, 1H), 2.06 (s, 1H), 1.86 (s, 1H), 1.78–1.62 (m, 1H), 1.41 (d, J = 6.1 Hz, 2H); ¹³C NMR (100 MHz, CDCl₃): δ 185.15, 180.24, 157.18, 135.86, 128.98, 126.15, 125.06, 122.20, 122.01, 119.48, 118.96, 115.56, 112.70, 111.17, 67.84, 42.89, 32.02, 28.92, 24.20; IR (KBr, cm⁻¹): 3417, 3061, 2945, 2871, 1701, 1594, 1486, 1287, 1245, 1096, 1006, 822, 748, 673; EI-MS m/z: 357.32 (M⁺, 31.42), 130.08(100); Elem. Anal. Calcd. for C₂₀H₂₀ClNO₃: C, 67.13; H, 5.63; N, 3.91. Found: C, 67.06; H, 5.56; N, 3.85.

2.8 2-(1H-indol-3-yl)-6-(4-nitrophenoxy)hexanoic acid (10c)

As a yellow solid in 59% yield, m.p. 76.8–77.7°C. ¹H NMR (600 MHz, DMSO): δ 12.19 (s, 1H), 10.97 (s, 1H), 8.15 (d, J = 6.2 Hz, 2H), 7.63 (d, J = 5.3 Hz, 1H), 7.38 (d, J = 5.9 Hz, 1H), 7.26 (s, 1H), 7.04 (dd, J = 30.5, 24.2 Hz, 4H), 4.04 (s, 2H), 3.78 (s, 1H), 2.12 (s, 1H), 1.94 (d, J = 54.9 Hz, 1H), 1.77 (s, 2H), 1.45 (s, 2H); ¹³C NMR (150 MHz, DMSO): δ 175.59, 164.01, 140.67, 136.29, 126.43, 125.84, 122.92, 121.06, 118.92, 118.49, 114.90, 112.84, 111.55, 68.54, 42.64, 39.92, 31.88, 28.33, 23.86.; IR (KBr, cm⁻¹): 3424, 3078, 2945, 2870, 1701, 1593, 1502, 1345, 1262, 1178, 1104, 1004, 847, 748; EI-MS m/z: 368.04 (M⁺, 11.44), 130.03(100); Elem. Anal. Calcd. for C₂₀H₂₀N₂O₅: C, 65.21; H, 5.47; N, 7.60. Found: C, 65.47; H, 7.51; N, 7.23.

2.9 2-(1H-indol-3-yl)-6-(3-(trifluoromethyl)phenoxy)hexanoic acid (10d)

As a rufous oil in 58% yield. ¹H NMR (600 MHz, CDCl₃): δ 10.43 (s, 1H), 7.93 (s, 1H), 7.67 (d, J = 7.4 Hz, 1H), 7.22 (t, J = 7.5 Hz, 1H), 7.13 (dd, J = 14.8, 7.0 Hz, 3H), 7.08–7.01 (m, 2H), 6.89 (d, J = 7.7 Hz, 1H), 6.86 (s, 1H), 3.84 (t, J = 6.8 Hz, 1H), 3.75 (s, 2H), 2.13 (s, 1H), 1.92 (s, 1H), 1.68 (s, 2H), 1.42 (d, J = 5.2 Hz, 2H); ¹³C NMR (150 MHz, CDCl₃): δ 180.81, 158.94, 136.04, 131.79, 131.58, 131.36, 131.15, 129.82, 126.79, 126.73, 126.26, 124.92, 123.12, 122.46, 122.10, 121.31, 119.58, 119.03, 117.85, 117.04, 112.59, 111.35, 111.06, 67.69, 42.82, 31.78, 28.66, 23.98.; IR (KBr, cm⁻¹): 3418, 3067, 2944, 2879, 1710, 1610, 1462, 1338, 1237, 1171, 1131, 888, 798, 748; EI-MS m/z: 391.29 (M⁺, 77.63), 130.05(100); Elem. Anal. Calcd. for C₂₁H₂₀F₃N₂O₃: C, 64.44; H, 5.15; N, 3.58. Found: C, 64.54; H, 4.90; N, 3.86.

2.10 6-(4-Fluoro-3-(trifluoromethyl)phenoxy)-2-(1H-indol-3-yl)hexanoic acid (10e)

As a rufous oil in 61% yield. ¹H NMR (600 MHz, DMSO): δ 12.15 (s, 1H), 10.95 (s, 1H), 7.59 (d, J = 7.9 Hz, 1H), 7.39 (d, J = 9.6 Hz, 1H), 7.37–7.32 (m, 1H), 7.22 (d, J = 8.5 Hz, 2H), 7.19 (d, J = 5.3 Hz, 1H), 7.07 (t, J = 7.5 Hz, 1H), 6.97 (t, J = 7.4 Hz, 1H), 3.98 (t, J = 6.3 Hz, 2H), 3.75 (t, J = 7.5 Hz, 1H), 2.21–2.03 (m, 1H), 1.94–1.80 (m, 1H), 1.80–1.65 (m, 2H), 1.42 (d, J = 5.9 Hz, 2H); ¹³C NMR (150 MHz, DMSO): δ 175.60, 154.87, 153.70, 152.07, 136.32, 126.45, 123.43, 122.93, 121.63, 121.06, 120.34, 118.92, 118.48, 118.18, 118.04, 117.14, 112.86, 112.31, 111.56, 109.63, 68.47, 42.66, 39.92, 31.91, 28.47, 23.92.; IR (KBr, cm⁻¹): 3418, 3068, 2945, 2871, 1710, 1444, 1336, 1259, 1220, 1139, 1045, 821, 739; EI-MS m/z: 409.01 (M⁺, 43.54), 130.03(100); Elem. Anal. Calcd. for C₂₁H₁₉F₄NO₃: C, 61.61; H, 4.68; N, 3.42. Found: C, 61.80; H, 4.61; N, 3.34.

2.11 7-(4-Fluorophenoxy)-2-(1H-indol-3-yl)heptanoic acid (10f)

As a rufous oil in 62% yield. ¹H NMR (400 MHz, DMSO): δ 12.06 (s, 1H), 10.89 (s, 1H), 7.56 (d, J = 7.8 Hz, 1H), 7.32 (d, J = 8.0 Hz, 1H), 7.19 (d, J = 2.3 Hz, 1H), 7.11–7.01 (m, 3H), 6.95 (t, J = 7.4 Hz, 1H), 6.90–6.84 (m, 2H), 3.88 (t, J = 6.4 Hz, 2H), 3.72 (t, J = 7.5 Hz, 1H), 2.05 (dt, J = 13.3, 8.2 Hz, 1H), 1.81 (dt, J = 13.4, 6.9 Hz, 1H), 1.71–1.60 (m, 2H), 1.43 (dt, J = 14.3, 7.3 Hz, 2H), 1.38–1.28 (m, 2H); ¹³C NMR (100 MHz, CDCl₃): δ 185.24, 180.25, 157.97, 155.62, 154.84, 135.90, 126.27, 122.12, 122.05, 119.51, 119.05, 115.65, 115.42, 115.28, 115.20, 113.07, 111.15, 68.38, 42.91, 32.37, 29.09, 27.47, 25.89; IR (KBr, cm⁻¹): 3416, 3061, 2946, 2862, 1710, 1626, 1509, 1469, 1212, 1104, 1013, 831, 748; EI-MS m/z: 355.36 (M⁺, 39.08), 130.06(100); Elem. Anal. Calcd. for C₂₁H₂₂FNO₃: C, 70.97; H, 6.24; N, 3.94. Found: C, 70.80; H, 6.32; N, 4.19.

2.12 2-(1H-indol-3-yl)-7-(4-nitrophenoxy)heptanoic acid (10 g)

As a yellow oil in 67% yield. ¹H NMR (600 MHz, DMSO): δ 12.11 (s, 1H), 10.93 (s, 1H), 8.18 (d, J = 8.9 Hz, 2H), 7.58 (d, J = 7.8 Hz, 1H), 7.34 (d, J = 8.0 Hz, 1H), 7.21 (s, 1H), 7.10 (d, J = 8.9 Hz, 2H), 7.06 (t, J = 7.4 Hz, 1H), 6.96 (t, J = 7.3 Hz, 1H), 4.08 (t, J = 6.0 Hz, 2H), 3.72 (s, 1H), 2.04 (s, 1H), 1.81 (s, 1H), 1.71 (d, J = 6.7 Hz, 2H), 1.44 (s, 2H), 1.34 (d, J = 7.0 Hz, 2H); ¹³C NMR (150 MHz, DMSO): δ 175.60, 164.02, 140.66, 136.28, 126.43, 125.85, 122.85, 121.04, 118.88, 118.47, 114.88, 112.93, 111.54, 68.55, 42.58, 39.92, 32.14, 28.29, 27.07, 25.29; IR (KBr, cm⁻¹): 3416, 3077, 2936, 2854, 1718, 1603, 1512, 1337, 1262, 1179, 1113, 1013, 847, 756; EI-MS m/z: 382.04 (M⁺, 5.38), 130.03(100); Elem. Anal. Calcd. for C₂₁H₂₂N₂O₅: C, 65.96; H, 5.80; N, 7.33. Found: C, 66.23; H, 5.93; N, 7.58.

2.13 2-(1H-indol-3-yl)-7-(3-(trifluoromethyl)phenoxy)heptanoic acid (10 h)

As a rufous oil in 64% yield. ¹H NMR (600 MHz, DMSO): δ 12.13 (s, 1H), 10.94 (s, 1H), 7.58 (d, J = 7.9 Hz, 1H), 7.49 (t, J = 7.8 Hz, 1H), 7.34 (d, J = 8.0 Hz, 1H), 7.26 (d, J = 7.5 Hz, 1H), 7.20 (d, J = 11.5 Hz, 3H), 7.06 (t, J = 7.4 Hz, 1H), 6.96 (t, J = 7.4 Hz, 1H), 4.00 (t, J = 6.2 Hz, 2H), 3.72 (d, J = 7.5 Hz, 1H), 2.06 (d, J = 14.1 Hz, 1H), 1.86–1.75 (m, 1H), 1.73–1.65 (m, 2H), 1.49–1.40 (m, 2H), 1.40–1.28 (m, 2H); ¹³C NMR (150 MHz, CDCl₃): δ 180.64, 159.05, 136.06, 131.66, 131.44, 131.23, 129.83, 126.71, 126.37, 124.90, 123.09, 122.36, 122.09, 121.29, 119.56, 119.08, 117.88, 117.02, 112.95, 111.31, 111.06, 67.93, 42.83, 32.15, 28.75, 27.27, 25.67.; IR (KBr, cm⁻¹): 3416, 3069, 2944, 2871, 1710, 1610, 1461, 1328, 1237, 1171, 1120, 890, 789, 748; EI-MS m/z: 405.31 (M⁺, 48.36), 130.04(100); Elem. Anal. Calcd. for C₂₂H₂₂F₃NO₃: C, 65.18; H, 5.47; N, 3.45. Found: C, 65.35; H, 5.70; N, 3.71.

2.14 7-(4-Fluoro-3-(trifluoromethyl)phenoxy)-2-(1H-indol-3-yl)heptanoic acid (10i)

As a rufous oil in 68% yield. ¹H NMR (600 MHz, DMSO): δ 12.14 (s, 1H), 10.94 (s, 1H), 7.59 (d, J = 7.9 Hz, 1H), 7.41 (t, J = 9.7 Hz, 1H), 7.35 (d, J = 8.1 Hz, 1H), 7.29–7.23 (m, 1H), 7.22 (s, 2H), 7.07 (t, J = 7.4 Hz, 1H), 6.97 (t, J = 7.4 Hz, 1H), 3.99 (t, J = 6.2 Hz, 2H), 3.73 (s, 1H), 2.04 (d, J = 13.6 Hz, 1H), 1.86–1.76 (m, 1H), 1.73–1.63 (m, 2H), 1.49–1.41 (m, 2H), 1.39–1.30 (m, 2H); ¹³C NMR (100 MHz, CDCl₃): δ 180.43, 154.73, 154.41, 152.77, 136.08, 128.92, 126.42, 125.15, 123.35, 122.37, 122.04, 121.55, 119.49, 119.20, 119.15, 119.11, 118.49, 118.39, 118.27, 118.18, 117.55, 117.40, 113.17, 112.32, 111.31, 68.54, 43.00, 32.19, 28.74, 27.29, 25.65; IR (KBr, cm⁻¹): 3416, 3069, 2945, 2861, 1710, 1618, 1511, 1437, 1320, 1222, 1138, 1046, 814, 748; EI-MS m/z: 423.32 (M⁺, 48.36), 130.05(100); Elem. Anal. Calcd. for C₂₂H₂₁F₄NO₃: C, 62.41; H, 5.00; N, 3.31. Found: C, 62.63; H, 5.24; N, 3.58.

Synthesis of target compounds 12: indole (5 mmol, 0.59 g) or 6-bromo-1H-indole (5 mmol, 0.98 g), 3, 3-diethoxypropionate (2.5 mmol, 0.48 g), potassium bisulfate (5 mmol, 0.68 g), and 15 ml acetic acid were added successively into a 25-ml round-bottom flask at room temperature. The mixtures were reacted at 80 °C for 5 h. After that, the reaction was quenched with 20 ml water and extracted with ethyl acetate for three times (3 × 50 ml). Then, the typical purification process as aforementioned was followed to produce target compounds 12.

2.15 Ethyl 3,3-di (1H-indol-3-yl)propanoate (12a)

As a pale brown solid in 78% yield, m.p. 103.8–104.8 °C. ¹H NMR (600 MHz, CDCl₃): δ 7.84 (s, 2H), 7.55 (d, J = 7.9 Hz, 2H), 7.19 (d, J = 8.1 Hz, 2H), 7.10 (t, J = 7.5 Hz, 2H), 7.00 (t, J = 7.4 Hz, 2H), 6.77 (s, 2H), 5.07 (t, J = 7.6 Hz, 1H), 3.99 (q, J = 7.0 Hz, 2H), 3.14 (d, J = 7.7 Hz, 2H), 1.05 (d, J = 7.0 Hz, 3H); ¹³C NMR (150 MHz, CDCl₃): δ 172.76, 136.41, 126.49, 121.74, 119.32, 119.03, 118.35, 111.14, 60.39, 41.15, 30.69, 13.96; IR (KBr, cm⁻¹): 3402, 3342, 3061, 2970, 1708, 1461, 1277, 1125, 1096, 1021, 739; EI-MS m/z: 332.07 (M⁺, 22.89), 245.05(100); Elem. Anal. Calcd. for C₂₁H₂₀N₂O₂: C, 75.88; H, 6.06; N, 8.43. Found: C, 75.94; H, 6.31; N, 8.64.

2.16 Ethyl 3,3-bis(5-bromo-1H-indol-3-yl)propanoate (12b)

As a brown solid in 69% yield, m.p. 161.4–162.2°C. ¹H NMR (600 MHz, DMSO): δ 11.09 (s, 2H), 7.60 (s, 2H), 7.43 (s, 2H), 7.30 (d, J = 8.6 Hz, 2H), 7.13 (d, J = 8.4 Hz, 2H), 4.88 (t, J = 7.7 Hz, 1H), 3.96 (q, J = 14.0 Hz, 2H), 3.19 (d, J = 7.7 Hz, 2H), 1.05 (t, J = 7.0 Hz, 3H); ¹³C NMR (150 MHz, DMSO): δ 171.60, 135.17, 127.99, 124.05, 123.34, 121.04, 116.74, 113.47, 110.85, 59.73, 30.26, 13.97; IR (KBr, cm⁻¹): 3749, 3424, 3340, 2978, 1718, 1660, 1461, 1286, 1163, 1096, 1038, 872, 789; EI-MS m/z: 490.00 (M⁺, 19.85), 402.95(100); Elem. Anal. Calcd. for C₂₁H₁₈Br₂N₂O₂: C, 51.45; H, 3.70; N, 5.71. Found: C, 51.71; H, 3.63; N, 5.69.

Synthesis of target compounds 13: compound 12a (2 mmol, 0.66 g) or 12b (2 mmol, 0.98 g), methyl iodide (6 mmol, 0.85 g) or ethyl iodide (6 mmol, 0.94 g), potassium hydroxide powder (5 mmol, 0.28 g), and 15 ml THF were successively added into a 25-ml round-bottom flask and reacted for 12 h at room temperature. After that, the reaction was quenched with 20 ml water and extracted with ethyl acetate for three times (3 × 50 ml). Then, the typical purification process as aforementioned was followed to obtain the target compounds 13 in 72%–82% yields.

2.17 Ethyl 3,3-bis(1-methyl-1H-indol-3-yl)propanoate (13a)

As a white solid in 82% yield, m.p. 120.5–121.3°C. ¹H NMR (600 MHz, CDCl₃): δ 7.59 (d, J = 7.9 Hz, 2H), 7.21 (d, J = 8.1 Hz, 2H), 7.16 (t, J = 7.5 Hz, 2H), 7.02 (t, J = 7.4 Hz, 2H), 6.83 (s, 2H), 5.10 (t, J = 7.6 Hz, 1H), 4.00 (q, J = 7.1 Hz, 2H), 3.61 (s, 6H), 3.15 (d, J = 7.7 Hz, 2H), 1.07 (t, J = 7.1 Hz, 3H); ¹³C NMR (150 MHz, CDCl₃): δ 172.38, 137.13, 126.94, 126.30, 121.33, 119.50, 118.52, 117.23, 109.05, 60.15, 41.42, 32.50, 30.54, 13.98; IR (KBr, cm⁻¹): 3724, 3069, 2979, 2928, 1726, 1618, 1551, 1476, 1371, 1328, 1204, 1151, 1022, 941, 739; EI-MS m/z: 360.05 (M⁺, 11.17), 273.03(100); Elem. Anal. Calcd. for C₂₃H₂₄N₂O₂: C, 76.64; H, 6.71; N, 7.77. Found: C, 76.50; H, 6.41; N, 7.86.

2.18 Ethyl 3,3-bis(1-ethyl-1H-indol-3-yl)propanoate (13b)

As a pale-yellow solid in 76% yield, m.p. 75.2–76.2°C. ¹H NMR (600 MHz, CDCl₃): δ 7.58 (d, J = 7.9 Hz, 2H), 7.23 (d, J = 8.2 Hz, 2H), 7.12 (t, J = 7.6 Hz, 2H), 6.99 (t, J = 7.5 Hz, 2H), 6.90 (s, 2H), 5.11 (t, J = 7.7 Hz, 1H), 4.04–3.93 (m, 6H), 3.17 (d, J = 7.7 Hz, 2H), 1.30 (t, J = 7.3 Hz, 6H), 1.03 (t, J = 7.1 Hz, 3H); ¹³C NMR (150 MHz, CDCl₃): δ 172.38, 136.11, 127.10, 124.58, 121.10, 119.59, 118.38, 117.15, 109.07, 60.04, 41.37, 40.57, 30.79, 15.30, 13.93; IR (KBr, cm⁻¹): 3741, 3053, 2969, 2879, 1718, 1543, 1461, 1345, 1253, 1129, 1022, 923, 814, 748; EI-MS m/z: 388.06 (M⁺, 9.81), 301.06(100); Elem. Anal. Calcd. for C₂₅H₂₈N₂O₂: C, 77.29; H, 7.26; N, 7.21. Found: C, 77.11; H, 7.48; N, 7.24.

2.19 Ethyl 3,3-bis(5-bromo-1-methyl-1H-indol-3-yl)propanoate (13c)

As a white solid in 76% yield, m.p. 159.5–160.3°C. ¹H NMR (600 MHz, CDCl₃): δ 7.65 (d, J = 5.6 Hz, 2H), 7.19 (d, J = 8.6 Hz, 2H), 7.04 (d, J = 8.7 Hz, 2H), 6.82 (d, J = 9.2 Hz, 2H), 4.95 (t, J = 7.6 Hz, 1H), 4.03 (q, J = 7.1 Hz, 2H), 3.58 (s, 7H), 3.08 (t, J = 6.1 Hz, 2H), 1.11 (t, J = 7.1 Hz, 3H); ¹³C NMR (150 MHz, CDCl₃): δ 171.90, 135.78, 128.32, 127.39, 124.22, 121.67, 116.34, 112.06, 110.72, 60.33, 51.59, 41.12, 32.68, 30.24, 13.98; IR (KBr, cm⁻¹): 3119, 2913, 1728, 1545, 1469, 1427, 1370, 1278, 1204, 1154, 1028, 864, 798; EI-MS m/z: 517.82 (M⁺, 9.80), 430.82(100); Elem. Anal. Calcd. for C₂₃H₂₂Br₂N₂O₂: C, 53.30; H, 4.28; N, 5.41. Found: C, 53.01; H, 4.35; N, 5.26.

2.20 Ethyl 3,3-bis(5-bromo-1-ethyl-1H-indol-3-yl)propanoate (13d)

As a white solid in 72% yield, m.p. 148.8–149.6°C. ¹H NMR (600 MHz, CDCl₃): δ 7.63 (s, 2H), 7.19 (d, J = 8.6 Hz, 2H), 7.09 (d, J = 8.7 Hz, 2H), 6.94 (s, 2H), 4.96 (t, J = 7.7 Hz, 1H), 4.01 (dq, J = 21.7, 7.2 Hz, 6H), 3.10 (d, J = 7.7 Hz, 2H), 1.34 (t, J = 7.3 Hz, 6H), 1.10 (t, J = 7.1 Hz, 3H); ¹³C NMR (150 MHz, CDCl₃): δ 171.98, 134.86, 128.56, 125.71, 124.06, 121.92, 116.32, 111.89, 110.74, 60.29, 41.08, 40.89, 30.58, 15.32, 14.01; IR (KBr, cm⁻¹): 3741, 3118, 2926, 2878, 1717, 1610, 1545, 1452, 1345, 1272, 1196, 1030, 938, 872, 797; EI-MS m/z: 546.28 (M⁺, 11.58), 459.17(100); Elem. Anal. Calcd. for C₂₅H₂₆Br₂N₂O₂: C, 54.96; H, 4.80; N, 5.13. Found: C, 54.82; H, 4.63; N, 4.97.

Synthesis of target compounds 14: compound 13 (1 mmol), 16 ml mixtures of methanol and water (v/v = 1:1), and sodium hydroxide (5 mmol, 0.2 g) were successively added into a 25-ml round-bottom flask. The mixture was stirred and reacted at refluxing temperature for 2 h. After that, the reaction solution was cooled to room temperature, quenched with 20 ml water, acidified with 2 M HCl to pH = 3, and extracted with ethyl acetate for three times (3 × 25 ml). Then, the typical purification process as aforementioned was performed to obtain the target compounds 14 in 88%–93% yields.

2.21 3,3-Di(1H-indol-3-yl)propanoic acid (14a)

As a pale-yellow solid in 92% yield, m.p. 176.7–177.6°C. ¹H NMR (600 MHz, DMSO): d 12.11 (s, 1H), 10.83 (s, 2H), 7.53 (d, J = 7.9 Hz, 2H), 7.35 (d, J = 8.1 Hz, 2H), 7.30 (s, 2H), 7.04 (t, J = 7.5 Hz, 2H), 6.91 (t, J = 7.4 Hz, 2H), 4.96 (s, 1H), 3.18 (d, J = 7.6 Hz, 2H); ¹³C NMR (150 MHz, DMSO): δ 173.60, 136.57, 126.45, 122.14, 120.86, 119.03, 118.17, 117.77, 111.48, 40.73, 30.57; IR (KBr, cm⁻¹): 3417, 3342, 3059, 2903, 1694, 1618, 1444, 1337, 1287, 1229, 1096, 947, 739; EI-MS m/z: 304.01 (M⁺, 11.27), 117.01(100); Elem. Anal. Calcd. for C₁₉H₁₆N₂O₂: C, 74.98; H, 5.30; N, 9.20. Found: C, 75.25; H, 5.19; N, 9.26.

2.22 3,3-Bis(5-bromo-1H-indol-3-yl)propanoic acid (14b)

As a rufous solid in 93% yield, m.p. 131.8–132.7°C. ¹H NMR (600 MHz, DMSO): δ 12.11 (s, 1H), 11.08 (s, 2H), 7.59 (s, 2H), 7.41 (s, 2H), 7.30 (d, J = 8.5 Hz, 2H), 7.13 (d, J = 8.5 Hz, 2H), 4.85 (t, J = 7.6 Hz, 1H), 3.11 (d, J = 7.6 Hz, 2H); ¹³C NMR (150 MHz, DMSO): δ 173.26, 135.22, 128.07, 124.01, 123.35, 121.08, 117.07, 113.51, 110.87, 40.34, 30.22; IR (KBr, cm⁻¹): 3749, 3427, 3069, 2961, 1710, 1278, 1212, 1154, 1096, 947, 880, 789; EI-MS m/z: 461.88 (M⁺, 7.52), 194.90(100); Elem. Anal. Calcd. for C₁₉H₁₄Br₂N₂O₂: C, 49.38; H, 3.05; N, 6.06. Found: C, 49.53; H, 3.15; N, 6.32.

2.23 3,3-Bis(1-methyl-1H-indol-3-yl)propanoic acid (14c)

As a white solid in 93% yield, m.p. 196.7–197.7°C. ¹H NMR (600 MHz, DMSO): δ 11.25 (s, 1H), 6.67 (d, J = 7.9 Hz, 2H), 6.47 (d, J = 8.1 Hz, 2H), 6.36 (s, 2H), 6.23 (t, J = 7.5 Hz, 2H), 6.08 (t, J = 7.4 Hz, 2H), 4.07 (t, J = 7.5 Hz, 1H), 2.82 (s, 6H), 2.25 (d, J = 7.6 Hz, 2H); ¹³C NMR (150 MHz, DMSO): δ 173.37, 136.86, 126.67, 126.49, 121.00, 119.08, 118.32, 117.03, 109.61, 40.83, 32.31, 30.12; IR (KBr, cm⁻¹): 3749, 3052, 2920, 1710, 1618, 1545, 1477, 1419, 1328, 1079, 947, 748; EI-MS m/z: 332.17 (M⁺, 18.97), 273.15(100); Elem. Anal. Calcd. for C₂₁H₂₀N₂O₂: C, 75.88; H, 6.06; N, 8.43. Found: C, 75.63; H, 6.12; N, 8.37.

2.24 3,3-Bis(1-ethyl-1H-indol-3-yl)propanoic acid (14d)

As a white solid in 89% yield, m.p. 185.9–186.7°C. ¹H NMR (600 MHz, DMSO): d 12.05 (s, 1H), 7.49 (d, J = 8.0 Hz, 2H), 7.36 (d, J = 8.2 Hz, 2H), 7.30 (s, 2H), 7.05 (t, J = 7.5 Hz, 2H), 6.90 (t, J = 7.5 Hz, 2H), 4.88 (t, J = 7.7 Hz, 1H), 4.12 (q, J = 7.2 Hz, 4H), 3.09 (d, J = 7.7 Hz, 2H), 1.30 (t, J = 7.2 Hz, 6H); ¹³C NMR (150 MHz, DMSO): d 173.29, 135.83, 126.77, 124.85, 120.82, 119.17, 118.17, 117.01, 109.59, 40.69, 40.08, 30.26, 15.47; IR (KBr, cm⁻¹): 3053, 2978, 2879, 2563, 1701, 1610, 1552, 1461, 1346, 1305, 1222, 1146, 947, 748; EI-MS m/z: 360.06 (M⁺, 11.92), 301.06(100); Elem. Anal. Calcd. for C₂₃H₂₄N₂O₂: C, 76.64; H, 6.71; N, 7.77. Found: C, 76.89; H, 6.96; N, 7.64.

2.25 3,3-Bis(5-bromo-1-methyl-1H-indol-3-yl)propanoic acid (14e)

As a white solid in 88% yield, m.p. 212.8–213.9°C. ¹H NMR (600 MHz, DMSO): δ 12.15 (s, 1H), 7.66 (s, 2H), 7.32 (d, J = 8.6 Hz, 4H), 7.20 (d, J = 8.6 Hz, 2H), 4.85 (t, J = 7.6 Hz, 1H), 3.71 (s, 6H), 3.06 (d, J = 7.7 Hz, 2H); ¹³C NMR (150 MHz, DMSO): δ 173.08, 135.55, 128.26, 128.23, 123.53, 121.16, 116.44, 111.86, 111.24, 40.66, 32.56, 29.65; IR (KBr, cm⁻¹): 3749, 2921, 1710, 1618, 1544, 1477, 1427, 1303, 1146, 1046, 938, 855, 789; EI-MS m/z: 490.01 (M⁺, 8.92), 211.01(100); Elem. Anal. Calcd. for C₂₁H₁₈Br₂N₂O₂: C, 51.45; H, 3.70; N, 5.71. Found: C, 51.65; H, 3.83; N, 5.93.

2.26 3,3-Bis(5-bromo-1-ethyl-1H-indol-3-yl)propanoic acid (14f)

As a white solid in 93% yield, m.p. 191.2–192.0°C. ¹H NMR (600 MHz, DMSO): δ 12.12 (s, 1H), 7.57 (s, 2H), 7.45 (s, 2H), 7.38 (d, J = 8.7 Hz, 2H), 7.16 (d, J = 8.7 Hz, 2H), 4.81 (t, J = 7.7 Hz, 1H), 4.14 (q, J = 7.1 Hz, 4H), 3.07 (d, J = 7.6 Hz, 2H), 1.30 (t, J = 7.1 Hz, 6H); ¹³C NMR (150 MHz, DMSO): δ 173.09, 134.60, 128.37, 126.75, 123.33, 121.36, 116.33, 111.83, 111.01, 54.95, 40.35, 39.92, 39.78, 39.64, 39.50, 39.36, 39.22, 39.08, 30.02, 15.49; IR (KBr, cm⁻¹): 3749, 2978, 2869, 1708, 1610, 1544, 1461, 1295, 1205, 1046, 930, 855, 788; EI-MS m/z: 518.06 (M⁺, 12.42), 459.04(100); Elem. Anal. Calcd. for C₂₃H₂₂Br₂N₂O₂: C, 53.30; H, 4.28; N, 5.41. Found: C, 53.57; H, 4.48; N, 5.53.

2.27 Herbicidal activity test

Herbicidal activities of the synthesized target compounds were evaluated by the typical Petri dish method (Cao et al., 2017). Seeds of barnyard grass (E. crus-galli) and rape (B. napus) were obtained from the Bioassay Testing and Safety Assessment Center in the Zhejiang Research Institute of Chemical Industry. Each compound (2 mg) was dissolved in 100 μL DMF and emulsified with a drop of Tween-80, and the solution was diluted with water to a concentration of 1000 mg/L and named concentrate solution, parts of which were further diluted to a gradient of 100, 10, and 1 mg/L for use. The solutions of commercial herbicide 2,4-D were also made as the positive control, and water was used as a blank control. The seeds were soaked in warm water (25 °C) for 15 h before use. The test solutions of 9 ml were added to Petri dishes (9 cm diameter) lined with two layers of filter paper on which ten seeds of each of the two model plants were placed. The growth culture was performed in an incubator with a humidity of 75% at 25 °C. The first three days were under complete darkness, followed by the alternating 12/12 diurnal cycle of light (10 Klux) and dark for another five days. Each treatment was repeated three times, and the average inhibition of shoots and roots is calculated according to the following equation:

$IR= \frac{{\overline{l}}_1-{\overline{l}}_2}{{\overline{l}}_1} \times 100\%,$

where ${\overline{l}}_1$ is the average length of root/shoot of the blank control treatment and ${\overline{l}}_2$ is the average length of root/shoot of the test compound. Data of root and shoot inhibitory rates were subjected to one-way ANOVA, and means were compared by the least significant difference test (p < 0.05).

2.28 Molecular docking

The crystal structure of TIR1 (PDB code 2P1Q) was downloaded from the Protein Data Bank. The three-dimensional structures of the corresponding active molecule of target compounds 9a, 9c, 10d, 10h, 14a and 14d were generated with the sketch module of SYBYL version 2.0. The docking results were visualized using PyMOL version 1.3 software.

3 Results and discussion

For the synthesis of target compounds 9 and 10, the active hydrogen of NH and COOH groups in indole-3-acetic acid should be protected first by esterification and amidation for ease of its disturbance to the subsequent nucleophilic substitution. For the amidation reaction between indole-3-acetic acid and methyl chloroformate, 30% NaOH aqueous combined with phase transfer catalyst benzyl triethylammonium chloride (TEBAC) is a more suitable base than NaH, resulting in 80% product yield. The base used in the α-substitution reaction of intermediate 3 with alkyl bromide, larger steric-hindrance lithium diisopropylamide (LDA), is superior to n-butyllithium because LDA is a poor nucleophilic capacity organic strong base that only interacts with hydrogen proton. Generally, diindolylmethane compounds are synthesized by the reaction of indoles with aldehydes catalyzed by Lewis acid catalyst. In this work, ethyl 3,3-di(1H-indol-3-yl)propanoate compounds 12a and 12b were efficiently and conveniently synthesized by a “one-pot” reaction between 3, 3-diethoxypropionate and indoles catalyzed by KHSO₄ and acetic acid.

The herbicidal activities of these target compounds were evaluated by the typical Petri dish method. As shown in Table 1, most of the synthesized target compounds exhibited different levels of inhibition effects on roots and shoots of both dicotyledonous rape (B. napus) and monocotyledonous barnyard grass (E. crus-galli), and they also had a higher inhibition effect on the root than the shoot for dicotyledonous rape (B. napus) while it was reversed for monocotyledonous barnyard grass (E. cruss-galli). At 100 mg/L concentration, compounds 10b–10d, 10f, 10h, 13b, 14a, and 14c inhibited the root growth of B. napus by 93%–97%, and compounds 10d and 10h still exhibited 92% and 93% inhibitory rates to the root of B. napus at 10 mg/L concentration, respectively. The physiological and biochemical responses of these compounds are in line with the auxinic herbicides, and their inhibitory activities are comparable to positive control 2,4-D. The inhibitory rates to the shoot of barnyard grass (E. cruss-galli) range from 60% to 89% while that of rape (B. napus) were dramatically decreased to 0%–64% for compounds 9a–9c, 10e, 10g-10i, 13b–13d, and 14d–14e at 100 mg/L concentration. Compounds 9b, 10a, and 13a inhibited the shoot elongation of barnyard grass (E. cruss-galli) by 17%–68% at all test concentrations but completely lost influence on the growth of shoot of rape (B. napus), which showed good selectivity to monocotyledonous barnyard grass (E. cruss-galli). Compounds 9c, 10e, 10g, 10i, and 14d also selectively inhibited the shoot elongation of barnyard grass (E. cruss-galli) by 25%–63% at 10 mg/L but 0% to rape (B. napus).

TABLE 1

TABLE 1. Results of Petri dish herbicidal activity test of indole-3-carboxylic acid derivatives.

Structure–activity relationship analysis revealed that longer alkyl chain of α-alkyl indole-3-acetic acid has no benefit to the inhibitory activity to the root and shoot of barnyard grass (E. cruss-galli) (compounds 9a vs. 9c) while the alkyl chain length of α-phenyloxyalkyl indole-3-acetic acid has no obvious effect on the inhibitory rates of the both model plants except for compounds 10a and 10c. The number and electronic effect of substituents on the phenyl ring exhibited certain influence on the inhibitory rates, which can be verified from the 4-F, 4-NO₂, or 3-CF₃ group substituted compounds 10a and 10c–10e. Comparing the inhibition rates of diindole compounds 12a–12b, 13a–13d, and 14a–14f, it can be seen that the herbicidal activities, especially to dicotyledonous rape (B. napus) of a hydrogen atom at fifth position on the indole ring, are generally higher than that of a bromo atom at the fifth position on the indole ring. Furthermore, ethyl group rather than methyl substituted N-H of indole of most of the compounds 12–14 led to the increase in inhibitory rates. Whether carboxylic acid or carboxylic ester form is more beneficial to their herbicidal activities is depended on the actual structures of diindoles. For example, the inhibitory rates of diindolepropionic acid compounds 14a–14c are higher than that of diindolepropionic ester compounds 12a–12b and 13a, whereas, it is reversed for compounds 13b–13d versus 14d-14f.

To further investigate the interactions between active small molecules and the target enzyme of herbicides, TIR1 (PDB code 2P1Q) and compounds 9a, 9c, 10d, 10h, 14a, and 14d were selected as target enzymes and ligands, respectively, for molecular docking experiments. As shown in Figure 5, the binding modes of all compounds and TIR1 receptor are basically similar to that of IAA, in which the hydrogen bonds between indole carboxyl group with Arg403 and Ser438 amide groups can be found. Additionally, there is a hydrogen bond interaction between nitrogen atom on indole ring of compounds 9a and 10h with the oxygen atom on the main chain of Leu439, which is disappeared when a longer train octyl group or an indole ring replaced the butyl or phenyloxyalkyl group, respectively. This difference in the binding modes is in line with the corresponding herbicidal activity results which are shown in Table 1. The hydrophobic interactions between the terminal long chain of the compounds 10d and 10h and Phe380 and Phe82 of TIR1 would contribute significantly to the high affinity of these compounds to TIR1. Furthermore, the tight π–π stacking between the phenyl ring of indole-3-carboxylic acid derivatives and Phe82 of TIR1 demonstrates that the phenyl ring at the end of the α chain facilitates the binding of the compounds to the TIR1 receptor.

FIGURE 5

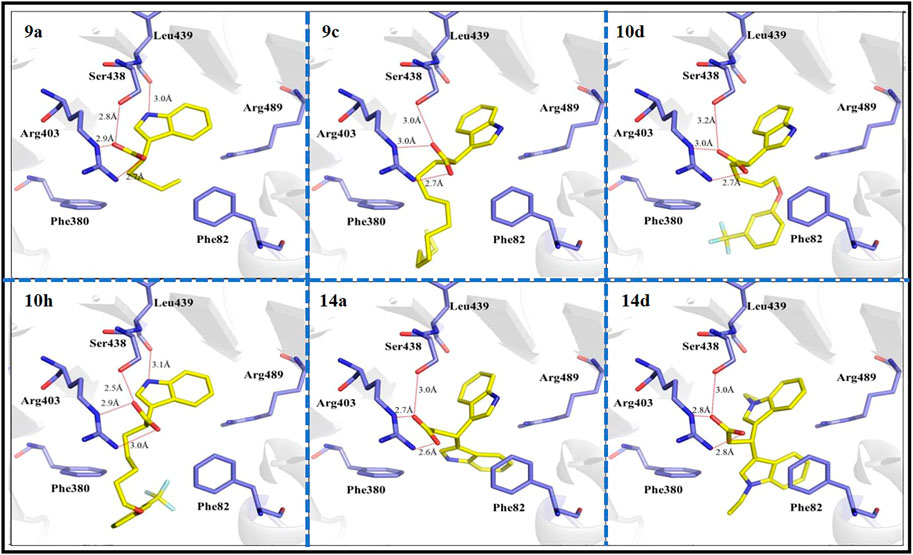

FIGURE 5. Binding modes of compounds 9a, 9c, 10d, 10h, 14a, and 14d with TIR1 (PDB code 2P1Q) at the active site. The key residues of active sites were represented by blue sticks, and the target compounds are represented by yellow sticks. The oxygen atoms are shown in red, the nitrogen atoms are shown in blue, and the fluorine atoms are shown in light green.

4 Conclusion

In summary, a series of novel indole-3-carboxylic acid derivatives were rationally designed and synthesized in moderate to excellent yields (54–93%). Petri dish herbicidal activity assay indicates that most of the synthetic compounds showed good to excellent herbicidal activities (60–97% inhibitory rates), especially to dicotyledonous rape (B. napus) at 100 mg/L. Compounds 10b–10d, 10f, 10h, 13b, 14a, and 14c showed remarkable inhibitory activities in dicotyledonous rape (B. napus) with inhibition rates of 93%–97% at 100 mg/L, among which compounds 10d and 10h still exhibited 92% and 93% inhibitory rates to the root of B. napus at 10 mg/L, respectively. Compounds 9b, 10a, and 13a exhibited good selectivity because they selectively inhibited the elongation of shoot of barnyard grass (E. cruss-galli) and are ineffective to that of rape (B. napus). Structure–activity relationship analysis indicates that the length of alkyl group and electronic effect have certain influence on the inhibitory activities toward the model plants. Molecular docking results revealed that these synthesized compounds formed tight π–π stacking, hydrogen bond, and hydrophobic interactions with TIR1 protein in the active site. This research provided a supplementary idea and new molecular skeletons for the development of highly effective TIR1 antagonists for herbicide innovation.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding authors.

Author contributions

XW and A-DZ designed the project. XW, Y-XW, and A-DZ wrote the manuscript. XW, M-JL, YK, and X-PL performed the synthesis of the designed target compounds. XW, M-JL, and J-XM conducted the characterization of the designed target compounds. XW, M-JL, W-QH, and J-XM performed the herbicidal activity test of the target compounds. XW and YK conducted the molecular docking of the selected target compounds. All authors have given approval to the final version of the manuscript.

Funding

This work was financially supported by the National Natural Science Foundation of China (Grant No. 32101228), Public Welfare Technology and Application Research Project supported by the Science and Technology Department of Zhejiang Province (No. GN21B020001), and Zhejiang A & F University Scientific Research and Development Fund Project (No. 2017FR036).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2022.975267/full#supplementary-material
