Lin Zhang
Zhen Cui- 1School of Science, Xi’an University of Technology, Xi’an, China
- 2School of Automation and Information Engineering, Xi’an University of Technology, Xi’an, China
Monolayer blue phosphorene (BlueP) systems were investigated under biaxial strain range from −10% to +10%. All these systems exhibit excellent stability, accompanying changes in the electronic and optical properties. BlueP becomes metallic at −10% strain and transforms into a direct semiconductor at 10% strain while maintaining indirect semiconductor behaviors at −8% to +8% strain. The bandgap of BlueP decreases linearly with strain, and tensile strain exhibits a more moderate bandgap modulation than compressive strain. The real part of the dielectric function of BlueP is enhanced under compressive strain, while the optical absorption in the visible and the infrared light regions increases significantly under tensile strain. The maximum absorption coefficient of 0.52 ×105/cm occurs at 530 nm with the 10% strain. Our analysis indicates that the semiconductor–metal transition and the indirect–direct bandgap transition are the competition results of the energy states near the Fermi level under a massive strain. The potent compressive strain leads the py orbitals of the conduction band to move downward and pass through the Fermi level at the K point. The robust tensile strain guides the energy states at the Γ point to approach the Fermi level and become the band edges. Our results suggest that the energy storage capacity of BlueP can be significantly improved by compressive strain, while the visible light photocatalytic performance is enhanced by tensile strains of less than 8%. Our works provide a reference for the practical applications of BlueP in photocatalyst, photovoltaic cells, and electronic devices.
Introduction
The miniaturization requirement of optoelectronic devices accelerated the exploration of multifunctional two-dimensional (2D) materials (Mélinon et al., 2007; Youngblood et al., 2015; Zhang and Cui, 2022a). 2D materials and structures, such as single-atom crystal (Du et al., 2016; Yu et al., 2016; Cui et al., 2021a), group-IV compounds (Peng et al., 2013; Sun et al., 2021; Zhang and Cui, 2022b), transition metal compounds (Cui et al., 2021b; Cui et al., 2021c), and van der Waals heterostructures (Memaran et al., 2015; Wang et al., 2018a), have been investigated by first-principles calculations. The results show that the flexible structure, adjustable bandgap, and excellent compatibility with traditional silicon-based devices make these 2D materials qualified not only as catalysts (Sun and Schwingenschlögl, 2020a; Luo et al., 2021; Liu et al., 2022), spintronics (Yuan et al., 2018; Li et al., 2021), nanomechanics (Sun and Schwingenschlögl, 2020b), energy conversion (Pospischil et al., 2014), and gas-sensing devices (Kooti et al., 2019; Sun et al., 2019), but also as optoelectronic devices (Sun et al., 2017a; Ghojavand et al., 2020; Liu et al., 2020; Cui et al., 2022).
As the allotrope of layered black phosphorus (BlackP) materials, blue phosphorene (BlueP) with a puckered honeycomb structure shares the high stability and carrier mobility with BlackP (Zhu and Tománek, 2014; Sun et al., 2019). The ∼2 eV bandgap makes BlueP more suitable than BlackP as a high-performance field effect transistor channel material (Liu et al., 2014). To achieve more applications, a series of bandgap modulation methods have been carried out by employing electric field (Ghosh et al., 2015), stacking effects (Mogulkoc et al., 2016; Pontes et al., 2018), doping (Sun et al., 2015; Zhang et al., 2017), functionalization (Zhu et al., 2016; Yang et al., 2017), and forming heterostructures with other materials (Sun et al., 2017b; Kaewmaraya et al., 2018; Mogulkoc et al., 2018). The absorption spectrum of BlueP-based devices has spanned from the ultraviolet to the infrared light (Sun et al., 2020). Recently, the convenience of synthesis and exfoliation (Gu et al., 2017; Zeng et al., 2017) further accelerates the practical applications in lithium-ion batteries (Bao et al., 2018; Li et al., 2018), photocatalysts (Wang et al., 2018b; Wang et al., 2018c; Ju et al., 2018; Gao et al., 2019), and gas sensors (Montes and Schwingenschlögl, 2017; Safari et al., 2018).
During the fabrication of monolayer nanostructures, the inevitable stress and strain influence the actual bandgap of 2D materials. However, it has been demonstrated as an effective and low-cost method to fulfill the continuous control of bandgap by employing elastic strain (Feng et al., 2012; Çakır et al., 2014; Peng et al., 2020; Kilic and Lee, 2021; Lou et al., 2021). To the best of our knowledge, the strain effects on the bandgap, electronic, and optical properties have seldom been discussed in BlueP. In this work, the properties of BlueP systems were studied under strain ranging from −10% to +10%. It is shown that the bandgap of BlueP decreases linearly with the strain. Compared with the compressive strain, the tensile strain exhibits a more moderate bandgap adjustment and strong absorption in the visible light region. BlueP shows the fascinating photocatalytic and photovoltaic properties under 8% tensile strains, while the energy storage capacity of BlueP is enormously improved under compressive strains. The semiconductor–metal transition and the indirect–direct bandgap transition occur at the −10% and the 10% strain, respectively. These transitions are attributed to the competition of the energy states nearby the Fermi level under a massive strain. Our works provide a theoretical reference for the actual applications of BlueP in photocatalyst, photovoltaics, and electronics.
Computational Details
All our calculations are performed by the Vienna ab initio simulation package (Kresse and Furthmüller, 1996a). Generalized gradient approximation of the Perdew–Burke–Ernzerhof function analyzes the parameterized exchange–correlation interaction (Kresse and Furthmüller, 1996b; Kresse and Joubert, 1999). High computational accuracy is guaranteed by a 550-eV cut-off energy of plane-waves basis. An 11 × 11×1 Monkhorst–Pack k-point mesh is constructed. A vacuum layer of 20 Å height was employed to eliminate the influence of interlayers (Perdew et al., 1996). To ensure the system is tested at the steadiest state, the Hellmann–Feynman force on each atom and the total energy change are required to converge to 0.01 eV/Å and 10−5 eV/atom, respectively. Local field effects and frequency-dependent dielectric response theory are considered to obtain the optical properties in the random-phase approximation (RPA) (Hybertsen and Louie, 1986; Heyd et al., 2003; Grimme et al., 2010). The data processing is performed by VASPKIT (Wang et al., 2021).
Results and Discussion
The puckered honeycomb structure of the relaxed monolayer BlueP is depicted in Figure 1A, where half of the atoms are squeezed out of the plane formed by the others. The vertical distance between the upper and lower atoms is 1.24 Å. Each BlueP is connected with three adjacent BlueP by covalence bands and forms a P–P bond angle of 92.7°. The lattice constants a1 and a2 are 3.20 Å, similar to the reported values (Ju et al., 2018; Sun et al., 2020). The indirect bandgap monolayer of BlueP is 1.87 eV. The conduction band minimum (CBM) is primarily contributed by the pz and py orbitals, while the valence band maximum (VBM) by the pz and px orbitals, as illustrated in Figure 1B.

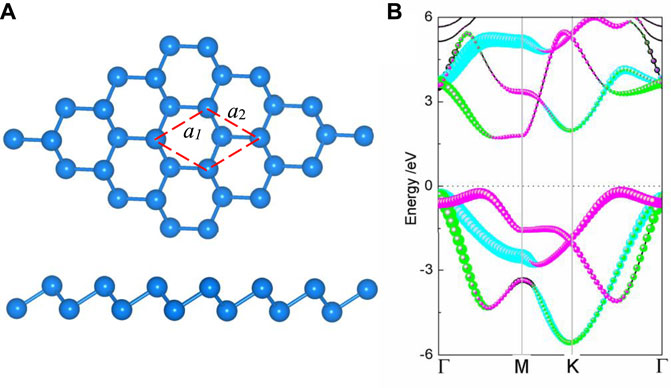

FIGURE 1. (A) Top and side views of crystal structure and (B) projected band structure of BlueP. The blue, green, and peach dot lines represent the energy levels contributed by the px, py, and pz orbitals, respectively. The energy of the Fermi level is set to zero.
The strain on BlueP is calculated by the value of (a–a1)/a1, where a1 and a are the lattice constants of the structures before and after strain, respectively. Tensile strain is positive, while compressive strain is negative. The physical and chemical properties of BlueP are investigated under the biaxial strains ranging from −10% to 10%. Our results show that BlueP presents excellent stability under strain.
The energy structure of the strained BlueP exhibits a significant strain dependence, as shown in Figure 2. As the compressive strain increases, the py orbitals of the conduction band move downward and pass through the Fermi level at the K point under the −10% strain, causing the semiconductor–metal transition. Compared with the apparent movement of the py orbitals in the conduction band, compressive strain has fewer effects on the py and px orbitals in the valence band.
FIGURE 2. The projected band structures of BlueP under elastic strain (A) −10%, (B) −8%, (C) −6%, (D) −4%, (E) −2%, (F) 2%, (G) 4%, (H) 6%, (I) 8%, and (J) 10% (the blue, green, and peach dot lines denote the contributions of px, py, and pz orbitals, respectively).
On the tensile conditions, the energy states of pz orbitals at the Γ point approach the Fermi level with strain and become the CBM and VBM gradually. At the 10% strain, BlueP experiences the indirect–direct semiconductor transition. The bandgap of BlueP decreases linearly with the strain for either tensile or compressive strain, as shown in Figure 3. Compared with the compressive strain, the tensile strain makes a more moderate bandgap modulation, which is crucial for the accurate bandgap control.
FIGURE 3. Relationship between the bandgap and the strain on monolayer BlueP.
The absorption spectrum from the ultraviolet to visible light is essential in optical and renewable energy systems. Dielectric function is introduced to investigate the electrical and optical properties of BlueP (Toll, 1956; Ehrenreich and Cohen, 1959)
where ω represents the angular frequency of the electromagnetic wave, and complex dielectric function ε reflects the electric polarizability capacity of the material. ε1(ω) and ε2(ω) are the real part and the imaginary part of the ε, respectively. ε1(ω) describes the ability to store energy, while the ε2(ω) represents the loss.
The absorption coefficient is calculated by the following expression:
Our results show that the dielectric constant ε1 is highly dependent on strain, as depicted in Figure 4. ε1 (0) is 2.04 for the relaxed BlueP; it varies from 1.98 to 2.32 for the strained BlueP. Compressive strain exhibits more influence on ε1 (0) than the tensile strain. On the one hand, ε1 (0) decreases with the increase of tensile strain, saturating to 1.98 under the 6% strain. On the other hand, ε1 (0) exhibits an increasing tendency with compressive strain, achieving the maximum of 2.32 at −10% strain.
FIGURE 4. The real part of the dielectric function of BlueP with different strains.
The peak of ε1(ω) decreases with the tensile strain, accompanying a gentle red-shift. However, the peak increases with compressive strains and blueshifts. The larger the compressive strain is, the higher the peak of ε1(ω), and the greater the blueshift. At the −10% strain, ε1(ω) has a positive maximum of 7.0 at 5.84 eV and a negative maximum of −4.0 at 8.22 eV. This dramatic increment of ε1(ω) indicates that compressive strain can enhance the energy storage capacity of BlueP.
In addition, the absorption spectra of BlueP were compared with the solar spectrum (NREL), as shown in Figure 5. It is shown that the absorption spectrum of the relaxed BlueP spans from the ultraviolet to the green-light region. The absorption of the ultraviolet light is relatively strong, while it is weak in the visible light region, which indicates that the relaxed BlueP is not an excellent visible light photovoltaic material (Sun et al., 2020). The absorption spectrum of BlueP blueshifts under compressive strains, while the absorption of the visible light decreases. It suggests that compressive strain does not improve the absorption ability of BlueP.
FIGURE 5. The optical absorption spectra of BlueP under different strains.
On the tensile strain side, the absorption spectrum of BlueP redshifts, accompanying a significant increase of absorption of the visible and the infrared lights. The larger the tensile strain is, the greater the peak of the absorption coefficient, and the greater the red-shift are. At the 10% strain, the absorption coefficient achieves the maximum of 0.52 ×105/cm at 530 nm wavelength. BlueP presents preeminent optical properties, which is critical in the photocatalyst and photovoltaic cells.
The photocatalytic performance of BlueP was further discussed. As we know, excellent water-splitting photocatalysts put forward requirements for the bandgap and the band edges of materials (Bao et al., 2018; Gao et al., 2019; Kilic and Lee, 2021): a bandgap larger than the energy requirement for water splitting, a CBM higher than the reduction potential energy (H+/H2), and a VBM lower than the oxidation potential energy (O2/H2O). Additionally, a higher absorption of the solar spectrum is also crucial.
The band edge positions of BlueP concerning the vacuum level are illustrated in Figure 6. The potentials of the reduction and the oxidation at the acidic environment pH = 0 are marked. It can be seen that the bandgap of BlueP satisfies the water-splitting reaction requirement under strain from −4% to 8%. The reduction (H+/H2) can be improved under the strain range of −8% to 8%, while the oxidation (O2/H2O) promoted under the strains between −2% and 8%. Considering the weaker optical absorption under compressive strain, BlueP exhibits an excellent photocatalytic performance under the tensile strains of less than 8%. What should be pointed out is that BlueP is a single-atom material. The photocatalytic property of BlueP will be weakened by the increasing recombination rate of electrons and holes because the accumulation of electrons and holes is on the same BlueP surface (Qu and Duan, 2013; Ju et al., 2018; Ren et al., 2020). However, this problem can be overcome by forming BlueP-based heterostructures with other materials, where electrons and holes accumulate on different material surfaces (Dheivanayagam et al., 2016; Zhou et al., 2016; Zhang et al., 2021).

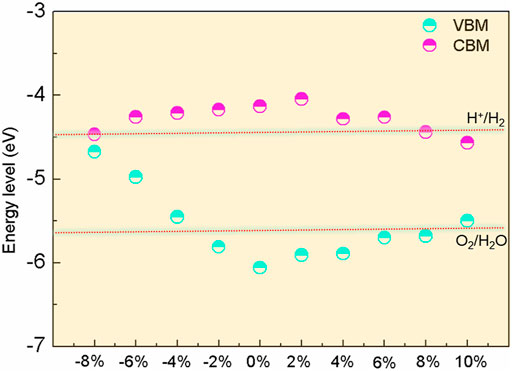

FIGURE 6. The band edge positions of BlueP with different strains against the redox potential of the water splitting.
Conclusion
In this work, the optical and electronic properties of monolayer BlueP systems under biaxial strain were investigated. All systems exhibit excellent stability under the biaxial strain of −10% to +10%. The bandgap of BlueP decreases with strain, while the tensile strain makes a more moderate bandgap modulation. BlueP remains the behavior of indirect semiconductor under the strains of −8% to +8%, while a metal changes at the −10% strain and becomes a direct semiconductor at the 10% strain. Although exhibiting a weaker absorption in the relaxed state, the visible light absorption of BlueP significantly increases under tensile strain, accompanying an apparent red-shift. The larger the tensile strain is, the greater the peak of the absorption coefficient, and the larger the red-shift is. The absorption coefficient has a maximum of 0.52 ×105/cm at 530 nm under the 10% strain. BlueP exhibits an excellent photocatalytic property under the tensile strain of less than 8%. The increasing ε1 indicates that the energy storage capacity of BlueP can be enhanced by compressive strain. Our analysis indicates that the semiconductor–metal transition and the indirect–direct bandgap transition are the competition results of the energy states nearby the Fermi level under massive strains. The intense compressive strain causes the significant decrease of the py orbitals of the CBM at the K points, while the potent tensile strain guides the energy states at the Γ point to approach the Fermi level and becomes the band edges gradually. This study provides references for BlueP applications in photocatalyst, photovoltaics, and electronics.
Data Availability Statement
The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding author.
Author Contributions
LZ: conceptualization, methodology, and writing—review and editing. ZC: supervision and writing—review and editing.
Funding
This work was supported by the National Natural Science Foundation of China (No. 11904285).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Bao, J., Zhu, L., Wang, H., Han, S., Jin, Y., Zhao, G., et al. (2018). Hexagonal Boron Nitride/blue Phosphorene Heterostructure as a Promising Anode Material for Li/Na-Ion Batteries. J. Phys. Chem. C 122, 23329–23335. doi:10.1021/acs.jpcc.8b07062
Çakır, D., Sahin, H., and Peeters, F. M. (2014). Tuning of the Electronic and Optical Properties of Single-Layer Black Phosphorus by Strain. Phys. Rev. B 90, 205421. doi:10.1103/PhysRevB.90.205421
Cui, Z., Luo, Y., Yu, J., and Xu, Y. (2021). Tuning the Electronic Properties of MoSi2N4 by Molecular Doping: A First Principles Investigation. Phys. E Low-dimensional Syst. Nanostructures 134, 114873. doi:10.1016/j.physe.2021.114873
Cui, Z., Lyu, N., Ding, Y., Bai, K., and Bai, K. F. (2021). Noncovalently Functionalization of Janus MoSSe Monolayer with Organic Molecules. Phys. E Low-dimensional Syst. Nanostructures 127, 114503. doi:10.1016/j.physe.2020.114503
Cui, Z., Wang, M., Lyu, N., Zhang, S., Ding, Y., and Bai, K. (2021). Electronic, Magnetism and Optical Properties of Transition Metals Adsorbed Puckered Arsenene. Superlattices Microstruct. 152, 106852. doi:10.1016/j.spmi.2021.106852
Cui, Z., Zhang, S., Wang, L., and Yang, K. (2022). Optoelectronic and Magnetic Properties of Transition Metals Adsorbed Pd2Se3 Monolayer. Micro Nanostructures 167, 207260. doi:10.1016/j.micrna.2022.207260
Dheivanayagam, V., Linghu, J., Zhang, C., Feng, Y. P., and Shen, L. (2016). Heterostructures of Phosphorene and Transition Metal Dichalcogenides for Excitonic Solar Cells: A First-Principles Study. Appl. Phys. Lett. 108, 122105. doi:10.1063/1.4944642
Du, Y., Maassen, J., Wu, W., Luo, Z., Xu, X., and Ye, P. D. (2016). Auxetic Black Phosphorus: A 2D Material with Negative Poisson's Ratio. Nano Lett. 16, 6701–6708. doi:10.1021/acs.nanolett.6b03607
Ehrenreich, H., and Cohen, M. H. (1959). Self-consistent Field Approach to the Many-Electron Problem. Phys. Rev. 115, 786–790. doi:10.1103/physrev.115.786
Feng, J., Qian, X., Huang, C.-W., and Li, J. (2012). Strain-engineered Artificial Atom as a Broad-Spectrum Solar Energy Funnel. Nat. Phot. 6, 866–872. doi:10.1038/nphoton.2012.285
Gao, X., Shen, Y., Ma, Y., Wu, S., and Zhou, Z. (2019). A water splitting photocatalysis: blue phosphorus/g-GeC van der Waals heterostructure. Appl. Phys. Lett. 114, 093902. doi:10.1063/1.5082883
Ghojavand, A., Hashemifar, S. J., Tarighi Ahmadpour, M., Shapeev, A. V., Alhaji, A., and Hassanzada, Q. (2020). Ab Initio analysis of Structural and Electronic Properties and Excitonic Optical Responses of Eight Ge-Based 2D Materials. J. Appl. Phys. 127, 214301. doi:10.1063/5.0008824
Ghosh, B., Nahas, S., Bhowmick, S., and Agarwal, A. (2015). Electric Field Induced Gap Modification in Ultrathin Blue Phosphorus. Phys. Rev. B 91, 115433. doi:10.1103/physrevb.91.115433
Grimme, S., Antony, J., Ehrlich, S., and Krieg, H. (2010). A Consistent and Accurate Ab Initio Parametrization of Density Functional Dispersion Correction (DFT-D) for the 94 Elements H-Pu. J. Chem. Phys. 132, 154104. doi:10.1063/1.3382344
Gu, C., Zhao, S., Zhang, J. L., Sun, S., Yuan, K., Hu, Z., et al. (2017). Growth of Quasi-Free-Standing Single-Layer Blue Phosphorus on Tellurium Monolayer Functionalized Au(111). ACS Nano 11, 4943–4949. doi:10.1021/acsnano.7b01575
Heyd, J., Scuseria, G. E., and Ernzerhof, M. (2003). Hybrid Functionals Based on a Screened Coulomb Potential. J. Chem. Phys. 118, 8207–8215. doi:10.1063/1.1564060
Hybertsen, M. S., and Louie, S. G. (1986). Electron Correlation in Semiconductors and Insulators: Band Gaps and Quasiparticle Energies. Phys. Rev. B 34, 5390–5413. doi:10.1103/physrevb.34.5390
Ju, L., Dai, Y., Wei, W., Liang, Y., and Huang, B. (2018). Potential of One-Dimensional Blue Phosphorene Nanotubes as a Water Splitting Photocatalyst. J. Mat. Chem. A 6, 21087–21097. doi:10.1039/c8ta08469f
Kaewmaraya, T., Srepusharawoot, P., Hussian, T., and Amornkitbamrung, V. (2018). Electronic Properties of h -BCN-Blue Phosphorene van der Waals Heterostructures. Chem. Phys. Chem. 19, 612–618. doi:10.1002/cphc.201701150
Kilic, M. E., and Lee, K.-R. (2021). Auxetic, Flexible, and Strain-Tunable Two-Dimensional Th-AlN for Photocatalytic Visible Light Water Splitting with Anisotropic High Carrier Mobility. J. Mat. Chem. C 9, 4971–4977. doi:10.1039/d1tc00467k
Kooti, M., Keshtkar, S., Askarieh, M., and Rashidi, A. (2019). Progress toward a Novel Methane Gas Sensor Based on SnO2 Nanorods-Nanoporous Graphene Hybrid. Sensors Actuators B Chem. 281, 96–106. doi:10.1016/j.snb.2018.10.032
Kresse, G., and Furthmüller, J. (1996). Efficiency of Ab-Initio Total Energy Calculations for Metals and Semiconductors Using a Plane-Wave Basis Set. Comput. Mater. Sci. 6, 15–50. doi:10.1016/0927-0256(96)00008-0
Kresse, G., and Furthmüller, J. (1996). Efficient Iterative Schemes Forab Initiototal-Energy Calculations Using a Plane-Wave Basis Set. Phys. Rev. B 54, 11169–11186. doi:10.1103/physrevb.54.11169
Kresse, G., and Joubert, D. (1999). From Ultrasoft Pseudopotentials to the Projector Augmented-Wave Method. Phys. Rev. B 59, 1758–1775. doi:10.1103/physrevb.59.1758
Li, D., Li, S., Zhong, C., and He, J. (2021). Tuning Magnetism at the Two-Dimensional Limit: a Theoretical Perspective. Nanoscale 13, 19812–19827. doi:10.1039/d1nr06835k
Li, Q., Yang, J., and Zhang, L. (2018). Theoretical Prediction of Blue Phosphorene/borophene Heterostructure as a Promising Anode Material for Lithium-Ion Batteries. J. Phys. Chem. C 122, 18294–18303. doi:10.1021/acs.jpcc.8b05076
Liu, H., Neal, A. T., Zhu, Z., Luo, Z., Xu, X., Tománek, D., et al. (2014). Phosphorene: an Unexplored 2D Semiconductor with a High Hole Mobility. ACS Nano 8, 4033–4041. doi:10.1021/nn501226z
Liu, X., Gao, Z., Wang, V., Luo, Z., Lv, B., Ding, Z., et al. (2020). Extrapolated Defect Transition Level in Two-Dimensional Materials: the Case of Charged Native Point Defects in Monolayer Hexagonal Boron Nitride. ACS Appl. Mat. Interfaces 12, 17055–17061. doi:10.1021/acsami.9b23431
Liu, X., Zhang, Y., Wang, W., Chen, Y., Xiao, W., Liu, T., et al. (2022). Transition Metal and N Doping on AlP Monolayers for Bifunctional Oxygen Electrocatalysts: Density Functional Theory Study Assisted by Machine Learning Description. ACS Appl. Mat. Interfaces 14, 1249–1259. doi:10.1021/acsami.1c22309
Lou, J., Ren, K., Huang, Z., Huo, W., Zhu, Z., and Yu, J. (2021). Electronic and Optical Properties of Two-Dimensional Heterostructures Based on Janus XSSe (X = Mo, W) and Mg(OH)2: a First Principles Investigation. RSC Adv. 11, 29576–29584. doi:10.1039/d1ra05521f
Luo, Y., Ren, C., Xu, Y., Yu, J., Wang, S., and Sun, M. (2021). A First Principles Investigation on the Structural, Mechanical, Electronic, and Catalytic Properties of Biphenylene. Sci. Rep. 11, 19008. doi:10.1038/s41598-021-98261-9
Mélinon, P., Masenelli, B., Tournus, F., and Perez, A. (2007). Playing with Carbon and Silicon at the Nanoscale. Nat. Mater 6, 479–490. doi:10.1038/nmat1914
Memaran, S., Pradhan, N. R., Lu, Z., Rhodes, D., Ludwig, J., Zhou, Q., et al. (2015). Pronounced Photovoltaic Response from Multilayered Transition-Metal Dichalcogenides PN-Junctions. Nano Lett. 15, 7532–7538. doi:10.1021/acs.nanolett.5b03265
Mogulkoc, Y., Modarresi, M., Mogulkoc, A., and Alkan, B. (2018). Electronic and Optical Properties of Boron Phosphide/blue Phosphorus Heterostructures. Phys. Chem. Chem. Phys. 20, 12053–12060. doi:10.1039/c8cp00994e
Mogulkoc, Y., Modarresi, M., Mogulkoc, A., and Ciftci, Y. O. (2016). Electronic and Optical Properties of Bilayer Blue Phosphorus. Comput. Mater. Sci. 124, 23–29. doi:10.1016/j.commatsci.2016.07.015
Montes, E., and Schwingenschlögl, U. (2017). Superior Selectivity and Sensitivity of Blue Phosphorus Nanotubes in Gas Sensing Applications. J. Mat. Chem. C 5, 5365–5371. doi:10.1039/c6tc05094h
NREL The AM 1.5G Spectrum Was Taken from the NREL Website. Available at: http://rredc.nrel.gov/solar/spectra/am1.5 (Accessed January, 2003).
Peng, Q., Liang, C., Ji, W., and De, S. (2013). A First-Principles Study of the Mechanical Properties of G-GeC. Mech. Mater. 64, 135–141. doi:10.1016/j.mechmat.2013.05.009
Peng, X., Wei, Q., and Yang, G. (2020). Enhanced Carrier Mobility in Anisotropic Two-Dimensional Tetrahex-Carbon through Strain Engineering. Carbon 165, 37–44. doi:10.1016/j.carbon.2020.04.022
Perdew, J. P., Burke, K., and Ernzerhof, M. (1996). Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 77, 3865–3868. doi:10.1103/physrevlett.77.3865
Pontes, R. B., Miwa, R. H., da Silva, A. J. R., Fazzio, A., and Padilha, J. E. (2018). Layer-dependent band alignment of few layers of blue phosphorus and their van der Waals heterostructures with graphene. Phys. Rev. B 97, 235419. doi:10.1103/physrevb.97.235419
Pospischil, A., Furchi, M. M., and Mueller, T. (2014). Solar-energy Conversion and Light Emission in an Atomic Monolayer P-N Diode. Nat. Nanotech 9, 257–261. doi:10.1038/nnano.2014.14
Qu, Y., and Duan, X. (2013). Progress, Challenge and Perspective of Heterogeneous Photocatalysts. Chem. Soc. Rev. 42, 2568–2580. doi:10.1039/c2cs35355e
Ren, K., Wang, S., Luo, Y., Chou, J.-P., Yu, J., Tang, W., et al. (2020). High-efficiency photocatalyst for water splitting: a Janus MoSSe/XN (X = Ga, Al) van der Waals heterostructure. J. Phys. D. Appl. Phys. 53, 185504. doi:10.1088/1361-6463/ab71ad
Safari, F., Moradinasab, M., Fathipour, M., and Kosina, H. (2018). Adsorption of the NH3, NO, NO2, CO2, and CO Gas Molecules on Blue Phosphorene: a First-Principles Study. Appl. Surf. Sci. 464, 153–161. doi:10.1016/J.APSUSC.2018.09.048
Sun, M., Chou, J.-P., Ren, Q., Zhao, Y., Yu, J., and Tang, W. (2017a). Tunable Schottky barrier in van der Waals heterostructures of graphene and g-GaN. Appl. Phys. Lett. 110, 173105. doi:10.1063/1.4982690
Sun, M., Chou, J.-P., Yu, J., and Tang, W. (2017b). Electronic Properties of Blue Phosphorene/graphene and Blue Phosphorene/graphene-like Gallium Nitride Heterostructures. Phys. Chem. Chem. Phys. 19, 17324–17330. doi:10.1039/c7cp01852e
Sun, M., and Schwingenschlögl, U. (2020a). B2P6: A Two-Dimensional Anisotropic Janus Material with Potential in Photocatalytic Water Splitting and Metal-Ion Batteries. Chem. Mat. 32, 4795–4800. doi:10.1021/acs.chemmater.0c01536
Sun, M. L., and Schwingenschlögl, U. (2020b). δ-CS: A Direct-Band-Gap Semiconductor Combining Auxeticity, Ferroelasticity, and Potential for High-Efficiency Solar Cells. Phys. Rev. Appl. 14, 044015. doi:10.1103/physrevapplied.14.044015
Sun, M., Luo, Y., Yan, Y., and Schwingenschlögl, U. (2021). Ultrahigh Carrier Mobility in the Two-Dimensional Semiconductors B8Si4, B8Ge4, and B8Sn4. Chem. Mat. 33, 6475–6483. doi:10.1021/acs.chemmater.1c01824
Sun, M., Tang, W., Li, S., Chou, J.-P., Hu, A., and Schwingenschlögl, U. (2020). Molecular Doping of Blue Phosphorene: a First-Principles Investigation. J. Phys. Condens. Matter 32, 055501. doi:10.1088/1361-648x/ab4628
Sun, M., Tang, W., Ren, Q., Wang, S.-k., Yu, J., and Du, Y. (2015). A First-Principles Study of Light Non-metallic Atom Substituted Blue Phosphorene. Appl. Surf. Sci. 356, 110–114. doi:10.1016/j.apsusc.2015.08.009
Sun, S., Hussain, T., Zhang, W., and Karton, A. (2019). Blue Phosphorene Monolayers as Potential Nano Sensors for Volatile Organic Compounds under Point Defects. Appl. Surf. Sci. 486, 52–57. doi:10.1016/j.apsusc.2019.04.223
Toll, J. S. (1956). Causality and the Dispersion Relation: Logical Foundations. Phys. Rev. 104, 1760–1770. doi:10.1103/physrev.104.1760
Wang, B.-J., Li, X.-H., Cai, X.-L., Yu, W.-Y., Zhang, L.-W., Zhao, R.-Q., et al. (2018). Blue Phosphorus/Mg(OH)2 van der Waals Heterostructures as Promising Visible-Light Photocatalysts for Water Splitting. J. Phys. Chem. C 122, 7075–7080. doi:10.1021/acs.jpcc.7b12408
Wang, B.-J., Li, X.-H., Zhao, R., Cai, X.-L., Yu, W.-Y., Li, W.-B., et al. (2018). Electronic structures and enhanced photocatalytic properties of blue phosphorene/BSe van der Waals heterostructures. J. Mat. Chem. A 6, 8923–8929. doi:10.1039/c8ta01019f
Wang, S., Ren, C., Tian, H., Yu, J., and Sun, M. (2018). MoS2/ZnO van der Waals heterostructure as a high-efficiency water splitting photocatalyst: a first-principles study. Phys. Chem. Chem. Phys. 20, 13394–13399. doi:10.1039/c8cp00808f
Wang, V., Xu, N., Liu, J.-C., Tang, G., and Geng, W.-T. (2021). VASPKIT: A User-Friendly Interface Facilitating High-Throughput Computing and Analysis Using VASP Code. Comput. Phys. Commun. 267, 108033. doi:10.1016/j.cpc.2021.108033
Yang, G., Xu, Z., Liu, Z., Jin, S., Zhang, H., and Ding, Z. (2017). Strain- and Fluorination-Induced Quantum Spin Hall Insulators in Blue Phosphorene: A First-Principles Study. J. Phys. Chem. C 121, 12945–12952. doi:10.1021/acs.jpcc.7b03808
Youngblood, N., Chen, C., Koester, S. J., and Li, M. (2015). Waveguide-integrated Black Phosphorus Photodetector with High Responsivity and Low Dark Current. Nat. Phot. 9, 247–252. doi:10.1038/nphoton.2015.23
Yu, Z. G., Zhang, Y.-W., and Yakobson, B. I. (2016). Phosphorene-based Nanogenerator Powered by Cyclic Molecular Doping. Nano Energy 23, 34–39. doi:10.1016/j.nanoen.2016.03.010
Yuan, J., Cai, Y., Shen, L., Xiao, Y., Ren, J.-C., Wang, A., et al. (2018). One-dimensional Thermoelectrics Induced by Rashba Spin-Orbit Coupling in Two-Dimensional BiSb Monolayer. Nano energy 52, 163–170. doi:10.1016/j.nanoen.2018.07.041
Zeng, J., Cui, P., and Zhang, Z. (2017). Half Layer by Half Layer Growth of a Blue Phosphorene Monolayer on a GaN(001) Substrate. Phys. Rev. Lett. 118, 046101. doi:10.1103/PhysRevLett.118.046101
Zhang, L., and Cui, Z. (2022). Electronic, Magnetic, and Optical Performances of Non-metals Doped Silicon Carbide. Front. Chem. 10, 898174. doi:10.3389/fchem.2022.898174
Zhang, L., and Cui, Z. (2022). Theoretical Study on Electronic, Magnetic and Optical Properties of Non-metal Atoms Adsorbed onto Germanium Carbide. Nanomaterials 12, 1712. doi:10.3390/nano12101712
Zhang, L., Huang, L., Yin, T., and Yang, Y. (2021). Strain-Induced Tunable Band Offsets in Blue Phosphorus and WSe2 van der Waals Heterostructure. Crystals 11, 470. doi:10.3390/cryst11050470
Zhang, W. X., Zhao, J. W., He, W. H., Luan, L. J., and He, C. (2017). Enhanced Hydrophilic and Conductive Properties of Blue Phosphorene Doped with Si Atom. Chem. Phys. Lett. 675, 20–26. doi:10.1016/j.cplett.2017.02.078
Zhou, L., Zhang, J., Zhuo, Z., Kou, L., Ma, W., Shao, B., et al. (2016). Novel Excitonic Solar Cells in Phosphorene-TiO2 Heterostructures with Extraordinary Charge Separation Efficiency. J. Phys. Chem. Lett. 7, 1880–1887. doi:10.1021/acs.jpclett.6b00475
Zhu, L., Wang, S.-S., Guan, S., Liu, Y., Zhang, T., Chen, G., et al. (2016). Blue Phosphorene Oxide: Strain-Tunable Quantum Phase Transitions and Novel 2D Emergent Fermions. Nano Lett. 16, 6548–6554. doi:10.1021/acs.nanolett.6b03208
Keywords: strain effect, blue phosphorene, photocatalyst, compressive strain, tensile strain
Citation: Zhang L and Cui Z (2022) Strain Effects on the Electronic and Optical Properties of Blue Phosphorene. Front. Chem. 10:951870. doi: 10.3389/fchem.2022.951870
Received: 24 May 2022; Accepted: 31 May 2022;
Published: 07 July 2022.
Edited by:
Minglei Sun, King Abdullah University of Science and Technology, Saudi ArabiaCopyright © 2022 Zhang and Cui. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Zhen Cui, emN1aUB4YXV0LmVkdS5jbg==
