CeO2 Structure Adjustment by H2O via the Microwave–Ultrasonic Method and Its Application in Imine Catalysis

CeO₂ with fusiform structures were prepared by the combined microwave–ultrasonic method, and their morphologies and surface structure were changed by simply adding different amounts of H₂O (1–5 ml) to the precursor system. The addition of H₂O changed the PVP micelle structure and the surface state, resulting in CeO₂ with a different specific surface area (64–111 m² g⁻¹) and Ce³⁺ defects (16.5%–28.1%). The sample with 2 ml H₂O exhibited a high surface area (111.3 m²∙g⁻¹) and relatively more surface defects (Ce³⁺%: 28.1%), resulting in excellent catalytic activity (4.34 mmol g⁻¹ h⁻¹).

Highlights

1. Fusiform-like CeO₂ was prepared by the combined microwave–ultrasonic method.

2. 1–5 ml H₂O in the precursor can influence the morphology, surface area, and Ce³⁺% of the CeO₂ catalyst.

3. H₂O changed the PVP micelle structure, leading to modulation of the CeO₂ surface state.

4. For imine synthesis, CeO₂ with 2 ml H₂O showed 2-times higher activity than the control without H₂O.

Introduction

Imine compounds are important intermediates for many biological, agricultural, and pharmaceutical compounds, such as alkaloids, membered heterocycles, and nitrogen heterocycles (Martin, 2009; Kaldas et al., 2017); thus, it is of great importance to develop a new synthesis approach for imine. CeO₂ is a new promising catalyst for imine synthesis, which can overcome the problems caused by traditional acid/base catalysts (Tamura and Tomishige, 2015) and bring a lot of advantages, such as mild synthesis conditions and fast separation. Many research studies have focused on CeO₂ application in imine synthesis (Geng et al., 2016; Long et al., 2019a; Long et al., 2019b; Cao et al., 2020; Rizzuti et al., 2020; Tamura and Tomishige, 2020), and it has been reported that CeO₂ morphologies can greatly influence the catalytic activity for imine synthesis (Zhang et al., 2017; Yang et al., 2018; Zhang et al., 2018; Yang et al., 2020a; Yang et al., 2020b), which have a close relationship with the CeO₂ specific surface area and Ce³⁺ defects.

The preparation approach can effectively change the structure of CeO₂, especially using the microwave method. Microwaves can heat the target solution by interacting with the solution molecules; thus, the solution can be heated fast and uniformly, which can effectively improve the product quality (Reddy et al., 2012; Li et al., 2021; Ma et al., 2021). Besides, other energies, such as UV-light and ultrasonic force, can work together with microwaves to achieve a new CeO₂ material structure via the Multifunctional Microwave Synthesis and Extraction Workstation (Yang et al., 2020a). Ultrasonic force is a kind of energy-accumulated mechanical vibration waves with thermal effect, mechanical effect, and cavitation effect (Thompson and Doraiswamy, 2000; Dalas, 2001; Shen, 2009), which can be used to accelerate the reaction rate and improve particle dispersion during material synthesis.

Microwave- or ultrasonic-assisted technology for CeO₂ synthesis has developed very rapidly in recent years (Leonelli and Mason, 2010; Phuruangrat et al., 2017; Zhao et al., 2018; Mousavi-Kamazani and Ashrafi, 2020; Chen et al., 2021; Zhai et al., 2021), and it has been found that different CeO₂ structures were obtained by using different energy inputs with the same solution (Yang et al., 2020a). Applying microwaves and ultrasonic waves together to the same solution can synthesize materials with a novel structure. In this way, the heat and mass can be transferred much better, and a new material structure can be achieved by changing the solution very slightly.

In this work, a series of CeO₂ nanomaterials was synthesized by a combined microwave–ultrasonic method. Different CeO₂ structures can be achieved only by changing the amount of deionized water in the solvent. The obtained CeO₂ exhibited different catalytic activities for imine synthesis, and their structures were further characterized by XRD, IR, SEM, XPS, and BET to figure out the materials’ structure and the reason behind it.

Experimental

Synthesis of CeO₂

All chemicals were provided by Adamas Reagents and used as received. The combined microwave-ultrasonic method was used to synthesis CeO₂, using Ce(NO₃)₃·6H₂O as the starting precursor, PVP as the structure directing agent, and acetic acid (HAC) as the mineralizer. The solvents were formed by ethylene glycol (EG) and DI-H₂O, with a fixed total volume of 35.0 ml. The synthesis procedures were all the same; only the solvent content was changed by using different amounts of H₂O, as shown in Table 1. The typical synthesis procedure was described using CeO₂-H2 as an example. Ce(NO₃)₃·6H₂O (2.17 g) was dissolved into the mixed solvent (33 ml EG + 2 ml DI-H₂O) in a three-neck flask; then PVP (1.00 g) was added, and the resultant solution was stirred for 2 h. Finally, HAC (2.0 ml) was dropwise added, and the solution was further stirred for 15 min. Then the three-neck flask was transferred to a Multifunctional Microwave Synthesis and Extraction Workstation [Uwave-2000 from SINEO Microwave Chemistry Technology (China) Co. Ltd.] using microwave and ultrasonic force as the energy input, as shown in Figure 1A. The heating program is shown in Figure 1B, where the temperature is maintained at 100°C for 5 min and at 180°C for 12 min. After cooling naturally, the solids were centrifuged, washed by ethanol and DI-H₂O four times, and dried in an oven (80°C) overnight. After that, they were calcined at 500°C (2°C/min) for 1 h in air to remove surface organic residues. In the sample name CeO₂-Hx, x is the volume of DI-H₂O added to the solvent.

TABLE 1

TABLE 1. Reagents used for different sample syntheses.

FIGURE 1

FIGURE 1. Sketch of combined microwave–ultrasonic synthesis (A) and heating program (B).

Structure Characterization

The XRD patterns were acquired using a Shimadzu (Japan) D/Max-2500 diffractometer (nickel-filtered CuKα radiation). The morphologies of the CeO₂ samples were observed using a scanning electron microscope (SEM, Hitachi S-8000, Japan) in the secondary electron scattering mode at 5 kV. N₂ adsorption/desorption was measured at 77 K by using a Micromeritics ASAP 2020 instrument, and all samples were degassed at 120°C for at least 5 h before testing. X-ray photoelectron spectra (XPS) were recorded using a Thermo Fisher ESCALAB 250 xi (England) using AlKα radiation (1,486.6 eV).

CeO₂ as Catalyst for Imine Synthesis

Calcined CeO₂ (50 mg) was added to a mixture of benzyl alcohol (10 mmoL) and aniline (20 mmoL). The resulting mixtures were stirred vigorously at 500 rpm at 50°C. After a certain time (at least 2 h), the imine product was analyzed using HPLC (Shimadzu LC-20AT, Japan) equipped with a Hypersil ODS C18 column (5 μm in a size of 4.6 mm × 250 mm), and the mobile phase was methanol: water = 8:2. In order to compare with the other reactions, the reaction rates are given as the amount of imine formation per hour per catalyst mass (mmol h⁻¹ g⁻¹).

Results and Discussions

The x-ray diffraction (XRD) patterns of all samples are shown in Figure 2A. Typical CeO₂ crystalline phases (JCPDF No: 34-0394) appeared for all samples, which were prepared by the combined microwave–ultrasonic method and calcined at 500°C in air for 1 h, similar to the one reported before (Yang et al., 2021), but the crystalline particle sizes were different when calculated by Scherrer equations based on the strongest (111) peak at 28.5°. The crystalline particle size changed in the range of 6.6–10.8 nm, which has a close relationship with the DI-H₂O amount in the solvent. The CeO₂-H0 sample, prepared without extra DI-H₂O, possessed the biggest crystalline particle size of 10.8 nm. By adding extra DI-H₂O to the precursor solution, the crystalline particle size decreased first (1–3 ml DI-H₂O) and then increased again (4–5 ml DI-H₂O). The smallest crystalline particle (6.6 nm) appeared when the extra DI-H₂O was 3 ml (CeO₂-H3).

FIGURE 2

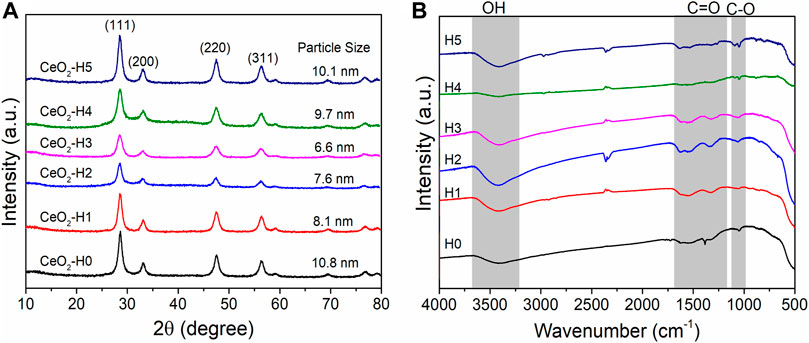

FIGURE 2. XRD (A) and IR (B) spectra of CeO₂ by the combined microwave–ultrasonic method and calcined at 500°C in air for 1 h. The particle sizes in (A) are calculated by Scherrer equations based on the strongest peak at 28.5°.

The groups on the particle surfaces were characterized by FT-IR (Figure 2B). After calcination at 500°C for 1 h, most of the organic groups were removed, and only a small amount of C=O (1,300–1,650 cm⁻¹) and C-O (1,060 cm⁻¹) groups can be observed besides the OH group at c.a. 3,500 cm⁻¹ (Guo et al., 2021), indicating a relatively clean surface. These groups may be caused by the adsorption of CO₂ and H₂O from the air, which can be further confirmed by XPS results in Figure 5.

The DI-H₂O amount in the solvent can influence the morphologies of CeO₂ particles, as shown in Figure 3. When there was no extra H₂O in the solution, the CeO₂-H0 sample (Figure 3A) exhibited an octahedral shape (diameter: 280 nm, length: 460 nm, and aspect ratio: 1.6), formed by aggregation of nanoparticles. The CeO₂-H1 sample (Figure 3B), with 1 ml extra DI-H₂O in the solution, also showed a roughly octahedron structure, much more like a shuttle shape (diameter: 180 nm, length: 380 nm, and aspect ratio: 2), and small particles became more obvious in the aggregate. CeO₂-H2 (Figure 3C) possessed a similar structure to CeO₂-H1; only the diameter became smaller, which was about 140 nm. When increasing H₂O to 3 ml, CeO₂-H3 (Figure 3D) showed a smaller aggregation structure, with a diameter of 80 nm and length of 200 nm (aspect ratio: 2.5). By further increasing H₂O to 4 ml, the size of the aggregate in CeO₂-H4 (Figure 3E) increased again, exhibiting a structure similar to that of samples CeO₂-H1 and CeO₂-H2. Nevertheless, the octahedron/shuttle shape collapsed for CeO₂-H5 (Figure 3F); most were small particles, and only few aggregates can be observed. CeO₂ shuttles were previously synthesized by the hydrothermal method under similar conditions (Guo et al., 2008), but the size (diameter: 800 nm) was much larger than that of the samples in this work.

FIGURE 3

FIGURE 3. SEM morphologies of CeO₂ prepared by the combined microwave–ultrasonic method and calcined at 500°C in air for 1 h. (A) CeO₂-H0, (B) CeO₂-H1, (C) CeO₂-H2, (D) CeO₂-H3, (E) CeO₂-H4, (F) CeO₂-H5.

The N₂ adsorption–desorption isotherm is used to characterize the materials’ surface area, as shown in Figure 4A, and the pore diameter distribution is shown in Figure 4B. According to the IUPAC classification (Sing et al., 1985; Yang et al., 2020c; Zhang et al., 2021), the hysteresis loop of the N₂ adsorption isotherm belonged to type VI, indicating that the materials were mesoporous. The specific surface area of CeO₂-H2 (S_BET: 111.3 m²/g) was similar to that of CeO₂-H1 (S_BET: 111.4 m²/g), larger than the values of other samples, while the minimum S_BET (64.4 m²/g) belonged to CeO₂-H5. Besides the surface area, the H₂O amount also influenced the pore size distribution, as shown in Figure 4B. When there was no additional H₂O added (sample CeO₂-H0), the pore size distribution was relatively narrow, and almost all pore sizes were below 10 nm. When H₂O was added to the system, the pore size distribution became broader, especially for sample CeO₂-H2. This confirmed that adding H₂O can influence the samples’ morphologies. This may be related to the change in the PVP micelle structure. The extra H₂O addition to the synthesis system changed the arrangement of PVP, resulting in the agglomeration alternation in CeO₂ particles, and the shape of CeO₂ became irregular along with H₂O addition, as shown in Figure 3 and illustrated in Figure 6. The agglomeration variations in CeO₂ particles presented a different surface area and pore size distribution.

FIGURE 4

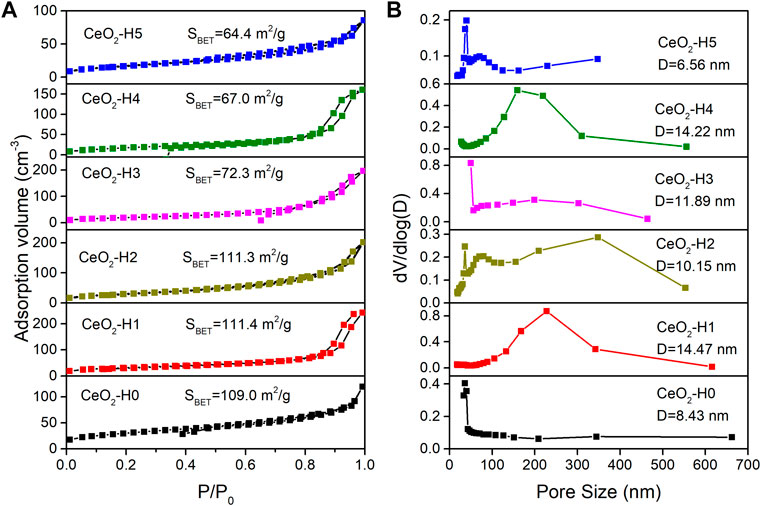

FIGURE 4. N₂ sorption isotherm (A) and pore size distribution (B) of CeO₂ prepared by the combined microwave–ultrasonic method and calcined at 500°C in air for 1 h.

XPS is used to characterize the CeO₂ surface states (Figure 5). Ce³⁺ defects are important and have a close relationship with the catalytic activity of CeO₂. In the Ce3d region (Figure 5A), Ce³⁺ ratios were calculated using the previous method, by fitting the area of Ce³⁺ and Ce⁴⁺ peaks (Zhang et al., 2017; Yang et al., 2018; Yang et al., 2020a). The CeO₂-H0 sample had a Ce³⁺ ratio of 24.2%. The addition of H₂O increased the Ce³⁺ ratio first and then decreased the number of Ce³⁺ defects. The highest Ce³⁺ ratio (32.0%) belonged to the CeO₂-H3 sample, with 3 ml H₂O added to the synthesizing system. CeO₂-H2 possessed a Ce³⁺ ratio of 28.1%, which was the second top of all Ce³⁺ ratios. Besides, the O1s region can be fitted into three peaks: OH*/CO₃²⁻, O₂²⁻, and O²⁻ (Chen et al., 2013). OH*/CO₃²⁻ and O₂²⁻ were normally caused by the organic residuals or the surface impurity caused by CO₂ and H₂O adsorption, and they can block the active sites of CeO₂ (Ferreira et al., 2012; Jiang et al., 2015; Yang et al., 2018). Thus, the higher the O²⁻ ratio is, the cleaner the CeO₂ surface is, indicating more active sites can be exposed. From the O1s region in Figure 5B, it can be seen that the CeO₂-H2 sample possessed the highest O²⁻ ratio (68%), suggesting that it has the cleanest surface, which is beneficial to the catalytic activity. The highest O²⁻ ratio of CeO₂-H2 may be because a suitable amount of H₂O promoted the cleavage of organic residuals, as illustrated in Figure 6. This may compensate the slightly lower Ce³⁺ ratio of the CeO₂-H2 sample, resulting in the highest catalytic activity for imine synthesis, as shown in Figure 7.

FIGURE 5

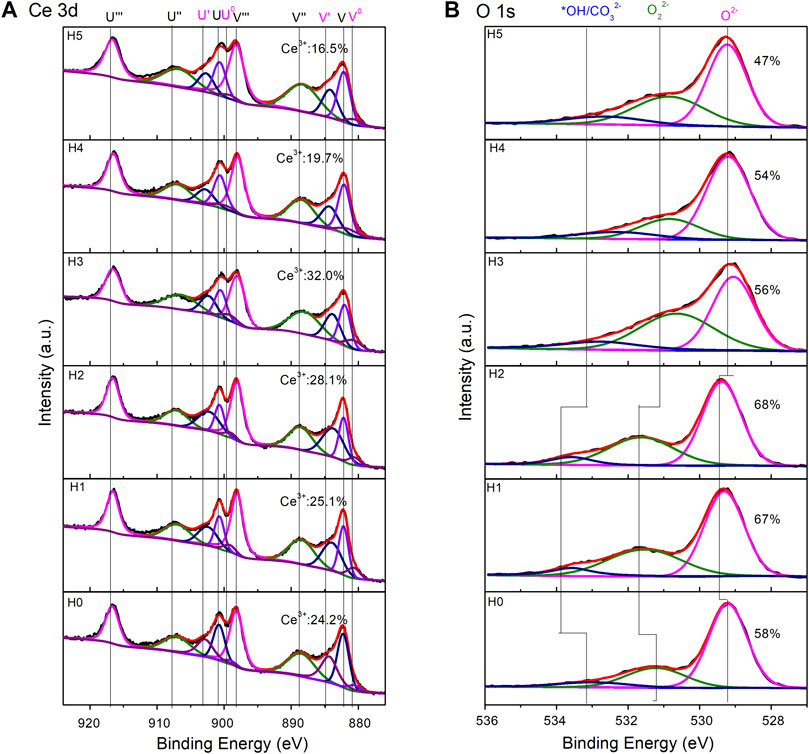

FIGURE 5. XP spectra of CeO₂ by the combined microwave–ultrasonic method and calcined at 500°C in air for 1 h. (A) is the region of Ce 3d, in which V⁰, V′, U⁰, and U′ belong to Ce³⁺. (B) is the region of O 1 s.

FIGURE 6

FIGURE 6. Sketch of the influence of H₂O on the structure of CeO₂. (A) Without H₂O. (B) With H₂O.

FIGURE 7

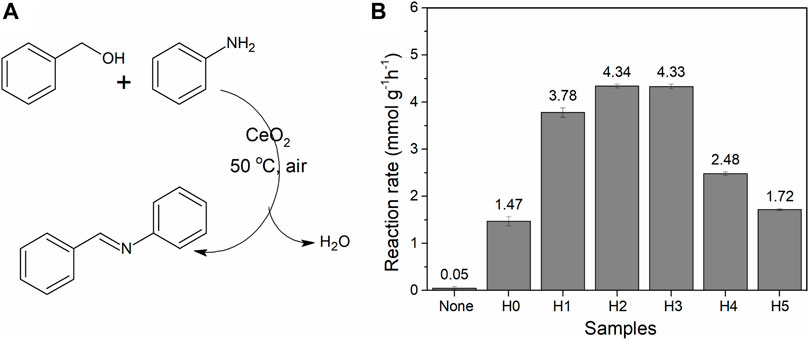

FIGURE 7. (A) Reaction for imine synthesis. (B) Imine conversion of CeO₂ (50 mg) synthesized in different amounts of water (amount of catalyst per hour; all values of conversion are calculated below 20%). The experiment was repeated three times, and the average conversion value was given with an error bar.

From the above-mentioned characterization, the addition of H₂O can change the morphology of CeO₂, which can further alter the specific surface area and the surface Ce³⁺ defects. These changes may be related to the PVP micelle structure change and the CeO₂ surface coordination state induced by H₂O, as sketched in Figure 6. When no H₂O is added to the system, the CeO₂ surface is covered with EG molecules, and the surface is hydrophobic. Thus, the PVP formed a micelle structure, with the hydrophobic ends toward the CeO₂ agglomeration particles. When H₂O is added to the system, it can react with the Ce-precursor, forming a Ce-OH structure; thus, the CeO₂ surface transformed from hydrophobic to hydrophilic, and the PVP formed a micelle structure, with the hydrophilic ends toward to the CeO₂ particles. Besides, Ce-OH can also yield a cleaner surface, and the condensation between -OH can happen to yield oxygen vacancies and H₂O, yielding a higher Ce³⁺ ratio. Meanwhile, H₂O can also be adsorbed onto the CeO₂ surface, which can interact with the microwave and sonic energy much better than EG can, causing more wrinkles on the CeO₂ particles to increase the specific surface area. However, when more than 4 ml of H₂O was added into the system, the PVP micelle structure was destroyed, and no shuttle structure can be observed.

When synthesized CeO₂ was used for imine synthesis, they exhibit different activities (Figure 7). The order of imine conversion is CeO₂-H2 (4.34 mmol g⁻¹ h⁻¹) ≈ CeO₂-H3 (4.33 mmol g⁻¹ h⁻¹) > CeO₂-H1 (3.78 mmol g⁻¹ h⁻¹) > CeO₂-H4 (2.48 mmol g⁻¹ h⁻¹) > CeO₂-H5 (1.72 mmol g⁻¹ h⁻¹) > CeO₂-H0 (1.47 mmol g⁻¹ h⁻¹). The reaction rates of all the samples were far better than the 0.46 mmol g⁻¹ h⁻¹ reported in Angew (Tamura and Tomishige, 2015). It has been reported earlier that CeO₂ can be used as an easily separable catalyst for imine synthesis at low temperature (<100°C) (Zhang et al., 2017; Zhang et al., 2018; Chen et al., 2020; Wu et al., 2021) and oxygen vacancies (Ce³⁺ defects) played an important role during this reaction. The Ce³⁺ vacancies can promote the transition of benzyl alcohol to benzaldehyde, and the latter can easily couple with aniline to form an imine compound (Tamura and Tomishige, 2015; Zhang et al., 2017; Qin et al., 2019). From the above-mentioned results, it can be seen that CeO₂-H2 possessed the largest surface area (111.4 m²/g) and a relatively high Ce³⁺ ratio (28.1%), which contributed to the highest imine reaction rate. CeO₂-H3 exhibited a similar catalytic activity, which may be due to its highest Ce³⁺ ratio (32.0%), but its surface area (72.3 m²/g) is a little bit lower than that of CeO₂-H2. The results confirmed that both surface area and Ce³⁺ ratio are important to the CeO₂ catalytic properties for imine synthesis.

Conclusion

Different sizes of fusiform CeO₂ were synthesized by the combined microwave–ultrasonic method, and H₂O was added to change the structure of CeO₂. By changing the amount of H₂O from 1 to 5 ml, the specific surface area of CeO₂ changed from 111 m²/g to 64 m²/g, while the Ce³⁺ ratio varied in the range of 16.5% and 32.0%. The sample with 2 ml H₂O has the largest surface area (111.4 m²/g) and a relatively high Ce³⁺ ratio (28.1%), indicating that the CeO₂-H2 sample has the largest amount of exposed surface oxygen vacancies, and the imine reaction rate is 4.34 mmol g⁻¹ h⁻¹, which is almost three times the rate (1.47 mmol g⁻¹ h⁻¹) produced by the sample without addition of water.
