Ligand Evolution in the Photoactivatable Platinum(IV) Anticancer Prodrugs

Photoactivatable Pt(IV) anticancer prodrugs with the structure of [Pt^IV(N₁)(N₂)(L₁)(L₂)(A₁)(A₂)], where N₁ and N₂ are non-leaving nitrogen donor ligands, L₁ and L₂ are leaving ligands, and A₁ and A₂ are axial ligands, have attracted increasing attention due to their promising photo-cytotoxicity even to cisplatin-resistant cancer cells. These photochemotherapeutic prodrugs have high dark-stability under physiological conditions, while they can be activated by visible light restrained at the disease areas, as a consequence showing higher spatial and temporal controllability and much more safety than conventional chemotherapy. The coordinated ligands to the Pt center have been proved to be pivotal in determining the function and activity of the photoactivatable Pt(IV) prodrugs. In this review, we will focus on the development of the coordinated ligands in such Pt(IV) prodrugs and discuss the effects of diverse ligands on their photochemistry and photoactivity as well as the future evolution directions of the ligands. We hope this review can help to facilitate the design and development of novel photoactivatable Pt(IV) anticancer prodrugs.

Introduction

Effective prevention, control, and treatment of cancers have been a persistent public health challenge worldwide and a key to the difficulty of achieving substantial increase in life expectancy (Sung et al., 2021). The lack of effective and selective anticancer agents has existed as a health problem for many years. The indispensability of metals in organisms and their inherent properties are significant contributors to the development of metal antitumor complexes (Frezza et al., 2010; Nafees and Guo, 2014; Eszter Boros and Gasser, 2019). Cisplatin (1, Figure 1) is the first metal-based anticancer agent that the FDA approved in the late 1970s for clinical use and is also one of the most widely used anticancer agents (Florea and Busselberg, 2011; Dasari and Tchounwou, 2014; Ghosh, 2019). Later, to improve the shortcomings of cisplatin, such as severe side effects and limited anticancer spectrum, the second- and third-generation platinum drugs carboplatin (2) (Mlcouskova et al., 2012) and oxaliplatin (3) (Misset et al., 2000) were successively developed and entered clinic use (Figure 1). In contrast to cisplatin, the new generation of platinum drugs has better water solubility and lower toxicities. Other platinum drugs are also approved for clinic use in certain country, for example, nedaplatin (4, in Japan in 1995) (Uehara et al., 2011; Shimada et al., 2013), heptaplatin (5, in Korea in 1999), and lobaplatin (6, in China in 2010) (Boulikas and Vougiouka, 2004) (Table 1).

FIGURE 1

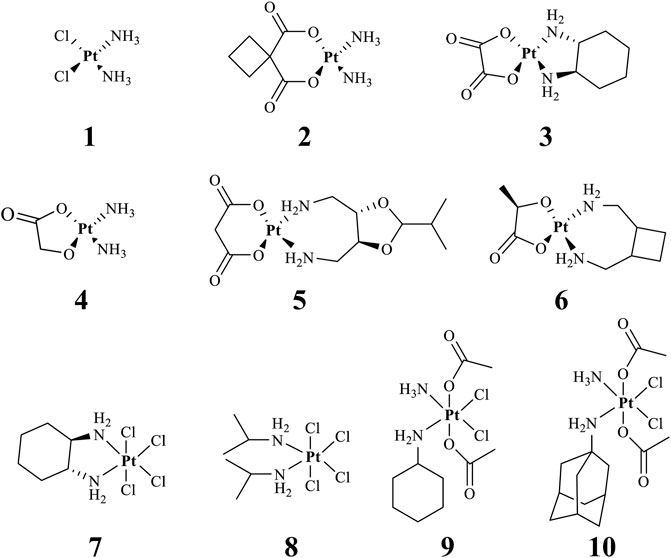

FIGURE 1. Chemical structures of anticancer Pt(Ⅱ) drugs in clinical use (1–6) and Pt(IV) prodrugs entering clinical trials (7–10).

TABLE 1

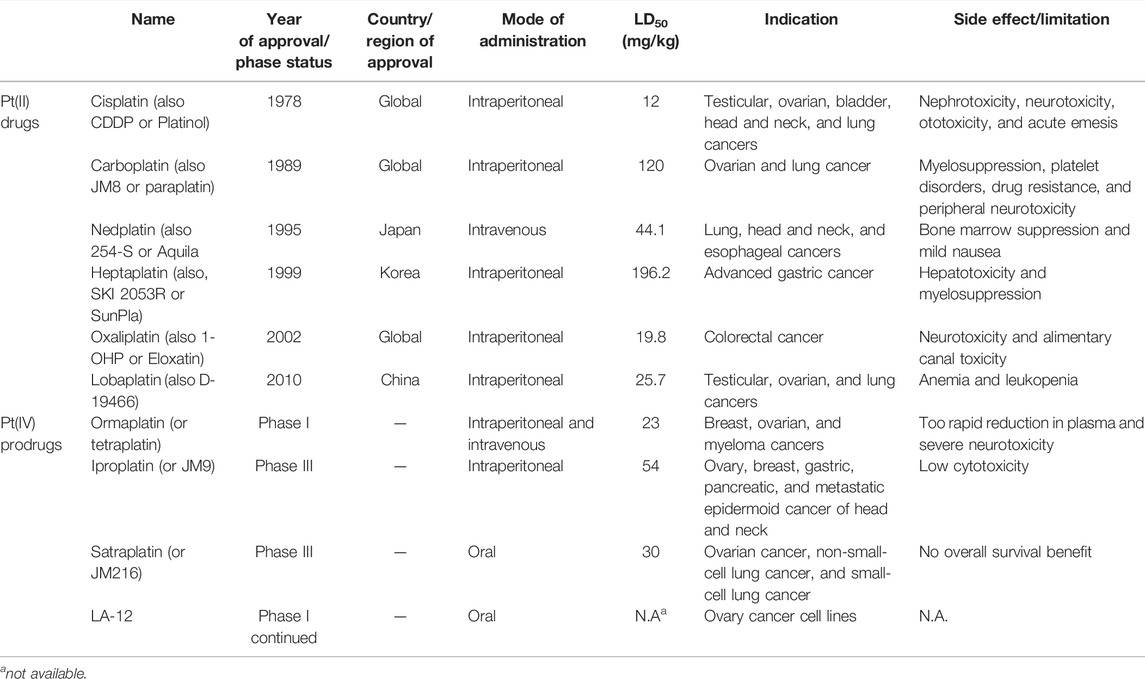

TABLE 1. Clinically approved Pt(II) drugs [adapted from Wheate et al. (2010); Ali et al. (2013); Han et al. (2015); Johnstone et al. (2016); Imran et al. (2018); Ghosh (2019)] and Pt(IV) prodrugs that have entered clinical trials [adapted from Tutsch et al. (1999); Wheate et al. (2010); Imran et al. (2018)].

The exploration of “better” Pt(II)-centered drugs is still ongoing (Zhou et al., 2020; Jin et al., 2021), and novel attractive developing directions are also evoked simultaneously by the emergence of Pt(IV) prodrugs. Unlike Pt(II), Pt(IV) has a six-coordination octahedral conformation and is chemically and pharmacologically more inert. While at the tumor microenvironment or inside the cancer cells with the presence of reducing agents, the inert Pt(IV) can be reduced to Pt(II) species to exert anticancer activities. These reduced unexpected reactions take place with off-target biomolecules before Pt(II) binding to DNA in cell nuclei, thereby minimizing side effects (Zhang S. et al., 2020). Several Pt(IV) complexes (7–10) have entered clinical trials (Figure 1; Table 1) (Bhargava and Vaishampayan, 2009; Kvardova et al., 2010; Sova et al., 2011; Jelinkova et al., 2014), of which complex 9 (satraplatin) as the first oral Pt(IV) prodrug was demonstrated to be very stable under the highly acidic conditions in the stomach and therefore suitable for oral administration to circumvent the disadvantages of intravenous injection. The metabolism and cytotoxicity of complex 9 depend on cellular GSH levels. However, these Pt(IV) prodrugs have not been approved by the FDA because of their inferior comprehensive performance in clinical practice where these prodrugs still showed similar anticancer mechanisms to traditional Pt(II) drugs, for example, first entering cancer cells and then covalently binding to the DNA. Therefore, switching the activation way of Pt(IV) prodrugs from the GSH-dependent one to new ones, for example, photoactivation, has aroused. Photoactivation of prodrugs can achieve spatially and temporally controlled activation, enabling selective action of the drugs in tumor sites. Three photoactivation strategies, photodynamic therapy (PDT), photothermal therapy (PTT), and photoactivated chemotherapy (PACT), have been developed. PDT requires the simultaneous presence of three essential components: 1) a photosensitizer, 2) oxygen, and 3) light. However, tumor masses are often found under hypoxia conditions, limiting application of conventional PDT (Eales et al., 2016). PTT needs photothermal agents for the conversion of the absorbed light into energy; thus, PTT alone is insufficient to eradicate a tumor and requires combination with other strategies for co-treatment (Ng et al., 2018). In contrast, PACT can produce cytotoxic species by light irradiation in a controlled manner under hypoxia conditions, providing the potential to overcome aforementioned restrictions against PDT and PPT (Imberti et al., 2020).

In recent years, a number of excellent reviews on the advances of photoactivated anticancer Pt(IV) prodrugs have been published. They focused on various aspects of this unique family of prodrugs, for instance, synthesis (Wilson and Lippard, 2014; Xu et al., 2021b), phototherapy potency (Gurruchaga-Pereda et al., 2019; Imberti et al., 2020), photoactivation mode and mechanism of action (Dai and Wang, 2020; Xu et al., 2021b), axial substitutions and modifications, and delivery (Johnstone et al., 2016; Kenny and Marmion, 2019; Ravera et al., 2019; Jia et al., 2021) either in general view of Pt-based anticancer complexes (Imran et al., 2018; Ravera et al., 2022) or in a specific view of a subgroup, for example, diazido-type Pt(IV) prodrugs (Shi et al., 2019; Mu et al., 2021). However, few articles have presented a comprehensive summary and review on the evaluation of the coordinated ligands, namely, non-leaving ligands, leaving ligands, and axial ligands (Wilson and Lippard, 2014), in photoactivated anticancer Pt(IV) prodrugs.

Given that the photoactivation nature of the metal-based complexes largely depends on the structure of coordinated ligands to the metal center, in this review, we focus on evaluation of coordination ligands of the photoactivatable Pt(IV) anticancer prodrugs in the type of [Pt^IV(N₁)(N₂)(L₁)(L₂)(A₁)(A₂)], where N₁ and N₂ are non-leaving ligands, L₁ and L₂ are leaving ligands, and A₁ and A₂ are axial ligands (Wilson and Lippard, 2014). The non-leaving ligands are usually nitrogen donor, form thermodynamically stable bonds with the platinum center, and often retain in the final platinated adducts of biological molecules. The leaving ligands are generally lost to activate the reduced Pt(II) species to bind to DNA or proteins. They can alter the overall reaction stoichiometry and kinetics of Pt complexes with biological molecules. The axial ligands present only in Pt(IV) complexes can bring versatile characteristics and functions and are usually tumor-targeting moieties, bioactive molecules, nanomaterials, or specific structures to improve physicochemical properties such as solubility, lipophilicity, cellular targeting, and kinetic profiles of the resulting Pt(IV) complexes. They dissociate fast from the Pt(IV) center upon light irradiation, though there is no guarantee that reduction of Pt(IV) will lead to the specific departure of them from the coordination sphere. We aim to provide a systematic review to discuss the effects of diverse ligands on the photochemistry and photoactivity of the Pt(IV) prodrugs as well as the future evolution directions of the ligands. We hope this review would provide new insights into facilitating further design and synthesis of photoactivatable Pt(IV) anticancer prodrugs.

Leaving Ligand

Leaving ligands play key roles in photoactive Pt(IV) complexes. Halides are often used as leaving ligands due to easy acquirement and appropriate dissociation inside cells, which facilitates the coordination of reduced products, that is, Pt(II) species to biomolecules after light irradiation. In 1996, the advent of the first generation of photoactive platinum ([Pt^IV(X)₂I₂(en)], X = OH (11) or OAc (12), en = ethylenediamine) provided a new approach to the reduction of Pt(IV) anticancer complexes (Kratochwil et al., 1996). The energy required to dissociate the diiodide ligands to reach the LMCT-excited state is provided by visible light. Before this activation strategy by light irradiation was reported, the reduction of Pt(IV) mainly relied on biological reductants, such as ascorbic acid and glutathione (GSH) (Khokhar et al., 1993; Ellis et al., 1995), of which the main disadvantage is the uncontrollability of the reduction of Pt(IV). The IC₅₀ values of trans,cis-[Pt(OH)₂I₂(en)] (11) inhibiting the growth of the human bladder cancer cell line (TCCSUP) were 7.3 ± 1.6 μM under light (λ > 375 nm) irradiation and 9.4 ± 2.2 μM under dark conditions. These values are 11.6 ± 1.7 and 16.5 ± 4.2 µM, respectively, for 12 (Table 2). Although the IC₅₀ values in dark and light irradiation for both complexes are close with each other, the antiproliferative activity of 11 indeed increased subjected to light irradiation (Kratochwil et al., 1996). The photochemical reaction pathway of complexes 11 and 12 was studied and elucidated in the presence of mononucleotide guanosine-5′-monophosphate (5′-GMP) (Kratochwil et al., 1999). It was demonstrated that one of the iodine ligands in both complexes first left under light excitation regardless the axial ligands were hydroxyl groups with low spatial resistance or ester groups with high spatial resistance. However, the dissociated products did not readily bind directly to nucleotides at this point because the complexes were still in the octahedral structure. After further light exposure, another iodine ligand and the pair of hydroxyl or ester ligands dissociated, accompanied with the reduction of Pt(IV) to Pt(II), leading to the formation of bis-GMP Pt(II) adducts (Figure 2A). Similar conclusions were obtained by the Bernhard Lippert group in 2007 for complexes 13 and 14 with chloride as the photolytic leaving ligand (Nakabayashi et al., 2007). Surprisingly, however, in addition to hydrolysis during the photolysis process, an unexpected ligand isomerization occurred in 13 and 14. After one axial chloride and one cis-ligand dissociated, the dissociated ligands appeared to return to coordination with Pt but exchanged position with each other (Figure 2B). Such isomerization reached nearly 50% for 13 after 8 h of light irradiation. Similar ligand isomerization of Pt(IV) complexes have also been observed in [Pt(Cl)₂(NH₃)₂(OH)₂] (Kuroda et al., 1983) and [Pt(NH₃)₄(OH)(SO₄)] (Johnson and Widmer, 1979) but not upon light irradiation. For the former complex, isomerization occurred during recrystallization from water, where the all-trans isomer, trans, trans,trans-[Pt(Cl)₂(NH₃)₂(OH)₂], isomerized into the cis,trans,cis-[Pt(Cl)₂(NH₃)₂(OH)₂] isomer, while for the latter, isomerization took placed in the presence of NaOH (pH 12–13) along with the conversion of trans-[Pt(NH₃)₄(OH)(SO₄)] into cis-[Pt(NH₃)₄(OH)₂]. The mechanism of such isomerization has remained unclear, but the light irradiation cannot be excluded. The catalytic function of traces of Pt(II) may be involved (Kuroda et al., 1983).

TABLE 2

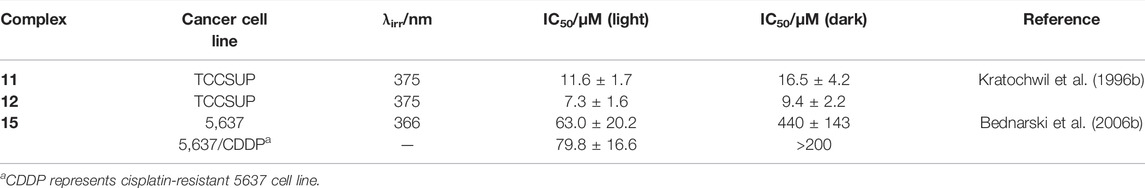

TABLE 2. IC₅₀ values of complexes 11, 12, and 15 toward different cell lines under light irradiation or dark condition.

FIGURE 2

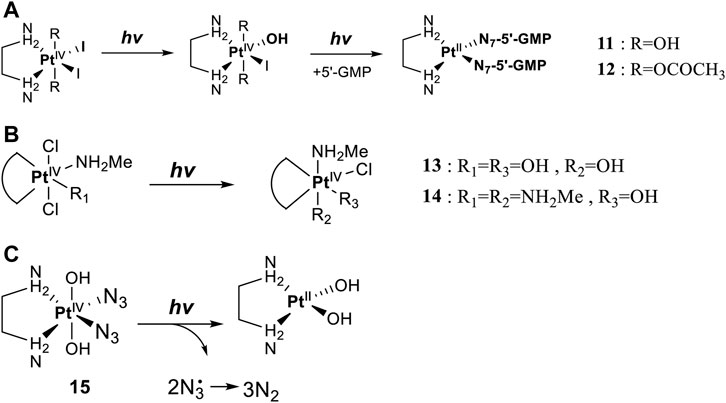

FIGURE 2. (A) Proposed photochemical reaction pathway of 11 and 12 in the presence of 5′-GMP (adapted from Kratochwil et al. (1999)). (B) Proposed photo-induced isomerization mechanism of 13 and 14 (adapted from Nakabayashi et al. (2007)). (C) Photolysis of complex 15 (adapted from Bednarski et al. (2006); Bednarski et al. (2007)).

Although complex 11 and 12 both showed promising anticancer activities, yet no structures of the photolytic products of them have been reported. The only difference between OAc and OH ligands caused totally distinct interactions of 11 and 12 with calf thymus DNA. No covalent binding of Pt to DNA was measurable after 6 h of incubation in dark, but after light irradiation, 63 ± 13% of the Pt in 12 (trans,cis-[Pt(OAc)₂I₂(en)]) was detected to bind to DNA. In contrast, only 10 ± 2% of the Pt in 11 (trans,cis-[Pt(OH)₂I₂(en)]) was found to bind to DNA after 6 h of illumination, while a marked increase in DNA platination took place after addition of GSH (Kratochwil et al., 1996). These comparable results imply that the photoreduction of Pt(IV) to Pt(II) species occurred upon the photoactivation of 12, leading to DNA platination, but for the photolysis of the trans-dihydroxo analog 11, light probably activated only the substitution of the iodide ligands by water rather than a reduction of Pt(IV) to Pt(II) (Kratochwil et al., 1996). This indicated that complex 11 might be not sensitive to light and needed GSH to reduce Pt(IV) to Pt(II), triggering DNA platination.

Bednarski et al. (2007) carried out an electronic absorption spectroscopic study on halogen-substituted cis,trans,cis-[Pt^IV(X)₂(Cl)₂(NH₃)₂] (X = Cl, Br or I) with water as solvent. It was found that from chloride to bromide and iodide, the energy absorbed by ligand-to-metal charge transfer (LMCT) decreased sequentially with the decrease of electronegativity of the ligand. As a consequence, the iodide Pt(IV) prodrug required the lowest energy of light to initiate the photochemical process accompanied with the photochemical reduction of Pt(IV) to Pt(II).

However, although iodine being the leaving ligand of Pt(IV) prodrugs that has been studied for decades, there has not been much progress in the controlled photochemical reduction of the Pt(IV) center (Štarha et al., 2019) because biological reductants such as ascorbic acids and glutathione could reduce the coordinated Pt(IV) to Pt(II) under dark conditions. This consequently leads to an apparent dark cytotoxicity which always is a major problem for clinical application of Pt(IV) prodrugs (Kratochwil and Bednarski, 1999a). On the other hand, using halides as leaving ligands requires short wavelength of light to initiate photolysis, which always means poor tissue penetration. Therefore, halides are not ideal leaving ligands for photoactivated Pt(IV) prodrugs.

To this end, the azide group as a prominent pseudo-halogen was brought into thought (Portius and Davis, 2013). The azide as the leaving group in Pt(IV) prodrugs was first proposed by Vogler et al. (1978b). It was reported that the complex has an (N₃→Pt) CT leap at λ = 302 nm. The photochemical reduction at this wavelength forms two azide radicals; meanwhile, Pt(IV) is reduced to Pt(II) without the formation of Pt(III) species:

${\left[{\text{Pt}}^{\text{IV}}{\left(\text{CN}\right)}_4{\left({\text{N}}_3\right)}_2\right]}^{2-}\to {\left[{\text{Pt}}^{\text{II}}{\left(\text{CN}\right)}_4\right]}^{2-}+2{\text{N}}_3^{•}$

Then, the photoreactions of trans-[Pt^IV(CN)₄(N₃)(X)] and trans-[Pt^IV(CN)₄(X)₂](X = Cl or Br) were comparatively studied by Vogler et al. (1978a). On the one hand, trans-[Pt^IV(CN)₄(X)₂] could be regenerated in aqueous solution due to the stability of the photoreduction product [Pt^II(CN)₄]²⁻ in case the resulting halogen radicals were not scavenged. On the other hand, the presence of the azide group significantly increased the irradiation wavelength of trans-[Pt^IV(CN)₄(N₃)(X)] compared to trans-[Pt(CN)₄(X)₂]. The quantum yield to produce [Pt^II(CN)₄]²⁻ from azide Pt(IV) prodrugs was also promoted, attributable to the instability of the photo-generated azide radicals (Table 3). Collectively, the introduction of azide was apparently beneficial for photoactivation of Pt(IV) prodrugs, though the later studies from the same group showed that the maximum wavelength (305 nm) of LMCT band of the [Pt(N₃)₆] moiety did not change significantly compared to that (300 nm) of [Pt(CN)₄(N₃)₂] (Vogler et al., 1988). Despite no photocytotoxicity study on this kind of cyano Pt(IV) prodrugs was presented at that time, Vogler’s work greatly contributed to the development of the second generation of photoactive azide-based Pt(IV) prodrugs, for example, cis,trans-[Pt(en)(N₃)₂(OH)₂] (15) in 2003 reported by Brabec and Sadler et al. (Figure 2C) (Kašpárková et al., 2003). After light irradiation at 366 nm, the IC₅₀ value (63.0 ± 20.2 μM) of complex 15 toward the human bladder cancer cell line 5637 was nearly 6-fold lower than that in the dark conditions (440 ± 143 μM) (Bednarski et al., 2006). Considering the similar activities of complexes 11 and 12 under light irradiation and dark conditions, the promotion of antiproliferative activity of 15 subjected to light exposure indicates the much higher stability of azide Pt(IV) prodrugs over iodide Pt(IV) prodrugs under dark conditions (Table 2). Moreover, even to the cisplatin-resistant 5637 cells, the photocytotoxicity of complex 15 maintained at a similar level to the sensitive counterpart, showing the higher developing potentials of the azido Pt(IV) prodrugs. In vitro study observed a terminated RNA synthesis on a 212-bp fragment of pSP73 KB DNA by complex 15 after irradiation, and the major stop sites appeared mainly at GG sequences, which were similar to those produced by cisplatin (Kasparkova et al., 2003). Later two-dimensional [¹H,¹⁵N] NMR studies further confirmed such preferential binding sequence context, but the platination rate by complex 15 was shown to be faster than that by cisplatin (Bednarski et al., 2006). Combining with the dramatic effects on the morphology of cancer cells including disintegration of nuclei by complex 15, these results suggest a different mechanism of action of 15 from cisplatin.

TABLE 3

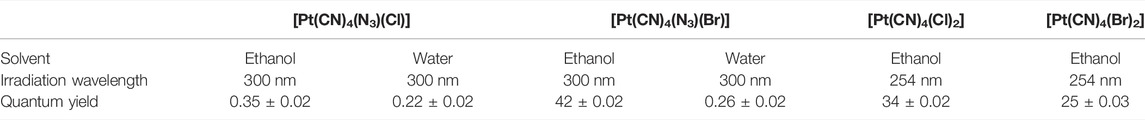

TABLE 3. Quantum yields of the cyano fragment [Pt(CN)₄]²⁻ derived from [Pt(CN)₄(X)(Y)] under light irradiation at various wavelength [adapted from Vogler et al. (1978a)].

Pt(IV) prodrugs with azide as the leaving ligand have become a breakthrough to develop the photoactivatable platinum-based antitumor prodrugs. The leaving azido ligand plays a vital role in the changes in the wavelength of LMCT bands of the resulting complexes as the difference of optical electronegativity between the ligand and the metal center determines the energy of LMCT (Knoll et al., 1990; Imran et al., 2018). The azido Pt(IV) prodrugs have a small LMCT (N₃→Pt) transition energy, making them more readily to be reduced during light exposure, compared to the highly stable halido Pt(IV) complexes. The presence of azido ligand with its strong electron-donating nature also reduces the reactivity of Pt(IV) with biological reductants in dark, making the photolysis of the azide Pt(IV) complexes more controllable than that of the iodide Pt(IV) prodrugs, of which the phototoxicity and dark toxicity to certain cancer cells have no obvious difference (Table 2). It is notable that the halide ligands in the Pt(IV) prodrugs can be oxidized to form stable halogen radicals, and the steric configuration would isomerize during photolysis. Meanwhile, the photolysis of azide Pt(IV) prodrugs generated highly unstable azide radicals or N₂, thus preventing rearrangement of the ligands and increasing the content of the reduced Pt(II) species binding to the DNA target.

Non-Leaving Ligand

Amine is usually used as the non-leaving ligands in both Pt(II) anticancer drugs and Pt(IV) prodrugs. Sadler and co-workers conducted in-depth studies on the relationships between non-leaving ligands and the biological activity of photoactivatable diazido Pt(IV) prodrugs. In 2003, they demonstrated that under UV irradiation (366/355 nm), both complex 16 cis,trans,cis-[Pt^IV(en)(N₃)₂(OH)₂] with a chelating amine ligand and complex 17 cis,trans,cis-[Pt^IV(N₃)₂(OH)₂(NH₃)₂] with non-chelating ammonia ligands (Table 4) had good photocytotoxicity toward both 5637 and cisplatin-resistant 5637 cancer cell lines with 17 achieving lower IC₅₀ values than 16 (Müller et al., 2003). In the dark, no reactions of complexes 16 and 17 with 5′-GMP and d (GpG) in human blood plasma were observed, but a slow reaction of both the complexes with GSH over a period of several weeks was observed. Such promising stability under physiological conditions is very vital as it has been acknowledged as one of the important factors determining the success of photochemotherapeutic agents. 1D ¹H, 2D [¹H,¹⁵N] HSQC, and 2D [¹H,¹⁵N] HSQC-TOCSY NMR spectroscopic results revealed the formation of bis-GMP adducts [Pt(en)(GMP-N7)₂]²⁺ and [Pt(NH₃)₂(GMP-N7)₂]²⁺ when complexes 16 and 17 were individually incubated with 2 mol. equiv. of 5′-GMP subjected to photoactivation. Moreover, crosslinking adducts, [Pt(en){d(GpG)-N7¹,N7²}]²⁺ and [Pt(NH₃)₂{d(GpG)-N7¹,N7²}]²⁺, were also detected when these two complexes individually reacted with 1 mol. equiv. of d (GpG) under irradiation. The formation of these bifunctional GG adducts with 16 or 17 is similar to that with cisplatin, but the rates with the photoactivated 16 and 17 are faster than with cisplatin. However, no oxidation on the bases has been observed in this work (Müller et al., 2003). The reason may be ascribed to the low sensitivity of the NMR technique which could not detect low abundance of base oxidative adducts in these cases.

TABLE 4

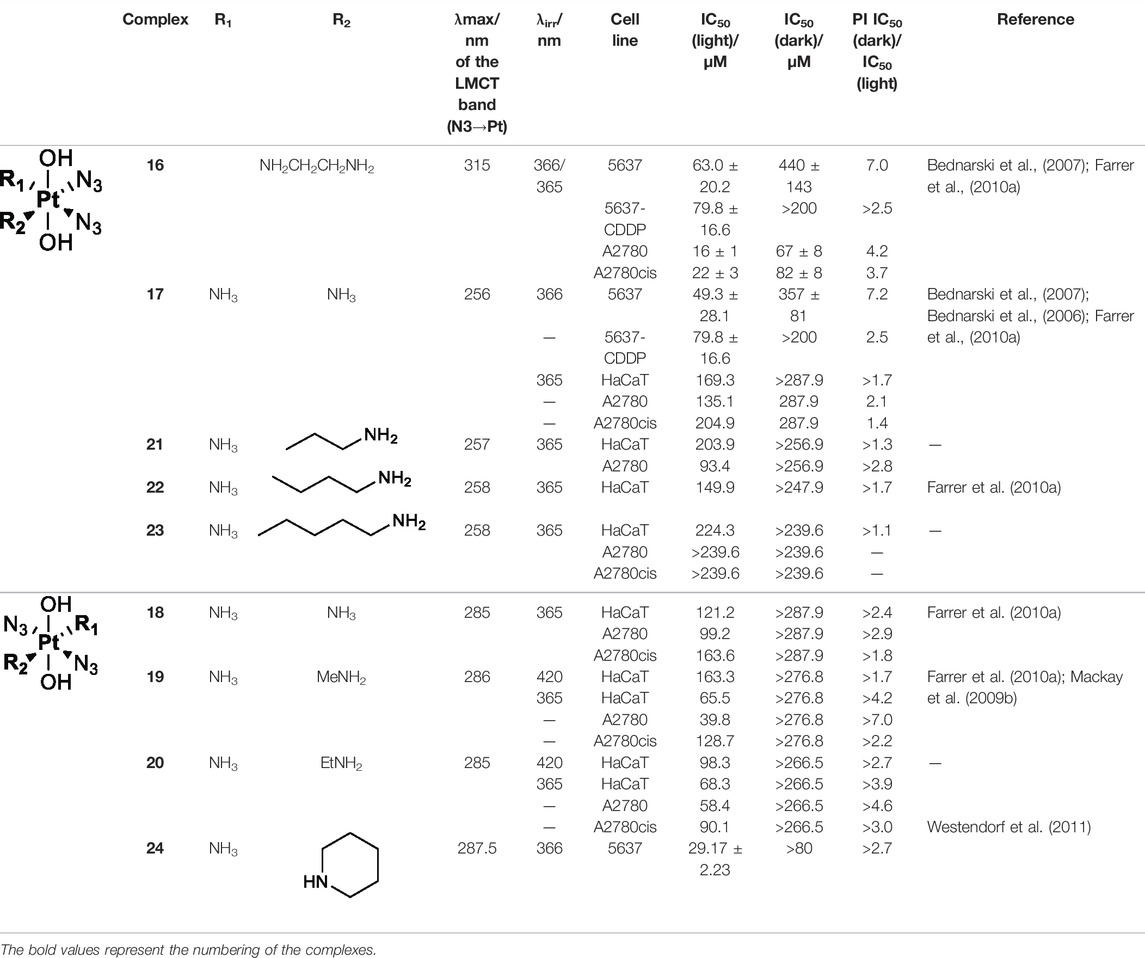

TABLE 4. Chemical structures of complexes 16–24 and IC₅₀ of complexes toward different cancer cell lines.

Further in vitro cellular experiments confirmed that 17 caused more severe damages to cancer cells, evidenced by significant changes in cell morphology in response to light irradiation. However, in contrast to the better activity of cisplatin over transplatin, complex 17 with cis-configuration showed less cytotoxicity than complex 18 with trans-configuration to HaCaT, A2780, and A2780cis cancer cell lines under 365-nm light irradiation (Mackay et al., 2006). This suggests that the trans-isomers are more favorable for this kind of diazido photoactive Pt(IV) prodrugs, though both of the trans- and cis-Pt(IV) showed good dark stability. This was confirmed by further studies on aliphatic amine ligands with different chain lengths. Complexes 19 and 20 prepared by replacing NH₃ with MeNH₂ and EtNH₂ in trans-Pt(IV) complexes exhibited better photocytotoxicity than complex 17 to various cancer cell lines subjected to irradiation of 365 nm light (Mackay et al., 2009a; Farrer et al., 2010a). However, no obvious increasing activity correlated well with the elevated number of carbon chain from NH₃ to MeNH₂ and EtNH₂ in complexes 18, 19, and 20, respectively, when using 365-nm light to irradiate. Similar not-well-correlation result was also observed for cis-Pt(IV) complexes 21, 22, and 23, in which the non-leaving NH₃ ligand was replaced by CH₃(CH₂)₂NH₂, CH₃(CH₂)₃NH₂, and CH₃(CH₂)₄NH₂, respectively, under the same photoactivation condition (Farrer et al., 2010a). While under 420 nm light irradiation, the IC₅₀ values of complex 19 with MeNH₂ as non-leaving ligand to HaCaT cancer cells significantly reduced, compared to that of complex 20 with EtNH₂ as non-leaving ligand. Such correlation between cytotoxicity under different exciting wavelengths and the chain length of aliphatic amines may be due to the potential effects of higher light energy on cancer cells. Moreover, complex 24 prepared by replacing NH₃ with the cyclic amine ligand, piperidine, also showed better activity toward the 5637 cell line (Westendorf et al., 2011). A detailed comparison for the photocytotoxicity of complexes 16–24 is given in Table 4.

The development of diazido Pt(IV) anticancer prodrugs in Sadler’s group achieved a further step by substituting amine with the nitrogen heterocyclic ring, for example, pyridine, thiazole, or imidazole, as the non-leaving ligands in cis- or trans-position (complexes 25–43; Table 5) (Farrer et al., 2010a; Farrer et al., 2010b). Larger arene ligands have several advantages over NH₃ groups: i) the bulkier ring can prevent off-target interactions of the Pt(IV) complexes as well as their photoproducts; ii) they can promote π-stacking and intercalation ability of the Pt(IV) complexes with DNA, favoring the binding to the DNA target; and iii) they can produce a bathochromic shift in the absorption spectrum closing the clinical needs (Gurruchaga-Pereda et al., 2019). Such modification nearly makes all this series of complexes activatable by the visible blue light at 420 nm. In particular, complex 36 can be activated by green light at 465 nm. Under such a low energy irradiation at 465 nm, complex 36 still showed promising cytotoxicity to the A2780 cancer cell line with a IC₅₀ value being 7.1 ± 0.4 μM, while almost no dark cytotoxicity (IC₅₀ in dark >100 μM) and no obvious damage to normal cells (MRC5) were observed (Table 5). Nevertheless, the higher energy irradiation at 365 nm endowed complex 36 higher activity with IC₅₀ value as 1.4 μM to both HaCaT and A2780 cancer cell lines. Meanwhile, high inertness under dark conditions was also confirmed by the PI value (Dark IC₅₀ value/Light IC₅₀ value) over 151. Our research revealed that such promising anticancer activities of the azido Pt(IV) prodrugs are highly correlated with the synergetic effects of the covalent binding of reduced Pt(II) species and the generated reactive oxygen and nitrogen species like hydroxyl radicals, azidyl radicals, and singlet oxygen from their photolysis, to biological molecules. For example, using high resolution mass spectrometry analysis, we demonstrated that complex 36 upon blue light irradiation produced Pt(II) species and highly reactive radicals to covalently bind to and induce oxidation at all the four nucleobases (Zhang J. et al., 2020; Cheng et al., 2020; Liang et al., 2020). The binding preference of complex 36 to the four nucleobases was in the order as: G > A and C > T, which is totally distinct to that of cisplatin. Moreover, guanine, adenine, and cytosine can be di-platinated by 36 to saturate all potential binding sites. The induced oxidation of adenine, cytosine, and thymine bases by 36 was also first reported by us. The representative oxidation adducts were 8-hydroxyl-adenine (8-OH-A), 2,8-diOH-adenine (2,8-diOH-A), and 4,6-diamino-5-formamido-adenine (FapyA) for adenine; 5-hydroxycytosine (5-OH-C), 5,6-dihydroxy-5,6-dihydrocytosine (cytosine glycols, C-Gly), and 6-hydroxyl-5,6-dihydrocytosine (cytosine photohydrate, C-PH) for cytosine; and cis- and trans-diastereomers of 5,6-dihydroxy-5,6-dihydrothymidine (ThdGly), 5-formyl-2′-deoxyuridine (FormdUrd), and 5-hydroxymethyl-2′-deoxyuridine (HMdUrd) for thymine. Meanwhile for guanine, apart from 8-hydroxyguanine (8-OH-G) and N-formylamidoiminohydantoin (RedSp), more oxidation adducts were discovered in our studies, such as dehydroguanidinohydantoin (DGh), spiroiminodihydantoin (Sp), and 2,6-diamino-4-hydroxy-5-formamidopyrimidine (FapyG). The mass spectrometry analysis has high sensitivity, enabling discovery and identification of low abundant and diverse oxidative species of nuclear bases induced by Pt(IV) complexes under light irradiation and benefiting for better understanding in the uncovered dual-action feature of these highly potent photo-antiproliferative Pt(IV) prodrugs. The similar covalent binding and induced oxidation were also found when complex 36 reacted with peptides/proteins such as substance P, [Lys]³-bombesin, and thioredoxin under visible light (Du et al., 2018; Wootton et al., 2018). Interestingly, the reduced Pt(II) species from 36 was found to covalently bind to histidine, glutamic acid, glutamine, and methionine residues, and the oxidation induced by generated ROS was detected on tryptophan additional to methionine and cysteine (Du et al., 2018). These collectively indicate that the introduction of pyridine as non-leaving ligands into photoactivatable Pt(IV) prodrugs significantly enhances its photobiological activities, endowing the resulting complexes’ distinct mechanism of action from conventional Pt(II) anticancer drugs.

TABLE 5

TABLE 5. Chemical structures of complexes 25–43 and IC₅₀ values of complexes toward different cancer cell lines.

Similarly, high photoactivated activities over dark activities (PI values >2) were also observed for most of this series of complexes, indicating that the introduction of nitrogen heterocyclic ligands into Pt(IV) prodrugs as non-leaving ligand leads to significant improvement to dark stability of the Pt(IV) prodrugs, compared to the aliphatic amine Pt(IV) prodrugs. It is expected that the introduction of larger heterocyclic ligands, for example, 2,2′-bipyridine (bpy) in trans,cis-[Pt(bpy)(OAc)₂(N₃)₂] and 1,10-phenanthroline (phen) in trans,cis-[Pt(phen)(OAc)₂(N₃)₂] would reduce the photolysis energy required for Pt(IV) prodrug. Indeed, both of the complexes mentioned before could be activated by a green light at 514 nm (Mackay et al., 2 009b). However, no photocytotoxicity data for them are available. Thus, the bpy and phen complexes are not numbered in this work for further discussion. Kasparkova et al. (2015) designed and synthesized complex 44 based on bipyridine platinum compound (Figure 3), which acts synergistically through two independent mechanisms of action. Under irradiation at 365/420 nm, this complex was activated and acted as both a Pt(II) anticancer drug and histone deacetylase inhibitor, resulting in a better photocytotoxicity against cisplatin-resistant cells (A2780cis) (Nakabayashi et al., 2007).

FIGURE 3

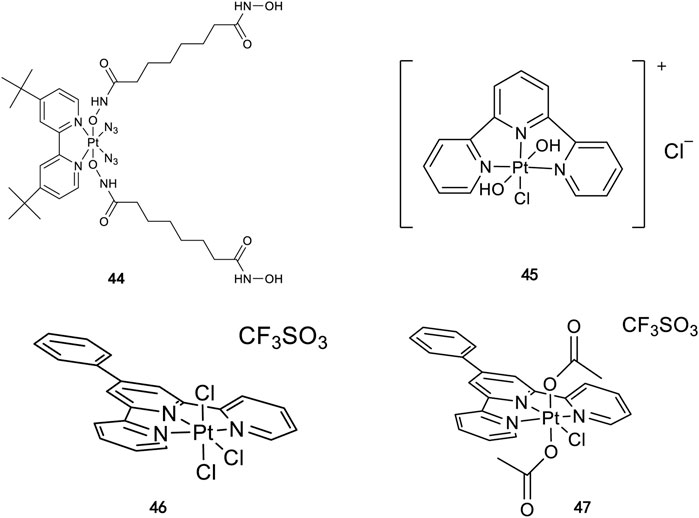

FIGURE 3. Chemical structure of complexes 44–47 [adapted from Kasparkova et al. (2015); Gabano et al. (2017); Canil et al. (2019)].

Following the synthesis of Pt(IV) complexes containing pyridine ligand, terpyridine-based Pt(IV) prodrugs have also been synthesized and reported. For example, Ravera et al. synthesized a terpyridine-based Pt(IV) prodrug, [Pt^(IV)Cl(OH)₂(terpy)]⁺ (45) (Gabano et al., 2017). This complex is likely a precursor or an intermediate linking to nanoporous silica nanoparticles, of which the IC₅₀s against A2780 (7.01 ± 0.56 μM) and sarcomatoid MM98 (10.5 ± 0.1 μM) cell lines are higher than those of cisplatin toward the same cell lines (0.5 ± 0.1 μM and 3.2 ± 1.0 μM, respectively), while its IC₅₀ toward cisplatin-resistant MM98R subline (8.09 ± 0.91 μM) is lower than that of cisplatin (19.4 ± 2.8 μM). However, it was less active than its reduced species [Pt^(II)Cl(terpy)]⁺ and the corresponding silica conjugate (Gabano et al., 2017). Gabbiani et al. also obtained two terpyridine Pt(IV) photocytotoxic anticancer complexes [PtCl₃(4′-phenyl-2,2′:6′,2″-terpyridine)][CF₃SO₃] (46) and [Pt(OCOCH₃)₂Cl(4′-phenyl-2,2′:6′,2″-terpyridine)][CF₃SO₃] (47), by using two different oxidation agents, PhICl₂ and H₂O₂, respectively (Canil et al., 2019). These two complexes are physiologically stable with the latter being more stable even in the presence of large excess of GSH. In line with this is the lower reduction potential of 46 (−0.29) compared to 47 (−0.64), which was also thought to be the main reason for the higher IC₅₀ of 47 toward A2780 and A2780cis ovarian cell lines in the dark. In contrast, complex 47 showed an excellent photocytotoxicity to the two cancer cell lines (15 ± 1 μM for A2780 and 22 ± 1 μM for A2780cis) under irradiation of 365-nm light.

Nakabayashi et al. (2007) also reported three 2,2′-bipyridine (2,2′-bpy)-based Pt^IV complexes, mer-[PtCl₃(2,2′-bpy)(MeNH₂)]ClH₂O, trans-[PtCl₂(2,2′-bpy)(MeNH₂)₂]Cl₂, and trans-[Pt(2,2′-bpy)(MeNH₂)₂(OH)₂]Cl₂(MeNH₂ = methylamine). The former two complexes are not stable in the dark and can undergo hydrolysis of the Cl group, while even under ordinary daylight, photo-induced ligand isomerization occurs with the equatorial methylamine ligand(s) moving into axial positions. Unlike the former two, the latter one was proved to be stable in aqueous solution in the dark and only a trace amount of MeNH₂ release was observed by NMR within a period of several days at room temperature. However, no cytotoxicity data have been obtained. Therefore, these three complexes are not numbered in this work either.

It is notable that the trans-diam(m)ine diazido Pt(IV) complexes, 26, 28, and 30, are more potent than the corresponding cis-isomers, 25, 27, and 29 (Table 5). For example, the IC₅₀ values of cis-complex 25 (Farrer et al., 2010a) toward HaCaT, A2780, and A2780cis cells are nearly 15-fold, 42-fold, and 6-fold higher, respectively, than those of the trans-complex 26 (Mackay et al., 2007) regardless of irradiation at UV or visible light. This again breaks the paradigm of the structure–activity relationship established on the clinical drug cisplatin and the clinical ineffective transplatin, though the photocytotoxicity of all three cis-platinum complexes (25, 27, and 29) was still much higher than cytotoxicity of cisplatin (13- to 80-fold) (Mackay et al., 2009a; Farrer et al., 2010a).

For the trans-complexes, the effect of methyl-substituted pyridine on the activities of Pt(IV) prodrugs was also studied. The complex 30 with meta-methyl-substituted pyridine and complex 31 with para-methyl-substituted pyridine were shown to have higher photocytotoxicity activated at 365 nm than complex 28 with ortho-methyl-substituted pyridine and complex 26 with non-substituted pyridine toward HaCaT and A2780cis cells, though complex 28 has higher dark stability (Table 5) (Farrer et al., 2010a). The substitution of methyl groups in pyridine shows ability to increase the reactivity of diazido Pt(IV) prodrugs to biological targets; however, the ortho substitution may exert negative effects due to its larger steric hindrance. Interestingly, when a relative smaller bromine atom was further modified at the ortho position of the meta-methyl pyridine in complex 32, the activity of the complex was still lower than that of complexes 30 and 31. These suggested that the steric effect and the electronic effect on the non-leaving pyridine ligands may jointly influence the activity of diazido Pt(IV) prodrugs (Farrer et al., 2010a).

In addition to the pyridine ring, the heterocyclic penta-ring, thiazole, also brings great improvements in the cytotoxicity of diazido Pt(IV) prodrugs compared to Pt(IV) complexes bearing aliphatic amine ligands. For instance, complexes 33 and 35 exhibited higher photocytotoxicity than complex 26, especially to A2780cis cells under 365-nm light irradiation (Table 5). Both pyridine and thiazole ligands can sustain a good dark stability, making the photoactivity of these Pt(IV) prodrugs more controllable.

Moreover, in addition to the complexes with monosubstitution of one amine ligand by pyridine or thiazole in diazido Pt(IV) prodrugs, complexes (36–43) with di-substitution of both amines by dual thiazoles, imidazoles, pyridines, or methyl pyridines were also reported, and their anticancer activities under 420-nm light irradiation were measured (Zhao et al., 2013; Pizarro et al., 2014; Shaili et al., 2019). It was demonstrated that the introduction of dual heterocycle ligands made these target complexes more readily activated by longer wavelength of light, while maintaining high dark stability. The ortho-methyl effect mentioned before still works on these di-pyridine-substituted diazido Pt(IV) prodrugs where complex 37 was the most active prodrug toward both A2780 and A2780cis cells, among complexes 38–41. Of note that di-imidazole ligands in complex 43 showed less efficiency to promote the activity of Pt(IV) prodrugs than thiazole and pyridine ligands. The IC₅₀ of complex 43 to A2780 under light irradiation is nearly 10-fold higher than that of other analogs, such as complexes 40–42, and complex 43 has almost no activity to the A2780cis cell line (Table 5).

The non-substituted am(m)ine non-leaving ligands play significant roles in the action mechanism of Pt(II) anticancer drugs, cisplatin, carboplatin, and oxaliplatin, for example, via forming hydrogen bonds with guanine–oxygen to sustain their binding selectivity and strength (Johnstone et al., 2016). While in photoactivatable Pt(IV) prodrugs, similar am(m)ine and aliphatic amine ligands did not satisfy or reach the requirements for the photoactivation of the inert prodrugs, though these am(m)ine ligands could sustain the dark stability of the Pt(IV) complexes. The nitrogen-containing heterocyclic ligands as non-leaving ligands can provide other functions such as increasing the exciting light wavelength, enhancing photoactivities, and promoting PI values of photoactivatable Pt(IV) prodrugs, of which the photolytic products are expected to have distinct action mechanisms from conventional Pt(II) drugs as described before. However, two concerns, difficult synthesis and poor solubility, should be paid much attention for the rational design of the Pt(IV) prodrugs containing large heterocyclic arene ligands. The difficulty of synthesis is mostly laid on the oxidation of the Pt(II) moiety for which harsh conditions and special oxidative agents should be appropriately chosen and applied, while poor solubility resulting from the large heterocyclic arene ligands requires a comprehensive balance between hydrophilicity and hydrophobicity of the non-leaving ligands.

Axial Ligand

In octahedral Pt(IV) prodrugs, the existence of the axial ligand stabilizes the platinum center and brings more flexibility in the design and synthesis of novel photoactive Pt(IV) prodrugs. In the first generation of iodide Pt(IV) prodrugs [11, 12, 48 (cis,trans-{PtCl₂I₂(en)}), and 49 (trans,cis-{Pt(OSO₂CH₃)₂I₂(en)})], simple modifications of the axial ligands were achieved (Kratochwil and Bednarski, 1999b), but they did not significantly improve the photoactivity of target complexes. Meanwhile, the as-prepared Pt(IV) complexes had high reduction potential, making them easily reducible, thus leading to poor dark stability (Štarha et al., 2019).

Cisplatin-Based Pt(IV) Prodrugs

Although cisplatin-bearing dual-chloride leaving ligands are not photoactive, the modification of the axial hydroxyl ligands after their oxidation gives their photochemical potential. Such oxidized species, cis,cis,trans-[Pt^IV(NH₃)₂(Cl)₂(OH)₂], namely, oxoplatin, is the starting structure of the popular cisplatin-based Pt(IV) prodrugs.

In 2014, Chee Fei Chin in PhD thesis reported six Pt(IV) prodrugs (50–55) containing ester bonds generated by the interaction between hydroxyl and carboxylic acid and explored the influence of the axial ligands on the maximum absorption wavelength of the resulting complexes (Table 6) (Fei, 2014). It was demonstrated that the introduction of the benzene ring resulted in an obvious increase in the maximum absorption wavelength (from 204 to 226 nm), while the introduction of pyrene made the maximum absorption wavelength more significant red-shift (from 204 to 344 nm). However, the similar maximum absorption wavelength of complex 55 (λ = 345 nm) and complex 53 (λ = 345 nm) indicates that the increasing conjugation from the aromatic ligands was not the mere factor determining the red-shift interval. Lee et al. (2019) designed and synthesized complexes 56 and 57. Compared to 51, complexes 50, 56, and 57 have axial aryl groups (Table 6), which increases the ultraviolet absorption and stabilizes the dissociated carboxyl units, thus favoring the photoactivated reduction of platinum (Figure 4). During the photoactivation, complex 50 produced complicated ESI-MS spectra due to the lack of aromatic axial ligands, while complex 57 showed a faster photoreduction rate than complex 51. Benzoyl radical, which was the first evidence of carboxyl radical species formed via photoactivation of non-azido Pt(IV) complexes, was trapped by 5,5,5-dimethyl-1-pyrroline N-oxide (DMPO) during photoactivation of 50. However, it seemed useless to the anticancer properties as it was quickly quenched by a solvent.

TABLE 6

TABLE 6. Chemical structures of complexes 47–56.

FIGURE 4

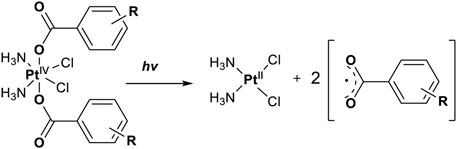

FIGURE 4. Schematic representation of photolysis of complexes 50, 56, and 57 [adapted from Lee et al. (2019)].

Bera et al. (2021) prepared the complex oxoplatin-B by axial derivatization with a fluorescent BODIPY ligand (58) (Table 6). A similar structure but with a methyl modification at the axial benzoic acid ligand was also synthesized as a control (59). The BODIPY moiety of complex 58 with medium quantum yield can be used for cell imaging, particularly mitochondrial localization, which may improve the selectivity of this complex as a prodrug. Complex 58 showed an absorption band at 500 nm and an emission band at 515 nm in 1% dimethyl sulfoxide/Dulbecco’s modified Eagle’s medium (pH = 7.2). Upon visible light irradiation (λ = 400–700 nm, 10 J cm⁻²), complex 58 generated singlet oxygen and showed more cytotoxicity toward human breast (MCF7), cervical (HeLa), and lung (A549) cancer cells than complex 59, BODIPY ligand alone, cisplatin, and itself in dark. Singlet oxygen generation is one of the objectives of the authors to conjugate a BODIPY to the Pt(IV) center. The ROS generated by 58 showed promising photo-induced cleavage efficiency on supercoiled (SC) plasmid pUC19 DNA (2,686 base pair) with 1 h irradiation, leading to formation of ∼63% nicked circular (NC) DNA, whereas no NC DNA formation was observed for complex 59.

Carboplatin- and Oxaliplatin-Based Pt(IV) Prodrugs

For developing photoactivatable carboplatin- and oxaliplatin-based Pt(IV) prodrugs, Guangyu Zhu′s team made a lot of efforts and obtained a series of multifunctional promising Pt(IV) prodrugs. In 2019, they designed and synthesized an oxaliplatin-based Pt(IV) prodrug [Pt^IV(DACH)(PPA)(OH) (ox)] (60; DACH = (1R,2R)-1,2-diaminocyclohexane, ox = oxalate), namely, phorbiplatin (Wang et al., 2019). In complex 60, the pyropheophorbide a (PPA) ligand occupied one of the axial positions with hydroxyl at another (Figure 5A), allowing the Pt(IV) complex activatable by a red light at 660 nm. The axial PPA ligand functions as both a photosensitizer and a photocatalyst with long absorption wavelength (650 nm) and good electron transfer ability. However, PPA could not reduce the Pt(IV) center in phorbiplatin directly. Instead, PPA itself was reduced first under irradiation and in the presence of biological reductants, such as ascorbate, 2-(N-morpholino) ethanesulfonic acid (MES), GSH, or DNA. The reduced PPA in turn reduced the Pt(IV) center to complete the photoreduction of the Pt(IV) prodrug (Figure 6A). Phorbiplatin is stable and shows little cytotoxicity in the dark, while upon irradiation with red light the complex exhibits promising anticancer activities both in vitro and in vivo. The photocytotoxicity of phorbiplatin was nearly 1786-fold higher than that of oxaliplatin upon irradiation (Table 7). Such high photocytotoxicity of phorbiplatin was thought to be the combination of three factors, that is, high accumulation of Pt in cancer cells, generation of active Pt(II) species, and generation of ROS including singlet oxygen and hydroxyl radicals under irradiation. Complex 60 was thought to be the first small-molecule Pt(IV) prodrug that can be efficiently and controllably activated by red light, and no damage to the liver and other organs when treated with this complex under irradiation, implicating its huge potential in clinic.

FIGURE 5

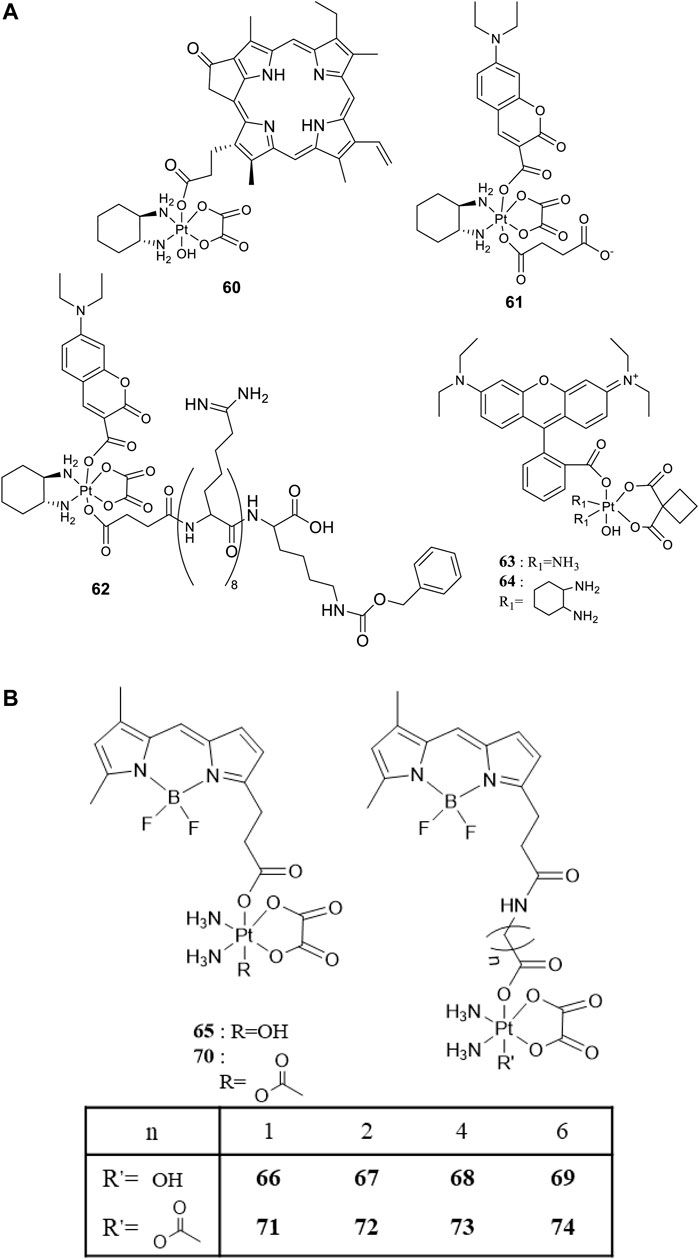

FIGURE 5. (A) Chemical structures of complexes 60–64 [adapted from Wang et al. (2019); Deng et al. (2020); Deng et al. (2021)]. (B) Chemical structures of BODIPY-conjugated Pt(IV) prodrugs [adapted from Yao et al. (2020); Yao et al. (2021)].

FIGURE 6

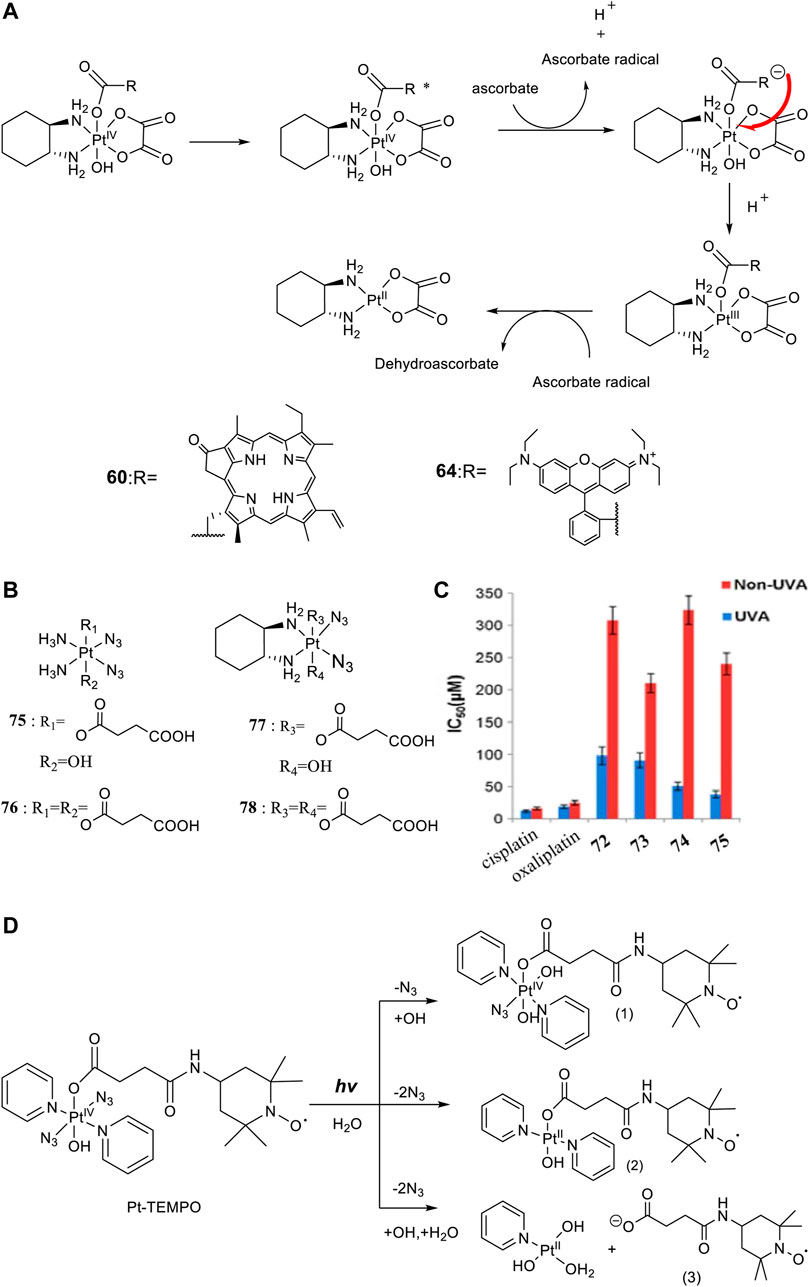

FIGURE 6. (A) Proposed photoreduction mechanism of complexes 60 and 64 in the presence of ascorbate under physiological conditions (adapted from Wang et al. (2019); Deng et al. (2021)). (B) Chemical structures of complexes 75–78. (C) IC₅₀ values of complexes 75–78 against SKOV-3 cells as determined by MTT assay [reproduced from Xiao et al. (2014)]. (D) Photoreaction pathways of Pt-TEMPO (0.1 mM) in H₂O upon irradiation of blue visible light [adapted from Venkatesh et al. (2016)].

TABLE 7

TABLE 7. IC₅₀ values of complexes 60—74 to various cancer cell lines.

To enable the prodrugs more photo-controllable, in 2020, Zhu and co-workers further designed and synthesized an oxaliplatin-based photocaged Pt(IV) prodrug, complex 61, by introducing a coumarin derivative at the axial position, as shown in Figure 5A (Deng et al., 2020). The wavelength (450 nm) activating complex 61 is shorter than the red light used to activate complex 60, and the photocytotoxicity of 61 is only two orders of magnitude higher than that of oxaliplatin. However, complex 61 is very stable in the dark under physiological conditions even in the presence of 2 mM sodium ascorbate, where 93% of 61 remained intact after 24-h incubation. Unexpectedly, water oxidation was involved in the light activation process of this complex accompanied with oxygen generation but without radical formation. Such photoactivation pathway via water oxidation was rare. The proposed mechanism was that first the Pt-O bond of axial ligand in complex 61 was cleaved to produce the free axial ligands and cationic Pt(IV) intermediate upon irradiation; second, two electrons transferred from water to reducing Pt(IV) accompanied with formation of oxaliplatin, two protons and oxygen. Furthermore, Zhu et al. attached a cell-penetrating peptide, R₈K, at another axial position through a succinic acid linker to develop the so-called coumaplatin (complex 62, Figure 5A). Complex 62 accumulated very efficiently in the nucleoli and induced cell senescence and immunogenic cell death along with T-cell activation through the entire coumaplatin instead of the reduced oxaliplatin species. Such photo-caged, water-oxidizing, and nucleolus-targeted trifunctional Pt(IV) anticancer prodrug represents a very effective and attractive strategy for designing and developing Pt(IV) prodrugs.

Later, rhodamine B (RhB), a widely used fluorescent dye, was employed as one of the axial ligands to synthesize photoactivatable Pt(IV) prodrugs 63 and 64, named rhodaplatin 1 (carboplatin-based structure) and rhodaplatin 2 (oxaliplatin-based structure), respectively (Figure 5A) (Deng et al., 2021). The RhB ligand serves as an intramolecular photoswitch ligand, showing many advantages over the conventional “photocatalyst plus Pt(IV) substrate” combination, for example, enabling the complexes more efficient accumulation and significant colocalization in cancer cell. The conjugation of RhB as an axial ligand promoted the photoconversion efficiency of the prodrugs by 4.8 × 10⁴-fold, contributable to increased proximity to the Pt(IV) center through the covalent bond. This leads to increased photocytotoxicity of the complexes to cancer cells including resistant cancer cells to conventional Pt(II) drugs. The activation of rhodaplatin 2 (64) includes two important electron transfer steps: the first electron transfer from ascorbate to RhB ligand to form the Pt(IV) intermediate containing the RhB radical(III), and the second electron transfer from RhB ligand to Pt(IV) center to produce Pt(III) intermediate along with the release of a hydroxyl group (Figure 6A). Moreover, complex 64 showed an efficient and preferred accumulation in the mitochondria, inducing the mitochondria DNA damages and showing higher anticancer activity than the corresponding carboplatin-based rhodaplatin 1 (63). Nevertheless, the anticancer activity of carboplatin-based Pt(IV) prodrug 60 is still higher than carboplatin and oxaliplatin. This inspired the research group to design and synthesize another types of carboplatin-based Pt(IV) prodrugs (65–74, Figure 5B) using BODIPY derivatives as axial leaving ligands (Yao et al., 2020). These complexes were divided into two subgroups differing in that one of the axial ligands was a hydroxyl (65–69) or acetyl (70–74) group, and another axial position was occupied by BODIPY derivatives via a carbon-chain linker in different length. All the as-prepared complexes have a LMCT band (N₃→Pt) at around 503 or 504 nm and can be activated by white light, showing a moderate photoactivated anticancer activity to A2780 cells with the lowest IC₅₀ as 43.9 ± 5.2 μM for complex 66 and 43.8 ± 3.9 μM for complex 71. This group of carboplatin-based prodrugs were less photocytotoxic than oxaliplatin-based analogs and even much less active than that of cisplatin-based BODIPY Pt(IV) prodrug (60). Except complexes 65 and 69, a linker- length-dependent activity was observed in which increased carbon-chain length negatively regulated the anticancer activities for both the subgroups of complexes upon light irradiation. However, the variation of hydroxyl and acetyl axial ligands had little effect on the photocytotoxicity of the whole group of carboplatin-based complexes (Table 7) (Yao et al., 2021).

Diazido Pt(IV) Prodrug Derivatives

The emergence of diazido Pt(IV) anticancer prodrugs have attracted great interests due to their high dark stability and promising photoactivated activity. This spurs broader investigations on the designs and developments of novel diazido Pt(IV) prodrugs mostly through the axial modifications. One of the simplest derivation ways is attaching one or two succinic anhydrides to the axis positions based on the cis-NH₃ and cis-DACH-type of diazido Pt(II) complexes (DACH = 1,2-cyclohexanediamine). Although this series of diazido Pt(IV) prodrugs, that is, complexes 75–78 (Figure 6B), were thought to be intermediates, they showed high dark stability (Figure 6C), evidenced by constant presence of the N₃→Pt transition absorption band at 258 nm in aqueous solution in the dark for 90 days (Xiao et al., 2014), while they can be activated under 365-nm UVA irradiation to release one or two succinic acid moieties. Moreover, complexes 77 and 78 bearing DACH ligands were more readily activated by UVA irradiation than complexes 75 and 76 bearing NH₃ ligands, indicated by the longer T₅₀ values (time for 50% degradation of Pt(IV)-N₃) for the latter two. Unfortunately, despite of a nearly equal cellular uptake to and much lower dark cytotoxicity of 75–78 than cisplatin and oxaliplatin, the photocytotoxicity upon UVA irradiation of 75–78 are much lower than the cytotoxicity of cisplatin and oxaliplatin to SKOV-3 cells. Importantly, the Pt(IV) prodrugs derived from the oxaliplatin structure were found to be about 2- to 5-fold more photocytotoxic than the corresponding cisplatin-based prodrugs (complexes 77 and 78 versus complexes 75 and 76).

Actually, apart from cisplatin- or oxaliplatin-derived diazido types of Pt(IV) complexes described before, most of the modifications on the diazido Pt(IV) prodrugs were based on the type of [Pt(N₃)₂(OR₁)(OR₂)(Py)₂] complexes with two pyridines as the non-leaving ligands. This makes almost all this type of Pt(IV) prodrugs activatable by blue light or green light. Meanwhile, as the trans-Pt(IV) complexes are usually more cytotoxic than the corresponding cis-complexes (Farrer et al., 2010a), most of the derivation focused on the basis of trans-diazido Pt(IV) prodrugs. For example, the TEMPO (2,2,6,6-tetramethylpiperidine-1-oxyl), a spin-labeling nitroxide, was successfully conjugated to the axial hydroxyl through a succinate linker to produce the first example of diazido Pt(IV) prodrug, trans,trans,trans-[Pt(N₃)₂(OH)(OCOCH₂CH₂CONH-TEMPO)(Py)₂], namely, Pt-TEMPO (Figure 6D) with ability to release nitroxide/azidyl radicals as well as Pt(II) species upon irradiation of blue visible light at 465 nm (Venkatesh et al., 2016). The introduction of the TEMPO moiety even extended the photoactivation wavelength to green light at 517 nm. UV-Vis spectroscopy monitoring the LMCT band absorption under 420-nm irradiation observed only one photodecomposition pathway in which there was a loss of an azido ligand and/or electron transfer from azido ligands to Pt(IV), resulting in the formation of azidyl radicals and Pt(IV/II) species. However, ESI-MS identified photolytic products generated by three pathways. This is an obvious clue that a substrate-dependent photodecomposition mechanism may exist for Pt-TEMPO prodrugs, similar to that for complex 36, nevertheless which needs further exploration. The photoactivity of Pt-TEMPO to A2780 human ovarian carcinoma cells is as high as the organic photo-sensitizer chlorpromazine (CPZ), which may result from attacking DNA by the toxic Pt(II) photoproducts, combining with the activity of the reactive azidyl and TEMPO radicals.

Axial modifications can introduce multifunctions to diazido Pt(IV) prodrugs, especially with specific targeting moieties. Gandioso et al. (2015) synthesized a new Pt(IV) prodrug (79, Figure 7A) by linking a cyclic RGD (Arg-Gly-Asp) peptide to [Pt(N₃)₂(OH)₂(Py)₂]. The RGD peptide can be selectively recognized by α_Vβ3 and α_Vβ5 integrins, which are transmembrane heterodimeric glycoproteins overexpress in different tumor cells and involve in tumor angiogenesis (Friedlander et al., 1995; Desgrosellier and Cheresh, 2010). These receptor-targeting Pt(IV)-based anticancer drugs have a dually controlled selectivity and showed higher intracellular accumulation and phototoxicity to SK-MEL-28 melanoma cancer cells, which overexpress α_Vβ3 and α_Vβ5 integrins, than to DU-145 human prostate carcinoma cells upon blue light irradiation. One major product, trans-[Pt(N₃)(5′-GMP)(py)₂]⁺, and two minor products, trans-[Pt(py)₂(5′-GMP)₂]²⁺ and [Pt₂(N₃)(py)₄(5′-GMP)]⁺, were identified by ESI-MS during the photoactivation (λ_irr = 420 nm, 11 mW cm⁻², 45 min, 37°C) of 79 in the presence of 2 mol equiv. 5′-GMP. More importantly, the released intact succinate-peptide did not compete with 5′-GMP for binding to Pt(II) species but serving as a simple targeting vector of the Pt(IV) prodrug. Such an integrin-targeting approach provides a new strategy to improve the selectivity and reduce the toxicity of Pt(IV) prodrugs, spurring other similar beneficial developments.

FIGURE 7

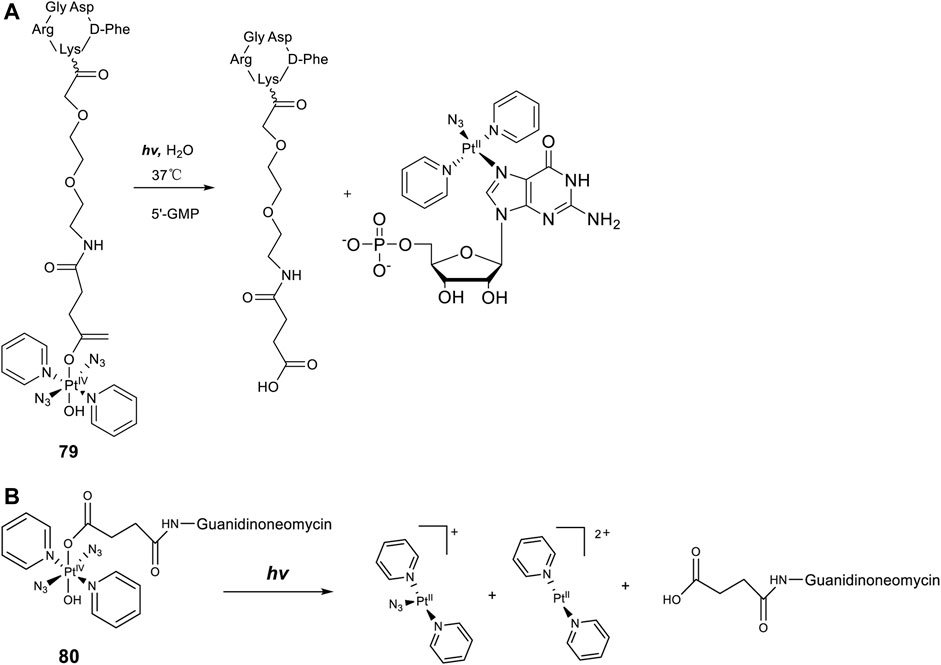

FIGURE 7. (A) Schematic diagram of the photoreaction of complex 79 with 5′-GMP [adapted from Shaili et al. (2015)]. (B) Schematic representation of the photodissociation process of complex 80 [adapted from Shaili et al. (2015)].

In a similar approach to the receptor-targeting rationale, a RNA-targeting photosensitive diazido Pt(IV) prodrug (80, Figure 7B) was designed and synthesized by the same research group by conjugating guanidinoneomycin, a well-known RNA binding ligand, at the axial position through a succinate linker (Shaili et al., 2015). Apart from the released platinum(II)-based cytotoxic species upon visible-light irradiation, the authors hoped that the guanidinoneomycin vector can potentially promote platination of RNA over DNA, offering a novel mechanism of action for anticancer metallodrugs. High reactivity with 5′-guanosine monophosphate and a 7-mer oligodeoxynucleotide, 5′-dCATGGCT, were probed by mass spectrometry coupled to HPLC. The results showed that the covalent attachment of guanidinoneomycin does not modify the photoactivation properties of 80, and the guanidinoneomycin potentially help promote the platination of RNA over DNA. Guanidinoneomycin conjugation was showed to indeed improve the intracellular accumulation of complex 81 particularly in SK-MEL-28 cells. Notably in this study, the empirical knowledge that Pt(IV) prodrugs are generally inert to ligand substitution was disturbed, evidenced by the substitutions of one azide and/or another non-modified hydroxyl by trifluoroacetate. However, the trifluoroacetate-substituted complexes, especially the adduct of which both axial ligands were replaced with trifluoroacetate were insoluble in aqueous media.

Recently, Sadler and co-workers have also achieved great progresses in the development of novel diazido Pt(IV) prodrugs. In 2020, they designed and synthesized two diazido Pt(IV) prodrugs (81 and 82, Table 8) with biotin as one of the axial ligands and hydroxyl or dichloroacetate (DCA), a pyruvate dehydrogenase kinase (PDK) inhibitor, as another axial ligand (Table 8) (Shi et al., 2020b). Both the complexes exhibited excellent dark stability. Upon 1-h light irradiation at 465 nm, complex 82 bearing biotin and DCA as axial ligands showed 5-fold higher photocytotoxicity than its precursor trans,trans,trans-[Pt(N₃)₂(OH)₂(py)₂] (36) with two hydroxyl groups as axial ligands, and at least 2-fold higher photocytotoxicity than complex 81 with biotin and hydroxyl as axial ligands to A2780 cell lines, contributable to the synergistic anticancer activity of the released DCA ligand. The conjugation of biotin alone was not helpful to the cellular uptake of complex 81 in A2780 cells, while the substitution of the second axial hydroxyl ligand with DCA significantly increase Pt cellular uptake of the resulting complex 82, probably due to higher lipophilicity of 82 (Shi et al., 2020b) over the mono-substituted complex 81 (IC₅₀: 11.7–21.1 μM) (Table 8).

TABLE 8

TABLE 8. Chemical structures of complexes 81–94 and IC₅₀ values of complexes toward different cell lines.

To further investigate the effects of axial functionalization, three mono-functionalized diazido Pt(IV) prodrugs attaching to anticancer agent coumarin-3 carboxylate (cou), PDK inhibitor 4-phenylbutyrate (PhB), or DCA (complexes 83–85, Table 8) and three biaxially functionalized prodrugs with further modification with a DCA ligand (complexes 86–88, Table 8) were developed (Shi et al., 2020a). Notably, mono-functionalized complexes (83–85) with one hydroxide ligand showed higher aqueous solubility and more negative reduction potential, while significantly higher cellular Pt accumulation (ca. 3–18×) and photo-induced cellular ROS levels were observed for di-functionalized complexes 86–88. However, the axial substituents did not affect the interaction between the platinum center and 5′-GMP upon irradiation. Both mono- and di-functionalized complexes displayed higher photocytotoxicity than the parent complex 36 to both A2780 and A549 cancer cell lines, and the di-functionalized complexes were a little more cytotoxic upon the blue light irradiation at 465 nm (Table 8). These again confirmed the synergistic effect of the DCA ligand which were also evidenced by the significantly increased platinum accumulation and photo-generated ROS levels of the di-functionalized complexes over mono-functionalized analogs. However, the much lower aqueous solubility of di-functionalized complexes 86–88 should be noted.

Another work from Sadler’s group aimed at exploring the effect of axial ligand modification on the photochemistry and photobiology of diazido Pt(IV) prodrugs. Furthermore, three newly synthesized complexes, trans,trans,trans-[Pt(N₃)₂(OH)(succ)(py)₂](succ = succinate; 89), trans,trans,trans-[Pt(N₃)₂(OH)(succ-Pr)(py)₂](succ-Pr = 4-oxo-4-propoxybutanoate; 90), and trans, trans,trans-[Pt(N₃)₂(OH)(N-MI)(py)₂](N-MI = N-N-methylisatoate; 91) were studied in this work (Shaili et al., 2021). The introduction of N-MI ligand was anticipated to increase the photosensitivity to irradiation with visible light as it has an additional absorption band (ca. 350 nm). It was showed that the disappearing rate of the LMCT (N₃→Pt) band, which indicates the dissociation of azido ligand(s) upon 517 nm light irradiation, decreased in an order of complex 90 > complex 91 > complex 89 ≫ complex 36. All the three complexes (89–91) exhibited minimal toxicity in the dark, and upon blue light irradiation complexes 89 and 90 exhibited nearly 2-fold higher phototoxicity than complex 36 to A2780 and A2780cis. However, complex 91 was the least phototoxic with an IC₅₀ of 13.4 μM, though its ca. 10-fold higher cellular uptake in comparison with other complexes (Table 8). The incorporation of aromatic ligands in the axial position in complex 91 may enhance its passive transport across cell membrane, increasing cellular uptake of 91, and the low yield of azidyl radicals was thought to be one of the main reasons for its low phototoxicity. The higher cytotoxicity of this kind of complexes were attributed to the combination of versatile action modes, for example, intercalative DNA binding, concentration-dependent interstrand DNA crosslinking, significant cellular accumulation of Pt, and photo-oxidation of biomolecules.

Following this finding that incorporating aromatic ligands could promote the cellular uptake of diazido Pt(IV) prodrugs, Sadler and co-workers attached the fluorescent 1,8-naphthalimide or its NO₂ and NMe₂ derivatives at the one of axial positions in complex 36 to produce complexes 92–94 (Table 8) (Shi et al., 2021). All the three complexes can undergo photo-decomposition upon 420 and 463 nm irradiation. Although complex 92 has the highest ability to intercalate into DNA in solution among other two analogs having larger steric hindrance of axial ligands, its aqueous solubility was so poor that photocytotoxicity assay and cellular uptake determination could not be performed on it. This warned us that balancing the hydrophobicity and hydrophilicity when attaching aromatic ligands to the axis of Pt(IV) prodrugs must be considered. The modification on the naphthalimide ligand by the NO₂ or NMe₂ group remarkedly improved the aqueous solubility of complexes 93 and 94, of which the cellular uptake was 15 × higher than that of unmodified complex 36 in A2780, A549, and PC3 cell lines in the dark. Significantly, the higher Pt accumulation well correlated with the higher photocytotoxicity of complexes 93 over 94, indicating an enhanced positive effect of NO₂ modification over NMe₂ modification in 1,8-naphthalimide (Zhao et al., 2013).

In addition, the convenience of this type of axial ligand derivation has led to the synthesis of a series of dinuclear photoactive Pt(IV) anticancer prodrugs through bridging dicarboxylate ligands (95–98, Table 8) (Shi et al., 2018). The dinuclear complexes have IC₅₀ values ranging from 8.8 to 78.3 μM toward A2780 human ovarian and esophageal OE19 cell lines while being nontoxic toward normal MRC5 cells. The di-nucleation of Pt(IV) center did not alter the photoactivation wavelength of the resulting Pt(IV) complexes in comparison to the mono-Pt(IV) counterparts. The dinuclear Pt(IV) complexes have good dark stability, but it can be activated by blue light at 420 nm accompanied with release of bridging ligand, mononuclear photolytic Pt(II) products, and generation of azidyl and hydroxyl radicals. The introduction of the bridging aromatic ligand in complex 97 significantly enhanced its cellular uptake which was more than five times higher than those of 95, 96, and 98 in all selected cell lines, attributable to its aromatic bridge linker with high lipophilicity, while complex 98 with relatively longer aliphatic linkers had the poorest ability to accumulate in cancer cells, but it showed more significant changes in the cell cycle progression and higher photocytotoxicity than 97. This implicated that the cytotoxicity of these subgroups of Pt(IV) prodrugs is not simply and directly correlated with the cellular accumulation of them. Both 97 and 98 inhibited cell cycle progression from G2/M to G0/G1 upon irradiation. This was different to cisplatin which was showed to arrest cells at the S phase (Muhammad et al., 2017), suggesting a different mechanism of action of complexes 97 and 98 from cisplatin. Further study in the interaction of 97 and 98 with 5′-GMP showed that the Pt centers in 97 and 98 did not react with 5′-GMP until they were detached from the bridging ligands (Shi et al., 2018). However, all of the four dinuclear complexes are less active toward A2780 than the corresponding mononuclear complex 36. This suggests that specific attention should be paid to design appropriate bridging ligands to promote simultaneously the cellular uptake and photoactivity of the resulting polynuclear Pt(IV) prodrugs.

Remarks and Prospects

Due to highly spatiotemporal controllability, photoactivatable Pt(IV) complexes have emerged to be the most promising candidates of the Pt(IV) prodrug family and showed encouraging potential to conquer the high toxicity and resistance of clinic Pt(II) anticancer drugs. We focused on photoactivated Pt(IV) prodrugs with the general octahedral structure as [Pt^IV(N₁)(N₂)(L₁)(L₂)(A₁)(A₂)], where N₁ and N₂ are non-leaving nitrogen donor ligands, L₁ and L₂ are leaving ligands, and A₁ and A₂ are axial ligands, to discuss the effects of diverse ligands on their photochemistry and photoactivity.

Among the leaving ligands, the nature of the planar ligand is directly related to the absorption of the LMCT bands, but it does not determine the excitation wavelength alone. The studies reported so far have demonstrated that azide is the best-leaving ligand, and the biological activity of trans-platinum is higher than that of cis-platinum. On the one hand, the ligand in the trans position is more favorable for electron transfer from the ligand to the metal center. On the other hand, the trans-platinum pattern is more likely to form multiple forms of cross-links (DNA–DNA, DNA–protein, and intra-DNA) in cells.

For non-leaving ligands, steric effects significantly affect the nature of platinum complexes, but the choice of the most suitable ligand is still being explored. Overall, the presence of conjugated ligands significantly enhances the cytotoxicity and photoactivity of platinum. The better example is complex 36, which has a higher light-to-dark cytotoxicity index and longer exciting wavelength (blue or green light). Both of the steric hindrance and electronic effects of ligands on the platinum center of the ligands influence the physiological properties of the Pt(IV) prodrugs to a certain extent.

In the axial positions, the choice of different ligands brings versatile functions and significantly changes solubility, targeting ability, and pharmacological properties of Pt(IV) prodrugs. This makes the axial modification an excellent strategy, deserving further explorations (Xu et al., 2021a). Although the nature of the ligands and the length of the linker between ligands and Pt center in the axial positions remarkably affect the properties of Pt(IV) prodrugs, no apparent regularity has been found. The appropriate conjugation pattern and linker style also need further exploration. In recent years, a new strategy by combining PACT and PDT/PTT emerged, in which such combination may endow the Pt(IV) prodrugs’ good photocytotoxicity under higher excitation wavelength and higher potential to clinical applications.

In summary, coordination ligands significantly affect the photochemistry and photoactivity of anticancer Pt(IV) prodrugs. However, the process of photoactivation of Pt(IV) prodrugs in complex biological systems is still not fully understood, and the appropriate design of target Pt(IV) prodrugs remains a challenge. Although a few of the early developed Pt(IV) prodrugs, for example, ormaplatin, iproplatin, and satraplatin, have entered into clinical trials, and none of the photoactivatable Pt(IV) prodrugs developed later have entered this stage, meaning far way to go for this group of Pt(IV) prodrugs. Chemists can further design, synthesize, and test novel Pt(IV) prodrugs by focusing on three directions: i) extending activation light wavelength, ii) obtaining high photocytotoxicity and dark stability, and iii) gaining tumor-specific accumulation with promising druggability. Meanwhile, pharmacist and pharmacologists must also be engaged to deeply cooperate with chemists to promote the carrying out of more physiological tests and pre-clinical and even clinical tests.

Author Contributions

KW, FW, and XW conceived and supervised the project. JH wrote the original manuscript. All the authors reviewed and revised the manuscript.

Funding

This work was partially supported by the National Natural Science Foundation of China (Nos. 81673852 and 21927804) and the Beijing Municipal Natural Science Foundation (No. 7182190).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
