Epitaxial Growth of Flower-Like MoS2 on One-Dimensional Nickel Titanate Nanofibers: A “Sweet Spot” for Efficient Photoreduction of Carbon Dioxide

Herein, a full spectrum-induced hybrid structure consisting of one-dimensional nickel titanate (NiTiO₃) nanofibers (NFs) decorated by petal-like molybdenum disulfide (MoS₂) particles was designed through a facile hydrothermal method. The key parameters for tailoring the morphology and chemical, surface, and interfacial properties of the heterostructure were identified for efficient and selective conversion of CO₂ into valuable chemicals. Introducing MoS₂ layers onto NiTiO₃ NFs provided superior CO₂ conversion with significantly higher yields. The optimized hybrid structure produced CO and CH₄ yields of 130 and 55 μmol g⁻¹ h⁻¹, respectively, which are 3.8- and 3.6-times higher than those from pristine NiTiO₃ nanofibers (34 and 15 μmol g⁻¹ h⁻¹, respectively) and 3.6- and 5.5-times higher than those from pristine MoS₂ (37 and 10 μmol g⁻¹ h⁻¹, respectively). This improved performance was attributed to efficient absorption of a wider spectrum of light and efficient transfer of electrons across the heterojunction. Effective charge separation and reduced charge carrier recombination were confirmed by photoluminescence and impedance measurements. The performance may also be partly due to enhanced hydrophobicity of the hierarchical surfaces due to MoS₂ growth. This strategy contributes to the rational design of perovskite-based photocatalysts for CO₂ reduction.

Introduction

Global warming due to excessive emission of anthropogenic carbon dioxide has become an increasingly serious environmental concern. It is therefore imperative to develop strategies to mitigate CO₂ emissions. Exhaustive research has examined sustainable technologies for CO₂ reduction (Thompson et al., 2020). Photocatalytic CO₂ reduction is of particular interest, to produce chemical fuels via solar energy conversion, but the activity, stability, and selectivity of the products are strongly dependent on the efficiencies of light-harvesting, charge migration, and surface reactions (Li et al., 2019b).

Nickel titanium trioxide (nickel titanate; NiTiO₃), a member of the Ti-based perovskite oxide group, has recently received attention due to its photocatalytic activity in visible light (2.1–2.9 eV) (He et al., 2016; Pham and Shin, 2020). NiTiO₃, with its advantage of octahedrally coordinated Ni and Ti, has a narrow bandgap contrary to that of traditional ultraviolet (UV)-active photocatalysts. Zeng et al. (Zeng et al., 2018) reported nontoxic and low-cost perovskites having more suitable energy bands for CO₂ reduction and greater stability against photocorrosion. However, recombination of charge carriers occurred when they were used as individual photocatalysts. Effect of heterostructure formation in the semiconductor-based photocatalysts has gained much interest. Semiconductor-based photo-catalysts showed dramatic reduction in the recombination rates with heterostructure formation which are widely applied in antibiotic removal (Li et al., 2021; 2022a), pharmaceutical wastewater treatment (Li et al., 2020b), and toxicity analysis applications (Li et al., 2022b; Wang et al., 2022). Therefore, a composite photocatalyst was required to effectively reduce recombination rates.

Two-dimensional (2D) transition-metal dichalcogenides (TMDs) are another emerging group of materials that show promise because of their unique nanoflower morphology, consisting of layered structures with thin open edges (Chen et al., 2017; Zhang et al., 2020; Gan et al., 2021). TMDs have improved light absorption and charge separation, and hence various catalytic properties. Unlike H₂ evolution, water treatment, and water splitting, research on CO₂ reduction performance is still in its infancy. Molybdenum disulfide (MoS₂; ∼1.3 eV) is the most frequently used TMD having a graphite-like 2D structure. Due to its facile synthesis and cost-effectiveness, MoS₂ is regarded as an ideal substitute for noble metals in the context of photocatalytic H₂ evolution. MoS₂ has three polytypic structures, with the hexagonal 2H and octahedral 1T phases being the most common. The metastable 1T phase, which is active on basal and edge planes, unlike the 2H phase, has interesting chemical and physical properties but its synthesis is challenging (Asadi et al., 2014; Li et al., 2018; Li et al., 2020a; Thomas et al., 2021).

The rational design and preparation of dissimilar dimensional materials (e.g.,1D/2D) has therefore been extensively investigated for use as heterogeneous photocatalysts (Peng et al., 2017; Su et al., 2018; Xu et al., 2018; Li et al., 2020a; Qu et al., 2020). The 1D materials possess distinct advantages in terms of efficient electron transport and optical excitation, but also have the disadvantage of low surface area. Meanwhile, 2D materials exhibit large surface areas but tend to agglomerate. Interfacial engineering is a promising dimensionality-dependent technique for sustainable energy applications. A plethora of photocatalytic studies on the heterostructures of NiTiO₃/gC₃N₄, NiTiO₃/TiO₂, Fe₂O₃/NiTiO₃, mono/multilayer MoS₂, MoS₂ nanoflowers, 1D/2D TiO₂/MoS₂, MoS₂/graphene, Bi₂S₃/MoS₂, Au-MoS₂, NiTiO₃/MoS₂, phosphated 2D/3D MoS₂, CdS/MoS₂, Cu/MoS₂, and co-doped MoS₂ nanoparticles have been reported (Chang et al., 2014; Parzinger et al., 2017; Du et al., 2018; Qin et al., 2018; Li et al., 2019c; Lee et al., 2019; Lu et al., 2020; Guo et al., 2021; Khan et al., 2021; Liu et al., 2021) but to the best of our knowledge, no study on CO₂ reduction via the 1D/2D NiTiO₃/MoS₂ structure has been reported.

Herein, a highly synergized NiTiO₃/MoS₂ (1D/2D) heterostructure was synthesized using a two-step process. NiTiO₃ nanofibers (NFs) were firstly synthesized via electrospinning which were later combined with 2D flower-like MoS₂ via a hydrothermal process. The morphologies and optical properties of the as-synthesized photocatalysts were characterized using various techniques. The selective growth of highly reactive 1T, along with honeycomb-like 2H phases, was confirmed by X-ray photoelectron spectroscopy (XPS) and transmission electron microscopy (TEM). The hybrid NiTiO₃/MoS₂ exhibited a redshift to the visible light region, with enhanced absorption. At the optimum loading of MoS₂, NiTiO₃/MoS₂ exhibited the greatest CO₂ reduction, producing CO and CH₄ gases at 130 and 55 μmol g⁻¹ h⁻¹, respectively, which are 3.8- and 3.6-times higher amounts than those (34 and 15 μmol g⁻¹ h⁻¹, respectively) of pristine NiTiO₃ NFs, achieving an overall CO₂ selectivity of 83%. This work could contribute to the development of efficient and stable photocatalytic materials for water splitting, H₂ evolution, and other photocatalytic activities.

Materials and Methods

Materials

All materials were of analytical grade and were used without further purification. Nickel (II) acetate tetrahydrate (98%), titanium (IV) butoxide (97%), sodium molybdate dihydrate (≥99.5%), ethanol (EtOH), and acetylacetone were purchased from Sigma–Aldrich (St. Louis, MO, United States). Polyvinylpyrrolidone K90 (MW = 360,000) and thiourea (H₂NCSNH₂), obtained from Wako Pure Chemical Industries, Ltd (Osaka, Japan), were used in the synthesis of the NiTiO₃ NFs. Sodium sulfate (Na₂SO₄) and triethanolamine (TEOA) from Samchun Pure Chemical Co., Ltd (Pyeongtaek-si, Korea) were used in the measurement of electrochemical and photocatalytic properties. Conductive fluorine-doped tin oxide (FTO; 15 mΩ) glass with dimensions of 2 × 6 cm², purchased from Korea Fine Chemical Co., Ltd., was used as a substrate film.

Preparation of NiTiO₃ Nanofibers

NiTiO₃ NFs were made via electrospinning. Briefly, titanium butoxide (2 g) was stirred in EtOH (5 ml) until it was well-mixed. Then, the required amount of nickel (II) acetate tetrahydrate was added and the solution was continuously stirred for 3 h at room temperature. Subsequently, PVP (0.6 g) was added to the solution, which was stirred continuously for another 8 h to obtain a viscous solution. Finally, acetylacetone (0.3 ml) was added and the solution was stirred for at least 2 h until uniformly light green in color. The viscosity of the solution measured using a DV2TLVCJ0 viscometer (AMETEK Brookfield, Chandler, AZ, United States) was 195 ± 5 cP. This solution was taken-up in a 12-ml nonpyrogenic plastic syringe and connected to a 25-gauge (0.26 mm) stainless-steel needle for electrospinning. The syringe was then mounted vertically and attached to a pump that was connected to a high-voltage power supply. The distance from the needle to the collection plate was fixed at 110 mm and the flow rate was maintained at 10 μl/min. Electrospinning was performed using an electrospinning machine (Model ESR100D; NanoNC, Seoul, Korea) and maintained at 10 kV for the synthesis of NiTiO₃ NFs. The NFs were collected every 2 h and kept in an oven at 60°C, to remove residual solvent before heat treatment in a box furnace under an air atmosphere of 600°C (4 h, 10°C/min). These NFs were characterized without further treatment.

Preparation of NiTiO₃/MoS₂ Structures

NiTiO₃/MoS₂ with different loading amounts of MoS₂ precursors was synthesized by a hydrothermal process. The required amounts of sodium molybdate dihydrate and thiourea were dissolved in 60 ml of deionized (DI) water under stirring for 1 h. Then, 100 mg of NiTiO₃ NFs were added and mixed by a high-speed ultrasonic processor (VCX-130; Young Jin Corporation, Korea) for 15 min (70 rpm, 30-s pulse) to ensure uniform and complete mixing. The solution was then transferred to a 100-ml Teflon-lined autoclave to grow MoS₂ nanosheets over the NiTiO₃ NFs via a hydrothermal method. This mixture was maintained at 200°C for 24 h in a box furnace under an air atmosphere. Finally, the NiTiO₃/MoS₂ sample was collected and washed three times with DI water and EtOH to remove organic impurities. The obtained black-colored NiTiO₃/MoS₂ samples were dried overnight in a vacuum oven at 60°C and then characterized. Scheme 1 illustrates the complete synthesis process. The amount of MoS₂ precursor was varied and samples were classified as NMS-01, NMS-02, NMS-03, or NMS-04 (Supplementary Table S1). For comparison, pristine MoS₂ was synthesized under the same process conditions without adding NiTiO₃ NFs.

SCHEME 1

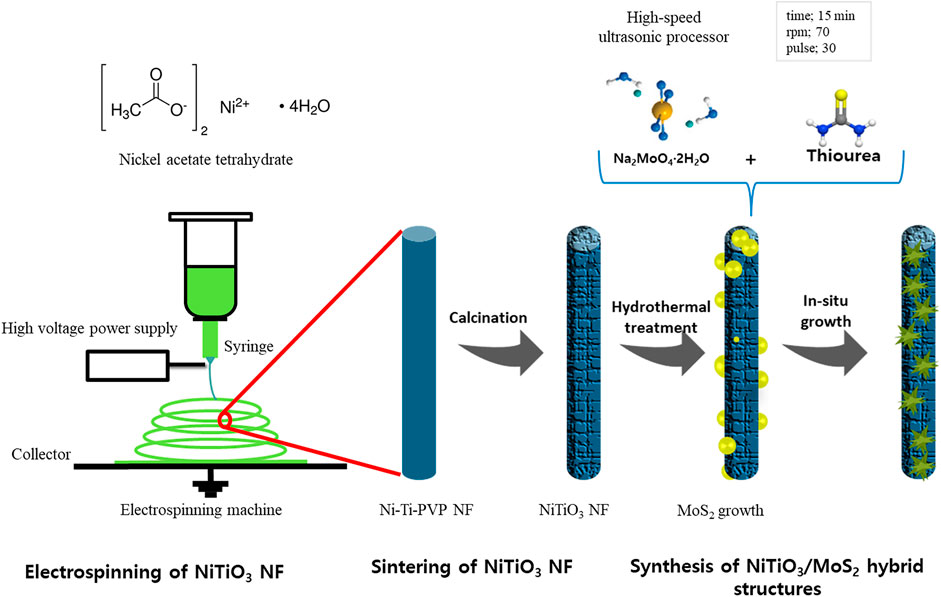

SCHEME 1. Illustration of the complete fabrication processes of NiTiO₃ NFs and NiTiO₃/MoS₂ hybrid structures.

Photoelectrochemical Performance

A three-electrode quartz cell with a potentiostat (VersaSTAT 4; Princeton Applied Research, Princeton, NJ, United States) was used to measure the photoelectrochemical performances of the photocatalysts. Electrolyte (0.5 M Na₂SO₄) was used during this process. Each photocatalyst (200 mg) was dissolved in 1.5 ml of EtOH and coated on the 2 × 4 cm² area of the FTO film (2 × 6 cm²) via spin-coating at 2,500 rpm for 60 s. The as-prepared films were sintered at 150°C for 1 h to remove residual EtOH. Each coated FTO film contained ∼1.5 mg of the photocatalyst. The FTO film, Pt wire, and Ag/AgCl were used as the working, counter, and reference electrodes, respectively. The films were characterized using electrochemical impedance spectroscopy (EIS) under ultraviolet-visible (UV-vis) light irradiation at frequencies ranging from 10⁵ to 0.1 Hz, at an AC amplitude of 10 mV. The photocurrent density was measured while 1 V bias potential was applied via the reference electrode. All photoelectrochemical analyses were conducted using a 300-W Xe lamp (66984; Newport, Irvine, CA, United States) under UV-vis light irradiation.

Photocatalytic Activity

The photocatalytic performance of all samples was measured according to the photoreduction of CO₂ under UV-vis light irradiation. The experiments were carried out in a homemade chemical-resistant quartz-windowed stainless-steel reactor cell (260 ml) equipped with a 300-W Xe lamp as the light source. In a typical procedure, the required amount of sample was coated on the FTO film and used as a photocatalyst to react with CO₂ and water (125 ml) inside the reactor. Triethanolamine (10 vol%) was used as a hole scavenger. Before photocatalytic experiments, the reactor cell was purged with CO₂ gas (99.99% purity; 2 bars for 2 h) to remove air and other gases. Evolved gases were collected every hour and separated by a fused silica capillary column equipped with a pulsed discharge detector (6500 GC; YL Instruments, Gyeonggi-do, Republic of Korea). Helium continuously flowed as carrier gas. A 300-W Xe lamp was used as a simulated sunlight source and the focused light intensity (10 mW cm⁻²) was measured using an 843-R USB power meter (MKS; Newport).

Physicochemical Characterization

The microstructures of pristine NiTiO₃ NFs, MoS₂, and NiTiO₃/MoS₂ (NMS-X, where X = 1–4) were measured by field-emission scanning electron microscopy (FE-SEM; S4800; Hitachi, Japan) at 15 kV. To further investigate the structure and interaction between NiTiO₃ NFs and MoS₂, scanning TEM (STEM; JEM2100F; JEOL, Tokyo, Japan) analysis was performed at 200 kV. X-ray diffraction (XRD; D/Max-2500/PC; Rigaku, Tokyo, Japan) was carried out using a Bruker Advanced X-ray instrument with Cu Kα radiation at a wavelength of 1.5418 Å, to analyze the crystalline phases of the samples. A Brunauer–Emmett–Teller (BET) N₂ adsorption/desorption analyzer (TriStar II 3020; Micromeritics, Norcross, GA, United States) was used to measure the specific surface area and pore size distribution of the catalysts. To study the chemical properties of the photocatalysts, XPS (Thermo Fisher Scientific, Waltham, MA, United States) with an Al Kα source was used. Optical properties were measured by UV-vis spectroscopy (V750; JASCO, Tokyo, Japan). Fourier transform infrared spectroscopy (FTIR, iS10; Thermo Fisher Scientific) was used to confirm the presence of specific surface groups (NH₂, OH) in NiTiO₃ NF and NMS-02. A photoluminescence spectrophotometer (LabRAM HR-800; Horiba, Piscataway, NJ, United States) was used to study the recombination rates of the charge carriers. Contact angles (CAs) were measured at room temperature (22–25°C) and 20–30% RH using a static CA analyzer (Phoenix 300; SEO, Suwon, Republic of Korea). For the analysis, 3.4 µl of DI water was used.

Results and Discussion

Field-Emission Scanning Electron Microscopy

The morphological properties of the as-prepared samples were analyzed by FE-SEM (Figure 1). The pristine NiTiO₃ NFs (Figure 1A) had a smooth surface, with an average diameter of 540 nm and average length of a few micrometers. Pristine MoS₂ had a petal-like hierarchical architecture (Figure 1B). Hybrid structures (NiTiO₃/MoS₂) were synthesized via a hydrothermal method, by varying the loading amount of MoS₂ precursors. Consequently, the hybrid structures appeared as high aspect ratio NiTiO₃ NFs of uniform diameter, covered by flower-like MoS₂ particles formed by sulfurization of MoO₃. Loading amounts of MoS₂ were varied and the corresponding hybrid structures were assigned the names NMS-01, NMS-02, NMS-03, and NMS-04, respectively. Growth of flower-like MoS₂ increased with increasing amounts of MoS₂ precursor. Optimal growth was observed for NMS-02 (Figures 1E,F); higher loadings of MoS₂ in NMS-03 and NMS-04 resulted in agglomeration (Figures 1G,H).

FIGURE 1

FIGURE 1. Field-emission electron microscopy images of microstructures. (A) Pristine NiTiO₃ nanofibers, (B) pristine MoS₂, (C) low and (D) high magnification images of NMS-01, (E) low and (F) high magnification images of NMS-02, (G) agglomerated MoS₂ in NMS-03, and (H) NMS-04.

Transmission Electron Microscopy

To further investigate the microstructure, TEM analyses were performed on pristine NiTiO₃ NFs and the optimum hybrid sample (NMS-02). Low-magnification TEM images (Figures 2A,B) revealed the uniform size and long length of the pristine NFs. Characteristic interplanar spacing of 0.35 nm was confirmed by a high-magnification image of NiTiO₃ NFs (Figure 2C). Low-magnification images of NMS-02 (Figures 2D,E) show growth of flower-like MoS₂ firmly attached to the NiTiO₃ NF substrate. The high-resolution TEM image (Figure 2F) shows lattice fringes of NiTiO₃ NFs and MoS₂ with d-spacings of 0.35 and 0.65 nm, respectively, indicating intimate interfacial contact. Layers (7–12) of MoS₂ covered the NiTiO₃ NFs. This analysis confirmed the successful formation of a 1D/2D (NiTiO₃/MoS₂) hybrid structure. High-resolution TEM images confirmed the coexistence of honeycomb-like 2H and well-ordered trigonal 1T phases. The 1T/2H hybrid structure was directly observed via selected area inverse fast Fourier transform (FTT) (Figure 2G). Insertion of the 1T (metallic) phase into the 2H phase (semiconductor) enhanced the catalytically active site in the composite structure.

FIGURE 2

FIGURE 2. Transmission electron microscope images of microstructures. Pristine NiTiO₃ nanofibers at (A,B) low and (C) high resolution indicating interplanar d-spacing, NMS-02 hybrid structure at (D,E) low and (F) high resolution showing interplanar d-spacings and the number of layers of MoS₂, and (G) inverse fast Fourier transform patterns revealing the co-existence of honeycomb-like 2H and well-ordered trigonal structures in the NMS-02 hybrid structure.

X-ray Diffraction

The phase structures of the samples were characterized by X-ray diffraction (Figure 3). Pristine NiTiO₃ showed characteristic peaks at 2θ = 24.09°, 33.06°, 35.73°, 40.96°, 49.40°, 54.08°, 62.45°, 64.03°, and 71° that were assigned to the (012), (104), (110), (113), (024), (116), (124), (300), and (1010) planes of NiTiO₃ NFs (JCPDS No. 01-076-0334). In addition to the intense peaks of the NiTiO₃ NFs, a peak due to rutile TiO₂ appeared at 27.37° (JCPDS No. 98-000-0375). All hybrid samples contained some additional peaks at 2θ = 14.1°, 39.41°, and 58.69°, which were attributed to the (002), (103), and (110) planes of MoS₂ (JCPDS 01-075-1539). The presence of all characteristic peaks of NiTiO₃ NFs and MoS₂ in the XRD spectra of the composite samples confirmed successful integration of the NiTiO₃/MoS₂ hybrid structure, in agreement with the TEM results.

FIGURE 3

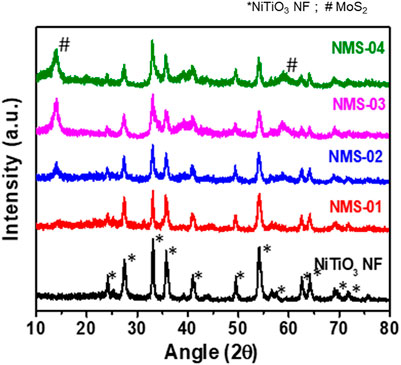

FIGURE 3. X-ray diffraction patterns of pristine NiTiO₃ nanofibers and NiTiO₃/MoS₂ hybrid structures (NMS-01, NMS-02, NMS-03, and NMS-04).

X-ray Photoelectron Spectroscopy

XPS was performed to investigate the chemical composition and effect of MoS₂ loading on the NiTiO₃ NFs (Figure 4). Survey spectra (Figure 4A) confirmed the presence of all essential elements (Ni, Ti, O, Mo, and S) in the NiTiO₃/MoS₂ hybrid structure, in correspondence with SEM mapping results (Supplementary Figure S3). The NMS-02 spectra were further analyzed to investigate the chemical states and interaction between NiTiO₃ and MoS₂. The Mo 3d signal (Figure 4B) consisted of two prominent peaks related to Mo⁴⁺. High-intensity peaks at 229.3 and 232.4 eV, corresponding to Mo⁴⁺ 3d_5/2 and Mo⁴⁺ 3d_3/2, respectively, were attributed to the 1T MoS₂ phase; two other peaks at 230.1 and 233.3 eV were assigned to the 2H phases of MoS₂. A pair of peaks at 234.2 and 236.0 eV were attributed to Mo⁶⁺ of MoO₃. One additional peak at 226.4 eV was assigned to S 2s. The S 2p spectrum (Figure 4C) was deconvoluted into four peaks having energies of 162.0, 162.7, 163.3, and 164.1 eV. Peaks at 162.0 and 163.3 eV corresponding to S 2p_3/2 and S 2p_1/2 were attributed to 1T-MoS₂ while the peaks at 162.7 and 164.1 eV corresponding to S 2p_3/2 and S 2p_1/2, respectively, were attributed to 2H-MoS₂. The Ni 2p spectrum was deconvoluted into two major peaks corresponding to Ni 3p_3/2 and Ni 2p_1/2 at 855.9 and 873.7 eV, respectively (Figure 4D). Peaks in the Ti 2p spectra appearing at 458.8 and 464.6 eV were assigned to Ti 2p_2/3 and Ti 2p_1/2, respectively (Figure 4E). Four O 1s peaks (Figure 4F) at 530.1, 530.6, 531.9, and 532.5 eV were attributed to Ti–O–Ti, Ti–O–Mo, surface water, and Ti–O–H bonds, respectively. The appearance of the peak at 530.6 eV due to the Ti–O–Mo linkage indicated a strong chemical interaction between NiTiO₃ and MoS₂ in NiTiO₃/MoS₂, which could improve photocatalytic activity.

FIGURE 4

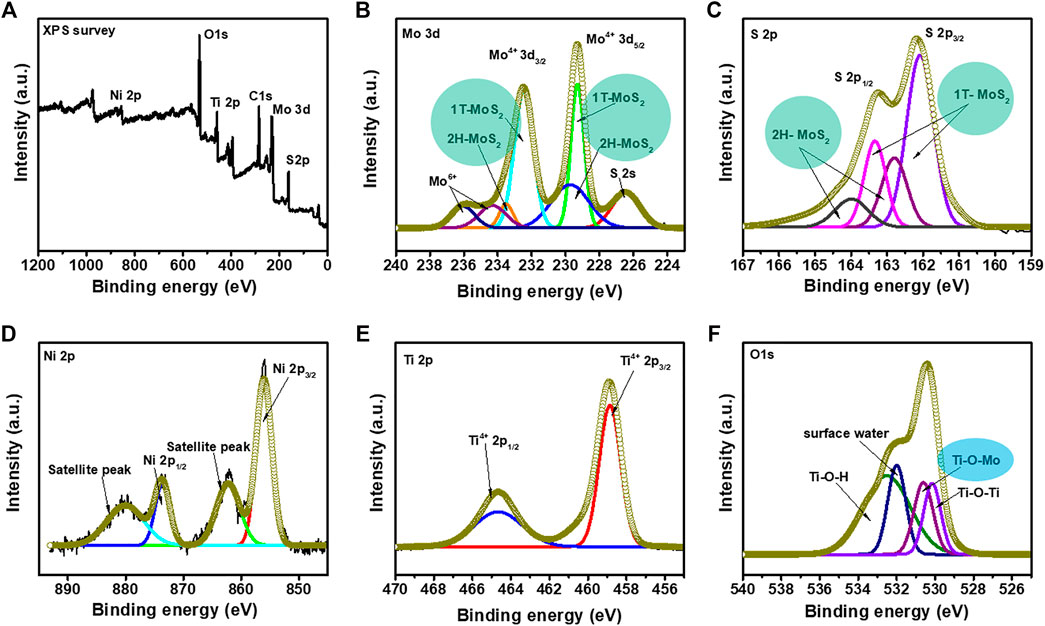

FIGURE 4. X-ray photoelectron spectra of NMS-2 (A) Survey spectrum. Deconvoluted spectra of (B) Mo 3d band showing characteristic peaks of the 1T and 2H MoS₂ phases (C) S 2p band showing characteristic peaks of the 1T and 2H phases of MoS₂, (D) Ni 2p band (E) Ti 2p band, and (F) O 1s band confirming strong interaction between the NiTiO₃ nanofibers and MoS₂ constituents in the hybrid structure.

Optical Properties

The optical properties of the as-prepared samples were measured by UV-vis spectroscopy over the range of 300–900 nm (Figure 5A). Pristine NiTiO₃ NFs displayed an absorption edge of 474 nm with little light absorption, especially in the visible region. The light absorption edge red-shifted from 489 nm (NMS-01) to 636 nm (NMS-04) with increasing loading of MoS₂ onto the NiTiO₃ NFs. The optimum sample (NMS-02), with an absorption edge of 509 nm, showed more light absorption than pristine NiTiO₃ NFs, confirming the structural advantage of the composite sample. This enhanced UV-Vis light absorption could promote photocatalytic activity. The bandgap energies estimated using the Tauc method (Figure 5B) were 2.61, 2.53, 2.43, 1.94, 1.92, and 1.6 eV for NiTiO₃ NF, NMS-01, NMS-02, NMS-03, NMS-04, and pristine MoS₂ photocatalysts, respectively. This steady reduction in bandgap energy was attributed to the inherent light absorption of the black MoS₂.

FIGURE 5

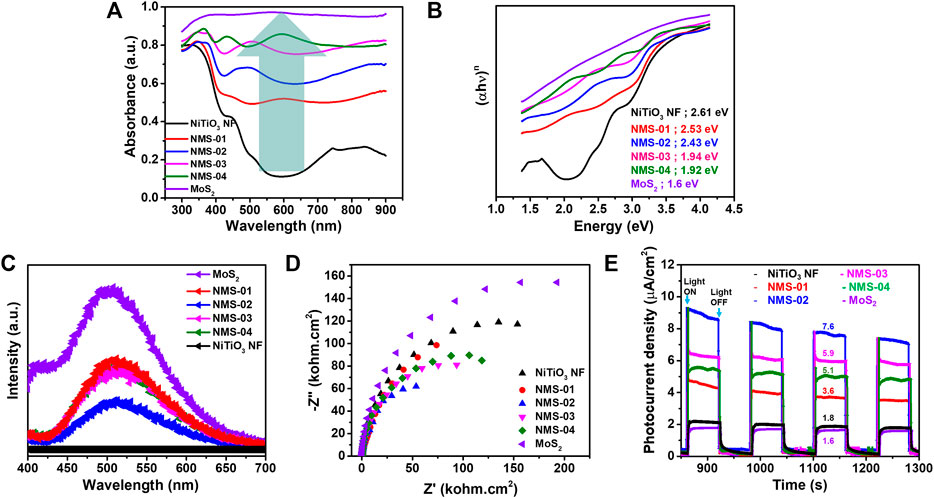

FIGURE 5. (A) Ultraviolet-visible light absorption (B) bandgap energy, (C) photoluminescence, and (D) electrochemical impedance spectra expressed as Nyquist plots, (E) photocurrent density measurements for the pristine NiTiO₃ nanofibers and various hybrid structures.

Photoluminescence and Photoelectrochemical Performance

For a photocatalyst to show high performance, low rates of recombination of the charge carriers are crucial. Photoluminescence analysis was performed at an excitation wavelength of 325 nm to study the effect of MoS₂ loading on charge carrier recombination, to design an efficient heterostructure (Figure 5C). Pristine NiTiO₃ NFs showed no intense peaks, which indicated no activation in this region, while MoS₂ showed high PL intensity due to high recombination rates. A remarkable reduction in charge carrier recombination was found, reflected in quenching of PL peak intensity when MoS₂ was added to the NiTiO₃ NFs. The lowest peak intensity for NMS-02 indicated the significance of identifying the optimum amount of MoS₂, to design an efficient heterostructure to restrain charge carrier recombination. The decreased PL intensity for NMS-02 relative to all of the other photocatalysts was reflected in the highest photocatalytic performance. We performed EIS analysis under UV-vis irradiation to confirm the results obtained by PL spectroscopy, and to study the nature of the charge (Figure 5D). A smaller semicircle radius in a Nyquist plot represents lower recombination and more efficient charge transfer across an interface. All of the composite samples showed smaller radii compared with the pristine samples, which confirmed that the growth of MoS₂ on NiTiO₃ NFs promoted successful electron transfer, resulting in enhanced photocatalytic performance. The radius was smallest for NMS-02, which also corroborated that it had the best CO₂ reduction performance. To further confirm its effectiveness of the 1D/2D hybrid structure on the separation of photogenerated electrons and holes, transient photocurrent intensities were measured for bare and hybrid catalysts (Figure 5E). The transient photocurrent was measured while switching the light on and off after every 60 s. The photocurrent density of pristine NiTiO₃ NF and MoS₂ showed the lowest values of 1.6 μA/cm², and 1.8 μA/cm² respectively while the hybrid structures NMS-01, NMS-02, NMS-03, and NMS-04 showed 3.6 μA/cm², 7.6 μA/cm², 5.9 μA/cm², and 3.6 μA/cm² respectively. This increase in the photocurrent density observed in the hybrid structures, is attributed to the successful formation of heterostructure between 1D NiTiO₃ NFs and 2D MoS₂ nanosheets.

Surface Area and Pore Size Distribution

Nitrogen adsorption-desorption BET isotherms and Barrett–Joyner–Halenda (BJH) pore size distributions were determined to further investigate the microstructures (Figure 6). All samples were degassed overnight at 100°C prior to analysis. The N₂ isotherms (Figure 6A) for MoS₂ had the smallest specific surface area due to highly densely clustered nanosheets. However, when MoS₂ sheets were grown on the NiTiO₃ NFs, the specific surface area significantly increased due to hierarchical “puffy” nanosheets of MoS₂ dispersed over the surface of the NFs. The higher specific surface area of the composite structure could provide more adsorption and reactive sites, to enhance photocatalytic performance. The BJH pore size distribution plots (Figure 6A, inset) show typical adsorption-desorption isotherms for NiTiO₃ and NMS-02 hybrid structures that confirmed the presence of pores, while the isotherms for pristine MoS₂ indicated the absence of pores. This analysis showed that porous NiTiO₃ NFs favored the growth of structurally stable vertical nanosheets of MoS₂. The reduction of CO₂ in the presence of water is usually in fierce competition with hydrogen evolution reaction (HER). This causes low activity and selectivity toward CO₂ photoreduction. Therefore, the adsorption and activation of the CO₂ on the surface of the catalyst are crucial for the subsequent reduction process. The amounts of CO₂ adsorbed for the TiO₂ NF, NMS-02, and MoS-02 were analyzed at 25°C (Figure 6B). Results show a higher amount of CO₂ adsorption on the surface of the NMS-02 hybrid sample (1.73 cm³/g STP) than that of pristine NiTiO₃ NF (1.29 cm³/g STP) and pristine MoS₂ (0.62 cm³/g STP). The epitaxial growth of MoS₂ combined with the porous structure of NiTiO₃ NFs provided more active sites for CO₂ diffusion and adsorption. FTIR analysis showed the presence of OH groups on the surface of NiTiO₃ NF and NMS-02 catalysts (Supplementary Figure S4). Surface hydroxyl (OH) and amino groups are prone to donate their protons to CO₂ to make negatively charged species which help improve CO₂ adsorption and proton production which enhances the efficiency of CO₂ photoreduction (Liu P. et al., 2020). The higher adsorption ability of the NiTiO₃/MoS₂ hybrid sample supported its high CO₂ reduction performance. The BET analysis results are summarized in Supplementary Table S2.

FIGURE 6

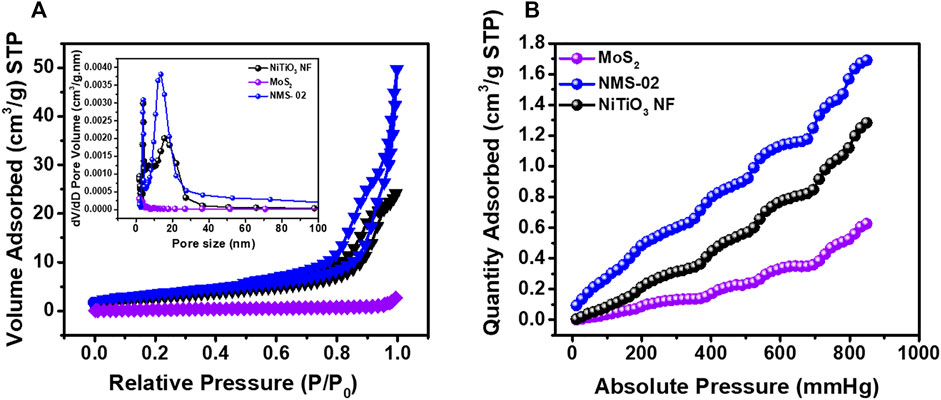

FIGURE 6. (A) Brunauer–Emmett–Teller nitrogen adsorption-desorption isotherms at 77 K. Inset shows the Barrett–Joyner–Halenda pore size distribution. (B) CO₂ adsorption isotherms at 298 K for pristine NiTiO₃ NF, MoS_2, and NMS-02 photocatalysts degassed overnight at 100°C.

Photocatalytic CO₂ Photoreduction and its Mechanism

To investigate the photocatalytic performance of the samples, CO₂ photoreduction experiments were performed in a custom-made steel reactor equipped with a quartz window. A 300-W Xe lamp was used as the UV-vis light source. Three sequential experiments were performed under the same conditions to confirm the reliability of the results. Control experiments were also performed without using CO₂ and photocatalyst; no by-products were obtained, which indicated that photocatalyst and CO₂ are essential to convert CO₂ into useful hydrocarbon fuels (Supplementary Figure S1). Figure 7 presents the CO₂ reduction results. Carbon monoxide was a major gas with comparatively small amounts of H₂ and CH₄ as side products. Pristine NiTiO₃ NF and MoS₂ showed markedly poorer yields compared with the composite samples, because of their moderate light absorption and charge separation properties. Carbon monoxide and CH₄ yields increased with increasing MoS₂ loading and reached the optimum value in NMS-02 (CO: 130 μmol g⁻¹ h⁻¹; CH₄: 55 μmol g⁻¹ h⁻¹). Yields decreased with further increases in MoS₂ loading to NMS-03 (CO: 106 μmol g⁻¹ h⁻¹; CH₄: 21 μmol g⁻¹ h⁻¹) and NMS-04 (CO: 101 μmol g⁻¹ h⁻¹; CH₄: 36 μmol g⁻¹ h⁻¹), which suggested that excess MoS₂ might have induced charge carrier recombination during the reaction process. The low activity of the composite samples with higher MoS₂ contents may also be partly due to fewer active sites, due to agglomerated MoS₂ sheets as observed in SEM images. The CO and CH₄ yields of the optimum sample of NMS-02 were 3.8- and 3.6-times those of pristine NiTiO₃ NF (34 and 15 μmol g⁻¹ h⁻¹, respectively) and 3.6- and 5.5-times those of the pristine MoS₂ (37 and 10 μmol g⁻¹ h⁻¹, respectively) (Figure 7A). The amounts of gases produced by our hybrid samples were significantly higher than those reported elsewhere for photocatalysts containing NiTiO₃ NFs and MoS₂ (Supplementary Table S3), because the epitaxial growth of MoS₂ over NiTiO₃ NFs enhanced light absorption and exposed active edges. Mixed (1T/2H) phases of MoS₂, enhanced CO₂ adsorption, and improved charge separation might also have contributed to the significantly higher performance of the NMS-02 photocatalyst.

${\mathbf{S}}_{\mathrm{CO}2 }(\%)= \frac{2{\mathbf{n}}_{\mathrm{CO}} + 8{\mathbf{n}}_{\mathrm{CH}4}}{2{\mathbf{n}}_{\mathrm{H}2} + 2{\mathbf{n}}_{\mathrm{CO}} + 8{\mathbf{n}}_{\mathrm{CH}4}} \times 100(1)$

FIGURE 7

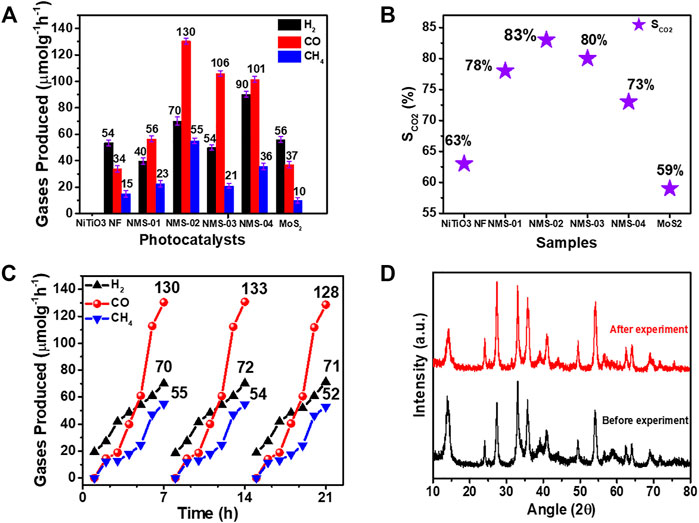

FIGURE 7. Photocatalytic CO₂ reduction performance of as-prepared samples. (A) Yields of the gases produced. (B) Comparison of CO₂ selectivity among the samples (C) Stability test results of the optimum sample (NMS-02).) (D) XRD analysis of NMS-02 after the stability test.

Hydrophobic surfaces suppress H₂ evolution, thereby favoring CO₂ photoreduction reactions by exerting an umbrella-like effect over photocatalysts to minimize water contact (Li et al., 2019a; Wakerley et al., 2019). CA measurements confirmed that the optimum sample was comparatively hydrophilic compared with pristine NiTiO₃ NFs and MoS₂ (Supplementary Figure S2). Here, hydrophobicity could have been partly induced by the presence of the semiconducting hydrophobic 2H phase, and partly by the epitaxial growth of MoS₂ over the NiTiO₃ NFs. Generally, 90° is considered a critical angle for distinguishing between hydrophilic (CA < 90°) and hydrophobic (CA ≥ 90°) behavior. However, in our study, surfaces with CAs close to 90° were identified as hydrophobic while those with lower CAs were deemed hydrophilic.

The CO₂ selectivity (S_CO2) of each catalyst can be calculated according to Eq. 1, where n is the amount of H₂, CO, and CH₄ produced in units of μmol g⁻¹ h⁻¹ during 7 h of light irradiation. The highest selectivity, of 83%, was recorded for NMS-02, which compares with 63%, 78%, 80%, 73%, and 59% for NiTiO₃ NFs, NMS-01, NMS-03, NMS-04, and MoS₂, respectively (Figure 7B). The stability of the optimum sample was determined by measuring CO₂ reduction performance. The experiment was repeated for up to three cycles; after each cycle, the sample was removed from the instrument, and heated at 100°C for 4 h to remove DI water and TEOA. No significant change in performance was observed during the three consecutive experiments, which indicated good photocatalyst stability (Figure 7C). Moreover, the sample was collected after the completion of the stability test for XRD analysis. Figure 7D clearly shows that the XRD pattern before and after the CO₂ photoreduction looks almost similar. No observable change was observed according to XRD analysis, confirming that the heterostructure is highly stable.

CO₂ reduction results confirmed that pure NiTiO₃ NFs and pure MoS₂ showed exceptionally lower amounts of CO and CH₄ as compared to those for NiTiO₃/MoS₂ heterostructures. It can be inferred that the photocatalytic reduction of CO₂ can be improved by light-harvesting, photogenerated carrier generating, and the CO₂ adsorption capacity of the catalyst. Results of UV-Vis absorbance, PL, photocurrent density, and BET analysis show that the introduction of MoS₂ nanosheets on the surface of NiTiO₃ nanofibers can effectively increase the light absorption, charge separation, and CO₂ adsorption and activation ability of the catalyst. As the activated CO₂ is more susceptible to the reduction, the photogenerated electrons on the surface of heterostructure will react with the activated CO₂ and H₂O to form carbon-containing products as well as H₂. NiTiO₃ nanofibers decorated with flower-like MoS_2, improving the selectivity of the CO, and CH₄ products through the higher density of the photogenerated electrons to suppress the H₂ formation on the active sides of the heterostructure. Based on the above results and discussions, a mechanism for the CO₂ photocatalytic reduction process can be proposed in Figure 8. Under simulated light irradiation, photogenerated electrons are excited from the conduction band (CB) of NiTiO₃ NFs to the valence band (VB) of NiTiO₃ nanofibers from where electrons migrate to CB of the MoS₂ nanosheets due to good band alignment between the two components. Subsequently, the excited electrons from the CB of MoS₂ nanosheets react with adsorbed CO₂ and water producing CO and CH₄. Meanwhile, the holes at VB-holes move from the VB of NiTiO₃ NF to VB of MoS₂ where they combine with TEOA to oxidize TEOA to TEOA⁺. The electrons enriched active sites of MoS₂ in CB would be used for CO₂ reduction. Thus, the synthesized hybrid structure delayed recombination of electron-hole pairs, thereby improving charge transfer at the interface.

FIGURE 8

FIGURE 8. Schematic illustration of the proposed charge transfer mechanism for CO₂ photoreduction under ultraviolet-visible light illumination on NiTiO₃/MoS₂ photocatalyst.

Conclusion

Full spectrum-induced hybrid structures consisting of 1D NiTiO₃ decorated with 1T/2H MoS₂ were prepared via a facile one-step hydrothermal method. The key parameters for tailoring the morphology, porosity, surface, and interfacial properties of the photocatalysts were identified, with a view to efficient and selective conversion of CO₂ into valuable chemicals. Introduction of MoS₂ layers onto the NiTiO₃ NFs increased the CO₂ selectivity to 83% for the optimized hybrid structure, which compares with 63% and 59% for pristine NiTiO₃ NFs and MoS₂, respectively. This large improvement was attributed to the positive synergistic effect between the NiTiO₃ NFs and MoS₂ in the hybrid photocatalyst. High CO₂ selectivity could also be attributed to enhanced light absorption, an abundance of active edges, insertion of multiphase (2H/1T) MoS₂, and higher surface area, and partly to the hydrophobic nature of the composite structure. We believe that this strategy provides a new route to the design and manufacture of more energy-efficient materials having higher photocatalytic activity.
