Design of Sb2Te3 nanoblades serialized by Te nanowires for a low-temperature near-infrared photodetector

The dangling bond on the surface of bulk materials makes it difficult for a physically contacted heterojunction to form an ideal contact. Thus, periodic epitaxial junctions based on Sb₂Te₃ nanoblades serialized by Te nanowires (Sb₂Te₃/Te) were fabricated using a one-step hydrothermal epitaxial growth method. X-ray diffraction and electron microscopy reveal that the as-prepared product has a good crystal shape and heterojunction construction, which are beneficial for a fast photoresponse due to the efficient separation of photogenerated carriers. When the Sb₂Te₃/Te composite is denoted as a photodetector, it shows superior light response performance. Electrical analysis showed that the photocurrent of the as-fabricated device declined with temperatures rising from 10K to 300K at 980 nm. The responsivity and detectivity were 9.5 × 10¹¹ μA W⁻¹ and 1.22 × 10¹¹ Jones at 50 K, respectively, which shows better detection performance than those of other Te-based photodetector devices. Results suggest that the as-constructed near-infrared photodetector may exhibit prospective application in low-temperature photodetector devices.

Introduction

Topological insulators have been experiencing new grading of quantum matter consisting of a bulk gap and Dirac-like surface states (Fu et al., 2007; Xia et al., 2009). These materials were considered using a robust spin-orbit interaction that leads to surface states bridging the bulk band gap. More importantly, the carriers on the surface states of topological insulators have low energy dissipation because of the time-reversal symmetry and spin-orbit coupling (Yu et al., 2018). Moreover, angle-resolved photoemission spectroscopy (ARPES) analysis indicates that the surface states consist of an odd number of helical spin-momentum textured Dirac cones (Pradhan et al., 2017; Sun et al., 2017). Therefore, methods have been developed to synthesize various topological insulator materials, for example, metal-organic chemical vapor deposition (MOCVD), pulsed-laser deposition (PLD), and physical vapor deposition (PVD) (Jiang et al., 2005; Jin et al., 2005; Matsunaga et al., 2006; Ikeda et al., 2007). Due to unique physical properties and potential applications in more and more fields, such as quantum computing, photodetection, and superconductors, topological insulator materials have been the focus of tremendous recent attention (Duan et al., 2015; Yu et al., 2017). In these devices, photodetectors have gained special attention because of their widespread applications in many areas, such as industrial automatic control, infrared remote sensing, image sensors, and target detection (Yang et al., 2000; Matsunaga et al., 2004; Zhong et al., 2017; Wang et al., 2022). For example, a photoconductor based on topological insulator (Sb₂Te₃) film has been prepared, and the device has the ability to detect the 980 nm near-infrared light (Zheng et al., 2015). Zhang et al. reported a polycrystalline Bi₂Te₃ film topological insulator for a near-infrared (NIR) photodetector and revealed that the as-prepared device is sensitive to visible and NIR light and the responsivity and gain are 3.3 × 10⁻⁵ A W⁻¹ and 3.85 × 10⁻⁵, respectively (Wesolowski et al., 2014). In addition, a series of photovoltaic detectors based on topological insulators, such as SnTe/Si and Sb₂Te₃/STO, were prepared and exhibited excellent performance (Tominaga et al., 2014; Sun et al., 2017). However, these devices exhibit a large dark current and the very low carrier lifetime of the photoconductor based on one component leads to a slower response speed and little photocurrent.

Sb₂Te₃, as a narrow bandgap semiconductor (∼0.23 eV), is considered a rhombohedral crystal showing a bulky periodicity along its c-axis (a_Sb2Te3 = 4.26 Å, c_Sb2Te3 = 30.46 Å). Additionally, Tellurium is a key semiconductor and its bandgap is approximately 0.35 eV (Cheng et al., 2013; Li et al., 2015). Therefore, Sb₂Te₃ and Te nanostructures can be epitaxially grown together to form heterojunctions due to the similarity of lattice spacings. Factually, the enhanced concentration of interfaces can strongly boost the formation of the built-in field. The effect is beneficial for separating photon-induced carriers (Lee et al., 2008; Tominaga et al., 2008; Sosso et al., 2009; Dong et al., 2010). Consequently, photodetection performances would be enhanced due to the quantum size effects by forming heterojunctions (Chen et al., 2003; Cozzoli et al., 2006).

Although the synthesis of various Sb₂Te₃-Te heterojunctions has been executed and performance has been estimated, the complex and energy-intensive fabrication process of the heterojunction, such as CVD and MBE, seriously restricts their large-scale application. Herein, we settled on a facile one-step hydrothermal method to prepare T-shaped epitaxial Sb₂Te₃/Te heterojunctions with feature sizes of hundreds of nanometers. The morphologies and structures of the product were carefully characterized by an electron microscope and X-ray diffraction, respectively. The length of a nanostructure is approximately 10 μm, which is very beneficial in fabricating the photodetector by convenient photolithography processing. The as-fabricated Sb₂Te₃/Te photodetector device shows a superior photovoltaic effect because of the superior built-in electric field within the hetero-interface. The responsivity and photoconductivity are estimated as 9.5 × 10¹¹ μA W⁻¹ and 1.22 × 10¹¹ Jones at 50 K, respectively, which is more prior than those previously reported. This study proposes that the T-shaped epitaxial Sb₂Te₃/Te heterojunctions show great promise for future optoelectronic device applications.

Experimental section

Material synthesis

An eco-friendly hydrothermal method was used to synthesize Sb₂Te₃/Te heterostructure nanostrings. In a typical synthesis, 2 mmol L-antimony potassium tartrate (C₈H₄K₂O₁₂Sb₂, AR, 99%), 3 mmol sodium selenite (AR, 99%), and 0.3 g polyvinyl pyrrolidone (PVP, 130000, AR, 99%) were dissolved in 40 ml of ethylene glycol (AR, 99%). After vigorous stirring for 10 min, the mixture was put into a 100 ml Teflon-lined stainless-steel autoclave. The autoclave was treated at 180 °C and maintained for 48 h before being cooled in air. The precipitates were isolated by centrifugation, washed with distilled absolute ethanol and water several times to remove possible residues, and dried in a vacuum. Lastly, to improve the degree of crystallinity, the Sb₂Te₃/Te composite was placed in a tube and annealed to 300 °C for 2 h in argon.

Material characterization

Morphological characterizations of the Sb₂Te₃/Te nanostrings were performed using scanning electron microscopy (SEM, NOVA 450, FEI) and transmission electron microscopy (TEM, G2 FEI). The crystalline structures of the as-prepared nanofibers were characterized by X-ray diffraction (XRD, Shimadzu XRD-6000). The valence state analysis of the Sb₂Te₃/Te nanostrings was performed with an X-ray electron spectrometer (XPS, AXIS-ULTRA DLD-600W).

Device construction and analysis

The topological insulator Sb₂Te₃/Te heteronanostructures are sensitive to acetone, which is usually used to remove the photoresistor during the photolithography process. A focused ion beam (FIB) was employed to define the metal electrode during the fabrication of the NIR photodetector. Briefly, a micro-electrode on SiO₂ (300 nm)/Si substrate was fabricated using conventional photolithography, followed by the deposition of 25 nm titanium and 35 nm gold films by high vacuum electron beam evaporation. Then, the dispersed Sb₂Te₃/Te nanostrings were dropped on the micro-electrode and deposited as 50 nm platinum films by FIB. The device characteristics of the topological insulator Sb₂Te₃/Te heterostructure are measured using a semiconductor characterization system (Keithley 4200-SCS). The test system was equipped with an automatic cooling system named CCS-350, which was a slow-temperature cycle refrigeration system. For the optoelectronic study, the 980 nm laser (CEL-PF300-T9) is employed as the monochromatic light, which is equipped with an attenuator guided to the NIR device.

Results and discussion

The proof-of-concept photodetection device (Figure 1A) based on Sb₂Te₃/Te nanostrings was fabricated on an SiO₂ substrate and the trench width was approximately 5 μm. The Te nanowire is separated by a periodically arranged Sb₂Te₃ nanoplate, which formed distinctive p-p heterojunctions. The unique nanostring structure leads to a higher photoelectric conversion efficiency. Figure 1B shows the crystal structure models of Sb₂Te₃ and Te. The Sb₂Te₃ crystal structure consists of approximately five-atom layers along the c-direction, which are known as quintuple layers. Each layer consists of five atoms in order as follows: Te1–Sb–Te2–Sb0–Te10. Furthermore, Te is a hexagonal crystal formed by the accumulation of helical chains through van der Waals interactions. The band structures of Sb₂Te₃ and Te are depicted in Figure 1C, respectively. Sb₂Te₃ is a p-type topological insulator with a Femi level located in the valance band. The Te is also a p-type semiconductor whose band gap is larger than Sb₂Te₃. After combination, a heterojunction can be formed at the interface between Sb₂Te₃ and Te. As the work function of Sb₂Te₃ is smaller than Te, its electrons will flow into Te and this charge transfer process will form a built-in potential field at the interface. Under infrared light illumination, electron-hole pairs can be generated in Sb₂Te₃ and holes will be transferred to Te by built-in potential. These carrier generations and transfers will lead to a detectable photocurrent.

FIGURE 1

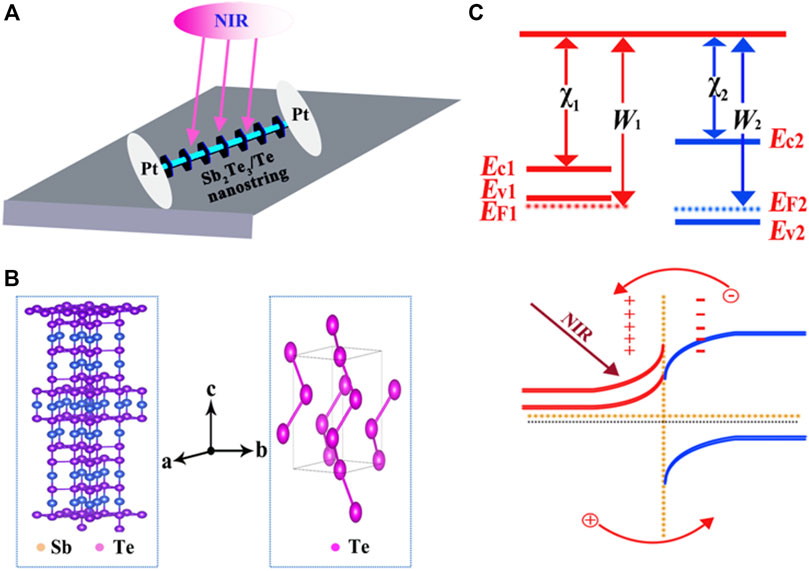

FIGURE 1. (A) Schematic illustration of the Sb₂Te₃/Te nanostring NIR photodetector. (B) Schematic illustration of the crystal structure of the Sb₂Te₃ nanosheet and Te nanowire. (C) Energy band diagram of the Sb₂Te₃/Te nanostring photodetector without and with NIR light illumination.

The Sb₂Te₃/Te nanostrings are characterized by XRD. Figure 2A (turquoise line) shows the XRD pattern of the Sb₂Te₃/Te nanostrings. All peak positions in Figure 2A are indexed to the rhombohedral Sb₂Te₃ (JCPDS No. 71-0393) and the hexagonal Te (JCPDS No. 89-4899). The characteristic peaks of Sb₂Te₃ and Te are exhibited in Figure 2A such as (015), (110), (205), (101), (012), and (110) planes, which suggest that the as-prepared product is composed of rhombohedral Sb₂Te₃ and hexagonal Te. In addition, the diffraction intensities of Sb₂Te₃ (006) and (1010) planes are extremely sharp; however, those of the (101) and (107) planes are distinctly weak, showing that the (hk0) planes in the Sb₂Te₃ nanostructure grew faster than the (hkl, l ≠ 0) planes. Therefore, the Sb₂Te₃ crystallization is preferentially grown along with the a or b axle instead of the c axle. As a result, ultrathin Sb₂Te₃ nanosheets can be generated in the final products. It is remarkable that the crystallinity is scored as 91.67% after refining (Supplementary Figure S1).

FIGURE 2

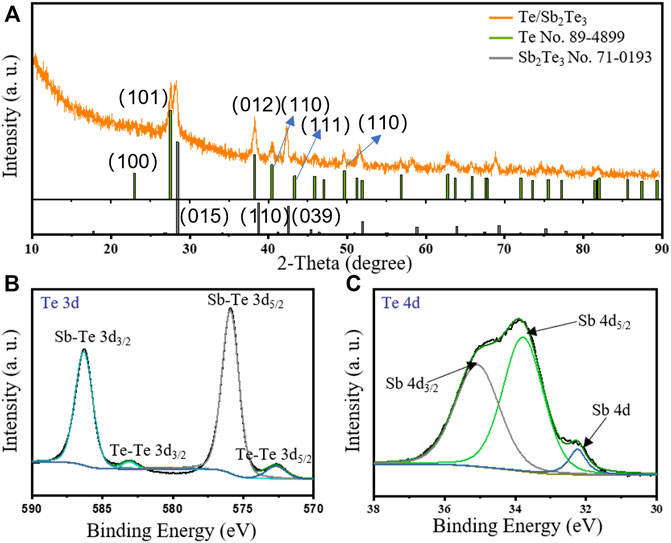

FIGURE 2. (A) X-ray diffraction (XRD) pattern of the Sb₂Te₃/Te nanostrings. (B,C) XPS spectra of Te (3d) and Sb (4d).

The X-ray photoelectron spectroscopy (XPS) spectra further clarify the structure of Sb₂Te₃/Te nanostrings. The sharp peaks of Te (3d) and broad peaks of Sb (3d, 4d) can be clearly separated (Supplementary Figure S2). Figures 2B and C reveal that the electron-binding energies of Te 3d_3/2 and Te 3d_5/2 located at 586.3 eV and at 575.9 eV, respectively, which corresponds to the valence of Sb-Te. The binding energies located at 583.0 and 572.6 eV can be ascribed to the 3d_3/2 and 3d_5/2 of Te-Te valence. The Raman spectra can also confirm the existence of Te and Sb₂Te₃. Two typical characteristic peaks are located at 179 and 235 cm⁻¹, which can actually be assigned to Te (Yin et al., 2018) (Supplementary Figure S3). The representative signals of Sb₂Te₃ are located at 309 and 343 cm⁻¹. All facts confirm that the as-synthesis product exhibits a fine crystallinity with definite constitution and structure.

Figures 3A–C reveal the morphologies of the nanostrings at different magnifications by field-emission scanning electron microscopy (FESEM). The nanostrings are composed of multiple nanosheets that are strung together through the center by Te nanowires. The length of the Te nanostructure is approximately 10 μm (Supplementary Figure S4), which is beneficial for the photodetection device fabrication by conventional photolithography. Figure 3D demonstrates that the Sb₂Te₃ nanosheets are embedded in the Te nanowire and the diameter is approximately 300 nm. HRTEM pattern analysis effectively indicates the monocrystalline texture of Sb₂Te₃/Te nanostrings (Figures 3E and F). The lattice fringes are noticeable and the d-spacings are 0.2375 and 0.25 nm, which correspond well to the Tellurium (012) and Sb₂Te₃ (110) lattice planes, respectively. The selected area electron diffraction (SAED) pattern (Supplementary Figure S5) is well indexed to the hexagonal phase of Tellurium, and corresponding to the diffraction peaks of (012), (101), and (110) planes shown in the XRD pattern. Energy dispersive spectrometer (EDS) spectra confirmed that the nanostrings are composed of Sb and Te elements (Figures 3G–I). Figures 3G–I exhibit the TEM elemental mapping images of the Sb₂Te₃/Te nanostring, which further confirms that the as-prepared product is only composed of Te and Sb elements.

FIGURE 3

FIGURE 3. (A–C) SEM images of the Sb₂Te₃/Te nanostrings at different magnifications. (C) TEM image of the Sb₂Te₃/Te nanostrings. (D) TEM image of the Sb₂Te₃/Te nanostrings. (E,F) HRTEM images of the Sb₂Te₃/Te nanostrings (G–I) and elemental mapping images of Sb₂Te₃/Te nanostrings.

The temperature-dependent current-voltage (I-V) curves of the as-fabricated device are studied to disclose its electrical transportation characteristics. Figures 4A and B demonstrate the I-V characteristics from 10 to 300 K in the dark and under 980 nm light illumination (0.5 mW cm⁻²). The dark current increases with falling temperature. This can be attributed to the unique electronic construction, particularly when the Fermi level is close to the Dirac point. The I-V curves are virtually linear when illuminated by 980 nm light and show that the Te nanowire and Pt-Ti/Au electrode can form a contact form with Ohmic contact.

FIGURE 4

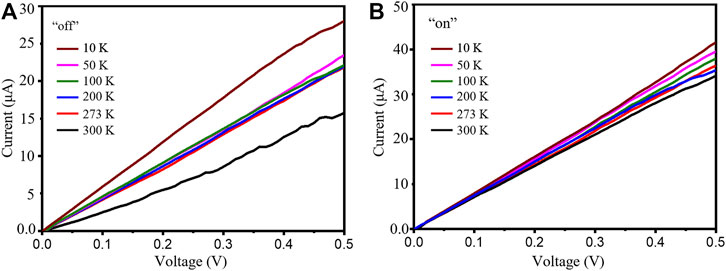

FIGURE 4. I-V curves of the Sb₂Te₃/Te nanostrings in the dark (A) and under illumination (B) at various temperatures from 10 to 300 K.

Considering the temperature-dependent electrical properties of the Sb₂Te₃/Te nanostrings, the photoresponse characteristics at different temperatures were studied. Figure 5 shows the temporal photoresponse properties of the device at 10K, 50K, 100K, 200K, 273K, and 300K with periodic irradiation of 980 nm at a bias voltage of 1 V. The figure shows that when the bias voltage is kept unchanged, the change of the current is consistent with the changes of the temperatures. The dark current can decrease to the lowest value of 8.5 μA at 100K and the photocurrent can reach its highest value of 79.5 μA at 10K under the 1 V bias voltage and on/off illumination of 980 nm light. Additionally, the photoresponse characteristics of the as-constructed photodevice are homologous at temperatures of 273 and 300 K due to the temperature effect (Qi et al., 2018). The optical switching behavior of this photodetector is highly reversible with good stability and reproducibility. There is no significant degradation in its switching behavior even after multiple periodic optical switching changes. It is worth noting that different from the conventional photodetectors with a very fast response speed based on semiconductor nanostructures, the as-fabricated device has a moderately (several hundred seconds) slow rising and falling time (Cai et al., 2022). The difference in the response speed is possible due to their distinction of the band structures.

FIGURE 5

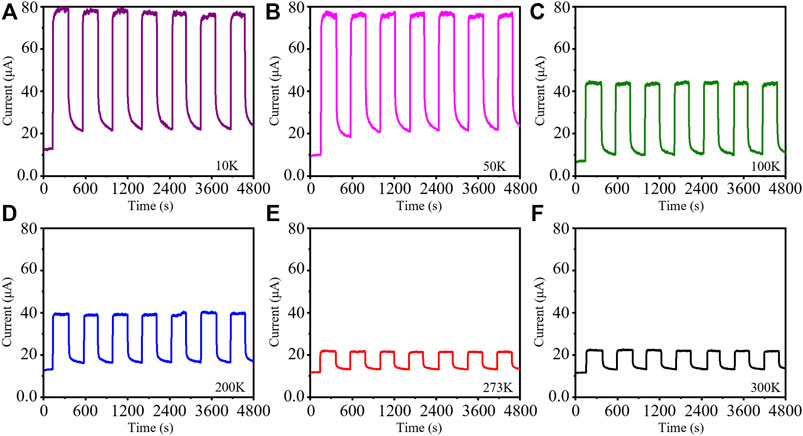

FIGURE 5. Time-resolved photoresponse of the Sb₂Te₃/Te nanostring photodetector under different temperatures at 1 V bias voltage: (A) 10 K, (B) 50 K, (C) 100 K, (D) 200 K, (E) 273 K, and (F) 300 K.

The responsivity ® and detectivity (D*) are also two key index factors of photodetectors. “R” is the photocurrent per unit incident light power on the calculating device, which can reflect the sensitivity of the device to the intensity of incident light. “D*” shows the performance of detecting weak light (Yu et al., 2018). These two key parameters can be derived according to the following equations:

$R=\frac{I_{ph}-I_d}{PS}(1)$

$D^{*}=\frac{R{S}^{1/2}}{{\left(2e{I}_d\right)}^{1/2}}(2)$

where I_ph is the photocurrent, I_d is the dark current, P is the incident light power density (0.5 mW cm²), S is the effective area of the device receiving light (∼1.5 × 10⁻⁸ cm²), and e is the fundamental charge (1.6 × 10⁻¹⁹ C) (Xu et al., 2022; Zhang et al., 2022). According to Eqs 1, 2, the “R” and “D*” of the detector under 3 V bias voltage and different illumination intensities are shown in Figure 6. The results show that the detector has a photoresponsive®(R) of approximately 9.5 × 10¹¹ μA W⁻¹ and a detectable rate (D*) of approximately 1.3×10¹⁷ Jones under 1 V bias voltage and 50 K with the light irradiation of 980 nm.

FIGURE 6

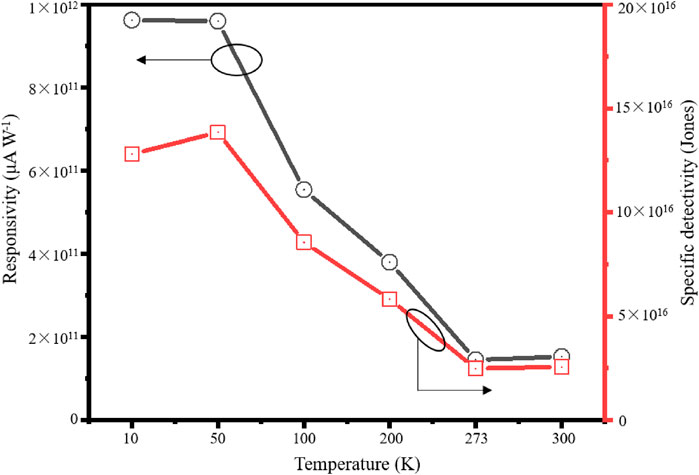

FIGURE 6. Responsivity (R) and detectivity (D*) of a selenium self-supporting film photodetector under different light intensities.

Conclusion

We report a near NIR photodetector based on a topological insulator antimony telluride (Sb₂Te₃) and tellurium (Te) heterostructure, which are prepared by controllable hydrothermal and photolithography methods. The elaborately constructed device exhibits topological insulator properties, and the resistance especially decreases with increasing temperature in the range of 10–300 K. Further optoelectronic characterization shows that the as-fabricated photodetector delivers obvious sensitivity to 980 nm light illumination. The performance of responsivity and detectivity are remarkable and are much better than those of other Te-based topological insulator photodetector devices. The research suggests that the as-constructed NIR photodetector may have great potential in low-temperature optoelectronic devices.
