Core-Shell Structured PtxMoy@TiO2 Nanoparticles Synthesized by Reverse Microemulsion for Methanol Electrooxidation of Fuel Cells

The high price of catalyst and poor durability still restrict the development of fuel cells. In this work, core-shell structured Pt_xMo_y@TiO₂ nanoparticles with low Pt content are prepared by a reverse microemulsion method. The morphologies, particle size, structure, and composition of Pt_xMo_y@TiO₂ nanoparticles are examined by several techniques such as X-ray Diffraction, X-ray photoelectron spectroscopy and transmission electron microscopy, etc. The Pt_xMo_y@TiO₂ electrocatalysts show significantly higher catalytic activity and better durability for methanol oxidation than the commercial Pt/C (ETEK). Compared to Pt/C catalyst, the enhancement of the electrochemical performance of Pt_xMo_y@TiO₂ electrocatalysts can be attributed to the core-shell structure and the shift of the d-band center of Pt atoms, which can weaken the adsorption strength toward CO molecules, facilitate the removal of the CO groups and improve electrocatalytic activity. The development of Pt_xMo_y@TiO₂ electrocatalysts is promising to reduce the use of noble metal Pt and has a great potential for application in fuel cells.

Introduction

Direct methanol fuel cell (DMFC) is becoming more and more popular because of its abundant fuel sources, high energy density (6.09 Kwh Kg⁻¹), environmental friendliness, high conversion, and low price (Zhao et al., 2011; Zhu et al., 2014; Lin et al., 2020). Due to the disadvantages of the platinum (Pt) group, such as high price, low yield, easy poisoning by oxidized intermediate products and poor durability, it is essential to design a new anode electrocatalyst with high-performance, low price, and high stability. So far, many efforts have been done to achieve the above goals. For example, various nanostructured architectures have been investigated including nanoframe, nanocrystal, nanowires, core-shell, and nanoclusters (Lang et al., 2016; Lu et al., 2016; Kwon et al., 2018; Oh et al., 2018; Liu et al., 2019). Among these nanostructures, core-shell structure is very special and has been widely used in electrocatalysis. Luo et al. (2008) synthesized core-shell structured Au@Pt and Fe₃O₄@Au@Pt nanoparticles by using a multiple steps method. The enhancement of catalytic performances for methanol oxidation reaction (MOR) was ascribed to the synergistic effect of oxide core and the shell surface. A core-shell structured Ag@Pt nanoparticle was prepared by the one step method using non-ionic surfactants (Li and Yamauchi, 2013). The activity enhancement is dependent on the adjustment of dendritic Pt shell with large surface area and the good anti-poisoning effect of the Ag core. The core-shell structured Pd@Pt nanoparticles were synthesized using a one-step microwave heating method (Zhang et al., 2010). When Pd/Pt molar ratio was 1:3, the mass activity of Pd@Pt nanoparticles was six times higher than that of commercial Pt/C for MOR. Wang et al. (2019) synthesized PtFe@PtRuFe nanoparticles by using a multi-step solvent method. Due to the core-shell structure and surface alloying, the mass activity of the PtFe@PtRuFe catalysts was improved 1.68 times than that of state-of-the-art PtRu catalysts toward MOR. The core-shell structured Pd-Ni-Pt nanoparticles were synthesized through a wet chemical route (Sneed et al., 2014). The specific activity of Pd-Ni-Pt catalysts for MOR is four times than that of Pd/Pt catalysts. Although various core-shell structured nanocatalysts have been synthesized for MOR of fuel cells, it is still an enormous challenge to develop Pt-based core-shell structured nanoparticles with lower cost, high chemical stability. The electrocatalytic activity and stability of Pt nanoparticles can be further increased by alloying with non-noble metals such as Ni, Fe, and Cu (Ramírez-Caballero et al., 2010; Wang et al., 2011; Zhao et al., 2015). Therefore, it is a challenge to develop a facile method for preparation of high performance and high stability core-shell catalysts with Pt-based alloy. Among these transition metals, Mo has good poisoning tolerance toward MOR at room temperature. Shubina and Koper (2002) verified that the adsorption capacity of CO on PtMo bimetallic surface was weaker than that on pure Pt surface through Density Functional Theory (DFT). However, due to the large negative redox potential of Mo²⁺/Mo couple and the low miscibility of Pt and Mo, it is a very challenging subject to prepare PtMo alloy nanoparticles with small size by using solution-based methods (Liu et al., 2009). In this work, a reverse microemulsion (RME) method is developed to prepare core-shell structured Pt_xMo_y@TiO₂ nanoparticles. The morphologies, particle size, structure, composition, and performance of Pt_xMo_y@TiO₂ nanoparticles are investigated in this work. The experimental results show that Pt_xMo_y@TiO₂ electrocatalysts possess excellent electrocatalytic activity and durability toward MOR.

Experiment

Materials

Molybdenum chloride (MoCl₅, 99.6%), titanium isopropoxide (TiIPO, 96%), isopropanol (C₃H₈, 97%), n-heptane (C₇H₁₆, 98.5%), polyoxyethylene (4) lauryl ether (Brij® L4, Mn~362), ammonium hydroxide solution (NH₃·H₂O, 25~28%), chloroplatinic acid (H₂PtCl₆·6H₂O, 99.9%), tetraethyl orthosilicate (TEOS, 28.4%), methyl alcohol (CH₃OH, 99.5%), acetone (C₃H₆O, 99.5%), hydrofluoric acid (HF, 40%), Nafion solution (5% in isopropanol and water) were purchased from AiKe reagent without further treatment.

Synthesis of Pt_xMo_y@TiO₂ Nanoparticles

The Pt_xMo_y@TiO₂ nanoparticles were synthesized by referencing a previously modified method which was reported by Sean T. (Hunt et al., 2016a). In a typical synthesis process, 8 mL C₁₂H₂₈O₄Ti and 4 mL MoCl₅ were added into the mixed solutions with 120 mL C₇H₁₆ and 55 mL Brij® L4, which formed the transition metal precursor alcohol solution. A certain amount of H₂PtCl₆ · 6H₂O aqueous solution with 45 mL C₇H₁₆ and 7.5 mL Brij® L4 were injected into the above solution drop by drop. After stirring the mixture for 4.2 h, 1.0 mL TEOS was added quickly. After 16.5 h, 300 mL methanol was added and stirred for 15 min, then lay up for 1 h at least. The white precipitate was collected by centrifugal, washed with acetone and dried under vacuum at 60°C overnight. Then white powers were heated at a rate of 2°C min⁻¹ to 870°C and maintained for 300 min under 120 cm³ min⁻¹ of H₂ and 30 cm³ min⁻¹ of CH₄, then the SiO₂@Pt_xMo_y@TiO₂ nanoparticles were obtained. After slowly cooling to room temperature, the SiO₂@Pt_xMo_y@TiO₂ nanoparticles were etched by HF and ethanol for 15 h to remove the SiO₂ outer shell. Finally, the Pt_xMo_y@TiO₂ nanoparticles were collected by centrifugation and washed with ethanol and water and dried under vacuum at 60°C overnight.

Characterization

The phase of nanoparticles was characterized by X-ray Diffraction (XRD) using Cu Kα radiation. The diffraction patterns were stored from 2θ = 10–90° with a scan rate of 5° s⁻¹. The surface composition and structure of as-prepared catalysts under ultra-high vacuum were characterized by X-ray photoelectron spectroscopy (XPS) with a monochromatic Al X-ray source (Al-KR, 1486.8 eV). All spectra were corrected by referencing the adventitious C 1s signal to 284.7 eV. The morphology and size of nanoparticles were characterized under instrument operating at 200 kV by Transmission Electron Microscopy (TEM). The samples were dispersed in acetone solution, dropped into copper TEM grids with carbon film, cooled to room temperature. The composition of the nanoparticles was analyzed by an energy-dispersive X-ray (EDX) spectroscope attached to the TEM.

Electrochemical measurements were carried out by using a common three-electrode cell method on the Autolab (Metrohm, PGSTAT 302N) instrument at room temperature. A glassy carbon electrode (GCE) with a diameter of 5 mm was used as the working electrode (WE), a 10 × 20 mm² platinum sheet was used as the counter electrode, and a silver chloride was used as the reference electrode (Ag/AgCl). Catalyst inks consisted of 10 mg Pt_xMo_y@TiO₂ nanoparticles and 2 mL, 0.5% Nafion/isopropanol, which was treated by ultrasound for 30 min. Finally, 10 μL catalyst inks were dropped on the GCE surface and dried in air at room temperature.

Results and Discussion

Core-shell structured Pt_xMo_y@TiO₂ nanoparticles are obtained by using the RME method. The synthesis procedure is described in Figure 1. First, the precursor structure is formed through the RME process. The resulting composite particles are subjected to a high-temperature reduction process, wherein the SiO₂ coating serves as a hard template to prevent nanoparticles sintering. Finally, core-shell structured Pt_xMo_y@TiO₂ nanoparticles are obtained by dissolving the SiO₂ shell using an aqueous HF solution.

FIGURE 1

Figure 1. Schematic diagram of the synthesis of Pt_xMo_y@TiO₂ nanoparticles.

After high temperature sintering, TEM images of SiO₂@Pt_xMo_y@TiO₂ nanoparticles are shown in Figure 2. The images were mared with yellow dotted line to clarify the different parts for shell and core. The dark dot in the center represents the Pt_xMo_y@TiO₂ core and the light shadow in the outer represents the SiO₂ shell. It can be found that all the dark dots are coated with thick shells. And the Pt_xMo_y@TiO₂ nanospheres in the core show uniform distribution without obvious agglomeration.

FIGURE 2

Figure 2. TEM images with high magnification inset of (a) SiO2@Pt0.5Mo0.5@TiO2, (b) SiO2@Pt0.25Mo0.75@TiO2, and (c) SiO2@Pt0.2Mo0.8@TiO2.

The crystal structures of SiO₂@Pt_xMo_y@TiO₂ and ETEK nanoparticles are characterized by the XRD pattern. As shown in Figure 3, the diffraction peaks of SiO₂ (PDF#01-082-0512) are located at 21.8, 35.9, and 69.0°. A set of diffraction peaks for TiO₂ at 2θ of 27.4, 41.2, 44.0, 54.3, and 56.6° indicate the existence of TiO₂ (PDF#01-086-0147) in the compounds. The diffraction peaks of PtMo alloy (PDF#03-065-5035) are located at 39.93, 46.43, 67.78, and 81.65°. Each of them corresponds to a crystal face, which is (111), (200), (220), and (311) facets of face-centered cubic (fcc) structure(Chen and Pan, 2009; Zhang et al., 2019). Because the content of PtMo is much lower than TiO₂ and SiO₂, the intensities of PtMo diffraction peaks are much lower than TiO₂ and SiO₂.

FIGURE 3

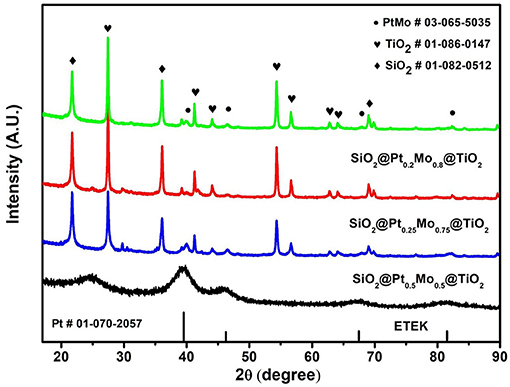

Figure 3. XRD patterns of ETEK, SiO2@Pt0.5Mo0.5@TiO2, SiO2@Pt0.25Mo0.75@TiO2, and SiO2@Pt0.2Mo0.8@TiO2.

The morphology and composition of the Pt_xMo_y@TiO₂ nanoparticles without silica shell are further characterized by TEM combined with EDX, as shown in Figure 4. The nanoparticle sizes of Pt0.5Mo0.5@TiO2, Pt0.25Mo0.75@TiO2, and Pt0.2Mo0.8@TiO2 are all about 12~15 nm with uniform distribution. Inset high magnification pictures clearly show that PtMo alloy is uniformly coated with TiO₂. The EDX spectra results of different nanoparticle components are shown in Figure 4d. The EDX images show that the existence of Pt, Mo and Ti elements, and the intensity of Mo peak increases with increasing the Mo content in the precursor solution. The existence of Cu elements comes from the copper mesh used in the preparation of TEM samples.

FIGURE 4

Figure 4. TEM images with high magnification inset of (a) Pt0.5Mo0.5@TiO2, (b) Pt0.25Mo0.75@TiO2 and (c) Pt0.2Mo0.8@TiO2, and (d) the corresponding EDX spectrums.

The surface element composition and chemical state of Pt_xMo_y@TiO₂ nanoparticles are further investigated by XPS measurements. It can be found that three elements of Pt, Mo, and Ti exist in XPS survey, as shown in Figure 5A. The Pt 4f region of the Pt_xMo_y@TiO₂ samples can be divided into two pairs of doublets, as shown in Figure 5B. The Pt0.5Mo0.5@TiO2 nanoparticles exhibit a pair of Pt 4f7/2 signal centered at 71.0 and 74.3 eV, which is consistent with the metallic Pt (Cao et al., 2013; Hunt et al., 2016b). The weak doublet peaks at 72.1 and 75.4 eV can be assigned to the Pt oxides (Tang et al., 2018). The Pt0.25Mo0.75@TiO2 and Pt0.2Mo0.8@TiO2 also show two doublet peaks that can be associated with metallic Pt and Pt oxides. Obviously, a pair of peaks at 71.2 and 74.5 eV are associated with the metallic Pt of Pt0.25Mo0.75@TiO2, another pair of peaks at 71.4 and 74.7 eV are associated with the metallic Pt of Pt0.2Mo0.8@TiO2. Compared with Pt0.2Mo0.8@TiO2 samples, a large negative shift in Pt 4f7/2 binding energy is observed in Pt0.5Mo0.5@TiO2 and Pt0.25Mo0.75@TiO2 samples. Due to the downshift in Pt 4f binding energy, more electrons will be transferred to Pt in Pt0.5Mo0.5@TiO2 and Pt0.25Mo0.75@TiO2 samples, which can weaken the Pt-CO_ads and promote the C-H cleavage on Pt sites (StamenkovIc et al., 2007; Stephens et al., 2011; Dubau et al., 2015). Figure 5C shows the Mo 3d spectra of the Pt0.5Mo0.5@TiO2 sample. The results show that the strong double peaks at 228.2 and 231.4 eV can be assigned to metallic Mo, the weak doublet peaks at 231.7 and 234.9 eV can be assigned to the Mo oxides. This indicates that Mo exists in the form of PtMo alloy in the Pt0.25Mo0.75@TiO2 samples, which is consistent with the XRD results.

FIGURE 5

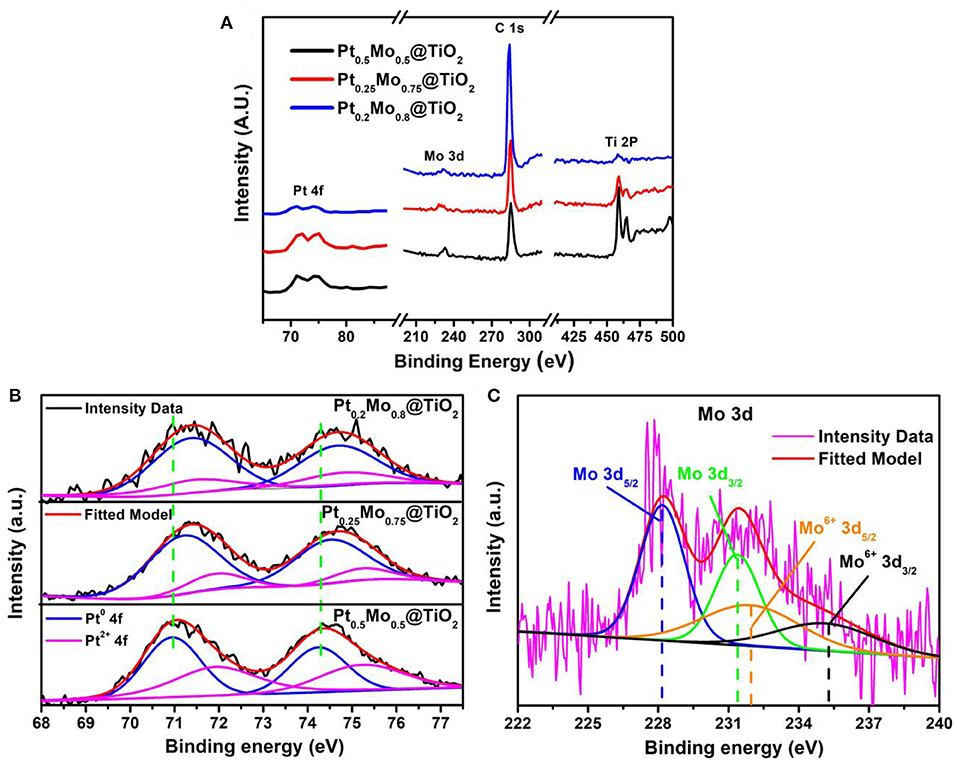

Figure 5. (A) Survey scan, (B) Pt 4f spectrum of Pt0.5Mo0.5@TiO2, Pt0.25Mo0.75@TiO2, and Pt0.2Mo0.8@TiO2, (C) Mo 3d spectrum of Pt0.25Mo0.75@TiO2.

The electrocatalytic activities of ETEK, Pt0.5Mo0.5@TiO2, Pt0.25Mo0.75@TiO2, and Pt0.2Mo0.8@TiO2 electrocatalysts are examined at room temperature in N₂-saturated 0.5 M H₂SO₄ with or without 1.0 M CH₃OH solutions, as shown in Figure 6. The electrochemical surface area (ECSA) is an important parameter, which is usually measured by the hydrogen adsorption/desorption area in the cyclic voltammograms (CV) curves and assumed to be 210 μC cm⁻² for the adsorption of a hydrogen monolayer (Lim et al., 2009). The typical CV of different electrocatalysts in 0.5 M H₂SO₄ solution are displayed in Figure 6A. The scan rate is 50 mV s⁻¹ in the potential range of −0.2–1.0 V. The comparison of ECSA between ETEK and as-prepared electrocatalysts is shown in Figure 6A and the corresponding electrochemical parameters are shown in Table 1. The Pt0.25Mo0.75@TiO2 electrocatalyst has a higher ECSA (593.9 cm² ${\text{mg}}_{\text{Pt}}^{-1}$), about 3.1 times higher than that of ETEK (193.3 cm² ${\text{mg}}_{\text{Pt}}^{-1}$). The high active surface area of Pt0.25Mo0.75@TiO2 is attributed to the small size and the synergistic effect between Pt and Mo. Higher ECSA tends to provide more active sites for hydrogen adsorption/desorption, which is very favorable for MOR.

FIGURE 6

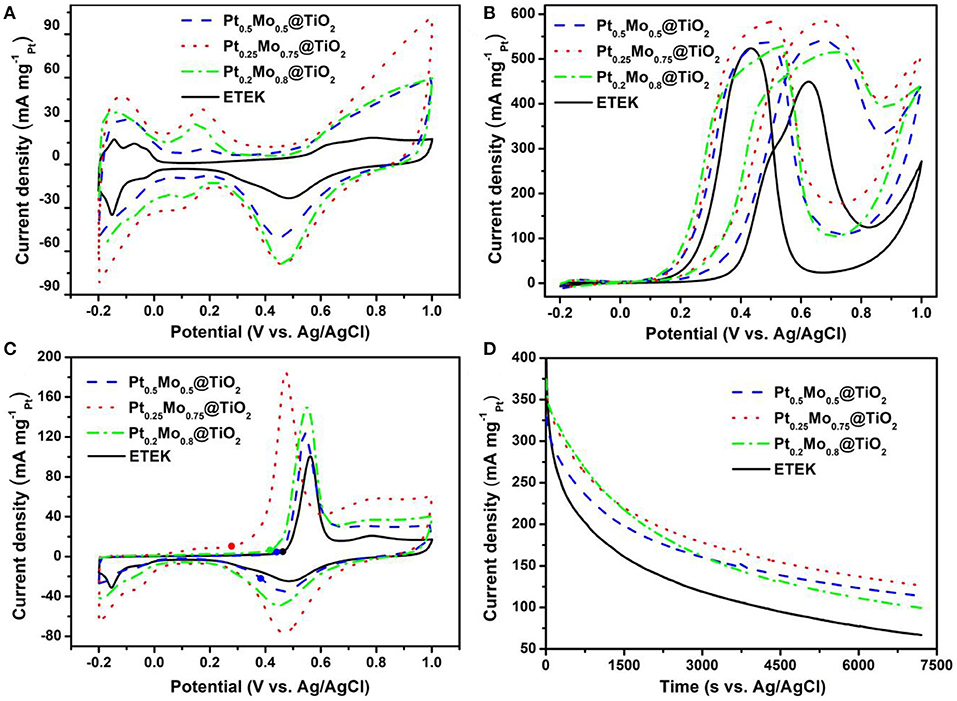

Figure 6. CV of the catalysts (A) in N₂-saturated 0.5 M H₂SO₄ solution, (B) in N₂-saturated 0.5 M H₂SO₄ + 1.0 M CH₃OH solution and (C) CO stripping voltammograms in 0.5 M H₂SO₄ solution at 25°C with a scan rate of 50 mV s⁻¹, (D) CA curves of the catalysts in N₂-saturated 0.5 M H₂SO₄ + 1.0 M CH₃OH solution at 25°C.

TABLE 1

Table 1. The properties and electrochemical parameters of the different catalysts.

A negative onset potential and a higher peak current density of MOR are also needed for a good catalyst (Lu et al., 2012). As shown in Figure 6B, the onset potential of the Pt0.25Mo0.75@TiO2 catalyst for MOR is 0.12 V, which is more negative than that of ETEK (0.23 V). The results indicate that MOR can occur more easily on the Pt0.25Mo0.75@TiO2 than on the ETEK. To gain further insights into the activities of different catalysts, the electrocatalytic activities of ETEK, Pt0.5Mo0.5@TiO2, Pt0.25Mo0.75@TiO2, and Pt0.2Mo0.8@TiO2 electrocatalysts for MOR in N₂-saturated 0.5 M H₂SO₄ with 1.0 M CH₃OH solution are examined at room temperature as shown in Figure 6B. The test parameters of Figure 6B are the same as Figure 6A. The peak current density of ETEK for the MOR is 449.37 mA ${\text{mg}}_{\text{Pt}}^{-1}$. However, the peak current densities of Pt0.5Mo0.5@TiO2, Pt0.25Mo0.75@TiO2, and Pt0.2Mo0.8@TiO2 samples for the MOR are 1.2 times (540.34 mA ${\text{mg}}_{\text{Pt}}^{-1}$), 1.3 times (583.86 mA ${\text{mg}}_{\text{Pt}}^{-1}$), and 1.5 times (515.47 mA ${\text{mg}}_{\text{Pt}}^{-1}$) than that of ETEK. The improvement of catalyst activity is due to the alloying effect of PtMo, which results in the shift of the d-band center of the surface Pt atoms and the increase of MOR activity (Han et al., 2015).

The I_f/I_b ratio represents the tolerance of CO on the platinum surface, in which If is the forward peak current and I_b is the reverse peak current (Hassan et al., 2015). The I_f/I_b values of the Pt0.5Mo0.5@TiO2, Pt0.25Mo0.75@TiO2, Pt0.2Mo0.8@TiO2, and ETEK are calculated to be 1.01, 1.00, 0.97, and 0.86, respectively (Table 1), implying that the Pt_xMo_y@TiO₂ electrocatalysts have a high tolerance to CO poisoning species. The anti-poisoning of CO is further demonstrated by CO stripping voltammograms in 0.5 M H₂SO₄ solution at 25°C with a scan rate of 50 mV s⁻¹. As shown in Figure 6C, the onset potentials of Pt0.5Mo0.5@TiO2, Pt0.25Mo0.75@TiO2, and Pt0.2Mo0.8@TiO2 are 0.28, 0.39, and 0.44 V. However, the onset potential of ETEK is 0.46 V, illustrating that the pre-adsorbed CO on Pt0.5Mo0.5@TiO2 and Pt0.25Mo0.75@TiO2 catalysts is easier to be oxidized than that on ETEK. The bi-functional mechanism could further explain the resisted CO poisoning of Pt_xMo_y@TiO₂ electrocatalyst in theory. The bi-functional mechanism could be summarized as follows (Levy and Boudart, 1973; Wang et al., 2006; Lu et al., 2016):

$\begin{array}{ll}\text{Pt}+\text{C}{\text{H}}_3\text{OH}\to \text{PtC}{\text{O}}_{\text{ads}}+4{\text{H}}^{+}+{4\text{e}}^{-}& (1)\end{array}$

$\begin{array}{ll}\text{Mo}+{\text{H}}_2\text{O}\to \text{Mo}{(\text{OH})}_{\text{ads}}+{\text{H}}^{+}+{\text{e}}^{-}& (2)\end{array}$

$\begin{array}{ll}\text{PtC}{\text{O}}_{\text{ads}}+\text{M}{\text{o}(\text{OH})}_{\text{ads}}\to \text{C}{\text{O}}_2+\text{Pt}+\text{Mo}+{\text{H}}^{+}+{\text{e}}^{-}& (3)\end{array}$

Mo can activate the interfacial water and generate OH species at low potential to facilitate the oxidation of intermediates species, such as CO_ad, which is evidenced by the CO_ad stripping voltammograms. The electrocatalytic stabilities of Pt0.5Mo0.5@TiO2, Pt0.25Mo0.75@TiO2, Pt0.2Mo0.8@TiO2, and ETEK were tested under 0.6 V for 7200 s in N₂-saturated 0.5 M H₂SO₄ solution containing 1.0 M CH₃OH solutions, as shown in Figure 6D. In the early stage, the current density decreases sharply because the electrocatalyst surfaces are poisoned (Wang et al., 2014; Jin et al., 2020). As time goes by, the current decreases slowly. After 7200 s, the current of pre-prepared electrocatalyst is also higher than that of commercial ETEK. The polarization currents of Pt0.5Mo0.5@TiO2, Pt0.25Mo0.75@TiO2, and Pt0.2Mo0.8@TiO2 are 113.8, 126.4, and 99.5 mA ${\text{mg}}_{\text{Pt}}^{-1}$, respectively, but ETEK is only 66.8 mA ${\text{mg}}_{\text{Pt}}^{-1}$.

The comparisons between some papers published recently and this work are tabled in Table 2. It can be seen clearly that the Pt0.25Mo0.75@TiO2 electrocatalyst in this work shows the highest mass activity for MOR in the similar testing conditions.

TABLE 2

Table 2. Comparisons of the MOR performance for Pt based catalysts in recently published papers.

The durability tests are carried out by sweeping the potential from −0.2 V to 1.0 V (vs. Ag/AgCl) for 10,000 cycles at a sweep rate of 50 mV s⁻¹ as shown in Figure 7. It can be seen clearly that the current density decreases and the onset potential shifts positively with increasing the scan cycles in Figure 7A. As can be seen from Figure 7B, the mass activities of ETEK, Pt0.5Mo0.5@TiO2, Pt0.25Mo0.75@TiO2, and Pt0.2Mo0.8@TiO2 decrease respectively to 55.6, 72.5, 57.3, and 53.8% after 10,000 cycles. Compared to the commercial Pt/C (ETEK), the Pt0.25Mo0.75@TiO2 electrocatalyst still demonstrates significantly higher electrocatalytic activity after the longtime test. The highest stability and catalyst activity of Pt_xMo_y@TiO₂ electrocatalysts can be attributed to the unique core-shell structure and the uniform coating of PtMo alloy on the surface of acid-resistant TiO₂. On the other hand, TiO₂ has stronger corrosion resistance in acidic medium than carbon support, which can ehance the durability of catalyst. And TiO₂ as support may modify the surface electronic structure of Pt, resulting in the enhanced electrocatalytic activity.

FIGURE 7

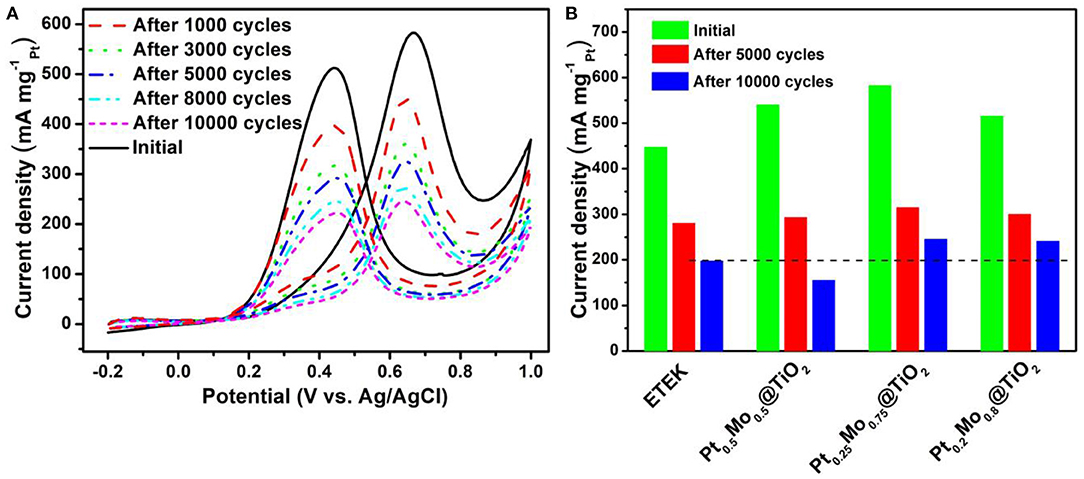

Figure 7. (A) CV curves of Pt0.25Mo0.75@TiO2 at the scan rate of 50 mV·s⁻¹ in 0.5 M H₂SO₄ + 1.0 M CH₃OH aqueous solution at room temperature, (B) Histogram of mass activities at the scan rate of 50 mV·s⁻¹ in 0.5 M H₂SO₄ + 1.0 M CH₃OH aqueous solution at room temperature.

Conclusion

In summary, Pt_xMo_y@TiO₂ nanoparticles with core-shell structure are prepared successfully using the RME method. The Pt_xMo_y@TiO₂ nanoparticles composed of acid-resistant TiO₂ core with thin layer PtMo alloy shell. The component of the Pt_xMo_y@TiO₂ nanoparticles can be tuned by adjusting reactant concentrations. The Pt_xMo_y@TiO₂ electrocatalyst exhibits higher catalytic activity and stability for MOR performance relative to the commercial ETEK. Especially, the Pt0.25Mo0.75@TiO2 electrocatalyst has an excellent MOR performance. The high MOR activity is attributed to the unique core-shell structure, which can enhance the utilization rate of Pt and provide more active sites. In addition, the alloying effect of Pt and Mo can cause the shift of the d-band center of Pt atoms and increase the MOR activity. A feasible strategy for preparing core-shell structured nanoparticles is developed in this work. The research results may be beneficial to the further development of the electrocatalyst industry.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author Contributions

TA: conceptualization, methodology, data curation, formal analysis, resources, visualization, and writing-original draft preparation. SB: validation. JL: investigation, supervision, writing-reviewing and editing, project administration, and funding acquisition. All authors contributed to the article and approved the submitted version.

Funding

This work was supported by the National Natural Science Foundation of China (51774177, 52004121), the University of Science and Technology Liaoning Talent Grant (601010324), Program of Distinguished Professor of Liaoning Province (2017-60).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
