Introduction

Weathered crust elution-deposited rare earth ore is of extremely high economic and strategic value, it is a special rare earth resource in the world (Simandl, 2014; Zhang B. et al., 2018; Zou et al., 2020). As a unique resource, it contains almost rare earth elements, including the light rare earth and middle and heavy rare earth, being especially rich in middle and heavy rare earth (Xiao et al., 2015a; Chi and Liu, 2019). The rare earth elements mainly existed in the ionic or hydrated ionic state on the surface of the clay minerals (Huang et al., 2005). Due to this special property, the essential process during leaching is an ion exchange reaction between the surface of clay minerals of absorbed rare earth ions and cations in lixiviant. Rare earth ions were obtained by way of an ion exchange reaction, and this method has been applied in industry. In addition, the in-situ leaching process, with ammonium sulfate as the main leaching agent, was gradually formed (Chi and Wang, 1993; Chi et al., 2012). However, the leaching process causes the swelling of clay minerals, which has a certain influence on the safety of mine production and the low efficiency of the leaching agents, resulting in high consumption of electrolyte solution in actual industrial production.

In order to improve the efficiency of the leaching process and mine safety, a large number of studies have been conducted on the rare earth leaching process of weathered crust elution-deposited rare earth ores under various leaching systems (Xiao et al., 2015b). Zhang et al. (2013) and He et al. (2016) found that the order of the leaching efficiency of rare earth by inorganic ammonium salt was (NH4)2SO4 < NH4Cl < NH4NO3, which was related to the complexation capacity between rare earth ions and anions. Chen et al. (2018a) and Chen Z. et al. (2020) found that the order of mass transfer efficiency of rare earth under three magnesium salts was Mg(NO3)2 > Mg(Cl)2 > MgSO4 in the study of mass transfer process of weathered crust elution-deposited rare earth ores by magnesium salts. The inhibiting swelling effect was highest with magnesium nitrate as the leaching agent, and the mass transfer efficiency of rare earth was related to the type of anion. Li et al. (2019) proposed that the cationic activity of the leaching agent was an important factor affecting the leaching quality of rare earth, and the molar concentration of the leaching agent affected the leaching efficiency to a certain extent. The effects of different electrolyte solutions on leaching were considered. Zhang Z. Y. et al. (2018) studied ammonium salt leaching weathered crust elution-deposited rare earth ores and found in the study that the zeta potential of rare earth ore decreased with the increase of leaching solution pH, and the zeta potential increased with the increase of ammonium concentration. Besides, zeta potentials of rare earth ores with AlCl3, NH4Cl, KCl, and MgCl2 solution were negative. Wang et al. (2018) studied the effect of ion interaction on rare earth leaching, and they mentioned that the leaching capacity of leaching agent on rare earth at low concentration was consistent with the adsorption capacity of cation; SO42- showed stronger coordination and leaching aid than Cl with rare earth ions. On the other hand, when the leaching agent concentration increased, the electrostatic interaction between ions will inhibit the leachate of rare earth, especially for the higher cations. Therefore, it is necessary to consider the anionic and cationic properties in the leaching process.

There were many studies on the weathered crust elution-deposited rare earth ore with single cation under different experimental conditions. However, the leaching process of weathered crust elution-deposited rare earth ores with different anions and cations was rarely studied systematically. Seven common cations and three anions were therefore selected to study the effects of ion property on the leaching efficiency of rare earth and zeta potential of rare earth ore in this paper, including Al3+, Fe3+, Ca2+, Mg2+, Na+, K+, and  NH4+ as well as Cl, NO3-, and SO42-. Meanwhile, the effect of ion property on swelling ratio of rare ore was also investigated. The effects of different cation and anion concentration on leaching process of weathered crust elution-deposited rare earth ores and zeta potential were studied. The relationship between the zeta potential of clay mineral and rare earth leaching efficiency were discussed. The effects of various ions on the swelling properties of clay minerals were also discussed. It would also enrich the study of the leaching process of weathered crust elution-deposited rare earth ores with electrolyte solution and provide theoretical guidance for efficient recovery of rare earth.

Materials and Methods

Materials

Chemical Composition

The weathered crust elution-deposited rare earth ore samples were collected from Fujian Province, China. The main chemical composition of the rare earth ore was analyzed by X-ray fluorescence (Axios advanced, Panalytical B.V.), and the results are shown in Table 1.

TABLE 1
www.frontiersin.org

Table 1. Main chemical composition of the RE ores (mass fraction, %).

It can be seen from Table 1 that SiO2 and Al2O3 were the main chemical components of the sample, accounting for 51.236 and 37.649% of the total mass, respectively, and the REO content was 0.129% in the ore samples.

Rare Earth Partitioning

Rare earth partitioning is an important index to evaluate the industrial value of the rare earth ore (Zhang et al., 2016a,b). The rare earth elements partitioning of the rare earth ore was analyzed by ICP-MS (Inductively Coupled Plasma Mass Spectrometry), as shown in Figure 1.

FIGURE 1
www.frontiersin.org

Figure 1. Rare earth elements of the ore sample.

As can be seen from Figure 1, the content of light rare earths was 46.88% in the total rare earth content. The remaining medium and heavy rare earths accounted for 53.12%, which indicated that this rare earth mine has a great industrial utilization value.

Apparatus and Experimental Procedure

Leaching Mechanism of Rare Earth Ore

The ion exchange reaction occurs between the rare earth ions and different valence cations can be represented by the following equations (Chi et al., 2012):

[Al2(Si2O5)(OH)4]mnRE3 + (s) + 3nA + (a)      =[Al2(Si2O5)(OH)4]m3nA + (s) + nRE3 + (a)     (1)
[Al2(Si2O5)(OH)4]m2nRE3 + (s) + 3nB2+(a)      =[Al2(Si2O5)(OH)4]m3nB2+(s) + 2nRE3 + (a)     (2)
[Al2(Si2O5)(OH)4]mnRE3 + (s) + nC3+(a)      =[Al2(Si2O5)(OH)4]mnC3+(s) + nRE3 + (a)    (3)

where s represents the solid phase and a represents the liquid phase.

As shown in the equation, minerals [Al2(Si2O5)(OH)4 ] m can be described as resin, which adsorbed RE3+. When leaching agent flow through the resin, different valence cations migrate to the mineral surface and then take ion-exchange reaction with RE3 +.

Experimental Procedure

The column leaching method was adopted to simulate the in-situ leaching technology in the paper. The dried ore sample was weighed to 250 g by the quartering method and packed into the column tightly. The leaching agent was added at the ratio of 2:1 for liquid/solid. The leaching agent was added into the glass column under the control of precision pump at a speed of 0.5 mL/min (Chen et al., 2018b). The self-made leaching device was shown in Figure 2. The lixivium was collected into centrifuge tube from the bottom of the glass column, the rare earth content was analyzed by ICP-MS, and the rare earth leaching efficiency was calculated according to the follow formula (Yang et al., 2018):

L(%)=(C×V)W×CS×100    (4)

where L is the rare earth leaching efficiency/ %, C is the concentration of rare earth in leaching lixivium/ g/L−1, V is the volume of leaching lixivium/ L, W is the weight of rare earth ore sample/ g, and Cs is the content of rare earth in ionic phase of the ore samples/ %

FIGURE 2
www.frontiersin.org

Figure 2. Self-made leaching device.

The swelling of clay mineral was conducted by PCY intelligent dilatometer. A total of 2 g of ore sample was weighed and pressed for 5 min with a tablet press under a pressure of 8 MPa. The initial length of the sample was recorded, and it was loaded it into a PCY intelligent clay dilatometer to determine its swelling ratio. The PCY intelligent dilatometer is shown in Figure 3. The swelling ratio of the ore sample was measured by the following formula (Zhang et al., 2013; Chen W. D. et al., 2020):

δ=ΔHH0×100    (5)

where H is the variation of height/ mm, and H0 is the initial height of the ore sample/ mm

FIGURE 3
www.frontiersin.org

Figure 3. PCY intelligent dilatometer.

The zeta potential was detected by Zetasizer Nano (Malvern Instruments Corporate, UK).

All chemicals used in the experiments were of analytical grade. All the solutions were prepared with deionized water.

Results

Relationship Between Rare Earth Leaching Efficiency and Zeta Potential of Rare Earth Ore

In order to analyze the relationship between the rare earth leaching efficiencies and zeta potentials of clay minerals with leaching agent, the effects of NH4Cl concentrations on the rare earth leaching were investigated. The result is shown in the Figure 4.

FIGURE 4
www.frontiersin.org

Figure 4. Relationship between zeta potential and rare earth efficiency.

It can be seen from the Figure 4 that the rare earth leaching efficiencies and zeta potentials of rare earth both increased with the increase of leaching agent concentration, and the rate of increase was both fast and then slow when the ammonium concentration exceeded 0.2 mol/L and finally tended to keep balance to some extent. The rare earth leaching efficiency was basically balanced when the solvent concentration was 0.2 mol/L and the leaching efficiency was 86.93%. At that time, the zeta potential on the clay mineral surface was −18.1 mV, which was also close to the equilibrium value. It was obvious that the rare earth leaching efficiencies and zeta potentials displayed similar trends in the leaching process. To better understand this phenomenon, the electronic double-layer theory was used to analyze the results.

The ion exchange process of ammonium ions in the electrolyte solution and rare earth ions, which are adsorbed on the surface of the clay minerals, is illustrated in Figure 5.

FIGURE 5
www.frontiersin.org

Figure 5. Ion exchange process.

When rare earth ions are adsorbed on the surface of clay minerals in contact with the ammonium chloride solution, the ammonium hydrate ions were mainly distributed within the diffusion layer of the double electric layer. In fact, the ion exchange process of ammonium ions with rare earth ions was a thermodynamic non-spontaneous process. Increasing the concentration of ammonium chloride, high concentrations of ammonium hydrate ions have the chemical potential to make it from the diffusion layer, migrating to the stern layer, and further cross through the fixed layer to then, according to the concentration of advantage, gather near the surface of the clay minerals in the weathered crust elution-deposited rare earth ore. The large amount of ammonium ions formed a multilayer adsorption, competing for the original adsorption sites that are occupied by the hydration of rare earth ions to promote the rare earth ions desorption; the excluded rare earth ion of monolayer adsorption gradually migrated out of the fixed layer and diffusion layer and spread to the leaching agent solution. In a high concentration electrolyte solution, the zeta potentials of the clay mineral particles were not very positive because there were more hydrated ions in the tight layer. By separating the bulk solution containing rare earth ions, the leaching process of rare earth can be realized, and clay minerals loaded with ammonium ions can be obtained.

Effects of Cation on Rare Earth Leaching in Weathered Crust Elution-Deposited Rare Earth Ore

Effects of Cation on Rare Earth Leaching Efficiency

In order to explore the influence of different cations on rare earth leaching efficiency, Al3+, Fe3+, Ca2+, Mg2+, Na+, K+, and NH4+ 7 cations were selected to recover the rare earth from the rare earth ore samples under the same anion of Cl. The effects of cations at different concentrations on rare earth leaching efficiencies were investigated, as shown in Figures 6A–C. At a cation concentration of 0.2 mol/L, the rare earth leaching efficiencies in all electrolyte solutions were compared, as shown in Figure 6D.

FIGURE 6
www.frontiersin.org

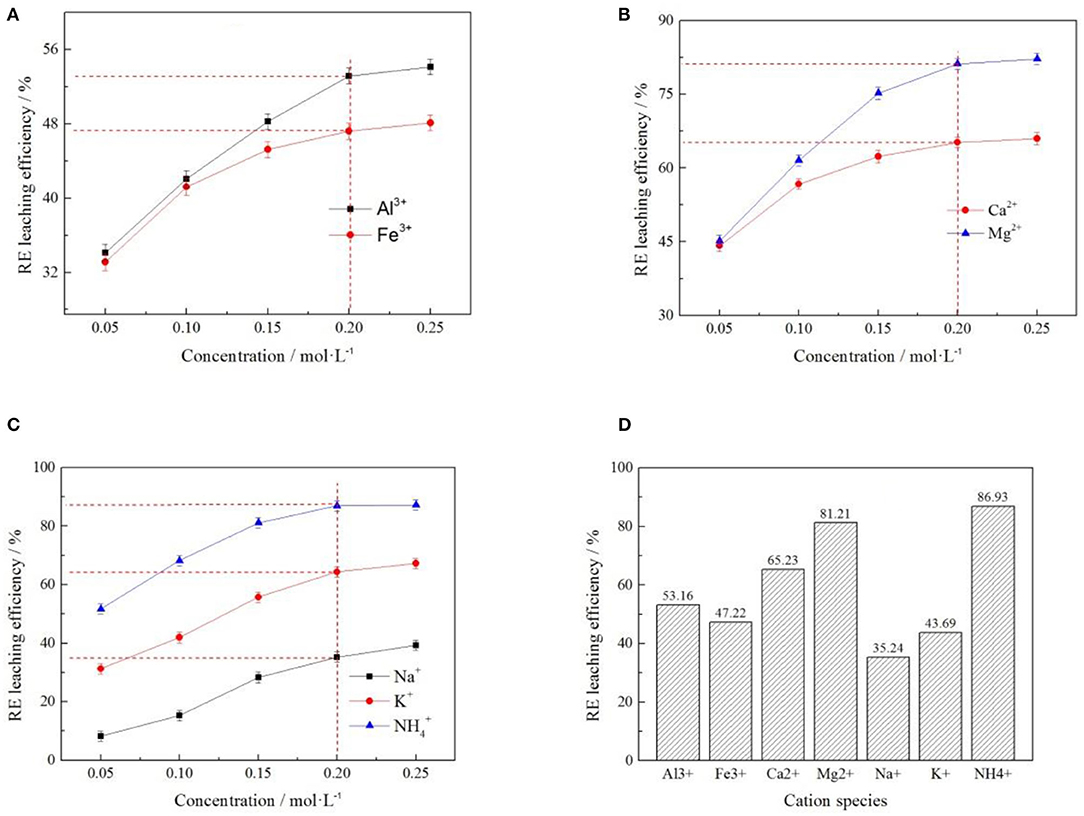

Figure 6. Effect of cation concentration on rare earth leaching efficiency [where (A?C) represent +3, +2, and +1 valence cations respectively, (D) represents the rare earth leaching efficiency when the concentration of various cations was 0.2 mol/L].

As can be seen from Figure 6, the rare earth leaching efficiency gradually increased with the increase of cation concentration. When the cation concentration exceeded 0.2 mol/L, the rare earth leaching efficiencies gradually stabilized. This is because when the electrolyte concentration reached a certain value, most of the adsorption sites on the clay mineral surface were occupied by the cation of the leaching agent. The promotion effect of rising electrolyte concentration on rare earth leaching was limited (Wang et al., 2018). Besides, it can be seen from Figures 6A–C that the electrolyte cations with the highest rare earth leaching efficiency among the three valence cations was NH4+. It can be seen from Figure 6D that, under the same electrolyte concentration, NH4+ showed a stronger leaching effect of rare earth than Mg2+ and Al3+, and the leaching efficiencies of rare earth were 86.93, 81.21, and 53.16%, respectively, indicating that NH4+ had the best leaching effect on rare earth under the same anion.

Effects of Cations on Zeta Potential of Clay Minerals

In order to understand the effect of cations on zeta potential of clay mineral surface, Al3+, Fe3+, Ca2+, Mg2+, Na+, K+, and NH4+ 7 cations were selected under the same anion of Cl. The effects of cations on zeta potential on clay mineral surface at different cation concentrations were investigated, as shown in Figures 7A–C. When the cation concentrations were 0.2 mol/L, the zeta potentials of clay minerals under different electrolyte solutions were compared, as shown in Figure 7D.

FIGURE 7
www.frontiersin.org

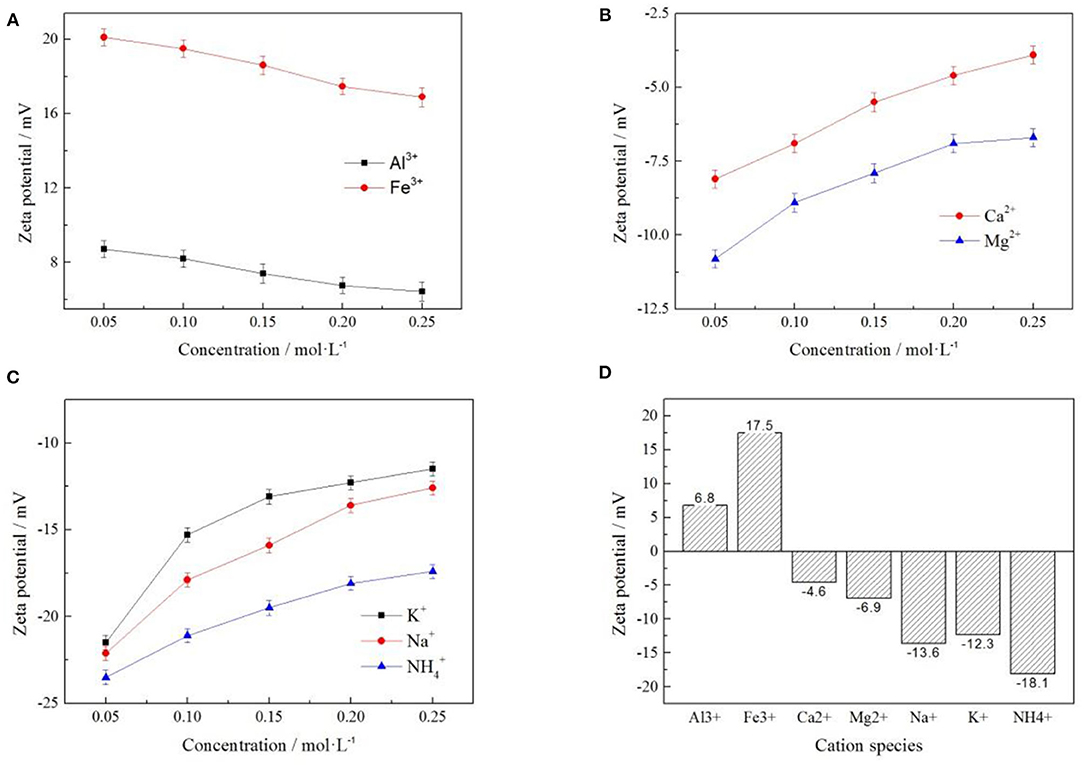

Figure 7. Effect of cation concentration on zeta potential of clay minerals [where (A?C) represent +3, +2, and +1 valence cations respectively, (D) represents the zeta potential of clay minerals when the concentration of various cations was 0.2 mol/L].

As can be seen from Figure 7, the zeta potential on the clay mineral surface decreased with the increase of electrolyte concentration in +3-valent cationic electrolyte solution. In +2 and +1 valence cationic electrolyte solutions, zeta potential on the clay mineral surface increased with the increase of electrolyte solution concentration. Different cations have a greater impact on zeta potential, and cations in the same valence state have different zeta potentials, which was mainly due to the difference in the ion radius leading to different zeta potentials (Zhang Z. Y. et al., 2018). According to Figure 7D, by comparing the zeta potential of clay minerals at the same concentration of each electrolyte cation, the NH4+ absolute value of zeta potential was the largest, and the zeta potential value was negative. It was therefore easier to exchange the rare earth ions from weathered crust elution-deposited rare earth ore, verifying the ion-exchange effect of NH4+ with rare earth ions was better than other cations.

Correlation Between Rare Earth Leaching Efficiency and Zeta Potential Under Different Cation

In order to explore the relationship between the zeta potential on the clay mineral surface and the rare earth leaching efficiency, seven cations with different valence states were selected under the same anion of Cl. The zeta potential and rare earth leaching efficiency under each electrolyte were presented through electronic double-layer model, as shown in Figure 8. The fitting equations of zeta potential with leaching efficiency was shown in Table 2.

FIGURE 8
www.frontiersin.org

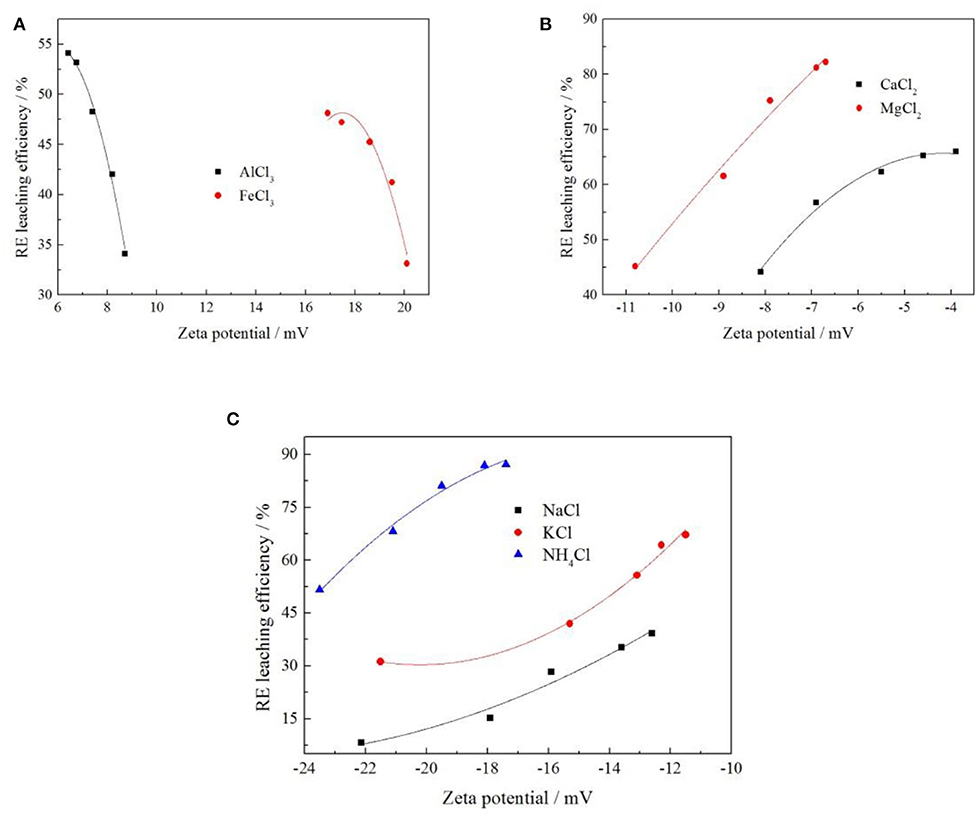

Figure 8. Fitting of zeta potential and leaching efficiency under different cation [where (A–C) represent +3, +2, and +1 valence cations, respectively].

TABLE 2
www.frontiersin.org

Table 2. The fitting equation of cationic zeta potential—leaching efficiency.

When the cation concentrations were 0.05, 0.10, 0.15, 0.20, and 0.25 mol/L, respectively, various rare earth leaching efficiencies and zeta potentials under different leaching conditions were shown in the above Figure 8. It can be seen from Figure 8 that the zeta potential of clay minerals had a curve relationship with the rare earth leaching efficiency, which conforms to the Quadratic function fitting of the curve Y = a + bX + cX2 (Yang et al., 2018; Qiu et al., 2019); this was related to the characteristic adsorption between ions. Under the conditions of trivalent cations Al3+ and Fe3+ electrolyte solution, the leaching efficiency of rare earth decreased with the increase of zeta potential of clay mineral in the leaching process. Under +1 and +2 valence cationic electrolyte solutions, the rare earth leaching efficiency increased with the zeta potential of the clay mineral. The leaching efficiency of rare earth increased with the decrease of the absolute value of zeta potential of clay minerals in electrolyte solution. Different cation exchange capacities of rare earth were different, and this exchangeable capacity was manifested in different cation valence states: Al3+ > Fe3+, Mg2+ > Ca2+, NH4+>K+>Na+. By comparing the three curves corresponding to Al3+, Mg2+, and NH4+, the rare earth leaching efficiency of NH4+ was the highest, and the corresponding zeta potential was negative with the largest absolute value. NH4+ was therefore selected to have the best effect on the rare earth leaching process.

Effects of Anion on Rare Earth Leaching in Weathered Crust Elution-Deposited Rare Earth Ore

Effect of Anion on Rare Earth Leaching Efficiency

In order to explore the influence of anion concentration on rare earth leaching efficiency, Cl NO3-, and SO42-, three anions were selected under the same cation of NH4+ to investigate the effect of their different concentrations on rare earth leaching efficiency. The result was shown in Figure 9.

FIGURE 9
www.frontiersin.org

Figure 9. Effect of anion concentration on rare earth leaching efficiency.

It can be seen from Figure 9 that the rare earth leaching efficiency increased with the increase of anionic concentration. When the anion concentrations were in the range of 0.05–0.2 mol/L, the rare earth leaching efficiencies increased rapidly. When the anionic concentration was >0.2 mol/L, the growth rate of rare earth leaching efficiencies was gradually stable. Therefore, 0.2 mol/L was the optimal leaching concentration. The order of influence of three kinds of anions on rare earth leaching efficiencies as follows: NO3->Cl->SO42-. The rare earth leaching efficiency were 83.21, 81.52, and 80.12%, respectively. NO3- therefore had the best effect on the rare earth leaching process. In actual production, nitrate product belongs to restricted product, so Cl, which had little difference in leaching efficiency of rare earth, was normally chosen in the industry.

Effects of Anions on Zeta Potential of Clay Minerals

In order to explore the effects of anion concentration on the zeta potential of clay minerals, Cl, NO3-, and SO42-, three anions were selected under the same cation of NH4+ to investigate the effects of these three anions on zeta potential of clay minerals at different concentrations. The result is shown in Figure 10.

FIGURE 10
www.frontiersin.org

Figure 10. Effect of anion concentration on surface potential of clay minerals.

As can be seen from Figure 10, the zeta potential of the clay mineral decreased with the increase of anion concentration, while the absolute value of zeta potential of the clay mineral gradually increased. The zeta potential order of the three kinds of anions on the clay mineral was SO42->NO3->Cl-, and this was because SO42- itself contains more negative charges, which resulted in a higher zeta potential value, Cl and NO3- with the same negative charges having a similar effect on zeta potential, effects of binding anions on rare earth leaching efficiency, and NO3- having the best effect on rare earth leaching process. But in the actual production, the nitrate product mostly belongs to the controlled product, and we therefore chose Cl, which made little difference to the leaching efficiency.

Correlation Between RE Leaching Efficiency and Zeta Potential Under Different Anion

In order to explore the relationship between zeta potential of clay mineral and rare earth leaching efficiency under different anion. The relationship between rare earth leaching efficiency and zeta potential was fitted when the electrolyte solution anions were Cl, NO3-, and SO42-. The fitting results are shown in Figure 11, and the fitting equations are shown in Table 3.

FIGURE 11
www.frontiersin.org

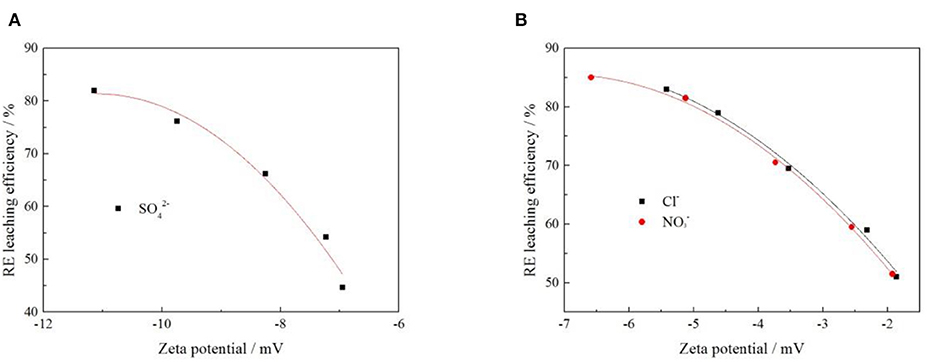

Figure 11. Fitting of zeta potential and leaching efficiency under different anion [where (A,B) represent −2 and −1 valence anions, respectively].

TABLE 3
www.frontiersin.org

Table 3. The fitting equation of anionic potential—leaching efficiency.

It can be seen from Figure 11 that under each electrolyte solution, the zeta potential of clay minerals had a curve relationship with the rare earth leaching efficiency, which conformed to the quadratic function fitting of the curve Y = aX2 + bX + c, and the fitting equations are shown in Table 3. Figure 11 shows that the rare earth leaching efficiency decreased with the increase of zeta potential of clay minerals. The greater the absolute value of zeta potential of the clay mineral with the higher the rare earth leaching efficiencies. Because there were more exchangeable ions on the surface of the clay minerals, more rare earth ions were exchanged by the electrolyte solution. In Figure 11B, there was no significant difference between Cl and NO3- on zeta potential and rare earth leaching efficiency of clay minerals. In the actual production process, the nitrate product belongs to controlled products. When there were only negative monovalent anions, Cl was selected as the electrolyte anion to achieve better leaching effect of rare earth. When the SO42- acted as an anion in the electrolyte solution, the zeta potential of clay minerals was relatively high due to its large negative charge. However, from the perspective of the influence of anions on the leaching efficiency of rare earth, the rare earth leaching efficiency of Cl as an electrolyte anion was higher than SO42-; when Cl was available as an electrolyte anion, Cl can thus be preferred.

Effect of Different Ions on Swelling of Weathered Crust Elution-Deposited Rare Earth Ores

Effect of Different Cation on Swelling Ratio of Clay Minerals

To understand the effects of the different cation and cation concentration on the swelling ratio of the clay minerals, the samples were subjected to various cation and cation concentrations with the same anion. Swelling ratios were constructed using the experimental data, and the results are shown in Figure 12.

FIGURE 12
www.frontiersin.org

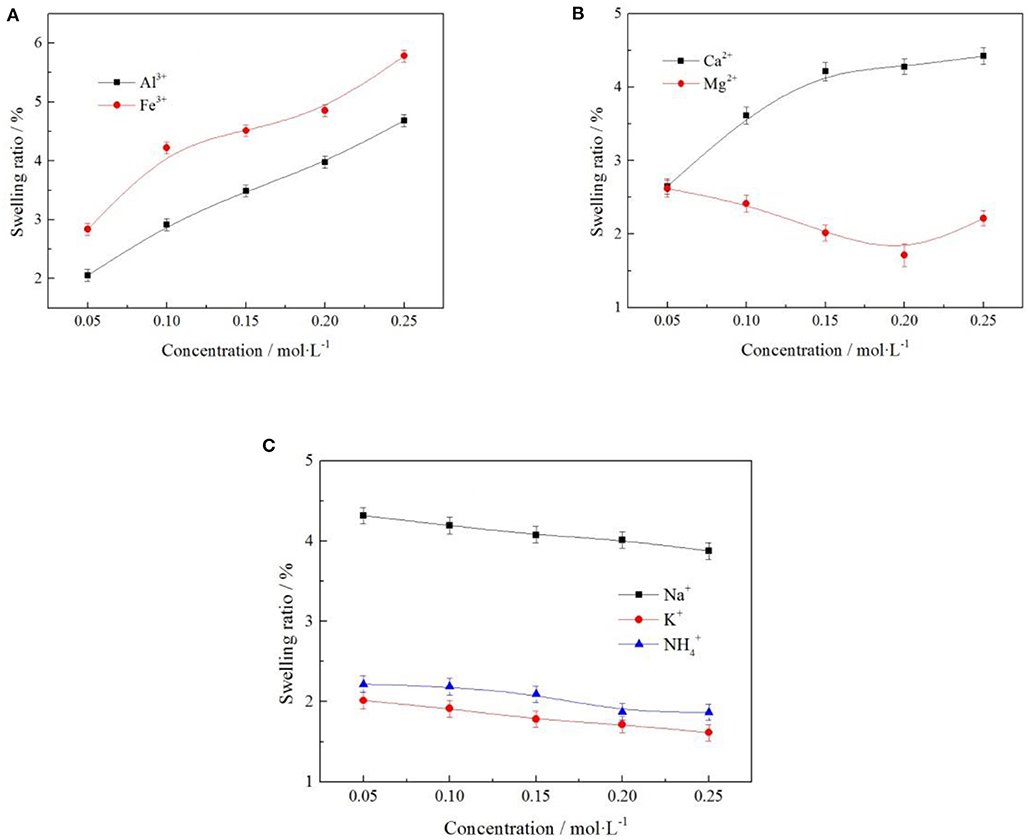

Figure 12. Effect of cation on swelling ratio of clay minerals [where (A–C) represent +3, +2, and +1 valence cations, respectively].

It can be seen from Figure 12 when the cation of electrolyte solution for Al3+, Fe3+, and Ca2+ clay minerals swelling ratio increased as the concentration of electrolyte solution increased, as when the cation concentration increases, more cations were exchanged into the layered structure of clay mineral content. Due to ionic radius of Al3+, Fe3+, and Ca2+ were bigger, leading to the rise in swelling ratio of the clay minerals. When the cation of the electrolyte solution for Mg2+, Na+, K+, and NH4+ clay mineral swelling ratio decreased as the concentration of electrolyte solution increased, the ion displayed a certain inhibition in terms of the swelling of clay minerals. Under the optimal electrolyte concentration of 0.2 mol/L, the swelling ratio of NH4+ and K+ to clay minerals were 1.874 and 1.714%, respectively. In the actual production, NH4+ was easy to obtain and had low cost, so NH4+ was selected as the electrolyte cation with better technological value.

Effect of Different Anions on Swelling Ratio of Clay Minerals

To understand the effects of the different anion and anion concentration on the swelling ratio of the clay minerals, the samples were subjected to various anion and anion concentration with the same cation. Swelling ratios were constructed using the experimental data, and the results are shown in Figure 13.

FIGURE 13
www.frontiersin.org

Figure 13. Effect of anion on swelling ratio of clay minerals.

It can be seen from Figure 13 that the swelling ratio of clay minerals decreases with the increase of electrolyte solution anion concentration. The order of swelling ratio of the three types of anions to clay minerals was as follows: SO42->NO3->Cl-. When the electrolyte solution concentration was 0.2 mol/L, the swelling ratios of clay minerals were 2.297, 2.174, and 2.015%, respectively; when the anion was Cl, the swelling ratio of clay minerals was 2.015% at the minimum, and the rare earth leaching efficiency was 81.52% in this case. This indicates that in actual production, the anion selection Cl of electrolyte solution had the least influence on mine swelling but had a high rare earth leaching efficiency.

Conclusions

In the study of the influence of anion and cation on weathered crust elution-deposited rare earth ore, it was found that the order of the rare earth leaching ability in three valence cations of NH4+>K+>Na+, Mg2+ > Ca2+, Al3+ > Fe3+ and the NH4+ were the most affected electrolyte cations on rare earth leaching efficiency; rare earth leaching efficiency was 86.93% at the optimal leaching concentration. The influence of the three anions on the leaching efficiency of rare earth was as follows: NO3->Cl->SO42-. The leaching efficiencies of rare earth were 83.21, 81.52, and 80.12% at the optimal leaching concentration. Meanwhile, in the study of zeta potential on clay mineral surface, it was found that  NH4+ had the greatest effect on zeta potential in the influence of different cations on zeta potential of weathered crust elution-deposited rare earth ore, and the zeta potential was −18.1 mV at the optimal leaching concentration. The order of the effect of three anions on zeta potential was SO42->NO3->Cl- in terms of the influence of anions on zeta potential of a weathered crust elution-deposited rare earth ore. Considering the relation between rare earth leaching efficiency and zeta potential, NH4+ was selected as the electrolyte cation to have the best effect on rare earth leaching process, while the anion was selected as NO3- to have the best effect. But in the actual production, the nitric acid product mostly belongs to the controlled product and therefore chose the Cl, which made little difference to the leaching efficiency. To sum up, when considering which electrolyte solution to use for cation and anion alone, the cation chooses NH4+, the anion chooses Cl, and the relationship between the rare earth leaching efficiency and zeta potential conforms to the following equations: NH4+:Y = −0.48X2 – 13.51X – 1.58, R2 = 0.98133; Cl:Y= −1.22 X2 – 17.64X + 23.29, and R2 = 0.99010. In the experiment of the effect of various ions on the swelling of weathered crust elution-deposited rare earth ore, it is found that NH4+ and Cl have the least influence on the swelling of clay minerals, and the swelling ratios of NH4+ and Cl under the optimal rare earth leaching concentration were 1.874 and 2.015%, respectively.
