It Cuts Both Ways: An Annelid Model System for the Study of Regeneration in the Laboratory and in the Classroom

The mechanisms supporting regeneration and successful recovery of function have fascinated scientists and the general public for quite some time, with the earliest description of regeneration occurring in the 8th century BC through the Greek mythological story of Prometheus. While most animals demonstrate the capacity for wound-healing, the ability to initiate a developmental process that leads to a partial or complete replacement of a lost structure varies widely among animal taxa. Variation also occurs within single species based on the nature and location of the wound and the developmental stage or age of the individual. Comparative studies of cellular and molecular changes that occur both during, and following, wound healing may point to conserved genomic pathways among animals of different regenerative capacity. Such insights could revolutionize studies within the field of regenerative medicine. In this review, we focus on several closely related species of Lumbriculus (Clitellata: Lumbriculidae), as we present a case for revisiting the use of an annelid model system for the study of regeneration. We hope that this review will provide a primer to Lumbriculus biology not only for regeneration researchers but also for STEM teachers and their students.

1 Introduction

Regeneration—the ability to regrow body parts lost to injury—has fascinated scientists and the general public at least since the 8th century BC, as shown by the Greek myths of the Lernaean Hydra or Prometheus and his continuously regenerating liver. Although most animals demonstrate capacity for wound-healing, the ability to initiate a developmental process leading to partial or complete replacement of a lost structure varies widely among animal taxa (Bely and Nyberg, 2010). Given that humans are located towards the rather poorly-regenerating end of the spectrum, it is not surprising that we look with awe to those groups that can regrow a limb, a tail, a head, or even a complete body from a small fragment. Variability in regenerative potential is not only found between species, but may also occur within a species depending on the nature and location of the wound and the developmental stage or age of an individual. Comparative studies of cellular and molecular changes that occur both during and after wound healing may point to conserved genomic pathways among animals of different regenerative capacity. Such insight could revolutionize studies within the field of regenerative medicine.

Although the phenomenon of regeneration has been known for millennia, scientific inquiry of its developmental mechanisms began during the 18th century, and remains an active field to date. However, none of the model systems that ushered the entry of developmental biology into the molecular era (e.g., Drosophila fruit flies, Mus mice, C. elegans nematodes) served as good regenerative models, prompting the need for the development of alternative models to study this biologically and medically important phenomenon. Along with planarians, cnidarians, arthropods and amphibians, marine, freshwater, and terrestrial annelids have been a traditional alternative to study regeneration, and they still provide an excellent platform for this purpose. Many annelid lineages show amazing abilities to regrow an entire new body from a single fragment, while others (sometimes closely related) find themselves incapable of regenerating heads, or even tails (Zattara and Bely, 2016). Despite their foundational importance, many basic questions about the developmental mechanisms underlying annelid regeneration are still open, and only recently are being addressed using modern molecular approaches (Özpolat and Bely, 2016; Zattara, 2020; Kostyuchenko and Kozin, 2021).

One of the models that has been pivotal to annelid regeneration research is the genus Lumbriculus (Clitellata: Lumbriculidae). Also known as blackworms, they are taxonomically related to leeches and other mud-dwelling clitellates. Some species can regenerate an entirely new body from a fragment only 1/50th the size of the original animal. Such remarkable regenerative capabilities include the ability to recover structure and function along most of the anterior-posterior body axis. In addition, Lumbriculus worms subjected to long-term deprivation of nutrients will still direct resources to regeneration following amputation, further attesting to the high regenerative capacity of this annelid (Nikrad and Tweeten, 2014). Overall, studies using Lumbriculus offer a rich history with a focus on the morphological, cellular, physiological, and proteomic changes occurring within a regenerating worm fragment.

In this review, we first summarize the past, present, and future of regeneration research using Lumbriculus. To provide context for its use as a model system, we take a tour through the past—the pioneering work that started at the turn of the last century and continued during the first half of the 20th century-, the present—the overarching questions currently driving research—and the future- ushered by development of accessible sequencing and molecular techniques—of Lumbriculus as a study system. We then explore the potential of Lumbriculus outside of the research labs, as a tool for STEM Education.

2 The Past: The Pioneers Who Described Lumbriculus Regeneration

2.1 The Early Years: From the 18th to the Mid-20th Century

Lumbriculus worms have been among the earliest annelids used to experimentally investigate regeneration: working in France at the mid-18th century, Bonnet (1745) determined that a single individual could be cut in 16 pieces, and each piece would regenerate a complete worm; he also found that regenerated worms can be repeatedly cut and still retain the ability to regenerate. Over a hundred years later, the search for adult correlates of embryonic germ layers by experimental embryologists led Bülow (1883) in Germany to resume studies on this group, this time focusing on generating detailed descriptions of the regenerative process and the embryonic layer of origin of the cells that form the regenerated organs in the head and tails. This question also occupied Harriet Randolph (1892), who investigated regeneration in earthworms (Lumbricidae), sludge and water-nymph worms (Naididae), and in Lumbriculus. She started her work at Bryn Mawr College (PA, United States) advised by the renowned embryologist E. B. Wilson, and later at the University of Zürich (Switzerland) helped by A. Lang. Her results were published in a seminal pair of publications, in which she proposed that several mesodermal structures in the regenerate derived from segmentally iterated reserve mesodermal stem cells, which she named neoblasts, that laid dormant on the peritoneal epithelium, lateral to the ventral nerve cord (Randolph, 1891; Randolph, 1892). German, Russian and US researchers were also sectioning and studying regenerating Lumbriculus (von Wagner, 1900; Morgan, 1901; Iwanow, 1903; von Wagner, 1906; Morgulis, 1907; Müller, 1908; Morgulis, 1909; Krecker, 1910); research was driven by questions about the origin of the regenerated mesoderm, the differences between head and tail regeneration, and the patterns of regenerative responses that varied depending on the antero-posterior location of the regenerating tissues, the size of the fragments, and environmental and internal conditions. Most of this early phase of Lumbriculus research has been summarized by Stephenson (1930) in his monograph on oligochaetes.

2.2 Axial Regeneration: An Act in Five Stages

Work by researchers mentioned above resulted in a very complete description of the morphological and histological processes associated with anterior (head) and posterior (tail) regeneration (Stephenson, 1930; Herlant-Meewis, 1964). After transverse amputation, the remaining worm fragments present a cut surface that can be anterior- or posterior-facing, which undergoes wound healing. After healing, anterior regeneration is triggered at anterior surfaces, resulting in the growth of a new anterior end (i.e., a head), while posterior regeneration is triggered at posterior surfaces, resulting in the growth of a new posterior end (i.e., a tail). Annelid heads and tails are organized quite differently: heads include a non-segmental terminal prostomium followed by several segmental units, an antero-dorsal cerebral ganglion, ectodermal mouth, and pharynx, and distinctively patterned ventral nerve cord ganglia; in turn, tails have a non-segmental terminal pygidium adjacent to a posterior growth zone (PGZ) which generates proximal posterior segmental units (Zattara, 2020). Thus, anterior and posterior regeneration reconstruct a considerably different suite of organs. Despite these differences, both types of regeneration processes can be divided in five stages (Figure 1A): 1) wound healing; 2) blastema formation; 3) blastema differentiation; 4) resegmentation; and 5) growth (Zattara, 2020).

FIGURE 1

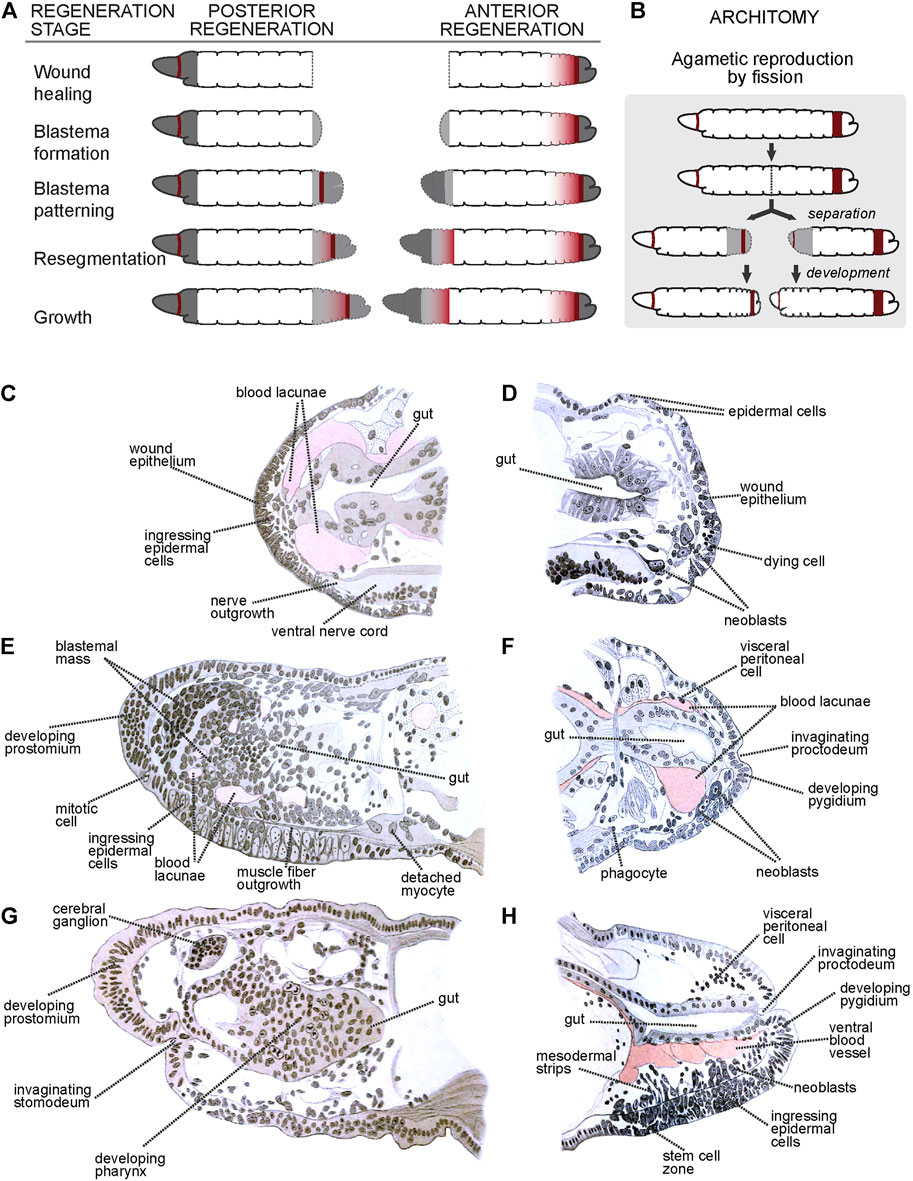

FIGURE 1. Regeneration and asexual reproduction in Lumbriculus. (A) Generic stages of annelid regeneration. Dashed line: cut/regenerated tissue; dark gray: non-segmental tissues; dark red: mitotically active areas; gray shading: differentiating segmental tissues. (B) Asexual reproduction by fission. Coloring as in A. (C–H) Histological sections through early (C), middle (E) and late (G) anteriorly regenerating individuals, and early (D), middle (F) and late (H) posteriorly regenerating individuals. (C–H) After Iwanow (1903); all labels are direct or interpreted translations of the original German labels.

2.2.1 Stage 1: Wound Healing

Immediately after amputation, body wall circular muscles located adjacent to the cut site contract quickly to close off the coelomic cavity and minimize contact with the external medium. Sometimes, this fast movement closes the body wall around the cut end of the gut, which is left protruding; if this happens, the gut withdraws or pinches off the exposed end. Usually, epithelial cells from the epidermis at the edges of the cut extend to cover and seal the wound, and the same happens with the gut epithelium, which closes forming a blind end; in some cases, the edges of the epidermis and gut come into contact and fuse directly instead, closing out the wound and restoring a posterior opening (von Wagner, 1900; von Wagner, 1906). At this stage, and especially for anterior surfaces, most mitotic activity is shut down (Figures 1C,D). Damaged epithelial cells and muscle fibers degenerate and die, their remains being engulfed by phagocytes that migrate towards the wound site (Iwanow, 1903). The interstitial spaces between epidermis and gut become filled with blood lacunae.

2.2.2 Stage 2: Blastema Formation

Soon after wound healing, neurites originating in nerves from the ventral nerve cord and peripheral nerves invade the wound site (Figure 1C). Around the same time, local cell proliferation is upregulated, particularly within the epidermis and gut. Many of the proliferating cells ingress from the epidermis and start forming a mass of unpigmented, undifferentiated cells known as blastema (Figure 1E). Randolph (1891), Randolph (1892), Iwanow (1903), von Wagner (1906) and Sayles (1927) describe the migration of large cells (named neoblasts) that migrate towards the wound site, proliferate there and contribute to formation of the blastema (Figures 1D,F,H); other studies in this species failed to find neoblast migration, especially during anterior regeneration (Stephenson, 1930). At this stage, it is also common to see muscle cells losing their fibrilar shapes and detaching as free myocytes into the coelomic cavity (Figure 1E).

2.2.3 Stage 3: Blastema Differentiation

After accreting, the blastemal mass begins to differentiate into distal non-segmental regions: a cone-shaped prostomium in anterior regenerates (Figures 1E,G) and an anus-bearing pygidium in posterior regenerates (Figures 1F,H). In anterior regenerates, cells derived from anterodorsal epidermal proliferation and ingression begin to differentiate into a cerebral ganglion, and a band of epidermal cells located at the ventral edge of the prostomium invaginate to form a stomodeum (Figure 1G) (von Wagner, 1897; von Wagner, 1900; Iwanow, 1903). Blastemal cells around the blind end of the gut develop to form a pharynx (Figure 1G), which will eventually meet the stomodeal invagination and open as a new mouth. By this stage, neurites have already formed an anterior dorsal loop connecting the developing cerebral ganglion with the ventral nerve cord. Cells derived from ventral epidermal proliferation ingress and surround these neurites, eventually developing into the anterior ventral cord ganglia (Iwanow, 1903).

In posterior regenerates, ventral epidermal proliferation, and cell ingression, potentially along with the neoblast progeny, give rise to the primordia of the new posterior growth zone, along with the posterior ventral nerve cord ganglia (Randolph, 1892; von Wagner, 1900; Iwanow, 1903; von Wagner, 1906). At the posterior end, the epidermis invaginates towards the blind end of the gut until they connect, re-establishing the anus (von Wagner, 1906; Wenzel, 1923).

In both anterior and posterior regenerates, proliferation located proximal to the prostomium/pygidium intercalate tissues that will form the segments. Muscle fibers from existing longitudinal bands extend over the blastema until they reach the terminal caps, while circular muscle rings form apparently de novo (von Wagner, 1900; Iwanow, 1903; von Wagner, 1906; Wenzel, 1923). Endothelial tissue develops around the blood lacunae and restores the main ventral and dorsal vessels (Iwanow, 1903).

2.2.4 Stage 4: Resegmentation

At this stage, the blastemal mass becomes organized into more discrete clusters of dorsal, lateral and ventral cells. The dorsal and lateral clusters develop into chetal sacs that secrete locomotory chaetae (von Wagner, 1906). The ventral clusters form the nerve cord ganglia. The brain completes its differentiation, and fibers of circular muscle form fine rings between the epidermis and the longitudinal muscle. At the posterior end, the regenerate transitions to developing new segments at its new posterior growth zone, as during normal growth.

2.2.5 Stage 5: Growth

Regenerated structures complete differentiation and the regenerate grows in size to adjust the proportions with the original tissues to fully restore functionality.

2.3 Coda: Asexual Reproduction by Fission

As with many other annelids lineages, Lumbriculus have co-opted their amazing regenerative abilities to evolve facultative asexual reproduction (Zattara, 2012; Zattara and Bely, 2016). Lumbriculus are known to reproduce by breaking up into two or more fragments, each of which reforms the missing parts and become a fully functional individual (Figure 1B); this fissioning behaviour can occur within the water or inside desiccation-resistant cysts (Stephenson, 1922; Cook, 1969). Unlike injury-driven regeneration, Lumbriculus fragmentation results from an autotomy reflex that causes a sudden contraction of circular muscles at a very specific location along a segmental unit (Lesiuk and Drewes, 1999); in other words, and similar to other animals presenting autotomy reflexes, Lumbriculus have a particular “breaking plane.” This breaking plane is characterized by the presence of an epidermal serotonin immunoreactive nerve ring (Figures 2B–E, white arrowheads) (Martinez, 2005; Zattara, 2012); since treatment with nicotine, a cholinergic agonist, blocks the autotomy reflex (Lesiuk and Drewes, 1999), it is possible that the mechanism to trigger this reflex depends on acetylcholine-mediated activation of serotonergic neurons.

FIGURE 2

FIGURE 2. Lumbriculus nervous system morphology and sensory field regeneration. (A) Schematic representation of the anterior nervous system, showing the ventral nerve cord (vnc), dorsal cerebral ganglion (cg), prostomial nerves (pn1-4) and segmental peripheral nerves (I–IV). (B–E) Ventral nerve cord and peripheral nerve roots; all panels show the same whole-mounted specimen, oriented anterior to the left; arrowheads point at the segmental fission planes. (B) Confocal image of immunohistochemical labeling of acetylated tubulin (green) and serotonin (red-white); DNA counterstain (blue) shows cell nuclei. (C) Differential interference contrast (DIC) image showing the main neuropil of the nerve cord flanked by muscle bands. (D) Depth coded confocal stack of phalloidin-labeled F-actin showing longitudinal, circular and diagonal muscle fibers. (E) DIC image showing the epidermis. (F) Confocal stack showing a stretch of nerve cord immunolabeled against serotonin (center); the laterals are two virtual Z-sections showing the medial (mgf) and lateral giant nerve fibers (lgf). The double-headed arrows show the anterior (A)/posterior (P) and dorso (D)/ventral (V) orientation in the center and lateral panels respectively. (G) Transmission electron microscopy image of a thin transverse section in the anterior region of the nerve cord, showing the medial (mgf) and lateral giant nerve fibers (lgf) surrounded by myelin-like sheaths (arrowheads); ms: muscle bundle; np: neuropil; pk: perikaryon (neuronal cell body); vbv: ventral blood vessel. (H–J) Reestablishment of the anterior medial giant fiber (MGL) and posterior lateral giant fiber (LGL) sensory fields after amputation and regeneration. (H) Intact worm. (I) Amputated worm fragments. (J) Regenerated fragments redrawn after Isossimow (1926), color/nerve nomenclature after Zattara and Bely (2015).

3 The Present: Burning Topics in Lumbriculus Regeneration Research

3.1 Cryptic Diversity Within Lumbriculus: Opening the can of Worms

For more than a century, Old and New World regeneration biologists reported working on the same species, Lumbriculus variegatus (Müller, 1774). In 1895, Smith described worms collected near Havana, Illinois (United States) as a separate species, Lumbriculus inconstans, which was later folded as a subspecies of L. variegatus (Brinkhurst and Cook, 1966). A further revision (Brinkhurst, 1986) describes four species: L. variegatus (Müller, 1774), L. inconstans (Smith, 1905), L. ambiguus (Holmquist, 1976), and L. genitosetosus (Holmquist, 1976). In all of these cases, the primary classification descriptors were the number and arrangement of reproductive structures in sexually mature worms. Christensen (1980) reported that worms collected in Denmark differed in their DNA content, ranging from diploid (34 chromosomes) to 11-ploid. While there are no significant morphological differences between worms from different sources, recent molecular phylogenetic analyses of various populations based on cytochrome c oxidase subunit 1 and 16S rRNA sequence data have shown that populations of Lumbriculus form differentiated genetic clusters, strongly suggesting a significant cryptic diversity of species among the initially monotypic genus (Gustafsson et al., 2009). The study found that all sequenced individuals clustered within two clearly distinct clades (aptly named Clade I and Clade II), with representatives of both clades in both Europe and North America. Clade I included worms obtained from the Environmental Protection Agency laboratory (Dultuh, MN), Aquatic Foods (Fresno, CA) and several natural habitats in Europe and North America. Clade II comprised worms from habitats in Sweden, and populations isolated from natural habitats in the United States including worms collected from the Gull Point slough in Iowa by the Drewes lab (1996). Genetic differences of up to 17.7% between clades I and II suggest that divergence in these populations occurred in the distant past. Cytological analysis (Gustafsson et al., 2009) and flow cytometry analysis of DNA content (Tweeten and Morris, 2016) of several of these genetically analyzed populations showed that worms in Clade I are polyploid while Clade II worms are diploid. DNA analysis, together with differences observed in total protein profiles and hemoglobin linker proteins (Tweeten and Morris, 2016), support designating the diploid and polyploid populations of Lumbriculus as distinct species.

This results in a taxonomic dilemma, as the ploidy of the type species described by Müller (1774) is not known. Research that can be inferred to have used either polyploid worms (Phipps et al., 1993) or diploid worms (Drewes and Brinkhurst, 1990) both name the worms as Lumbriculus variegatus. With criteria focusing on reproductive structures, the current classification system excludes many polyploid populations that, due to high chromosome numbers, likely reproduce asexually and lack reproductive structures (Christensen, 1984). Others may reproduce through parthenogenesis where reproductive structures are abnormal or substantially reduced. Clearly criteria beyond reproductive structures need to be applied in resolving the identity and diversity of species within the Lumbriculus complex. Recognizing the unresolved issues regarding the taxonomy of Lumbriculus, current taxonomic keys (Brinkhurst and Gelder, 1991) provide a set of characteristics that identify Lumbriculus from different sources only to the genus level: prostomium without proboscis, bifid chaetae with reduced upper tooth, lengths of 50–100 mm, anterior greenish pigmentation, and extensively branched lateral blood vessels. The worms are further described as reproducing either asexually or sexually (lack retractable penises).

The occurrence of both diploid and polyploid populations imposes a taxonomic challenge, but also provides unique opportunities for investigations of regeneration within these contexts. Since ploidy levels impact physiology, gene expression, response to environmental stresses, and rates of cell proliferation, comparative studies could be conducted, examining the impact of chromosome numbers on wound healing and downstream events occurring during regeneration. What potential differences are there in the regeneration process between diploid and polyploid forms of the worms? Are there differences in the regenerative capacity of a diploid, sexually mature worm producing cocoons compared to that of polyploid asexually reproducing worm? What differences in responses might be observed through comparative transcriptomics between diploid and polyploid Lumbriculus when exposed to a variety of environmental stresses?

3.2 Cell Migration and Proliferation: The Quest for the Neoblasts

Ever since Randolph (1891), Randolph, (1892) described the migration and proliferation of putative reserve stem cells to form the posterior blastema of Lumbriculus, the role of these cells has been hotly debated. Zhinkin (1932), Zhinkin (1936), Turner (1934), and Turner (1935) found that formation of both anterior and posterior structures was blocked when amputated fragments of Lumbriculus were exposed to x-rays to inhibit mitosis. Non-irradiated tissues, through histological analysis, showed proliferation of ectodermal cells that were linked to regeneration of nerve ganglia and the ventral nerve cord. Other cells thought to be neoblasts appeared to migrate to the wound site where they proliferated and gave rise to blood vessels and muscle cells in the regenerating tissue. Stephan-Dubois (1956) also proposed that neoblasts migrated into blastemal tissue where they proliferated and contributed to regenerating tissues. More recent experiments in which fragments of Lumbriculus were treated with colchicine and vinblastine, inhibitors of cell proliferation, prevented regeneration of heads and tails (Tweeten and Anderson, 2008). These results suggested that cell proliferation occurred throughout the regenerative process. Fragments allowed to regenerate for 24, 48, 72, or 120 h before being exposed to colchicine showed no further regeneration when treated with this drug. Direct evidence for cell proliferation was observed through uptake of 5-bromo-2-deoxyuridine (BrdU), a thymidine analog, into regenerating tissues (Tweeten and Anderson, 2008; Zattara and Özpolat, 2021). BrdU uptake was detected within the first 24 h of regeneration, with the greatest uptake occurring at about 120 h into regeneration.

Cell migration also was found to be essential to the regenerative process (Tweeten and Anderson, 2008). Treatment of worm fragments with locostatin and latrunculin B, inhibitors of cell migration, completely inhibited tail regeneration and partially blocked head regeneration. Other insights regarding cell migration during regeneration in Lumbriculus came from studies on serine proteases (Tweeten and Reiner, 2012). Given that some serine proteases play a role in the remodeling of the extracellular matrix that accompanies cell migration (Friedl and Gilmour, 2009), a fluorescently labeled reagent (Williams and Mann, 1993) that irreversibly binds to serine proteases showed high levels of these enzymes in the intestine of Lumbriculus. After treating worms with this reagent and then cutting the worms at the midgut level, movement of labeled intestinal cells into the developing blastema was observed. These results suggested that migration of differentiated intestinal tissue accounts, in part, for formation of the pharynx during regeneration. That serine proteases might play a role in the migration process was indicated by inhibition of head and tail regeneration by aminoethyl benzenesulfonyl fluoride, a serine protease inhibitor (Tweeten and Anderson, 2008).

Despite a long history of study, definitive evidence of neoblast migration is still scarce: wound-directed migration of neoblast-like cells has only recently been directly observed using time-lapse imaging in the freshwater clitellate Pristina leidyi (Zattara et al., 2016). However, 130 years after Randolph’s first paper, the role played by these migrating neoblasts in Lumbriculus (and other clitellates) is still unclear.

3.3 Regeneration and the Nervous System: Regeneration Meets Neurophysiology

The oligochaete central nervous system (CNS) generally consists of a cerebral ganglion (brain; a fused supra-esophageal ganglion) which is located in prostomium and is connected to the subesophageal ganglion and subsequently a ventral nerve cord (VNC) via two circumesophageal connectives (Stephenson, 1930; Bullock, 1965; Jamieson, 1981). In lumbriculid worms, the VNC extends down the length of the worm and gives rise to four pairs of segmental nerves within each segment (except segments 1 and 2; Figures 2A,B) (Bullock, 1965; Hessling and Westheide, 1999). These segmental nerves extend laterally around the body wall and are the source of synaptic input (sensory) and output (motor) within the clitellate CNS (Stephenson, 1930; Bullock, 1965; Jamieson, 1981). Groups of different types of neurons (sensory, motor, and interneurons) converge and are organized within each segment of the VNC (Jamieson, 1981). Axons of some of these sensory and motor neurons extend through the segmental nerves, while others extend into the neuropil of the VNC. Thus, the neuropil is a site of integration of many synaptic events that underlie the function of the worm’s neuronal circuits controlling behavioral reflexes (Bullock, 1965; Günther and Walther, 1971; Jamieson, 1981; Purschke, 2015).

Lumbriculus exhibits anterior-posterior gradients in behavior that are easily monitored (Drewes and Fourtner, 1990; Lesiuk and Drewes, 2001). With its tail extended into the water column, Lumbriculus is exposed to predation and thus has evolved rapid escape reflex behaviors that aid in survival tactics (Drewes, 1984; Zoran and Drewes, 1987). Specifically, stimulation of segments in the posterior 2/3 region of the worm’s body (Figure 2H, LGF) results in posterior shortening or tail withdrawal (Drewes, 1984; Zoran and Drewes, 1987; Drewes and Fourtner, 1989; Drewes and Fourtner, 1990). Also, touch-stimuli applied to segments found in the anterior 1/3 region of the worm’s body (Figure 2H, MGF) result in a quick anterior shortening or head withdrawal (Drewes, 1984; Zoran and Drewes, 1987; Drewes and Fourtner, 1990). Stimulation of anterior segments also results in a 180° turn or reversal locomotor response away from the aversive stimulus, whereas stimulation of posterior segments elicits rapid undulating swim movements (Drewes, 1999). These behaviors, which are specifically activated by anterior- or posterior-specific sensory inputs, are also mediated by body region-specific motor networks.

A conserved feature of virtually all oligochaetes is the presence of three giant fibers (Figures 2F,G), located in dorsal regions of the ventral nerve cord (Bullock, 1965; Jamieson, 1981; Zoran and Drewes, 1987; Hessling and Westheide, 1999; Purschke, 2015). Each of these giant nerve fibers is derived from a chain of giant axons which arise from segmentally arranged interneurons whose cell bodies are found just ventrally within the neuropil (Bullock, 1965; Günther and Walther, 1971, Jamieson, 1981: Purschke, 2015). These three giant fibers include one medial (MGF) and a pair of lateral giant (LGF) axons (Figures 2F,G). Giant axon dye-filling in Lumbriculus demonstrates that these axons are septate in nature; having distinct, segmental divisions separated by a membranous septum (Lybrand et al., 2020), as opposed to being syncytial, where there are no cellular divisions and thus a continuous cytoplasm between cells. Moreover, each segmentally arranged giant axon is connected via gap junctions (i.e., electrically coupled) allowing for uninterrupted through-conduction of nerve impulses along the length of the giant fiber system (Mulloney, 1970; Brink and Ramanan, 1985). Each giant fiber (GF) has 2-4 ventrally projecting collaterals and one cell body per segment. Additionally, in most oligochaetes, one lateral giant fiber (LGF) collateral forms a cross-bridge with the contralateral LGF within each segment. These interconnections are undoubtedly the basis for observed electrotonic coupling between the LGFs and the resultant bilateral synchronization of LGF action potentials during spike propagation (Drewes, 1984). It has also been demonstrated that lumbriculid giant fiber axons are ensheathed by glial cell membranes, resulting in layers of myelin surrounding the axons (Figure 2G) (Günther, 1976; Roots and Lane, 1983; Purschke, 2015; Knowles, 2017; Lybrand et al., 2020). The presence of myelination on giant fiber axons functions to increase conduction velocity along the length of the giant fibers and thus is thought to be the basis of observed rapid escape reflexes (Zoran et al., 1988; Drewes and Fourtner, 1990; Martinez et al., 2008).

Rapid escape reflexes initiated following noxious stimulus (i.e., a potential predatory threat) are mediated by the giant fiber pathways. Activation of these giant fibers via sensory stimuli (e.g. tactile or photic) results in the rapid conduction of nerve impulses down the length of the fiber that, in turn, activate motor neurons, which impinge upon longitudinal muscles responsible for body shortening (Drewes, 1984; Drewes and Fourtner, 1989; Drewes and Brinkhurst, 1990). Moreover, these rapid escape reflexes are differentially regulated by the medial and lateral giant fibers. That is, head withdrawal reflexes, in response to sensory stimuli to the anterior 1/3 of the body, are governed by the medial giant fiber (MGF) and tail reflex responses are governed by the lateral giant fibers (LGF) (Drewes and Fourtner, 1990; Lesiuk and Drewes, 2001). Interestingly, there are a few segments (Figure 2H, segments 38–58 in a worm of 150 segments) in which both a head and tail withdrawal can be elicited and both MGF and LGF activation is detected (Drewes and Fourtner, 1990). Thus, giant fiber function is governed by discrete sensory fields, with the anterior 1/3 body region falling within the MGF sensory field and the posterior 2/3 body region comprising the LGF sensory field. Interestingly, although these three giant fibers are conserved among virtually all oligochaetes, there is a fundamental difference in these rapid escape pathways between terrestrial worms (most susceptible to anterior predatory attack) and aquatic worms with tails extended from the substrate burrows (susceptible to posterior attack). Specifically, LGF sensory fields, giant fiber diameters, conduction velocities, and synaptic efficacies have become highly adapted for speed during aquatic worm (tubificid and lumbriculid) evolution (Zoran and Drewes, 1987).

The nervous system is known to play a prominent role in animal regenerative processes (Kumar and Brockes, 2012). In annelids, removing the ventral nerve cord from the segments adjacent to an amputation site can inhibit or greatly delay the regeneration process, while transplantation or deviation of the nerve cord into a wound can induce ectopic regenerates (Hyman, 1940; Herlant-Meewis, 1964; Boilly et al., 2017). This role of the nerve cord is conserved in Lumbriculus: regeneration occurs only in the presence of a cut end of the VNC, and the blastema begins to form next to the VNC end; furthermore, extirpation of fragments of the VNC results in the formation of ectopic lateral regenerates, adopting anterior (head) or posterior (tail) morphologies depending on the facing of the cut VNC end (von Haffner, 1928; von Haffner, 1931; Zhinkin, 1935). In turn, cell proliferation activity and neoblast migration has been proposed to be necessary for nervous system regeneration (Zhinkin, 1936). Within the nervous system, the recovery of function upon regeneration appears especially evident. Studies first carried out by electrophysiologists in the late 1970s (Günther, 1976; Drewes et al., 1978), demonstrated remarkable recovery of nervous system function. More recent studies demonstrated re-emergence of neuronal activity as early as 24-h post-amputation (Lybrand and Zoran, 2012; Lybrand et al., 2020).

The importance of nerve injury for the induction of the regenerative process has been clearly demonstrated utilizing a unique developmental paradigm which involves the formation of an ectopic head along the anterior-posterior axis of the worm (Martinez et al., 2008). Injury to the ventral nerve cord is necessary for the regeneration of proper function along the anterior-posterior axis (Martinez et al., 2008). This rapid recovery of function in the regenerating worm fragment highlights the extensive capacity for regeneration and recovery demonstrated by lumbriculid worms. Most recently, patch clamp recordings carried out with regenerating worm fragments, removed from the posterior end of the worm, demonstrated the emergence of medial giant fiber (MGF) post synaptic potentials 24 h post-amputation (Lybrand et al., 2020). These posterior regenerating fragments undergo the most drastic change in axial position, as they become more anteriorly located following the regeneration of a 7–8 segment head (Martinez et al., 2005; Martinez et al., 2006). These posterior body fragments become transformed anatomically and physiologically to match their new positional identity along the animal’s body axis (Drewes and Fourtner, 1990; Martinez et al., 2006). Specifically, these posterior body fragments exhibit transformations in touch sensory fields, giant fiber conduction velocity, axonal diameter, and other physiological properties appropriate for the fragment’s new positional identity (Drewes and Fourtner, 1990; Martinez et al., 2006). These dramatic changes within the original body fragments have been defined as morphallaxis (Morgan, 1901; Berrill, 1952; Martinez Acosta and Zoran, 2015; Kostyuchenko and Kozin, 2020; Kostyuchenko and Kozin, 2021). Morphallaxis is a pattern of regeneration where existing tissues are transformed without the involvement of stem cell differentiation (Holstein et al., 2003; Agata et al., 2007; Martinez Acosta and Zoran, 2015; Özpolat and Bely, 2016). Morphallaxis is a regenerative mechanism utilized by multiple annelids, including Enchytraeidae (Takeo et al., 2008), Syllidae (Ribeiro et al., 2018), and Pristina (Zattara and Bely, 2011; Özpolat et al., 2016). Morphallactic regeneration in Lumbriculus is especially evident within the nervous system (Martinez et al., 2005; Zoran and Martinez, 2009; Martinez Acosta and Zoran, 2015), where non-invasive extracellular electrophysiology demonstrates a rapid switching between Medial Giant Fiber (MGF) to Lateral Giant Fiber (LGF) pathways in the transforming posterior segments. In less than 24 h post amputation, these posterior-most fragments display MGF activity (Figures 2I,J) (Lybrand and Zoran, 2012). The speed with which the MGF pathway becomes functionally activated in these posterior regenerating fragments demonstrates the remarkable plasticity of the nervous system in Lumbriculus, which is poised for regeneration and recovery of function. Continued work will help elucidate the exact physiological repertoire used for this incredible plasticity event.

4 The Future: Lumbriculus Enters the Genomics Era

Sydney Brenner (2002) said “Progress in science depends on new techniques, new discoveries and new ideas, probably in that order.” Lumbriculus research has taken an important step into the genomics era with a recent transcriptomic study comparing the profiles of regenerating and non-regenerating worms (Tellez-Garcia et al., 2021). This work identified 136 transcripts likely to be differentially expressed during early regeneration, 73 of which were potentially protein-coding and had significant BLASTp hits to known proteins; among them were bmi1b, Hsp60, vdr, BHMT, paics, Gls2 and several vwdes—all genes found to be also differentially expressed during regeneration of annelids or other systems. Besides highlighting some interesting candidate genes, this study generated a fundamental resource by providing a comprehensive database of sequences from genes expressed during Lumbriculus regeneration.

Additional sequence data is available from transcriptomic and phylogenomic studies, including RNAseq data for specimens from Sweden (SRX2649483) (Anderson et al., 2017), and genomic DNA short read sequences from Denmark (SRX9009164) and Sweden (SRX5630329) (Phillips et al., 2019). With an estimated genome size of 2.64 Gbp (Tweeten and Morris, 2016), which is larger than that of the domestic mouse, sequencing and assembling a reasonable quality genome draft is not a trivial task, especially given the relatively small size of the currently active Lumbriculus research community. Even so, the existing transcriptomic resources currently available are already pushing research forward, as specific genes and developmental pathways begin to be investigated.

Generation and sharing of molecular resources among researchers are important steps in moving Lumbriculus research into the modern molecular era. Gene expression analyses are powerful tools for screening of genes that may be involved in regeneration. Thus, the development of techniques for gene expression analysis is of utmost importance. A step toward this work is the optimization of real-time PCR protocols by the Martinez Acosta and Gillen labs which will reliably quantify expression of genes of interest (Quesada et al., 2015; LaRocca-Stravalle et al., 2020; Fischer et al., 2021).

Culturing of Lumbriculus poses limitations for this genetic work, due to the lack of sexual reproduction in the laboratory. Lumbriculus is collected in the field as sexually reproducing populations during summer months (Tweeten and Morris, 2016). The Drewes and Tweeten Labs have successfully raised cocoons in the lab which were collected in the field, showing promise for studies of regeneration during different developmental stages and for general investigations underlying genetic mechanisms in this remarkable worm (Drewes and Brinkhurst, 1990; Tweeten and Vang, 2011; Tweeten and Abitz, 2012; Tweeten and Morris, 2016). Access to sexually reproducing individuals has also opened up new avenues of research on questions related to sexual reproduction, including seasonal variation in cocoon production, anatomical location of reproductive structures within the worm, sperm morphology and formation, degradation of reproductive structures under laboratory conditions, and regulation of sexual reproduction in these worms. Transcriptomes from sexually reproducing populations of Lumbriculus and from asexually reproducing populations are being generated and studies comparing these transcriptomes are underway. Some questions of interest include: What are the properties of the DNA-binding proteins that package DNA into the sperm of Lumbriculus? What type of mucin proteins are produced by sexually reproducing worms and released into cocoons to cushion embryos during their development in the environment? What is the composition of the yolk proteins present in the eggs produced by sexually reproducing Lumbriculus? Are genes for DM proteins (ie., Dmrt), which regulate sexual development, differentially expressed in tissues from sexually reproducing worms? How similar or different are they to DM proteins from other animals? Characterization of these proteins would provide insights into mechanisms leading to sexual versus asexual modes of reproduction in Lumbriculus.

Further development of genomic methods will move Lumbriculus research beyond correlation and shift the focus of future work toward demonstrating the functional significance of gene expression changes. In particular, successful application of reverse genetic techniques such as RNA interference (RNAi) and the CRISPR-Cas endonuclease system would allow assessing gene function and drastically change the playing field for Lumbriculus regeneration studies. Work aimed to develop these techniques is already ongoing in several labs, and this research has benefited from fluid communication, data and resource exchange, and collaborative work.

4.1 Lumbriculus as a Model for Epigenetic Regulation of Regeneration

Regeneration depends on proliferation and differentiation and requires marked changes in gene expression programs based on epigenetic modifications (Barrero and Izpisúa Belmonte, 2011; Hamada et al., 2015; Rouhana and Tasaki, 2015). Epigenetic regulation of regeneration is achieved by three main mechanisms: DNA methylation, histone modification and noncoding RNAs (Rouhana and Tasaki, 2015). There are already reports of the relevance of epigenetic regulation for development and regeneration of annelids (Giani et al., 2011; Niwa et al., 2013; Kozin and Kostyuchenko, 2015; Bhambri et al., 2018; Bicho et al., 2020; Singh Patel et al., 2020; Planques et al., 2021). An analysis of the regeneration transcriptome of Lumbriculus variegatus (Tellez-Garcia et al., 2021) in search for transcripts encoding for writers and erasers of DNA methylation revealed genes encoding for DNA methyltransferases and several ten-eleven translocation proteins, as well as histone acetyltransferases, histone deacetylase, histone methyltransferases, and histone demethylases. Furthermore, 44,097 potential lncRNAs were identified, of which 13 were upregulated during Lumbriculus regeneration. Among the differentially expressed transcripts was bmi1b (Polycomb complex protein BMI-1-B), which has been implicated in regeneration in mammals (Fukuda et al., 2012). Moreover, piwi genes were also found in the Lumbriculus transcriptome (Tellez-Garcia et al., 2021). Thus, despite the currently limited in terms of molecular and genetic data, a brief analysis of the epigenetic regulation repertoire in Lumbriculus suggests that this annelid has the potential to be developed as a new model to study epigenetic regulation during regeneration.

5 An Accessible Model for the Lab and the Classroom

One of the main advantages of Lumbriculus as a study system includes its accessibility; individuals can be collected from the field in many temperate regions or acquired from several commercial suppliers. Lumbriculus spp. are easy to care for with minimal equipment—they only require containers, bubblers, and food—and many populations will readily reproduce by asexual fragmentation, allowing the attainment of a large number of worms in laboratory settings. This yields an advantage not only for research, but for life sciences educators as well, as blackworms serve as a well-established tool for science education. Current use occurs across high school and college classrooms to demonstrate concepts in Cellular Biology, Physiology, Animal Behavior, Biomechanics, Development, and Invertebrate Biology, both using guided inquiry as well as more advanced independent studies.

5.1 Procurement of Lumbriculus

Lumbriculus are available from commercial suppliers such as Aquatic Foods (Fresno, CA United States), Eastern Aquatics (Lancaster, PA), and Aquarem (Mexico DF, Mexico), that sell them as blackworms or mudworms for use in aquaculture. Various biological stores sell Lumbriculus for educational purposes, providing supporting curriculum kits directly to K-12 biology teachers, like Carolina Biological (Burlington, NC, United States) and Flinn Scientific (Batavia, IL. United States). Lumbriculus can also be obtained from the Environmental Protection Agency (EPA) Laboratory in Duluth, MN, United States where a culture has been maintained since the 1980s. All of these sources of Lumbriculus derive from polyploid populations, with chromosome counts compatible with at least 11-ploid to 12-ploid worms (Tweeten and Morris, 2016). Lumbriculus can also be collected from freshwater habitats throughout Eurasia, North America, and regions of the Northern Pacific (Figure 3). Lakes and ponds with standing or slow-moving water provide potential collection sites, especially where shorelines have deciduous trees, sedges, rushes, and cattails that contribute decaying plant material that accumulates in the shallow water along the edges of the lakes (Brinkhurst and Gelder, 1991). The leaf litter, grasses, and sediments along the edges of sloughs, marshes, and drainage ditches that persistently retain water are good collection sites, due to the water being more still and shallow. Sometimes specimens can be found further from the shoreline in algal mats growing on the surface of the water. In the United States, both diploid (from Minnesota, Wisconsin, Iowa, North Dakota) and polyploid (from California and Oregon) populations of Lumbriculus have been collected from natural habitats (Gustafsson et al., 2009; Tweeten and Morris, 2016). Several of the diploid populations have been observed to sexually reproduce during the summer months, producing cocoons for a limited period in the laboratory following their collection from natural habitats (Drewes and Brinkhurst, 1990; Tweeten and Morris, 2016). In Europe, diploid, polyploid, and sympatric populations of Lumbriculus have been collected from natural habitats (Christensen, 1980; Gustafsson et al., 2009).

FIGURE 3

FIGURE 3. Geographic distribution of Lumbriculus spp, based on occurrence records found at the Global Biodiversity Information Facility (GBIF.org, 2021). Hexagons in South Africa, Indonesia, Australia and New Zealand represent 98 records that would need additional verification.

5.2 Culturing of Lumbriculus

Whether obtained commercially or collected from the environment, Lumbriculus can then be easily maintained in the laboratory in spring water, while some labs have successfully used dechlorinated tap water. Worms are fed with fish flakes or pellets such as Tetramin^®, rolled oats, and spirulina over a range of temperatures (typically 15°C to room temperature). Microbes in the cultures also serve as a source of nutrition. Strips of brown paper towels are added to mimic the leaf litter of natural habitats. For bioaccumulation experiments, sandy or other fine sediment types can be added to the cultures (Sardo et al., 2007). Some labs aerate the worm cultures, especially if large numbers of worms are being maintained. Water quality is closely monitored in large cultures. Various populations of Lumbriculus collected from natural habitats do not fare well when transferred to spring water. These are best maintained in water from the collection site that is filtered to remove particulates. Reproduction under laboratory conditions is almost exclusively by architomy followed by regeneration (Drewes and Brinkhurst, 1990; Martinez et al., 2006). As the worms proliferate, they can be subcultured. Ectoparasites can sometimes be associated with Lumbriculus obtained commercially or from natural habitats; their levels can get to a point where survival of the worms is jeopardized and the cultures crash. However, these ectoparasites can be removed by treating cultures with 0.6% sodium chloride in spring water. The EPA lab (Duluth, MN) found that salt provokes release of ectoparasites from the surface of the worms. Overall, the general culturing of Lumbriculus is carried out with ease, thus providing a reliable source for experimentation.

5.3 Lumbriculus in the Classroom: The Legacy of Charlie Drewes

While used extensively in monitoring of environments for pollutants and toxicity testing of industrial compounds (Goodnight, 1973; Hornig, 1980; Chapman and Brinkhurst, 1984; Phipps et al., 1993), Lumbriculus was first proposed by Charles Drewes (1996) as an inexpensive and accessible organism for high school and university student laboratory experiences (Figure 4). Drewes’ outreach to teachers and students began with development of laboratory exercises through which students explore segmental pattern formation during regeneration in Lumbriculus. Through detailed supply lists, descriptions of techniques, and examples of experimental design, Drewes described how students could generate and maintain worm fragments in the teaching lab. Through observations of regenerating fragments, students then learn about morphallaxis, the developmental process of reorganization that occurs as Lumbriculus regenerates anterior segments. As restoration of tissues and anatomical structures such as blood vessels are monitored, anterior regeneration is compared to posterior regeneration. Students also explore the influence of amputation location along the anterior-posterior axis and fragment size on numbers of regenerated segments. Generation in the laboratory of worm fragments by amputation severs the ventral nerve cord, disrupting the locomotory responses typical of anterior and posterior regions of Lumbriculus. As students monitor the fragments for recovery of different locomotory functions such as swimming, crawling, reversal behaviors, the role of the nervous system in the regenerative process can be explored (Drewes and Cain, 1999). Since then, a number of other Lumbriculus-based activities related to regeneration, physiology, and neurobiology have been designed for teaching laboratories. These hands-on activities have been made accessible online and published in journals ranging from Tested Studies for Laboratory Teaching Proceedings of the Association for Biology Laboratory Education (Bohrer, 2006; Killian and Baker, 2013) to Science Scope (Straus and Chudler, 2015), and Bioscene (Ryan and Elwess, 2017). These lab activities provide students with opportunities to learn about the anatomy of the worm’s circulatory system, observe behaviors which are easily correlated to restoration of nervous system function during regeneration, develop observational skills, and draw on the scientific literature to inform their approach to inquiry. Through such examples and protocols highlighting the use of materials and equipment that could easily be found in a high school or college laboratory, these articles model biological inquiry as it is carried out in scientific laboratories across the world, while also introducing the student to the important roles played by annelids within the greater environment. Students are immersed in the scientific process, formulating research questions, generating predictions, and designing experiments. Within a two to 3-h lab period, students are identifying experimental variables, setting up experiments, and collecting data using Lumbriculus. In addition to learning about the process of science, each laboratory investigation incorporates various methods for mathematical modeling and statistical testing of data which was collected by the student, further enhancing the learning experience through the application of quantitative skills (Killian and Baker, 2013). The dissemination of hands-on Lumbriculus activities has inspired the development of a growing community of educators that offer creative modifications and improvements to student learning experiences (Killian and Baker, 2013; Ryan and Elwess, 2017). For example, experimentation with Lumbriculus in the biology classroom helps students make sense of physiological concepts and functions in vertebrates, like themselves. Experiments that would be difficult or impossible to do in more complex systems can readily be done with Lumbriculus (Bohrer, 2006; Straus and Chudler, 2015). While designing projects to study the effect of various chemical and environmental factors on the regenerative process in Lumbriculus, students can also explore why regeneration of tissues is so limited in most other animals.

FIGURE 4

FIGURE 4. (A) Charlie Drewes collecting Lumbriculus, which he first proposed in 1996 as an inexpensive and accessible organism for high school and university student laboratory experiences. (B) Video frame capture of helical swimming behavior elicited when the posterior segments are stimulated, Example of online resources available for classroom use of Lumbriculus to study basic biology. Many of the educational outreach resources developed by Dr. Drewes incorporating invertebrates into student projects and activities are preserved and accessible at the C. Drewes website maintained by Iowa State University: http://www.eeob.iastate.edu/faculty/DrewesC/htdocs/. (C) Man is but a worm. Charlie was known to appreciate plays on words and was a master of disguising biological ideas within the puns he often shared. He enjoyed this caricature published in December 1881 following Darwin’s last publication, The Formation of Vegetable Mould Through the Action of Worms.

5.4 Lumbriculus in Undergraduate Research Training

Because so many aspects of the physiology, behavior, cell, and molecular interactions of Lumbriculus remain to be characterized, this annelid is an excellent organism for course-based undergraduate research experiences. At St. Catherine University, original research projects focused on Lumbriculus have been incorporated into several upper-level biology courses. Students learn cellular, molecular, and immunological techniques while applying them to basic questions about the structure and physiology of this annelid. For example, students in an immunology course used immunohistochemistry to study the distribution of fibronectin, laminin and collagen in cross-sections of worm tissue while antibodies against peptidoglycan were used to compare the quantity of microbes in the intestines of fed and starved worms. In the laboratory component of a “Molecular Biology: Proteins” course, students screened a Lumbriculus transcriptome for actin sequences and constructed a phylogenetic tree that revealed that the actin from Lumbriculus was more closely related to vertebrate cytoplasmic β-actins than vertebrate cardiac, smooth, or skeletal muscle α-actins. This relationship was further supported as students conducted Western blots on worm homogenates, finding that antibodies against vertebrate β-actin reacted more strongly with Lumbriculus actin than antibodies against vertebrate α-actin. Incorporated into the laboratory component of courses, the projects increase the research capacity of biology programs at small institutions. Students who otherwise might not have participated in a formal research experience find themselves immersed in the scientific process. In many cases, the course projects have expanded into collaborative research studies in faculty research labs that have resulted in student presentations at scientific conferences and publications in peer-reviewed journals with students as co-authors (Crisp et al., 2010).

These examples show how Lumbriculus is an ideal organism through which students can explore their interest and aptitude for science. Engagement in the research process while asking original questions and contributing to the scientific knowledge base has enhanced student motivation and satisfaction with their learning (Tweeten et al., 2007). Projects have generated original results which have been published in scientific journals, like Comparative Biochemistry and Physiology (Crisp et al., 2010) and Invertebrate Biology (Tweeten and Reiner, 2012; Tweeten and Morris, 2016) as well as journals that focus on publication of research conducted by undergraduates, such as BIOS (Tweeten and Anderson, 2008) and Impulse (Halfmann and Crisp, 2011).

6 Concluding Remarks

Thanks to the work of past and present researchers working on Lumbriculus regeneration and related topics, we now have a very firm foundation to launch new forays into many unresolved questions regarding the genetic, developmental, physiological, ecological and evolutionary underpinnings of these worms’ amazing regenerative abilities. In doing so, conserved, and novel mechanisms driving regeneration might be unveiled, informing development of alternative biomedical approaches. Furthermore, the research process will help current and future researchers learn many lessons about molecular and developmental biology, physiology and ecology that will become part of their professional toolkit whether they stick with Lumbriculus or move on to work on other systems. In summary, and despite the challenges associated with working with a non-traditional study system as Lumbriculus (such as lack of a reference genome, relatively underdeveloped molecular tools, and a much smaller knowledge base relative to models like Drosophila, C. elegans or mice), we think that the advantages of this organism—ease of procurement and culture, fast and robust regenerative abilities, rich research history, considerable ecological and genetic diversity, and a large spectrum of open questions with significant biological and biomedical relevance—render it a superb organism for regeneration research, either in a science research lab or in elementary, middle and undergraduate classrooms. We hope this review article will foster further work on Lumbriculus regeneration in research labs and encourage expanded use of these worms in the teaching labs; in turn, the work and questions of students are bound to spark new ideas for the research lab. Two heads are better than one.

Author Contributions

VMA: Conceptualization, Writing—original draft, Writing—review and editing; FA-C: Writing—original draft, KG: Writing—original draft, Writing—review and editing; KT: Writing—original draft, Writing—review and editing; EZ: Visualization, Writing—original draft, Writing—review and editing.

Funding

VMA—Department of Defense BAA Grant #W911NF-12-R-0009 and Univ. of the Incarnate Word Faculty Endowment Research Award. KG—Kenyon College Faculty Research Grant and Kenyon Summer Science and Cascade Scholar student research material and equipment funds. KT—St. Catherine University Carondelet Scholars Fund and National Science Foundation Major Research Instrumentation Grant # 1827514. EZ—is a staff researcher at Argentina’s National Council for Scientific and Technical Research (CONICET).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

This review is dedicated to the memory of Dr. Charlie Drewes. The authors wish to thank Jennifer Morgan for supporting the writing and submission of this review, and Drs. Steven Zottoli and Romi Burks for feedback on the draft. Images shown in Figures 2B–E were acquired at the UMCP-CMNS-CBMG Imaging Core Facility (University of Maryland, College Park) with support from Amy E. Beaven. Figures 2F and G were acquired at the Central Microscopy Facility at the Marine Biological Laboratory with support from Kasia Hammar.
