Effect of Non-linearity of Connecting Dampers on Vibration Control of Connected Building Structures

  • Department of Architecture and Architectural Engineering, Graduate School of Engineering, Kyoto University, Kyoto, Japan

The connection of two building structures with dampers is one of the effective vibration control systems. In this vibration control system, both buildings have to possess different vibration properties in order to provide a higher vibration reduction performance. In addition to such condition of different vibration properties of both buildings, the connecting dampers also play an important role in the vibration control mechanism. In this paper, the effect of non-linearity of connecting dampers on the vibration control of connected building structures is investigated in detail. A high-damping rubber damper and an oil damper with and without relief mechanism are treated. It is shown that while the high-damping rubber damper is effective in a rather small deformation level, the linear oil damper is effective in a relatively large deformation level. It is further shown that while the oil dampers reduce the response in the same phase as the case without dampers, the high-damping rubber dampers change the phase. The merit is that the high-damping rubber can reduce the damper deformation and keep the sufficient space between both buildings. This can mitigate the risk of building pounding.

Introduction

The connection of multiple building structures with dampers is one of the effective vibration control systems (for example, Iwanami et al., 1996; Luco and de Barros, 1998). In the case where these building structures have different natural frequencies, each building disturbs the vibration of other building structures. Furthermore, it can be assumed that the properties of connecting dampers affect strongly the performance of vibration reduction of such connected building structures. It appears therefore useful to investigate the effect of the non-linear properties of connecting dampers on the vibration reduction mechanisms of connected building structures.

A high-damping rubber damper (Tani et al., 2009) and an oil damper with and without relief mechanism (Soong and Dargush, 1997; Hanson and Soong, 2001) are treated in this paper. The high-damping rubber dampers have a high performance of energy absorption for a cyclic loading and possess not only the large elastic–plastic deformation capacity like metallic hysteretic dampers but also the sufficient amount of viscous damping capacity (see Tani et al., 2009). Especially the large deformation capacity (almost 300% shear deformation) and the extremely large performance for accumulated plastic deformation are two major advantages over other dampers. On the other hand, the relief mechanism is usually adopted in the oil dampers in order to decrease the force applied to surrounding structural members.

As for the vibration control of buildings with connecting dampers, Iwanami et al. (1996) investigated the optimal quantity of connecting elements (stiffness and damping). This theory is well known as “Fixed-Point Theory.” In this method, the stiffness of the connecting element is used for adjusting the heights of the fixed points, and the minimum transmissibility has been achieved by the damping of the connecting element. Luco and de Barros (1998) derived an optimal interconnecting element location in the connected building system. Takewaki (2007, 2015) and Fukumuto and Takewaki (2015) introduced the energy approach in the design of buildings with the connecting damper system in which the energy transfer function plays a key role for assessing the effectiveness of the connecting dampers. Cimellaro and Lopez-Garcia (2011) studied the optimal damper distribution in the buildings with a connecting damper system. Patel and Jangid (2011) investigated the response of two buildings connected by friction dampers. Richardson et al. (2013a,b) developed a closed-form expression of the optimal connecting dampers, which minimize the absolute displacement transmissibility.

It is shown in this paper that while the high-damping rubber damper is effective in a rather small deformation level, the oil damper is effective in a relatively large deformation level. Furthermore, it will be remarked that the response velocity in the oil dampers is too large compared to the limit value specifically in low-rise buildings and careful attention should be paid in their installation to low-rise buildings.

Modeling of Non-Linear Dampers and Connected Building Structures

Modeling of Non-Linear Dampers

The oil damper used in this paper obeys the following damper force fv – relative velocity u˙ relation as shown in Figure 1.

fV={cVu˙         for  |u˙||u˙r|κcVu˙+ηV,c  for  |u˙|>|u˙r|

where κ denotes the ratio of the post-relief damping coefficient to the initial value cv and ηV,c is the damping force at 0 velocity in the post-relief relation. When the velocity attains the specific value u˙r, the relief mechanism works and goes into the second branch. An example of the damping force–relative displacement relation of an oil damper without and with the relief mechanism is shown in Figure 2A.

FIGURE 1
www.frontiersin.org

Figure 1. Force–velocity relation of oil damper with relief mechanism.

FIGURE 2
www.frontiersin.org

Figure 2. Connecting damper properties: (A) oil damper and (B) high-damping rubber damper.

The high-damping rubber damper (called high-damping rubber later) used in this paper possesses the hybrid characteristics of hysteretic one like metallic dampers and viscoelastic one (Tani et al., 2009). The damper is used as a shear deformation type and the area and thickness of the high-damping rubber damper are the characteristic parameters. An example of the shear stress–shear strain relation is presented in Figure 2B.

Modeling of Connected Building Structures

In the usual connecting damper systems, the fundamental natural frequency of the main structure is smaller than that of the substructure as shown in Figure 3.

FIGURE 3
www.frontiersin.org

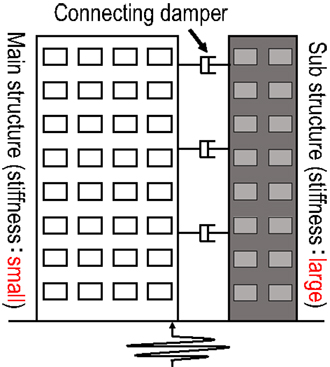

Figure 3. Connecting damper systems in which the fundamental natural frequency of the main structure is smaller than that of the substructure.

Consider first the single-degree-of-freedom (SDOF) model, subjected to the base acceleration x¨g, of the main structure (building A) connected with the substructure (building B) using a connecting damper as shown in Figure 4. Let mA, kA, and cA denote the mass, stiffness, and damping coefficient of the main structure and let mB, kB, and cB denote those of the substructure. The damping coefficient of the oil damper is denoted by cD and the area of the high-damping rubber damper is by AD. The thickness of the high-damping rubber damper is to be given. The model parameters of this system are shown in Table 1 and the properties of the dampers are presented in Table 2. The quantities of oil dampers and high-damping rubbers have been determined so that the pre-relief damping ratio in the lowest mode due to the added oil damper is about 0.07 and the response reduction ratio by the high-damping rubber is almost equivalent to that by the oil damper.

FIGURE 4
www.frontiersin.org

Figure 4. SDOF model, subjected to the base acceleration x¨g, of the main structure (building A) connected with the substructure (building B) using a connecting damper.

TABLE 1
www.frontiersin.org

Table 1. Model parameters.

TABLE 2
www.frontiersin.org

Table 2. Comparison of high-damping rubber and oil damper.

Non-Linear Response of Connected Buildings with Non-Linear Dampers: Harmonic Excitation

Input Base Acceleration

Figure 5 shows the input base acceleration. The input frequency has been determined so that the frequency is resonant to the natural frequency of the main structure (Takewaki, 2006; Takewaki and Tsujimoto, 2011; Murase et al., 2013; Fukumuto and Takewaki, 2015). After a transition process, the input goes into a steady state.

FIGURE 5
www.frontiersin.org

Figure 5. Input base acceleration.

Response Characteristics of Connected Buildings with Different Connecting Dampers and Response Characteristics with Respect to Input Level

Figure 6 shows the relative building displacements without damper and with high-damping rubbers or oil dampers (TB = 0.20 s, oil dampers with relief mechanism). In order to investigate the effect of the separation of building natural periods between buildings A and B, two cases (TB = 0.16, 0.24 s) are added to the model shown in Table 1. However, since the input frequency is resonant to the natural period of building A, the modification of the natural period of building B does not affect so much the relative building displacements. Therefore, the figures for the cases (TB = 0.16, 0.24 s) are not shown here. It can be observed from Figure 6 that while the oil damper reduces the vibration amplitude without the phase change, the high-damping rubber modified the vibration phase slightly. Figure 7 illustrates the horizontal displacement of building A and building B with and without high-damping rubbers. On the other hand, Figure 8 presents the horizontal displacements of building A and building B with and without oil dampers. It can also be seen that while the oil damper reduces the vibration amplitude without the phase change, the high-damping rubber changes the vibration phase. Furthermore, as the separation of building natural periods between buildings A and B becomes large, the effect of dampers on vibration reduction becomes remarkable.

FIGURE 6
www.frontiersin.org

Figure 6. Relative building displacement without damper and with high-damping rubber or oil damper.

FIGURE 7
www.frontiersin.org

Figure 7. Horizontal displacement of building A and building B with and without high-damping rubbers: (A) TB = 0.2 s, (B) TB = 0.16 s, and (C) TB = 0.24 s.

FIGURE 8
www.frontiersin.org

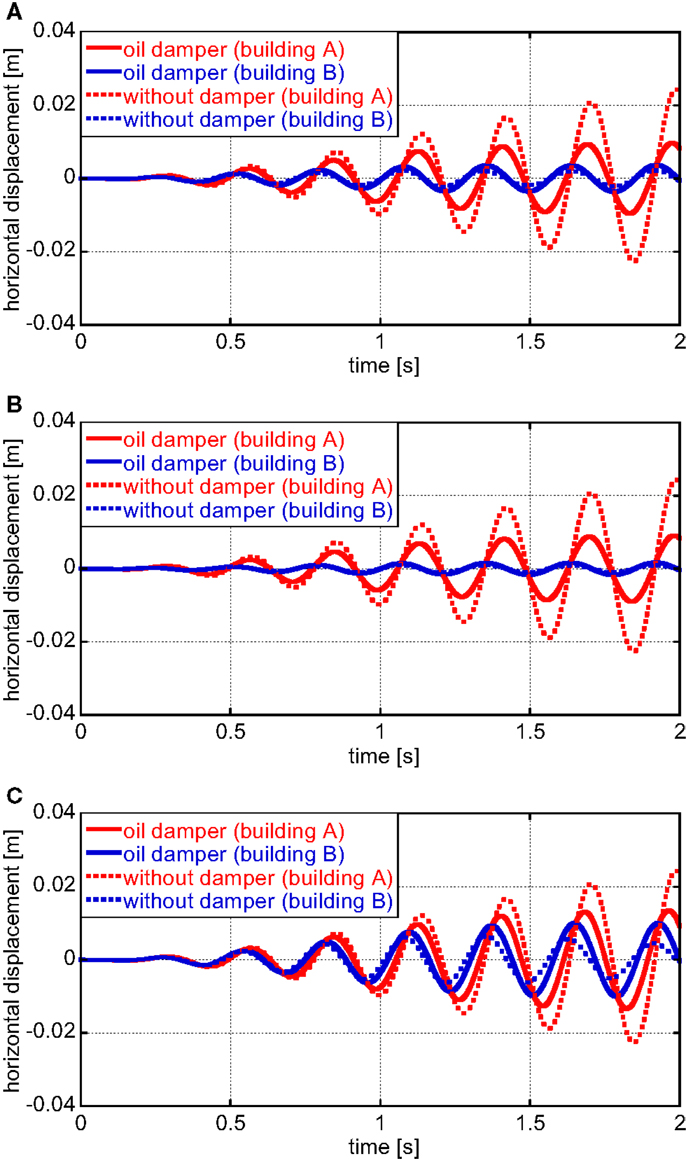

Figure 8. Horizontal displacement of building A and building B with and without oil dampers: (A) TB = 0.2 s, (B) TB = 0.16 s, and (C) TB = 0.24 s.

In order to investigate the effect of building damping ratios on the response, the additional models with the damping ratios hA = hB = 0.03, 0.04, and 0.05 have been treated. Table 3 shows the maximum displacements of buildings A and B. It can be observed that as the structural damping increases, the maximum displacement of building A resonant to the input decreases remarkably. Furthermore, it can also be found that the vibration reduction effect by dampers is retained even for the increased structural damping, although the reduction rate is slightly decreased.

TABLE 3
www.frontiersin.org

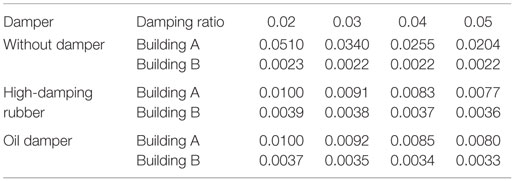

Table 3. Maximum displacements of buildings A and B for various levels of structural damping (meter).

Figure 9 shows the maximum displacement and acceleration of building A with and without dampers with respect to the input acceleration amplitude. The input frequency has been given so as to be resonant to the natural frequency of the main structure. It can be found that while linear oil dampers without relief mechanism can reduce the vibration of the building A effectively for the increasing input level, the performance of the oil dampers with relief mechanism and the high-damping rubber deteriorates for the increasing input level. In particular, while the deterioration rate of the high-damping rubber is gradual, that of the oil dampers with relief mechanism is rapid after a certain limit. Figure 10 presents the maximum relative displacement and damping force with and without dampers with respect to input acceleration amplitude. It can be observed that the high-damping rubber can reduce the relative displacement clearly compared to the oil dampers with relief mechanism.

FIGURE 9
www.frontiersin.org

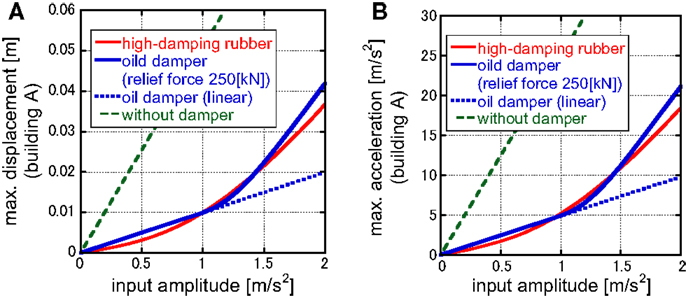

Figure 9. Maximum displacement and acceleration of building A with and without dampers with respect to input acceleration amplitude: (A) maximum displacement and (B) maximum acceleration.

FIGURE 10
www.frontiersin.org

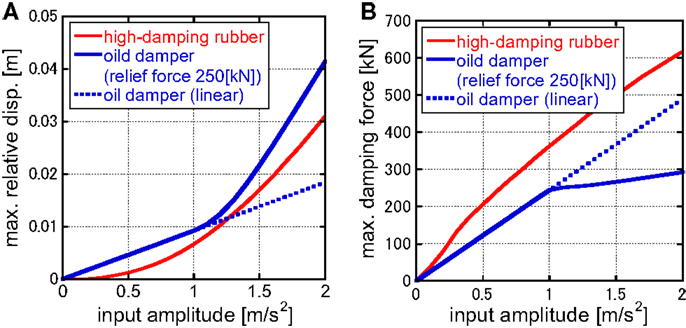

Figure 10. Maximum relative displacement and damping force with and without dampers with respect to input acceleration amplitude: (A) maximum relative displacement and (B) maximum damping force.

The following conclusion may be drawn from Figures 9 and 10. Since the high-damping rubber has stiffness (especially large stiffness in the small deformation range), the resonant phenomenon may be avoided in the small input level. On the other hand, the damping force in the high-damping rubber becomes large.

Non-Linear Response of Connected Buildings with Non-Linear Oil Dampers: Simulated Earthquake Ground Motions

In order to investigate the response characteristics of the connected buildings with the linear and non-linear oil dampers for earthquake ground motions, some numerical examples are shown in this section.

Simulated Earthquake Ground Motions

In this paper, general design ground motions compatible with a specific code-specified design response spectrum in Japan is used. Two representative phase properties are employed to represent the two types of ground motions, i.e., El Centro NS 1940 for the near-field ground motion and Hachinohe NS 1968 for the far-field ground motion. These simulated ground motions have been generated following the method by Gasparini and Vanmarcke (1976). Figure 11 shows the acceleration time history and the acceleration response spectrum with the code-specified design acceleration response spectrum in Japan.

FIGURE 11
www.frontiersin.org

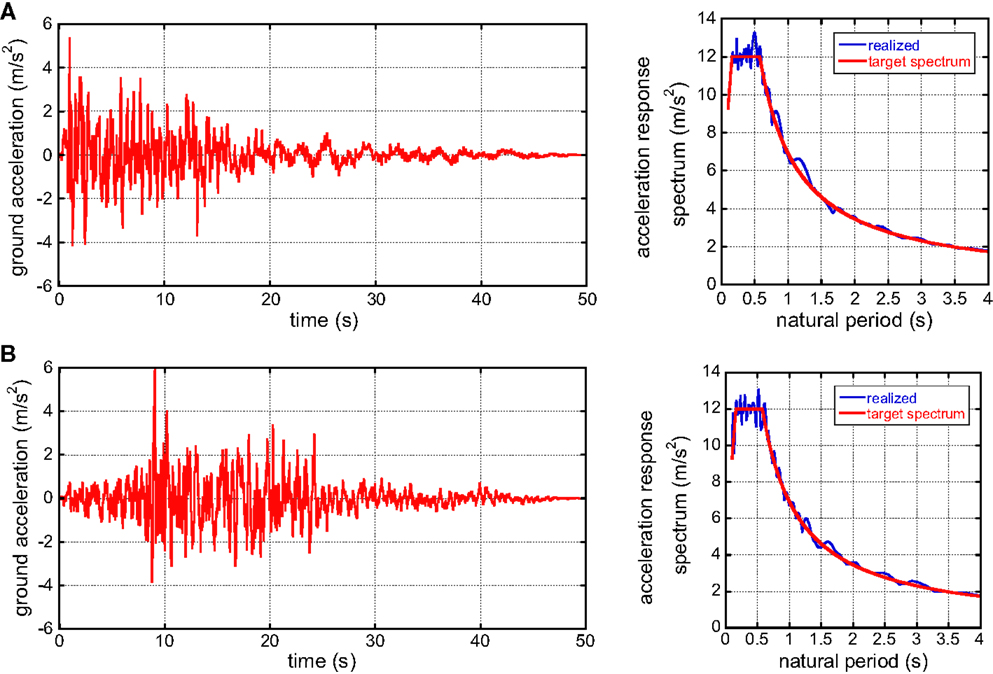

Figure 11. Design earthquake ground motions compatible with the design response spectrum in Japan revised in 2000: (A) phase of El Centro NS 1940 and (B) phase of Hachinohe NS 1968.

Effect of Relief Mechanism of Oil Dampers on Non-Linear Response

In this section, the effect of relief mechanism of oil dampers on non-linear response is investigated. Since it has been reported (Adachi et al., 2013a,b) that if the ratio of the relief load to the maximum damping force in linear case is approximately equal or larger than 0.5, the displacement response of the structure is not affected so much by the relief mechanism. Based on this fact, the relief load shown in Table 4 is used here.

TABLE 4
www.frontiersin.org

Table 4. Relief load for each input acceleration.

Figure 12A shows the horizontal displacements of building A with and without relief mechanism and energy consumptions by oil dampers (phase: El Centro). On the other hand, Figure 12B illustrates those for the simulated ground motion with the phase of Hachinohe. As pointed out just before, the horizontal displacements of building A is not affected so much by the introduction of relief mechanism. However, it can be seen that the energy dissipation performance of oil dampers with relief mechanism is slightly low compared to the linear oil damper. This performance deterioration occurs early in the El Centro-phase motion and at the intermediate stage in the Hachinohe-phase motion. This timing seems to correspond to the stage at which the large response displacement occurs.

FIGURE 12
www.frontiersin.org

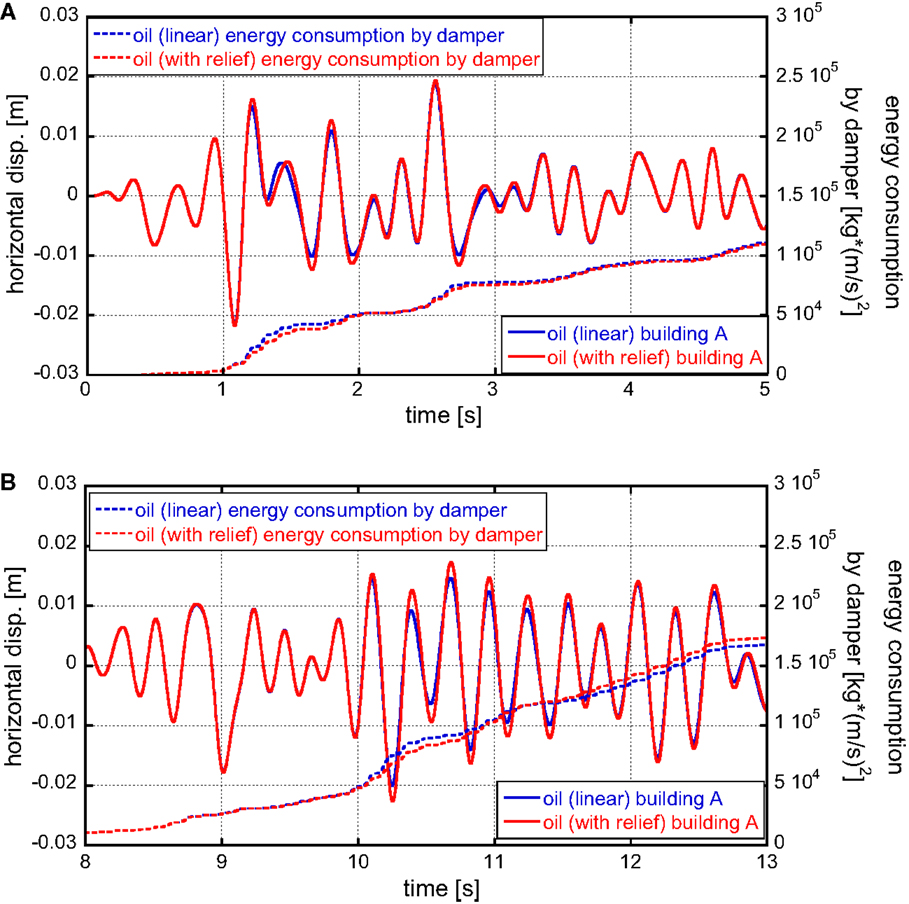

Figure 12. Horizontal displacement and energy consumption by oil dampers: (A) phase: El Centro and (B) phase: Hachinohe.

Table 5 presents the response amplification due to relief mechanism. It can be observed that a remarkable response increase is seen for the simulated ground motion of Hachinohe.

TABLE 5
www.frontiersin.org

Table 5. Response amplification due to relief mechanism.

Multi-Story Building Model

Consider a three-story connected building system as shown in Figure 13. Although many researches on optimal damper locations have been proposed for linear dampers (for example, Tsuji and Nakamura, 1996; Takewaki, 1997, 2009; Trombetti and Silvestri, 2004; Lavan and Levy, 2006; Aydin et al., 2007; Cimellaro, 2007; Cimellaro and Retamales, 2007), the research on non-linear dampers is very limited (Adachi et al., 2013a). The properties of the main structure and the substructure are shown in Tables 5 and 6. In case of using the same dampers, those are located uniformly at every story.

FIGURE 13
www.frontiersin.org

Figure 13. Three-story connected building system.

TABLE 6
www.frontiersin.org

Table 6. Fundamental natural period and damping ratio of main structure and substructure.

Figure 14 shows the input base acceleration. As in the previous case for an SDOF model, the input frequency has been determined so that the frequency is resonant to the fundamental natural frequency of the main structure (Murase et al., 2013). After a transition process, the input goes into a steady state.

FIGURE 14
www.frontiersin.org

Figure 14. Input base acceleration.

Table 6 presents the fundamental natural period and damping ratio of the main structure and the substructure, and Table 7 shows story mass and stiffness of both structures.

TABLE 7
www.frontiersin.org

Table 7. Story mass and stiffness.

In the present section, various damper combinations are considered. Table 8 indicates the relationship between the damper combinations and top-mass displacement. The quantities of the dampers are the same as for the SDOF model in the previous section. The oil damper is with the relief mechanism. In this case, the model with the oil dampers in all the stories exhibits the smallest top displacement. However, since this property depends on the input amplitude and other parameters, e.g., the quantity of dampers, a careful attention should be paid. Especially the response velocity in the oil dampers is too large compared to the limit value in low-rise buildings. As for the high-damping rubber dampers, there is no limitation on the response velocity.

TABLE 8
www.frontiersin.org

Table 8. Damper location and top-mass displacement.

Figure 15 shows the damping force deformation relation in the first, second, and third stories for the model with oil dampers in all stories and the model with high-damping rubber in the first story and oil dampers in other stories. Table 9 presents the relative building displacement and damping force. It can be observed that the high-damping rubber can reduce the relative building displacement in the first story compared to the model of oil dampers in all stories. Since the high-damping rubber has an issue of damper stroke, it should be used in lower stories.

FIGURE 15
www.frontiersin.org

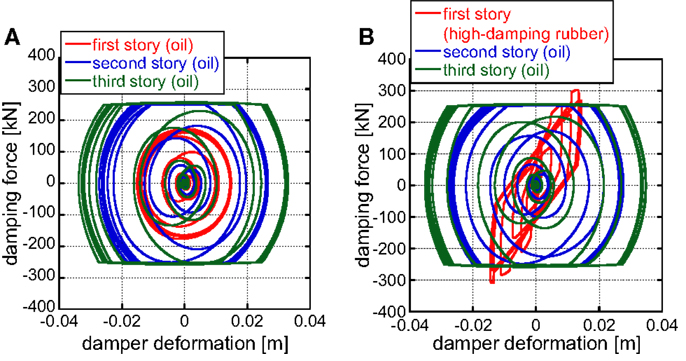

Figure 15. Damping force-deformation relation in the first, second, and third stories: (A) model of oil dampers in all stories and (B) model with high-damping rubber in the first story and oil dampers in other stories.

TABLE 9
www.frontiersin.org

Table 9. Relative building displacement and damping force.

Limit Value of Maximum Velocity of Oil Dampers

It is important to investigate the feasibility of oil dampers. An example of the limit value of the maximum velocity of oil dampers with the limit stroke ±100 (mm) is 150–300 (mm/s).

Table 10 shows the maximum response velocities of the oil dampers computed in Section “Effect of Relief Mechanism of Oil Dampers on Non-Linear Response.” It should be remarked that while the phases of the adopted earthquake ground motions are different, the target acceleration response spectrum is the same. This condition may lead to a similar maximum velocity response of dampers. However, these values are larger than the limit value stated above. It may be concluded that the response velocity in the oil dampers is too large compared to the limit value specifically in low-rise buildings and a special attention should be paid in its use.

TABLE 10
www.frontiersin.org

Table 10. Maximum response velocities of oil dampers computed in Section “Effect of Relief Mechanism of Oil Dampers on Non-Linear Response.”

Conclusion

The following conclusions have been derived:

(1) The oil damper and the high-damping rubber damper are both effective dampers for the building connecting system.

(2) While a high-damping rubber damper is effective in a rather small deformation level, an oil damper without relief mechanism is effective in a relatively large deformation level.

(3) While the oil dampers reduce the response in the same phase as the case without dampers, the high-damping rubber dampers change the phase. The merit is that the high-damping rubber can reduce the damper deformation and keep the sufficient space between both buildings. This can mitigate the risk of building pounding.

(4) The oil dampers are effective for the reduction of acceleration. However, the response velocity in the oil dampers is too large compared to the limit value specifically in low-rise buildings as for the high-damping rubber dampers, there is no limitation on the response velocity.

(5) The vibration amplification in the oil damper with relief mechanism should be discussed carefully.
