ORIGINAL RESEARCH article

Front. Built Environ., 28 September 2015
Sec. Sustainable Design and Construction

A study on the impact of household occupants’ behavior on energy consumption using an integrated computer model

  • 1School of Civil Engineering and Architecture, Wuhan University of Technology, Wuhan, China
  • 2Faculty of Engineering and Applied Science, University of Ontario Institute of Technology, Oshawa, ON, Canada

In this paper, several models are integrated into a thermal model to study the impact of occupants’ behaviors on the building energy consumption. An air flow model is developed to simulate ventilation related to the occupant’s patterns of window opening and closing. An electric consumption model is developed to simulate the usage pattern and the electricity input to household electric appliances. The thermostat setpoint temperature and window shading schemes are varied with different occupants’ behavior norms and are included in the model. The simulation was applied to a typical household located in the city of Oshawa in Ontario, Canada. The results show that the window opening has the greatest impact on the energy consumption during the heating season, and the shading scheme has the greatest impact on the A/C energy consumption during the cooling season. The electricity consumption of the A/C can be significantly reduced by appropriately applying the shading and opening schemes and resetting the thermostat setpoint temperature to a slightly higher degree. Keeping the windows closed and allowing the solar radiation to be transmitted through the window in winter help reduce the energy usage to heat the house.

Introduction

Occupants’ behaviors have a great impact on the building energy consumption as well as the peak loads typically experienced during the cooling season in summer time. Occupants could easily mitigate this by opening windows to use natural ventilation to reduce the cooling energy need in summer (Iwashita and Akasaka, 1997), and use a higher temperature setpoint in summer and a lower heating setpoint in winter for energy saving purposes (Newsham, 1997). Emery and Kippenhan (2006) observed that the energy need for heating the incoming cold air from the outside as a fraction of the total energy need in a house built in 1980 was approximately double that of an unoccupied house (29% compared with 14%). Paatero and Lund (2006) found that if the load of household appliances is shifted by 1 hr, the daily peak loads can be reduced by 7.2%, and with more severe demand site management schemes, the peak load at the yearly peak day can be reduced by 42%. Reinhart (2004) applied the probabilistic switching patterns (switching from electric lighting to daylighting) for a private office with a southern façade, and found that the lighting energy demand for a manually controlled electric lighting and shading system ranges from 10 to 39 kWh/(m2 year). The predicted mean energy savings of a switch-off occupancy sensor in an office was 20% and the mean electric lighting energy savings due to a daylight-linked photocell control range was from 60% to 0. Bourgeois et al. (2006) found that for those occupants that actively seek daylighting rather than systematically rely on artificial lighting, the primary energy expenditure on lighting can be reduced by more than 40%, when compared with occupants who rely on constant artificial lighting. Al-Mumin et al. (2003) conducted a survey on occupancy patterns and operation schedules of electrical appliances in 30 houses in Kuwait. The computer simulation results showed an increase of 20% of the annual energy consumption compared with the results using default values of occupancy patterns from the program. Occupant behaviors are part of the building system, with implications on building energy use once changes in the behaviors are implemented (Lee and Malkawi, 2014). Several studies report that occupant behaviors significantly affect the energy demand of buildings (ranging from 1.0 to 2.84 times when comparing identical buildings) (Juodis et al., 2009; Maier et al., 2009). Therefore, it is very important to study the impact of occupants’ behaviors on the energy consumption of buildings and to identify what behaviors can be improved to reduce the building energy consumption.

From the literature survey above, the impact of the occupants’ behavior on the building energy consumption can be summarized as: (1) the occupants can open windows to allow natural ventilation for reduced cooling load in summer; (2) the occupants should use blinds to obstruct the solar radiation coming into the house to reduce the heat gain in summer and allow solar radiation to enter the house to reduce the heating energy need in winter; (3) occupants can vary the thermostat setpoint temperature to reduce cooling and heating energy demands in winter and summer seasons; and (4) the occupants’ should pay attention to the time of use of electrical appliances to avoid peak electricity demand time during the day.

Occupants’ living patterns were the first one to be investigated because it determines the existence of the occupants in the dwelling. They are either expressed as “diversity profile” (Papakostas and Sotiropoulos, 1997; Shimoda et al., 2007; Tanimoto et al., 2008) or a stochastic process (Page et al., 2008). In the “diversity profile” method, the occupants’ living patterns were generated from statistical data on averaged probabilities of respective activities at different characteristic days for different types of people. Living patterns are often applied in the simulation software. The stochastic model considers occupant presence as an inhomogeneous Markov chain interrupted by occasional periods of long absence and generates a time series of the state of presence (absent or present) of each occupant in a particular zone of the building. This approach is restrained by the time-step-size selection, which requires a transformation of the randomness from stochastic adaptive behaviors to building performance predictions (Gunay et al., 2013). Studies on window opening are mainly on field measurements on how long the window will be open/close (Jian et al., 2011) or the proportion of windows that were opened (Madhavi, 2010). Logistic regression models were developed to simulate the window open/close mechanism (Nicol and Humphreys, 2004; Rijal et al., 2007; Herkel et al., 2008; Andersen et al., 2009), but there is lack of literature on how wide the window will be opened to be integrated into building simulation software.

For multiple occupants’ behaviors, some researchers employed the framework approach (Lee and Malkawi, 2014; Hong et al., 2015). For example, Lee and Malkawi (2014) used an agent-based modeling approach to simulate five occupant behaviors in a commercial building including adjust clothing level, adjust activity level, window use, blind use, and space heater/personal fan use, Hong et al. (2015) presented a DNAs networks to model the energy-related occupant behavior in buildings.

Some building simulation programs, such as EnergyPlus1 or ESP-r2, offer the feasibility of programing to modify occupants’ behaviors by adding new occupancy models. However, the learning curve for both programs is very steep. Other programs, such as eQuest3 or Design Builder4 allow the user to modify the occupants’ living patterns. However, there is limitation on how much and to what extent a user can reprogram either one. In the meanwhile, the dynamic changes on how wide the window will be opened and the level of shading, as well as continuously adjusting thermostat setpoint are all very important factors that affect the thermal load and the final energy consumption of the buildings. The dynamic factors are difficult to be incorporated into building simulation software because they contradict with the current static settings. So, how to predict the impact of occupant behaviors on energy consumption in buildings more reliably?

To overcome limitations mentioned above, this paper introduces a holistic and integrated model (BMEOE), which considers the building enclosure, mechanical system, electrical appliances, occupants behavior, and external environment to simulate the building energy consumption. The model takes into account the proportion of the window opening (from fully close to fully open) and shading factor (from non-shading to fully shaded) as well as continuously adjusting thermostat setpoint, light-switching, and electrical appliances usage pattern. The results from the computer model are validated by simulation results from ESP-r, CFD modeling, and actual measurement obtained from the open literature. The model is then applied to a typical house located in the city of Oshawa (located 55 Km east of Toronto, ON, Canada), to examine the impact of occupants’ behavior on the energy consumption in residential buildings.

Mathematical Model

Heat Transfer through the Wall/Roof of the House

Governing Equation

The wall is assumed to have four layers, and there are two boundary nodes and one internal node for each layer, thus there are nine nodes for each wall/roof.

The governing equation for the transient heat transfer process is:

Tt=αhT2x2

Heat Balance Over the External Wall Surface

The heat balance over the external wall surface is written as follows:

k1Tx|x=0+qsol,l,out+qconv,l,out+qsurf,l,out=ρ114dx1cp1dTdt

Internal Nodes Between Two Surfaces

For internal nodes between two different layers, the following equation is written, as an example for the surface between layers no.1 and 2:

14(ρ1cp1dx1+ρ2cp2dx2)dTdt=k1dTdx|x=34dx1+k2dTdx|x=dx1+14dx2

Heat Balance Over the Inside Wall Surface

The heat balance over the inside wall surface is written as follows:

k4Tx|x=th+qsol,l,in+qconv,l,in+qsurf,l,in+qrad,ihg=ρ414dx4cp4dTdt

Window Model

As the window contains very little thermal mass, it is considered to behave in a quasi-steady state mode.

The heat transfer between two layers:

qwin=Uw(TosTis)

where:

Uw=1Rw

The heat transfer over the outer layer of the window:

qwin=qabs,sol,out+hwin,o(ToTos)
qwin=qabs,sol,in+qigh,in+hwin,in(TisTa)

The optical properties of a double-pane window with each pane being standard 3.175 mm sheet glass have a set of polynomial coefficients as shown in Table 1. The transmittance and absorptance are calculated as follows (McQuiston et al., 2000):

τDirect=j=05tjcosjθ
τdiffuse=j=05tjj+2
αDirect,outer=j=05aj,outercosjθ
αdiffuse,outer=2j=05aj,outerj+2
αDirect,inner=j=05aj,innercosjθ
αdiffuse,inner=2j=05aj,innerj+2
TABLE 1
www.frontiersin.org

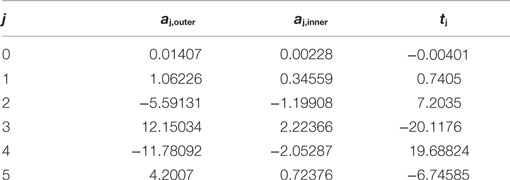

Table 1. Polynomial coefficients for a double-pane window with 3.175 mm sheet glass (Tanimoto et al., 2008).

The absorbed solar radiation over the outer layer of the window is calculated as:

qsol,out=(1SF)(αDirect,outerGD+αdiffuse,outerGd+αdiffuse,innerqsol,in)

The absorbed solar radiation over the inner layer of the window is calculated as:

qsol,in=(1SF)(αDirect,innerGD+αdiffuse,innerGd+αdiffuse,outerqsol,in)

Three double-glazed windows are considered, mounted on the south wall, east wall and west wall, respectively.

Air Flow Model

The air flow through the opening of the windows can be calculated by the crack method (ASHRAE, 1992):

m.=CdρA(Δp)n
Δp=Δpw+Δps+Δpp
Δpw,i=12(Cp,iCp,a)ρovw2

The pressure difference due to stack effect can be calculated as (McQuiston et al., 2000):

Δps=CfRapo(1To1Ta)(H2h)0.0342po(1To1Ta)(H2h)

where H2h is the distance to the neutral plane, assumed at mid-height of the window (m).

Air flow can occur through one opening or more than one opening (e.g., two openings or three openings) as a combination of stack effect and wind pressure.

For single opening or more than one opening without wind pressure:

d(m).=Cdρ(Δps)ndA=Cdρ(0.0342po(1To1Ta)(H2h))nOFWdh

Therefore,

m.=0H2Cdρ(0.0342po(1To1Ta)(H2h))nOFWdh=CdρOFW(0.0342po|(1To1Ta)|)n(H2)n+1(1n+1)

For more than one opening with stack effect and wind-driven ventilation, a mass balance approach is applied:

i=1Nmi.=0

The combination of the stack effect and the wind pressure results in the shift of the neutral plane (Figure 1). It can be divided into three types: (1) HNH; (2) 0 < HN < H; (3) HN ≤ 0. The position of the new neutral plane for each window can be calculated by:

Δpw+Δps=0
FIGURE 1
www.frontiersin.org

Figure 1. Air flow through the window due to stack effect and wind pressure.

Substituting Eqs 19 and 20 into Eq. 24, and the following equation can be derived:

12(Cp,iCp,a)ρovw2+0.0342po(1To1Ta)(H2HN)=0

Therefore,

HN=12(Cp,iCp,a)ρovw20.0342po(1To1Ta)+H2

The air flow through one opening of the window for type no.1 is calculated as:

mi.=0HCdρOFW ×((Cp,iCp,a)pw+0.0342po(1To1Ta)(H2h))ndh.=CdρOFW(n+1)0.0342po(1To1Ta) ×(((Cp,iCp,a)pw+0.0342po(1To1Ta)(H2))n+1((Cp,iCp,a)pw+0.0342po(1To1Ta)(H2))n+1)

The air flow through one opening of the window for type no. 2 is calculated as:

mi.=0HNCdρOFW ×((Cp,iCp,a)pw+0.0342po(1To1Ta)(H2h))ndh.HNHCdρOFW ×((Cp,iCp,a)pw0.0342po(1To1Ta)(H2h))ndh=CdρOFW(n+1)0.0342po(1To1Ta) ×(((Cp,iCp,a)pw+0.0342po(1To1Ta)(H2))n+1((Cp,iCp,a)pw0.0342po(1To1Ta)(H2))n+1)

The air flow through one opening of the window for type no. 3 is calculated from:

mi.=0HCdρOFW ((Cp,iCp,a)pw0.0342po(1To1Ta)(H2h))ndh=CdρOFW(n+1)0.0342po(1To1Ta) (((Cp,iCp,a)pw0.0342po(1To1Ta)(H2))n+1((Cp,iCp,a)pw0.0342po(1To1Ta)(H2))n+1)

If To = Ta, there will be no stack effect.

If Cp,i < Cp,a (type no. 4):

mi.=CdρOFWH((Cp,iCp,a)pw)n

If Cp,iCp,a (type no. 5):

mi.=CdρOFWH((Cp,iCp,a)pw)n

If To < Ta, there will be three cases exist: (1) HNH; (2) 0 < HN < H; (3) HN ≤ 0.

For HNH (type no. 6):

m˙i=0HCdρOFW ×((Cp,iCp,a)pw0.0342po(1To1Ta)(H2h))ndh=CdρOFW(n+1)0.0342po(1To1Ta) ×(((Cp,iCp,a)pw0.0342po(1To1Ta)(H2))n+1((Cp,iCp,a)pw0.0342po(1To1Ta)(H2))n+1)

For 0 < HN < H(type no. 7):

mi.=0HNCdρOFW ×((Cp,iCp,a)pw0.0342po(1To1Ta)(H2h))ndh+HNHCdρOFW ×((Cp,iCp,a)pw+0.0342po(1To1Ta)(H2h))ndh=CdρOFW(n+1)0.0342po(1To1Ta) ×(((Cp,iCp,a)pw0.0342po(1To1Ta)(H2))n+1((Cp,iCp,a)pw+0.0342po(1To1Ta)(H2))n+1)

For HN ≤ 0 (type no. 8):

mi.=0HCdρOFW ×((Cp,iCp,a)pw+0.0342po(1To1Ta)(H2h))ndh=CdρOFW(n+1)0.0342po(1To1Ta) ×(((Cp,iCp,a)pw+0.0342po(1To1Ta)(H2))n+1((Cp,iCp,a)pw+0.0342po(1To1Ta)(H2))n+1)

Electrical Appliances Power Input Model

The operating electric energy consumption for the electric appliances working on multi-stage operating conditions is:

Ei=fh,iAVGi
AVGi=j=1NPi,jτjj=1Nτj

If it is a group of appliances:

AVGi=k=1Mfd,kj=1NPk,jτjj=1Nτjk=1Mfd,k

The electric appliances include freezer, refrigerator, lighting, clothes washer, dish washer, TV, second TV, oven, etc.

Heat Balance of the Inside Air

The indoor air of the house is assumed well mixed and therefore it is represented by one node. The indoor air temperature Ta is held at the thermostat setpoint value by a heating/cooling system. The heat balance for the indoor air is written as:

QHVAC+j=1MAjha(Tj,inTa)+Qinf+Qinternal,conv=0

House Energy Consumption

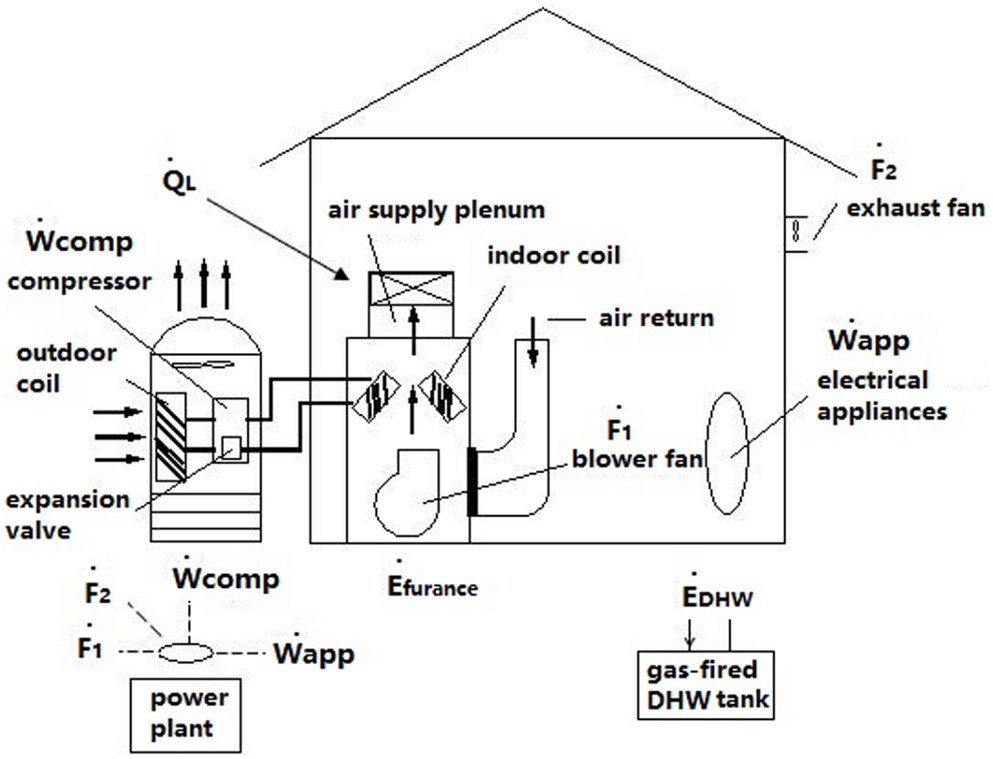

In this system, the house is heated by forced air and cooled by a central air conditioning unit, and the same duct systems are used for heating and cooling (Figure 2). The following are the components of the whole system: (1) Heating: forced air heating system with heat supplied by a gas-fired furnace; (2) DHW: gas-fired hot water tank; (3) Ventilation: exhaust fan; and (4) Cooling: central air conditioning unit.

FIGURE 2
www.frontiersin.org

Figure 2. A typical house in Oshawa.

The following conditions applied:

Qac=QHVAC(summer season)
Qfurnance=QHVAC(winter season)

Total electricity demand is:

Wpp=Wblower+Wexhaust+Wcomp+Wapp

Total energy need of the house is:

Etotal=Epp+Efurnace+EDHW

Figure 3 presents an overview of the relationships among the models. The heat transfer through the wall/roof model calculates the temperature profiles of the wall/roof/floor and pass the inside surface temperature to the heat balance model; the window model calculates the temperature profiles of the window and pass the inside window surface temperature to the heat balance of the inside air model; the air flow model calculates the infiltration/exfiltration rate and pass it to the heat balance of the inside air model; the electrical appliances power input model calculates the appliances electrical demand and pass it to the house energy consumption, and at the same time calculates the convective internal heat gain of the electrical appliances and pass it to the heat balance of the inside air model; the heat balance of the inside air model calculates the heating and cooling load and pass it to the house energy consumption model; the purpose of the house energy consumption calculates the final house energy consumption.

FIGURE 3
www.frontiersin.org

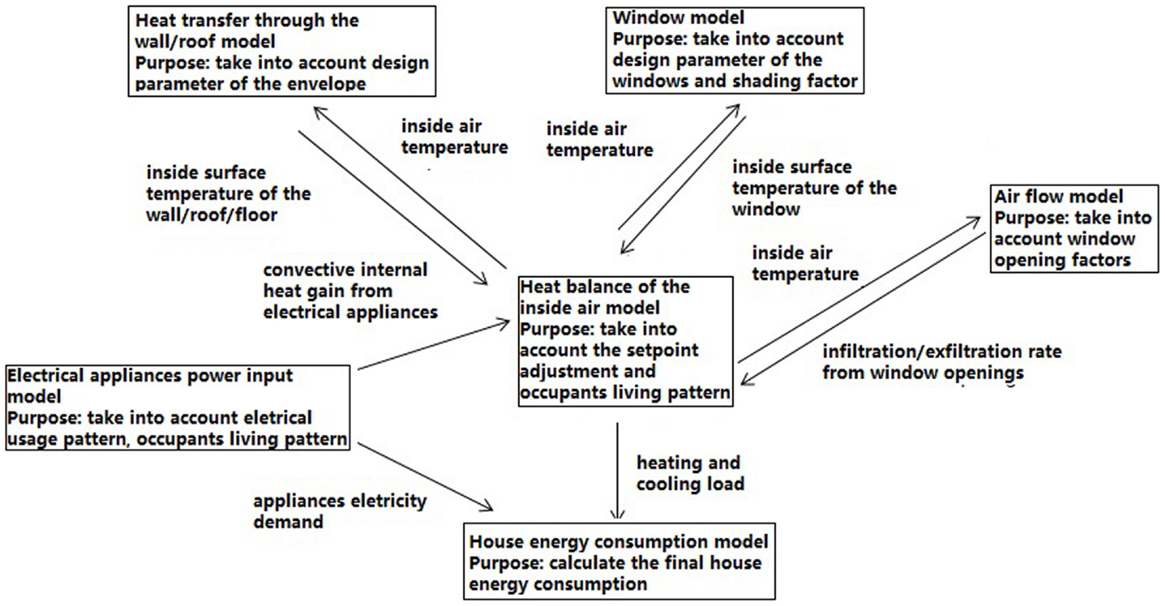

Figure 3. Overview of the relationships among the models.

Numerical Solution

The thermal and airflow model is written as a system of linear and non-linear equations. Non-linear equations are generated due to the surface-to-surface long-wave radiation in the thermal model, and also due to the coupling of air movement and heat transfer between the house and outdoor environment. However, if the radiation coefficients are used to calculate the surface-to-surface radiation, then the whole system of equations for temperatures can be considered as quasi-linear. The radiation coefficients are generated by using the total interchange view factor (Lin and Zmeureanu, 2008). The system of equations can then be broken into two sub-systems; one system that contains the unknown temperatures and another system that contains the unknown pressure coefficients.

The convective heat-transfer coefficients are calculated based on the updated air temperature difference, air flow direction and air velocity. The radiation coefficients are calculated using the total interchange view factor and the updated surface temperature difference.

The system of equations of the thermal and airflow models are written in form of a matrix:

[AOOC][TCP]=[BD]

where A is the matrix containing the thermal and optical properties of the system; C is the matrix containing the properties of the interfaces between the indoor and outdoor; B and D contain the coefficients of the driving forces for temperature and pressure, respectively.

By using the radiation coefficient and convective heat transfer coefficient through iteration (Lin and Zmeureanu, 2008), the entire system of equations is written separately as composed of a linearized part that contains the unknown temperatures only:

[A][T]=[B],

and a non-linearized part that contains the unknown pressures only:

[C][CP]=[D].

For a house with three double-glazed windows, the total number of unknown temperatures of the system Eq. 44 is 60.

The linearized part of the system (equations for temperature) is solved by the Gauss-Seidel iteration technique, and the non-linear part of the system (equations for pressure) is solved by the Newton-Raphson method (Press et al., 1992).

Validation

The simulation results of the thermal load of a house located in Oshawa were compared with the results from the ESP-r program (Figure 4). The house dimensions are 10 m × 10 m × 4 m, and includes three double-glazed windows which are mounted on the south wall, west wall and east wall, respectively. The window-to-wall ratio of 0.15 is applied. Thermal resistance of the external walls is 3.4 m2 K/W, and of the roof is 5.5 m2 K/W. The U-value of the windows is 3.06 W/m2 K. The natural air infiltration rate for the house is set equal to 0.15 ACH, and the thermostat setpoint temperature is 22.5°C. No internal heat gain is considered. The simulation results from the computer program predicted the annual energy needs of 30,733 kWh, while the simulation results from the ESP-r program predicted the annual energy needs of 29,766 kWh. The difference between the results from the computer program and that of the ESP-r program was only 3.2%. The simulation results are in good agreement with the results from the ESP-r program.

FIGURE 4
www.frontiersin.org

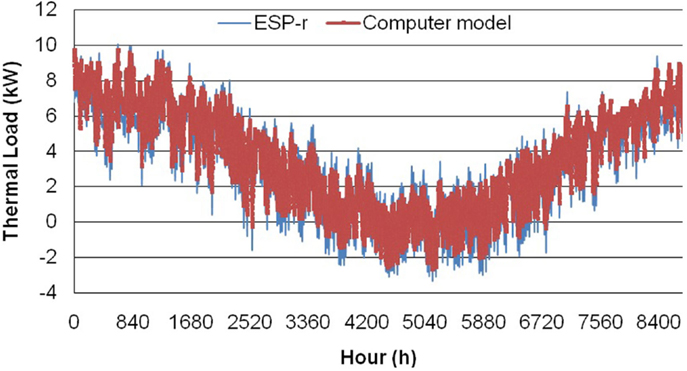

Figure 4. Predictions of the hourly thermal load, comparisons between Computer model and ESP-r program.

The results of the ventilation model (which was used to calculate the air flow through the window openings) were compared with the results from the CFD studies of (Asfour and Gadi, 2007) for windows with two openings at opposite site. The wind speed was 1.0 m/s, and wind direction was either normal to the window (cases No.1 and 3), or oblique to the window (case No. 2). Detailed information of the three cases are presented in Table 2. The simulation results presented in Table 3 indicate that the ventilation results are also in good agreement with the CFD results, with a difference of less than 5%.

TABLE 2
www.frontiersin.org

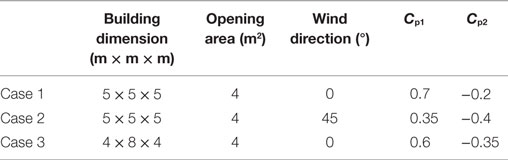

Table 2. Information for the cases tested in this study.

TABLE 3
www.frontiersin.org

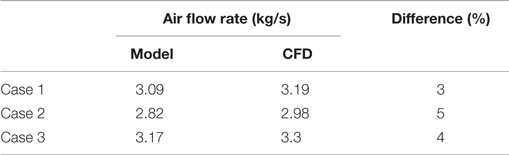

Table 3. Simulation results vs. CFD results.

The results from the power input model for the electric appliances were compared with the mean hourly consumption curve of a household during weekends provided by Paatero and Lund (2006). The results are presented in Figure 5, and it is observed that the average difference between the power plant model and the mean hourly household electricity consumption is about 6.5%.

FIGURE 5
www.frontiersin.org

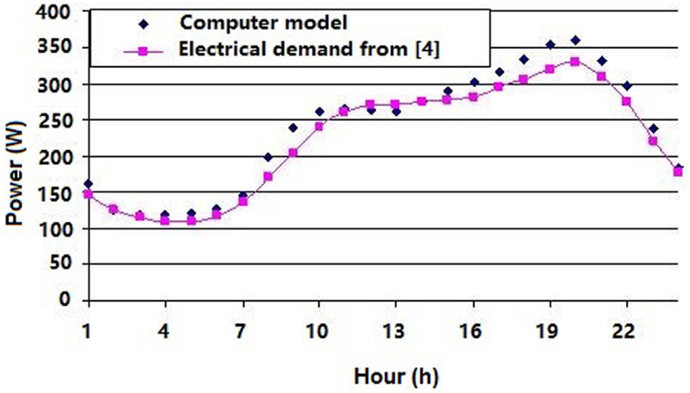

Figure 5. Comparison of the hourly household appliances electricity demand.

The results of the energy consumption are compared with measurement data on a house in Oshawa which was audited. Thermal resistance of the external walls and roof is 3.3 m2 K/W. The U-value of the windows is 2.5 W/m2 K. The natural air infiltration rate for the house is set equal to 0.075 ACH, heating and cooling by a central air-conditioning system. The results are presented in Figure 6. The computer model predicted total energy consumption of 23,389 kWh while the measurement result was 21,539 kWh. The average difference between the result from the computer model and measurement is about 6.6%.

FIGURE 6
www.frontiersin.org

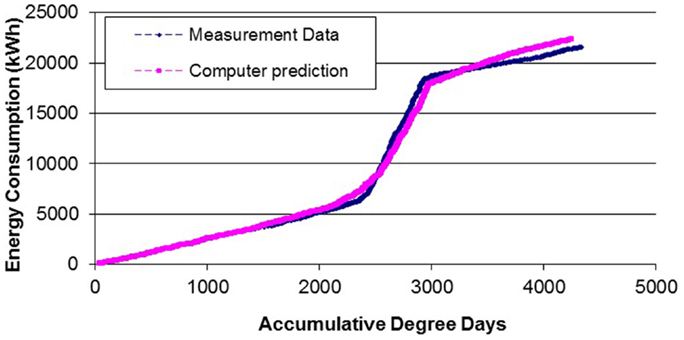

Figure 6. Comparison on the energy consumption, computer simulation vs. measurement data.

Overall, the predictions of the ventilation model and electricity power input model, as well as the energy consumption, are comparable with those obtained from a detailed CFD model and with the experimental measurement.

Case Studies

A house of 100 m2 floor area and 4 m wall height, located in Oshawa, ON, Canada, is selected as a case study. Table 4 presents a list of the inputs parameters for the computer model, where occupants living pattern and opening factor of the window represent window opening behaviors; occupants living pattern and shading factor of the window represent window shading behaviors; occupants living pattern and light switching pattern represent light switching behaviors; occupants living pattern and thermostat setpoint represent thermostat adjusting behavior; electrical appliances using habit represent electrical appliances using behaviors. The outdoor dry bulb temperature, humidity ratio, direct normal solar radiation, global solar radiation, diffuse solar radiation, wind speed, and wind direction were obtained from EnergyPlus5 weather file database. The average dry bulb temperature and direct normal solar radiation are presented in Figures 7 and 8. Each wall of the house is composed of 100 mm face brick, 135 mm insulation, and 20 mm gypsum board. The window-to-wall ratio of 15% is applied to three facades only (East, South, and West). The natural air infiltration rate for the house is set equal to 0.15 ach for newly built house, and 0.5 for old house. The house has one stove oven, one clothes washer, one dish washer, one freezer, and one color TV. The living patterns come from studies by (Papakostas and Sotiropoulos, 1997; Al-Mumin et al., 2003). The occupants’ living patterns and electric appliances usage are summarized in Table 5.

TABLE 4
www.frontiersin.org

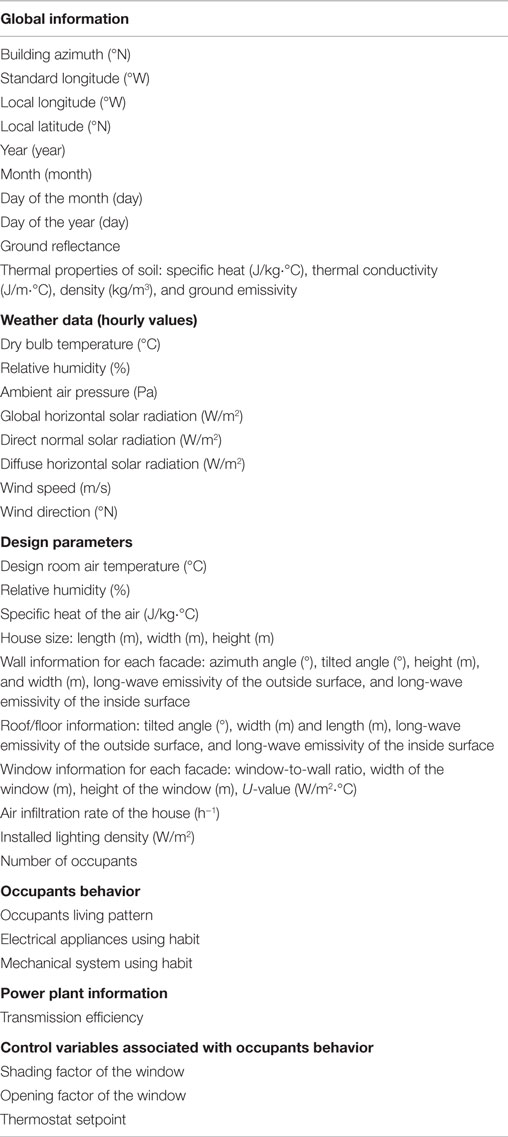

Table 4. Input parameters for the computer model.

FIGURE 7
www.frontiersin.org

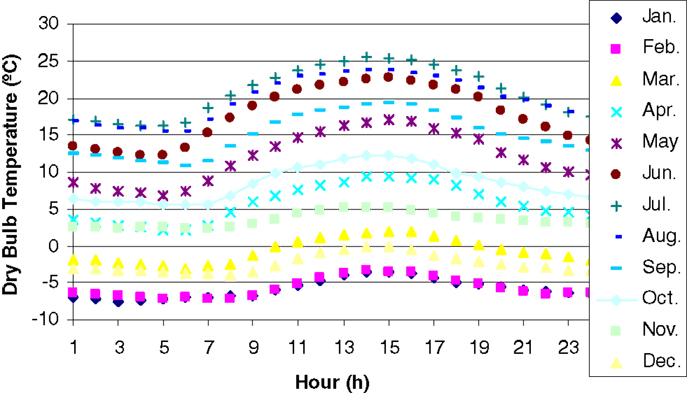

Figure 7. Ambient air temperature for case study.

FIGURE 8
www.frontiersin.org

Figure 8. Direct normal solar radiation for case study.

TABLE 5
www.frontiersin.org

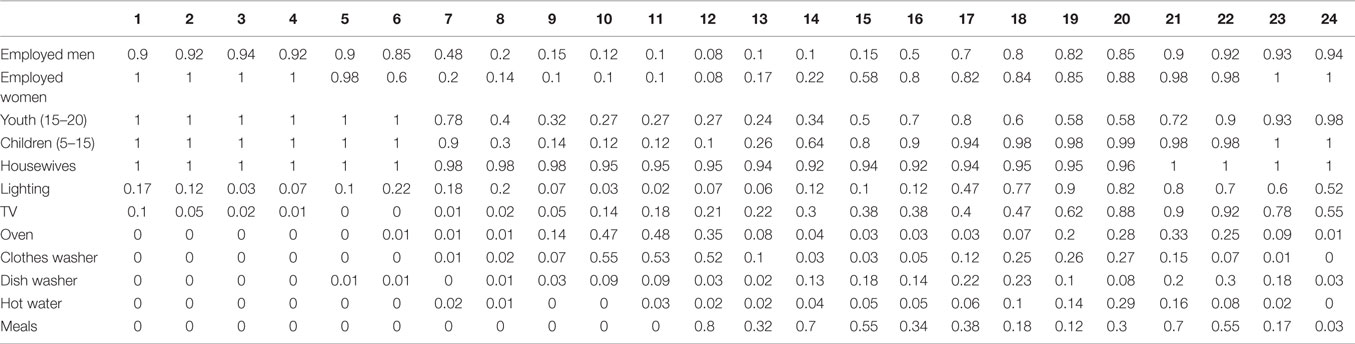

Table 5. Occupants’ living pattern and usage of some electric appliances during weekday, probabilities used in Eq. 35.

Table 6 provides the results of the total energy consumption, the furnace energy consumption, air-conditioning system electricity consumption, and other energy consumption on an annual basis. The furnace is assumed to have an energy efficiency of 0.85, and the air-conditioner has a COP of 2.0. The variables presented in the table are listed as follows: Φ = building azimuth, degree from due North; T = indoor air temperature; ACH = infiltration rate, taken as 0.15 for newly built house, and 0.5 for old house; SF = shading factor for window, 0 for no shading and 1.0 for complete shading; OF = opening factor for window, the opening area vs. the total area; Nlight = number of light bulbs turned on each time; TT = total energy consumption, kWh; H = Furnace energy consumption; A/C = air conditioning consumption; O = other energy consumption. Those variables are chosen to find out the best building location, and the best occupants’ behaviors related to thermostat setpoint, window opening/shading, number of lighting turned on, and to find out the related impact on energy consumption.

TABLE 6
www.frontiersin.org

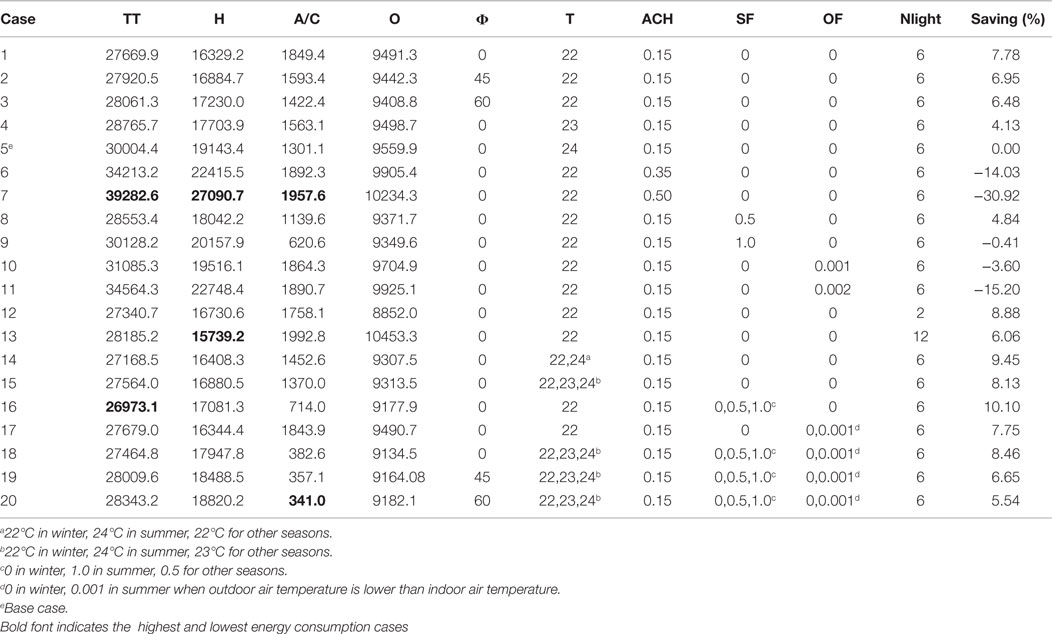

Table 6. Results for different cases.

When considering case No. 5 as the base case, the simulation results predicted energy saving of 4.1–10.1% in residential end-use energy consumption. The least energy consumption is case No.16 by applying 0% shading in winter, 50% shading during the transition season, and 100% shading in summer. Case No. 14 becomes the second to least energy consumer by raising the thermostat setpoint from 22°C to 24°C in summer. Case No. 13 has the lowest heating energy consumption because more lighting was turned on which generates additional heating in winter, and also a lower thermostat setpoint of 22°C was used in winter.

Case No. 20 has the lowest A/C energy consumption as it applies the following strategies: (1) changing thermostat setpoint throughout the year (22°C in winter, 23°C during transition season, and 24°C in summer); (2) applying 0% shading in winter, 50% shading during the transition season, 100% shading in summer; and (3) opening the window in summer when outside air temperature is lower than the room temperature. When windows are opened in winter, the heating energy consumption increases dramatically, as shown in case No.11.

From the comparison of case No. 5 in Table 6, it appears that the ventilation rate of the house has the greatest impact on the heating energy consumption, and the shading schemes appear to have the greatest impact on the A/C energy consumption. The optimum building azimuth is zero, with the front wall facing south. The electricity consumption of the A/C can be reduced by shading the windows, by opening them in summer (when the outdoor air temperature is below the indoor air temperature), and by employing a slightly higher thermostat setpoint temperature in summer and during transitional seasons.

Table 7 presents the percentage of energy consumption for each component of all the tested cases. It is shown that the furnace energy consumption accounts for 56–69%, and the A/C consumes 1.2–6.7%, lighting and electrical appliances consume 11–19%, hot water consumes 9.5–12%, and fans, including the exhaust fan and the blower fan of the furnace, account for 5.2–7.1% of the total energy consumption. Least amount of heating energy consumption and A/C consumption were found in Case No. 13 and case No. 20, the same as being observed in Table 5.

TABLE 7
www.frontiersin.org

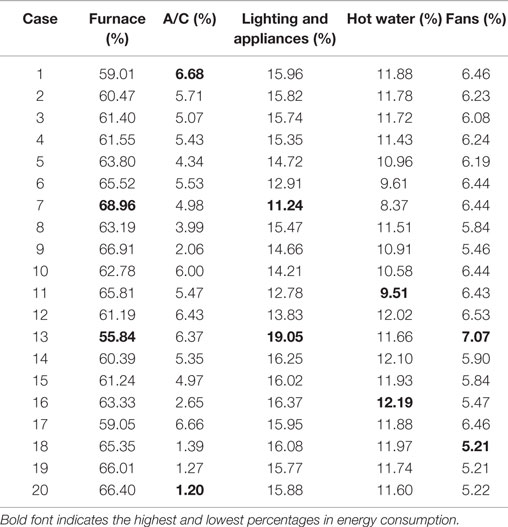

Table 7. Percentage of energy consumption for each component.

The accumulative energy consumption of the house was found to have a linear relationship with the accumulative degree days (adding all the degree days from the first day to the last day for calculation of the energy consumption) (Figure 9) regardless of the changes in occupants’ behaviors. The R2 value was 0.99 and the relative difference between the predicted energy consumption from the correlation model and the simulation results was <7.6%. This appears to suggest that the occupants’ behavior has a linear impact on the building energy performance which deserves further investigation in order to develop simpler modeling algorithms of occupants’ behavior that could be easily integrated into existing building performance simulation programs.

FIGURE 9
www.frontiersin.org

Figure 9. Regression model derived from the simulation results, case no. 11.

The simulation then is applied to the 270 houses in Oshawa which were monitored by smart meters. The ranges for the thermal resistance for the roofs, external walls, floors, and windows are 0.54–7.05, 0.64–3.11, 0.56–5.01, and 0.2–0.46 m2 K/W, respectively. The ACH for those house ranges from 0.0745 to 0.744. The efficiency for heating ranges from 0.76 (furnace) to 2.0 (HP, estimated), for domestic hot water is from 0.55 to 0.82. The SEER for the AC units is from 6 to 10. The savings due to improvement of occupants’ behaviors is predicted to be from 6.8 to 11% of the total building energy consumption (Table 8). The improvement of occupants’ behaviors includes lowering the thermostat setpoint by 2°C in winter, provide full shading in summer, and close the window fully in winter, and turn off more lights in summer when not needed.

TABLE 8
www.frontiersin.org

Table 8. Savings due to improve of occupants’ behaviors from selected house in Oshawa.

Conclusion

This paper presented a mathematical model that considers the building envelop, window shading, and opening schemes, and thermostat setpoint temperature and also usage pattern of the electric appliances, e.g., the impact on energy consumption and power demand due to different occupants’ behaviors related to window opening and shading schemes against the temperature and solar radiation, thermostat adjusting against the outdoor air temperature, and occupants’ preference on using the electrical appliances can be simulated. The results from the computer model are validated with ESP-r, a detailed CFD model and with the experimental measurement with good agreements.

The simulation results showed that the infiltration/ventilation rate of the house has the greatest impact on the heating energy consumption, and the shading schemes have the greatest impact on the A/C energy consumption. The electricity consumption of the A/C can be significantly reduced by appropriately applying window shading and opening schemes and by controlling the thermostat setpoint temperature. Keeping windows closed in winter and allowing solar radiation to be transmitted through them greatly help to reduce the heating loads of the house. This model can also be used for assisting the efficient building design and retrofit analysis since it take into account many factors such as building orientation, building envelop material, shading, as well as control on heating and cooling.

However, it is noted that as the study is only conducted in the house of Oshawa. The results might be different for houses located in other climate zones. Future work includes (1) development of simpler modeling algorithms of occupants’ behavior that could be easily integrated into existing building performance simulation programs; (2) incorporation of occupants’ attitude, social, economic and cultural behavior factors into the computer model.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors acknowledge the financial support from Natural Resources Canada, Oshawa Public Utility Corporation, Ontario Center for Excellence, and from the Faculty of Engineering and Applied Science of University of Ontario Institute of Technology.
