Haoming Chen
Jinyan Jiang- School of Environmental and Biological Engineering, Nanjing University of Science and Technology, Nanjing, China
1 Introduction: Phosphorus solubilizing microbial remediation is a sustainable technology for soil heavy metal remediation
1.1 Microbial remediation is an effective measure to achieve sustainable remediation of heavy metals in soil
Heavy metals (HMs) pollution of soil caused by human activities is a serious threat to human health and sustainable social development. The insidious, lagging, long-term, inhomogeneous and irreversible nature of heavy metal pollution has led to serious degradation of soil ecological structure and function. Most importantly, heavy metals in soil can be enriched into animals or humans through the food chain (food crops), threatening human health and life (Jan et al., 2015). Therefore, remediation of heavy metals for soils has been one of the key issues in the field of environmental remediation. Compared with physical or chemical remediation technologies, microbial remediation technology is gradually recognized for its green, low cost, easy operation and long sustainability (Maity et al., 2019). Although most HMs are difficult to degrade and remove by microorganisms in soil, microorganisms (microbial uptake, transformation, mineralization or immobilization) can convert HMs to less toxic forms or reduce their mobility (Kotrba and Ruml, 2000; Lin et al., 2023). Among them, biomineralization is a common and effective method for remediation of HMs pollution in soil, which is mainly through the interaction between microorganisms and HMs to form mineral crystals (such as, phosphate, carbonate, sulfate, arsenate, fluoride, oxide, hydroxide, and manganese oxide, etc.) outside, between or within the cells of microorganisms (Tayang and Songachan, 2021; Lin et al., 2023). Not only that, among up to 60 kinds of biomineralization products, metal phosphates have been of concern due to their high stability.
1.2 Mineralization allows phosphorus solubilizing microorganisms (PSM) to be successfully used for the solidification/stabilization of HMs in soil
PSM are known for their ability to convert the insoluble state of phosphorus (e.g., iron phosphorus, calcium phosphorus, highly stable organic phosphorus, etc.) in the environment into a form that can be used directly by organism (Qian et al., 2019; Deb et al., 2016). The recognized mechanisms of phosphorus dissolution by PSM can be classified into two categories according to the type of phosphorus source. Firstly, dissolution of inorganic phosphorus sources by means of low molecular weight organic acid release, proton secretion to generate H+, and direct oxidation (Gadd. 2010; Wang YY. et al., 2020). Secondly, the organophosphorus source is solubilized by the production of extracellular enzymes, such as phytase, phosphatase/carbon phosphorus lyase (Rawat et al., 2020). It is noteworthy that PSM is widely used for solidification and stabilization of HMs in soil because the PO43- released by PSM can combine with HMs to form stable phosphate precipitation. In addition, PSM can also repair HMs pollution through adsorption and transformation. For instance, PSM is capable of biosorption, accumulation and complexation of HMs ions by cells themselves (extracellular adsorption, surface adsorption and intracellular absorption), surface functional groups and secreted organic substances (extracellular polymers, glutathione, etc.) (Ahemad, 2015). Alternatively, the valence of HMs is changed and their toxicity is reduced by the metabolic action of the PSM themselves (e.g., redox, methylation, etc.) (Gadd, 2004; Vassileva et al., 2010). However, unstable HMs forms (such as biosorption, complexation, etc.) that remain in the soil for a long time will inevitably be subject to environmental changes and transform again into bioavailable forms. Therefore, mineralization precipitation is the key to guarantee that PSM reduce the mobility and bioavailability of HMs in the soil, which gives PSM a place in the field of microbial solidification and stabilization remediation.
2 The solubilizing effect of PSM makes it difficult to remediate high concentrations of soil HMs pollution alone
Although PSM have a good remediation effect on soil HMs, the environment with high concentrations of HMs still seriously threatens the normal microbial metabolism process (Chen X. et al., 2020). For example, HMs ions can damage protein folding or the combination of cofactors and enzymes by binding with sulfhydryl groups on proteins, thus damaging the normal biological activity of proteins (Sharma and Melkania, 2018). Also, the hydroxyl radicals and reactive oxygen species (ROS) formed by the transition metals participating in Fenton reaction can also destroy biological macromolecules (He et al., 2017). Most notably, the solubilization of PSM is a “double-edged sword”. Organic acids secreted by PSM, such as formic acid, acetic acid, citric acid, oxalic acid, etc., can cause changes in soil pH and redox potential, and promote the weathering and dissolution of HMs minerals in soil (Ahemad, 2015). The solubilizing effect of PSM on HMs undoubtedly greatly increased the difficulty of PSM to repair HMs in soil alone. Herein, seeking a facile but efficient technology to make a synergistic interaction with PSM for boosting of HMs remediation efficiency is challenging but of great significance.
3 Biochar is a green and sustainable material that can assist phosphorus-dissolving microorganisms to remediate HMs in soil
3.1 Biochar is a promoter to enhance soil microbial remediation
Biochar is a carbon-rich material obtained by pyrolysis of biomass under anoxic conditions, which exhibits excellent adsorption and solidification effects on soil HMs. Multiple studies have demonstrated that surface complexation, electrostatic adsorption, ion exchange, mineral precipitation, etc. are the main mechanisms for the adsorption of HMs by biochar (Chen et al., 2022). As an excellent green sustainable material, biochar still has long-term stability to HMs, even when it faces the effects of aging in the environment (Wang L. et al., 2020), which is certainly a guarantee for its own application. On the other hand, adding biochar to soil will have a positive impact on soil environment, including soil aggregate, pH value, nutrient conservation, and improvement of microbial community (Shaaban et al., 2018). It is of interest that the porous structure of biochar can provide a good refuge for microorganisms inside the soil from HMs attacks. Meanwhile, the rich nutrients of biochar itself can also guarantee the reproduction of microorganisms (Cooper et al., 2020). Blanco-Vargas et al. (2022) also confirmed that biochar is an excellent biological inoculant to support the growth of phosphate-solubilizing bacteria. Therefore, the use of biochar to improve the efficiency of soil microbial remediation is a more effective strategy.
3.2 Toxicity attenuation and mineral precipitation mechanisms of biochar are key to the protection of phosphorus-dissolving microorganisms
As mentioned earlier, it is because of its ability to reduce the transport, leaching and biotic stress of potentially toxic elements in soils that biochar has been successfully applied to assist microbial remediation of HMs contamination in soil. For example, pine cone biochar enhanced inorganic ion transport and metabolic rate by increasing the number of bacilli and immobile bacteria, thus in promoting the passivation and stabilization of HMs (Lan et al., 2021). Sludge and rice husk biochar improved phosphorus solubilizing bacteria (Enterobacter sp.) remediation efficiency and resistance to Pb2+ (217%–700%) and Cd2+ (85%–201%) under high concentration (1,000 mg/L) stress (Chen et al., 2019; Chen et al., 2020 H.). The combination of waste fungus chaff-based biochar and Herbaspirillum huttiense was able to solidify 85.5% Cu2+ and 64.4% Zn2+ (total Cu2+ and Zn2+ in background soil: 218.2 mg/kg and 427.1 mg/kg) (Zhang X. et al., 2022). Bacillus cereus with biochar converted 94.22% of Cr(VI) to Cr(III) in the soil and increased the residual Cr by 60% (Chen et al., 2021). Arbuscular mycorrhizal fungi and biochar enhanced the immobilization of Cr and reduced the Cr(VI) concentration by 0.3%–64.5% (Chen et al., 2022). Some scholars have also used Fe modified biochar with PSM to mineralize Pb2+ to Pb5(PO4)3Cl and Pb5(PO4)3OH (Teng et al., 2019). In general, the protection mechanism of biochar for PSM can be divided into four aspects: hiding, isolation, protection, and proliferation Figure 1.

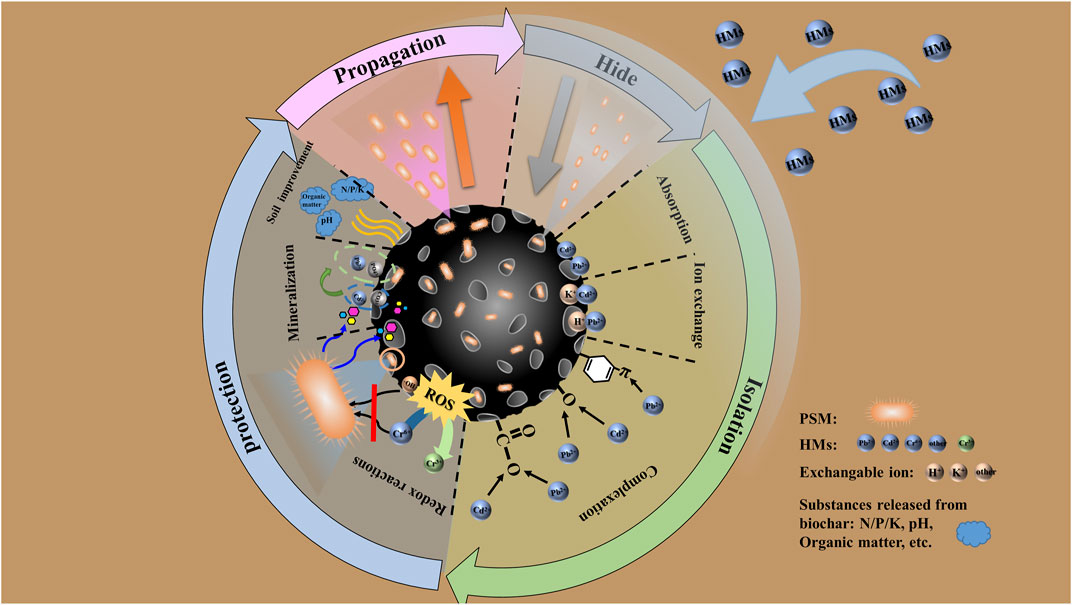

FIGURE 1. Schematic diagram of the mechanism of biochar-assisted phosphorus solubilizing microorganisms for remediation of heavy metals contamination in soil.
First, biochar has abundant grooves and large pores on the surface and inside respectively, which allow microorganisms to hide in them (Zhang R-H. et al., 2022). Secondly, biochar reduces the biological effectiveness of HMs through surface adsorption and complexation control mechanisms (e.g., cation exchange, functional groups and C-π interactions, etc.), which sufficiently reduce the exposure of HMs to microorganisms (Chen et al., 2022; Gong et al., 2022). Thirdly, the redox effect of biochar itself can change the valence state of variable HMs (Cr6+, As3+, Hg2+) and accelerate electron transfer, which weaken the toxicity of toxic HMs (Gong et al., 2022; Lin et al., 2023). Also, biochar is able to induce the toxic groups (ROS) caused by the valence shift of HMs in advance outside the cell. Most importantly, biochar completely prevents HMs stress on PSM by providing C, P and other elements to form stable mineral precipitates with HMs (including those dissolved by PSM) (Chen et al., 2019; Lai et al., 2022). In addition, biochar can improve the physicochemical properties of the soil such as organic carbon, pH, CEC, agglomerates, etc., which may lead HMs to the formation of organic complexes to be immobilized (Zheng et al., 2022; Fu et al., 2023). For example, biochar can improve nutrient retention and reduce leaching by increasing soil CEC (Laird et al., 2010), thereby providing nutrient reserves for microorganisms. Biochar provides lasting benefits to microorganisms by slowly releasing its own dissolved organic carbon (a nutrient for microorganisms) (Zheng et al., 2022). Finally, the protected PSM multiply in large numbers by virtue of nutrients from biochar. This allows the bacteria to dissolve the inorganic phosphate source (e.g., apatite minerals) or the organic phosphate source (e.g., phenolphthalein diphosphate, phytate, glycerophosphate) again to mineralize the heavy metals, thus sustaining the bioremediation effect (Jiang et al., 2020). On the other hand, biochar is used by PSM as a platform to form a fortress for solidifying and stabilizing HMs. Considering the dissolution/release of HMs by bacteria themselves, the mechanism of toxicity attenuation and stable mineral precipitation provided by biochar enables PSM to cope with toxic stresses of both variable (Cr, Hg, Cu, As, etc.) and non-variable (Cd, Zn, etc.) HMs. In particular, biochar weakening the toxicity mechanism of variable heavy metals can give microorganisms the time to resist the stress. For example, biochar directly reduces Cr(VI) to the less toxic Cr(III) via phenolic-OH (Xu et al., 2019). In conclusion, PSM have the potential to remediate high concentrations of HMs contamination with the support of biochar, and biochar with high P content (sludge, pig manure, etc.) can give more support.
4 Prospects
PSM have gradually attracted attention as an important tool for soil remediation of HMs contamination. Especially in recent years, relevant studies have confirmed that PSM can be applied in the remediation of agricultural soil and industrial sites with many different HMs. Although a number of studies have confirmed its mechanism of remediation of HMs, most of them have found that the application of PSM is often considerably less effective in scenarios with high concentrations of pollution. Biochar, as a green and friendly soil remediation agent, has been shown to enhance the survival of PSM in high concentrations of HMs. However, most biochar co-remediation with PSM has been performed in the laboratory and for a single HMs contamination. Therefore, future PSM combined biochar remediation should be tested in actual or simulated application scenarios, and used for remediation of multiple HMs combinations of pollution. In addition, the incorporation of various environmentally friendly modification techniques to assist biochar in promoting the remediation function of PSM is also a promising approach. On the other hand, the affinity of biochar with microorganisms and effectiveness of their practical applications will also be a challenge for its joint application. There is a need for us to develop large-scale applications of combined remediation technologies and to enhance the scenarios in which biochar combined with PSM remediation technologies can be applied. Finally, the riskiness of the remediated soil for HMs at long time scales also needs to be considered in order to minimize adverse consequences.
Author contributions
HC, HJ, MN, LL, and JJ conceived and wrote the paper. All authors contributed to the article and approved the submitted version.
Funding
This study was supported by the National Natural Science Foundation of China (No. 42007105) to HC.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Ahemad, M. (2015). Phosphate-solubilizing bacteria-assisted phytoremediation of metalliferous soils: A review. 3 Biotech. 5 (2), 111–121. doi:10.1007/s13205-014-0206-0
Blanco-Vargas, A., Chacon-Buitrago, M. A., Quintero-Duque, M. C., Poutou-Pinales, R. A., Diaz-Ariza, L. A., Devia-Castillo, C. A., et al. (2022). Production of pine sawdust biochar supporting phosphate-solubilizing bacteria as an alternative bioinoculant in Allium cepa L., culture. Sci. Rep. 12 (1), 12815. doi:10.1038/s41598-022-17106-1
Chen, H., Tang, L., Wang, Z., Su, M., Tian, D., Zhang, L., et al. (2020b). Evaluating the protection of bacteria from extreme Cd (II) stress by P-enriched biochar. Environ. Pollut. 263, 114483. doi:10.1016/j.envpol.2020.114483
Chen, H., Zhang, J., Tang, L., Su, M., Tian, D., Zhang, L., et al. (2019). Enhanced Pb immobilization via the combination of biochar and phosphate solubilizing bacteria. Environ. Int. 127, 395–401. doi:10.1016/j.envint.2019.03.068
Chen, W. H., Hoang, A. T., Nieti, S., Pandey, A., Cheng, C. K., Luque, R., et al. (2022). Biomass-derived biochar: From production to application in removing heavy metal-contaminated water. Process Saf. Environ. Prot. 160, 704–733. doi:10.1016/j.psep.2022.02.061
Chen, X., Zhao, Y., Zhang, C., Zhang, D., Yao, C., Meng, Q., et al. (2020a). Speciation, toxicity mechanism and remediation ways of heavy metals during composting: A novel theoretical microbial remediation method is proposed. J. Environ. Manage 272, 111109. doi:10.1016/j.jenvman.2020.111109
Chen, Y., Wu, H., Sun, P., Liu, J., Qiao, S., Zhang, D., et al. (2021). Remediation of chromium-contaminated soil based on bacillus cereus whx-1 immobilized on biochar: cr(vi) transformation and functional microbial enrichment. Front. Microbiol. 12, 641913. doi:10.3389/fmicb.2021.641913
Cooper, J., Greenberg, I., Ludwig, B., Hippich, L., Fischer, D., Glaser, B., et al. (2020). Effect of biochar and compost on soil properties and organic matter in aggregate size fractions under field conditions. Agric. Ecosyst. Environ. 295, 106882. doi:10.1016/j.agee.2020.106882
Fu, T., Zhang, B., Gao, X., Cui, S., Guan, C. Y., Zhang, Y., et al. (2023). Recent progresses, challenges, and opportunities of carbon-based materials applied in heavy metal polluted soil remediation. Sci. Total Environ. 856, 158810. doi:10.1016/j.scitotenv.2022.158810
Gadd, G. M. (2010). Metals, minerals and microbes: Geomicrobiology and bioremediation. Microbiology 156 (3), 609–643. doi:10.1099/mic.0.037143-0
Gadd, G. M. (2004). Microbial influence on metal mobility and application for bioremediation. Geoderma 122 (2-4), 109–119. doi:10.1016/s0016-7061(04)00006-0
Gong, H., Zhao, L., Rui, X., Hu, J., and Zhu, N. (2022). A review of pristine and modified biochar immobilizing typical heavy metals in soil: Applications and challenges. J. Hazard. Mater. 432 (15), 128668. doi:10.1016/j.jhazmat.2022.128668
He, L., He, T., Farrar, S., Ji, L., Liu, T., and Ma, X. (2017). Antioxidants maintain cellular redox homeostasis by elimination of reactive oxygen species. Cell Physiol. Biochem. 44 (2), 532–553. doi:10.1159/000485089
Jan, A., Azam, M., Siddiqui, K., Ali, A., Choi, I., and Haq, Q. (2015). Heavy metals and human health: Mechanistic insight into toxicity and counter defense system of antioxidants. Int. J. Mol. Sci. 16 (12), 29592–29630. doi:10.3390/ijms161226183
Jiang, L., Liu, X., Yin, H., Liang, Y., Liu, H., Miao, B., et al. (2020). The utilization of biomineralization technique based on microbial induced phosphate precipitation in remediation of potentially toxic ions contaminated soil: A mini review. Ecotoxicol. Environ. Saf. 191, 110009. doi:10.1016/j.ecoenv.2019.110009
Kotrba, P., and Ruml, T. (2000). Bioremediation of heavy metal pollution exploiting constituents, metabolites and metabolic pathways of livings. a review. Collect. Czech. Chem. Commun. 65 (8), 1205–1247. doi:10.1135/cccc20001205
Lai, W., Wu, Y., Zhang, C., Dilinuer, Y., Pasang, L., Lu, Y., et al. (2022). Combination of biochar and phosphorus solubilizing bacteria to improve the stable form of toxic metal minerals and microbial abundance in lead/cadmium-contaminated soil. Agronomy 12 (5), 1003. doi:10.3390/agronomy12051003
Laird, D., Fleming, P., Wang, B., Horton, R., and Karlen, D. (2010). Biochar impact on nutrient leaching from a Midwestern agricultural soil. Geoderma 158, 436–442. doi:10.1016/j.geoderma.2010.05.012
Lan, J., Zhang, S., Dong, Y., Li, J., Li, S., Feng, L., et al. (2021). Stabilization and passivation of multiple heavy metals in soil facilitating by pinecone-based biochar: Mechanisms and microbial community evolution. J. Hazard. Mater. 420, 126588. doi:10.1016/j.jhazmat.2021.126588
Lin, H., Zhou, M., Li, B., and Dong, Y. (2023). Mechanisms, application advances and future perspectives of microbial-induced heavy metal precipitation: A review. Int. Biodeterior. Biodegrad. 178, 105544. doi:10.1016/j.ibiod.2022.105544
Maity, J. P., Chen, G. S., Huang, Y. H., Sun, A. C., and Chen, C. Y. (2019). Ecofriendly Heavy Metal Stabilization: Microbial Induced Mineral Precipitation (MIMP) and Biomineralization for Heavy Metals within the Contaminated Soil by Indigenous Bacteria. Geomicrobiol. 36 (7), 612–623. doi:10.1080/01490451.2019.1597216
Rawat, P., Das, S., Shankhdhar, De., and Shankhdhar, S. C. (2020). Phosphate-solubilizing microorganisms: Mechanism and their role in phosphate solubilization and uptake. J. Soil Sci. Plant Nutr. 21, 49–68. doi:10.1007/s42729-020-00342-7
Shaaban, M., Zwieten, L. V., Bashir, S., Younas, A., Nunez-Delgado, A., Chhajro, M. A., et al. (2018). A concise review of biochar application to agricultural soils to improve soil conditions and fight pollution. J. Environ. Manag. 228 (15), 429–440. doi:10.1016/j.jenvman.2018.09.006
Sharma, P., Melkania, U., et al. (2018). Impact of heavy metals on hydrogen production from organic fraction of municipal solid waste using co-culture of Enterobacter aerogenes and E. Coli Waste Management. E. Coli 75, 289–296. doi:10.1016/j.wasman.2018.02.005
Teng, Z., Shao, W., Zhang, K., Yu, F., Huo, Y., and Li, M. (2019). Enhanced passivation of lead with immobilized phosphate solubilizing bacteria beads loaded with biochar/nanoscale zero valent iron composite. J. Hazard. Mater. 384, 121505. doi:10.1016/j.jhazmat.2019.121505
Vassileva, M., Serrano, M., Bravo, V., Jurado, E., Nikolaeva, I., Martos, V., et al. (2010). Multifunctional properties of phosphate-solubilizing microorganisms grown on agro-industrial wastes in fermentation and soil conditions. Appl. Microbiol. Biotechnol. 85 (5), 1287–1299. doi:10.1007/s00253-009-2366-0
Wang, L., O'Connor, D., Rinklebe, J., Ok, Y. S., Tsang, D. C., Shen, Z., et al. (2020b). Biochar aging: Mechanisms, physicochemical changes, assessment, and implications for field applications. Environ. Sci. Technol. 54 (23), 14797–14814. doi:10.1021/acs.est.0c04033
Wang, Y. Y., Li, P. S., Zhang, B. X., Meng, J., Gao, Y. F., He, X. M., et al. (2020a). Identification of phosphate-solubilizing microorganisms and determination of their phosphate-solubilizing activity and growth-promoting capability. Bioresources 15 (2), 2560–2578. doi:10.15376/biores.15.2.2560-2578
Xu, X., Huang, H., Zhang, Y., Xu, Z., and Cao, X. (2019). Biochar as both electron donor and electron shuttle for the reduction transformation of Cr(VI) during its sorption. Environ. Pollut. 244, 423–430. doi:10.1016/j.envpol.2018.10.068
Zhang, R-H., Xie, Y., Zhou, G., Li, Z. G., Ye, A. H., Huang, X. X., et al. The effects of short-term, long-term, and reapplication of biochar on the remediation of heavy metal-contaminated soil. Ecotoxicol. Environ. Saf. 2022b, 2022, 248.
Zhang, X., Gong, Z., Allinson, G., Li, X. J., and Jia, C. Y. Joint effects of bacterium and biochar in remediation of antibiotic-heavy metal contaminated soil and responses of resistance gene and microbial community. Chemosphere 2022a, 2022, 299.
