Yi Wang1†
Zehua Chen2†
Zugui Wu1†
Junyi Li1†
Congcong Li1
Jiaman Yang1
Weijian Chen1
Zixuan Ye1Xinxin Shen1Tao Jiang3*Wengang Liu3*Xuemeng Xu1,3*- 1The Fifth Clinical College of Guangzhou University of Chinese Medicine, Guangzhou, China
- 2The Orthopedics Hospital of Traditional Chinese Medicine Zhuzhou city, Zhuzhou, China
- 3Guangdong Provincial Second Hospital of Traditional Chinese Medicine, Guangzhou, China
Objective: To determine the reliability of FPI-6 in the assessment of foot posture in patients with knee osteoarthritis (KOA).
Methods: Thirty volunteers with KOA (23 females, 7 males) were included in this study, assessed by two raters and at three different moments. Inter-rater and test-retest reliability were assessed with Cohen’s Weighted Kappa (Kw) and Intraclass Correlation Coefficient (ICC). Bland-Altman plots and respective 95% limits of agreement (LOA) were used to assess both inter-rater and test-retest agreement and identify systematic bias. Moreover, the internal consistency of FPI-6 was assessed by Spearman’s correlation coefficient.
Results: FPI-6 total score showed a substantial inter-rater (Kw = .66) and test-retest reliability (Kw = .72). The six items of FPI-6 demonstrated inter-rater and test-retest reliability varying from fair to substantial (Kw = .33 to .76 and Kw = .40 to .78, respectively). Bland-Altman plots and respective 95% LOA indicated that there appeared no systematic bias and the acceptable agreement of FPI-6 total score for inter-rater and test-retest was excellent. There was a statistically significant positive correlation between each item and the total score of FPI-6, which indicated that FPI-6 had good internal consistency.
Conclusion: In conclusion, the reliability of FPI-6 total score and the six items of FPI-6 were fair to substantial. The results can provide a reliable way for clinicians and researchers to implement the assessment of foot posture in patients with KOA.
Introduction
Knee osteoarthritis (KOA) is a chronic disabling musculoskeletal condition affecting older adults, causing pain, reduction in quality of life, and physical disability (Davis, 2012). Additionally, it is the most common form of chronic joint disease and the foremost cause of lower limb disability among the elderly in the whole world (Zhang et al., 2010; Davis, 2012). Due to the aging of the population and the rising prevalence of obesity and multimorbidity, the prevalence of KOA is expected to rise (Reichenbach et al., 2020), imposing a substantial burden on the healthcare system (Cross et al., 2014). Etiology of KOA includes traumatic injury, genetic factors, age-related physiological changes, obesity, and poor joint biomechanics (Roos et al., 1995; Spector et al., 1996; Sharma et al., 2001; Toivanen et al., 2010). Moreover, poor biomechanics may be the cause of primary progressive KOA (Sharma et al., 2001).
Considering the important role of the foot in receiving and distributing forces during walking, the characteristics and mechanics of the foot, including static foot posture and dynamic foot function, may exert a significant impact on the musculoskeletal conditions of the lower extremities (Riskowski et al., 2011). From the biomechanical perspective, the degree of movement at the foot, subtalar and ankle joint affect the lower limb alignment as movement is transferred proximally (Gates et al., 2017). An excess of subtalar joint inversion/eversion could increase external/internal rotation of the tibia, which in turn is assumed to disrupt the normal mechanics of the tibiofemoral joint (Tiberio, 1987). These axial connections between the subtalar and the tibiofemoral joint demonstrate that the kinematics of the foot and ankle may have an impact on the both the transverse rotational and frontal measures about the knee (Gates et al., 2017). Thus, the foot is thought to play an important role in KOA (Lafortune et al., 1994). In fact, several studies have indicated that, in patients with KOA, any abnormalities (either as pronation or supination) in the foot posture could affect the force distribution throughout the entire lower extremity, including the knee joint, and is related to the misalignment of the knee joint (Paterson et al., 2015; Al-Bayati et al., 2018). Moreover, several studies have reported a more pronated foot posture in people with medial compartment KOA (Reilly et al., 2006; Reilly et al., 2009; Levinger et al., 2010). However, it remains unclear if abnormal foot posture contributes to the development of KOA, or whether progressive KOA leads to changes in foot posture as a compensatory mechanism (Levinger et al., 2012). A comprehensive assessment of foot posture could be important, therefore, for understanding the development of KOA and its conservative management (Reilly et al., 2009).
In fact, the measurement and classification of foot posture in clinical settings has become the central focus of lower extremity medicine and is now widely used to assess the risk of injury and monitor the efficacy of treatment (Mentiplay et al., 2013). There are many measures to quantify foot posture and function, including radiographic techniques, direct anatomical measures, footprint assessment, and dynamic laboratory analyses (Cavanagh et al., 1997; Williams and McClay, 2000). Laboratory gait analysis is still the gold standard, but the facilities to produce high-quality objective data are expensive, and the process of obtaining the data may be overly time-consuming for routine patient assessment (Redmond et al., 2006). Radiographic imaging is similarly demanding and has potentially harmful effects on human health due to the risk of exposing subjects to ionizing radiation (Cavanagh and Rodgers, 1987). As an objective clinical alternative, footprint-based measures are sometimes used, and although these have proved to be relatively reliable (Freychat et al., 1996), the relationship between these measures and dynamic functions is variable (Cavanagh and Rodgers, 1987; Hawes et al., 1992). In contrast, the Foot Posture Index-6 (FPI-6) is considered a quick, easy, inexpensive, and multi-segmental clinical quantification tool, which can assess the posture of the forefoot, midfoot and rearfoot from three planes, and can predict static and dynamic foot posture changes (Redmond et al., 2006; Nielsen et al., 2008). The FPI-6 consists of six evaluation criteria (Keenan et al., 2007). According to the quantitative results, the foot posture is divided into pronation position, neutral position, and supination position. Different from other instruments, FPI-6 contains most of the foot segments and three planes of motion (Redmond et al., 2006). Moreover, compared with other methods, there is a stronger correlation between FPI-6 and foot kinematics, indicating that FPI-6 provides a more complete description of foot posture (Redmond et al., 2006).
The FPI-6 has been extensively explored in a population of healthy people of different ages (Redmond et al., 2006; Keenan et al., 2007; Morrison and Ferrari, 2009). However, several studies assessing its inter-rater and test-retest reliability had conflicting results, with reliability differently reported as poor (Terada et al., 2014), moderate (Menz and Munteanu, 2005; Cornwall et al., 2008) and good (Morrison and Ferrari, 2009; Lee et al., 2015) reliability levels. To date, FPI-6 has not been widely used for foot assessment in patients with KOA, so data on the reliability of FPI-6 in assessing foot posture in KOA population is still lacking. Moreover, almost all previous studies only assessed the reliability of FPI-6 total score (Menz and Munteanu, 2005; Cain et al., 2007; Cornwall et al., 2008; Evans et al., 2012; Terada et al., 2014). Considering that the sum of different scores in individual items of FPI-6 may finally result in an equivalent total score, it remains unclear whether the raters of those previous studies were reliable in the FPI-6 individual items (Aquino et al., 2018). Notably, most KOA patients might present an abnormal foot posture owing to lots of factors including age, obesity, and alteration of the biomechanical axis, which would result in great variability of FPI scores, and subsequently affecting its reliability. Hence, it was necessary to investigate the reliability in KOA individuals. Given all of that, the aim of this study was to evaluate the inter-rater, test-retest reliability of FPI-6 total and individual scores for the assessment of foot posture in patients with KOA, and to provide the evidence basis for further application and promotion of FPI-6.
Methods
Study design
The study was performed between September–December 2021 in the orthopedic outpatient clinic of Guangdong Second Traditional Chinese Medicine Hospital. The study protocol was approved by the Ethics Committee of Guangdong Second Traditional Chinese Medicine Hospital (No. 2021(K58)) and registered in Chinese Clinical Trial Registry (Registration No. ChiCTR2100050269). Written informed consent was obtained from each participant.
Participants
Gwet (Gwet, 2012) presented a method to estimate the sample size required in reliability studies, the expected observation agreement was .8, the chance agreement was .2, and the relative error was 40%. Then, the number of participants we need was 17 according to equation (36). In this study, a sample size of 30 participants was estimated. The inclusion criteria were: (I) age ≥50 years; (II) met the diagnostic criteria of the American College of Rheumatology (Altman et al., 1986); (III) Kellgren/Lawrence (KELLGREN and LAWRENCE, 1957) (K/L) grade ≥1; (IV) had symptoms in the unilateral or bilateral knee joints; (V) presence of predominantly medial compartment KOA; (VI) being able to remain in a static orthostatic position. The exclusion criteria were: (I) presence of other inflammatory rheumatic disease/arthritis; (II) had concomitant neurologic diseases, such as stroke, Parkinson’s disease, severe cardiovascular, respiratory, spinal cord injury, or other musculoskeletal diseases; (III) had a history of trauma resulting in structural deformity of the foot; (IV) not showing up for the retest.
Procedure
Two investigators (Y W and ZH C) served as raters of the FPI-6 for both feet of 30 participants. Both raters had more than 3 years of clinical research experience in musculoskeletal aspects. Two raters attended a training course on the FPI-6 and communicated with each other during this training period for familiarization with FPI-6. In addition, the raters used FPI-6 in 30 feet before formal data collection in order to familiarize the assessment procedure. All participants were asked to stand, take a few steps forward and then to stand still, with arms by their side and looking forward. Given that the bias may be increased when successive measurements are made between the left and right feet, the first foot to be measured was always randomly chosen (Evans et al., 2012). Each item of FPI-6 was assessed and scored independently by each rater on a separate sheet. According to FPI-6 guidelines (Redmond, 2005), the raters were not allowed to see the contralateral feet of participants during the assessment of foot posture.
Six items of the FPI-6 were all assessed: (I) talar head palpation, (II) observation of curves above and below the lateral malleolus, (III) a bulge in the region of the talonavicular joint, (IV) eversion and inversion of the calcaneus, (V) congruence of the medial longitudinal arch, (VI) adduction and abduction of the forefoot in relation to the rearfoot. The score for each item was rated between −2 and +2, and the total score was between −12 and +12. The total score of ≥10 represented a highly pronated foot, 6 to 9 a pronated foot, 0 to 5 a normal foot, −1 to −4 a supinated foot and ≤−5 a high supinated foot (Redmond, 2005).
Two raters (Y W and ZH C) stood in the same position and successively independently evaluated both feet of participants. The participants remained in the same position while the second rater evaluated foot posture. The data measured by different raters on the same day were used to calculate the inter-rater reliability. To evaluate test-retest reliability, rater 1 (Y W) repeated data collection on the same participant 7 days after the first day of data collection. The raters were blinded to each other and their own data. Moreover, before further analyzing the data, we analyzed the left and right extremity data following the same methods used by Evans et al. (2003) to determine whether the left and right extremity data were suitable to be pooled. The results indicated that the left and right extremity data were suitable to pool and analysis. Therefore, both feet of participants were considered for analysis.
Statistical analysis
All statistical analyses were performed with SPSS 26.0 for Windows (IBM, NY, US). Quantitative variables were presented as mean and standard deviation (SD), non-quantitative variables were presented as median and Interquartile range (IQR), and qualitative variables as counts and percentages. The normality was assessed firstly on collected data using the Shapiro-Wilks test. However, almost all data were not normally distributed, so we used non-parametric statistics.
We used Cohen’s Weighted Kappa (Kw) with linear calculation to assess FPI-6 inter-rater and test-retest reliability (Viera and Garrett, 2005). We performed Kw for each FPI-6 item, the total FPI-6 score, and the foot type classification data. The Kw values were interpreted as follows: 0 to .20 ‘slight’, .21 to .4 ‘fair’, .41 to .60 ‘moderate’, .61 to .8 ‘substantial’, and .81 or greater ‘almost perfect’ (Viera and Garrett, 2005). To allow comparisons with previous studies, we also calculated Intraclass Correlation Coefficient (ICC) for FPI-6 total raw score (i.e., not categorized). Inter-rater reliability was assessed using two-way random model, mean measures. And test-retest reliability was assessed using two-way mixed model, single measures (Koo and Li, 2016). The reliability was considered poor when the ICC <.4, fair when ICC ≥.4–≤ .59, good when ICC ≥.6–≤ .74 and excellent when ICC ≥.75 (van Geel et al., 2020). Moreover, the Bland–Altman plots obtained from the Medcalc software version 20.022 (Medcalc, Ostend, Belgium) and respective 95% limits of agreement (LOA) were used to assess the agreement and identify systematic bias for inter-rater and test-retest (Chen et al., 2019).
Additionally, the correlation between each item and the total scores was assessed to evaluate the internal consistency of FPI-6 using Spearman’s correlation coefficient. The consistency was acceptable when the correlation coefficient >.30 (Koo et al., 2020). Statistical significance was defined as p < .05.
Results
Participant characteristics
Thirty-three patients with KOA were recruited in the study, with a sample loss of three individuals who did not attend the retest. Therefore, the final sample consisted of 30 volunteers. Participant characteristics were shown in Table 1. The mean (SD) age of all participants was 67.70 (9.50) years and mean (SD) BMI was 23.56 (3.30) kg/m2. Most of the participants were women (76.7%). Fifteen participants (50%) had unilateral while the others (50%) had bilateral KOA. Most of the participants had a K–L grade of 2–3 (76.7%).
TABLE 1. Participant characteristics (n = 30).
Inter-rater and test-retest reliability
The results of inter-rater and test-retest reliability were presented in Table 2. FPI-6 total score showed a substantial inter-rater and test-retest reliability. Additionally, FPI-6 total-score demonstrated inter-rater ICC of .94 (95%CI, .91-.97) and test-retest ICC of .96 (95%CI, .93-.97). The six items of FPI-6 demonstrated inter-rater and test-retest reliability varying from fair to substantial.
TABLE 2. Inter-rater and test-retest reliability of the FPI-6.
Agreement
The Bland–Altman plots with the mean difference and 95% LOA for the level of inter-rater and test-retest agreement were shown in Figure 1. The mean difference of FPI-6 total score for inter-rater and test-retest was −.25 and .15, respectively, with the lower and upper limits of −3.33 to 2.83 and −2.64 to 2.94, respectively. These results indicated that there was little systematic bias and the acceptable agreement of FPI-6 total score for inter-rater and test-retest was excellent. Moreover, the correlation between each item and FPI-6 total score was shown in Table 3. The Spearman’s correlation coefficients of six items were all >.3 (p < .01). The results indicated that there was a statistically significant positive correlation between each item and FPI-6 total score.

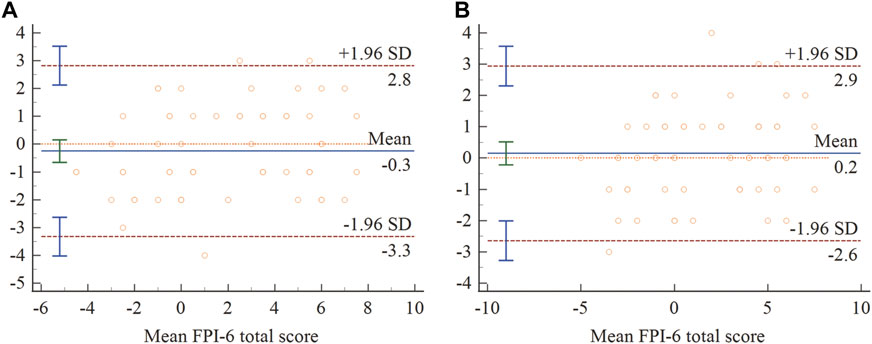

FIGURE 1. Bland–Altman plots of FPI-6 total score for inter-rater (A) and test-retest (B). 95% limits of agreement marked with dotted (---) and mean difference marked with solid (−).
TABLE 3. The correlations between each item and FPI-6 total score.
Classification of foot type
The classification of foot type in the three moments of assessment was shown in Table 4. For the first assessment, rater 1 (Y W) classified 11 feet (18.3%) as being pronated, 31 (51.7%) as normal, 16 (26.7%) as supinated, 2 (3.3%) as highly supinated, and none as highly pronated. For the second assessment, rater 2 (ZH C) classified 13 feet (21.7%) as being pronated, 31 (51.7%) as normal, 16 (26.7%) as supinated, and none as highly pronated or highly supinated. Moreover, foot posture classifications made by rater 1 and 3 (test-retest) changed in 17 cases (n = 3 normal to pronated, n = 5 normal to supinated, n = 5 pronated to normal, n = 3 supinated to normal, and n = 1 highly supinated to supinated). Foot type classification data showed a moderate inter-rater reliability with Kw of .47 (95%CI, .31-.64) and a substantial test-retest reliability with Kw of .63 (95%CI, .47-.79), respectively.
TABLE 4. Classification of foot type in the three moments of assessment.
Discussion
To our knowledge, this study was the first to evaluate the reliability of FPI-6 in the assessment of foot posture in patients with KOA. The results indicated that the inter-rater and test-retest reliability of the total score of FPI-6 were substantial, and the inter-rater and test-retest reliability of the six items of FPI-6 were fair to substantial. Moreover, this study revealed that FPI-6 demonstrated good internal consistency. Therefore, FPI-6 could be considered as a reliable clinical evaluation tool to assess the foot posture of patients with KOA.
Foot posture affects the biomechanics of the entire lower extremity (Tong and Kong, 2013). Moreover, abnormal foot posture is closely related to many lower-limb injuries and the occurrence of various diseases (Tong and Kong, 2013). For instance, individuals with pronated feet are at high risk of falls or loss of balance during unilateral stance in functional activities; individuals with supinated feet may present disturbed postural control (Tsai et al., 2006). Additionally, there is evidence that abnormal foot posture interacts with the development of KOA (Levinger et al., 2012; Al-Bayati et al., 2018). Foot orthoses and insoles that can improve foot posture are also recommended for the prevention and treatment of KOA (Bannuru et al., 2019), so comprehensive foot posture evaluation contributes to understanding the development of KOA and choosing the best therapeutic intervention. Many indirect clinical techniques have been developed to evaluate foot posture, among which FPI-6 is favored by increasing clinicians since it can easily and quickly quantify the variation of foot position in various clinical settings (Scharfbillig et al., 2004). However, the reliability of FPI-6 varies (Menz and Munteanu, 2005; Cornwall et al., 2008; Terada et al., 2014; Lee et al., 2015), and there is a serious lack of data on the reliability of FPI-6 to assess foot posture in patients with KOA. Therefore, this study is of great significance for foot posture assessment and clinical intervention selection in patients with KOA.
We have found fifteen other studies on the reliability of FPI-6 (Menz and Munteanu, 2005; Cain et al., 2007; Morrison and Ferrari, 2009; Barton et al., 2010; Evans et al., 2012; Mentiplay et al., 2013; Lee et al., 2015; Langley et al., 2016; McLaughlin et al., 2016; Fraser et al., 2017; Aquino et al., 2018; Motantasut et al., 2019; Zuil-Escobar et al., 2019; Kirmizi et al., 2020; Martinez et al., 2021). Thirteen studies were conducted in healthy people, one in adults with patellofemoral pain syndrome and one in stroke patients. These studies indicated that the inter-rater reliability is fair to almost perfect, and the test-retest reliability varies from not reliable to excellent. The results of these studies were summarized in Table 5. However, the absence of data on the reliability of FPI-6 in KOA patients precluded comparison with other data of this population.
TABLE 5. Results from earlier reliability studies (FPI-6 total score).
Regarding inter-rater reliability, our study demonstrated that the Kw and ICC values of FPI-6 total score were .66 and .94, respectively. The Kw values of six items of FPI-6 vary from .33 to .76. Several studies on different age groups showed good inter-rater reliability for FPI-6 total score (lower than our study), which can be explained by the raters’ inconsistent familiarity with FPI-6 (Cain et al., 2007; Cornwall et al., 2008; Aquino et al., 2018). In addition, Kirmizi et al. (2020) only assessed the dominant foot, which may reduce the reliability while ensuring the independence of the data. In terms of test-retest reliability, the Kw and ICC values of FPI-6 total score were .72 and .96, respectively. The Kw values of six items of FPI-6 vary from .40 to .78. The test-retest reliability of FPI-6 total score is higher than those previously reported by either Aquino et al. (2018) and Fraser et al. (2017), the reason for the low retest reliability may be the low variability of foot posture for older adults (Allaj, 2018), since it increased the expected agreement due to chance (Viera and Garrett, 2005). The other reason might be explained by inconsistent measurement intervals.
The Bland-Altman plot was used to describe the mean score of the two assessments and the difference between them, and to assess whether there appeared a systematic bias for inter-rater and test-retest. Visual inspection of the Bland-Altman plots did not reveal any systematic bias between test and retest sessions. However, few studies on the reliability of FPI-6 had performed Bland-Altman analyses, which precluded comparison with published studies.
Moreover, the Spearman’s correlation coefficient was applied to determine the correlation between each item and the total score of FPI-6 to evaluate the internal consistency of FPI-6. The results showed that there was a statistically significant positive correlation between each item and the total score of FPI-6. In our study, the Spearman’s correlation coefficients of six items were all >.3 (p < .01). These results were similar to a published study where indicated the good internal consistency of FPI-6 in healthy participants or neuromuscular disease samples (Keenan et al., 2007).
In this study, sixty limbs of 30 participants were assessed at three different times. The results showed a moderate inter-rater reliability and a substantial test-retest reliability. In the analysis of a total of 180 foot postures, only 17 posture classifications changed between the first and the third evaluation. This result indicated the reproducibility of FPI-6 clinically, which was also demonstrated by Martinez et al. (2021) in their study. Changes in foot posture may be due to different positioning of participants during assessment process or to the scoring system of the tool, considering that a one-point difference can determine whether one is classified as being of one type verses another.
Additionally, the present study demonstrated that the total score of FPI-6 and the other five items had substantial reliability, except item 4. This can be explained by some of the limitations in the FPI-6 manual. For example, the FPI-6 manual has no example figure of intermediate scores and scores of −1 and 1, and the talonavicular joint region in the example figure of item 4 (Redmond, 2005) is displayed incorrectly, which was also mentioned by Aquino et al. (2018) and Kirmizi et al. (2020) in their discussion. Thus, the reliability of FPI-6 may be improved by adding figures for intermediate scores in the FPI-6 user guide and manual and correcting the example figure of item 4. In addition, previous studies (Cornwall et al., 2008; Langley et al., 2016) have shown that there existed a learning effect or at least an experience effect when using the tool. However, this effect was not observed in this study. There was a similar inter-rater and test-retest reliability for FPI total score (Kw = .65 and .72, respectively, for the first 30 feet examined, and .65 and .73, respectively, for the last 30 feet). This may be related to the fact that the raters of this study participated in the FPI-6 training course and practiced before the formal assessment.
However, the current study did present with some limitations. Firstly, the participants included were limited (n = 30), mostly female, and selected by means of a sample of convenience and did not cover the entire range that the FPI is designed to cover, that is, from the highly pronated to the highly supinated foot. Therefore, the complete range of scores for the correlation calculation was not obtained, reducing the strength of this calculation. Moreover, the results should be cautiously applied for men. Secondly, an additional limitation of this study was the inadequate refinement of FPI-6 categories. Due to the nature of FPI-6 (each of the six criteria has only five possible scores for all foot types), non-extreme foot types may have characteristics that are not easy to classify, making the selection of the appropriate criterion score less accurate. Therefore, further refinement of the definition of FPI-6 criterion scores may improve the reliability. Thirdly, the participants of this study involved unilateral or bilateral KOA patients. It is not clear whether this will affect the results of our study. Future studies should be conducted to further explore the effect of left and right feet on FPI-6 in unilateral or bilateral KOA patients. Additionally, the participants recruited in this study were not limited to patients with medial compartment KOA. Considering that medial compartment KOA was the most common type, it was necessary to further evaluate the reliability of FPI-6 in the assessment of foot posture in patients with medial compartment KOA.
In conclusion, the reliability of FPI-6 total score and the six items of FPI-6 were fair to substantial. The results can provide a reliable way for clinicians and researchers to implement the assessment of foot posture in patients with KOA.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.
Ethics statement
The studies involving human participants were reviewed and approved by Chinese Clinical Trial Registry. The patients/participants provided their written informed consent to participate in this study.
Author contributions
YW, ZC, WL, and XX designed this study. YW and ZC conducted the assessments. YW, ZW, JL, WC, ZY, and XS collected the data and conducted the statistical analysis. YW, ZC, ZW, JL, and CL wrote the original draft. TJ, WL, and XX critically revised the article for important intellectual content. All authors reviewed and approved the final version to be submitted.
Funding
This work was supported by Guangzhou Science and Technology Plan Project (202206010048), Guangdong Provincial Science and Technology Innovation Strategy Special Fund (2021B1111610007), and Natural Science Foundation of Guangdong Province (No. 2021A1515011545).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Al-Bayati, Z., Coskun Benlidayi, I., and Gokcen, N. (2018). Posture of the foot: Don't keep it out of sight, out of mind in knee osteoarthritis. Gait Posture 66, 130–134. doi:10.1016/j.gaitpost.2018.08.036
Allaj, E. (2018). Two simple measures of variability for categorical data. J. Appl. Stat. 45 (8), 1497–1516. doi:10.1080/02664763.2017.1380787
Altman, R., Asch, E., Bloch, D., Bole, G., Borenstein, D., Brandt, K., et al. (1986). Development of criteria for the classification and reporting of osteoarthritis: Classification of osteoarthritis of the knee. Arthritis Rheum. 29 (8), 1039–1049. doi:10.1002/art.1780290816
Aquino, M. R. C., Avelar, B. S., Silva, P. L., Ocarino, J. M., and Resende, R. A. (2018). Reliability of Foot Posture Index individual and total scores for adults and older adults. Musculoskelet. Sci. Pract. 36, 92–95. doi:10.1016/j.msksp.2018.02.002
Bannuru, R. R., Osani, M. C., Vaysbrot, E. E., Arden, N. K., Bennell, K., Bierma-Zeinstra, S. M. A., et al. (2019). OARSI guidelines for the non-surgical management of knee, hip, and polyarticular osteoarthritis. Osteoarthr. Cartil. 27 (11), 1578–1589. doi:10.1016/j.joca.2019.06.011
Barton, C. J., Bonanno, D., Levinger, P., and Menz, H. B. (2010). Foot and ankle characteristics in patellofemoral pain syndrome: A case control and reliability study. J. Orthop. Sports Phys. Ther. 40 (5), 286–296. doi:10.2519/jospt.2010.3227
Cain, L. E., Nicholson, L. L., Adams, R. D., and Burns, J. (2007). Foot morphology and foot/ankle injury in indoor football. J. Sci. Med. Sport 10 (5), 311–319. doi:10.1016/j.jsams.2006.07.012
Cavanagh, P. R., Morag, E., Boulton, A. J., Young, M. J., Deffner, K. T., and Pammer, S. E. (1997). The relationship of static foot structure to dynamic foot function. J. Biomech. 30 (3), 243–250. doi:10.1016/s0021-9290(96)00136-4
Cavanagh, P. R., and Rodgers, M. M. (1987). The arch index: A useful measure from footprints. J. Biomech. 20 (5), 547–551. doi:10.1016/0021-9290(87)90255-7
Chen, G., Wu, J., Chen, G., Lu, Y., Ren, W., Xu, W., et al. (2019). Reliability of a portable device for quantifying tone and stiffness of quadriceps femoris and patellar tendon at different knee flexion angles. PLoS One 14 (7), e0220521. doi:10.1371/journal.pone.0220521
Cornwall, M. W., McPoil, T. G., Lebec, M., Vicenzino, B., and Wilson, J. (2008). Reliability of the modified foot posture index. J. Am. Podiatr. Med. Assoc. 98 (1), 7–13. doi:10.7547/0980007
Cross, M., Smith, E., Hoy, D., Nolte, S., Ackerman, I., Fransen, M., et al. (2014). The global burden of hip and knee osteoarthritis: Estimates from the global burden of disease 2010 study. Ann. Rheum. Dis. 73 (7), 1323–1330. doi:10.1136/annrheumdis-2013-204763
Davis, A. M. (2012). Osteoarthritis year 2011 in review: Rehabilitation and outcomes. Osteoarthr. Cartil. 20 (3), 201–206. doi:10.1016/j.joca.2012.01.006
Evans, A. M., Copper, A. W., Scharfbillig, R. W., Scutter, S. D., and Williams, M. T. (2003). Reliability of the foot posture index and traditional measures of foot position. J. Am. Podiatr. Med. Assoc. 93 (3), 203–213. doi:10.7547/87507315-93-3-203
Evans, A. M., Rome, K., and Peet, L. (2012). The foot posture index, ankle lunge test, beighton scale and the lower limb assessment score in healthy children: A reliability study. J. Foot Ankle Res. 5 (1), 1. doi:10.1186/1757-1146-5-1
Fraser, J. J., Koldenhoven, R. M., Saliba, S. A., and Hertel, J. (2017). Reliability of ankle-foot morphology, mobility, strength, and motor performance measures. Int. J. Sports Phys. Ther. 12 (7), 1134–1149. doi:10.26603/ijspt20171134
Freychat, P., Belli, A., Carret, J. P., and Lacour, J. R. (1996). Relationship between rearfoot and forefoot orientation and ground reaction forces during running. Med. Sci. Sports Exerc 28 (2), 225–232. doi:10.1097/00005768-199602000-00011
Gates, L. S., Bowen, C. J., Sanchez-Santos, M. T., Delmestri, A., and Arden, N. K. (2017). Do foot & ankle assessments assist the explanation of 1 year knee arthroplasty outcomes? Osteoarthr. Cartil. 25 (6), 892–898. doi:10.1016/j.joca.2016.12.022
Gwet, K. L. (2012). Handbook of inter-rater reliability. 4th ed. USA: Advanced Analytics, LLC, 121–139.
Hawes, M. R., Nachbauer, W., Sovak, D., and Nigg, B. M. (1992). Footprint parameters as a measure of arch height. Foot Ankle 13 (1), 22–26. doi:10.1177/107110079201300104
Keenan, A. M., Redmond, A. C., Horton, M., Conaghan, P. G., and Tennant, A. (2007). The Foot Posture Index: Rasch analysis of a novel, foot-specific outcome measure. Arch. Phys. Med. Rehabil. 88 (1), 88–93. doi:10.1016/j.apmr.2006.10.005
Kellgren, J. H., and Lawrence, J. S. (1957). Radiological assessment of osteo-arthrosis. Ann. Rheum. Dis. 16 (4), 494–502. doi:10.1136/ard.16.4.494
Kirmizi, M., Cakiroglu, M. A., Elvan, A., Simsek, I. E., and Angin, S. (2020). Reliability of different clinical techniques for assessing foot posture. J. Manip. Physiol. Ther. 43 (9), 901–908. doi:10.1016/j.jmpt.2020.02.002
Koo, H. C., Lim, G. P., Kaur, S., Chan, K. Q., Florence Tan, Y. X., Pang, X. J., et al. (2020). Development, validity and reproducibility of a whole grain food frequency questionnaire in Malaysian children. Nutr. J. 19 (1), 73. doi:10.1186/s12937-020-00588-y
Koo, T. K., and Li, M. Y. (2016). A guideline of selecting and reporting Intraclass correlation coefficients for reliability research. J. Chiropr. Med. 15 (2), 155–163. doi:10.1016/j.jcm.2016.02.012
Lafortune, M. A., Cavanagh, P. R., Sommer, H. J., and Kalenak, A. (1994). Foot inversion-eversion and knee kinematics during walking. J. Orthop. Res. 12 (3), 412–420. doi:10.1002/jor.1100120314
Langley, B., Cramp, M., and Morrison, S. C. (2016). Clinical measures of static foot posture do not agree. J. Foot Ankle Res. 9, 45. doi:10.1186/s13047-016-0180-3
Lee, J. D., Kim, Y. M., Kim, K., Koh, D. H., Choi, M. S., and Lee, H. J. (2015). Reliability of the foot posture index (FPI-6) for assessment of stroke patients. J. Kor Phys. Ther. 27 (5), 311–314. doi:10.18857/jkpt.2015.27.5.311
Levinger, P., Menz, H. B., Fotoohabadi, M. R., Feller, J. A., Bartlett, J. R., and Bergman, N. R. (2010). Foot posture in people with medial compartment knee osteoarthritis. J. Foot Ankle Res. 3, 29. doi:10.1186/1757-1146-3-29
Levinger, P., Menz, H. B., Morrow, A. D., Bartlett, J. R., Feller, J. A., Fotoohabadi, M. R., et al. (2012). Dynamic foot function changes following total knee replacement surgery. Knee 19 (6), 880–885. doi:10.1016/j.knee.2012.05.002
Martinez, B. R., Oliveira, J. C., Vieira, K. V. S. G., and Yi, L. C. (2021). Translation, cross-cultural adaptation, and reliability of the Foot Posture Index (FPI-6) - Brazilian version. Physiother. Theory Pract. 37 (1), 218–223. doi:10.1080/09593985.2019.1587800
McLaughlin, P., Vaughan, B., Shanahan, J., Martin, J., and Linger, G. (2016). Inexperienced examiners and the foot posture index: A reliability study. Man. Ther. 26, 238–240. doi:10.1016/j.math.2016.06.009
Mentiplay, B. F., Clark, R. A., Mullins, A., Bryant, A. L., Bartold, S., and Paterson, K. (2013). Reliability and validity of the Microsoft Kinect for evaluating static foot posture. J. Foot Ankle Res. 6 (1), 14. doi:10.1186/1757-1146-6-14
Menz, H. B., and Munteanu, S. E. (2005). Validity of 3 clinical techniques for the measurement of static foot posture in older people. J. Orthop. Sports Phys. Ther. 35 (8), 479–486. doi:10.2519/jospt.2005.35.8.479
Morrison, S. C., and Ferrari, J. (2009). Inter-rater reliability of the Foot Posture Index (FPI-6) in the assessment of the paediatric foot. J. Foot Ankle Res. 2, 26. doi:10.1186/1757-1146-2-26
Motantasut, P., Hunsawong, T., Mato, L., and Donpunha, W. (2019). Reliability of novice and experienced physiotherapists using the normalized navicular height truncated and the foot posture index-6 for classifying static foot posture in adults. J. Phys. Ther. Sci. 31 (4), 392–397. doi:10.1589/jpts.31.392
Nielsen, R. G., Rathleff, M., Kersting, U. G., Simonsen, O., Mølgaard, C., Jensen, K., et al. (2008). The predictive value of the foot posture index on dynamic function. J. Foot Ankle Res., 1 (Suppl 1), O37. doi:10.1186/1757-1146-1-s1-o37
Paterson, K. L., Clark, R. A., Mullins, A., Bryant, A. L., and Mentiplay, B. F. (2015). Predicting dynamic foot function from static foot posture: Comparison between visual assessment, motion analysis, and a commercially available depth camera. J. Orthop. Sports Phys. Ther. 45 (10), 789–798. doi:10.2519/jospt.2015.5616
Redmond, A. (2005). The foot posture Index - easy quantification of standing foot posture - six item version FPI-6-User guide and manual. United Kingdom Available at: https://www.studylib.net/doc/8078879/the-foot-posture-index (Accessed Jan 12, 2023), 1–19.
Redmond, A. C., Crosbie, J., and Ouvrier, R. A. (2006). Development and validation of a novel rating system for scoring standing foot posture: The foot posture index. Clin. Biomech. (Bristol, Avon) 21 (1), 89–98. doi:10.1016/j.clinbiomech.2005.08.002
Reichenbach, S., Felson, D. T., Hincapié, C. A., Heldner, S., Bütikofer, L., Lenz, A., et al. (2020). Effect of biomechanical footwear on knee pain in people with knee osteoarthritis: The BIOTOK randomized clinical trial. JAMA 323 (18), 1802–1812. doi:10.1001/jama.2020.3565
Reilly, K., Barker, K., Shamley, D., Newman, M., Oskrochi, G. R., and Sandall, S. (2009). The role of foot and ankle assessment of patients with lower limb osteoarthritis. Physiotherapy 95, 164–169. doi:10.1016/j.physio.2009.04.003
Reilly, K., Barker, K., Shamley, D., and Sandall, S. (2006). Influence of foot characteristics on the site of lower limb osteoarthritis. Foot Ankle Int. 27, 206–211. doi:10.1177/107110070602700310
Riskowski, J., Dufour, A. B., and Hannan, M. T. (2011). Arthritis, foot pain and shoe wear: Current musculoskeletal research on feet. Curr. Opin. Rheumatol. 23 (2), 148–155. doi:10.1097/bor.0b013e3283422cf5
Roos, H., Adalberth, T., Dahlberg, L., and Lohmander, L. S. (1995). Osteoarthritis of the knee after injury to the anterior cruciate ligament or meniscus: The influence of time and age. Osteoarthr. Cartil. 3 (4), 261–267. doi:10.1016/s1063-4584(05)80017-2
Scharfbillig, R., Evans, A. M., Copper, A. W., Williams, M., Scutter, S., Iasiello, H., et al. (2004). Criterion validation of four criteria of the foot posture index. J. Am. Podiatr. Med. Assoc. 94 (1), 31–38. doi:10.7547/87507315-94-1-31
Sharma, L., Song, J., Felson, D. T., Cahue, S., Shamiyeh, E., and Dunlop, D. D. (2001). The role of knee alignment in disease progression and functional decline in knee osteoarthritis. JAMA 286 (2), 188–195. doi:10.1001/jama.286.2.188
Spector, T. D., Cicuttini, F., Baker, J., Loughlin, J., and Hart, D. (1996). Genetic influences on osteoarthritis in women: A twin study. BMJ 312 (7036), 940–943. doi:10.1136/bmj.312.7036.940
Terada, M., Wittwer, A. M., and Gribble, P. A. (2014). Intra-rater and inter-rater reliability of the five image-based criteria of the foot posture index-6. Int. J. Sports Phys. Ther. 9 (2), 187–194.
Tiberio, D. (1987). The effect of excessive subtalar joint pronation on patellofemoral mechanics: A theoretical model. J. Orthop. Sports Phys. Ther. 9 (4), 160–165. doi:10.2519/jospt.1987.9.4.160
Toivanen, A. T., Heliövaara, M., Impivaara, O., Arokoski, J. P., Knekt, P., Lauren, H., et al. (2010). Obesity, physically demanding work and traumatic knee injury are major risk factors for knee osteoarthritis-a population-based study with a follow-up of 22 years. Rheumatol. Oxf. 49 (2), 308–314. doi:10.1093/rheumatology/kep388
Tong, J. W., and Kong, P. W. (2013). Association between foot type and lower extremity injuries: Systematic literature review with meta-analysis. J. Orthop. Sports Phys. Ther. 43 (10), 700–714. doi:10.2519/jospt.2013.4225
Tsai, L. C., Yu, B., Mercer, V. S., and Gross, M. T. (2006). Comparison of different structural foot types for measures of standing postural control. J. Orthop. Sports Phys. Ther. 36 (12), 942–953. doi:10.2519/jospt.2006.2336
van Geel, N., Passeron, T., Wolkerstorfer, A., Speeckaert, R., and Ezzedine, K. (2020). Reliability and validity of the vitiligo signs of activity score (VSAS). Br. J. Dermatol 183 (5), 883–890. doi:10.1111/bjd.18950
Viera, A. J., and Garrett, J. M. (2005). Understanding interobserver agreement: The kappa statistic. Fam. Med. 37 (5), 360–363.
Williams, D. S., and McClay, I. S. (2000). Measurements used to characterize the foot and the medial longitudinal arch: Reliability and validity. Phys. Ther. 80 (9), 864–871. doi:10.1093/ptj/80.9.864
Zhang, W., Nuki, G., Moskowitz, R. W., Abramson, S., Altman, R. D., Arden, N. K., et al. (2010). OARSI recommendations for the management of hip and knee osteoarthritis: Part III: Changes in evidence following systematic cumulative update of research published through january 2009. Osteoarthr. Cartil. 18 (4), 476–499. doi:10.1016/j.joca.2010.01.013
