Sohaib Z. Khan
Asad A. Zaidi
Muhammad Nihal Naseer
Hamad AlMohamadi- 1Department of Mechanical Engineering, Faculty of Engineering, Islamic University of Madina, Madinah, Saudi Arabia
- 2Department of Mechanical Engineering, Faculty of Engineering Science and Technology, Hamdard University, Karachi, Pakistan
- 3Department of Engineering Sciences, PN Engineering College, National University of Sciences and Technology, Karachi, Pakistan
- 4Department of Chemical Engineering, Faculty of Engineering, Islamic University of Madinah, Madinah, Saudi Arabia
Nanotechnology is considered one of the most significant advancements in science and technology over the last few decades. However, the contemporary use of nanomaterials in bioenergy production is very deficient. This study evaluates the application of nanomaterials for biogas production from different kinds of waste. A state-of-the-art comprehensive review is carried out to elaborate on the deployment of different categories of nano-additives (metal oxides, zero-valent metals, various compounds, carbon-based nanomaterials, nano-composites, and nano-ash) in several kinds of biodegradable waste, including cattle manure, wastewater sludge, municipal solid waste, lake sediments, and sanitary landfills. This study discusses the pros and cons of nano-additives on biogas production from the anaerobic digestion process. Several all-inclusive tables are presented to appraise the literature on different nanomaterials used for biogas production from biomass. Future perspectives to increase biogas production via nano-additives are presented, and the conclusion is drawn on the productivity of biogas based on various nanomaterials. A qualitative review of relevant literature published in the last 50 years is conducted using the bibliometric technique for the first time in literature. About 14,000 research articles are included in this analysis, indexed on the Web of Science. The analysis revealed that the last decade (2010–20) was the golden era for biogas literature, as 84.4% of total publications were published in this timeline. Moreover, it was observed that nanomaterials had revolutionized the field of anaerobic digestion, methane production, and waste activated sludge; and are currently the central pivot of the research community. The toxicity of nanomaterials adversely affects anaerobic bacteria; therefore, using bioactive nanomaterials is emerging as the best alternative. Conducting optimization studies by varying substrate and nanomaterials’ size, concentration and shape is still a field. Furthermore, collecting and disposing nanomaterials at the end of the anaerobic process is a critical environmental challenge to technology implementation that needs to be addressed before the nanomaterials assisted anaerobic process could pave its path to the large-scale industrial sector.
Introduction
Exponential growth in the world population has raised the energy demand drastically (Hagos et al., 2017). Meeting the energy requirement has now become an area of prime importance for all nations. At present, the world is highly dependent on conventional energy sources, i.e., fossil fuels (Palaniappan, 2017). The available reserves for fossil fuels are diminishing rapidly; one study indicated that existing reserves would last till 2050 (Satyanarayana et al., 2011). Besides, these conventional fuels contribute much to environmental pollution and ecological destruction. Along with fluctuating fuel prices, these factors have led the fuel industry to move towards sustainable renewable resources to fulfill the energy demand (Malik and Sangwan, 2012). Currently, fossil fuels fulfill almost 90% of world energy demands, and it is expected to minimize it to 50% by 2040 via incorporating more sustainable renewable energy sources such as solar, wind, geothermal, tidal, and biomass (biofuels) (Hussein, 2015).
Biofuels can be produced by utilizing locally available organic feedstock. Various methods are available for organic matter to energy conversion, but AD (Anaerobic Digestion) is among the most preferable, specifically for biogas production (Hao et al., 2019; Feng et al., 2021). In this process, the absence of O2 provides a favorable environment for bacteria to decompose organic matter by breaking it into methane and other by-products (Seadi et al., 2008). AD finds its implications for waste treatment on a broad category of waste, including sludge, wastewater, and municipal waste (Vasco-Correa et al., 2018). It is also mentioned among widely considered methods for converting complex waste to biogas (Holm-Nielsen et al., 2009; Feng et al., 2014). Additionally, applications of AD in the treatment of animal manure (Bidart et al., 2014), energy crops (Lönnqvist et al., 2013), organic food waste (Zhang et al., 2016), microalgae (Park et al., 2009), and agricultural residues (Mushtaq et al., 2016) make it stand among other methods.
In the mentioned process of organic waste conversion to biogas, four main phases are usually included; (i) hydrolysis, (ii) acidogenesis, (iii) acetogenesis, (iv) methanogenesis (Christy et al., 2014), see Figure 1. These four phases highly dependent upon the extent of interactions between microorganisms during each phase. In the first phase, hydrolytic bacteria are in action. They transform complex organic matters such as proteins, fats, and carbohydrates into organic monomers. Most organic matters contain complex macromolecules that cannot be directly used by acidogenic microorganisms. Therefore, hydrolysis is needed to break complex structures into small molecules (monomers), which ultimately can be used in the second phase of anaerobic digestion. In the second stage, acidogenesis, thus formed monomers are transformed into Volatile Fatty Acids (VFAs) with the help of fermentative bacteria. In the third phase, acetic acid is formed accompanied by evolving hydrogen gas by the action of acetogenic bacteria. Among four phases of anaerobic digestion, acidogenesis is considered the fastest one. The last stage is methanogenesis, where products of the last phase are transformed into methane and carbon dioxide (Mao et al., 2015; Zaidi et al., 2021a). Thus, formed methane significantly varies in quality based on a few factors such as biomass composition, additives, selection of conversion process, and precursors. Typically, the composition of biogas is specified by methane and carbon dioxide contributing 50–75% and 25–45%, respectively. A minute amount of other gasses can be there, usually of calorific values of 21–24 MJ/m3 (Ganzoury and Allam, 2015).

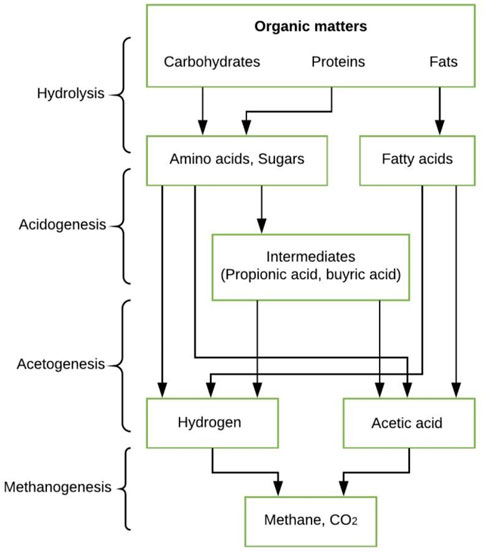

FIGURE 1. Common major sequential processes during anaerobic digestion (Feng et al., 2018).
Biogas, as a renewable energy source, is an emerging sector globally with consecutive increments in the production capacity over the years. Figure 2 represents the regional breakdown, not only reflecting the overall increment but also every region is showing growth over the years, which is a promising motivation for scientists and investors for the biogas augmentation utilizing all the available technologies to pursue state-of-the-art solutions for biogas production. Nanotechnology, which can be defined as interpolation of matter at very small dimensions (less than or equal to 100 nm), is in its emerging phase. At this small scale, material properties change (such as melting point and chemical changes) that has made this technology pivot to researchers (Antonio et al., 2017). Nanotechnology can be used in many fields such as materials engineering, life sciences, electronics, biotechnology, information technology, and cognitive sciences (Khan et al., 2009; Demetzos, 2016). The bioenergy field can be revolutionized by improving catalytic conversions and enhancing catalytic efficiency. Literature is evident from the recent implications of nanoparticles (NPs), nanomaterials (NMs), nanosheets, and others in bioenergy production (Rahman et al., 2016). Wu et al. (2021) recently conducted a literature review to highlight the importance of different operating parameters on biogas production and to understand the importance of different auxiliary technologies in optimizing these operational parameters. The study finds that the addition of NPs is a promising option, especially for mainstream biogas production plants, to enhance biogas production. However, some challenges (such as high investment cost, strict control of NPs concentration, energy demand, and disposal risks) need to be minimized before introducing NPs in the industrial sector (Zaidi et al., 2021b). In another review study (Jadhav et al., 2021), the authors studied the impact of metallic NPs on microbial direct interspecies electron transfer for biogas production enhancement. The use of metallic NPs was found to be cost-effective, efficient, and sustainable for biogas production. Hassanein studied the role of electro-conductive NPs. NPs were found to be promising for AD process stability and efficiency enhancement (Zaidi et al., 2019a; Kumar et al., 2021). Specifically, metallic NPs were highlighted as the most famous NPs for their potential to decrease lag time and improve the biogas production and process stability. Moreover, studying the role of size, type, and concentration of metallic NPs is still a challenge (Hassanein et al., 2021). After conducting a literature review, Ellacuriage stipulated that to increase volumetric efficiency and reduce initial capital cost, NPs augmentation is the most suitable approach (Ellacuriaga et al., 2021).

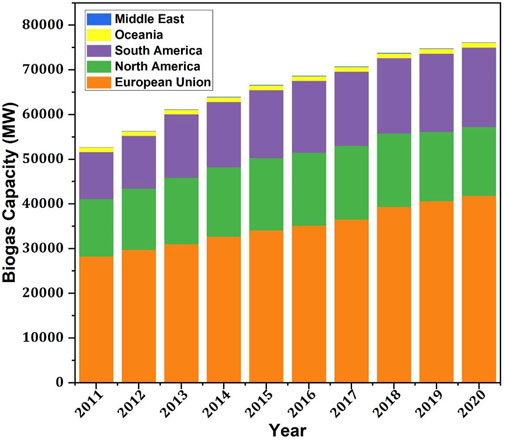

FIGURE 2. Regional breakdown of global biogas capacity (RENA, 2021).
The economic feasibility of large-scale AD has always been a prime concern for the research community. The application of NPs has contributed to the economic feasibility of AD by enhancing catalytic efficiency (Faisal et al., 2019). However, the disposal of these NPs after biogas production is still a significant environmental challenge. Therefore, there is a dire need to find environmentally friendly disposing methods for NPs being used in AD. Moreover, the main challenge in understanding nanomaterial’s augmentation with biogas is their kinetics. The root cause of lower biogas production in the absence of NPs is a cellular wall that restrains the interaction of catalysts with the substrate. Studying the impact of different NPs, through the lens of their positive and negative aspects could improve our understanding of biogas production.
This paper presents a comprehensive state-of-the-art review highlighting the direct influence of nano-additives and nano-nutrients on either biogas production enhancement or adverse effects during anaerobic digestion. Future perspectives to enhance biogas production via nano-additives are also presented. The focus has been placed on classifying available literature according to the type of nanomaterial employed during AD. The detailed discussion shows how nanomaterials can be effectively used for biogas augmentation to improve biomass utilization as a renewable and sustainable energy source. Furthermore, this study reports a bibliometric analysis of biogas literature published in the last 50 years. To the best of the authors’ knowledge, it is the first study based on a detailed quantitative literature review.
Nanomaterials role in chemical reactions
Nanomaterials (NMs) are materials having one or more dimensions smaller than 100 nm. This resulted in a much high surface area of the material just because of the size. A spherical NP of 1 nm diameter will have approximately 100% of its atoms on the surface. Whereas an NP having a diameter of 10 nm would have only 15% of its atoms on the surface. It would be expected from a particle having a higher surface area to be more reactive than the same mass of material consisting of larger particles, as chemical reactions typically take place at surfaces (Rao et al., 2001).
NMs can be classified into three categories contingent on a number of dimensions at the nanoscale as per the British Standards Institution (BSI, 2007). Table 1 depicts some NMs from each group. In the literature, nanoparticles are specified as 3D particles having at least one dimension of less than 100 nm. They could have various morphologies and shapes. As discussed earlier, the surface properties and high reactivity of the NPs are due to the increased surface area to volume ratio. This distinctive feature of NPs makes them popular in products and techniques where chemical reactions are important. In this text, nanomaterials and nanoparticles are used as interchangeable terms, both referring to the nano-scale materials in the context of the discussion.
TABLE 1. Classification of nanomaterials.
There are numerous benefits of NMs for biogas production. NMs provide more exposed sites available for anaerobic bacteria (Rahman et al., 2016). It also helps in the solubilization of organic matter to release intercellular polymeric substances. The control over surface features aids in catalyzing animal fats, plant cell membranes, and cellular remains. They also help a chemical modification of organic matter (Nyberg et al., 2008). The application of NMs for biogas production can be one of the possible ways to sustain this renewable energy source for large-scale production. Several NMs are used as an additive to enhance biogas production.
Research trends in biogas studies: Past and contemporary
In order to find out a pattern, sequence, and significant research trends, quantitative analysis is performed using the web of science database, as shown in Figures 3,4. To conduct the analysis, 14,000 journal articles (research papers only) were explored from the web of science database, and content analysis was performed to determine the main keywords used by researchers. These keywords define the mainstream of research within a field. The colors depict different eras of research. The diameter of bubbles denotes the impact of that keyword, i.e., the occurrence of a keyword. These bubbles are interconnected using links. Link strength is evident in the relation between two keywords, i.e., co-occurrence in the same research article.
FIGURE 3. Major research terms used by researchers from (A) 1970–2020 (B) 2017–2020.

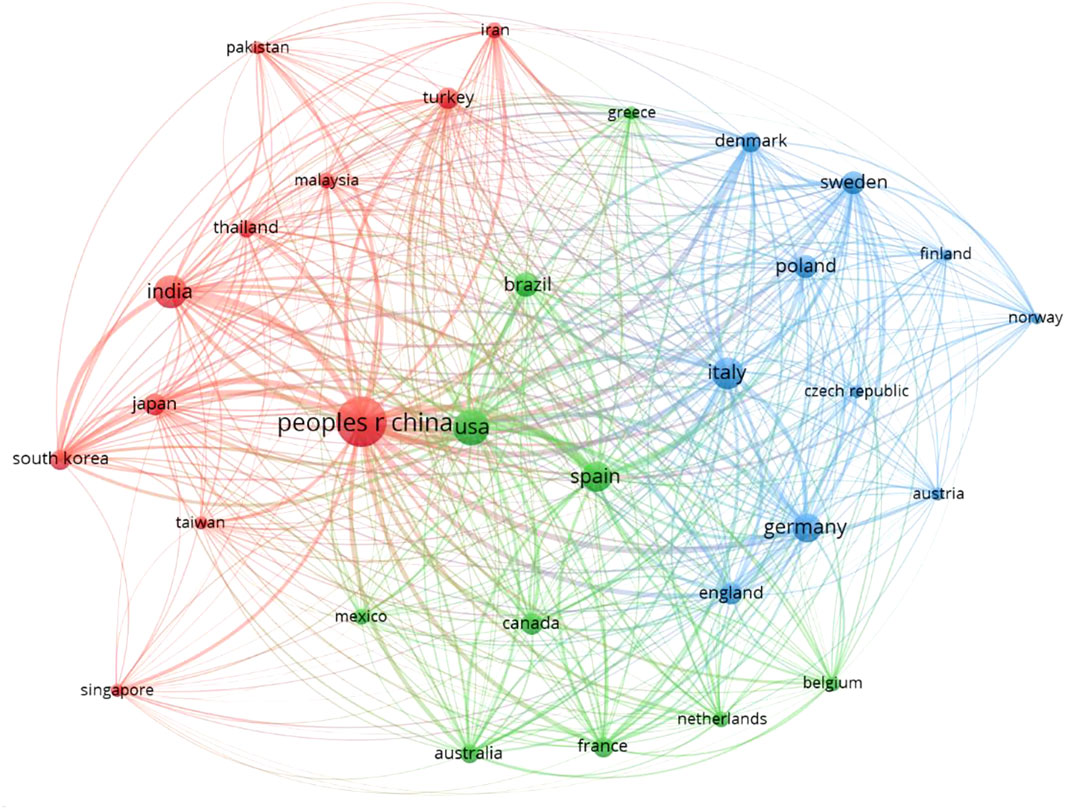

FIGURE 4. Currently active countries on nanotechnology-based biogas production on the basis of the number of citations.
The survey was divided into two eras for analysis purposes, the first 1970–2016 and the second 2017–2020. The purpose of this division was first to understand research evaluation within the field and second to determine the current topics of research to define future directions. Figure 3 revealed that anaerobic digestion and biogas production are among the most used keywords throughout the era 1970–2020. In addition, these keywords find their most implications in the last 5 years as denoted by red color. Therefore, it is concluded that anaerobic digestion and biogas production are among hot topics of research.
In order to further understand the main streams of research within anaerobic digestion and biogas production, data from the last 4 years were evaluated. It is pertinent to mention that 2010–2020 is observed as the main era of research rise in this field. A total of 84.4% of the publications have been published in the last 10 years. Out of this, 84.4%, 54.7% of publications belong to the last 4 years, 2017–2020. Therefore, 2017–2020 can be mentioned as a research-intensive period of biogas production. This high research interest is due to the emergence of new technologies and their implications for biogas production.
The analysis of research keywords used in the last 3 years depicts that the emergence of NP is the main technology that evolved in this era and got incredible attention from the research community. The yellow color of the keyword NP is evident to a sharp contrast and shift towards effective implementation of NP in producing biogas during 2019–2020. The strong link of NPs with anaerobic digestion, methane production, and waste activated sludge represents NPs’ reputation for mentioned technologies with in short duration. Owing to this reputation, NPs implications for biogas production can be regarded as the central pivot to the research community.
The most important aspect to note is the emergence of nanoparticles in the last decade and their strong connection with biogas production. Therefore, based on research trends, it can be concluded with confidence that nanoparticles and biogas production starting from sludge have gotten significant attention in recent years. In this regard, this review is conducted to update how nanomaterials have contributed to biogas production.
Application of nanomaterials for biogas production
This section presents a comprehensive review of the recently reported studies on biogas production based on the class of materials used for a different kind of feedstock. Nanomaterials are a vital candidate to enhance biogas production from different inorganic waste. Basically, at the nanoscale, the surface area of the material is high, making the reaction relatively fast (Zaidi et al., 2019a). In addition, these NPs interact with the cell membrane of sludge, leading to structural changes in the cells that finally make it bacteria permeable membranes. In this way, more bacteria find their way to attack sludge and hence increase overall biogas production (Faisal et al., 2019). Nevertheless, attention has been focused on the use, effects, and outcomes of various NMs for biogas production.
Trace metal nanomaterials for biogas enhancement
Trace metals are essential for methanogenic bacteria growth in an AD reactor (Qiang et al., 2013). Metals nutrients such as iron, cobalt, nickel, etc., are found to influence the AD process significantly (Kelly and Switzenbaum, 1984; Zaidi et al., 2018). Zero-valent iron has been widely employed to treat various kinds of waste. The literature showed that it releases electrons for methanogenesis during the AD process, resulting in biogas augmentation. Nanoscaled Zero-Valent Iron (NZVI) has a high surface-to-volume ratio; this characteristic increased the chemical reaction sites and positively influenced the AD. Su et al. (2015) investigated the influence of 0.05, 0.10, and 0.20 wt% NZVI (60–120 nm) on the AD of Waste Activated Sludge (WAS) for 20 days at the mesophilic temperature (32 ± 1°C). The results indicated that 0.05 wt% and 0.10 wt% NZVI increased the methane production by 9.8% and 4.6%, respectively. However, 0.20 wt% NZVI decreased methane production by 8.8%. The authors suggested that NZVI stimulates methanogenic populations and sulfate reducers. It also accelerates sludge stabilization in AD resulting in increased biogas and methane production. The metallic iron core caused a slow release of soluble Fe2+ acting as a donor and caused the formation of reactive oxygen species. The hydrogen sulfide reacted with NZVI oxide shell on the surface and resulted in the formation of FeS and FeS2, which was regarded as the main reason for decreasing H2S and an increase in methane. These findings agree with Carpenter et al. (2015), who reported that cytotoxicity of NZVI to the microorganism in the AD with varied particle size and reactivity could improve the degradation increase biogas production while decreasing CO2. The observed decrease in biogas production at a higher concentration of NZVI by Su et al. (2015) was confirmed by the study conducted by Suanon et al. (2016). According to the authors, improvement in biogas and methane production is dose-dependent, and a higher dose of NZVI could result in an inhibitory effect. Another study conducted by Suanon et al. (2017) investigated the effect of 0.1 wt% NZVI on methane yield from wastewater sludge at mesophilic conditions (37 ± 1°C) for 50 days. Results showed an increase of 25.2% in methane production.
The production efficiency of biogas and methane yield from Cattle Manure (CM) slurry were discussed under the influence of various concentrations of NZVI, ranging from 5 to 20 mg/L. Batch-wise, anaerobic fermentation of CM was conducted at 37 ± 0.3°C, 90 rpm of rotating speed, and 50 days of Hydraulic Retention Time (HRT). This study concludes that the addition of NZVI is favorable for biogas production. The addition of minute amount, amounting to only 5 mg/L, incremented biogas and methane production by 1.44 and 1.38 times, respectively. The best concentration was found to be 20 mg/L which increases biogas and methane volume by 1.45 times and methane production by 1.59 times. The authors mentioned that the addition of these NPs improves the startup of biogas production and hence reduces the lag phase in comparison with control. The optimal NZVI concentration found in this study was further experimented with by the same authors (Abdelsalam et al., 2016).
The influence of NZVI on the AD of WAS was studied by Wang et al. (2016) at concentrations of 1, 10, 100, and 500 mg/g Total Suspended Solids (TSS), respectively. Batch anaerobic digesters were used for the AD with working volume, operating temperature, and mixing rate of 1 L, 35 ± 1°C, and 120 rpm, respectively, for HRT of 30 days. The study indicated that 10 mg/g TSS increased methane production to 120% of the control, whereas other concentrations had no considerable effect, see Figure 5. This is also in agreement with results obtained by Su et al. (Su et al., 2015) and Suanon et al. (Suanon et al., 2016).

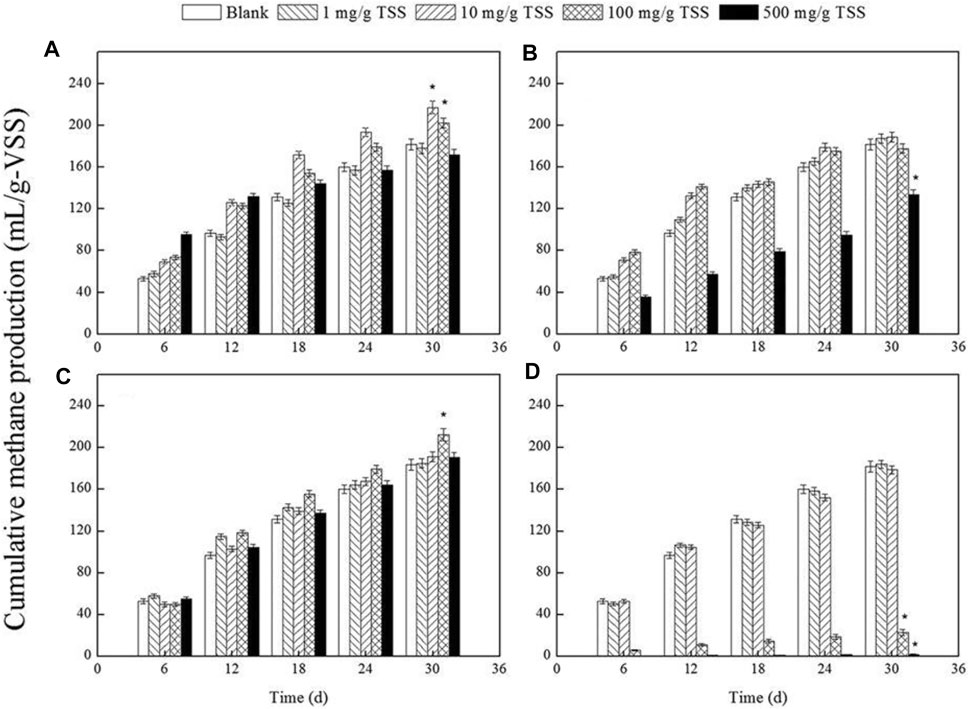

FIGURE 5. Influence of various concentrations of nZVI (A), Ag NPs (B), Fe2 O 3 NPs (C) and MgO NPs (D) on cumulative methane production during AD of WAS (Wang et al., 2016).
In contrast, Amen et al. (2017b) investigated different concentrations of NZVI (50, 100, and 250 mg/L) on anaerobic activated municipal sludge and showed 25% and 62% enhancement in biogas and methane, respectively, by 250 mg/L. In another study conducted by Amen et al. (2017), a novel method of coating NZVI on zeolite and mixing NZVI with zeolite is investigated for improving biochemical methane potential and the lag phase from the AD of anaerobic sludge at 37°C for 14 days of HRT. Zeolite is a mineral compound (a mixture of silica, aluminum, and oxygen). It is a non-cytotoxic mineral having a systematic structure containing channel and pore cavities. The authors worked on the idea that zeolite can trap NZVI inside channels and immobilize the NZVI particles on its surface. Using zeolite as an absorbent carrier for NZVI may be a suitable way to stimulate microorganisms and prevent cell membrane disruptions caused by NZVI. The authors used this method to examine the overall performance of the AD process. It can be observed that till day 8, ICZ caused a lag period, and then from day 9 to day 14, it caused significant biogas enhancement (Amen et al., 2017b). The lag phase is attributed to the time required by anaerobic sludge for the adaptation of ICZ. Results showed that 500 mg/L NZVI and 4 g/L zeolite mixture produced 130.87% increase in cumulative biogas production, whereas NZVI alone (45nm, 1000 mg/L) gave a 105.46% increase in cumulative biogas production. The NZVI coated zeolite (ICZ) with 500, and 1000 mg/L concentrations produced the highest amount of biogas in comparison with other additions and control. Cumulative biogas increase of 149.95% and 286.75% is observed for 500 and 1000 mg/L ICZ, respectively. The study concluded that the higher ICZ concentrations generated more biogas and positively affected the AD process.
The influence of NZVI on wastewater sludge AD was also studied by Jia et al. (2017). The impact of the different concentrations of NZVI (500, 1000, 1500, 2000 mg/L) on wastewater sludge at mesophilic conditions (35°C) for 35 days was investigated. The results showed that the group with 500 mg/L and 1000 mg/L NZVI increased cumulative biogas production by 7.30% and 18.11%, respectively, as shown in Figure 6. The higher concentrations of 1500 mg/L and 2000 mg/L NZVI decreased biogas production by 27.30% and 46.45%, respectively., The higher concentration of NZVI resulted in counter-productive, as observed in other studies (Su et al., 2013; Su et al., 2015; Wang et al., 2016). Therefore, in general, it is critical to find the optimal concentration of the NZVI with the specific waste to achieve the goal, i.e., enhancing biogas generation.

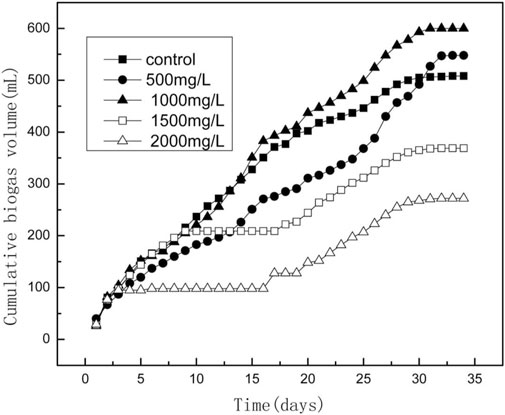

FIGURE 6. Cumulative biogas production by NZVI (Jia et al., 2017).
The long and short-term impact of Ag NPs on the AD of waste activated sludge (WAS) was investigated by Ünşar et al. (2016). During the short-term test, Ag NPs did not show any effect on biogas production. However, during the long-term test, high concentrations (150, 250, and 500 mg/g TS) of Ag NPs showed almost 5% inhibition in methane production, see Figure 7. Wang et al. (2016) studied the influence of Ag NPs on the AD of WAS at concentrations of 1, 10, 100, and 500 mg/g TSS, respectively. The study concluded that Ag NPs had no significant effect on biogas production. The 500 mg/g TSS concentration decreases methane production by 73.52%, as shown in Figure 5. Higher concentrations of Ag NPs decrease the biogas yield because they impede the microbes and activities of key enzymes for the AD process. Gitipour et al. (2016) studied the toxicity of cationic Ag NPs on bio-solids from the wastewater treatment plant to examine the antibacterial impacts of different Ag NPs on the AD process and compared to that of Ag+. Negatively charged citrate-coated Ag NPs (citrate-Ag NPs), minimally charged polyvinylpyrrolidone coated AgNPs (PVP-Ag NPs), and positively charged branched polyethyleneimine coated AgNPs (BPEI-Ag NPs) were investigated. BPEI-Ag NPs showed a significant increase (almost double the amount) in biogas production than control, as shown in Figure 7. Toxicity examination showed that at lower concentrations of Ag NPs, functional redundancy built within the microbial community resulted in low toxicity. However, at high doses, BPEI-Ag NPs resulted in eminent toxicity compared to PVP-Ag NPs and citrate-Ag NPs.

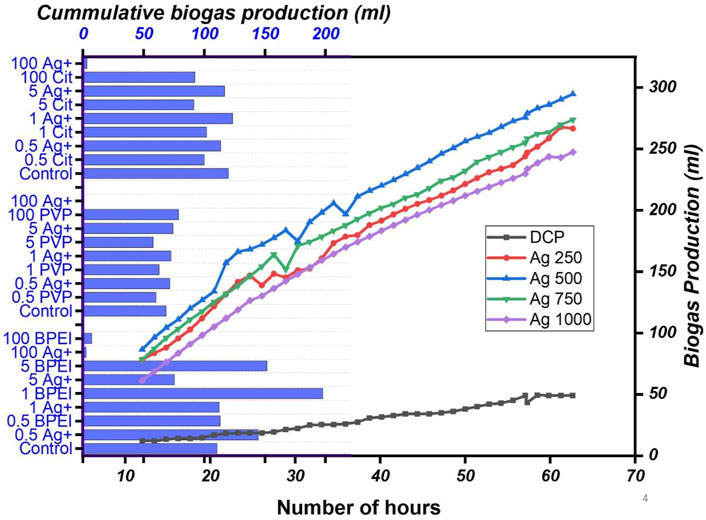

FIGURE 7. Biogas production for different concentrations of Ag NPs (Ünşar et al., 2016) and Cumulative biogas production (horizontal bar) resulted in different concentrations of Ag NPs or Ag+ (Gitipour et al., 2016).
Abdelsalam et al. (2017a) studied the effects of various concentrations (0.5, 1, and 2 mg/L) of Co. and Ni NPs on the production capability of methane and biogas from the conversion of CM (Abdelsalam et al., 2017a). AD of CM was carried out batch-wise at operating temperature and mixing rate of 37 ± 0.3°C and 90 rpm, respectively, for HRT of 50 days. The study indicated that adding 1 mg/L Co. NPs increases the biogas and methane volume by 1.64 and 1.86 times, respectively. The optimal concentration of Ni NPs was found to be 2 mg/L, which increases biogas and methane volume by 1.74 and 2.01 times, respectively. The authors mentioned that the addition of Ni and Co. NPs improved the startup of biogas production and reduced the lag phase compared to control. Co. and Ni NPs showed increased decomposition of organic matter as more decomposition of Total Solids (TS), and Volatile Solids (VS.) observed at the end of the experiment. Elreedy et al. (2017) also investigated the influence of Ni NPs (60 nm) at much higher concentrations compared to the work in (Abdelsalam et al., 2017a). The Ni NPs concentration in this study was 20, 30, 60, and 100 mg/L on the AD of industrial wastewater containing Mono-Ethylene Glycol (MEG). Results showed that 60 mg/L of Ni NPs produced an increase of 23% in hydrogen production. This result suggested that a higher dose of NPs is required for industrial waste to enhance biogas production. It would be interesting to see that similar waste has been tested for lower NPs concentration for industrial waste, but the authors of this review were unable to find it.
Our previous work (Zaidi et al., 2018) explored the influence of Ni and Co. NPs on biogas yield from the AD of green microalgae (Enteromorpha), which was the first study to discover the significance of NPs on microalgae. Results indicated that 1 mg/L of Ni and Co. NPs produced 26 and 9% cumulative increase in biogas production. It was observed that during the less effective domain (see Figure 8), NPs revealed no significant result to improve biogas production. However, approximately 60 h of the digestion process, NPs showed the cumulative effect on biogas production. The increase in biogas production was credited to the release of extracellular polymeric compounds (proteins, carbohydrates, and cellulose) after the dissolution of the microalgae cell wall. In order to understand the effectivity of NPs on the AD of microalgal biomass, measurement of soluble indexes such as Chemical Oxygen Demand (COD), reducing sugar, pH and VFA were measured. It was found that COD and VFA increased for the groups with NPs, whereas reducing sugar decreased as NPs stimulated bacteria to consume more sugar during the AD.

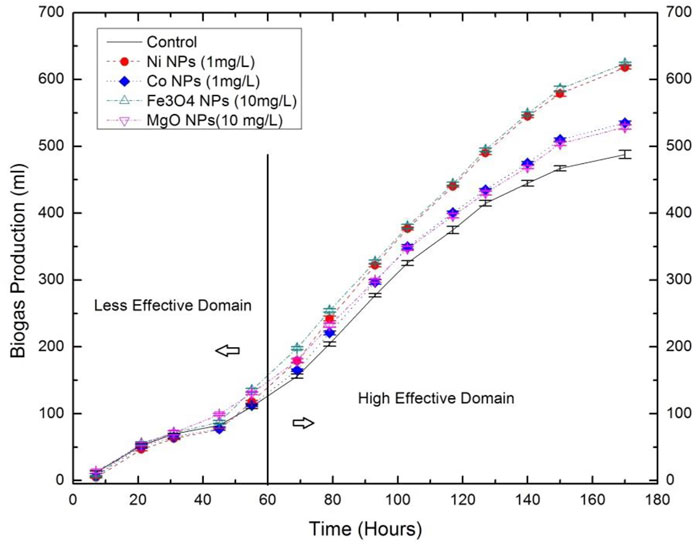

FIGURE 8. Biogas production influenced by nanoparticles (Zaidi et al., 2018).
An exhaustive list and summary of the reported metal NPs including size, concentration, type of feedstock used, anaerobic temperature, HRT, and their effect on biogas and methane production, is shown in Table 2.
TABLE 2. Reported metal NPS and their influence on biogas generation.
Various metal NPs effect on biogas production from different feedstock is presented in this section. NZVI was the most reported one, along with Ni and Co. NPs, which showed an increase in biogas production. On the other hand, Ag, citrate-Ag, PVP-Ag, BPEI-Ag, Au, and Zn silica nanogel showed adverse effects on the biogas production rate, resulting in a dramatic decrease in the amount of biogas produced. This decrease was attributed to the toxicity of the materials.
Utilization of metal oxide nanoparticles for biogas production
The effect of ZnO and CeO2 NPs with different concentrations (10, 100, 500, and 1000 mg/L) on anaerobic sludge from an Up-flow Anaerobic Sludge Blanket (UASB) reactor was studied by Nguyen et al. (Nguyen et al., 2015) under mesophilic temperature (30°C) for 40 days. Results showed that all investigated concentrations of ZnO and CeO2 NPs produce biogas less than the control except 10 mg/L CeO2 NPs sample, which produced only an 11% increase in biogas, as shown in Figure 9. This study remotely suggested that the role of oxides may be limited to use for biogas production; fortunately, this is not the case. The authors performed a bacterial toxicity test to explore the biogas inhibition effect. They found that ZnO NPs are more highly toxic to Escherichia coli than CeO2 NPs and caused 99% cell death at 100 mg/L and so the same at higher concentrations. The authors attributed the positive effect of 10 mg/L CeO2 NPs on the bacterial viability of sludge digestion as their ability to act like free radicals.

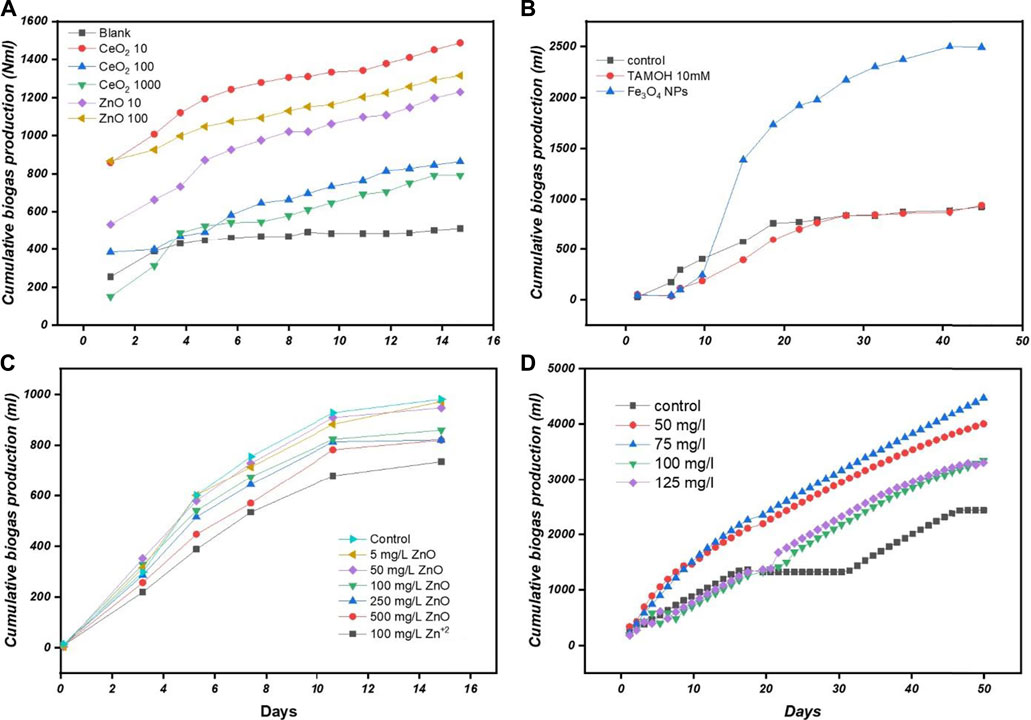

FIGURE 9. (A) Influence of Ce O 2 and ZnO NPs on biogas production (Nguyen et al., 2015) (B) Effect of 100ppm Fe3 O 4 on biogas production (scale bar is 20 nm) (Casals et al., 2014) (C) Effect of ZnO ENMs on production after 14 days (Zhang L. et al., 2017) (D) Cumulative methane production by Fe3 O 4 NPs (Ali et al., 2017).
The long and short-term inhibition impacts of CuO and CeO2 NPs was studied by Ünşar et al. (2016) on the AD of WAS. The AD inhibition effect was observed from 5.8% to 84% when CuO NPs concentration increased from 5 mg/g to 1000 mg/g TS. CeO2 NPs with dosages of 150, 250, and 500 mg/g TS enhanced the methane yield to 18.8%, 25.5%, and 9.2%, respectively (Ünşar et al., 2016). Fluorescence in situ hybridization (FISH) analysis exposed a decrease in archaea in CuO NPs samples, whereas the abundance of these bacteria was found in CeO2 NPs.
Casals et al. (2014) also performed an anaerobic experiment under mesophilic conditions by applying Fe3O4 NPs (100 ppm) to organic waste for about 2 months. It was concluded that this set of conditions promises an increment in the production of methane and biogas by 234% and 180%, respectively, as shown in Figure 9. In addition, Fe2+ was identified as the main contributing factor as it serves to disintegrate waste fabulously in anaerobic conditions. This is probably one of the highest increments of biogas and methane production one can find in the available literature.
In the AD process, metal distribution conversion is another important aspect, as discussed by Suanon et al. (Suanon et al., 2016). The effect was studied by employing Fe3O4 NPs in an anaerobic batch chamber with mesophilic conditions. The methane production was incremented by 1.5 gm per 500 ml of Fe3O4 NPs. It was concluded that the presence of Fe3O4 NPs is favorable for metal stabilization in the digestate as it ultimately results in an improvement in biogas production. However, it promotes the immobilization of phosphorus in digestate. The information mentioned in the paper was not conclusive to support the immobilization hypothesis, and the authors have acknowledged this to suggest further research.
Abdelsalam et al. (2017b) also contributed by studying the effect of Fe3O4 NPs on biogas production. By employing different concentrations on CM slurry, mixing temperature of 37 ± 0.3°C at an rpm of 90 and HRT of 50 days; biogas and methane production was incremented by 1.66 and 1.96 times, respectively, by adding just 20 mg/L Fe3O4 NPs as shown in Figure 9.
Wang et al. (2016) studied the influence of MgO and Fe2O3 NPs on the AD of WAS at concentrations of 1, 10, 100, and 500 mg/g TSS, respectively. The concentration of 100 mg/g TSS of iron oxide NPs gives 117% of the control, whereas other concentrations had no measurable effect on biogas; see Figure 5. MgO NPs had no significant effect on biogas production (Shi et al., 2020). The 500 mg/g TSS concentration inhibited methane production by 1.08%. Higher concentrations of MgO NPs decrease the biogas yield because they impede the microbes and activities of key enzymes for the AD process, see Figure 5.
Li et al. (2017) studied the fate and long-term exposure of CuO, TiO2, and ZnO NPs (50 mg/L) on the AD of Anaerobic Granular Sludge (AGS) for 90 days. The results showed that CuO NPs stopped the methane production on the 39th day. Long-term exposure resulted in inhibited methanogenesis strongly and quickly. The exposure of TiO2 NPs lowered the biogas and methane production by 30.70% and 14.01%, respectively. The study suggested that TiO2 NPs had an adverse effect on the acidogens and acetogens than methanogens. The effect of TiO2 NPs on anaerobic sludge from the UASB reactor was also investigated by Yadav et al. (Yadav et al., 2017). Outcomes of their study indicated a slight biogas inhibition in line with the results obtained by Li et al. (2017).
Syntrophic oxidation of butyrate (intermediates in the transformation of complex organics to methane) was studied by Zhang and Lu (2016) in two different lake sediments. The authors used conductive Fe3O4 NPs to accelerate the reaction kinetics. Results indicated that methane yield was substantially increased, and the lag phase reduced significantly under the presence of NPs. 25μmol CH4/liter was produced from 10 μmol of butyrate addition. The authors performed Direct Interspecies Electron Transfer (DIET) and found that cell-to-cell distance in enrichments amended with NPs was larger than control. They suggested that conductive NPs form cell-nanomaterial-cell networks and facilitate DIET, which contributed to an enhancement in methane.
The response of iron oxide NPs on AGS during AD of beet sugar industrial wastewater was investigated by Ambuchi et al. (2017). Three Plexiglas Expanded Granular Sludge Bed (EGSB) reactors were used under a mesophilic temperature of 36 ± 1°C for an incubation period of 74 days. More biogas was produced during the first 24 h than in the control reactor. The initial increase in biogas production was also observed in another study (Abdelsalam et al., 2017b). Results showed 1.25 times increase in biogas and 28.9% more ml/g-VSS CH4 gas. The authors stated that the employment of iron oxide NPs as conduits for electron transfer toward methanogens resulted in biogas enhancement.
A comparative study of Fe3O4, Co3O4, NiO, and MoO3 micronutrient and NPs with CM slurry in the single and bi-phasic AD at 37 ± 2°C for 20 days was carried out by Juntupally et al. (2017). During a single-phase AD, Fe3O4 NPs produced 0.16 L/(g VS. reduced) biogas. An increase in biogas production with enhanced methane (70–80%) is reported during single-phase, whereas in bi-phase, AD Fe2O3 and its corresponding NPs showed a 76% increase (Juntupally et al., 2017). NiO NPs yielded peak biogas of 0.3 L/(g VS. reduced) in the biphasic AD compared to Co3O4 and MoO3 NPs. During single-phasic AD, NiO and Co3O4 NPs provided the same biogas yield of 0.15 L/(g VS. reduced).
The effect of different concentrations of ZnO NPs (as shown in Figure 9) on VFAs and biogas production during AD of WAS investigated by Lingling Zhang et al. (2017). Results showed that VFA production is inversely correlated to ZnO NPs concentrations. ZnO NPs inhibited the waste sludge hydrolysis-acidification, mainly protein. ZnO NPs’ impact on protein hydrolysis slowed down the VFA accumulation during AD and decreased biogas production, as shown in Figure 9. This action also changed bacterial community structure and was identified to be the main reason for biogas reduction.
Temizel et al. (2017) investigated the influence of ZnO NPs on sanitary landfills for biogas production. They used landfill bioreactors operated at 35°C for 1 year. The results obtained indicated that reactors inoculated with ZnO NPs produced less biogas than the control reactor. The authors mentioned that the release of Zn2+ might adversely affect the methanogenic archaea activity, and hence inhibition in biogas yield occurred. Biogas from landfills is being recognized as one potential source for bioenergy production; the authors suggested that the presence of ZnO NPs in a waste matrix of landfills may become a hurdle to its application. The toxic effect of ZnO NPs indicated in this study agrees with Li et al. (2017), who also investigated the effect of ZnO NPs on the AD of AGS and found that methane and biogas yield was suppressed. They mentioned that long-term exposure resulted in inhibited methanogenesis vigorously and quickly.
The effect of bio-compatible Fe3O4 NPs (10–35 nm) at four different concentrations (50, 75, 100, and 125 mg/L) on the AD of Municipal Solid Waste (MSW) was investigated by Ali et al. (2017) at 37 ± 0.5°C for 60 days of HRT. Results indicated that concentration of 50 and 75 mg/L was found to be more effective in improving the methane production as compared to increased concentrations at 100 and 125 mg/L, see Figure 9. This is in contrast with the results obtained by Abdelsalam et al. (2017b).
In one of our previous studies, the experience of studying green microalgae’s anaerobic digestion (Enteromorpha) for biogas production by employing Fe3O4 and MgO NPs have been promising (Zaidi et al., 2018). A cumulative increase of 28% for 10 mg/L of Fe3O4 NPs and 8% for 10 mg/L of MgO NPs was noticed. As a controlled sample, an additional effect of NPs approaches zero in the less effective domain. Nevertheless, after observation of 60 h, a substantial effect incrementing biogas production was noticed. The increase in biogas production was credited to the release of extracellular polymeric compounds (proteins, carbohydrates, and cellulose) after the dissolution of the microalgae cell wall. Table 3 comprehensively summarizes the metal oxide NPs and their effect on biogas generation.
TABLE 3. Reported metal oxide NPs and their influence on biogas generation.
This section discussed the addition of different metal oxide NPs during the AD for biogas production. Fe2O3, Fe3O4, Co3O4, NiO, MoO3 showed an increase in biogas production. On the other hand, CeO2 showed mixed effects depending on their concentration in the reactor as well as the digestion time. The addition of nano-iron oxide (Fe3O4) enhanced methane production by 234% due to the presence of the non-toxic Fe3+ and Fe2+ ions. ZnO, CuO, TiO2, MgO, MnO2 showed a decrease or no change in biogas production rate (Mishra et al., 2018).
Nano-scaled Nb-based compounds in biogas
The functionality of Nb-based compounds (NbO2, Nb3.49N4.56O0.44, and NbN) with various concentrations (7.5, 15, 30, 60, and 120 mg/L) at mesophilic condition (36 ± 1°C) in the AD of dairy manure was investigated by Taihong Zhang et al. (2017). This is the first study discussing the application of these compounds for AD. The results showed that Nb-based compounds worked as efficient catalysts in the AD process. They improve the fermentation condition and stimulate the bacterial activity inside the digester. The cumulative biogas production by NbO2, Nb3.49N4.56O0.44, and NbN produced was 522.7, 437.1, and 455.7 ml/g VS., respectively (Zhang T. et al., 2017). Table 4 summarizes reported Nb-based compounds and their effect on biogas production.
TABLE 4. Reported nano-scale Nb-based compounds and their influence on biogas generation.
Nano-scaled transition metal carbides for biogas enhancement
The effect of nano-scale transition metal carbides (HfC, SiC, TiC, and WC) at a concentration of 0.25 wt% on the AD of CM was investigated by Li et al. (2018) batch-wise under mesophilic temperature. The experiments were performed in triplicates and average data was presented. Results showed that all these four carbides worked as accelerants in the AD process. HfC, SiC, TiC and WC increased biogas production by 63.9, 69.7, 57.5 and 69%, respectively, as compared to control check (CK), see Figure 10. We found that this is the first and maybe the only report on using metal carbides to inoculate in AD digesters. Table 5 summarizes nano-scale transition metal carbides and their influence on biogas generation.

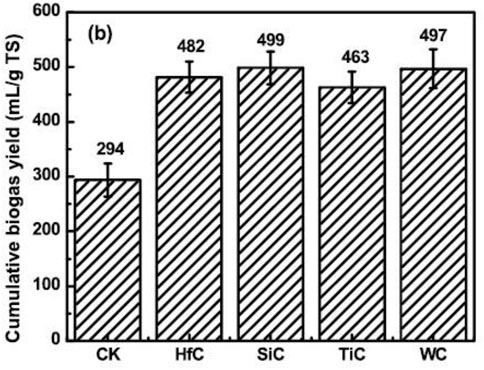

FIGURE 10. Cumulative biogas yield by nano-scale transition metal carbides (Li et al., 2018).
TABLE 5. Reported nano-scale transition metal carbides their influence on biogas generation
Utilization of carbon and carbon-based nanomaterials for biogas
The one and the only study discussing the influence of Single-Walled Carbon Nanotubes (SWCNTs) on AD of AGS, with average diameters of 1–2 nm and length of 5–20 nm at a concentration of 1000 mg/L, under mesophilic conditions (35°C) for 8 days was examined by Li et al. (2015). SWCNTs did not reflect any significant enhancement in biogas and methane generation, see Figure 11. In the presence of 1000 mg/L SWCNTs, the volume of generated CH4 was significantly larger (p < 0.05) than that in the control reactor for the initial 48 h. However, it slowly decreased and ended at almost the same or little lower cumulative production as control, showing no effect. The authors attributed this zero effect of SWCNTs as a decrement in cytotoxicity of sludge by nanotubes. The addition of SWCNTs in the AD system produced a more Extracellular Polymeric Substance (EPS) which prevented SWCNTs from reaching cells and hence resulted in limited to no effect on biogas yield.

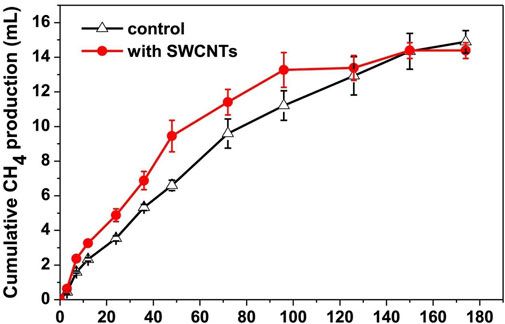

FIGURE 11. The influence of SWCNTs on methane production in Hours (Li et al., 2015).
Impact of Multi-Walled Carbon Nanotubes (MWCNTs) with the length of 1–10 μm, outer and inner diameters of 5–20 nm and 2–6 nm, respectively, were investigated on UASB microflora by Yadav et al. (Yadav et al., 2016). It was observed from SEM and fluorescent microscopy images that MWCNTs damaged acidogenic and acetogenic microbial cells, which caused an increase in EPS proteins, DNA, and carbohydrates. According to the authors, this microbial cell damage is the possible reason for low VFAs generation and biogas yield. The 1 mg/L and 100 mg/L concentration of MWCNTs caused 21% and 54% inhibition in biogas as compared to control.
In contrast, Zhang and Lu (2016) found an enhancement in biogas production with conductive MWCNTs (diameter: 10–20 nm, length: 10–30 mm) by syntrophic oxidation of butyrate in two different lake sediments. The CH4 production rate in the presence of MWCNTs was almost 50% greater than the control. The results showed that the electric conductivity of the added MWCNTs facilitated the syntrophic oxidation of butyrate and had a stimulatory effect on microorganisms. Microscopic observation showed that abundant aggregates formed in lake enrichments under the presence of MWCNTs. The microbial aggregates in control were in close physical proximity whereas, in MWCNTs samples, dark areas within aggregates filled with nanotubes. This showed that greater intercellular distances existed on average, which form cell-nanotube-cell networks and facilitate DIET, which contributed to an increase in methane yield.
In another study, Ambuchi et al. (2017) investigated the response of MWCNTs (10–20 nm outer diameter) on AGS during AD of beet sugar industrial wastewater. An increase in biogas (1.09 times than control) and methane production (12.6% more ml/g-VSS CH4 gas than control) was observed. Summarized results reported that carbon nanotubes influence on biogas generation is shown in Table 6.
TABLE 6. Reported carbon nanotubes and their influence on biogas generation.
Nanowires, nano composites and nano-ash augmentation for biogas
Nanowires
The Octahedral Molecular Sieve (OMS-2) is a form of manganese dioxide that holds distinctive features like mixed-valence of manganese, acidic sites and has wide applications. The effect of synthesized OMS-2 NPs (diameter of nanofibers of about 10–20 nm and lengths of about 100–500 nm) on Sludge from the sewage treatment plant at concentrations of 0.025, 0.25, and 2.50 g/L was investigated by Pan et al. (2015). The addition of 0.025 g/L OMS-2 NPs resulted in an 11% enhancement in biogas production. The investigation of microbial metabolism revealed an increase in microbial metabolic level and enhanced microbial diversity. OMS-2 NPs also increased the quantities of acetogenic bacteria and Archaea and promoted acetogenesis and methanogenesis.
Lupitskyy et al. (2018) studied the influence of zinc oxide nanowires at a concentration of 1 g/L on the AD of AGS. According to the author, the use of ZnO nanowires as inorganic reactive absorbents can help in reducing the sulfur-containing compounds in wastewater and improve biogas production. The experiment was carried out for three feeding cycles. Sulfates were added at the beginning of each feeding cycle. Results showed that nanowires reduced the sulfide toxicity during AD as no methanogenic activity and biogas inhibition were observed (Lupitskyy et al., 2018). The summary of the reported nanowire and its influence on biogas generation is shown in Table 7.
TABLE 7. The reported nanowire, nano-composite, nano-ash, and their influence on biogas generation.
Nano-composites
The effect of Ni-graphene nano-composite (Ni-Gr-NC) as a supplement to an AD of industrial wastewater containing MEG to enhance biohydrogen production was studied by Elreedy et al. (2017). The authors used the unique properties of Ni-based NPs as Ni ion suppliers and graphene as support materials. This is the first study with Ni-Gr-NC addition to the AD process. The results showed that 60 mg/L dosages caused a 105% increase in hydrogen production from other concentrations. The maximum specific hydrogen production obtained by Ni-Gr-NC (60 mg/L dose) was 294.24 ± 12.06 ml/L, see Figure 12. The hydrogenase enzyme activity affected by Ni ions in the presence of graphene resulted in an enhanced hydrogen yield. The summary of the reported nano-composites and their influence on biogas generation is shown in Table 7.

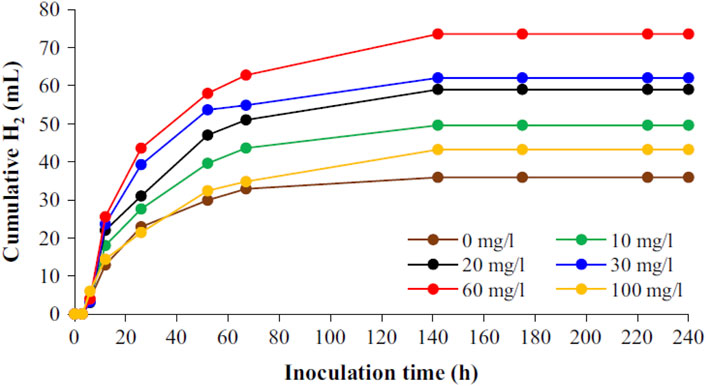

FIGURE 12. Cumulative hydrogen production at different concentrations of Ni-Gr NC (Elreedy et al., 2017).
Mansour et al. (2020) studied the effect of Ni-Co-Ferrite on biogas production and reported that these nano additives increase biogas production by about 30%. In another study, Hassaneen et al. (2020) proposed the use of a novel nanocomposite (based on metal enzyme cofactors, highly conductive carbon materials, and DIET activators) and tested different formulations for the enhancement of biogas production. Methane production was observed to boost by 185.3% using Zn ferrite.
Nano-ash
The influences of micro-nano fly and bottom ash attained from MSW incinerator on the AD of MSW were investigated by Lo et al. (2012) at mesophilic conditions (35°C) for 90 days. The concentrations used for micro-nano fly ash was 0.12, 3, 6, 18, and 30 g/g VS. whereas micro-nano bottom ash was used at the concentration of 0.6, 12, 36, 60, and 120 g/g VS Results indicated that micro-nano fly and bottom ash produced a significant enhancement in biogas generation. The inoculation of 36 g/g VS. bottom ash produced the highest amount of biogas production among all dosages, as shown in Figure 12. The authors mentioned that the presence of various compounds (Al2O3, ZnS, CaCO3, CaMg(CO3)2, Ca3SiO5, Ca(OH)2, PbO, SiO2, and Ca2SiO4) inside fly and bottom ash increased biogas production. The compounds present in the form of nano-substances supplied additional habitats for the microorganism. The summary of the reported nanoash and its influence on biogas generation is shown in Table 7.
Key challenges and way forward to nanomaterials augmentation in biogas production
Nanomaterials as additives to biomass were widely studied for biogas production enhancement, especially in the last decade. Unfortunately, their use may not always enhance biogas production, depending on many factors such as the size of nanomaterials, their concentration, and the type of substrate used. However, it is observed that nanomaterials used in the mixture tend to produce a much better effect on biogas production than separately used. Using different nanomaterials as a mixture and studying their interactions with different substrates could be a leading field research area in the years to come.
Furthermore, the environmental impact of NMs application with biomass for biogas production has not been discussed thoroughly, and climate concerns remain high for spent biomass with NMs. One of the significant challenges that need to be addressed urgently is that after utilizing NMs in AD, how to track them, and what would be the best methodology for dumping the waste and biomass that contains NMs? There is a possibility that spent biomass with a high concentration of NMs may prove beneficial for soil and help maintain a nutrient level in the soil. On the other hand, these nanomaterials can increase the toxicity of the area and can also mix with underground water. These aspects have to be answered in future studies. Moreover, multiple studies can be found on the feasibility and financial aspect of NMs application in biogas production throughout the literature. However, studies related to NMs in biomass applications’ environmental analysis and life cycle assessment are quite rare, which needs attention in future studies. The review and analysis of the available literature conducted in this study, the future direction, research area, and themes are depicted in Figure 3B. Currently, the most active countries working on nanotechnology-based biogas production as per citation record (minimum 100 documents and 100 citations) are presented in Figure 4. In addition, future guidelines may comprise the following:
1. In order to avoid the toxicity of the presently spent nanomaterials, causing an inhibitory effect on anaerobic bacteria, bioactive nanomaterials can be used for process improvement.
2. Recollecting spent nanomaterials at the end of the process remained a significant drawback for the environment and sustainability of their utilization in biogas or related applications. Avoiding the leak of nanomaterials in the natural resources and designing processes that limit this to happen should be the top priority for the implementation for large-scale production.
3. Optimization of nanomaterials for a wide range of sizes, doses, and shapes can be carried out to get the maximum advantage of nanotechnology for biogas and methane production.
4. Microalgae and lignocellulose biomass are potential feedstock for bioenergy production. However, the effect of NPs on these substrates can be carried out for improvement in biogas production.
5. Other commonly applied methods for biogas escalation, including pretreatment of substrate or inoculum and supplementation biological and inorganic additives, can be used in combination nanomaterials to get an overall energy gain.
Conclusion
By method of quantitative literature review, the impact of NMs on biogas production and methane yield is stated in this study. Several kinds of NMs have been investigated as additives in the AD process for biogas augmentation for various kinds of biodegradable wastes. For brevity, the eventual effect of nanomaterials and their positive or negative impacts on biogas generation are summarised in Table 8, which is concluded from the exhaustive literature review and presented from the materials’ point of view. Additionally, the following conclusions have been drawn from the reviewed literature.
• Metal NPs such as NZVI, Co., and Ni showed a positive effect on biogas yield. However, Ag NPs showed no inhibitory effect.
• Metal oxide NPs such as iron oxide (Fe2O3 and Fe3O4), Co3O4, NiO, MoO3 NPs showed an increase in biogas and methane production, whereas ZnO, TiO2, CeO2, and CuO NPs showed an inhibitory effect. In contrast, the literature showed MgO NPs showed a mixed effect.
• Nb-based compounds (NbO2, Nb3.49N4.56O0.44, and NbN) and nano-scale transition metal carbides (HfC, SiC, TiC, and WC) showed an enhancement in biogas yield.
• Carbon nanotubes showed a mixed effect. Single-walled CNTs showed no effect, whereas multiwall CNTs showed an increase in biogas production.
TABLE 8. Reported nanomaterials and their influence on biogas generation.
Author contributions
SK, AZ, and HA contributed to the conception and data collection of the study. SK and AZ wrote the first initial draft of the manuscript. MN performed a bibliometric technique for the data sets. All authors contributed to manuscript revision, read, and approved the submitted version.
Funding
The authors would like to express their appreciation for the support provided by the Scientific Research Deanship, Islamic University of Madinah, through the research program “Research Groups (first)” grant number 952.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Abbreviations
AD, Anaerobic Digestion; AGS, Anaerobic Granular Sludge; CM, Cattle Manure; COD, Chemical Oxygen Demand; DIET, Direct Interspecies Electron Transfer; EGSB, Expanded Granular Sludge Bed; EPS, Extracellular Polymeric Substance; HRT, Hydraulic Retention Time; ICZ, NZVI coated zeolite; MEG, Mono-Ethylene Glycol; MSW, Municipal Solid Waste; MWCNT, Multi-Walled Carbon Nanotubes; NC, Nano-composite; NM, Nanomaterials; NP, Nanoparticles; NW, Nanowires; NZVI, Nanoscaled Zero-Valent Iron; OMS, Octahedral Molecular Sieve; SWCNT, Single-Walled Carbon Nanotubes; TS, Total Solids; TSS, Total Suspended Solids; UASB, Up-flow Anaerobic Sludge Blanket; VFA, Volatile Fatty Acids; VS, Volatile Solids; WAS, Waste Activated Sludge.
