Anamar Miranda1
Damien Seyer1
Carla Palomino-Durand1
Houda Morakchi-Goudjil1Mathilde Massonie1Rémy Agniel1Hassan Rammal1,2
Emmanuel Pauthe1*†
Adeline Gand1*†- 1Equipe de Recherche sur les Relations Matrice Extracellulaire Cellules, Institut des Matériaux, CY Cergy-Paris Université, Cergy-Pontoise, France
- 2EFOR Healthcare Paris, Biocompatibility Platform, Levallois-Perret, France
The success of stable and long-term implant integration implies the promotion, control, and respect of the cell microenvironment at the site of implantation. The key is to enhance the implant–host tissue cross talk by developing interfacial strategies that guarantee an optimal and stable seal of soft tissue onto the implant, while preventing potential early and late infection. Indeed, implant rejection is often jeopardized by lack of stable tissue surrounding the biomaterial combined with infections which reduce the lifespan and increase the failure rate of implants and morbidity and account for high medical costs. Thin films formed by the layer-by-layer (LbL) assembly of oppositely charged polyelectrolytes are particularly versatile and attractive for applications involving cell–material contact. With the combination of the extracellular matrix protein fibronectin (Fn, purified from human plasma) and poly-L-lysine (PLL, exhibiting specific chain lengths), we proposed proactive and biomimetic coatings able to guarantee enhanced cell attachment and exhibiting antimicrobial properties. Fn, able to create a biomimetic interface that could enhance cell attachment and promote extracellular cell matrix remodeling, is incorporated as the anionic polymer during film construction by the LbL technic whereas PLL is used as the cationic polymer for its capacity to confer remarkable antibacterial properties.
1 Introduction
The trend to replace damaged or diseased biological materials by artificial organs is a current challenge in regenerative medicine. More particularly, in the case of tooth loss or limb amputation, percutaneous and permucosal implants, like dental implants, and intraosseous transcutaneous amputation prosthesis (ITAP) can be used to replace the missing organ. The use of dental implants has been generalized in biomedical treatments. The implantation of both dental implants and ITAP is expected to drastically increase in the coming years (Elani et al., 2018; Hoellwarth et al., 2020). These implants have the particularity of being anchored into the bone tissue and to breach the soft tissue barrier that protects the body from the outer environment. Owing to its high resistance to corrosion, biocompatibility, non-cytotoxicity, and mechanical properties, titanium (Ti) and Ti alloys are materials of choice for many orthopedic/dental implants and fixation devices (Mantripragada et al., 2013; Liu et al., 2017). The main issue related to these implants is the poor soft tissue attachment leading to a breach that is open for bacterial colonization and thus infections compromising the long-term implantation of the device. For example, peri-implantitis incidence is estimated to occur in 20%–45% after the implantation of dental prosthesis (Dixon and London 2019). These complications can increase the failure rate of implants and account for high medical costs (Affeld et al., 2012).
To overcome this problem, different strategies were developed to avoid bacterial infection and biofilm formation. These strategies are mainly based on the use of polymers that present intrinsic antibacterial properties, like chitosan or polyethylene glycol, or serve as a reservoir for a controlled delivery of antimicrobial molecules and peptides, antibiotics, or silver (Michl et al., 2015; Ramiasa et al., 2015; Croes et al., 2018). Alternative strategies aim to enhance soft-tissue sealing around the implant and thus reduce bacterial invasions and related infection. This includes modifications of the topography—roughness, porosity, and nanostructuration (grooves, nanotubes)—that increases the surface area and thus the surface available for soft tissue attachment (Zitzmann et al., 2002; Puckett et al., 2010; Atsuta et al., 2014); modification of surface chemistry increasing surface hydrophilicity (Kloss et al., 2011; Abdallah et al., 2017); and grafting of biomolecules like proteins fibronectin (Fn) or laminin (Oyane et al., 2011; Ghadhab et al., 2021) and adhesion peptides like RGD or laminin-derived peptides (Bellis 2011; Fischer et al., 2020).
In the context of biomedical applications, coatings formed by layer-by-layer (LbL) assembly are of growing interest due to their high versatility (Gribova et al., 2012). This technic is based on the alternate deposition of oppositely charged polyelectrolytes (Decher et al., 1992) that results in the formation of thin coatings that are easy to fabricate and can be deposited on any type of surface irrespective of their geometry and chemistry which makes them attractive for implant functionalization. Thin film properties can be easily modulated in terms of thickness, rigidity, and roughness and can be functionalized with bioactive molecules or serve as a reservoir for the controlled delivery of biomolecules to confer antibacterial properties or to improve eukaryotic cell adhesion, proliferation, and differentiation (Guan et al., 2016; Hartmann and Krastev 2017; Shi et al., 2017; Ouni et al., 2021).
Here we propose a bifunctional biomimetic LbL coating, able to enhance soft tissue sealing and to prevent bacterial adhesion and subsequent biofilm formation, obtained by the association of Fn, and poly-L-lysine (PLL). Fn, a 220-kDa glycoprotein constitutive of the extracellular matrix (ECM), known to play a key role in cell adhesion, spreading, and proliferation, is used as the polyanion for its proadhesive properties (García et al., 1999; Webb et al., 2000; Hynes 2002) and PLL, known for its antibacterial properties (Conte et al., 2007; Dubois et al., 2013), as the polycation. In a previous study, using a high molecular weight PLL (70–150 kDa), we have shown that it is possible to build enriched Fn thin films (Gand et al., 2017). We demonstrated that these films presented a novel sub-linear terminated growth and could enhance murine MC3T3-E1 pre-osteoblastic cell adhesion, spreading, and proliferation compared to an Fn monolayer. Nevertheless, these thin films show no antibacterial properties, most probably due to the high molecular weight of the PLL that prevents the polyelectrolyte to diffuse within or out of the film.
In the present study, thin films were thus constructed using a lower molecular weight PLL of 30 residues (PLL30) and analyzed and challenged toward cell response: effect on primary gingival fibroblast behavior and antibacterial effects on three different strains: Staphylococcus aureus, Staphylococcus epidermidis, and Streptococcus mutans. These strains were specifically selected, as S. aureus and S. epidermidis are the most common pathogens encountered in implant-related infection, representing 2/3 of the infections (Campoccia et al., 2006), and the oral pathogen S. mutans, a gram-positive coccus, is considered as the major pathogen in early-stage biofilm formation and initiation of dental caries. Recent studies showed that S. mutans colonize the subgingival region with an increase in the case of chronic periodontal disease (Dani et al., 2016; Laosuwan et al., 2018).
2 Materials and Methods
2.1 Fn Preparation
Fn is purified from human plasma following a three-step affinity chromatography process, as previously described by Poulouin et al. (1999). This purification process has been shown to provide a protein solution exhibiting a purity of about 98% (w/w). The Fn concentration is determined by optical absorbance measurement A1%280 nm = 12.8.
2.2 Thin Film Assembly
Films are constructed with Fn as polyanion and PLL with a specific chain length of 30 residues (2–3 kDa) as polycation either on 14-mm-diameter glass slides or on silicon crystals, pretreated with piranha solution (20% H2O2, 20% H2SO4). Briefly, film assembly occurs through an alternate deposition of 0.5 g/l PLL (PLL30, Alamanda Polymers, Huntsville, AL, USA) and 0.5 g/l Fn, in 5 mM phosphate buffer, pH 7.4. The exposure time was 5 min for PLL30 and 15 min for the first three layers of Fn and 8 min for the remaining layers. Each step is followed by three 1-min buffer rinse steps. For attenuated total reflection Fourier transform infrared spectroscopy (ATR-FTIR) experiments, PLL30 and Fn are dissolved in 5 mM deuterated phosphate buffer of pH 7.4, at a concentration of 0.5 g/l. For stimulated emission depletion (STED) microscopy experiments, samples were built on piranha-treated 12-mm (#1.5 thickness) glass coverslips, following the same procedure as previously mentioned.
2.3 Attenuated Total Reflection-Fourier Transform Infrared Spectroscopy
ATR-FTIR spectra were recorded using a Tensor 27 spectrophotometer (Bruker, Mannheim, Germany) equipped with an MCT detector. Polyelectrolyte and protein adsorption experiments were performed using a Horizontal ATR accessory (HATR, PIKE Technologies, Fitchburg, WI, USA) fitted with a 45° trapezoidal Silicon IRE (internal reflection element) crystal (80 mm × 10 mm × 2 mm). Protein and polyelectrolyte solutions in deuterated phosphate buffer were exposed to the crystal from 5 to 15 min, followed by 3 rinsing steps. All infrared spectra are an average of 64 collected scans recorded between 800 and 4,000 cm−1 with 2 cm−1 resolution, using Blackman–Harris three-term apodization and the Bruker OPUS software (version 7.2).
2.4 Scanning Electron Microscopy
Samples were washed with PBS (phosphate-buffered saline, Dulbecco’s®) 0.1 M pH 7.4 and fixed with glutaraldehyde 2% in PBS for 1 h at room temperature. After washing in 0.1 M cacodylate buffer pH 7.5, samples were dehydrated through a graded concentration of ethanol and critical point dried (CPD300, Leica, Wetzlar, Germany). Samples were mounted on SEM stubs, sputtered with 4 nm of Platinum (ACE600, Leica), and imaged using a field-emission gun scanning electron microscope (GeminiSEM 300, Carl Zeiss, Thornwood, NY, USA) with an acceleration voltage of 2 keV. Secondary electrons were collected.
2.5 Atomic Force Microscopy
Atomic force microscopy (BioScope Resolve, Bruker) was used to image the thickness, topography, and elasticity of the films in PBS 0.1 M pH 7.4 with a conical probe (70 nm radius, 0.112 N/m spring constant). Young’s Modulus values were recorded using the PeakForce Tapping mode at a rate of 2 kHz. Images were analyzed with Nanoscope Analysis software (Bruker).
2.6 Total Protein Quantification
Total protein quantification in (PLL-Fn)10 films was performed using bicinchoninic acid (BCA) assay as already described by Gossart et al. (2018). Briefly, samples were incubated in 120 µl of 2% sodium dodecyl sulfate (SDS) for 24 h at room temperature. The BCA assay was undertaken according to the manufacturer’s protocol (Thermo Scientific, Waltham, MA, USA).
2.7 Human Gingival Fibroblast Culture
2.7.1 Cell Line and Culture Media
Human gingival fibroblasts were isolated from healthy donors and kindly donated by Bios Laboratory at Reims University. Human gingival fibroblasts (HGF) in passaging <10 were cultured in Dulbecco’s modified Eagle’s medium-high glucose (DMEM) supplemented with 10% fetal bovine serum (Biosera, Shanghai, China), 1% penicillin–streptomycin (Gibco, Grand Island, NY, USA) and 1% sodium bicarbonate (Gibco) (complete medium).
2.7.2 Cell Cytotoxicity
(PLL30-Fn)10 films, Fn monolayers, PLL30 monolayers, and uncoated glass samples were prepared in sterile conditions. A total of 5,000 cells/cm2 were seeded under standard cell culture conditions (complete medium) and incubated at 37°C and 5% CO2 during 48 h. Cellular cytotoxicity was determined using the Pierce LDH cytotoxicity assay (Thermo Fisher Scientific) following the manufacturer’s protocol. Released LDH activity into the culture media was calculated by reading the absorbance of the samples at 490 nm.
2.7.3 Metabolic Activity
The metabolic activity of HGF was analyzed using the WST-1 colorimetric assay. A total of 5,000 cells/cm2 were seeded on sterile substrates using complete medium and incubated at 37°C and 5% CO2. After 2, 4, and 7 days, respectively, cells were washed with PBS (2×) and incubated in fresh medium with 10% WST-1 reagent (Sigma, St. Louis, MO, USA) at 37°C and 5% CO2 for 30 min. The absorbance was measured at 440 nm, to determine the amount of formazan dye formed that is directly proportional to the amount of mitochondrial dehydrogenase into the given culture.
2.7.4 Cell Proliferation/DNA Mass Quantification
DNA content was measured using CyQUANT Cell Proliferation Assay (Invitrogen, Carlsbad, CA, USA). Dried substrates were frozen at −80°C and subsequently thawed at room temperature. A volume of 200 μl of the CyQUANT® GR dye/cell-lysis buffer, prepared following the manufacturer’s protocol, was added to the samples and incubated at room temperature for 5 min protected from light. The fluorescence of the supernatant was measured at 485 nm.
2.7.5 Cell Morphology
A total of 5,000 cells/cm2 were seeded on sterile substrates using complete medium and incubated at 37°C and 5% CO2 during 4 h. Cells were fixed with a 4% (w/v) p-formaldehyde solution in PBS (Sigma) for 10 min at room temperature and permeabilized with 0.2% (v/v) Triton X-100 (Sigma) for 15 min. Non-specific binding sites were blocked with a 0.5% bovine serum albumin (BSA) solution in PBS for 30 min. The nuclei of cells were revealed by incubating the samples with 0.5 μg/ml 4,6-diamidino-2-phenylindole dihydrochloride (DAPI, Sigma) diluted in 0.5% BSA in PBS for 1 h at room temperature. The cytoskeleton of cells was visualized with a 5-μg/ml phalloidin-FITC (Sigma) solution in 0.5% BSA in PBS for 45 min. Focal adhesions of cells were analyzed by incubating the samples with 100 μg/ml mouse polyclonal anti-vinculin antibody (Sigma) dissolved in 0.5% BSA in PBS. Specifically, bound antibodies were revealed incubating the samples with 100 μg/ml TRITC-coupled secondary antibodies (Sigma) dissolved in 0.5% BSA in PBS for 1 h. Samples were washed with PBS, mounted in ProLong™ Gold (Invitrogen), and examined using a LSM710 confocal microscope (Carl Zeiss).
2.7.6 Fn Reorganization
To analyze the reorganization of Fn within the films, substrates were built using fluorescently labeled Fn (Fn*) with Alexa Fluor 568. A total of 5,000 HGF/cm2 were seeded on the samples using complete medium and incubated at 37°C and 5% CO2 during 2, 4, and 7 days, respectively, and immunostained as previously described (Section 2.7.5). For STED microscopy experiments, mouse monoclonal anti-vinculin V9131 (Sigma-Aldrich) diluted 1:400 in PBT (PBS + 0.1% Tween 20 + 2% BSA) was used to control focal adhesion formation, and the samples were incubated for 45 min at room temperature. Mouse Abberior STAR RED (Abberior, Göttingen, Germany) diluted 1:200 in PBT was added to the samples as secondary antibody and incubated for 1 h at room temperature. Substrates were washed with PBS (3×) for 15 min and mounted on microscope slides using Abberior Mount Liquid. Samples were examined using Abberior STEDYCON attached to a Zeiss Axio Imager.
2.8 Antibacterial Properties
2.8.1 Bacterial Strains and Growth Conditions
Staphylococcus aureus (CIP 4.83) and Staphylococcus epidermidis (CIP 105.777) were obtained from the “Collection de l’Institut Pasteur Paris” and Streptococcus mutans (DSM 20523) was obtained from the DSMZ-German collection. Bacterial cultures were stored in Tryptic Soy Broth (TSB, BD™ Biosciences, San Jose, CA, USA) containing 20% glycerol at −20°C. Prior to use in adherence experiments, bacterial suspensions were prepared in sterile TSB and grown overnight at 37°C and 200 rpm.
2.8.2 Bacterial Adhesion
The optical density (OD) of the S. aureus, S. epidermidis, and S. mutans suspensions was measured with a spectrophotometer at λ = 600 nm and the concentration adjusted to 106 CFU/ml in all cases. A volume of 1 ml of bacterial suspension in PBS was added to the sterile substrates and incubated at 37°C for 2 h. Non-adherent cells were removed by rinsing the substrates (2×) with 0.9% (w/v) NaCl solution. Adherent cells were recovered by sonication in 0.5 ml (2×) 0.9% (w/v) NaCl solution, and the supernatant was serially diluted 1:10 to obtain concentrations of 10°, 10–1, and 10–2 CFU/ml, respectively. A volume of 100 µl of each dilution was pipetted, spread on agar plates (Tryptic Soy Agar, TSA), and incubated at 37°C for 16–48 h. The viable number of bacteria was estimated within a countable range (30–300 CFU per plate). For LIVE/DEAD experiments, BacLight™ Bacterial Viability Kit (Thermo Fisher Scientific) was employed. BacLight solution (3 μl) was diluted into 1 ml of Milli-Q water and added to the samples for 20 min protected from light. The substrates were washed with Milli-Q water and mounted in ProLong™ Gold (Invitrogen). Attached bacteria were viewed using a LSM710 confocal microscope (Carl Zeiss), with live and dead cells visualized in green and red, respectively.
2.9 Statistical Analysis
Statistical analysis was performed using GraphPad Prism software (San Diego, CA, USA), and an analysis of variance (ANOVA) or independent samples t-test was used. Where appropriate, the statistical significance was reported for p < 0.05. All experiments were repeated in triplicate with three technical replicates for each experimental value.
3 Results
3.1 Thin Film Properties
3.1.1 LbL Film Assembly
Thin film assembly was assessed by attenuated total reflection-Fourier transform infrared (ATR-FTIR) spectroscopy (Müller et al., 1998). Figure 1A shows the evolution of the infrared spectra corresponding to the sequential adsorption of PLL30 and Fn at 0.5 mg/ml in deuterated phosphate buffer or deuterated water, on silicon wafer. Similar results were obtained in both buffers, suggesting that the presence of phosphate ions has no influence on film assembly. As previously described, it is possible to follow the alternate deposition of PLL and Fn and subsequently the film construction following the Amide I′ band (1,610–1,700 cm−1) corresponding to the peptide carbonyl stretching modes ν(CO) (Gand et al., 2017). The intensity of the Amide I′ band increases with the number of layers. However, the absorbance related to Fn adsorption is significantly higher compared to PLL30, suggesting high adsorption of Fn with low adsorption of PLL30. This result proves that low molecular weight PLL does not compromise thin film assembly. When plotted against the number of layers, the integrated area of the amide I′ band increases. However, whereas film growth appears linear from 2 to 7 bilayers, its progression starts to diminish after 8 bilayers, with a significant decrease in incremental adsorption. After 10 bilayers, a plateau is reached (Figure 1B). PLL30-Fn LbL assembly results in sub-linear, saturating growth, as previously observed with high molecular weight (HMW) PLL (70–150 kDa). If we compare the Amide I′ band area of films constructed with PLL30 or PLL70-150 at the same concentration of 0.5 mg/ml, we can observe higher values when films are built with PLL30 (70 cm−1) than with high molecular weight PLL (40 cm−1). Moreover, with the high molecular weight PLL, the film stalls clearly after a maximum of 5 bilayers, suggesting higher Fn and PLL adsorption when a low molecular weight PLL is used (Supplementary Figure S1). As the film stops growing after 10 bilayers, the following experiments were performed on (PLL30-Fn)10 films built on glass slides. The quantity of total protein adsorbed on glass substrates in (PLL30-Fn)10 was assessed by BCA assay, and the results show a protein adsorption of 16 μg/cm2.
FIGURE 1. Layer-by-layer film assembly followed by ATR-FTIR: (A) ATR-FTIR spectra acquired during the buildup of a (PLL30-Fn)10 LbL thin film, after each adsorption of PLL30 (blue) and after each adsorption of Fn (red). The film was constructed on a silicon crystal. The amide I′ band (1,600–1,700 cm−1) and amide II′ band (1,540–1,600 cm−1) are represented. (B) Evolution of the Amide I′ band area measured by ATR-FTIR during multilayer film formation. The amide I′ band area measured after each PLL30 adsorption is shown. The vertical lines represent the estimated error on each point.
3.1.2 Surface Morphology and Thickness
The organization and characterization of the (PLL30-Fn)10 film were evaluated based on images from fibronectin fluorescent labeling (Figure 2A), scanning electron microscopy (Figure 2B), and atomic force microscopy (Figure 2C). Images show that the surface of the glass substrate is completely covered by the film. At a large scale, a complete and consistent distribution of Fn in all the film dimensions is evident (Figure 2A). However, whereas the surface is totally covered, the organization of the molecular polymer and the film appears heterogeneous at a smaller scale, with the presence of aggregates of different sizes, ranging from 1 to 10 µm. The same observations can be made with atomic force microscopy (AFM) images. The presence of these aggregates, and the heterogeneity in their distribution and organization, renders difficult the calculation of the roughness of the surface. Considering zones without large aggregates, it is possible using AFM images to estimate film thickness. An average thickness ranging from 200 to 300 nm is found, which is very thin. However, the thickness can go up to 700 nm to 1 µm in zones containing large aggregates. Some rigidity parameters of elements constituting the films can be estimated with AFM measurement of the Young’s modulus (Figure 2D). The images obtained exhibit high rigidity of the homogeneous film distributed around the aggregates (up to 46 MPa Figure 2D, black arrows), whereas aggregates show lower rigidity values (5–30 kDa Figure 2D, gray arrows). Such large structures were already observed with HMW PLL and could result from molecule self-assembly (protein or polyelectrolyte polymers) (Gand et al., 2017). The Young’s modulus values obtained are in accordance with values of protein aggregates that could range from 15 to 30 MPa (Lam and Ikeda 2017) which is lower than values obtained when proteins are self-assembled into fibrils (GPa) (Gilbert et al., 2017).

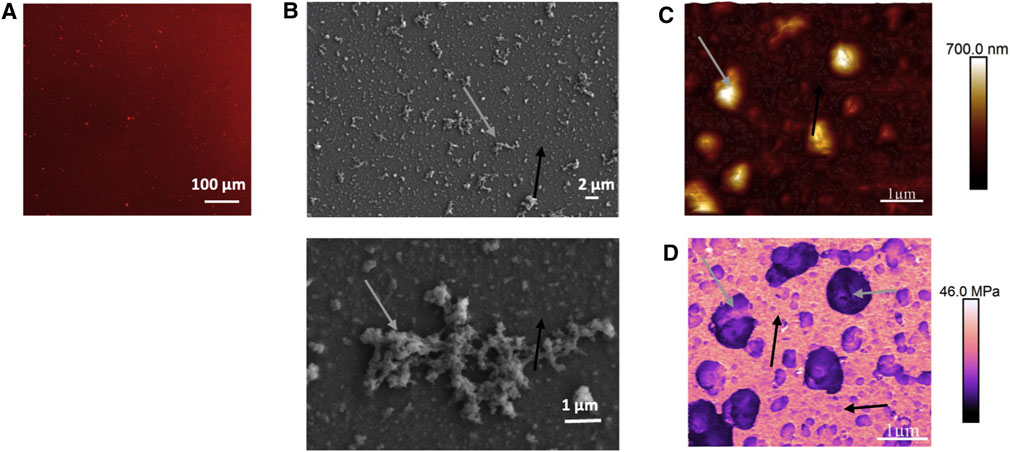

FIGURE 2. Fluorescent microscopy (A), scanning electron microscopy (B), and atomic force microscopy (C) representative images showing (PLL30-Fn)10 thin film surface organization and morphology. (D) Young’s modulus measurement of (PLL30-Fn)10 thin films obtained by AFM. For (A), Fn is fluorescently labeled with Alexa Fluor 568.
3.2 Primary Gingival Fibroblast Behavior on PLL30-Fn Thin Films
3.2.1 Cell Morphology and Thin Film Cytotoxicity
To explore the potential of (PLL30-Fn)10 thin films as proadhesive coatings on percutaneous permucosal implants, HGF behavior was investigated. The morphology of HGF after 48 h of incubation was observed by confocal and optical microscopy (Figure 3A). In contact with the (PLL30-Fn)10 film, fibroblasts show a typical elongated morphology with abundant actin filaments. Similar results were observed on the Fn monolayer and glass control. In contrast, on PLL30 coating cells are round-shaped or assembled in circular aggregates, which suggests that the PLL monolayer constitutes a stressful environment. In addition, LDH assay was done to evaluate the cytotoxicity of the (PLL30-Fn)10 film. Results are expressed by normalizing the LDH released by the quantified DNA (Figure 3B). LDH/DNA values of the (PLL30-Fn)10 film, Fn monolayer, and glass are similar, which demonstrates that all these coatings are non-cytotoxic. In comparison, the LDH/DNA value of PLL30 coating is higher and statistically different (p < 0.05), which confirms its cytotoxicity.

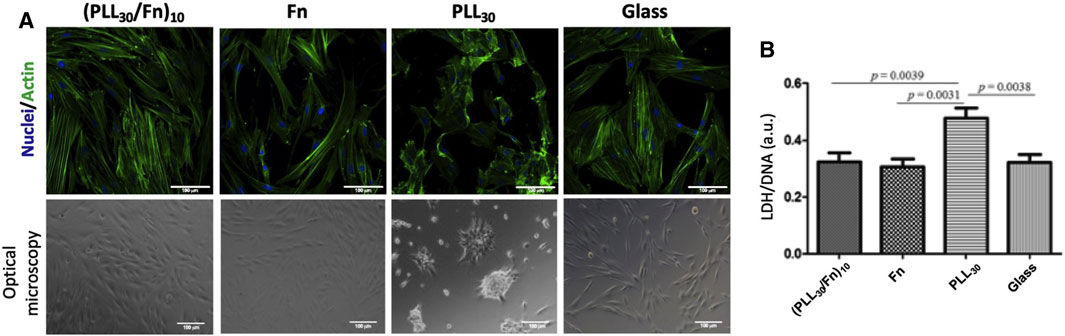

FIGURE 3. Morphology and cytotoxicity of human gingival fibroblasts (HGF) on (PLL30-Fn)10 films, Fn monolayer, PLL30 coating, and glass coverslip after 48 h of incubation. (A) Morphology observations of HGF stained for nuclei (DAPI—blue) and actin (Phalloidin—green) on the first line. Micrographs of optical microscopy of HGF on the second line. Typical fibroblastic morphology on (PLL30-Fn)10 films compared to positive control (glass). PLL30 coating shows a stressful environment for cells. Scale bar = 100 µm. (B) Cell cytotoxicity obtained by LDH assay. Results were normalized with DNA quantification (CyQUANT™). (PLL30-Fn)10 films are non-cytotoxic compared to positive control (glass). Statistically different at p < 0.05.
3.2.2 Cell Proliferation and Metabolic Activity
HGF cell behavior was assessed by cell proliferation (Figures 4A–C) and metabolic activity (Figures 4D–F) at 2, 4, and 7 days of incubation. As PLL30 coating demonstrated cytotoxicity, cell behavior was evaluated only in (PLL30-Fn)10 films and the Fn monolayer. Figures 4A,D show the HGF proliferation kinetic obtained by DNA quantification (CyQUANT™) and metabolic activity of HGF obtained by WST-1 assay, respectively. An increase in cell proliferation (Figure 4A) and metabolic activity (Figure 4D) is observed in each condition. Figures 4B,C focus on the results obtained on day 2 and day 7 respectively and show in a more detailed fashion the values of fluorescence intensity of cell proliferation. Two days after cell seeding, cell proliferation is significantly higher for (PLL30-Fn)10 films compared to glass control and the same trend is observed 7 days post-seeding. Yet there is no significant difference in proliferation between (PLL30-Fn)10 films and the Fn monolayer at 7 days of incubation. The metabolic activity (Figures 4E,F) revealed a similar tendency at 2 and 7 days; thus, the increase in metabolic activity is directly related to cell proliferation.

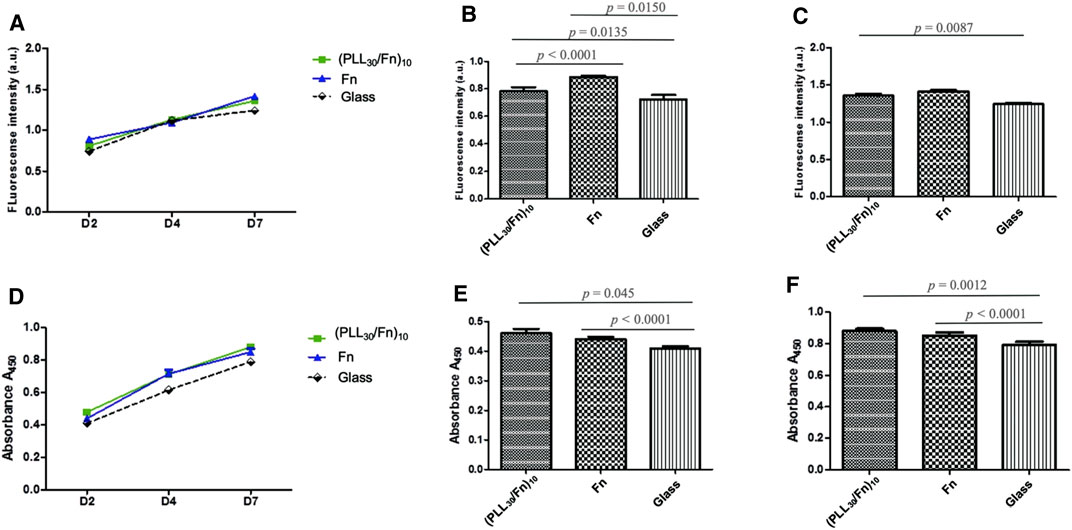

FIGURE 4. Proliferation and metabolic activity of human gingival fibroblasts (HGF) on (PLL30-Fn)10 films, Fn monolayer, and glass coverslip. (A) CyQUANT™ results of cell proliferation of HGF at 2, 4, and 7 days of incubation. Histograms representing more in detail cell proliferation at 2 days (B) and 7 days (C) of incubation. (D) WST-1 quantitation of metabolic activity of HGF on different conditions over time. Histograms representing more in detail metabolic activity corresponding to 2 days (E) and 7 days (F) of incubation. Statistically different at p < 0.05.
3.2.3 Cell Adhesion
Adhesion of HGF on (PLL30-Fn)10 films and the Fn monolayer was evaluated at 4 h of incubation by immunostaining. Cells were stained for cellular structures as nucleus, actin, and vinculin and visualized by confocal microscopy (Figure 5). Vinculin is a component of focal adhesion, and the presence of this molecule would give more information about the cell–matrix interaction. In (PLL30-Fn)10 films, Fn monolayer, and glass control, cells present abundant actin fibers arranged in bundles. Likewise, lamellipodia formation is more prominent in (PLL30-Fn)10 films compared to the Fn monolayer. Vinculin is mainly distributed at the cytoplasm on the Fn monolayer whereas in the case of (PLL30-Fn)10 films and glass control, vinculin is present not only at the cytoplasm but also in majority at the cell periphery. Therefore, an increase in the vinculin beams was remarkable in (PLL30-Fn)10 films compared to the Fn monolayer. These results strongly suggest a better cell–matrix interaction between HGF and (PLL30-Fn)10 films.

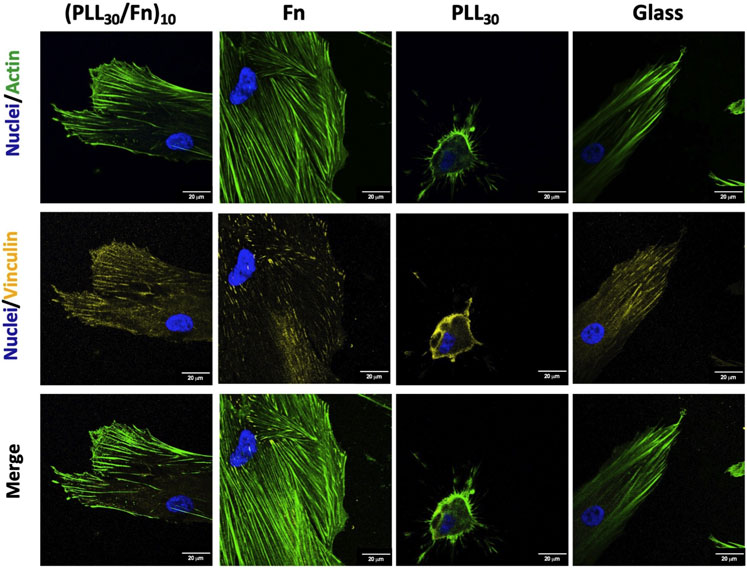

FIGURE 5. Representative fluorescence microscopy images of cell adhesion of human gingival fibroblasts (HGF) on (PLL30-Fn)10 films, Fn monolayer, PLL30 coating, and glass coverslip analyzed by immunostaining: nuclei (DAPI-blue), actin (phalloidin-green), and vinculin (TRITC-yellow) after 4 h of incubation. Scale bar = 20 μm.
3.2.4 (PLL30-Fn)10 Film Remodeling
Fn reorganization within (PLL30-Fn)10 films and the Fn monolayer by HGF was observed by confocal microscopy using fluorescently labeled Fn during film assembly. A complete and homogeneous distribution of Fn (red) on the glass substrate was observed for (PLL30-Fn)10 thin films and the Fn monolayer (Supplementary Figure S2). Fn is reorganized into fibrils in both (PLL30-Fn)10 films and the Fn monolayer after 2 days of cell culture (Figure 6A). As previously described (Gand et al., 2017), a decrease in non-assembled Fn was demonstrated after 4 days of cell culture until complete rearrangement in fibrils at 7 days for the Fn monolayer. In comparison, the quantity of the remaining non-assembled Fn after 7 days of cell culture is significantly higher in (PLL30-Fn)10 films with the presence of Fn fibrils. (PLL30-Fn)10 films could thus provide a long-term reservoir of Fn. Formation of Fn fibrils by HGF demonstrates the presence of focal adhesions and the direct interaction between intracellular components and extracellular support (Pompe et al., 2005).
FIGURE 6. (A) Fn reorganization by human gingival fibroblasts (HGF) on the Fn monolayer and (PLL30-Fn)10 films. Cells were cultured for 2, 4, and 7 days and stained for nuclei (DAPI—blue). (PLL30-Fn)10 films exhibit an increase in Fn fibril formation over time. Scale bar = 100 μm. (B) Distribution of focal adhesion sites of HGF cells on Fn monolayer and (PLL30-Fn)10 films analyzed by immunostaining of vinculin (Star Red—yellow) and nuclei (DAPI—blue). The second column corresponds to magnified images of the white rectangles of the first column. Vinculin is particularly linked to Fn fibrils in (PLL30-Fn)10 films. Scale bar = 10 μm. Fn was previously labeled with Alexa Fluor 568 for both analyses.
To better understand the cell–matrix interaction between HGF and extracellular Fn, focal adhesions were evaluated by vinculin immunostaining. Figure 6B shows the interaction of vinculin and Fn in (PLL30-Fn)10 films and the Fn monolayer. The focal adhesion is significantly higher in (PLL30-Fn)10 films compared to the Fn monolayer (Figure 6B). Interestingly, focal adhesions co-localized with Fn fibers and seemed to follow Fn fibril orientation. This behavior was not observed in the Fn monolayer despite the presence of Fn fibrils and could explain the decrease in vinculin signal after 7 days of cell culture. These images suggest a focal adhesion pattern between vinculin and Fn fibrils in the synthetic matrix.
3.3 Antibacterial Effect of (PLL30-Fn)10 Thin Films
We tested the adhesion of three bacterial strains S. aureus, S. epidermidis, and S. mutans, on glass, Fn or PLL30 coatings, and (PLL30-Fn)10 thin film. The number of adherent bacteria after 2 h was determined, and results are normalized to bacterial adhesion on glass slides (Figure 7A). First, we observe that bacterial adhesion is increased to about 140% for the three strains on Fn coatings. This result was expected as it has been reported that bacteria possess adhesive molecules able to recognize immobilized Fn. S. epidermidis adhere to Fn via teichoic acid, an essential component of the S. epidermidis cell wall (Hussain et al., 2001). S. aureus and S. mutans adhesion to Fn is mediated by FnBPA/B and SmFnB, respectively, Fn binding proteins, known as surface adhesin proteins from the MSCRAMM family (microbial surface components recognizing adhesive matrix molecules) (Foster and Höök 1998; Chia et al., 2000; Mongodin et al., 2002). PLL30 monolayer coating diminishes bacterial adhesion to 40%–50%, which is consistent with previous studies where PLL has been shown to have antibacterial effects in solution or coated on surfaces (Conte et al., 2007; Colville et al., 2010; Dubois et al., 2013). The association of the two molecules forming a polyelectrolyte multilayer film (PLL30-Fn)10 leads to a similar adhesion of S. mutans and S. epidermidis compared to the PLL30 monolayer, but surprisingly, (PLL30-Fn)10 totally inhibits S. aureus adhesion to the surface. In order to confirm these results, the different samples were stained with LIVE/DEAD dyes to visualize adherent bacteria. Figure 7B shows LIVE/DEAD staining of S. aureus on glass, Fn or PLL30 coatings, and (PLL30-Fn)10 thin film. On glass slides, S. aureus adhere and tend to form cluster in grapes with the presence of very few dead bacteria. A similar behavior is observed on Fn coating, but in this case, the number of adherent bacteria is higher, bacteria in division are visible, and there are no dead cells on the surface. On the contrary, on PLL30 coating, bacteria appear more isolated and the number of adherent cells is clearly diminished compared to glass or Fn coating with an increase in dead bacteria. Finally, on (PLL30-Fn)10 thin film, no colony is observed on the entire surface, and only bacterial debris remained, confirming the strong anti-adhesive properties of the modified surface. The (PLL30-Fn)10 thin film prevents bacterial adhesion of S. epidermidis and S. mutans but to a lesser extent than what is observed with S. aureus (Supplementary Figure S3).

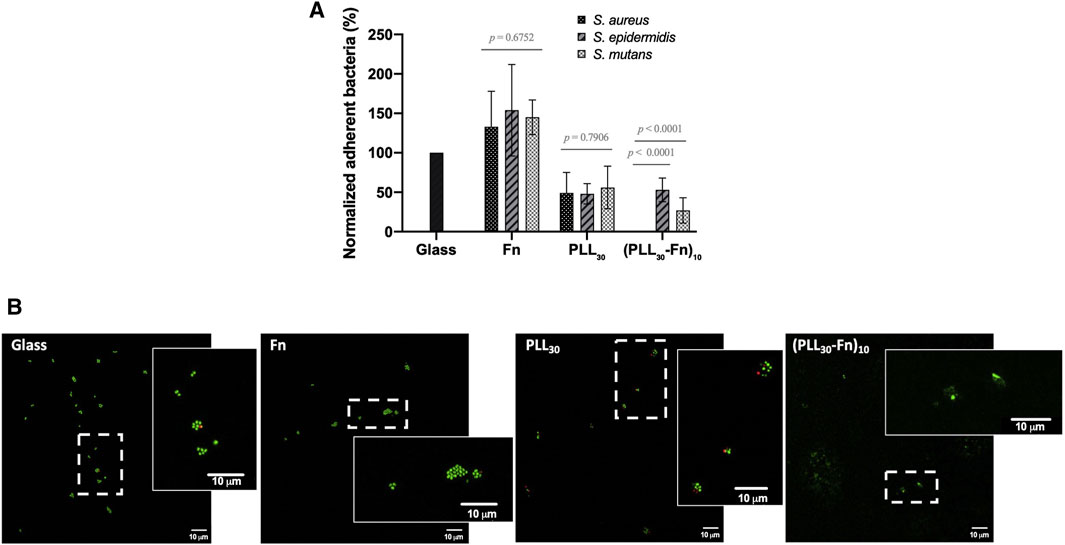

FIGURE 7. Bacterial attachment on glass, Fn monolayer, PLL30 monolayer, and (PLL30-Fn)10 thin films after 2 h of incubation. (A) Percentage of adherent S. aureus, S. epidermidis, and S. mutans on Fn monolayer, PLL30 monolayer, and (PLL30-Fn)10 films normalized to bacteria adhered on glass (n = 7). No S. aureus are found to adhere to (PLL30-Fn)10 thin films. Data are normalized for each strain to their respective glass control mean. Error bars indicate the standard deviation on the mean normalized data. (B) Representative images of LIVE/DEAD staining of adherent S. aureus on glass, Fn monolayer, PLL30 monolayer, and (PLL30-Fn)10 thin films (n = 3). The magnified captions correspond to the area surrounded by dashed rectangles in the original images. Note: Green indicates live bacteria, red indicates dead bacteria. Scale bar = 10 μm. Statistically different at p < 0.05.
4 Discussion and Conclusion
One of the main challenges in biomaterial implantation is the correct bio-integration that conditions the successful performance of the implant in the human body. In the context of percutaneous permucosal prosthesis, like dental implants or ITAP, implantation is often compromised by loose soft tissue–implant interaction and subsequent bacterial infection. The success of biomaterial integration is conditioned by the type of cells that will first attach to the surface: eukaryotic cells have to adhere primarily to bacterial adhesion, which constitutes a “race to the surface.” There is therefore a crucial need to improve implant–host tissue cross talk by developing interfacial strategies that will enhance soft-tissue sealing and prevent bacterial adhesion.
In the last decades, there has been increasing interest in the functionalization of surfaces with Fn, by direct adsorption or grafting on different surfaces, to enhance cell adhesion, proliferation, and spreading (Toworfe et al., 2004; Middleton et al., 2007; Daum et al., 2020). In particular, Ghadhab et al. (2021) showed that Ti surfaces functionalized with covalently grafted Fn enhance dermal fibroblast adhesion, spreading, and proliferation and that the adhesion strength between the functionalized material and a bioengineered dermal tissue is higher (Ghadhab et al., 2021). Recently, studies focused on the use of Fn in combination with other molecules in order to create 3D biomimetic environments to enhance cell attachment (Ngankam et al., 2004; Zanina et al., 2011) and cytocompatibility for tissue engineering (Ravi et al., 2013; Mauquoy and Dupont-Gillain 2016).
Bacterial adhesion to the implant surface constitutes the first step to biofilm formation at the implantation site. This can lead to infections that can induce implant failure and in the worst case to amputation or death. It is thus of primary interest to find material/interfaces with anti-adhesive properties. Surface contamination occurs mainly during surgery and comes from the environment or from the patient himself (from the skin and gut microbiote, or from human blood microbiote) (Ribeiro et al., 2012). To prevent postimplantation infections, antibiotics are systematically used in prophylaxis, but in the last decades antibiotic-resistant strains had emerged and constitute a major concern for the World Health Organization (Tacconelli et al., 2018). Alternative strategies using natural molecules or polypeptides are therefore finding growing interests.
Based on these findings, we developed a bifunctional coating that favors cell adhesion and prevents bacterial attachment, combining Fn and low molecular weight PLL in an LbL architecture. Here we show that it is possible to create an interface enriched in Fn, biomimetic of the ECM, via direct incorporation of Fn during LbL assembly. This is of particular interest as deposition of Fn on a surface leads to a monolayer with a limited adsorption (∼250 ng/cm2 on a silica surface) (Baujard-Lamotte et al., 2008) and Fn adsorption on top of an Fn monolayer is impossible (Gand et al., 2017) whereas a high quantity of Fn, around 16 μg/cm2, is reached in (PLL30-Fn)10 thin films. Hence, thin films could constitute a reservoir for Fn and PLL molecules. PLL has been chosen to bring the antibacterial properties as cationic polymers have been shown to disrupt the bacterial membrane leading to the leakage of intracellular substances and therefore to the death of bacteria (Carmona-Ribeiro and de Melo Carrasco, 2013; Huang et al., 2016). Recent studies have shown that LbL thin films containing polycationic polymers exhibit antimicrobial properties and that these properties are driven by the polycation molecular weight. Mutschler et al. have shown that low molecular weight poly-arginine (PAR30, 30 residues) associated with hyaluronic acid (HA) in thin coatings displays high antibacterial activity compared to high molecular weight PAR (PAR100 or PAR200), due to the ability of PAR30 to diffuse at the surface of the film and to interact with bacteria (Mutschler et al., 2016). Similar results were obtained by Alkekhia D. and Anita Shukla A.: thin films built with the combination of PLL and HA inhibited 60%–70% S. aureus attachment compared to the uncoated surface. Anti-adhesive properties are brought by HA while PLL is suggested to inhibit bacterial growth (Alkekhia and Shukla 2019). As PLL-Fn thin films built with high molecular PLL (70–150 kDa) showed no antibacterial properties, we decided to use a low molecular weight PLL composed of 30 residues. PLL30 simple coating constitutes a cytotoxic, stressful environment for HGF, but in association with Fn, this negative effect totally disappears and (PLL30-Fn)10 thin films enhance HGF adhesion and proliferation compared to glass slides. Nevertheless, in future studies, it could be interesting to explore other structures of PLL, like dendrigraft PLL, or DGLs, known to present lower cytotoxicity while exhibiting high antibacterial activity (Francoïa and Vial 2018). HGF on (PLL30-Fn)10 thin films present a higher amount of focal adhesion compared to glass or Fn coatings, suggesting stronger adhesion of cells to the surface. Focal adhesion generates traction force that will participate in the remodeling of Fn within the thin film. If Fn conformation and integrin-binding site accessibility play a key role in early cell adhesion, Lin et al. have shown that protein reorganization carried out by cells enhances long-term cell adhesion and that protein adsorption force on a biomaterial is directly related to surface chemistry (Lin et al., 2015).
Finally, (PLL30-Fn)10 thin films prevent S. aureus bacterial initial attachment and significantly reduce S. epidermidis and S. mutans adhesion compared to bare surfaces. The impact on S. aureus adhesion is also stronger on (PLL30-Fn)10 thin films compared to the PLL30 monolayer, showing that thin films constitute a reservoir for the delivery of PLL30. Bacterial adhesion being the initial step toward biofilm formation on biomaterials, prevention of bacterial attachment could have a strong impact on implant-related infections. The potential of (PLL30-Fn)10 films to limit biofilm development of the three bacteria will be investigated any further in coculture with HGF.
These findings shed light on the potential of thin films, constructed with Fn and PLL30, to enhance cell adhesion and favor material-tissue integration while avoiding bacterial attachment.
Data Availability Statement
The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding authors.
Author Contributions
AG and EP contributed to the conception and supervision of the study. DS contributed to the design of antimicrobial activity. HR contributed to the development of cell gingival response. AM, DS, CP-D, MM, HR, HM-G, and RA contributed to the experiments. CP-D and HR performed the statistical analysis. AM and AG wrote the first draft of the manuscript. All authors contributed to the manuscript revision and read and approved the submitted version.
Funding
This work has been realized by the facilities of the Plateforme Microscopies & Analyses, Federation I-Mat (FR4122) of CY Cergy Paris Université (France).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Acknowledgments
The authors graciously acknowledge Pr Halima Kerdjoudj (Bios Laboratory, Université de Reims) for the kind gift of human gingival fibroblasts.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fbioe.2021.807697/full#supplementary-material
References
Abdallah, M.-N., Badran, Z., Ciobanu, O., Hamdan, N., and Tamimi, F. (2017). Strategies for Optimizing the Soft Tissue Seal Around Osseointegrated Implants. Adv. Healthc. Mater. 6 (20), 1700549. doi:10.1002/adhm.201700549
Affeld, K., Grosshauser, J., Goubergrits, L., and Kertzscher, U. (2012). Percutaneous Devices: A Review of Applications, Problems and Possible Solutions. Expert Rev. Med. Devices 9 (4), 389–399. doi:10.1586/erd.12.25
Alkekhia, D., and Shukla, A. (2019). Influence of Poly‐ L ‐lysine Molecular Weight on Antibacterial Efficacy in Polymer Multilayer Films. J. Biomed. Mater. Res. 107 (6), 1324–1339. doi:10.1002/jbm.a.36645
Atsuta, I., Ayukawa, Y., Furuhashi, A., Ogino, Y., Moriyama, Y., Tsukiyama, Y., et al. (2014). In Vivo and In Vitro Studies of Epithelial Cell Behavior Around Titanium Implants with Machined and Rough Surfaces. Clin. Implant Dentistry Relat. Res. 16 (5), 772–781. doi:10.1111/cid.12043
Baujard-Lamotte, L., Noinville, S., Goubard, F., Marque, P., and Pauthe, E. (2008). Kinetics of Conformational Changes of Fibronectin Adsorbed onto Model Surfaces. Colloids Surf. B: Biointerfaces 63 (1), 129–137. doi:10.1016/j.colsurfb.2007.11.015
Bellis, S. L. (2011). Advantages of RGD Peptides for Directing Cell Association with Biomaterials. Biomaterials 32 (18), 4205–4210. doi:10.1016/j.biomaterials.2011.02.029
Campoccia, D., Montanaro, L., and Arciola, C. R. (2006). The Significance of Infection Related to Orthopedic Devices and Issues of Antibiotic Resistance. Biomaterials 27 (11), 2331–2339. doi:10.1016/j.biomaterials.2005.11.044
Carmona-Ribeiro, A., and de Melo Carrasco, L. (2013). Cationic Antimicrobial Polymers and Their Assemblies. Ijms 14 (5), 9906–9946. doi:10.3390/ijms14059906
Chia, J.-S., Yeh, C.-Y., and Chen, J.-Y. (2000). Identification of a Fibronectin Binding Protein from Streptococcus Mutans. Infect. Immun. 68 (4), 1864–1870. doi:10.1128/IAI.68.4.1864-1870.2000
Colville, K., Tompkins, N., Rutenberg, A. D., and Jericho, M. H. (2010). Effects of Poly(l-Lysine) Substrates on Attached Escherichia Coli Bacteria. Langmuir 26 (4), 2639–2644. doi:10.1021/la902826n
Conte, M., Aliberti, F., Fucci, L., and Piscopo, M. (2007). Antimicrobial Activity of Various Cationic Molecules on Foodborne Pathogens. World J. Microbiol. Biotechnol. 23 (12), 1679–1683. doi:10.1007/s11274-007-9415-6
Croes, M., Bakhshandeh, S., van Hengel, I. A. J., Lietaert, K., van Kessel, K. P. M., Pouran, B., et al. (2018). Antibacterial and Immunogenic Behavior of Silver Coatings on Additively Manufactured Porous Titanium. Acta Biomater. 81 (November), 315–327. doi:10.1016/j.actbio.2018.09.051
Dani, S., Prabhu, A., Chaitra, K., Desai, N., Patil, S., and Rajeev, R. (2016). Assessment of Streptococcus Mutans in Healthy versus Gingivitis and Chronic Periodontitis: A Clinico-Microbiological Study. Contemp. Clin. Dent 7 (4), 529–534. doi:10.4103/0976-237X.194114
Daum, R., Visser, D., Wild, C., Kutuzova, L., Schneider, M., Lorenz, G., et al. (2020). Fibronectin Adsorption on Electrospun Synthetic Vascular Grafts Attracts Endothelial Progenitor Cells and Promotes Endothelialization in Dynamic In Vitro Culture. Cells 9 (3), 778. doi:10.3390/cells9030778
Dixon, D. R., and London, R. M. (2019). Restorative Design and Associated Risks for Peri‐implant Diseases. Periodontol. 2000 81 (1), 167–178. doi:10.1111/prd.12290
Dubois, A. V., Midoux, P., Gras, D., Si-Tahar, M., Bréa, D., Attucci, S., et al. (2013). Poly-L-Lysine Compacts DNA, Kills Bacteria, and Improves Protease Inhibition in Cystic Fibrosis Sputum. Am. J. Respir. Crit. Care Med. 188 (6), 703–709. doi:10.1164/rccm.201305-0912OC
Elani, H. W., Starr, J. R., Da Silva, J. D., and Gallucci, G. O. (2018). Trends in Dental Implant Use in the U.S., 1999-2016, and Projections to 2026. J. Dent Res. 97 (13), 1424–1430. doi:10.1177/0022034518792567
Fischer, N. G., He, J., and Aparicio., C. (2020). Surface Immobilization Chemistry of a Laminin-Derived Peptide Affects Keratinocyte Activity. Coatings 10 (6), 560. doi:10.3390/coatings10060560
Foster, T., and Höök, M. (1998). Surface Protein Adhesins of Staphylococcus Aureus. Trends Microbiol. 6 (12), 484–488. doi:10.1016/s0966-842x(98)01400-0
Francoïa, J.-P., and Vial, L. (2018). Everything You Always Wanted to Know about Poly-L -lysine Dendrigrafts (But Were Afraid to Ask). Chem. Eur. J. 24 (12), 2806–2814. doi:10.1002/chem.201704147
Gand, A., Tabuteau, M., Chat, C., Ladam, G., Atmani, H., Van Tassel, P. R., et al. (2017). Fibronectin-Based Multilayer Thin Films. Colloids Surf. B: Biointerfaces 156 (August), 313–319. doi:10.1016/j.colsurfb.2017.05.023
Garcı́a, A. J., Vega, M. D., and Boettiger, D. (1999). Modulation of Cell Proliferation and Differentiation through Substrate-dependent Changes in Fibronectin Conformation. MBoC 10 (3), 785–798. doi:10.1091/mbc.10.3.785
Ghadhab, S., Bilem, I., Guay‐Bégin, A. A., Chevallier, P., Auger, F. A., Ruel, J., et al. (2021). Fibronectin Grafting to Enhance Skin Sealing Around Transcutaneous Titanium Implant. J. Biomed. Mater. Res. 109, 2187–2198. (Accessed September 10, 2021). doi:10.1002/jbm.a.37204
Gilbert, J., Charnley, M., Cheng, C., Reynolds, N. P., and Jones, O. G. (2017). Quantifying Young's Moduli of Protein Fibrils and Particles with Bimodal Force Spectroscopy. Biointerphases 12 (4), 041001. doi:10.1116/1.4996447
Gossart, A., Battiston, K. G., Gand, A., Pauthe, E., and Santerre, J. P. (2018). Mono vs Multilayer Fibronectin Coatings on Polar/Hydrophobic/Ionic Polyurethanes: Altering Surface Interactions with Human Monocytes. Acta Biomater. 66 (January), 129–140. doi:10.1016/j.actbio.2017.11.013
Gribova, V., Auzely-Velty, R., and Picart, C. (2012). Polyelectrolyte Multilayer Assemblies on Materials Surfaces: From Cell Adhesion to Tissue Engineering. Chem. Mater.A Publ. Am. Chem. Soc. 24 (5), 854–869. doi:10.1021/cm2032459
Guan, B., Wang, H., Xu, R., Zheng, G., Yang, J., Liu, Z., et al. (2016). Establishing Antibacterial Multilayer Films on the Surface of Direct Metal Laser Sintered Titanium Primed with Phase-Transited Lysozyme. Sci. Rep. 6 (1), 36408. doi:10.1038/srep36408
Hartmann, H., and Krastev, R. (2017). Biofunctionalization of Surfaces Using Polyelectrolyte Multilayers. BioNanoMaterials 18 (1–2). doi:10.1515/bnm-2016-0015
Hoellwarth, J. S., Tetsworth, K., Rozbruch, S. R., Handal, M. B., Coughlan, A., and Al Muderis, M. (2020). Osseointegration for Amputees. Jbjs Rev. 8 (3), e0043. doi:10.2106/JBJS.RVW.19.00043
Huang, K.-S., Yang, C.-H., Huang, S.-L., Chen, C.-Y., Lu, Y.-Y., and Lin, Y.-S. (2016). Recent Advances in Antimicrobial Polymers: A Mini-Review. Ijms 17 (9), 1578. doi:10.3390/ijms17091578
Hussain, M., Heilmann, C., Peters, G., and Herrmann, M. (2001). Teichoic Acid Enhances Adhesion of Staphylococcus Epidermidis to Immobilized Fibronectin. Microb. Pathogenesis 31 (6), 261–270. doi:10.1006/mpat.2001.0469
Kloss, F. R., Steinmüller-Nethl, D., Stigler, R. G., Ennemoser, T., Rasse, M., and Hächl, O. (2011). In Vivoinvestigation on Connective Tissue Healing to Polished Surfaces with Different Surface Wettability. Clin. Oral Implants Res. 22 (7), 699–705. doi:10.1111/j.1600-0501.2010.02038.x
Lam, C. W. Y., and Ikeda, S. (2017). Physical Properties of Heat-Induced Whey Protein Aggregates Formed at PH 5.5 and 7.0. Fstr 23 (4), 595–601. doi:10.3136/fstr.23.595
Laosuwan, K., Epasinghe, D. J., Wu, Z., Leung, W. K., Green, D. W., and JungJung, H. S. (2018). Comparison of Biofilm Formation and Migration ofStreptococcus Mutanson Tooth Roots and Titanium Miniscrews. Clin. Exp. Dent Res. 4 (2), 40–47. doi:10.1002/cre2.101
Lin, M., Wang, H., Ruan, C., Xing, J., Wang, J., Li, Y., et al. (2015). Adsorption Force of Fibronectin on Various Surface Chemistries and its Vital Role in Osteoblast Adhesion. Biomacromolecules 16 (3), 973–984. doi:10.1021/bm501873g
Liu, X., Chen, S., Tsoi, J. K. H., and Matinlinna, J. P. (2017). Binary Titanium Alloys as Dental Implant Materials-A Review. Regenerative Biomater. 4 (5), 315–323. doi:10.1093/rb/rbx027
Mantripragada, V. P., Lecka-Czernik, B., Ebraheim, N. A., and Jayasuriya, A. C. (2013). An Overview of Recent Advances in Designing Orthopedic and Craniofacial Implants. J. Biomed. Mater. Res. 101 (11), 3349–3364. doi:10.1002/jbm.a.34605
Mauquoy, S., and Dupont-Gillain, C. (2016). Combination of Collagen and Fibronectin to Design Biomimetic Interfaces: Do These Proteins Form Layer-By-Layer Assemblies. Colloids Surf. B: Biointerfaces 147 (November), 54–64. doi:10.1016/j.colsurfb.2016.07.038
Michl, T. D., Coad, B. R., Doran, M., Osiecki, M., Kafshgari, M. H., Voelcker, N. H., et al. (2015). Nitric Oxide Releasing Plasma Polymer Coating with Bacteriostatic Properties and No Cytotoxic Side Effects. Chem. Commun. 51 (32), 7058–7060. doi:10.1039/C5CC01722J
Middleton, C. A., Pendegrass, C. J., Gordon, D., Jacob, J., and Blunn, G. W. (2007). Fibronectin Silanized Titanium Alloy: A Bioinductive and Durable Coating to Enhance Fibroblast Attachment In Vitro. J. Biomed. Mater. Res. 83A (4), 1032–1038. doi:10.1002/jbm.a.31382
Mongodin, E., Bajolet, O., Cutrona, J., Bonnet, N., Dupuit, F., Puchelle, E., et al. (2002). Fibronectin-Binding Proteins of Staphylococcus Aureus Are Involved in Adherence to Human Airway Epithelium. Infect. Immun. 70 (2), 620–630. doi:10.1128/iai.70.2.620-630.2002
Müller, M., Rieser, T., Lunkwitz, K., Berwald, S., Meier-Haack, J., and Jehnichen, D. (1998). Anin-situ ATR-FTIR Study on Polyelectrolyte Multilayer Assemblies on Solid Surfaces and Their Susceptibility to Fouling. Macromol. Rapid Commun.CO 19 (7), 333–336. doi:10.1002/(sici)1521-3927(19980701)19:7<333:aid-marc333>3.0.co;2-o
Mutschler, A., Rabineau, L., Dollinger, M., Metz-Boutigue, C., Schneider, M.-H., Senger, F., et al. (2016). Unexpected Bactericidal Activity of Poly(Arginine)/Hyaluronan Nanolayered Coatings. Chem. Mater. 28 (23), 8700–8709. doi:10.1021/acs.chemmater.6b03872
Ngankam, A. P., Mao, G., and Van Tassel, P. R. (2004). Fibronectin Adsorption onto Polyelectrolyte Multilayer Films. Langmuir 20 (8), 3362–3370. doi:10.1021/la035479y
Ouni, O. A., Subbiahdoss, G., Scheberl, A., and Reimhult, E. (2021). DNA Polyelectrolyte Multilayer Coatings Are Antifouling and Promote Mammalian Cell Adhesion. Materials 14 (16), 4596. doi:10.3390/ma14164596
Oyane, A., Hyodo, K., Uchida, M., Sogo, Y., and Ito, A. (2011). Preliminary In Vivo Study of Apatite and Laminin-Apatite Composite Layers on Polymeric Percutaneous Implants. J. Biomed. Mater. Res. 97B (1), 96–104. doi:10.1002/jbm.b.31790
Pompe, T., Keller, K., Mitdank, C., and Werner, C. (2005). Fibronectin Fibril Pattern Displays the Force Balance of Cell-Matrix Adhesion. Eur. Biophys. J. 34 (8), 1049–1056. doi:10.1007/s00249-005-0490-z
Poulouin, L., Gallet, O., Rouahi, M., and Imhoff, J.-M. (1999). Plasma Fibronectin: Three Steps to Purification and Stability. Protein Expr. Purif. 17 (1), 146–152. doi:10.1006/prep.1999.1103
Puckett, S. D., Lee, P. P., Ciombor, D. M., Aaron, R. K., and Webster, T. J. (2010). Nanotextured Titanium Surfaces for Enhancing Skin Growth on Transcutaneous Osseointegrated Devices. Acta Biomater. 6 (6), 2352–2362. doi:10.1016/j.actbio.2009.12.016
Ramiasa, M. N., Cavallaro, A. A., Mierczynska, A., Christo, S. N., Gleadle, J. M., Hayball, J. D., et al. (2015). Plasma Polymerised Polyoxazoline Thin Films for Biomedical Applications. Chem. Commun. 51 (20), 4279–4282. doi:10.1039/C5CC00260E
Ravi, S., Caves, J. M., Martinez, A. W., Haller, C. A., and Chaikof, E. L. (2013). Incorporation of Fibronectin to Enhance Cytocompatibility in Multilayer Elastin‐like Protein Scaffolds for Tissue Engineering. J. Biomed. Mater. Res. 101A (7), 1915–1925. doi:10.1002/jbm.a.34484
Ribeiro, M., Monteiro, F. J., and Ferraz, M. P. (2012). Infection of Orthopedic Implants with Emphasis on Bacterial Adhesion Process and Techniques Used in Studying Bacterial-Material Interactions. Biomatter 2 (4), 176–194. doi:10.4161/biom.22905
Shi, Q., Qian, Z., Liu, D., and Liu, H. (2017). Surface Modification of Dental Titanium Implant by Layer-By-Layer Electrostatic Self-Assembly. Front. Physiol. 8 (August), 574. doi:10.3389/fphys.2017.00574
Tacconelli, E., Carrara, E., Savoldi, A., Harbarth, S., Mendelson, M., Monnet, D. L., et al. (2018). Discovery, Research, and Development of New Antibiotics: The WHO Priority List of Antibiotic-Resistant Bacteria and Tuberculosis. Lancet Infect. Dis. 18 (3), 318–327. doi:10.1016/S1473-3099(17)30753-3
Toworfe, G. K., CompostoComposto, R. J., Adams, C. S., Shapiro, I. M., and Ducheyne, P. (2004). Fibronectin Adsorption on Surface-Activated Poly(Dimethylsiloxane) and its Effect on Cellular Function. J. Biomed. Mater. Res. 71A (3), 449–461. doi:10.1002/jbm.a.30164
Webb, K., Caldwell, K., and Tresco, P. A. (2000). Fibronectin Immobilized by a Novel Surface Treatment Regulates Fibroblast Attachment and Spreading. Crit. Rev. Biomed. Eng. 28 (1–2), 203–208. doi:10.1615/critrevbiomedeng.v28.i12.350
Zanina, N., Haddad, S., Othmane, A., Jouenne, T., Vaudry, D., Souiri, M., et al. (2012). Endothelial Cell Adhesion on Polyelectrolyte Multilayer Films Functionalised with Fibronectin and Collagen. Chem. Pap. 66 (November). doi:10.2478/s11696-012-0141-7
Keywords: multilayer thin films, fibronectin, biomimetic, bioadhesive, antimicrobial activity
Citation: Miranda A, Seyer D, Palomino-Durand C, Morakchi-Goudjil H, Massonie M, Agniel R, Rammal H, Pauthe E and Gand A (2022) Poly-L-Lysine and Human Plasmatic Fibronectin Films as Proactive Coatings to Improve Implant Biointegration. Front. Bioeng. Biotechnol. 9:807697. doi: 10.3389/fbioe.2021.807697
Received: 02 November 2021; Accepted: 26 November 2021;
Published: 17 January 2022.
Edited by:
Nicolas Tabary, Université de Lille, FranceReviewed by:
Laurent Leclercq, UMR5247 Institut des Biomolécules Max Mousseron (IBMM), FranceVarvara Gribova, Université de Strasbourg, France
Copyright © 2022 Miranda, Seyer, Palomino-Durand, Morakchi-Goudjil, Massonie, Agniel, Rammal, Pauthe and Gand. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Emmanuel Pauthe, emmanuel.pauthe@cyu.fr ; Adeline Gand, adeline.gand@cyu.fr
†These authors have contributed equally to this work and share last authorship
