Additive Noise-Induced System Evolution (ANISE)

  • Université de Strasbourg, CNRS, lnria, ICube, MLMS, MIMESIS, Strasbourg, France

Additive noise has been known for a long time to not change a systems stability. The discovery of stochastic and coherence resonance in nature and their analytical description has started to change this view in the last decades. The detailed studies of stochastic bifurcations in the last decades have also contributed to change the original view on the role of additive noise. The present work attempts to put these pieces of work in a broader context by proposing the research direction ANISE as a perspective in the research field. ANISE may embrace all studies that demonstrates how additive noise tunes a systems evolution beyond just scaling its magnitude. The article provides two perspective directions of research. The first perspective is the generalization of previous studies on the stationary state stability of a stochastic random network model subjected to additive noise. Here the noise induces novel stationary states. A second perspective is the application of subgrid-scale modeling in stochastic random network model. It is illustrated how numerical parameter estimation complements and extends subgrid-scale modeling and render it more powerful.

Introduction

Noise is a major ingredient in most living and artificial thermodynamically open systems. Essentially it is defined as the contrast to signal, that is assumed to be understood or at least known in some detail. Hence the notion of noise is used whenever there is a lack of knowledge on a process, i.e., when it is necessary to describe something unknown or uncontrollable. The relation to chaos and fractals [1] is interesting, which appear to be very complex features of systems if their dynamics are not known. Consequently, noise effects are considered in models if it is mandatory to describe irregular unknown processes. Such processes may be highly irregular and deterministic or random. The following paragraphs do not distinguish these two cases, but mathematical models assume noise to be random.

Since noise represents an unknown process, typically it is identified as a disturbing element that should be removed or compensated. Observed data are supposed to represent a superposition of signals that carry important information on the system under study and noise whose origin is unrelated to the signal source. Moreover, noise may disturb the control of systems, e.g., in aviation engineering, it may induce difficulties in communication systems or acoustic noise may even represent a serious health hazard in industrial work.

However, noise may also be beneficial to the systems dynamics and thus represents an inevitable ingredient. In engineering, for instance, cochlear implants can improve their signal transmission rate by adding noise and thus save electrical power [2]. Biomedical wearables can improve their sensitivity by additive noise [3]. In these applications, noise improves signal transmission by stochastic resonance (SR) [4]. It is well-known that natural systems employ SR to amplify weak signals and thus ensure information transmission [5]. We mention on the side Chaotic Resonance [6], which improves signal transmission by additional chaotic signals and hence demonstrates the similarity between noise and chaos again. Mathematically, systems that exhibit SR have to be driven by a periodic force and additive noise and should exhibit a double-well potential.

Noise is of strong irregular nature and intuition says that additive noise induces irregularity into the stimulated system. Conversely, noise may optimize the systems coherence and thus induce regular behavior. Such an effect is called coherence resonance (CR) [7, 8] and has been demonstrated in a large number of excitable systems, such as chemical systems [9], neural systems [10], nanotubes [11], semi-conductors [12], social networks [13], and the financial market [14]. To describe CR mathematically, the system performs a noise-induced transition between a quiescent non-oscillatory state and an oscillatory state.

Both SR and CR are prominent examples of mechanisms that show a beneficial noise impact. These mechanisms are mathematically specific and request certain dynamical topologies and combination of stimuli, e.g., the presence of two attractors between which the system is moved by additive noise. Other previous mathematical studies have focussed on more generic additive noise-induced transitions, e.g., at bifurcation points. There is much literature on stochastic bifurcations in low-dimensional systems [1518], spatially-extended systems [1923], and delayed systems [2427].

Beyond SR, CR and stochastic bifurcations, additive noise does not only induce stability transitions between states but may tune the system in the stable regime and hence represents an important system parameter. Such an impact is omnipresent in natural systems while it is less prominent and more difficult to observe. Nevertheless, this stochastic facilitation [28] results indirectly to fluctuating, probably random, observations. Examples for such observations are a large variability between repeated measurements [2931] and strong intrinsic fluctuations in observations [3234]. To describe such observed random properties, various different fluctuation mechanisms have been proposed, such as deterministic chaotic dynamics [35], heterogeneity [29] or linear high-dimensional dynamics driven by additive noise [36].

To motivate the focus on additive noise in the present work, let us consider the linear stochastic model

dxdt=-γx(t)+αx(t)ξ(t)+βη(t)

with γ, α, β > 0 and spectral white Gaussian distributed noise ξ(t), η(t) both with zero mean and variance D. For multiplicative noise only (α > 0, β = 0), the system ensemble average 〈x〉 obeys [37, 38]

dx(t)dt=(-γ+α2D2)x(t) .

This shows that the systems origin is a stationary state, whose stability depends on the multiplicative noise variance D. Hence multiplicative noise affects the stability of the system. This is a well-known result [39, 40]. However, multiplicative noise implies that the noise contribution to the system depends on the system activity. This assumption is strong and can not always be validated. Especially in the lack of knowledge how noise couples to the system under study, this assumption appears to be too strong. Hence it is interesting to take a look at additive noise (α = 0, β > 0) whose noise contribution is independent of the system activity. Then

dx(t)dt=-γx(t)

demonstrating that zero-mean additive noise does not affect the stability of the systems stationary state in the origin. This is also well-established for linear systems. However, some previous stochastic bifurcation studies on the additive noise effect in nonlinear systems have revealed an induced change of stability of the systems stationary state as mentioned above. Moreover, recent diverse studies of additive noise in oscillatory neural systems have revealed that additive noise may tune the systems principal oscillation frequency [4147]. The present work focusses on a certain class of dynamical differential equation models that exhibit Additive Noise-Induced System Evolution (ANISE) and where the additive noise represents a determinant element. Recently, Powanwe and Longtin [48] have described experimentally observed neural burst activity as an additive noise-controlled process and Powanwe and Longtin [49] have provided conditions under which two additive noise-driven biological systems share optimally their information. Moreover, previous theoretical neural population studies have demonstrated that additive noise can explain intermittent frequency transitions observed in experimental resting state electroencephalographic data [50], dynamical switches between two frequency bands induced by opening and closing eyes in humans [51], and the enhancement of spectral power in the γ-frequency under the anesthetic ketamine [52].

For completeness, it is important to mention quasi-cycle activity [5255]. Mathematically, this is the linear response of a deterministically stable system to additive noise below a Hopf bifurcation. Without noise, the system would decay exponentially to the systems stable fixed point as a stable focus, whereas the additive noise kicks away the system from the fixed point and thus the system never reaches the fixed point. For long times, the stationary power spectrum of the systems activity is proportional to the noise variance D. This linear relation between spectral power and noise variance has been employed extensively in a large number of previous model studies of experimental spectral power distributions, e.g., in the brain [56, 57]. It is important to point out that the additive noise just scales the global magnitude of the linear systems spectral power distribution, but does not affect selected time scales or frequency bands, e.g., move spectral peaks as observed in the brain [58]. The subsequent sections illustrate how additive noise may affect nonlinear systems in such a way that the systems intrinsic time scales depend on the noise variance.

The following two sections propose extensions of existing studies in ANISE. The first generalizes previous studies of stochastic dynamics in specific nonlinear random networks indicating a perspective to generalize the analysis of such systems. This brief analysis is followed by the novel proposal to extend the stochastic analysis in ANISE by numerical estimates of subgrid-scale models.

Dynamic Random Network Models

To illustrate a possible perspective in ANISE, let us consider a random network of number of nodes N, whose nodes activity obeys

dVi(t)dt=g[Vi(t)]+j=1NKijS[Vj(t)]+ξi(t) ,

for i = 1, …, N. The additive noise {ξi(t)} is uncorrelated between network nodes and Gaussian distributed with zero mean i=1Nξi(t)/N=0 and variance D=i=1Nξi2(t)/N at every time instance t. The connectivity matrix K is random with non-vanishing mean i,jKij/N0. To gain some insights, at first g[V]=-V,S[V]=γ1V+γ2V2+γ3V3 and the network is of Erdös-Rényi-type (ER) [59], i.e., Kij = 0 with probability 1−c and Kij=K̄0 with connection probability c. In addition, the network is bidirectional with Kij = Kji and we choose K̄=1/Nc for convenience. This choice yields a real-valued matrix spectrum and its maximum eigenvalue is λ1 = 1. As has been shown previously [60], a Galerkin ansatz assists to understand the dynamics of such a network. We define a bi-orthogonal eigenbasis of K with the basis sets {Ψ(k)}, {Φ(k)} for which

Ψ(k),Φ(l)=δkl   ,   k,l=1,,N

with the Kronecker symbol δkl, where † denotes the complex conjugate transposition. The eigenspectrum {λk} obeys

KΦ(l)=λlΦ(l)   ,   Ψ(l),K=λlΨ(l), .

It is well-known that the eigenspectrum of symmetric random matrices has an edge distribution and a bulk distribution of eigenvalues [61]. For large ER networks with N → ∞, both distributions are well-separated. The edge distribution consists of the maximum eigenvalue λ1 with Ψj(1)=1/N, Φj(1)=1 and the bulk distribution obeys the circular law and thus shrinks with λk>1 → 0 for N → ∞. Assuming the composition Vi(t)=k=1NΦi(k)xk(t) with time-dependent mode amplitudes xk(t) and projecting the network activity {Vi} onto the basis {Ψ(k)}, the mode amplitudes {xk(t)} obey

dx1dt=-x1+1Nj=1N(γ1Vj+γ2Vj2+γ3Vj3)          +1Ni=1Nξi    (1)
dxkdt-xk+i=1NΨi(k)ξi ,k=2,,N    (2)

Then Vi(t) = x1(t) + ηi(t) with the Ornstein-Uhlenbeck noise process ηi=k=2NΦi(k)xk that is Gaussian distributed with N(0,D) [60]. Consequently, x1 describes the mean-field dynamics of the network. Hence, at each node i, Vi exhibits a superposition of mode x1 and zero-mean fluctuations ηi. For N → ∞ the mode amplitude x1 obeys

dx1dt=x1+[γ1(x1+w)+γ2(x1+w)2           +γ3(x1+w)3]pou(w)dw    (3)
=γ2D+(γ1+3γ3D-1)x1+γ2x12      +γ3x13    (4)

with the Gaussian probability distribution of the Ornstein-Uhlenbeck process pou=N(0,D). The mode x1 is deterministic and the additive noise ξi, that drives the network at each node, affects the mean-field network activity tuning the stability of the stationary state x1 = 0 of the network. Moreover, the systems time scale, which is determined by the linear factor in Equation (4), now depends on the noise variance D.

Figure 1A illustrates the assumptions made. For small networks, the eigenvalue spectrum of the random matrix exhibits a clear gap between the edge spectrum (λ1 = 1) and the bulk spectrum with λk>1 ≈ 0. This spectral gap increases with increasing N. In addition, for small networks the conversion of the sum in (1) to the integral in (3) is a bad approximation, the sum in (1) exhibits strong stochastic fluctuations and hence the network mean fluctuates as well. The larger N, the better is the approximation of the sum by the integral in (3) and the more the dynamics resemble the deterministic mean-field dynamics. Figure 1B presents the systems corresponding potential

ϕ(x1)=γ2Dx1+12(γ1+3γ3D-1)x12              +13γ2x13+14γ3x14

with dx1/dt = −(x1)/dx1. For increasing noise variance D, the additive noise merges the stable fixed point (local minimum of ϕ at V ≠ 0) and the unstable fixed point (local maximum of ϕ at V = 0) yielding finally a single stable fixed point (global minimum of ϕ).

FIGURE 1
www.frontiersin.org

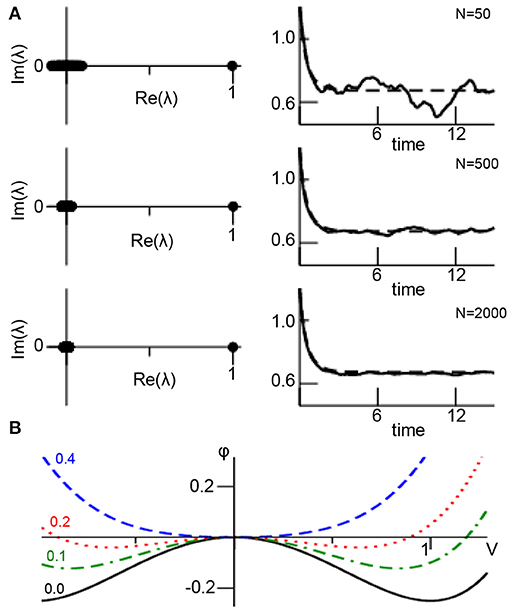

Figure 1. Mean-field description of ANISE. (A) The spectral distribution of random matrix K for different number of network nodes N (left column) and corresponding network mean (solid line, from Equation 1) and mean-field (dashed line, from Equation 4) for comparison (right column). Parameters are K0 = 1.0, D = 0.1, γ1 = 2.0, γ2 = 0.0, γ3 = −1.0, α = β = 0.0, c = 0.9 and numerical integration time step Δt = 0.03 utilizing the Euler-Maruyama integration method and identical initial values Vi = 1.1 at t = 0 for all parameters. The panels show results for a single network realization, while the variance of results for multiple network realizations is found to be negligible for N ≥ 1, 000 (data not shown). (B) Potential ϕ(V) for different noise variances D.

Although this example illustrates how additive noise induces a stability transition, the underlying network model is too simple to correspond to natural networks. It assumes a large ER-type network that implies a clear separation between edge and bulk spectrum which in turn reflects a sharp unimodal degree distribution. If this spectral gap is not present, then the mean-field activity x1 impacts on the noise process xk>1 which renders the analysis much more complex (closure problem). Such a case occurs in most natural networks [62], such as scale-free [63] or small-world networks [64]. Moreover, realistic networks exhibit nonlinear local dynamics g(·) which renders a Galerkin approach as shown above much more complex since it leads to a closure problem as well. As a perspective, new methods have to be developed to treat such cases and to reveal whether ANISE represents the underlying mechanism. In this context, subgrid-scale modeling may be a promising approach as outlined in the subsequent section.

Subgrid-Scale Modeling (SGS)

Most natural systems evolve on multiple spatial and/or temporal scales. Examples are biological systems [65], such as the brain or body tissue, or the earth atmosphere. The latter may exhibit turbulent dynamics whose dynamical details are typically described by the Navier-Stokes equation [66]. The closure problem tells that large scales determine the dynamics of small scales and vice versa. In general, there is rarely a detailed model description of the dynamics on all system scales and the corresponding numerical simulation of all scales is costly. To this end, subgrid-scale modeling [67] chooses a certain model description level and provides a model that captures the effective contribution of smaller scales to the dynamics on the chosen level. The present work proposes, as a perspective, to apply SGS in random network models (cf. previous section) and estimate the subgrid-scale dynamics numerically from full-scale simulations.

For illustration, let us re-consider the example in the previous section. It shows how noise ξi on the microscopic scale, i.e., at each node, impacts the evolution of the mesoscopic scale, i.e., spatial mean or mean field. The Galerkin ansatz is successful in the given case for a large family of nonlinear coupling functions S[·] and linear local functions. However, typically complex network systems exhibit local nonlinear dynamics. For illustration reasons, in the following it is g[V] = −V + βV3 and projections onto the eigenbasis of the random matrix yield

dx1dt=x1+βNi=1NVi3+1Nj=1N(γ1Vj            +γ2Vj2+γ3Vj3)+1Ni=1Nξi    (5)
dxkdt=-xk+βi=1NΨi(k)Vi3+i=1NΨi(k)ξi    (6)

for k = 2, …, N. It is still Vi = x1 + ηi with ηi=k=2NΦi(k)xk as in the previous section, but now the noise term ηi is no Ornstein-Uhlenbeck process anymore due to the nonlinearity in Equation (6). Since the basis {Ψ(k)} is not known analytically, it is very difficult to gain the stationary probability density function p(·) of ηi.

To address this problem, taking a close look at Vi = x1 + ηi, x1 may appear as the mesoscopic activity of the network and ηi may be interpreted as microscopic activity. This new interpretation is motivated by the previous section and stipulates i=1nηi=0. Hence, the additional nonlinear local interaction affects the mesoscopic scale dynamics by modulating the microscopic scale dynamics. Now a new subgrid-scale model ansatz assumes that the additional nonlinear local interaction affects the variance of the microscopic scale but retains the microscopic Gaussian distribution shape, i.e., η~N(0,bD). Here the additional factor b > 0 captures the impact of the additional nonlinear term βVi3 in g[V]. It represents the subgrid-scale model parameter for the impact of the nonlinear term. For clarification, b = 1 corresponds to β = 0. Inserting this ansatz and Vi = x1 + ηi into Equation (5) and taking the limit N → ∞

dx1dt=F(x1,b)        =γ2D+(γ1+3γ3D-1+3βbD)x1        +γ2x12+(γ3+β)x13    (7)

with a still unknown SGS-factor b. Now let us fit this unknown factor numerically. To this end, numerical simulations of the random network (1) permits to compute the time-dependent network mean V(tn) with discrete time tn = nΔt and time step Δt and its temporal derivative ΔVn = (V(tn+1)−V(tn))/Δt. Then minimizing the cost function C=j=1T(ΔVn-F[V(tn,b)])2 with respect to b yields an optimum SGS-factor b. The corresponding parameter search is done by a Particle Swarm Optimization (PSO) [68, 69]. Figure 2A shows the simulated mesoscopic network mean and the well fit mesoscopic model dynamics (7) for the optimal factor b at different corresponding nonlinearity factors β (numbers given). For each factor β there is an optimal SGS-factor b (cf. Figure 2B), and we can fit numerically a nonlinear dependency of b subjected to β

b(β)=0.45+0.55e6.78β .    (8)
FIGURE 2
www.frontiersin.org

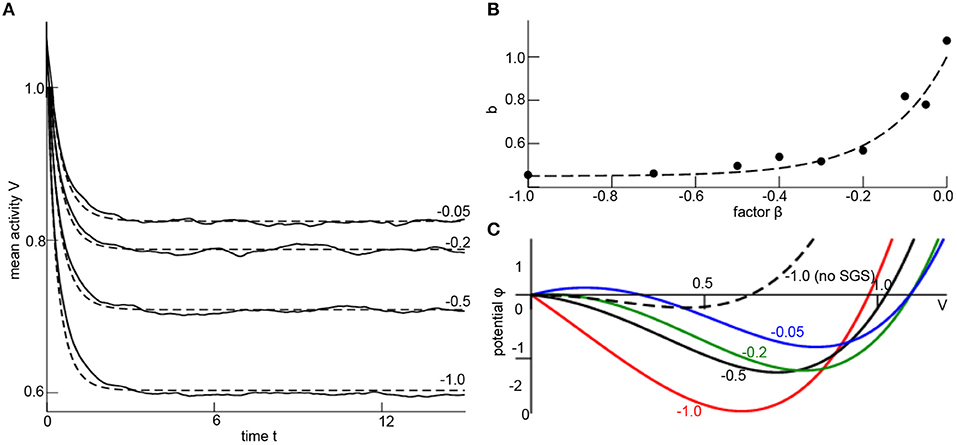

Figure 2. Subgrid-scale modeling. (A) Network mean (solid line) computed from simulations of Equation (1) and mean-field dynamics (7) for different values of β (numbers given) and corresponding optimally estimated factors b. Parameters are Vi(0) = x1(0) = 1.1, δt = 0.03, K0 = 1.0, D = 0.33, γ1 = 2.0, γ2 = 0.0, γ3 = −1.0, α = 0.0, N = 1000, c = 0.9 and initial condition Vi(0) = 1.1 ∀i = 1, …, N. The results have been gained for a single network realization, while the variance of results for multiple network realizations is found to be negligible for N ≥ 1000 (data not shown). The optimal factor b has been estimated by employing the Python library pyswarms utilizing the routine single.GlobalBestPSO with optional parameters c1 = 0.5, c2 = 0.5, w = 0.3, 60 particles, 50 iterations and taking the best fit over 20 trials. (B) The estimated factor b for different values of β (dots) and the fit polynomial function (dashed line; see Equation 8). (C) The resulting potential ϕ(V) with /dV = −F[V, b(β)], F is taken from Equation (7), where b is computed from β (numbers given) by Equation (8). The dashed line is plotted for comparison illustrating the impact of the SGS.

This expression is the major result of the SGS modeling since it permits to describe the random network dynamics with nonlinear local interactions by mesoscopic variables with the assistance of a numerical optimization. It is noted that Equation (8) is still valid if other initial conditions for the network simulation are chosen (not shown).

The impact of the nonlinear local interaction on the mean-field is illustrated in Figure 2C, where the potential ϕ(V = x1) is shown for different factors β implying optimum SGS-factor (different colors in Figure 2C). For comparison, neglecting the SGS model correction (for β = −1.0, dashed line in Figure 2C) yields a potential and dynamical evolution that is different to the true SGS-optimized potential (red line in Figure 2C).

Discussion

A growing number of studies indicate that additive noise represents an important ingredient to systems dynamics. Since such an effect has not been well-studied yet and should be explored in the coming years, it is tempting to name it and pass it the new acronym ANISE. Not only to propose to embrace and name diverse research areas, the present work sketches two future directions of research. Section Dynamic Random Network Models shows in a generalized random network model study that additive noise may change the bifurcation point of the systems stationary state in accordance to previous work on stochastic bifurcations [15, 17, 19, 20]. The example reveals that this effect results from nonlinear and not from linear interactions. In simple words, the additive noise tunes the system by multiplicative noise through the backdoor. Identifying certain system modes, the system exhibits an additive noise effect if some modes are coupled nonlinearly and some of these modes are stochastic. Such modes may be Fourier modes [19], eigenmodes of a coupling matrix [60] (as seen in Section Dynamic Random Network Models) or of a delayed linear operator [70]. Since diverse nonlinear interaction types render a systems analysis complex, Section Subgrid-scale modeling (SGS) proposes a perspective combination of SGS and optimal parameter estimation [71] in the context of ANISE. This combination permits to estimate numerically unknown contributions of subgrid-scale dynamics to larger scales. This may be very useful in studies of high-dimensional nonlinear models, whose dynamics sometimes appears to be untractable analytically.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author Contributions

The author has conceived the work, has performed all simulations and calculations, and has written the manuscript.

Funding

This work has been supported by the INRIA Action Exploratoire A/D Drugs.

Conflict of Interest

The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

The author thanks the reviewer for valuable comments.
