Yao Chen1†
Yanjie Zhang2†
Ghazala Nawaz3
Chenxu Zhao1Yuxia Li1Tingting Dong1
Mingku Zhu1Ximeng Du1
Lei Zhang1
Zongyun Li1*
Tao Xu1*- 1Jiangsu Key Laboratory of Phylogenomics and Comparative Genomics, School of Life Sciences, Jiangsu Normal University, Xuzhou, China
- 2School of Agricultural Sciences, Zhengzhou University, Zhengzhou, China
- 3Department of Botanical and Environmental Sciences, Kohat University of Science and Technology, Kohat, Pakistan
Wax apple is one of the most popular tropical fruit but undergoes serious post-harvest decay during storage, transportation and marketing. Melatonin (MT) plays important roles in plant growth, development and stress responses. However, its function in post-harvest preservation of fruit remains largely unknown. In the present study, the physiological function and molecular mechanism of exogenous MT for post-harvest preservation were evaluated in wax apple fruit. Results showed that MT treatment remarkably reduced decay incidence and the accumulation of excess reactive oxygen species (ROS) but increased the activity of antioxidant enzymes, suggesting that exogenous MT alleviates the post-harvest decay of wax apple by regulating the balance between ROS production and antioxidant system. Meanwhile, the gene expression was analyzed by transcriptome confirmed by quantitative PCR. This study provides insights into the regulatory mechanism and proper application strategies for post-harvest preservation of wax apple and other fruits though melatonin manipulation.
Introduction
Wax apple (Syzygium samarangense) is an important tropical cash crop in Southeast Asian countries, including Thailand, Malaysia and Taiwan (Shü et al., 2008). The wax apple is an immunostimulant and antibacterial drug in traditional medicine. The extract from leaves of wax apple contains many compounds including condensed tannins, flavonoids, ellagitannins and phenolic acids, and exhibits a noticeable antioxidant activity (Sobeh et al., 2018). For instance, the compound myricitrin from wax apple leaves can mitigate negative effects from oxidative stress by modulating the mitogen-activated protein kinase (MAPK) signaling pathways, and another compound 3,5-di-O-methyl gossypetin exerts its antioxidant activity through the MAPK signaling pathway and the nuclear transcription factor-2 (Nrf-2) pathway (Sobeh et al., 2019). In addition, the essential oil compositions in the wax apple leaves have been investigated by using GLC/MS and GLC/FID (Sobeh et al., 2016). Especially, wax apple fruit has become increasingly popular in Western countries because of its unique flavor. However, as a typical nonclimacteric fruit, wax apple cannot be further ripened following harvest; hence, wax apples should only be harvested when fully ripe (Moneruzzaman et al., 2011). Additionally, wax apple has a thin pericarp and abundant water content; thus, it might suffer physical damage and cracks during transportation and become brown and perishable (Supapvanich et al., 2012). Wax apple can only be kept in storage for a week at ambient temperature (Supapvanich et al., 2018).
Several methods for post-harvest preservation of wax apple have been explored and applied. Low-temperature storage is the most common method, in which the antioxidant and ascorbic acid (AsA) capacity of wax apple is allowed to increase accordingly with the decrease in storage temperature (Supapvanich et al., 2011). However, chilling damage may occur if the temperature is too low. Applying fresh Aloe vera gel or konjac glucomannan coating incorporated with pineapple core extract to fresh-cut wax apples can delay the incidence of browning and maintain the colour of the fruit during storage (Supapvanich et al., 2012; Supapvanich et al., 2016). However, more approaches for efficient post-harvest preservation of wax apples should be explored and evaluated.
Melatonin (MT), known as N-acetyl-5-methoxytryptamine, is an indole compound that widely exists in animals and plants (Arnao and Hernández-Ruiz, 2015). MT plays an important role in improving sleep and has anti-aging and anti-inflammation properties (Dubbels et al., 1995). In higher plants, MT participates in various physiological functions, including light signal regulation, growth regulation, and biotic and abiotic stress adaptations (Zhang et al., 2013; Liang et al., 2015). MT can act as an effective free radical scavenger and antioxidant to maintain the lipid membrane structure and protein content of tissues, thereby avoiding free radical damage (Reiter et al., 1998). Recently, the role of MT in post-harvest processes has been elucidated in peach (Cao et al., 2018; Gao et al., 2018), banana (Hu et al., 2017), strawberry (Aghdam and Fard, 2017), cucumber (Xin et al., 2017), cassava (Ma et al., 2016), and tomato (Sun et al., 2016). Thus, MT can be a potential target for improving the post-harvest preservation of fruits and vegetables (Xu et al., 2019). However, the function of exogenous MT in post-harvest preservation of wax apple remains unknown.
In this study, we investigated the alleviative effects of MT on the deterioration of post-harvest wax apple and demonstrated its mechanism of action. Analyses of decay incidence, weight loss, and oxidation-related indicators and antioxidant enzyme contents, such as jasmonic acid (JA) and salicylic acid (SA), were conducted. Gene expression was investigated via transcriptome sequencing and quantitative polymerase chain reaction (PCR). Gene Ontology (GO) enrichment was also analysed. Our study will elucidate the post-harvest preservation of wax apple and help understand the role of MT in post-harvest fruit preservation.
Materials and Methods
Plant Materials and Treatments
Wax apples (Syzygium samarangense cv. ‘Heijingang’) were harvested from an orchard and then transported to the laboratory. The harvested fruit without defects and injuries, in commercial maturity and with average weight of 76 ± 1.8 g were selected for subsequent experiments. The selected fruits were soaked in 1% sodium hypochlorite for 5 min and rinsed with running water. The fruits were randomly divided into different treatment groups with 51 fruits each. The optimum MT concentration (800 µM) was determined after preliminary experiments with MT concentrations of 0, 100, 200, 400, and 800 µM. The MT treatment groups were immersed in deionized water (diH2O) with MT at 25°C for 2 h. The wax apples were exposed to low light conditions to prevent MT degradation (Gao et al., 2018). After melatonin or diH2O (as control) treatment, the solution on the surface of wax apple was removed, and then the wax apple were air-dried approximately 10 min and stored for 7 days at 25 ± 1°C and 65–70% relative humidity. Morphological changes, decay incidence, and weight loss rate were recorded every day during storage. At the same intervals, the pericarp of wax apples was excised, and the pulp was processed into pieces, frozen by liquid nitrogen, and stored at –80°C for subsequent experiments.
Decay Incidence and Weight Loss Rate
Visible decay, tissue damage and bacterial/fungal growth were considered decay. Decay incidence was expressed as the percentage of the visible spoilage of fruit relative to the total number of fruit in each treatment group. The treated fruits were weighed and recorded before and after storage, and weight loss rate was expressed as the percentage of weight loss compared with initial weight. All experiments were performed with three independent biological replicates.
Determination of Reactive Oxygen Species and Malondialdehyde Contents
Superoxide radical (O2−) production rate was detected following a previously described method (Wang and Luo, 1990) with slight modifications. Briefly, 2 g of wax apple pulp was homogenized in 2 mL of 50 mM sodium phosphate buffer (pH 7.8) containing 1 mM ethylene diamine tetraacetic acid (EDTA), 0.3% Triton X-100, and 2% polyvinylpyrrolidone (PVP) and then centrifuged at 12,000 × g at 4°C for 20 min. The supernatant was collected and used to determine the rate of O2− production by measuring the absorbance at 530 nm. O2− production rate was based on hydroxylamine oxidation and expressed as mol kg−1 prot on fresh weight (FW) basis. Hydrogen peroxide (H2O2) content was determined following a previously described protocol (Patterson et al., 1984). Briefly, 0.1 g of pulp sample was thoroughly homogenized in 0.9 mL of physiological saline and then centrifuged at 12,000 × g at 4°C for 20 min. The supernatant was collected and used for colorimetric determination at 412 nm. H2O2 content was determined according to the yellow precipitate generated by reaction with titanium tetrachloride and expressed as mmol kg-1 prot on FW basis. Malondialdehyde (MDA) content was determined via thiobarbituric acid method (Dhindsa et al., 1981). Briefly, 1 g of pulp sample was mixed with 5 mL of 5% (w/v) trichloroacetic acid solution and centrifuged at 10,000 × g at 4°C for 20 min. The mixture was heated for 20 min above 95°C, cooled rapidly and centrifuged at 5000 × g for 20 min. The corresponding absorbance value was measured at 532 nm, and non-specific absorbance values at 450 and 600 nm were subtracted. MDA content was expressed as μmol kg-1 on FW basis. All experiments were performed with three independent biological replicates.
Determination of Enzyme Activity
Pulp samples (5 g) were homogehomogenized with 5 mL of various relevant buffers, which were precooled at 4°C. Liquid oxygen (LOX) were determined with 0.1 mol L-1 sodium phosphate buffer (pH 6.8) containing 1 mL of Triton X-100 and 5% PVP. Superoxide dismutase (SOD) was determined with 0.1 mol L-1 sodium phosphate buffer (pH 7.8) containing 5 mM DL-dithiothreitol (DTT) and 5% PVP. Catalase (CAT) was determined with 50 mM sodium phosphate buffer (pH 7.5) containing 5 mM DTT and 5% PVP. Ascorbate peroxidase (APX) was determined with potassium phosphate buffer (pH 7.5) containing 0.1 mM EDTA, 1 mM AsA, and 2% PVP. Glutathione reductase (GR) was determined with 0.1 mol L-1 sodium phosphate buffer (pH 7.5) containing 0.1 mM EDTA. The supernatants were collected for enzyme activity determinations.
CAT activity was measured by H2O2 consumption at the absorbance of 240 nm (Dhindsa et al., 1981). APX activity was determined by oxidizing AsA with H2O2 and estimating the decrease in absorbance at 290 nm (Nakano and Asada, 1989). GR activity was determined by oxidation–reduction reaction of nicotinamide adenine dinucleotide phosphate at the absorbance of 340 nm (Palma et al., 2006). One unit (U) of CAT, APX and GR activity represents the amount of enzyme required to reduce the reaction system by 0.01 per minute. LOX activity was determined by catalysing the formation of conjugated double bonds by sodium linoleate and estimating the increase in absorbance at 234 nm (Surrey, 1964). One unit (U) of LOX activity represents the amount of enzyme required to increase the reaction system by 0.01 per minute. SOD activity was determined by inhibiting the reduction of nitroblue tetrazolium (NBT) under light (Zhang et al., 2013). One unit (U) of SOD activity indicates the amount of enzyme required to inhibit the NBT photochemical reduction by 50% per minute at the absorbance of 560 nm. All enzyme activities were indicated as U g−1 based on FW. All experiments were performed with three independent biological replicates.
Determination of Jasmonic Acid and Salicylic Acid Contents
Pulp sample (1 g) was homogenized with an appropriate amount of sodium phosphate buffer (pH 7.4) and then centrifuged at 5000 × g at 4°C for 20 min, and the supernatant was obtained for subsequent experiments. JA and SA contents were measured using enzyme-linked immunosorbent assay kits (Enzyme-linked Biotech, Shanghai, China) according to the manufacturer’s instructions. JA and SA contents were expressed as nmol L-1 and mg L-1 on FW basis, respectively. All experiments were performed with three independent biological replicates.
De Novo Assembly, Unigene Annotation, and Functional Classification
Total RNA was extracted from the 5th day samples (including control and treatment groups with three independent biological replicates) with Trizol reagent (Invitrogen, CA, USA). Six libraries for mRNA sequencing were constructed for Illumina HiSeq 4000 RNA sequencing. Sequence quality was verified by FastQC (http://www.bioinformatics.babraham.ac.uk/projects/fastqc/) after the deletion of inappropriate reads. De novo assembly of transcriptome was performed using Trinity 2.4.0 (Grabherr et al., 2011). The transcripts were grouped according to the output of Trinity, and the longest transcript sequences in each group were selected as ‘gene’ sequence (unigene). Six public databases, including the National Centre for Biotechnology Information nonredundant, GO, Kyoto Encyclopaedia of Genes and Genomes, Protein Family, SwissProt, and eggNOG databases, were used for functional annotations via DIAMOND (Buchfink et al., 2015) with a threshold E-value of <10−5. The depositing data numbers for the transcriptome were GSE148484 in NCBI database.
RNA Sequencing (RNA-Seq) Data Analysis
The expression level for unigenes were normalised by transcripts per kilobase of exon model per million mapped reads (TPM) to identify the differentially expressed genes (DEGs) between MT-treated and untreated wax apple samples (Mortazavi et al., 2008). The DEGs were selected with |log2(fold change)| ≥ 1 and with statistical significance (P < 0.05) by R package edgeR (Robinson et al., 2010). False discovery rate (FDR) was used to determine the threshold of P value in multiple testing (Benjamini and Yekutieli, 2001). Three biological replicates were performed to determine the reliability of the DEGs. A volcano plot was drawn with GraphPad Prism 8.0.1 to show the overall DEG distribution. OmicShare tools (http://www.omicshare.com/tools) were used to classify all significantly DEGs into GO functions (i.e., biological process, molecular function, and cellular component). Gene expression profiles determined via cluster analysis were drawn using eGPS 1.6.1 software (Yu et al., 2019).
Quantitative PCR Validation and Expression Analysis
Real-time quantitative PCR (RT-qPCR) was used to confirm the gene expressions related to cell membrane decomposition and modification (SsPG1, Sscel61a, and Sscel61b), antioxidant enzyme (SsSod, SsCAT1, and SsSOD2) and other antioxidant pathways (SsTrx-2 and SsTXN2). RNA was extracted using an RNA preparation pure plant kit (Tiangen, Beijing, China) according to the manufacturer’s instructions. Then, 1 mg of total RNA was reverse transcribed into cDNA using PrimeScript RT reagent kit (TaKaRa, Dalian, China). RT-qPCR was performed using TB Green™ Premix Ex Taq™ II (TaKaRa, Dalian, China). The specific quantitative PCR primers listed in Supplementary Table S1 were designed using the online software Primer 3 (http://bioinfo.ut.ee/primer3-0.4.0/). The SsSKIP16 gene, which is highly expressed and unchanged, was used as the internal reference gene. The experiment was repeated three times, and the results were calculated via the 2−ΔΔCt method (Livak and Schmittgen, 2001). All experiments were performed with three independent biological replicates.
Statistical Analysis
This experiment was based on a complete random design and three biological replicates. All values were expressed as mean ± standard deviation (SD). ANOVA was performed using SPSS software. Asterisks show that the values were significantly different between control and 800 µM MT treatment at the same storage time (* P < 0.05, ** P < 0.01, *** P < 0.001).
Results
Morphological Changes, Decay Incidence, and Weight Loss Rate
The fruit in the control group showed morphological discoloration and decay on pericarp with a decay incidence of 57.1% on the 4th day, whereas the decay incidence was 33.3% in the MT treatment group. The visible difference between the control and exogenous MT treatment groups became more obvious on the 5th day (Figure 1A). The decay incidence of pericarp gradually increased with storage time (Figure 1B). The weight loss rate in the MT treatment group was significantly lower (P < 0.05) than that in the control group (Figure 1C).

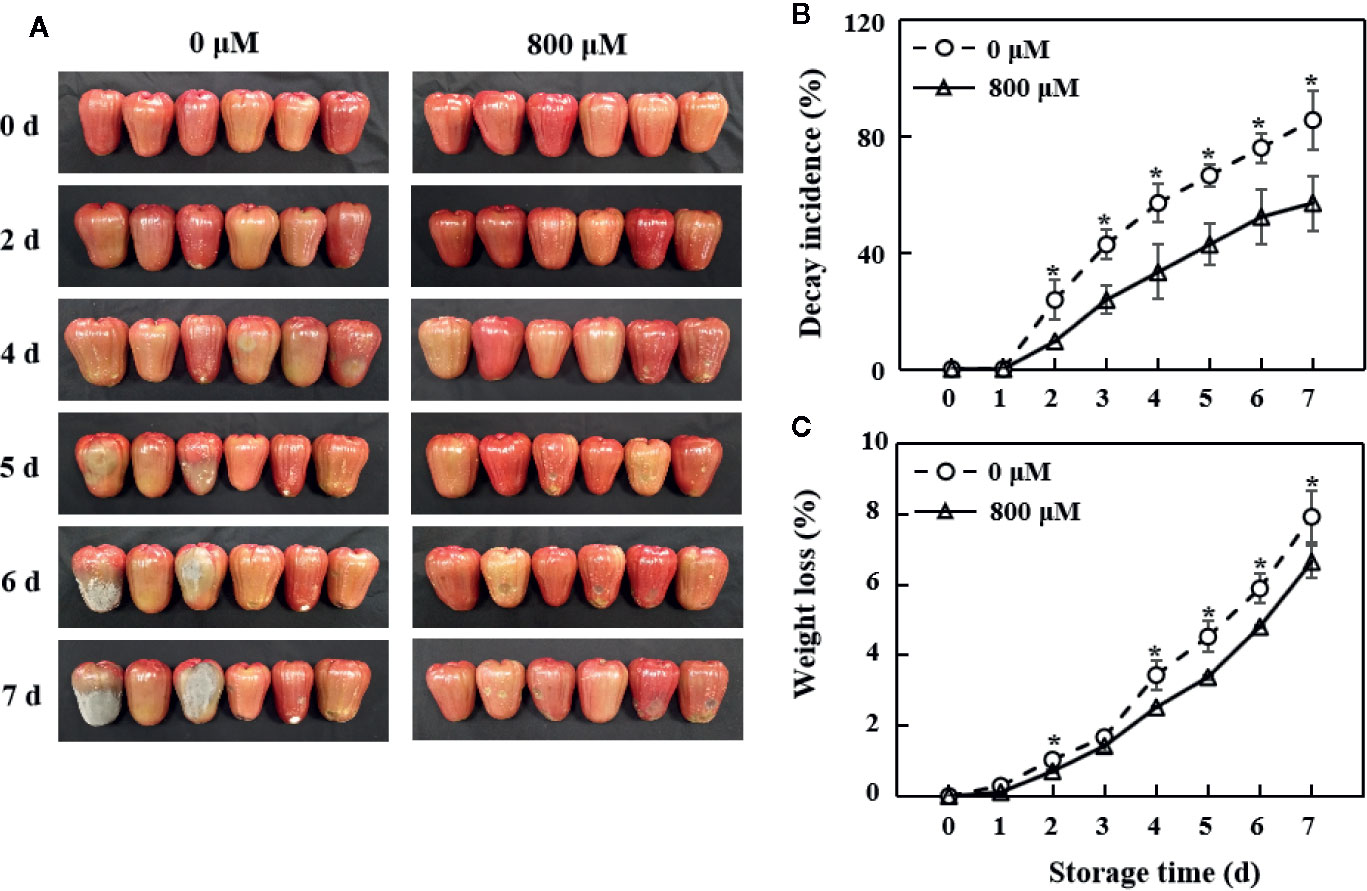

Figure 1 Changes in morphology (A), decay incidence (B), and weight loss rate (C) in wax apples treated with MT or diH2O (control) during storage. Each data point represents the mean (with SD bar) of three replicates. Asterisks show that the values between control and MT treatment are significantly different (*P < 0.05) at the same storage time.
Reactive Oxygen Species Production, Malondialdehyde Content, and Liquid Oxygen Activity
The ROS index, including O2− production and H2O2 content, increased with the increase in storage time. In this study, MT treatment remarkably inhibited the accumulation of these ROSs (Figures 2A, B). On the 7th day, O2− production rate and H2O2 content in MT-treated fruit decreased by 46.8 and 48.2% compared with those in the control group, respectively (Figures 2A, B). MDA content was substantially decreased by MT treatment (Figure 2C). The largest difference in O2− production rate and H2O2 and MDA contents between the MT treatment and control groups was observed on the 5th day of storage. LOX activity in the control group increased in the first 3 days, declined on the 4th and 5th days, slightly increased on the 6th day, and rapidly declined on the 7th day. LOX activity in the MT treatment group displayed the same trend as that in the control group, except that the activity decreased on the 1st day of storage. However, MT treatment significantly (P < 0.05) inhibited LOX activity during the whole storage period (Figure 2D).
Figure 2 Changes in O2− production rate (A), H2O2 content (B), MDA content (C), and LOX activity (D) in the pulp tissues of wax apples treated with MT or diH2O (control) during storage. Each data point represents the mean (with SD bar) of three replicates. Asterisks show that the values between the control and MT treatment groups are significant differences (*P < 0.05, **P < 0.01, ***P < 0.001) at the same storage time.
Activity of Antioxidant Enzymes
The MT treatment group showed similar SOD activity with the control group on the first 2 days. A fluctuating change in SOD activity was observed on the 3rd day. However, MT-treated fruit showed a significantly higher SOD activity than the controls from the 2nd day of storage (P < 0.05 on the 2nd, 3rd, 5th, and 7th days; P < 0.01 on the 4th and 6th days; Figure 3A). CAT activity showed a continuous upward trend in the MT treatment group during the 7 days of storage but decreased after the 1st and 6th days of storage in the control group. CAT activity was significantly higher (P < 0.05) in the MT treatment group than that in the control group on the 3rd and 7th days (Figure 3B). APX activity in the control and MT-treated fruit rapidly decreased in the first 2 days of storage. Fruit in the control group showed activity changes opposite to those of MT-treated fruit on the 7th day (Figure 3C). Overall, APX activity in the MT treatment group was significantly higher than that in the control group (P < 0.05). GR activity in the MT treatment group was significantly higher than that in the control group (P < 0.05). On the 6th day, GR activity in the MT treatment group reached the maximum value (95.8 U g−1), which was 3.3-fold higher than that in the control group (Figure 3D). Collectively, MT-treated fruit showed higher activity of antioxidant enzymes (SOD, CAT, APX, and GR) throughout the storage period compared with the controls (Figure 3).

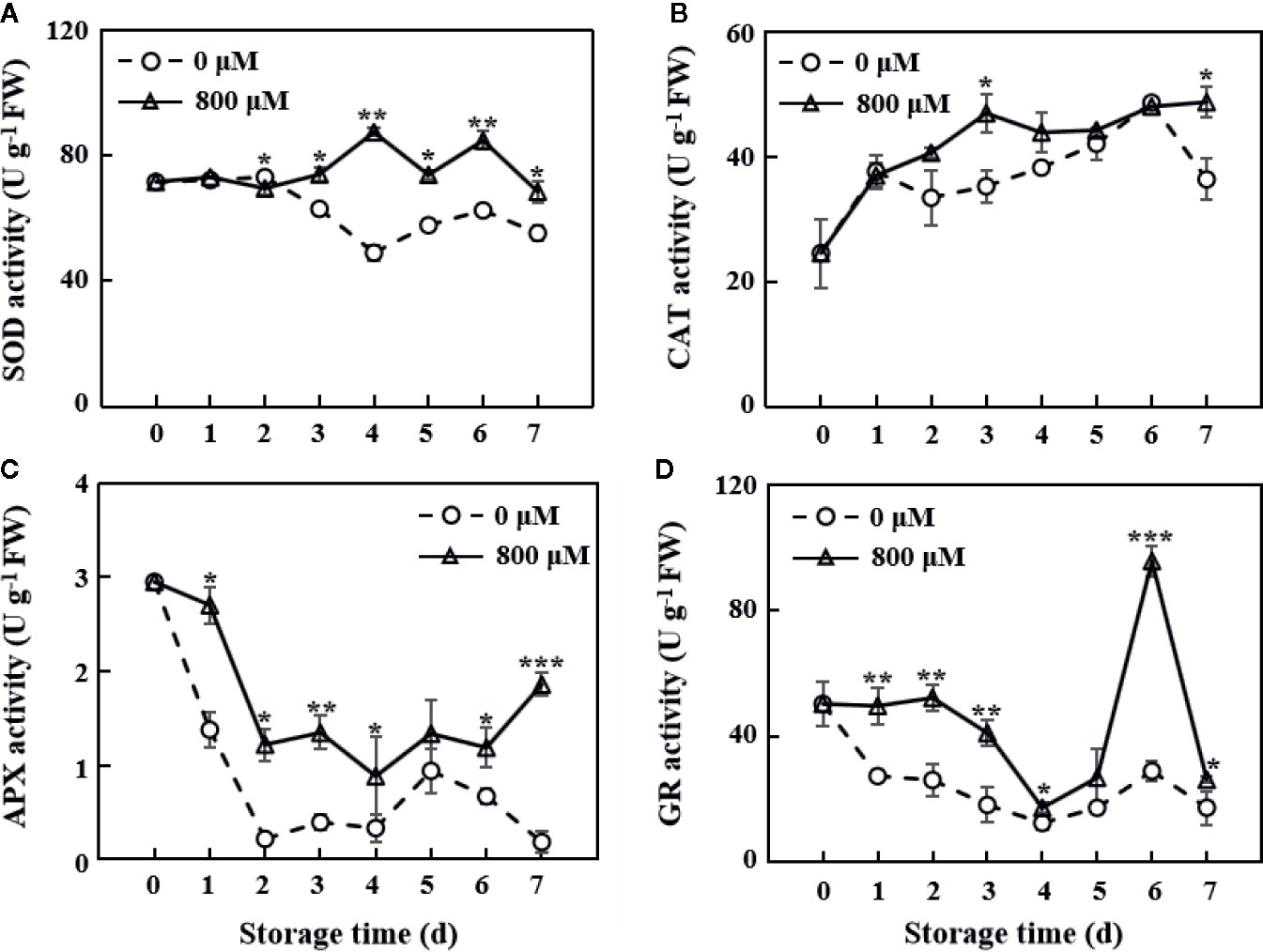

Figure 3 Changes in SOD (A), CAT (B), APX (C), and GR (D) activities in the pulp tissues of wax apples treated with MT or diH2O (control) during storage. Each data point represents the mean (with SD bar) of three replicates. Asterisks show that the values between the control and MT treatment groups are significant differences (*P < 0.05, **P < 0.01, ***P < 0.001) at the same storage time.
Jasmonic Acid and Salicylic Acid Contents
JA and SA play important roles in the pathogen resistance. JA content increased in the early storage period in MT-treated fruit, reached the maximum value on the 2nd day, decreased, and maintained a relatively stable level. JA content in the control group was lower than that in the MT treatment group, except on the 5th day (Figure 4A). SA content in the MT treatment group was significantly lower than that in the control group on the 1st day (P < 0.01). However, SA content in the MT treatment group was significantly higher than that in the control group from the 2nd day to the 7th day of storage, except on the 5th day (P < 0.01 on the 2nd, 3rd, 4th, and 6th days; P < 0.05 on the 7th day; Figure 4B).
Figure 4 Changes in JA (A) and SA (B) contents in the pulp tissues of wax apples treated with MT or diH2O (control) during storage. Each data point represents the mean (with SD bar) of three replicates. Asterisks show that the values between the control and MT treatment groups are significant differences (*P < 0.05, ** P < 0.01) at the same storage time.
Transcriptome Sequencing of Wax Apple
RNA-seq was performed via high-quality transcriptome sequencing of six libraries to investigate the expression profile of genes in MT-treated and untreated wax apples (Supplementary Table S2). After filtering out the low-quality reads, 53,860,011 and 54,379,435 clean reads were obtained from the control and MT treatment groups, respectively. A total of 100,980 transcripts and 46,137 nonredundant genes (unigenes) were obtained through Trinity de novo assembly (Supplementary Table S3). A total of 40,101 genes (86.9% of the total genes) were expressed in the control and MT treatment groups, whereas 791 (1.7%) and 5245 (11.4%) genes were specially expressed in the control and MT treatment groups, respectively (Figure 5A).
Figure 5 Transcriptome sequencing results in MT-treated and untreated wax apples. (A) Distribution of unigene numbers in the control group (left) and MT-treated group (right). (B) Statistics on the number of DEGs. X-axis represents the different screened thresholds, and Y-axis is the number of DEGs. Red bar denotes the up-regulated genes, and green bar represents the down-regulated genes. (C) Significantly DEGs in the control and MT treatment groups. Green points represent significantly down-regulated DEGs, red points indicate significantly up-regulated DEGs, and gray points mean insignificantly DEGs. The thresholds used are FDR ≤ 0.05 and |log2(FC)| ≥ 1.
Differential Expression Analysis of Wax Apple Genes
We compared the expression profile between the MT-treated and control fruit to explore the effect of MT treatment on gene expression in wax apple. The numbers of up- and down-regulated genes are shown in Figure 5B. A total of 10,905 and 6,329 genes were considered DEGs at |log2(FC)| ≥ 1 and ≥ 2, respectively (Figure 5B). The volcano map displays the distribution of significantly DEGs with a threshold of |log2(FC)| ≥ 1 and FDR < 0.05, and the numbers of up- and down-regulated genes were 1,102 and 588, respectively (Figure 5C). We performed GO enrichment analysis for these 1,690 significantly DEGs to obtain their functional distribution (Figure 6 and Supplementary Table S4). These significantly DEGs were classified into three categories: biological processes, molecular functions, and cellular components. For biological processes, most genes were divided into ‘cellular process’ and ‘metabolic process’ subcategories. For molecular functions, 611 and 596 genes were assigned to ‘binding’ (GO:0005488) and ‘catalytic activity’ (GO:0003824), respectively. For cellular components, 21.1% of the genes were classified as ‘cell part’ (GO:0044464), which was the same as ‘cell’ (GO:0005623). GO classifications related to post-harvest preservation were screened. Results indicated that many of these genes were enriched in oxidoreductase activity (GO:0016491) and play a role in oxidation-reduction (GO:0055114) (Table 1). Additionally, these gene expressions are displayed in the heatmap (Supplementary Figure S1) and listed in Supplementary Table S5.
Figure 6 GO classification of all DEGs in the control and treatment groups of wax apples. X-axis is the GO terms, and Y-axis represents the number of significantly DEGs. All GO terms are summarised in three main categories: biological processes, molecular functions and cellular components.
Table 1 GO enrichment for differentially expressed genes (DEGs) related to post-harvest wax apple.
Quantitative PCR Validation for RNA-Seq Data
We investigated the expression of several significantly DEGs related to post-harvest preservation via RT-qPCR to confirm the validity of the RNA-seq data. Most of the RNA-seq data were consistent with the RT-qPCR results (Figure 7). However, the expression of Sscel61a gene between RNA-seq and RT-qPCR were opposite probably due to the false positive of the transcriptome itself. Cell wall decomposition and modification-related genes (SsPG1, Sscel61a, and Sscel61b) and lipid peroxidation-related gene (SsLOX) were down-regulated by exogenous MT treatment in wax apple. Antioxidant-related genes (SsSod, SsCAT1, and SsSOD2), AsA biosynthesis gene (SsGdh), and other antioxidant pathway genes (SsTrx-2 and SsTXN2) were more expressed in the MT treatment group than in the control group.
Figure 7 Validation of RNA-seq data via RT-qPCR. These genes are associated with cell wall modification, active oxygen metabolism and ROS scavenging system. The SsSKIP16 gene, which is highly expressed and unchanged, was used for standardisation. CK and MT indicate the control and MT treatment groups on the 5th day, respectively. Gray and black bars represent RNA-seq data and q-PCR experimental results, respectively. Each data point represents the mean (with SD bar) of three replicates. Asterisks show that the values between the CK (control) and MT treatment groups are significant differences (*P < 0.05, ***P < 0.001).
Discussion
As a rich source of fructose and vitamin C, wax apple fruit has great potential benefits to human health (Chen et al., 2017). However, wax apples experience water loss and become prone to diseases after picking. Consequently, their appearance becomes unpalatable, which affects its shelf life and market value. In this study, soaking with MT effectively reduced the rate of water loss, alleviated the decay, maintained the appearance, and prolonged the shelf life of wax apples (Figure 1). The optimal MT concentration for post-harvest preservation of wax apple (800 µM) is quite higher than that for tomato (50 μM; Sun et al., 2015; Sun et al., 2016), peaches (100 μM; Cao et al., 2016; Gao et al., 2016; Cao et al., 2018; Gao et al., 2018), and pear (Zhai et al., 2018). By contrast, 500, 1,000, and 10,000 µM are the best MT concentration for cassava (Ma et al., 2016), strawberry (Liu et al., 2018), and potato (Zhang et al., 2017), respectively. These results indicated that the amounts of optimal concentration for MT treatment are quite different, which may be related to the difference of species and MT treatment methods.
A dynamic equilibrium relationship exists between ROS production and removal (including O2−, −OH and H2O2) under normal growth conditions, but the relationship is broken after the fruits are picked because of rapid ROS accumulation (Sun et al., 2018). In the present study, MT treatment remarkably reduced O2− production rate and H2O2 content in post-harvest wax apples (Figures 2A, B). Under the catalysis of LOX enzyme, ROS causes the oxidation of unsaturated fatty acids in the lipid membrane to form conjugated peroxy fatty acids, which may further destroy the structure of the cell membrane and eventually lead to membrane peroxidation and degradation (Chomkitichai et al., 2014). MDA, the final product of membrane lipid peroxidation, is commonly used as an effective indicator of the extent of membrane lipid peroxidation (Dhindsa et al., 1981). The gene expression of SsLOX1.5 in the MT treatment group was down-regulated (Figure 7), and LOX enzyme activity and MDA content were reduced by MT treatment (Figures 2C, D). Thus, MT could effectively reduce membrane lipid peroxidation and improve the antioxidant capacity of wax apples. Additionally, the expression levels of cell wall-degrading enzyme genes SsPG1, Sscel61a, and Sscel61b were reduced by MT treatment in wax apple (Figure 7), which was consistent with the finding in the pear (Zhai et al., 2018). These results suggested that MT treatment may possibly maintain the firmness of post-harvest wax apples and delay fruit softening.
The oxidative damage of several important molecules leads to the destruction of normal metabolism of cells, but plants also contain antioxidant systems to remove excess ROS (Reiter et al., 1998). Exogenous MT treatment could remarkably increase the antioxidant enzyme activities of SOD, CAT, APX, and GR (Figure 3). Molecular level analysis showed that the antioxidant enzyme genes (SsSod, SsCAT1, and SsSOD2) were not expressed in the control group but highly expressed in the MT treatment group (Figure 7), suggesting that MT can reduce oxidative damage, maintain complete cell membrane structure, and function and delay post-harvest decay of wax apples. RNA-seq analysis showed that numerous genes participated in the antioxidant term in post-harvest wax apples, especially the ‘antioxidant activity’ (GO:0016209) and ‘ROS metabolic process’ (GO:0072593) (Figure 6 and Table 1). Some DEGs exhibited obvious clustering in ROS metabolism and antioxidant enzyme synthesis, indicating that MT plays an important role in promoting post-harvest preservation by increasing the antioxidant activity in wax apples.
As an important gene in the ascorbate-glutathione (AsA-GSH) cycle, SsGdh was expressed in MT-treated wax apples but not in the control group on the 5th day after MT treatment (Figure 7), indicating that AsA-GSH may still function as an important antioxidant system in MT-treated wax apples but not in the control group. The gamma aminobutyric acid (GABA) pathway can extend thetricarboxylic acid cycle, provide sufficient ATP and carbon skeleton for cells, relieve oxidative damage, and delay the ageing of post-harvest fruits and vegetables (Aghdam et al., 2019; Sharafi et al., 2019). The present results showed that GABA shunt pathway genes SsTXN2 and SsTrx-2 were expressed in post-harvest MT-treated wax apples but not in the control fruit (Figure 7), suggesting that the GABA pathway may provide ATP and clear excess H2O2 in MT-treated wax apples.
JA and SA act as important signaling molecules and play roles in plant growth and development and stress responses (Creelman and Mullet, 1995; Shi and Zhu, 2008). Recent studies proved that MeJA treatment could prolong the post-harvest life of cassava, reduce post-harvest physiological deterioration (PPD), and regulate the storage quality (Liu et al., 2019). Also, exogenous SA could improve the color, keep the content of chlorophyll, ascorbic acid, and maintain the good quality of post-harvest asparagus (Wei et al., 2011). In our study, we found that JA content in the MT treatment wax apple was significantly higher than that in the control group on the 1st, 2nd, 4th, and 7th day during storage, except on the 5th day (Figure 4A). And similarly, SA content in the MT treatment group was also significantly higher than that in the control group from the 2nd day to the 7th day, except on the 5th day (Figure 4B). Arnao and Hernández-Ruiz reported that MT mainly acts on the upstream of defense genes to promote the synthesis of JA and SA (Arnao and Hernández-Ruiz, 2018). These results suggested that MT treatment may improve the disease resistance of post-harvest wax apple by increasing the accumulation of the content of JA and SA.
In summary, MT eliminated excessive ROS and delayed the post-harvest decay of wax apples. The model in Figure 8 briefly describes ROS accumulation and the potential mechanism of MT in post-harvest wax apples. The model shows that the post-harvest decay of wax apples is closely related to ROS accumulation and cell membrane damage. MT removes excess ROS in wax apples through the collaborative functions of antioxidant enzymes, such as SOD, CAT, APX, and GR, and the GABA shunt pathway. In addition, the increase in JA and SA contents reduced the visible incidence of post-harvest diseases in wax apples.
Figure 8 Mechanism model of exogenous MT in delaying the post-harvest decay of wax apples. The left part displays the ROS accumulation pathway. The synthesis of ROS can be divided into enzymatic and nonenzymatic pathways. Nonenzymatic pathways can directly lead to ROS accumulation. In enzymatic pathways, LOX enzyme can catalyse unsaturated fatty acids to form hydroperoxides and free radicals, eventually leading to membrane lipid peroxidation. All of the reactions will cause the decay of post-harvest wax apples. The right part indicates the MT action pathway. The main function of MT is to remove excess ROS though antioxidant enzymes and antioxidant pathway. The antioxidant enzyme pathway includes SOD, CAT, APX, and AsA-GSH cycles. ROS can be also removed through the GABA shunt pathway. The increase in JA and SA contents will also decrease the risk to post-harvest diseases. Red and green arrows indicate the up-regulation and down-regulation of expression levels under exogenous MT treatment, respectively. Italics represent gene expression during post-harvest preservation process.
Data Availability Statement
The original contributions presented in the study are publicly available. This data can be found here: NCBI/GSE148484. (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE148484.
Author Contributions
TX and ZL conceived and designed the experiments. YC, CZ, YL, TD, MZ, XD, and LZ performed the experiments. YC and YZ performed the statistical analysis of the data. TX and YC wrote the manuscript. YZ and GN helped to revise the manuscript. All authors contributed to the article and approved the submitted version.
Funding
This work was supported jointly by the Natural Science Foundation of Jiangsu Higher Education Institutions of China (19KJA510010), the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD) and Postgraduate Research & Practice Innovation Program of Jiangsu Province (SJKY19_2047).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We particularly appreciate the guidance of the editor and reviewers on the refinement of the manuscript.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2020.569779/full#supplementary-material
References
Aghdam, M. S., Fard, J. R. (2017). Melatonin treatment attenuates postharvest decay and maintains nutritional quality of strawberry fruit (Fragaria × anannasa cv. Selva) by enhancing GABA shunt activity. Food Chem. 221, 1650–1657. doi: 10.1016/j.foodchem.2016.10.123
Aghdam, M. S., Kakavand, F., Rabiei, V., Zaare-Nahandi, F., Razavi, F. (2019). γ-Aminobutyric acid and nitric oxide treatments preserve sensory and nutritional quality of cornelian cherry fruit during postharvest cold storage by delaying softening and enhancing phenols accumulation. Sci. Hortic. 246, 812–817. doi: 10.1016/j.scienta.2018.11.064
Arnao, M. B., Hernández-Ruiz, J. (2015). Functions of melatonin in plants: a review. J. Pineal. Res. 59, 133–150. doi: 10.1111/jpi.12253
Arnao, M. B., Hernández-Ruiz, J. (2018). Melatonin and its relationship to plant hormones. Ann. Bot. 12, 195–207. doi: 10.1093/aob/mcx114
Benjamini, B. Y., Yekutieli, D. (2001). The control of the false discovery rate in multiple testing under dependency. Ann. Statist. 29, 1165–1188. doi: 10.1214/aos/1013699998
Buchfink, B., Xie, C., Huson, D. H. (2015). Fast and sensitive protein alignment using DIAMOND. Nat. Methods 12, 59–60. doi: 10.1038/nmeth.3176
Cao, S. F., Song, C. B., Shao, J. R., Bian, K., Chen, W., Yang, Z. F. (2016). Exogenous melatonin treatment increases chilling tolerance and induces defense response in harvested peach fruit during cold storage. J. Agr. Food Chem. 64, 5215–5222. doi: 10.1021/acs.jafc.6b01118
Cao, S. F., Shao, J. R., Shi, L. Y., Xu, L. W., Shen, Z. M., Yang, Z. (2018). Melatonin increases chilling tolerance in post-harvest peach fruit by alleviating oxidative damage. Sci. Rep. 8, 806. doi: 10.1038/s41598-018-19363-5
Chen, F., Hao, Y., Yin, Z., Wu, G., Jiang, X. (2017). Transcriptome of wax apple (Syzygium samarangense) provides insights into nitric oxide-induced delays of postharvest cottony softening. Acta Physiol. Plant 39, 273. doi: 10.1007/s11738-017-2569-4
Chomkitichai, W., Chumyam, A., Rachtanapun, P., Uthaibutra, J., Saengnil, K. (2014). Reduction of reactive oxygen species production and membrane damage during storage of ‘Daw’ longan fruit by chlorine dioxide. Sci. Hortic. 170, 143–149. doi: 10.1016/j.scienta.2014.02.036
Creelman, R. A., Mullet, J. E. (1995). Jasmonic acid distribution andaction in plants: regulation during development and response to biotic and abiotic stress. Proc. Natl. Acad. Sci. U. S. A. 92, 4114–4119. doi: 10.1073/pnas.92.10.4114
Dhindsa, R. S., Plumb-Dhindsa, P., Thorpe, T. A. (1981). Leaf Senescence: Correlated with increased levels of membrane permeability and lipid peroxidation, and decreased levels of superoxide dismutase and catalase. J. Exp. Bot. 32, 93–101. doi: 10.1093/jxb/32.1.93
Dubbels, R., Reiter, R. J., Klenke, E., Goebel, A., Schnakenberg, E., Ehlers, C., et al. (1995). Melatonin in edible plants identified by radioimmunoassay and by high performance liquid chromatography-mass spectrometry. J. Pineal. Res. 18, 28–31. doi: 10.1111/j.1600079x.1995.tb00136.x
Gao, H., Zhang, Z. K., Chai, H. K., Cheng, N., Yang, Y., Wang, D. N., et al. (2016). Melatonin treatment delays postharvest senescence and regulates reactive oxygen species metabolism in peach fruit. Postharvest Biol. Tech. 118, 103–110. doi: 10.1016/j.postharvbio.2016.03.006
Gao, H., Lu, Z., Yang, Y., Wang, D., Yang, T., Cao, M., et al. (2018). Melatonin treatment reduces chilling injury in peach fruit through its regulation of membrane fatty acid contents and phenolic metabolism. Food Chem. 245, 659–666. doi: 10.1016/j.foodchem.2017.10.008
Grabherr, M. G., Haas, B. J., Yassour, M., Levin, J. Z., Thompson, D. A., Amit, I., et al. (2011). Full-length transcriptome assembly from RNA-seq data without a reference genome. Nat. Biotechnol. 29, 644–652. doi: 10.1038/nbt.1883
Hu, W., Yang, H., Tie, W., Yan, Y., Ding, Z., Liu, Y., et al. (2017). Natural variation in banana varieties highlights the role of melatonin in postharvest ripening and quality. J. Agric. Food Chem. 65, 9987–9994. doi: 10.1021/acs.jafc.7b03354
Liang, C., Zheng, G., Li, W., Wang, Y., Hu, B., Wang, H., et al. (2015). Melatonin delays leaf senescence and enhances salt stress tolerance in rice. J. Pineal. Res. 59, 91–101. doi: 10.1111/jpi.12243
Liu, C. H., Zheng, H. H., Sheng, K. L., Liu, W., Zheng, L. (2018). Effects of melatonin treatment on the post-harvest quality of strawberry fruit. Postharvest Bio. Tec. 139, 47–55. doi: 10.1016/j.postharvbio.2018.01.016
Liu, G., Li, B., Li, X., Wei, Y., Liu, D., Shi, H. (2019). Comparative physiological analysis of methyl jasmonate in the delay of postharvest physiological deterioration and cell oxidative damage in cassava. Biomolecules 9, 451. doi: 10.3390/biom9090451
Livak, K. J., Schmittgen, T. D. (2001). Analysis of relative gene expression data using real-time quantitative PCR and the 2DDCt method. Methods 25, 402–408. doi: 10.1006/meth.2001.1262
Ma, Q., Zhang, T., Zhang, P., Wang, Z. Y. (2016). Melatonin attenuates post-harvest physiological deterioration of cassava storage roots. J. Pineal. Res. 60, 424–434. doi: 10.1111/jpi.12325
Moneruzzaman, K. M., Al-Saif, A. M., Alebidi, A., II, Hossain, A. B. M. S., Normaniza, O., Boyce, A. N. (2011). An evaluation of the nutritional quality evaluation of three cultivars of Syzygium samarangense under Malaysian conditions. Afr. J. Agr. Res. 6, 545–552. doi: 10.5897/AJAR10.923
Mortazavi, A., Williams, B. A., McCue, K., Schaeffer, L., Wold, B. (2008). Mapping and quantifying mammalian transcriptomes by RNA-seq. Nat. Methods 5, 621–628. doi: 10.1038/nmeth.1226
Nakano, Y., Asada, K. (1989). Hydrogen peroxide is scavenged by ascorbate specific peroxidase in spinach chloroplasts. Plant Cell Physiol. 22, 867–880. doi: 10.1093/oxfordjournals.pcp.a076232
Palma, J. M., Jiménez, A., Sandallo, L. M., Corpas, F. J., Lundqvist, M., Gómez, M., et al. (2006). Antioxidative enzymes from chloroplasts, mitochondria, and peroxisomes during leaf senescence of nodulated pea plants. J. Exp. Bot. 57, 1747–1758. doi: 10.1093/jxb/erj191
Patterson, B. D., Macrae, E. A., Ferguson, I. B. (1984). Estimation of hydrogen peroxide in plant extracts using titanium. Anal. Biochem. 139, 487–492. doi: 10.1016/0003-2697(84)90039-3
Reiter, R. J., Tan, D. X., Cabrera, J., D’Arpa, D., Sainz, R. M., Ramos, S., et al. (1998). The oxidant/antioxidant network: Role of melatonin. Biol. Signals Recept. 8, 56–63. doi: 10.1159/000014569
Robinson, M. D., McCarthy, D. J., Smyth, G. K. (2010). EdgeR: a bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics 26, 139–140. doi: 10.1093/bioinformatics/btp616
Sharafi, Y., Aghdam, M. S., Luo, Z. S., Jannatizadeh, A., Razavi, F., Fard, J. R., et al. (2019). Melatonin treatment promotes endogenous melatonin accumulation and triggers GABA shunt pathway activity in tomato fruit during cold storage. Sci. Hortic. 254, 222–227. doi: 10.1016/j.scienta.2019.04.056
Shi, Q., Zhu, Z. (2008). Effects of exogenous salicylic acid on manganese toxicity, element contents and antioxidative system in cucumber. Environ. Exp. Bot. 63, 317–326. doi: 10.1016/j.envexpbot.2007.11.003
Shü, Z. H., Tirtawinata, R., Meon, Z., Thanarut, C. (2008). Wax apple production inselected tropical Asian countries. Acta Hortic. 773, 161–164. doi: 10.17660/actahortic.2008.773.22
Sobeh, M., Braun, M. S., Krstin, S., Youssef, F. S., Ashour, M. L., Wink, M. (2016). Chemical profiling of the essential oils of Syzygium aqueum, Syzygium samarangense and Eugenia uniflora and their discrimination using chemometric analysis. Chem. Biodivers. 13, 1537–1550. doi: 10.1002/cbdv.201600089
Sobeh, M., Youssef, F. S., Esmat, A., Petruk, G., El-Khatib, A. H., Montie, D. M., et al. (2018). High resolution UPLC-MS/MS profiling of polyphenolics in the methanol extract of Syzygium samarangense leaves and its hepatoprotective activity in rats with CCl4-induced hepatic damage. Food Chem. Toxicol. 113, 145–153. doi: 10.1016/j.fct.2018.01.031
Sobeh, M., Petruk, G., Osman, S., El Raey, M. A., Imbimbo, P., Monti, D. M., et al. (2019). Isolation of myricitrin and 3, 5-di-O-methyl gossypetin from Syzygium samarangense and evaluation of their Involvement in protecting keratinocytes against oxidative stress via activation of the Nrf-2 pathway. Molecules 24, 1839. doi: 10.3390/molecules24091839
Sun, Q. Q., Zhang, N., Wang, J. F., Zhang, H. J., Li, D. B., Shi, J., et al. (2015). Melatonin promotes ripening and improves quality of tomato fruit during postharvest life. J. Exp. Bot. 66, 657–668. doi: 10.1093/jxb/eru332
Sun, Q., Zhang, N., Wang, J., Cao, Y., Li, X., Zhang, H., et al. (2016). A label-free differential proteomics analysis reveals the effect of melatonin in promoting fruit ripening and anthocyanin accumulation upon post-harvest in tomatoes. J. Pineal. Res. 61, 138–153. doi: 10.1111/jpi.12315
Sun, J., Lin, H., Zhang, S., Lin, Y., Wang, H., Lin, M., et al. (2018). The roles of ROS production-scavenging system in Lasiodiplodia theobromae (Pat.) Griff. & Maubl.-induced pericarp browning and disease development of harvested longan fruit. Food Chem. 247, 16–22. doi: 10.1016/j.foodchem.2017.12.017
Supapvanich, S., Pimsaga, J., Srisujan, P. (2011). Physicochemical changes in fresh-cut wax apple (Syzygium Samarangenese [blume] merrill & l.m. perry) during storage. Food Chem. 127, 912–917. doi: 10.1016/j.foodchem.2011.01.058
Supapvanich, S., Prathaan, P., Tepsorn, R. (2012). Browning inhibition in fresh-cut rose apple fruit cv. Taaptimjaan using konjac glucomannan coating incorporated with pineapple fruit extract. Postharvest Biol. Technol. 73, 46–49. doi: 10.1016/j.postharvbio.2012.05.013
Supapvanich, S., Mitrsang, P., Srinorkham, P., Boonyaritthongchai, P., Wongs-Aree, C. (2016). Effects of fresh Aloe vera gel coating on browning alleviation of fresh cut wax apple (Syzygium samarangenese) fruit cv. Taaptimjaan. J. Food Sci. Technol. 53, 2844–2850. doi: 10.1007/s13197-016-2262-4
Supapvanich, S., Mitsang, P., Youryon, P., Techavuthiporn, C., Boonyaritthongchai, P., Tepsorn, R. (2018). Postharvest quality maintenance and bioactive compounds enhancement in ‘taaptimjaan’ wax apple during short-term storage by salicylic acid immersion. Hortic. Environ. Biote. 59, 373–381. doi: 10.1007/s13580-018-0044-9
Surrey, K. (1964). Spectrophotometric method for determination of lipoxidase activity. Plant Physiol. 39, 65–70. doi: 10.1104/pp.39.1.65
Wang, A., Luo, G. (1990). Quantitative relation between the reaction of hydroxylamine and superoxide anion redicals in plants. Plant Physiol. Commun. 6, 55–57. doi: 10.1021/ja00874a010
Wei, Y., Liu, Z., Su, Y., Liu, D., Ye, X. (2011). Effect of salicylic acid treatment on postharvest quality, antioxidant activities, and free polyamines of asparagus. J. Food Sci. 76, S126–S132. doi: 10.1111/j.1750-3841.2010.01987.x
Xin, D., Si, J., Kou, L. P. (2017). Postharvest exogenous melatonin enhances quality and delays the senescence of cucumber. Acta Hortic. Sin. 44, 891–901. doi: 10.16420/j.issn.0513-353x.2016-0888
Xu, T., Chen, Y., Kang, H. (2019). Melatonin is a potential target for improving post-Harvest preservation of fruit and vegetables. Front. Plant Sci. 10, 1388. doi: 10.3389/fpls.2019.01388
Yu, D., Dong, L., Yan, F., Mu, H., Tang, B., Yang, X., et al. (2019). eGPS 1.0: comprehensive software for multi-omic and evolutionary analyses. Nati. Sci. Rev. 6, 867–869. doi: 10.1093/nsr/nwz079
Zhai, R., Liu, J., Liu, F., Zhao, Y., Liu, L., Fang, C., et al. (2018). Melatonin limited ethylene production, softening and reduced physiology disorder in pear (Pyrus communis, L.) fruit during senescence. Postharvest Biol. Tech. 139, 38–46. doi: 10.1016/j.postharvbio.2018.01.017
Zhang, N., Zhao, B., Zhang, H. J., Weeda, S., Yang, C., Yang, Z., et al. (2013). Melatonin promotes water-stress tolerance, lateral root formation, and seed germination in cucumber (Cucumis sativus L.). J. Pineal. Res. 54, 15–23. doi: 10.1111/j.1600-079X.2012.01015.x
Zhang, S. M., Zheng, X. Z., Reiter, R. J., Feng, S., Wang, Y., Liu, S., et al. (2017). Melatonin attenuates potato late blight by disrupting cell growth, stress tolerance, fungicide susceptibility and homeostasis of gene expression in Phytophthora infestans. Front. Plant Sci. 8, 1993. doi: 10.3389/fpls.2017.01993
Keywords: wax apple, exogenous melatonin, post-harvest, preservation, decay, antioxidation
Citation: Chen Y, Zhang Y, Nawaz G, Zhao C, Li Y, Dong T, Zhu M, Du X, Zhang L, Li Z and Xu T (2020) Exogenous Melatonin Attenuates Post-Harvest Decay by Increasing Antioxidant Activity in Wax Apple (Syzygium samarangense). Front. Plant Sci. 11:569779. doi: 10.3389/fpls.2020.569779
Received: 05 June 2020; Accepted: 25 August 2020;
Published: 11 September 2020.
Edited by:
Antonio Ferrante, University of Milan, ItalyReviewed by:
Mansour Sobeh, Heidelberg University, GermanyMason MacDonald, Dalhousie University, Canada
Copyright © 2020 Chen, Zhang, Nawaz, Zhao, Li, Dong, Zhu, Du, Zhang, Li and Xu. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Tao Xu, eHV0YW9feXJAMTI2LmNvbQ==; Zongyun Li, em9uZ3l1bmxpQGpzbnUuZWR1LmNu
†These authors have contributed equally to this work
