We consider the one-dimensional Hydrogen atom, with the Coulomb interaction (γ < 0), and use Schwartz's theory of distributions to address the non-integrable singularity at the origin. This singularity renders the interaction term V(x)ψ(x) in the Schrödinger's equation, where ψ(x) is the wave function, an ill-defined product in the ordinary sense. We replace this ill-defined product by a well-defined interaction distribution, S[ψ, V](x), and by imposing that it should satisfy some fundamental mathematical and physical requirements, we show that this distribution is defined up to a 4-parameter family of contact interactions, in agreement with the method of self-adjoint extensions. By requiring that the interaction distribution be invariant under parity, we further restrict the 4-parameter family of interactions to the subfamily of all the parity invariant Coulomb interactions. Finally, we present a systematic study of the bound states within this subfamily, addressing the frequently debated issues of the multiplicity and parity of the bound states, and the boundedness of the ground state energy.
1. Introduction
The one-dimensional (1D) hydrogen atom, with a Coulomb-like interaction1, is defined by the Hamiltonian (throughout this paper we use Rydberg atomic units )
and it has been a source of considerable interest since the paper by Loudon [1], who investigated this problem due to its relevance for the physics of excitons in strong magnetic fields. The 1D Coulomb potential finds applications in several fields, such as the quasi one-dimensional hydrogen atom in astrophysical systems with very strong magnetic fields [2], in quantum wires and carbon nanotubes (see, e.g., [3–5] and references therein), etc.—for a recent review of the applications of the 1D Coulomb interaction see Loudon [6].
Despite its many applications and deceptive simplicity, the 1D hydrogen atom has been a source of great controversy in the literature. This is due to the fact that the 1D Coulomb potential has a non-integrable singularity at the origin, rendering its mathematical treatment non-trivial. In particular, the singularity at the origin makes it unclear what are the boundary conditions (b.c.) to be used there and, consequently, whether the potential is impenetrable or not at the singularity (see, e.g., [7]). This singularity also obscures the properties of the system under parity transformations, since the behavior of on ℝ\{0} is not sufficient to ensure that the system is parity invariant (see section 3 for further details).
Several treatments, including Loudon's [1], regularize the potential by introducing a small cutoff a via V(x) = γ/(|x| + a), and taking the limit a → 0 at the end. This regularization procedure has led to conflicting results in which concerns the degeneracy or not of the spectrum, the existence of even wave functions and whether the associated spectrum is continuous or discrete, and the stability of the model (unboundedness of the ground state energy from below, in the a → 0 limit) [1, 6, 9, 10]. This is, perhaps, unsurprising, since regularization procedures need to be employed with great care and often need additional input, such as symmetry, to yield meaningful results, as is well-known in quantum field theory [11] or in the study of chemical indices [12, 13]—see [14, 15] for rigorous treatments of the regularized 1D Coulomb potential, and [16] for a general treatment of regularized Sturm-Liouville operators.
Many other approaches, such as the use of generalized Laplace transform [17], Fourier transform [18], superpotentials [8], among others [19–23], have also been employed in the solution of the 1D hydrogen atom. Still, these either have not addressed or have not been able to unequivocally resolve all the issues above mentioned. Recognizing that the Hamiltonian corresponding to (1) is symmetric, but not self-adjoint, has led to the application of the rigorous theory of self-adjoint extensions (SAE) of symmetric operators to this problem by several authors [7, 24–27], who have shown that the Hamiltonian (1) is not essentially self-adjoint and, therefore, does not have a unique self-adjoint extension [28]. In fact, it has been shown in the SAE approach that this Hamiltonian admits a four-parameter family of extensions [7, 29].
Despite SAE's rigorous and unequivocal results, confusion still persists in the literature, particularly concerning the parity of the solutions and the boundedness or not of the ground state energy. In addition, although the method of SAE clarifies the possible extensions of the Hamiltonian, it cannot decide which extension (or b.c.) is the physically sensible one. Thus, a more physically appealing, albeit still rigorous, alternative method is certainly desirable and may help to shed light on some of the open problems remaining in the field. With this in mind, in section 2 we revisit the 1D Coulomb interaction and address the singularity using the Schwartz's theory of distributions, thus generalizing the method recently developed for 1D contact interactions [30] (also see [31]) to include long-range singular interactions. In this approach we deal with the non-integrable singularity of the potential at the origin by replacing the (generally) ill defined product V(x)ψ(x) in the Schrödinger equation by a well-defined interaction distribution S[ψ, V], to be determined from fundamental mathematical and physical requirements. Such requirements are imposed on the interaction distribution in order that fundamental postulates of quantum mechanics, such as the superposition principle and probability conservation, be satisfied also in the singular case. The interaction distribution is, essentially, a distributional regularization of the (ill-defined) term V(x)ψ(x) and, by a general result of the distribution theory [32], it is determined only up to a sum of contact interactions at the singularity (that is, the Dirac delta and it's derivatives). We show that the requirements imposed on the interaction distribution reduce the contact terms to a four parameter family of point interactions, thus agreeing with the SAE results [7, 29]. It should be noticed that Kurasov used distributional methods to address singular potentials, including the 1D Coulomb potential [24]. However, Kurasov uses distribution theory in the context of the self-adjoint operator theory, in order to obtain the particular Friedrichs extension of the symmetric operator (1), also see [25, 33, 34]. Our approach is fundamentally different in which here the only requirements are from within the distribution theory and simple physical requirements from quantum theory. In addition, an explicit general form for the interaction distribution S[ψ, V] is constructed, including all interactions of the four-parameter family of contact interactions, a feature that renders the distributional approach particularly suitable for symmetry analyses [30, 31].
We argue that, given the parity invariance of the original Coulomb potential on ℝ\{0}, it is natural to impose the same property for the interaction distribution—we, again, stress that the parity invariance of the potential V(x) on ℝ\{0} is not sufficient to ensure that the interaction, defined on the entire ℝ, is invariant: the behavior of the contact interactions must also be taken into account. Thus, in section 3 we show that requiring parity invariance further reduces the allowed interactions to either a two-parameter interaction (permeable origin) or an one-parameter interaction (impermeable origin) [30]. We then present, in section 4, a systematic study of the bound states for the subfamily of all parity invariant interactions, addressing questions that are at the origin of the controversies about the 1D hydrogen atom in the literature, such as the multiplicities of bound state energies, the parity of the corresponding eigenfunctions and the boundedness of the ground state (see [6, 7, 26] and references therein)—as far as we know, such a systematic investigation, including all possible parity invariant b.c., is missing in the literature and it may help to clarify the controversies mentioned above. The results are discussed in section 5 and two appendices, on essentials of distribution theory and the solutions of the Whittaker equation, are included for convenience.
2. A Distributional Approach to the 1D Hydrogen Atom Interaction
The time independent 1D Schrödinger equation
introduces the interaction of a quantum particle with an external potential V(x) via the product V(x)ψ(x), which is well-defined for potentials described by regular distributions. However, for singular potentials, such as the (attractive) 1D Coulomb potential
the product V(x)ψ(x) is ill-defined, due to the singularity of the potential at the origin. We will address this difficulty by considering the Schrödinger equation in the distributional sense, that is, every term in Equation (2) must correspond to a distribution. This requires particular attention to the product term V(x)ψ(x), not only due to the singularity of the 1D Coulomb potential, but also because the naive product of two distributions is not necessarily a well-defined distribution.
2.1. The 1D Coulomb Potential as a Distribution
The 1D Coulomb potential, Equation (3), has a (Lebesgue) non-integrable singularity at the origin (its integral diverges logarithmicaly near the origin). As a consequence, it does not define a regular distribution2 on any open interval including the origin. However, it defines a regular distribution on any open interval which does not include the origin, such as ℝ\{0}. Any distribution defined on the entire real line and which coincides with V(x) on ℝ\{0} [that is, a distributional regularization of V(x)] will necessarily be singular, and it will not be unique. In fact, the difference between any two distributions satisfying this requirement [i.e., between two distributional regularizations of V(x)] is a distribution concentrated at the origin, hence given by a linear combination of the delta distribution and its derivatives up to (and including) the greatest order of the two distributions (see the Theorem in Appendix 1).
Let rc be the order of any distribution Vc(x) defined on the entire real line and coinciding with on ℝ\{0}. Then, the minimum possible value for rc is zero. To see this, observe that on ℝ\{0} any primitive of Vc(x) must have the general form , with c1 and c2 arbitrary constants and θ the Heaviside theta distribution3 (see Appendix 1 for the notation). The function diverges logarithmically as x → 0±, but it is integrable around the origin and, thus, it must be the derivative of a continuous (but not differentiable at x = 0) function. It follows that , with
where t(x) = xθ(x) is a continuous function [a primitive of θ(x)] and c3 is another arbitrary constant. We have, for instance, that . Therefore, we have found a continuous function W(x), not differentiable at the origin, whose second distributional derivative is a distribution Vc(x) which coincides with on ℝ\{0}. Hence, we conclude that W(x) has order −2 and, consequently, has order zero (see Appendix 1). Any other distribution coinciding with on ℝ\{0}, and also having order zero, must differ from Vc(x) only by a multiple of the delta distribution (see the Theorem in Appendix 1).
2.2. The Interaction Distribution
Let us now, following the approach introduced in Calçada et al. [30], substitute the ill-defined product V(x)ψ(x) in the time independent Schrödinger equation by a well-defined distribution S[ψ, V]4. Then, the distributional Schrödinger equation takes the form:
The interaction distribution S[ψ, V] must be determined from fundamental mathematical and physical requirements, namely,
R1. The distribution S[ψ, V], defined on the entire real line, must coincide with V(x)ψ(x) on ℝ\{0};
R2. The distribution S[ψ, V] must depend linearly on the wave function ψ and its derivative.
R3. The wave function must correspond to a regular distribution (i.e., to a locally integrable function in the Lebesgue sense) in any interval around the origin. Thus, its order, rψ, must be bounded from above by rψ ≤ −1.
R4. The probability flux must be conserved across the origin.
The reasons why any well-defined system needs to satisfy these requirements are as follows. R1 is a purely mathematical necessity from the definition of a distributional regularization (and it is self-evident). R2 is necessary for the superposition principle to hold and in order for the dynamics to be given by Schrödinger's equation for local interactions. R3 is necessary (although not sufficient) to obtain square integrable wave functions around the origin—both R3 and R4 are necessary requirements of the probabilistic interpretation of quantum mechanics. Taken together, R1–R4 are equivalent to require self-adjointness of the Hamiltonian (see [28] for requirements similar to R3–R4, notice that there R1 and R2 are automatically satisfied).
Equation (5), with requirement R1, applied to the 1D Coulomb interaction, implies that
The general solution for this equation is presented in the Appendix 2, in terms of the well-known Whittaker's functions. In what follows, an important property of the solution there presented is the fact that ψ(x) has finite lateral limits ψ(0±) when x → 0± [see Equation (A6)].
Following the ideas of the previous subsection, we need to find a (ordinary) primitive of the term , defined on ℝ\{0}. It is not difficult to see that, by conveniently choosing the integration constants, we can obtain a primitive in the form of the following ordinary function5
where sgn(x) = θ(x) − θ(−x) stands for the sign function. It can be easily checked that the (ordinary) derivative of G[ψ, V](x) coincides with the ordinary function on ℝ\{0}, as desired.
It is important to notice that the function G[ψ, V](x) is locally integrable and, thus, defines a distribution over the entire real line. To demonstrate this, it is enough to check the integrability in any finite interval containing the origin: the first term within the brackets in (7) is locally integrable because ψ(x) is bounded (see Appendix 2) and ln |x| is integrable; the third term (the integral) defines a continuous function for all x, since the integrand is an integrable function, by the same reason of the first term; finally, the middle term is also integrable, since, for any fixed R > 0 and arbitrary η > 0,
and both terms in the r.h.s of this equation have well-defined limits when η → 0+. The same holds for the integral .
The fact that G[ψ, V](x) defines a regular distribution on the entire real axis implies that its order is rG ≤ −1. As a consequence, its distributional derivative is defined over the entire real axis, has order ≤ 0 and, as mentioned above, coincides with the product when restricted to the region ℝ\{0}. Any other distribution S[ψ, V](x) satisfying R1 must differ from S0[ψ, V](x) only by a distribution concentrated at the origin (a contact interaction) and, from the Theorem on Appendix 1, we have that
where the (complex) coefficients cn[ψ, V] must be linear functionals of ψ(x) and its derivative, to satisfy requirement R2. From R3 and the fact that indefinite integration (taking the primitive) decreases the order by one (see Appendix 1), the order of S[ψ, V](x), rs, must be at most rs = +1, since it follows from Equation (5) that the distribution S[ψ, V](x) must have the same order as ψ″(x) (the orders of the δ and δ′ are 0 and +1, respectively [32]). Therefore, requirements R1–R3 imply that the distributional Schrödinger equation, Equation (5), with the most general interaction distribution S[ψ, V](x), can be written as
with and G[ψ, V](x) given by the regular distribution defined by Equation (7). In the above equation the only undetermined quantities are the (functional) coefficients c0[ψ, V] and c1[ψ, V], which determine the contact term. Below we show that these coefficients are associated to the b.c. that the wave function and its derivative must satisfy around the origin and, thus, requirement R4 will restrict the possible choices for them. To this purpose, by taking a primitive of (9), we obtain
with c2 an arbitrary constant. The distribution on the r.h.s of (10) is a continuous function, since its order is −2.
The lateral and point limits of a singular distribution can be defined (if they exist) even at the singular point [35, 36]. In particular, the lateral limits of the δ-distribution are zero, as follows directly from the fact that the δ vanishes in the open intervals (−∞, −ϵ) and (+ϵ, +∞) for any ϵ > 0 (see [37], p. 64). Hence, it follows from (10) that the lateral limits of [ψ′(x) − G[ψ, V](x)] exist and are given by
where we used the shorthand notation . Subtracting these equations we obtain
On the other hand, from Equation (7) we obtain that
where is defined as (see also [7])
Thus, the boundary condition (11) can be rewritten as (see [15, 25] for alternative proofs)
Now, by taking a primitive of Equation (10) we obtain, after some rearrangement,
where T(x) = θ(−1)(x) = xθ(x) and c3 is another arbitrary constant. The r.h.s. of the above equation is a continuous function (G(−1)[ψ, V](x) is a continuous distribution, since it is a primitive of a regular distribution) and, thus, both sides of the equation have well-defined lateral limits when x → 0±. Taking the lateral limits and subtracting the corresponding equations we obtain the second boundary condition
Equations (13,14) give the b.c. satisfied by the wave function and its derivative around the origin in terms of the yet undefined coefficients c0[ψ, V] and c1[ψ, V] [which are, in fact, complex-valued linear functionals of ψ(x) and ψ′(x)]. Hence, once specified, these coefficients will completely determine the interaction.
Let us now use the requirement R4, taking into account the b.c. (13) and (14), to restrict the possibilities for c1[ψ, V] and c2[ψ, V]. First, notice that on ℝ\{0} the probability current can be conveniently rewritten in terms of as
which has well-defined lateral limits around the origin. Probability current conservation now reads j(0+) = j(0−) and it may establish (when the current does not vanish) a connection between the values of ψ(x) and on both sides of the origin. This, together with the b.c. (13) and (14), allows us to determine the most general form for c0[ψ, V] and c1[ψ, V]. The procedure to find these coefficients is identical to that followed in reference [30], and all of the Equations (9–28) from Calçada et al. [30] apply to the current system by replacing . Thus, below we just summarize the results.
Permeable Interactions. In this case the wave function and its derivative [via ] on both sides of the origin are connected (hence, the origin is permeable). These non-separated interactions [30, 38] are characterized by four parameters, and the interaction distribution S[ψ, V](x), in Equation (9), is given by:
where a, b, c, d ∈ ℝ, ad − bc = 1 and φ ∈ [0, π). The b.c. can be written in the matrix form as:
Alternatively, the expression (16) can be rewritten in terms of ψ(0+), by inverting the relations (19), resulting in Calçada et al. [30]:
Impermeable Interactions. In this case we have a separated two-parameter family of interactions [30, 38], characterized by j(0−) = j(0+) = 0, such that ψ(x) and on both sides of the origin are not connected (hence, an impermeable origin). The associated b.c. are given by
where h± ∈ ℝ∪{+∞}, with he interaction distribution assuming the form6
3. Symmetry: Parity Invariance
As we have seen in the previous section, the fundamental requirements R1-R4, which must be satisfied by all interactions, restrict the possible choices for the coefficients c0[ψ, V] and c1[ψ, V] to either a family of interactions with four independent parameters (in the permeable case) or to a family of interactions with two independent parameters (in the impermeable case). To further restrict the possible interactions we need to impose additional, physical, requirements.
A natural way to select subfamilies of interactions is by requiring that the underlying symmetries of the potential be maintained in the distributional theory. Hence, given that the Coulomb potential (3) is invariant under parity [i.e., an even function], we will require that the distribution interaction S[ψ, V](x) introduced in (9) also be invariant under parity transformation. It should be noticed that, despite the fact that Coulomb's potential is an even function under parity, S[ψ, V](x) does not necessarily have a definite parity. It is only for particular values of the parameters that the interaction distribution is invariant, as seen below.
For a regular potential V(x), under a parity transformation, , ψ(x) → ψ(−x) ≡ χ(x) and V(x) → Ṽ(x) ≡ V(−x), the Schrödinger equation changes as Schiff [39]
Invariance under parity is automatically fulfilled if V(x) is an even function and, thus, the transformed equation is identical to the original one. Similarly, for a regular potential, the corresponding transformation properties of the interaction distribution follow directly from the fact that, in this case, S[ψ, V](x) = V(x)ψ(x), which transforms as . Then, the interaction distribution is invariant (i.e., even) under parity if , and, equivalently, the interaction distribution is odd under parity if .
For a singular interaction, as it is the case of the Coulomb potential considered here, as we have seen, the product V(x)ψ(x) is in general ill-defined and we must generalize the singular interaction distribution using the method employed in the last section. Then, the characterization of the properties of S[ψ, V](x) under a symmetry transformation is made by extending the behavior of this distribution in the regular case to the singular one [30]. Therefore, under a transformation of parity the distributional Schrödinger equation transforms as
and the interaction distribution is characterized as
regardless of whether the interaction is singular or regular. As expected, invariance under parity transformations requires an even S[ψ, V](x).
Now we can consider the properties of the interaction distribution (9), with c0[ψ, V] and c1[ψ, V] given by (16) or (23), under a parity transformation. This can be further simplified by considering the behavior of S0[ψ, V](x) and the contact interactions in separate. To see how S0[ψ, V](x) behaves under parity, notice that, since G[ψ, V](x) is a regular distribution, it can be represented by the ordinary function on the r.h.s. of (7). Thus, in the sense of ordinary functions, it follows that
that is, the regular distribution G[ψ, V](x) is odd under parity. As a consequence, since (derivative in the distributional sense), we conclude that the distribution S0[ψ, V](x) is even under parity: 7. Therefore, the whole interaction term will be even if, and only if, the distribution corresponding to the contact terms, is also even, i.e., if, and only if8
In reference [30] it was shown that this condition is satisfied for permeable interactions if, and only if, the parameters in (16) satisfy
thus reducing the allowed permeable interactions to a subfamily with only two independent parameters. For impermeable interactions, condition (29) is satisfied if, and only if, the parameters in (23) are given by
thus reducing the allowed impermeable interactions from two parameters to just one. Below we present a systematic study of the properties of the bound states for the subfamily of parity invariant (even) Coulomb interactions.
4. Bound States for Parity Invariant Coulomb Interactions
For bound states (E < 0), the general solution for the one-dimensional Schrödinger equation with a Coulomb potential outside the origin [i.e., Equation (6)] is given by (A5), in the Appendix 2, and reproduced below
The relationship between the constants B+ and B− in this expression is established by the boundary conditions at the origin, which, in turn, are determined by the parameters of the interaction, according to the results of the sections 2.2 and 3. Let us now investigate the properties of the bound states of parity invariant Coulomb interactions in both the permeable and impermeable cases.
4.1. Permeable Interactions
For the subfamily of even interactions with a permeable origin, the boundary conditions are given by (19), with a = d and φ = 0. By using the lateral limits given in the Appendix 2 by the expressions (A6) and (A8), these boundary conditions can be written as the following system of equations for the unknown coefficients B+ and B−:
where the functions W0(E) and F0(E) are defined in the Appendix 2. These equations allow for non-trivial solutions for B± if, and only if,
The values of E which solve this equation determine the allowed bound states energies. Below we consider separately the cases with b ≠ 0 or b = 0.
4.1.1. b ≠ 0
When b ≠ 0, the allowed energies must be such that W0(E) ≠ 0. Otherwise, Equation (34) has no solution, since F0(E) and W0(E) cannot vanish simultaneously [see Equations (A10) and (A11) in the Appendix 2]. Therefore, Equation (34) can be rewritten in the form of a quadratic equation for ,
whose solutions (obtained using the fact that a2 − bc = 1)
are transcendental equations that determine the allowed binding energies – the explicit form and some of the properties of Q(E) are given in the Appendix 2.
The relationship between the coefficients B± is obtained by substituting (35) into (33), obtaining
Therefore, for each value of E that solves the condition Q(+)(E) in (36) there is an associated eigenfunction given by (32) with , which is an odd function under parity. Similarly, for each energy E satisfying Q(−)(E) in (36), there is an eigenfunction (32) with , which is an even function under parity. Thus, in this case, the bound states have eigenfunctions with defined parity, and their binding energies are not degenerate.
It is instructive to consider a plot of the function Q(E) to illustrate the structure of the binding energies and the parity of the associated bound states (even though to determine the actual binding energies one needs consider a specific choice of the parameters). In Figure 1 the two horizontal lines illustrate the two values in the r.h.s of (36), and the intersections between these lines and the graph of Q(E) determine the allowed binding energies. Since Q(E) is monotonic in the intervals between two successive discontinuities, as |E| increases from zero the intersections will alternate between the lines—that is, the binding energies alternate between the solutions of Q(+)(E) and Q(−)(E) in (36). If b > 0 (b < 0), the intersections with the upper line correspond to the solutions of Q(+)(E) [Q(−)(E)] in (36) and, therefore, to odd (even) eigenstates, whereas the energies associated to the intersections with the lower line are given by the solutions of Q(−)(E) [Q(+)(E)] and, thus, correspond to even (odd) eigenstates. Therefore, as |E| increases from zero we encounter a discrete set of bound states, each one having definite parity, with the parity alternating between successive states.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/462774/fphy-07-00101-HTML/image_m/fphy-07-00101-g001.jpg)

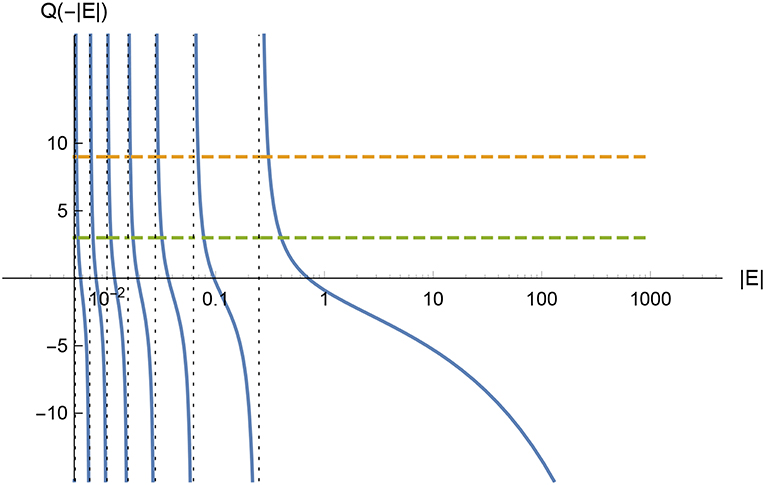

Figure 1. Plot of Q(E), for E < 0, and γ = −1 (in Rydberg atomic units). The vertical dotted lines correspond to the energies , n = 1, 2, 3, ⋯ , for which Q(E) is discontinuous [such that W0(ϵn) = 0]. The two horizontal lines illustrate the two values on the r.h.s of the Equation (36). If b > 0 (b < 0) the upper (lower) horizontal line correspond to Q(+)(E) [and [Q(−)(E)] in Equation (36) and to the respective b.c. in Equation (37). Since Q(E) is monotonic between two discontinuity points, as the |E| increases the intersections of Q(E) with the horizontal lines alternate between the two lines.
Finally, for any physically acceptable (finite) choice of the interaction parameters a, b, c (b ≠ 0, a2 − bc = 1), the r.h.s of (36) is finite. Hence, there will always be a finite largest value of |E| (E < 0) for which the graph of Q(E) intercepts the lower horizontal line, since Q(E) → −∞ as E → −∞ [see (A13) in the Appendix 2], corresponding to a ground state with finite binding energy and whose (definite) parity depends on the sign of b, as mentioned above.
4.1.2. b = 0
Taking b = 0 in (19) implies that c is arbitrary and a = ±1 (with each choice of sign corresponding to a different interaction). In this case, Equation (34) is equivalent to
The first condition in (38), W0(E) = 0, gives [see Equation (A10) in the Appendix 2]
Substituting W0(E) = 0 into the second equation in (33), and taking into account the fact that F0(ϵn) ≠ 0 [see Equation (A11)], we conclude that
and the corresponding eigenfunctions are odd (even) under parity transformations if a = +1 (a = −1).
The second solution in (38), since W0(E) and F0(E) cannot be simultaneously zero, can be rewritten in terms of Q(E) as
Substituting this condition into the first equation in (33) we obtain
and the corresponding eigenfunctions are even (odd) if a = +1 (a = −1), thus with parity opposite to the eigenfunctions associated with the condition W0(E) = 0
The values of energy that solve (40) correspond to the intersections of the curve Q(E) with the horizontal line crossing the vertical axis at (similarly to the case b ≠ 0 that was illustrated in Figure 1). In the intervals between any two successive discontinuities of Q(E), which occur at the energies ϵn, there is always exactly one such intersection, since Q(E) is monotonic in these intervals. Therefore, as |E| increases from zero, the allowed energies alternate between those in the set {ϵn} and the solutions of (40), with the parity of corresponding eigenstates alternating between even and odd.
In what concerns the ground state energy and the parity of the associated eigenstate, notice that while the set of energies {ϵn} is bounded from below (with the minimum energy corresponding to n = 1), the set of energies given by (40) is also bounded from below, since c/2a is finite and Q(E) → −∞ when E → −∞ (see Appendix 2). Therefore, the ground state energy is finite and given by the most negative energy satisfying the condition (40), and its parity is even (odd) if a = +1 (a = −1)9.
Having considered all the possibilities of bound states for a parity invariant Coulomb interaction with permeable origin, it is instructive to consider a few examples that illustrate these results, before proceeding to the analysis of impermeable interactions.
4.1.3. Examples of Permeable Interactions
Example 1. First, let us consider the case a = +1, b = 0 and c arbitrary, which corresponds to a “pure delta" interaction for the contact term in (16). In this case, the conditions for the allowed binding energies and the parity of the corresponding eigenstates are as follows.
• W0(E) = 0, with binding energies given by (39) and eigenstates that are odd under a parity transformation.
• , with the eigenstates having even parity and the binding energies given by the set of values of E such that Q(E) intersects the line c/2 – the ground state corresponds to the most negative (finite) energy in this set.
Example 2. Consider the so-called “delta prime" interaction for the contact term in (16), i.e., a = +1, b ≠ 0 and c = 0. In this case the allowed binding energies are given by the solutions of
• , corresponding to eigenstates that are odd under parity. If b < 0, the ground state will correspond to the lowest (finite) energy of this set.
• Q(−)(E) = 0, resulting in even eigenstates. If b > 0, the eigenstate is given by the lowest (finite) energy in this set.
Example 3. As our third example, we consider the “pure Coulomb" interaction, identified by the absence of a contact term in (16), i.e., S[ψ, V] = S0[ψ, V]10 [7] – obtained by choosing the parameters a = 1, b = c = 0. In this case the binding energies satisfy:
• W0(E) = 0, which results in odd eigenstates with eigenvalues given by (39).
• Q(E) = 0, with the allowed energies corresponding to the intersection points of Q(E) with the horizontal axis (see Figure 1), and eigenstates that are even under parity. The ground state is the lowest (finite) energy in this set.
4.2. Impermeable Interactions
At the end of the section 3 we saw that an impermeable interaction is even under parity if the parameters h± in (22) are such that h+ = −h− = h (for h real and finite), or h+ = h− = +∞. Below we consider these two cases separately.
4.2.1. h Real and Finite
For impermeable interactions satisfying h+ = −h− = h with h finite, using (A6) and (A8), the boundary conditions (22) imply
which has non-trivial solutions for B± if, and only if,
This condition is never satisfied if W0(E) = 0, since F0(E) = 0 and W0(E) do not vanish simultaneously (see Appendix 2). Therefore, (42) can be satisfied only if W0 ≠ 0, in which case it can be rewritten as a condition for Q(E),
For each energy satisfying this condition, the system (41) allows arbitrary solutions for B+ and B− and, as expected, these coefficients are not connected through the origin due to the impermeability of the interaction. Thus, in this case, each binding energy is doubly degenerated. In addition, since the interaction is even, it is always possible to choose the pair of eigenfunctions associated with each energy eigenvalue to have definite parity (that is, one eigenfunction even, the other odd).
Once again, the set of allowed binding energies given by Equation (43) can be graphically visualized as the energies at which the graph of Q(E) intersects the single horizontal line crossing the vertical axis at the finite height h (which can be zero, positive or negative), similarly to the situation depicted in Figure 1. From the finiteness of h and the fact that Q(E) → −∞ when E → −∞, it follows that the doubly degenerated ground state has finite energy – the ground state binding energy can be made arbitrarily large, by taking h sufficiently large and negative, but it is still finite, since in this case h is not allowed to assume infinite values. Finally, a glance at the graph of Q(E) in Figure 1 shows that for large h > 0 the binding energies tend to the set {ϵn}, i.e., to the energies associated to the discontinuities of Q(E).
4.2.2. h = +∞
Let us now consider the last remaining possibility for a parity invariant (even) Coulomb interaction, namely, the impermeable case given by the choice h+ = h− = h = +∞ in (22). As we mentioned before, this is equivalent to imposing Dirichlet b.c. [7]
with assuming arbitrary values. By using the expressions (A6) and (A8) from the Appendix 2, Equation (44) can be rewritten as
which results in non-trivial solutions for B± if, and only if, the binding energies satisfy W0(E) = 0, that is, the eigenvalues of energy are given by (39). Similarly to the previous case, conditions (45) with W0(E) = 0 allow arbitrary values for the coefficients B±, resulting in doubly degenerated energy eigenvalues and, as before, the pair of eigenfunctions associated with each ϵn can be chosen to be formed by an even and an odd eigenfunction.
Finally, we observe that the results for the case being considered here can be obtained as the limit h → +∞ of the previous case, subsection 4.2.1. However, we emphasize that the present case cannot be obtained from the results in the previous subsection by taking the limit h → −∞, since this would imply that the ground state energy tends to E = −∞, violating the requirement W0(E) = 0 [notice that as seen in (A12)].
5. Conclusion
We investigated the one-dimensional hydrogen atom, with an 1D Coulomb interaction given by (3), by extending the distributional method, introduced in Calçada et al. [30] for contact interactions, to treat long-range interactions exhibiting a point singularity. After showing that the non-integrable singularity of the potential at the origin renders the ordinary Schrödinger equation ill-defined, we introduced a distributional Schrödinger equation, Equation (5), with an interaction distribution S[ψ, V] to be determined from the fundamental physical and mathematical requirements R1–R4, which follow from the general structure of quantum mechanics (section 2.2)—these requirements are expected to be satisfied by any interaction. Requirements R1 – R4 allowed us to define the interaction rigorously—no ill-defined steps or infinities ever appear—and to restrict the interaction to a long range term outside the origin plus a family of contact interactions at the origin. The contact terms are obtained up to a four-parameter family of contact interactions, for the case of a penetrable origin, or up to a two-parameter family of interactions in the case of an impenetrable origin, in complete agreement with the SAE method (see, e.g., [7] and references therein).
The requirements R1 – R4 are not enough to completely specify the interaction and, in particular, cannot determine the specific b.c. at the origin—additional physical input is necessary to that end. As it is well-known, symmetry is an excellent guide in these circumstances. Therefore, since the Coulomb potential is even under parity transformations, it is natural to require that the interaction distribution S[ψ, V] associated with this potential also be invariant (even) under parity. We stress that the invariance of the Coulomb potential (, x ≠ 0) under parity transformations is not sufficient to ensure that the interaction will be even under parity—information about the contact term is crucial to address this issue. In this context, it should be noticed that by providing an explicit form for S[ψ, V], the distributional approach proves to be particularly adequate to deal with symmetry transformations. We have taken advantage of the explicit expression for the most general Coulomb distribution (i.e., the interaction distribution) to prove, in section 3, that the long-range term S0[ψ, V] is even under parity transformations. In this way, we concluded that the parity invariance of the total Coulomb interaction can be ensured if, and only if, the contact term also is invariant under parity transformations. As a consequence, we have shown that the additional requirement of parity invariance further reduces the possible contact terms associated with the generalized Coulomb interaction to a two-parameter family [26] (penetrable origin case) or a one-parameter interaction (impenetrable case). This, of course, still leaves considerable freedom in the choice of the b.c. at the origin, leading to several possible extensions of the Coulomb interaction—to further specify the interaction, additional input from the experimental situation must be considered [26, 34].
After giving a complete characterization of the subfamily of all parity invariant (attractive) Coulomb interactions, we conducted a systematic study of the bound states for all possible interactions in this subfamily. A summary of the results obtained is presented in Table 1, for convenience. From our analysis it follows that for parity invariant Coulomb interactions:
(i) the ground state energy is always finite;
(ii) for permeable interactions, the bound state energies are always non degenerated and the corresponding eigenfunctions have definite parity (which alternates between even and odd for successive bound states).
(iii) for impermeable interactions, all the bound states energies are doubly degenerated and, for each binding energy, the corresponding pair of eigenfunctions can be chosen to have a definite parity (with one degenerate eigenfunction even and the other odd).
Thus, our results, obtained from a mathematically well-defined treatment of the 1D Hydrogen atom, clarify the highly controversial issues concerning the boundedness of the ground state and the parity as well as the degenerescence of the bound states (see [6] and references therein).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/462774/fphy-07-00101-HTML/image_m/fphy-07-00101-t001.jpg)

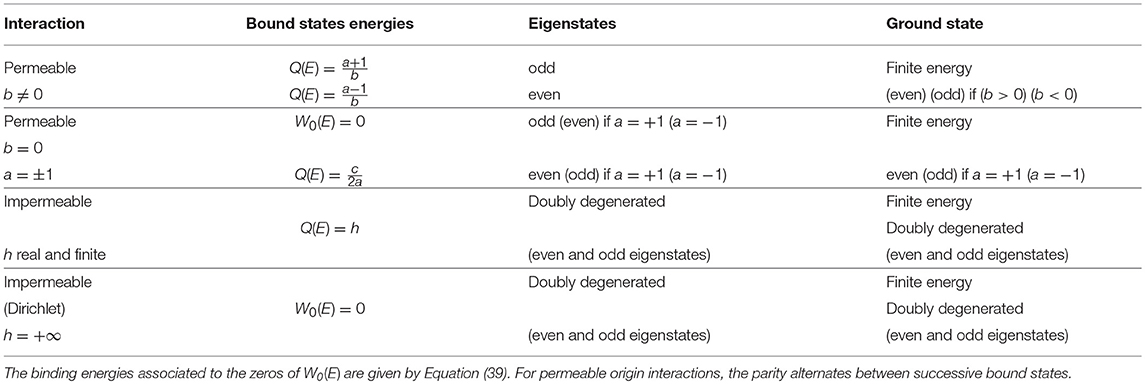

Table 1. Bound state energies and properties under parity of the corresponding eigenstates, for all subfamilies of parity invariant (even) attractive Coulomb interactions.
Finally, this work demonstrates that the method developed in Calçada et al. [30] for contact interactions can be generalized for long-range interactions having point singularities (in fact, it makes essential use of the results derived in Calçada et al. [30]). The distributional approach proves to be particularly suited for symmetry analyses (see also [31]), in addition to being a physically appealing alternative to SAE methods, and it could be used to investigate other one-dimensional singular interactions such as the 1/x2 potential. In particular, for odd interactions (such as the 1/x potential) the approach here developed specifies completely the interaction, since there exists no 1D odd contact interaction [30]. Finally, an important open problem is the generalization of the distributional approach to higher dimensions.
