Benxu Tan1†
Ruping Wang
Zhenzhou Yang- 1Department of Oncology, The Second Affiliated Hospital of Chongqing Medical University, Chongqing, China
- 2Department of Research and Development, Nanjing Geneseeq Technology Inc., Nanjing, China
- 3Translational Medicine Research Institute, Geneseeq Technology Inc., Toronto, ON, Canada
Background: ALK and ROS1 rearrangement accounts for 3–6% and 1–3% of non-small cell lung cancers, respectively, while coexistence of them in the same patient is extremely rare. Only three cases have ever been reported with concurrent ALK/ROS1 fusions in the same tumor indicating tumor heterogeneity. Therefore, comprehensive genetic profiling via next-generation sequencing (NGS) is needed to provide fully molecular diagnosis.
Case Presentation: A 50-year old Chinese female with resectable stage IB bilateral lung adenocarcinomas (ADCs) harbored EML4 exon 6-ALK exon 19 and TPM3 exon 8-ROS1 exon 35 fusions in the right lower and the left upper tumors, respectively, identified by clinical NGS test targeting 425 cancer-relevant genes. The results were further confirmed at RNA level using RNA-seq. Genomic evolution analysis reveals that these bilateral tumors are synchronous multiple primary lung cancers with no shared somatic alterations for both genes and arm-level copy number variations (CNVs). No recurrence was observed during 12 months of post-surgery follow-up.
Conclusions: Our case is the first report of concurrent ALK/ROS1 fusions as distinct driver events of synchronous multiple primary lung cancers, and highlights the importance of individual genetic testing for each of the multiple primary tumors for fully molecular diagnosis and precise treatment decision-making.
Background
Lung cancer is the leading cause of cancer death worldwide, and lung adenocarcinoma (ADC) accounts for nearly 50% of all lung cancers (1). Rearrangements of anaplastic lymphoma kinase (ALK) occur in 3–6% of ADC patients, while the incidence of c-ros oncogene 1 (ROS1) rearrangement is identified to be approximately 1–3% worldwide (2). Crizotinib, a multi-targeted tyrosine kinase inhibitor with high clinical efficiency, has been approved for ALK-positive or ROS1-rearranged lung cancer treatment (3). Although each of ALK or ROS1 rearrangement has been widely reported, the coexistence of ALK and ROS1 fusions in the same patient was only observed in 3 cases within a single tumor (4–6). Here we present a case for the first time with synchronous bilateral lung cancers harboring EML4 (echinoderm microtubule-associated protein-like 4-anaplastic lymphoma kinase)-ALK and TPM3 (tropomyosin 3)-ROS1 fusion, respectively, analyzed by next-generation sequencing (NGS). Our finding gives a meaningful insight into the understanding of concurrent driver gene alterations, and highlights the importance of multiple tumor biopsies for genetic testing in patients with synchronous multiple primary tumors.
Case Presentation
A 50-year old Chinese female never-smoker was diagnosed with stage IB bilateral well-differentiated lung ADCs in the right lower and the left upper lobes in August, 2018 (Figure 1). After surgical resection of the two primary ADCs, the patient was initially treated with three cycles of pemetrexed (800 mg/m2 d1), followed by pemetrexed 800 mg/m2 d1 plus bevacizumab 300 mg/m2 d1 for one cycle.
Figure 1. Computed tomography (CT) and Hematoxylin & eosin (HE) staining for the lesion in right lower lobe (A,B) and left upper lobe (C,D) showed both of the tumors are well-differentiated adenocarcinomas. The right one has papillary-predominant pattern, and the left one appeared with acinar-predominant and lepidic pattern. Red arrows point the tumor sites.
Given her never-smoking history, both the bilateral primary tumor tissues were subjected to target capture-based clinical NGS test for 425 cancer-relevant genes (GeneseeqPrime), and genomic alterations between the two lesions were compared (Table 1). In the right lower ADC, EML4 exon 6-ALK exon 19 (EML4-ALK) fusion was detected at a mutant allele frequency (MAF) of 7.5%, accompanied by DLL point mutation (c.838G>A) and TP53 truncation (c.1024C>T). While in the left upper ADC, TPM3 exon 8-ROS1 exon 35 fusion (TPM3-ROS1) fusion (10.8%), DOT1L splice site mutation (c.1924-2A>C) and SPRED1 point mutation (c.1249A>G) were observed without any shared mutations with the other lesion (Table 1). Our results indicated that each of these synchronous primary ADCs was driven by EML4-ALK or TPM3-ROS1 fusion independently. Further analysis of arm-level copy number variations (CNVs) showed consistent result with no shared CNV events between the two lesions (Table 1).
Table 1. Genetic alterations identified in the two primary malignancies.
To further study the specific fusion site of EML4-ALK and TPM3-ROS1 at DNA level, sequencing reads were examined on Integrative Genomic Viewer (IGV) software. The results showed that intron 5 of EML4 fused to intron18 of ALK (Figure 2A), and intron 7 of TPM3 was ligated to intron 34 of ROS1 (Figure 2B). RNA-seq was conducted to further confirm the expression of EML4-ALK and TPM3-ROS1 fusions at mRNA level (Figure 2). These two fusion proteins contain the N-terminal coiled-coil domain of the 5′ partner gene and the C-terminal tyrosine kinase domain of ALK or ROS1, which could mediate the full kinase function and result in constitutive kinase activity and oncogenic transformation (Figure 2).

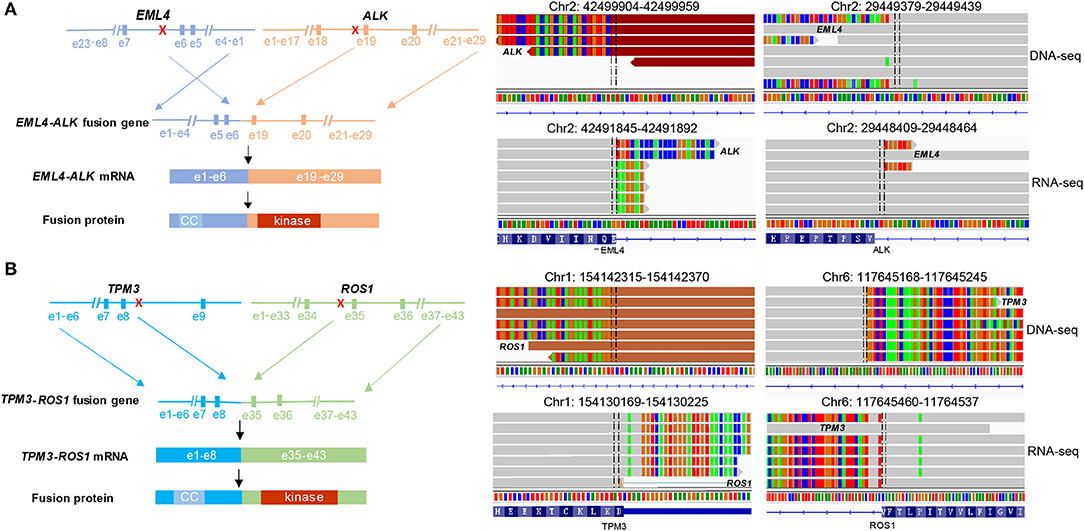

Figure 2. Concomitant EML4-ALK fusion or TPM3-ROS1 fusion were found in each ADC. (A,B) Showed the fusion breakpoints detected by targeted NGS and alterations in gene, mRNA and protein level caused by two fusions, respectively. NGS sequencing reads indicating fusion regions were demonstrated by Integrative Genomics Viewer (IGV) software. CC, coiled-coil domain.
During the 12 months of post-surgery follow-up (until August 2019), no recurrence or metastasis was observed in the patient.
Disscussion
Gene fusions can be detected using a variety of techniques, including IHC (immunohistochemistry) (7), FISH (fluorescence in situ hybridization) (8), RT-PCT (reverse transcriptase polymerase chain reaction) (9), and NGS (10). Although ROS1 break-apart FISH and ALK IHC are currently considered the “gold standards” in many pathology labs, NGS testing has exhibited great utility due to its comprehensiveness, high throughput and sensitivity. It also allows the identification of actual fusion partners as well as novel fusions. In a comparison study of ALK fusion detection by three different methods, NGS showed a comparable positive rate as IHC (92.7 and 94.5%, respectively) with the highest concordance rate. Additionally, NGS positive may indicate clinical benefit of crizotinib more accurately and provided information for concurrent genomic alterations, thereby facilitated the treatment decision making for cancer patients (11). In this case study, 425 cancer-relevant genes and potential fusions were tested simultaneously for each sample. Well-documented fusion variant of EML4-ALK and TPM3-ROS1 were identified in separate tumors of the same patient, which were further confirmed negative for other known driver mutations in lung cancer.
When multiple synchronous tumors are identified in the same patient, it is always challenging to distinguish whether they are independent primary tumors or some of them are metastases from the primary site, which may have different clinical outcomes. Inferred by both gene mutation and CNV analysis, we were able to confirm that the two bilateral lung lesions are independent primary tumors in this patient. Our case serves as an example that comprehensive genomic profiling illustrated unique genomic alternations of the bilateral primary tumors, which further suggests that genetic testing for each of the multiple primary tumors may be necessary for fully molecular diagnosis and treatment decision-making.
Tyrosine kinase inhibitors (TKIs) have significantly improved the clinical outcomes of lung cancer patients over the past decade. Both ALK and ROS1 fusions are targetable oncogenic fusion kinase in lung cancer (12). Due to the structural similarity of their kinase domains, crizotinib was approved worldwide for treating either ALK fusion-positive or ROS1-rearranged lung cancer. They normally appear in a mutually exclusive pattern as a driver, and so far, only three cases have been reported with ALK/ROS1 double rearrangements within the same tumor with limited clinical information for their treatment strategy and patient outcome (4–6). One 77-year-old female never-smoker patient harboring concurrent ALK/ROS1 fusions was treated with crizotinib for 3 months and responded well (5). No further follow-up information was available. Our case is the first report of a lung cancer patient with synchronous bilateral primary ADCs driven by EML4-ALK or TPM3-ROS1 fusion independently. The patient was diagnosed at early stage, and the tumors were able to be surgically resected. Although no recurrence at the primary sites or metastasis has been observed during the 12-month post-surgery follow-up, it is possible that both of the fusions or only one of the fusions will contribute for the relapse later on. In either case, it is possible that the patient could be benefit from crizotinib as a second-line treatment. Additionally, since early stage resectable EGFR positive patients have shown benefit from neoadjuvant/adjuvant TKI treatment (13), it is possible that ALK/ROS1 positive patients could also benefit from neoadjuvant/adjuvant therapy. Our findings serve as critical information for patient's future treatment decision-making.
Data Availability Statement
All datasets generated for this study are included in the manuscript.
Ethics Statement
This study was approved by Ethics Committee of The Second Affiliated Hospital of Chongqing Medical University and the patient provided the written informed consent for the publication of the case report.
Author Contributions
BT, XJ, and ZY conceptualized and designed the entire study. CT, LX, and XY carried out patient clinical management and sample collection. RW analyzed the data. BT, XJ, and RW wrote the manuscript. SL and XW revised the manuscript. All authors read and approved the final version of manuscript for submission.
Funding
This work was supported by Chongqing Research Program of Basic Research and Frontier Technology (No. cstc2015jcyjBX0084).
Conflict of Interest
RW and SL are the employees of Nanjing Geneseeq Technology Inc., China; XW is the employee of Geneseeq Technology Inc., Canada.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1. Chen Z, Fillmore CM, Hammerman PS, Kim CF, Wong KK. Non-small-cell lung cancers: a heterogeneous set of diseases. Nat Rev Cancer. (2014) 14:535. doi: 10.1038/nrc3775
2. Pao W, Hutchinson KE. Chipping away at the lung cancer genome. Nat Med. (2012) 18:349. doi: 10.1038/nm.2697
3. Shaw AT, Ou SH, Bang YJ, Camidge DR, Solomon BJ, Salgia R, et al. Crizotinib in ROS1-rearranged non-small-cell lung cancer. N Engl J Med. (2014) 371:1963–71. doi: 10.1056/NEJMoa1406766
4. Song Z, Zheng Y, Wang X, Su H, Zhang Y, Song Y. ALK and ROS1 rearrangements, coexistence and treatment in epidermal growth factor receptor-wild type lung adenocarcinoma: a multicenter study of 732 cases. J Thorac Dis. (2017) 9:3919–26. doi: 10.21037/jtd.2017.09.79
5. Uguen A, Schick U, Quere G. A rare case of ROS1 and ALK double rearranged non-small cell lung cancer. J Thorac Oncol. (2017) 12:e71–2. doi: 10.1016/j.jtho.2017.02.007
6. Zhu YC, Liao XH, Wang WX, Xu CW, Zhuang W, Wei JG, et al. Dual drive coexistence of EML4-ALK and TPM3-ROS1 fusion in advanced lung adenocarcinoma. Thorac Cancer. (2018) 9:324–7. doi: 10.1111/1759-7714.12578
7. Conde E, Hernandez S, Prieto M, Martinez R, Lopez-Rios F. Profile of Ventana ALK (D5F3) companion diagnostic assay for non-small-cell lung carcinomas. Exp Rev Mol Diagnos. (2016) 16:707–13. doi: 10.1586/14737159.2016.1172963
8. Shaw AT, Engelman JA. ALK in lung cancer: past, present, and future. J Clin Oncol. (2013) 31:1105. doi: 10.1200/JCO.2012.44.5353
9. Soda M, Isobe K, Inoue A, Maemondo M, Oizumi S, Fujita Y, et al. A prospective PCR-based screening for the EML4-ALK oncogene in non-small cell lung cancer. Clin Cancer Res. (2012) 18:5682–9. doi: 10.1158/1078-0432.CCR-11-2947
10. Mileyko V, Ivanov M, Novikova E, Telysheva E, Chernenko P, Breder V, et al. NGS for precision medicine in non-small cell lung cancer: challenges and opportunities. Ann Oncol. (2016) 27(Suppl. 6):119. doi: 10.1093/annonc/mdw363.67
11. Lin C, Shi X, Yang S, Zhao J, He Q, Jin Y, et al. Comparison of ALK detection by FISH, IHC and NGS to predict benefit from crizotinib in advanced non-small-cell lung cancer. Lung Cancer. (2019) 131:62–8. doi: 10.1016/j.lungcan.2019.03.018
12. Takeuchi K, Soda M, Togashi Y, Suzuki R, Sakata S, Hatano S, et al. RET, ROS1 and ALK fusions in lung cancer. Nat Med. (2012) 18:378. doi: 10.1038/nm.2658
