Assessment of Overall Survival in Glioma Patients as Predicted by Metabolomic Criteria

Abstract

Objective: We assess the efficacy of the metabolomic profile from glioma biopsies in providing estimates of postsurgical Overall Survival in glioma patients.

Methods: Tumor biopsies from 46 patients bearing gliomas, obtained neurosurgically in the period 1992–1998, were analyzed by high resolution ¹H magnetic resonance spectroscopy (HR- ¹H MRS), following retrospectively individual postsurgical Overall Survival up to 720 weeks.

Results: The Overall Survival profile could be resolved in three groups; Short (shorter than 52 weeks, n = 19), Intermediate (between 53 and 364 weeks, n = 19) or Long (longer than 365 weeks, n = 8), respectively. Classical histopathological analysis assigned WHO grades II–IV to every biopsy but notably, some patients with low grade glioma depicted unexpectedly Short Overall Survival, while some patients with high grade glioma, presented unpredictably Long Overall Survival. To explore the reasons underlying these different responses, we analyzed HR-¹H MRS spectra from acid extracts of the same biopsies, to characterize the metabolite patterns associated to OS predictions. Poor prognosis was found in biopsies with higher contents of alanine, acetate, glutamate, total choline, phosphorylcholine, and glycine, while more favorable prognosis was achieved in biopsies with larger contents of total creatine, glycerol-phosphorylcholine, and myo-inositol. We then implemented a multivariate analysis to identify hierarchically the influence of metabolomic biomarkers on OS predictions, using a Classification Regression Tree (CRT) approach. The CRT based in metabolomic biomarkers grew up to three branches and split into eight nodes, predicting correctly the outcome of 94.7% of the patients in the Short Overall Survival group, 78.9% of the patients in the Intermediate Overall Survival group, and 75% of the patients in the Long Overall Survival group, respectively.

Conclusion: Present results indicate that metabolic profiling by HR-¹H MRS improves the Overall Survival predictions derived exclusively from classical histopathological gradings, thus favoring more precise therapeutic decisions.

Introduction

Gliomas are the most frequent primary brain tumors, currently managed through surgical resection, radiotherapy, and chemotherapy (1) approaches, but leading inevitably to large disability and mortality outcomes. The selection of the recommended therapeutic intervention in each case relies in estimates overall survival (OS) based commonly in histopathological and genetic criteria. However, current assessments of OS entail considerable uncertainties, limiting concomitantly more precise, effective, and personalized therapies. On these grounds, exploring additional criteria to improve OS predictions acquires vital relevance to improve treatment outcomes in glioma patients.

Histopathological and immunohistochemical criteria have classically provided the basis for the initial WHO classification of gliomas in grades I-IV (2, 3) determining, in general terms, the OS estimate and the recommended therapeutic intervention. More recently, the 2016 WHO classification of central nervous system tumors added an important collection of molecular signatures, restructuring the original histopathological classification of gliomas to include subgroups with specific genetic profiles (4). Although these refinements considerably improved the precision in the treatment prescribed, as well as our knowledge of glioma physiopathology and classification, the limited reproducibility of histopathological evaluations lead, not unfrequently, to imprecise histopathological classification and unreliable OS predictions at the individual level (5–7).

Magnetic Resonance Imaging approaches have been currently used to assess OS of gliomas. Briefly, radiomic parameters including surface area (8), shape features (9), tumor, and necrosis volumes, necrosis-tumor ratio (10) have been used to evaluate OS. However, these studies became many times limited to short OS periods as they evaluated only glioblastoma multiforme cases.

The metabolomic profiles of gliomas are able to provide an additional source of information to improve OS predictions, evaluating the down-stream metabolic alterations of aberrant cellularity and gene expression (11). Magnetic Resonance Spectroscopy (MRS) has been shown to be well-endowed to provide the metabolic profile of gliomas both in vivo and in vitro (12, 13). Briefly, in vivo¹H MRS revealed non-invasively, important hallmarks of cancer, including alterations in pH homeostasis (14), energy related (15), and phospholipid metabolites (16, 17), an ensemble of valuable metabolic fingerprints to classify high grade (HGG) or low grade gliomas (LGG) (16, 18). Moreover, the metabolic profiles determined by ¹H MRS in vivo reached considerable clinical prognostic relevance (19–22). Alternatively, complementary in vitro HR-¹H MRS approaches have proved to be able to resolve a larger number of metabolites than in vivo¹H MRS, thus increasing the size of the metabolome investigated, the number of potential alterations detected, and their influence on the tumoral phenotype, at the expense of the more invasive in vitro methodology (23, 24). However, the predictive role of the metabolomic profiles obtained by HR-¹H MRS in providing OS estimates, received considerably less attention.

On these grounds, we aimed here to provide a pilot study evaluating OS estimates derived from metabolomic biomarkers as detected by HR-¹H MRS, using a retrospective database of human glioma biopsies.

Materials and Methods

Glioma Patients and Tumor Biopsies

This study was approved by the Ethics Committee of Clinical Research from the University Hospital La Paz (http://www.madrid.org/cs/Satellite?language=es&pagename=HospitalLaPaz/Page/HPAZ_home) and carried out following their recommendations. All subjects gave written informed consent in accordance with the Declaration of Helsinki. We retrospectively reviewed the database of the Neurosurgery Department of the University Hospital La Paz, selecting 66 consecutive patients with glioma (grades I-IV) who underwent neurosurgery during the period 1992–1998 (Figure 1). Briefly, solid parts of glioma tumors were extracted from the brain without the use of bipolar coagulation and divided into two adjacent and similar portions, one of them used for HR-¹H MRS analysis and the other for histopathological diagnosis, following available WHO criteria (25). Tumor characteristics were evaluated by two independent radiologists and classified according to size, localization, and eloquence (26). Patients lost in follow up (n = 10) and those undergoing surgery for recurrence (n = 7) were excluded from further analysis. Grade I gliomas (n = 3) were also excluded because of their well-known physiopathological differences with the other glioma grades (27, 28). We then recovered the individual demographic, clinical, histopathological and in vitro spectroscopic ¹H NMR features and gathered the OS information on postsurgical outcomes of these patients, including relevant clinical symptoms, adjuvant therapies, and OS time. No missing data for the variables of interest were found in these patients.

Figure 1

Histopathological Criteria

Histopathological grading of the biopsies was provided by the Anatomopathology Department of the Hospital, following standard WHO criteria (25), and archived until used in this study.

HR-¹H MRS

The ¹H MRS biopsy was immediately frozen in liquid nitrogen (−169°C) in the operating room of the Hospital and stored at −82°C until transferred in a liquid nitrogen container to the Institute of Biomedical Research CSIC/UAM for further processing and NMR analysis. Briefly, biopsies were reduced to powder in a previously chilled (methanol/dry ice) mortar, extracted with 6% perchloric acid, neutralized with KOD, lyophilized and resuspended in D₂O (99.9% D) for ¹H MRS analysis (12). HR-¹H MRS spectra of biopsy extracts were acquired at 8.4 Tesla (360.13 MHz, pH 7.2, 22°C) in a Bruker AM-360 spectrometer equipped with a commercial ¹H selective probe using 5-mm tubes and 0.5 ml of tissue extract. Acquisition conditions were: 90° pulses, 16.9 s total cycle time and 16,384 data points acquired in the time domain during of 1.901 s. The intensity of the residual water resonance was further reduced using a 5 s presaturating pulse centered on the water frequency. Prior to Fourier transformation, the free induction decays were zero-filled up to 128 K and multiplied by an exponential function resulting in 0.5 Hz artificial line broadening in the transformed spectrum. Further spectral processing, including phase and baseline corrections were performed by the same operator. Chemical shifts were referred to the methyl signal of TSP (2,2′-3,3′ tetradeutero trimethyl-sylil propionate sodium salt) at 0 ppm as an internal reference.

The following metabolites (resonances used in quantification, number of protons originating the resonance, multiplicity) could be consistently identified in the high resolution proton spectrum (29): Valine (1.09 ppm, 3H, d), Lactate (1.35 ppm, 3H, d), Alanine (1.45 ppm, 3H, d), Acetate (1.93 ppm, 3H, s), N-acetyl-aspartic acid (2.01 ppm, 3H, s), Gamma-amino butyric acid (2.31 ppm, 2H, t), Glutamate (2.43 ppm,2H, m), Glutamine (2.45 ppm, 2H, m), Aspartic acid (2.80 ppm, 2H, dd), Creatine (3.05 ppm, 3H, s) and Phosphocreatine (3.055 ppm, 3H, s), free Choline (3.20 ppm, 9H, s), Phosphorylcholine (3.22ppm, 9H, s), Glycerophophorylcholine (3.25 ppm, 9H, s), Taurine (3.45 ppm, 2H, t), Glycine (3.55 ppm, 2H, s), and Myo-inositol 4.07 ppm, 1H, dd). For every one of these metabolites, lorentzian curves were fitted to the most conveniently resolved proton resonances, and the resulting integral divided by the total number of protons of the corresponding metabolite (6). These values were further standardized by the sum of all the measured metabolites in the HR-¹H NMR spectra and expressed as a molar percentage (18, 30). Assignments were performed with the aid of chemical shift values reported in the literature (29, 31) and confirmed when necessary by the addition of authentic standards.

Statistical Methods

Statistical analyses were performed using the IBM SPSS Statistics 24 package as implemented on an Intel-PC platform, operating under Windows 10 environment. Univariate statistical approaches provided means and standard errors for the molar fractions of every metabolite. To investigate statistical dependences between clinical features and groups of OS, we used asymptotic chi-square with Monte Carlo exact probability tests, and to test the differences of means within each metabolic variable through the OS groups, we used the ANOVA test and Student t-tests. Finally, to explore the hierarchical contribution of individual HR-¹H MRS biomarkers to the three groups of OS, we implemented a multivariate Classification Regression Tree (CRT) (32), classifying automatically the database using hierarchical nodes and branches, selecting step-wise the optimal discriminant biomarker for each split from the collection of available HR-¹H MRS variables. The dependent variable was OS, using Chi-squared Automatic Interaction Detection (CHAID) as a growing method to provide automatically the optimal splits in every branch. Finally, we used these results to generate a Classification-Confusion Matrix (CCM), summarizing the correct and incorrect classifications provided by the metabolomics CRT, yielding the global percentage of correct classifications. Statistical significance in the ANOVA and multivariate analysis was defined as p = 0.05, considering confidence intervals higher than 95%.

Results

Glioma Database

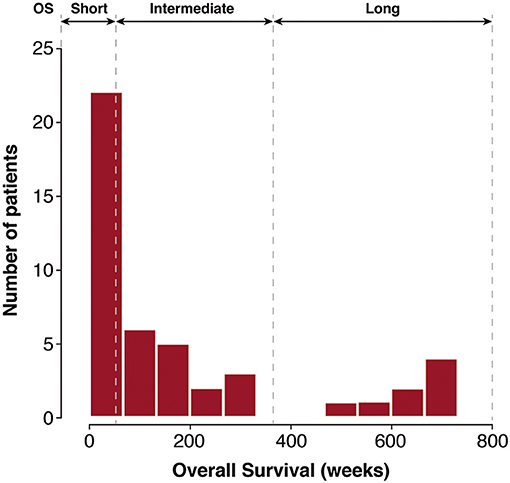

We investigated 46 patients (23 males, 23 females) with a median age of 49 years, presenting the following glioma grade distribution; Grade II (11 cases), Grade III (16 cases), and Grade IV (19 cases). The database of glioma patients (Figure 2) showed two clearly separated groups by OS, either depicting a Long Overall Survival (Long-OS) that survive more than 364 weeks (w), or less. The latter group, including patients with a wide range of survival (1–364 w), was further divided in two groups using the median of survival as a cut-point, resulting in Short Overall Survival (Short-OS) patients (1–52 w), or Intermediate Overall Survival (Intermediate-OS) patients (53–364 w), respectively.

Figure 2

Demographic, clinical, and radiological variables, therapeutic regimes and histopathological profiles of these groups are summarized in Table 1. A Chi-square Monte Carlo test was performed to compare the differences in independent clinical variables among the three survival categories. Radiotherapy, histopathologic grade, age, and localization showed statistically significant influence on OS.

HR-¹H MRS

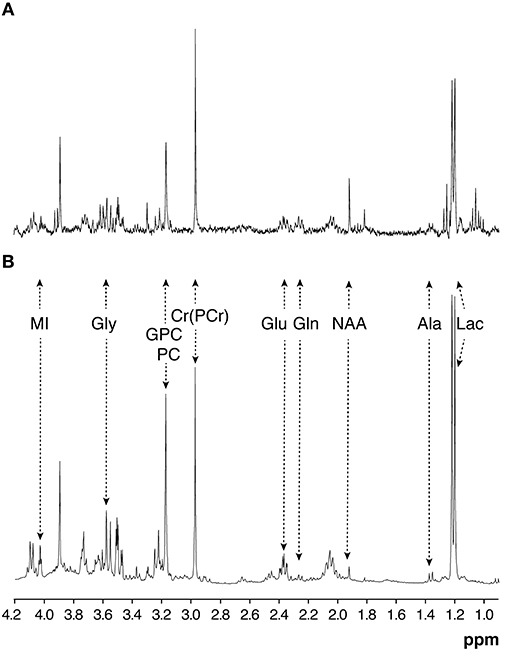

An illustrative example of underdetermined histopathological OS prediction is provided in Figure 3, showing representative HR-¹H MRS spectra from extracts of glioma biopsies obtained from two young male patients, assigned the same histopathological Grade II, but resulting in very different OS. Despite both patients underwent complete surgical resection without adjuvant radio- or chemotherapy, the patient represented in Figure 3A, survived <3 years (149 w), while the patient represented by Figure 3B survived more than 11 years (605 w).

Figure 3

Interestingly, HR-¹H MRS spectra of these biopsies disclosed remarkable differences, particularly the relative increases in myo-inositol (MI) and glycerol-phosphorylcholine (GPC) in Figure 3B. These findings suggested that HR-¹H MRS analysis of biopsy extracts could contribute additional OS criteria to those normally obtained from general histopathological classification, thus prompting further HR-¹H MRS analyses of the database.

Univariate Statistics

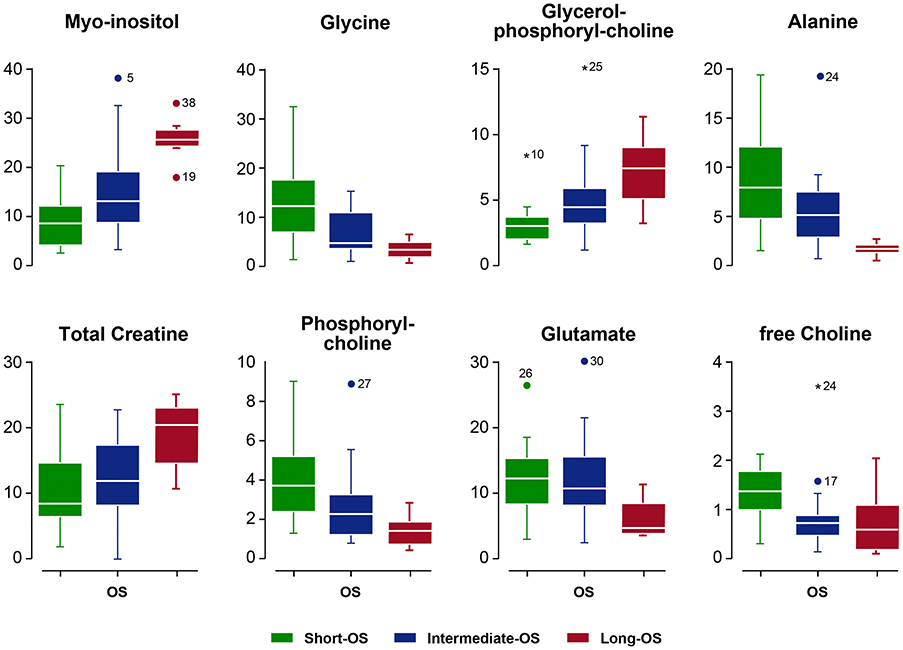

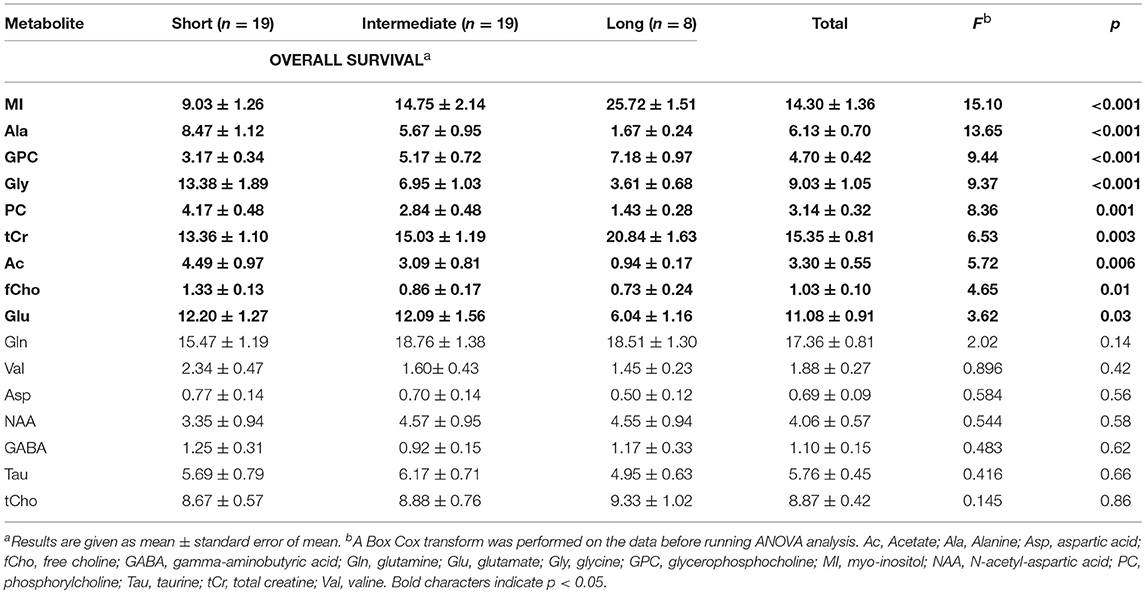

OS was well-reflected in the metabolic profiles obtained, with evident relationships between OS and specific metabolite changes (Figure 4). Table 2 provides a more detailed analysis of the relationship between OS and specific metabolite molar fractions, highlighting the discriminant power in OS of each metabolite (F-value) and its statistical significance (p-value) as derived from ANOVA tests.

Figure 4

Briefly, OS increased with increasing levels of MI, GPC, and total Creatine (tCr), and decreased with increasing levels of alanine (Ala), free choline (fCho), glutamate (Glu), phosphorylcholine (PC), and glycine (Gly). The remaining metabolites detected by HR-¹H NMR, including acetate (Ac), glutamine (Gln), valine (Val), aspartate (Asp), N-acetyl-aspartic acid (NAA), Gamma-amino butyric (GABA), taurine (Tau), and total choline (tCho) were not found to influence significantly OS. The most powerful discriminators of OS were (Metabolite/ F value/ p-value) in decreasing order; MI/15.1/0.000, Ala/13.6/0.000, GPC/9.5/0.001, Gly/9.4/0.000, tCr/6.5/0.003, Ac/5.7/0.006, fCho/4.6/0.015, Glu/3.6/0.035.

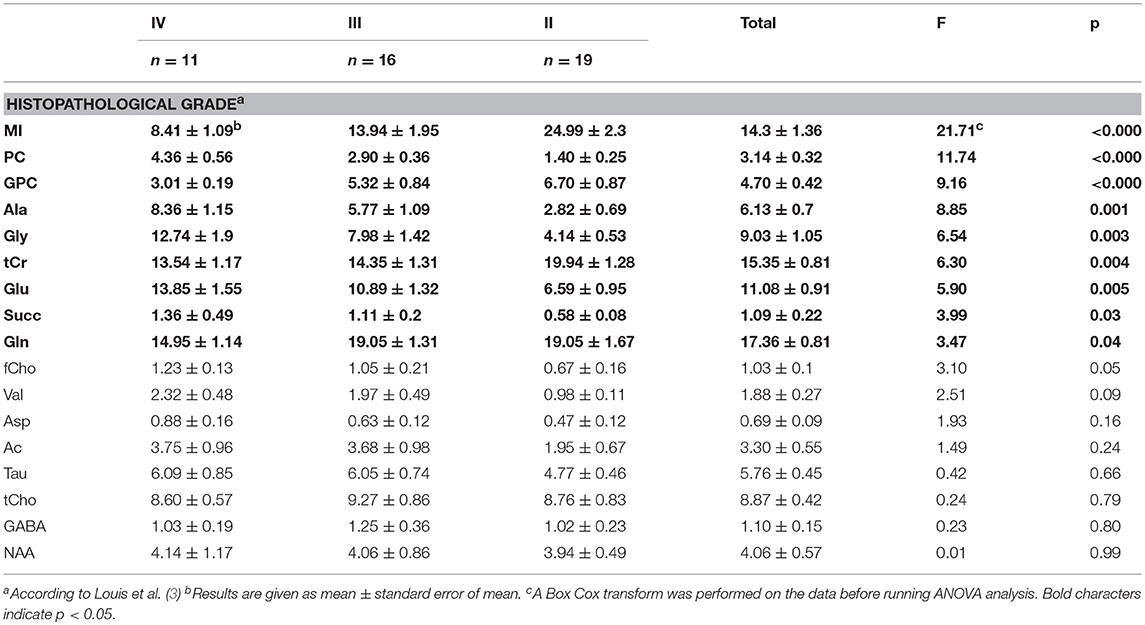

We also investigated the relationship between histopathological grade and the molar fractions of metabolites detectable in extracts glioma biopsies using ANOVA tests (Table 3). Notably, the priority of metabolites providing optimal glioma grade discrimination, was different from the one yielding optimal OS discriminative power (Table 2). The following molar ratios of metabolites were found to provide optimal discriminant power between histopathological grades (metabolite/F-value/p-value); MI/21.7/0.000, PC/11.7/0.000, GPC/9.2/0.000, Ala/8.8/0.001, Gly/6.5/0.003, tCr/6.3/0.004, Glu 5.9/0.005 and Gln/3.5/0.040.

Together, these results show that relevant metabolites contribute with different strengths either to histopathological grading or to OS predictions.

Classification Regression Trees (CRT)

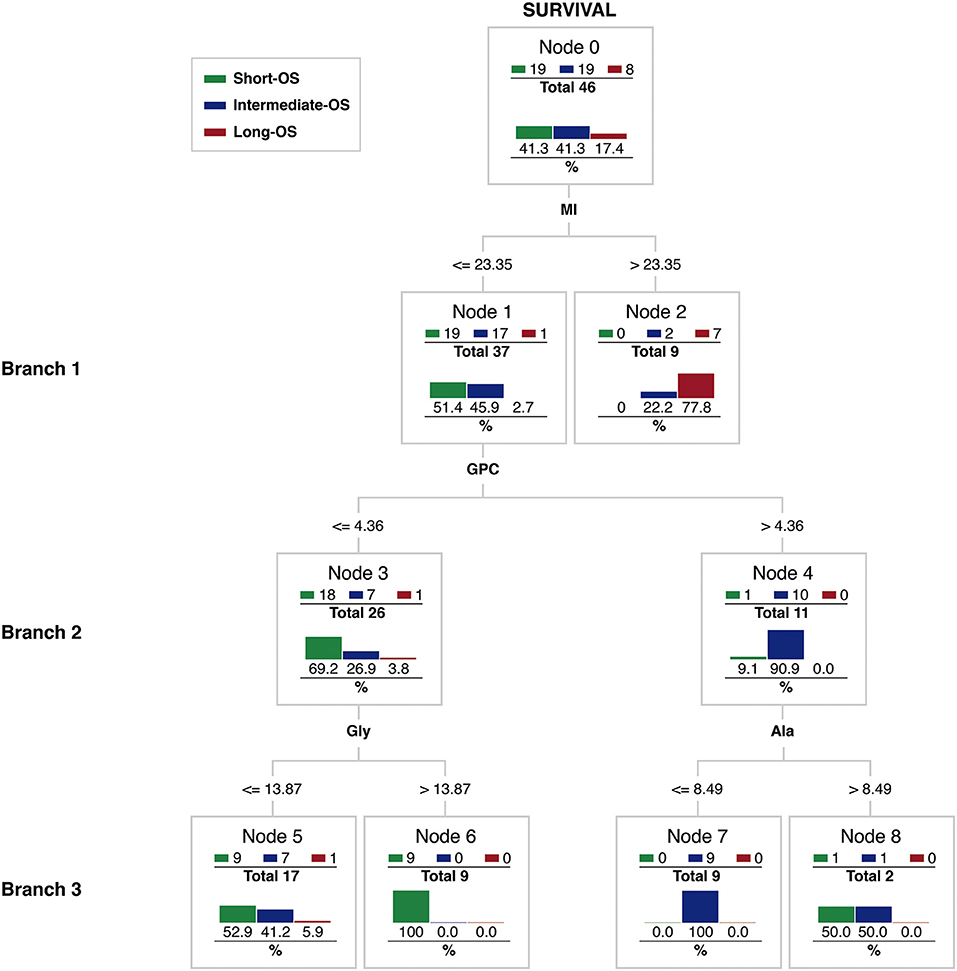

To investigate the hierarchical contribution of these metabolites to the OS observed, we implemented a multivariate CRT (Figure 5) (32). Starting with the complete patient database (Node 0), high MI levels (Branch 1) provided the most powerful biomarker to predict Long-OS survival within the three OS groups. MI levels ≤ 23.35 were found in 37 biopsies (Node 1). Of these, only one patient survived more than 7 years (Long-OS), while the rest of the patients depicted either Intermediate- (17 patients) or Short-OS (19 patients). In contrast, MI levels >23.35 were detected in nine biopsies (Node 2), of which seven (77.8%) depicted Long-OS, two showed Intermediate-OS, and none had a Short-OS, suggesting that high MI levels dismiss a Short-OS prediction.

Figure 5

Patients with MI levels ≤ 23.35 could be further split in two groups using GPC (Brach 2). Sixty-nine percent of the patients with GPC levels ≤ 4.36 (Node 3) were classified as Short-OS, while 91% of the patients with GPC > 4.36 (Node 4) were classified as Intermediate-OS. GPC provided thus a convenient biomarker to distinguish between Short- and Intermediate-OS estimates.

The metabolomic CRT grew beyond Branch 2, improving the classification using either Gly or Ala splits (Branch 3). All patients of Node 3 with Gly levels higher 13.87 (Node 6), depicted Short-OS, suggesting that high Gly levels are predictive of a negative outcome. Patients from Node 4, could be further stratified by their Ala levels. Those having Ala levels lower than 8.48 (Node 7) indicated Intermediate-OS (100%). Summarizing, the metabolomic CRT indicated dominant roles of MI, GPC, Ala, and Gly OS prediction of glioma patients.

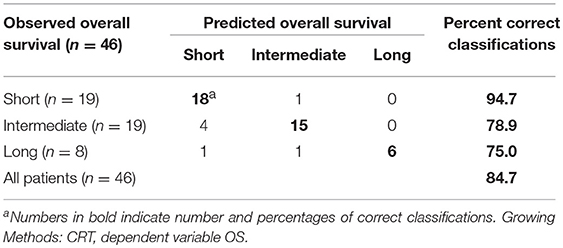

Finally, we compared the number of correct predictions derived from the metabolomic CRT with those observed clinically, in the Classification-Confusion Matrix of Table 4. Out of 19 patients in the Short-OS group, the metabolomic approach classified correctly 18 patients. In the Intermediate-OS group, the metabolomic approach classified correctly 15 of 19 patients. Finally, out of the 8 patients identified with Long-OS, the metabolomic approach correctly classified 6 patients.

In summary, the metabolomic classification reached defined OS predictions in all three groups, separating well the longer OS groups (Intermediate-OS and Long-OS). This entails considerable relevance, since the prediction of Long-OS in glioma patients remains currently a vital challenge for neurosurgeons, with important implications in the definition of the recommended therapeutic strategy.

Discussion

Previous OS Studies

The present study complements and extends earlier OS predictors based on the WHO classification (2–4) or in vivo MRI/MRS studies (19–21, 33–40), contributing a novel array of metabolomic biomarkers organized hierarchically by a multivariate CRT. Earlier studies implementing in vivo MRS/MRI approaches investigated mainly glioblastoma patients (Table 5), associating Short-OS to increases in PC (4) and tCho/NAA (20, 36–40, 42), and longer OS to higher contents in GPC (35). Additionally, Cho/Cr ratio has been proposed as a biomarker of cellular proliferation and prognosis (22). More recently, a correlation between 2-hydroxiglutarate and the IDH1 mutation (43), suggested that in vivo detection of 2-hydroxiglutarate could become a useful prognostic biomarker. However, routinely and regular detection in vivo of 2-hydroxyglutarate still remains an important technological challenge in most imaging centers, limiting wider applications. In summary, the present study contributes a larger cohort of patients examined by routinely available in vitro MRS, followed during a longer period of time, including also a collection of both Low Grade Gliomas (LGG) and High Grade Gliomas (HGG). Notably, some of the metabolomic biomarkers found valuable here in OS prediction, like MI or GPC (Table 2), are difficult to resolve, or not even detectable in vivo. Consequently, our results suggest that postsurgical HR-¹H NMR analysis of extracted tumor biopsies may provide a useful complement to available in vivo MRS explorations when addressing OS predictions.

Metabolomic CRT

We implemented a CRT methodology to find, hierarchically, the best classification of OS estimates, using metabolomic criteria. These results complement the earlier decision tree of Li et al. (39), who considered age, MRI features (T₂, T₁, Volume Contrast Enhancement) and in vivo spectroscopic biomarkers (Lip+Lac, Cho/Cr, and Cr/NAA), as the main determinants predicting glioblastoma OS.

Our metabolomic CRT grew up to three branches. In the first branch, MI became the most robust biomarker of survival, with larger MI contents revealing longer survivals. Increased MI levels have been reported in inflammatory diseases as Alzheimer (41), renal failure (44), diabetes mellitus (44), and traumatic brain injury (45, 46), suggesting a universal role of this osmolite in pathophysiolological volume regulation. However, MI levels were reported previously to increase (47–49) or decrease (44) with increasing glioma grade in vivo. Present results reveal that higher MI levels are associated to longer OS, and lower tumoral grades (Table 3). Since MI occurs primarily in normal astrocytes (44), we hypothesize that the MI resonances detected in the tumor biopsies reveal the healthy astrocyte content within the tumor mass. Larger relative MI contents reveal indirectly relatively larger normal astrocyte populations and smaller tumoral cell burdens, supporting consequently longer OS (41, 50, 51).

The second hierarchical branch classifying the lower MI content group, is GPC, with higher GPC levels predicting longer OS. We, and others, have previously reported that relatively higher contributions of GPC and PC are associated to low and high grade gliomas, respectively (16, 52). Interestingly, GPC and PC levels are thought to reflect the balance between phospholipid degradation and phospholipid synthesis, respectively, with increased GPC levels revealing relatively a negative balance between synthesis and degradation, lower tumoral proliferation, and more prolonged survivals.

Gly and Ala provided the third branch of OS discrimination for patient groups with low or high levels of GPC, respectively. High Gly and Ala levels revealed poor prognosis, associated to shorter OS. Indeed, Ala and Gly levels previously reported as hypoxia and redox stress biomarkers (53), revealing tumoral progression to hypoxia, redox stress, and fatal energy failure. They can now be associated to shorter OS predictions.

Limitations

The time span of biopsy collection in this study preceded some of the advances in the characterization of glioma genetics and their influence in malignancy and OS. This circumstance, and the long survival period investigated, precluded the use of genetic biomarkers validated later in the coverage of the present retrospective study. Thus, the correlations between metabolomic and genomic biomarkers of OS in glioma deserve further investigation. Finally, the number of patients involved in the present pilot study is admittedly small but sufficiently robust to support the use of metabolomic biomarkers detected by in vitro HR-¹HMRS in OS predictions of postsurgical survival from glioma patients. A multicenter study to extend the number of patients and hospitals involved, is currently being implemented.

Conclusion

We used a multivariate CRT to assess postsurgical OS predictions based in the ¹H HR-MRS analysis of the metabolomic profile from neurosurgical biopsies of glioma patients. Present results show that the metabolic profiles of glioma biopsies constitute accurate and independent biomarkers of OS in glioma patients.
