Genomic Analysis and Antimicrobial Resistance of Aliarcobacter cryaerophilus Strains From German Water Poultry

Aliarcobacter cryaerophilus (formerly Arcobacter cryaerophilus) is a globally emerging foodborne and zoonotic pathogen. However, little is known about the species’ genomic features and diversity, antibiotic resistance and virulence. In this study, 27 A. cryaerophilus strains from water poultry in Thuringia, Germany, were investigated using whole-genome sequencing. Four of these strains were sequenced using long- and short-read sequencing methods to obtain circularized genomes. The German strains belong to the A. cryaerophilus cluster I. Cluster I genomes exhibited a high degree of genetic diversity in which variable sites comprised 9.1% of the core genome. The German strains formed three subgroups that contained 2, 6, and 9 strains, respectively. The genomic analysis of cluster I revealed variable presence of mobile elements and that 65% of the strains lack CRISPR systems. The four circularized genomes carried a ∼2 Mbp chromosome and a single megaplasmid (size 98.1–154.5 Kbp). The chromosome was densely packed with coding sequences (∼92%) and showed inversions and shifts in the gene blocks between different strains. Antimicrobial resistance was assessed using a gradient strip diffusion method and showed that all 27 strains were resistant to cefotaxime and susceptible to erythromycin, gentamicin, and ampicillin. Sixteen strains were also resistant to ciprofloxacin, whereas 23 were resistant to streptomycin. The genetic prediction of antibiotic resistance identified numerous efflux pumps similar to those found in A. butzleri. All strains harbored two beta-lactamase genes which may explain the cefotaxime resistance. A correlation between the gyrA point mutation (Thr-85-Ile) and ciprofloxacin resistance was partially discovered in 15 out of 16 strains. In silico virulence profiling showed a wide range of virulence factors including a full chemotaxis system and most of the flagellar genes. In contrast to A. butzleri, no urease cluster was found. This study provides new insights into the genomic variability of A. cryaerophilus strains of cluster I. The different genetic makeup of these strains may contribute to the virulence of strains and the severity of the infections in humans.

Introduction

Aliarcobacter (A.) cryaerophilus (formerly Arcobacter cryaerophilus) is a Gram-negative, curved motile rod that grows between 15°C and 42°C. Strains of A. cryaerophilus belong to cluster “1a” of the genus Aliarcobacter according to a recent taxonomic classification (Pérez-Cataluña et al., 2018b). A. cryaerophilus exhibits a high degree of heterogeneity and has been divided into two subgroups (1A and 1B) based on restriction fragment length polymorphisms of the rRNA genes, whole-cell proteins and fatty acid content (Kiehlbauch et al., 1991; Vandamme et al., 1992). However, this subgrouping was not supported using the amplified fragment length polymorphism method and the sequence analysis of the hsp60 gene (Debruyne et al., 2010). Recently, Pérez-Cataluña et al. (2018a) proposed the subdivision of A. cryaerophilus into four clusters (also called genomovars) based on whole-genome sequence analyses. The in silico calculation of average nucleotide identity and digital DNA-DNA hybridization indicated that these four clusters should not be assigned to a single species. A. cryaerophilus represents a species complex in which the four clusters represent four different species (Pérez-Cataluña et al., 2018a).

A. cryaerophilus, as well as other related species, namely A. butzleri, A. skirrowii, and A. thereius, have been associated with diseases in humans and animals (Ho et al., 2006; Collado and Figueras, 2011; Ferreira et al., 2016; Pérez-Cataluña et al., 2018a). In humans, the bacteria can cause self-limiting acute enteritis with watery diarrhea, fever and abdominal pain. A long-term study done by Vandenberg et al. (2004) showed that A. cryaerophilus was the seventh most common Campylobacter-like organism isolated from human feces. In rare cases, A. cryaerophilus can cause severe illnesses e.g., bacteremia (Hsueh et al., 1997). The International Commission of Microbiological Specifications for Food (ICMSF) has classified Aliarcobacter as a serious threat to human health in 2002 (ICMSF, 2002). Since then, Aliarcobacter spp. have been identified as emerging foodborne and zoonotic pathogens around the globe (Collado and Figueras, 2011; Ramees et al., 2017). In animals, A. cryaerophilus has been isolated from aborted fetuses and placentas of bovine, porcine, and ovine origin as well as from milk of cows with mastitis, but also from the digestive tract, feces, preputial washings, and vaginal swabs of healthy animals (Ho et al., 2006; Collado and Figueras, 2011; Ramees et al., 2017; Miller et al., 2018). Furthermore, A. cryaerophilus has been associated with abortion and other reproductive disorders in sows (Ramees et al., 2017).

Aliarcobacter cryaerophilus is present in food of animal origin such as poultry meat, dairy products and seafood as well as in drinking water and sewage (Ho et al., 2006; Millar and Raghavan, 2017; Pérez-Cataluña et al., 2018a; On et al., 2019). Aliarcobacter spp. are commensals in the intestinal microbiota of poultry, which can contaminate carcasses during the slaughtering process (Ho et al., 2008). Therefore poultry is a natural reservoir and acts as a major source of infection for humans (Atabay et al., 2008; Collado and Figueras, 2011). Consumption of contaminated water or food is considered as the main route of transmission to humans, while contact with companion animals is also a possible way of transmission (Ferreira et al., 2016; Ramees et al., 2017). In animals, the possibility of venereal transmission is also described as strains of A. butzleri and A. cryaerophilus have been found in the preputial washings of bulls (Ho et al., 2006).

Previous studies showed that A. cryaerophilus has fewer virulence-associated genes than A. butzleri (Ferreira et al., 2016; Brückner et al., 2020). However, limited information is currently available regarding virulence and antimicrobial susceptibility of this species (Ramees et al., 2017). Very little is known about the antimicrobial resistance and their mechanisms in A. cryaerophilus. Described resistance determinants are mostly located chromosomal, and no antimicrobial resistance genes have been identified on plasmids, yet. Until now, only a few studies have reported the presence of plasmids in the genus Aliarcobacter (Harrass et al., 1998; Douidah et al., 2014; On et al., 2019).

Here, we describe the genetic diversity and antibiotic susceptibility of 27 A. cryaerophilus strains isolated from seven water poultry farms in Thuringia, Germany. Furthermore, we complemented these data with 17 A. cryaerophilus genomes from the NCBI database and described genomic features as well as virulence-associated and antibiotic resistance genes for cluster I of the A. cryaerophilus complex.

Materials and Methods

Bacterial Strains, Culturing and Identification

In 2016 and 2017, 165 fecal samples were collected from clinically healthy animals from seven water poultry farms in Thuringia, Germany. In detail, 100 fecal samples were collected in 2016 from four water poultry farms from 50 geese (Anser anser), 20 Muscovy ducks (Cairina moschata), 20 Pekin ducks (Anas platyrhynchos domesticus), and ten mulard ducks (Cairina moschata × Anas platyrhynchos domesticus). In 2017, 65 fecal samples were collected from 35 geese, 15 Muscovy ducks, ten Pekin ducks and five mulard ducks from five water poultry farms. A veterinarian gathered the fecal samples with the permission of the animal owners.

For this study, no ethical review process was required, as it was no experiment with animals as defined by the German Animal Protection Law (Tierschutzgesetz) and the Animal Welfare Laboratory Animal Regulation (Tierschutz-Versuchstierordnung).

The Aliarcobacter isolates were cultivated in Arcobacter broth (Oxoid GmbH, Wesel, Germany). The broth was supplemented with three antibiotics (cefoperazone, amphotericin, and teicoplanin (CAT), Oxoid GmbH). After 48 h of incubation at 30°C under microaerophilic conditions (5% O₂, 10% CO₂, and 85% N₂), the broth was spread with a 10 μL inoculation loop on plates (Mueller-Hinton agar/CAT/5% defibrinated bovine blood, Sifin GmbH, Berlin, Germany) and incubated for 24–48 h at 30°C under microaerophilic conditions. Suspicious colonies were identified by matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF MS) using IVD Bacterial Test Standard and Biotyper 3.1 software (both Bruker Daltonik GmbH, Bremen, Germany) as described before (El-Ashker et al., 2015; Hänel et al., 2018). Species identification was also done with a multiplex PCR assay (Houf et al., 2000) and sequencing of the PCR products. The DNA was extracted using the High Pure PCR Template Preparation Kit (Roche Diagnostics GmbH, Mannheim, Germany) following the manufacturer‘s instructions.

Antimicrobial Susceptibility Testing

Antibiotic susceptibility was determined by using the gradient strip diffusion method (E-Test^TM, bioMérieux, Nürtingen, Germany) following the manufacturer’s instructions. Briefly, the Aliarcobacter strains were incubated on Mueller-Hinton agar plates (Sifin GmbH) for 48 h at 30°C under microaerophilic conditions. The colony material was put into five mL Arcobacter broth (Oxoid) and incubated at 30°C under microaerophilic conditions for 48 h. Then, the optical density of the broth was adjusted to 0.08 ± 0.02 at λ = 588 nm. Next, 750 μL of the broth was spread on each Mueller-Hinton agar plate (Sifin GmbH), and the antibiotic gradient strips were placed on the plates. The following antibiotics were used for testing: erythromycin (0,015–256 μg/mL, MA0108F, Oxoid GmbH), ciprofloxacin (0,002–32 μg/mL, MA0104F, Oxoid GmbH), streptomycin (0,064–1024 μg/mL, 526800, bioMérieux), gentamicin (0,06–1024 μg/mL, MA0117F, Oxoid GmbH), tetracycline (0,015–256 μg/mL, MA0105F, Oxoid GmbH), doxycycline (0,016–256 μg/mL, 412328, bioMérieux), ampicillin (0,016–256 μg/mL, 412253, bioMérieux) and cefotaxime (0,002–32 μg/mL, 412281, bioMérieux). The minimum inhibitory concentration was determined after 48 h of incubation at 30°C under microaerophilic conditions. The A. cryaerophilus type strain DSM 7289 was used as a control. Cut-off values for Campylobacter spp. provided by EUCAST (2019) were used for erythromycin, ciprofloxacin, doxycycline, and tetracycline. For gentamicin, ampicillin and cefotaxime we used the breakpoints for Enterobacterales from EUCAST (2019). For streptomycin, the cut-off values for Campylobacter spp. provided in the EFSA Journal were used (European Food Safety Authority et al., 2019). The bacterial strains were classified as sensitive (S) or resistant (R).

DNA Extraction and Whole-Genome Sequencing

The DNA extraction was performed for 27 A. cryaerophilus isolates. Colony material of one to two Aliarcobacter culture plates was needed to obtain sufficient material for DNA preparation. The plates were washed with two milliliters of phosphate-buffered saline (PBS) and the liquid was collected in a 2-mL tube. The tubes were centrifuged for 15 min at 5,400 rpm, then the supernatant was discarded. The remaining content was washed at least twice with PBS until the supernatant was clear. The resulting pellet was further processed for DNA recovery using the QIAGEN Genomic-tip 20/G (Qiagen GmbH, Hilden, Germany) following the manufacturer’s instructions. The concentration of the double-stranded DNA (dsDNA) was examined with Qubit 3 Fluorometer using the Qubit^TM dsDNA HS Assay Kit (both Invitrogen^TM, Thermo Fisher Scientific, Berlin, Germany). The Nextera XT DNA Library Preparation Kit (Illumina Inc., San Diego, CA, United States) was used to generate a paired-end sequencing library according to the manufacturer’s instructions. Whole-genome sequencing was done with an Illumina MiSeq platform generating reads of 300 bp in length (Illumina Inc.).

For plasmid DNA extraction, the QIAGEN Plasmid Mini Kit (Qiagen GmbH) was used according to the manufacturer’s instructions. The obtained plasmid DNA was dissolved in 10 μL Tris-hydroxymethyl-aminomethane (TRIS) buffer (10 mM, pH 8.3) and visualized using 1% agarose gel electrophoresis. As a size marker, 5 μL of the λDNA/HindIII Digest (Jena Bioscience GmbH, Jena, Germany) was used.

The A. cryaerophilus isolates in which a plasmid was detected and another strain from our sample collection (total = 4) were further investigated using the Oxford Nanopore Technology (ONT) MinION. For this purpose DNA was purified with the QIAGEN Genomic-tip 100/G (Qiagen GmbH). Sequencing libraries for ONT MinION was prepared using the ONT 1D Ligation Sequencing Kit (SQK-LSK109) with the Native Barcoding Expansion Kit (EXP-NBD104) as recommended by the manufacturer.

Bioinformatics Analyses

Raw data from the Illumina MiSeq sequencer were assembled using shovill v1.04¹ with options for trimming and filtering enabled (–trim, –minlen 500, –mincov 3). For the ONT data, the raw FAST5 files were processed using Guppy_basecaller v3.4.1 with high-accuracy models (dna_r9.4.1_450bps_hac) for base calling, followed by Guppy_barcoder v3.4.1 for demultiplexing. Long-read only assembly was performed using Flye v2.6 (Kolmogorov et al., 2019). Assembly polishing was performed with several rounds of Racon v1.4.3 (Vaser et al., 2017) and Medaka v0.10.0². Pilon v1.23 (Walker et al., 2014) was used to correct the assembled data from ONT with Illumina reads using standard settings.

For genome annotation, the software Prokka v1.14.5 was used in default settings (Seemann, 2014). Prediction of Clustered Regularly Interspaced Short Palindromic Repeats (CRISPR) was done using the CRISPR Recognition Tool in the Geneious prime^® 2019.2.3 software (Kearse et al., 2012). A search for Insertion sequences (IS) and genomic islands (GI) was done using ISEscan v1.5.4 (Xie and Tang, 2017) and Islandviewer4 (Bertelli et al., 2017), respectively. Prophages were predicted using prophage_hunter (Song et al., 2019).

The 16S rRNA genes were extracted using barrnap v0.9³ and aligned using mafft v7.307 (Katoh et al., 2002). The program Mega X (Kumar et al., 2018) was used for the phylogenetic analysis of the 16S rRNA sequences. The Average Nucleotide Identity (ANI) was calculated using pyani v0.2.3 (module ANIm) (Pritchard et al., 2016). In silico DNA-DNA hybridization (DDH) was done using Genome-to-Genome Distance Calculator software (Meier-Kolthoff et al., 2013). Multilocus sequence typing (MLST) was done using the mlst tool v2.15.2⁴ and the PubMLST database (Jolley and Maiden, 2010) with default settings. Core genome-based phylogeny was performed using Parsnp v1.2 within Harvest suite with default parameters (Treangen et al., 2014). Genome comparison was carried out using progressiveMauve (Darling et al., 2010).

Public antimicrobial resistance (AMR) databases were searched for resistance-associated genes using ABRicate v0.8.10⁵ which uses the BLASTN algorithm to search AMR databases e.g., ResFinder, CARD, ARG-ANNOT, and NCBI [PRJNA313047] (Zankari et al., 2012; Gupta et al., 2014; Jia et al., 2017; Feldgarden et al., 2019).

For further investigations, the virulence and antimicrobial resistance determinants from the corresponding A. butzleri strains described by Isidro et al. (2020) were extracted with Geneious Prime^® 2019.2.3 (Kearse et al., 2012). All extracted genes were grouped in a custom database and searched within the genomes. For that, a pangenome was constructed for all strains using Roary v3.12.0 (options -i 90 -s) (Page et al., 2015). Then, the sequences of the pangenome were BLASTed against the custom database from Isidro et al. (2020) using BLASTP (Altschul et al., 1990) with the following thresholds: coverage 70% and E-value 1–20e. BLAST hits with more than 40% identity at the protein level were reported (Pearson, 2013).

Furthermore, the virulence-associated genes that were first found in a plasmid from an A. cryaerophilus isolate from a New Zealand mussel (On et al., 2019), were excised using Geneious Prime^® 2019.2.3 (Kearse et al., 2012) and put together into a custom database within ABRicate. The sequences used in this study were screened for those genes with a detection value of more than 30% coverage and 85% identity.

Results and Discussion

Bacterial Strains and Whole-Genome Sequencing

Out of 165 fecal samples, 14 were positive for A. cryaerophilus, nine in 2016 and five in 2017. These were obtained from ten geese, two Pekin ducks, one Muscovy duck, and one mulard duck (Table 1). Due to the different morphology of A. cryaerophilus on the culture plates, one to five single colonies were picked and processed separately. In total, 27 A. cryaerophilus strains were recovered. MALDI-TOF MS and PCR identified these isolates as Aliarcobacter cryaerophilus.

TABLE 1

Table 1. The metadata of 44 A. cryaerophilus strains of cluster I used in this study.

In the present study, whole-genome sequencing of 27 A. cryaerophilus strains was performed. The Illumina sequencing yielded an average number of 0.9 million reads per strain and an average depth of coverage 86.4X. High-quality genome assemblies were obtained except for three genomes. Those showed high contig numbers and low N50 values (Table 2). For the other 24 strains, an average N50 value of 213.3 Kbp and an average of 36 contigs per strain was calculated (Table 2).

TABLE 2

Table 2. Sequencing, assembly statistics and annotation of 27 German A. cryaerophilus strains.

Taxonomic Classification of A. cryaerophilus From Germany

The 27 strains sequenced in this study were taxonomically classified as A. cryaerophilus at species level using the 16S rRNA gene (Figure 1). The 16S rRNA genes (1,520 bp) extracted from all strains were 99% identical to the 16S rRNA gene from the reference genome ATCC 43158^T (accession: NZ_CP032823.1), representing the type strain of A. cryaerophilus. Based on 16S rRNA gene analysis, the closest related species was A. trophiarum, with 98.6% identity. Additionally, ANI was calculated between each genome pair based on the whole-genome sequences. Results showed that the 27 German strains were highly similar (>95%) to cluster I genomes, exhibiting an average pairwise ANI of 98.1% (range 96.6–99.00%). The in silico DDH was additionally ascertained, showing DDH values higher than 70% when comparing the German strains to the cluster I reference genome LMG 10229^T (accession: GCF_002993045.1) (Supplementary Table S2). These DDH values dropped to less than 70% when the German strains were compared to the reference strains from clusters II (LMG 9065^T; accession: GCF_002993025.1), III (LMG 24291^T; accession: GCF_002992955.1) and IV (LMG 10210; accession: GCF_002992935.1) (Supplementary Table S2). Based on these results, we concluded that the investigated A. cryaerophilus strains from Germany belong to cluster I, also named A. cryaerophilus gv. pseudocryaerophilus based on the updated taxonomy proposal (Pérez-Cataluña et al., 2018a, b).

FIGURE 1

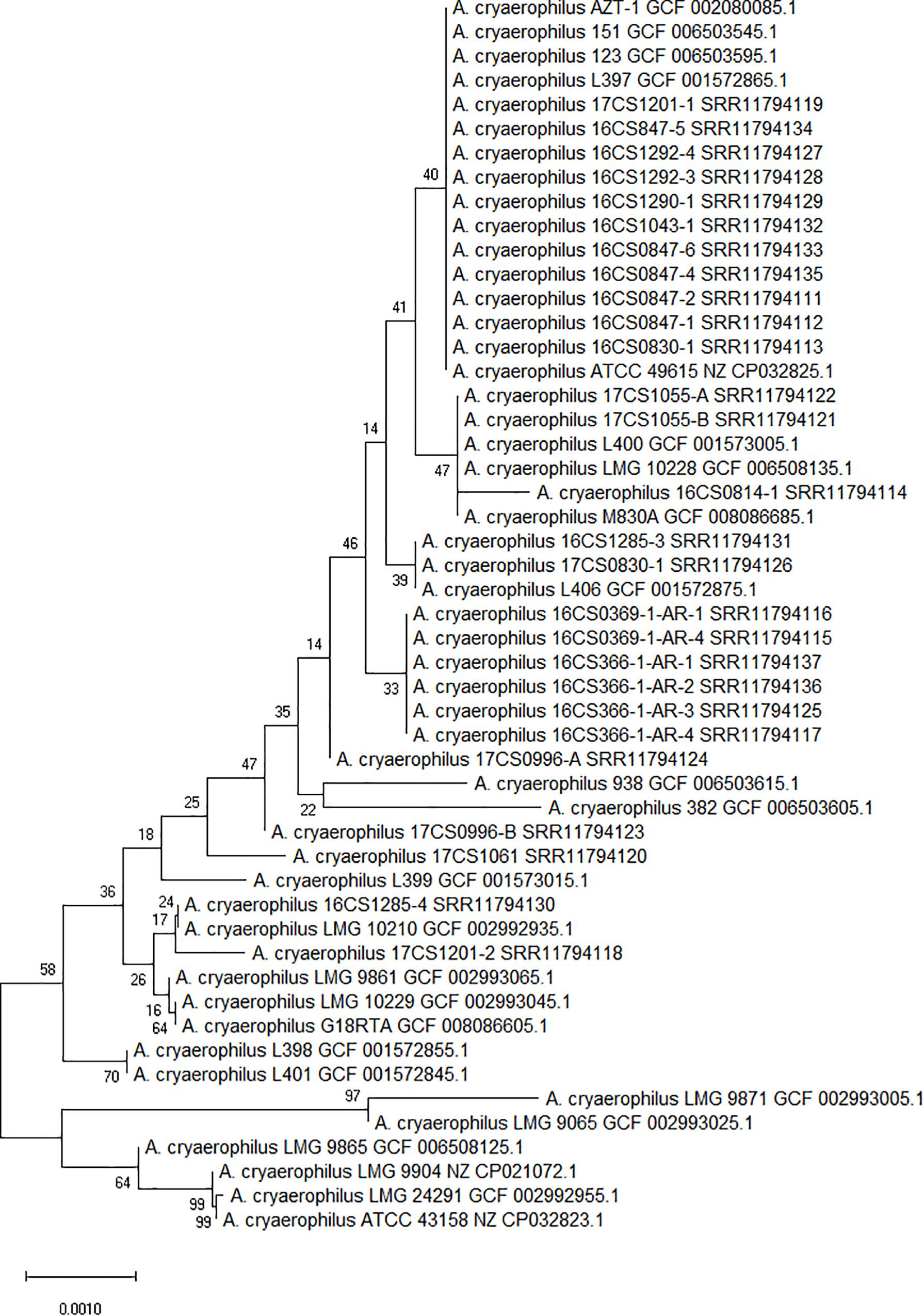

Figure 1. Phylogenetic tree constructed with 51 A. cryaerophilus strains based on the extracted 16S rRNA genes (1,520 bp). Numbers at tree branches denote the bootstrap value. Scale bar indicates the base substitution per site.

Currently, 24 A. cryaerophilus genomes are available at the NCBI GenBank database (Benson et al., 2013)⁶. The NCBI genomes represent strains from cluster I to IV and were collected from different hosts in different countries. Of those, 17 strains were assigned to Cluster I comprising one circularized genome (ATCC 49615; accession: NZ_CP032825.1) (Miller et al., 2018) and 16 fragmented draft genomes (average N50: 256 Kbp; average contig number: 80) (Supplementary Table S1). These strains were reported in different host species including humans (n = 4), pigs (n = 2), cattle (n = 1), shellfish (n = 2), goose (n = 1), dog (n = 1), water (n = 2), and wastewater (n = 4) (Table 1 and Figure 2). The strains span a period between 1987 and 2016 and were isolated from different countries (United States = 2, Canada = 8, Switzerland = 1, Belgium = 3, Ireland = 1, and New Zealand = 2).

FIGURE 2

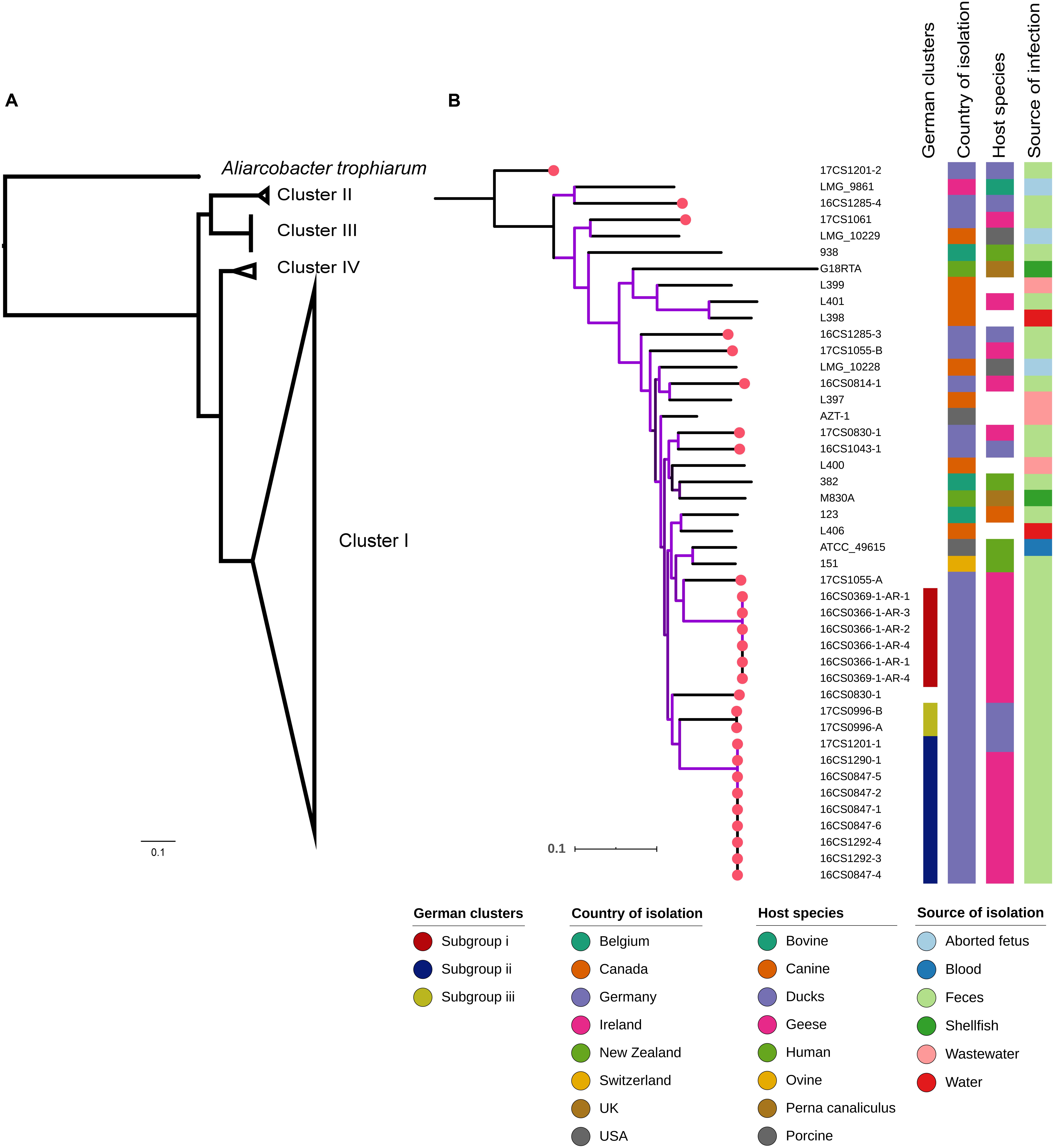

Figure 2. (A) Core-genome based phylogenetic tree depicting clusters I to IV of A. cryaerophilus. (B) Phylogenetic analysis involving 44 A. cryaerophilus strains of cluster I with associated metadata. The German strains formed three subgroups (i; ii; iii). Red dots indicate the German strains.

A High Genetic Diversity Between A. cryaerophilus From Germany Despite Limited Sources of Strain Isolation

In order to investigate phylogenetic relatedness of cluster I genomes of A. cryaerophilus (n = 44; 27 sequenced herein and 17 available at the NCBI), a core genome of 906.9 Kbp was identified. Variable sites in this cluster comprise 9.1% (82,531 SNPs) of the estimated core genome. The size of the core genomes was reduced to 579.6 Kbp when all genomes from the four clusters (n = 52) were taken into consideration. Of these, 11.5% (67,232 SNPs) comprise variable sites. Figure 2A visualizes the four main clusters of A. cryaerophilus, with most of the tree branches presenting high bootstraps values.

Based on the core genome analysis, the 27 isolates from German waterfowls (which represent seven farms in seven different places in Thuringia, see Table 1) were assigned to cluster I. In this cluster, the mean pairwise genetic distance between the German strains was 10,773 SNPs. However, three subgroups (i, ii, and iii) including 17 strains could be depicted (Figure 2B). These were mostly the strains that had been isolated from a single sample from the same farm. The subgroup i includes six strains retrieved from two fecal samples from ducks that were collected from a farm in Tanna in 2016. Two additional fecal samples were collected at the same time from the same farm, but the strains recovered were distant by more than 10,000 SNPs to subgroup i, and to each other by 10,862 SNPs. The same farm had been sampled once more in 2017, and from this additional sample, two strains were recovered. They were ∼20,000 SNPs distant from each other. In fact, one of these two strains, namely 17CS1201-1, grouped with strains from different localities in subgroup ii, with only six to seven SNP differences. The observation that strains recovered from the same sample can be highly divergent was also found in 1) two strains from Grabfeld, Wolfmannshausen isolated in 2017, in which 11,903 SNPs were detected; and 2) two strains from Kyffhaeuserland, Seega isolated in 2016, with 20,531 SNPs difference. Subgroup ii surprisingly included strains (n = 9) that were recovered from fecal samples collected from three farms in three different cities, five from Schorba (one sample in 2016 from a goose), three from Kyffhaeuserland, Seega (two samples in 2016 from geese) and one from Tanna (one sample in 2016 from a duck). Subgroup iii included two strains recovered from one sample from a duck farm in Remda-Teichel in 2017.

Additionally, MLST was performed based on the whole-genome sequences. All 44 genomes of cluster I were assigned to new sequence types (ST) (Supplementary Table S3). The presence of paralogs for glyA (i.e., multiple copies in the same genome) precluded the proper designation of STs for some of the genomes (n = 3). The glyA paralogs were identical in two genomes [17CS1055-B and L401(accession: GCF_001572845.1)] but showed variants in one genome (ATCC 49165). Isidro et al. (2020) also observed this for the glyA gene in strains of the species A. butzleri. Thus, this specific locus may not be suitable for MLST typing because it may lead to an incorrect allele calling as it has been reported for Acinetobacter baumanii (Gaiarsa et al., 2019). Further, we observed the absence of two MLST loci in three genomes, L397 (accession: GCF_001572865.1) lacked glyA, while 938 (accession: GCF_006503615.1) and AZT-1 (accession: GCF_002080085.1) both missed the gltA locus. It has to be noted that the quality of the assembly may influence the detection of loci. Therefore, the absence of these loci could not be confirmed. The PubMLST database (pubmlst.org, accessed on 11.02.2020) lists sequence data of 118 A. cryaerophilus isolates from 11 different countries, with no MLST data currently available from Germany. Those 118 strains were typed into 99 STs indicating a high genetic diversity as explained before for the core genome analysis.

These results indicate a high degree of genetic diversity among A. cryaerophilus strains. This was observed although the collection of the 27 strains investigated herein was restricted to one federal state (Thuringia, Germany), a particular host (water poultry) and a short study period (2 years). The strain diversity within this species is independent of the host species, as similar isolates were detected in geese and ducks (e.g., as observed in subgroup ii). This was also reflected by the global phylogeny of cluster I, in which no major clade could be identified based on the host species. Similarly, the phylogenetic analysis did not support distinct clustering based on the geographical or ecological niche of the strains. Nonetheless, it was striking that highly similar strains exist in different farms located in different places, a finding that indicates a possible epidemiological connection between these farms which might be a common source of animals. The farmer informed us that a single company in Germany supplies most of the geese-fattening farms farms in Thuringia with young animals. Muscovy ducks and mulard ducks are bred and imported from France. They are coming to Germany from a rearing farm that raises them until they are about 3 weeks old. This distributor, in turn, sells the raised animals to the fattening farms.

Genomic Description of Cluster I A. cryaerophilus Strains Employing Circularized Genomes

As mentioned above, the German A. cryaerophilus strains belong to cluster I. To investigate the genomic features of this cluster, we focused on closing four selected genomes of A. cryaerophilus, as only a single genome (ATCC 49615) from this cluster had been circularized. The strains were selected based on their plasmid content as determined using a conventional plasmid detection kit (see section “Materials and Methods”). We sequenced four A. cryaerophilus strains additionally with the ONT sequencing method. The genome assemblies were polished with Illumina reads to improve sequence accuracy (see section “Materials and Methods”). The four genomes were composed of a single chromosome and a single megaplasmid. The size of the megaplasmids ranged from 98.1 to 154.5 Kbp with a GC content between 24.8 and 25.7% (Table 2). These plasmids carried 122–145 coding sequences, 70% thereof were hypothetical proteins.

In the five circularized genomes (four sequenced herein and one public available), the chromosome structure was found to be consistent in terms of length, GC content, RNA genes and coding capacity. The chromosome was approximately 2 Mbp long (range: 2.02–2.14 Mbp) and had a GC content of 27.5% (range: 27.51–27.68%). Each chromosome carried five rRNA operons comprising three successive genes (16S, 23S, and 5S rRNA genes); and 50 tRNA genes (range: 49–51). A striking feature was that the chromosome was densely packed with coding sequences, with an average of 2,110 CDS (range: 2,055–2,243) that represent 91.5–93.4% of the chromosome size. This was nearly similar to Campylobacter jejuni, in which 94.3% of the genome code for proteins and was reported to be the densest bacterial genome reported to date (Parkhill et al., 2000). Additionally, the alignment of the chromosome from our four strains together with strain ATCC 49615 identified a considerable degree of synteny between the strains (Figure 3). The order of gene blocks (locally collinear blocks; LCB) was similar in two strains (16CS0369-1-AR-4 and 16CS0830-1) while an inversion of a single LCB was observed around the terminus of replication in the strains 16CS01292-4 and ATCC 49615. The strain 16CS1285-4 was found to have undergone several rearrangement events of the chromosomal LCBs.

FIGURE 3

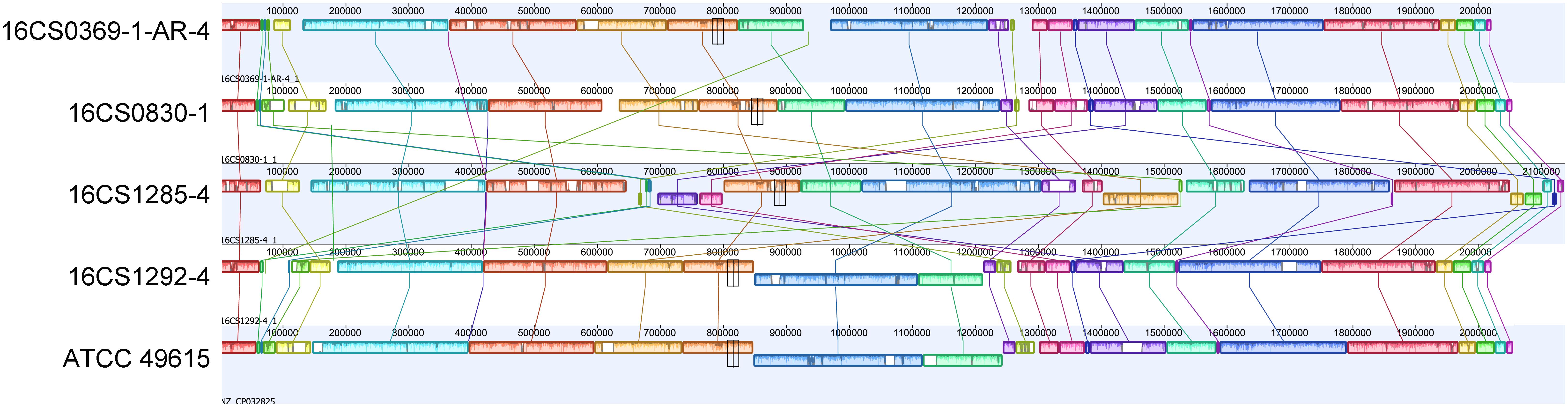

Figure 3. Alignment of the chromosomes from our four circularized strains together with strain ATCC 49615. The order of gene blocks was similar in 16CS0369-1-AR-4 and 16CS0830-1. In the strains 16CS01292-4 and ATCC 49615 was an inversion of a single LCB observed around the terminus of replication. Strain 16CS1285-4 had undergone several rearrangements of the chromosomal LCBs.

Mobile element proteins (IS, GI, and prophages) were found to constitute a small part of the genome except for one strain (16CS1285-4; Supplementary Table S4). Interestingly, this strain showed several rearrangements in the homolog gene blocks. In the strains ATCC 49615, 16CS0369-1-AR-4, 16CS0830-1, 16CS1292-4 and 16CS1285-4 we detected 2, 8, 13, 14, and 63 IS elements, respectively, as well as 6, 4, 8, 6, 15 GIs, respectively. One prophage was found in three strains (16CS0369-1-AR-4, 16CS0830-1 and 16CS1285-4). Only two strains (16CS0830-1, 16CS0369-1-AR-4) carried CRISPR elements (Supplementary Table S4). Additionally, an average of 300 repeats of size >1,000 bp were detected in each chromosome. These results were also similar in the remaining fragmented genomes of cluster I (n = 39). However, mobile elements usually exist in multiple copies in the genome and therefore an underestimation of their occurrence in the fragmented genomes may occur. This is because Illumina sequencing is not compatible with repeats (Torresen et al., 2019). In general, the fragmented genomes (n = 39) carried an average of 9 (range 1–30) insertion sequences and five (range 1–10) genomic islands. Prophages and CRISPR elements were detected only in 24 and 13 genomes, respectively.

Genetic Prediction of Antibiotic Resistance and Concordance With the Resistance Phenotype

The 27 A. cryaerophilus strains from Germany were susceptible to erythromycin, gentamicin and ampicillin, but were resistant to cefotaxime (Table 3). Strains 16CS1292-3 and 16CS1292-4 were resistant to tetracycline, while the strains 16CS0336-1-AR-1, 16CS0366-1-AR-2, 16CS0366-1-AR-4, and 16CS0814-1 were resistant to doxycycline. These results are in line with studies already conducted, although in these studies resistance to ampicillin has been described controversially (Ünver et al., 2013; Ferreira et al., 2016, 2019; Van den Abeele et al., 2016; Pérez-Cataluña et al., 2017). Additionally, 23 isolates showed resistance to streptomycin, while 16 strains were resistant to ciprofloxacin. This result is also largely consistent with previous studies (Van den Abeele et al., 2016; Pérez-Cataluña et al., 2017; Ferreira et al., 2019). However, previous studies used the disk diffusion method to determine antimicrobial susceptibility. Therefore, our results can be compared with those of earlier studies to a limited extent. Van den Abeele et al. (2016) compared both, the disk diffusion test and the gradient strip diffusion method. They concluded that the gradient strip method should be preferred over the disk diffusion test and that the agreement of both methods stands at 60%. This strongly argues for the need of a standardized method for measuring the antimicrobial susceptibility of Aliarcobacter spp. and for the evaluation of the results.

TABLE 3

Table 3. Antimicrobial susceptibility of 27 A. cryaerophilus isolates.

Utilizing the genomes of cluster I the genetic prediction of antimicrobial resistance genes was done using the custom database created by Isidro et al. (2020). Out of 19 efflux pump (EP) systems which have been detected in A. butzleri genomes, 16 were found in the A. cryaerophilus genomes belonging to cluster I (n = 44) (Figure 4). The three missing efflux pump systems are EP9, EP11, and EP19. Six EP systems were present in all genomes: (a) EP2 and EP12 [both belong to the major facilitator superfamily (MFS)]; (b) EP5 and EP6 [both belong to the ATP-binding cassette (ABC) superfamily]; (c) EP7 [belongs to the resistance-nodulation-division (RND) family]; and (d) EP8 [belongs to the small multidrug resistance (SMR) family]. The remaining ten EP systems belong to the RND, ABC and MFS families and were present at least in one strain. Those findings showed that A. cryaerophilus harbors all major families of efflux transporters that are present in prokaryotes apart from the multidrug and toxic efflux (MATE) family (Webber and Piddock, 2003). Since the protein size of regulator TetR (RM4018p_22360) from EP16 is supposed to correlate with the erythromycin resistance, Isidro et al. (2020) hypothesized that truncating mutations in TetR lead to an overexpression of EP16 and thus to increased erythromycin excretion and ultimately cause resistance or tolerance to this antibiotic. The regulator TetR was not present in our 27 German A. cryaerophilus strains, which were all susceptible to erythromycin. EP3, a member of the ABC family, might also be involved in erythromycin resistance as it contains macA and macB genes that encode macrolide export proteins (Fanelli et al., 2019). Although both genes were found in all German strains, the strains were susceptible to erythromycin.

FIGURE 4

Figure 4. Predicted antimicrobial resistance determinants in 44 A. cryaerophilus genomes of cluster I including 16 efflux pumps (EP) systems, a type I secretion system (T1SS), resistance genes and the gyrA mutation (Thr-85-Ile).

A complete type I secretion system (T1SS) was not detected in any of the 44 A. cryaerophilus genomes of cluster I. Apart from the fact that only six instead of seven genes were detected (DNA-binding response regulator gene (RM4018p_10330) was missing), these genes were not present in all strains. 16CS1285-3 was the only genome that carried five T1SS genes.

The search for other antimicrobial resistance determinants revealed that all 44 A. cryaerophilus strains harbor two beta-lactamase genes (bla1, RM4018p_05810; bla2, RM4018p_13040), while eight isolates also carried bla3 (RM4018p_14830). None of the strains carried the chloramphenicol acetyltransferase gene (cat3, RM4018p_07870). Isidro et al. (2020) detected a strong correlation between the presence of an OXA-15-like beta-lactamase gene (bla3) and ampicillin resistance. This beta-lactamase gene was detected in one strain (16CS0830-1). Contradictory, the strain was phenotypically susceptible to ampicillin in vitro. This may indicate that not only the presence of the beta-lactamase gene is important, but also its activity together with penicillin-binding proteins and outer-membrane permeability (Fanelli et al., 2019). The presence of the two beta-lactamase genes bla1 and bla2 in all 44 genomes might be the reason for the cefotaxime resistance. Resistance to ciprofloxacin in Aliarcobacter spp. is, as reported previously, caused by a point mutation in the quinolone resistance determining region (QRDR) at position 254 of the gyrA gene (Abdelbaqi et al., 2007). This mutation subsequently leads to an amino acid exchange from threonine to isoleucine (Thr-85-Ile). In this study, out of 16 resistant A. cryaerophilus strains, 15 exhibited this mutation (Supplementary Table S5). One strain, 16CS1285-4, was phenotypically resistant but did not carry this specific mutation or any other known mutation [e.g., Asp-89-Tyr (Ferreira et al., 2018)]. Interestingly, two susceptible strains had the reported mutation. These observations show that not in every case resistance to ciprofloxacin is due to a single mutation in the gyrA gene in A. cryaerophilus. Maybe a functional multidrug efflux pump e.g., cmeABC (RND) is also required as described before for Campylobacter (Shen et al., 2018). It is noteworthy, that the topoisomerase IV genes parC and parE which are also responsible for fluoroquinolone resistance were absent in the tested strains, suggesting that they are not involved in ciprofloxacin resistance in A. cryaerophilus.

Three of our four plasmid sequences carried at least one gene that is associated with antimicrobial resistance e.g., multidrug efflux systems cmeABC and cmeDEF (RND) and a streptomycin-3-O-adenyltransferase (Supplementary Table S6), showing that A. cryaerophilus may be able to exchange antimicrobial resistance genes.

In silico Virulence Gene Profiling

As with antibiotic resistance genes, the database created by Isidro et al. (2020) was also used to identify potential virulence determinants in A. cryaerophilus genomes of cluster I. This database includes genes for the flagellum synthesis, chemotaxis system, and capsule as well as genes for adherence, invasion, iron uptake, type IV secretion system (T4SS), and an urease cluster.

The survey showed that none of the 44 genomes carried the urease cluster (Figure 5). This finding was not surprising because A. cryaerophilus is reported to be non-ureolytic compared to A. butzleri (Miller et al., 2018).

FIGURE 5

Figure 5. Predicted virulence-associated determinants in 44 A. cryaerophilus genomes including 4 capsule genes, 8 chemotaxis system genes, 31 flagellar genes, 33 type IV secretion system genes, and other virulence determinants genes.

Furthermore, only fragments of the T4SS were found, since 33 of 55 genes were detected in our strains. These 33 genes were either present in all isolates (e.g., PAS domain-containing protein, D4963p_10560) or just in one strain (e.g., hypothetical protein, D4963p_10940).

The potential capsule cluster was only found partially. Four out of 7 genes, namely gmhA2, gmhB, hddA, and hddC, were detected. While strain L400 (accession: GCF_001573005.1) carried all 4 genes, the gmhA2 gene was the only gene present in all tested genomes.

Aliarcobacter cryaerophilus is a motile bacterium with a polar flagellum like A. butzleri. It was therefore not surprising that flagellum genes were detectable. However, three genes, namely flaB (minor flagellin subunit), flhA (flagellar biosynthesis protein), and hag (another gene encoding flagellin), out of 34 flagellar genes could not be found in any of the 44 genomes. Of the remaining 31 genes, 22 were detected in all isolates, with strain AZT-1 having the fewest flagellum genes. Nevertheless, the missing flagellar genes could have an impact on the assembly or function of the flagellum.

We highlight the presence of the chemotaxis system genes (cheA-cheY) in all tested A. cryaerophilus isolates apart from the strains AZT-1 and 938. While cheY2 was not found in strain 938, the genes cheA and cheV were not found in strain AZT-1. This result shows that A. butzleri is not the only Aliarcobacter spp. that carries a full chemotaxis system (Miller et al., 2007; Isidro et al., 2020). Interestingly, the chemotaxis-associated genes docA and luxS were also present in all investigated isolates. Only strain AZT-1 had no docA gene.

The following virulence determinants associated with cellular adhesion and invasion were present in all 44 genomes: cadF, cj1349 (both fibronectin-binding proteins), tlyA (hemolysin), iamA (invasion-associated gene), mviN (inner membrane protein for peptidoglycan biosynthesis). The genes ciaB (host cell invasion) and pldA (outer membrane phospholipase A) were present in all strains except in LMG 10229^T and AZT-1, respectively. The gene htrA–a chaperon involved in adhesins folding (Isidro et al., 2020) – was present in 43 isolates, but not in strain 17CS1201-1. While hecA (filamentous hemagglutinin) was only present in G18RTA (accession: GCF_008086605.1), hecB (hemolysin activation protein) occurred in both, G18RTA and L401. Of the two genes, namely cfrB and fur, possibly involved in iron uptake, fur was detected in all strains but not in 17CS1201-1. The cfrB gene was found to be present in 24 isolates. The genes irgA and iroE which have been associated with the uropathogenicity of E. coli (Miller et al., 2007) were both detected in five genomes, with irgA being present in three additional strains.

Previous studies reported that the virulence genes ciaB, cadF, cj1349, pldA, and mviN are more frequently detected in A. cryaerophilus strains than the other virulence determinants e.g., tlyA, irgA, iroE, hecA, and hecB (Douidah et al., 2012; Zacharow et al., 2015; Sekhar et al., 2017; Brückner et al., 2020). This is mostly in line with our data. Here, only strain G18RTA carried all 14 virulence genes associated with adherence, invasion, and iron uptake. This is consistent with previous reports, as it is very rare to find all virulence genes in every A. cryaerophilus isolate (Zacharow et al., 2015; Sekhar et al., 2017; Brückner et al., 2020). In fact, previous studies reported that the phenotypic urease test in A. cryaerophilus was negative. Therefore it could be hypothesized that A. cryaerophilus is not able to metabolize urea and may not be able to survive in acidic surroundings, e.g., in the urinary tract (Pérez-Cataluña et al., 2018b, 2019).

Additionally, the findings of the virulence-associated genes – previously found on the virulence plasmid from an A. cryaerophilus strain (BankIt2207814 M830MA_plasmid MK715471) (On et al., 2019) – in all A. cryaerophilus sequences used in the present study are summarized in Supplementary Table S7. While one virulence-associated gene was found in 14 strains, five strains carried two genes. These findings indicate that A. cryaerophilus may also be able to exchange virulence factors.

Although A. cryaerophilus has a large repertoire of virulence genes, the investigated strains were isolated from healthy animals, probably indicating that a complex mechanism of virulence exists and that the sole presence of A. cryaerophilus in the gut may not be sufficient for pathogenicity.

Conclusion

To the best of our knowledge, this study presents the first report of whole-genome sequencing data of A. cryaerophilus from Germany. The genomic information on A. cryaerophilus is currently limited and as of to date no in-depth comparative genomic analysis has been conducted. In this study, a total of 27 A. cryaerophilus strains were isolated from seven poultry farms in Germany. These strains belong to the A. cryaerophilus cluster I following a recent taxonomic proposal. A high genetic diversity between A. cryaerophilus from Germany was observed. This is despite that the strains were restricted to a single federal state (Thuringia, Germany), a particular host (water poultry), and were collected over a short period of time (2 years). Additionally, the phylogenetic analysis of cluster I did not support distinct clustering based on the geographical or ecological niche of the strains.

The genomic features of cluster I A. cryaerophilus strains include: a chromosome densely packed with coding sequences (91.5–93.4% of the chromosome size); variable presence of mobile elements such as IS, GI and prophages. Furthermore, the alignment of the chromosomes from our four circularized genomes compared with the genome of strain ATCC 49615 revealed a considerable degree of synteny, however, inversion and shifts were observed.

The genetic prediction of virulence and antibiotic resistance showed that A. cryaerophilus has a large virulome and that the genetic antimicrobial resistance is only to a limited extent consistent with the phenotypic characterization. Therefore, antimicrobial susceptibility should continue to be tested phenotypically. Surprisingly, A. cryaerophilus appears to be more resistant to ciprofloxacin than A. butzleri. Although a partial correlation has been found between the presence of the gyrA mutation (Thr-85-Ile) and ciprofloxacin resistance, this does not apply to all resistant strains. It is noteworthy, that a functional multidrug efflux pump like cmeABC could also be a possible resistance mechanism against ciprofloxacin. The presence of two beta-lactamases (bla1, bla2) in all A. cryaerophilus genomes from cluster I may correlate with the resistance to cefotaxime. Additionally, to our knowledge, this is the first report of the detection of antimicrobial resistance determinants in A. cryaerophilus plasmids, which indicates the possibility of exchanging resistance genes between different strains.

Data Availability Statement

The original contributions presented in this study are publicly available. This data can be found here: DDBJ/ENA/GenBank; BioProject: PRJNA632720. Publicly available datasets were analyzed in this study. This data can be found here: DDBJ/ENA/GenBank; BioProject: PRJNA66819, PRJNA302819, PRJNA307600, PRJNA294644, PRJNA294645, PRJNA294646, PRJNA308312, PRJNA294642, PRJNA369468, and PRJNA431460.

Author Contributions

EM, HT, and MA-G designed the work. CA provided the fecal samples and metadata. EM, IH, and MA-G performed the analyses. EM and MA-G interpreted the data and wrote the manuscript. HH and HT supervised the analyses. All authors contributed to the revision of the manuscript, read, and approved the submitted manuscript.

Funding

EM is participating in a project of the Friedrich-Loeffler-Institut (Antimicrobial Resistance – One Health; HJ-0005; AZ C 200 302 02/2018). The funders had no role in study design, data collection, and interpretation, or the decision to submit the work for publication.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We would like to thank S. Thierbach, P. Methner, A. Hackbart, and B. Hofmann for their qualified microbiological, molecular biological and biotechnological assistance.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2020.01549/full#supplementary-material
