Destabilized Passivation Layer on Magnesium-Based Intermetallics as Potential Anode Active Materials for Magnesium Ion Batteries

Passivation of magnesium metal anode is one of the critical challenges for the development of magnesium batteries. Here we investigated the passivation process of an intermetallic anode: Mg₃Bi₂ synthesized by solid-state and thin film process. The Mg₃Bi₂ composite electrode shows excellent reversibility in magnesium bis(trifluoromethansulfonylamide) dissolved in acetonitrile, while Mg₃Sb₂, which has same crystal structure and similar chemical properties, is electrochemically inactive. We also fabricated the Mg₃Bi₂ thin film electrodes, which show reversibility with low overpotential not only in the acetonitrile solution but also glyme-based solutions. Surface layer corresponding to the decomposed TFSA anion is slightly suppressed in the case of the Mg₃Bi₂ thin film electrode, compared with Mg metal. Comparative study of hydrolysis process of the Mg₃Bi₂ and the Mg₃Sb₂ suggests that the both intermetallic anodes are not completely passivated. The bond valence sum mapping of the Mg₃Bi₂ indicates that the fast Mg²⁺ diffusion pathway between 2d tetrahedral sites is formed. The electrochemical properties of the Mg₃Bi₂ anode is mainly due to the less passivation surface with the fast Mg²⁺ diffusion pathways.

Introduction

Beyond Li-ion batteries have been widely investigated last decade (Larcher and Tarascon, 2015). Alternative anode active material using electrochemical deposition-dissolution process of less-noble metal is one strategy for the development of high-energy battery system (Lin et al., 2017). Among various choices of the less-noble metal anodes, magnesium is one of the potential candidates as the high-energy anode active material, because the volumetric capacity: 3,800 mAh cm⁻³ is 1.9 times higher than that of lithium metal, and no dendritic growth during the deposition process (Matsui, 2011). On the other hand, the surface of the magnesium metal is easily passivated in conventional electrolyte solutions such as magnesium perchlorate dissolved in propylene carbonate (Lu et al., 1999). Therefore, the choice of the electrolyte solutions for rechargeable magnesium batteries is very limited. Typically the organohaloaluminate electrolyte solutions, which are widely studied by Aurbach et al. in early 2000s (e.g., Aurbach et al., 2000, 2003, 2007), show highly reversible deposition/dissolution of magnesium metal, however since these electrolyte solutions contain halides: Cl⁻ or Br⁻, the potential window of the organohaloaluminate electrolyte solutions is limited. In addition the corrosive properties of the halides initiate the dissolution of the cathode current collector at high cell voltage >2.5 V (Muldoon et al., 2012). Therefore, finding halide-free electrolyte solutions has been standing in the center of the electrolyte development for high-voltage magnesium batteries. Recently, Tutusaus et al. reported a new class of the magnesium salt having boron cluster anion monocarborane CB₁₁${\text{H}}_{12^{-}}$ dissolved in glymes showed reversible deposition/dissolution of magnesium without corrosive properties (Tutusaus et al., 2015). A fluorinated alkokyborate-based electrolyte: magnesium hexafluoroisopropylaluminate (Mg[B(hfip)₄]₂) also shows excellent reversibility without the corrosive properties (Zhao-Karger et al., 2017). Even with the excellent electrochemical properties of these new class of the electrolytes, the oxidation stabilities of these solutions are still limited up to 3.5 V vs. Mg due to the ether-based solvents.

Our group has been working on intermetallic anodes such as Mg₃Bi₂ and Mg₂Sn, because the intermetallic anodes are compatible with a conventional electrolyte solution: magnesium bis(trifluoromethansulfonylamide) (Mg(TFSA)₂ ) dissolved in acetonitrile(AN) (Arthur et al., 2012; Singh et al., 2013). Despite the high equilibrium potential and the low specific capacity of the Mg₃Bi₂, the compatibility against wide variety of the electrolyte solutions could become an advantage for the development of a battery system. Moreover, since the bismuth is very heavy element, the volumetric capacity of the Mg₃Bi₂: 1906 mAh cm⁻³ is still comparable value to the theoretical capacity of lithium metal. Therefore, we think the “Mg-ion” battery using the intermetallic anode could be a more realistic direction to develop a practical battery system.

Even with the several reports concerning the Mg₃Bi₂ as the anode active material for Mg-ion batteries, there still remains room to understand why the Mg₃Bi₂ shows the compatibility with various electrolytes solutions. Also the fast reaction kinetics of the Mg₃Bi₂ among various Mg-based intermetallic anodes, are still under investigation. In the present study, we attempted to understand the origin of the wide compatibility and the fast kinetics of the Mg₃Bi₂ as the alternate anode active material for magnesium batteries. We investigated the electrochemical properties of the Mg₃Bi₂ composite electrodes, synthesized by a conventional solid-state process. In order to conduct comparative studies, another intermetallic anode: Mg₃Sb₂ was also investigated, because of its structural and chemical similarities to the Mg₃Bi₂. The Mg₃Sb₂ has same crystal structure to the Mg₃Bi₂, in both magnesiated and demagnesiated phases. In addition the binary phase diagram of Mg-Sb system shows that the expected electrochemical reaction is a two-phase reaction of Mg₃Sb₂ and Sb, which is exact same as the two phase reaction in the Mg-Bi system. We also fabricated Mg metal and Mg₃Bi₂ thin film electrodes using rf-sputtering coater to investigate the correlation between the surface layer and the overpotential of the magnesium metal and the Mg₃Bi₂. The surface layer on the magnesium metal and the Mg₃Bi₂ thin films were characterized using X-ray photoelectron spectroscopy (XPS). In order to evaluate the stability of the surface layer on the intermetallic anodes, the hydrolysis process of the Mg₃Bi₂ and the Mg₃Sb₂ were investigated. The Mg²⁺ diffusion pathways in the Mg₃Bi₂ and the Mg₃Sb₂ were estimated by bond-valence sum (BVS) mapping (Adams, 2006) to discuss the reaction kinetics of these two intermetallic anodes.

Materials and Methods

Synthesis and Characterization

The Mg₃Bi₂ and the Mg₃Sb₂ powders were synthesized by a conventional solid-state reaction from stoichiometric amount of magnesium powder (99.8%, Alfa Aesar) and bismuth powder (99.999%, Alfa Aesar) or antimony powder (99.999%, Alfa Aesar) with 10% excess magnesium. The metal powders were thoroughly mixed using an agate mortar and pestle. Subsequently the mixture of the materials were mechanically milled using a planetary ball mill (PL-7, Fritsch) with ZrO₂ grinding bowls and balls, for 8 h at 400 rpm. The milled powders were pressed into pellets and calcined at 550°C for 5 h to obtain the single phase of the intermetallics. The calcined pellets were ground and sieved before the preparation of the electrode slurry. In order to avoid the oxidation of the materials, all the synthesis procedures were carried out under inert atmosphere.

The Mg₃Bi₂ and the magnesium metal thin films were also fabricated to characterize the passivation layer. The thin film fabrication was carried out using a magnetron sputtering coater (Pascal) equipped with 2″ of magnesium and bismuth target. Since the load-lock is directly connected to the argon-filled glove box, the thin films can be prepared without air exposure. We employed a copper foil as substrate of the thin film electrode. The native oxide layer of the copper substrate was removed by sputter etching at 20 W for 20 min. The Mg₃Bi₂ thin films were fabricated by co-sputtering process of magnesium and bismuth. The rf power was 50 and 20 W for the magnesium and the bismuth respectively. The sputtering duration was 15 min. The substrate was heated at 200°C and rotated at 10 rpm to obtain uniform coatings. Thin films of the magnesium metal were also fabricated almost same sputtering condition above. The sputtering duration is increased to 20 min without the sputtering of the bismuth. The thickness of the Mg₃Bi₂ thin film is ≈500 nm.

The synthesized powders and the thin films were characterized using X-ray diffractometer (D8 ADVANCE, Bruker) equipped with Cu-Kα radiation. The sample preparation was carried out in the argon-filled glove box < 1.0 ppm of moisture and oxygen, using an airtight sample holder to avoid the air exposure of the samples during the measurement. The structural refinement for the powder samples was carried out using RIERAN-FP ver. 2.84 (Izumi and Momma, 2007) and the crystal structures were drawn by VESTA 3.4.4 (Momma and Izumi, 2011). We also performed the BVS mapping to visualize the Mg²⁺ ion diffusion pathways, using PyAbstantia ver. 0.7 (Nishimura, 2017).

Electrochemistry

The electrode slurry was prepared by mixing the 80 wt% of the Mg₃Bi₂ or Mg₃Sb₂ powder, 10 wt% of acetylene black (TIMCAL), and 10 wt% of polyimide binder (Toray) dissolved in anhydrous NMP. The mixed slurry was coated on the copper foil and dried at 80°C under vacuum and pressed. Subsequently the electrode were heated at 350°C under argon flow for the thermal imidization of the binder. The loading level of the Mg₃Bi₂ and Mg₃Sb₂ are within the range 2.8–3.3 mg cm⁻². The Mg₃Bi₂ thin film electrodes were used without further treatment.

Conventional three-electrode cells were employed for the electrochemical measurement. The composite/thin film electrodes were used as the working electrodes. The counter electrode was a platinum or magnesium foil. The reference electrode had a silver wire immersed in 0.05 mol L⁻¹ AgNO₃(Wako) in acetonitrile: AN (Kishida) solution with two liquid junctions with microporous glass membranes to avoid contamination of the Ag⁺ ion into the electrolyte solution. A 1.0 mol L⁻¹ magnesium bis(trifluoromethanesulfonyl)amide:Mg(TFSA)₂ in AN solution (Kishida) was used as the electrolyte solution. We also prepared glyme-based electrolyte solutions. The Mg(TFSA)₂ salt (Kishida) was vacuum dried at 170°C for 8 h. The glyme-based solvents monoglyme: G1 (Kishida) and butylmethyltriglyme:BuMeG3 (Wako) were dried over activated molecular sieve (5A) for 36 h until the water content reaches < 15 ppm. Subsequently the Mg(TFSA)₂ was dissolved in the solvents to use as the electrolyte solutions. The water content of the solvents and solutions were measured by Karl Fischer titration method (Mitsubishi Chemical Analytics).

Surface Analysis

In order to characterize the passivation layer at the surface of the Mg₃Bi₂ thin film electrode, we conducted X-ray photo electron spectroscopy: XPS (ESCA3400, Shimadzu) with Mg-Kα radiation. As a comparison, the XPS spectra for a magnesium metal thin film was also measured. The Mg₃Bi₂ and the magnesium metal thin films were immersed in the BuMeG3 solution for 24 h, right after the sputtering process. Subsequently the thin films were rinsed with monoglyme(G1) to remove the BuMeG3 solutions. The emission current and the acceleration voltatge of the X-ray gun is 20 mA and 10 kV respectively. Argon ion etching, with 20 mA of emission current and 2 kV of acceleration voltage, was carried out to take the depth profile.

Results and Discussions

Electrochemical Properties of the Mg₃Bi₂ and Mg₃Sb₂ Composite Electrode

Figure 1 shows XRD patterns and Rietveld refinement results of the Mg₃Bi₂ and Mg₃Sb₂. Both of the diffraction patterns are assigned to A-type rare earth structure with trigonal P$\overline{3}$m1 space group. The refinement yields the trigonal lattice with a = 4.65349(5) Å and c = 7.38997(9) Å for Mg₃Bi₂ and a = 4.55963(10) Å and c = 7.22933 Å for Mg₃Sb₂ respectively. The magnesium occupies 1a site and half of 2d sites. The bismuth or antimony occupies another half of 2d sites. Both refinement results are in good agreement with reported data (Ahmadpour et al., 2007; Liu et al., 2017). Summary of the refinement results are shown in Tables 1, 2. The crystal structure of both the Mg₃Bi₂ and the Mg₃Sb₂ can be described as a layered structure of hexagonal close-packed (h.c.p) bismuth array with Mg atoms located at the octahedral voids in every two bismuth c.p. layers, and the tetrahedral voids in the another two bismuth c.p. layers.

FIGURE 1

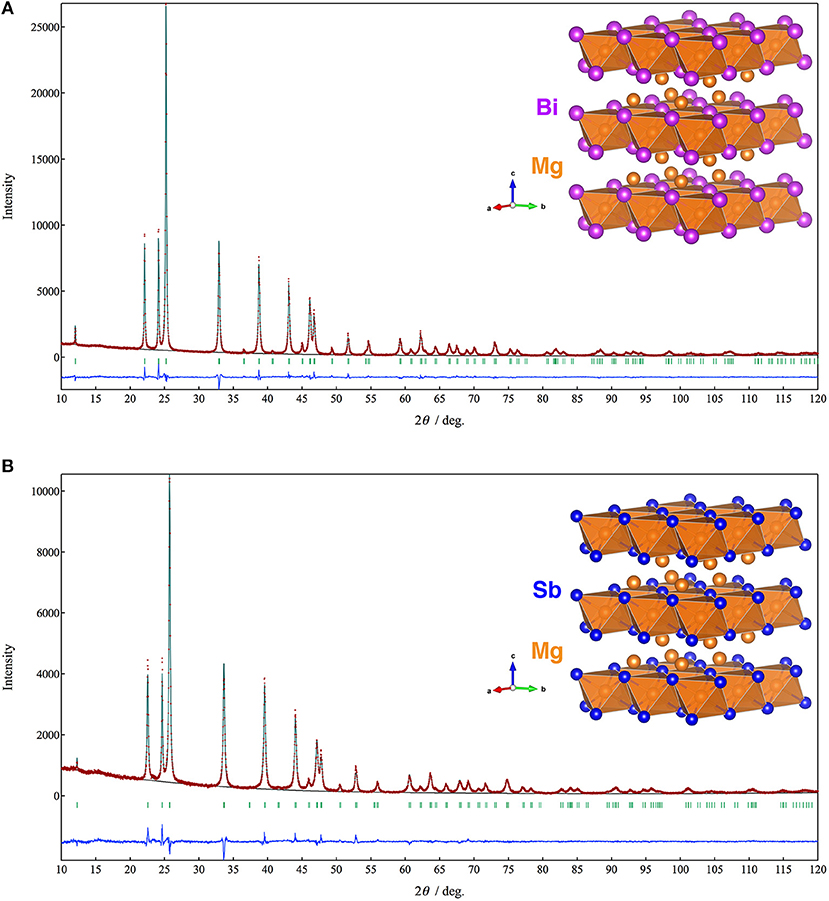

Figure 1. Powder XRD patterns and the crystal structures of (A) Mg₃Bi₂ and (B) Mg₃Sb₂. The brown symbols are measured value of the PXRD data, the dark green line is the simulated pattern. The light green marks represents the peak positions and the blue line is corresponding to the residue.

TABLE 1

Table 1. Rietveld refinement result of Mg₃Bi₂.

TABLE 2

Table 2. Rietveld refinement result of Mg₃Sb₂.

Even though the crystal structures of the Mg₃Bi₂ and the Mg₃Sb₂ are very similar except the slight difference of the lattice constants, the electrochemical properties of these two compounds are significantly different. The cyclic voltammograms of the Mg₃Bi₂ and the Mg₃Sb₂ composite electrodes in 1.0 mol L⁻¹ Mg(TFSA)₂ in AN solution, overlapped with a cyclic voltammogram of the deposition/dissolution process of magnesium metal in 0.5 mol L⁻¹ Mg(TFSA)₂ in BuMeG3 solution, are shown in Figure 2. The Mg₃Bi₂ shows very sharp reversible peaks corresponding to demagnetization/magnetization process at −2.1 V vs. Ag⁺/Ag. Even though the sweep rate of the cyclic voltammogram is faster than reported data, the overpotential between the anodic and cathodic reaction is almost same as previous one: ~80 mV. It suggests that the overpotential is not corresponding to the reaction kinetics, but thermodynamic properties, such as solvation/desolvation energy or phase transition of the solid phase. In addition, the overpotential of the Mg₃Bi₂ is much lower than that of the deposition/dissolution process of the magnesium in the BuMeG3 solution. Hence the Mg₃Bi₂ obviously has some advantages as a practical battery anode in the aspect of energy efficiency, besides its less capacity and higher equilibrium potential compared with magnesium metal anode. The expanded cyclic voltammogram of the Mg₃Sb₂ is also shown in the inset of Figure 2. Reversible current around −2.05 V vs. Ag⁺/Ag is observed, and another anodic current appeared at −1.7 V vs. Ag⁺/Ag and above. It indicates the Mg₃Sb₂ also has some reversibility at slightly higher equilibrium potential of Mg₃Bi₂, the observed current is however negligible compared with Mg₃Bi₂. We suspect only the surface of the Mg₃Sb₂ particle is electrochemically active in the composite electrode.

FIGURE 2

Figure 2. Comparison of cyclic voltammograms of Mg₃Bi₂ composite electrode (red), Mg₃Sb₂ (blue) in 1.0 mol L⁻¹ Mg(TFSA)₂ in acetonitrile and Mg deposition/dissolution in 0.5 mol L⁻¹ Mg(TFSA)₂ in BuMeG3 (green). The sweep rates of the voltammetry are 0.1 mV s⁻¹ for Mg₃Bi₂ and Mg₃Sb₂, and 1.0 mV s⁻¹ for Mg deposition/dissolution.

Electrochemical Properties of the Mg₃Bi₂ Thin Film Electrodes

In order to investigate the correlation between the electrochemical properties of the Mg₃Bi₂ and the surface layer, Mg₃Bi₂ thin film electrodes were fabricated by magnetron sputtering process. An SEM image and an XRD pattern of the Mg₃Bi₂ thin film are shown in Figure 3. The SEM image shows a polycrystalline Mg₃Bi₂ thin film having 200–300 nm of secondary particles. The diffraction pattern of the Mg₃Bi₂ thin film well matches with the powder pattern discussed in the previous section. Since the fabrication process does not have post annealing process, the Mg₃Bi₂ thin film has slightly poor crystallinity. The small peak observed at 22.6° of 2θ is corresponding the 003 reflection of the bismuth remained as impurity phase. The peak of 012 reflection of the bismuth, which is the main peak of the powder pattern, is not clearly observed, hence the bismuth impurity phase has a preferred orientation to c-axis to minimize the surface energy during the deposition process.

FIGURE 3

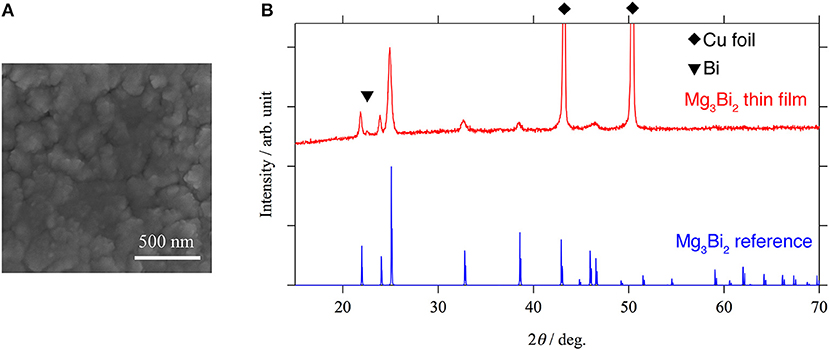

Figure 3. An SEM image (A) and an XRD pattern (B) of Mg₃Bi₂ thin film. The small peak at 22.6° of 2θ corresponds to 003 reflection of bismuth. Two strong peaks observed at 44.9 and 49.9° of 2θ are corresponding to the copper substrate. All the other peaks match with the reference pattern of Mg₃Bi₂ (ICDD PDF 04-003-6859).

Figure 4 shows cyclic voltammograms of the Mg₃Bi₂ thin film electrodes in various electrolyte solutions: 1.0 mol L⁻¹ Mg(TFSA)₂ in AN, 0.5 mol L⁻¹ Mg(TFSA)₂ in BuMeG3, and 0.5 mol L⁻¹ Mg(TFSA)₂ in dimethoxyethane: G1 (Kishida). The Mg₃Bi₂ thin film shows reversible redox reaction in all the three electrolyte solutions. The redox potentials of the Mg₃Bi₂ in 0.5 mol L⁻¹ Mg(TFSA)₂ in BuMeG3 and G1 are −2.3 to −2.4 V vs. Ag⁺/Ag, lower than the redox potential in AN electrolyte solution; we suspect it is due to the difference of the Ag⁺/Ag redox potential in the reference electrode corresponding to the solvation properties of AN and the glymes. The broad peaks of the cyclic voltammogram of the BuMeG3 electrolyte solution indicates that the redox reaction is kinetically slow due to the high viscosity of the solution. The overpotential between the anodic and cathodic reaction is ~100 mV, which is slightly higher than that of AN, it is still much lower than the overpotential observed in the deposition/dissolution process of the magnesium metal in these glyme solutions.

FIGURE 4

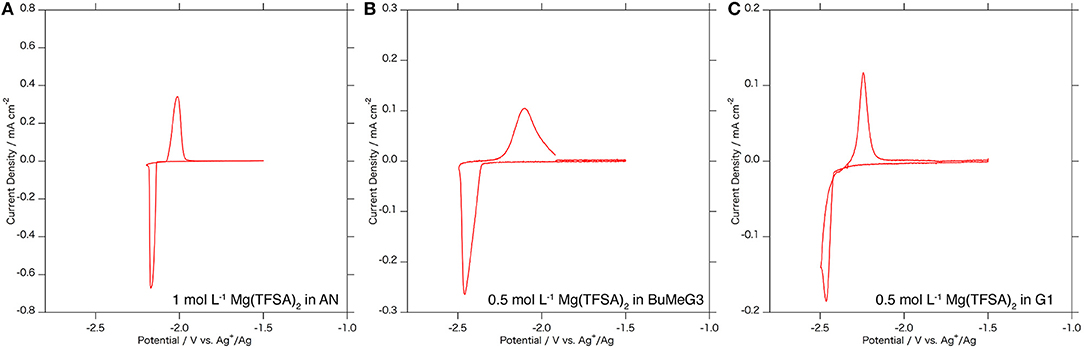

Figure 4. Cyclic voltammograms of the Mg₃Bi₂ thin film electrodes in (A) 1 mol L⁻¹ Mg(TFSA)₂ in AN solution, (B) 0.5 mol L⁻¹ Mg(TFSA)₂ in BuMeG3 solution, and (C) 0.5 mol L⁻¹ Mg(TFSA)₂ in G1 solution. Reference electrode is a silver wire immersed in 0.01 mol L⁻¹ AgNO₃ AN solution for (A) and 0.01 mol L⁻¹ AgTfO solution in BuMeG3/G1 solutions for (B,C). Counter electrode is Pt foil for (A) and Mg foil for (B,C). The sweep rate of the voltammetry is 0.1 mV s⁻¹.

Surface Layer of Mg₃Bi₂ Thin Film Electrode

The excellent reversibility of the Mg₃Bi₂ thin films in the three electrolyte solutions indicates that the surface of the Mg₃Bi₂ electrodes are not passivated in these electrolyte solutions. Thus, we performed XPS analyses of the Mg₃Bi₂ and the magnesium metal thin film immersed in the electrolyte solution to confirm the absence of the passivation layer. The BuMeG3 solution was chosen for the surface analysis because we previously observed the formation of MgF₂-based passivation layer at the surface of a commercial magnesium foil (Kuwata et al., 2017). Figure 5 shows F1s XPS spectra of the sputtered Mg₃Bi₂ and magnesium metal thin films. Despite our expectation, both of the thin films showed similar spectra to that we observed at the surface of the magnesium foil. The spectra have peaks at 688.8 eV, corresponding to the residue of the TFSA anion at the surface of the electrodes. The TFSA residue gradually decreased and mostly disappeared after 10 seconds of the argon sputtering. Another peak corresponding to the MgF₂ simultaneously appeared at 685.7 eV during the further sputtering process. The formation of the MgF₂ layer is a direct evidence of the cathodic decomposition of the TFSA anion in the electrolyte solution. Even though the relatively weak peak intensity of the MgF₂ on the Mg₃Bi₂ suggests the formation of thinner or less dense surface layer, the formation of MgF₂ proves that the equilibrium potential of the Mg₃Bi₂ (0.28 V vs. Mg²⁺/Mg) is still low enough to reduce the TFSA anion. Figure 6 shows Mg2p spectra of the Mg₃Bi₂ and the magnesium metal thin films. Even with the fitting result, the removal of the MgF₂ is not clearly confirmed in the Mg2p XPS spectra of the Mg₃Bi₂ thin film shown in Figure 6A, because the peak corresponding to the Mg₃Bi₂ and the MgF₂ are overlapped with each other around 49.8 eV. It shows the Mg atoms in the Mg₃Bi₂ phase is positively charged and behave as cations in the solid phase. The Mg2p spectra for the magnesium metal thin film shown in Figure 6B are good reference to understand the structure of the surface layer. A peak corresponding to the magnesium metal appears after 10 seconds of the argon sputtering process at 48.7 eV. Then the peak intensity of the magnesium metal gradually increased during the following sputtering process. Since the decrease of the peak intensity of the MgF₂ layer is strongly associated with the F1s spectra, we conclude that the main component of the surface layer on these electrodes is MgF₂. As already discussed in section Electrochemical properties of the Mg₃Bi₂ thin film electrodes, the Mg₃Bi₂ thin film electrode shows 100 mV of overpotential in the BuMeG3 solution, even with the formation of the MgF₂ layer. Moreover, the similarity of the surface layer on the Mg₃Bi₂ and magnesium metal thin films, suggests that the MgF₂ does not completely passivate the surface of the both electrodes. Therefore, we think that the origin of the high overpotential of the magnesium deposition/dissolution process in the glyme-based electrolyte solution is not the resistance of the surface layer, but the activation energy of the actual electrode reaction process, which consists of several reaction steps such as adsorption of Mg²⁺ ions, desolvation, electron-transfer, surface, and bulk diffusion of Mg atoms and so forth. Among these reaction steps, we speculate the electron-transfer process significantly contributes to the overpotential, because the biggest difference of the electrode reactions between the Mg₃Bi₂ and the magnesium metal, is the oxidation state of the Mg²⁺ ions. As presented in the Mg2p XPS spectra in Figure 6A, the Mg²⁺ ions in the electrolyte solution are not reduced to the Mg atoms in the case of Mg₃Bi₂, on the other hand, the Mg²⁺ ions are reduced to the magnesium metal during the electrodeposition process. Further analytical studies are necessary to be conducted to determine the origin of the overpotential.

FIGURE 5

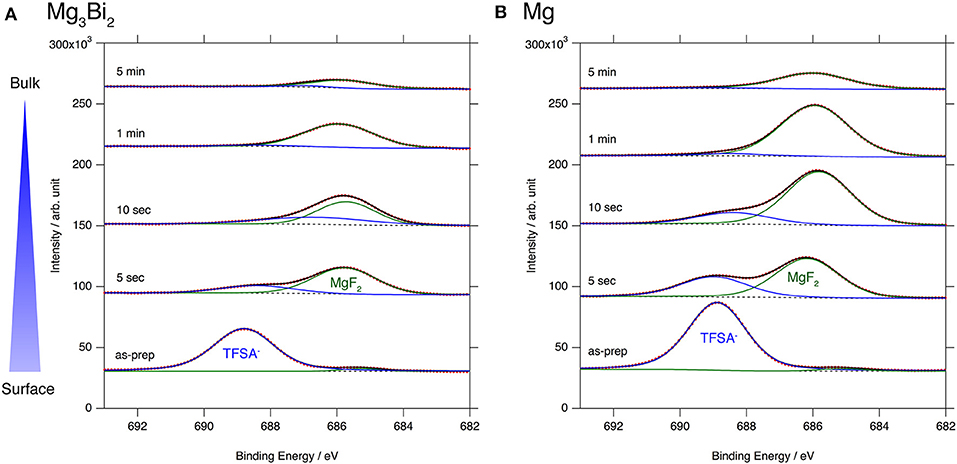

Figure 5. F1s XPS spectra for (A) Mg₃Bi₂ thin film and (B) Mg thin film immersed in 0.5 mol L⁻¹ Mg(TFSA)₂ in BuMeG3 solution for 24 h.

FIGURE 6

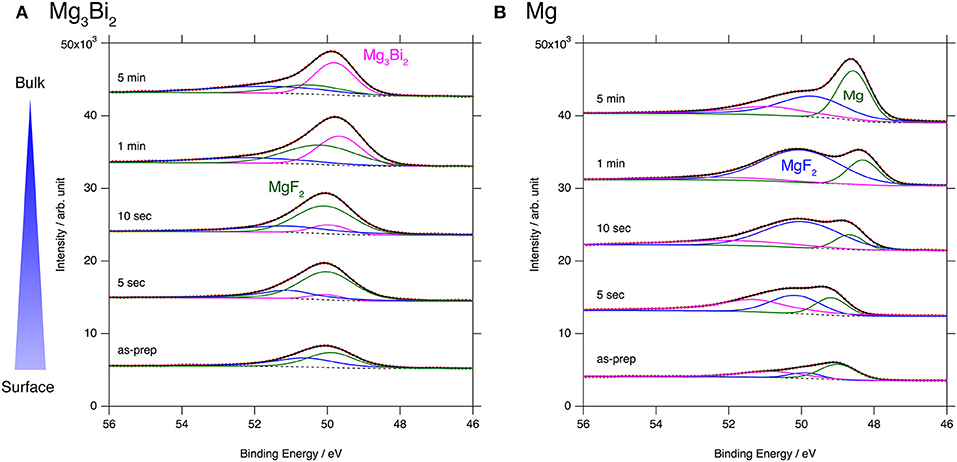

Figure 6. Mg2p XPS spectra for (A) Mg₃Bi₂ thin film and (B) Mg thin film immersed in 0.5 mol L⁻¹ Mg(TFSA)₂ in BuMeG3 solution for 24 h.

Stability Test of the Mg₃Bi₂ and Mg₃Sb₂

Since the XPS results only provide the composition and the oxidation state of the elements, here we investigated the stability of the passivation layer on the Mg₃Bi₂ and the Mg₃Sb₂ by storing them in ambient atmosphere and water. The XRD patterns of the Mg₃Bi₂ and Mg₃Sb₂ do not show any changes during the initial 24 h storage in air as shown in Figures 7A,B. It indicates the surfaces of the particles were well passivated. Subsequently we added 0.05 ml of water per sample holder, containing ~0.5 g of the powder sample. Immediately a new peak corresponding to the 012 reflection of bismuth appeared at 27.4° of 2θ as shown in Figure 7A. Though no diffraction peaks corresponding to Mg(OH)₂ are observed, the formation of the bismuth suggests the hydrolysis of the Mg₃Bi₂ in the following Equation (1).

$\begin{array}{ll}\text{M}{\text{g}}_3\text{B}{\text{i}}_2+6{\text{H}}_2\text{O}\to 3\text{M}\text{g}{(\text{O}\text{H})}_2+2\text{B}\text{i}+3{\text{H}}_2\uparrow & (1)\end{array}$

We think the missing of the Mg(OH)₂ is due to the poor crystallinity, because the hydrolysis occurred at room temperature. Furthermore, the hydrolysis also indicates no passivation layer formation at the surface of the Mg₃Bi₂. Even though the experimental protocol is not qualified to have quantitative discussions for the reaction kinetics, we think the hydrolysis is a good evidence to prove the passivation-free surface of the Mg₃Bi₂. On the other hand, the Mg₃Sb₂ never shows any hydrolysis even 72 h after the addition of the water, as if the surface of the Mg₃Sb₂ is well-passivated. However, there still remains a question whether the stability is really owing to the passivation layer or the stability of the bulk Mg₃Sb₂ phase, considering the chemical similarity between bismuth and antimony. Hence we attempted further acceleration of the hydrolysis by immersing the Mg₃Bi₂ and the Mg₃Sb₂ powders in excess amount of water. The formation of the Sb is slightly observed after 24 h storage in excess water, and we finally observed the clear evidence of the hydrolysis of the Mg₃Sb₂ after 10 days, as shown in Figure 7C. The Mg₃Bi₂ obviously showed much faster hydrolysis compared with the Mg₃Sb₂ and the hydrolysis is almost completed after 6 days storage. The hydrolysis of the Mg₃Bi₂ and the Mg₃Sb₂ proves that the formation of the thermodynamically stable intermetallic phase suppress the formation of the passivation layer. As a consequence, an electrochemically active electrode/electrolyte interphase is maintained. We also attribute that the electrochemical activity of the intermetallic anode is highly dependent upon the reaction kinetics, because the hydrolysis of the intermetallics is fundamentally same as the electrochemical reaction. In the hydrolysis process of the intermetallic anodes, the reduction of the proton in the water initiates the oxidation of the Mg₃Bi₂ or the Mg₃Sb₂ associated with the extraction of Mg²⁺ in the host structure. The Mg₃Sb₂ still remains even after the 10 days of the reaction, while the hydrolysis of the Mg₃Bi₂ is mostly completed after < 6 days as shown in Figure 7C. It clearly shows the reaction kinetics of the hydrolysis process of the Mg₃Bi₂ is much faster than that of the Mg₃Sb₂. Even without the quantitative discussion, the fast reaction kinetics of the hydrolysis process well matches with the electrochemical activity of the intermetallic anodes.

FIGURE 7

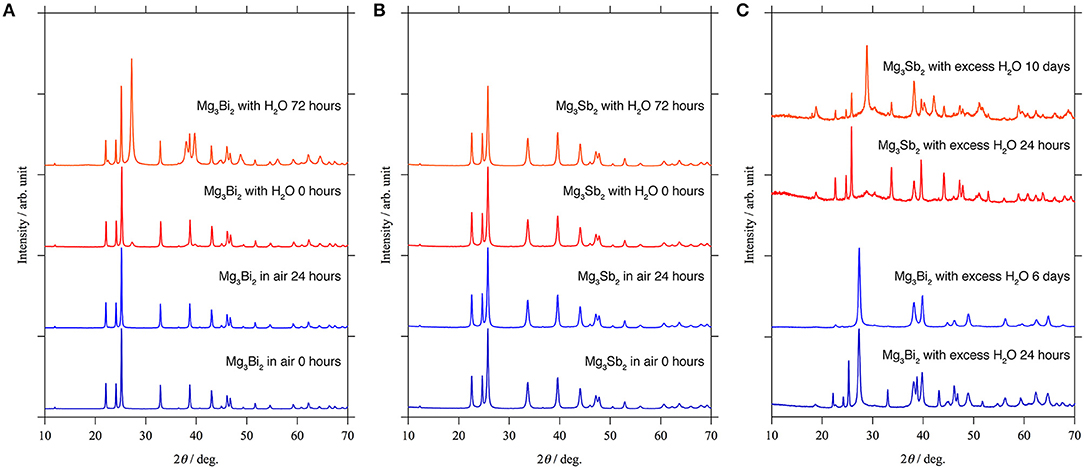

Figure 7. XRD patterns for the stability test: (A) Mg₃Bi₂ and (B) Mg₃Sb₂ powder in ambient atmosphere and small amount of water. (C) Mg₃Bi₂ powder and Mg₃Sb₂ powder immersed in the excess amount of water.

Mg²⁺ Diffusion Pathways in the Mg₃Bi₂

The Mg²⁺ diffusion in the bulk active materials is one of the key parameters which determines the reaction kinetics of the magnetization/demagnetization process, here we investigated the diffusion pathways of Mg²⁺ in the Mg₃Bi₂ and the Mg₃Sb₂. The bond valence sum (BVS) mapping is one methodology to visualize the pathways of the mobile ions in the crystal structure. The bond-valence parameters for Mg₃Bi₂ and Mg₃Sb₂ were calculated by following equation (Brese and O'Keeffe, 1991).

$\begin{array}{ll}Ro=bln\left[V_{ij}/{\Sigma }_j\text{exp}({-d}_{ij}/b)\right]& (2)\end{array}$

Here b is commonly taken to a constant value 0.37 Å. V_ij is sum of valences of given atoms i and d_ij is bond length from refinement results. The calculated Ro value for the Mg₃Bi₂ and the Mg₃Sb₂ are 2.687 and 2.617, respectively. Figure 8 shows the BVS mapping of the Mg₃Bi₂ and the Mg₃Sb₂ using the refined structure model with discussed in Electrochemical properties of the Mg₃Bi₂ and Mg₃Sb₂ composite electrode. The BVS mappings of the Mg₃Bi₂ clearly show 2D layered diffusion pathways connecting the 2d tetrahedral sites at cut off value: |ΔV| = 0.45 as shown in Figures 8A,B. Figure 8C shows a migration path between the two tetrahedral sites of the Mg₃Bi₂. The Mg²⁺ ion at the tetrahedral site is preferred to migrate to the next tetrahedral site, via the interstitial octahedral site. The estimated migration path is in good agreement with the proposed diffusion path model for Mg²⁺ by DFT-NEB simulations (Rong et al., 2015). Jung et al. also reported that the migration barrier in between two tetrahedral sites of Mg₃Bi₂ is 0.30 eV, suggesting fast Mg²⁺ mobility in the Mg₃Bi₂ phase (Jung and Han, 2018). In addition, once the vacancy is formed, the fast migration of the Mg²⁺ from the octahedral site to the vacancy at the tetrahedral site is also expected (Lee et al., 2018). Even though the BVS mapping is not as accurate as DFT modeling, the estimated Mg²⁺ diffusion pathways are qualitatively informative to discuss the fast Mg²⁺ mobility in the solid phase. We also performed the BVS mapping of the Mg₃Sb₂ as shown in Figures 8D,E. At glance, the estimated diffusion pathways look similar to the mapping of the Mg₃Bi₂, however all the preferred diffusion path at interstitial octahedral sites are isolated at cut off value: |ΔV| = 0.45, as seen in Figure 8E. Figure 8F shows the 2D layered diffusion pathways in the Mg₃Sb₂ formed at cut off value: |ΔV| = 0.6. The higher cut off value indicates that the higher migration barrier of the Mg²⁺ ions in the Mg₃Sb₂ (Fedotov et al., 2018). The BVS mapping results suggests that the Mg²⁺ migration in Mg₃Bi₂ is qualitatively faster than in Mg₃Sb₂. Though we still need further validation analyses, all the results are consistent with the contribution of the fast Mg²⁺ mobility to the excellent electrochemical properties of the Mg₃Bi₂.

FIGURE 8

Figure 8. Visualized Mg²⁺ diffusion pathways by BVS mapping in Mg₃Bi₂ and Mg₃Sb₂. (A) overview of Mg₃Bi₂, (B) the 2D diffusion pathways in 2d tetrahedral sites in Mg₃Bi₂ from c-axis, and (C) an enlarged image of two MgBi₄ tetrahedra with an interstitial octahedron, (D) overview of Mg₃Sb₂, (E) 2d tetrahedral sites in Mg₃Sb₂ from c-axis (F) 2d tetrahedral sites in Mg₃Sb₂ from c-axis at cut off |ΔV| = 0.6.

Conclusion

In the present study, we investigated the electrochemical properties of the magnesium-based intermetallic compounds as alternative anode active material for magnesium batteries. Even though the Mg₃Bi₂ and the Mg₃Sb₂ have same crystal structure, the electrochemical activity of the Mg₃Sb₂ was almost negligible, while the Mg₃Bi₂ showed highly reversible redox reaction at −2.1 V vs. Ag⁺/Ag. The XPS analyses of the Mg₃Bi₂ thin films showed formations of the MgF₂-based surface layer, which is the reduction product of the TFSA anion and also observed at the surface of the magnesium metal thin film. On the other hand, the excellent electrochemical activity of Mg₃Bi₂ in three electrolyte solutions: 1 mol L⁻¹ Mg(TFSA)₂ in AN, 0.5 mol L⁻¹ Mg(TFSA)₂ in BuMeG3, and 0.5 mol L⁻¹ Mg(TFSA)₂ in DME, suggests that the surface of the Mg₃Bi₂ is not passivated even with the formation of the MgF₂ layer. We also investigated the stability of the Mg₃Bi₂ and the Mg₃Sb₂ in ambient atmosphere and in water. The stability tests of the intermetallics revealed that the formation of the intermetallics is an effective way to avoid the passivation of the anode surface. The results also suggested the reversibility of the intermetallic anode is not only dependent on the passivation-free surface, but on the fast reaction kinetics. The BVS mapping showed that the Mg²⁺ conduction pathway among tetrahedral sites well matches with the predicted fast Mg²⁺ diffusion path by DFT modeling. Here we conclude that the formation of the intermetallics is effective strategy to avoid the passivation of anode surface, which hinders the reversible redox reaction. The fast Mg²⁺ ion mobility in the solid phase is another key parameter to obtain the good reversibility applicable to a practical battery system.
